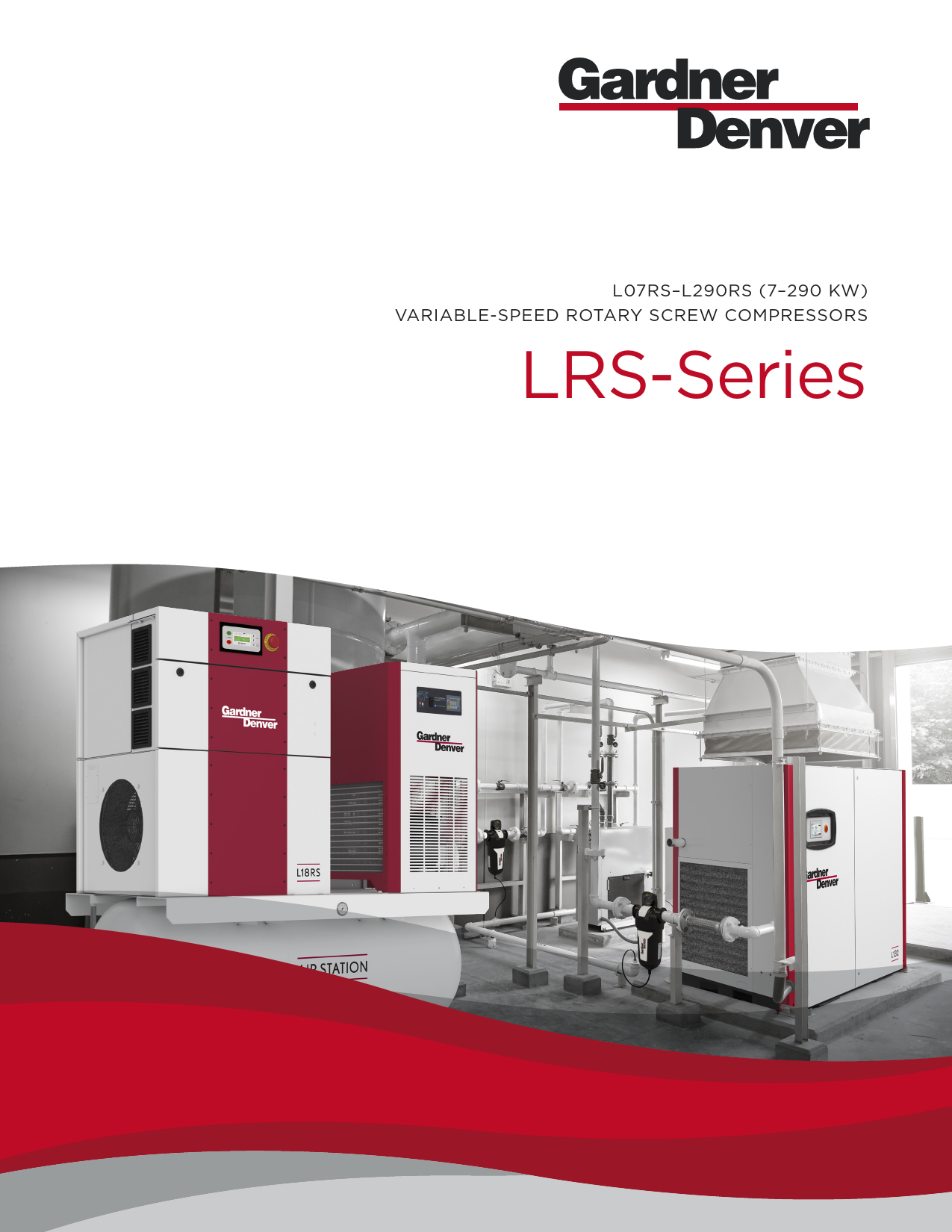

L07RSL290RS (7290 KW) VARIABLE-SPEED ROTARY SCREW C OMPRESSORS LRS-Series Advanced Technology Inspired Simplicity A Better Approach Gardner Denver has a long history of manufacturing compressed air equipment. With our LRS-Series line of products, we have uniquely combined simplicity with cutting edge design. The result--a compressor that delivers outstanding performance with unprecedented serviceability. The Total Package Gardner Denver has the total package--extensive compressor and air treatment product lines, sales and service support through our extensive network of authorized local distributors, and industry leading warranty programs. Because we offer more than just compressed air equipment, we can provide solutions that keep you running, protect your production objectives, and save you money. Expect More? Choose Gardner Denver 2 3 GARDNER DENVER--TAKING QUIET TO A WHOLE NEW LEVEL Without sacrificing serviceability, the LRS-Series compressor packages feature some of the smallest footprints in the industry. Lower Installation Costs IwInnhcsteraenlalaDsteeidotenFrLlmeoxincibainitlgiiotyn AHabnilditlyetaonMd oMreovEeaMsilaychines Small Footprint = Cost Savings 4 Casual Conversation L07RS Rotary Screw Competitive Rotary Screw Compressor Garbage Disposal Typical Recip Compressor Lawn Mower Compact, Quiet Compressors Nearly Silent Noise Levels The Gardner Denver LRS-Series compressor designs feature high-quality, sound-insulating enclosure panels and a low-noise, thermostaticallycontrolled, motor-driven fan. These components reduce the noise to whisper-quiet levels and eliminate the need for a separate compressor room, saving money on installation costs. 90 81 80 75 63 60 dBA Levels 5 Reduce Energy. Maximize Efficiency. Save Money. Perfect Response to Your Individual Air Demand Variable speed compressors from Gardner Denver can efficiently and reliably handle the varying air demand. The right variable speed compressor in the right application delivers significant energy savings and a stable air supply at constant pressure. Minimize Your Energy Consumption The largest cost component of a compressor during its lifetime is the power required to operate it. Maximum efficiency at any level of demand cuts energy costs and saves money. Energy Savings 6 % POWER 100 90 80 70 60 50 40 30 20 10 0 0 Variable Speed Drive ENERGY SAVINGS 10 20 30 40 50 60 70 80 90 100 % CAPACITY VSD Load / No Load 1gal/cfm High Efficiency TEFC Motor Low Life Cycle Costs Market Leading Energy Savings Lowest kW/100 VALUE Minimal Pressure Drop CFM Superior Specific Power Variable Speed vs. Fixed Speed Investment 12% 25% Energy Saving 5% Investment Maintenance & Service Costs 10% 8% Maintenance & Service Costs 58% Energy Cost A variable speed compressor at 70% load 82% Energy Cost A typical fixed speed compressor operating at 70% load Using a variable speed compressor can easily save 25% energy by using just the right amount of energy required to do the job and no more. 7 Get in Touch with the Next Generation of Compressor Controllers State-of-the-Art Gardner Denver completes its industry leading compressor packages with state-of-the-art touch screen controllers: the GD Pilot and GovernorTM. Featuring cutting edge graphics that provide necessary compressor data and full color schematics in seconds, the GovernorTM is now available on select L-Series and LRS-Series compressors models. GovernorTM Touchscreen Controller Features Available on L23RSL290RS compressor models User-friendly navigation with state-of-the-art graphics and design Machine status available on a 7-inch, full color touchscreen display for L30RSL290RS and a 4.3-inch display for L23RSL29RS Detailed schematics at your fingertips Advanced machine diagnostics Data logging and iConn connection Web server to allow access to the GovernorTM from your desktop GD Pilot Controller Features Available on L07RSL22RS compressor models Real time clock Second pressure setting Discharge/line/network pressure data displayed Advanced fault history log Programmable inputs and outputs Auto restart after power failure RS485-Modbus RTU standard 8 Keeping the System Healthy Total System Protection Since 1859, Gardner Denver has been supporting the compressed air industry with high quality, long-lasting compressor and air treatment solutions. Carrying on that legacy, our robust line of parts, lubricant and downstream accessories ensure your system stays healthy. The focus on total system protection by Gardner Denver not only includes OEM parts and fluid solutions, but a commitment to the longevity of your equipment through our industry leading warranty programs. Ensure your compressed air system remains a total package Protect your investment. 9 Sales & Service Distributors Across America An Extensive Network By leveraging the extensive network of Gardner Denver factory-trained authorized local distributors, your sales, service, and technical support needs can be handled quickly and easily. Best Warranty in the Industry Experience Peace of Mind The engineering philosophy of Gardner Denver ensures long-lasting, reliable equipment. Our simple, but bold warranty programs demonstrate our belief in the quality found in Gardner Denver compressors. Our standard warranty ensures that you have peace of mind when it comes to your system's operation. For added protection, take advantage of our 10-year extended airend warranty program. Simply stated, it's the best in the industry. To find a distributor visit: gardnerdenver.com/gdproducts 10 L07RSL290RS ROTARY SCREW COMPRESSOR MODEL DRIVE MOTOR HP KW 50 HZ NOMINAL PRESSURE FAD¹ NOMINAL PRESSURE PSIG BAR ACFM M³/MIN PSIG BAR 60 HZ FAD¹ NOISE LEVEL2 WEIGHT ACFM M³/MIN DB(A) @ 70% LOAD LBS KG L07RS 10 7 100 6.9 44.5 1.26 110 7.6 42.9 1.22 130 9.0 35.7 1.01 130 9.0 37.6 1.07 190 13.1 29.3 0.83 190 13.1 27.9 0.79 L11RS 100 6.9 63.9 1.81 110 7.6 62.1 1.76 15 11 130 9.0 55.1 1.56 130 9.0 56.9 1.61 190 13.1 44.5 1.26 190 13.1 43.5 1.23 L15RS 100 6.9 91.8 2.60 110 7.6 92.0 2.61 20 15 130 9.0 77.0 2.18 130 9.0 81.3 2.30 190 13.1 59.0 1.67 190 13.1 59.1 1.67 L18RS 100 6.9 107.7 3.05 110 7.6 107.8 3.05 25 18 130 9.0 92.5 2.62 130 9.0 95.7 2.71 190 13.1 77.7 2.20 190 13.1 77.8 2.20 L22RS 100 6.9 125.0 3.54 110 7.6 125.2 3.55 30 22 130 9.0 111.2 3.15 130 9.0 116.3 3.29 190 13.1 93.9 2.66 190 13.1 94.0 2.66 L23RS 100 6.9 145.8 4.13 110 7.6 145.5 4.12 30 22 130 9.0 132.1 3.74 145 10.0 123.5 3.50 190 13.1 102.1 2.89 190 13.1 102.1 2.89 L26RS 100 6.9 169.2 4.79 110 7.6 168.9 4.78 35 26 130 9.0 154.0 4.36 145 10.0 144.9 4.10 190 13.1 125.7 3.56 190 13.1 125.7 3.56 L29RS 100 6.9 191.4 5.42 110 7.6 190.9 5.41 40 30 130 9.0 171.6 4.86 145 10.0 159.0 4.50 190 13.1 134.9 3.82 190 13.1 134.9 3.82 L30RS 100 6.9 194.2 5.50 110 7.6 194.3 5.51 40 30 125 8.6 179.0 5.07 125 8.6 182.5 5.17 145 10.0 169.8 4.81 145 10.0 170 4.82 L37RS 100 6.9 238.3 6.75 110 7.6 238.5 6.75 50 37 125 8.6 221.0 6.26 125 8.6 224.6 6.36 190 13.1 182.5 5.17 190 13.1 182.5 5.17 L45RS 100 6.9 277.5 7.86 110 7.6 277.0 7.85 60 45 125 8.6 258.0 7.31 125 8.6 262.3 7.43 190 13.1 216.0 6.12 190 13.1 216.3 6.13 L55RS 110 7.6 361.3 10.2 100 6.9 361.3 10.2 75 55 125 8.6 341.1 9.7 125 8.6 341.1 9.7 145 10.0 318.6 9.0 145 10.0 318.6 9.0 L75RS 100 75 110 7.6 463.4 13.1 100 6.9 463.4 13.1 145 10.0 410.5 11.6 145 10.0 410.5 11.6 190 13.1 362.5 10.3 190 13.1 362.5 10.3 L90RS 125 90 100 6.9 612.8 17.36 100 6.9 622.7 17.64 125 8.6 571.5 16.19 130 9.0 583.1 16.52 190 13.1 450.4 12.76 190 13.1 450.5 12.76 100 6.9 731.1 20.71 100 6.9 731.3 20.72 L110RS 150 110 125 8.6 679.2 19.24 130 9.0 690.7 19.57 190 13.1 551.4 15.62 190 13.1 551.6 15.63 100 6.9 802.4 22.73 100 6.9 802.8 22.74 L132RS 180 132 125 8.6 747.7 21.18 130 9.0 760.1 21.53 190 13.1 609.3 17.26 190 13.1 609.4 17.26 100 6.9 1116.5 31.62 100 6.9 1119.2 31.69 L160RS 215 160 125 8.6 1045.7 29.61 125 8.6 1049.8 29.73 190 13.1 836.8 23.70 190 13.1 819.7 23.21 100 6.9 1368.0 38.74 100 6.9 1365.2 38.66 L200RS 270 200 125 8.6 1299.1 36.79 125 8.6 1291.3 36.57 190 13.1 1051.9 29.79 190 13.1 1027.3 29.09 100 6.9 1477.3 41.83 100 6.9 1466.0 41.51 L250RS 340 250 125 8.6 1401.0 39.67 125 8.6 1369.8 38.79 190 13.1 1138.9 32.25 190 13.1 1091.6 30.91 100 6.9 1620.7 45.89 100 6.9 1605.6 45.47 L290RS 390 290 125 8.6 1542.6 43.68 125 8.6 1504.0 42.59 190 13.1 1250.4 35.41 190 13.1 1201.0 34.01 1) Data measured and stated in accordance with ISO1217, Ed. 4, Annex C & Annex E at the following conditions: Air Intake Pressure 1 bar A, Air Intake Temperature 20° C, Humidity 0% (Dry) 2) Measured in free field conditions in accordance with ISO 2151, tolerance +/ 3dB 63 489 222 64 509 231 67 805 365 68 840 381 69 851 386 68 1501 681 70 1561 708 70 1570 712 68 2039 925 69 2099 952 71 2147 974 69 3805 1726 72 3968 1800 72 6102 2768 72 6107 2770 75 6142 2786 76 9652 4378 78 10082 4573 79 10293 4669 81 10326 4684 DIMENSIONS L × W × H IN. (MM) 27 × 25 × 41 (686 × 635 × 1041) 31 × 28 × 47 (787 × 711 × 1194) 53.0 × 34.6 × 63.5 (1345 × 880 × 1612) 67.8 × 36.2 × 65.3 (1722 × 920 × 1659) 85 × 48 × 78 (2159 × 1219 × 1981) 92 × 54 × 80.3 (2337 × 1372 × 2039) 115 × 82 × 86 (2907 × 2071 × 2193) 11 GARDNER DENVER | LRS-SERIES The leader in every market we serve by continuously improving all business processes with a focus on innovation and velocity Gardner Denver, Inc. 1800 Gardner Expressway Quincy, IL 62305 866-440-6241 www.gardnerdenver.com/gdproducts ©2021 Gardner Denver, Inc.Printed in U.S.A. GS-L07RS-L290RS 11th Ed. 3/21 Please recycle after use.Adobe PDF Library 15.0 Adobe InDesign 15.0 (Macintosh)
