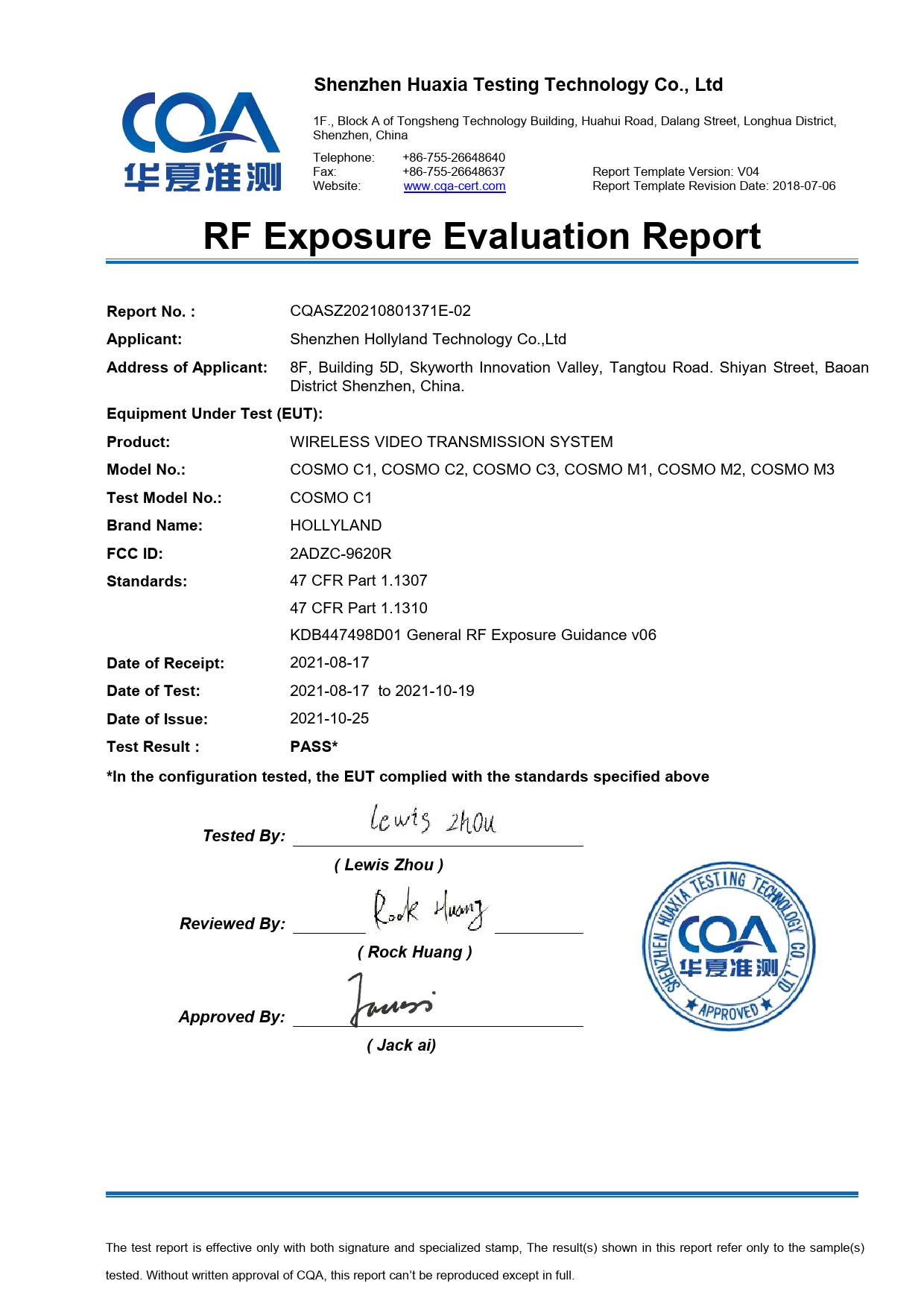

Shenzhen Huaxia Testing Technology Co., Ltd 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Telephone: Fax: Website: +86-755-26648640 +86-755-26648637 www.cqa-cert.com Report Template Version: V04 Report Template Revision Date: 2018-07-06 RF Exposure Evaluation Report Report No. : CQASZ20210801371E-02 Applicant: Shenzhen Hollyland Technology Co.,Ltd Address of Applicant: 8F, Building 5D, Skyworth Innovation Valley, Tangtou Road. Shiyan Street, Baoan District Shenzhen, China. Equipment Under Test (EUT): Product: WIRELESS VIDEO TRANSMISSION SYSTEM Model No.: COSMO C1, COSMO C2, COSMO C3, COSMO M1, COSMO M2, COSMO M3 Test Model No.: COSMO C1 Brand Name: HOLLYLAND FCC ID: Standards: 2ADZC-9620R 47 CFR Part 1.1307 47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: Date of Test: 2021-08-17 2021-08-17 to 2021-10-19 Date of Issue: 2021-10-25 Test Result : PASS* *In the configuration tested, the EUT complied with the standards specified above Tested By: ( Lewis Zhou ) Reviewed By: ( Rock Huang ) Approved By: ( Jack ai) The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CQA, this report can't be reproduced except in full. Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210801371E-02 1 Version Revision History Of Report Report No. CQASZ20210801371E-02 Version Rev.01 Description Initial report Issue Date 2021-10-25 Page:2 of 6 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210801371E-02 2 Contents Page 1 VERSION............................................................................................................................................................................. 2 2 CONTENTS......................................................................................................................................................................... 3 .................................................................................................................................................................................................. 3 3 GENERAL INFORMATION.............................................................................................................................................. 4 3.1 CLIENT INFORMATION.................................................................................................................................................... 4 3.2 GENERAL DESCRIPTION OF EUT....................................................................................................................................4 4 RF EXPOSURE EVALUATION....................................................................................................................................... 5 4.1 RF EXPOSURE COMPLIANCE REQUIREMENT..................................................................................................................5 4.1.1 Limits.................................................................................................................................................................... 5 4.1.2 Test Procedure................................................................................................................................................... 5 4.1.3 EUT RF Exposure Evaluation standalone operations.................................................................................. 6 Page:3 of 6 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210801371E-02 3 General Information 3.1 Client Information Applicant: Address of Applicant: Manufacturer: Address of Manufacturer: Factory: Address of Factory: Shenzhen Hollyland Technology Co.,Ltd 8F, Building 5D, Skyworth Innovation Valley, Tangtou Road. Shiyan Street, Baoan District Shenzhen, China. Shenzhen Hollyland Technology Co.,Ltd 8F, Building 5D, Skyworth Innovation Valley, Tangtou Road. Shiyan Street, Baoan District Shenzhen, China. Shenzhen Hollyland Technology Co.,Ltd BanTian Branch 8F, Building 5D, Skyworth Innovation Valley, Tangtou Road. Shiyan Street, Baoan District Shenzhen, China. 3.2 General Description of EUT Product Name: Model No.: Test Model No.: WIRELESS VIDEO TRANSMISSION SYSTEM COSMO C1, COSMO C2, COSMO C3, COSMO M1, COSMO M2, COSMO M3 COSMO C1 Trade Mark: EUT Supports Radios application Hardware Version: Software Version: Adapter: Product Type: Test Software of EUT: Antenna Type: Antenna Gain: HOLLYLAND 5GHz: custom: U-NII-1: 5.15-5.25GHz; U-NII-3: 5.725-5.850GHz; F782381028 V1.0.1.2 Adapter: MODEL: A241-120200I INPUT: 100-240V~50/60Hz 0.8A Max OUTPUT: 12V 2A, 24W Mobile Portable Fix Location ARSirisu Debug Tool (manufacturer declare) External antenna 5G custom 4 dBi Page:4 of 6 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210801371E-02 4 RF Exposure Evaluation 4.1 RF Exposure Compliance Requirement 4.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 4.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Page:5 of 6 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210801371E-02 4.1.3 EUT RF Exposure Evaluation standalone operations For 5G WIFI Antenna Gain: 4 dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.512 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Measurement Data Test channel 802.11a(U-NII-1) mode Peak Output Power Tune up tolerance (dBm) (dBm) Maximum tune-up Power (dBm) (mW) Lowest(5180MHz) Middle(5200MHz) Highest(5240MHz) 12.72 12.43 13.18 12.0±1 12.0±1 13.0±1 13 19.953 13 19.953 14 25.119 Test channel Lowest(5760MHz) Middle(5780MHz) Highest(5820MHz) 802.11a(U-NII-3) mode Peak Output Power Tune up tolerance (dBm) (dBm) 13.2 12.32 12.18 13.0±1 12.0±1 12.0±1 Maximum tune-up Power (dBm) (mW) 14 25.119 13 19.953 13 19.953 The worst case: Maximum tune-up Power (mW) Antenna Gain (dBi) Power Density at R = 20 cm (mW/cm2) Limit Result 25.119 4 0.013 1.0 PASS Note: 1) Refer to report No. CQASZ20210801369E-03 for EUT test Max Conducted Peak Output Power value. 2) Pd = (Pout*G)/(4* Pi * R2)=(25.119*2.512)/(4*3.1416*202)=0.013 Page:6 of 6WPS 文字
