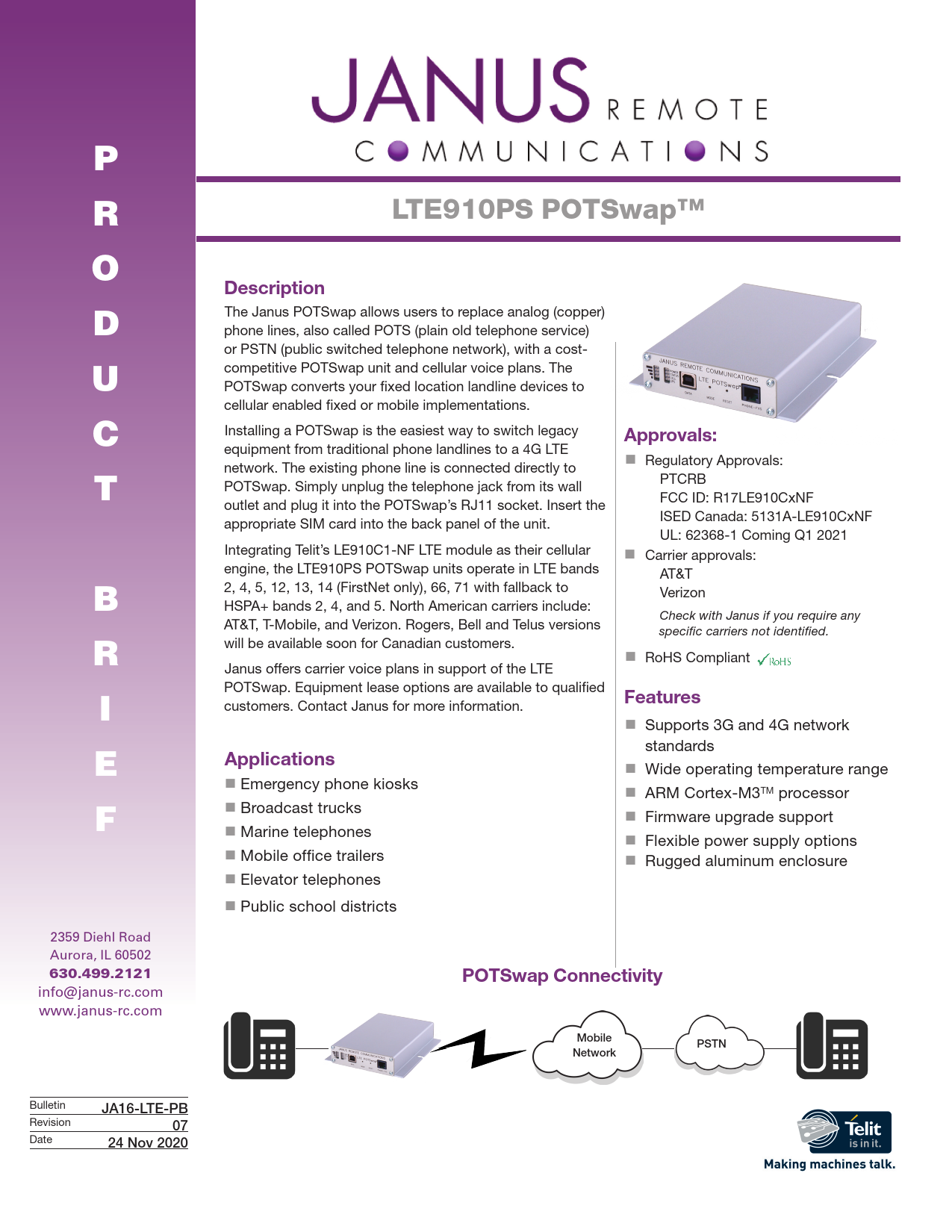

P R O D U C T B R I E F 2359 Diehl Road Aurora, IL 60502 630.499.2121 info@janus-rc.com www.janus-rc.com LTE910PS POTSwapTM Description The Janus POTSwap allows users to replace analog (copper) phone lines, also called POTS (plain old telephone service) or PSTN (public switched telephone network), with a costcompetitive POTSwap unit and cellular voice plans. The POTSwap converts your fixed location landline devices to cellular enabled fixed or mobile implementations. Installing a POTSwap is the easiest way to switch legacy equipment from traditional phone landlines to a 4G LTE network. The existing phone line is connected directly to POTSwap. Simply unplug the telephone jack from its wall outlet and plug it into the POTSwap's RJ11 socket. Insert the appropriate SIM card into the back panel of the unit. Integrating Telit's LE910C1-NF LTE module as their cellular engine, the LTE910PS POTSwap units operate in LTE bands 2, 4, 5, 12, 13, 14 (FirstNet only), 66, 71 with fallback to HSPA+ bands 2, 4, and 5. North American carriers include: AT&T, T-Mobile, and Verizon. Rogers, Bell and Telus versions will be available soon for Canadian customers. Janus offers carrier voice plans in support of the LTE POTSwap. Equipment lease options are available to qualified customers. Contact Janus for more information. Applications Emergency phone kiosks Broadcast trucks Marine telephones Mobile office trailers Elevator telephones Public school districts Approvals: Regulatory Approvals: PTCRB FCC ID: R17LE910CxNF ISED Canada: 5131A-LE910CxNF UL: 62368-1 Coming Q1 2021 Carrier approvals: AT&T Verizon Check with Janus if you require any specific carriers not identified. RoHS Compliant Features Supports 3G and 4G network standards Wide operating temperature range ARM Cortex-M3TM processor Firmware upgrade support Flexible power supply options Rugged aluminum enclosure POTSwap Connectivity Mobile Network PSTN Bulletin Revision Date JA16-LTE-PB 07 24 Nov 2020 POTSwapTM Interfaces Modem/Telephone Serial Cellular Antenna GPS Antenna Power Input Features SLIC Voice Cellular Connection SIM Card Mounting Pushbuttons LEDs Dimensions (L x W x D) Weight Environmental Operating Temperature Relative Humidity Specifications RJ11 FXS USB Mini -- user terminal interface for configuration and firmware upload. SMA SMA; 3.3 V LNA bias voltage output. 7-15 Vdc; 22W with two input alternatives: 6mm DC power jack with 2mm center pin positive 5.08mm (0.200") terminal header (accepts screw clamp and crimp connector type terminal blocks) Performs all BORSCHT functions DTMF decoding REN=1 at 100 ft. (30m) VoLTE (4G) and Voice over cellular (3G fallback) 4G (LTE) bands 2, 4, 5, 12, 13, 14 (FirstNet only), 66 and 71. Plus 3G (fallback) bands 2, 4 and 5. Micro (3FF size) SIM Card Integrated mounting brackets MODE and RESET Power, Status, Cellular Link, GPS and Signal Strength 6.0 in (152mm) x 5.2 in (132mm) x 1.2 in (30mm) 13 oz (365 g) -40° C to +60° C (-40° F to 140° F) (Note: 6mm DC power jack is not specified for operation below -25°C) 5% to 95% (non-condensing) POTSwap MODEL LTE910PS v1.00 - TBUVN LTE910PS v3.00 - TAUVN LTE POTSwapTM Ordering Information DESCRIPTION AT&T, Rogers, Bell and Telus (no Band 14) Verizon (no Band 14) (Emergency calls to 911 are not supported) LTE POTSwapTM Carrier Certifications and Regulatory Approvals The POTSwap includes several cellular carrier and regulatory approvals and certifications, as stated in our Product Briefs, User Manuals, and other documentation. Ultimately, the customer is responsible for ascertaining and abiding by the Federal, State and local laws, regulations and other requirements regarding the application in which they will deploy the POTSwap. Revision History Revision 00 01 02 03 04 05 06 07 Date 06/18/19 01/30/20 02/18/20 04/28/20 07/27/20 09/17/20 09/27/20 11/24/20 Note Initial Release Revisions to Firmware Updated Band Information Updated Firmware info Added Certification Information Updated Ordering Information Added UL 62368-1 Safety Standards & Removed info on Data Plans Notice to customers: Carrier, Certifications and Regulatory Approvals Division of The Connor-Winfield Corporation 2359 Diehl Road · Aurora, IL 60502 630.499.2121 · info@janus-rc.com www.janus-rc.com Contact Sales for Additional Special Order Options: Dave Jahr: djahr@janus-rc.com | 630-499-2121 © Copyright 2020 Janus Remote Communications. POTSwap is a registered trademark of Janus. All Rights Reserved Specifications subject to change without notice See website for latest revision. Not intended for life support applications.Adobe PDF Library 9.0 Adobe InDesign CS4 (6.0.6)
