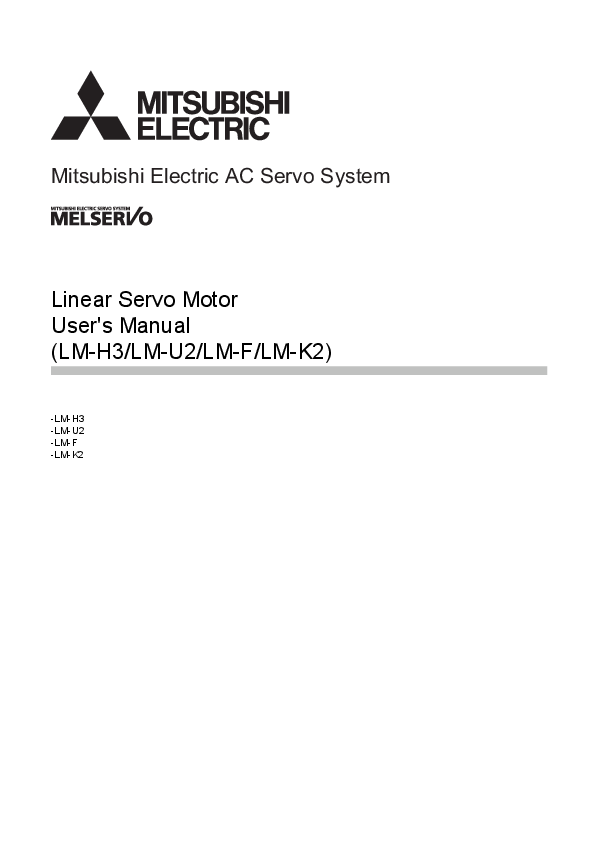

Mitsubishi Electric AC Servo System
Linear Servo Motor User's Manual (LM-H3/LM-U2/LM-F/LM-K2)
-LM-H3 -LM-U2 -LM-F -LM-K2

SAFETY INSTRUCTIONS

Please read the instructions carefully before using the equipment. To use the equipment correctly, do not attempt to install, operate, maintain, or inspect the equipment until you have read through this manual, installation guide, and appended documents carefully. Do not use the equipment until you have a full knowledge of the equipment, safety information and instructions. In this manual, the safety instruction levels are classified into "WARNING" and "CAUTION".
WARNING Indicates that incorrect handling may cause hazardous conditions, resulting in death or severe injury.

CAUTION

Indicates that incorrect handling may cause hazardous conditions, resulting in medium or slight injury.

Note that the CAUTION level may lead to a serious consequence depending on conditions. Please follow the instructions of both levels because they are important to personnel safety. Forbidden actions and required actions are indicated by the following diagrammatic symbols.

Indicates a forbidden action. For example, "No Fire" is indicated by .

Indicates a required action. For example, grounding is indicated by .
In this manual, precautions for hazards that can lead to property damage, instructions for other functions, and other information are shown separately in the "POINT" area. After reading this manual, keep it accessible to the operator.

[Transportation] CAUTION
 To prevent injury, transport the products correctly according to their mass.

[Installation/wiring]
WARNING
 To prevent an electric shock, turn off the power and wait for 15 minutes or more before starting wiring and/or inspection.
 To prevent an electric shock, ground the linear servo motor securely.  To prevent an electric shock, any person who is involved in wiring should be fully competent to do the
work.  To prevent an electric shock, do not attempt to wire the linear servo motor until it has been mounted.  To prevent an electric shock, do not touch the conductive parts.

1

[Installation/wiring]

CAUTION
 To prevent injury, only professional engineers with knowledge of the product should install the product.  To prevent injury when handling the linear servo motor, do not touch sharp edges such as the sharp
edges of the linear servo motor with bare hands.  On linear servo motors, the permanent magnet on the secondary side generates attraction force in the
area between the magnetic material. This attraction force may cause injuries to hands and other body parts that enter the area between the secondary side and the magnetic material, so take special care when handling the motor.

Magnetic body such as iron

Secondary side

Magnetic attraction force: 5 t max.
[Maintenance] WARNING
 To prevent an electric shock, any person who is involved in inspection should be fully competent to do the work.
CAUTION
 To prevent injury, only professional engineers with knowledge of the product should replace the product.
[Disposal]
CAUTION
 To prevent injury, only professional engineers with knowledge of the product should dispose of the product.
 To avoid a burn when heating the secondary side to 300 �C or more in order to demagnetize it, allow the secondary side to adequately cool before touching it.
DISPOSAL OF WASTE
Please dispose of this product and other options according to your local laws and regulations.

2

ABOUT THE MANUAL

e-Manuals are Mitsubishi Electric FA electronic book manuals that can be browsed with a dedicated tool. e-Manuals enable the following: � Searching for desired information in multiple manuals at the same time (manual cross searching) � Jumping from a link in a manual to another manual for reference � Browsing for hardware specifications by scrolling over the components shown in product illustrations � Bookmarking frequently referenced information � Copying sample programs to engineering tools
If using the servo for the first time, prepare and use the following related manuals to ensure that the servo is used safely. The manuals used differ depending on the interface of the servo amplifier. For details, refer to the User's Manual (Introduction).

Introduction
This manual is necessary primarily for installing, wiring, and using options.

Hardware

Rotary Servo Motor Linear Servo Motor Direct Drive Motor

Partner Encoder

The manual is necessary for operation of servo amplifiers.

Function

The manual is necessary for using communication functions.

Communication Function

The manual is necessary for adjustment of operation status.
The manual is necessary when looking up details of each function.

Adjustment Parameters

Object Dictionary

The manual is necessary for specifying the causes of alarms and warnings.

Troubleshooting

3

HANDLING THE LINEAR SERVO MOTOR
Structure of the linear servo motor
The linear servo motor consists of a primary side made up of an iron core and coil and a secondary side made up of a mounting part (yoke) and a permanent magnet. (excluding coreless type LM-U2 series)
Primary side
Laminated core

Molded resin Molded resin or stainless steel cover

Motor coil

Permanent magnet

Secondary side

Mounting part (yoke)

Primary side
The primary side contains a magnet wire wound around the iron core of the motor and is covered with molded resin.
Secondary side
The secondary side has a permanent magnet on the mounting part (yoke) and is protected with molded resin or a stainless steel cover.

4

Magnetic attraction force
The secondary side of the linear servo motor contains a strong permanent magnet, so a magnetic attraction force (the force by which a magnet attracts magnetic materials) is generated toward magnetic materials such as iron. This magnetic attraction force is always generated regardless of whether the linear servo motor power is on/off.
Always acting regardless of on/off of the power

Magnetic attraction force

Magnet side face

Mounting part (yoke) side face

The magnetic fluxes generated by the permanent magnet are dispersed into the air from the magnet face side (the side facing the primary side), and most of said fluxes do not leak to the mounting part (yoke) surface side due to its structure. Because of this, the magnetic attraction force occurs on the magnet face side of the secondary side, not on the mounting part (yoke) surface side.
Magnet side face...Dispersion of magnetic fluxes

Generating magnetic attraction force

Permanent magnet

Magnetic fluxes

North pole

South pole

North pole

Mounting part (yoke)

Mounting part side face...No dispersion of magnetic fluxes

Not generating magnetic attraction force
The permanent magnet used for the linear servo motor is very strong. When an A4-sized iron sheet is fully attracted, the magnetic attraction force becomes as high as 2.5 t. Exercise sufficient caution when handling the product. Magnetic attraction force  400 [kPa]

If an A4-size iron sheet is fully attracted

A4 (21 � 29.7 cm)

Approx. 2.5 t

For safety
The magnetic attraction force is in inverse proportion to the square of the distance between magnetic materials, and said force drastically increases when the distance becomes small. When mounting the secondary side of the linear side motor, ensure that the distance from nearby magnetic materials is sufficient and securely fix said magnetic materials into place. If a problem is suspected with the product, stop using it immediately.

5

Notes on handling
� Only professional engineers with knowledge of the product should handle it. � Individuals using a medical device such as a pacemaker must keep a distance from the product and equipment. � Do not wear metal items such as watches, earrings, necklaces, etc. � Use non-magnetic tools. (Example) BEALON explosion-proof beryllium copper alloy safety tools (NGK) � Do not place magnetic cards, watches, portable phones, etc. close to the motor. � Do not process or strike the product. � Place signage stating "Caution - Strong magnetic field", etc. In addition, take measures that make the location of the
product known in the surrounding area.

Disposal of the linear servo motor
� The primary side must be discarded as industrial waste. � The secondary side must be discarded as industrial waste after it is demagnetized by being heating to 300 �C or more. � Do not leave the product unpacked when it is not in use.

Primary side

Secondary side

Discard as industrial waste.

After demagnetizing over 300 �C, discard as industrial waste.

CABLES USED FOR WIRING

Cables mentioned in this manual are selected based on an ambient temperature of 40 �C.
U.S. CUSTOMARY UNITS

U.S. customary units are not shown in this manual. Convert the values if necessary according to the following table.

Quantity

SI (metric) unit

U.S. customary unit

Mass

1 [kg]

2.2046 [lb]

Length

1 [mm]

0.03937 [inch]

Torque Moment of inertia

1 [N�m] 1 [(� 10-4 kg�m2)]

141.6 [oz�inch] 5.4675 [oz�inch2]

Load (thrust load/axial load)

1 [N]

0.2248 [lbf]

Temperature

N [�C] � 9/5 + 32

N [�F]

6

CONTENTS

CONTENTS

SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 DISPOSAL OF WASTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 ABOUT THE MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 HANDLING THE LINEAR SERVO MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 CABLES USED FOR WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 U.S. CUSTOMARY UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

CHAPTER 1 HANDLING THE LINEAR SERVO MOTOR

10

1.1 Rating plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 1.2 Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 1.3 Design instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 1.4 Instructions on installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 1.5 Instructions on storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Storage method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 1.6 Instructions on disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

CHAPTER 2 INSPECTION

20

2.1 Inspections of the primary side (coil) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.2 Inspections of the secondary side (magnet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.3 Inspections of the linear encoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

CHAPTER 3 REPLACEMENT OF THE LINEAR SERVO MOTOR IN THE ABSOLUTE

POSITION DETECTION SYSTEM

22

3.1 Replacement of the primary side (coil) or secondary side (magnet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.2 Replacement of the linear encoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

CHAPTER 4 CONNECTING THE SERVO AMPLIFIER AND LINEAR SERVO MOTOR 24
4.1 Precautions for wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 4.2 Servo motor power supply cable wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
LM-H3/LM-U2/LM-K2 series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 LM-F series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 4.3 Wire selection example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

CHAPTER 5 LM-H3 SERIES

30

5.1 Model designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Primary side (coil) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Secondary side (magnet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.2 Standard specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Standard specifications list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Thrust characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.3 Derating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Restrictions on the ambient temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Restrictions on the altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Fitting method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Installation of the secondary side (magnet). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Installation of the primary side (coil) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7

5.5 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Primary side (coil) dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Secondary side (magnet) dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

CHAPTER 6 LM-U2 SERIES

41

6.1 Model designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Medium thrust series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Large thrust series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 6.2 Standard specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Standard specifications list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Thrust characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 6.3 Derating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Restrictions on the ambient temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Restrictions on the altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 6.4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Mounting dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Installation of the secondary side (magnet). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Installation of the primary side (coil) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 6.5 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Primary side (coil) dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Secondary side (magnet) dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

CHAPTER 7 LM-F SERIES

54

7.1 Model designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Primary side (coil) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Secondary side (magnet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
7.2 Standard specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Standard specifications list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Thrust characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 7.3 Derating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Restrictions on the ambient temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Restrictions on the altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 7.4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Fitting method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Installation of the secondary side (magnet). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Installation of the primary side (coil) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 7.5 Liquid cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 7.6 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Primary side (coil) dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Secondary side (magnet) dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

CHAPTER 8 LM-K2 SERIES

65

8.1 Model designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Primary side (coil) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Secondary side (magnet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
8.2 Standard specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Standard specifications list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Thrust characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 8.3 Derating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Restrictions on the ambient temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

8

CONTENTS

Restrictions on the altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 8.4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Mounting dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 8.5 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Primary side (coil) dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Secondary side (magnet) dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 REVISIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78 WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79 TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
9

1 HANDLING THE LINEAR SERVO MOTOR
The linear servo motor uses a strong magnet on the secondary side. Incorrect handling is extremely dangerous and may cause serious accidents. Please read this chapter and thoroughly understand the contents before using the motor and be sure to handle the motor carefully.
1.1 Rating plate
The following shows an example of the rating plate for explanation of each item.
Primary side (coil)
LM-H3/LM-F/LM-K2 series
Country of origin
Model Continuous thrust, maximum speed, frequency
Input power, rated current Insulation class, serial number *1
*2
Manufacturer
LM-U2 series
� LM-U2PA_/LM-U2PB_series
*2
Country of origin Model, serial number *1, insulation class
Continuous thrust, maximum speed, frequency, input power, rated current
Manufacturer
� LM-U2P2_series
*2
Country of origin Model
Continuous thrust, maximum speed, frequency, insulation class Input power, rated current, serial number *1
Manufacturer
*1 The production year and month of the primary side of the linear servo motor are indicated in the serial number on the rating plate. For the production year and month, the last two digits of the year and the month in numerical format [1 to 9, X (10), Y (11), and Z (12)] are displayed. For January 2012, the serial number would be "SER. _ _ _ _ _ _ _ _ _ 121".
*2 Products proven to comply with the standards set by a given Certification Body are marked with the appropriate certification marks. The marks vary for each Certification Body.

10

1 HANDLING THE LINEAR SERVO MOTOR 1.1 Rating plate

Secondary side (magnet)
1
*2

Model Serial number *1 Country of origin

Manufacturer

*1 The production year and month of the secondary side of the linear servo motor are indicated in the serial number on the rating plate. For the production year and month, the last two digits of the year and the month in numerical format [1 to 9, X (10), Y (11), and Z (12)] are displayed. For January 2012, the serial number would be "SER. _ _ _ _ _ _ _ _ _ 121".
*2 Products proven to comply with the standards set by a given Certification Body are marked with the appropriate certification marks. The marks vary for each Certification Body.
1.2 Environment

Item
Ambient temperature Ambient humidity Ambience Altitude Vibration resistance

Operation

Storage/transportation

0 �C to 60 �C (non-freezing) *1

-15 �C to 70 �C (non-freezing)

10 %RH to 80 %RH (non-condensing)

10 %RH to 90 %RH (non-condensing)

Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust 2000 m or less *2

LM-H3 series Page 31 Standard specifications list
LM-U2 series Page 43 Standard specifications list
LM-F series Page 55 Standard specifications list
LM-K2 series Page 66 Standard specifications list

*1 Refer to the following for restrictions on the ambient temperature.
LM-H3 series Page 34 Derating
LM-U2 series Page 45 Derating
LM-F series Page 57 Derating
LM-K2 series Page 68 Derating
*2 Refer to the following for restrictions on using this product at an altitude exceeding 1000 m and up to 2000 m.
LM-H3 series Page 34 Derating
LM-U2 series Page 45 Derating
LM-F series Page 57 Derating
LM-K2 series Page 68 Derating

1 HANDLING THE LINEAR SERVO MOTOR 1.2 Environment

11

1.3 Design instructions
Precautions
� Although a dynamic brake can be applied by the servo amplifier, the coasting distance becomes longer when the mass of the moving part is heavy or when the speed is high. This is highly dangerous and may result in a collision into the stroke end. Install an anti-collision mechanism such as an air brake or an electric/mechanical stopper such as a shock absorber to reduce the shock of moving parts. (No linear servo motor with an electromagnetic brake is available.)
� The magnetic attraction force operating between the primary and secondary sides is always in operation even when the linear servo motor power is not turned on. As such, the machine must be designed with sufficient rigidity to support the magnetic attraction force and maintain the accuracy.
� Since the running load increases in proportion to the magnetic attraction force due to friction, arrange to reduce friction as much as possible by precisely installing the linear guide, etc.
� When the liner servo motor is used on a vertical axis, provide a drop prevention system to prevent free fall at servo-off by using a spring or a counter balance.
� Install the linear servo motor so that the thrust operates on the center of gravity of the moving part. When the thrust does not operate on the center of gravity of the moving part, a moment occurs.
� If magnetic powders such as iron shavings are present, they may stick to the permanent magnet on the secondary side and cause a malfunction. In such an environment, take measures to prevent the adhesion and entry of magnetic powders.
� While both the linear encoder and the linear servo motor should be oil and dust proofed, oil and dust proofing are especially important for the linear encoder. For details, contact the manufacturer of the linear encoder being used.
� Do not allow the primary side to come into contact with the stopper. Doing so may damage the primary side. Arrange the system so that only the table attached to the primary side comes into contact with the stopper.
� Do not use the screw holes of the linear servo motor for any purpose other than for machine installation. � For installation, use all of the screw holes provided on the linear servo motor. � If it is assumed that a power failure or product malfunction may result in a hazardous situation, provide an external brake
system for holding purposes to prevent such hazards. � Provide adequate protection to prevent an unexpected restart after an instantaneous power failure. � Arrange for the primary and secondary side to satisfy the mounting dimensions. � When using a linear guide as the base, check the specifications and determine the processing accuracy. For details,
contact the manufacturer of the linear guide being used. � The movable range of the linear servo motor should be equal to or less than the effective measurement length of the linear
encoder. � For the stopper, use shock-absorbing material such as polyurethane rubber. � Conditions where cutting fluid or lubricating oil are constantly applied or where condensation occurs for an extended period
of time due to the effects of oil-mist lubrication, over-cooling, or excessive humidity may result in the deterioration of the insulation on the linear servo motor. Provide measures such as oil proofing, a dust proof cover, or condensation prevention to protect the linear servo motor. � Consider the installation work when designing the system. For details of installation, refer to the following and the "Installation" section in the chapter for the linear servo motor series being used. Page 15 Instructions on installation � For high-accuracy positioning, ensure that the rigidity of the machines has been maximized and increase the mechanical resonance points. � To ensure that the rigidity of the machines is maximized, adopt an integrated structure for the base. When it is necessary to use bolts, etc. as a fastener, use thick bolts with short neck dimensions. Make the pitch dimension of bolt holes as small as possible. � Make the moving parts as light as possible, and make the base parts heavy and sturdy. � When loading works, etc. on the table, make the center of gravity as low as possible. Additionally, the position of the center of gravity should be between the two linear guides. � Since the movement or accuracy of the machine may be adversely affected, arrange for the center of thrust of the linear servo motor and the center of gravity of the moving object to be closer with one another.

12

1 HANDLING THE LINEAR SERVO MOTOR 1.3 Design instructions

� When the mounting rigidity of the linear encoder is insufficient, the feedback signal may be disturbed by the machine

vibration, and the desired performance may not be achieved. Furthermore, as the same condition also applies in cases

where the linear encoder is susceptible to electric noise, arrange or install the linear encoder in a way that minimizes

1

exposure to vibration and electric noise.

� Establish a structure that can withstand high speeds and high acceleration/deceleration.

Basic structure for sliders incorporating the linear servo motor
The following figure shows an example of the basic structure for a linear slider.

Stopper

Linear servo motor secondary side

Linear guide

Table Base

Linear encoder head

Linear servo motor primary side

Linear encoder scale

Instructions on the structure of the linear slider
Instructions on the structure of the linear slider are shown in the following figure.
As short as possible
Gravity center of moving part

As short as possible

As short as possible Linear guide center

Thrust center

1 HANDLING THE LINEAR SERVO MOTOR 1.3 Design instructions

13

Stopper
As shown in the following figure, arrange the system so that only the table attached to the primary side comes into contact with the stopper.

Table

Stopper

Primary side

Contact surface

Linear encoder
While both the linear encoder and the linear servo motor should be oil and dust proofed, oil and dust proofing are especially important for the linear encoder. For details, contact the manufacturer of the linear encoder being used.
Linear guide
Precisely install the linear guide. For details, contact the manufacturer of the linear guide being used.

14

1 HANDLING THE LINEAR SERVO MOTOR 1.3 Design instructions

1.4 Instructions on installation 1
Instructions on the use of lifting machines such as cranes when installing the linear servo motor are shown below.
Precautions
� The cables should not be damaged, stressed, loaded, or pinched. � Install the linear servo motor on incombustible material. Installing the linear servo motor either directly on or near
combustibles may lead to smoke or a fire. � Provide adequate protection so as to prevent conductive matter (such as screws and metal fragments) and combustible
matter (such as oil) from entering the linear servo motor. � The linear servo motor may become hot depending on the operating method. Take safety measures such as providing
covers. � Machine operators and workers installing linear servo motors are not allowed to wear or carry electronic devices (such as
watches, calculators, and personal computers) and carry magnetic recording media (IC cards, magnetic cards, floppy disks, etc.) when working close to the secondary side. The magnetic effect of such items may cause operation failure or malfunction. � Securely fix the linear servo motor to the machine. If attached insecurely, the motor may come off during operation. � Do not overtighten the eyebolts of the linear servo motor. Tightening too hard may damage the tap. � Do not stack in excess of the specified number of product packages. � Do not carry the linear servo motor by the cables or connectors. Doing so may damage the linear servo motor. � When installing the linear servo motor, follow the user's manual and install the motor in a place that can support its weight. � When installing the secondary side, use non-magnetic tools. � Securely fix the linear servo motor to the machine. If attached insecurely, the motor may come off during operation. � The travel direction of the linear servo motor and the linear encoder must match. Failing to do so may cause the linear servo motor to operate unexpectedly. � To prevent a connection failure, malfunction, or similar problem, do not strike the connector. � Use the product within the specified environment. For details of the environment, refer to the specifications for the linear servo motor series being used. � To prevent rust, do not touch the linear servo motor with bare hands. � The primary side and secondary side of the linear servo motor may be damaged if they are dropped or struck. � Do not install or operate a servo amplifier or linear servo motor that is missing parts or is damaged. � The permanent magnet on the secondary side of the linear servo motor generates a magnetic attraction force against magnetic materials. Therefore, individuals using a medical device such as a pacemaker must check with the medical device manufacturer regarding whether they can work in such an environment. � When in the original packing state (inside the cardboard box) that it was in when shipped from Mitsubishi Electric, the magnet on the secondary side does not have any serious impact on the outside environment. However, do not place magnetic materials (including the primary side, other secondary sides, and tools) close to the secondary side until the linear servo motor is assembled to the machine. Be cautious in the workplace and its surroundings. � When installing the linear servo motor and working near the linear servo motor, use non-magnetic tools. Such tools are necessary to ensure safety and improve workability. In particular, exercise care when installing the primary side after installation of the secondary side is complete. For which screws to use, refer to the "Dimensions" section in the chapter for the linear servo motor series being used. � Do not get on the equipment or put a heavy load on it. � Do not drop or strike the linear servo motor. � To prevent a fire or injury from occurring in case of an earthquake or other natural disasters, securely install, mount, and wire the linear servo motor in accordance with the user's manual. � To prevent an electric shock or a fire, do not disassemble, repair, or modify the product. Disassembled, repaired, and/or modified products are not covered under warranty. � Keep the cumulative pitch error of the mounting screw holes to within �0.2 mm (�0.1 mm for the LM-K2 series). When two or more secondary sides are installed, clearance may be left between the secondary sides depending on the installing method and the number of secondary sides.

1 HANDLING THE LINEAR SERVO MOTOR 1.4 Instructions on installation

15

� When multiple personnel are working simultaneously, confirm that the area of the product containing moving parts is free of personnel before turning on the power. When personnel are present in the area containing moving parts, provide an interlock to ensure that the equipment does not move.
� During installation, be sure to remove any iron powder or similar debris attached to the product.
Primary side (coil)
To lift the primary side, either attach a lifting tool to the primary side or attach eyebolts to the screw holes used for primary-side mounting as shown in the following figure. When lifting, ensure that the wire does not apply stress to the mold part or the power supply cable, etc. Set the lifting points (two or more) on both longitudinal ends.
Wire or others

Tool for lifting

Wire or others

Power cable or others

Power cable or others
Screw hole for primary-side mounting When using the tool for lifting

Eyebolt Screw hole for primary-side mounting
When using the eyebolts

16

1 HANDLING THE LINEAR SERVO MOTOR 1.4 Instructions on installation

Secondary side (magnet)

To lift the secondary side, attach eyebolts to the screw holes used for secondary-side mounting as shown in the following

1

figure.

To avoid danger due to the magnetic attraction force when lifting the secondary side, ensure that the magnet face side is

directed upward and set four or more lifting points.

Magnet side face Eyebolt

Wire or others

Mounting part (yoke) side face

Mounting part (yoke) side face

Magnet side face

Mounting part (yoke) side face

Magnet side face

1 HANDLING THE LINEAR SERVO MOTOR 1.4 Instructions on installation

17

1.5 Instructions on storage
Precautions
Note the following when storing the linear servo motor for an extended period of time (guideline: three or more months). � Always store the linear servo motor indoors in a clean and dry place. � When storing in a dusty and humid area, take measures such as covering the whole product. � Although the linear servo motor has been rust-proofed with paint and rust prevention oil before shipment, rust may appear
if the linear servo motor is stored in poor conditions for an extended period of time. If the servo motor is to be stored for longer than six months, re-apply rust prevention oil again to machined surfaces such as the rotating parts. � When the product has been stored for an extended period of time, contact your local sales office. � Be sure to strictly maintain the storage requirements (ambient temperature and humidity, etc.). � Store the product in an environment that is protected from rain water, low in dust, and free of oil and chemical adhesion. � Do not apply a shock to the servo amplifier or linear servo motor. � If the insulation resistance of the magnet wire decreases, reconsider how the equipment is being stored. � Ensure that the product is stored with each side facing the proper direction. � Do not leave the product (primary or secondary-side) unpacked when it is not in use. If the product is not fixed into place on the machine or equipment, store it correctly in the packing box that it came in.
Storage method
� Correctly store the linear servo motor inside the packing box it came in.

Shock-absorbing material
Package

Product

� When storing the secondary side, place signage stating "Handle with care - Strong magnetic field" or similar on the packing box or storage shelf, and also take measures that make the storage location known in the surrounding area.
� Do not use a deformed packing box. � For details of the storage environment requirements, refer to the following. Page 11 Environment � When lifting the product using a hoisting attachment, do not apply shock and stress to the mold part.

18

1 HANDLING THE LINEAR SERVO MOTOR 1.5 Instructions on storage

1.6 Instructions on disposal 1 Precautions
� The servo amplifier and the primary side of the linear servo motor must be disposed in accordance with "DISPOSAL OF WASTE".
� Since the secondary side of the linear servo motor uses a permanent magnet, demagnetize the entire secondary side by heating it to 300 �C or more, then dispose of it in accordance with "DISPOSAL OF WASTE".
� The permanent magnet on the secondary side of the linear servo motor generates a magnetic attraction force against magnetic materials. Therefore, individuals using a medical device such as a pacemaker must check with the medical device manufacturer regarding whether they can work in such an environment.
� Exercise caution against the magnetic force from the secondary side during and after disassembly, and until the secondary side has been demagnetized.
� When disassembling and disposing of the linear servo motor, do not place magnetic materials (including the primary side, other secondary sides, and tools) close to the secondary side.
� Use non-magnetic tools when disassembling and disposing of the linear servo motor, and when working near the motor. Such tools are necessary to ensure safety and improve workability.

1 HANDLING THE LINEAR SERVO MOTOR 1.6 Instructions on disposal

19

2 INSPECTION
The linear servo motor is able to function as a motor after it is mounted in (built-in) the equipment. The IP rating is IP00. Perform the following inspections and cleaning.
Precautions
� The linear servo motor is structurally unrepairable. If the linear servo motor is damaged, it must be replaced. � To prevent a malfunction, do not perform an insulation resistance test (megger test) on the linear servo motor. � Customers must not disassemble and/or repair the equipment. � Discoloration of the molded resin of the linear servo motor may occur. Although the chance of malfunction due to
discoloration is slim, still inspect the molded resin portion. � If a stainless steel magnet protective cover is used for the secondary side, damage or deformation may occur if the cover is
strongly pressed or if magnetic material is attached to it. Exercise special care with the end part of the product as it is easily deformed.
2.1 Inspections of the primary side (coil)
Attachment of water and oil
Check that the primary and secondary side of the linear servo motor are not wet with water or oil. If the linear servo motor is wet, a malfunction may occur due to deterioration of the insulation on the primary side. Establish a mechanical structure in which water and oil do not become attached to the linear servo motor.
Molded resin
Check the molded resin on the primary side for fragmentations, breakages, and cracks. If fragmentations, breakages, and cracks are found, replace the primary side as a malfunction may occur due to deterioration of the insulation.
Scratches on the surface that faces the secondary side (magnet)
Check for scratches on the primary side surface facing the secondary side. If there are scratches on the primary side surface facing the secondary side, replace the primary side. If scratches appear on the primary side due to foreign matter caught in the empty clearance between the primary and secondary side, remove the foreign matter, then establish a mechanical structure that prevents such matter from entering the clearance.
Looseness of mounting screws
Check the mounting screws on the primary side for looseness. If the mounting screws on the primary side are loose, tighten the applicable screws.
Scratches and cracks on the linear servo motor cables
Check for scratches and cracks on the linear servo motor cables. If the linear servo motor cables have any scratches and cracks, replace the applicable cables. It is important to perform periodic inspections, especially when the cables are moved during operation.

20

2 INSPECTION 2.1 Inspections of the primary side (coil)

2.2 Inspections of the secondary side (magnet)

Attachment of water and oil

Check that the primary and secondary side of the linear servo motor are not wet with water or oil. If the linear servo motor is

2

wet, a malfunction may occur due to deterioration of the insulation on the primary side. Establish a mechanical structure in

which water and oil do not become attached to the linear servo motor.

Exposure and levitation of the magnet
Check if the magnet on the secondary side is exposed or levitated. If the magnet on the secondary side is exposed or levitated, replace the secondary side immediately.

Magnet protective cover
The secondary side surface is covered with mold resin or a stainless steel cover to protect the magnet. � If foreign matter such as dust is attached to the surface, gently clean the cover with an acetone soaked cloth. � Check the molded resin on the secondary side for fragmentations, breakages, and cracks. If fragmentations, breakages,
and cracks are found, replace the secondary side. � Check for scratches on the molded resin of the secondary side. If the magnet is exposed due to scratches on the molded
resin of the secondary side, replace the secondary side. If scratches appear on the secondary side due to foreign matter caught in the empty clearance between the primary and secondary side, remove the foreign matter, then establish a mechanical structure that prevents such matter from entering the clearance.
Looseness of mounting screws
Check the mounting screws on the secondary side for looseness. If the mounting screws on the secondary side are loose, tighten the applicable screws.
2.3 Inspections of the linear encoder

It may become necessary to inspect the linear encoder. For information regarding inspections of the linear encoder, contact the manufacturer of the linear encoder being used.

2 INSPECTION 2.2 Inspections of the secondary side (magnet)

21

3 REPLACEMENT OF THE LINEAR SERVO
MOTOR IN THE ABSOLUTE POSITION DETECTION SYSTEM
3.1 Replacement of the primary side (coil) or
secondary side (magnet)
After replacing the primary side or the secondary side, perform magnetic pole detection again.
3.2 Replacement of the linear encoder
After replacing the linear encoder, perform magnetic pole detection and homing.
Method for checking the mounting position of the linear encoder 1. Before replacing the linear encoder, check the encoder information using MR Configurator2 with the linear servo motor
fixed at the specified position.
2. When replacing the linear encoder, ensure that the position mismatch before and after replacement is �0.1 mm. 3. After replacing the linear encoder, check the encoder information again using MR Configurator2 with the linear servo
motor fixed at the specified position.
4. Confirm that the value converted from the difference of the encoder information (resolution unit) is �0.1 mm or less both
before and after replacement of the linear encoder.
Method for viewing encoder information using MR Configurator2 1. After confirming that the personal computer is connected with the servo amplifier, first select "Diagnosis", then select
"Linear diagnosis". The following window will appear.
1)
2. The encoder information data ( "1)") can be viewed here.

22

3 REPLACEMENT OF THE LINEAR SERVO MOTOR IN THE ABSOLUTE POSITION DETECTION SYSTEM 3.1 Replacement of the primary side (coil) or secondary side (magnet)

MEMO
3

3 REPLACEMENT OF THE LINEAR SERVO MOTOR IN THE ABSOLUTE POSITION DETECTION SYSTEM 3.2 Replacement of the linear encoder

23

4 CONNECTING THE SERVO AMPLIFIER AND
LINEAR SERVO MOTOR

Precautions
� Insulate the conductive parts of the terminals. � Performance is not guaranteed if the specified servo amplifier and linear servo motor are not used together in combination.
If the combination used is not the specified combination, the servo amplifier or linear servo motor may be damaged or may operate unexpectedly. � The equipment must be installed in the specified direction. � Do not install or operate any linear servo motor that is missing parts or is damaged. � Do not modify the linear servo motor. � To prevent the linear servo motor from operating unexpectedly, wire the equipment correctly and securely. � Make sure to connect the cables and connectors by using the fixing screws and the locking mechanism. Failing to do so may cause the cables and connectors to disconnect during operation. � Do not install a power capacitor, surge killer, or radio noise filter (optional FR-BIF(-H)) on the servo amplifier output side. � To avoid a linear servo motor malfunction, connect the wires to the correct phase terminals (U/V/W) of the servo amplifier and the linear servo motor. � To prevent abnormal operation and malfunction, connect the servo amplifier power outputs (U/V/W) to the linear servo motor power inputs (U/V/W) directly. Do not connect a magnetic contactor or the like between the servo amplifier power output and the linear servo motor power input.

Servo amplifier U V W

Linear servo motor U
V M
W

Servo amplifier U V W

Linear servo motor U
V M
W

� To prevent a malfunction, do not connect the AC power supply directly to the linear servo motor. � When the wires are not properly secured to the terminal block, the wires and terminal block may generate heat because of
the poor contact. Be sure to secure the wires with the specified torque. � Cables such as the power cable that extends from the primary side cannot withstand being bent for an extended period of
time. Avoid bending the cables by fixing them to the moving part, etc. In addition, wire the servo amplifier using cables that can withstand being bent for an extended period of time. � Use the linear servo motor and the servo amplifier in the specified combination. � To prevent malfunction, eliminate static electricity before wiring, switch operation, or similar operations. � To prevent failure and malfunction, only the power/signal specified in the user's manual should be connected to each terminal. � We recommend using HIV wires to connect the servo amplifier to the linear servo motor. Therefore, the recommended wire sizes may differ from those of wires used for previous generation linear servo motors.

24

4 CONNECTING THE SERVO AMPLIFIER AND LINEAR SERVO MOTOR

4.1 Precautions for wiring

To ground the linear servo motor, connect the grounding lead wire to the servo amplifier, then connect the wire from the servo amplifier to the ground via the protective earth (PE) terminal of the cabinet. Do not connect the wire directly to the protective earth (PE) terminal of the cabinet.
Cabinet

Servo amplifier

Linear servo motor

E

4

Protective earth (PE) terminal

Precautions
� To avoid a linear servo motor malfunction, connect the wires to the correct phase terminals (U/V/W) of the servo amplifier and the linear servo motor.
� To prevent a malfunction, do not connect the AC power supply directly to the linear servo motor.
4.2 Servo motor power supply cable wiring diagrams

To wire to the servo amplifier, use connectors packed with the servo amplifier or optional connectors. For details on wiring the connectors, refer to "Explanation of power supply system" in the User's Manual (Hardware) for the servo amplifier being used. Refer to the following for information about which wires to use for wiring. Page 28 Wire selection example
LM-H3/LM-U2/LM-K2 series

For servo amplifiers with THM1 and THM2 on CN2
For details of which cables and connectors to connect to CN2, refer to the following manual. MR-J5 Partner's Encoder User's Manual
Connecting with the MR-J5-_ servo amplifier

30 m or less

Servo amplifier CN2

MR-J4THCBL03M Branch cable
SCALE To linear encoder

5 THM1 6 THM2
U V W

THM

Lead wire (Linear servo motor accessory) *1
G1 (black) *3 G2 (black) *3

Linear servo motor
*2

U (black) V (black) W (black) E (green/yellow)

Primary side

Round crimp terminal
*1 The signal names (U/V/W/E/G1/G2) are attached on the lead wires. *2 There is no polarity for the thermistor (G1/G2). *3 For the LM-H3 series, the color is blue.
4 CONNECTING THE SERVO AMPLIFIER AND LINEAR SERVO MOTOR 4.1 Precautions for wiring

25

Connecting with the MR-J5W_ servo amplifier

30 m or less

MR-J4THCBL03M

Servo amplifier

Branch cable

CN2A/CN2B/CN2C

SCALE To linear
encoder

5 THM1 6 THM2
CNP3A/CNP3B/CNP3C
U V W

THM

Lead wire (Linear servo motor accessory) *1
G1 (black) *3 G2 (black) *3

Linear servo motor
*2

U (black) V (black) W (black) E (green/yellow)

Primary side

Round crimp terminal
*1 The signal names (U/V/W/E/G1/G2) are attached on the lead wires. *2 There is no polarity for the thermistor (G1/G2). *3 For the LM-H3 series, the color is blue.
For servo amplifiers with THM1 and THM2 on CN3

Servo amplifier CN3 4 THM1 14 THM2 Plate SD
U V W

30 m or less

Attached lead wires of the

linear servo motor *1

Linear servo motor

G1 (blue)

G2 (blue)

*2

U (black) V (black) W (black) E (green/yellow)

Primary side

Round crimp terminal
*1 The signal names (U/V/W/E/G1/G2) are attached on the lead wires. *2 There is no polarity for the thermistor (G1/G2).

26

4 CONNECTING THE SERVO AMPLIFIER AND LINEAR SERVO MOTOR 4.2 Servo motor power supply cable wiring diagrams

LM-F series
Junction connectors should be prepared by the customer.

Connecting with the MR-J5-_ servo amplifier
For details of which cables and connectors to connect to CN2, refer to the following manual. MR-J5 Partner's Encoder User's Manual

30 m or less

MR-J4THCBL03M

Servo amplifier

Branch cable

CN2

SCALE To linear

Cable (Linear servo motor accessory)

Linear servo motor

4

encoder

5 THM1 6 THM2

G1

G2

*1

THM U
U V
V W
W E

Primary side

Junction connector *2

*1 There is no polarity for the thermistor (G1/G2). *2 Refer to the following.
Page 27 Junction connector
Junction connector

Linear servo motor (primary side)

Connector for power supply

LM-FP2B-06M-1SS0 LM-FP2D-12M-1SS0 LM-FP2F-18M-1SS0

Cable receptacle: D/MS3101A18-10S Cable clamp: D/MS3057-10A (DDK)

LM-FP4B-12M-1SS0 LM-FP4D-24M-1SS0

Cable receptacle: D/MS3101A24-22S Cable clamp: D/MS3057-16A (DDK)

Thermistor connector
Cable receptacle: D/MS3101A14S-9S Cable clamp: D/MS3057-6A (DDK)

4 CONNECTING THE SERVO AMPLIFIER AND LINEAR SERVO MOTOR 4.2 Servo motor power supply cable wiring diagrams

27

4.3 Wire selection example

Selection requirements for the wire size are as follows. � Construction requirements: Single suspended wire � Wiring length: 30 m or less Refer to the following when using the LM-F series linear servo motor. Page 29 Wire size selection example 2 (HIV wire) The following shows examples of the wire sizes to select when using HIV wires.

Wire size selection examples

Wire size selection example 1 (HIV wire)

Linear servo motor (primary side)

Wire [mm2] For power/grounding (U/V/W/E)

LM-H3P2A-07P-BSS0

1.25 (AWG 16)

LM-H3P3A-12P-CSS0

LM-H3P3B-24P-CSS0

LM-H3P3C-36P-CSS0

LM-H3P3D-48P-CSS0

2 (AWG 14)

LM-H3P7A-24P-ASS0

1.25 (AWG 16)

LM-H3P7B-48P-ASS0

2 (AWG 14)

LM-H3P7C-72P-ASS0

2 (AWG 14)

LM-H3P7D-96P-ASS0

3.5 (AWG 12)

LM-U2PAB-05M-0SS0

1.25 (AWG 16)

LM-U2PAD-10M-0SS0

LM-U2PAF-15M-0SS0

LM-U2PBB-07M-1SS0

LM-U2PBD-15M-1SS0

LM-U2PBF-22M-1SS0

LM-U2P2B-40M-2SS0

2 (AWG 14)

LM-U2P2C-60M-2SS0

3.5 (AWG 12)

LM-U2P2D-80M-2SS0

5.5 (AWG 10)

LM-K2P1A-01M-2SS1

1.25 (AWG 16)

LM-K2P1C-03M-2SS1

2 (AWG 14)

LM-K2P2A-02M-1SS1

1.25 (AWG 16)

LM-K2P2C-07M-1SS1

3.5 (AWG 12)

LM-K2P2E-12M-1SS1

5.5 (AWG 10)

LM-K2P3C-14M-1SS1

3.5 (AWG 12)

LM-K2P3E-24M-1SS1

5.5 (AWG 10)

For thermistor (G1/G2)
0.2 (AWG 24)

28

4 CONNECTING THE SERVO AMPLIFIER AND LINEAR SERVO MOTOR 4.3 Wire selection example

Wire size selection example 2 (HIV wire)
LM-F series linear servo motor (primary side)

Wire [mm2] For power/grounding (U/V/W/E)

For thermistor (G1/G2)

LM-FP2B-06M-1SS0

Natural cooling Liquid cooling

2 (AWG 14)

0.2 (AWG 24)

LM-FP2D-12M-1SS0

Natural cooling

2 (AWG 14)

Liquid cooling

3.5 (AWG 12)

LM-FP2F-18M-1SS0

Natural cooling Liquid cooling

2 (AWG 14) 3.5 (AWG 12) *1

LM-FP4B-12M-1SS0

Natural cooling

5.5 (AWG 10)

Liquid cooling

4

LM-FP4D-24M-1SS0

Natural cooling

Liquid cooling

*1 When wiring to the linear servo motor power connector, use wires that have a heat resistance of 105 �C or more.

4 CONNECTING THE SERVO AMPLIFIER AND LINEAR SERVO MOTOR 4.3 Wire selection example

29

5 LM-H3 SERIES

5.1 Model designation

Primary side (coil)
The following describes what each block of a model name indicates. Not all combinations of the symbols are available.

LM - H 3 P 2 A - 0 7 P - BSS 0

Series

Primary side (coil)

Width (nominal dimension)

Symbol Dimension [mm]

2

50

3

65

7

100

Length (nominal dimension)

Symbol Dimension [mm]

A

128

B

224

C

320

D

416

Symbol BSS0 CSS0
ASS0

Linear servo motor model LM-H3P2A-07P LM-H3P3A-12P LM-H3P3B-24P LM-H3P3C-36P LM-H3P3D-48P LM-H3P7A-24P LM-H3P7B-48P LM-H3P7C-72P LM-H3P7D-96P

Maximum speed: 3.0 m/s

Continuous thrust

Symbol Continuous thrust [N]

07

70

12

120

24

240

36

360

48

480

72

720

96

960

Secondary side (magnet)

LM - H 3 S 2 0 - 2 8 8 - BSS 0

Series

Secondary side (magnet)

Width (nominal dimension)

Symbol Dimension [mm]

2

42

3

60

7

95

Length (nominal dimension)

Symbol Dimension [mm]

288

288

384

384

480

480

768

768

Symbol BSS0 CSS0 ASS0

Linear servo motor model LM-H3S20-288 LM-H3S20-384 LM-H3S20-480 LM-H3S20-768 LM-H3S30-288 LM-H3S30-384 LM-H3S30-480 LM-H3S30-768 LM-H3S70-288 LM-H3S70-384 LM-H3S70-480 LM-H3S70-768

30

5 LM-H3 SERIES 5.1 Model designation

5.2 Standard specifications

Standard specifications list

Linear servo motor (primary side) LM-H3_
Linear servo motor (secondary side) LM-H3_

P2A-07P-BSS0
S20-288-BSS0 S20-384-BSS0 S20-480-BSS0 S20-768-BSS0

P3A12PCSS0

P3B24PCSS0

S30-288-CSS0 S30-384-CSS0 S30-480-CSS0 S30-768-CSS0

P3C36PCSS0

P3D48PCSS0

P7A24PASS0

P7B48PASS0

S70-288-ASS0 S70-384-ASS0 S70-480-ASS0 S70-768-ASS0

P7C72PASS0

P7D96PASS0

Power supply capacity [kVA]

Refer to "Power supply capacity and generated loss" in the User's Manual (Hardware) for the servo amplifier being used.

Cooling method

Natural cooling

Thrust Continuous *2 *4 [N]

70

120

240

360

480

240

480

720

960

Maximum [N]

175

Maximum speed *1 [m/s]

3.0

300

600

900

1200

600

1200

1800

2400

5

Magnetic attraction force [N]

630

1100

2200

3300

4400

2200

4400

6600

8800

Rated current [A]

1.8

1.7

3.4

5.1

6.8

3.4

6.8

10.2

13.6

Maximum current [A]

5.8

5.0

9.9

14.9

19.8

9.6

19.1

28.6

38.1

Recommended load to motor mass ratio

35 times or less the mass of the linear servo motor primary side

Thermistor

Built-in

Insulation class Structure Vibration resistance [m/s2]

155 (F) Open (IP rating: IP00 *3) 49

Mass Primary side [kg]

0.9

1.3

2.3

3.3

4.3

2.2

3.9

5.6

7.3

Secondary side [kg]

0.7 (288 mm/pc) 0.9 (384 mm/pc) 1.1 (480 mm/pc) 1.8 (768 mm/pc)

1.0 (288 mm/pc) 1.4 (384 mm/pc) 1.7 (480 mm/pc) 2.7 (768 mm/pc)

2.8 (288 mm/pc) 3.7 (384 mm/pc) 4.7 (480 mm/pc) 7.4 (768 mm/pc)

*1 The actual maximum speed of the linear servo motor is the lower value between the maximum speed of the linear servo motor and the rated speed of the linear encoder.
*2 The continuous thrust values in the table apply when an aluminum board with the dimensions (L [mm] � W [mm] � H [mm]) shown below is mounted on the primary side. (The dimensions shown are for reference purposes only) LM-H3P2A-07P-BSS0: 192 � 225 � 30 LM-H3P3A-12P-CSS0: 192 � 495 � 30 LM-H3P3B-24P-CSS0: 192 � 315 � 30 LM-H3P3C-36P-CSS0: 336 � 495 � 40 LM-H3P3D-48P-CSS0: 336 � 315 � 30 LM-H3P7A-24P-ASS0: 480 � 495 � 40 LM-H3P7B-48P-ASS0: 480 � 315 � 40 LM-H3P7C-72P-ASS0: 624 � 495 � 40 LM-H3P7D-96P-ASS0: 624 � 315 � 40
*3 IP classifies the degree of protection provided against the intrusion of solid objects and water in electrical enclosures. *4 Use the linear servo motor with 70 % or less of the effective load ratio when it is servo-locked or if there is faint reciprocating motion.

5 LM-H3 SERIES 5.2 Standard specifications

31

Thrust characteristics
The following shows the thrust characteristic when the power supply input of the servo amplifier is 3-phase 200 V AC or 1phase 200 V AC. The continuous/maximum thrust and maximum speed of the linear servo motor have the values for rated voltage and frequency from the combined servo amplifier applied.
3-phase 200 V AC

[LM-H3P2A-07P-BSS0]

[LM-H3P3A-12P-CSS0]

[LM-H3P3B-24P-CSS0]

Thrust [N]

175

140
Short-duration running range

70

Continuous running range

0

0

1

2

3

Speed [m/s]

[LM-H3P3C-36P-CSS0]

Thrust [N]

300

240
Short-duration running range

120

Continuous running range

0

0

1

2

3

Speed [m/s]

[LM-H3P3D-48P-CSS0]

Thrust [N]

600

480
Short-duration running range

240

Continuous running range

0

0

1

2

3

Speed [m/s]

[LM-H3P7A-24P-ASS0]

Thrust [N]

900

720
Short-duration running range

360

Continuous running range

0

0

1

2

3

Speed [m/s]

[LM-H3P7B-48P-ASS0]

Thrust [N]

1200

960
Short-duration running range

480

Continuous running range

0

0

1

2

3

Speed [m/s]

[LM-H3P7C-72P-ASS0]

Thrust [N]

600

480
Short-duration running range

240

Continuous running range

0

0

1

2

3

Speed [m/s]

[LM-H3P7D-96P-ASS0]

Thrust [N]

1200

960
Short-duration running range

480

Continuous running range

0

0

1

2

3

Speed [m/s]

Thrust [N]

1800

1440
Short-duration running range

720

Continuous running range

0

0

1

2

3

Speed [m/s]

Thrust [N]

2400

1920
Short-duration running range

960

Continuous running range

0

0

1

2

3

Speed [m/s]

32

5 LM-H3 SERIES 5.2 Standard specifications

1-phase 200 V AC
[LM-H3P2A-07P-BSS0]

Thrust [N]

175 140

Short-duration running range
70
Continuous running range

0

0

1

2

3

Speed [m/s]

[LM-H3P3C-36P-CSS0]

Thrust [N]

900

720

Short-duration running range
360
Continuous running range

0

0

1

2

3

Speed [m/s]

[LM-H3P7B-48P-ASS0]

Thrust [N]

1200

960

Short-duration running range
480
Continuous running range

0

0

1

2

3

Speed [m/s]

Thrust [N]

Thrust [N]

Thrust [N]

[LM-H3P3A-12P-CSS0]

300

240

Short-duration running range
120
Continuous running range

0

0

1

2

3

Speed [m/s]

[LM-H3P3D-48P-CSS0]

1200

960
Short-duration running range
480

Continuous

running range

0

1

2

3

Speed [m/s]

[LM-H3P7C-72P-ASS0]

1800

1440

Short-duration running range
720

Continuous running range

0

0

1

2

3

Speed [m/s]

Thrust [N]

Thrust [N]

[LM-H3P3B-24P-CSS0]

600

480

Short-duration running range
240
Continuous running range

0

0

1

2

3

Speed [m/s]

[LM-H3P7A-24P-ASS0]

5

600

480

Short-duration running range
240
Continuous running range

0

0

1

2

3

Speed [m/s]

5 LM-H3 SERIES 5.2 Standard specifications

33

5.3 Derating

For the reference values shown, derating is performed from the rated speed. As the temperature rise value of the linear servo motor changes depending on operation conditions such as speed, confirm that [AL. 0E2 Servo motor overheat warning] and [AL. 046 Servo motor overheat] do not occur on the actual machine before use. If a warning or alarm occurs, consider taking the following measures: � Lower the effective load ratio of the linear servo motor. � Review the heat dissipation conditions. To use this product under conditions with multiple derating, calculate the multiplication of each derating rate, and use at the calculated derating rate or lower.
Restrictions on the ambient temperature

When using this product in an environment with a high ambient temperature, derate the product in accordance with the following conditions:

120

Derating rate [%]

100

80

LM-H3P2A-07P-BSS0 LM-H3P3A-12P-CSS0

LM-H3P3B-24P-CSS0

60

LM-H3P3C-36P-CSS0

LM-H3P3D-48P-CSS0

40

LM-H3P7A-24P-ASS0 LM-H3P7B-48P-ASS0

LM-H3P7C-72P-ASS0

20

0

0

20

40

60

Ambient temperature [�C]

Restrictions on the altitude

To use this product at an altitude between 1000 m and 2000 m, derate the product in accordance with the following conditions:

[%]
100 95

Derating rate

0

0

1000

2000 [m]

Altitude

34

5 LM-H3 SERIES 5.3 Derating

5.4 Installation
Fitting method
Center of the primary side *1

0.1 A 0.1

H � 0.1 *3

0.5 or less

A

0.1

5

Center of the secondary side *2
[Unit: mm]
*1 The locations of the center of the primary side are shown below. LM-H3P2_-_: the position of the center mounting screw LM-H3P3_-_: the center of the mounting screw pitch LM-H3P7_-_: the position of the center mounting screw
*2 The center of the secondary side is located at the center of the mounting screw pitch. *3 H length indicates (height of primary side) + (height of secondary side) + (length of empty clearance: 0.7 mm).
LM-H3P2_-_: H = 43.0 mm LM-H3P3_-_: H = 43.0 mm LM-H3P7_-_: H = 48.0 mm

5 LM-H3 SERIES 5.4 Installation

35

Installation of the secondary side (magnet)
Precautions
� If mounting an additional secondary side with a secondary side already set, first set the additional side so that it is distanced from the already mounted one, then slide the additional side to mount it in its specified position as shown in this section.
� Keep the cumulative pitch error of the mounting screw holes to within �0.2 mm. When two or more secondary sides are installed, clearance may be left between the secondary sides depending on the installing method and the number of secondary sides.
Procedure
When using multiple secondary sides, arrange them so that the name plate attached to each side all share the same orientation to keep the layout of magnetic poles.
Plate
In addition, use the following procedure when mounting the secondary sides to decrease the clearance between them.
1. Use bolts to securely fix the secondary side that will be used as the mounting standard into place.
Secondary side to be a mounting standard
2. Set the next secondary side on the mounting face and use bolts to temporarily fix it into place.
Secondary side to be a mounting standard
3. Press the added secondary side toward the secondary side that is being used as the mounting standard.
Secondary side to be a mounting standard
4. Use bolts to securely fix the added secondary side into place.
Secondary side to be a mounting standard

36

5 LM-H3 SERIES 5.4 Installation

Installation of the primary side (coil)
Precautions
� We recommend mounting the primary side in a position where no secondary side is present. If the primary side must be mounted over the secondary side, use material handling equipment such as cranes that can fully withstand the load of the attraction force, etc.
� When sliding the primary side over the secondary side after installing, take precautions against the attraction force that is generated.
Procedure 1. Mount a portion of the secondary sides.

2. Mount the primary side in a position where no secondary side is present.

5

3. Move the primary side over the mounted secondary side. Confirm that the primary and secondary sides are not touching
each other.

4. Mount the rest of the secondary sides. Confirm that the primary and secondary sides are not touching each other.

5 LM-H3 SERIES 5.4 Installation

37

5.5 Dimensions

Primary side (coil) dimensions
� The recommended tightening torque for mounting screws on the primary side is 7.0 N�m (permissible range: 6.0 N�m to 7.8 N�m).
� The power lead wires, grounding lead wires, and thermistor lead wires are for fixed wiring. Securely fix them to the structure. The recommended minimum bending radius for the lead wire is six times or more (reference value) the standard overall diameter of the lead wire. Consider the speed of the linear servo motor and the flexing radius when selecting the cable to use for the moving part.
� Leave 2 mm or more on each side of the clearance between the side face of the primary side and the structure.
LM-H3P2A-07P-BSS0

25

Power lead wire (U/V/W): Black, Grounding lead wire (E): Green/yellow, 4 wires - AWG 20 (standard overall diameter: 2.12 mm), Effective length: 400 mm

128

(32)

32 � 0.3

32 � 0.3

400

+40 0

(Effective lead wire length)

210 � 10

32

(40)

Round crimp terminal (1.25-4)

Protective tube

Wire mark

3-M5 screw depth 9 (for primary-side mounting)

(40)

210 � 10

400

+40 0

(Effective lead wire length)

Round crimp terminal (1.25-4)
Thermistor lead wire (G1/G2): Blue, 2 wires - AWG 20 (standard overall diameter: 2.12 mm), Effective length: 400 mm

2 or more

50 (20) 10 20

2 or more

43 � 0.1 (0.7)
32 (25)
Structure

(10.3) (4.9)

(42)

Structure

Secondary side

[Unit: mm]

(25)

LM-H3P3A-12P-CSS0/LM-H3P3B-24P-CSS0/LM-H3P3C-36P-CSS0/LM-H3P3D-48P-CSS0

Model

Variable dimensions

L

M

A

LM-H3P3A-12P-CSS0

128

64

32

LM-H3P3B-24P-CSS0

224

2 � 64 = 128

64

LM-H3P3C-36P-CSS0

320

4 � 64 = 256

32

LM-H3P3D-48P-CSS0

416

5 � 64 = 320

64

B
2 � 2 2 � 3 2 � 5 2 � 6

Power lead wire (U/V/W): Black, Grounding lead wire (E): Green/yellow, 4 wires - AWG 16 (standard overall diameter: 2.7 mm), Effective length: 400 mm

L

400

+40 0

43 � 0.1

(0.7)

32

(10.3)

(A)

M (cumulative pitch error: �0.3)

32 210 � 10

(Effective lead

(25)

64 � 0.3

(40)

wire length)

(4.9)

Round crimp

Structure

terminal

(1.25-4)

2 or more 20

26

13 � 0.3

(60)

(20) 25

65

(26)

Protective tube Wire mark

B-M5 screw depth 9 (for primary-side mounting)

(40)

210 � 10

400

+40 0

(Effective lead wire length)

Thermistor lead wire (G1/G2): Blue, 2 wires - AWG 20 (standard overall diameter: 2.12 mm), Effective length: 400 mm

Round crimp terminal (1.25-4)

2 or more

Structure

Secondary side

[Unit: mm]

38

5 LM-H3 SERIES 5.5 Dimensions

LM-H3P7A-24P-ASS0/LM-H3P7B-48P-ASS0/LM-H3P7C-72P-ASS0/LM-H3P7D-96P-ASS0

Model

Variable dimensions

L

M

A

LM-H3P7A-24P-ASS0

128

64

32

LM-H3P7B-48P-ASS0

224

2 � 64 = 128

64

LM-H3P7C-72P-ASS0

320

4 � 64 = 256

32

LM-H3P7D-96P-ASS0

416

5 � 64 = 320

64

B
3 � 2 3 � 3 3 � 5 3 � 6

Power lead wire (U/V/W): Black, Grounding lead wire (E): Green/yellow, 4 wires - AWG 14 (standard overall diameter: 3.12 mm), Effective length: 400 mm

L

400

+40 0

48 � 0.1 (0.7)

2 or more 20

210 � 10

(Effective lead

32 (25)

(15.3)

(A) M (cumulative pitch error: �0.3) 32

(40)

wire length)

(9.9)

Round crimp

Structure

terminal (2-4)

5

Wire mark Protective tube

26

(95)

60

100

(26) 24 � 0.3 24 � 0.3

B-M5 screw depth 9 (for primary-side mounting)

Protective tube

Wire mark Round crimp terminal (1.25-4)

Thermistor lead wire (G1/G2): Blue,

2 wires - AWG 20

(40)

(standard overall diameter:

210 � 10

2.12 mm), Effective length: 400 mm

400

+40 0

(Effective lead wire length)

Secondary side (magnet) dimensions

2 or more

(20)

Structure

Secondary side

[Unit: mm]

When mounting the secondary side, use hexagon socket head cap screws with a screw head height of 5.4 mm or less.

LM-H3S20-288-BSS0/LM-H3S20-384-BSS0/LM-H3S20-480-BSS0/LM-H3S20-768-BSS0

Model
LM-H3S20-288-BSS0 LM-H3S20-384-BSS0 LM-H3S20-480-BSS0 LM-H3S20-768-BSS0

Variable dimensions L
288 384 480 768

M
5 � 48 = 240 7 � 48 = 336 9 � 48 = 432 15 � 48 = 720

B
2 � 6 2 � 8 2 � 10 2 � 16

L

0 - 0.2

10.3 � 0.2

(24)

M (cumulative pitch error: �0.2)

24 � 0.2

(5.4)

4.9

48 � 0.2

Mark "N"

10

4.5

N

42

22

33 � 0.3

(10)

(4.5)

2-C1

Stainless steel cover

B-4.8 (for secondary-side mounting)

5.4 or less (screw head height) [Unit: mm]

5 LM-H3 SERIES 5.5 Dimensions

39

2-C1 2-C1

LM-H3S30-288-CSS0/LM-H3S30-384-CSS0/LM-H3S30-480-CSS0/LM-H3S30-768-CSS0

Model
LM-H3S30-288-CSS0 LM-H3S30-384-CSS0 LM-H3S30-480-CSS0 LM-H3S30-768-CSS0

Variable dimensions L
288 384 480 768

M
5 � 48 = 240 7 � 48 = 336 9 � 48 = 432 15 � 48 = 720

B
2 � 6 2 � 8 2 � 10 2 � 16

L

0 - 0.2

10.3 � 0.2

(24)

M (cumulative pitch error: �0.2)

24 � 0.2

(5.4)

4.9

48 � 0.2

Mark "N"

11.5

5

N

60

37

50 � 0.3

(11.5)

(5)

Stainless steel cover

B-5.8 (for secondary-side mounting)

5.4 or less (screw head height) [Unit: mm]

LM-H3S70-288-ASS0/LM-H3S70-384-ASS0/LM-H3S70-480-ASS0/LM-H3S70-768-ASS0

Model
LM-H3S70-288-ASS0 LM-H3S70-384-ASS0 LM-H3S70-480-ASS0 LM-H3S70-768-ASS0

Variable dimensions L
288 384 480 768

M
5 � 48 = 240 7 � 48 = 336 9 � 48 = 432 15 � 48 = 720

B
2 � 6 2 � 8 2 � 10 2 � 16

L

0 - 0.2

15.3 � 0.2

(24)

M (cumulative pitch error: �0.2)

24 � 0.2

(5.4)

9.9

48 � 0.2

Mark "N"

11.5

5

N

95

72

85 � 0.3

(5) (11.5)

Stainless steel cover

B-5.8 (for secondary-side mounting)

5.4 or less (screw head height) [Unit: mm]

40

5 LM-H3 SERIES 5.5 Dimensions

6 LM-U2 SERIES

6.1 Model designation

Medium thrust series
The following describes what each block of a model name indicates. Not all combinations of the symbols are available.
Primary side (coil)

LM - U 2 PAB - 0 5M - 0 SS 0

Series

Symbol Linear servo motor model LM-U2PAB-05M

0SS0

LM-U2PAD-10M

Primary side (coil)

LM-U2PAF-15M

Width (nominal dimension)

1SS0

LM-U2PBB-07M LM-U2PBD-15M

6

Symbol Dimension [mm]

LM-U2PBF-22M

A

66.5

B

86.5

Maximum speed: 2.0 m/s

Length (nominal dimension)

Symbol Dimension [mm]

B

130

D

250

F

370

Continuous thrust

Symbol Continuous thrust [N]

05

50

07

75

10

100

15

150

22

225

Secondary side (magnet)

LM - U 2 SA 0 - 2 4 0 - 0 SS 0

Series

Secondary side (magnet)

Width (nominal dimension)

Symbol Dimension [mm]

A

62

B

82

Symbol 0SS0
1SS1

Linear servo motor model LM-U2SA0-240 LM-U2SA0-300 LM-U2SA0-420 LM-U2SB0-240 LM-U2SB0-300 LM-U2SB0-420

Length (nominal dimension)

Symbol Dimension [mm]

240

240

300

300

420

420

6 LM-U2 SERIES 6.1 Model designation

41

Large thrust series

Primary side (coil)

LM - U 2 P2 B - 4 0M - 2 SS 0

Series
Primary side (coil)

Maximum speed: 2.0 m/s

Continuous thrust

Symbol Continuous thrust [N]

40

400

60

600

80

800

Length (nominal dimension)

Symbol Dimension [mm]

B

286

C

406

D

526

Secondary side (magnet)

LM - U 2 S 2 0 - 3 0 0 - 2 SS 1

Series Secondary side (magnet)

Length (nominal dimension)

Symbol Dimension [mm]

300

300

480

480

42

6 LM-U2 SERIES 6.1 Model designation

6.2 Standard specifications

Standard specifications list

Linear servo motor (primary side) LM-U2_

PAB-05M- PAD-10M- PAF-15M- PBB-07M- PBD-15M- PBF-22M-

0SS0

0SS0

0SS0

1SS0

1SS0

1SS0

Linear servo motor (secondary side) LM-U2_

SA0-240-0SS0 SA0-300-0SS0 SA0-420-0SS0

SB0-240-1SS1 SB0-300-1SS1 SB0-420-1SS1

Power supply capacity [kVA]

Refer to "Power supply capacity and generated loss" in the User's Manual (Hardware) for the servo amplifier being used.

Cooling method

Thrust

Continuous *2 *4 [N]

Natural cooling

50

100

150

75

150

225

Maximum [N] Maximum speed *1 [m/s]

150

300

450

225

450

675

2.0

Magnetic attraction force [N]

0

Rated current [A]

0.9

1.9

2.7

1.5

3.0

4.6

Maximum current [A] Recommended load to motor mass ratio

2.7

5.5

8.3

4.5

8.9

13.7

6

30 times or less the mass of the linear servo motor primary side

Thermistor

Built-in

Insulation class Structure Vibration resistance [m/s2]

155 (F) Open (IP rating: IP00 *3) 49

Mass

Primary side [kg]

0.3

0.6

0.8

0.4

0.8

1.1

Secondary side [kg]

2.0 (240 mm/pc) 2.5 (300 mm/pc) 3.5 (420 mm/pc)

2.6 (240 mm/pc) 3.2 (300 mm/pc) 4.5 (420 mm/pc)

Linear servo motor (primary side) LM-U2_ Linear servo motor (secondary side) LM-U2_

Power supply capacity [kVA]

Cooling method

Thrust

Continuous *2 *4 [N]

Maximum [N] Maximum speed *1 [m/s]

Magnetic attraction force [N]

Rated current [A]

Maximum current [A]

Recommended load to motor mass ratio

Thermistor

Insulation class

Structure Vibration resistance [m/s2]

Mass

Primary side [kg]

Secondary side [kg]

P2B-40M-2SS0

P2C-60M-2SS0

P2D-80M-2SS0

S20-300-2SS1 S20-480-2SS1

Refer to "Power supply capacity and generated loss" in the User's Manual (Hardware) for the servo amplifier being used.

Natural cooling

400

600

800

1600

2400

3200

2.0

0

6.6

9.8

13.1

26.7

40.3

53.7

30 times or less the mass of the linear servo motor primary side

Built-in

155 (F) Open (IP rating: IP00 *3)

49

2.9

4.2

5.5

9.6 (300 mm/pc) 15.3 (480 mm/pc)

*1 The actual maximum speed of the linear servo motor is the lower value between the maximum speed of the linear servo motor and the rated speed of the linear encoder.
*2 The continuous thrust values in the table apply when an aluminum board with the dimensions (L [mm] � W [mm] � H [mm]) shown below is mounted on the primary side. (The dimensions shown are for reference purposes only) LM-U2PAB-05M-0SS0: 300 � 400 � 15 LM-U2PAD-10M-0SS0: 400 � 500 � 15 LM-U2PAF-15M-0SS0: 500 � 600 � 15 LM-U2PBB-07M-1SS0: 300 � 400 � 15 LM-U2PBD-15M-1SS0: 400 � 500 � 15

6 LM-U2 SERIES 6.2 Standard specifications

43

LM-U2PBF-22M-1SS0: 500 � 600 � 15 LM-U2P2B-40M-2SS0: 900 � 800 � 12 LM-U2P2C-60M-2SS0: 900 � 800 � 12 LM-U2P2D-80M-2SS0: 990 � 800 � 12 *3 IP classifies the degree of protection provided against the intrusion of solid objects and water in electrical enclosures. *4 Use the linear servo motor with 70 % or less of the effective load ratio when it is servo-locked or if there is faint reciprocating motion.
Thrust characteristics
The following shows the thrust characteristic when the power supply input of the servo amplifier is 3-phase 200 V AC or 1phase 200 V AC. The 1-phase 200 V AC power input is applicable to LM-U2PAB-05M-0SS0, LM-U2PAD-10M-0SS0, LMU2PAF-15M-0SS0, LM-U2PBB-07M-1SS0, LM-U2PBD-15M-1SS0, LM-U2PBF-22M-1SS0, and LM-U2P2B-40M-2SS0. Parts using a narrow line describe the thrust characteristic for 1-phase 200 V AC. The continuous/maximum thrust and maximum speed of the linear servo motor have the values for rated voltage and frequency from the combined servo amplifier applied.
3-phase 200 V AC and 1-phase 200 V AC

[LM-U2PAB-05M-0SS0]

[LM-U2PAD-10M-0SS0]

[LM-U2PAF-15M-0SS0]

Thrust [N]

Thrust [N]

150
120
Short-duration running range

60 50

Continuous running range

0

0

1

2

Speed [m/s]

[LM-U2PBB-07M-1SS0]

225
200
Short-duration running range

100

75

Continuous running range

0

0

1

2

Speed [m/s]

[LM-U2P2B-40M-2SS0]

1600

1200
Short-duration running range

600

400

Continuous

running range

0

0

1

2

Speed [m/s]

Thrust [N]

Thrust [N]

Thrust [N]

300
240
Short-duration running range

120 100

Continuous running range

0

0

1

2

Speed [m/s]

[LM-U2PBD-15M-1SS0]

450
360
Short-duration running range

180 150

Continuous running range

0

0

1

2

Speed [m/s]

[LM-U2P2C-60M-2SS0]

2400
2000
Short-duration running range

1000

600
Continuous

running range

0

0

1

2

Speed [m/s]

Thrust [N]

Thrust [N]

Thrust [N]

450
360
Short-duration running range

180 150

Continuous running range

0

0

1

2

Speed [m/s]

[LM-U2PBF-22M-1SS0]
675

480
Short-duration running range

240 225
Continuous running range

0

0

1

2

Speed [m/s]

[LM-U2P2D-80M-2SS0]

3200

2400
Short-duration
running range

1200

800

Continuous

running range

0

0

1

2

Speed [m/s]

Thrust [N]

44

6 LM-U2 SERIES 6.2 Standard specifications

6.3 Derating

For the reference values shown, derating is performed from the rated speed. As the temperature rise value of the linear servo motor changes depending on operation conditions such as speed, confirm that [AL. 0E2 Servo motor overheat warning] and [AL. 046 Servo motor overheat] do not occur on the actual machine before use. If a warning or alarm occurs, consider taking the following measures: � Lower the effective load ratio of the linear servo motor. � Review the heat dissipation conditions. To use this product under conditions with multiple derating, calculate the multiplication of each derating rate, and use at the calculated derating rate or lower.
Restrictions on the ambient temperature

When using this product in an environment with a high ambient temperature, derate the product in accordance with the following conditions:

Derating rate [%]

120

100

6

80

LM-U2PAB-05M-0SS0

LM-U2PAD-10M-0SS0

LM-U2PAF-15M-0SS0

60

LM-U2PBB-07M-1SS0

LM-U2PBD-15M-1SS0

40

LM-U2PBF-22M-1SS0 LM-U2P2B-40M-2SS0

LM-U2P2C-60M-2SS0

20

LM-U2P2D-80M-2SS0

0

0

20

40

60

Ambient temperature [�C]

Restrictions on the altitude

To use this product at an altitude between 1000 m and 2000 m, derate the product in accordance with the following conditions:

[%]
100 95

Derating rate

0

0

1000

2000 [m]

Altitude

6 LM-U2 SERIES 6.3 Derating

45

6.4 Installation
Mounting dimensions

LM-U2PAB-05M-0SS0/LM-U2PAD-10M-0SS0/LM-U2PAF-15M-0SS0

Primary side

78 � 0.1 (1)
Plate side

(0.8)

0.45 � 0.1

(0.8)

Secondary side 0.1 0.1
[Unit: mm]
LM-U2PBB-07M-1SS0/LM-U2PBD-15M-1SS0/LM-U2PBF-22M-1SS0

Primary side

98 � 0.1 (1)
Plate side

(0.9)

0.45 � 0.1

(0.9)

Secondary side 0.1 0.1
[Unit: mm]
LM-U2P2B-40M-2SS0/LM-U2P2C-60M-2SS0/LM-U2P2D-80M-2SS0

138 � 0.3 (1) Plate side

(1.1)

0.9 � 0.1

(1.1)

[Unit: mm]

Secondary side
0.1 0.1

46

6 LM-U2 SERIES 6.4 Installation

Installation of the secondary side (magnet)
Precautions
� If mounting an additional secondary side with a secondary side already set, first set the additional side so that it is distanced from the already mounted one, then slide the additional side to mount it in its specified position as shown in this section.
� Keep the cumulative pitch error of the mounting screw holes to within �0.2 mm. When two or more secondary sides are installed, clearance may be left between the secondary sides depending on the installing method and the number of secondary sides.
Procedure
When using multiple secondary sides, arrange them so that the caution plate attached to each side all share the same orientation to keep the layout of magnetic poles.
Caution plate
6
In addition, use the following procedure when mounting the secondary sides to decrease the clearance between them.
1. Use bolts to fix the secondary side that will be used as the mounting standard into place.
(Secondary side to be a mounting standard)
2. Set the next secondary side on the mounting face and use bolts to temporarily fix it into place.
(Secondary side to be a mounting standard)
3. Press the added secondary side toward the secondary side that is being used as the mounting standard.
(Secondary side to be a mounting standard)
4. Use bolts to securely fix the added secondary side into place.
(Secondary side to be a mounting standard)

6 LM-U2 SERIES 6.4 Installation

47

Installation of the primary side (coil)
1. Mount a portion of the secondary sides.
2. Mount the primary side in a position where no secondary side is present.
3. Move the primary side over the mounted secondary side. Confirm that the primary and secondary sides are not touching
each other.
4. Mount the rest of the secondary sides. Confirm that the primary and secondary sides are not touching each other.

48

6 LM-U2 SERIES 6.4 Installation

6.5 Dimensions

Primary side (coil) dimensions

When mounting the primary side, use hexagon socket head cap screws (material should be SUS304 with a lower yield point of 206 N/mm2 or equivalent and a fitting screw length of 4 mm or more). The power lead wires, grounding lead wires, and thermistor lead wires are for fixed wiring. Securely fix them to the structure. The recommended minimum bending radius for the lead wire is six times or more (reference value) the standard overall diameter of the lead wire. Consider the speed of the linear servo motor and the flexing radius when selecting the cable to use for the moving part. When mounting the primary side on the secondary side, make adjustments so that the gap can be secured.

LM-U2PAB-05M-0SS0/LM-U2PAD-10M-0SS0/LM-U2PAF-15M-0SS0

Model

Variable dimensions

L

M

LM-U2PAB-05M-0SS0 130 LM-U2PAD-10M-0SS0 250 LM-U2PAF-15M-0SS0 370

2 � 60 = 120 4 � 60 = 240 6 � 60 = 360

B
2 � 3 2 � 5 2 � 7

Power/grounding lead wires

Size

Standard overall diameter

AWG 26

1.58

6

L

5 � 0.3

M (cumulative pitch error: �0.3)

(5)

B-M4 screw depth 7 (for primary-side mounting)

60 � 0.3

3

(3)

1

Wire mark

0.45 � 0.1 24.5 (0.45)

C0.5

C0.5

18.5 � 0.2
Power lead wire (U/V/W): Black, Grounding lead wire (E): Green/yellow, Effective length: 400 mm, Round crimp terminal (0.5-4)
Thermistor lead wire (G1/G2): Black, 2 wires - AWG 26 (standard overall diameter: 1.58 mm), Effective length: 400 mm, Round crimp terminal (0.5-4)

15

Secondary side

(0.8) (8.7)

(25.4)

6.4 (0.8) (8.7)

51.5

66.5

25

210 � 10

400

+40 0

(Effective lead wire length)

[Unit: mm]

78 � 0.1

(62)

6 LM-U2 SERIES 6.5 Dimensions

49

LM-U2PBB-07M-1SS0/LM-U2PBD-15M-1SS0/LM-U2PBF-22M-1SS0

Model

Variable dimensions

L

M

LM-U2PBB-07M-1SS0 130 LM-U2PBD-15M-1SS0 250 LM-U2PBF-22M-1SS0 370

2 � 60 = 120 4 � 60 = 240 6 � 60 = 360

B
2 � 3 2 � 5 2 � 7

Power/grounding lead wires

Size

Standard overall diameter

AWG 26

1.58

5 � 0.3
B-M4 screw depth 7 (for primary-side mounting)

L

M (cumulative pitch error: �0.3)

(5)

60 � 0.3

3

1

98 � 0.1

Wire mark

0.45 � 0.1 C0.5

24.5 (0.45) C0.5

18.5 � 0.2
Power lead wire (U/V/W): Black, Grounding lead wire (E): Green/yellow, Effective length: 400 mm, Round crimp terminal (0.5-4)
Thermistor lead wire (G1/G2): Black, 2 wires - AWG 26 (standard overall diameter: 1.58 mm), Effective length: 400 mm, Round crimp terminal (0.5-4)

(3)

15

Secondary side

(0.9) (8.6)

(25.4)

6.4 (0.9) (8.6)

71.5

86.5

25

210 � 10

400

+40 0

(Effective lead wire length)

[Unit: mm]

(82)

50

6 LM-U2 SERIES 6.5 Dimensions

LM-U2P2B-40M-2SS0/LM-U2P2C-60M-2SS0/LM-U2P2D-80M-2SS0

Model

Variable dimensions

L

M

LM-U2P2B-40M-2SS0 286 LM-U2P2C-60M-2SS0 406 LM-U2P2D-80M-2SS0 526

4 � 60 = 240 6 � 60 = 360 8 � 60 = 480

B
2 � 5 2 � 7 2 � 9

Power/grounding lead wires

Size

Standard overall diameter

AWG 16

2.7

AWG 14

3.12

AWG 14

3.12

Power lead wire (U/V/W): Black, Grounding lead wire (E): Green/yellow, Effective length: 400 mm, Round crimp terminal: (LM-U2P2B-40M-2SS0: 1.25-4) (LM-U2P2C-60M-2SS0: 2-4) (LM-U2P2D-80M-2SS0: 2-4)

(0.9) C0.5

49

(0.9)

C0.5

23 � 0.3
B-M6 screw depth 8 (for primary-side mounting)
Wire mark

60 � 0.3

L M (cumulative pitch error: �0.3)

(23) 38 � 0.2

5.5

(5.5)

22

1

(115)

138 � 0.1

50
210 � 10

6

123

83.5

Secondary side

400

+40 0

(Effective lead

wire length)

(1.1) (18.3)

12 (50.8)

(1.1) (18.3)

(17.5)

Thermistor lead wire (G1/G2): Black, 2 wires - AWG 24 (standard overall diameter: 1.74 mm), Effective length: 400 mm, Round crimp terminal (1.25-4)

[Unit: mm]

6 LM-U2 SERIES 6.5 Dimensions

51

Secondary side (magnet) dimensions

When mounting the secondary side, use hexagon socket head cap screws (material should be SUS304 with a lower yield point of 206 N/mm2 or equivalent).

LM-U2SA0-240-0SS0/LM-U2SA0-300-0SS0/LM-U2SA0-420-0SS0

Model

Variable dimensions

L

M

B

K

LM-U2SA0-240-0SS0 240

3 � 60 = 180

4

180

LM-U2SA0-300-0SS0 300

4 � 60 = 240

5

240

LM-U2SA0-420-0SS0 420

6 � 60 = 360

7

360

N
3 � 60 = 180 4 � 60 = 240 6 � 60 = 360

12.7 � 0.3

Mark "N"

L
B-M5 screw depth 8 (back) (for secondary-side mounting)

Mark "S"

8.7

8 (8.7)

Mark "S" 15

60 � 0.3 M (cumulative pitch error: �0.3)

Mark "N" (45)

(55)

62

C1

2-M5 screw depth 6 (for grounding)

B-6 drill through,

25.4

10 counter boring,

45

K

depth 6.2

60 � 0.3

(for secondary-side

30

mounting)

N (cumulative pitch error: �0.3)

(15) (30)
[Unit: mm]

7 � 0.3

LM-U2SB0-240-1SS1/LM-U2SB0-300-1SS1/LM-U2SB0-420-1SS1

Model

Variable dimensions

L

M

B

K

LM-U2SB0-240-1SS1 240

3 � 60 = 180

4

180

LM-U2SB0-300-1SS1 300

4 � 60 = 240

5

240

LM-U2SB0-420-1SS1 420

6 � 60 = 360

7

360

Mark "N"

L
B-M5 screw depth 8 (back) (for secondary-side mounting)

Mark "S"

8.6 8.2 (8.6)

Mark "S" 15

60 � 0.3 M (cumulative pitch error: �0.3)

Mark "N" (45)

N
3 � 60 = 180 4 � 60 = 240 6 � 60 = 360

82 12.7 � 0.3

(75)

C1 25.4

2-M5 screw depth 6 (for grounding)

B-6 drill through, 10 counter boring, depth 6.2
(for secondary-side mounting)

45 30

K 60 � 0.3
N (cumulative pitch error: �0.3)

52

6 LM-U2 SERIES 6.5 Dimensions

(15) (30)
[Unit: mm]

7 � 0.3

LM-U2S20-300-2SS1/LM-U2S20-480-2SS1

Model

Variable dimensions

L

N

B

K

LM-U2S20-300-2SS1

300

3 � 60 = 180

4

270

LM-U2S20-480-2SS1

480

6 � 60 = 360

7

450

Mark "N" N

L Mark "S" S

14.2 18.3

(18.3)

S Mark "S"

N Mark "N"

(108)

115

6

C1

50.8

2-M6 screw depth 6

(for grounding)

15

60

B-6.6 drill through, 11 counter boring, depth 25 (for secondary-side mounting)

60 � 0.3 K
N (cumulative pitch error: �0.3)

(15) (60)
[Unit: mm]

7 � 0.3

6 LM-U2 SERIES 6.5 Dimensions

53

7 LM-F SERIES
7.1 Model designation
The following describes what each block of a model name indicates. Not all combinations of the symbols are available.
Primary side (coil)

LM - F P 2 B - 0 6M - 1 SS 0

Series

Primary side (coil)

Width (nominal dimension)

Symbol Dimension [mm]

2

120

4

200

Maximum speed: 2.0 m/s

Continuous thrust

Continuous thrust [N] Symbol
Natural cooling Liquid cooling

06

300

600

12

600

1200

24

1200

2400

Length (nominal dimension)

Symbol Dimension [mm]

B

290

D

530

Secondary side (magnet)

LM - F S 2 0 - 4 8 0 - 1 SS 0

Series
Secondary side (magnet)

Length (nominal dimension)

Symbol Dimension [mm]

480

480

576

576

Width (nominal dimension)

Symbol Dimension [mm]

2

120

4

200

54

7 LM-F SERIES 7.1 Model designation

7.2 Standard specifications

Standard specifications list

Linear servo motor (primary side) LM-F_
Linear servo motor (secondary side) LMF_

P2B-06M-1SS0
S20-480-1SS0 S20-576-1SS0

P2D-12M-1SS0
S20-480-1SS0 S20-576-1SS0

P2F-18M-1SS0

P4B-12M-1SS0
S40-480-1SS0 S40-576-1SS0

P4D-24M-1SS0

Power supply capacity [kVA]

Refer to "Power supply capacity and generated loss" in the User's Manual (Hardware) for the servo amplifier being used.

Cooling method Thrust

Continuous *2 *4 [N]

Natural cooling Liquid cooling

Natural cooling, liquid cooling

300

600

600

1200

900 1800

600 1200

1200 2400

Maximum [N] Maximum speed *1 [m/s]

1800 2.0

3600

5400

3600

7200

Magnetic attraction force [N]

4500

9000

13500

9000

18000

Rated current [A]

Natural cooling 4.0

7.8

12

7.8

15

Liquid cooling 7.8

16

23

17

31

Maximum current [A]

30

58

87

57

109

Recommended load to motor mass ratio

15 times or less the mass of the linear servo motor primary side

Thermistor

Built-in

Insulation class

155 (F)

7

Structure

Open (IP rating: IP00 *3)

Vibration resistance [m/s2]

49

Mass

Primary side [kg]

9.0

18

27

14

28

Secondary side [kg]

7.0 (480 mm/pc) 9.0 (576 mm/pc)

12 (480 mm/pc) 15 (576 mm/pc)

*1 The actual maximum speed of the linear servo motor is the lower value between the maximum speed of the linear servo motor and the rated speed of the linear encoder.
*2 The continuous thrust values in the table apply when an aluminum board with the dimensions (L [mm] � W [mm] � H [mm]) shown below is mounted on the primary side. (The dimensions shown are for reference purposes only) LM-FP2B-06M-1SS0: 280 � 250 � 50 LM-FP2D-12M-1SS0: 510 � 250 � 50 LM-FP2F-18M-1SS0: 740 � 250 � 50 LM-FP4B-12M-1SS0: 280 � 425 � 50 LM-FP4D-24M-1SS0: 500 � 425 � 50
*3 IP classifies the degree of protection provided against the intrusion of solid objects and water in electrical enclosures. *4 Use the linear servo motor with 70 % or less of the effective load ratio when it is servo-locked or if there is faint reciprocating motion.

7 LM-F SERIES 7.2 Standard specifications

55

Thrust characteristics
The following shows the thrust characteristic when the power supply input of the servo amplifier is 3-phase 200 V AC or 1phase 200 V AC. The continuous/maximum thrust and maximum speed of the linear servo motor have the values for rated voltage and frequency from the combined servo amplifier applied.
3-phase 200 V AC

[LM-FP2B-06M-1SS0]

[LM-FP2D-12M-1SS0]

[LM-FP2F-18M-1SS0]

Thrust [N]

1800

1200

Short-duration running range

600

Continuous running range

(liquid cooling)

300

Continuous running range

(natural cooling)

0

0

1

2

Speed [m/s]

[LM-FP4B-12M-1SS0]

Thrust [N]

3600

2400

Short-duration running range

1200

Continuous running range

(liquid cooling)

600

Continuous running range

(natural cooling)

0

0

1

2

Speed [m/s]

[LM-FP4D-24M-1SS0]

Thrust [N]

5400

3600

Short-duration running range

1800

Continuous running range

(liquid cooling)

900

Continuous running range

(natural cooling)

0

0

1

2

Speed [m/s]

3600

Thrust [N]

2400

Short-duration running range

1200

Continuous running range

(liquid cooling)

600

Continuous running range

(natural cooling)

0

0

1

2

Speed [m/s]

1-phase 200 V AC
[LM-FP2B-06M-1SS0]

Thrust [N]

7200

4800

Short-duration running range

2400

Continuous running range

(liquid cooling)

1200

Continuous running range

(natural cooling)

0

0

1

2

Speed [m/s]

Thrust [N]

1800

1200
Short-duration running range

600

Continuous running range

(liquid cooling)

300

Continuous running range

(natural cooling)

0

0

1

2

Speed [m/s]

56

7 LM-F SERIES 7.2 Standard specifications

7.3 Derating

For the reference values shown, derating is performed from the rated speed. As the temperature rise value of the linear servo motor changes depending on operation conditions such as speed, confirm that [AL. 0E2 Servo motor overheat warning] and [AL. 046 Servo motor overheat] do not occur on the actual machine before use. If a warning or alarm occurs, consider taking the following measures: � Lower the effective load ratio of the linear servo motor. � Review the heat dissipation conditions. To use this product under conditions with multiple derating, calculate the multiplication of each derating rate, and use at the calculated derating rate or lower.
Restrictions on the ambient temperature

When using this product in an environment with a high ambient temperature, derate the product in accordance with the following conditions:

120

Derating rate [%]

100

80

LM-FP2B-06M-1SS0

LM-FP2D-12M-1SS0

LM-FP2F-18M-1SS0

60

LM-FP4B-12M-1SS0

7

LM-FP4D-24M-1SS0

40

20

0

0

20

40

60

Ambient temperature [�C]

Restrictions on the altitude

To use this product at an altitude between 1000 m and 2000 m, derate the product in accordance with the following conditions:

[%]
100 95

Derating rate

0

0

1000

2000 [m]

Altitude

7 LM-F SERIES 7.3 Derating

57

7.4 Installation
Fitting method
Center of the primary side *1

0.5 or less

H � 0.1 *3

0.1 A 0.1
A 0.1

Center of the secondary side *2
[Unit: mm]
*1 The locations of the center of the primary side are shown below. LM-FP2_-_M-1SS0: the center of the mounting screw pitch LM-FP4_-_M-1SS0: the position of the center mounting screw
*2 The center of the secondary side is located at the center of the mounting screw pitch. *3 H length indicates (height of primary side) + (height of secondary side) + (length of empty clearance: 0.5 mm).
LM-FP2_-_M-1SS0: H = 70 mm LM-FP4_-_M-1SS0: H = 70 mm

58

7 LM-F SERIES 7.4 Installation

Installation of the secondary side (magnet)
Precautions
� If mounting an additional secondary side with a secondary side already set, first set the additional side so that it is distanced from the already mounted one, then slide the additional side to mount it in its specified position as shown in this section.
� Keep the cumulative pitch error of the mounting screw holes to within �0.2 mm. When two or more secondary sides are installed, clearance may be left between the secondary sides depending on the installing method and the number of secondary sides.
Procedure
When using multiple secondary sides, arrange them so that the name plate attached to each side all share the same orientation to keep the layout of magnetic poles.
Plate

In addition, use the following procedure when mounting the secondary sides to decrease the clearance between them.
1. Use bolts to securely fix the secondary side that will be used as the mounting standard into place.

7

Secondary side to be a mounting standard

2. Set the next secondary side on the mounting face and use bolts to temporarily fix it into place.
Secondary side to be a mounting standard

3. Press the added secondary side toward the secondary side that is being used as the mounting standard.
Secondary side to be a mounting standard

4. Use bolts to securely fix the added secondary side into place.
Secondary side to be a mounting standard

7 LM-F SERIES 7.4 Installation

59

Installation of the primary side (coil)
Precautions
� We recommend mounting the primary side in a position where no secondary side is present. If the primary side must be mounted over the secondary side, use material handling equipment such as cranes that can fully withstand the load of the attraction force, etc.
� When sliding the primary side over the secondary side after installing, take precautions against the attraction force that is generated.
Procedure 1. Mount a portion of the secondary sides.
2. Mount the primary side in a position where no secondary side is present.
3. Move the primary side over the mounted secondary side. Confirm that the primary and secondary sides are not touching
each other.
4. Mount the rest of the secondary sides. Confirm that the primary and secondary sides are not touching each other.

60

7 LM-F SERIES 7.4 Installation

7.5 Liquid cooling

LM-F series linear servo motors are compatible with liquid cooling. Configure the machine (system) after confirming the

following items.

� Parts required for cooling system design, including the cooling pipe laying in the primary side table, parts required for

installation and cooling, the cooling machine (chiller), and the coolant should be carefully selected by the customer. For

example, when water is used as coolant, 5 liters or more are required per minute. Ensure that the pressure on the pipe flow

entrance is 0.5 MPa or less.

� To prevent foreign matter from entering the cooling pipe, be sure to always set a filter, etc. in the flow path.

� To avoid a liquid leak, the liquid-cooling pipe, coupling, etc. should be carefully selected by the customer. In particular, be

sure to select a liquid-cooling pipe that can withstand being bent.

� We recommend keeping the temperature of the liquid injected into the cooling pipe at room temperature (around 20 �C).

Ensure that condensation does not occur if lowering the liquid temperature to heighten the cooling effect.

� The overload protection characteristics are different from those for natural cooling, so confirm that conditions such as the

operation pattern are matched with the overload protection characteristics. If the operation conditions are not matched with

the overload protection characteristics, an alarm may occur. For the overload protection characteristics, refer to "USING A

LINER SERVO MOTOR" in the following manual. MR-J5 User's Manual (Hardware)

� Copper is used as the material for the cooling pipe, so when choosing the corrosion inhibitor to add to the coolant, be sure

to select one that will not corrode the copper. � When laying the cooling pipe, fix the hexagonal part of the cooling pipe in place using a spanner. The tightening torque

7

used should be 3.0 N�m to 3.5 N�m.

7 LM-F SERIES 7.5 Liquid cooling

61

7.6 Dimensions

Primary side (coil) dimensions

When mounting the primary side, use hexagon socket head cap screws (material should be SCM435 with a lower yield point of 900 N/mm2 or more). The power lead wires, grounding lead wires, and thermistor lead wires are for fixed wiring. Securely fix them to the structure. The recommended minimum bending radius for the cable is six times or more (reference value) the standard overall diameter of the cable. Consider the speed of the linear servo motor and the flexing radius when selecting the cable to use for the moving part.

LM-FP2B-06M-1SS0/LM-FP2D-12M-1SS0/LM-FP2F-18M-1SS0

Model
LM-FP2B-06M-1SS0 LM-FP2D-12M-1SS0 LM-FP2F-18M-1SS0

Variable dimensions L
290 530 770

M
2 � 80 = 160 5 � 80 = 400 8 � 80 = 640

B
2 � 3 2 � 6 2 � 9

(27) 66 � 0.3 27

Thermistor cable (2PNCT (two cores), standard overall diameter: 9 mm)
B-M8 screw hole depth 10 (for primary-side mounting)
L

(55)

M (cumulative pitch error: �0.5)

75

1000

+100 0

80 � 0.5 B

A

(15)

40

M 80

(10)

60

15

Thermistor cable (2PNCT (four cores), standard overall diameter: 12.5 mm)

4 or less

120

4 or less 18

(18)

84

70 � 0.1 50
31

Power connector D/MS3106A18-10P

E (grounding) (0.5)

Key position U-phase

(19.5)
Secondary side

DA CB W-phase
View A

V-phase

Rc1/4

(100) (120)

Thermistor connector D/MS3106A14S-9P

Key position

BA

G1/G2 (no polarity)

View B

[Unit: mm]

35.8

62

7 LM-F SERIES 7.6 Dimensions

LM-FP4B-12M-1SS0/LM-FP4D-24M-1SS0

Model
LM-FP4B-12M-1SS0 LM-FP4D-24M-1SS0

Variable dimensions L
290 530

M
2 � 80 = 160 5 � 80 = 400

Approx. 55

Power cable (2PNCT-4 cores, standard overall diameter: 17 mm)

B-M8 screw depth 10 (for primary-side mounting) L

M (cumulative pitch error: �0.5)

75

80 � 0.5

1000

+100 0

27 73 � 0.3 73 � 0.3 27

Approx.

Approx. 15 40

A B

Thermistor cable (2PNCT-2 cores, standard overall diameter: 9 mm)
Approx. 10

M

60

15

80

4 or less

200

4 or less 18

164

B
3 � 3 3 � 6

70 � 0.1 50
31

Power connector

Approx. 0.5

D/MS3106A24-22P

Approx. 19.5

Key position

E (grounding)

U-phase

DA

Secondary side

CB

V-phase

W-phase

View A

Approx. 180 Approx. 200

Thermistor connector D/MS3106A14S-9P
Key position
G1, G2 (no polarity)
BA

Rc1/4

View B

Approx. 18

35.8

Secondary side (magnet) dimensions

[Unit: mm]

7

When mounting the secondary side, use hexagon socket head cap screws (material should be SCM435 with a lower yield point of 900 N/mm2 or equivalent).

LM-FS20-480-1SS0/LM-FS20-576-1SS0

Model

Variable dimensions

L

M

B

K

LM-FS20-480-1SS0

480

4 � 96 = 384

2 � 5

432

LM-FS20-576-1SS0

576

5 � 96 = 480

2 � 6

528

L

0 -0.2

B-9 (for secondary-side mounting)

19.5

(48)

M (cumulative pitch error: �0.2)

48 � 0.2

96 � 0.2

Mark "N"

(10.5)

9

10

19

N

82

120

100 � 0.3

2-C1

(19)

(10)

(24)

K

24

2�2-M8 screw (for hanging)

Mold (epoxy)

[Unit: mm]

7 LM-F SERIES 7.6 Dimensions

63

LM-FS40-480-1SS0/LM-FS40-576-1SS0

Model
LM-FS40-480-1SS0 LM-FS40-576-1SS0

Variable dimensions L
480 576

M
4 � 96 = 384 5 � 96 = 480

B
2 � 5 2 � 6

Approx. 48

L

0 -0.2

B-9 (for secondary-side mounting)

M (cumulative pitch error: �0.2)

96 � 0.2

48 � 0.2

Mark "N"

10

N

19

K
432 528

19.5

Approx. 10.5

9

162

200

180 � 0.3

Approx. 24

Approx.

Approx.

19

10

2-C1

K

24

Mold (epoxy)

2�2-M8 screw (for hanging)

[Unit: mm]

64

7 LM-F SERIES 7.6 Dimensions

8 LM-K2 SERIES
8.1 Model designation
The following describes what each block of a model name indicates. Not all combinations of the symbols are available.
Primary side (coil)

LM - K 2 P 1 A - 0 1M - 2 SS 1

Series
Primary side (coil)

Symbol 2SS1

Linear servo motor model LM-K2P1A-01M LM-K2P1C-03M LM-K2P2A-02M LM-K2P2C-07M

Height (nominal dimension)

1SS1

LM-K2P2E-12M

Symbol Dimension [mm]

LM-K2P3C-14M

1

54

LM-K2P3E-24M

2

74.5

3

114.5

Maximum speed: 2.0 m/s

Continuous thrust

Length (nominal dimension)

Symbol Continuous thrust [N]

Symbol Dimension [mm]

01

120

A

138

02

240

C

330

E

522

03

360

07

720

8

12

1200

14

1440

24

2400

Secondary side (magnet)

LM - K 2 S 1 0 - 2 8 8 - 2 SS 1

Series

Secondary side (magnet)

Width (nominal dimension)

Symbol Dimension [mm]

1

46

2

61

3

101

Length (nominal dimension)

Symbol Dimension [mm]

288

288

384

384

480

480

768

768

Symbol 2SS1
1SS1

Linear servo motor model LM-K2S10-288 LM-K2S10-384 LM-K2S10-480 LM-K2S10-768 LM-K2S20-288 LM-K2S20-384 LM-K2S20-480 LM-K2S20-768 LM-K2S30-288 LM-K2S30-384 LM-K2S30-480 LM-K2S30-768

8 LM-K2 SERIES 8.1 Model designation

65

8.2 Standard specifications

Standard specifications list

Linear servo motor (primary side) LM-K2_
Linear servo motor (secondary side) LM-K2_

P1A-01M2SS1

P1C-03M2SS1

S10-288-2SS1 S10-384-2SS1 S10-480-2SS1 S10-768-2SS1

P2A-02M1SS1

P2C-07M1SS1

S20-288-1SS1 S20-384-1SS1 S20-480-1SS1 S20-768-1SS1

P2E-12M1SS1

P3C-14M1SS1

P3E-24M1SS1

S30-288-1SS1 S30-384-1SS1 S30-480-1SS1 S30-768-1SS1

Power supply capacity [kVA] Cooling method Thrust Continuous *2 *4 [N]
Maximum [N] Maximum speed *1 [m/s] Magnetic attraction force *5 [N] Magnetic attraction force (one side) *6 [N] Rated current [A] Maximum current [A] Recommended load to motor mass ratio Thermistor Insulation class Structure Vibration resistance [m/s2] Mass Primary side [kg]
Secondary side [kg]

Refer to "Power supply capacity and generated loss" in the User's Manual (Hardware) for the servo amplifier being used.

Natural cooling

120

360

240

720

1200

1440

2400

300

900

600

1800

3000

3600

6000

2.0

0

800

2400

1100

3200

5300

6400

10700

2.3

6.8

3.7

12

19

15

25

7.6

23

13

39

65

47

79

30 times or less the mass of the linear servo motor primary side

Built-in

155 (F) Open (IP rating: IP00 *3)

49

2.5

6.5

4.0

10

16

18

27

1.5 (288 mm/pc) 2.0 (384 mm/pc) 2.5 (480 mm/pc) 3.9 (768 mm/pc)

1.9 (288 mm/pc) 2.5 (384 mm/pc) 3.2 (480 mm/pc) 5.0 (768 mm/pc)

5.5 (288 mm/pc) 7.3 (384 mm/pc) 9.2 (480 mm/pc) 14.6 (768 mm/pc)

*1 The actual maximum speed of the linear servo motor is the lower value between the maximum speed of the linear servo motor and the rated speed of the linear encoder.
*2 The continuous thrust values in the table apply when an aluminum board with the dimensions (L [mm] � W [mm] � H [mm]) shown below is mounted on the primary side. (The dimensions shown are for reference purposes only) LM-K2P1A-01M-1SS1: 375 � 270 � 20 LM-K2P1C-03M-1SS1: 375 � 270 � 20 LM-K2P2A-02M-1SS1: 375 � 270 � 20 LM-K2P2C-07M-1SS1: 375 � 270 � 20 LM-K2P2E-12M-1SS1: 520 � 270 � 20 LM-K2P3C-14M-1SS1: 375 � 270 � 20 LM-K2P3E-24M-1SS1: 760 � 610 � 50
*3 IP classifies the degree of protection provided against the intrusion of solid objects and water in electrical enclosures. *4 Use the linear servo motor with 70 % or less of the effective load ratio when it is servo-locked or if there is faint reciprocating motion. *5 Magnetic attraction force is generated due to assembly accuracy and other causes. *6 The indicated value is the magnetic attraction force generated on one secondary side.

66

8 LM-K2 SERIES 8.2 Standard specifications

Thrust characteristics

The following shows the thrust characteristic when the power supply input of the servo amplifier is 3-phase 200 V AC or 1phase 200 V AC. The 1-phase 200 V AC power input is applicable to LM-K2P1A-01M-2SS1, LM-K2P1C-03M-2SS1, and LMK2P2A-02M-1SS1. Parts using a narrow line describe the thrust characteristic for 1-phase 200 V AC. The continuous/maximum thrust and maximum speed of the linear servo motor have the values for rated voltage and frequency from the combined servo amplifier applied.

[LM-K2P1A-01M-2SS1]

[LM-K2P1C-03M-2SS1]

[LM-K2P2A-02M-1SS1]

Thrust [N]

300

200
Short-duration running range
120 100

Continuous running range

0

0

1

2

Speed [m/s]

[LM-K2P2C-07M-1SS1]

Thrust [N]

900

Short-duration 600 running range

360 300

Continuous running range

0

0

1

2

Speed [m/s]

[LM-K2P2E-12M-1SS1]

Thrust [N]

600
Short-duration running range
400

240 200

Continuous running range

0

0

1

2

Speed [m/s]

[LM-K2P3C-14M-1SS1]

Thrust [N]

1800
Short-duration running range
1200

720 600

Continuous running range

0

0

1

2

Speed [m/s]

[LM-K2P3E-24M-1SS1]

Thrust [N]

3000

2000
Short-duration running range
1200 1000
Continuous running range

00

1

2

Speed [m/s]

Thrust [N]

3600

2700 2400

8

Short-duration

running range

1440 1200

Continuous running range

0

0

1 1.5 2

Speed [m/s]

Thrust [N]

6000

4500 4000
Short-duration running range

2400 2000
Continuous running range

0

0

1 1.5 2

Speed [m/s]

8 LM-K2 SERIES 8.2 Standard specifications

67

8.3 Derating

For the reference values shown, derating is performed from the rated speed. As the temperature rise value of the linear servo motor changes depending on operation conditions such as speed, confirm that [AL. 0E2 Servo motor overheat warning] and [AL. 046 Servo motor overheat] do not occur on the actual machine before use. If a warning or alarm occurs, consider taking the following measures: � Lower the effective load ratio of the linear servo motor. � Review the heat dissipation conditions. To use this product under conditions with multiple derating, calculate the multiplication of each derating rate, and use at the calculated derating rate or lower.
Restrictions on the ambient temperature

When using this product in an environment with a high ambient temperature, derate the product in accordance with the following conditions:

120

Derating rate [%]

100

80

LM-K2P1A-01M-2SS1 LM-K2P1C-03M-2SS1

LM-K2P2A-02M-1SS1

60

LM-K2P2C-07M-1SS1

LM-K2P3C-14M-1SS1

40

LM-K2P2E-12M-1SS1 LM-K2P3E-24M-1SS1

20

0

0

20

40

60

Ambient temperature [�C]

Restrictions on the altitude

To use this product at an altitude between 1000 m and 2000 m, derate the product in accordance with the following conditions:

[%]
100 95

Derating rate

0

0

1000

2000 [m]

Altitude

68

8 LM-K2 SERIES 8.3 Derating

8.4 Installation

Mounting dimensions

Mount the primary side and secondary side so that variable dimensions A, C, and F are as defined as shown in the following table. Refer to the outline drawing for details of the dimensions.

[Unit: mm]

Linear servo motor

Variable dimensions

A

B

C

D

E

F

LM-K2P1A-01M-2SS1

115

+0.1 0

(17.4)

55 � 0.1

(46)

(1)

LM-K2P1C-03M-2SS1

LM-K2P2A-02M-1SS1

115

+0.1 0

(17.4)

76.5 � 0.1

(61)

(2)

LM-K2P2C-07M-1SS1

38.5 � 0.1 38.5 � 0.1

LM-K2P2E-12M-1SS1

LM-K2P3C-14M-1SS1

139

+0.1 0

(29.4)

116.5 � 0.1

(101)

(2)

LM-K2P3E-24M-1SS1

50.5 � 0.1

Linear guide *1

F

Thermistor lead wire

Primary side *2

Table *1 Linear guide *1

0.1 A
0.1
8
0.1
A

C D E

Secondary side *3 (0.6) B

(79) (80.2)
A

(0.6) B

Power lead wire/grounding lead wire
Secondary side *3 Stage *1

*1 These items should be prepared by the customer. Contact the manufacturer for information regarding the mounting method. *2 Position the primary side using the table flange rabbet, etc. *3 One pair of secondary sides consists of two secondary sides that face each other. Mount the corresponding secondary side to the
opposite side.

8 LM-K2 SERIES 8.4 Installation

69

Installation procedure
Precautions
� If mounting an additional secondary side with a secondary side already set, first set the additional side so that it is distanced from the already mounted one, then slide the additional side to mount it in its specified position as shown in this section.
� After installation, confirm that the primary side is not touching the secondary side. � Keep the cumulative pitch error of the mounting screw holes to within �0.1 mm. When two or more pairs of secondary sides
are installed, clearance may be left between the secondary sides depending on the installing method and the number of secondary sides.
Procedure 1 1. Place one half of the first pair of secondary sides on the stage. 2. Firmly press the side face of the secondary side against the stage, then securely fix it into place with hexagon socket
head cap screws.
Secure the secondary side with the hexagon socket head cap screw.
Stage

3. Take the side face of the secondary side that will be added and firmly press it into place on the surface facing the
secondary side installed in steps 1 and 2. Next, temporarily fix the added secondary side into place with hexagon socket head cap screws.
4. Using an end surface positioning jig or similar tool, standardize the positions of the end surface of the secondary side
installed in steps 1 and 2 and the end surface of the secondary side added in step 3. After that, securely fix the added secondary side into place with hexagon socket head cap screws.
Tool for fitting end-surface position or others *1

Temporarily fix the secondary side with the hexagon socket head cap screw, and secure the secondary side after fitting its end surface to the tool.
*1 These items should be prepared by the customer.

70

8 LM-K2 SERIES 8.4 Installation

Procedure 2 1. Install the table on the primary side using hexagon socket head cap screws.
Table
2. Mount the primary side in a position where no secondary side is present.
8

8 LM-K2 SERIES 8.4 Installation

71

Procedure 3 1. Place non-magnetic sheets (of approx. 0.3 mm thickness) on the gap part (both sides) between the primary and
secondary side, then move the primary side toward the secondary side that was installed in Procedure 1. Remove the non-magnetic sheets after moving the primary side to the secondary side. When removing the sheets, be careful not to scratch the primary and secondary sides.
Resinous non-magnetic sheet
Move the primary side.

2. Place one half of the next pair of secondary sides on the stage. 3. Firmly press the side surface of the secondary side against the stage, then temporarily fix it into place with hexagon
socket head cap screws.
4. After pressing the added secondary side against the end surface of the secondary side installed in Procedure 1, securely
fix it into place using hexagon socket head cap screws.
Temporarily fix the secondary side with the hexagon socket head cap screw, and secure the secondary side after fitting its end surface to the adjacent secondary side.

Fit the secondary side to the adjacent side.
5. Install the other secondary side on the opposite surface so that it faces the first.
Temporarily fix the secondary side with the hexagon socket head cap screw, and secure the secondary side after fitting its end surface to the adjacent secondary side.

72

8 LM-K2 SERIES 8.4 Installation

Fit the secondary side to the adjacent side.

8.5 Dimensions

Primary side (coil) dimensions

When mounting the primary side, use hexagon socket head cap screws (material should be SCM435 with a lower yield point of 900 N/mm2 or more). The power lead wires, grounding lead wires, and thermistor lead wires are for fixed wiring. Securely fix them to the structure. The recommended minimum bending radius for the lead wire is six times or more (reference value) the standard overall diameter of the lead wire. Consider the speed of the linear servo motor and the flexing radius when selecting the cable to use for the moving part.

LM-K2P1A-01M-2SS1/LM-K2P1C-03M-2SS1

Model

Variable dimensions

L

M

K

B

H1

LM-K2P1A-01M-2SS1 138 LM-K2P1C-03M-2SS1 330

2 � 48 = 96 115 6 � 48 = 288 307

2 � 3

3

2 � 7

1.5

H2
3.5 or longer 2.5 or longer

Power/grounding lead wires

Size

Standard overall diameter

AWG 20

2.12

AWG 16

2.7

(27.5)

Round crimp terminal (1.25-4)

Mold (omitted)

Power lead wire (U/V/W): Black, Grounding lead wire (E): Green/yellow, Effective length: 300 mm
L

300

+30 0

Secondary side 54

(17.4) (20.5)

2-R0.5 or less

(15.5)

M (cumulative pitch error: �0.3)

26.5

48 � 0.2

(Effective lead wire length) 50
15

2-C0.5

8

(20.5)

PVC tube Wire mark

38

(0.6)

79

80.2

+0.1 0

38

Mounting part

24 � 0.3

115

(0.6)

20.5 � 0.1

20.5 � 0.1

27.5

B-M6 screw depth 7

40

15

(for primary-side mounting)

(6)

K

17

300

+30 0

Thermistor lead wire (G1/G2): Black, 2 wires - AWG 20 (standard overall diameter: 2.12 mm), Effective length: 300 mm

(Effective lead wire length)

X

1

46

55 � 0.1

Round crimp terminal (1.25-4)

(17.4)

H1 H2 Detailed view of section X
[Unit: mm]

8 LM-K2 SERIES 8.5 Dimensions

73

LM-K2P2A-02M-1SS1/LM-K2P2C-07M-1SS1/LM-K2P2E-12M-1SS1

Model

Variable dimensions

L

M

K

LM-K2P2A-02M-1SS1 138 LM-K2P2C-07M-1SS1 330 LM-K2P2E-12M-1SS1 522

2 � 48 = 96

115

6 � 48 = 288

307

10 � 48 = 480

499

B
2 � 3 2 � 7 2 � 11

Power/grounding lead wires

Size

Standard overall diameter

AWG 16

2.7

AWG 14

3.12

(27.5)

Power lead wire (U/V/W): Black, Grounding lead wire (E): Green/yellow, Effective length: 300 mm
L

(15.5)

M (cumulative pitch error: �0.3) 26.5 48 � 0.2

300

+30 0

(Effective lead wire length) 50

15

Round crimp terminal
(LM-K2P2A-02M-1SS1: 1.25-4) (LM-K2P2C-07M-1SS1, LM-K2P2E-12M-1SS1: 2-4)
74.5

(20.5)

38

PVC tube Wire mark

(0.6)

79

80.2

+0.1 0

38

(17.4) (20.5)

2-R0.5 or less

Secondary side

Mold (omitted)

2-C0.5

Mounting part

24 � 0.3

115

(0.6)

(17.4) 20.5 � 0.1

20.5 � 0.1

27.5

B-M6 screw depth 7 (for primary-side mounting)

(6)

K

17

Thermistor lead wire (G1/G2): Black, 2 wires - AWG 20 (standard overall diameter: 2.12 mm), Effective length: 300 mm

40

15

300

+30 0

(Effective lead wire length)

X 2
61 76.5 � 0.1
Round crimp terminal (1.25-4)

3 3.5 or more Detailed view of section X
[Unit: mm]

LM-K2P3C-14M-1SS1/LM-K2P3E-24M-1SS1

Model

Variable dimensions

L

M

K

LM-K2P3C-14M-1SS1 330 LM-K2P3E-24M-1SS1 522

6 � 48 = 288

307

10 � 48 = 480

499

B
2 � 7 2 � 11

Power/grounding lead wires

Size

Standard overall diameter

AWG 14

3.12

(15.5)

Power lead wire (U/V/W): Black, Grounding lead wire (E): Green/yellow, Effective length: 300 mm L

M (cumulative pitch error: �0.3)

26.5 48 � 0.2

Round crimp terminal (2-4)

300

+30 0

(Effective lead wire

length)

50

15

114.5

(20.5)

38

PVC tube Wire mark

79

80.2

139

+0.1 0

(0.6) (29.4)
(20.5)

38

Secondary side

Mold (omitted)

2-R0.5 or less

2-C0.5
Mounting part

24 � 0.3 (27.5)

20.5 � 0.1

27.5

(0.6) (29.4) 20.5 � 0.1

B-M6 screw depth 7

40

(for primary-side mounting)

15 X

(6)

K

17

300

+30 0

3

Thermistor lead wire (G1/G2): Black, 2 wires - AWG 20 (standard overall diameter: 2.12 mm), Effective length: 300 mm

(Effective lead wire length)

2 101 116.5 � 0.1

3.5 or more Detailed view of section X

Round crimp terminal (1.25-4)

[Unit: mm]

74

8 LM-K2 SERIES 8.5 Dimensions

Secondary side (magnet) dimensions
When mounting the secondary side, use hexagon socket head cap screws (material should be SCM435 with a lower yield point of 900 N/mm2 or equivalent). The longitudinal deviation of the secondary side must be �0.1 mm or less. (Refer to "Detailed view of secondary-side edge".)

LM-K2S10-288-2SS1/LM-K2S10-384-2SS1/LM-K2S10-480-2SS1/LM-K2S10-768-2SS1

Model

Variable dimensions

L

M

B

LM-K2S10-288-2SS1

288

LM-K2S10-384-2SS1

384

LM-K2S10-480-2SS1

480

LM-K2S10-768-2SS1

768

5 � 48 = 240

6

7 � 48 = 336

8

9 � 48 = 432

10

15 � 48 = 720

16

(24)
S Mark "S"

L

0 -0.2

M (cumulative pitch error: �0.3)

R5.5

48 � 0.3

24 � 0.3

B-6

Mark "S"

(for secondary-side

11

mounting)

Mark "N"

N

5.5

Mark "N"

17.4

(5.4)

12

N

S �0.1 or less *1

N Mark "N" Mark "S"

S

Detailed view of secondary-side edge

32 (6)

35 46

8
C1.5 [Unit: mm]

8

LM-K2S20-288-1SS1/LM-K2S20-384-1SS1/LM-K2S20-480-1SS1/LM-K2S20-768-1SS1

Model

Variable dimensions

L

M

B

LM-K2S20-288-1SS1

288

5 � 48 = 240

6

LM-K2S20-384-1SS1

384

7 � 48 = 336

8

LM-K2S20-480-1SS1

480

9 � 48 = 432

10

LM-K2S20-768-1SS1

768

15 � 48 = 720

16

(24)
S Mark "S"

L

0 -0.2

M (cumulative pitch error: �0.3)

R5.5

48 � 0.3

24 � 0.3

B-6

Mark "S"

11

(for secondary-side mounting)

Mark "N"

N

5.5

Mark "N"

17.4

(5.4)

12

N

S �0.1 or less *1

N Mark "N" Mark "S"

S

Detailed view of secondary-side edge

(6)

42

50 61

13

C1.5

[Unit: mm]

8 LM-K2 SERIES 8.5 Dimensions

75

LM-K2S30-288-1SS1/LM-K2S30-384-1SS1/LM-K2S30-480-1SS1/LM-K2S30-768-1SS1

Model

Variable dimensions

L

M

B

LM-K2S30-288-1SS1

288

LM-K2S30-384-1SS1

384

LM-K2S30-480-1SS1

480

LM-K2S30-768-1SS1

768

8 � 32 = 256

9

11 � 32 = 352

12

14 � 32 = 448

15

23 � 32 = 736

24

L

0 -0.2

(16)

M (cumulative pitch error: �0.3)

16 � 0.3

S

N

Mark "S"

Mark "N"

32 � 0.3

�0.1 or less *1

14

Mark "N"

Mark "S"

S

N

10

S Mark "S"

R7

N

B-9

Mark "N"

(for secondary-side mounting)

(5.4)

Detailed view of secondary-side edge
29.4 24

(6)

86 101

82

[Unit: mm] C1.5

13

76

8 LM-K2 SERIES 8.5 Dimensions

MEMO
8

8 LM-K2 SERIES 8.5 Dimensions

77

REVISIONS

*The manual number is given on the bottom left of the back cover.

Revision date

*Manual number

Description

July 2019

SH(NA)-030316ENG-A

First edition

July 2020

SH(NA)-030316ENG-B

Addition of the following linear servo motors LM-U2P2D-80M-2SS0, LM-FP2D-12M-1SS0 LM-FP2F-18M-1SS0, LM-FP48-12M-1SS0 LM-FP4D-24M-1SS0, LM-FS40-480-1SS0 LM-FS40-576-1SS0, LM-K2P2E-12M-1SS1 LM-K2P3E-24M-1SS1 Changes to portions on environment requirements Changed items Section 1.2, Section 4.2, Section 4.3, Chapter 6, Chapter 7, Chapter 8 Added sections: Section 5.4, Section 6.4, Section 7.4, Section 8.4

This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.

 2019 MITSUBISHI ELECTRIC CORPORATION

78

WARRANTY
Warranty
1. Warranty period and coverage
We will repair any failure or defect hereinafter referred to as "failure" in our FA equipment hereinafter referred to as the "Product" arisen during warranty period at no charge due to causes for which we are responsible through the distributor from which you purchased the Product or our service provider. However, we will charge the actual cost of dispatching our engineer for an on-site repair work on request by customer in Japan or overseas countries. We are not responsible for any on-site readjustment and/or trial run that may be required after a defective unit are repaired or replaced. [Term] For terms of warranty, please contact your original place of purchase. [Limitations] (1) You are requested to conduct an initial failure diagnosis by yourself, as a general rule.
It can also be carried out by us or our service company upon your request and the actual cost will be charged. However, it will not be charged if we are responsible for the cause of the failure. (2) This limited warranty applies only when the condition, method, environment, etc. of use are in compliance with the terms and conditions and instructions that are set forth in the instruction manual and user manual for the Product and the caution label affixed to the Product. (3) Even during the term of warranty, the repair cost will be charged on you in the following cases; 1. a failure caused by your improper storing or handling, carelessness or negligence, etc., and a failure caused by your hardware
or software problem 2. a failure caused by any alteration, etc. to the Product made on your side without our approval 3. a failure which may be regarded as avoidable, if your equipment in which the Product is incorporated is equipped with a safety
device required by applicable laws and has any function or structure considered to be indispensable according to a common sense in the industry 4. a failure which may be regarded as avoidable if consumable parts designated in the instruction manual, etc. are duly maintained and replaced 5. any replacement of consumable parts (battery, fan, smoothing capacitor, etc.) 6. a failure caused by external factors such as inevitable accidents, including without limitation fire and abnormal fluctuation of voltage, and acts of God, including without limitation earthquake, lightning and natural disasters 7. a failure generated by an unforeseeable cause with a scientific technology that was not available at the time of the shipment of the Product from our company 8. any other failures which we are not responsible for or which you acknowledge we are not responsible for
2. Term of warranty after the stop of production
(1) We may accept the repair at charge for another seven (7) years after the production of the product is discontinued. The announcement of the stop of production for each model can be seen in our Sales and Service, etc.
(2) Please note that the Product (including its spare parts) cannot be ordered after its stop of production.
3. Service in overseas countries
Our regional FA Center in overseas countries will accept the repair work of the Product. However, the terms and conditions of the repair work may differ depending on each FA Center. Please ask your local FA center for details.
4. Exclusion of loss in opportunity and secondary loss from warranty liability
Regardless of the gratis warranty term, Mitsubishi shall not be liable for compensation to: (1) Damages caused by any cause found not to be the responsibility of Mitsubishi. (2) Loss in opportunity, lost profits incurred to the user by Failures of Mitsubishi products. (3) Special damages and secondary damages whether foreseeable or not, compensation for accidents, and compensation for
damages to products other than Mitsubishi products. (4) Replacement by the user, maintenance of on-site equipment, start-up test run and other tasks.
5. Change of Product specifications
Specifications listed in our catalogs, manuals or technical documents may be changed without notice.
6. Application and use of the Product
(1) For the use of our AC Servo, its applications should be those that may not result in a serious damage even if any failure or malfunction occurs in AC Servo, and a backup or fail-safe function should operate on an external system to AC Servo when any failure or malfunction occurs.
(2) Our AC Servo is designed and manufactured as a general purpose product for use at general industries. Therefore, applications substantially influential on the public interest for such as atomic power plants and other power plants of electric power companies, and also which require a special quality assurance system, including applications for railway companies and government or public offices are not recommended, and we assume no responsibility for any failure caused by these applications when used. In addition, applications which may be substantially influential to human lives or properties for such as airlines, medical treatments, railway service, incineration and fuel systems, man-operated material handling equipment, entertainment machines, safety machines, etc. are not recommended, and we assume no responsibility for any failure caused by these applications when used. We will review the acceptability of the abovementioned applications, if you agree not to require a specific quality for a specific application. Please contact us for consultation.
79

TRADEMARKS
MELSERVO is a trademark or registered trademark of Mitsubishi Electric Corporation in Japan and/or other countries. All other product names and company names are trademarks or registered trademarks of their respective companies.
80

SH(NA)-030316ENG-B(2007)MEE MODEL: MODEL CODE:
HEAD OFFICE : TOKYO BUILDING, 2-7-3 MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN NAGOYA WORKS : 1-14 , YADA-MINAMI 5-CHOME , HIGASHI-KU, NAGOYA , JAPAN
When exported from Japan, this manual does not require application to the Ministry of Economy, Trade and Industry for service transaction permission.
Specifications are subject to change without notice.
