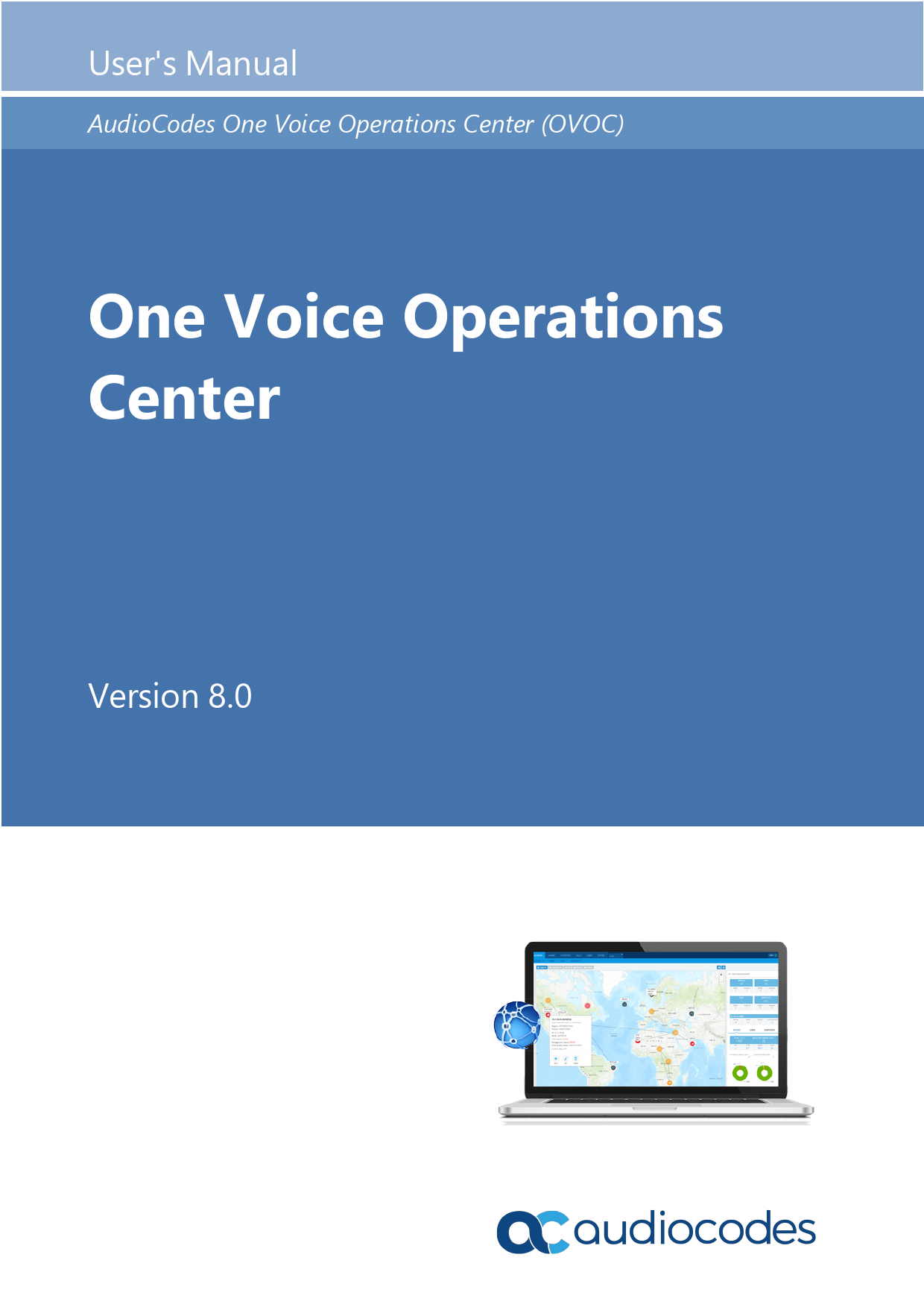

User's Manual
AudioCodes One Voice Operations Center (OVOC)
One Voice Operations Center
Version 8.0

Notice

OVOC | User's Manual

Notice
Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after the Date Published nor can it accept responsibility for errors or omissions. Updates to this document can be downloaded from https://www.audiocodes.com/library/technical-documents.
This document is subject to change without notice. Date Published: March-29-2021
WEEE EU Directive
Pursuant to the WEEE EU Directive, electronic and electrical waste must not be disposed of with unsorted waste. Please contact your local recycling authority for disposal of this product.
Customer Support
Customer technical support and services are provided by AudioCodes or by an authorized AudioCodes Service Partner. For more information on how to buy technical support for AudioCodes products and for contact information, please visit our website at https://www.audiocodes.com/services-support/maintenance-and-support.
Documentation Feedback
AudioCodes continually strives to produce high quality documentation. If you have any comments (suggestions or errors) regarding this document, please fill out the Documentation Feedback form on our website at https://online.audiocodes.com/documentation-feedback.
Stay in the Loop with AudioCodes

Related Documentation
Document Name Mediant 500 MSBR User's Manual Mediant 500L MSBR User's Manual
- ii -

Notice

OVOC | User's Manual

Document Name Mediant 500L Gateway and E-SBC User's Manual Mediant 800B Gateway and E-SBC User's Manual Mediant 800B MSBR User's Manual Mediant 1000B Gateway and E-SBC User's Manual Mediant 1000B MSBR User's Manual Mediant 2600 SBC User's Manual Mediant 3000 User's Manual Mediant 4000 SBC User's Manual Mediant 9000 SBC User's Manual Mediant Software SBC User's Manual One Voice Operations Center Server Installation, Operation and Maintenance Manual One Voice Operations Center Product Description One Voice Operations Center Integration with Northbound Interfaces Guide Device Manager Pro Administrator's Manual Device Manager Express Administrator's Manual ARM User's Manual One Voice Operations Center Security Guidelines One Voice Operations Center Alarms Guide

Document Revision Record

LTRT 91048
91049

Description
Initial document release for 7.8. Reports. FlexPool mode. UMP Quick Connect. Advanced Quality Package teaser. Mediant 500Li. "Advanced Quality Package license missing". SSO limitation. MasterScope status in License Configuration page.
Fixes

- iii -

Notice

OVOC | User's Manual

LTRT

Description

92000 Fixes

92001

Updated for 7.8.1000. Login as Azure op w MFA. Azure AD dB. Tenant Endpoints Group User Group Name. Authorization Level Settings. Privacy Mode. Tenant Details. Adding a Group. Endpoints Groups filter. Endpoints Groups. Report Results (fixes).

92002

Tenant Details: Multitenancy tab > Operators tab. 'Disable SNMP'. Server Status page - cluster mode. Server Status-Info-Ports status. Update firmware (.cmp) on MC (Media Component) in a Media Cluster (Mediant Cloud Edition (CE) software session border controller (SBC). CentOS version 6 or 8. PM Profile-REST. PM Profile-REST filter. cmp File Details in Software Manager. Users URI Regexp. Links not displayed if >1000 and src/dest outside page.

92003 Icon statuses descriptions corrected.

92004 LDAP Operator Authentication 'Filter'. Future Suspension of operator.

92005

OVOC look-and-feel changed: Colors | Dashboard | Call Details. New screenshots replaced obsolete. Topology Groups page. Endpoint Groups page. Teams calls (New device|Configuration| Calls| Statistics | Reports). 'Description' for alarms from OVOC server. Filter pages by SNMP API vs. REST parameters. MasterScope>Data Layer Manager.

- iv -

Content

OVOC | User's Manual

Table of Contents

1 Introduction

About the One Voice Operations Center

Benefits

Intended Audience

Network Architecture

ITSP Multi-Tenancy Architecture

Enterprise Multi-Tenancy Architecture

Non Multi-Tenancy Architecture

Elements in Multi-Tenancy Architecture

ITSP Customer Multi-Tenant Architecture

2 Getting Started

Logging in

Getting Acquainted with the Dashboard

Getting Acquainted with the Network Topology Page

Hovering Over a Cluster to Display Information

Hovering Over a Device to Display Information

Hovering over a Link to Display Information

Returning to 'Home' Page by Clicking the AudioCodes Logo

Getting Acquainted with the Network Map Page

Configuring Operator Authentication

Configuring Operator Authentication Centrally using an LDAP Server

Configuring Operator Authentication Centrally with a RADIUS Server

Viewing Operator Authentication in the Application Information Window

Testing Connectivity with the LDAP / RADIUS Server

Configuring Operator Authentication Centrally with Azure Active Directory

Logging in as an Azure User with Multi Factor Authentication

Configuring Operator Authentication Locally, in the OVOC

Adding an Operator

How Multi Tenancy Impacts Operator Capabilities

Adding a 'System' Operator

Editing a 'System' Operator

Deleting a 'System' Operator

Deleting Multiple Operators

Suspending a 'System' Operator

Releasing a Suspended 'System' Operator

Forcing a Password Change

Forcing an Operator Logout

Adding a 'Tenant' Operator

Editing a 'Tenant' Operator

Deleting a 'Tenant' Operator

Deleting Multiple Operators

Suspending a 'Tenant' Operator

-v-

Content
Releasing a Suspended 'Tenant' Operator Forcing a Password Change Forcing an Operator Logout
3 Configuring Global (System) Settings
Administration tab
Loading the OVOC Server License Making Sure your License Provides the Capabilities you Ordered Allocating Licenses to Tenants Defining # of Administrator-Defined Reports Produced at System Level Authenticating Operators Determining OVOC Server Status Securing Connections with FQDN or IP Address Providing a Description to be Forwarded in Alarm Info Configuring Privacy Mode, Concealing Users Calls Details Uploading a Global Logo to Display in Report Results Customizing Call Storage
Customizing Maximum Storage Period Viewing Calls Status
Configuration tab
Configuring Templates SNMP Connectivity HTTP Connectivity QoE Thresholds QoE Status and Alarms
Configuring Alarms Settings Adding Configuration Files to the OVOC's Software Manager
Adding the ini File Adding a cmp File Adding a cli File Adding Auxiliary Files Connecting Directly to External Applications Device Manager ARM Data Layer Manager Enabling Automatic Device Backup Periodically
Tasks tab
Displaying the Status of Tasks Currently Under Execution
4 Defining your Network Topology
Adding a Tenant
Editing a Tenant - Defining a Logo Defining a Tenant Logo - Example
Adding a Region Adding AudioCodes Devices
Adding AudioCodes Devices Automatically

OVOC | User's Manual
66 66 67
68
70
70 71 72 74 75 75 76 77 78 78 79 84 86
88
88 88 91 91 93 95 98 100 101 104 104 106 106 107 108 110
110
111
113
113
122 123
129 130
130

- vi -

Content
Adding AudioCodes Devices Manually Enabling Initial Connection Provisioning
Before Enabling the Feature Enabling the Feature Making Sure First Time Provisioning was Successful
Adding a Generic Device Manually Adding a Microsoft Teams Device Manually Adding a Microsoft Skype for Business Device Manually Backing up a Device's Configuration using Backup Manager
Manually Backing up a Device's Configuration Saving the Last Backed-up Configuration to your PC Restoring the Last Backed-up Configuration to the Device
Adding Links Adding Sites Managing Endpoints
Dynamic Allocation of Endpoint Licenses Configuring Endpoints Monitoring Endpoints Status Removing Endpoints from QoE Support
Adding an Endpoints Group Adding a Topology Group 5 Managing SBC Licenses Adding an SBC to the Floating License Performing Floating License Actions
Unmanage Update Reset Register
Configuring OVOC-Floating License Service Communications
Cloud Mode Configuring Cloud Mode Viewing Floating License Summaries Saving a Usage Data Report to your PC
FlexPool Mode Configuring an Alarm Threshold Percentage for FlexPool Mode Configuring SBC Priority - Which to Take out of Service First Determining License Status from Alarms Determining License Status from the Network Summary
Migrating from Cloud Mode to FlexPool Mode Fixed License Pool
Performing License Pool Actions Applying a License to a Device from the Pool Saving Fixed License Pool Data to CSV File Before Performing 'Manage Device' / 'Update Device'
- vii -

OVOC | User's Manual
135 143 144 145 147
150 151 153 157
157 158 159
159 164 165
165 166 167 167
168 172
174
174 179
179 180 180 181
181
182 183 185 188 189 189 189 190 191 194 195 198 198 198 200

Content
License Pool Alarms
6 Assessing Network Health Assessing Health from the Network Summary Assessing Health from the Network Topology Page
Filtering to Access Specific Information Filtering by 'Time Range' Filtering by 'Topology' Filtering the Device Floating License Page Filtering by 'Status' Filtering by 'More Filters' Filtering by Groups
Determining Network Health from Alarms
Configuring Alarm Settings Monitoring Active Alarms to Determine Network Health Performing Management Actions on Active Alarms
Filtering by 'Severity' Filtering by 'Source Type' Filtering by 'More Filters' Filtering by 'Type' Filtering by 'Alarm Names' Viewing Journal Alarms to Determine Operator Responsibility Filtering the Alarms Journal by 'More Filters' Viewing History Alarms Filtering by 'Type' Filtering by 'Alarm Names' Forwarding Alarms Forwarding Alarms whose Destination Type is 'SNMP' Forwarding Alarms whose Destination Type is 'Mail' Forwarding Alarms whose Destination Type is 'Syslog' Forwarding Alarms whose Destination Type is 'Notification' Viewing the New Rules in the Alarms Forwarding Page
Assessing Network Health in the Statistics Pages
Viewing Statistics on Calls over Devices Metrics Bar Charts Statistics Summary
Viewing Statistics on Streams over Links Viewing Statistics on Calls over Sites Viewing Statistics on Calls over Endpoints
Monitoring Performance
Adding a PM Template Adding a PM Profile Starting and Stopping PM Polling Viewing PM Data Resulting from Polling
7 Managing your Network
- viii -

OVOC | User's Manual
202
203
203 208
212 213 215 218 222 224 225
227
227 227 227 230 233 234 235 237 237 238 240 242 244 244 252 255 257 261 265
265
265 267 269 270 270 270
270
271 276 281 282
292

Content
Performing Management Actions
Updating Firmware Updating Firmware on Multiple Devices Updating Firmware on a Component in a Media Cluster Resetting a Device Locking or Unlocking a Device Populating Links Moving a Device Backing Up Restoring the Last Backup Setting Configuration Factory Defaults Saving a Device's Configuration File to Flash Memory Saving a Device's Configuration File to the PC Resetting Redundant Performing Switchover Changing Profile Showing Device Information Showing Link Information Showing User Information Editing a Device Deleting a Device Resetting a Device Refreshing a Device's Pool License
Monitoring Device-Level Backup and Performing Rollback 8 Obtaining Quality Statistics on Calls
Accessing the Calls List
Filtering by 'Quality' Filtering by 'More Filters'
Showing Call Details
Details of a Call Made over an AudioCodes SBC Media Signaling Trends SIP Call Flow
Details of a Test Call Made over an SBC Call Details Page � Debug File Button Details of a Call Made over Microsoft Skype for Business
Media Signaling Details of a Call Made over Microsoft Teams Quality Media tab Network Device
- ix -

OVOC | User's Manual
292
293 295 295 298 299 300 301 302 303 304 304 305 305 306 306 308 310 311 313 313 314 315
315
316
316
319 320
324
324 325 329 330 331 334 336 336 339 342 342 345 347 349 352

Content
Details of a Call Made over an Endpoint Using SIP Publish Media
Managing QoE Thresholds Profiles per Tenant
Understanding the 3 Sensitivity-Level Profiles Understanding How Call Color is Determined
Link Profile as Determinant MOS Metric as Determinant Adding a QoE Thresholds Profile per Tenant Editing a QoE Thresholds Profile per Tenant Deleting a QoE Thresholds Profile per Tenant
Managing QoE Status and Alarms per Tenant
Adding a QoE Alarm Rule per Tenant Editing a QoE Alarm Rule per Tenant Deleting a QoE Alarm Rule
9 Getting Information on Users Experience
Adding an Active Directory to the OVOC
Editing an Active Directory Deleting an Active Directory Synchronizing an AD with the AD Server
Assessing Overall End Users Experience Assessing a Specific End User's Experience Managing End Users
Filtering the User Details Page
10 Managing Reports
Defining a Report
Selecting a Metric
Viewing a Defined Report Editing a Report Performing Actions on Reports Displaying Report Results
'Element (Entity) Statistics' Report Type 'Aggregated Statistics Trends' Report Type
Viewing a Snapshot of all Reports Statistics Viewing Schedulers and Reports Executed by them Adding a Report Scheduler Editing a Defined Scheduler Showing a Scheduled Report's Results
11 AudioCodes IP Network Telephony Equipment
12 Adding an Unprivileged User to MSSQL Server

OVOC | User's Manual
353 356
359
359 360 360 361 362 365 365
366
366 369 369
370
370
373 375 375
375 377 379
380
382
385
392
399 400 401 402
403 404
405 407 409 412 412
414
420

-x-

CHAPTER 1 Introduction

OVOC | User's Manual

1 Introduction
The AudioCodes One Voice Operations Center (referred to as `OVOC' for short in this document) is a web-based voice network management solution that combines management of voice network devices and quality of experience monitoring into a single, intuitive webbased application.
Figure 1-1: AudioCodes One Voice Operations Center

OVOC enables administrators to adopt a holistic approach to network lifecycle management by simplifying everyday tasks and assisting in troubleshooting all the way from detection to correction.
The OVOC's clear GUI design allows network administrators to manage the full lifecycle of VoIP devices and elements from a single centralized location, saving time and costs. Tasks that would normally be complex and time-consuming, such as performing root cause analysis, adding new devices to the VoIP network and initiating bulk software updates, can be carried out quickly and easily.
The OVOC uniformly manages, monitors and operates the entire AudioCodes One Voice portfolio, including Media Gateways, Session Border Controllers, Microsoft SBAs and IP Phones.
About the One Voice Operations Center
The OVOC enables customers to adopt an integrated approach to network lifecycle management by simplifying everyday tasks and assisting in troubleshooting all the way from detection to correction. When deployed in Amazon Web Services (AWS), for example, the OVOC enables AudioCodes partners and systems integrators to provide remote VoIP support and professional services, covering AudioCodes session border controllers, IP phones and other devices, from the cloud.
The OVOC combines several key functions together in a single pane of glass, including: New device detection and configuration
-1-

CHAPTER 1 Introduction

OVOC | User's Manual

Accurate inventory population Automation and mass operation support A central, correlated alarm dashboard Group-based configuration and update management Change documentation and device configuration backup and restore Quality monitoring and RCA (root cause analysis) In addition, the OVOC is fully integrated with AudioCodes Routing Manager (ARM). ARM is a holistic, dynamic routing manager with a design based on software-defined networking principles. It decouples the device layer from the network routing and policy layers, designs VoIP networks automatically, and simplifies routing rules, monitoring and management configuration. OVOC features: Highly scalable to support thousands of devices Multi-tenancy support for hosted and managed environments Auto-provisioning and configuration for the entire AudioCodes portfolio Real-time call quality monitoring and root cause analysis Integration with AudioCodes Routing Manager (ARM) session routing solution Centralized reporting and knowledge distribution
Benefits
Here are some of the benefits you'll get from the OVOC: Facilitates easy and secure transition to VoIP deployments including UC, hosted business
services and contact centers Reduces OpEx and TCO using centralized tools to remotely operate VoIP network
components Simplifies and allows for more efficient device operation, administration and fault
management Provides an intuitive real-time network view, capturing entire network status in real time Reduces MTTR with integrative detection and correction tools Delivers powerful analytic reports for effective planning of future network expansion and
optimization Streamlines network management and quality monitoring in a single application Improves system availability with accurate troubleshooting and root cause analysis Increases efficiency with centralized configuration and provisioning

-2-

CHAPTER 1 Introduction

OVOC | User's Manual

Offers intelligent insights into network trends and performance to assist in planning and design
Supports Microsoft Skype for Business environments
Intended Audience
This User's Manual targets three audiences: The ITSP administrator whose network features multi-tenancy architecture and whose
OVOC application will provide telephony management services to multiple enterprise customers (tenants) in their network. See Network Architecture below for more information.
The enterprise administrator whose network does not feature multi-tenancy architecture and whose OVOC application will enable management of the enterprise's distributed offices. See also Network Architecture below.

The enterprise administrator whose network does not feature multi- tenancy architecture can skip documentation related to multi-tenancy.

The enterprise administrator whose network features multi-tenancy architecture and whose OVOC application will provide telephony management services to multiple regional branches (tenants) in their network. See Network Architecture below for more information.
Network Architecture
The OVOC features these types of telephony network architecture: Multi-Tenancy Architecture (see ITSP Multi-Tenancy Architecture below and Enterprise
Multi-Tenancy Architecture on the next page) Non Multi-Tenancy Architecture (see Non Multi-Tenancy Architecture on the next page)
ITSP Multi-Tenancy Architecture
ITSP multi- tenancy architecture allows an Internet Telephony Service Provider (ITSP) administrator to deploy a single instance of the OVOC application to provide a telephony network management service to multiple enterprise customers (tenants).

-3-

CHAPTER 1 Introduction

Figure 1-2: ITSP Multi-Tenancy Architecture

OVOC | User's Manual

'Tenants' can be given the capability to customize parts of the OVOC application, for example, the routing rules, but not to customize, for example, the OVOC server's roles.
Enterprise Multi-Tenancy Architecture
Enterprise multi-tenancy architecture allows an enterprise administrator to deploy a single instance of the OVOC application in order to provide a telephony network management service to multiple regional branches (tenants).
Figure 1-3: Enterprise Multi-Tenancy Architecture

'Tenants' can be given the capability to customize parts of the OVOC application, for example, the routing rules, but not to customize, for example, the OVOC server's roles.
Non Multi-Tenancy Architecture
Non multi-tenancy architecture allows an enterprise's network administrator to define a single tenant (themselves) in order to provide a network management service to the enterprise's distributed offices.
-4-

CHAPTER 1 Introduction
Figure 1-4: Non Multi-Tenancy Architecture - Enterprise

OVOC | User's Manual

Elements in Multi-Tenancy Architecture
The following table shows OVOC application elements defined in multi-tenancy architecture. Table 1-1: OVOC Application Elements Defined in Multi-Tenancy Architecture

Element

Description

System

An ITSP managing multiple enterprises using a cloud-based or hosted 'global' OVOC application.

Tenant

An ITSP's enterprise customer, using only a portion of the OVOC resources and only some of the OVOC entities. Other tenants (the ITSP's other enterprise customers) in the ITSP's multi-tenant network will be invisible to this tenant.
An enterprise's regional branch, using only a portion of the OVOC resources and only some of the OVOC entities.
An enterprise whose network administrator must define a tenant (that enterprise) under which to define the enterprise's distributed offices.

Entity

Any element which can be managed or used as a whole: Tenant entity (managed/assigned by a specific OVOC tenant) Global entity (managed by the OVOC system; applies to/affects all
tenants) System entity (managed /assigned only by the OVOC system)

Resource

Any element that can be partly managed/assigned: Global resource (managed by the OVOC system; applies to/affects all
tenants) Tenant resource (portion of the resource)

-5-

CHAPTER 1 Introduction

OVOC | User's Manual

ITSP Customer Multi-Tenant Architecture
This architecture enables every OVOC operator (assigned to the same tenant), whose operator type is configured as `Tenant' and whose operator security level is configured as `Monitor Links', to monitor a subset of links under that tenant.
When an ITSP deploys this architecture, one operator can then monitor (for example) all links connecting customer `A' to trunk groups while another operator can monitor (for example) all links connecting customer B's Microsoft Edge Server IP Group to its Skype for Business Front End IP Group.
Figure 1-5: ITSP Customer Multi-Tenant Architecture

The architecture features non-bleeding partitions between each subset of links so operators cannot monitor the links of one another. OVOC operators in this architecture can monitor: Sites configured as links' destinations Devices configured as links' sources / destinations Links in the Network Topology page Link-related alarms and events Link-related statistics Link-related notifications for tasks and alarms OVOC operators whose security level is 'Monitor Links' cannot monitor (in addition to regular monitor-only restrictions): Any information related to topology except the links that are attached to the operator
(including tenant information / region information and sites, though only names of sites that are used as links, destinations) Any information about the source / destination devices except their names, including: Device backups Call flow information
-6-

CHAPTER 1 Introduction

OVOC | User's Manual

Caller / callee information except user name representation (either full name, URI, phone number, etc.)
Legs information (media, signaling, trends) except leg arrows and color (in diagram) of legs not associated with the links attached to the operator
Diagram media / control information about legs not associated with the links attached to the operator

-7-

CHAPTER 2 Getting Started

OVOC | User's Manual

2 Getting Started
Getting started with the One Voice Operations Center involves logging in and getting acquainted with the management interface.
Before getting started, make sure you have a correct OVOC license. For detailed information about the OVOC Server License, see Loading the OVOC
Server License on page 70.
Logging in
Logging in to the OVOC is a prerequisite to using the interface for network management.
To log in to the OVOC: 1. Point your browser to the OVOC server's IP address: https://<IP Address>. You only need
to enter its IP address; the rest of the URL is automatically added. Logging in can optionally be performed using FQDN rather than IP address.
Figure 2-1: Login

2. Enter your Username and Password: acladmin (default) (case-sensitive) (can be modified later after defining users) pass_1234 (default) (case-sensitive) (can be modified later after defining users)
3. The GUI by default displays the Dashboard.
-8-

CHAPTER 2 Getting Started

OVOC | User's Manual

It's recommended to change the password after initial login. If the operator attempting to log in is an Azure operator and if Multi Factor
Authentication is enabled in the Azure configuration for this operator, see Configuring Operator Authentication Centrally with Azure Active Directory on page 44 and Logging in as an Azure User with Multi Factor Authentication on page 47.
Getting Acquainted with the Dashboard
The Dashboard opens by default after logging in to the OVOC. The Dashboard gives the operator: an uncluttered, operator-friendly summary of the entire IP telephony network an aggregation of all IP telephony network information on a single page quick access to every entity, status, QoE and alarm from one central point It may be helpful to get familiar with the page before getting started.
Figure 2-2: Dashboard

Use the following table as reference: Table 2-1: OVOC Dashboard

Cluster Icon

Description

[Devices] Indicates the number of AudioCodes SBC / MSBR / Gateway devices currently managed by the OVOC. Quickly accesses the Device Manage page filtered to display only these devices and none other.

[Links] Indicates the number of links currently managed by the OVOC. Click to access the Links page. See Adding Links on page 159.

-9-

CHAPTER 2 Getting Started

OVOC | User's Manual

Cluster Icon

Description
[Sites] Indicates the number of sites currently managed by the OVOC. Click to open the Sites page. See Adding Sites on page 164

Active Alarms

[Endpoints] Indicates the number of endpoints currently managed by the OVOC. Click to open the Endpoints page. See Monitoring Endpoints Status on page 167.
[UMP] Indicates the number of User Management Packs (UMPs) 365 currently managed by the OVOC. For more information about the AudioCodes UMP 365, see under AudioCodes IP Network Telephony Equipment on page 414.
[Microsoft Teams and Skype for Business] Indicates the number of Microsoft Teams and Skype for Business entities, for example, Front End Servers, currently managed by the OVOC. Click to access the Device Management page.
[SmartTAP] Quickly accesses the OVOC's Device Management page filtered to display only the SmartTAP Application server. The AudioCodes SmartTap for Microsoft Skype for Business is an intelligent, fully certified and secured enterprise interactions recording solution of voice, video and IMs. With SmartTAP, enterprises can capture and index any customer or organizational interaction across external and internal communication channels seamlessly. Note that for OVOCSmartTAP server connectivity, Microsoft's SNMP Service must be disabled on the SmartTAP server.
Indicates (1) the total number of active alarms in the network and (2) the number of active Critical, Major, Minor and Warning severity-level alarms.

- 10 -

CHAPTER 2 Getting Started
Cluster Icon

Description

OVOC | User's Manual

Clicking the total number of active alarms in the network opens the Active Alarms page.
Clicking the row of a severity level opens the Active Alarms page filtered by that severity level, so operators can directly access only alarms whose severity level is (for example) critical; the Alarms page opens displaying only critical severity-level alarms. In the Alarms page, operators can select any critical severity-level alarm to view its details.

Devices Calls Statistics (Real
Time)

Indicates (1) the total number of calls, in real time and (2) the average MOS, Jitter, Delay and Packet Loss (%) scores:

Click 'Total calls' to access the Statistics-Aggregated QoE page, displaying QoE statistics on all calls.
- 11 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Cluster Icon

Description Below left: Successful / Failed Calls Below right: Quality Distribution (Good, Fair, Poor)

OVOC External Applications Device Manager
Routing Manager

Position your mouse above a pie segment to view QoE details.
[Above left] Click a pie segment to directly access those calls whose performance status is FAILED or SUCCESSFUL; the Calls List page opens displaying only those calls. In that page, you can select any call and show its details in the Call Details page.
[Above right] Click a pie segment to directly access those calls whose quality is assessed to be Poor, Fair or Good; the Calls List page opens displaying only calls of that quality. In that page, you can select any call and show its details in the Call Details dynamic tab that opens.
Each external application described next opens in a separate browser tab or browser window depending on the operator's browser settings.
Click the button to quickly access the Device Manager, the AudioCodes life cycle management application for enterprise IP telephony deployments that enables administrators to deliver a reliable desktop phone service within their organization. With the ability to deploy and monitor IP telephony devices, identify problems, and then fix them rapidly and efficiently, the application enhances employee satisfaction, increases productivity and lowers IT expenses.
Click the button to quickly access the AudioCodes Routing Manager (ARM) for managing the dial plan and call routing rules of multi-site, multi-vendor enterprise VoIP networks. The ARM enables centralized control of all session routing decisions. Through ARM's graphical user interface, network administrators can design and modify their voice network topologies and call routing policies from a single location, resulting in significant time and cost savings. Time-consuming tasks

- 12 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Cluster Icon

Description

such as adding a new PSTN or SIP trunk interconnection, adding a new branch office or modifying individual users' calling privileges can be carried out simply and rapidly.
Note that the icon is never disabled even when the ARM is disconnected; if the ARM is disconnected, the AudioCodes website page related to the ARM opens instead.

Data Layer Manager

Click the button to quickly access NEC's Data Layer Manager. Applies only to operators who have acquired the app. Data Layer Manager enables quickly and easily accessing the exact network equipment component associated with a voice quality issue - if an issue is detected - and benefiting from root cause analysis.

Notifications

Notifications can be configured to pop up in the uppermost right corner when a task is performed or when an alarm is received. The bell icon indicates the number of notifications that have not yet been viewed; the color indicates highest alarm severity level. Clicking the bell opens the notifications list. In the list, operators can delete a notification, delete all notifications or click a notification to open the Tasks page or Alarms History page. The display time can be changed. The feature can be switched off.

Displayed on the Dashboard to notify the operator that an Advanced Quality Package license is missing and should be acquired from AudioCodes. Hovering the cursor over the icon displays a tool tip instructing the operator about the issue.

Clicking the icon opens details about how to troubleshoot the issue.

- 13 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Getting Acquainted with the Network Topology Page
It may be helpful to briefly familiarize yourself with the OVOC's central page - the Network Topology page - before getting started.
Figure 2-3: OVOC GUI � Network Page � Topology

The page is divided into three panes: left, middle and right.
In the left pane, the 'tree' displays network entities, up to the level of tenant (first-level navigation).
The middle pane displays a topological view of devices and links in the network on which operators can quickly obtain basic device information and statuses and perform actions (second-level navigation).
The right pane displays a summary of network statistics from which operators can determine network health.
Each entity can be viewed in table view. The following table explains the entity icons in the Network Topology page. Icon colors are propagated from the statuses of the entities. Entity status is derived from management status, voice quality status and license status.
Table 2-2: Network Topology � Network Entities and Statuses

Network Icon
Entity

Explanation

Tenant

For detailed information about multi-tenancy architecture, see ITSP Multi-Tenancy Architecture on page 3.
= Tenant status is Error when one or more of the following exists:
management status of at least one region is Error

- 14 -

CHAPTER 2 Getting Started
Network Entity

OVOC | User's Manual

Icon

Explanation

voice quality status of at least one region is Error
license status of at least one region is Error
license status of the tenant itself is Error due to one of these [Critical] alarms: QoE Devices Overload, QoE Sessions Overload, QoE Endpoints Overload or Endpoints Management Overload.
= Tenant status is Warning when one or more of the following exists:
management status of at least one region is Warning
voice quality status of at least one region is Warning
license status of at least one region is Warning
license status of the tenant itself is Warning due to one of these [Major] alarms: QoE Devices Overload, QoE Sessions Overload, QoE Endpoints Overload or Endpoints Management Overload.
One of the tenant's AD is disconnected
= Tenant status is OK when all of the following exist:
management status of all regions is OK or Unmonitored
voice quality status of all regions is OK or Unmonitored
license status of all regions is OK or Unmonitored
license status of the tenant itself is free of alarms
All the tenant's ADs are connected
= Tenant status is Unmonitored when all of the following exist:
management status of all regions is

- 15 -

CHAPTER 2 Getting Started
Network Entity
Region

OVOC | User's Manual

Icon

Explanation

Unmonitored
voice quality status of all regions is Unmonitored
license status of all regions is Unmonitored
= Region status is Error when one or more of the following exist:
management status of at least one device or site is Error
voice quality status of at least one device or site is Error
license status of at least one device or site is Error
= Region status is Warning when one or more of the following exists:
management status of at least one device or site is Warning
voice quality status of at least one device or site is Warning
license status of at least one device or site is Warning
= Region status is OK when all of the following exist:
management status of all devices and sites is OK or Unmonitored
voice quality status of all devices and sites is OK or Unmonitored
license status of all devices and sites is OK or Unmonitored
= Region status is Unmonitored when all of the following exist:
management status of all devices and sites is Unmonitored
voice quality status of all devices and sites is

- 16 -

CHAPTER 2 Getting Started
Network Entity
Device

OVOC | User's Manual

Icon

Explanation

Unmonitored
license status of all devices and sites is Unmonitored
Indicates an SBC belonging to AudioCodes communicating with the OVOC. Red = Device status is Error when one or more of the following exist:
management status is Error (if device alarms status or connection status is disconnected)
voice quality status is Error (if control status or media status is Error, or if connection status is disconnected)
License status is Error only if license pool is failed or expired
Orange = Device status is Warning when one or more of the following exists:
management status is Warning (if device alarms status or administration status is Warning)
voice quality status is Warning (if control status or media status or connection status is Warning)
license status is Warning (if a reset/apply action is required in the license pool or if there is no management license in the device or if there is no voice quality license)
Blue = Device status is OK when all of the following exists:
management status is OK - Clear or Undetermined (if device alarms status or connection status is OK - Clear or Undetermined)
voice quality status is OK - Clear or Undetermined (if control status or media status or connection status is OK - Clear or Undetermined)

- 17 -

CHAPTER 2 Getting Started
Network Entity
UMP

OVOC | User's Manual

Icon

Explanation

license status is OK - Clear or Undetermined (if license pool status is OK - Clear or Undetermined)
Strikethrough = locked No strikethrough = unlocked
Indicates the AudioCodes User Management Pack 365 communicating with the OVOC. Red = UMP status is Error when one or more of the following exists:
management status is Error (if UMP alarms status or connection status is disconnected)
voice quality status is Error (if control status or media status is Error, or if connection status is disconnected)
License status is Error only if license pool is failed or expired
Orange = UMP status is Warning when one or more of the following exists:
management status is Warning (if UMP alarms status or administration status is Warning)
voice quality status is Warning (if control status or media status or connection status is Warning)
license status is Warning (if a reset/apply action is required in the license pool or if there is no management license in the UMP or if there is no voice quality license)
Blue = UMP status is OK when all of the following exist:
management status is OK - Clear or Undetermined (if UMP alarms status or connection status is OK - Clear or Undetermined)
voice quality status is OK - Clear or Undetermined (if control status or media status or connection status is OK - Clear or Undetermined)

- 18 -

CHAPTER 2 Getting Started
Network Entity
Microsoft Skype for Business Device Generic Device
Site

OVOC | User's Manual

Icon

Explanation

license status is OK - Clear or Undetermined (if license pool status is OK - Clear or Undetermined)
Strikethrough = locked No strikethrough = unlocked

= Microsoft Skype for Business Mediation Server
= Microsoft Skype for Business Edge Server
= Microsoft Skype for Business Front End Server
Indicates a non-AudioCodes device or entity that is also part of the OVOC network topology: IP PBX (shown on left), SIP trunk, other vendors' SBC / gateway. These devices participate in processing OVOC network calls and are connected to devices.
Color and status are propagated from the endpoints under the site. Red = Site status is Error when one or more of the following exists:
management status is Error (if site alarms status or connection status is disconnected)
voice quality status is Error (if control status or media status is Error, or if connection status is disconnected)
License status is Error only if license pool is failed or expired
Orange = Site status is Warning when one or more of the following exists:
management status is Warning (if site alarms status or administration status is Warning)
voice quality status is Warning (if control status or media status or connection status is Warning)
license status is Warning (if a reset/apply action is required in the license pool or if there is no management license in the site or if there

- 19 -

CHAPTER 2 Getting Started
Network Entity
Link

OVOC | User's Manual

Icon

Explanation

is no voice quality license)
Blue = Site status is OK when all of the following exist:
management status is OK - Clear or Undetermined (if site alarms status or connection status is OK - Clear or Undetermined)
voice quality status is OK - Clear or Undetermined (if control status or media status or connection status is OK - Clear or Undetermined)
license status is OK - Clear or Undetermined (if license pool status is OK - Clear or Undetermined)
Gray = Site status is Unmonitored when all of the following exist:
management status of all endpoints is Unmonitored
voice quality status of all endpoints is Unmonitored
license status of all endpoints is Unmonitored
A link joins two devices: Red = Voice quality status is Error when one or more of the following exists:
'Critical' Control Status
'Critical' Media Status
Orange = Voice quality status is Warning when one or more of the following exists:
'Major' Control Status
'Major' Media Status
Blue = Voice quality status is OK/Clear when all of the following exists:
Control Status is OK/Clear
Media Status is OK/Clear
Control Status or Media Status is

- 20 -

CHAPTER 2 Getting Started
Network Entity

OVOC | User's Manual

Icon

Explanation

Unmonitored
Gray = Voice quality status is Unmonitored when both of these exist:
Control Status is Unmonitored
Media Status is Unmonitored
Note:
If no voice quality license exists, status will be Unmonitored.
Link status does not impact device / region
When the number of links exceeds 1000, only links whose source and destination are within the visible bounds of the map are displayed; links are not displayed if their source or destination lies outside the visible bounds of the map. This prevents clutter, facilitating more effective management.
Under the link's name tag, a single arrow indicates the link's direction: ingress (calls incoming to the reporting device) or egress (calls outgoing from the reporting device); if there are no arrows under the link's name tag, the link is bi-directional. In the figure below, the link is ingress, to NJ SBC.
A double arrow located next to one of the devices indicates that it is the reporting device. In the figure below, the reporting device is NJ SBC.

Device clusters

Indicate aggregated clusters of devices (AudioCodes devices as well as non-AudioCodes devices). The numbers indicate how many devices are in the cluster. Red = at least one entity in this cluster has a status
of Error � see above in this table for the one or more conditions that need to exist for status to be
- 21 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Network Icon
Entity

Explanation

Error
Orange = at least one entity in this cluster has a status of Warning � see above in this table for the one or more conditions that need to exist for status to be Warning
Blue = all entities in this cluster have a status of OK � see above in this table for the conditions that need to exist for status to be OK
Gray = all entities in this cluster have a status of Unmonitored � see above in this table for the conditions that need to exist for status to be Unmonitored

Link clusters

Square icons indicate aggregated clusters of links. The link indication can be on a line representing a link (left upper) or adjoined to a device cluster (left lower). The number in each square indicates how many links are in the cluster.
Red square = at least one link in this cluster has a voice quality status of Error � see above in this table for the one or more conditions that need to exist for voice quality status to be Error
Orange square = at least one link in this cluster has a voice quality status of Warning � see above in this table for the one or more conditions that need to exist for voice quality status to be Warning
Blue square = all links in this cluster have a status of OK � see above in this table for the conditions that need to exist for status to be OK
Gray square = all links in this cluster have a voice quality status of Unmonitored � see above in this table for the conditions that need to exist for voice quality status to be Unmonitored

SmartTAP

Indicates the AudioCodes SmartTAP communicating with the OVOC.
Red = SmartTAP status is Error when management status is Error (if SmartTAP alarms status or connection status is disconnected)

- 22 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Network Entity

Icon

Explanation

Orange = SmartTAP status is Warning when management status is Warning (if SmartTAP alarms status or administration status is Warning)
Blue = SmartTAP status is OK when management status is OK - Clear or Undetermined (if SmartTAP alarms status or connection status is OK - Clear or Undetermined)
Gray = SmartTAP status is Unmonitored when management status is unmonitored

The following bar of icons is displayed on the right side of the Network Topology page.

From top to bottom: Click + or - to zoom in or out of the map. Click the Center Map button to center the map in the page - useful if the previous
operator dragged it off center. Click the Save Local Changes to Server button after making a change to the network
topology, for example, after dragging a device to a different location. The button is only displayed if a change is made. It's highlighted orange. After saving the change, the button disappears. Click the Revert Local Changes button after making a change to the network topology, for example, after dragging a device to a different location. This button is only displayed if a change is made. It's highlighted orange. It allows you to revert to the network topology that existed before you made the change instead of saving the changed network topology. After reverting, the button disappears. Click the Create Links button to create a link. The Show Grid button allows operators to display gridlines; the background of the Network Topology page is by default white.
- 23 -

CHAPTER 2 Getting Started

OVOC | User's Manual

The Hide Link Labels button allows operators to hide the labels of the links in the Network Topology and Network map pages; this reduces clutter for more effective management, especially in networks with many devices and links.
Show Clusters. If more than 200 devices and sites (aggregated) are defined, the button will not be available and the page will automatically be displayed in clusters. The button will only be available if fewer than 200 devices and sites (aggregated) are defined. The feature reduces clutter and improves operational efficiency.
When the clusters feature is activated, enter in the 'Search' field the name or a part of the name of an entity to locate; the circumferences of the clusters containing an entity with that name segment are colored purple. You can hover over each to determine from a pop-up which one contains the entity you're after. In clusters containing too many entities to scan through, you can use the pop-up's 'Search' feature to facilitate the search (see also under Hovering Over a Cluster to Display Information on page 30).
Select an area: Press the Shift key and press the mouse.
The Network Topology page lets you quickly drill down from a tenant to the core of an issue. Fast access to very specific information makes network management efficient. This capability earns OVOC the title of 'expert system'.
Specific information related to device, user and call is automatically dynamically tabbed on the menu bar, facilitating quick and easy future access and troubleshooting:
Figure 2-4: Dynamic Tab for Fast Access to Specific Information

For more information about the dynamic tab that is created for call details, see Showing Call Details on page 324. For more information about the dynamic tab that is created for user details, see Assessing a Specific End User's Experience on page 377. A dynamic tab lets you quickly access a specific page that is automatically dynamically tabbed on the menu bar after for example drilling down in the Topology page from a tenant to the core of an issue. The tab allows quick and easy future access to specific information related to
- 24 -

CHAPTER 2 Getting Started

OVOC | User's Manual

device, user, call, etc., displayed in the page. It can be deleted from the menu bar at any time. The feature simplifies troubleshooting management.
The right pane of the Network Topology page summarizes device statuses and alarms in the network.

- 25 -

CHAPTER 2 Getting Started
The following figure shows the OVOC's menu bar. Figure 2-5: Menu Bar

OVOC | User's Manual

Use the following table as reference to the preceding figure. See also Getting Acquainted with the Dashboard on page 9.
Table 2-3: Menu Bar

Tab

Description

Network Topology

The tab's page lets you:
Assess at a glance the topology of the network
Perform multiple configuration and maintenance actions
Select multiple devices (Ctrl+) and perform multiple actions simultaneously (Ctrl+ to deselect)
Select multiple links (Ctrl+) and perform multiple actions simultaneously (Shift+ to deselect)
Filter out unwanted information to facilitate quick access to specific information
The page features two 'modes':
Real Time mode. The page continuously refreshes, presenting up-to-date network information.
Time Filter. The page presents network information valid for the time defined in a Time Filter but invalid in real time. See Filtering to Access Specific Information on page 212 for information about time filters.

Map

The tab's page lets you:

Assess at a glance the enterprise network's global distribution

Filter

The page features two 'modes':

Real Time mode. The page continuously refreshes, presenting up-to-date network information.

Time Filter. The page presents network

- 26 -

CHAPTER 2 Getting Started

Tab

Devices
Links Sites Endpoints

Alarms

Active

Journal

History

Forwarding

Statistics Devices

Links

OVOC | User's Manual
Description
information valid for the time defined in a Time Filter but invalid in real time. See Filtering to Access Specific Information on page 212 for information about time filters.
The tab lets you: Add a network component: Perform a device action Show device
Lets you add, edit or delete links.
Lets you: add a set of endpoints based on a network subnet edit or delete the SIP clients (phones)
From the tab's drop-down you can select: Status. Lets you view and monitor the status
(Quality of Experience) of phones (for example). Configuration. Lets you directly access the Device
Manager to configure phones.
Always displays all the active alarms in the network, in real time.
Displays only the operator activity alarms in the network.
Displays time frame historical alarms (default), according to the filter.
For detailed information about forwarding alarms, see Filtering by 'Alarm Names' on page 244.
Displays the Devices Statistics page. Filters on the page allow operators to specify which call quality metrics to display. Quick access to specific information lets operators quickly and effectively maximize users' QoE.
Displays the Links Statistics page. Filters on the page allow operators to specify

- 27 -

CHAPTER 2 Getting Started

Tab

Sites

Endpoints

PM Profiles Reports

OVOC | User's Manual
Description
which call quality metrics to display (Successful/Failed Streams, Max Concurrent Streams, Streams Quality Utilization Distribution, Avg Call Duration (ACD), MOS, Packet Loss, Jitter, Delay and Echo)
which links to display (per Topology or Time Range)
Quick access to specific information lets operators quickly and effectively maximize users' QoE.
Displays the Sites Statistics page. Filters on the page allow operators to specify
which call quality metrics to display (Successful/Failed Streams, Max Concurrent Streams, Streams Quality Utilization Distribution, Avg Call Duration (ACD), MOS, Packet Loss, Jitter, Delay and Echo)
which sites to display (per Topology or Time Range)
Quick access to specific information lets operators quickly and effectively maximize users' QoE.
Displays the Endpoints Statistics page. Filters on the page allow operators to specify
which call quality metrics to display (Successful/Failed Streams, Max Concurrent Streams, Streams Quality Utilization Distribution, Avg Call Duration (ACD), MOS, Packet Loss, Jitter, Delay and Echo)
which endpoints to display (per Topology or Time Range)
Quick access to specific information lets operators quickly and effectively maximize users' QoE.
Facilitates setup of Performance Monitoring capability.
Provides operators with essential reports-generation capability which they can utilize to distribute session experience data and comparative analyses quickly and effectively to responsible persons within the

- 28 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Menu Calls
Users System

Tab

Description

enterprise, and to external authorities associated with the enterprise's network, for accurate diagnosis and correction of degraded sessions and for general network optimization. Opens in another Web page.

Calls List

Displays the Calls List page which presents all the calls made in the enterprise. Filters allow operators to specify which calls to display (Topology, Time Range, Source Type, Quality, etc.). Quick access to specific information allows operators to quickly and effectively maximize users' QoE.

QoE Thresholds

Lets you apply QoE Threshold profiles for voice quality metrics (MOS, Delay, Packet Loss, Echo and Jitter). A QoE Threshold profile consists of threshold values set for each of these metrics for the 'Poor', 'Fair' and 'Good' call quality categories.

QoE Status & Alarms

Lets you configure Quality Alarms which are automatically triggered and displayed in the Alarms page if the quality analyzed falls below that defined in the rules. Also lets you determine the status of the voice quality per entity.

Users Experience

Calls Count, Total Duration, Success / Failed, Call Quality, MOS, Jitter, Delay, and Packet Loss.
Gives operators network health monitoring capability, including alarms and diagnostics. Used to maximize the quality of experience (QoE) of end users in the network.

User Details

Displays contact information about the end users: Full Name, User Name, Description, Department, Office, Mobile, Home, MS Skype for Business Line URI, Email, Server, Country. Filters allow quick access to specific users. These filters impact the Users Experience page (see previous), so operators can specify which users whose calls quality of experience they want to assess.

Active Directories Lets you add an AD. Displays existing ADs. Allows you to edit and to synchronize with the AD server.

Administration

Allows performing administration: License

- 29 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Tab

Configuration Tasks

Description
Configuration System Allocations Tenants Allocations Floating License Security Authentication Operators OVOC Server
Allows performing OVOC administration: Templates (SNMP Connectivity, HTTP Connectivity,
QoE Thresholds, QoE Status & Alarms, Perf Monitoring) Alarms File Manager (Software Manager) OVOC Server Device Backup
Only displays asynchronous actions performed by the OVOC operator.

Hovering Over a Cluster to Display Information
When more than 200 devices and sites (aggregated) are defined, the Network Topology page will automatically be displayed in clusters, reducing clutter and improving operational efficiency. The Show Clusters button is displayed only when fewer than 200 devices and sites (aggregated) are defined. When the clusters feature is activated, you can hover over a cluster for this pop-up to be displayed:

- 30 -

CHAPTER 2 Getting Started

Figure 2-6: Devices

OVOC | User's Manual

The pop-up indicates the number of errors and warnings in the cluster. The pop-up also displays the entities in the cluster. Click an entity in the list to view information about it in a Device Details pane on the right side of the Network Topology screen (see the Device Details).
The 'Search by name' field enables you to enter the name or - a part of the name - of an entity to search for in the cluster. In large deployments with hundreds of entities, this feature can help operators quickly access a specific entity and view information about it.
Figure 2-7: Search by name

- 31 -

CHAPTER 2 Getting Started

Figure 2-8: Device Details

OVOC | User's Manual

Hovering Over a Device to Display Information
The following figure shows an example of information displayed when hovering over a device.
The pop-up displays a summary of device information and statuses. The lower bar displays icons for actions that can be performed on the device; icons
displayed depend on device type.
- 32 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Hovering over a Link to Display Information
The following figure shows an example of information displayed when hovering over a link.

The pop-up displays a summary of link information and statuses. The lowermost bar displays icons of actions that can be performed on the link; icons
displayed depend on entity type.
Returning to 'Home' Page by Clicking the AudioCodes Logo
Each page of the OVOC displays the AudioCodes logo in the uppermost left corner: The logo functions as a 'Home' page button. Click it to return to the Network Topology page from any page. The feature enhances quick and operator-friendly navigation in the OVOC.
Getting Acquainted with the Network Map Page
The Network Map page (Network > Map ) allows operators to determine at a glance the geographical global distribution of the enterprise's IP telephony network.
- 33 -

CHAPTER 2 Getting Started

Figure 2-9: Network Map Page

OVOC | User's Manual

With the exception of cluster icons, entity icons in the Network Map page are identical to those in the Network Topology page described in the table in Getting Acquainted with the Network Topology Page on page 14. A cluster is based on geographical locations of devices in the Network Map page. Clusters show aggregated numbers of devices. Cluster status is unrelated to region and/or tenant status. Region and/or tenant status are only reflected in the Network Map tree and Network Topology tree. Selecting a tenant in the Network Map page's tree impacts the Network Map page in the same way as selecting a tenant in the Network Topology page's tree.
Table 2-4: Cluster Icons in the Network Map Page

Cluster Icon

Description

Cluster status is Error when the status of at least one device or site is Error. Click a cluster to zoom in and view the entities under it.
Cluster status is Warning when the management status of at least one device or site is Warning. Click a cluster to zoom in and view the entities under it.
Cluster status is OK when the management status of all devices and sites is OK or Unmonitored. Click a cluster to zoom in and view the entities under it.

Cluster status is Unmonitored when the management status of all devices and sites is Unmonitored. Click a cluster to zoom in and view the entities under it.

The only difference between Network Map page and the Network Topology page is that in the Network Map page there is no Show Grid button. All other buttons are the same. You can hover your cursor over a network entity in the Network Map page to determine its details:

- 34 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Figure 2-10: Hovering the Cursor over a Network Entity in the Network Map Page

In the pane on the right side of the Network Map page, the Network Summary lets you: Determine on how many Devices, Links, Sites and Endpoints, alarms are active. Determine which Devices, Links, Sites and Endpoints' status is currently Error / Warning
(from the color-coded number). If you click the color-coded number of: Devices then the Device Management page opens displaying all devices whose status
is Error / Warning Links then the Links page opens displaying all links whose status is Error / Warning Sites then the Sites page opens displaying all sites whose status is Error / Warning Endpoints then the Endpoints page opens displaying all endpoints whose status is
Error / Warning Figure 2-11: Example: Endpoints - 1 Error
The Active Alarms pane allows you to determine the total number of Critical, Major, Minor and Indeterminate active alarms (color-coded) currently active in the network. Click any severity level's total to display only alarms of that severity level in the Alarms page. Example: Under Major in the Active Alarms pane above, click 16:
- 35 -

CHAPTER 2 Getting Started
Figure 2-12: Alarms Filtered by Severity Level

OVOC | User's Manual

You can select an alarm to view detailed information about it then displayed in the Active Details window on the right side of the page. In the Network Map page's Network Summary window, the Devices | Links | Sites | Endpoints tabs display the:
total # of calls over devices | streams over links | calls over endpoints. maximum # of concurrent calls over devices | streams over links. average MOS measured over devices | links | endpoints in the network. average Jitter measured over devices | links | endpoints in the network. average Delay measured over devices | links | endpoints in the network. average Packet Loss measured over devices | links | endpoints in the network. The Quality Distribution pie chart in the Network Summary window allows you to point your cursor over a green, yellow or red segment; a pop-up indicates the # and % of calls over devices | streams over links | calls over endpoints in the network whose quality was measured to be good, fair or poor respectively:
Click any color-coded voice quality segment to open the Calls List filtered by that voice quality score (Good, Fair or Poor). The Successful/Failed Streams pie chart in the Network Summary window allows you to point your cursor over a green or red segment; a pop-up indicates the # and % of calls over devices |
- 36 -

CHAPTER 2 Getting Started

OVOC | User's Manual

streams over links | calls over endpoints in the network whose performance was measured to be successful or failed respectively:

Click any color- coded segment to open the Calls List filtered by that call performance evaluation (Successful or Failed).

- 37 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Configuring Operator Authentication
Authentication of OVOC operators can be configured in three ways: Centrally, using an LDAP-compliant server such as Microsoft Active Directory (AD) (see
Configuring Operator Authentication Centrally using an LDAP Server on the next page) Centrally, using a RADIUS server (see Configuring Operator Authentication Centrally with a
RADIUS Server on page 42) Locally, in the OVOC (see Configuring Operator Authentication Locally, in the OVOC on
page 50) The following figure shows the three different operator authentication options.
Figure 2-13: OVOC Operator Authentication Options

For operator authentication, it's recommended to implement a third-party LDAP or RADIUS server in the network. When attempting to log in to the OVOC, the OVOC server then verifies the login username and password with the AD server or RADIUS sever. Usernames, passwords and access-level attributes are stored externally on these platforms. The OVOC server in this case doesn't store the username and password for these users (they're not displayed in the OVOC Users List) but but verifies them with the external authentication server.
- 38 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Configuring Operator Authentication Centrally using an LDAP Server
Authentication of OVOC operators can be centrally configured using a Lightweight Directory Access Protocol (LDAP) server. If you already have centralized user authentication via an LDAP server, it's recommended to implement it for OVOC operators as well. When an LDAPauthenticated operator logs into the OVOC, they're assigned one of the OVOC's security levels, e.g., 'Operator'. The equivalent names for these security levels on the LDAP server are shown following. When one of these security levels is not defined on the LDAP server, the OVOC by default allows access to the LDAP-authenticated operator with 'Operator' permissions.
To centrally configure authentication of OVOC operators using an LDAP server:
1. In the OVOC, open the Authentication page (System > Administration > Security > Authentication).
2. From the 'Authentication Type' drop-down, select LDAP.
Figure 2-14: Authentication - LDAP

3. Configure the 'LDAP Authentication Server IP'. 4. Configure the 'LDAP Authentication Server Port'. 5. Configure the 'LDAP Connectivity DN' parameter using an Active Directory Service Account
(mandatory), for example, MyServiceAccount@domain. 6. Configure the 'LDAP Connectivity Password' as required. 7. In the 'LDAP Server Number of Retries' field, enter the number of login attempts the
operator can make before they're suspended. When the number is reached, the operator is blocked. Only the 'system' operator whose security level is 'Administrator' can then unblock them. Default: 3 attempts. 8. Configure the 'User DN Search Base' as required.
- 39 -

CHAPTER 2 Getting Started

OVOC | User's Manual

9. If you're not using a standard Microsoft filter such as 'sAMAccountName', configure in this field your own filter with a $ symbol in it, for example, (&(cn=$)(OVOCAuth=TRUE)).
10. Select the 'Enable SSL' option to secure the connection with the LDAP server over SSL; the 'Certificate' drop-down is activated.
11. From the 'Certificate' drop-down (activated only if 'SSL' is selected), select the certificate file that you want to use to secure the connection with the LDAP server over SSL.
Not selected (Default). The connection with the LDAP server is non-secured.
SSL With Certificate: An HTTPS connection between the OVOC and the LDAP server is opened. The OVOC authenticates the SSL connection using a certificate. Make sure you load the SSL certificate file, required by the LDAP Active Directory platform, to the Software Manager. See Adding Configuration Files to the OVOC's Software Manager on page 98.
Authorization Level Settings
When an operator connects to the OVOC, the OVOC (before allowing the operator access) checks with the LDAP server if the User Group which the operator is associated with in the OVOC, is defined in the LDAP server. The parameters below are used to define a User Group in the LDAP server. In the Tenant Details screen under the Operators tab, the parameter 'LDAP
Authentication: Group Name' is used to define a User Group in the OVOC when a tenant level is provisioned (see under Adding a Tenant on page 113). If the LDAP validates OVOC's query, the operator is authenticated and allowed access. Operators who are both 'System' and 'Tenant' type are checked in this way. See also Adding a 'System' Operator on page 53 and Adding a 'Tenant' Operator on page 60.

12. In the 'System Administrator User Group Name' field, enter the name of the User Group of the 'System' type operator whose security level is 'Administrator'.
13. In the 'System Operator User Group Name' field, enter the name of the User Group of the 'System' type operator whose security level is 'Operator'.
14. In the 'System Monitor User Group Name' field, enter the name of the User Group of the 'System' type operator whose security level is 'Monitor'.
15. In the 'Tenant Administrator User Group Name' field, enter the name of the name of the User Group of the 'Tenant' type operator whose security level is 'Administrator'.
16. In the 'Tenant Operator User Group Name' field, enter the name of the User Group of the 'Tenant' type operator whose security level is 'Operator'.
17. In the 'Tenant Monitor User Group Name' field, enter the name of the name of the User Group of the 'Tenant' type operator whose security level is 'Monitor'.
18. In the 'Tenant Monitor Links User Group Name' field, enter the name of the User Group of the 'Tenant' type operator whose security level is 'Monitor Links'. When an LDAP operator is then assigned to this group, they're logged in as a 'Tenant' type operator with a security

- 40 -

CHAPTER 2 Getting Started

OVOC | User's Manual

level of 'Monitor Links'. Only `System' type operators can configure this group; `Tenant' type operators can only view it.
19. From the 'Default Operator Type and Security Level' drop-down, select:

20. Under Combined Authentication Mode, select the Enable combined authentication option, the 'Authentication Order' drop-down is enabled from which External First or Local First can be selected. If Enable combined authentication is selected and an operator attempts to log in to the LDAP server but it's unavailable, the OVOC connects to the local database with the same operator credentials. External First: If the LDAP server is unavailable when the LDAP-authenticated operator attempts to log in, the OVOC connects with the same operator credentials to the local (OVOC) operators database. Local First: If the operator is not found in the local (OVOC) operators database, the OVOC connects with the same operator credentials to the LDAP server.
21. Under the screen section 'GW / SBC / MSBR Authentication', select the option Use AD Credentials for Device Page Opening for the OVOC to sign operators in to AudioCodes devices using the same credentials they used to sign in to the OVOC. The AudioCodes device will then perform authentication with the LDAP server and login to the GW / SBC / MSBR will be attempted with same AD user name / password instead of the local GW / SBC / MSBR user name / password. Note that the GW / SBC / MSBR must be also be configured to authenticate with the same AD.
22. Under the section 'Endpoints Groups Authorization Level Settings', configure the 'Tenant Endpoints Group User Group Name' parameter. See also Adding an Endpoints Group on page 168.
23. Click Submit.
- 41 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Configuring Operator Authentication Centrally with a RADIUS Server
You can centrally configure authentication of OVOC operators using a RADIUS (Remote Authentication Dial-In User Service) server. If you already have centralized user authentication via a RADIUS server, it's recommended to implement it for OVOC operators as well.
When the RADIUS-authenticated operator logs into the OVOC, they're assigned one of the OVOC security levels - for example - 'Operator'. If it's not defined on the RADIUS server, the OVOC by default allows access for the RADIUS- authenticated operator, with 'Operator' permission.
To centrally configure authentication of OVOC operators using a RADIUS server:
1. Open the Authentication page (System > Administration > Security > Authentication) and from the 'Authentication Type' drop-down, select RADIUS.
Figure 2-15: Authentication - RADIUS

2. Configure the parameters: 'RADIUS retransmit timeout' (Default: 3000 milliseconds). If this timeout expires, local authentication is performed. 'RADIUS auth number of retries' (Default: 1) Note that these parameters will be used for each RADIUS Server.
3. Select the Enable display of RADIUS reply message option. Default: Cleared. 4. From the 'Default Authentication Level' drop-down, select either Operator (default),
Admin, Monitor or Reject. 5. For each of the three RADIUS servers, define the server's IP address, port and secret. At
least one server must be provisioned. 'Server Secret' defines the shared secret (password) for authenticating the device with the server. Must be cryptically strong. Also used by the server to verify authentication of RADIUS messages sent by the device (i.e., message integrity). See the device's manual for more information.
- 42 -

CHAPTER 2 Getting Started

OVOC | User's Manual

6. Select the Use RADIUS Credentials for Device Page Opening option for the OVOC to sign operators in to AudioCodes devices using the same credentials they used to sign in to the OVOC. The AudioCodes device will then perform authentication with the RADIUS server.
7. Under Combined Authentication Mode, select the Enable combined authentication option, the 'Authentication Order' drop-down is enabled from which External First or Local First can be selected.
If Enable combined authentication is selected and an operator attempts to log in to the RADIUS server but it's unavailable, the OVOC connects to the local database with the same operator credentials.
External First: If the RADIUS server is unavailable when the RADIUS-authenticated operator attempts to log in, the OVOC connects with the same operator credentials to the local (OVOC) operators database.
Local First: If the operator is not found in the local (OVOC) operators database, the OVOC connects with the same operator credentials to the RADIUS server.
8. Click Submit.
Viewing Operator Authentication in the Application Information Window
When OVOC operator authentication is performed centrally using an LDAP-compliant server or a RADIUS- compliant server, then after the LDAP- authenticated operator or RADIUSauthenticated operator logs in to the OVOC, the application information window displays the operator's authentication type.

The application information window always displays operator security level irrespective of how authentication is performed.
- 43 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Testing Connectivity with the LDAP / RADIUS Server
The OVOC allows you to test the settings you configured in the LDAP/RADIUS pages to make sure your configuration is correct and that connectivity with the server has been established.
To test the settings you configured in the LDAP/RADIUS pages: 1. In the LDAP or RADIUS authentication page, scroll down to Test Connectivity.
Figure 2-16: Test Connectivity

2. Click Test Connectivity; if prompted that the connection was successful, you configured the page correctly; if not, you need to check the settings you configured.
3. [Optional] To test connectivity with a specific operator authentication: Select the option Test Connectivity with Username and Password and then enter an operator's name in the 'User Name' field and their password in the 'Password' field. Click Test Connectivity; if the operator's credentials are recognized, you're prompted that the connection was successful.
Configuring Operator Authentication Centrally with Azure Active Directory
Authentication of OVOC operators can be centrally configured using the Azure Active Directory (AD). If you already have centralized user authentication via Azure AD, it's recommended to implement it for OVOC operators as well. When an Azure-authenticated operator logs into the OVOC, they're assigned one of the OVOC's security levels, e.g., 'Operator'. The equivalent names for these security levels in the Azure AD are shown following. When no security level is configured in the Azure AD, the parameter 'Default Operator Type and Security Level' in the OVOC's Authentication page (when 'Authentication Type' is AZURE) determines behavior.
To configure authentication of OVOC operators using Azure AD: 1. Open the Authentication page (System > Administration > Security > Authentication) and
from the 'Authentication Type' drop-down, select AZURE.
- 44 -

CHAPTER 2 Getting Started

Figure 2-17: Authentication - AZURE

OVOC | User's Manual

2. View the read-only 'Security Azure Hostname' field. It defines the name of the Azure AD host in the cloud. It allows the OVOC to access Azure AD in the cloud.
3. From the 'Azure AD Path Type File' drop-down, select Organizations (default) or Tenant. If you choose Tenant, the field 'Azure Tenant ID' is activated - see the next step. A string must be configured for it (mandatory). If you leave at the default (Organizations), the OVOC will be able to access Azure AD in the enterprise network if a standard service is purchased.
4. View the 'Azure Tenant ID' field. It will be read-only if Organizations is selected in the preceding step. The preceding figure shows 'Azure Tenant ID' as a read-only field defined with the string tenant-Id. If a new tenant ID is purchased, the OVOC first accesses the cloud via the 'Security Azure Hostname' field and then (via the 'Azure Client ID' field) a specific Azure AD in the enterprise's network.
5. In the 'Azure Client ID' field, enter the ID of the Azure AD client. 6. In the 'Azure Client Secret' field, define the shared secret (password) to allow the OVOC
application access to the specific Azure AD (OVOC authentication). Must be cryptically strong. The OVOC will then be capable of accessing the Azure AD. 7. Under Combined Authentication Mode, select the Enable combined authentication option, the 'Authentication Order' drop-down is enabled from which External First or Local First can be selected. If Enable combined authentication is selected and an operator attempts to log in to the Azure server but it's unavailable, the OVOC connects to the local database with the same operator credentials. External First: If the Azure server is unavailable when the Azure-authenticated
operator attempts to log in, the OVOC connects with the same operator credentials to the local (OVOC) operators database. Local First: If the operator is not found in the local (OVOC) operators database, the OVOC connects with the same operator credentials to the Azure server.
- 45 -

CHAPTER 2 Getting Started

OVOC | User's Manual

8. Under the screen section 'GW / SBC / MSBR Authentication', select the option Use AD Credentials for Device Page Opening for the OVOC to sign operators in to AudioCodes devices using the same credentials they used to sign in to the OVOC. The AudioCodes device will then perform authentication with the Azure AD and login to the GW / SBC / MSBR will be attempted with same AD user name / password instead of the local GW / SBC / MSBR user name / password. Note that the GW / SBC / MSBR must be also be configured to authenticate with the same AD.
Authorization Level Settings

When an operator connects to the OVOC, the OVOC (before allowing the operator access) checks with the Azure AD if the User Group which the operator is associated with in the OVOC, is defined in the Azure AD.
The parameters below are used to define a User Group in the Azure AD. In the Tenant Details screen under the Multitenancy tab, the parameter 'AD
Authentication: Group Name' is used to define a User Group in the OVOC when a tenant level is provisioned (see under Adding a Tenant on page 113). If the Azure AD validates OVOC's query, the operator is authenticated and allowed access. Operators who are both 'System' and 'Tenant' type are checked in this way. See also Adding a 'System' Operator on page 53 and Adding a 'Tenant' Operator on page 60.

9. In the 'System Administrator User Group Name' field, enter the name of the User Group of the 'System' type operator whose security level is 'Administrator'.
10. In the 'System Operator User Group Name' field, enter the name of the User Group of the 'System' type operator whose security level is 'Operator'.
11. In the 'System Monitor User Group Name' field, enter the name of the User Group of the 'System' type operator whose security level is 'Monitor'.
12. In the 'Tenant Administrator User Group Name' field, enter the name of the name of the User Group of the 'Tenant' type operator whose security level is 'Administrator'.
13. In the 'Tenant Operator User Group Name' field, enter the name of the User Group of the 'Tenant' type operator whose security level is 'Operator'.
14. In the 'Tenant Monitor User Group Name' field, enter the name of the name of the User Group of the 'Tenant' type operator whose security level is 'Monitor'.
15. In the 'Tenant Monitor Links User Group Name' field, enter the name of the User Group of the 'Tenant' type operator whose security level is 'Monitor Links'. When an LDAP operator is then assigned to this group, they're logged in as a 'Tenant' type operator with a security level of 'Monitor Links'. Only `System' type operators can configure this group; `Tenant' type operators can only view it.
16. From the 'Default Operator Type and Security Level' drop-down, select:

- 46 -

CHAPTER 2 Getting Started

OVOC | User's Manual

17. Under the section 'Endpoints Groups Authorization Level Settings', configure the 'Tenant Endpoints Group User Group Name' parameter. See also Adding an Endpoints Group on page 168.
18. Click Submit.
To configure AudioCodes Active Directory on Microsoft Azure, see the 'One Voice Operations Center Integration with Northbound Interfaces Guide'.
Logging in as an Azure User with Multi Factor Authentication
When logging in to the OVOC, the login process is slightly different if the operator attempting to log in is an Azure operator and if Multi Factor Authentication is enabled for this operator in the Azure configuration, as shown in Configuring Operator Authentication Centrally with Azure Active Directory on page 44. To log in as an Azure user with Multi Factor Authentication: 1. Point your browser to the OVOC server's IP address: https://<IP Address>. You only need
to enter its IP address; the rest of the URL is automatically added. Logging in can optionally be performed using FQDN rather than IP address.
Figure 2-18: Login
2. Enter your Username and Password and then click Login.
- 47 -

CHAPTER 2 Getting Started
Figure 2-19: Azure authentication in progress

OVOC | User's Manual

3. During the Azure authentication process, the server detects that Multi Factor Authentication is required and opens an additional window (Microsoft window) in which the operator performs MFA authentication.
Figure 2-20: Microsoft 'Enter password'

4. Enter your Microsoft password and click Sign in. The figure below shows the screen that is displayed when the Multi Factor Authentication method is configured to use a code sent to a cellular phone in an SMS. There are other MFA methods besides this one. The MFA method is configured in the Azure Active Directory.
- 48 -

CHAPTER 2 Getting Started

Figure 2-21: Microsoft 'Enter code'

OVOC | User's Manual

5. In this example of MFA, you'd check your mobile phone, view the code sent to it in the SMS, enter it in the 'Code' field and then click Verify. The GUI by default displays the Dashboard.
- 49 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Configuring Operator Authentication Locally, in the OVOC
You can configure authentication of operators locally, in the OVOC. The feature allows the operator with 'Administrator' security level to control other operators' access to system resources. In this way, sensitive system information cannot be accessed without appropriate authorization, and managed system elements cannot be disrupted by inexpert operators.
To locally configure authentication of operators: 1. In the OVOC, open the Authentication page (System > Administration > Security >
Authentication). 2. From the 'Authentication Type' drop-down, select OVOC.
Figure 2-22: Authentication � OVOC

3. Configure the authentication parameters using the following table as reference. Table 2-5: OVOC Authentication Parameters

Parameter

Description

Number of login attempts before blocking

Lets you configure the number of login attempts attempted by the operator before the OVOC application blocks them. When the number of login attempts is reached, the operator is blocked from logging into the OVOC. Only the Administrator can then unblock the suspended operator. Default: 3 attempts.

Max number of

Lets you configure up to how many operator login ses-

simultaneous login sessions sions can be performed simultaneously. Default: 5

- 50 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Parameter Notifications display time (sec)
Minimum password length Non repetitive characters # from previous password

Description
Lets you configure for how long (in seconds) the notifications pop-up window is displayed after performing tasks such as adding a device or when alarms are received. Default: 3 seconds. Setting the parameter to 0 prevents notifications from being displayed. All notifications are cleared from the OVOC server after twenty minutes. See also Forwarding Alarms whose Destination Type is 'Notification' on page 261.
Default: 8 characters. Maximum supported: 30 characters.
Default: 0. Maximum supported: 10 characters.

Password complexity rules

From the drop-down, select either:
No complexity rules are applied (default)
Use Plain or Capital letters, Digits and Special Characters
Use Plain and Capital letters, Digits and Special Characters

Number of not reused previous passwords

Default: 5. Possible values: 0-10.

Dictionary check for password cracking simplicity

Select this option for the OVOC server to perform a password weakness check on the OVOC operator's password. Default: Disabled (unselected).

Enable Password Expiration Extension

Select the option to extend the password expiration; the following two parameters are activated.

Number of Additional Logins (after Password Expired)

Defines the number of logins operators can perform after their password expires. Range: 1-10.

Additional Logins Time Period (days)

Defines the period (in days) during which the operator can perform the number of additional logins defined with the previous parameter. Range: 1-60.

- 51 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Adding an Operator

You can add an operator to the OVOC. The operator can be of type: 'Tenant' - or 'System' The following table shows the capabilities permitted for each OVOC operator type and security level. OVOC operators are allocated a security level of either Admin, Operator or Monitoring.
Table 2-6: Capabilities Allowed for Each Operator Type / Security Level

Op Type

Security Level

Define ops

Manage tenants

Manage system resource-
s

Manage tenant resource-
s

Monitor system resource-
s

Monitor tenant resource-
s

System Admin Yes, all Yes

Yes

types

and

securit

y levels

Operato No

Yes

Monitor No

Yes

Tenant Admin Yes, in No

Yes, in No

Yes

their

own

'tenant'

Operato No

Yes, in No

Yes

their

own

'tenant'

Monitor No

Yes

Tenant No

Links

Monitor

only

Links

- 52 -

CHAPTER 2 Getting Started

OVOC | User's Manual

How Multi Tenancy Impacts Operator Capabilities
The impact of multi tenancy architecture on the capabilities of OVOC 'system' operators is different to its impact on OVOC 'tenant' operators.
Here are some examples that will help you deduce the principle. Use the table shown in Adding an Operator on the previous page as reference. Examples also show how operator security level impacts the capabilities of 'system' operators and 'tenant' operators.
A 'system' operator with a security level of 'Admin' will be permitted every capability.
A 'tenant' operator with a security level of 'Monitoring' will not be permitted any capability except to monitor their own resources.
In the OVOC's Software Manager:
A 'system' operator can add | delete files.
A 'tenant' operator can only use files.
A 'tenant' operator with Admin security level, however, can add | delete files if the files only belong to that specific tenant and only devices in that tenant use them.
A 'system' operator with Admin security level can allocate licenses to tenants. A 'tenant' operator with Admin security level can only distribute sessions within their own tenant, across that tenant's devices, from that tenant's License Pool. A 'tenant' operator cannot manage licenses for multiple tenants like a 'system' operator with Admin security level can.
Multi-Tenancy impacts what operators view on OVOC pages. In the Network Topology page, for example:
a 'tenant' operator with a Monitoring security level will only see part of the network.
A 'tenant' operator with Admin security level will only see network entities they are permitted to see.
A 'system' operator with an Admin security level will see all tenants and all devices under each tenant.
Adding a 'System' Operator
You need to add a 'system' operator to the OVOC. The 'system' operator is typically the ITSP administrator whose network features multi- tenancy architecture and whose OVOC application provides management services to multiple enterprise customers (tenants) in their network. The 'system' operator can also be an enterprise network administrator whose network does not feature multi-tenancy architecture but whose OVOC application enables management of the enterprise's distributed offices ('tenants').
Only a 'system' operator with a security level of 'Admin' can perform tenant management operations (Add/Remove/Update).

- 53 -

CHAPTER 2 Getting Started

OVOC | User's Manual

To add a 'system' operator: 1. In the OVOC, open the Operators page (System > Administration > Security > Operators). 2. Click Add and then select System Operator from the drop-down menu.
Figure 2-23: 'System' Operator Settings - Basic Info

3. Configure the new operator's basic information using the following table as reference. The screen displays basic operator information and security settings.
Table 2-7: 'System' Operator Settings - Basic Info

Parameter

Description

User Name

Enter the operator's name. Must be unique.

Password

Enter the operator's password.

Confirm Password

Confirm the operator's password.

- 54 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Parameter

Description

User Type

[Read-only] System or Tenant depending on what you selected in step 2.

Security Level From the drop-down select:
Monitoring (lowest security level)
Operator (medium security level)
Admin (highest security level)
Monitoring Links (Applicable only when adding a 'Tenant' type operator in a deployment whose architecture is ITSP customer multitenant architecture - see ITSP Customer Multi-Tenant Architecture on page 6. When adding this operator to links, all links must have the same source SBC - except when using LDAP authentication - and the links' source and destination devices must be in the operator's tenant. Only SBC device links are supported; Skype, SmartTAP, UMP and CloudBond links are not supported. The operator will only be able to monitor information related to QoE (calls, statistics and link alarms).

Valid IPs to Login From

Enter IP addresses of devices from which this operator will be allowed to log in. Login from any other IP address will be disallowed.

Full Name

Enter the operator's full name. Facilitates more effective management of operators.

Phone Email Description

Enter the operator's phone number. Facilitates more effective management of operators.
Enter the operator's email. Facilitates more effective management of operators.
Enter any information likely to facilitate more effective management of OVOC operators.

4. Click Advanced Info.

- 55 -

CHAPTER 2 Getting Started
Figure 2-24: 'System' Operator Settings � Advanced Info

OVOC | User's Manual

5. Configure the new 'system' operator's advanced information using the following table as reference. The screen displays advanced account and password settings.
Table 2-8: 'System' Operator Settings � Advanced Info

Parameter

Description

Suspend User

Select this option to suspend the 'system' operator. If you choose Future Suspension from the drop-down, the 'Choose suspension date' field is displayed:

Click the calendar icon to define on what date to suspend the operator.

Suspension Reason

[Only available when 'Suspend User' is checked] Enter a reason explaining why the operator is suspended.

Suspension Time [Only available when 'Suspend User' is checked] Enter the time at which the operator is suspended.

- 56 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Parameter

Description

Account Inactivity Period (Days)

If the operator does not log into the OVOC for the number of days specified, their account will be suspended. Maximum: 10 days. Default: 0 (The operator can log into the OVOC at any time irrespective of how long they've been logged off; even if they haven't logged in for weeks, their account will not be suspended).

Session Inactivity Period (Minutes)

Defines how long an OVOC GUI page remains accessible despite operator inactivity. If the period times out, the page locks and the operator is prompted to reenter their password to re-access it; the same page that the operator was on before the period timed out then opens. After the operator logs in to the GUI, every time they interact with it, e.g., clicking, the timer is reset. Default: 0 (GUI always accessible irrespective of inactivity).

Session Leasing Duration (Hours)

Enter the session leasing duration, in hours. If it expires, the application will close the client session / force the operator to reenter their password in order to re-access the application. Default: 0 (the session leasing duration will never expire and the application will never close the client session). Note that the Device Manager inherits the value configured.

Password Update Min Period (Hours)

Specify a period, in hours. The operator's password cannot be changed more than once within the period specified. Default: 24 hours. If 0 is specified, the password can be changed an unlimited number of times, unrestricted by period.

Password Validity Max Period (Days)
Password Warning Max Period (Days)
Allowed Login Attempts

Specify a period, in days. The operator's password must be changed within this number of days after the last password change. Default: 90 days. If 0 is specified, the password can be changed an unlimited number of times, unrestricted by period, after the last change.
Specify the number of days. The operator will receive a warning message this number of days before the date on which the password expires. Default: 7 days (i.e., the operator will receive a warning message a week before their password expires). If 0 is specified, the operator will receive warning messages irrespective of the date on which the password expires.
Provides the capability to define the number of login attempts the operator can make before they're suspended, per operator. Enhances operator security management.

6. Click OK. The operator is added to the OVOC.

- 57 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Editing a 'System' Operator
You can edit the details of a 'system' operator if they change.
To edit the details of a 'system' operator: 1. Open the Operators page (System > Administration > Security > Operators). 2. Select the 'system' operator whose details you need to edit and then click Edit; the
Operator Settings screen opens. 3. Edit the operator's details using the table as reference.
Deleting a 'System' Operator
You can remove a 'system' operator from the OVOC.
To remove a 'system' operator: 1. Open the Operators page (System > Administration > Security > Operators). 2. Select the 'system' operator to remove and then click Delete.
Deleting Multiple Operators
You can delete multiple operators from the OVOC simultaneously.
To delete multiple 'system' operators simultaneously: 1. Open the Operators page (System > Administration > Security > Operators). 2. Select the operators to remove and then click Delete.
Suspending a 'System' Operator
You can suspend a 'system' operator from the OVOC.
To suspend a 'system' operator: 1. Open the Operators page (System > Administration > Security > Operators). 2. Select the 'system' operator to suspend and then click Actions. 3. From the drop-down, select Suspend; the operator is automatically logged out before
suspension.
Releasing a Suspended 'System' Operator
You can release a 'system' operator who was previously suspended from the OVOC.
To release an operator who was previously suspended from the OVOC: 1. Open the Operators page (System > Administration > Security > Operators).

- 58 -

CHAPTER 2 Getting Started

OVOC | User's Manual

2. Select the suspended operator to release and then click Actions. Multiple operators can be selected for release from suspension.
3. From the drop-down, select Release.
Forcing a Password Change
You can force an operator to change their password. The feature can be used if for example you suspect information has been stolen from the enterprise.
To force a password change: 1. Open the Operators page (System > Administration > Security > Operators). 2. Select the operator whose password to change and then click Actions. Multiple operators
can be selected. 3. From the drop-down, select Force Password Change.
The operator is automatically prompted to change their password the next time they log in.

Forcing an Operator Logout
Applies only to OVOC operators with 'Admin' security level. See Adding an Operator on page 52 for an explanation of the different security levels.
An OVOC operator with 'Admin' security level can force an active operator to be logged out, conforming to established management application standards. The operator with 'Admin' security level may (for example) need to urgently remove an active operator before another mistake is made and more damage is done.
To force an active operator to be logged out: 1. Open the Operators page (System > Administration > Security > Operators).
Figure 2-25: Operators page

2. Select the active operator to log out; their 'Active' status is indicated in the Status column. 3. From the now enabled 'Actions' drop-down, select Force Logout.
- 59 -

CHAPTER 2 Getting Started

OVOC | User's Manual

4. Click Force Operator Logout to implement the action.
Adding a 'Tenant' Operator
You can add a 'tenant' operator to the OVOC. A 'tenant' operator is typically an enterprise's network administrator whose network does not feature multi-tenancy architecture and whose OVOC application enables management of the enterprise's distributed offices.
Only a 'system' operator with a security level of 'Admin' can perform 'tenant' management operations (Add/Remove/Update/Clone/Suspend.
To add a 'tenant' operator: 1. In the OVOC, open the Operators page (System > Administration > Security > Operators). 2. Click Add and then select Tenant Operator from the drop-down menu.

- 60 -

CHAPTER 2 Getting Started
Figure 2-26: 'Tenant' Operator Details � Basic Info

OVOC | User's Manual

3. Configure the 'tenant' operator's basic info using the table 'System Operator Settings � Advanced Info' as reference.
4. Click Advanced Info.
- 61 -

CHAPTER 2 Getting Started
Figure 2-27: 'Tenant' Operator Details � Advanced Info

OVOC | User's Manual

5. Configure the 'tenant' operator's advanced information using the following table as reference. The screen displays advanced account and password settings.
Table 2-9: 'Tenant' Operator Details � Advanced Info

Parameter

Description

Suspend User

Select this option to suspend the 'tenant' operator. If you choose Future Suspension from the drop-down, the 'Choose suspension date' field is displayed:

Suspension Reason

Click the calendar icon to define on what future date to suspend the operator.
[Only available when 'Suspend User' is checked] Enter a

- 62 -

CHAPTER 2 Getting Started

OVOC | User's Manual

Parameter

Description reason explaining why the operator is being suspended.

Suspension Time

[Only available when 'Suspend User' is checked] Enter the time at which the operator is being suspended.

Account Inactivity Period (Days)

If the operator does not log into the OVOC for the number of days specified, their account will be suspended. Maximum: 10 days. Default: 0.

Session Inactivity Period (Minutes)

Enter the session inactivity period, in minutes. If it expires, the application will close the client session / force the operator to reenter their password in order to reaccess the application. Default: 0.

Session Leasing Duration (Hours)

Enter the session leasing duration, in hours. If it expires, the application will close the client session / force the operator to reenter their password in order to reaccess the application. Default: 0.

Password Update Min Period (Hours)

Specify a period, in hours. The operator's password cannot be changed more than once within the period specified. Default: 24 hours.

Password Validity Max Period (Days)

Specify a period, in days. The operator's password must be changed within this number of days after the last password change. Default: 90 days.

Password Warning Max Period (Days)

Specify the number of days. The operator will receive a warning this number of days before the date on which the password expires. Default: 7 days (i.e., the operator will receive a warning message a week before their password expires).

Allowed Login Attempts

Provides the capability to define the number of login attempts the operator can make before they're suspended, per operator. Enhances operator security management.

6. Click Topology.

- 63 -

CHAPTER 2 Getting Started
Figure 2-28: 'Tenant' Operator Details � Topology

OVOC | User's Manual

7. [The screen is only available for the 'tenant' operator]. From the 'Assigned Tenants' dropdown, select a tenant for this operator from the list of tenants defined in the server. Multiple tenants can be selected.
8. [The field 'Assigned Links for a Specific Device' will be displayed only for the operator whose security level is 'Monitoring Links']. From the 'Assigned Links for a Specific Device' drop-down, select links for this operator from the list of links defined in the selected tenant.
'Monitoring Links' security level applies only when adding a 'Tenant' type operator in a deployment whose architecture is ITSP customer multi-tenant architecture see ITSP Customer Multi-Tenant Architecture on page 6.
When adding this operator to links, all links must have the same source SBC except when using LDAP authentication - and the links' source and destination devices must be in the operator's tenant. Only SBC device links are supported; Skype, SmartTAP, UMP and CloudBond links are not supported.
The operator will only be able to monitor information related to QoE (calls, statistics and link alarms).
- 64 -

CHAPTER 2 Getting Started
Figure 2-29: 'Tenant' Operator Settings � Tenant Assigned

OVOC | User's Manual

9. Click OK; the tenant/s is/are assigned. Editing a 'Tenant' Operator You can edit the details of a 'tenant' operator if they change. To edit the details of a 'tenant' operator: 1. Open the Operators page (System > Administration > Security > Operators). 2. Select the 'tenant' operator whose details you need to edit and then click Edit; the
Operator Settings screen opens. 3. Edit the operator's details using the table describing the 'tenant' operator's advanced
information as reference.
Deleting a 'Tenant' Operator
You can remove a 'tenant' operator from the OVOC. After removal, the OVOC deletes the 'tenant' operator's entities, frees its portion of license resource, and detaches any operator attached to it.
- 65 -

CHAPTER 2 Getting Started

OVOC | User's Manual

To remove a 'tenant' operator: 1. Open the Operators page (System > Administration > Security > Operators). 2. Select the 'tenant' operator to remove and then click Delete.
Deleting Multiple Operators
You can delete multiple operators from the OVOC simultaneously. After deleting, the OVOC deletes the operators' entities, frees their portion of license resource, and detaches any attached operators.
To delete multiple operators simultaneously: 1. Open the Operators page (System > Administration > Security > Operators). 2. Select the operators to remove and then click Delete.
Suspending a 'Tenant' Operator
You can suspend a 'tenant' operator from the OVOC.
To suspend a 'tenant' operator: 1. Open the Operators page (System > Administration > Security > Operators). 2. Select the 'tenant' operator to suspend and then click Actions. Multiple operators can be
selected for release from suspension. 3. From the drop-down, select Suspend; the operator is automatically logged out before
suspension.
Releasing a Suspended 'Tenant' Operator
You can release a 'system' operator who was previously suspended from the OVOC.
To release an operator who was previously suspended from the OVOC: 1. Open the Operators page (System > Administration > Security > Operators). 2. Select the suspended operator to release and then click Actions. 3. From the drop-down, select Release.
Forcing a Password Change
You can force an operator to change their password. The feature can be used if for example you suspect information has been stolen from the enterprise.
To force a password change: 1. Open the Operators page (System > Administration > Security > Operators).

- 66 -

CHAPTER 2 Getting Started

OVOC | User's Manual

2. Select the operator whose password to change and then click Actions. Multiple operators can be selected.
3. From the drop-down, select Force Password Change.

The operator is automatically prompted to change their password the next time they log in.

2. Select the active operator to log out; their 'Active' status is indicated in the Status column. 3. From the now enabled 'Actions' drop-down, select Force Logout.

4. Click Force Operator Logout to implement the action.
- 67 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

3 Configuring Global (System) Settings
After logging in, configuring operator authentication and then adding an operator, you can configure the settings under the OVOC's System menu. These are the OVOC's global settings. They are system-wide, as opposed to per tenant.

Three tabs are displayed under the System menu: Administration, Configuration and Tasks. The following table describes the tabs, folders and items under the System menu.
Table 3-1: System Menu

Tab

Folder

Item

Description

Administration License

Configuration

See Making Sure your License Provides the Capabilities you Ordered on page 71 for details.

Tenants Allocation

See Allocating Licenses to Tenants on page 72 for details.

System Allocation

See Defining # of Administrator-Defined Reports Produced at System Level on page 74 for details.

Floating License

See under Managing SBC Licenses on page 174 for details.

Security

Authentication

Lets you configure LDAP/RADIUS authentication. See Configuring Operator

- 68 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Tab Configuration

Folder

Item

Operators

OVOC Server Status Info Configuration

Templates

SNMP Connectivity
HTTP Connectivity
QoE Thresholds

QoE Status & Alarms
Perf Monitoring

Alarms

File Manager Software Manager

External Applications

Description
Authentication on page 38 for details.
Lets you add operators to the OVOC. See Adding an Operator on page 52 for details.
Lets you view information about the status of the OVOC server
Lets you view information about the OVOC server
Lets you configure the general OVOC server settings. See Securing Connections with FQDN or IP Address on page 76.
See SNMP Connectivity on page 88 for details.
See HTTP Connectivity on page 91 for details.
See QoE Thresholds on page 91 for details.
See QoE Status and Alarms on page 93 for details.
See Adding a PM Profile on page 276 for details.
See Configuring Alarms Settings on page 95 for details.
See Adding Configuration Files to the OVOC's Software Manager on page 98 for details.
See Connecting Directly to

- 69 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Tab Tasks

Folder

Item

Device Backup

Description
External Applications on page 106 for details.
See Enabling Automatic Device Backup Periodically on page 110 for details.
See Tasks tab on page 110 for details.

Administration tab
Under the Administration tab's License folder you can view a summary of your license and allocate licenses to tenants. See Making Sure your License Provides the Capabilities you Ordered on the next page for more information. Under the Administration tab's Security folder you can define authentication and add operators. See Allocating Licenses to Tenants on page 72 for more information.
Loading the OVOC Server License
Before Version 7.6.1000, the OVOC Server License could only be loaded to the server using the EMS Server Manager, described in the One Voice Operations Center IOM Manual. For operators' convenience, the OVOC Server License as of Version 7.6.1000 can also be loaded from the OVOC GUI to the OVOC server after it is obtained as a file from AudioCodes.
Only a 'System' type operator whose security level is defined as 'Admin' can load the OVOC server license. See Adding an Operator on page 52 for more information.

To load the license:
1. Open the License Configuration page (System > Administration > License > Configuration).

- 70 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-1: License Configuration

OVOC | User's Manual

2. Click the Load License button and in the browser window that opens, navigate to the txt file containing the license on your machine.
3. Click Open for the load to be performed.
The license is provided without installation media. To activate the product, follow the activation instructions described in the One Voice Operations Center IOM Manual.
The Alarms Journal displays the Load License action as a server action. The Alarms Journal also displays the values of the new license and the name of the operator who performed the action.
Making Sure your License Provides the Capabilities you Ordered
The License Configuration page allows you to view the details of the capabilities which the license that you ordered covers. Use the page to make sure the license you purchased provides the capabilities you ordered. To view the details of your license: 1. Open the License Configuration page (System > Administration > License >
Configuration).
- 71 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-2: License Configuration

OVOC | User's Manual

The License Configuration page displays only the parameters that exist in the License Key provided by AudioCodes.
2. Make sure the license you purchased provides the capabilities you ordered.
Allocating Licenses to Tenants
After adding tenants as described in Adding a Tenant on page 113, you can allocate licenses to them manually if your network administrator changed the default dynamic automatic allocation (see Dynamic Allocation of Endpoint Licenses on page 165). The Tenants Allocation page lets you manually allocate licenses to tenants. To allocate licenses to tenants: 1. Open the Tenants Allocations page (System > Administration > License > Tenants
Allocations). Figure 3-3: Tenants Allocations
2. Select the tenant to whom to allocate licenses and then click Edit.
- 72 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-4: Tenant Allocations Details

OVOC | User's Manual

Only parameters in the License Key provided by AudioCodes are displayed.
3. In the Tenant Allocations Settings shown in the figures above, you can allocate: Under Fixed License Pool CB analog devices
- 73 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

CB PBX users CB user sessions CB voicemail accounts SBC Registrations (SIP endpoints that can register with the SBC) SBC sessions (media and signaling) SBC Signaling sessions SBC Transcoding sessions Under Voice Quality Devices Endpoints Sessions Users Under Endpoints Management Endpoints
Defining # of Administrator-Defined Reports Produced at System Level

OVOC's built-in reports can be produced without a license but a license is necessary for producing administrator-defined reports. See Defining a Report on page 385 for more information.

The System Allocations page enables defining the number of administrator-defined reports that can be produced in the OVOC under the license. The value must be allocated to tenants as described in Allocating Licenses to Tenants on page 72 (how many
administrator-defined reports can be produced in each tenant) system as shown here (how many administrator-defined reports can be produced at the
system level)
To define how many operator-defined reports can be produced at the system level: 1. Open the System Allocations page (System > Administration > License > System
Allocations).

- 74 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Figure 3-5: Defining # of administrator-defined reports produced at system level

2. Enter the value you require in the 'Reports' field; the field turns yellow; the 'Allocated' indication increases by the value you entered and the 'Free' indication decreases by the value you entered.
3. Click Submit; if operators later exceed this number when defining a new report, they'll receive a notification.
Authenticating Operators
The 'Security' folder's Authentication item lets you configure LDAP and RADIUS authentication. See Configuring Operator Authentication on page 38 for detailed information. The 'Security' folder's Operators item lets you add OVOC operators. See Adding an Operator on page 52 for detailed information.
Determining OVOC Server Status
The Server Status page (System > Administration > OVOC Server > Status) lets you determine at-a-glance status information about the OVOC server. The feature saves operators from having to log in to the EMS Server Manager. The same information is presented, only in friendlier format.
Figure 3-6: Server Status page

When OVOC cluster mode is installed, the Status page (System > Administration > OVOC Server > Status) displays the statuses of all cluster servers. The figure below shows an example of a single additional server but multiple additional servers are supported for high scale capacity.
- 75 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-7: Cluster Server Status

OVOC | User's Manual

The Server Info page (System > Administration > OVOC Server > Info) presents information about the OVOC server including , including hardware info, components versions, NTP info, security info, ports status and network info. The feature saves operators from having to log in to the EMS Server Manager. The same information is presented only in friendlier format.
Figure 3-8: Server Info page

See Securing Connections with FQDN or IP Address below for information about the Server Configuration page (System > Administration > OVOC Server > Configuration).
Securing Connections with FQDN or IP Address
Operators can optionally secure SSL connections with an IP address (default) or with an FQDN hostname. Supported connections are: Device - OVOC server OVOC - LDAP Active Directory
- 76 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

To implement the feature: 1. Open the Server Configuration page (System > Administration > OVOC Server >
Configuration). Figure 3-9: Server Configuration

2. From the 'SBC Devices Communication' drop-down list, select either IP Based (default) or Hostname Based.
Providing a Description to be Forwarded in Alarm Info
The OVOC allows operators to provide a 'Description' that will be forwarded in the Alarm Info to facilitate more effective management of alarms from the OVOC server.
To provide the description: 1. Open the Server Configuration page (System > Administration > OVOC Server >
Configuration). Figure 3-10: Server Configuration

2. In the 'Description' field shown in the preceding figure, configure a description for OVOC server alarms (such as disk space or Oracle partition size) that are forwarded to SNMP destinations. For more information, see the One Voice Operations Center Northbound Integration Guide.
The configuration in the 'Description' field should be mirrored in the Alarm Forwarding rule - see under Forwarding Alarms on page 244 for more information. AudioCodes FAEs then use these as Customer #s . Each alarm from the OVOC server opens a ticket to AudioCodes or to the customer, depending on with whom the OVOC is deployed.
- 77 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Configuring Privacy Mode, Concealing Users Calls Details
The OVOC allows tenant and system operators whose Security Level is configured as 'Monitor' or 'Operator' to conceal from view call details and user information that is exposed in calls.
To configure Privacy Mode: 1. Open the Server Configuration page (System > Administration > OVOC Server >
Configuration). Figure 3-11: Server Configuration

2. Under General Settings, select the 'Privacy Mode' option and click Submit. Last digits in users' phone numbers are concealed from view Information about callers and called parties in the Call Details page is replaced by *** User / URI reports are disabled Specific information on any user cannot be retrieved User tables and statistics are concealed from view SIP ladders and user call information are concealed from view
Uploading a Global Logo to Display in Report Results
Network administrators can upload a global logo to be displayed globally, across all report results irrespective of tenant, from the global (system) settings (System > Administration > OVOC Server > Configuration). Logos displayed in report results can facilitate management for network administrators.
- 78 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

To upload a global logo: 1. Open the Server Configuration page (System > Administration > OVOC Server >
Configuration) and locate the 'Global Logo' parameter under 'General Settings'. Figure 3-12: Global Logo

2. Click and then navigate to the location in which the image file is stored.
3. Click Submit; the logo image file is added to the Software Manager.
If the logo image file has already been uploaded to the OVOC server and is displayed in the Software Manager, you can select it from the drop-down list.
See also Defining a Report on page 385 for related information. See also Adding Configuration Files to the OVOC's Software Manager on page 98
for related information. See also Editing a Tenant - Defining a Logo on page 122 to define a logo to be
displayed in report results related to a specific tenant.
Customizing Call Storage
The OVOC's Server Call Storage page allows operators whose security level is configured as `System' to customize the storage of calls on the OVOC server according to successful calls and/or failed calls (call performance) and the quality of the calls (good, fair/poor and/or unknown) in these two categories. Operators can furthermore customize whether to include or exclude call flow and/or call trend.
To customize call storage: 1. Open the Calls Storage page (System > Administration > OVOC Server > Calls Storage).

- 79 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-13: Calls Storage

OVOC | User's Manual

2. From the 'Calls Storage Level' drop-down, select either: Custom (default) (see the figure above for the configured settings) Minimal (see the following figure for the configured settings) Maximal (all settings are selected) Recommended (see the figure after the following for the configured settings)

- 80 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-14: Calls Storage Level - Minimal

OVOC | User's Manual

Figure 3-15: Calls Storage Level - Recommended

3. Use the matrices below as reference.
- 81 -

CHAPTER 3 Configuring Global (System) Settings
Table 3-2: Custom

Call Performance

Call Quality

Save

Success Success
Success Fail Fail
Fail

Good

Yes

Not Good

Yes

(fair/poor)

Gray

Yes

Good

Yes

Not Good

Yes

(fair/poor)

Gray

Yes

Table 3-3: Minimal

Call Performance

Call Quality

Save

Success Success
Success Fail Fail
Fail

Good

Not Good

Yes

(fair/poor)

Gray

Good

Yes

Not Good

Yes

(fair/poor)

Gray

Yes

Table 3-4: Recommended

Call Performance

Call Quality

Save

Success Success

Good

Yes

Not Good

Yes

OVOC | User's Manual

Include Call Flow

Include Quality Trend

Yes

Include Call Flow

Include Quality Trend

Include Call Flow

Include Quality Trend

Yes

- 82 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Call Performance

Call Quality

Save

Success Fail Fail
Fail

(fair/poor)

Gray

Yes

Good

Yes

Not Good

Yes

(fair/poor)

Gray

Yes

Table 3-5: Maximal

Call Performance

Call Quality

Save

Success Success
Success Fail Fail
Fail

Good

Yes

Not Good

Yes

(fair/poor)

Gray

Yes

Good

Yes

Not Good

Yes

(fair/poor)

Gray

Yes

Include Call Flow

Include Quality Trend

Yes

Include Call Flow

Include Quality Trend

Yes

If Custom is selected but settings are changed, the changed configuration is preserved and displayed during the next login.
A change to call storage settings does not impact calls already saved on the OVOC server.
All calls previously stored on the OVOC server are stored according to the previously configured settings and cleared using regular call clearing policy (time or size based).
See Customizing Maximum Storage Period on the next page

- 83 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Customizing Maximum Storage Period
The OVOC's Server Call Storage page allows operators whose security level is configured as `System' to customize the maximum number of days call-related information will be stored on the OVOC server before it is cleared.
To customize the maximum storage period: 1. Open the Calls Storage page (System > Administration > OVOC Server > Calls Storage)
and locate the 'Max Storage Period (Days)' section of the page. Figure 3-16: Max Storage Period (Days)

Calls are checked daily and cleared from the OVOC server based on the values you configure.
Default: 365 days (the maximum number of days call-related information can be stored on the OVOC server before it's cleared)
Range: 1 day - 365 days
2. Drag and drop the 'Total Calls' slider to the maximum number of days you require all calls to be stored on the OVOC server before they're cleared.
3. Drag and drop the 'Calls with Call Flow' slider to the maximum number of days you require calls together with call flow to be stored on the OVOC server before they're cleared.
4. Drag and drop the 'Statistics' slider to the maximum number of days you require call statistics to be stored on the OVOC server before they're cleared.
- 84 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

If you configure the maximum number of days to a value lower than that which was previously configured (by another operator, say), all data will be cleared the next clearing.

- 85 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Viewing Calls Status
The Calls Status page displays the statuses of statistics collected on database entities as well as the statuses of statistics collected on calls and on calls with calls flow. Network administrators can use the page as reference to determine OVOC server database status.
To view statuses: 1. Open the Server Calls Status page (System > Administration > OVOC Server > Calls
Status). Figure 3-17: Server Calls Status

2. [Refer to the preceding figure] View on the left side of the page the statuses of statistics on the following entities (from top to bottom): Devices, Links, Sites, Endpoints and Users.
3. View (for example) the topmost entity displayed: Devices 15,253 statistics on all devices in the network currently saved in the OVOC server database, out of a maximum of 150 million. 15,253 indicates the number of stored statistics per the entity 'Device', per 5 minute interval. [The number of stored statistics per other entities - Links, Sites, Endpoints - per five minute interval, are displayed below 'Devices']. The Maximum Stored Days is indicated as 218 out of a maximum of 365 (configured in the Calls Settings Storage page as shown in Customizing Call Storage on page 79); the oldest statistics on devices in the OVOC server database are 218 days old; after a year's storage, the OVOC deletes the database; only one year maximum is stored.
4. View on the right side of the page the Calls Status section. 21,703,782 indicates the total number of calls currently saved in the OVOC server database out of a maximum of 80 million calls. The Stored Days is indicated as 219 out of a maximum of 365; the oldest calls are 219 days old; after a year's storage, the OVOC deletes calls from the database; only one year is stored.
- 86 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

557,652 indicates the calls with call flow (i.e., with SIP ladder) currently saved in the OVOC server database.
The maximum # of statistics on calls /calls with call flow depends on the server specification (Baremetal, low VM, high VM, etc.).
The Maximum Stored Days is configured in the Calls Settings Storage page as shown in Customizing Call Storage on page 79.

- 87 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Configuration tab
The 'Configuration' tab lets you: configure global system templates (see Configuring Templates below) configure alarms settings (see Configuring Alarms Settings on page 95) add software and auxiliary files (see Adding Configuration Files to the OVOC's Software
Manager on page 98) open external applications (see Connecting Directly to External Applications on page 106) back up (see Backing up a Device's Configuration using Backup Manager on page 157)
Configuring Templates
The Templates folder allows you to configure the following global, system-wide templates to facilitate more effective network management: SNMP Connectivity (see SNMP Connectivity below) HTTP Connectivity (see HTTP Connectivity on page 91) QoE Thresholds (see QoE Thresholds on page 91) QoE Status & Alarms (see QoE Status and Alarms on page 93) Performance Monitoring Template (see Adding a PM Template on page 271)
SNMP Connectivity
This template lets you configure an SNMP connectivity template whose parameter values can then be applied system- wide (globally). The template facilitates more effective network management. SNMP/HTTP templates are the default profile values for each defined tenant. The tenant SNMP/HTTP profiles are used as default for the devices under them.
To configure an SNMP Connectivity template: 1. Open the SNMP Connectivity screen (System > Configuration > Templates > SNMP
Connectivity).

- 88 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-18: SNMP Connectivity Template

OVOC | User's Manual

2. Use the following table as a reference to the parameters in the figure above. Table 3-6: SNMP Connectivity Template

Parameter

Description

SNMP v2

SNMP Read Community

Enter an encrypted SNMP read community string. The default value for the SNMP read community string is 'public'.

SNMP Write Community

Enter an encrypted SNMP write community string. The default value for the SNMP write community string is 'private'.

SNMP Trap Community

Enter the Trap Community string to be received as part of the Notification message.

SNMP v3

Security Name

Enter a name for SNMP v3. Example: OVOC User.

Security Level

From the drop-down, select either: Authentication and Privacy (default) No Security Authentication

Authentication Protocol

From the drop-down, select either:

- 89 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Parameter
Authentication Key Privacy Protocol
Privacy Key 3. Click Submit.

Description SHA (default) MDS No Protocol Enter an Authentication Key. Default: 123456789. From the drop-down, select either: AES 128 (default) DES Enter a Privacy Key. Default: 123456789.

- 90 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

HTTP Connectivity
This option lets you configure an HTTP connectivity template whose parameter values can then be applied system- wide (globally) when adding multiple AudioCodes devices, for example. The template facilitates more effective network management for OVOC operators.
To configure an HTTP Connectivity template: 1. Open the HTTP Connectivity screen (System > Configuration > Templates > HTTP
Connectivity). Figure 3-19: HTTP Connectivity Template

2. Use the following table as a reference to the parameters in the preceding figure. Table 3-7: HTTP Connectivity Template

Parameter Device Admin User Device Admin Password Default Connectivity

Description
Enter the device Web server user name. Example: Admin. Password - "Admin".
Enter the Web server password. Example: Admin.
From the drop-down, select either: HTTP (default) HTTPS

3. Click Submit.

QoE Thresholds
QoE Thresholds determine global (system-wide) voice quality thresholds templates. [For information on how to configure QoE Thresholds profiles per tenant, see Managing QoE Thresholds Profiles per Tenant on page 359]

- 91 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Four QoE Thresholds templates (Low Sensitivity | Medium Sensitivity | High Sensitivity | MS Teams) for the voice quality metrics of MOS, Delay, Packet Loss, Echo and Jitter are accessed in the page. In the page, you can add, edit or delete a voice quality thresholds template.
To access the global QoE thresholds templates: 1. From the System menu, open the QoE Thresholds page (System > Configuration >
Templates > QoE Thresholds). Figure 3-20: QoE Thresholds Templates

In the page, you can see four global (system-wide) QoE thresholds templates displayed. Each consists of threshold values set for the voice quality metrics of MOS, Delay, Packet Loss, Echo and Jitter, for each call quality category of 'Poor', 'Fair' and 'Good'. Use the following table as reference to the figure above.
Table 3-8: QoE Thresholds Templates

Template
Low Sensitivity Threshold

Description
Threshold values representing recommended data for the 'Low' sensitivity level.

Medium Sensitivity Threshold
High Sensitivity Threshold

Threshold values representing recommended data for the 'Medium' sensitivity level.
Threshold values representing recommended data for the 'High' sensitivity level.

MS Teams Threshold

Threshold values representing recommended data for the 'MS Teams' threshold. For Teams devices, AudioCodes recommends you use the Microsoft Teams threshold. It's a threshold that is added by default to each tenant. It enables calculating the quality of Teams calls. Manually attach Teams devices to the threshold as shown under Adding a QoE Thresholds Profile per Tenant on page 362.

2. Select a template and then click Edit.

- 92 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-21: QoE Thresholds Settings

OVOC | User's Manual

3. Provide an intuitive name for the profile. As a reference, use the names of the three QoE Threshold Templates displayed in the table above.
4. Enter a description of the profile to facilitate effective intuitive management later. 5. Select the Device option to set the profile as devices default. 6. Select the Links option to set the profile as links default. 7. Select the Endpoints option to set the profile as endpoints default. 8. By default, All metrics are included in the profile. To exclude a metric, clear its check box.
To define the MOS metric, for example, click the bar or drag the markers. Each bar unit increments or decreases the threshold by 0.1 (MOS, Packet Loss), or by 1 (Delay, Jitter, Echo). 9. Do the same for the other metrics thresholds. 10. Click OK; the profile is displayed in the QoE Thresholds screen.
QoE Status and Alarms The QoE Status and Alarms page determines the global (system-wide) QoE status of devices,
sites, links and endpoints. The page provides a centralized view of global QoE alarms and statuses. For information on managing QoE Status per tenant, see Managing QoE Status and Alarms per Tenant on page 366.
- 93 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

To view the global QoE status: 1. From under the System menu, open the QoE Status and Alarms page (System >
Configuration > Templates > QoE Status & Alarms). Figure 3-22: QoE Status and Alarms

2. Use the following table as reference to the figure above. Table 3-9: QoE Status and Alarms

Page Indications

Description

Defaults

= displayed when the alarm rule applies to devices = displayed when the alarm rule applies to links = displayed when the alarm rule applies to sites = displayed when the alarm rule applies to IP phones

Name

Indicates the name of the alarm rule.

Last Runtime Indicates the last time the alarm rule was activated.

Monitoring Frequency Min

Indicates at least how often monitoring is performed. Default: 15

Minimum Calls per Entity to Analyze

Indicates the minimum number of calls to analyze, per entity. Default: 50

Failed Calls (%)

x y indicates that green changes to orange ('Major' severity) when the x percentage of failed calls is exceeded and orange changes to red ('Critical' severity) when the y percentage of failed calls is exceeded.
indicates alarm issued � displayed if the Generate Alarm option is selected in the Alarm Rule Details screen (see Adding a QoE Alarm Rule per Tenant on page 366).

Poor Quality Calls (%)

x y indicates that green changes to orange ('Major' severity) when the x percentage of poor quality calls is exceeded and orange

- 94 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Page Indications
Average Call Duration (seconds)
Bandwidth Rule (Kbps)
Maximum Concurrent Calls Rule (#)

Description
changes to red ('Critical' severity) when the y percentage of poor quality calls is exceeded.
indicates alarm issued � displayed if the Generate Alarm option is selected in the Alarm Rule Details screen (see Adding a QoE Alarm Rule per Tenant on page 366).
x y indicates that green changes to orange ('Major' severity) when x seconds call duration is exceeded and orange changes to red ('Critical' severity) when y seconds call duration is exceeded.
indicates alarm issued � displayed if the Generate Alarm option is selected in the Alarm Rule Details screen (see Adding a QoE Alarm Rule per Tenant on page 366).
x y indicates that green changes to orange ('Major' severity) when x bandwidth is exceeded and orange changes to red ('Critical' severity) when y bandwidth is exceeded.
indicates alarm issued � displayed if the Generate Alarm option is selected in the Alarm Rule Details screen (see Adding a QoE Alarm Rule per Tenant on page 366).
x y indicates that green changes to orange ('Major' severity) when x concurrent calls is exceeded and orange changes to red ('Critical' severity) when y concurrent calls is exceeded.
indicates alarm issued � displayed if the Generate Alarm option is selected in the Alarm Rule Details screen (see Adding a QoE Alarm Rule per Tenant on page 366).

Configuring Alarms Settings
The Alarms screen allows you to configure how alarms and events are displayed in the Alarms pages.
To configure alarm settings: 1. Open the Alarms page (System > Configuration > Alarms).

- 95 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-23: Alarms Settings

OVOC | User's Manual

2. Configure the alarms settings using the following table as reference. Table 3-10: Alarms Settings

Setting

Description

Alarms Automatic Clearing

Select this option to clear all devices listed in the Alarms page of all active alarms when the system starts up (cold start event): Critical, Major, Minor, Warning or Info.
Use this setting to prevent historical, dated alarms from cluttering the Alarms page.

Alarms Automatic Clearing Period (Days)

[Only relevant if the 'Alarms Automatic Clearing' option is selected]
Clears old alarms after a defined period of days even though a Clear alarm to stop displaying very old active alarms has not been received from the device.

Events Automatic Clearing

Select this option for device events (events originating from the device) to be automatically cleared from the Alarms page when the system starts up (cold start event).
Device events originating in the OVOC, e.g., adding a gateway, are not cleared when the device is reset. The OVOC consequently employs a mechanism to automatically clear these events from the Alarms page. The feature prevents historical, dated events from cluttering the Alarms page.

Events Automatic

Events are by default cleared every three days. You can change

Clearing Period (days) the default to suit your requirements.

Max number of alarms to aggregate in single Email

If an alarms forwarding rule is configured (under Alarms > Forwarding), the alarms can be aggregated to be sent in a single email. This parameter allows you to configure the maximum number of alarms to aggregate in a single email. Default: 10. If, for example, the number of alarms to aggregate is configured to 10 and the time interval (see the next parameter) is configured to

- 96 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Setting

Description

60 seconds, then after 60 seconds, five alarms will be raised according to the alarms forwarding rule and five aggregated alarms will be forwarded.

Email alarms aggregation time interval (seconds)

If an alarms forwarding rule is configured (under Alarms > Forwarding) and the alarms are configured to be aggregated and sent in a single email, you can configure a time interval to determine how often aggregated alarms are forwarded. Default: 60. If, for example, the number of alarms to aggregate is configured to 10 (see the previous parameter) and the time interval is configured to 60 seconds, then after 60 seconds, five alarms will be raised according to the alarms forwarding rule and five aggregated alarms will be forwarded.

Alarms Suppression

Select this option for an 'Alarm Suppression' alarm to be generated when the OVOC server identifies that the number of alarms of the same type and from the same source, generated in a time period, is greater than the number defined in the threshold. At this point, these alarms are not added to the database and are not forwarded to configured destinations.

Alarms Suppression Counter Threshold

[Only applicable if 'Alarms Suppression' is selected] Lets you configure a counter threshold (Default: 10 alarms) and interval (Default: 10 seconds). For example, if 10 alarms are generated from 'Board#1/EthernetLink#2 in 10 seconds, then alarms from this source are suppressed and the 'Suppression' alarm is generated. This alarm is cleared if in the subsequent 10 second interval, less than 10 alarms are sent from this source. At this point, updating the OVOC database is resumed (the last received alarm is updated).

Alarms Suppression Interval (seconds)

During the time the suppression alarm is active, the OVOC server updates the database with a single alarm (with updated unique ID) database every minute, until the alarm is cleared.

OVOC Keep-Alive

Select this option for the OVOC to generate SNMP Keep-alive traps to 3rd-party applications, such as a Syslog server. This trap can be sent to either the SNMP, Syslog or Mail server destination. You can send the Keep-Alive trap to the target destination, according to an existing configured forwarding destination rule.

OVOC Keep-Alive trap interval (seconds)

[Only applicable if 'OVOC Keep-Alive' is selected] Determines how frequently the trap is sent from the OVOC to the configured destination. Default: Every 60 seconds. You can configure a

- 97 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Setting Internal Mail Server From Address
Internal Mail Server Real Name

Description
different interval to suit your requirements.
If your enterprise uses OVOC's internal email server for Alarms Forwarding, use this parameter to configure the internal mail server's 'From Address'. For example, if you configure john.brown@enterprisename.com for this parameter and you configure John Brown for the parameter following in this table ('Internal Mail Server Real Name'), then all alarms forwarded from OVOC by email from rules configured with 'Use Internal Mail Server' will be from address: john.brown@enterprisename.com < John Brown > See related parameters 'Forward matching alarms/events', 'Prevent forwarding matching alarms/events' and 'Enable/Disable Rule' under Forwarding Alarms on page 244.
If your enterprise uses OVOC's internal email server for Alarms Forwarding, use this parameter to configure the internal mail server's 'Real Name'. For example, if you configure John Brown for this parameter and you configure john.brown@enterprisename.com for the preceding parameter in this table ( 'Internal Mail Server From Address'), then all alarms forwarded from OVOC by email from rules configured with 'Use Internal Mail Server' will be from address: john.brown@enterprisename.com < John Brown > See related parameters 'Forward matching alarms/events', 'Prevent forwarding matching alarms/events' and 'Enable/Disable Rule' under Forwarding Alarms on page 244.

Adding Configuration Files to the OVOC's Software Manager
You can add ini files, cmp firmware files, cli files, conf files and auxiliary files to the OVOC's Software Manager in order to load them to devices.
The Software Manager page lets operators view, add or remove files. Filters facilitate quick and easy access to device-specific files.
After defining a device in the OVOC, the OVOC connects to it and automatically determines its version. Each new version, fix or software update provided to customers must be added to the Software Manager, to enable upgrading device software.
Files per network device include: SBC configuration files (ini, cli, conf) MSBR (cli)

- 98 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

SBC software files (cmp) MP-202 software files (rms/rmt) IP phone firmware files IP phone configuration files (templates) MP-202 configuration files (conf) Auxiliary files (prt, cpt, etc.) Logo image files to be displayed in reports results: System files (after uploading a global logo file to be displayed in report results as shown in
Uploading a Global Logo to Display in Report Results on page 78) Tenant file (after uploading a logo image file to be displayed per specified tenant in report
results as shown in Editing a Tenant - Defining a Logo on page 122) Use the following table as a reference with respect to which operator type is permitted to perform what file management.
Table 3-11: OVOC Software File Management per Operator Type

Operator Type

Permitted to Perform this File Management

System (except operators with 'Monitoring' security level)

Add any global file that will not be assigned to any specific tenant. These files will be visible to both 'tenant' and 'system' operator types.
Add a file and assign it to a specific tenant. These files will be visible to both 'tenant' and 'system' operator types.
Download any file visible by the tenant (Added by 'tenant' and 'system' operator types) to any device in the tenant.
Remove any file added by 'tenant' and 'system' operator types.

Tenant (except operators with 'Monitoring' security level)

Add any file. This file will be assigned only to the tenant. These files will be visible to both 'tenant' and 'system' operator types.
Download any file visible by the tenant to the devices in the tenant.
Remove any file added by a 'tenant' operator type.

- 99 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Only one SBC software file (cmp) with the same version for a specific product type can be added to a tenant. The CentOS version can be 6 or 8. See also Adding a cmp File on the next pagefor more information.
Software files cannot be shared between tenants (except global). If an operator assigned to multiple tenants adds a file, it can be downloaded only on devices in a specific tenant and not to all tenants.
Adding the ini File
You can add the ini file to the OVOC's Software Manager in order to perform initial configuration of device parameters which cannot be configured after defining the device in the OVOC. When loading the ini file to the device, operators can choose either: Full Configuration ini file download � with validation and apply (recommended) Full Configuration ini file download � without validation and apply (for software upgrade) Incremental ini file download (the previous configuration remains)
To add the ini file to the OVOC: 1. Open the Software Manager page (System > Configuration > File Manager > Software
Manager). Figure 3-24: Software Manager

2. Click Add and select Add Auxiliary File from the menu drop-down.

- 100 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-25: Add Auxiliary File � ini File

OVOC | User's Manual

3. From the 'Tenant' drop-down, select the tenant under which the ini file will be added. 4. From the 'File Type' drop-down, select INI (default) if it isn't selected already. 5. Next to the 'File Name' field, click Load and browse to the ini file's location. 6. Enter a description of the file in the 'File Description' pane for intuitive future file
management, and then click OK; the ini file is added to the Software Manager. Adding a cmp File You can add a firmware (cmp) file to the OVOC to later load to the device. With the exception of the MP-20x media gateways, the cmp files are the devices' main software firmware image files. You can add a cmp file to the OVOC in order (for example) to change the software version. To add a cmp file to the OVOC: 1. Open the OVOC's Software Manager page (System > Configuration > File Manager >
Software Manager). 2. Click Add and select Add Software File from the drop-down menu.
- 101 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-26: Add Software File

OVOC | User's Manual

3. From the 'Tenant' drop-down, select the tenant under which the cmp file will be added. 4. Next to the 'CMP' field, click Load to navigate to the cmp file's location. 5. Enter a description of the file in the 'File Description' pane for intuitive future file
management. 6. In the read-only 'Software Version' field, view the version of the cmp software file. The field
is automatically defined after selecting the cmp or rmt/rms file. 7. In the read-only 'OS Version' field, view the CentOS version for Software SBC (6 or 8). 8. From the 'Select Product' drop-down list, select the relevant product corresponding to the
cmp or rmt/rms file. 9. From the 'Select Protocol' drop-down, select the protocol. Default: SIP. MGCP and
MEGACO are also available. 10. Click OK; the cmp file is added to the Software Manager.
Viewing cmp File Details in Software Manager After adding firmware (cmp) files to the OVOC to load to devices as shown in Adding a cmp File on the previous page , you can view all files and view each file's details in the Software Manager.
- 102 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

To view cmp files and a file's details: 1. Open the OVOC's Software Manager page (System > Configuration > File Manager >
Software Manager) and then select the cmp file whose details you want to view. Figure 3-27: File Details

2. View the columns in the page; they display the same file information as the File Details pane on the right side of the page.
3. Use the table as reference. Table 3-12: CMP Columns / File Details

Column / File Detail

Description

File name

The name of the file. See also Adding a cmp File on page 101.

File Type

CMP

SW Version

The CMP file version

OS Version

The CentOS version for the Software SBC: OS6 OS8

Protocol

SIP (for example)

File Size

The size of the file, in KB

Added at

The date and time at which the CMP file was added to the Software Manager

Added by

The operator who added the CMP file to the Software Manager

Description

A description of the CMP file. See also Adding a cmp File on page 101.

- 103 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Column / File Detail Tenant

Description The name of the tenant under which the SBC is located.

Adding a cli File
A cli file can be added to the OVOC to later load to the MSBR devices and SBC Linux devices.
To add a cli file to the OVOC: 1. Open the OVOC's Software Manager page (System > Configuration > File Manager >
SoftwareManager). 2. Click Add and select Add Auxiliary File from the drop-down menu.
Figure 3-28: Add Auxiliary File

3. From the 'Tenant' drop-down, select the tenant under which the cli file will be added. 4. From the 'File Type' drop-down, select CLI. 5. Next to the 'File Name' field, click Load to browse to the cli file's location. 6. Enter a description of the file in the 'File Description' pane for intuitive future file
management. 7. Click OK; the cli file is added to the Software Manager.
Adding Auxiliary Files
Besides the ini file, you can add auxiliary files to the OVOC's Software Manager.
- 104 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

To add an auxiliary file to the OVOC's Software Manager: 1. Open the OVOC's Software Manager page (System > Configuration > File Manager >
Software Manager). 2. Click Add and select Add Auxiliary File from the drop-down menu. 3. From the 'Tenant' drop-down, select the tenant under which to add the auxiliary file. 4. From the 'File Type' drop-down list, select the auxiliary file to be added.
Figure 3-29: Add Auxiliary File

See the device's User's Manual for more information about device-related files. The CERTIFICATE file secures the following connections:
Active Directory server (domain controller) MSSQL Front End server LDAP User Authentication The X.509 PRIVATE KEY, X.509 CERTIFICATE and X.509 TRUSTED ROOT CERTIFICATE files are AudioCodes certificate files that secure the connection between OVOC and the devices. The X.509 files are for all the security files, including LDAP. These files may be default AudioCodes certificate files or files generated by an external CA. For more information about certification implementation, see the One Voice Operations CenterSecurity Guidelines. A logo image file, to be displayed in report results, can also be added in this screen. See also Defining a Report on page 385
5. Enter a description of the file in the 'File Description' pane for intuitive future file management.
6. Next to the 'File Name' field, click ... and browse to the file's location.
- 105 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

7. Enter a description of the file in the 'File Description' pane for intuitive future file management, and then click OK; the file is added to the Software Manager.
Connecting Directly to External Applications
The OVOC features an external applications menu that allows operators to directly connect to IP telephony network management applications, both of AudioCodes as well as of external vendors. These applications enable comprehensive control over any enterprise or ITSP IP telephony network, helping providers deliver the quality of service users require.
To directly access the external applications menu:
1. On every page of the OVOC on the right of the title bar, click the icon.

Click the relevant link for single sign-on to: Device Manager (see Device Manager below for more information) Routing Manager (see ARM on the next page for more information) Data Layer Manager (see Data Layer Manager on page 108 for more information)
Device Manager
The external applications menu allows operators to directly access the Device Manager, a life cycle management application for enterprise IP phone deployments that enables administrators to deliver a reliable desktop phone service within their organization. With the ability to deploy and monitor IP telephony devices, identify problems, and then fix them rapidly and efficiently, the application enhances employee satisfaction, increases productivity and lowers IT expenses. To directly access the Device Manager: 1. Click the applications menu icon located on every OVOC GUI page on the right of the title
bar, and then click the Device Manager link.
- 106 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

If your browser is configured to block pop-ups, a message will appear indicating 'Pop-ups were blocked on this page' (or similar). In this case, set your browser to allow pop-ups.
The status of the application as well as the statuses of other applications can be viewed in the menu. The example in the figure above indicates that the network is managed by Device Manager and that there are no alarms in the network managed by Device Manager since the link is color-coded green.
2. View the Device Manager application which opens in a new browser tab.
ARM
The external applications menu lets operators directly access the Routing Manager (ARM) for managing the dial plan and call routing rules of multi-site, multi-vendor enterprise VoIP networks. The ARM enables centralized control of all session routing decisions. Through the ARM's graphical user interface, network administrators can design and modify their voice network topologies and call routing policies from a single location, resulting in significant time and cost savings. Time- consuming tasks such as adding a new PSTN or SIP trunk interconnection, adding a new branch office or modifying individual users' calling privileges can be carried out simply and rapidly.
To enable a direct connection to the ARM:
1. Open the OVOC Server tab (System > Configuration > OVOC SERVER) as shown in the following figure, and then click the ARM option.
Figure 3-30: ARM Configuration

2. In the field 'ARM Server FQDN / IP' under the General section, enter the FQDN (host name) or IP address of the ARM server to connect to. You can obtain these from your enterprise's network administrator if necessary.
3. Note that parameters 'ARM Status', 'ARM Version' and 'Unique Identifier' are provisional placeholders. They will be automatically reconfigured with true values after connection with the ARM is established.
4. Under the OVOC-ARM Communication section, you can select the Secure Communication option for HTTPS secured communications between OVOC-ARM.
- 107 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

5. Under the same section, if an OVOC-ARM connection has already been established, you can opt to configure the 'Change ARM Password' parameter value.
6. Under the ARM Single Sign On section, you can optionally configure direct sign-on to the ARM. Admin and Operator types can configure this SSO connection. Note that the feature applies only to ARM versions that support it. The logic is identical to the logic of a regular sign on (see the previous two steps).
7. Under the ARM-OVOC Communication section, select an OVOC operator. This operator will then be defined in the ARM in order to use the ARM.
8. Click Submit.
9. In any OVOC page, click the external applications menu icon displayed on the right side of the title bar.

10. In the external applications menu that opens, click the Routing Manager link. 11. View if you configured SSO the ARM's main screen which opens in a new browser tab. If
you didn't configure SSO, you'll be prompted to log in.
Data Layer Manager
The Data Layer Manager page enables connecting directly to NEC's Data Layer Manager in order to quickly and easily access the exact network equipment component associated with a voice quality issue - if an issue is detected - and benefit from root cause analysis. In this page, operators configure the connection, a.k.a. Single Sign On (SSO), to the Data Layer Manager. A Data Layer Manager link is then displayed in the Call Details page.
Applies only to operators who have acquired and installed Data Layer Manager.

To enable connecting directly to Data Layer Manager:
1. Open the OVOC Server tab (System > Configuration > OVOC) and then click the Data Layer Manager option.

- 108 -

CHAPTER 3 Configuring Global (System) Settings
Figure 3-31: Data Layer Manager

OVOC | User's Manual

2. In the `Data Layer Manager URL' field, enter the Data Layer Manager IP address or FQDN. This is a string type parameter. Maximum size: 100 characters.
3. Click Submit; the Data Layer Manager link for single sign-on is displayed in the applications menu located on every OVOC page on the right of the title bar.
If your browser is configured to block pop-ups, a message will appear indicating 'Pop-ups were blocked on this page' (or similar). In this case, set your browser to allow pop-ups.
Data Layer Manager status as well as the statuses of other applications can be viewed in the menu. The example in the figure under Connecting Directly to External Applications on page 106 indicates that the network is managed by Data Layer Manager and that there are no alarms in the Data Layer Manager-managed network since the link is color-coded green.
The status of Data Layer Manager in the OVOC license can be viewed in the License Configuration page (see Making Sure your License Provides the Capabilities you Ordered on page 71).
If a license for Data Layer Manager does not exist, configuration of the Data Layer Manager URL cannot be performed.
4. From the Dashboard page, click the Data Layer Manager tab.
The application opens in a new browser tab.
- 109 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Enabling Automatic Device Backup Periodically
The OVOC can be configured to automatically (daily) back up device configurations (ini, conf or cli script files) according to the OVOC server application's time. The files are saved on the OVOC server. They can be accessed and transferred using SSH and SFTP. The backup files are managed by the Backup Manager.
To configure automatic device configuration backup: 1. Open the Device Backup page (System > Configuration > Device Backup).
Figure 3-32: Device Backup

2. Select the 'Enable Periodic backup' option. When enabled, backup is automatically performed daily; all device configuration files (ini, conf and cli) are backed up to the Backup Manager from all devices. When disabled, you can perform manual backup after making changes to a device's configuration (see Backing up a Device's Configuration using Backup Manager on page 157 for information about manually backing up a device's configuration).
3. Configure 'Number of backup files per device' to determine the number of latest backup files to be stored for each managed device. Default: 5.
4. In the 'Number of retries' field, configure the number of retries to be made each connection attempt to the device. Default: 2.
5. Click Submit.
Tasks tab
The Tasks page displays asynchronous actions performed by operators, currently under execution. Tasks that are in progress are displayed irrespective of how long it takes for them to complete. The OVOC continues to display them 20 minutes after they're completed. They are then removed from the page.
If the operator is not a 'system' operator, onlytasks performedbythat operator are displayed in the Tasks page.
- 110 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

Displaying the Status of Tasks Currently Under Execution
Adding multiple AudioCodes devices to the OVOC can be configured. OVOC supports many types of asynchronous actions. Adding multiple devices, described here, is just one example. As you can see in the figure, the operator is adding 10 AudioCodes devices whose IP addresses range from 10.1.1.1 to 10.1.1.10, under the region US.
Figure 3-33: Task - Add Multiple AudioCodes Devices

[Optional] In the 'Address' field, enter the first letters of the name of the city / country in which to locate the device, and then select the city / country from the list that pops up.
After clicking OK, a notification pops up in the uppermost right corner indicating the task status.
- 111 -

CHAPTER 3 Configuring Global (System) Settings

OVOC | User's Manual

To configure the timeout of the notification pop- up, see Configuring Operator Authentication Locally, in the OVOC on page 50 and refer to the parameter 'Notifications display time (sec)'. The default is 3 seconds. Configuring the parameter to 0 disables the notification pop-up feature.
Optionally, you can click a notification to open the Tasks page displaying the task about which you were notified. The Tasks page allows you to determine if a task was performed successfully, or, if it's incomplete, what percentage is complete and what percentage remains to be completed.
To view the notifications history:
1. Click the bell icon in the uppermost right corner of the OVOC GUI.

The bell icon indicates the number of notifications not yet viewed.
2. View the tasks history. In the list, you can delete a notification, delete all notifications or click a notification to open the Tasks page.

3. Scroll down to view earlier notifications. Most recent notifications are listed first.
- 112 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

4 Defining your Network Topology
The OVOC enables you to define the topology of your telephony network.
When configuring entities (for example, when adding a device): fields and tabs with missing or incomplete information are outlined in red fields currently being edited are highlighted yellow mandatory fields are marked with an asterix *
Adding a Tenant
See Network Architecture on page 3 for details on multi-tenancy vs. non multi-tenancy architecture.
To add a tenant: 1. In the Network page, click Add.
Figure 4-1: Add Tenant

2. Select Tenant.

- 113 -

CHAPTER 4 Defining your Network Topology
Figure 4-2: Tenant Details - General

OVOC | User's Manual

3. Use the following table as reference when configuring the tenant's General parameters. Table 4-1: Tenant Details - General

Parameter

Description

Tenant Name Enter an intuitive name to facilitate effective management later.

Is Default

Defines the default tenant. Only one tenant can be the default. The default is used for devices/endpoints auto-detection.

License Pool Operator

This drop-down list shows all the 'tenant' operators with Admin privileges assigned to this tenant. To manage the Fixed License Pool, it is mandatory to select one of these 'tenant' operators from the drop-down (see also Fixed License Pool on page 195). After selecting a 'tenant' operator, the association cannot be removed (see also Adding a 'Tenant' Operator on page 60) and they're automatically displayed under the Operators tab (see following).

Description Enter a tenant description to facilitate effective management later.

- 114 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Parameter

Description

Subnet (CIDR Notation)

Enter the tenant's subnet mask. Must be in prefix format x.x.x.x/y. For example: 255.255.0.0/16. For any region under the tenant, subnet mask is not mandatory, but if it is configured, its subnet mask must be within the tenant's, for example, 255.255.0.0/1.

Users URI Regexp

The OVOC saves all calls made over managed devices and IP phones (SIP Publish) and allows statistics to be generated on these calls. This parameter facilitates generating statistics on calls made exclusively from URIs in a specific tenant. Operators can run a regional expression to find the URIs associated with the specific tenant and then generate statistics exclusively on them.
If the field is left undefined (empty), no URIs will be saved for this tenant.
If you enter * in the field, all URIs will be saved for this tenant.
Note: If in a five minute interval there are more than 2000 different URIs, the URI statistics for this five minute interval will not be saved.

4. Click OK and then click SNMP.

- 115 -

CHAPTER 4 Defining your Network Topology
Figure 4-3: Tenant Details � SNMP v2

OVOC | User's Manual

5. Use the following table as reference when configuring the SNMP v2 parameters. Table 4-2: Tenant Details � SNMP v2

Parameter

Description

SNMP Read Community
SNMP Write Community

Enter an encrypted SNMP read community string. The default value for the SNMP read community string is taken from the SNMP main template.
Enter an encrypted SNMP write community string. The default value for the SNMP write community string is taken from the SNMP main template.

Trap Community

Enter the Trap Community string to be received as part of the Notification message. The default value for the SNMP trap community string is taken from the SNMP main template.

6. Use the following table as reference when configuring the SNMP v3 parameters.

- 116 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Table 4-3: Tenant Details � SNMP v3

Parameter

Description

Security Name

Enter a name for SNMP v3. Example: OVOC User.

Security Level

From the drop-down, select either: Authentication and Privacy (default) No Security Authentication

Authentication Protocol

From the drop-down, select either: SHA (default) MDS No Protocol

Authentication Key

Enter an Authentication Key. The default is taken from main SNMP template.

Privacy Protocol Privacy Key

From the drop-down, select either: AES 128 (default) DES The default is taken from main SNMP template
Enter a Privacy Key. The default is taken from main SNMP template.

7. Click OK and then click HTTP.

Note to users of CloudBond 365, CCE Appliance, UMP and SmartTAP:
SNMPv2/SNMPv3 account credentials are not automatically configured so you need to manually configure identical settings in the device's Web interface (see the device's documentation for more information).

- 117 -

CHAPTER 4 Defining your Network Topology
Figure 4-4: Tenant Details - HTTP

OVOC | User's Manual

8. Use the following table as reference when configuring the HTTP parameters. Table 4-4: Tenant Details - HTTP

Parameter

Description

Device Admin User

Enter the device Web server user name. Example: Admin. Password - "Admin". The default is taken from the main HTTP template.

Device Admin Password

Enter the Web server password. Example: Admin. The default is taken from the main HTTP template.

Connectivity

From the drop-down, select either: HTTP (default) HTTPS The default is taken from main SNMP template.

9. Click OK and then click Operators. Figure 4-5: Tenant Details � Operators

10. Use the following table as reference.
- 118 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Table 4-5: Tenant Details - Operators

Parameter

Description

Local Authentication: Assigned Operators

From the drop-down, select an operator from the list of operators. Only operators configured as 'tenant' type operators are displayed. The list will be empty if no such operator has been configured, in which case you can click the button described next, to add a 'tenant' type operator. The parameter lets you assign an operator � or operators � to the tenant. See Adding a 'Tenant' Operator on page 60 for more information about configuring 'tenant' type operators.

Operator authentication can be configured locally, in the OVOC (see Configuring Operator Authentication Locally, in the OVOC on page 50). Click the button to add a new 'tenant' type operator; the 'Tenant Operator Details' screen opens (see Adding a 'Tenant' Operator on page 60). The operator is then assigned to the tenant and displayed in the drop-down list.

AD Authentication: Group Name

Applies to 'tenant' type operators. When an operator logs in to the OVOC, the OVOC (before allowing the operator access) checks with the enterprise's Azure Active Directory / LDAP server if the User Group which the operator is associated in the OVOC, tallies with the User Group defined in the AD / LDAP server. If they tally, then when logged in, the operator is assigned with this tenant.
See also under:
Configuring Operator Authentication Centrally with Azure Active Directory on page 44
Configuring Operator Authentication Centrally using an LDAP Server on page 39

11. Click OK and then click License.

- 119 -

CHAPTER 4 Defining your Network Topology
Figure 4-6: Tenant Details - License

OVOC | User's Manual

12. Use the following table as reference when configuring the License parameters. Table 4-6: Tenant Details � License

License Pool

Description

Devices

Enter the total number of devices that can be managed by this tenant's License Pool, i.e., CloudBond 365 devices, SBC devices, gateway devices and MSBR devices allowed by your license. The parameter only defines systems. It does not include phones.

SBC Registrations Enter the number of SIP endpoints that can register with the SBCs allowed by your license.

SBC Sessions

Enter the number of concurrent call sessions supported by the SBCs in your deployment.

SBC Signaling

Enter the number of SBC signaling sessions supported by the SBCs in your deployment.

- 120 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

License Pool

Description

SBC Transcoding Enter the number of SBC transcoding sessions supported by the SBCs in your deployment.

CB Analog Devices

Support pending. Currently unsupported.

CB PBX Users

Support pending. Currently unsupported.

CB Users

Enter the number of CloudBond 365 users per tenant. Divide the total number of CloudBond 365 users allowed by your license, by the number of tenants in your deployment. If you purchased a license for 1000 CloudBond 365 users and you have four tenants in your deployment, 250 users can be allocated to each tenant. You cannot exceed the total number of CloudBond 365 users covered by your license. It's your decision how to distribute them over tenants.

CB Voicemail Accounts

Support pending. Currently unsupported.

Voice Quality

Devices

Enter the number of SBCs, gateways and MSBRs that can be monitored in this tenant.

Endpoints

Enter the number of endpoints that can be monitored in this tenant.

Sessions

Enter the number of concurrent call sessions the SBCs deployed in this tenant.

Users

Enter the number of users supported by the SBC/s deployed in this tenant.

Reports

Select the number of reports to allocate to the tenant. In the example here, a total of 5 can be allocated. If 6 are chosen, the indication bar turns red alerting you that the total has been exceeded.

Endpoints Management

Endpoints

Enter the number of endpoints the Device Manager application supports for this tenant.

13. Click OK; the new tenant is added.

- 121 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Editing a Tenant - Defining a Logo
After adding a tenant, the operator can add a logo image to the OVOC, to be displayed:
in report results generated for the specific tenant
in the OVOC login screen when the tenant operator logs in to the OVOC
in the OVOC's main screen
in the 'About' informational pop-up
The tenant logo displayed in these screens in the OVOC GUI facilitates network management for OVOC operators.
The behavior of the tenant logo is subject to the following circumstances: If a tenant operator is assigned to a single tenant and that tenant has a logo, when
that tenant operator logs in to the OVOC the tenant logo will be displayed in the OVOC's main screen and in the 'About' informational pop-up. If a tenant operator is assigned to more than one tenant that has a logo or is assigned to one or more tenants but none of them has a logo, AudioCodes' logo will be displayed when that operator logs in to the OVOC. If a system operator logs in to the OVOC, AudioCodes' logo will always be displayed.

To add a logo image: 1. In the Network Topology page, hover the mouse over the tenant, click the 'Open menu'
drop-down arrow adjacent to it and then click the Edit icon as shown in the figure below.
Figure 4-7: Edit Tenant

2. In the Tenant Details screen shown in the next figure, click adjacent to the parameter 'Tenant Logo' and then navigate to the location in which the logo image file is stored on your PC.
- 122 -

CHAPTER 4 Defining your Network Topology
Figure 4-8: Tenant Details

OVOC | User's Manual

3. Alternatively, from the 'Tenant Logo' drop-down list select a logo image file. [Note that the options listed will be the same as those you chose for the 'Logo' parameter in the Report screen's Definition tab described in Defining a Report on page 385].
4. Click OK; the logo image file is added to the Software Manager.
You can select the file from the 'Tenant Logo' drop-down if already uploaded and displayed in the Software Manager.
The logo image file can be added to the Software Manager (Settings > Configuration > File Manager > Software Manager) as shown in Adding Auxiliary Files on page 104 from the 'File Type' drop-down in the Add Auxiliary File screen.
See also Adding Configuration Files to the OVOC's Software Manager on page 98 for related information.
See also Defining a Report on page 385 for related information. For information about the other parameters in the Tenant Details screen, use the
tables in Adding a Tenant on page 113 for reference.
Defining a Tenant Logo - Example
The example here shows in more detail how to add a tenant logo to the OVOC.
- 123 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

To add a tenant logo to the OVOC:
1. In the Network Topology page tree, click the vertical ellipsis next to the tenant and then click the Edit icon.

2. In the Tenant Details screen that opens (shown in the next figure), navigate to and select the tenant's logo from the 'Tenant Logo' drop-down or click the upload icon to upload it online if necessary.

- 124 -

CHAPTER 4 Defining your Network Topology
Figure 4-9: Tenant Details - General

OVOC | User's Manual

3. Click the Operators tab.
- 125 -

CHAPTER 4 Defining your Network Topology
Figure 4-10: Tenant Details - Operators

OVOC | User's Manual

4. Click the operator icon and in the 'Tenant Operator Details' screen that opens, enter the operator's name and credentials under the Basic Info tab.
- 126 -

CHAPTER 4 Defining your Network Topology
Figure 4-11: Tenant Operator Details - Basic Info

OVOC | User's Manual

5. Under the Topology tab, navigate to and select the tenant to assign to the operator.
- 127 -

CHAPTER 4 Defining your Network Topology
Figure 4-12: Tenant Operator Details - Topology

OVOC | User's Manual

6. Click OK and then and then log out as 'System' operator and log in as the newly defined tenant operator. View the tenant logo displayed in the upper left corner of the OVOC GUI. Figure 4-13: Tenant logo displayed in OVOC GUI
Multiple tenants can be chosen. If you choose a single tenant and that tenant has a logo, you'll view the tenant logo
when you log in with that tenant operator.
- 128 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Adding a Region
ITSPs or enterprises manage devices in regions. A region typically represents a geographical area for the ITSP or the enterprise. Devices are added to the OVOC under a tenant, after defining one.

To add a region: 1. Open the Network Topology page (Network > Topology). 2. Click Add and select Region.
Figure 4-14: Add Region

The Region Details screen opens: Figure 4-15: Region Details

3. From the 'Tenant' drop-down, select a tenant that you configured previously.
- 129 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

4. Define the region's name and type in a description to facilitate operator-friendly management later.
5. [Optional] Enter a subnet mask for the region. If a tenant's subnet mask is 255.255.10.10/16, then the subnet mask of a region under it � if configured � must be within that subnet mask, for example: 255.255.10.10/1.
6. Click the now-activated OK button; the region is added to the OVOC.
Adding AudioCodes Devices
AudioCodes devices can be added to the OVOC by:
Adding Devices Automatically (full automatic detection with device-initiated connection) (see Section Adding AudioCodes Devices Automatically below)
Devices are automatically connected to OVOC and added to the default tenant
Used predominantly for NAT traversal; allows SNMP communication with devices when they're located behind NAT and OVOC is installed in the WAN
Devices initiate the connection to the OVOC and send coldStart and Keep-alive traps to it; OVOC then recognizes each device's IP address and port according to its serial number
Adding Devices Manually from OVOC (OVOC-initiated connection) (see Section Adding AudioCodes Devices Manually on page 135)
Predefined by IP address: Devices are manually added to the OVOC by IP address, under the correct entity
Predefined by Serial Number: Devices are manually added to the OVOC by serial number, under the correct entity
Adding Devices with First Time Provisioning (semi-automatic) (see Section Enabling Initial Connection Provisioning on page 143)
Devices are provisioned with firmware and configuration files for initial connection to OVOC
Multiple devices are manually predefined with firmware and configuration files in OVOC
Auto detection is then used to connect the devices to OVOC and provision them with these files
Adding AudioCodes Devices Automatically
Before devices can be managed in the OVOC management interface, they must be added to the OVOC's Network Topology. Devices can be added after acquiring them from AudioCodes, or, as the case may be, after acquiring the OVOC from AudioCodes and adding the OVOC to an existing deployment of devices.

- 130 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

The OVOC's Automatic Detection feature enables devices to be automatically connected and added to the OVOC without needing to add them manually; when devices are connected to the power supply in the enterprise network and/or are rebooted and initialized, they're automatically detected by the OVOC and added by default to the AutoDetection region.
For this feature to function devices must be:
configured with the OVOC server's IP address
configured to send keep-alive messages
The OVOC then connects to the devices and automatically determines their firmware version and subnet. They're then added to the appropriate tenant/region according to the best match for subnet address.
When a default tenant exists, devices that cannot be successfully matched with a subnet are added to an automatically created AutoDetection Region under the default tenant
When a default tenant does not exist and the device cannot be matched with a subnet, the device isn't added to the OVOC
The Automatic Detection feature is used also for NAT traversal, and allows SNMP communication with the devices when they are located behind a NAT and are managed over a remote WAN connection.

SNMPv2 or SNMPv3 credentials are configured in the device Web interface. SNMP settings connect the devices and the OVOC. The following figures show the Web interface pages in which these settings are configured. See also the device's User's Manual for more information.
If a device detects the OVOC but the OVOC does not detect the device, the device sends an event to the OVOC; the OVOC takes the information from the event and automatically connects the device.

- 131 -

CHAPTER 4 Defining your Network Topology
Figure 4-16: Web interface: SNMP Community Strings

OVOC | User's Manual

Figure 4-17: Web interface: SNMP Trap Destinations
When devices are deployed in a private network using Network Address Translation (NAT), they can connect to the internet so long as their connection with the OVOC server is alive. You
- 132 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

consequently need to configure devices to send coldStart (after device reset) and keep-alive traps (sent every 30 seconds by default) to the OVOC server. This allows the OVOC to perform SNMP SET and GET commands at any time. When devices are added to the OVOC, the OVOC recognizes them according to their field 'sysDesc' and their serial number, and according to the entries in the OVOC database. A device's default name comprises the router's IP address and the port number. The NAT sometimes changes device IP address and port. The OVOC recognizes these changes after devices are reset.
Figure 4-18: AudioCodes Devices Added to OVOC

To configure automatic detection with an ini file on multiple devices, use this syntax as an example:
SNMPPort_0 = 161SNMPManagerTrapPort_0 = 162 SNMPManagerIsUsed_0 = 1 SNMPManagerTrapSendingEnable_0 = 1 SNMPManagerTableIP_0 = 10.7.6.17
To configure automatic detection with an ini file when devices are behind a NAT, use this syntax as an example:
SendKeepAliveTrap = 1 KeepAliveTrapPort = 1161 NatBindingDefaultTimeout = 30
After devices are connected to the power supply and network, they reboot, initialize and send a coldStart trap to the OVOC server. When the coldStart trap (or keep-alive trap, if
- 133 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

configured) is received, the OVOC server connects each device and verifies it's an AudioCodes device.
The following figure illustrates SNMP connectivity between OVOC and AudioCodes devices: UDP ports 162 and 1161 on the OVOC server are configured to listen for traps from
AudioCodes devices UDP port 1161 on the OVOC server sends SNMP SET requests to AudioCodes devices
Figure 4-19: OVOC Server and Devices SNMP Connections

- 134 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Adding AudioCodes Devices Manually
When manually adding an AudioCodes device - or multiple AudioCodes devices - to the network for the first time, you can enable 'Initial Connection Provisioning' a.k.a. First Time Provisioning, for devices to automatically be provisioned with their firmware and configuration files. The figure following shows an example of manually adding multiple AudioCodes devices to OVOC.
Figure 4-20: Manually Adding Multiple AudioCodes Devices to OVOC

To manually add the devices: 1. Open the Network Topology page (Network > Topology). 2. Click Add and select AC Device or Multiple AC Devices.
Figure 4-21: AC Device | Multiple AC Devices
- 135 -

CHAPTER 4 Defining your Network Topology
The Device Details screen opens under the General tab: Figure 4-22: Device Details � General

OVOC | User's Manual

3. Define an intuitive device name to facilitate operator-friendly management later. Do not use underscores in the name.
4. Provide a description of the device to facilitate operator-friendly management later. 5. From the 'Tenant' drop-down, select a tenant that you configured as shown in Adding a
Tenant on page 113. 6. Select the region under which the device is located. 7. Define the device by selecting one of these three options (refer to the figures above):
Select and enter the device's IP address. If selected, the 'FQDN' and 'Serial Number' fields will be disabled and the device will immediately be connected to the OVOC. If you're adding Multiple AC Devices, you need to enter the IP Address range in the fields that will be displayed.
Select and enter the device's FQDN. If selected, the 'IP Address' and 'Serial Number' fields will be read-only). This option allows performing SBC SSO in a way that the URL includes only FQDN names (OVOC & SBC) rather than IP addresses.
- 136 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

If a device is defined using FQDN and the OVOC cannot resolve the IP address, the OVOC will not be able to manage the device until the IP address is resolved. The same applies to the Add and Refresh processes.
FQDN is not editable after a device is defined using the FQDN option. Same applies to IP Address and Serial Number � they are not editable after defining the device using them.
The FQDN option is not supported when adding multiple devices. Devices behind a NAT and devices added as a result of a keep-alive trap (auto
detection) are managed using IP address + port (rather than FQDN). Alarm Forwarding is performed using IP address.
[Optional] Select and enter the device's Serial Number. If selected, the 'FQDN' and 'IP Address' fields will be read-only. You can get the SN from the device's Web interface's Information page. The SN is only necessary for auto-detection. Generally, it is not mandatory to enter the serial number when adding a device.
8. [Optional] In the 'Address' field, enter the first letters in the name of the city / country in which to locate the device, and then select the city / country from the list that pops up.
9. You need to configure the device's SNMP settings if you're connecting the device to the OVOC.
If the device is installed on the AWS/Azure image, make sure in the device's Web interface that 'Disable SNMP' is changed to No (Default: Yes).
To configure SNMPv2, click the SNMPv2 tab:

- 137 -

CHAPTER 4 Defining your Network Topology
Figure 4-23: Device Details � SNMP v2

OVOC | User's Manual

- 138 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Before connecting a device to the OVOC, an SNMP connection between the device and the OVOC must be configured. SNMP is used to establish an initial connection with the device for provisioning and in addition, for daily operations, including maintenance actions and fault and performance management.
SNMPv3 provides more sophisticated security mechanisms than SNMPv2c. It implements a user-based security model (USM), allowing both authentication and encryption of the requests sent between the OVOC and agents, as well as user-based access control.
The SNMP connection must be configured on both the OVOC and the device. SNMP parameters include
specifying the IP address of the OVOC server. All traps are sent from the device to this address. For establishing the connection with the OVOC, this is the destination address for the coldStart and Keep-alive traps.
associating an SNMPv2 or SNMPv3 trap user with the OVOC server destination. The Keep-alive trap indicates whether the device is configured for SNMPv2 or SNMPv3. The configured SNMPv2 or SNMPv3 user credentials are verified with the following default OVOC configuration: SNMPv2: SNMPReadCommunity string `public' and SNMPWriteCommunity string `private' and Trap User 'trapuser' SNMPv3: User `OVOCUser'; Auth protocol `SHA'; Privacy protocol `AES128'; password `123456789'
Identical SNMP parameter values must be configured on the device and in the OVOC. If different values are configured on the device, it's added to the OVOC as 'Unknown' until updated in the OVOC. The defaults under the SNMP tab are taken from the SNMP tenant profile.
Enter the device's SNMP Read and Write Community strings.
To configure SNMPv3, select the SNMP v3 option:

- 139 -

CHAPTER 4 Defining your Network Topology
Figure 4-24: Device Details � SNMP v3

OVOC | User's Manual

The OVOC can automatically add up to 255 devices at a time after SNMP credentials and other device settings are configured and functioning correctly.
a. In the 'Security Name' field, enter the Security name of the SNMPv3 operator. b. From the 'Authentication Protocol' drop-down, select an authentication protocol. The
corresponding security level is displayed in the 'Security Level' field. c. In the 'Authentication Key' field, leave the default unchanged or enter an
authentication password. d. From the 'Privacy Protocol' drop-down, leave the default unchanged or select a
Privacy Protocol. e. In the 'Privacy Key' field, leave the default unchanged or enter a privacy password. The defaults are taken from the SNMP tenant profile. 10. Click the now-activated OK button or click the HTTP tab.
- 140 -

CHAPTER 4 Defining your Network Topology
Figure 4-25: AudioCodes Device Details � HTTP

OVOC | User's Manual

The defaults are taken from the HTTP tenant profile.
11. [Optional] In the 'Device Admin User' field, enter the device's web server user name and in the 'Device Admin Password' field, enter the web server password. Example: Admin, Admin.
12. To secure the connection with the device, select the Enable HTTPS Connection option. Securing the connection between the OVOC server and the AudioCodes device over HTTPS is used for files upload/download and for Web Client Single-Sign On.
- 141 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

You can also configure HTTPS on the AudioCodes device (see the Server IOM for more information).
You can also secure the connection using the default AudioCodes self-signed certificate or load custom certificates to the OVOC server (see the Server IOM for more information).
To operate in 'Mutual Authentication' mode: Set the HTTPS Authentication option 'Set Mutual Authentication' using the OVOC Server Manager (see the Server IOM). Load certificates to the device (you must use the same root CA for signing the device certificate as is used for signing the certificate installed on the OVOC server) (see 'Custom X.509 Certificates - Supplementary Procedures' in the Server IOM). Configure HTTPS on the device (see 'Custom X.509 Certificates Supplementary Procedures' in the Server IOM).
13. Click the now-activated OK button or click the SBA tab.
Figure 4-26: AudioCodes Device Details � SBA

14. Select the Enable SBA option. This is only relevant if the device contains an SBA module. 15. Enter the IP address of the SBA Management Interface �OR- select the 'FQDN Name'
option and in the field 'FQDN Name', enter the FQDN (Fully Qualified Domain Name) of the SBA. Example: HOST/Branch01.SFB.interop 16. Enter an encrypted SNMP read community string. 17. Enter an encrypted SNMP write community string.
- 142 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

18. Enter a description to facilitate an operator-friendly management experience later. 19. Click the now-activated OK button or click the First Connection tab.

After adding a SmartTAP device to the OVOC, it's Unknown until the SmartTAP Agents have been installed on the SmartTAP Server because the Keep- alive mechanism is managed by these agents. See also the SmartTAP Installation Manual.

Enabling Initial Connection Provisioning
After acquiring a device - or multiple devices - from AudioCodes, you can add them to the OVOC. You can opt to enable 'Initial Connection Provisioning' a.k.a. First Time Provisioning, for devices to automatically be provisioned with their firmware and configuration files, rather than manually, after they're connected to from the OVOC.
To enable 'Initial Connection Provisioning' a.k.a. First Time Provisioning:
1. Click the First Connection tab and then select the option 'Enable Initial Connection Provisioning'; this enables the device/s to automatically be provisioned with their firmware and configuration files when they are connected to the OVOC server for the first time.
Figure 4-27: AudioCodes Device Details � First Connection

2. From the now-activated 'Configuration File' drop-down, select the applicable file. 3. From the now-activated 'Firmware File' drop-down, select the applicable file.
- 143 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

The configuration and firmware files must be prepared and located in the OVOC's Software Manager. See Adding Configuration Files to the OVOC's Software Manager for more information.
4. Click the now-activated OK button; the devices are added to the OVOC.
The AudioCodes Mediant 2000 Media Gateway device housing two TP-1610 blades can be added to OVOC using a single IP address rather than using two IP addresses (one for each blade) as was the case in OVOC versions earlier than Version 7.4.3000. Existing customers must remove any Mediant 2000 device housing two TP blades that was added to the OVOC using two IP addresses in OVOC versions earlier than Version 7.4.3000, and then add them again using a single IP address. After this action, the Alarms History and QoE calls & statistics history is cleared.
In a related scenario, you can add OVOC to an existing deployment after acquiring the OVOC later.
Before Enabling the Feature
Before enabling Initial Connection Provisioning, you need to validate the ini file.
To validate the ini file: 1. Access each device using its default IP address directly through the Web interface or CLI,
and then configure its network settings (e.g., OAMP IP address) so that it suits your network environment. Network settings are configured in these tables: IP Interfaces Ethernet Device Ethernet Group Physical Ports Static Route QoS Settings 2. Make sure the IP Interfaces table's indexes, names and application types are identical for each device so that the template configuration file will be applied to all devices in the network. In the validation process, each index entry is validated with the equivalent entry in the template file (see Interfaces Table Excerpted from the ini File on the next page for a file example).
If any device's IP interface table does not meet these requirements, the Initial Connection Provisioning will fail and an alarm will be sent to the OVOC (see Making Sure First Time Provisioning was Successful on page 147).

- 144 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Interfaces Table Excerpted from the ini File
The following example shows an example of a device's ini file's IP Interfaces table parameters. Validated values are displayed in blue. Not validated values are displayed in red and are only read from the device once the blue parameters are successfully validated.

[ \InterfaceTable ]
FORMAT InterfaceTable_Index = InterfaceTable_ApplicationTypes, InterfaceTable_InterfaceMode, InterfaceTable_IPAddress, InterfaceTable_ PrefixLength, InterfaceTable_Gateway, InterfaceTable_InterfaceName, InterfaceTable_PrimaryDNSServerIPAddress, InterfaceTable_ SecondaryDNSServerIPAddress, InterfaceTable_UnderlyingDevice;
InterfaceTable 0 = 6, 10, 10.15.17.10, 16, 10.15.0.1, "Voice", 10.15.25.1, 0.0.0.0, "vlan 1";
InterfaceTable 1 = 5, 10, 195.189.192.156, 25, 195.189.192.129, "WANSP", 80.179.52.100, 80.179.55.100, "vlan 2";
Enabling the Feature
The Initial Connection Provisioning feature is implemented by the First Connection tab shown in the following figure (on the left) - when adding a single AudioCodes device - and in the figure following (on the right) when adding multiple AudioCodes devices.
Before adding a device or multiple devices, you must load the device ini and .cmp files to the OVOC's Software Manager. See Adding Configuration Files to the OVOC's Software Manager on page 98 for details.

- 145 -

CHAPTER 4 Defining your Network Topology
Figure 4-28: First Connection: Add AudioCodes Device

OVOC | User's Manual

- 146 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Figure 4-29: First Connection: Add Multiple AudioCodes Devices

To enable the feature: Make sure the Enable Initial Connection Provisioning option shown in the figures above
is selected. See also Adding AudioCodes Devices Automatically on page 130 for related information.
Making Sure First Time Provisioning was Successful
The Journal page helps you confirm that the configuration and firmware files were automatically loaded to the device after the device is connected to the network. To make sure first time provisioning was successful: 1. Open the Journal page (Alarms > Journal).
- 147 -

CHAPTER 4 Defining your Network Topology
Figure 4-30: Alarms Journal

OVOC | User's Manual

2. Optionally filter the page by Time Range (see Filtering to Access Specific Information on page 212), Topology (see Filtering by 'Topology' on page 215), Source Type (see Filtering by 'Severity' on page 230) or More Filters (see Filtering the Alarms Journal by 'More Filters' on page 238).
3. Locate and select the First Time Provisioning / Initial Connection Provisioning alarm. 4. In the Journal Alarm Details pane on the right side of the page, click the Entity Info tab.
Figure 4-31: Alarms Journal � Entity Info
5. If Initial Connection Provisioning was unsuccessful, you'll view the following: Figure 4-32: Critical Alarm � Initial Connection Provisioning Failed

If Initial Connection Provisioning was unsuccessful, download the configuration or firmware file to the device as shown in Backing Up on page 302.
After an ini or cmp file is deployed on multiple devices, you may need to customize one device's configuration to suite specific requirements.
To change the .cmp or ini file after successfully automatically provisioning a device: Remove the device from the OVOC and then add it again. When the device is removed,
the OVOC server IP address in the Trap Destination Rule is reset to 0.0.0.0, so when you add the device again you need to reconfigure this IP address in the SNMP Trap Destinations table. See the relevant SIP User's Manual for more information.
- 148 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

AudioCodes recommends that you consult with AudioCodes Customer Support or Professional Services about special configuration issues.

- 149 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Adding a Generic Device Manually
A generic (non-AudioCodes) device can manually be added to the OVOC.
To manually add a generic device: 1. Open the Network Topology page (Network > Topology). 2. Click Add and select Generic Device.
Figure 4-33: Add Generic Device

The Generic Device Details screen opens: Figure 4-34: Generic Device Details

3. Define an intuitive device name to facilitate operator-friendly management later. Do not use underscores in the name.
4. Enter the device's IP address. 5. From the 'Tenant' drop-down, select the device's tenant. 6. From the 'Region' drop-down, select the device's region and then click the now-activated
OK button; the device is added and displayed in the OVOC.
- 150 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Adding a Microsoft Teams Device Manually
The Microsoft Teams 'device' is Office 365, Microsoft 365 or Azure, i.e., the 'micro' cloud environment purchased by the enterprise. The Microsoft 365 tenant needs to be configured to allow call records permissions (see the OVOC IOM for more information) The OVOC will receive call records notifications and accumulate statistics of the Teams tenant.
To add a device: 1. Open the Network Topology page (Network > Topology). 2. Click Add and select Teams Device.
Figure 4-35: Add Teams Device

The Teams Device Details screen opens. Figure 4-36: Teams Device Details

3. Define an intuitive name to facilitate operator-friendly management later. Don't use underscores.
- 151 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

4. Enter a Description to facilitate operator-friendly management later.
5. From the 'Tenant' drop-down, select the tenant with which to associate the device.
6. From the 'Region' drop-down, select a region you configured when Adding a Region on page 129.
7. For each enterprise that purchases Office 365 services or any other service, Microsoft defines a 'micro' enterprise cloud with an identifier � a Tenant ID. In the 'MS Tenant ID' field, enter this ID. It represents the 'micro' enterprise cloud: Office 365 / Microsoft 365 / Azure. Defining this environment is necessary for permissions.
8. Microsoft generates a Client ID for a specific application - the OVOC, in this case - to allow the application access with MS Graph API (subscription creation or call record retrieving). In the 'Client ID' field, enter the OVOC application's 'user name'.
9. Microsoft generates a Client ID for a specific application - the OVOC, in this case - to allow the application access with a graph API. In the 'Client Secret' field, define the shared secret - the 'password' - to allow the OVOC application access to the specific 'micro' enterprise cloud. Must be cryptically strong. The OVOC will then be capable of accessing Office 365 / Microsoft 365 / Azure.
10. [Optional] In the 'Address' field, enter the first few letters in the name of the city / country in which to locate the Office 365 / Microsoft 365 / Azure 'micro' cloud, and then select the city / country from the list that pops up.
11. Click OK; the device (Office 365 / Microsoft 365 / Azure) is added.

- 152 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Adding a Microsoft Skype for Business Device Manually
Another commonly used Microsoft device is Microsoft Skype for Business server. The OVOC can calculate, for example, call quality for the link defined between AudioCodes devices and Microsoft Skype for Business server. See also Adding an Unprivileged User to MSSQL Server on page 420.
To add a Microsoft Skype for Business device: 1. Open the Network Topology page (Network > Topology). 2. Click Add and select Skype Device.
Figure 4-37: Add Skype Device

If the number of licensed users is 10 or below, the option to add a Skype for Business device will not appear. Make sure 11 or more users are licensed before adding a Skype for Business device. Contact your AudioCodes representative if you have an insufficient number and you need to add a Skype for Business device.
The Skype Details screen opens.

- 153 -

CHAPTER 4 Defining your Network Topology
Figure 4-38: Skype Details

OVOC | User's Manual

3. Define an intuitive name to facilitate operator-friendly management later. Don't use underscores.
4. From the 'Region' drop-down, select a region you configured when Adding a Region on page 129.
5. From the 'Device Type' drop-down, select: Microsoft Skype for Business FE (Front End) Server The main FE parameters are 'NAME' and 'FQDN'. Other SQL parameters are for the SQL Skype for Business Database. FE Server points/reports to the SQL Database. It does not point/report to the Skype for Business FE Services.
- 154 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

The OVOC server connects to the SQL Monitoring Server and pulls control and media information from it for display.
Microsoft Skype for Business Mediation Server
Implements enterprise voice and dial-in conferencing
Translates signaling and media (in some configurations) between your internal Skype for Business Server infrastructure and a public switched telephone network (PSTN) gateway, IP-PBX, or a Session Initiation Protocol (SIP) trunk
Microsoft Skype for Business Edge Server
Deployed in a DMZ
Provides access to the Skype for Business system from the Internet
Lets your users communicate with users outside the enterprise firewall
Microsoft Skype for Business SBA (Survivable Branch Appliance)
Ensures access to data and voice services in the event of a WAN outage
6. In the 'FQDN' field, enter the device's Fully Qualified Domain Name.
7. Under the SQL Server DB section, enter in the 'IP Address' field the IP address of the SQL Server. Applies to the centralized Skype for Business database.
Microsoft Skype for Business Server for customers with multiple FrontEnd servers and one SQL server. Up to two Microsoft Skype for Business solutions in one OVOC application. Microsoft Skype for Business Server limitation: When functioning with Skype for
Business server pools (FE, Edge and Mediation), the FE server defined in the OVOC functions as the monitoring SQL database. After connecting, the OVOC presents all Call Details from the Skype for Business network in the OVOC's Calls List and Call Details views. When functioning with Skype for Business pools, FE, Edge and Mediation servers cannot be defined in the OVOC, so the entire Skype for Business network is presented in the OVOC only as a single object, namely, the monitoring SQL database.

8. Select either the:
'SQL Port' option and in the now-activated field enter the port number of the SQL Server. Applies to the centralized Skype for Business database.
'SQL Instance Name' option (by default selected)
9. [Optional] From the 'Connection Mode' drop-down, select:
Windows Authentication to allow the connection between the MS-SQL Server (Microsoft Front End) and the OVOC Server to be authenticated using a Windows user's credentials (password and user)

- 155 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

SQL Server Authentication (default) to allow the connection between the MS-SQL Server (Microsoft Front End) and the OVOC Server to be authenticated using the SQL Server user's credentials
10. In the 'User Name' field, enter the user of the SQL Server or Windows Server. Applies to the centralized Skype for Business database.
11. In the 'Password' field, enter the Password of the SQL Server or Windows Server. Applies to the centralized Skype for Business database.
12. In the 'Domain' field (relevant only when 'Connection Mode' is configured to Windows Authentication), enter the Windows Server user's domain.
13. From the 'SSL' drop-down, secure the connection between the OVOC and the SQL server over SSL by selecting either:
Trusted: An SSL connection between the OVOC server and the SQL server is opened, though it's not authenticated using a certificate.
Using Certificate: An SSL connection between the OVOC and the SQL server is opened. The OVOC authenticates the SSL connection using a certificate. Make sure you load the SSL certificate file, required by the SQL server, to the Software Manager. See Adding Configuration Files to the OVOC's Software Manager on page 98.
Default: Disabled. The SSL connection with the SQL server is by default non-secured.
14. [Optional] In the 'Address' field, enter the first letters in the name of the city / country in which to locate the device, and then select the city / country from the list that pops up.
15. Click the now-activated OK button; the Skype for Business device is added.

- 156 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Backing up a Device's Configuration using Backup Manager
You can manually back up a device's configuration to the OVOC server using the Backup Manager. For details on configuring automatic periodic device configuration backups, see Enabling Automatic Device Backup Periodically on page 110.
Manually Backing up a Device's Configuration
The Backup Manager page lets you manually back up a device configuration on the server.
To manually back up a device's configuration on the OVOC server: 1. In the OVOC, open the Backup Manager page (Network > Devices > Backup Manager).
Figure 4-39: Backup Manager

The Backup Manager page displays: Backup Summary pane: For all files that have been backed up to the OVOC for each device. Backup Files pane: Full list of all the backup ini and CLI script (MSBR devices files) for CPE devices files that have been saved to the Backup Manager for all devices.
Each entry in the summary displays: Device Name and Product Type The number of files backed up from the device to the OVOC The last backup status, e.g., Successful The date of the last backup file The tenant under which the device is located
You can filter displayed files for more effective access to the specific files you need: Click a column header; files are displayed accordingly.
Backed-up file names are in the format:
- 157 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

node id||timestamp _ Device IP Address _ Node ID _ Serial Number _ periodic/manual _ Product type _ INI/CONF/CLI _ Date Formatted
Here's an example of a backed-up filename: 411515387481228_192.168.200.47_41_3968002_m_82_INI_TYPE_2258-Jan-07-2018.ini
Use the following table as reference to the example.
Table 4-7: Explanation of Backed Up File Name Format

File Name Format

Explanation

411515387481228 Indicates the Node ID||Timestamp

192.168.200.47

Indicates the device's IP address

Indicates the Node ID

3968002

Indicates the Serial Number

Indicates whether backup was periodic or manual. In the example,

it was manual.

Indicates the product type.

INI_TYPE

Indicates the type of backed-up file: INI/CONF/CLI

2258-Jan-07-2018 Indicates the time and date, formatted as: HHmm-MMM-dd-yyyy

2. In the page's Backup Summary, select the device whose configuration (ini or cli script file) you want to back up on the OVOC server.
3. From the Actions' drop-down, select the Backup option; you're prompted with a message 'Are you sure you want to upload configuration from this device?'
Figure 4-40: Backup Manager � Backing up a Device's Configuration � Confirmation Prompt

4. Click Upload; the configuration is uploaded from the device to the OVOC server.
Saving the Last Backed-up Configuration to your PC
You can save the last backed-up device configuration to your PC.
- 158 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

To save the last backed-up configuration to your PC: 1. In the Backup Manager page's Backup Summary, select the device whose last backed-up
configuration you want to save. 2. From the Actions' drop-down, select the option Save; the last backed-up device
configuration is saved on your PC.
Restoring the Last Backed-up Configuration to the Device
The last backed-up configuration can be restored to the device if necessary.
To restore the last backed up configuration to the device: 1. In the page's Backup Summary pane, select the device whose last backup you want to
restore. 2. From the Actions' drop-down, select the option Restore Last Backup; you're prompted
with a message 'Are you sure you want to download configuration to this device?'. Figure 4-41: Backup Manager � Restoring a Device's Last Backup � Confirmation Prompt

3. Click Download; the configuration is downloaded from the PC to the device.
Adding Links
Links are logical VoIP communication paths between devices that measure and display key metrics on calls made on them. Links are defined according to IP Group (IP network entity such as a server, e.g., IP PBX, or a group of users, e.g., LAN IP phones, with which the E-SBC communicates), Trunk Group (logical group of physical trunks and channels), Phone Number or SIP IP address. The `source' device on which key metrics monitoring is based must be an AudioCodes device or Skype for Business device. The second device can be an AudioCodes device, Skype for Business device or a non-AudioCodes device. You can define one or more links between devices. The links are displayed in the Network Topology page. The voice quality status on each device/link is indicated by the color green, yellow or red, i.e., good, fair or poor, based on QoE thresholds described in Obtaining Quality Statistics on Calls on page 316. You can add a link from the Topology page's Add Link drop-down or you can pull a line connector from a device and connect it to another device on the page.
To add a link: 1. After configuring devices, open the Links page (Network > Links).
- 159 -

CHAPTER 4 Defining your Network Topology
Figure 4-42: Links

OVOC | User's Manual

2. Click Add.

Figure 4-43: Link Details

3. Use the following table as reference. Table 4-8: Adding a Link � Parameter Descriptions

Parameter

Description

Name

Enter an intuitive name for the link to facilitate effective management later.

Direction

Defines the direction of the port link between source and destination device. When the link is configured as Bi Directional (for example), a bi-directional port will be used for this connection.

Source Device

From the drop-down list, select the source device

- 160 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Parameter

Description

fromwhich to link to the destination device. You can alternatively search for it.

Destination Device

From the drop-down list, select the destination device to which to link from the source device. You can alternatively search for it.

The link counts and computes statistics on all calls that originate in the source device, based on one of the following Category Types (selected from the 'Category Type' dropdown:

Category Type

From the drop-down select one of the following Category Types. Based on your selection, the link will count and compute statistics on all calls originating in the source device.

IP Group - Defines the source device IP-Group index (a list of options may be available).
Trunk Group - Lets you configure Trunk Groups, i.e., logical groups of physical trunks and channels each of which can include multiple trunks and ranges of channels. Trunk Groups need to be configured and assigned with telephone numbers to enable and activate the channels of the device. After configuring Trunk Groups, you need to use them for routing incoming IP calls to the Tel side, which is represented by a specific Trunk Group (ID). You can also use Trunk Groups for routing Tel calls to the IP side.
Phone Prefix - Defines the prefix text of a phone number or SIP URI string. See the Note following for more information.
Control IP - Defines a valid IP-Address on which SIP control
- 161 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Parameter

Description messages are originated.

Media IP - Defines a valid IP-Address on which SIP media messages (voice/fax) are originated. See the Note following for more information.

Media Realm - Defines the source device Media Realm index (a list of options may be available).
Remote Media Subnet - Defines the source device Media Realm subnet index (a list of options may be available; Media Realm must also be defined).

FQDN - Available only when the source device is a Skype for Business device. The FQDN of the selected source and destination devices.

4. The field below 'Category Type' (see the preceding parameter) is the category value field which updates according to what you selected for 'Category Type'. If for 'Category Type' you selected:
IP Group (for example), then IP Group Value is displayed in this field. Enter the IP Group's ID.
Trunk Group (for example), then Trunk Group Value is displayed. Enter the Trunk Group's ID.
Control IP (for example), then Control IP Value is displayed. Enter the IP address (the actual IP address, not the group ID).
Media IP (for example), then Media IP Value is displayed. Enter the IP address (the actual IP address, not the group ID).
Note that some categories for 'Category Type', like Remote Media Subnet and FQDN, present two value fields, as shown in the following figure.

- 162 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

If you configured parameter 'Category Type' as Phone Prefix, Control IP or Media IP (see the previous parameter), you can enter a regular expression instead of a string in the field under 'Category Type' which updates according to 'Category Type'. If the regular expression will be matched, the call will be sent over the link. Following are examples of regular expressions: .* = any value will be accepted, for example, abc, 123, abc123 a.* = any value beginning with the letter 'a' will be accepted, for example, abc, a, abc123 .*a = any value ending with the letter 'a' will be accepted, for example, bca, a, bc123a \\d = any value containing a single digit will be accepted, for example, 1, 2 \\d\\d\\d\\.\\d\\d\\.\\d\\d\\d\\.\\d\\d\\d = any value that contains (three digits - point two digits - point - three digits - point - three digits) will be accepted, for example, IP address 172.17.118.165 To test complex regular expressions use either: https://www.freeformatter.com/regex-tester.html -ORhttps://regex101.com/
5. Click Apply; the link is added and displayed in the OVOC.
- 163 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Statistics obtained from Links form a subset of those obtained from Devices Links statistics are obtained from streams. A stream is a single leg of an SBC call.
It's therefore possible for the total links streams statistics to be higher than the total devices calls statistics. For example, when a call is sent from IP Group 1 to IP Group 2 on same device, and there are two links configured to aggregate streams from IP Group 1 and IP Group 2 respectively, the total Links statistics will present it as twostreams but Devices statistics will present it as one call. Links are logical entities. Multiple links defined on the same device may therefore aggregate statistics on the same streams, so the total number of links streams statistics in the network may be higher than the total number of actual streams statistics in the network.
It's therefore recommended to avoid overlapping links definitions.
Adding Sites
A site is a group of endpoints under which endpoints (phones) are located. You need to define a site under a region. The region must be defined under a tenant.
To add a site:
1. After configuring the region under which to locate the site, open the Sites page (Network > Sites).
Figure 4-44: Sites

2. Click Add.

- 164 -

CHAPTER 4 Defining your Network Topology
Figure 4-45: Site Details

OVOC | User's Manual

3. From the 'Region' drop-down, select the region under which to locate the site. 4. Provide an intuitive name for the site to facilitate effective, intuitive management later. 5. Enter a description of the site to facilitate effective, intuitive management later. 6. Enter a Subnet Mask or multiple Subnet Masks. The format must be (for example)
255.255.0.0/1. Used for auto detection of endpoints. Must be contained in the same subnet mask as the subnet mask of the region under which it is defined - if the region was configured with a subnet mask. 7. [Optional] In the 'Location' field, enter the first letters in the name of the city / country in which to locate the site, and then select the city / country from the list that pops up. 8. Click the now-enabled OK button; the site is added.
Managing Endpoints
The OVOC supports endpoints management through the directly accessible Device Manager application.
Dynamic Allocation of Endpoint Licenses
The OVOC dynamically allocates endpoint licenses to tenants by default, so that distribution is evenly and effectively performed. When a phone (endpoint) is connected to the network for the first time, it reports to the OVOC with a keepalive message. The OVOC adds the phone to its database and dynamically allocates licenses to its tenant. Here's an example to clarify the principle of dynamic allocation.
- 165 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

Figure 4-46: Example of Dynamic Allocation of Phone Licenses to Tenants

In the example (refer to the figure above): Out of the total number of phone licenses which the enterprise purchased (100), indicated
by OVOC server parameter 'Managed Endpoints', the OVOC has already allocated 60. Tenant A was allocated 20 Tenant B was allocated 20 Tenant C was allocated 20 The OVOC is left with 40 free phone licenses which it can still allocate to tenants (100 total � 60 allocated = 40 free) A new phone is connected to the enterprise network The OVOC detects the new phone added under Tenant A, adds the phone to the OVOC database and dynamically allocates to the phone's tenant 5% of the number of phone licenses that can still be allocated (5% of 40) or, if this results in less than 5 licenses, then 5 are allocated. 5% of 40 is 2, so in the example, 5 licenses are allocated to Tenant A.
Applies to all AudioCodes phones whose management is supported by Device Manager, and to all phones which support SIP PUBLISH protocol and whose QoE management is supported by the OVOC's Reports application.
Before version 7.4.2000, if a tenant's allocation was full, the OVOC dropped the phone and the user manually added it to another tenant in the OVOC GUI.
An alarm endpointsFloatingLicenseEvent is sent when dynamic allocation occurs. See the Alarms Guide for more information.
Configuring Endpoints
The OVOC lets you directly access the Device Manager application to configure endpoints (phones).
- 166 -

CHAPTER 4 Defining your Network Topology
To access the Device Manager: 1. From Network > Endpoints, select Configurations.
Figure 4-47: Login to Device Manager Pro

OVOC | User's Manual

2. See the Device Manager Administrator's Manual for detailed information on how to configure phones.
Monitoring Endpoints Status
The OVOC lets you monitor phones statuses.
To monitor phones statuses: 1. Open the Endpoints page (Network > Endpoints drop-down > Status).
Figure 4-48: Endpoints - Status

2. See the Device Manager Administrator's Manual for detailed information on how to determine phones statuses.
Removing Endpoints from QoE Support
Removing an endpoint from QoE monitoring removes the endpoint from QoE support, freeing the used license. It does not remove the endpoint from display in the Endpoints page of the OVOC.
- 167 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

To remove an endpoint from QoE support: 1. Open the Endpoints page as described previously and select the phone to remove from
QoE support.
2. Click the button Remove from QoE Monitoring; the relevant 'QoE Supported' column is updated with X instead of �.
Adding an Endpoints Group
The OVOC allows you to add an endpoints group. After adding a group, use the Device Manager to add endpoints to that group and configure that endpoints group. The OVOC allows viewing added groups; it doesn't allow adding endpoints. See the Device Manager Administrator's Manual for information on how to add endpoints to groups and configure an endpoints group. The feature benefits customers who want (for example) 10 of 500 phones in a site in the enterprise organized in a group for a software upgrade to apply exclusively to those 10 phones.
To add an endpoints group: 1. Open the Endpoint Groups page (Network > Endpoints > Endpoint Groups) and click the
Add button. Figure 4-49: Group Details

2. Define a name for the endpoints group, provide a description to facilitate effective management later and from the 'Tenant' drop-down, select the tenant to which to add the group. Note that the selected tenant can't be changed (in the Group Details screen) after the endpoints group has been added.
3. [Applies only when operator authentication is by Azure AD / LDAP] When an operator logs in to the OVOC, the OVOC (before allowing the operator access) checks with the enterprise's Azure Active Directory / LDAP server if the endpoints group which the operator is associated in the OVOC, tallies with the endpoints group defined in the AD /
- 168 -

CHAPTER 4 Defining your Network Topology

OVOC | User's Manual

LDAP server. In the 'AD Group' field / 'LDAP Group' field, enter the name of the endpoints group. See also: Configuring Operator Authentication Centrally with Azure Active Directory on page 44 Configuring Operator Authentication Centrally using an LDAP Server on page 39
Figure 4-50: Endpoint Groups page

4. Observe in the Groups page shown in the preceding figure that a group named y_group has been added to a tenant named y_tenant and a group named x_group has been added to a tenant named y_tenant. Also note from the last column that no endpoints have been added yet (with the Device Manager). To quickly and efficiently locate a group, you can filter the page as shown in Filtering by 'More Filters' on page 224.
5. Configure a tenant operator to manage these groups: Open the Operators page (System > Administration > Security > Operators), click Add and from the drop-down select Tenant Operator.
Figure 4-51: Tenant Operator Details

6. From the 'Security Level' drop-down, select Admin or Operator; only these two tenant operator security levels allow assigning a group. Configure the tenant operator details you require, click OK and then under the Topology tab, view the following:
- 169 -

CHAPTER 4 Defining your Network Topology
Figure 4-52: Topology tab

OVOC | User's Manual

7. Note that if you didn't select Admin or Operator as the 'Security Level' in the previous step, you won't view the screen shown in the preceding figure. Assign the operator tenants (x_tenant and y_tenant as shown in the example below), check the box 'Restrict Endpoints Actions Except for These Groups' and in the 'Assigned Endpoints groups' pane that opens, assign groups to the operator tenants.
Figure 4-53: Assigned Tenants | Assigned Groups

8. Click OK.
- 170 -

CHAPTER 4 Defining your Network Topology
Figure 4-54: Assigned Endpoints groups

OVOC | User's Manual

In the 'Assigned Tenants' field, if you delete an assigned tenant then all groups assigned to that tenant will be deleted.
When you check the 'Restrict Endpoints Actions Except For These Groups' check box, the Assign Endpoints Groups pane is displayed showing all the available assigned endpoints groups for this operator.
When you clear the 'Restrict Endpoints Actions Except For These Groups' check box, all selected assigned endpoints groups are removed.
Any update to an operator's assigned groups will only take effect the next login (if you're updating the groups of the operator currently logged in).
Figure 4-55: Removed groups
9. In the Operators page (System > Administration > Security > Operators), select the tenant operator that was added and view in the Operator Details pane on the right side of the page, the number of groups and tenants assigned to that operator.
- 171 -

CHAPTER 4 Defining your Network Topology
Figure 4-56: Operators

OVOC | User's Manual

If the parameter 'Is Group Operator' in the Operator Details pane is ticked as shown in the preceding figure, that operator can delete groups assigned to that operator's assigned tenants (only). The OVOC therefore allows adding, editing and deleting groups. Adding endpoints to groups and configuring those groups is performed in the Device Manager. See the Device Manager Administrator's Manual for information on how to add endpoints to groups and to configure endpoints groups.
Adding a Topology Group
The OVOC allows you to add a logical group to which you can attach topology entities of your choice (devices, links, sites) so that you can then (for example) produce a report specifically on those topology entities in that group. To add a topology group: 1. Open the Topology Groups page (Network > Groups).
Figure 4-57: Topology Groups
2. Click the Add button.
- 172 -

CHAPTER 4 Defining your Network Topology
Figure 4-58: Group Details

OVOC | User's Manual

3. Define a name for the group, provide a description to facilitate effective management later and from the 'Tenant' drop-down, select the tenant to which to add the group. Note that the selected tenant can't be changed (in the Group Details screen) after the group has been added.
4. Click the View link. Figure 4-59: View
5. Navigate to and select the entities to attach and click OK.. 6. Observe in the Topology Groups page that the group was added to the tenant. Also note
from the last column how many topology entities you attached. To quickly and efficiently locate a group in the Topology Groups page, you can filter the page as shown in Filtering by 'More Filters' on page 224.
- 173 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

5 Managing SBC Licenses
SBC licenses can be managed using: Two Floating License modes:
Cloud mode. Replaced the legacy way of using the OVOC Advanced Monitoring package. Requires SBCs loaded with version 7.2.202 or later and OVOC version 7.4.3000 or later. See Cloud Mode on page 182 for more information. -OR-
FlexPool mode. Alternative licensing mode that (1) supports a Floating License across a network (2) doesn't require a connection to the public cloud (3) gracefully enforces license limits and (4) interrupts service if license limits are exceeded. Requires SBCs loaded with version 7.2.256.300 or later and OVOC version 7.8 or later. See FlexPool Mode on page 189 for more information.
Fixed License Pool (see Fixed License Pool on page 195) Recommended when multiple SBCs are deployed and centrally managed Allows a 'tenant' operator to update licenses from a central pool in a simple process
Locally by loading an ini file to the device using the Web interface, without requiring the OVOC. See the device's User Manual for more information.
Adding an SBC to the Floating License
Applies to both Floating License modes: Cloud mode and FlexPool mode.
Before adding an SBC to a Floating License, add an SBC to the OVOC using one of these options: Auto device detection. This is the Automatic Provisioning a.k.a. Zero Touch feature. See
Enabling Initial Connection Provisioning on page 143 for more information. Manually from the AC Device page (Network > Add > AC Device). Using the SBC's Web interface.
Floating License does not require configuring an open license on the SBC (obtained by ordering one of the device float CPNs, i.e., SW/M500/FLOAT). The SBC is authorized by the OVOC to operate in a Floating License mode with no resource restrictions. To manage a device using a Floating License mode, the device must be properly managed by the OVOC, i.e., the SBC must have a valid OVOC license.

- 174 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

To add an SBC to a Floating License: 1. In the device's Web interface, open the Floating License page (Setup menu >
Administration tab > License folder > Floating License). 2. From the 'Floating License' drop-down list, select Enable.
Figure 5-1: Enable Floating License

3. Reset the device with a burn-to-flash for your settings to take effect. After the device resets, it connects with OVOC and the following read-only fields display OVOC-related information: 'Connection with OVOC': Displays the device's connectivity status with OVOC: "Connected to OVOC": The device is connected to OVOC. "Disconnected from OVOC" The device is temporarily disconnected from OVOC due to problems with the network (HTTPS TCP connection). "Not Connected to OVOC": The device is not connected to OVOC. 'OVOC IP Address': Displays the IP address of OVOC. 'OVOC Product Key': Displays the Product Key of the OVOC tool that is providing the Floating License.
4. From the 'Allocation Profile' drop-down list, select an SBC license Allocation Profile. The Allocation Profile determines the capacity of each SBC license type that you want allocated to your device by OVOC. You can choose from factory default profiles, which may suit your deployment requirements or you can configure your own customized profile. The optional factory default profiles include: SIP Trunking: This profile is suited for SIP Trunking applications (i.e., where user registration is typically not required) Registered Users: This profile is suited for applications where user registration is required.
To configure your own profile, select Custom, and then configure the capacity for each SBC license type in the corresponding 'Allocation' field. When you hover your mouse over each field, a pop-up appears displaying the maximum capacity that can be supported by the device.
- 175 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Figure 5-2: Maximum Capacity for Each SBC License Type

When configuring your own customized profile (i.e., using the Custom option), the Transcoding Session capacity license cannot be changed in the 'Allocation' field, but you can reduce the license using its corresponding 'Limit' field.
Explanation of each profile: Far End Users (FEU) (# of concurrent users that can be registered on the device) SBC Sessions (# of concurrent SBC call sessions-media and signaling) SBC Signaling Sessions (# of concurrent SIP messages- only signaling) Transcoding Sessions (# of concurrent codec types)
5. Reset the device with a burn-to-flash for your settings to take effect. 6. Once you have configured the Allocation Profile, you can modify each SBC license capacity
without resetting the device. To do this, select the check box corresponding to the license type you want to modify, and then in the corresponding 'Limit' field, enter a new value, and then click Apply. 7. Open the OVOC's Device Floating License page (Network > Devices > Floating License) and verify that the newly added SBC appears in the list and that the last report time is updated (indicating that the SBC has successfully sent a report to the OVOC). As reports are sent every 5 minutes, this may take up to 5 minutes to show. Figure 5-3: Device Floating License Page � Newly Added SBC Appears in the List
8. Use the following table as reference to the page's columns.
- 176 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Table 5-1: Floating License Page Column Descriptions (Applies to Cloud and FlexPool Modes unless Otherwise Stated)

Column

Description

Name

Indicates the name of the managed device

Product Type

Indicates the SBC device type.

Address

Indicates the IP address of the managed device.

Indicates the HA status of the device.

Managed Indicates whether the Floating License is enabled / disabled in the device.

Last Report Indicates the date and time that the last usage report was sent from the

Time

device to the OVOC.

Floating License Status

Indicates the global device status reflecting the Device Status, Config Status and Report Status states.

Green

OK: Device Status, Config Status and Report Status are green.

Red

Error or Config Error: Indicates Device Status,

Config Status or Report Status errors (red).

Grey

Unmanaged: Device is unmanaged by OVOC

Unmonitored: Device is unmonitored by OVOC

Device Status

Green

Connected: Device is successfully connected to the Floating License OVOC service.

Red

Rejected: Device Floating License has been

revoked by the Cloud Floating License service

and as a result the device's CAC is reset to 0.

Not Connected: Device is unable to establish a connection with the Floating License OVOC service (CAC 0)

Temporarily Disconnected: Device is temporarily disconnected from the Floating License OVOC service due to problems with the HTTPS TCP connection.

Grey

Unmanaged: The device is currently not

managed by the OVOC Floating License service.

Unmonitored: The device is currently

- 177 -

CHAPTER 5 Managing SBC Licenses
Column

Config Status

Green Red

Grey

Report Status

Green Yellow

Red

OVOC | User's Manual
Description
unmonitored by the OVOC Floating License service. Not Applicable: The device was loaded with the Floating License feature disabled. The operator must enable the feature on the SBC device and reset it.
Success: Indicates that the device's SNMP configuration is successfully updated.
Failure: Indicates that the device's SNMP configuration has not been updated successfully. For example, the Floating License REST operator's user password or username has not been updated correctly.
Not applicable: Indicates that the device was added to the OVOC but is not yet managed. Unmonitored: Indicates that the device is currently unmonitored by OVOC.
OK: Indicates that a report was successfully sent from the device to the OVOC for the last reporting interval.
Over License. Applies only to FlexPool. Indicates that one or more features (Media Sessions, Transcoding, Registrations, Signaling) has exceeded license limits and that an 'overLicense' status on at least one of the exceeded feature was sent from OVOC to the device.
Failed: Indicates there's a problem with reports sent from the device to the OVOC (missing / failed). Failed & Over License: [Applies only to FlexPool] Combines the two preceding statuses. Indicates that after the device's last successful report, the device received an 'overLicense' response from the OVOC and since then there has been a problem with reports from this device (missing / failed). Not Registered. Indicates that the device has not
- 178 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Column
Priority Region Tenant

Description

yet successfully registered to the OVOC Floating License service.

Grey

Unmonitored: Indicates that the device is

currently unmonitored by OVOC.

Only applies to FlexPool mode. Either High, Normal or Low. Shows the priority configured by the operator by which SBCs are taken out of service if the FlexPool mode license is exceeded. See Configuring SBC Priority Which to Take out of Service First on page 189 for more information.

Indicates the device's region.

Indicates the device's tenant.

9. Click the Actions button. See here for information about the actions that you can perform in the Device Floating License page.

Performing Floating License Actions

Applies to both Floating License modes, Cloud mode and FlexPool mode, unless otherwise stated.

Here're the Actions you can perform in the Device Floating License page (Network > Devices > Floating License): Unmanage (see here) Update (see here) Reset (see Reset on the next page) Register (see Register on page 181) [only applies to Cloud mode]
Unmanage
This Action allows the device to be unmanaged by the Floating License method.
To allow the device to be unmanaged by the Floating License method: In the Device Floating License page (Network > Devices > Floating License), select the SBC
to unmanage and then from the Actions drop-down menu, select License > Unmanage.

- 179 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Figure 5-4: Device Floating License Page � Unmanage Action

Update
Select this menu option to update the HTTPS Rest connection between the device and OVOC.
To perform an update action: In the Device Floating License page (Network > Devices > Floating License), select the SBC
for which to perform an update and then from the Actions drop-down menu, select License > Update.
Reset
Select this menu option when: The SBC is connected to the OVOC and Floating License is enabled. One of the following SBC Web interface Floating License parameters is updated on the
device: Allocation Profile Allocation Signaling Sessions Allocation Media Sessions Allocation Registered Users A 'Limit' value is configured for one of the above SBC Web interface Floating License parameters. The SBC's ini file parameter 'SoftwareDSP' is updated (only applies to Mediant 9000, Mediant SE and Mediant VE).
To perform a reset action: In the Device Floating License page (Network > Devices > Floating License), select the SBC
for which to perform a reset and then from the Actions drop-down menu, select Maintenance > Reset.
- 180 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Register
This action allows the network administrator to perform random registration to the Floating License Cloud mode service for the OVOC.
Only applies to Cloud mode. Does not apply to FlexPool mode.

To perform a register action: In the Device Floating License page (Network > Devices > Floating License), press the
Register button shown in the figure below.
Figure 5-5: Register

Configuring OVOC-Floating License Service Communications
Applies to both Floating License modes (Cloud mode and FlexPool mode) unless otherwise stated. SBCs are connected to the OVOC over SNMP. Floating License service functions are managed
over TCP/HTTPS REST connections. For more information, see the OVOC IOM and the OVOC Security Guidelines. To configure device Floating License parameters for OVOC-Floating License com-
munications: 1. Open the Floating License page (System > Administration > License > Floating License).
Figure 5-6: Floating License
2. Configure the parameters using the following table as reference.
- 181 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Table 5-2: Device Floating License Configuration Parameter Descriptions

Parameter

Description

Floating License OVOC Operator

Specifies the OVOC operator with REST authorization to receive and respond to REST requests from SBCs.

Floating License Server Address

[Applies only to Cloud mode; N/A to FlexPool mode] Specifies the server address of the Floating License Service platform: CLM.audiocodes.com (default)

Change Floating License Key

[Applies only to Cloud mode; N/A to FlexPool mode] Enter the AudioCodes provided OVOC Product Key string used to authenticate the connection between the OVOC and the Floating License Service. You can view this string in the License Summary screen (System > Administration > License > Summary).

Cloud Mode
Cloud mode can be configured on AudioCodes SBCs and the OVOC. Cloud mode replaced the legacy method of using the OVOC Advanced Monitoring package. Cloud mode requires SBCs loaded with version 7.2.202 or later and OVOC version 7.4.3000 or later. For more information, see also the device's User's Manual.
Figure 5-7: Cloud Mode Network

Here's how Cloud mode works: SBCs report their usage statistics at short intervals (typically every 5 minutes) to the
OVOC. The OVOC accumulates these reports and sends them once a day to the AudioCodes
Floating License server. Since all communications occur over HTTPS, a special firewall setup is unnecessary in most cases.
- 182 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Important note before installation: To set up Cloud mode for a new customer, a Floating License account must be created on the AudioCodes cloud license manager (CLM) service. The CLM account is created by AudioCodes within a few days of receiving a Floating License order and signing of the Floating License's Terms and Conditions. After the account is set up and ready for use, a confirmation email is sent to the email address used to receive the customer's OVOC product key. Make sure the confirmation email is received before attempting to connect OVOC to the CLM service. If no confirmation email is received, contact your AudioCodes representative and provide your OVOC product key to verify the CLM account was set up.
Managed as an AudioCodes cloud service, the Floating License mode is a network-wide license intended for customer deployments featuring multiple SBCs sharing a dynamic pool of resources. The feature simplifies network capacity planning and delivers cost benefits related to aggregated call statistics, follow-the-sun scenarios and disaster recovery setups that involve two or more data centers.
The feature allows customers to 'pay as they grow' by eliminating the need to manually purchase additional SBC licenses when capacity requirements increase. Customers initially purchase license capacity based on estimated requirements but may later experience business growth and therefore require increased session capacity. In this case, customers are billed for the additional sessions. SBCs deployed in the network are `open' to maximum hardware capacity utilization based on predefined profiles. SBCs can alternatively be configured by operators with customized session capacity profiles.
Configuring Cloud Mode
Configuration should only be performed once for the OVOC of each customer.
To configure the OVOC:
1. Add a new OVOC operator of type 'System' dedicated to the Floating License (i.e., 'Floating License_User').
They must have Admin or Operator security level
Password expiration must be set to never expire
SBCs use them to communicate with the OVOC for the floating license reports
2. Make sure the OVOC is configured with a Feature Key which enables Floating License.
Open the License Configuration page (System > Administration > License > Configuration).
Make sure that the status is Enable.

- 183 -

CHAPTER 5 Managing SBC Licenses
Figure 5-8: Cloud License Manager Status

OVOC | User's Manual

3. Open the Floating License page (System > Administration > License > Floating License). Figure 5-9: Floating License
4. Configure the parameters like this: Floating License OVOC Operator: Use the new operator you configured here. Floating License Server Address: Set to: clm.audiocodes.com Change Floating License Key: Set to the OVOC Product Key. To find out the OVOC Product Key, view the string in the License Configuration screen (System > Administration > License > Configuration) under section 'General'. Figure 5-10: Product Key

5. Open the Device Floating License page (Network > Devices > Floating License). Figure 5-11: Device Floating License Page
Make sure in the Device Floating License page that the OVOC successfully registered with the Floating License. Make sure that 'Customer Status' in the device's Floating License Summary pane displays Active.
- 184 -

CHAPTER 5 Managing SBC Licenses
Figure 5-12: Customer Status

OVOC | User's Manual

A new OVOC with an old Feature Key will show zeros in the screen when operating in Cloud mode. Reactivating the product key and reinstalling the Feature Key solves the issue.
Viewing Floating License Summaries
The OVOC's Device Floating License page displays summary panes on the right side of the page. Panes you can view are: Device Floating License Utilization pane (see here) Floating License Info pane (see Viewing Floating License Info on page 187) Device Info pane (see Viewing Device Info on page 187) Device Floating License Utilization Pane This pane is only displayed when no device is selected in the page. To view the pane if a device is selected: 1. Press the Ctrl key and then click the entry on the page that is selected.
- 185 -

CHAPTER 5 Managing SBC Licenses
Figure 5-13: Device Floating License Summary

OVOC | User's Manual

2. Use the following table as reference to the pane. Table 5-3: Device Floating License Utilization Pane Description

License Utilization

Description

Device Floating Licenses Utilization

Indicates the percentage of SBC devices in this OVOC installation that are managed by the Floating license. For example, if the customer has purchased licenses for 100 devices and 50 are currently managed, then this bar displays 50 allocated devices and 50 free devices.

Hostname Indicates the IP address or FQDN of Floating License Service.

Customer Status

Indicates the state of the connection with the Floating License service.
OK - Indicates that a successful connection with the Floating License service has been established.
Blocked - Customer account has been blocked by the Floating License service.
Unknown - Status is undetermined by the OVOC
Not Registered - OVOC has not registered successfully to the Floating License Cloud mode service

Last Successful Usage Report Time

Indicates the time and date of the last successful usage report update that was sent from OVOC to the Floating License Cloud service.

License

Displays a summary of the license features SBC Signaling, SBC Sessions, SBC Registrations and SBC Transcoding.

Last Sent Report Status

Indicates whether the last attempt to send a usage report to the Floating License Cloud service was successful.

- 186 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

License Utilization
Number of Failed

Description
Indicates the number of failed attempts to send usage reports to the Floating License Cloud service

Viewing Floating License Info
The OVOC's Device Floating License page displays the 'Floating License Info' summary pane only when a device is selected in the page.
To view the pane: 1. Select an entry on the page.
Figure 5-14: Device Floating License Summary � Floating License Info

2. Use the following table as reference to the pane's session capacities displayed. Table 5-4: Device Floating License Summary - Floating License Info

Session Capacity

Description

Current

Indicates the currently utilized session capacity of the SBC device.

Maximum Configuration

Indicates the customer configured session capacity on the SBC device.

Maximum Actual

Indicates the maximum physical session capacity of the SBC device.

Viewing Device Info
The OVOC's Device Floating License page displays the 'Floating License Info' summary pane only when a device is selected in the page.

- 187 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

To view the pane: 1. Select an entry on the page if none is selected and then in the Device Floating License
Summary pane, click the Device Info tab. Figure 5-15: Device Floating License Summary � Device Info

2. The pane summarizes the columns displayed in the main section of the Device Floating License page.
Saving a Usage Data Report to your PC
This feature allows customers to save reports to CSV file. Each report includes the currently configured license session values and the device's HA state.
In Cloud mode, reports are always sent to the cloud. In both Cloud mode and FlexPool mode, reports are always sent from the SBC to the OVOC.
To manually export a usage report to a CSV file: 1. Open the Device Floating License page (Network > Devices > Floating License) and click
Save Data Usage. Figure 5-16: Save Usage Report Data
2. In the Save Usage Report Data screen shown above, define the period on which to produce the usage report data and then click OK.
- 188 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

FlexPool Mode
After adding an SBC to the Floating License as shown in Adding an SBC to the Floating License on page 174 and configuring OVOC-Floating License service communications as shown in Configuring OVOC-Floating License Service Communications on page 181, FlexPool mode can be configured on SBCs and the OVOC. FlexPool is an alternative licensing mode provided by AudioCodes that (1) supports a Floating License across a network (2) doesn't require a connection to the public cloud (3) gracefully enforces license limits and (4) interrupts service if license limits are exceeded. FlexPool mode is supported from SBC version 7.2.256.300 or later.
FlexPool mode is a system-level feature; it's not applicable per tenant.

FlexPool mode is different to Cloud mode: There's no Cloud License Manager component and customer limits are enforced by limiting service rather than by post-usage billing. SBCs and the OVOC are the components involved in FlexPool mode. If an SBC or OVOC failure occurs or if a network issue occurs, FlexPool mode continues to provide customer service for a period of grace.
Configuring an Alarm Threshold Percentage for FlexPool Mode
The OVOC enables operators to configure an alarm threshold percentage for FlexPool mode.
To configure an alarm threshold percentage for FlexPool mode: 1. Open the Floating License page (System > Administration > License > Floating License)
and locate the FlexPool Configuration section. Figure 5-17: FlexPool Configuration

2. Optionally change the default of 85% to a different alarm threshold percentage according to preference. Range: 0-100.
If for example you leave the configuration at the default of 85%, the OVOC will raise an alarm for each license parameter whose current total sum of licensing usage is above 85% but below the license violation threshold. See also Determining License Status from Alarms on the next page.
Configuring SBC Priority - Which to Take out of Service First
The OVOC uses a priority configured by operators to determine the order by which SBCs are taken out of service if the FlexPool mode license is exceeded. Priority values are High, Normal
- 189 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

or Low.
To configure SBC priority: 1. Open the Device Floating License page (Network > Devices > Floating License).
Figure 5-18: Device Floating License

2. Select the SBC whose priority you want to configure and from the Actions button dropdown, select License > Update Priority Level. Figure 5-19: Update Priority Level
3. From the 'Priority' drop-down in the FlexPool Priority prompt shown in the figure below, select either Normal (default), High or Low.

If overuse of the license occurs, the OVOC gradually starts taking SBCs out of service based on the priority defined by the operator. After capacity is restored, SBC service resumes.
Determining License Status from Alarms
The OVOC sends alarms that allow network administrators to determine license status. For more information, see the One Voice Operations Center Alarms Guide. When OVOC is started up or reset, it closes these alarms if they exist.
- 190 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

The 'Alarm on % of utilization' parameter can be configured by the 'System' type operator whose security level is defined as 'Admin' viewed by the 'System' type operator whose security level is defined as 'Admin',
'Operator' or 'Monitor'
If service is interrupted, the SBC sends a FlexPool License Alarm and closes it after service resumes to normal.
Determining License Status from the Network Summary
The Floating License Summary pane in the OVOC's Device Floating License page allows network administrators to determine at a glance the status of their FlexPool mode license.
To view the summary: 1. Open the Device Floating License page (Network > Devices > Floating License).
Figure 5-20: Device Floating License Page

2. Locate the Floating License Summary pane on the right. Above the pane, view the FlexPool Status indication. In the preceding figure, 'FlexPool Status' indicates OK. This is a system-level status indication summarizing the FlexPool Status Summary table displayed in the Floating License Summary pane. Three possible statuses can be displayed:
OK [The statuses of all features in the FlexPool Status Summary table are 'OK']
Warning [The status of at least one feature in the FlexPool Status Summary table is 'Warning' and the status of none is 'Over License']
Over License [The status of at least one of the features in the FlexPool Status Summary table is 'Over License']
To access the Floating License Summary pane: Open the Device Floating License page (Network > Devices > Floating License) and locate
the Floating License Summary pane on the right.

- 191 -

CHAPTER 5 Managing SBC Licenses
Figure 5-21: Floating License Summary - FlexPool

OVOC | User's Manual

The pane indicates: Floating License mode: FlexPool Device Floating Licenses Utilization: Total, Allocated and Free; indicates the number of
SBCs using this service, i.e., the number of SBCs operating under FlexPool mode. Note that this is not an indication of pool size. FlexPool Status Summary The status, usage and license limit of each dimension covered by the license: Signaling
Sessions, Media Sessions, Registrations and Transcoding Sessions; other dimensions still require an appropriate license on the SBC so if (for example) you want to enable Microsoft Teams, you'll need a license on the SBC in addition to the FlexPool License. SBC capacity and features are still subject to the configuration of the SBC profile user and the device's capacity; although FlexPool License mode is a network-wide license, you can still limit the capacity of individual SBCs using the device's Web interface. Status is OK, Warning (alarm sent according to the value configured for 'Alarm Threshold Configuration') or Over License (the limit has been exceeded and service has been stopped). Usage column: Displays the aggregated consumption of each license dimension across all SBCs running under FlexPool mode. If usage exceeds the value defined in the license, the SBC stops service until a successful response is received from the OVOC indicating that usage no longer exceeds that value. The OVOC gradually stops the service according to the priority assigned to the SBCs as shown in Configuring SBC Priority - Which to Take out of Service First on page 189.
- 192 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

License information can be accessed from the License Configuration page accessed from System > Administration > License > Configuration:
Figure 5-22: FlexPool Mode Status

The preceding figure shows the size allocated to each FlexPool mode license dimension, i.e., the size of each dimension you have in your FlexPool mode license. Note that SBC Shutdown on Failure (days) indicates number of days; if a failure occurs in the reports sent between the device and OVOC and the issue isn't fixed within the number of days displayed, the device will shut down FlexPool mode service and will not allow new calls.

- 193 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Migrating from Cloud Mode to FlexPool Mode

Applies to customers currently using Cloud mode whose version of the OVOC is earlier than 7.8 and whose SBC version is earlier than 7.2.256.

To migrate from Cloud mode to FlexPool mode: 1. Upgrade the OVOC to version 7.8 (see the OVOC IOM Manual).
2. Upgrade the SBCs to version 7.2.256 (see the SBC User's Manual).
3. Replace the OVOC license with FlexPool mode (see the OVOC IOM Manual).
4. Restart the OVOC.
Customers can replace the license before upgrading the SBCs but then SBCs that do not support FlexPool mode will fail to report to the OVOC (because a continuous connection between the OVOC and SBCs needs to be maintained). Customers will then have up to 90 days to upgrade their SBCs. Contact your AudioCodes representative if necessary. This is not the recommended migration procedure.

- 194 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Fixed License Pool
Customers who deploy multiple SBCs and want to centrally manage the licenses of all SBCs deployed will benefit best from the Fixed License Pool feature.
Only a 'tenant' operator can manage the Fixed License Pool. To configure a 'tenant' operator, see License Pool Operator on page 114 for more information.

This feature allows updating a device's license using the process shown here:

OVOC operator updates SBC license in OVOC's License Pool OVOC notifies SBC that the License Pool has been updated SBC requests updated license from OVOC OVOC sends the updated license to SBC SBC polls OVOC for license updates
every 12 hours when the SBC is reset (HA) when switchover and synchronization by the new active device are performed OVOC sends the license update to the SBC (if an update is discovered)
An SBC's license is valid for seven days but this is reset each time a successful connection is established between it and the OVOC License Pool. If the SBC cannot connect to the License Pool for seven days, its license expires and resets with its initial 'local' license. This feature prevents misuse of issued licenses.
The Fixed License Pool page in the OVOC allows you to: centrally distribute session licenses to multiple devices according to capacity requirements manage the licenses of multiple devices without changing their local License Key. add/remove licenses to/from devices according to site requirements, independently of
AudioCodes. apply different settings to each device without requiring a new License Key file per device
from AudioCodes each time. manage licenses for multiple enterprise customers [ITSPs]. The Fixed License Pool supports the following license types: SBC sessions (includes both media and signaling)
- 195 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

SBC Registrations (also referred to as Far-End Users) SBC Signaling sessions (includes only signaling) Transcoding sessions The customer purchases a bulk number of licenses of these types and obtains a License Key to install on the OVOC. The customer can then: allocate licenses to any SBC managed by the OVOC move licenses from any SBC back to the License Pool move licenses from one SBC to another purchase additional licenses for the pool at any time When license capacity is fully utilized, the SBC rejects calls. If the SBC also has a 'local' license, the two are cumulated to constitute a single license.
To update a license using the Fixed License Pool: 1. Open the Fixed License Pool page (Network > Devices > Fixed License Pool).
Figure 5-23: Fixed License Pool

2. Use the table as reference to the icons in the column 'LP Status' in the preceding figure. Table 5-5: LP Status

Icon

Description

License Pool status is OK

License Pool status is WARNING

License Pool status is EXPIRED

License Pool status is CONFIGURATION ERROR

License Pool status is FAILED

License Pool status is OUT OF SYNC

License Pool status is UNMANAGED

- 196 -

CHAPTER 5 Managing SBC Licenses

Icon

Description

License Pool status is APPLY NEEDED

License Pool status is APPLY IN PROGRESS

License Pool status is RESET NEEDED

3. Click the Refresh button.

OVOC | User's Manual

- 197 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Performing License Pool Actions
The License Pool page allows operators to perform a range of actions.
Applying a License to a Device from the Pool
You can apply a license to a device.

Applies only to HA devices. A switchover is performed to apply the license parameter on both devices.

To apply a license to a device: 1. In the Fixed License Pool page, from the Actions menu select License > Apply.
Figure 5-24: Apply License

2. In the confirmation prompt, click Apply.

Saving Fixed License Pool Data to CSV File
Information displayed in the Fixed License Pool page can be exported to a CSV file. The feature is used internally when (for example) AudioCodes requires the information from a customer who has reported an issue.
To export Fixed License Pool data to a CSV file: 1. Open the Fixed License Pool page (Network > Devices > Fixed License Pool).

- 198 -

CHAPTER 5 Managing SBC Licenses
Figure 5-25: Fixed License Pool

OVOC | User's Manual

2. Select the device and click Save.
3. Click OK; locate the saved CSV file whose icon is displayed in the lower left corner, and send it to AudioCodes.
4. To open the CSV file, click its icon or right-click and select Open.

5. View the file opened in a CSV file editor like Microsoft's Excel.
For each license (SBC column / CB column) listed in the Fixed License Pool page, four parameters are displayed in the CSV file according to the License Info `Pool/Local/Actual/Active'. For example, the parameters that are displayed in the CSV file for the Fixed License Pool page column 'SBC Session' are: sbcSession_pool sbcSession_local sbcSession_actual sbcSession_active
- 199 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

Before Performing 'Manage Device' / 'Update Device'
Make sure of the following before performing 'Manage Device' or 'Update Device': Make sure sufficient licenses are allocated on the device's tenant (System >
Administration > License > Tenants Allocations). Figure 5-26: Make Sure Sufficient Licenses are Allocated on the Device's Tenant

Make sure the device's tenant's 'License Pool Operator' is valid; make sure their password has not expired, is not blocked and expiration is 'Never expired' (recommended): In the Network Topology page, select the tenant in the navigation tree, click and choose the edit option:
Figure 5-27: Edit Tenant

- 200 -

CHAPTER 5 Managing SBC Licenses
Figure 5-28: Make Sure 'License Pool Operator' is Valid

OVOC | User's Manual

Make sure the device is connected to the OVOC (Network > Devices > Manage > select the device > Show). Figure 5-29: Make Sure the Device is Connected to the OVOC
- 201 -

CHAPTER 5 Managing SBC Licenses

OVOC | User's Manual

License Pool Alarms
Devices can issue the following License Pool alarms: acLicensePoolInfraAlarm acLicensePoolApplicationAlarm acLicensePoolOverAllocationAlarm acLicenseKeyHitlessUpgradeAlarm For more information about alarms related to the License Pool, see the OVOC Alarms Guide.

- 202 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

6 Assessing Network Health
The OVOC enables you to determine the health of your IP telephony network. The OVOC provides real- time monitoring as well as historical monitoring of network traffic, giving operators a health monitoring functionality that includes alarms and diagnostics capability.
Assessing Health from the Network Summary
The Network Topology page displays a Network Summary pane which you can reference to quickly assess the overall health of the network.
Figure 6-1: Network Summary

The four upper Network Summary panes display: The count of Devices, Links, Sites and Endpoints on which alarms are currently active.
- 203 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

The color-coded number of Devices, Links, Sites and Endpoints whose status is currently Error / Warning. If you click the # of
Devices then the Device Management page opens displaying all devices whose status is Error / Warning
Links then the Links page opens displaying all links whose status is Error / Warning
Sites then the Sites page opens displaying all sites whose status is Error / Warning
Endpoints then the Endpoints page opens displaying all endpoints whose status is Error / Warning
Figure 6-2: Example: 1 Device Warning

The Active Alarms pane displays: The total number of Critical, Major, Minor and Indeterminate active alarms (colorcoded) currently active in the network. Click any severity level's total to display only alarms of that severity level in the Alarms page. Example: Under Critical in the Active Alarms pane above, click 1:
- 204 -

CHAPTER 6 Assessing Network Health
Figure 6-3: Alarms Filtered by Severity Level

OVOC | User's Manual

You can select an alarm in the page to view detailed information about it in the All Alarm Details pane on the right side of the page. In the Network Summary window, the (default) Links tab displays:
The total # of streams over links in the network. The maximum # of concurrent streams over links in the network. The average MOS measured over links in the network. The average Jitter measured over links in the network. The average Delay measured over links in the network. The average Packet Loss measured over links in the network. Quality Distribution pie chart Point your cursor over a green, yellow or red segment; a pop-up indicates the # and %
of streams over links in the network whose quality was measured to be good, fair or poor respectively. For example:
Click any color-coded voice quality segment to open the Calls List filtered by that voice quality score (Good, Fair or Poor).
Successful/Failed Streams pie chart
- 205 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Point your cursor over a green or red segment; a pop-up indicates the # and % of streams over links in the network whose performance was measured to be successful or failed respectively. For example:

Click any color-coded segment to open the Calls List filtered by that call performance evaluation (Successful or Failed).
Click the Devices tab to display: The total # of calls over devices in the network. The maximum # of concurrent calls over devices in the network. The average MOS measured over devices in the network. The average Jitter measured over devices in the network. The average Delay measured over devices in the network. The average Packet Loss measured over devices in the network. Quality Distribution pie chart Point your cursor over a green, yellow or red segment; a pop-up indicates the # and % of calls over devices in the network whose quality was measured to be good, fair or poor respectively. Successful/Failed Streams pie chart Point your cursor over a green or red segment; a pop-up indicates the # and % of calls over devices in the network whose performance was measured to be successful or failed respectively.
Click the Endpoints tab to display: The total # of calls over endpoints in the network. The maximum # of concurrent calls over endpoints in the network. The average MOS measured over endpoints in the network. The average Jitter measured over endpoints in the network. The average Delay measured over endpoints in the network. The average Packet Loss measured over endpoints in the network. Quality Distribution pie chart Point your cursor over a green, yellow or red segment; a pop-up indicates the # and % of calls over endpoints in the network whose quality was measured to be good, fair or poor respectively.
- 206 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Successful/Failed Endpoints pie chart
Point your cursor over a green or red segment; a pop-up indicates the # and % of calls over endpoints in the network whose performance was measured to be successful or failed respectively.

- 207 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Assessing Health from the Network Topology Page
The Network Topology page lets you assess overall network health at a glance. The 'tree' in the left window of the page displays an aggregation of statuses in the network, up to the level of region. This is the first-level navigation window:

A red-coded tenant icon indicates that there is an alarm in the tenant, or that an OVOC threshold for voice quality has been exceeded in the tenant. This is the first-level navigation level. In the middle window, a red-coded icon indicates that there is an alarm on a device, or that an OVOC threshold for voice quality has been exceeded on a device. This is the second-level navigation window:
The window lets you quickly drill down from a region to the core of an issue in a device. Very fast access to very specific information facilitates efficient network management and network optimization. For this reason, OVOC is an 'expert system'. A dynamic tab added to the menu bar provides easy future access to that specific information, facilitating troubleshooting:
Figure 6-4: Dynamic Tab for Quick Future Access to Device Information

Use the following table as reference to the page section 'Device Information' shown in the preceding figure.
- 208 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Info About Management
Voice Quality

Table 6-1: Device Information

Status Type
Device Alarm Status

Description

Values

Indicates the severity status of the device's alarm, reported by the device; usually this is the maximum severity of the device's active alarm.

Critical Major Minor Warning Indeterminate Clear

Administration Status
Connection Status

Indicates the status of the device's administration

Locked Unlocked

Indicates the status of the device's SNMP connectivity

Connected Not Connected

Control Status

Indicates the status of the calls control as defined in the QoE Status and Alarm rule for this device

Unmonitored Clear Major Critical

Media Status

Indicates the status of the calls media as defined in the QoE Status and Alarm rule for this device

Unmonitored Clear Major Critical

Connection Status

Indicates the status of the QoE connection

Not Defined � the device never connected for calls sending
Connected � device is currently connected and sending calls
Not Connected � device was disconnected;

- 209 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Info About License

Status Type
Management Status
Voice Quality Status
OVOC License Status

Description
Indicates the status of the license management
Indicates the status of the voice quality
Indicates the status of the OVOC license

Values
possible reasons: time synchronization between device and OVOC server, device was connected but for some reason closed the connection (disabled QoE reporting)
Not Defined
Managed - device license contains management license
Unmanaged - device license does not contain management license
Not Requested � device does not require a Voice Quality License
Managed � device requires and receives a Voice Quality License from the OVOC server
Unmanaged � device requires a Voice Quality license but the OVOC server can't assign a license for this device
Unmanaged
If License Pool is configured (same status as the status in the Fixed License Pool table)

- 210 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Info About

Status Type

Description

Values

If Floating License is configured (same status as the status in the Floating License table)

For information about the page section 'Device Calls', see Accessing the Calls List on page 316. The page section 'Device Calls' mirrors the Calls List page. In the page section 'Device Calls', you can select a call made over this device and then click the Show button to display that call's details.
For information about the page section 'Statistics Summary', see Viewing Statistics on Calls over Devices on page 265 and specifically Statistics Summary on page 269. The page section 'Statistics Summary' mirrors the Statistics Summary pane in the Devices Statistics page.
For information about the page section 'Active Alarms | Journal Events', see Monitoring Active Alarms to Determine Network Health on page 227 and Viewing Journal Alarms to Determine Operator Responsibility on page 237. The page section 'Active Alarms | Journal Events' mirrors the Active Alarms page and the Journal Alarms page.

- 211 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering to Access Specific Information
You can filter OVOC pages to quickly access specific information. Filters let you exclude unwanted information so that only the specific information you need is displayed. An example of a filter is Time Range , available in the Network Topology, Alarms, Calls List and Users Experience pages.
Figure 6-5: Real Time | Time Range

Real Time. Pages by default display real time network information. Pages continuously refresh, presenting up-to-date network information � statistics|calls|history alarms collected over the last 3 hours (default).
Add Filter > Time Range. The page displays network information collected over a time range you specify, e.g., 10:17 - 1:17. The page is fixed. It does not keep updating and is not refreshable. See also the 'Pin all selected' feature described in the table in Filtering by 'Time Range' on the next page.
- 212 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering by 'Time Range'
You can filter the Network Topology page and other pages by 'Time Range'. The 'Time Range' filter allows you to display time range specific information on the page.
Figure 6-6: Time Range Filter

Use the following table as reference. Table 6-2: Time Range Filter

Filter Feature
Pin all selected

Description
Select this option (default) to 'preserve' the filter; the filter will remain displayed in every page whose tab you click. If you clear the option, the filter will only apply locally - to the page in which you apply the filter. The feature facilitates troubleshooting.

Back to real time

The link is enabled when you select a filter. Clicking the link removes the filter; the OVOC returns to real time.

Last 3 | 6 | Select one of these 'quick' filters in order to present only network data

- 213 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filter Feature
12 | 24 hours
Custom

Description
collected over the last 3 | 6 | 12 | 24 hours, to the exclusion of all other times.
You can customize dates and times by which to filter. Select Custom and then click the drop-down field below it.

Apply

In the calendar on the left, select from when to filter: Choose a month and a day and optionally enter a time � the hour and the minutes past the hour. In the calendar on the right, select until when to filter: Choose a month and day and optionally enter the time � the hour and the minutes past the hour. Click Apply.
Click to implement the filter. To remove the filter if necessary, click the Back to real time link � see above.

There is no limitation on the time you can define.
If you define a time range of up to (and including) six hours, the OVOC will calculate and display in the page a summation of all statistics calculated for all five-minute intervals in the range. The interval that is in process when you define the filter will not be included in the calculation. Only complete five-minute intervals will be included in the calculation.
If you define a time range of between six and 48 hours, the OVOC will calculate and display in the page a summation of all statistics calculated for all one-hour intervals in the range. The interval that is in process when you define the filter will not be included in the calculation. Only complete one-hour intervals will be included in the calculation.
If you define a time range of more than 48 hours, the OVOC will calculate and display in the page a summation of all statistics calculated for all one-day intervals in the range. The interval that is in process when you define the filter will not be included in the calculation. Only complete one-day intervals will be included in the calculation.

- 214 -

CHAPTER 6 Assessing Network Health
Filtering by 'Topology'
Filtering can be performed according to 'Topology'. Figure 6-7: Topology

OVOC | User's Manual

Table 6-3: Topology Filter

Filter Feature

Description

Pin all selected
Search

Select this option (default) in order to 'preserve' the filter; the filter will remain displayed in every screen whose tab you click. If you clear the option, the filter will only apply to the screen in which you apply the filter. The feature facilitates troubleshooting. After the filter is applied, the OVOC becomes non real time.
Enter a search string; all information is filtered out except for the information related specifically to the string you entered.
In every page in which there is a Topology filter, you can search according to IP address or serial number.

- 215 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filter Feature

Description
Enter the IP address of the entity to search for; the entity whose IP address you entered is displayed. Use the figure here as reference. Click the arrow adjacent to the entity to view in a pop-up window information about the entity and to decide if this entity is the one you are looking for. In the pop-up window, you can also choose to perform management actions from the row of action icons displayed lowermost.

Enter the Serial Number of the entity to search for; the entity whose SN you entered is displayed. Click the arrow adjacent to the entity to view information about the entity in a pop-up window and to decide if this entity is the one you are looking for. In the pop-up window, you can also choose to perform management actions from the row of action icons displayed lowermost.
Note that the option to search per IP address and Serial Number is available in all pages / windows in which there is a Topology tree. In the Alarms Forwarding Rules Details screen, for example, the Open Topology Tree button opens a window whose search field can be searched per IP address and SN.

- 216 -

CHAPTER 6 Assessing Network Health
Filter Feature

Description

OVOC | User's Manual

'Tenant'

Filters the page according to the tenant. At least one tenant is always defined � see Network Architecture on page 3 for an explanation of multitenancy architecture. Allows you to filter further, according to entities defined under the tenant.

- 217 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering the Device Floating License Page
The 'Floating License' filter enables you to filter the Floating License page (Network > Devices > Floating License). The feature improves network management experience in the page, especially when managing large networks with high numbers of devices and licenses.
Figure 6-8: Filters in the Device Floating License Page

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Select a few and then click INVERT; only those that weren't selected will then be selected Click NONE to clear all Click ALL to select all Click ALL, deselect a few and then invert the selection; the deselected will then be selected Etc. Use the following table as reference.
Table 6-4: Status Filters

Filter

Description

Floating License Status

OK (green)

Select to display entities whose Device Status, Config Status and Report Status are ok.

Error (red)

Select to display entities whose Device Status, Config Status and Report Status are errored.

Config Error (red)

Select to display entities whose Device Status, Config Status or Report Status

Unmanaged (grey)

Select to display entities that are unmanaged by OVOC

Unmonitored (grey)

Select to display entities that are unmonitored by OVOC

Device Status

Connected (green)

Select to display entities that are successfully connected to the Floating License OVOC service.

Rejected (red)

Select to display entities whose Device Floating License has been revoked by the Cloud Floating License service and as a result the device's CAC is reset to 0.

Not Connected (red)

Select to display entities that are unable to establish a connection with the Floating License OVOC service (CAC 0)

Not Applicable (grey)

Select to display entities that were loaded with the Floating License feature disabled on the SBC device.

Temporary Disconnected (red)

Select to display entities that are temporarily disconnected from the Floating License OVOC service due to problems with the HTTPS TCP connection.

- 219 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filter

Description

Unmonitored (grey)

Select to display entities that are currently unmonitored by the OVOC Floating License service.

Report Status

OK (green)

Select to display entities for whom a report was successfully sent from the device to the OVOC for the last reporting interval.

Over License (yellow)

Select to display entities that have exceeded license limits.

Failed (red)

Select to display entities for whom there was a reporting failure for the last reporting interval.

Failed & Over License (red)

Select to display entities that have exceeded license limits and for whom there was a reporting failure for the last reporting interval.

Not Registered (grey)

Select to display entities that are currently unregistered by the OVOC.

Unmonitored (grey)

Select to display entities that are currently unmonitored by the OVOC.

Config Status

Success (green) Select to display entities whose SNMP configuration is successfully updated.

Failure (red)

Select to display entities whose SNMP configuration has not been updated successfully. For example, the Floating License REST operator's user password or username has not been updated correctly.

Not Applicable (grey)

Select to display entities that were added to the OVOC but which are not yet managed.

Unmonitored (grey)

Select to display entities that are currently unmonitored by OVOC.

Managed

Yes (green)

Select to display entities managed by the Floating License service server.

No (red)

Select to display entities that are not managed by the Floating License service server.

- 220 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filter
Unmonitored (grey)

Description Select to display entities that are currently unmonitored by the OVOC.

- 221 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering by 'Status'
The 'Status' filter enables you to filter a page. The filter applies to the pages under the Network menu: Topology, Devices � Manage, Links and Endpoints � Status pages.
Figure 6-9: Alarm 'Status' Filter

- 222 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Use the following table as reference. Table 6-5: Status Filter

Filter

Description

Select to display entities whose status is clear (OK), color coded

green, for example, indicates a tenant whose status is 'OK' and

indicates a region whose status is 'OK'.

WARNING

Select to display entities whose status is warning, color coded orange, for example, indicates a tenant whose status is 'Warning' and indicates a region whose status is 'Warning'.

ERROR UNMONITORED

Select to display entities whose status is error, color coded red, for example, indicates a tenant whose status is Error and indicates a region whose status is Error.
Select to display entities whose status is unmonitored, color coded black, for example, indicates a tenant whose status is 'Unmonitored' and indicates a region whose status is 'Unmonitored'.

- 223 -

CHAPTER 6 Assessing Network Health
Filtering by 'More Filters'
You can filter a page by 'More Filters'. Figure 6-10: More Filters

OVOC | User's Manual

Use the following table as reference. Table 6-6: More Filters - Network Topology Page

Filter

Description

Managed by license pool
Device family type

From the drop-down list, select either Both, Managed or Not managed.
From the drop-down list, select the device's family type to display on the page: AudioCodes Devices, SmartTAP Devices, UMP Devices, CloudBond Devices, Skype Devices, Generic Devices, or Unknown Devices. Alternatively, enter a search string.

Device type

From the drop-down list, select the device type to display on the page, for example, Mediant 2000.

Link type

From the drop-down list, select IPGroup, Trunk Group, Phone Prefix, Control IP, Media IP, Media Realm or Remote Media Subnet to display on the page.

- 224 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering by Groups
The OVOC's Endpoints Groups page (Network > Endpoints > Groups) allows the operator to filter OVOC pages according to Endpoints Groups.
Figure 6-11: Add Filter > Groups > Endpoint Groups

From the drop-down in the Endpoint Groups pane, select an Endpoint Group according to which to filter. See also Adding an Endpoints Group on page 168 for more information about the page.
The OVOC's Topology Groups page (Network > Groups) allows the operator to filter OVOC pages according to Topology Groups.
- 225 -

CHAPTER 6 Assessing Network Health
Figure 6-12: Add Filter > Groups > Topology Groups

OVOC | User's Manual

From the drop-down in the Topology Groups pane, select a Topology Group according to which to filter. See also Adding a Topology Group on page 172 for more information about adding a Topology Group.

- 226 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Determining Network Health from Alarms
The Active Alarms page facilitates management of all alarms currently active in the IP telephony network. Management includes performing actions such as deleting, acknowledging and saving alarms to file, as well as monitoring active alarms in the network to determine network health.
Configuring Alarm Settings
For information on how to configure the way alarms and events are displayed in the Alarms pages, see Configuring Alarms Settings on page 95.
Monitoring Active Alarms to Determine Network Health
The Active Alarms page's Active Alarm Summary pane lets you effectively monitor all the active alarms of all severities in the IP telephony network.
To monitor the active alarms: 1. Open the Active Alarms page (Alarms > Active) and locate the Active Alarms Summary
pane on the right side of the page. Figure 6-13: Active Alarms Summary

Performing Management Actions on Active Alarms
The Active Alarms page lets you perform management actions on all alarms currently active in the network, including deleting, acknowledging, and saving alarms to file. To perform management actions on active alarms: 1. Open the Active Alarms page (Alarms > Active).
- 227 -

CHAPTER 6 Assessing Network Health
Figure 6-14: Alarms - Active

OVOC | User's Manual

2. Optionally filter the page by Topology (see Filtering by 'Topology' on page 215), Severity (see Filtering by 'Status' on page 222), Source Type (see Filtering by 'Severity' on page 230), or More Filters (see Filtering by 'More Filters' on page 234), and then select an alarm or multiple alarms and click Actions. Figure 6-15: Alarms - Actions
3. Select Acknowledge to acknowledge an alarm. Figure 6-16: Acknowledge Alarm Confirmation
4. Select the Save button to save alarms to file for future reference. To delete an alarm or multiple alarms: In the Active Alarms page, select the alarm or multiple alarms to delete, and click the
Delete button.
- 228 -

CHAPTER 6 Assessing Network Health
Figure 6-17: Delete Alarms Confirmation

OVOC | User's Manual

To refresh the page: In the Active Alarms page, select Refresh.
To enable audial alert on incoming alarms: From the Actions drop-down, select Enable Alarms Sound.
To disable audial alerts: From the Actions drop-down, select Disable Alarms Sound.
To stop automatic refresh: From the Actions drop-down, select Stop Automatic Refresh.

- 229 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering by 'Severity'
The 'Severity' filter applies to the pages under the Alarms menu: Active, Journal and History pages.
Figure 6-18: Alarm 'Severity' Filter

The 'Severity' filter lets you select one severity level more than one severity levels all severity levels (All) no severity levels (None)
- 230 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

The 'Severity' filter also lets you invert a selection (Invert). If you select Invert after filtering (for example) for
All, then all severity levels previously selected will be cleared.
None, then all severity levels previously cleared will be selected.
Critical, then the 'Critical' severity level previously selected will be cleared and all other levels will be selected.

- 231 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Use the following table as reference. Table 6-7: Severity Filter

Filter

Description

Critical Major Minor

Select to display entities whose alarm severity level is critical, color coded red.
Select to display entities whose alarm severity level is major, color coded orange.
Select to display entities whose alarm severity level is minor, color coded yellow.

Warning

Select to display entities whose alarm severity level is warning, color coded blue.

Indeterminate Clear

Select to display entities whose alarm severity level is indeterminate, color coded black.
Select to display entities whose alarm severity level is clear, color coded green.

- 232 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering by 'Source Type'
You can filter a page using the 'Source Type' filter. The filter applies to the Calls List page under the Calls menu and the Alarms pages. The filter lets you display calls according to the entity from which the calls reported to the OVOC.
Figure 6-19: 'Source Type' Filter

Use the following table as reference. Table 6-8: 'Source Type' Filter

Filter

Description

Show Devices

Displays only calls whose report was sent to the OVOC from devices.

Show Sites

Displays only calls whose SIP Publish report was sent by endpoints to the OVOC from sites.

- 233 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filter Show Links Show Endpoints

Description
Displays only calls transmitted through links.
Displays only calls whose SIP Publish report was sent to the OVOC from endpoints.

Filtering by 'More Filters' Figure 6-20: More Filters � Alarms Active Page

Use the following table as reference. Table 6-9: More Filters � Alarms Active Page

Filter

Description

Sources Enter the name of the entity from which the alarm originated.

Alarm Type

Select the 'Events' option for the page to display only alarms that are of type events.

- 234 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering by 'Type'
The 'Type' filter augments existing filtering capability in the Alarms � Active page; you can filter the page for 'Only Alarms' or 'Only Events'.
To filter for 'Type': 1. In the Active Alarms page, click Add Filter, choose More Filters and then from the 'Type'
drop-down, select All, Only Alarms or Only Events. Figure 6-21: Type Filter

2. View in the Active Alarms page, in the 'Name' column: Bell icons, if you filtered for 'Only Alarms' Flag icons, if you filtered for 'Only Events'
- 235 -

CHAPTER 6 Assessing Network Health
Figure 6-22: Type - Only Alarms - Bells in 'Name' Column

OVOC | User's Manual

- 236 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering by 'Alarm Names'
The 'Alarm Names' filter augments already existing filtering capability in the Active Alarms page; you can filter the page by alarm name.
To filter by 'Alarm Names': In the Active Alarms page, click Add Filter, choose More Filters and then from the 'Alarm
Names' drop-down, select the filter.

In the Alarms Forwarding Rule screen (Alarms > Forwarding > Add), click the tab Rule Conditions and then from the 'Alarm Names' drop-down, select the alarm.
Viewing Journal Alarms to Determine Operator Responsibility
The Journal Alarms page lets you view actions of operators performed historically in the OVOC up to the present. The page can help you determine if operator activity may have been responsible for an active alarm. You can then reference the History page to verify correlation (see Viewing History Alarms on page 240).
- 237 -

CHAPTER 6 Assessing Network Health
Figure 6-23: Journal Alarms

OVOC | User's Manual

The Journal Alarms page reflects all actions performed by network administrators in AudioCodes' Device Manager. Records of network administrator actions are sent from the Device Manager to the OVOC server to be displayed in the OVOC Journal Alarms page. See also AudioCodes' Device Manager Administrator's Manual.
Filtering the Alarms Journal by 'More Filters'
You can filter the Alarms Journal page by 'More Filters'. Figure 6-24: More Filters � Alarms Journal Page

Use the following table as reference.
- 238 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filter Sources
Operator

Table 6-10: More Filters � Alarms Journal Page
Description Enter the name of the entity from which the alarm originated. Enter the name of the operator according to whom to filter.

- 239 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Viewing History Alarms
The History page displays historical alarms. The page can help you verify that an operator's action was responsible for an active alarm.
To determine if an operator's action was responsible for an active alarm: 1. Open the History page (Alarms > History).
Figure 6-25: Alarms - History

2. Click Add Filter to filter the page according to Topology, Time Range, Severity or More Filters. For a full description of these filters, see Filtering to Access Specific Information on page 212.

- 240 -

CHAPTER 6 Assessing Network Health
Figure 6-26: Alarms Page Filters

OVOC | User's Manual

- 241 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering by 'Type'
The 'Type' filter augments existing filtering capability in the History Alarms page; you can filter the page for 'Only Alarms' or 'Only Events'.
To filter for 'Type': 1. In the Active Alarms page, click Add Filter, choose More Filters and then from the 'Type'
drop-down, select All, Only Alarms or Only Events. Figure 6-27: Type Filter

2. In the 'Name' column in the Alarms History page, you can view: Bell icons, if you filtered for 'Only Alarms' Flag icons, if you filtered for 'Only Events'
- 242 -

CHAPTER 6 Assessing Network Health
Figure 6-28: History Alarms - Type Filter

OVOC | User's Manual

- 243 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Filtering by 'Alarm Names'
The 'Alarm Names' filter augments already existing filtering capability in the History Alarms page; you can filter the page by alarm name.
To filter by 'Alarm Names': 1. In the Alarms History page, click Add Filter, choose More Filters and then from the 'Alarm
Names' drop-down, select the filter. Figure 6-29: 'Alarm Names' Filter

2. In the Alarms Forwarding Rule screen (Alarms > Forwarding > Add), click the tab Rule Conditions and then from the 'Alarm Names' drop-down, select the alarm.
Forwarding Alarms
The Forwarding page lets you add an alarm forwarding rule. The OVOC can forward alarms to multiple destinations in these formats: SNMP Notifications (SNMP 1 / SNMP 2) - see Forwarding Alarms whose Destination Type is
'SNMP' on page 252 External Mail / Internal Mail - see Forwarding Alarms whose Destination Type is 'Mail' on
page 255
- 244 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Syslog - see Forwarding Alarms whose Destination Type is 'Syslog' on page 257 Notification - see Forwarding Alarms whose Destination Type is 'Notification' on page 261
To configure alarm forwarding: 1. Open the Alarms Forwarding page (Alarms > Forwarding).
Figure 6-30: Alarms Forwarding Page

2. Click Add.

- 245 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Figure 6-31: Alarms Forwarding Rule Details � Topology Conditions

3. Configure the Topology Conditions using the following table as reference:
- 246 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Table 6-11: Alarms Forwarding � Topology Conditions

Parameter

Description

Rule Name

Define an intuitive name, to be displayed in the alarm summary screen.

Forward matching alarms/events or-
Prevent forwarding matching alarms/events

Allows or prevents forwarding alarms depending on the destination you select. If you select Prevent forwarding matching alarms/events and then select Minor Alarms from the 'Severities' drop-down under the Rule Conditions tab, then minor alarms are not forwarded.
See related parameters 'Internal Mail Server From Address' and 'Internal Mail Server Real Name' in Configuring Alarm Settings on page 227

Enable/Disable Rule

Enables or disables the rule if the parameters and conditions configured under this tab as well as under Rule Conditions and Destinations are met.
See related parameters 'Internal Mail Server From Address' and 'Internal Mail Server Real Name' in Configuring Alarm Settings on page 227

Rule Owner

From the drop-down, select System � all tenants; the rule will then apply to all tenants and to all regions/links/devices/sites under all tenants.
Here's what you'll then view next to 'Attachments': all Tenant/s, all Region/s, all Device/s, all Link/s, all Site/s If you select a specific tenant from the drop-down, the rule will apply by default to all entities under that specified tenant. Click Open Topology Tree and then click > to view the entities under that tenant and if you want, to change the default.

- 247 -

CHAPTER 6 Assessing Network Health
Parameter

Description

OVOC | User's Manual

Only the operator assigned to that tenant can view and change it. The All/None filters next to 'Attachments' allow you to quickly specify to which entities rule forwarding will apply, if not to all.
4. Click the Rule Conditions tab.

- 248 -

CHAPTER 6 Assessing Network Health
Figure 6-32: Alarms � Forwarding � Rule Details

OVOC | User's Manual

- 249 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

5. Configure the screen using the following table as reference. Table 6-12: Forwarding Alarms � Rule Details - Parameter Descriptions

Parameter

Description

Rule Name

Define an intuitive name, to be displayed in the alarm summary screen.

Forward matching alarms/events -or-
Prevent forwarding matching alarms/events

Allows or prevents forwarding alarms depending on the destination you select. If you select Prevent forwarding matching alarms/events and then select Minor Alarms from the 'Severities' drop-down under the Rule Conditions tab, then minor alarms are not forwarded.
See also related parameters 'Internal Mail Server From Address' and 'Internal Mail Server Real Name' in Configuring Alarm Settings on page 227

Enable/Disable Rule

Enables or disables the rule if the parameters and conditions configured under this tab as well as under Rule Conditions and Destinations are met.
See also related parameters 'Internal Mail Server From Address' and 'Internal Mail Server Real Name' in Configuring Alarm Settings on page 227

Alarm Origin

Select the origin from which alarms will be forwarded: Management QoE Devices Endpoints ARM VIP Endpoints Users

Event Origin

Select the origin from which events will be forwarded: Management QoE Devices Endpoints ARM VIP Endpoints Users

- 250 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Parameter Severities
Alarm Names

Description
From the 'Severities' drop-down, select the severity level of the alarms you want to receive: Warning Minor Major Critical Indeterminate Default: All Selected.
Allows forwarding alarms according to specific alarm names. For example, if you select Power Supply Failure then only this alarm will be forwarded. Default: All Selected. The search field lets you find an alarm according to name or origin.

Alarm Types Source

Allows forwarding alarms according to specific alarm types. For example, if you select communicationsAlarm then only this alarm type will be forwarded. Default: All Selected. The search field lets you find an alarm according to type.
Free text box that allows you to filter according to alarms' 'Source' field (identical to the 'Source' column displayed in the Alarms History page).

6. Click the Destination tab.

- 251 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Forwarding Alarms whose Destination Type is 'SNMP'
The SNMP forwarding option is typically used for integration of the OVOC with a Network Management System (NMS). For more information about forwarding SNMP notifications, see the OAM Integration Guide. After selecting the Destination tab, the screen whose destination type is SNMP v2 or SNMP v3 opens by default.
Figure 6-33: Alarms � Forwarding � Destination Type - SNMP v2

- 252 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Figure 6-34: Alarms � Forwarding � Destination Type - SNMP v3

Use the following table as reference for the 'Destination Type' parameter. Table 6-13: Forwarding Alarms � Destination

Parameter

Description

Rule Name

Define an intuitive name, to be displayed in the alarm summary screen.

Forward matching alarms/events or-

- 253 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Parameter

Description

Prevent forwarding matching alarms/events

See also related parameters 'Internal Mail Server From Address' and 'Internal Mail Server Real Name' in Configuring Alarms Settings on page 95

Enable/Disable Rule

Destination Type Determines the format in which the alarm or event will be forwarded. From the drop-down, select SNMP (default) SNMP v2 SNMP v3 MAIL SYSLOG

- 254 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Forwarding Alarms whose Destination Type is 'Mail'
To forward alarms whose destination is 'Mail': 1. In the Alarms Forwarding Rule Details screen, select MAIL from the 'Destination Type'
drop-down. Figure 6-35: Alarms Forwarding Rule Details � Destination � Mail

2. Select the Use Internal Mail Server option.
- 255 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

3. Configure the parameters using the following table as reference. Table 6-14: Forwarding Alarms - Destination � Mail

Parameter

Description

Use Internal Mail Server

If this option is selected, all the fields in this table following will be deactivated, except the 'To' field. If selected, it'll only be necessary to configure the internal mail server as the destination to which to forward alarms; it'll be unnecessary to configure a mail host. If the option is cleared, all the fields in the table following will be activated.
See also related parameters 'Internal Mail Server From Address' and 'Internal Mail Server Real Name' in Configuring Alarms Settings on page 95

Mail Host

Enter the Mail Host IP address or FQDN (e.g., smtp.office365.com).

Mail Host Username

Enter the mail host username.

Mail Host Password

Enter the mail host password.

From

Enter the e-mail address the recipient will see when the mail arrives. See also related parameters 'Internal Mail Server From Address' and 'Internal Mail Server Real Name' in Configuring Alarms Settings on page 95

Enter the list of email addresses (coma separated) to which to send mail.

If the option 'Use Internal Mail Server' is selected, 'To' will be the only

parameter activated; all others will be deactivated. In this case, configure

the internal mail server as the destination to which to forward alarms.

See also related parameters 'Internal Mail Server From Address' and

'Internal Mail Server Real Name' in Configuring Alarms Settings on page 95

4. Click OK; alarms are forwarded to specified email destinations in the following email format:

Title: New <Alarm/Event> <Alarm Name>, received from <Node Name> with Severity <Severity> Message body: Includes all fields that appear in the Alarm Item

- 256 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Forwarding Alarms whose Destination Type is 'Syslog'
Alarms can be forwarded to the Syslog destination type.
To forward alarms whose Destination Type is 'Syslog': 1. In the Alarms Forwarding Rule Details screen, select SYSLOG from the 'Destination Type'
drop-down. Figure 6-36: Destination Type 'Syslog'

- 257 -

CHAPTER 6 Assessing Network Health
2. Configure the parameters using the following table as reference.

OVOC | User's Manual

- 258 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Table 6-15: Forwarding Alarms - Destination � Syslog

Parameter Rule Name

Description
Define an intuitive name, to be displayed in the alarm summary screen.

Forward matching alarms/events or-
Prevent forwarding matching alarms/events

Allows or prevents forwarding alarms depending on the destination you select. If you select Prevent forwarding matching alarms/events and then select Minor Alarms from the 'Severities' drop-down under the Rule Conditions tab, then minor alarms are not forwarded.
See also related parameters 'Internal Mail Server From Address' and 'Internal Mail Server Real Name' in Configuring Alarms Settings on page 95

Enable/Disable Rule

Syslog Host IP Address
Syslog Host Port

Enter the IP address of the Syslog host. Enter the port of the Syslog host.

3. Click OK; alarms are forwarded to Syslog.
Syslog features a well-defined message format structure detailed in RFC 3164. The OVOC'S severity levels are adjusted to the severity levels of the Syslog protocol. The following table maps the two:

Critical

Alert

Major

Critical

Minor

Error

Warning

Indeterminate Informational

Clear

Notice

The message part of the Syslog protocol contain this structure:

- 259 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Title: <Alarm/Event> <Alarm Name>, received from <Node Name, Node IP> with Severity <Severity>. Description: <Source>, <Description>
If the alarm is forwarded from the source global IP address in an HA configuration, the device IP is the global IP address.

- 260 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Forwarding Alarms whose Destination Type is 'Notification'
Alarms can be forwarded to the 'Notification' destination type. After configuring this destination type, notifications will automatically pop up in the OVOC GUI when alarms are received.
To forward alarms whose Destination Type is 'Notification': 1. In the Alarms Forwarding Rule Details screen under the DESTINATION tab, select
NOTIFICATION from the 'Destination Type' drop-down. Figure 6-37: Destination Type 'Notification'

2. Configure the parameters using the table as reference.
- 261 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Table 6-16: Forwarding Alarms - Destination � Destination

Parameter Rule Name

Description
Define an intuitive name, to be displayed in the alarm summary screen.

Forward matching alarms/events or-
Prevent forwarding matching alarms/events

Allows or prevents forwarding alarms depending on the destination you select. If you select Prevent forwarding matching alarms/events and then select Minor Alarms from the 'Severities' drop-down under the Rule Conditions tab, then minor alarms are not forwarded.
See also related parameters 'Internal Mail Server From Address' and 'Internal Mail Server Real Name' in Configuring Alarms Settings on page 95

Enable/Disable Rule

Assigned Operators

Under 'Destination Details', configure the operator (or operators) to whom you want the alarm notifications to be forwarded. Note:
Operators whose security level is 'Admin' can assign notifications to any operator / all operators.
Operators whose security level is 'Operator' can assign notifications only to themselves.

3. Click OK; notifications will automatically pop up in the uppermost right corner in the GUIs of all assigned operators, when alarms are received.

- 262 -

CHAPTER 6 Assessing Network Health
Figure 6-38: Notifications Pop-up

OVOC | User's Manual

To configure the timeout of notification pop- ups, see Configuring Operator Authentication Locally, in the OVOC on page 50 and refer to the parameter 'Notifications display time (sec)'. The default is 3 seconds. Configuring the parameter to 0 disables the feature.
To view the notifications history: 1. Click the bell icon in the uppermost right corner of the OVOC GUI; the icon indicates the
number of notifications that have not yet been viewed; its color indicates highest alarm severity level.
2. View the alarm notifications history.
- 263 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

3. In the list, you can delete a notification, clear all notifications or click a notification to open the Alarms History page displaying that alarm.
4. Scroll down to view earlier notifications. Most recent notifications are listed first. Every notification indicates how long ago it was listed, e.g., 4 minutes ago.

- 264 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Viewing the New Rules in the Alarms Forwarding Page The new rules are displayed in the Alarms Forwarding page (Alarms > Forwarding):
Figure 6-39: New Rules in the Alarms Forwarding Page

Assessing Network Health in the Statistics Pages
The OVOC graphically and textually displays network-wide statistics on call performance (% and # of calls evaluated as successful or failed), voice quality (% and # of calls whose voice quality scored good, fair or poor), etc. Statistics on calls over devices, links, sites and endpoints are displayed. The pages help operators assess and optimize network health.
Viewing Statistics on Calls over Devices
The Devices tab under the Statistics menu allows you to make a quick assessment of the health of the network from the perspective of calls over devices.
To view statistics on calls over devices: Open the Devices Statistics page (Statistics > Devices).
Figure 6-40: Devices Statistics

You can optionally filter the page by Time Range (see Filtering to Access Specific Information on page 212) and Topology (see Filtering by 'Topology' on page 215).
- 265 -

CHAPTER 6 Assessing Network Health
The page displays (from L-R): Metrics (see Metrics Bar Charts on the next page) Bar Charts (see Metrics Bar Charts on the next page) Statistics Summary (see Statistics Summary on page 269)

OVOC | User's Manual

- 266 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Metrics Bar Charts
Three metrics / bar charts are displayed by default:
Successful / Failed Calls chart shows the % and # of calls whose performance was evaluated as successful or failed, distributed over time (see Filtering to Access Specific Information on page 212 for information about the time range filter). The chart lets you assess calls performance at a glance. The chart shows when successful calls peaked compared to when failed calls peaked. You can compare this to other charts to identify correlations.
Max Concurrent Calls chart shows the maximum concurrent calls distributed over time. The chart shows when the maximum concurrent calls peaked compared to when they dipped. You can compare this to other charts to identify correlation. Max Concurrent Calls is the maximum number of calls opened at the same time in the server. Note that if you click a bar to open the Calls List page, the number of calls shown in the Calls List page might be different to the number shown in the graph; only calls that end within the time range are displayed in the Calls List page; if a call exceeds the time range, it won't be displayed in the Calls List page.
Calls Quality chart shows the distribution of voice quality (% and # of calls whose voice quality scored Good Fair or Poor) over time. Gray indicates 'Unknown' voice quality. Point the cursor over a color-coded bar segment in any time period to view this pop-up. The date and time indicates when the period ended.
Figure 6-41: Calls Quality Bar Chart

Compare charts. If, for example, you identify a correlation over time between 'Poor' voice quality and Jitter, then Jitter is the reason for the poor voice quality. Other metrics / bar charts that you can select and display: Utilization Distribution chart shows distribution of the media packets network utilization
over time. A glance shows when a high rate (in Kbps) was received or transmitted (Rx/Tx rate in Kbps). The chart shows when a network is congested or uncongested, i.e., when voice quality scores may be lower. To view information on a time period, position the
- 267 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

cursor over the bar representing the time period; the pop-up shows the date and time on which the period ended and the Rx / Tx rate in Kbps and the kilobits consumed per second during the time period:
Figure 6-42: Utilization Distribution Bar Chart

Average Call Duration (ACD) chart shows distribution of ACD in the network over time. Point your mouse over a bar to determine average call duration in that time interval.
MOS chart. Point your mouse over a bar to determine the average MOS scored in that time interval.
Packet Loss chart. Point your mouse over the time axis to determine the average packet loss, as a percentage of the total number of packets sent, measured at that time.
Jitter chart. Point your mouse over the time axis to determine the average jitter measured at that time, in milliseconds.
Delay chart. Point your mouse over a bar to determine the average delay measured in that time interval, in milliseconds.
Echo chart. Point your mouse over the time axis to determine the precise average echo measured at that time, in DB.
Values displayed in the charts are reported by devices for representation in the OVOC. Sometimes when reported values are higher than expected, for example, packet loss might be higher than 100%, please contact AudioCodes Support for clarification.
- 268 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Statistics Summary
On the right side of the Devices Statistics page, you can view the Statistics Summary pane. Figure 6-43: Statistics Summary

The pane displays the total # of calls made over devices in the time period the maximum concurrent calls measured over devices in the time period the values of MOS, Jitter, Delay and Packet Loss quality metrics measured over devices in
the time period The pane also displays two metrics as pie charts: Successful/Failed Calls pie chart. Point your mouse over a segment of the color-coded pie
chart to determine the # and % of calls that were evaluated as Successful or Failed in that time interval. Quality Distribution pie chart. Point your mouse over a segment of the color-coded pie chart to determine the # and % of calls whose voice quality scored Good Fair or Poor in that time interval.
- 269 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Viewing Statistics on Streams over Links
The Links tab under the Statistics menu allows you to make a quick assessment of the health of the network from the perspective of streams over links. Information in the page is presented identically to information in the Devices Statistics page, described in Viewing Statistics on Calls over Devices on page 265). You can optionally filter the page by Time Range (see Filtering to Access Specific Information on page 212) and Topology (see Filtering by 'Topology' on page 215).
Viewing Statistics on Calls over Sites
The Sites tab under the Statistics menu allows you to make a quick assessment of the health of the network from the perspective of calls over sites. Information in the page is presented identically to information in the Devices Statistics page, described in Viewing Statistics on Calls over Devices on page 265. You can optionally filter the page to display only the information that you require. You can filter by Time Range (see Filtering to Access Specific Information on page 212) and Topology (see Filtering by 'Topology' on page 215).
Viewing Statistics on Calls over Endpoints
The Endpoints tab under the Statistics menu allows you to make a quick assessment of the health of the network from the perspective of calls over endpoints. Information in the page is presented identically to information in the Devices Statistics page, described in Viewing Statistics on Calls over Devices on page 265). You can optionally filter the page to display only the information that you require. You can filter by Time Range (see Filtering to Access Specific Information on page 212) and Topology (see Filtering by 'Topology' on page 215).
Monitoring Performance
As your network's central management application, the OVOC features Performance Monitoring (PM) capability to help operators make sure the Quality of Service (QoS) purchased by the ITSP | enterprise is delivered to users after it's provisioned. PM metrics are collected from VoIP network devices. The feature allows operators to monitor historical data. Historical data allows for long-term network analysis and planning.
For a comprehensive list of PM parameters supported on each device, see the Performance Monitoring Guide.
Two OVOC pages (Perf Monitoring | PM Profiles) facilitate efficient and flexible PM setup - see flows below this note. For information on how to use the Perf Monitoring page, see Adding a PM Template on the next page. For information on how to use the PM Profiles page, see Adding a PM Profile on page 276.

- 270 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

To set up PM using the default PM template:
1. Open the Perf Monitoring page (System > Configuration > Templates > Perf Monitoring) and make sure it displays a default Performance Monitoring (PM) template provided by AudioCodes.
2. Add a new tenant, open the PM Profiles page (Statistics > PM Profiles) and make sure the default PM template provided by AudioCodes is duplicated and displayed as a PM profile. This profile is automatically attached to every newly added tenant. If other profiles are added, all profiles listed in the page will automatically be attached to every newly added tenant.
To set up PM using a configured PM template:
1. Open the Perf Monitoring page (System > Configuration > Templates > Perf Monitoring), add a PM template and configure it as default. Optionally, delete the previous default (the AudioCodes-provided default PM template will be the first default you'll have). The default PM template, be it the AudioCodes-provided default or a newly configured default, cannot be deleted.
2. Add a new tenant, open the PM Profiles page (Statistics > PM Profiles) and make sure the newly configured default template is duplicated and displayed as a PM profile; this profile will automatically be attached to every newly added tenant.
To set up PM per specific device:
Open the PM Profiles page (Statistics > PM Profiles), add a new PM profile and in its configuration manually attach it to a specific device.
Adding a PM Template
The OVOC includes an AudioCodes-provided default Performance Monitoring (PM) template. Parameters (metrics) selected in the default are those most frequently requested by AudioCodes enterprise and ITSP customers. The OVOC displays the default PM template in the Perf Monitoring page (System > Configuration > Templates > Perf Monitoring).
Figure 6-44: Perf Monitoring

- 271 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

The default PM template cannot be deleted. The Delete button is disabled when the default is selected. When selected, the template's details are displayed in the right pane; approximately 40 parameters (metrics) are included in the default.
If you add a PM template and configure the newly added template to be the default, the previous will lose its default configuration and you will be able to delete it. Rule: There will always be one default PM template in the Perf Monitoring page, be it the AudioCodes-provided default or a newly added PM template configured as the default.
The default PM template is duplicated as a PM profile in the PM Profiles page (Statistics > PM Profiles) shown in the figure following. Every time you add a new tenant, the default PM template together with all other templates (if you configured other templates) are automatically duplicated as profiles in the PM Profiles page, and allocated to that tenant.
Figure 6-45: PM Profiles

To add a PM template:
1. Open the Perf Monitoring page (System > Configuration > Templates > Perf Monitoring) and click Add.

- 272 -

CHAPTER 6 Assessing Network Health
Figure 6-46: Add PM Template

OVOC | User's Manual

2. Configure the PM template using the table below as reference. Table 6-17: PM Template Parameter Descriptions

Parameter

Description

Name

Enter a name for the template. Choose an intuitive name to facilitate an operator-friendly network management experience later.

Description

Enter a free-text description of the template to help facilitate an operator-friendly network management experience. Example: "This template is for all tenants of Meteor Bank". This can help orient operators when managing complex networks.

Default

The PM Templates page always displays one default PM template. If you select this 'Default' option, the earlier default PM template will lose its default configuration and you'll be able to delete it from the Perf Monitoring page. There will always be a default PM template in the page, be it the AudioCodes-provided default PM template or a newly added operator-configured default PM template. The PM template configured as the default cannot be

- 273 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Parameter
Create Data File
Send Event per Interval Parameters (0)

Description
deleted. Every time you add a tenant, all PM templates listed in the Perf Monitoring page are duplicated as PM profiles in the PM Profiles page (Statistics > PM Monitoring) and all PM profiles listed in the PM Profiles page are automatically allocated to that newly added tenant.
OVOC's server polls device parameters every 15 minutes and saves the resulting PM metrics in the server's database. Select this option to save the PM metrics (data) as a file in operatorfriendly JSON format. All PM information resulting from the poll is conveniently located in this file. An event is sent when the file is created (see the next parameter).
Select this option for an event to be sent every 15 minutes, indicating that all parameters per device were successfully polled. If 10 devices were selected for polling, the event is sent indicating that all parameters on all 10 devices were successfully polled.
Indicates how many PM metrics (check boxes) you selected to be polled. (0) indicates that none have been selected (yet). When you select parameters (metrics), the indication changes accordingly. The following tabs are displayed under 'Parameters':
System (0) - Click the tab to select or clear the check box DSP Utilization gauge.
SBC (0) - Click the tab to select or clear check boxes under 'Call Stats', e.g., the counter Tel to IP Call Attempts and the gauge Tel to IP Call Duration, and / or the check boxes under 'Other Stats', e.g., Media Legs.
Gateway (0) - Click the tab to select or clear check boxes under 'Call Stats', e.g., the G711 Active Calls gauge and the Attempted Calls counter, and / or the check boxes under 'Other Stats', e.g., Media Legs.
Network (0) - Click the tab to select or clear check boxes under 'Global', for example, the gauge Net Util KBytes Tx and the counter Incoming Discarded Pkts.
IP Group (0) - Click the tab to select or clear the check boxes under 'Call Stats', e.g., the gauge Invite Dialogs and / or the check boxes under 'Other Stats', e.g., the counter Subscribe Dialogs.
Trunk Group (0) - Click the tab to select or clear the check box under 'Call Stats', i.e., the gauge Call Duration, the check box

- 274 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Parameter

Description
under 'Call Failures', i.e., the counter No Resources Calls, and / or the check boxes under 'Trunk Stats', e.g., the counter All Trunks Busy Time.
SRD (0) - Click the tab to select or clear the check boxes under 'Call Stats', e.g., the gauge ASR.
See the SNMP Reference Guide for detailed information about each PM parameter.
For SBC devices, you can also configure Performance Monitoring parameters for counting the number of call failures for specific SIP responses. These are configured in the SBC device's Web interface's User Defined Failure PM table. For more information, see the SBC device's User's Manual.

Metric Name

Select this option to select all check boxes (PM metrics) under all tabs in the Call Stats pane. To include most but not all PM metrics in your template, select 'Name' (all check boxes will be selected) and then clear those to exclude.

Min Max Avg Value [Minimum value, Maximum value and Average value (Avg)],

In the Call Stats pane shown in the next figure, parameters 'Tel-IP Call Attempts' and 'IP-Tel Call Attempts' are counters. A single value (Val) is displayed after they're measured, i.e., # of counted call attempts.

In the figure, parameters 'Tel-IP Call Duration' and 'IP-Tel Call Duration' are gauges. If all three adjacent check boxes are selected, the # of calls of minimum duration, the # of calls of maximum duration and the # of average-length calls will be monitored.
Thresholds are configured at the SBC level in the device's Web interface, in the Open Device page. See the device's User's Manual for more information. Thresholds can alternatively be configured in an ini file and loaded to the device in the OVOC's Software Manager. When a PM parameter value in the device crosses the configured threshold, the device generates an event that is sent to the OVOC.
3. Click OK (or Close to exit without saving the template).
- 275 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

In the PM Profiles page, operators can manually attach a PM profile to a specific device within a tenant. For more information, see Adding a PM Profile below
To view PM templates: Open the PM Templates page (System > Configuration > Templates > Perf Monitoring).
Figure 6-47: Performance Monitoring Templates

To view the details of a specific PM template: Select the row of the template whose details you want to view, as shown in the preceding
figure; the details are displayed in the right pane.
To edit a PM template: 1. In the Perf Monitoring page (System > Configuration > Templates > Perf Monitoring),
select the template to edit and click Edit. 2. In the PM Template page that opens (identical to the page displayed when adding a
template), edit the template using the preceding table as reference.
To delete a PM template: In the Perf Monitoring page (System > Configuration > Templates > Perf Monitoring),
select the template to delete and click Delete.
Adding a PM Profile
PM templates are duplicated as PM profiles in the PM Profiles page (Statistics > PM Profiles). Every time you add a new tenant, the default PM template together with all other templates (if you configured other templates) are automatically duplicated as profiles in the PM Profiles page and allocated to that newly added tenant.
You can manually add a PM profile in the PM Profiles page and optionally configure it to be the default. If you configure it as the default, the previous default will lose its default configuration and you'll be able to delete it from the page, so there will always be one default PM profile in the PM Profiles page.
To add a PM profile: 1. Open the PM Profiles page (Statistics > PM Profiles).
- 276 -

CHAPTER 6 Assessing Network Health
Figure 6-48: PM Profiles

2. Click Add.

Figure 6-49: PM Profile

OVOC | User's Manual

3. Configure a profile using the following table as reference. Table 6-18: PM Profile Parameter Descriptions

Parameter

Description

Name

Enter a name for the profile. Choose an intuitive name to facilitate an operator-friendly network management experience in the future.

Description

Enter a free-text description for the profile to help facilitate an operator-friendly network management experience. Example: This profile is for all tenants in the U.K. The description can help orient operators in complex networks.

Default

The PM Profiles page always displays one default PM profile. If you select this 'Default' option, the previously configured default PM profile - be it the AudioCodes-provided default or a new operator-configured default - will lose its default configuration and

- 277 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Parameter
Create Data File
Send Event per Interval Tenant Attachments Parameters (0)

Description
you'll be able to delete it from the page. Every time you add a new tenant, the default profile together with all other profiles (if you configured other profiles) are automatically allocated to that tenant.
OVOC's server polls device parameters every 15 minutes and saves the resulting PM metrics in the server's database. Select the option to save the PM metrics (data) as a file in operator-friendly JSON format. All PM information resulting from the poll is conveniently located in this file. An event is sent when the file is created (see the next parameter).
Select this option for an event to be sent every 15 minutes, indicating that all parameters per device were successfully polled. If 10 devices were selected for polling, the event is sent indicating that all parameters on all 10 devices were successfully polled.
Select from the drop-down list the tenant to allocate this PM profile to.
The Devices link gives operators the option to manually select a specific device to which to attach this PM profile.
Indicates how many PM metrics (check boxes) you selected to be polled. (0) indicates that none have been selected (yet). When you select parameters (metrics), the indication changes accordingly. The following parameter categories are displayed:
System (0) - Click the tab to select or clear the check box DSP Utilization gauge.
SBC (0) - Click the tab to select or clear check boxes under 'Call Stats', e.g., the counter Tel to IP Call Attempts and the gauge Tel to IP Call Duration, and / or the check boxes under 'Other Stats', e.g., Media Legs.
Gateway (0) - Click the tab to select or clear check boxes under 'Call Stats', e.g., the G711 Active Calls gauge and the Attempted Calls counter, and / or the check boxes under 'Other Stats', e.g., Media Legs.
Network (0) - Click the tab to select or clear check boxes under 'Global', for example, the gauge Net Util KBytes Tx and the counter Incoming Discarded Pkts.
IP Group (0) - Click the tab to select or clear the check boxes

- 278 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Parameter

Description
under 'Call Stats', e.g., the gauge Invite Dialogs and / or the check boxes under 'Other Stats', e.g., the counter Subscribe Dialogs.
Trunk Group (0) - Click the tab to select or clear the check box under 'Call Stats', i.e., the gauge Call Duration, the check box under 'Call Failures', i.e., the counter No Resources Calls, and / or the check boxes under 'Trunk Stats', e.g., the counter All Trunks Busy Time.
SRD (0) - Click the tab to select or clear the check boxes under 'Call Stats', e.g., the gauge ASR.
Note you can configure the OVOC to sample by either:
SW 7.2 and below (i.e., via the SNMP API; applies to performance parameters of devices whose software version is 7.2 and earlier) -OR-
SW 7.4 and above (i.e., via REST parameters; applies to performance parameters of devices whose software version is 7.4 and later) -OR-
All (SW 7.2 and belowand SW 7.4 and above) (default)
To configure this, click the 'Parameters (0)' field drop-down and select:

Metric Name Min Max Av Value

Select this option to select all check boxes (PM metrics) under all tabs in the Call Stats pane. To include most but not all PM metrics in your profile, select 'Name' (all check boxes will be selected) and then clear those to exclude.
In the Call Stats pane shown in the figure below, parameters 'TelIP Call Attempts' and 'IP-Tel Call Attempts' are counters. A single value (Val) is displayed after they're measured, i.e., the # of counted call attempts.

- 279 -

CHAPTER 6 Assessing Network Health
Parameter

Description

OVOC | User's Manual

Filter

For example, after selecting tab 'IP Group' and then selecting By Name, enter a regular expression in the 'Rule' field that is displayed, e.g., ^B; all IP groups whose names begin with B will be polled. The By Index filter enables you to filter specific indexes in the group to be polled; if you enter 9 (for example) in the 'Rule' field, only row 9 in the IP groups table will be polled (out of a maximum of 5000 indexes supported). This feature allows operators more flexibility when polling for PM.
Thresholds are configured at the SBC level in the device's Web interface, in the Open Device page. See the device's User's Manual for more information. Thresholds can alternatively be configured in an ini file and loaded to the device in the OVOC's Software Manager. When a PM parameter value in the device crosses the configured threshold, the device generates an event that is sent to the OVOC.
Click OK (or Close to exit without saving the profile).
To view PM profiles: 1. Open the PM Profiles page (Statistics > PM Profiles).
- 280 -

CHAPTER 6 Assessing Network Health
Figure 6-50: PM Profiles

OVOC | User's Manual

2. View the new profile displayed. In the figure, you can see that the new profile 'MeteorBank' was configured as the default profile, replacing the provided default profile 'Factory PM Profile'.
To edit a PM profile: 1. In the PM Profiles page (Statistics > PM Profiles) select the profile to edit and click Edit. 2. Use the preceding table as reference when editing.
Starting and Stopping PM Polling
The OVOC allows operators to start or stop polling a device (or multiple devices) for Performance Monitoring metrics, in order to decrease the impact PM may have on device resources and to optimize bandwidth consumption.
To start | stop PM polling: 1. Open the Network Topology page (Network > Topology) or the Device Management page
(Network > Devices > Manage). 2. Select an entity or multiple entities to poll and then from the 'Actions' drop-down menu,
select the Start Polling action under the Performance Monitor sub-menu. Figure 6-51: Start Polling

If a device does not support PM, the Performance Monitor sub-menu in the 'Actions' drop-down menu will not be displayed. It will only be displayed if the selected device or devices support PM.
3. After at least 15 minutes (the default polling interval), stop the polling.
- 281 -

CHAPTER 6 Assessing Network Health
Figure 6-52: Stop Polling

OVOC | User's Manual

4. View the results of the poll. See Viewing PM Data Resulting from Polling below
Viewing PM Data Resulting from Polling
After polling a device (see Starting and Stopping PM Polling on the previous page), operators can view PM data resulting from polling in: the OVOC, in a device's dynamic tab (see below) a data file that's created when 'Create Data File' is selected in the PM Profile (see below) the OVOC, under Statistics > Devices (see below)
To view PM data in a device's dynamic tab: 1. Open the Device Management page (Network > Devices > Manage), select the device
whose PM data you want to view, and then click the Show button. 2. In the device's dynamic tab's Summary page, click the Statistics tab.
Figure 6-53: Device Dynamic tab - Statistics

[Refer to the figure] Device Name (HQ SBC) [left side of page] ADD FILTER
- 282 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Time Range; click to select a different one; the default is the last 24 hours, 00:00 to 23:59
Metrics (parameters); click to select fewer, more or different metrics; defaults are taken from this device's PM profile. Note that if REST is indicated in a category name, the OVOC samples the parameters under it using REST (applies to devices whose version is 7.4 and later). If a category name does not indicate REST, the OVOC samples the parameters under it using SNMP (applies to devices whose version is prior to 7.4).
Daily Summary - METRIC NAME [middle of page]:
the search field 'Filter by parameter' can be used to display (for example) only 'Tel to IP' metrics; all other metrics will be excluded from the list of metric values displayed:
Figure 6-54: Filter by parameter

a summary of metric values measured over the Time Range; the default is 24 hours, from 00:00 to 23:59; the list is structured per entity
Multiple metrics can be selected using the Ctrl key on the keyboard. Operators can select multiple metrics for tabular and graphical comparisons of the metrics.
Details [right side of page]: after a metric is selected in the Daily Summary list, a table and a bar chart display the distribution details of that metric's values over each 15 minute interval in the Time Range (the default Time Range is 24 hours, from 00:00 to 23:59) pointing the cursor over a bar in the chart opens a tool tip summarizing that bar; the tool tip in the figure indicates that the maximum incoming calls per second (CAPS) was measured on IP Group#1 (Lync) in the interval beginning 10:00 on March 20, 2019 to be 2
- 283 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

Status bar (lowermost in page):
displays the name of the PM profile assigned to the device, the Status of the last polling interval (Successful), the date and time at which the device was last polled, and the number of metrics (parameters) polled in the last interval
To view PM data in a data file: Make sure the 'Create Data File' option in the PM Profile is selected. The OVOC's server
polls device parameters every 15 minutes and saves the resulting PM metrics in the server's database. If this option is selected, the PM metrics (data) are saved as a file in operator-friendly XML format. All PM information resulting from the poll will conveniently be located in this file. An event is sent when the file is created.
To access the data file:
1. In your browser, enter URL http://172.17.140.84/nbif and in the prompt, enter user name nbif and password pass_1234.

- 284 -

CHAPTER 6 Assessing Network Health
Figure 6-55: NBIF Index

OVOC | User's Manual

2. In the NBIF index, click the entry pmFiles. Figure 6-56: NBIF Index - pmFiles
File-naming convention:
- 285 -

CHAPTER 6 Assessing Network Health
File Name Format: DeviceName_NodeId_TimeInterval.xml Time Interval Format: yyyy-MM-dd_TimeZone_HHmm Example: M4K1_123456_2018-04-16_IST_1200.xml 3. Open the file of the period whose PM metrics you want to view.
Figure 6-57: Data File Displayed in XML Editor

OVOC | User's Manual

XML file format:
- 286 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

First-Level Info

Second-Level Info Third-Level Info Fourth-Level Info

Basic Device Info

Tenant Name

Region Name

Device Name

Device IP Address

Serial Number (x2 if HA)

Product Type

Software Version

Time Period

From Time

To Time

Profile Data

Profile ID

Profile Name

Dictionary ID

Polled Data:

Topics

Structured Polled Data

Parameter Name

Index:Name:Value

To view aggregated PM metrics from the OVOC's Statistics page:
Explanation of aggregated PM metrics: After selecting an aggregated PM metric, the OVOC aggregates it over all devices and device objects. For example, after selecting aggregated PM metric X of type 'MIN' measured per IP group over three devices, one graph is displayed; for each timestamp, the OVOC calculates the metric's minimum value over all IP groups over the three selected devices. The metric types are: MIN � the minimum value measured MAX � the maximum value measured AVG � the average value measured VALUE � summation of values measured
Explanation of standalone PM metrics: Each standalone PM metric is measured and displayed per specific entity per specific device. No function is applied.

1. Open the Statistics page and from the Devices drop-down, select Aggregated PMs.

- 287 -

CHAPTER 6 Assessing Network Health
Figure 6-58: Selecting 'Aggregated PMs'

OVOC | User's Manual

2. In the Aggregated PMs page that opens, you're prompted 'Missing Topology and Metrics Filter'. Click Add Filter.
a. Change the 'Time Range' or leave it unchanged at the default (the preceding 24 hours, i.e., 00:00 to 23:59).
b. Click Topology and either select a tenant or multiple tenants, and then click Apply.
c. Click Metrics and select the metrics (parameters) you want to poll. They're displayed like in the PM Profile. Use the information in Adding a PM Profile on page 276 as reference.
3. View the aggregated PMs then displayed.
Figure 6-59: Aggregated PMs

CHAPTER 6 Assessing Network Health
All (SW 7.2 and below and SW 7.4 and above)

OVOC | User's Manual

Bar charts (middle of page): each chart displays a metric (parameter); scroll down to view all aggregated results are displayed in bars if there are no aggregated results found or if the topmost metric value is 0, no bars are displayed pointing the cursor over a bar displays a tool tip showing the time interval and the metric value the tool tip in the preceding figure indicates that on this SBC, the maximum aggregated incoming calls per second (CAPS) measured between March 1, 2019 at 00:00 and March 30, 2019 at 23:59, was 6
Statistics Summary (right side of page) 'Entities Summary' displays the entity type | types polled and how many of each type was polled Top Most Metric Values indicates the interval in which the highest value was measured for a metric, for example, on 06-Mar-2019 the metric 'IN CAPS (Max)', i.e., the maximum aggregated incoming calls per second (CAPS), was measured to be 6
To view standalone PMs from the OVOC's Statistics page:
Explanation of standalone PM metrics: Each standalone PM metric is measured and displayed per specific entity per specific device. No function is applied.
Explanation of aggregated PM metrics: After selecting an aggregated PM metric, the OVOC aggregates it over all devices and device objects. For example, after selecting aggregated PM metric X of type 'MIN' measured per IP group over three devices, one graph is displayed; for each timestamp, the OVOC calculates the metric's minimum value over all IP groups over the three selected devices. The metric types are: MIN � the minimum value measured MAX � the maximum value measured AVG � the average value measured VALUE � summation of values measured
- 289 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

1. Open the Statistics page and from the Devices drop-down, select Standalone PMs. Figure 6-60: Selecting 'Standalone PMs'

2. In the Standalone PMs page that opens, you're prompted 'Missing Topology and Metrics Filter'. Click Add Filter.
a. Change the 'Time Range' or leave it unchanged at the default (the preceding 24 hours, i.e., 00:00 to 23:59). Click Apply.
b. Click Topology and select a tenant or multiple tenants and / or a device under a tenant or multiple devices, and then click Apply.
c. Click Metrics and select the standalone PM metrics (parameters) you want to poll. They're displayed in a similar way to the way they're displayed in the PM Profile but for example with the standalone PM metric 'Invite Dialogs' shown in the next figure, Min, Max or Av can be selected; you cannot select all three or two, as you can with aggregated PM metrics.
Figure 6-61: Standalone PMs

If REST is indicated in a category name as shown in the preceding figure, the OVOC samples the parameters under it using REST (applies to devices whose version is 7.4 and later). If a category name does not indicate REST, the OVOC samples the parameters under it using SNMP (applies to devices whose version is prior to 7.4).
- 290 -

CHAPTER 6 Assessing Network Health

OVOC | User's Manual

d. In the 'Entitles' drop-down, select if necessary (and if available) the specific IP Group (for example) to poll. In this case, select its index. You can then select another. Optionally, select All.
3. View the standalone PMs metrics then displayed.
Figure 6-62: Standalone PMs

[Refer to the figure] Add Filter (left side of page):
displays the Time Range; click to select a different time range if necessary displays the Topology; click to add, remove or change tenants displays the metrics (parameters); click to select fewer, more or different metrics Bar charts (middle of page): each chart displays a metric (parameter); scroll down to view all results are displayed in bars; if there are no results found or if the topmost metric
value is 0, no bars are displayed pointing the cursor over a bar displays a tool tip showing the time interval and the
standalone PM metric's value Statistics Summary (right side of page)
'Entities Summary' displays the entity type | types polled and how many of each type was polled
Top Most Metric Values indicates the interval in which the highest value was measured for a metric

- 291 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

7 Managing your Network
The OVOC enables ITSPs and enterprises to independently manage their telephony networks.
Performing Management Actions
The OVOC lets operators perform multiple network management actions in the network.
To perform a management action: 1. Open the Network page under the Devices tab for example. 2. Select a device or a link on which to perform an action; the Actions button, Edit button,
Show button and Delete button are activated. Figure 7-1: Actions | Edit | Show | Delete

3. Click the Actions button and select an action from the drop-down sub-menus.
The sub-menus and the items under them are dynamic. They change according to the device selected and its status.
Maintenance Update Firmware (see Updating Firmware on the next page) Update Firmware on Multiple Devices (see Updating Firmware on Multiple Devices on page 295) Reset (see Resetting a Device on page 298) Lock or Unlock (see Locking or Unlocking a Device on page 299) Populate Links (see Populating Links on page 300) Move (see Moving a Device on page 301)
Configuration
- 292 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

Backup (see Backing Up on page 302) Restore Last Backup (restore a device's configuration) (see Restoring the Last
Backup on page 303) Restore Default Configuration (see Setting Configuration Factory Defaults on
page 304) Save Configuration to Flash (see Saving a Device's Configuration File to Flash
Memory on page 304) Save Current Configuration to File (see Saving a Device's Configuration File to the
PC on page 305) Performance Monitor
Start Polling (see Starting and Stopping PM Polling on page 281) Change Profile (see Changing Profile on page 306) High Availability Reset Redundant (see Resetting Redundant on page 305) Switchover (see Performing Switchover on page 306) 4. Use also the following dedicated buttons to perform management actions: Show device information (see Showing Device Information on page 308) Show link information (see Showing Link Information on page 310) Show user information (see Showing User Information on page 311) Edit a device (see Editing a Device on page 313) Delete a device (see Deleting a Device on page 313)
Updating Firmware
The OVOC lets you update a device's .cmp firmware version file. After loading the .cmp file to the device, you can also load an ini file and Auxiliary files (e.g., CPT file).
To update a device's firmware: 1. In the Network Topology page, position your cursor over the device. 2. Click More Actions and then the Update Firmware icon.

- 293 -

CHAPTER 7 Managing your Network
Figure 7-2: Update Firmware

OVOC | User's Manual

3. Select the firmware file you require and click OK.
- 294 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

Updating Firmware on Multiple Devices
The OVOC lets you upgrade the .cmp firmware version file on multiple devices. After loading the .cmp file to the devices, you can also load an ini file and Auxiliary files (e.g., CPT file).
To update firmware on multiple devices: In the Network Topology page, select the devices whose firmware you want to upgrade
(Ctrl + click devices) and then from the 'Actions' drop-down select Update Firmware. Alternatively, in the Device Management page, select the devices whose software you want to upgrade (Ctrl + click devices) and then from the 'Actions' drop-down under the 'Maintenance' sub-menu, select Update Software.
Updating Firmware on a Component in a Media Cluster
The OVOC lets you update the firmware (the .cmp firmware version file) on an AudioCodes MC (Media Component) in an AudioCodes Media Cluster (AudioCodes Mediant Cloud Edition (CE) software session border controller (SBC).
To update the firmware: 1. In the Device Management page (Network > Devices > Manage), select the device. 2. From the Actions drop-down, select Maintenance and then Update Firmware.
Figure 7-3: Device Management - Update Firmware

3. In the Update Firmware screen that opens, view the different .cmp firmware version files.

- 295 -

CHAPTER 7 Managing your Network
Figure 7-4: Update Firmware - Cluster Manager

OVOC | User's Manual

4. Select Cluster Manager as shown in the preceding figure or Cluster Manager MTs as shown in the next figure.
Cluster Manager is AudioCodes' Media Cluster (AudioCodes Mediant Cloud Edition (CE) software session border controller (SBC) which conveys the media).
Cluster Manager MTs are the components in a cluster to which multiple upgrade can be performed.
The .cmp firmware version file differs from component to component. There are only two options but they're for all MT components of each MTC; either hosted CMPs or Mediant 4000. SW ESBC SC SW VE SBC SC SW SE SBC SC SW VE-H SBC SC SW SE-H SBC SC SW SE CM SW 9000 SBC CM SW VE SBC CM SW SE SBC CM
- 296 -

CHAPTER 7 Managing your Network
Figure 7-5: Update Firmware - Cluster Manager MTs

OVOC | User's Manual

The Cluster Manager upgrade is a regular upgrade only for the selected MTC device in OVOC
5. Select the Hitless option for the firmware upgrade to be performed on one component at a time. The firmware upgrade is performed on component 1 and then when finished, on component 2, etc. This upgrade is slower than the non-hitless option.
6. Clear the Hitless option for the upgrade to be non-hitless; all components are upgraded at once; this option is faster than the hitless option.
Hitless only applies to MT upgrade
7. Optionally enter a value for Graceful Timeout (seconds). If the upgrade is performed when calls are in progress, the value you enter defines how much time to wait for the calls to end before the OVOC begins the upgrade.
Graceful Timeout only applies to MT upgrade
- 297 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

8. Select the firmware file you require and click the enabled Update button. To stop the upgrade:
Stop Upgrade only applies to MT upgrade

1. In the Device Management page (Network > Devices > Manage), select the device. 2. From the Actions drop-down, select Maintenance and then Stop MC Hitless Upgrade.
Figure 7-6: Stop MC Hitless Upgrade

3. In the Tasks page (System > Tasks), you'll view two tasks: a. the upgrade task (showing how many upgrades succeeded if a multiple component upgrade was performed, job status, i.e., how many out of how many are performed, which ones are, which ones aren't). b. the stopped task (shown in the next figure) Figure 7-7: Tasks
For more information about the Tasks page, see Tasks tab on page 110
Resetting a Device
For certain settings to take effect a device reset is required. Resetting a device may also be necessary for maintenance purposes. To reset a device: 1. Open the Device Management page (Network > Devices > Manage). 2. Click Actions and from the drop-down select Reset under the 'Maintenance' menu.
- 298 -

CHAPTER 7 Managing your Network
Figure 7-8: Resetting the Device

OVOC | User's Manual

3. [Optional] Select the Save configuration to flash memory option. If you select the option, the current configuration will be saved (burned) to flash memory prior to reset. If you do not select the option, the device resets without saving the current configuration to flash and all configuration performed after the last configuration save will be discarded (lost) after reset.
4. Click Reset.
Locking or Unlocking a Device
Locking a device suspends call functionality and places the device in maintenance state, for troubleshooting, for example. Unlock returns it to service.
To lock a device: 1. In the Network Topology page, position your cursor over the device; the Actions menu
pops up. 2. Click More Actions and then click the Lock icon.
Figure 7-9: Lock Device

3. Select either: Immediate Lock. The device is locked regardless of traffic. Any existing traffic is terminated immediately.
- 299 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

Graceful Lock. Existing calls first complete and only then is the device locked. No new traffic is accepted.
Graceful Lock (time in seconds). The device is locked only after the time configured in the adjacent field. During this time, no new traffic is accepted. If no traffic exists and the time has not yet expired, the device locks immediately.

These options are available only if the current status of the device is in "UNLOCKED" state

4. Click OK.

Figure 7-10: Lock Confirmation

If you selected Immediate Lock, the lock process begins immediately. The device does not process any calls. If you selected Graceful Lock, a lock icon is displayed and a window appears displaying the number of remaining (unfinished) calls and time.
To unlock the device: In the Network Topology page, position your cursor over the device and from the Actions
menu shown above, click the More Actions link. Click the now-displayed Unlock icon; the device unlocks immediately and accepts new incoming calls.
Populating Links
[See also Adding Links on page 159] The device action Populate Links allows links to be automatically generated and updated between SBCs/gateways and their connected entities. Three different SBC configuration tables are managed by the OVOC: IP group Trunk group Media realm (typically, one for internal (LAN) traffic, another for external (WAN) traffic) Populate Links checks each row in each table and then generates links between AudioCodes devices and generic devices for each row in each table for which a link does not already exist. A new generic device is created for each link. Example:
- 300 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

If two IP Groups, Skype for Business Server 2015 and SIP Trunk ABC, and two Media Realms are configured on an SBC, LAN and WAN, then when Sync Link is performed, four links are generated (two IP Groups and two Media Realms).
To populate links: 1. In the Network Topology page, position your cursor over the device. 2. Click the Populate Links icon.
Figure 7-11: Populate Links

3. If necessary, clear an SNMP table option and then click OK; links are generated between AudioCodes devices and generic devices for each row in each table where a link does not already exist, and a new generic device is created for each link.
Moving a Device
The device action Move lets you move a device across tenants and/or regions. A device cannot be moved if it has a Zero Touch configuration which has not been applied yet.
To move a device: 1. In the Network Topology page, position your cursor over the device; the Actions menu
pops up. 2. Click the Move icon.
Figure 7-12: Move Device

- 301 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

3. From the 'Tenant' drop-down, select from the list of tenants the tenant to move the device to (see Adding a Tenant on page 113 for information on how to add a tenant).
4. From the 'Region' drop-down, select from the list of regions the region to move the device to (see Adding a Region on page 129 for information on how to add a region).
5. If the device is an HA device, configure 'Reset redundant'. 6. Click OK.
Backing Up
You can back up a device's configuration file to the server.
To back up a device's configuration file to the server: 1. Open the Device Management page (Network > Devices > Manage) and select the device
from which to upload the software configuration file to the server. 2. Click Actions and from the drop-down choose the 'Configuration' sub-menu.

3. Select the Backup option.

4. In the Backup Configuration File prompt, click Backup.

5. Click OK; the latest file is uploaded to the server from the device.
- 302 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

If the device selected is an MSBR, the latest cli file is uploaded. If the device selected is an MP-202 or MP-204, the latest conf file is uploaded. If the device selected is any other AudioCodes device (except CloudBond and
UMP), the latest ini file is uploaded.
Restoring the Last Backup
You can restore or download the latest software configuration file, backed up on the server, to the device.
To download the latest backup software configuration file to the device: 1. Open the Device Management page (Network > Devices > Manage) and select the device
to which to restore the latest backed-up software configuration file. 2. Click Actions and from the drop-down, choose the 'Configuration' sub-menu.

3. Select the Restore Last Backup option.
4. In the prompt, click Restore. 5. In the confirmation prompt, click OK; the latest file is downloaded to the device from the
server. If the device selected is an MSBR, the latest cli file is downloaded. If the device selected is an MP-202 or MP-204, the latest conf file is downloaded. If the device selected is any other AudioCodes device (except CloudBond and UMP), the latest ini file is downloaded.
- 303 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

Setting Configuration Factory Defaults
You can set a device's configuration to its factory defaults.
The only settings that are not restored to default are the management (OAMP) LAN IP address and the OVOC's login username and password.

Saving a Device's Configuration File to Flash Memory
You should save (burn) the current configuration of a device to the device's flash memory (non-volatile) before performing a Reset action (see Resetting a Device on page 298) or before powering down, in order to ensure configuration changes you made are retained.
To save (burn) a device's software configuration to the device's flash memory: 1. Open the Devices page (Network > Devices) and select the device to which to save (burn)
the software configuration. 2. Click Actions and select the Configuration sub-menu.
Figure 7-13: Saving Configuration to Flash

3. From the sub-menu, select Save Configuration to Flash.

Saving configuration to flash may disrupt current traffic on the device. To avoid this, disable all new traffic before saving, by performing a graceful lock (see Locking or Unlocking a Device on page 299).
- 304 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

Saving a Device's Configuration File to the PC
You can save the current configuration of a device to your PC.
To save a device's configuration to the PC: 1. Select the device whose configuration you want to save to the PC and click Actions.

2. From the Actions menu, select Save Config File.
3. Save the configuration file to the PC's download folder or Save As to the location of your choice.
If the device is an MSBR, a cli file is saved. If the device is an MP-202/MP-204, a conf file is saved. If the device is another AudioCodes device (except CloudBond and UMP), an ini
file is saved.
Resetting Redundant
You can reset a device's redundant chassis. Resetting a device's redundant chassis only applies to HA devices. For detailed information about HA devices, see the relevant device's User's Manual.
To reset a device's redundant chassis: 1. In the Network page under either the Topology or Devices tab, select the device to reset
and then click the now-activated Actions button.
- 305 -

CHAPTER 7 Managing your Network
Figure 7-14: Actions � Reset Redundant

OVOC | User's Manual

2. From the Actions drop-down, select the Reset Redundant option. If the menu option is disabled, the device selected does not support HA.
3. Resetting a device's redundant chassis is identical to resetting an active device. See Resetting a Device on page 298 for more information.
Performing Switchover
This only applies to HA devices. For detailed information about HA devices, see the relevant device's User's Manual. If a failure occurs in a device's currently active chassis, a switchover to the redundant chassis occurs. The active chassis becomes redundant and the redundant chassis becomes active. Current calls are maintained and handled by the active chassis (previously the redundant chassis). You can switch from the active chassis (i.e., the previously redundant chassis) to the redundant chassis (i.e., the previously active chassis) to return the device to its original HA state.
To perform a switchover: 1. In the Network page under either the Topology or Devices tab, select the device on which
to perform the switchover, and then click the activated Actions button. Figure 7-15: Actions � Switchover
2. From the Actions drop-down, select the Switchover option. If the menu option is disabled, the device selected does not support HA.
Changing Profile
Operators can poll a device for Performance Monitoring metrics according to a PM profile. For information about defining a PM profile, see Adding a PM Profile on page 276. A profile determines how the OVOC monitors network | device performance. A profile determines: What's monitored [which network | device parameters]
- 306 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

How frequently [how often they're polled] When an alarm is issued [at what parameter threshold] Alarm severity [if a parameter threshold is exceeded]
To change profile: 1. In the Device Management page (Network > Devices), click the Actions button and select
Performance Monitor > Change Profile. Figure 7-16: Change Profile

2. From the drop-down list, choose the profile (template) according to which to poll the device for PM metrics, and then click Select.

- 307 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

Showing Device Information
The Show button lets operators quickly retrieve and assess information related to any device in the network.
To show device information: 1. In the Network page under the Topology tab or Devices > Manage tab, select the device
and click the activated Show button. Figure 7-17: Show Device Information

The page displays information related to active alarms on the device, journal events, statistics summary and calls made over the device. The page is dynamically automatically tabbed on the menu bar. Operators can delete the tab at any time. The tab facilitates quick future access to the page from other OVOC pages, for troubleshooting. 2. Click the Actions button to access the same actions available in the Network Topology page and Network Devices page, including Performance Monitoring > Stop Polling | Change Profile.
See also Starting and Stopping PM Polling on page 281 and Changing Profile on page 306. 3. Click the Edit button to edit the device in the AC Device Details screen. 4. Click the Open Device Page button to open the device's Web interface. Only devices
whose version is 7.0 and later support SSO.
- 308 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

If the device's version is 7.0 or later, the Web interface opens in the browser with SSO.
If the device's version is earlier than 7.0, the Web interface opens in the browser without SSO. These include CloudBond devices and SmartTAP (all versions).
If devices are behind a NAT or if the URL for CloudBond and SmartTAP is unknown, the Open Device Page button will not be displayed .
5. Under the 'Statistics Summary' section of the page, the Successful / Failed Calls pie chart and the Quality Distribution pie chart function as filters. Click a color to open the Calls List filtered by these criteria: Device, Time, Successful / Failed or Quality Color.
6. Under 'Device Calls' you can select a call made over the device and click the Show button to display that call's details; the Call Details page opens (see Showing Call Details on page 324 for more information).

- 309 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

Showing Link Information
The OVOC lets operators quickly retrieve and assess information related to any link in the network.
To show link information: 1. In the Network page under the Topology or Links tab, select the link and click the Show
button. Alternatively, under the Topology tab, hover your mouse device over the link label and from the pop-up menu select the icon .
Figure 7-18: Show Link Information

The link's Summary page opens.
- 310 -

CHAPTER 7 Managing your Network
Figure 7-19: Link's Summary Page

OVOC | User's Manual

2. The page displays information about active alarms on the link, journal events, statistics summary and calls made over the link.
3. The page is dynamically automatically tabbed on the menu bar: Link from FE in the figure above. Operators can delete the tab at any time. The tab facilitates quick future access to the page from other OVOC pages, for troubleshooting.
4. Under the 'Statistics Summary' section of the page, the Successful / Failed Streams pie chart and the Quality Distribution pie chart function as filters. Click a color to open the Calls List filtered by these criteria: Stream, Time, Successful / Failed or Quality Color.
5. Under 'Link Calls' select any call made over the link and click Show to display that call's details; the Call Details page opens (see Showing Call Details on page 324 for more information).
Showing User Information
The OVOC lets operators quickly retrieve and assess telephony information related to any user. To show telephony information about a user: 1. In the Users page under the Users Experience or User Details tab, select a user and click
Show.
- 311 -

CHAPTER 7 Managing your Network
Figure 7-20: Showing Information about a User

OVOC | User's Manual

2. The page displays contact details, Skype for Business details if any, user statistics and recent calls.
The page is dynamically automatically tabbed on the menu bar with the user's name. Operators can delete it at any time. The tab facilitates quick access to the page from other OVOC pages, for future reference.
3. Under the 'User Statistics' section of the page, the Successful / Failed Calls pie chart and the Quality Distribution pie chart function as filters. Click a color to open the Calls List filtered by these criteria: User, Time, Successful / Failed or Quality Color.
4. Under 'Recent Calls' you can select any call made by this user and then click the Show button to display that call's details. The Call Details page opens (see Showing Call Details on page 324 for more information).

- 312 -

CHAPTER 7 Managing your Network
Editing a Device
The Edit button lets you edit a device's configuration. To edit a device's configuration: 1. Select the device to edit and then click the Edit button.
Figure 7-21: Device Details

OVOC | User's Manual

2. Edit the device's details. For more information, see Adding AudioCodes Devices Automatically on page 130.
3. Click OK.
Deleting a Device
The Delete button lets you delete a device from the OVOC. To delete a device: Select the device to delete and then click the Delete button.
- 313 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

Resetting a Device
You can reset a device.
To reset a device: 1. In the Device Management page, from the Actions > Maintenance menu, select Reset.

Figure 7-22: Reset Device � Confirmation
2. Select the Burn configuration into the flash memory in order to make sure changes are retained. They're burned (saved) to the device's non-volatile memory, i.e., flash memory. See Saving a Device's Configuration File to Flash Memory on page 304 for more information about burning a device's configuration to flash memory.
Without burning, changes are saved to the device's volatile memory (RAM). The changes revert to their previous settings if the device subsequently resets (hardware or software) or powers down.
3. Click Reset.

- 314 -

CHAPTER 7 Managing your Network

OVOC | User's Manual

Refreshing a Device's Pool License
You can refresh a device's Pool License.
Only relevant to HA devices. A switchover is performed in order to apply the license parameter on both devices.

To refresh a device's Pool License: From the Actions menu, select Refresh License.
Monitoring Device-Level Backup and Performing Rollback
The Backup Manager page (Network > Devices drop-down > Backup Manager) allows you to monitor device-level backup and perform rollback. For detailed information, see Backing up a Device's Configuration using Backup Manager on page 157.

- 315 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

8 Obtaining Quality Statistics on Calls
You can get quality statistics a.k.a. Key Quality Indicators (KQIs) on calls made by end users in your telephony network.
Accessing the Calls List
The Calls List page (Calls > Calls List) lists and shows quality information on calls made in the network over the past three hours (default).
Figure 8-1: Calls List

Calls on AudioCodes High Availability devices during switchover are not supported. The OVOC QoE application does not display and count a call that starts on unit A and is transferred to unit B after device switchover.

The page features filtering capabilities to help obtain precise information on calls quickly and efficiently. Optionally, filter the page by Time Range (see Filtering to Access Specific Information on page 212), Topology (see Filtering by 'Topology' on page 215), Source Type (see Filtering by 'Severity' on page 230), Quality (see Filtering by 'Quality' on page 319) or More Filters (see Filtering by 'More Filters' on page 320).
Use the following table as reference to the columns in the Calls List.
Table 8-1: Calls List Columns

Column

Description

Source

indicates the call is from Microsoft Teams indicates the call is from Microsoft Skype for Business indicates the call is from an AudioCodes device.

- 316 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Column

Description

indicates the call is from an AudioCodes IP phone.

Status

Indicates call control status: Successful or Failed

Quality

Indicates the call quality: Green = Good, Yellow = Fair, Red = Poor, Gray = Unknown

Quality Cause

Delay (msec)

Delay (or latency) - the time it takes for information to travel from source to destination (round-trip time). Sources of delay include voice encoding / decoding, link bandwidth and jitter buffer depth. Two Delay values are shown, one value for the caller side and one value for the callee side.

Echo

The level difference (measured in dB) between the signal transmitted to the listener and the residual echo of this signal.

Jitter (msec)

Jitter can result from uneven delays between received voice packets. To space packets evenly, the jitter buffer adds delay. The higher the measurement, the greater the impact of the jitter buffer's delay on audio quality. Two Jitter values are shown, one value for the caller side and one value for the callee side.

MOS

MOS - Mean Opinion Score (specified by ITU-T recommendation P.800) - the average grade on quality scales of Good to Failed, given to voice calls made over a VoIP network at the conclusion of the testing.

Packet Loss (%)

Lost packets - RTP packets that aren't received by the voice endpoint for processing, resulting in distorted voice transmission. Two Packet Loss % values are shown, one value for the caller side and one value for the callee side. Packet Loss can be more than 100%.

None

Indeterminate cause

Caller

The phone number or address of the person who initiated the call.

Callee

The phone number or address of the person who answered the call.

Start Time

The precise time (hour, minutes and seconds) and date (month, day and year) when the call was started.

- 317 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Column

Description

End Time

The precise time (hour, minutes and seconds) and date (month, day and year) when the call was terminated.

Duration (sec) The duration of the call, in seconds. See the note following.

Call Type

Indicates the call type.

Device

Indicates the device/s over which the call passed.

Link

Indicates the link/s over which the call passed.

Termination Reason

Indicates the reason why the call was terminated.

An SBC call (exclusively) whose duration is longer than three hours (e.g., the session of a participant in a Skype for Business conference call over an SBC) or an SBC call that is incompletely reported to the OVOC server won't be displayed in the Calls List.
The Save button allows operators to save up to one million calls to a zip file comprising 10 separate csv files, each including up to 100,000 calls.

A README file is also included in the save, with details of the Calls List filter settings, the number of exported entities, the time range and the tenant operator credentials. The foot of the page features a pager.
The pager lets you (from left to right): Click the | Go to the first page to return to the first page from any page. Click the Go to the previous page arrow to return to the page before the presently
displayed page. Click ... [More pages] to the left of the page number or ... [More pages] to the right of the
page number to page backwards or forwards respectively.
- 318 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Click the Go to the next page arrow to browse to the page after the presently displayed page.
From the `Items per page' drop-down, select the number of calls to display per page: 20, 30 or 50.
Filtering by 'Quality'
You can filter a page using the 'Quality' filter. The filter applies to the Calls List page under the Calls menu. The filter lets you display calls according to quality.
Figure 8-2: Quality Filter

Use the following table as reference.
- 319 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Table 8-2: 'Quality' Filter

Filter

Description

Failed | Success

Filters calls according to their status. If you clear Success and select Failed, only calls whose status was Failed are displayed in the page.

Poor, Fair, Good or Unknown

Filters calls according to their quality. If you clear all except Poor, only calls whose quality was Poor will be displayed.

None, MOS, Jitter, Delay, P. Loss or Echo

Filters calls according to the cause of the quality. If - after displaying only calls whose quality was poor/fair - you clear all except Delay, the page will display only calls whose quality was poor/fair because there was a delay on the line.

Filtering by 'More Filters'
The Calls List page can be filtered using the 'More Filters' filter. This filter lets you display calls according to caller, callee, media type, etc.

- 320 -

CHAPTER 8 Obtaining Quality Statistics on Calls
Figure 8-3: More Filters � Calls List Page

OVOC | User's Manual

Use the following table as reference. Table 8-3: More Filters � Calls List

Filter Caller
Callee

Description
Enter the name of a caller (or the names of callers) whose calls you want to display in the page. The filter is case sensitive.
Enter the name of a called party (or the names of called parties) whose calls you want to display in the page. The filter is case sensitive.

Media Type

From the drop-down list, select the media type to display on the page (or enter a search string). Select either MSRP (Message Session Relay Protocol), Voice, Image, Application Sharing (a Skype for Business media

- 321 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Filter Call Type
Termination Reason

Description
type), Video, Data, Audio Video, Chat, Audio V150 (currently unsupported), Text, Unknown or All (and then optionally remove unwanted media types). By default, all media types are selected.
From the drop-down list, select the call type to display on the page, or enter a search string. Select either GW (Gateway), Teams, Teams Group Call, SBC, Skype Conference, Endpoint, Test SBC, HTTP, IP2IP or Skype. Skype Conference can be of media type 'Audio Video' or 'Chat'. The conference participant's name is shown in the `Caller' column. To retrieve conference calls information, the OVOC uses the Microsoft Skype for Business ConferenceSessionDetailsView Monitoring Server report. For example, from the 'Media Type' drop-down choose Chat; the Media Type column then displays only MS Skype for Business conferences whose Media Type is Chat.
Enter the reason why the call was terminated. See the device's User's Manual for more information about Termination Reason. Some AudioCodes termination reasons are: Reason Not Relevant Unassigned Number Invalid Information Element Content The remote equipment received an unexpected message that does
not correspond to the current state of the connection. Recovery on Timer Expiry Protocol Error Unspecified Unknown Error Q931 Last Reason
Some MS Skype for Business Termination Reasons are: OK. Indicates the request was successful. Accepted. Indicates that the request has been accepted for
processing, but the processing has not been completed. No Notification Multiple Choices Moved Permanently Moved Temporarily Use Proxy

- 322 -

CHAPTER 8 Obtaining Quality Statistics on Calls

Filter

Alternative Service

Description

OVOC | User's Manual

- 323 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Showing Call Details
After filtering the calls listed in the Calls List page by either Time Range (see Filtering to Access Specific Information on page 212), Topology (see Filtering by 'Topology' on page 215), Source Type (see Filtering by 'Severity' on page 230), Quality (see Filtering by 'Quality' on page 319) and / or More Filters (see Filtering by 'More Filters' on page 320), select the call whose details you want to view and then click the activated Show button. The Call Details page that opens displays detailed information about that call.
Figure 8-4: Call Details � Details of a Call Made over a Device Belonging to AudioCodes

Details of a Call Made over an AudioCodes SBC
The figure above shows the details of a call made over the AudioCodes SBC. You can also display the details of calls made/received over other entities. The page is automatically dynamically tabbed on the menu bar for quick and easy future access and troubleshooting. Operators can delete the tab at any time. The page displays detailed diagnostic information, in graphic and textual format, facilitating effective management, precise diagnosis and targeted remedial action to prevent recurrence of unsuccessful call performance or poor call quality. Use the following table as reference.
Table 8-4: Call Details Page

Page Subdivision
(Uppermost) Call summary
(Middle) Graphic illustration

Description
Displays parameters and values identical to those displayed in the Calls List page.
Displays a graphical illustration of voice quality on each leg of the call, on both the caller and callee side. Each leg is: Connected via the VoIP cloud to the device Color-coded to indicate quality (green = good, yellow = fair, red =
poor, grey = unknown)

- 324 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Page Subdivision
(Lowermost) Three tabs

Description
Tagged by C and M C = Control summary (point cursor to view tooltip) M = Media IP address and Port (point cursor to view tooltip)
Each opens a page displaying detailed information: Media (see Media below) (includes Quality) Signaling (see Signaling on page 329) Trend (see Trends on page 330) (Only displayed if there is a trend; if
there is not a trend, the tab is not displayed) SIP Ladder (see SIP Call Flow on page 331)

Media
The Media tab displays a call's media parameter settings that operators can refer to for diagnostics, troubleshooting and session experience management issues.
Figure 8-5: Media

Use the following table as reference to the parameters displayed under the Media tab. Table 8-5: Media Parameters

Parameter
Media IP Address

Description
The IP address of the device source in the operations, administration, maintenance, and provisioning (OAMP) network.
The IP address of the destination host / media network.

- 325 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description

Media Port

The device's source port in the operations, administration, maintenance, and provisioning (OAMP) network.
Port of the destination host / media network.

Signal Level

The ratio of the voice signal level to a 0 dBm0 reference. Signal level = 10 Log10 (RMS talk spurt power (mW)). A value of 127 indicates that this parameter is unavailable.

Noise Level

The ratio of the level of silent-period background noise level to a 0 dBm0 reference. Noise level = 10 Log10 (Power Level (RMS), in mW, during periods of silence). A value of 127 indicates that this parameter is unavailable.

SNR

The ratio of the signal level to the noise level (Signal-Noise Ratio).

SNR = Signal level � Noise level.

Burst Duration The mean duration (in milliseconds), of the burst periods that have occurred since the initial call reception.

Rx Rate

Shows the call's reception rate, in Kbps.

Quality

Voice quality: Good (green), Fair (yellow) OR Red (poor).

MOS

Mean Opinion Score (specified by ITU-T recommendation P.800). Defines the average grade, on a quality scale of Good to Poor, determined after testing calls made over a VoIP network. Comprises:
MOS-LQ = listening quality, i.e., the quality of audio for listening purposes. Doesn't account for bi-directional effects such as delay and echo. Two values are shown: (1) for the device side on the caller leg (2) for the device side on the callee leg.
MOS-CQ = conversational quality; it takes listening quality in both directions into account, as well as the bi-directional effects. Two values are shown: (1) for the device side on the caller leg (2) for the device side on the callee leg.

Jitter

Jitter can result from uneven delays between received voice packets. To space evenly, the jitter buffer adds delay. The higher the measurement, the greater the impact of the jitter buffer's delay on audio quality. Two Jitter values are shown, one value for the caller side and one value for the callee side.

Packet Loss

Lost packets are RTP packets that aren't received by the voice endpoint for processing, resulting in distorted voice transmission. Two Packet Loss % values are shown, for the caller and for the callee side. Packet

- 326 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description Loss can be more than 100%.

Delay Echo

The round trip delay is the estimated time (in milliseconds) that it takes to transmit a packet between two RTP stations. Sources of delay include voice encoding / decoding, link bandwidth and jitter buffer depth. Two values are shown, one caller side and another for the callee side.
The residual echo return loss is the level difference (measured in dB) between the signal transmitted to the listener and the residual echo of that signal.

Media IF

Shows the name and index of the Media Realm interface reported by the device. Example: SIMcmxLAN (n), where n following the displayed name is the number indicating the Media Interface's index used to facilitate network configuration.

Network IF

Network Interface Name.

Coder

Up to 10 coders (per group) are supported. See the device manual for a list of supported coders.

SCE

Method for conserving bandwidth on VoIP calls by not sending packets

when silence is detected. True = Enabled (On), False = Disabled (Off).

RTP Direction

RTP Directional Control. Controlled internally by the device according to the selected coder.

RTCP Direction RTCP Directional Control. Controlled internally by the device according to the selected coder.

PTime (msec)

Packetization time, i.e., how many coder payloads are combined into a single RTP packet.

The following figure shows the Media tab in the Call Details page.

- 327 -

CHAPTER 8 Obtaining Quality Statistics on Calls
Figure 8-6: Call Details page - Media tab

OVOC | User's Manual

Use the preceding figure as reference to the following explanation of the QoE indicators. 1. Local QoE values of MOS, Jitter, Packet loss, Delay and MOS are calculated by the SBC
based on RTP packets it receives from the 'remote peer' 2. The SBC reports this information to the OVOC using an XML-based, proprietary protocol 3. The OVOC displays the information it receives (indicated by 1 in the preceding figure) 4. Remote QoE values can be calculated by the 'remote peer' and reported back to the SBC
using RTCP packets, except 'Delay' (and RTPC-XR, if supported, for MOS) 5. The SBC forwards QoE information (if received) from the 'remote peer' to the OVOC, as
described in point 2 above 6. The OVOC displays the information it receives (indicated by 2 in the preceding figure) (from
'SBC' to 'remote peer') 7. Quality (Good, Fair, Poor), indicated by 3 in the preceding figure, is based on the following
criteria: If MOS is received from AudioCodes equipment (SBC) configured with a QOE profile,
the 'Quality' displayed matches the profile's thresholds: Poor = major threshold reached Fair = minor threshold reached Good = minor threshold not reached If MOS is received from non-AudioCodes equipment, local settings on the OVOC are used (System > Configuration > Templates > QoE threshold) If no MOS information is received, the 'Quality' displayed corresponds to the worst of the 3 QoE values received (Jitter, Packet Loss, Delay) As before, the 'Quality' displayed matches the QoE profile (from the SBC or locally on the OVOC)
- 328 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

MOS gets priority because it's based on algorithms that emulate the human perception of voice quality during a call.
Signaling
The Signaling tab displays a call's signaling parameters that operators can refer to for diagnostics, troubleshooting and session experience management issues.
Figure 8-7: Signaling

Use the following table as reference to the parameters displayed under the Signaling tab. Table 8-6: Signaling Parameters

Parameter SIP IP

Description The call's caller/callee (source/destination) IP address.

SIP Port

The port number used for the SIP call.

URI

The URI (Uniform Resource Identifier) of the caller/callee

(source/destination). The SIP URI is the user's SIP phone number (after

manipulation, if any). The SIP URI resembles an e-mail address and is

written in the following format: sip:x@y:Port, where x=Username and

y=host (domain or IP).

Output URI Before Map

The SIP URI address of the caller/callee before manipulation (if any) was done on the URI.

Endpoint Type Indicates the type of endpoint. For example, 'SBC'.

SRD

The unique name and index configured for the signaling routing

domain (SRD). Example: someSRD (n), where n following the displayed

name is the number indicating the SRD's index used to facilitate

network configuration.

- 329 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description

IP Group

The ID of the IP Group with which the call is associated.

SIP IF

The ID of the SIP Interface with which the call is associated.

Proxy Set

The Proxy Set to which the call is associated. This is a group of Proxy servers. Typically, for IP-to-IP call routing, at least two are defined for call destination � one for each leg (IP Group) of the call (i.e., both directions). For example, one Proxy Set for the Internet Telephony Service provider (ITSP) interfacing with one 'leg' of the device and another Proxy Set for the second SIP entity (e.g., ITSP) interfacing with the other 'leg' of the device.

IP Profile

The IP Profile assigned to this IP destination call. The IP Profile assigns numerous configuration attributes (e.g., voice codes) per routing rule.

Transport Type Two options: UDP or TCP

Signaling diff server

The value for Premium Control CoS content (Call Control applications).

Trends
The Trends tab shows a call's voice quality trend that operators can refer to for diagnostic, troubleshooting and session management experience issues.
Figure 8-8: Trends

Voice quality applies to the call's: Caller leg
caller side (of cloud) device side (of cloud)
- 330 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Callee leg callee side (of cloud) device side (of cloud)
To assess voice quality: Select a quality metric graph option (MOS, Jitter, Packet Loss, Delay and/or Echo) and then
select a leg; the graph displayed indicates: the voice quality of the call for the selected quality metric across the selected leg how long the leg lasted the time the leg started and ended

Legs over PSTN are not measured for quality, only legs over IP.

To compare one voice quality metric with another across different legs: 1. Select multiple voice quality metric graphs, for example, MOS and Packet Loss, as shown in
the figure above. 2. Select a leg option and compare the displayed graphs of quality metrics with one another
across this leg. 3. Select another leg and compare the same metrics graphs with one another across this leg.
SIP Call Flow
The SIP Call Flow tab is displayed in the Call Details page when a SIP ladder is available or partially available and found for a specific call over SBC.
Figure 8-9: SIP Call Flow � Example

Click the textual indication of a SIP message to display MESSAGE INFO in the right pane: The text indication changes color to bold pink
- 331 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

The call flow leg line is made bold See 404 Not Found as an example in the figure above

The number of participants indicated in the Call Details and in the Call Flow tabs can be different. The Call Flow tab can include more participants than the Call Details tab, which always includes caller and callee.

- 332 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

The following table shows error response color codes. The table following it shows SIP message color codes.
Table 8-7: Error Response Color Codes

Color Red

Error Response
Error response message with response code 6xx, 5xx, 4xx, excluding 486 (busy) which is colored green

Green Black

Error response message with response code 486 (busy) and all other responses
Error response message with response codes 401 and 407

Table 8-8: SIP Message Color Codes

Color

Dark Green

ACK

SIP Message

Dark Blue

INVITE

Brown

CANCEL

Purple

BYE

Black (unbolded) All other SIP messages and codes

- 333 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Details of a Test Call Made over an SBC
After filtering calls listed in the Calls List page by clicking Add Filter > More Filters > Call Type > Test SBC (see Filtering by 'More Filters' on page 320), select the test call whose details you want to view and then click the activated Show button. The Call Details page that opens displays detailed information about that test call. The following figure shows the details of a test call made over an SBC. The page displays detailed diagnostic information on the call, in textual format, facilitating effective management, precise diagnosis and targeted remedial action to prevent recurrence of unsuccessful call performance or poor call quality.
Figure 8-10: Call Details � Test Call Over an SBC

Use the following table as reference to the preceding figure. Table 8-9: Call Details - Test Call Made over an SBC

Page Section

Description

Call Summary (Uppermost) Call Status Call Quality Call Type Start Time
End Time

Indicates the caller's full name and email address and callee's full name and email address.
Successful or Failed
Good | Fair | Poor voice quality
Test SBC
The precise time (hour, minutes and seconds) and date (month, day and year) when the caller began dialing the number to call.
The precise time (hour, minutes and seconds) and date (month, day and year) when the call was terminated.

Connect Time

The precise time (hour, minutes and seconds) and date (month, day

- 334 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Page Section
Duration Termination Initiator Termination Reason SIP PSTN Reason
Media Type [Quality] Cause

Description and year) the connection was established. The duration of the call, in seconds. The network entity from which the call was terminated.

The reason why the call was terminated. See the device's User's Manual for more information about Termination Reason.

The reason why the call was terminated. See the device's User's Manual for more information about the SIP/PSTN Reason.

Voice

Delay

Echo

The level difference (measured in dB) between the signal transmitted to the listener and the residual echo of this signal.

Jitter

MOS

Packet Loss

- 335 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Page Section

Description

more than 100%.

None

Indeterminate cause

No value

No value will be displayed for 'Cause' if the quality of the test call is Good. The field will display a value only when call quality is Fair or Poor.

(Middle) Graphic illustration

Indicates the time the call started and ended
Visualizes a caller in a call with a callee, including full names and email addresses
Displays each leg of the call, on both caller and callee side.
Each leg is:
Connected to a device
Color-coded to indicate voice quality (green = good, yellow = fair, red = poor, grey = unknown)
Tagged by C and M C = Control summary (point cursor to view tooltip) M = Media IP address and Port (point cursor to view tooltip)

(Lowermost) Two tabs

Each opens a page displaying detailed information: Media (see Media on page 356) Signaling (see Signaling on page 329)

Call Details Page � Debug File Button
To facilitate troubleshooting if for example there's a discrepancy between the Call Details that the OVOC reports and the call details that you report, you can click a Debug File button in the Call Details page to save (download) a debug file in json format and then send it to AudioCodes FAEs for analysis.
Details of a Call Made over Microsoft Skype for Business
The following figure shows the details of a call made over Microsoft Skype for Business. The Details page displays detailed diagnostic information on the call, in textual format, facilitating effective management, precise diagnosis and targeted remedial action to prevent recurrence of unsuccessful call performance or poor call quality.

- 336 -

CHAPTER 8 Obtaining Quality Statistics on Calls
Figure 8-11: Call Details - Microsoft Skype for Business

OVOC | User's Manual

If there's an issue of poor quality with a call over Microsoft Skype for Business, one of the two legs of the call in the Call Details screen will indicate that there's an issue. The leg that indicates that there's an issue is the leg that scores the worse score of the two legs, i.e., the score indicated in red, as shown in the figure above. Use this table as reference:
Table 8-10: Call Details - Microsoft Skype for Business

Page Section Call Summary (Uppermost) Call Status Call Quality Call Type Start Time

Description Indicates the caller's full name and email address and callee's full name and email address.
Successful or Failed Good | Fair | Poor voice quality Microsoft Skype for Business
The precise time (hour, minutes and seconds) and date (month, day and year) when the caller began dialing the number to call.

End Time

The precise time (hour, minutes and seconds) and date (month, day and year) when the call was terminated.

Connect Time

The precise time (hour, minutes and seconds) and date (month, day and year) the connection was established.

Duration

The duration of the call, in seconds.

Termination Initiator The network entity from which the call was terminated.

Termination Reason

The reason why the call was terminated. See the device's User's Manual for more information about Termination Reason.

- 337 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Page Section
SIP PSTN Reason Media Type [Quality] Cause

Description

Some Skype for Business Termination Reasons are: OK. Indicates the request was successful. Accepted. Indicates that the request has been accepted for
processing, but the processing has not been completed. No Notification Multiple Choices Moved Permanently Moved Temporarily Use Proxy Alternative Service

The reason why the call was terminated. See the device's User's Manual for more information about Termination Reason.

Voice

Delay

Echo

The level difference (measured in dB) between the signal transmitted to the listener and the residual echo of this signal.

Jitter

MOS

MOS - Mean Opinion Score (specified by ITU-T recommendation P.800) - the average grade on quality scales of Good to Failed, given by the OVOC to voice calls made over a VoIP network

- 338 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Page Section

Description

at the conclusion of the testing.

Packet Loss

None

Indeterminate cause

(Middle) Graphic illustration

(Lowermost) Two tabs Each opens a page displaying detailed information: Media (see Media below) Signaling (see Signaling on page 329)

Media
The Media tab displays a call's media parameter settings that operators can refer to for diagnostics, troubleshooting and session experience management issues.

- 339 -

CHAPTER 8 Obtaining Quality Statistics on Calls
Figure 8-12: Media

OVOC | User's Manual

Use the following table as reference to the parameters displayed under the Media tab. Table 8-11: Media Parameters

Parameter

Description

Quality Media IP Address
Media Port

Indicates the call's voice quality: Good | Fair | Poor
The IP address of the device source in the operations, administration, maintenance, and provisioning (OAMP) network.
The IP address of the destination host / media network.
The device's source port in the operations, administration, maintenance, and provisioning (OAMP) network.
Port of the destination host / media network.

Media Transport

Two options: UDP or TCP

Coder

Up to 10 coders (per group) are supported. See the device manual for a list of supported coders.

MOS

- 340 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter
Jitter
Packet Loss
Delay
Echo Signal Level Noise Level
SNR Burst Duration BW Estimation

Description
directions into account, as well as the bi-directional effects. Two values are shown: (1) for the device side on the caller leg (2) for the device side on the callee leg.
Jitter can result from uneven delays between received voice packets. To space evenly, the jitter buffer adds delay. The higher the measurement, the greater the impact of the jitter buffer's delay on audio quality. Two Jitter values are shown, one value for the caller side and one value for the callee side.
Lost packets are RTP packets that aren't received by the voice endpoint for processing, resulting in distorted voice transmission. Two Packet Loss % values are shown, for the caller and for the callee side. Packet Loss can be more than 100%.
The round trip delay is the estimated time (in milliseconds) that it takes to transmit a packet between two RTP stations. Sources of delay include voice encoding / decoding, link bandwidth and jitter buffer depth. Two values are shown, one caller side and another for the callee side.
The residual echo return loss is the level difference (measured in dB) between the signal transmitted to the listener and the residual echo of that signal.
The ratio of the voice signal level to a 0 dBm0 reference. Signal level = 10 Log10 (RMS talk spurt power (mW)). A value of 127 indicates that this parameter is unavailable.
The ratio of the level of silent-period background noise level to a 0 dBm0 reference. Noise level = 10 Log10 (Power Level (RMS), in mW, during periods of silence). A value of 127 indicates that this parameter is unavailable.
The ratio of the signal level to the noise level (Signal-Noise Ratio). SNR = Signal level � Noise level.
The mean duration (in milliseconds), of the burst periods that have occurred since the initial call reception.
The estimated bandwidth consumed.

- 341 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Signaling
The Signaling tab displays a call's signaling parameters that operators can refer to for diagnostics, troubleshooting and session experience management issues.
Figure 8-13: Signaling

Use the following table as reference to the parameters displayed under the Signaling tab. Table 8-12: Signaling Parameters

Parameter

Description

Edge Server
Gateway Mediation Server URI Phone Number

FQDN of the Edge server used by the user who started (caller) / joined (callee) the session.
Gateway of the user who started (caller) / joined (callee) the session.
Mediation Server of the user who started (caller) / joined (callee) the session.
URI of the user who started (caller) / joined (callee) the session.
Phone URI of the user who started (caller) / joined (callee) the session.

Is Internal

Indicates whether the user who started (caller) / joined (callee) the session logged on from the internal network.

Front End

FQDN of the Front End server that captured the data for the session.

Pool

FQDN of the pool that captured the data for the session.

Call Priority Call priority of the session.

Details of a Call Made over Microsoft Teams
The following figure shows the details of a call made over Microsoft Teams. The Details page displays detailed diagnostic information on the call, in textual format, facilitating effective management, precise diagnosis and targeted remedial action to prevent recurrence of unsuccessful call performance or poor call quality.

- 342 -

CHAPTER 8 Obtaining Quality Statistics on Calls
Figure 8-14: Call Details - Microsoft Teams

OVOC | User's Manual

If there's an issue of poor quality with a call over Microsoft Teams, one of the two legs of the call in the Call Details screen will indicate that there's an issue. The leg that indicates that there's an issue is the leg that scores the worse score of the two legs. Use this table as reference:
Table 8-13: Call Details - Microsoft Teams

Page Section

Description

Call Summary (Top Left)

Indicates the caller's full name and email address and callee's full name and email address.

Call Status

Successful or Failed

Call Quality

Good | Fair | Poor voice quality

Call Type

Teams

Media Type

Audio, Video, Video Based Screen Sharing, Data

Start

The precise time (hour, minutes and seconds) and date (month, day and year) when the caller began dialing the number to call.

End

The precise time (hour, minutes and seconds) and date (month,

day and year) when the call was terminated.

Duration

The duration of the call, in seconds.

Call Termination

See Microsoft's documentation for more information.

[Quality] Cause

Delay

Delay (or latency) - the time it takes for information to travel from source to destination (round-trip time). Sources of delay

- 343 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Page Section
(Top) Graphic illustration

Description

include voice encoding / decoding, link bandwidth and jitter buffer depth. Two Delay values are shown, one value for the caller side and one value for the callee side.

Jitter

MOS

Packet Loss

None

Indeterminate cause

Indicates the time the call started and ended
Visualizes a caller in a call with a callee, including full names and email addresses
Displays each leg of the call, on both caller and callee side.
Each leg is:
Connected to a device
Color-coded to indicate voice quality (green = good, yellow = fair, red = poor, gray = unknown)
Tagged by C and M C = Control summary (point cursor to view tooltip) M = Media IP address and Port (point cursor to view tooltip)

- 344 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Page Section
(Lowermost) Three tabs

Description
Each tab opens a page displaying detailed information: Quality (see Quality below) Media (Media tab on page 347) Network (see Network on page 349) Device (see Device on page 352)

Microsoft Graph API currently does not report PSTN steams. Refer instead to SBC QoE reports for PSTN streams.

Quality
Click the Quality tab to display information about the media stream between two endpoints in a call. Use the following table as reference to the parameters displayed.
Table 8-14: Quality Parameters

Parameter

Description

Stream Quality
Stream Quality Cause

The quality of the media stream. Poor, Fair or Good.
Defines the quality of calls made using Microsoft Teams services. Streams are classified as Good, Poor, or Unclassified based on the values of the available key quality metrics. The metrics and conditions used to classify stream are shown in https://docs.microsoft.com/enus/microsoftteams/stream-classification-in-call-quality-dashboard. For information about "Poor Due To" dimensions that can be used to understand which metric is responsible for a Poor classification, see https://docs.microsoft.com/en-us/microsoftteams/dimensions-andmeasures-available-in-call-quality-dashboard.

MOS (0-5) Jitter

Average Network Mean Opinion Score degradation for stream. Represents how much the network loss and jitter has impacted the quality of received audio.
Average jitter for the stream computed as specified in RFC 3550, denoted in ISO 8601 format. For example, 1 second is denoted as 'PT1S', where 'P' is the duration designator, 'T' is the time designator, and 'S' is the second designator.

Max Jitter

Maximum of network jitter computed over 20 second windows during the session.

- 345 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description

Average Audio Network Jitter

Average jitter for the stream computed as specified in RFC 3550, denoted in ISO 8601 format. For example, 1 second is denoted as 'PT1S', where 'P' is the duration designator, 'T' is the time designator, and 'S' is the second designator.

Max Audio Network Jitter

Maximum of audio network jitter computed over each of the 20 second windows during the session, denoted in ISO 8601 format. For example, 1 second is denoted as 'PT1S', where 'P' is the duration designator, 'T' is the time designator, and 'S' is the second designator.

Packet Loss (%)

Lost packets are RTP packets that aren't received by the voice endpoint for processing, resulting in distorted voice transmission. Average packet loss rate for stream.

Maximum Packet Loss Rate

Maximum packet loss rate for stream. Values grouped by range. 0.1 indicates 10% packet loss.
Example value: 023: [0.09 - 0.1]
If the value is blank, possible reasons are (1) No packet loss data was reported by the endpoint receiving the stream (2) Packet utilization for a given stream is less than 100 packets.

Delay (msec)

Max Delay (msec)

Maximum network propagation round-trip time computed as specified in RFC 3550, denoted in ISO 8601 format. For example, 1 second is denoted as 'PT1S', where 'P' is the duration designator, 'T' is the time designator, and 'S' is the second designator.

Average Ratio of Concealed Samples

Ratio of the number of audio frames with samples generated by packet loss concealment to the total number of audio frames. Values grouped by range. 0.1 indicates 10% of frames contained concealed samples. Example value: 015: [0.01 - 0.02) If the value is blank, possible reasons are (1) the value was not reported by the receiver of the stream (2) the stream was not an audio stream.

Max Ratio of Concealed Samples

The maximum seen number of audio frames with samples generated by packet loss concealment to the total number of audio frames. Values grouped by range. 0.1 indicates 10% of frames contained concealed samples.
Example value: 015: [0.01 - 0.02)

- 346 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter
Average Bandwidth Estimation (bps)
Packet Utilization

Description
Average estimated bandwidth available between first and second endpoint in bits per second. Example value: 026: [260000 - 270000] If the value is blank, possible reasons are (1) Transport type was not reported (2) The media path was not established.
Number of Real-Time Transport Protocol (RTP) packets sent in the session.

Media tab
Click the Media tab to display information about the media stream between two endpoints in a call. Use the following table as reference to the parameters displayed.
Table 8-15: Media Parameters

Parameter

Description

Stream ID

Unique identifier for the stream.

Start Date Time

UTC time when the stream started. The DateTimeOffset type represents date and time information using ISO 8601 format and is always in UTC time. For example, midnight UTC on Jan 1, 2014 would look like this: '201401-01T00:00:00Z'.

End Date Time
Was Media Bypassed

UTC time when the stream ended. The DateTimeOffset type represents date and time information using ISO 8601 format and is always in UTC time. For example, midnight UTC on Jan 1, 2014 would look like this: '201401-01T00:00:00Z'
Set to 'True' or 'False'. Enables shortening the path of media traffic and reducing the number of hops in transit for better performance. Media is kept between the SBC and the client instead of sending it via the Microsoft Phone System. To configure media bypass, the SBC and the client must be in the same location or network.
Without media bypass, when a client makes or receives a call, both signaling and media

- 347 -

CHAPTER 8 Obtaining Quality Statistics on Calls

Parameter

Description
flow between the SBC, the Microsoft Phone System, and the Teams client, as shown in the following diagram:

OVOC | User's Manual

But let's assume that a user is in the same building or network as the SBC. For example, assume a user who is in a building in Frankfurt makes a call to a PSTN user:
Without media bypass, media will flow via either Amsterdam or Dublin (where Microsoft datacenters are deployed) and back to the SBC in Frankfurt.
The datacenter in Europe is selected because the SBC is in Europe, and Microsoft uses the datacenter closest to the SBC. While this approach does not affect call quality due to optimization of traffic flow within Microsoft networks in most geographies, the traffic has an unnecessary loop.
With media bypass, the media is kept directly between the Teams user and the SBC as shown in the following diagram:

Media bypass leverages protocols called Interactive Connectivity Establishment (ICE) on the Teams client and ICE lite on the SBC.
- 348 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description
These protocols enable Direct Routing to use the most direct media path for optimal quality. ICE and ICE Lite are WebRTC standards. For detailed information about these protocols, see RFC 5245.

Network
Click the Network tab to display information about the network used in the call. Use the following table as reference to the parameters displayed.
Table 8-16: Network Parameters

Parameter

Description

MAC Address The media access control (MAC) address of the media endpoint's network device.

IP Address

IP address of the media endpoint.

Port

Network port number used by media endpoint.

Relay IP Address

Network port number allocated on the media relay server by the media endpoint.

Relay Port

Network port number allocated on the media relay server by the media endpoint.

Reflexive IP Address

IP address of the media endpoint as seen by the media relay server. This is typically the public internet IP address associated to the endpoint.

Subnet

Subnet used for media stream by the media endpoint.

Delay Event Ratio
Bandwidth Low Event Ratio

Fraction of the call that the media endpoint detected the network delay was significant enough to impact the ability to have real-time two-way communication.
Fraction of the call that the media endpoint detected the available bandwidth or bandwidth policy was low enough to cause poor quality of the audio sent.

Received Quality Event Ratio

Fraction of the call that the media endpoint detected the network was causing poor quality of the audio received.

Sent Quality IP address of the media endpoint as seen by the media relay server. This

- 349 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description

Event Ratio

is typically the public internet IP address associated to the endpoint.

DNS Suffix

DNS suffix associated with the network adapter of the media endpoint.

Link Speed (bps)

Link speed in bits per second reported by the network adapter used by the media endpoint.

Connection Type

Type of network used by the media endpoint. Possible values are: unknown, wired, wifi, mobile, tunnel, unknownFutureValue.

Basic Service Set Identifier

The wireless LAN basic service set identifier (BSSID) of an endpoint used to connect to the network.

Wi-Fi Band

Wi-Fi band used as reported by the endpoint. Example value: 5.0 Ghz Possible reasons for blank values: The value was not computed by the endpoint The value was not reported

Wi-Fi Battery Charge (%)

Estimated remaining battery charge in percentage [0-99] reported by the endpoint. Values grouped by range. 0 indicates that the device was plugged in. Example value: 081: [90 - 100) Possible reasons for blank values: The value was not computed by the endpoint The value was not reported

Wi-Fi Channel

Wi-Fi channel used by the endpoint. Example value: 10 Possible reasons for blank values: Wi-Fi was not used The channel was not reported

Wi-Fi Microsoft Driver

Name of the Microsoft Wi-Fi driver used reported by the endpoint. Value may be localized based on the language used by the endpoint. Example value: Microsoft Hosted Network Virtual Adapter Possible reasons for blank values:
Wi-Fi wasn't used by the endpoint

- 350 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description

The driver information was not reported

Wi-Fi Microsoft Driver Version

Version of Microsoft Wi-Fi driver reported by the endpoint. Example value: Microsoft:10.0.14393.0 Possible reasons for blank values: Wi-Fi wasn't used by the endpoint The driver information was not reported

Wi-Fi Radio Type

Type of Wi-Fi radio used by the endpoint. HRDSSS is equivalent to 802.11b. Example value: 802.11ac Possible reasons for blank values: Wi-Fi wasn't used The driver information was not reported

Wi-Fi Signal Strength (%)

Wi-Fi signal strength in percentage [0-100] reported by the endpoint. Example value: 081: [90 - 100) Possible reasons for blank values: The value was not computed by the endpoint The value was not reported

Wi-Fi Vendor Driver

Vendor and name of WiFi driver reported by the first endpoint. Example value: Contoso Dual Band Wireless-AC Driver. Possible reasons for blank values: Wi-Fi wasn't used by the endpoint The driver information was not reported

Wi-Fi Vendor Version of Microsoft WiFi driver reported by the first endpoint. Driver Version Example value: Microsoft:10.0.14393.0
Possible reasons for blank values: Wi-Fi wasn't used by the endpoint The driver information was not reported

- 351 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Device
Click the Device tab to display information about the device (microphone, speaker, camera, etc.) used in the call. Use the following table as reference to the parameters displayed.
Table 8-17: Device Parameters

Parameter

Description

Capture Device Driver

Name of the capture device driver used by the endpoint in the form of "manufacturer : version". For: Audio streams = driver used for the microphone Video streams = driver used for the camera Video-based-screen-sharing and app sharing streams = blank Example value: Microsoft: 10.0.14393.0 Possible reasons for blank values:

Data was not reported by the endpoint

The media path was not established

The stream was video-based screen sharing or application sharing

Capture Device Name of the capture device used by the media endpoint. Name

Capture Not Functioning Event Ratio

Fraction of the call that the media endpoint detected the capture device was not working properly.

CPU Insufficent Event Ratio

Fraction of the call that the media endpoint detected the CPU resources available were insufficient and caused poor quality of the audio sent and received.

Howling Event Count

Number of times during the call that the media endpoint detected howling or screeching audio.

Mic Glitch Rate Glitches per 5 minute interval for the media endpoint's microphone.

Received Noise Average energy level of received audio for audio classified as mono

Level

noise or left channel of stereo noise by the media endpoint.

Received Signal Average energy level of received audio for audio classified as mono

Level

speech, or left channel of stereo speech by the media endpoint.

Render Device Driver

Name of the render device driver used by the media endpoint.

- 352 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description

Render Device Name

Name of the render device used by the media endpoint.

Sent Noise Level

Average energy level of sent audio for audio classified as mono noise or left channel of stereo noise by the media endpoint.

Sent Signal Level

Average energy level of sent audio for audio classified as mono speech, or left channel of stereo speech by the media endpoint.

Speaker Glitch Rate

Glitches per 5 minute internal for the media endpoint's loudspeaker.

Details of a Call Made over an Endpoint Using SIP Publish
The following figure shows the details of a call made over an endpoint using SIP Publish. The Details page displays detailed diagnostic information on the call, in textual format, facilitating effective management, precise diagnosis and targeted remedial action to prevent recurrence of unsuccessful call performance or poor call quality.
Figure 8-15: Call Details � Over an Endpoint Using SIP Publish

Use the following table as reference. Table 8-18: Call Details - Over an Endpoint Using SIP Publish

Page Section

Description

Call Summary (Uppermost)

Indicates the caller's full name and email address and callee's full name and email address.

Call Status

Successful or Failed

- 353 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Page Section Call Quality Call Type Start Time
End Time
Connect Time
Duration Termination Initiator Termination Reason SIP PSTN Reason
Media Type [Quality] Cause

Description
Good | Fair | Poor voice quality Endpoint
The precise time (hour, minutes and seconds) and date (month, day and year) when the caller began dialing the number to call.
The precise time (hour, minutes and seconds) and date (month, day and year) when the call was terminated.
The precise time (hour, minutes and seconds) and date (month, day and year) the connection was established.
The duration of the call, in seconds.
The network entity from which the call was terminated.

The reason why the call was terminated. See the device's User's Manual for more information about Termination Reason.

The reason why the call was terminated. See the device's User's Manual for more information about the SIP/PSTN Reason.

Voice

Delay

Echo

The level difference (measured in dB) between the signal transmitted to the listener and the residual echo of this signal.

Jitter

- 354 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Page Section

Description

MOS

Packet Loss

None

Indeterminate cause

(Middle) Graphic illustration

(Lowermost) Two tabs

Each opens a page displaying detailed information: Media (see Media on the next page) Signaling (see Signaling on page 329)

- 355 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Media
The Media tab displays a call's media parameter settings that operators can refer to for diagnostics, troubleshooting and session experience management issues.
Figure 8-16: Media

Use the following table as reference. Table 8-19: Media Parameters

Parameter

Description

Media IP Address

The IP address of the device source in the operations, administration, maintenance, and provisioning (OAMP) network.
The IP address of the destination host / media network.

Media Port

The device's source port in the operations, administration, maintenance, and provisioning (OAMP) network.
Port of the destination host / media network.

Signal Level

The ratio of the voice signal level to a 0 dBm0 reference. Signal level = 10 Log10 (RMS talk spurt power (mW)). A value of 127 indicates that this parameter is unavailable.

Noise Level

SNR

The ratio of the signal level to the noise level (Signal-Noise Ratio).

- 356 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description

SNR = Signal level � Noise level.

Rx Rate

Shows the call's reception rate, in Kbps.

Quality

Voice quality: Good (green), Fair (yellow) OR Red (poor).

MOS

Jitter

Jitter (in msec) can result from uneven delays between received voice packets. To space packets evenly, the jitter buffer adds delay. The higher the measurement, the greater the impact of the jitter buffer's delay on audio quality.

Packet Loss

Lost packets, as a percentage - RTP packets that aren't received by the voice endpoint for processing, resulting in distorted voice transmission. Packet Loss can be more than 100%.

Delay

Delay (or latency) (in msec) - the time it takes for information to travel from source to destination (round-trip time). Sources of delay include voice encoding / decoding, link bandwidth and jitter buffer depth.

Echo

The residual echo return loss is the level difference (measured in dB) between the signal transmitted to the listener and the residual echo of that signal.

Coder

Up to 10 coders (per group) are supported. See the device manual for a list of supported coders.

SCE

Method for conserving bandwidth on VoIP calls by not sending packets

when silence is detected. True = Enabled (On), False = Disabled (Off).

RTP Direction

RTP Directional Control. Controlled internally by the device according to the selected coder.

RTCP

RTCP Directional Control. Controlled internally by the device according to

- 357 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description

Direction

the selected coder.

PTime (msec)

Packetization time, i.e., how many coder payloads are combined into a single RTP packet.

- 358 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Managing QoE Thresholds Profiles per Tenant
The QoE Thresholds page lets you adding a profile of Quality of Experience threshold values, per tenant. For information about adding a global (system) QoE Thresholds template, see QoE Thresholds on page 91.
To view QoE thresholds profiles: Open the QoE Thresholds page (Calls > QoE Thresholds).
Figure 8-17: QoE Thresholds Profiles

In the page you can: view QoE thresholds profiles and their metrics thresholds add a profile (see Adding a QoE Thresholds Profile per Tenant on page 362) edit or delete an existing profile (see Editing a QoE Thresholds Profile per Tenant on
page 365 and Deleting a QoE Thresholds Profile per Tenant on page 365)
Understanding the 3 Sensitivity-Level Profiles
The following table shows the monitored parameters MOS, Delay, Packet Loss and Jitter, each associated with each of the 3 sensitivity-level profiles: Low, Default and High. Each parameter's Green-Yellow Threshold and Yellow-Red Threshold differ in association with the configured Profile. For each monitored parameter, administrators can use the thresholds in the predefined profile, or define their own thresholds.
- 359 -

CHAPTER 8 Obtaining Quality Statistics on Calls

Table 8-20: Quality Profile Parameters

Parameter (units)

Sensitivity Level

Good-Fair (Green-Yellow)
Threshold

MOS

Low

3.4

Medium

3.5

High

3.6

Delay (msec)

Low

200

Medium

160

High

140

Packet Loss (%) Low

2.7

Medium

High

1.5

Jitter (msec)

Low

Medium

High

Echo (dB)

Low

Medium

High

OVOC | User's Manual
Fair-Poor (Yellow-Red)
Threshold 2.7 2.8 2.9 1200 500 400 6.6 5 4.3 90 80 70 9 10 11

Understanding How Call Color is Determined
It may be useful for you to understand how Skype for Business call color is determined. As shown previously, a default profile is assigned to each Front End server, which you can change. (No profile is attached to the Mediation Server or Edge Server).
A default profile is also assigned to each Link, which you can change and apply to each Link as shown previously.
Link Profile as Determinant
Each call comprises one or more legs. Each leg is assigned a color, determined by its associated Link profile. If a call leg passes over few Links and each has a different profile, each Link has its own color (displayed in the Summary Panes) corresponding to its profile. However, the call

- 360 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

leg's color is set as the worst color received from all the Links profile; the Call Details screen shows what profile caused the leg color. If a call leg does not match any of the Links, its color is defined based on the FE profile. The color representing worst quality among all the legs will be the call color. (If a call comprises only from one leg, the color of the leg will be the call color).
MOS Metric as Determinant
Each profile can be configured with a set of quality metrics (MOS / Packet Loss / Jitter / Delay / Echo). Each call leg's color is determined at the end of the call using its reported metrics. If MOS is reported, the leg will be determined by the MOS' color; if not, the color representing worst quality will be the leg's color. If any of the call leg's reported metrics are excluded from the profile, color calculations will ignore this metric.

- 361 -

CHAPTER 8 Obtaining Quality Statistics on Calls
Adding a QoE Thresholds Profile per Tenant
You can add a QoE Thresholds profile. To add a QoE thresholds profile: 1. Open the QoE Thresholds page (Calls > QoE Thresholds). 2. Click Add.
Figure 8-18: QoE Thresholds Details

OVOC | User's Manual

3. Provide an intuitive name for the profile. Use the names of the four predefined QoE profiles displayed in the QoE Thresholds screen as a reference.
4. In the 'Description' pane, provide an intuitive, friendly description to facilitate future operator management.
5. From the 'Tenant' drop-down, select the tenant for whom you're customizing this profile. 6. Next to 'Attachments', click the View button.
- 362 -

CHAPTER 8 Obtaining Quality Statistics on Calls
Figure 8-19: Attachments

OVOC | User's Manual

7. Expand the tenant to navigate to and select the entities to which to attach this QoE thresholds profile (devices, links or endpoints).
8. Next to 'Defaults', select: Devices in order to set this QoE thresholds profile as the default for all devices. If selected, then every new device that is added to the tenant is automatically set with this QoE thresholds profile and all previous devices' default QoE thresholds profile is set with this new default profile. Links in order to set this QoE thresholds profile as the default for all links. If selected, then every new link that is added to the tenant is automatically set with this QoE thresholds profile and all previous links' default QoE thresholds profile is set with this new default profile. Endpoints in order to set this QoE thresholds profile as the default for all endpoints. If selected, then every new endpoint that is added to the tenant is automatically set with this QoE thresholds profile and all previous endpoints' default QoE thresholds profile is set with this new default profile.
- 363 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

9. Specify which voice quality metrics to include in or exclude from the profile. You can exclude, for example, the metrics of 'MOS', 'Delay' and 'Echo', but include 'Packet Loss' and 'Jitter'. To exclude a voice quality metric, clear its check box. By default, all voice quality metrics are included in the profile. 'Echo' does not apply to MS Teams Thresholds.
10. Enter the MOS metric's thresholds (for example). Enter the other metrics' thresholds. The following figure shows the profile 'Medium Sensitivity Threshold' as an example.
Figure 8-20: QoE Thresholds Settings - Medium Sensitivity Threshold

11. Click OK; the profile is displayed in the QoE Thresholds page. 12. In the page, select the profile; the QoE Threshold Details pane on the right side of the page
is displayed.
- 364 -

CHAPTER 8 Obtaining Quality Statistics on Calls
Figure 8-21: QoE Thresholds Details

OVOC | User's Manual

Shown in the preceding figure, the QoE Thresholds Details pane displays under Attached Items the number of devices / links / endpoints to which the selected profile is attached, if any. Also in the QoE Threshold Details pane:
x indicates the lower threshold of the quality metric: Up until the threshold value of x is reached = green = good voice quality If the threshold value of x is exceeded = yellow = fair voice quality
y indicates the upper threshold of the quality metric: Up until the threshold value of y is reached = yellow = fair voice quality If the threshold value of y is exceeded = red = poor voice quality
Editing a QoE Thresholds Profile per Tenant
You can edit an existing QoE Thresholds profile per Tenant.
To edit a QoE Thresholds profile: In the QoE Thresholds page (Calls > QoE Thresholds), select the profile to edit and click
Edit; the screen shown under Adding a QoE Thresholds Profile per Tenant on page 362 opens. Refer to the instructions under the figure.
Deleting a QoE Thresholds Profile per Tenant
You can delete a QoE Thresholds profile per Tenant.
To delete a QoE Thresholds profile per Tenant: In the QoE Thresholds page (Calls > QoE Thresholds), select the profile to delete and click
Delete. Note that default profiles cannot be deleted.
- 365 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Managing QoE Status and Alarms per Tenant
The QoE Status & Alarms page lets you manage QoE statuses and alarms per tenant. For information about managing global (system -wide) QoE statuses and alarms, see QoE Status and Alarms on page 93.
To view QoE statuses and alarms per tenant: Open the QoE Status & Alarms page (Calls > QoE Status & Alarms).
Figure 8-22: QoE Status & Alarms

The information displayed in the page above - QoE Status & Alarms per tenant � is identical to the information displayed in the global (system-wide) QoE Status & Alarms page. See QoE Status and Alarms on page 93 for a detailed description.
Adding a QoE Alarm Rule per Tenant
You can add a new rule for a QoE alarm per tenant.
To add a new QoE alarm rule per tenant: 1. Open the QoE Status & Alarms Details screen (Calls > QoE Status & Alarms and then click
Add).

- 366 -

CHAPTER 8 Obtaining Quality Statistics on Calls
Figure 8-23: QoE Status & Alarms Details

OVOC | User's Manual

2. Configure the parameters using the following table as reference. Table 8-21: QoE Status & Alarms Details

Parameter

Description

Name Description Attachments Defaults
Monitoring Frequency (min)

Enter an operator-friendly alarm rule name to facilitate intuitive effective management later.
Describe the alarm rule to facilitate effective management later.
Click View and then navigate to and select the entities to which to attach this QoE Alarm Rule: devices, links, sites and/or endpoints.
Select the Device, Link, Site and/or Endpoint monitoring filter. If you select Link, the links selection pop-up opens; select the
links to monitor (the default is All Selected). If you select Device, the device selection pop-up opens; select
the devices to monitor (the default is All Selected).
Determines how frequently the OVOC automatically performs data analysis. Defines every 15 (default), 30 or 60 minutes.

- 367 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter

Description

Minimum Calls to Analyze

Defines the number of calls to analyze. Default = 50 calls. Up to 1000 calls can be defined. If the number of calls made doesn't exceed the defined # of calls to analyze, the OVOC won't perform data analysis.

Failed Calls Alarm

Select the Generate Alarm option to active the alarm. Clear the option to deactivate the alarm. Critical Threshold: 5% of calls (default); if this threshold is exceeded, the alarm is triggered. Major Threshold: 3% of calls (default); if this threshold is exceeded, the alarm is triggered.

Poor Quality Calls Alarm

Select the Poor Quality Calls Alarm option to active the alarm. Clear the option to deactivate the alarm. Critical Threshold: 10% of calls (default); if this threshold is exceeded, the alarm is triggered. Major Threshold: 8% of calls (default); if this threshold is exceeded, the alarm is triggered.

Avg Call Duration Alarm

Select the Avg Call Duration Alarm option to active the alarm. Clear the option to deactivate the alarm. Critical Threshold: 5 seconds (default), up to 100 seconds; if the average duration of calls is below this, the alarm is triggered. Major Threshold: 10 seconds (default), up to 100 seconds; if the average duration of calls is below this, the alarm is triggered.

Bandwidth Alarm

Select the Bandwidth Alarm option to active the alarm. Clear the option to deactivate the alarm. Major Threshold: if the bandwidth falls below or exceeds the value you configure (minimum of 0 Kbps and a maximum of 1000000 Kbps), an alarm of Major severity is triggered. Critical Threshold: if the bandwidth falls below or exceeds the value you configure (minimum of 0 Kbps and a maximum of 1000000 Kbps), an alarm of Critical severity is triggered.
You must configure a higher value for the Critical Threshold than for the Major Threshold.
You can configure a minimum of 0 Kbps and a maximum of 1000000 Kbps for either the Critical or the Major Threshold, so long as the value you configure for the Critical Threshold is higher than the value you configure for the Major Threshold.

Max Concurrent Select the Max Concurrent Calls Alarm option to active the alarm.

- 368 -

CHAPTER 8 Obtaining Quality Statistics on Calls

OVOC | User's Manual

Parameter Calls Alarm

Description
Clear the option to deactivate the alarm. Major Threshold: if the number of concurrent calls falls below, or exceeds, the value you configure (minimum of 0 and a maximum of 100000), an alarm of Major severity is triggered. Critical Threshold: if the number of concurrent calls falls below, or exceeds, the value you configure (minimum of 0 and a maximum of 100000), an alarm of Critical severity is triggered.
You must configure a higher value for the Critical Threshold than for the Major Threshold.
You can configure a minimum of 0 and a maximum of 1000000 for either the Critical or the Major Threshold, so long as the value you configure for the Critical Threshold is higher than the value you configure for the Major Threshold.

3. Click OK; the QoE alarm rule is now listed in the QoE Status & Alarms page.

Editing a QoE Alarm Rule per Tenant
You can edit a QoE alarm rule per tenant.

To edit a QoE alarm rule per tenant:
In the QoE Status & Alarms page (Calls > QoE Status & Alarms), select the QoE alarm rule to edit and then click Edit; the Alarm Rule Details screen opens displaying parameters identical to those displayed when adding a rule. Use the preceding table as reference.

Deleting a QoE Alarm Rule
You can delete a QoE alarm rule if necessary.

To delete a QoE alarm rule:
In the QoE Status & Alarms page (Calls > QoE Status & Alarms), select the QoE alarm rule to delete and then click Delete. Note that default QoE alarm rules cannot be deleted.

- 369 -

CHAPTER 9 Getting Information on Users Experience

OVOC | User's Manual

9 Getting Information on Users Experience
The OVOC enables you to get information on how end users experience IP network telephony.
'End users' refers to an enterprise's employees. By contrast, 'operators' refers to administrators managing the enterprise's network using the OVOC.
Adding an Active Directory to the OVOC below shows how to add an Active Directory in the Active Directories page. Assessing Overall End Users Experience on page 375 and Assessing a Specific End User's Experience on page 377 show how to get user experience info in the Users Experience page. Adding an Active Directory to the OVOC below shows how to manage end users in the User Details page.
Figure 9-1: Getting Information on Users

Adding an Active Directory to the OVOC
You can add an Active Directory to the OVOC.
To add an Active Directory to the OVOC: 1. Open the Active Directory page (Users > Active Directories).
Figure 9-2: Active Directories

2. Click Add.

- 370 -

CHAPTER 9 Getting Information on Users Experience
Figure 9-3: Active Directory Settings

OVOC | User's Manual

3. Configure the General AD settings using the following table as reference. Table 9-1: Active Directory Settings - General

Setting

Description

Name Tenant Host

Enter an intuitive name for the AD to facilitate operator management later.
From the drop-down, select the tenant configured as shown in Adding a Tenant on page 113.
Consult with the IT manager responsible for the AD in your enterprise.

Port

The default is typically 389 but consult with the IT manager

responsible for the Active Directory in your enterprise.

Base object

Enterprise employees are listed under branches/departments in a tree structure. Enter in the field the branch/department whose employees the AD manages. The AD will then access only to that

- 371 -

CHAPTER 9 Getting Information on Users Experience

OVOC | User's Manual

Setting

Description
(relevant) branch/department's employees. For more information, consult with the IT manager responsible for the Active Directory in your enterprise.

Bind DN Password Enable SSL
Certificate file
Test connectivity (NA) Verify Certificate Subject Name

For the 'DN' (Domain Name) field, consult with the IT manager responsible for the Active Directory in your enterprise.
Consult with the IT manager responsible for the AD in your enterprise.
Select the option to secure the connection with the AD server over SSL; an HTTPS connection between the OVOC and the LDAP server is opened. Clear (default) the option for the connection with the LDAP server to be non-secured.
This option is only activated if the 'Enable SSL' option described before was selected. From the drop-down, select the certificate file that you want to use to secure the SSL connection with the LDAP server. The OVOC authenticates the SSL connection using the certificate. Make sure you load the SSL certificate file, required by the LDAP Active Directory platform, to the Software Manager, as described in Adding Configuration Files to the OVOC's Software Manager on page 98.
Click to test synchronization of the OVOC and the Active Directory databases. You can alternatively click Sync Now in the Active Directories page.
This option is only activated if the 'Enable SSL' option described previously was selected and a 'Certificate file' was selected from the drop-down list. Select this option to enable authentication of the hostname (FQDN) sent in the Certificate file by the LDAP server. The option provides an additional means of securing the SSL connection between the OVOC server and the LDAP server.

4. Click the Synchronization tab.

- 372 -

CHAPTER 9 Getting Information on Users Experience

OVOC | User's Manual

5. Configure the AD settings - Synchronization tab settings using the following table as reference.
Table 9-2: Active Directory Settings - Synchronization

Setting

Description

Check for updates every....hours

Lets you schedule how frequently synchronization of the OVOC and the Active Directory databases takes place. After synchronization is performed, the OVOC's User Details page is updated to reflect the Active Directory.

Perform full update every....days

Lets you schedule how frequently a full synchronization is performed. Select from a range of 1-7, i.e., once a day (most frequent) to once a week (most infrequent). After synchronization is performed, the OVOC's User Details page is updated to reflect the Active Directory.

At 0:0

Lets you schedule the time at which the full synchronization is performed. After it's performed, the OVOC's User Details page is updated to reflect the Active Directory.

6. Click OK.

Editing an Active Directory
You can edit an Active Directory after adding one.

To edit an Active Directory: 1. Open the Active Directory page (Users > Active Directories). 2. Select the Active Directory to edit and click now-enabled Edit button.

- 373 -

CHAPTER 9 Getting Information on Users Experience
Figure 9-4: Active Directory Settings

OVOC | User's Manual

3. Edit the parameters using the table Adding an Active Directory to the OVOC on page 370 as reference, and then click OK.
- 374 -

CHAPTER 9 Getting Information on Users Experience

OVOC | User's Manual

Deleting an Active Directory
You can delete an Active Directory if necessary.
To delete an Active Directory: 1. Open the Active Directory page (Users > Active Directories). 2. Select the Active Directory to delete and click now-enabled Delete button.
Synchronizing an AD with the AD Server
You can manually synchronize an AD with the AD server.
To synchronize an AD with the AD server: 1. Open the Active Directories page (Users > Active Directories).
Figure 9-5: Active Directories

2. Select the AD to synchronize and click Sync Now.

3. In the confirmation prompt, click OK.
Assessing Overall End Users Experience
The OVOC enables operators to assess at a glance the overall experience of end users and to tweak the enterprise's telephony network to enhance their experience. Users experience includes statistics related to voice quality (good, fair and poor quality voice) and statistics related to call performance (rate and number of successful versus failed calls). To assess end users experience: 1. Open the Users Experience page (Users > Users Experience).
- 375 -

CHAPTER 9 Getting Information on Users Experience
Figure 9-6: Users Experience

OVOC | User's Manual

2. [Optional] Filter the page to present only information you require. You can filter by Time Range (see Filtering to Access Specific Information on page 212) or by Users (see Filtering the User Details Page on page 380).
3. Use the following table as reference to the page.
Table 9-3: Users Experience

Column

Description

Full Name

The first name and the family name of the end user (the employee) in the enterprise.

User Name

The employee's user name, defined by the enterprise's network administrator.

Calls Count

The total number of calls made by the end user (employee).

Total Duration

The total length of time the end user (enterprise employee) spent on the phone.

Success/Failed

Color-coded bar lets you determine at glance the call success/failure rate (percentage) was for end users. Point your cursor over a specific end user's bar to see the rate of successful versus unsuccessful calls.

Call Quality

Lets you determine at glance end users calls whose voice quality was measured as Good (green), Fair (yellow) or Poor (red).
Point your cursor over a specific end user's bar to see that specific end user's % of calls whose voice quality was measured as Good (green), Fair (yellow) or Poor (red).

- 376 -

CHAPTER 9 Getting Information on Users Experience
Column

Description

OVOC | User's Manual

MOS Jitter Delay Packet Loss Description

MOS - Mean Opinion Score (specified by ITU-T recommendation P.800) - the average grade on quality scales of Good to Failed, given by the OVOC to voice calls made over a VoIP network at the conclusion of the testing.
Jitter (in msec) can result from uneven delays between received voice packets. To space packets evenly, the jitter buffer adds delay. The higher the measurement, the greater the impact of the jitter buffer's delay on audio quality.
Delay (or latency) (in msec) - the time it takes for information to travel from source to destination (round-trip time). Sources of delay include voice encoding / decoding, link bandwidth and jitter buffer depth.
Lost packets, as a percentage - RTP packets that aren't received by the voice endpoint for processing, resulting in distorted voice transmission. Packet Loss can be more than 100%.
The end user's professional position in the enterprise.

4. [Optional] Select an end user's row and then click Show; details about that specific user's experience are displayed.
5. [Optional] Click Refresh to manually synchronize the page with the Active Directory.

Assessing a Specific End User's Experience
The OVOC lets operators quickly assess a specific end user's experience, helping operators to tweak the enterprise's telephony network to enhance that experience.

To assess a specific end user's experience: 1. Open the Users Experience page (Users > Users Experience). 2. Select the row of the end user whose experience you want to assess and then click Show;
details about this specific end user's experience are displayed.

- 377 -

CHAPTER 9 Getting Information on Users Experience
Figure 9-7: Specific End User's Experience

OVOC | User's Manual

3. Note that the page displaying specific information related to this end user's experience is automatically dynamically tabbed on the menu bar as a pin (labeled Remco Westerman... in the page shown above, facilitating quick and easy future access and troubleshooting management. Operators can delete the pin from the menu bar at any time.

- 378 -

CHAPTER 9 Getting Information on Users Experience

OVOC | User's Manual

Managing End Users

Only OVOC operators with 'Administrator' security level can perform local management of end users.

Usernames and passwords of end users are by default locally stored in the OVOC application's database. The User Details page allows operators to locally manage end users. The page mirrors the Active Directory. Any change to the AD is reflected in the User Details page immediately after synchronization is performed.
To manage end users: 1. Open the User Details page (Users > User Details).
Figure 9-8: User Details

2. Optionally, use filters for quick access to specific users.
3. Obtain contact information about end users from under the columns in the table: Full Name, User Name, Description, Department, Office, Mobile, Home, MS Skype for Business Line URI, Email, Server, Country.

- 379 -

CHAPTER 9 Getting Information on Users Experience

OVOC | User's Manual

Filtering the User Details Page
You can filter the Users Details page using the 'User's filter (click the Add Filter button). Figure 9-9: Users Filter

Use the following table as reference. Table 9-4: 'Users' Filter

Filter Tenants

Description
From the drop-down, select a configured tenant. Only calls made by and received from users assigned to that tenant will be displayed in the page.

Active directories

From the drop-down, select an Active Directory. Only calls made by and received from users associated with that AD will be displayed in the page.

Name Country

Enter the name of a user. Only calls made by and received from that user will be displayed in the page.
Enter the name of a country. Only calls made and received by users

- 380 -

CHAPTER 9 Getting Information on Users Experience

OVOC | User's Manual

Filter Department

Description
in that country will be displayed in the page.
Enter the name of a department in the enterprise. Only calls made and received by users in that department will be displayed in the page.

- 381 -

CHAPTER 10 Managing Reports

OVOC | User's Manual

10 Managing Reports
The OVOC allows administrators to produce reports that can be used to distribute information about IP telephony performance and quality of experience across the enterprise and to external authorities, for accurate diagnosis, correction of issues and optimization. The Reports page lets operators manage reports. Before managing reports, make sure your license covers them.
To make sure your license covers reports: 1. Open the License Configuration page (System > Administration > License > Configuration)
and under 'Voice Quality', locate 'Reports'. Figure 10-1: License Configuration - Reports

2. Make sure you have reports capability including system and tenant allocations. Contact your AudioCodes representative if you don't.
In the Reports page, you can manage reports - see below define a report - see Defining a Report on page 385 view a defined report - see Viewing a Defined Report on page 399 edit a report - see Editing a Report on page 400 run, export, import, duplicate or delete a report - see Performing Actions on Reports on
page 401 To manage reports: 1. Open the Reports page (Statistics > Reports > Reports).
- 382 -

CHAPTER 10 Managing Reports

Figure 10-2: Reports page

OVOC | User's Manual

2. Use the table as reference. Table 10-1: Reports page

Column

Description

Search by Category

Allows filtering reports displayed in the Reports page according to category. Default: 'All'.

Reports Categories

Select a category according to which reports in the page will be filtered. Following are the default categories: Devices Monthly Reports Links Monthly Reports Devices Monthly Aggregation Reports Links Monthly Aggregation Reports Top URI Monthly Element Reports
Any network administrator (Administrator and Operator) who can define a new report can add a new category; the category is made automatically after the report is defined.

Predefined

indicates a predefined report that is integrated with the OVOC and which cannot be deleted or edited. The column can be sorted. Operators of every security level can view a predefined report but none can edit.
indicates an administrator-defined report.

Private / Public

indicates that the report is a public report; anyone can view, edit and delete it
and indicate that the report is a private report

- 383 -

CHAPTER 10 Managing Reports

OVOC | User's Manual

Column

Description

indicates that I am the owner of this private report and that I can view, edit and delete it; the operator defined as Administrator can view and delete this report (but not edit it).
indicates that I am not the owner of this private report; the icon is available only for the operator defined as Administrator; only the operator defined as Administrator can view and delete this report.
The column can be sorted according to these classifications.

Scheduled

indicates a report that is currently scheduled. The column can be sorted.

Report name

Indicates the name of the report, for example, Devices Calls Report. The column can be sorted. By default, the Reports page is sorted in alphabetical order according to the report names in the 'Report name' column.

Type

Indicates the type of report. Either:
Element [Entity] Statistics. Default. See 'Element (Entity) Statistics' Report Type on page 403 for more information.'Aggregated Statistics Trends' Report Type on page 404
Aggregated Statistics Trends. See 'Aggregated Statistics Trends' Report Type on page 404 for more information.
Trends Statistics Comparison. See Selecting a Metric on page 392 for more information.

Entity Type

Indicates the type of entity on which the report was created, for example, Device.
