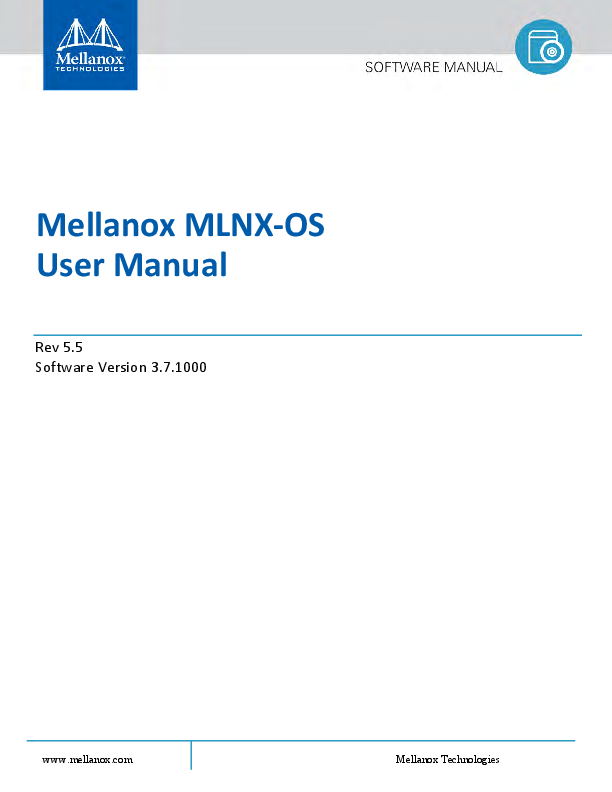

Mellanox MLNX-OS User Manual
www.mellanox.com Mellanox Technologies Mellanox MLNX-OS User Manual . Rev 5.5 Software Version 3.7.1000
Mellanox Technologies www.mellanox.com. Mellanox MLNX-OS . User Manual. Rev 5.5. Software Version 3.7.1000 ...
User Manual . Rev 5.5 Software Version 3.7.1000. Doc #: MLNX-15-1388-VPI Mellanox Technologies 2 Mellanox Technologies 350 Oakmead Parkway Suite 100 Sunnyvale, CA 94085
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
Mellanox MLNX-OS User Manual
Rev 5.5 Software Version 3.7.1000
www.mellanox.com
Mellanox Technologies
NOTE: THIS HARDWARE , SOFTWARE OR TEST SUITE PRODUCT ( PRODUCT(S) ) AND ITS RELATED DOCUMENTATION ARE PROVIDED BY MELLANOX TECHNOLOGIES AS-IS WITH ALL FAULTS OF ANY KIND AND SOLELY FOR THE PURPOSE OF AIDING THE CUSTOMER IN TESTING APPLICATIONS THAT USE THE PRODUCTS IN DESIGNATED SOLUTIONS . THE CUSTOMER 'S MANUFACTURING TEST ENVIRONMENT HAS NOT MET THE STANDARDS SET BY MELLANOX TECHNOLOGIES TO FULLY QUALIFY THE PRODUCT (S) AND/OR THE SYSTEM USING IT. THEREFORE , MELLANOX TECHNOLOGIES CANNOT AND DOES NOT GUARANTEE OR WARRANT THAT THE PRODUCTS WILL OPERATE WITH THE HIGHEST QUALITY . ANY EXPRESS OR IMPLIED WARRANTIES , INCLUDING , BUT NOT LIMITED TO , THE IMPLIED WARRANTIES OF MERCHANTABILITY , FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT ARE DISCLAIMED . IN NO EVENT SHALL MELLANOX BE LIABLE TO CUSTOMER OR ANY THIRD PARTIES FOR ANY DIRECT , INDIRECT, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES OF ANY KIND (INCLUDING , BUT NOT LIMITED TO , PAYMENT FOR PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES ; LOSS OF USE, DATA, OR PROFITS ; OR BUSINESS INTERRUPTION ) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY , WHETHER IN CONTRACT , STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE ) ARISING IN ANY WAY FROM THE USE OF THE PRODUCT(S) AND RELATED DOCUMENTATION EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Mellanox Technologies 350 Oakmead Parkway Suite 100 Sunnyvale, CA 94085 U.S.A. w w w .m e lla n o x.co m Tel: (408) 970-3400 Fax: (408) 970-3403
� Copyright 2018. Mellanox Technologies Ltd. All Rights Reserved.
Mellanox�, Mellanox logo, Accelio�, BridgeX�, CloudX logo, CompustorX�, Connect-IB�, ConnectX�, CoolBox�, CORE-Direct�, EZchip�, EZchip logo, EZappliance�, EZdesign�, EZdriver� , EZsystem�, GPUDirect�, InfiniHost�, InfiniBridge�, InfiniScale�, Kotura�, Kotura logo, Mellanox CloudRack�, Mellanox CloudXMellanox�, Mellanox Federal Systems�, Mellanox HostDirect�, Mellanox Multi-Host�, Mellanox Open Ethernet�, Mellanox OpenCloud�, Mellanox OpenCloud Logo�, Mellanox PeerDirect�, Mellanox ScalableHPC�, Mellanox StorageX�, Mellanox TuneX�, Mellanox Connect Accelerate Outperform logo, Mellanox Virtual Modular Switch�, MetroDX�, MetroX� , MLNX-OS�, NP-1c�, NP-2�, NP-3�, NPS� , Open Ethernet logo, PhyX�, PlatformX�, PSIPHY�, SiPhy�, StoreX�, SwitchX�, Tilera�, Tilera logo, TestX�, TuneX�, The Generation of Open Ethernet logo, UFM�, Unbreakable Link�, Virtual Protocol Interconnect�, Voltaire� and Voltaire logo are registered trademarks of Mellanox Technologies, Ltd.
All other trademarks are property of their respective owners.
For the most updated list of Mellanox trademarks, visit http://www.mellanox.com/page/trademarks
Doc #: MLNX-15-1388-VPI
Mellanox Technologies
2
Table of Contents
Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1.1 System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 1.2 InfiniBand Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Chapter 2 Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.1 Configuring the Switch for the First Time. . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.1.1 Configuring the Switch with ZTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 2.1.2 Rerunning the Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.2 Starting the Command Line (CLI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 2.3 Starting the Web User Interface (WebUI) . . . . . . . . . . . . . . . . . . . . . . . . . 35 2.4 Zero-touch Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2.4.1 Running DHCP-ZTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 2.4.2 ZTP on Director Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 2.4.3 ZTP and MLNX-OS Software Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 2.4.4 DHCPv4 Configuration Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 2.4.5 DHCPv6 Configuration Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 2.4.6 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.5 Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2.5.1 Installing MLNX-OS License (CLI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 2.5.2 Installing MLNX-OS License (Web). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 2.5.3 Retrieving a Lost License Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 2.5.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Chapter 3 User Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3.1 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 3.2 Command Line Interface Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3.2.1 CLI Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 3.2.2 Syntax Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 3.2.3 Getting Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 3.2.4 Prompt and Response Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 3.2.5 Using the "no" Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 3.2.6 Parameter Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 3.2.7 CLI Pipeline Operator Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.2.7.1 "include" and "exclude" CLI Filtration Options . . . . . . . . . . . . . . . . . . . . . 59 3.2.7.2 "watch" CLI Monitoring Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 3.2.7.3 "json-print" CLI Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Mellanox Technologies
.
3
3.2.8 CLI Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.3 Web Interface Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.3.1 Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 3.3.2 System Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 3.3.3 Security Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 3.3.4 Ports Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 3.3.5 Status Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 3.3.6 IB SM Mgmt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 3.3.7 Fabric Inspector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 3.3.8 IB Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
3.4 Secure Shell (SSH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
3.4.1 Adding a Host and Providing an SSH Key . . . . . . . . . . . . . . . . . . . . . . . . . . 69 3.4.2 Retrieving Return Codes when Executing Remote Commands. . . . . . . . . 70
3.5 Management Information Bases (MIBs). . . . . . . . . . . . . . . . . . . . . . . . . . . 70 3.6 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
3.6.1 CLI Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 3.6.2 Banner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 3.6.3 SSH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 3.6.4 Remote Login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 3.6.5 Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Chapter 4 System Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
4.1 Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
4.1.1 Configuring Management Interfaces with Static IP Addresses . . . . . . . . 126 4.1.2 Configuring IPv6 Address on the Management Interface . . . . . . . . . . . . 126 4.1.3 Dynamic Host Configuration Protocol (DHCP) . . . . . . . . . . . . . . . . . . . . . 127 4.1.4 Default Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 4.1.5 Configuring Hostname via DHCP (DHCP Client Option 12) . . . . . . . . . . . 127 4.1.6 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
4.1.6.1 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129 4.1.6.2 Hostname Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 4.1.6.3 Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 4.1.6.4 Network to Media Resolution (ARP & NDP) . . . . . . . . . . . . . . . . . . . . . . 159 4.1.6.5 DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165 4.1.6.6 IP Diagnostic Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
4.2 NTP, Clock & Time Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
4.2.1 NTP Authenticate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171 4.2.2 NTP Authentication Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171 4.2.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
4.3 Unbreakable Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
4.3.1 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
4.4 Software Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Mellanox Technologies
.
4
4.4.1 Important Pre-OS Upgrade Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204 4.4.2 Upgrading MLNX-OS Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204 4.4.3 Upgrading MLNX-OS Software on Director Switches. . . . . . . . . . . . . . . . 208 4.4.4 Upgrading MLNX-OS HA Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209 4.4.5 Upgrading MLNX-OS MLAG-STP Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 209 4.4.6 Deleting Unused Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210 4.4.7 Downgrading MLNX-OS Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
4.4.7.1 Downloading Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 4.4.7.2 Downgrading Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212 4.4.7.3 Switching to Partition with Older Software Version . . . . . . . . . . . . . . . . 213
4.4.8 Upgrading System Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
4.4.8.1 After Updating MLNX-OS Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214 4.4.8.2 After Inserting a Switch Spine or Leaf . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 4.4.8.3 Importing Firmware and Changing the Default Firmware . . . . . . . . . . . 215
4.4.9 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
4.5 Configuration Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
4.5.1 Saving a Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229 4.5.2 Loading a Configuration File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229 4.5.3 Restoring Factory Default Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . 230 4.5.4 Managing Configuration Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
4.5.4.1 BIN Configuration Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 4.5.4.2 Text Configuration Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
4.5.5 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
4.5.5.1 File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233 4.5.5.2 Configuration Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
4.6 Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
4.6.1 Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264 4.6.2 Remote Logging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264 4.6.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
4.7 Link Diagnostic Per Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
4.7.1 General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290 4.7.2 List of Possible Output Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290 4.7.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
4.8 Signal Degradation Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
4.8.1 Effective-BER Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295 4.8.2 Configuring Signal Degradation Monitoring . . . . . . . . . . . . . . . . . . . . . . . 295 4.8.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
4.9 Event Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
4.9.1 Supported Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298 4.9.2 SNMP Trap Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 4.9.3 Terminal Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 4.9.4 Email Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Mellanox Technologies
.
5
4.9.5 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
4.9.5.1 Email Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
4.10 Telemetry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
4.10.1 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
4.11 mDNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
4.11.1 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
4.12 User Management and Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
4.12.1 User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347 4.12.2 Authentication, Authorization and Accounting (AAA). . . . . . . . . . . . . . . 347
4.12.2.1 User Re-authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348 4.12.2.2 RADIUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348 4.12.2.3 TACACS+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348 4.12.2.4 LDAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
4.12.3 System Secure Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349 4.12.4 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
4.12.4.1 User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351 4.12.4.2 AAA Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356 4.12.4.3 RADIUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370 4.12.4.4 TACACS+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373 4.12.4.5 LDAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377 4.12.4.6 System Secure Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
4.13 Cryptographic (X.509, IPSec) and Encryption. . . . . . . . . . . . . . . . . . . . . . 395
4.13.1 System File Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395
4.13.1.1 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
4.14 Scheduled Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
4.14.1 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
4.15 Statistics and Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423
4.15.1 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423
4.16 Chassis Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443
4.16.1 System Health Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443
4.16.1.1 Re-Notification on Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443 4.16.1.2 System Health Monitor Alerts Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . 444
4.16.2 Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445
4.16.2.1 Power Supply Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445 4.16.2.2 Width Reduction Power Saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 446 4.16.2.3 Managing Chassis Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447
4.16.3 Monitoring Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 448 4.16.4 USB Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449 4.16.5 Unit Identification LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450 4.16.6 High Availability (HA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450
4.16.6.1 Chassis High Availability Nodes Roles . . . . . . . . . . . . . . . . . . . . . . . . . . . 450 4.16.6.2 Malfunctioned CPU Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 451
Mellanox Technologies
.
6
4.16.6.3 Box IP Centralized Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452 4.16.6.4 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452 4.16.6.5 Takeover Functionally . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452
4.16.7 System Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454
4.16.7.1 Rebooting 1U Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454 4.16.7.2 Rebooting Director Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454
4.16.8 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
4.16.8.1 Chassis Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455 4.16.8.2 Chassis High Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 485
4.17 Network Management Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490
4.17.1 SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490
4.17.1.1 Standard MIBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490 4.17.1.2 Private MIB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 491 4.17.1.3 Proprietary Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 491 4.17.1.4 Configuring SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 492 4.17.1.5 Resetting SNMPv3 Engine ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 493 4.17.1.6 Configuring an SNMPv3 User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 494 4.17.1.7 Configuring an SNMP Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 494 4.17.1.8 SNMP SET Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 496 4.17.1.9 IF-MIB and Interface Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500
4.17.2 JSON API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500
4.17.2.1 Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 4.17.2.2 Sending the Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 501 4.17.2.3 JSON Request Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 501 4.17.2.4 JSON Response Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 503 4.17.2.5 Supported Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 506 4.17.2.6 JSON Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 506 4.17.2.7 JSON Request Using WebUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 511
4.17.3 XML API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 513 4.17.4 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 514
4.17.4.1 SNMP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 514 4.17.4.2 XML API Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 540 4.17.4.3 JSON API Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 542
4.18 Puppet Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 545
4.18.1 Setting the Puppet Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 545 4.18.2 Accepting the Switch Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 545 4.18.3 Installing Modules on the Puppet Server . . . . . . . . . . . . . . . . . . . . . . . . . 546 4.18.4 Supported Configuration Capabilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . 546
4.18.4.1 InfiniBand Interface Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 546 4.18.4.2 SNMP Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 547 4.18.4.3 Fetched Image Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 547 4.18.4.4 Installed Image Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 548
4.18.5 Supported Resources for Each Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 548
Mellanox Technologies
.
7
4.18.6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 548
4.18.6.1 Switch and Server Clocks are not Synchronized . . . . . . . . . . . . . . . . . . . 548 4.18.6.2 Outdated or Invalid SSL Certificates Either on the Switch or the Server 548 4.18.6.3 Communications Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 549
4.18.7 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 550
4.19 Control Plane Policing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 556
4.19.1 IP Table Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 557
4.19.1.1 Configuring IP Table Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 557 4.19.1.2 Modifying IP Table Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 559 4.19.1.3 Rate-limit Rule Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 559
4.19.2 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 560 4.19.3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 572
Chapter 5 InfiniBand Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 575
5.1 Node Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 575
5.1.1 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 575
5.2 Fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 577
5.2.1 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 577
5.3 IB Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 582
5.3.1 Configuring IB Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583 5.3.2 Subnet Prefix Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 585 5.3.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 586
5.4 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 592
5.4.1 Transceiver Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 592 5.4.2 High Power Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 592 5.4.3 Forward Error Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 592 5.4.4 Break-Out Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 593
5.4.4.1 Changing System Profile to Allow for Split-Ready Configuration . . . . . 594 5.4.4.2 Changing the Module Type to a Split Mode . . . . . . . . . . . . . . . . . . . . . . 594 5.4.4.3 Unsplitting a Split Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 595
5.4.5 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 596
5.5 Subnet Manager (SM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 618
5.5.1 Partitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 618
5.5.1.1 Relationship with ib0 Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 618 5.5.1.2 Configuring Partition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 619
5.5.2 Adaptive Routing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 619 5.5.3 Scatter Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 620 5.5.4 GUID Routing Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 620 5.5.5 Bulk Update Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 620 5.5.6 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 622
5.5.6.1 Subnet Manager (SM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 622 5.5.6.2 Partitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 763
Mellanox Technologies
.
8
5.5.6.3 Quality of Service (SM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 773 5.5.6.4 Scatter Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 790 5.5.6.5 GUID Routing Order. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 792 5.5.6.6 Bulk Update Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 801
5.6 Subnet Manager (SM) High Availability (HA) . . . . . . . . . . . . . . . . . . . . . . 803
5.6.1 Joining, Creating or Leaving an InfiniBand Subnet ID. . . . . . . . . . . . . . . . 803 5.6.2 MLNX-OS Management Centralized Location . . . . . . . . . . . . . . . . . . . . . 804 5.6.3 High Availability Node Roles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 804 5.6.4 Configuring MLNX-OS SM HA Centralized Location . . . . . . . . . . . . . . . . . 805 5.6.5 Creating and Adding Systems to an InfiniBand Subnet ID . . . . . . . . . . . . 805 5.6.6 Restoring Subnet Manager Configuration . . . . . . . . . . . . . . . . . . . . . . . . 805
5.6.6.1 Subnet Manager Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 806 5.6.6.2 Mellanox High Availability and Opensm Handover/Failover . . . . . . . . . 806
5.6.7 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 808
5.7 Fabric Inspector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 814
5.7.1 Running Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 814 5.7.2 Mapping GUIDs to Node Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 819 5.7.3 Importing ibdiagnet Fabric Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 820 5.7.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 821
Appendix A Enhancing System Security According to NIST SP 800-131A . . 843
A.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 843 A.2 Web Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 843 A.3 Code Signing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 845 A.4 SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 845 A.5 SSH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 845 A.6 HTTPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 846 A.7 LDAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 847
Appendix B Splunk Integration with Mellanox Products . . . . . . . . . . . . . . . 849
B.1 Getting Started with Splunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 849 B.2 Switch Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 849 B.3 Adding a Task . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 850 B.4 Retrieving Data from TCP and UDP Ports . . . . . . . . . . . . . . . . . . . . . . 852 B.5 SNMP Input to Poll Attribute Values and Catch Traps . . . . . . . . . . . . 854
B.6 Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 854 B.7 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 854
Mellanox Technologies
.
9
List of Tables
Table 1: Reference Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Table 2: Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Table 3: General System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Table 4: InfiniBand Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Table 5: Serial Terminal Program Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Table 6: Configuration Wizard Session - IP Configuration by DHCP. . . . . . . . . . . . . . . . . . . 29 Table 7: Configuration Wizard Session - IP Zeroconf Configuration . . . . . . . . . . . . . . . . . . 31 Table 8: Configuration Wizard Session - Static IP Configuration . . . . . . . . . . . . . . . . . . . . . 32 Table 9: LED Behavior Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Table 10: CLI Modes and Config Context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Table 11: Syntax Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Table 12: Angled Brackets Parameter Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Table 13: CLI Keyboard Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Table 14: WebUI Setup Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Table 15: WebUI System Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Table 16: WebUI Security Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Table 17: WebUI Ports Submenus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Table 18: WebUI Status Submenus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Table 19: WebUI IB SM Mgmt Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Table 20: WebUI Fabric Inspctr Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Table 21: WebUI IB Router Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Table 22: Module Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Table 23: Device Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Table 24: Sensor Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Table 25: Supported Event Notifications and MIB Mapping. . . . . . . . . . . . . . . . . . . . . . . . .298 Table 26: User Roles (Accounts) and Default Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . .347 Table 27: Chassis Manager Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .443 Table 28: System Health Monitor Alerts Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .444 Table 29: LWR Configuration Behavior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .447 Table 30: Standard MIBs � Textual Conventions and Conformance MIBs. . . . . . . . . . . . . .490 Table 31: Standard MIBs � Chassis and Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .490 Table 32: Private MIBs Supported. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .491
Mellanox Technologies
.
10
Table 33: SNMP MELLANOX-EFM-MIB Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .491 Table 34: SNMP MELLANOX-POWER-CYCLE Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .492 Table 35: Supported SET OIDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .497 Table 36: Ethernet and Port-Channel Interface Capabilities . . . . . . . . . . . . . . . . . . . . . . . .546 Table 37: Protocol Enable/Disable Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .547 Table 38: Fetched Image Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .547 Table 39: Installed Image Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .548 Table 40: Fetched Image Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .548 Table 41: Supported Event Notifications and MIB Mapping. . . . . . . . . . . . . . . . . . . . . . . . .843
Mellanox Technologies
.
11
List of Figures
Figure 1: Managing an InfiniBand Software Using MLNX-OS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Figure 2: Console Ports for CS75x0 Managed Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Figure 3: Console Ports for SB7xxx Managed Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Figure 4: MLNX-OS Login Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Figure 5: EULA Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Figure 6: Welcome Popup (Example) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Figure 7: Display After Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Figure 8: No Licenses Installed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Figure 9: Enter License Key(s) in Text Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Figure 10: Installed License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Figure 11: WebUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Figure 12: Index Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Figure 13: JSON API WebUI Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 512 Figure 14: JSON API Asynchronous Job WebUI Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 513 Figure 15: Accepting an Agent Request through the Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 546 Figure 16: Site-Local Unicast GID Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 582 Figure 17: Host-to-Host IB Router Unicast Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583 Figure 18: Break-Out Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 593 Figure 19: SM HA Subnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 803 Figure 20: Add Data Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 850 Figure 21: Monitor Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 851 Figure 22: TCP/UDP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 852 Figure 23: TCP/UDP Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 852 Figure 24: Input Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 853 Figure 25: Start Searching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 854 Figure 26: SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 855 Figure 27: SNMP Attributes Polling Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 855 Figure 28: SNMP Attributes Polling Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 856 Figure 29: Mellanox-Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 856 Figure 30: Add to Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 857 Figure 31: Search Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 857
Mellanox Technologies
.
12
Document Revision History
Rev 5.5 � November 29, 2018
Added: � the command "email autosupport mailhub" on page 312 � the command "email autosupport recipient" on page 313 � the command "snmp-server cache enable" on page 515 � Section 5.4.4, "Break-Out Cables," on page 593 Updated: � Section 3.3.6, "IB SM Mgmt," on page 68 � Section 4.1.6.6, "IP Diagnostic Tools," on page 167 � � � Section 4.9.1, "Supported Events," on page 298 � the command "aaa authorization" on page 366 � the command "show aaa" on page 368 � Section 4.13.1, "System File Encryption," on page 395 � Table 28, "System Health Monitor Alerts Scenarios," on page 444 � the command "show memory" on page 471 � the command "Configuring an SNMPv3 User" on page 494 � the command "snmp-server user" on page 532 � the command "show snmp auto-refresh" on page 535 � the command "show puppet-agent" on page 555 � Section 5.3.1, "Configuring IB Router," on page 583 � the command "ib sm m-key" on page 651 � the command "show ib sm m-key" on page 724 Removed Appendix "Show Commands Not Supported by JSON"
Rev 5.4 � November 5, 2018
No changes made since last revision.
Rev 5.3 � August 30, 2018
Added: � the command "web proxy auth authtype" on page 122 � the command "web proxy auth basic" on page 123 � the command "web proxy auth host" on page 124
Mellanox Technologies
.
13
Updated: � the command "{ip | ipv6} route" on page 155 � the command "image install" on page 224 � the command "image options" on page 226 � Section 4.12.2, "Authentication, Authorization and Accounting (AAA)," on page 347 � the command "aaa authorization" on page 366 � the command "show virtual-machine install" on page 611 � the command "show telemetry" on page 340 � the command "show telemetry threshold record" on page 341 � the command "show system profile" on page 478 � the command "start" on page 642 � the command "show ib fabric messages" on page 830
Rev 5.2 � August 1, 2018
Removed SwitchX content from the document Updated: � the command "hostname" on page 149 � the command "telemetry threshold record" on page 332 � the command "show telemetry threshold record" on page 341
Rev 5.1 � June 28, 2018
Added: � the command "web https ssl renegotiation enable" on page 120 � the command "web https ssl secure-cookie enable" on page 121 � the command "show interfaces mgmt0" on page 145 � the command "show interfaces mgmt0 brief" on page 147 � the command "show interfaces mgmt0 configured" on page 148 � the command "ldap hostname-check enable" on page 381 � the command "show ldap crl" on page 392 � the command "clear telemetry threshold" on page 335 � the command "clear telemetry threshold record" on page 336 � the command "show telemetry threshold record" on page 341 � Table 34, "SNMP MELLANOX-POWER-CYCLE Traps," on page 492 � Section 4.17.1.5, "Resetting SNMPv3 Engine ID," on page 493 � the command "show snmp" on page 534 � the command "show snmp engineID" on page 536
Mellanox Technologies
.
14
� Section 5.8.6, "Interoperability with MLAG," on page 804 � Section 6.1.4, "ARP Neighbor Discovery Responder," on page 1164 � the command "show interfaces" on page 1189 � the command "show interfaces vlan" on page 1190 � the command "show ip interface" on page 1191 � the command "show ip interface brief" on page 1193 � the command "show interface configured" on page 1194 � the command "show ip" on page 1195 � the command "show ip interface mgmt0" on page 1198 � the command "ip arp responder" on page 1232 � the command "default-information originate" on page 1293 � the command "clear ip pim counters" on page 1465 � the command "show ip pim interface brief" on page 1470 � the command "show ip igmp groups" on page 1496 � the command "show ip igmp interface brief" on page 1499 � the command "use-secondary-ip" on page 1531 � Section 5.5.3, "Scatter Ports," on page 620 � Section 5.5.4, "GUID Routing Order," on page 620 � Section 5.5.5, "Bulk Update Mode," on page 620 � Section 5.5.6.4, "Scatter Ports," on page 790 � Section 5.5.6.5, "GUID Routing Order," on page 792 � Section 5.5.6.6, "Bulk Update Mode," on page 801 � Appendix B, "Show Commands Not Supported by JSON" on page 1943 Updated: � the command "show web" on page 125 � Table 25, "Supported Event Notifications and MIB Mapping," on page 298 � Section 4.10, "Telemetry," on page 324 � the command "show telemetry threshold record" on page 341 � the command "show files stats telemetry" on page 344 � the command "ldap ssl" on page 386 � the command "show ldap" on page 391 � Section 4.17.2.7.1, "To Execute a JSON Request," on page 512 � Section 4.17.2.7.2, "To Query an Asynchronous JSON Request," on page 512 � the command "show interfaces ethernet" on page 679 � the command "show lacp interfaces ethernet" on page 711 � the command "show interfaces port-channel compatibility-parameters" on page 720
Mellanox Technologies
.
15
� the command "show interfaces port-channel" on page 716 � the command "lldp tlv-select" on page 731 � Section 5.8.5, "Upgrading MLAG Pair," on page 804 � the command "show mlag-vip" on page 824 � the command "show interfaces mlag-port-channel" on page 825 � the command "show access-lists log config" on page 897 � the command "openflow add-flows" on page 917 � the command "show ip igmp snooping" on page 986 � the command "show ip igmp snooping groups" on page 987 � the command "show ip routing" on page 1174 � the command "show ip interface vrf" on page 1203 � the command "show interfaces loopback" on page 1217 � the command "show ip route" on page 1220 � the command "show ip route vrf" on page 1222 � the command "show ip route failed" on page 1225 � the command "show ip route static" on page 1226 � the command "show ip route static multicast-override" on page 1227 � the command "neighbor update-source" on page 1370 � Section 6.7.4.3, "Configuring PIM," on page 1449 � the command "ip pim bsr-candidate" on page 1454 � the command "ip pim register-source" on page 1456 � the command "show ip pim protocol" on page 1466 � the command "show ip pim bsr" on page 1467 � the command "show ip pim interface" on page 1468 � the command "show ip pim neighbor" on page 1471 � the command "show ip pim rp" on page 1472 � the command "show ip pim rp-candidate" on page 1474 � the command "show ip pim ssm range" on page 1475 � the command "show ip pim upstream joins" on page 1476 � the configuration mode for the command "clear ip mroute" on page 1480 � the command "show ip mroute" on page 1481 � the command "show ip mroute summary" on page 1485 � the configuration mode for the command "clear ip igmp groups" on page 1495 � the command "show ip igmp groups" on page 1496 � the command "show ip igmp interface brief" on page 1499 � the command "address" on page 1506
Mellanox Technologies
.
16
� the command "show vrrp detail" on page 1513 � the command "show ip dhcp relay" on page 1536 � the command "show ip dhcp relay counters" on page 1537 � the command "show interfaces ib" on page 607 � the command "show interfaces ib" on page 607 � the command "ib partition" on page 763 � the command "ipoib" on page 767 � the command "show ib partition" on page 772 � Appendix A, "Enhancing System Security According to NIST SP 800-131A" on
page 843
Rev 5.0 � March 29, 2018
Added: � Section 4.8, "Signal Degradation Monitoring," on page 295 � the command "show interfaces ethernet transceiver brief" on page 685 � the command "clear ip routing counters" on page 1173 � the command "show ip routing counters" on page 1175 � the command "ip pim sg-expiry-timer" on page 1452 � the command "ip pim register-source" on page 1456 � the command "clear ip mroute" on page 1480 � the command "ib sm aguid_default_hop_limit" on page 649 � the command "show ib sm aguid-default-hop-limit" on page 720 Updated: � Table 14, "WebUI Setup Submenus," on page 64 � Step 5 in Section 4.17.1.7, "Configuring an SNMP Notification," on page 494 � Table 38, "LR4/ER4 Switch and Port Support," on page 660 � the command "show interfaces switchport" on page 753 � Step 1 in the procedure "To verify MLAG configuration:" on page 808. � the command "show mlag" on page 823 � the command "show mlag statistics" on page 829 � the command "dcb priority-flow-control mode" on page 1000 � the command "ip pim rp-candidate" on page 1457 � the command "show ip pim rp-hash" on page 1473 � the command "ip pim ssm range" on page 1463 � the command "show ip pim protocol" on page 1466 � the command "show ip pim bsr" on page 1467 � the command "show ip pim interface" on page 1468
Mellanox Technologies
.
17
� the command "show ip pim rp" on page 1472
Rev 4.90 � March 4, 2018
Added: � Step 1 in section Section 2.5.1, "Installing MLNX-OS License (CLI)," on page 45 � Section 3.3.8, "IB Router," on page 69 � the command "show banner" on page 91 � the command "show ssh server host-keys" on page 108 � the command "show web" on page 125 � the command "image default-chip-fw" on page 220 � the command "logging event enable" on page 269 � the command "logging event error-threshold" on page 270 � the command "logging event interval" on page 271 � the command "logging event rate-limit" on page 272 � the command "show logging events" on page 288 � the command "show logging events source-counters" on page 289 � the command "show ip filter" on page 565 � the command "show ip filter all" on page 566 � the command "show ip filter configured" on page 567 � the command "show ipv6 filter" on page 568 � the command "show ipv6 filter all" on page 569 � the command "show ipv6 filter configured" on page 570 � the command "show ip route failed" on page 1225 � the command "show ip route static multicast-override" on page 1227 � the command "show ip bgp vrf summary" on page 1396 � the command "show ip pim ssm range" on page 1475 � Section 6.10.2, "Upstream and Downstream Interfaces," on page 1524 � the command "show ib fabric sys" on page 839 Updated: � Section 3.3.1, "Setup Menu," on page 64 � Section 3.3.4, "Ports Menu," on page 66 � the command "show ssh server" on page 107 � the command "show clock" on page 186 � the command "show ntp" on page 187 � the command "show radius" on page 372 � the command "show tacacs" on page 376
Mellanox Technologies
.
18
� the command "show snmp auto-refresh" on page 535 � the command "speed" on page 672 � the command "show interfaces ethernet" on page 679 � the command "show interfaces ethernet transceiver diagnostics" on page 688 � the command "show lacp counters" on page 710 � the command "show interfaces port-channel compatibility-parameters" on page 720 � the command "switchport mode" on page 748 � the command "switchport access" on page 750 � the command "show spanning-tree" on page 782 � the command "show spanning-tree mst" on page 786 � the command "show interfaces mlag-port-channel" on page 825 � the command "show interfaces mlag-port-channel summary" on page 828 � the command "show ipv4 access-lists" on page 889 � the command "show mac access-lists" on page 892 � the command "show access-lists policers (ipv4/ipv4-udk/ipv6/mac/mac-udk)" on
page 898 � the command "clear ip igmp snooping counters" on page 985 � the command "dcb priority-flow-control mode" on page 1000 � Section 6.1.3, "Virtual Routing and Forwarding," on page 1164 � the command "vrf definition" on page 1167 � the command "show vrf" on page 1177 � the command "show ip interface vrf" on page 1203 � the command "ip route" on page 1218 � the command "show ip route" on page 1220 � the command "show {ip | ipv6} bgp" on page 1379 � the command "show ip pim rp-candidate" on page 1474 � the command "ip mroute" on page 1478 � the command "ip dhcp relay instance (interface config)" on page 1533 � the command "show ip dhcp relay" on page 1536 � the command "show interfaces ib internal llr" on page 612 � the command "show interfaces ib transceiver diagnostics" on page 615 � the command "show ib fabric connections" on page 829 � the command "show ib fabric node" on page 832 � the command "show ib fabric node ports" on page 833 � the command "show ib fabric nodes" on page 834 � the command "show ib fabric port" on page 835 � the command "show ib fabric ports" on page 837
Mellanox Technologies
.
19
� the command "show ib fabric system" on page 840 � the command "show ib fabric system nodes" on page 841 � the command "show ib fabric system ports" on page 842 � Appendix B, "Show Commands Not Supported by JSON" on page 1943
Rev 4.80
Software Ver. 3.6.5000 � November 05, 2017
Added: � Section 2.1.1, "Configuring the Switch with ZTP," on page 34 � Section 2.4, "Zero-touch Provisioning," on page 38 � the command "logging level" on page 280 � the command "show log" on page 286 � Section 4.19, "Control Plane Policing," on page 556 � Section 5.11.3, "ACL Logging," on page 840 � Section 5.11.4, "ACL Capability Summary," on page 841 � the command "clear ip dhcp relay counters" on page 1534 � the command "show magp interface vlan" on page 1523 � the command "width" on page 602 Deleted: � the command "mc-unaware tc binding" Updated: � Table 19, "WebUI IP Route Submenus," on page 73 � the command "cli max-sessions" on page 76 � the command "show ip dhcp" on page 166 � the command "show interfaces ethernet" on page 679 � the command "show interfaces counters" on page 675 � the command "show isolation-group" on page 699 � the command "show interfaces port-channel" on page 716 � the command "show spanning-tree detail" on page 784 � the command "show spanning-tree vlan" on page 788 � the command "show interfaces mlag-port-channel" on page 825 � the command "show access-lists summary" on page 900 � the command "destination interface" on page 1109 � the command "show monitor session summary" on page 1116 � the command "show ip interface vrf" on page 1203
Mellanox Technologies
.
20
� the command "show ip route summary" on page 1228 � the command "show ip route interface" on page 1229 � the command "show vrrp detail" on page 1513 � the command "show vrrp statistics" on page 1514 � the command "show magp" on page 1522 � the command "show ip dhcp relay counters" on page 1537 � Updated max SM nodes supported on switches in Section 5.5, "Subnet Manager (SM),"
on page 618 � Appendix B, "Show Commands Not Supported by JSON" on page 1943
Mellanox Technologies
.
21
About this Manual
This manual provides general information concerning the scope and organization of this User's Manual.
Intended Audience
This manual is intended for network administrators who are responsible for configuring and managing Mellanox Technologies' switch platforms.
Related Documentation
The following table lists the documents referenced in this User's Manual. Table 1 - Reference Documents
Document Name
Description
InfiniBand Architecture Specification, Vol. 1, The InfiniBand Architecture Specification that is pro-
Release 1.2.1
vided by IBTA.
System Hardware User Manual
This document contains hardware descriptions, LED assignments and hardware specifications among other things.
Switch Product Release Notes
Please look up the relevant switch system/series release note file
Mellanox Virtual Modular Switch Reference Guide
This reference architecture provides general information concerning Mellanox L2 and L3 Virtual Modular Switch (VMS) configuration and design.
Configuring Mellanox Hardware for VPI Operation Application Note
This manual provides information on basic configuration of the converged VPI networks.
MLNX-OS XML API Reference Guide
This manual provides general information concerning MLNX-OS XML API.
All of these documents can be found on the Mellanox website. They are available either through the product pages or through the support page with a login and password.
Glossary
Table 2 - Glossary
AAA
ARP
Authentication, Authorization, and Accounting. Authentication - verifies user credentials (username and password). Authorization - grants or refuses privileges to a user/client for accessing specific services. Accounting - tracks network resources consumption by users.
Address Resolution Protocol. A protocol that translates IP addresses into MAC addresses for communication over a local area network (LAN).
Mellanox Technologies
.
22
Table 2 - Glossary
CLI DCB DCBX
DHCP Director Class Switch DNS ETS Fabric Management FTP/TFTP/sFTP
Gateway GID (Global Identifier) GUID (Globally Unique Identifier) HA (High Availability)
Host IB LACP
LDAP LID (Local Identifier) LLDP (Link Layer Discovery Protocol)
Command Line Interface. A user interface in which you type commands at the prompt
Data Center Bridging
DCBX protocol is an extension of the Link Layer Discovery Protocol (LLDP). DCBX end points exchange request and acknowledgment messages. For flexibility, parameters are coded in a type-length-value (TLV) format.
The Dynamic Host Configuration Protocol (DHCP) is an automatic configuration protocol used on IP networks.
A high density InfiniBand chassis switch system
Domain Name System. A hierarchical naming system for devices in a computer network
ETS provides a common management framework for assignment of bandwidth to traffic classes.
The use of a set of tools (APIs) to configure, discover, and manage and a group of devices organized as a connected fabric.
File Transfer Protocol (FTP) is a standard network protocol used to transfer files from one host to another over a TCP-based network, such as the Internet.
A network node that interfaces with another network using a different network protocol
A 128-bit number used to identify a Port on a network adapter (see below), a port on a Router, or a Multicast Group.
A 64-bit number that uniquely identifies a device or component in a subnet
A system design protocol that provides redundancy of system components, thus enables overcoming single or multiple failures in minimal downtime
A computer platform executing an Operating System which may control one or more network adapters
InfiniBand
Link Aggregation Control Protocol (LACP) provides a method to control the bundling of several physical ports together to form a single logical channel. LACP allows a network device to negotiate an automatic bundling of links by sending LACP packets to the peer (directly connected device that also implements LACP).
The Lightweight Directory Access Protocol is an application protocol for reading and editing directories over an IP network.
A 16 bit address assigned to end nodes by the subnet manager Each LID is unique within its subnet.
A vendor neutral link layer protocol used by network devices to advertise their identify, capabilities and for neighbor discovery
Mellanox Technologies
.
23
Table 2 - Glossary
MAC
MTU (Maximum Transfer Unit) Network Adapter PFC/FC RADIUS
RDMA (Remote Direct Memory Access) RSTP
SA (Subnet Administrator) SCP
SM (Subnet Manager)
SNMP
NTP SSH
syslog TACACS+
XML Gateway
A Media Access Control address (MAC address) is a unique identifier assigned to network interfaces for communications on the physical network segment. MAC addresses are used for numerous network technologies and most IEEE 802 network technologies including Ethernet.
The maximum size of a packet payload (not including headers) that can be sent /received from a port
A hardware device that allows for communication between computers in a network
Priority Based Flow Control applies pause functionality to traffic classes OR classes of service on the Ethernet link.
Remote Authentication Dial In User Service. A networking protocol that enables AAA centralized management for computers to connect and use a network service.
Accessing memory in a remote side without involvement of the remote CPU
Rapid Spanning Tree Protocol. A spanning-tree protocol used to prevent loops in bridge configurations. RSTP is not aware of VLANs and blocks ports at the physical level.
The interface for querying and manipulating subnet management data
Secure Copy or SCP is a means of securely transferring computer files between a local and a remote host or between two remote hosts. It is based on the Secure Shell (SSH) protocol.
An entity that configures and manages the subnet, discovers the network topology, assign LIDs, determines the routing schemes and sets the routing tables. There is only one master SM and possible several slaves (Standby mode) at a given time. The SM administers switch routing tables thereby establishing paths through the fabric
Simple Network Management Protocol. A network protocol for the management of a network and the monitoring of network devices and their functions
Network Time Protocol. A protocol for synchronizing computer clocks in a network
Secure Shell. A protocol (program) for securely logging in to and running programs on remote machines across a network. The program authenticates access to the remote machine and encrypts the transferred information through the connection.
A standard for forwarding log messages in an IP network
Terminal Access Controller Access-Control System Plus. A networking protocol that enables access to a network of devices via one or more centralized servers. TACACS+ provides separate AAA services.
Extensible Markup Language Gateway. Provides an XML requestresponse protocol for setting and retrieving HW management information.
Mellanox Technologies
.
24
Introduction
1 Introduction
Mellanox� Operating System (MLNX-OS�) enables the management and configuration of Mellanox Technologies' switch system platforms.
MLNX-OS provides a full suite of management options, including support for Mellanox's Unified Fabric Manager� (UFM), SNMPv1, 2, 3, and web user interface (WebUI). In addition, it incorporates a familiar industry-standard CLI, which enables administrators to easily configure and manage the system.
1.1
System Features
Table 3 - General System Features
Feature Software management File management
Logging Management interface Chassis management
Network management interfaces Security
Date and time Cables & transceivers Unbreakable links
Detail
� Dual software image � Software and firmware updates
� FTP � TFTP � SCP
� Event history log � SysLog support
� DHCP/Zeroconf � IPv6
� Monitoring environmental controlsPower management � Auto-temperature control � High availability
� SNMP v1,v2c,v3 � interfaces (XML Gateway) � Puppet Agent
� SSH � Telnet � RADIUS � TACACS+
� NTP
� Transceiver info
� LLR
Mellanox Technologies
.
25
1.2 InfiniBand Features
Table 4 - InfiniBand Features
Feature Subnet manager
Fabric diagnostics
� OpenSM � Partitions � High availability
� Fabric inspector
Detail
Figure 1: Managing an InfiniBand Software Using MLNX-OS
Introduction
Mellanox Technologies
.
26
Getting Started
2 Getting Started
The procedures described in this chapter assume that you have already installed and powered on your switch according to the instructions in the Hardware Installation Guide, which was shipped with the product.
2.1 Configuring the Switch for the First Time
To configure the switch: Step 1. Connect the host PC to the console (RJ-45) port of the switch system using the supplied
cable. The console ports for systems are shown below.
Figure 2: Console Ports for CS75x0 Managed Systems
Mgmt1 Mgmt0 Console Figure 3: Console Ports for SB7xxx Managed Systems
Mgmt0 Console Mgmt1
Make sure to connect to the console RJ-45 port of the switch and not to the MGT port.
DHCP is enabled by default over the MGT port. Therefore, if you have configured your DHCP server and connected an RJ-45 cable to the MGT port, simply log in using the designated IP address.
Mellanox Technologies
.
27
Getting Started
Step 2. Configure a serial terminal with the settings described below.
This step may be skipped if the DHCP option is used and an IP is already configured for the MGT port.
Table 5 - Serial Terminal Program Configuration
Parameter Baud Rate Data bits Stop bits Parity Flow Control
Setting 115200 8 1 None None
Step 3. You are prompted with the boot menu.
Mellanox MLNX-OS Boot Menu:
1: <image #1> 2: <image #2> u: USB menu (if USB device is connected) (password required) c: Command prompt (password required)
Choice:
Select "1" to boot with software version installed on partition #1. Select "2" to boot with software version installed on partition #2. Selecting "u" is not currently supported.
Step 4. Step 5.
The MLNX-OS Boot Menu features a countdown timer. It is recommended to allow the timer to run out by not selecting any of the options.
Log in as admin and use admin as password.
If the machine is still initializing, you might not be able to access the CLI until initialization completes. As an indication that initialization is ongoing, a countdown of the number of remaining modules to be configured is displayed in the following format: "<no. of modules> Modules are being configured".
Go through the configuration wizard.
Mellanox Technologies
.
28
Getting Started
The following table shows an example of a wizard session. Table 6 - Configuration Wizard Session - IP Configuration by DHCP (Sheet 1 of 2)
Wizard Session Display (Example) Mellanox configuration wizard Do you want to use the wizard for initial configuration? yes
Step1: Hostname? [switch-1]
Step 2: Use DHCP on mgmt0 interface? [yes]
Comments
You must perform this configuration the first time you operate the switch or after resetting the switch to the factory defaults. Type "y" and then press <Enter>.
If you wish to accept the default hostname, then press <Enter>. Otherwise, type a different hostname and press <Enter>.
Perform this step to obtain an IP address for the switch. (mgmt0 is the management port of the switch.) If you wish the DHCP server to assign the IP address, type "yes" and press <Enter>.
If you type "no" (no DHCP), then you will be asked whether you wish to use the "zeroconf" configuration or not. If you enter "yes" (yes Zeroconf), the session will continue as shown in Table 7.
Step 3: Enable IPv6 [yes]
If you enter "no" (no Zeroconf), then you need to enter a static IP, and the session will continue as shown in Table 8.
Perform this step to enable IPv6 on management ports.
If you wish to enable IPv6, type "yes" and press <Enter>.
Step 4: Enable IPv6 autoconfig (SLAAC) on mgmt0 interface
If you enter "no" (no IPv6), then you will automatically be referred to Step 5.
Perform this step to enable StateLess address autoconfig on external management port.
If you wish to enable it, type "yes" and press <Enter>.
Step 5: Use DHCPv6 on mgmt0 interface? [yes]
Step 5: Admin password (Press <Enter> to leave unchanged)? <new_password> Step 4: Confirm admin password? <new_password>
If you wish to disable it, enter "no".
Perform this step to enable DHCPv6 on the MGMT0 interface.
To avoid illegal access to the machine, please type a password and then press <Enter>. Then confirm the password by re-entering it.
Note that password characters are not printed.
Mellanox Technologies
.
29
Getting Started
Table 6 - Configuration Wizard Session - IP Configuration by DHCP (Sheet 2 of 2)
Wizard Session Display (Example)
You have entered the following information:
1. Hostname: <switch name> 2. Use DHCP on mgmt0 interface: yes 3. Enable IPv6: yes 4. Enable IPv6 autoconfig (SLAAC) on
mgmt0 interface: yes 5. Enable DHCPv6 on mgmt0 interface: no 6. Admin password (Enter to leave
unchanged): (CHANGED)
To change an answer, enter the step number to return to. Otherwise hit <enter> to save changes and exit.
Comments The wizard displays a summary of your choices and then asks you to confirm the choices or to re-edit them.
Either press <Enter> to save changes and exit, or enter the configuration step number that you wish to return to.
Note: To run the command "configuration jumpstart" you must be in Config mode.
Choice: <Enter>
Configuration changes saved. To return to the wizard from the CLI, enter the "configuration jump-start" command from configuration mode. Launching CLI...
<switch name> [standalone: master] >
Mellanox Technologies
.
30
Table 7 - Configuration Wizard Session - IP Zeroconf Configuration
Wizard Session Display - IP Zeroconf Configuration (Example)
Mellanox configuration wizard
Do you want to use the wizard for initial configuration? y
Step 1: Hostname? [switch-112126] Step 2: Use DHCP on mgmt0 interface? [no] Step 3: Use zeroconf on mgmt0 interface? [no] yes Step 4: Default gateway? [192.168.10.1] Step 5: Primary DNS server? Step 6: Domain name? Step 7: Enable IPv6? [yes] yes Step 8: Enable IPv6 autoconfig (SLAAC) on mgmt0 interface? [no] no Step 9: Admin password (Enter to leave unchanged)?
You have entered the following information:
1. Hostname: switch-112126 2. Use DHCP on mgmt0 interface: no 3. Use zeroconf on mgmt0 interface: yes 4. Default gateway: 192.168.10.1 5. Primary DNS server: 6. Domain name: 7. Enable IPv6: yes 8. Enable IPv6 autoconfig (SLAAC) on mgmt0 interface: yes 9. Admin password (Enter to leave unchanged): (unchanged)
To change an answer, enter the step number to return to. Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
To return to the wizard from the CLI, enter the "configuration jump-start" command from configure mode. Launching CLI...
<switch name> [standalone: master] >
Getting Started
Mellanox Technologies
.
31
Table 8 - Configuration Wizard Session - Static IP Configuration
Wizard Session Display - Static IP Configuration (Example)
Mellanox configuration wizard
Do you want to use the wizard for initial configuration? y
Step 1: Hostname? [switch-112126] Step 2: Use DHCP on mgmt0 interface? [yes] n Step 3: Use zeroconf on mgmt0 interface? [no] Step 4: Primary IP address? 192.168.10.4 Mask length may not be zero if address is not zero (interface mgmt0)
Step 5: Netmask? [0.0.0.0] 255.255.255.0 Step 6: Default gateway? 192.168.10.1 Step 7: Primary DNS server? Step 8: Domain name? Step 9: Enable IPv6? [yes] yes Step 10: Enable IPv6 autoconfig (SLAAC) on mgmt0 interface? [no] no Step 11: Admin password (Enter to leave unchanged)?
You have entered the following information:
1. Hostname: switch-112126 2. Use DHCP on mgmt0 interface: no 3. Use zeroconf on mgmt0 interface: no 4. Primary IP address: 192.168.10.4 5. Netmask: 255.255.255.0 6. Default gateway: 192.168.10.1 7. Primary DNS server: 8. Domain name: 9. Enable IPv6: yes 10. Enable IPv6 autoconfig (SLAAC) on mgmt0 interface: no 11. Admin password (Enter to leave unchanged): (unchanged)
To change an answer, enter the step number to return to. Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
To return to the wizard from the CLI, enter the "configuration jump-start" command from configure mode. Launching CLI...
<switch name>[standalone: master] >
Getting Started
Mellanox Technologies
.
32
Getting Started
Step 6. Check the mgmt0 interface configuration before attempting a remote (for example, SSH) connection to the switch. Specifically, verify the existence of an IP address.
switch # show interfaces mgmt0
Interface mgmt0 status:
Comment
:
Admin up
: yes
Link up
: yes
DHCP running : yes
IP address
: 10.12.67.34
Netmask
: 255.255.0.0
IPv6 enabled : yes
Autoconf enabled: no
Autoconf route : yes
Autoconf privacy: no
DHCPv6 running : no
IPv6 addresses : 1
IPv6 address: fe80::268a:7ff:fe53:3d8e/64
Speed
: 1000Mb/s (auto)
Duplex
: full (auto)
Interface type : ethernet
Interface source: physical
MTU
: 1500
HW address
: 00:02:C9:11:A1:B2
Rx: 11700449
55753 0 0 0 0 0
bytes packets mcast packets discards errors overruns frame
Tx: 5139846
28452 0 0 0 0 0
1000
bytes packets discards errors overruns carrier collisions queue len
Mellanox Technologies
.
33
Getting Started
2.1.1
Configuring the Switch with ZTP
MLNX-OS� Zero-touch Provisioning (ZTP) automates initial configuration of switch systems at boot time. It helps minimize manual operation and reduce customer initial deployment cost. For more information, please refer to Section 2.4, "Zero-touch Provisioning," on page 38.
2.1.2
Rerunning the Wizard
To rerun the wizard: Step 1. Enter the config mode:
switch > enable switch # config terminal
Step 2. Rerun the wizard:
switch (config) # configuration jump-start
2.2 Starting the Command Line (CLI)
Step 1. Step 2.
Set up an Ethernet connection between the switch and a local network machine using a standard RJ-45 connector.
Start a remote secured shell (SSH) to the switch using the command "ssh -l <username> <switch ip address>."
Step 3. Step 4. Step 5.
rem_mach1 > ssh -l <username> <ip address>
Log into the switch (default username is admin, password admin) Read and accept the EULA when prompted. Once you get the prompt, you are ready to use the system.
Mellanox MLNX-OS Switch Management
Password: Last login: <time> from <ip-address>
Mellanox Switch Please read and accept the Mellanox End User License Agreement located at: https://www.mellanox.com/related-docs/prod_management_software/MLNX-OS_EULA.pdf
switch >
Mellanox Technologies
.
34
Getting Started
2.3 Starting the Web User Interface (WebUI)
To start a WebUI connection to the switch platform:
WebUI access is enabled by default. To disable web access, run the command "no web http enable" or "no web https enable" through the CLI.
Step 1. Set up an Ethernet connection between the switch and a local network machine using a standard RJ-45 connector.
Step 2. Open a web browser � Firefox 12, Chrome 18, IE 8, Safari 5 or higher.
Note: Make sure the screen resolution is set to 1024*768 or higher.
Step 3. Step 4.
Type in the IP address of the switch or its DNS name in the format: https://<switch_IP_ address>.
Log into the switch (default user name is admin, password admin).
Figure 4: MLNX-OS Login Window
Mellanox Technologies
.
35
Getting Started
Step 5. Read and accept the EULA if prompted. You are only prompted if you have not accessed the switch via CLI before.
Figure 5: EULA Prompt
Step 6.
The Welcome popup appears. After reading through the content, click OK to continue. You may click on the links under Documentation to reach the MLNX-OS documentation. The link under What's New takes you straight to the Changes and New Features section of the switch OS Release Notes.
Mellanox Technologies
.
36
Figure 6: Welcome Popup (Example)
Getting Started
Step 7.
You may also tick the box to not show this popup again. But should you wish to see this window again, click "Product Documents" on the upper right corner of the WebUI.
A default status summary is displayed as shown in Figure 7.
Figure 7: Display After Login
Mellanox Technologies
.
37
Getting Started
2.4 Zero-touch Provisioning
MLNX-OS Zero-touch Provisioning (ZTP) automates initial configuration of Mellanox switches at boot time. It helps minimize manual operation and reduce customer initial deployment cost. MLNX-OS ZTP allows the customer to automatically upgrade the switch with a specified OS image, set up initial configuration database, and load and run a container image file. The initial configuration is applied using a regular text file. The user can create such a configuration file by editing the output of a "show running-config" command.
Only a textual configuration files is supported.
The user-defined docker image can be used by customers to run their own applications in a sandbox on a MLNX-OS platform. And can therefore be also used for automating initial configuration.
Only one docker container could be launched in ZTP.
2.4.1
Running DHCP-ZTP
There is no explicit command to enable ZTP. It is enabled by default. Disabling it is performed by a user-initiated configuration save (using the command "configuration write"). The only way to re-enable ZTP would be to run a "reset factory" command, clearing the configuration of the switch and rebooting the system.
MLNX-OS ZTP is based on DHCP. For ZTP to work, MLNX-OS enables DHCP by default on all its management interfaces. MLNX-OS requests option 66 (tftp-server-name) and 67 (bootfilename) from the DHCPv4 server or option 58 (bootfile-url) from the DHCPv6 server, and waits for the DHCP responses which contain file URLs. The DHCP server must be configured to send back the URLs for the software image, configuration file, and docker container image via these two options. Option 66 would contain the URL prefix to the location of the files, option 67 would contain the name of files, and option 58 would contain the complete URLs of files. The format of these two options is a string list separated by commas. The list items are placed in a fixed order:
<image file>, <config file>, <docker container file>
The item value can be empty, but the comma shall not be omitted.
To have DHCP server figure out the proper files based on switch specific information, MLNXOS must provide some sort of identity information for the server to classify the switches. Besides the aforementioned options, MLNX-OS attaches option 43 (vendor specific information) and option 60 (vendor class identifier) in DHCPv4 requests, and option 17 (vendor-opts) in DHCPv6. Option 60 is set as string "Mellanox" and options 17 and 43 contain the following Mellanox-specific sub-options:
� System Model
� Chassis Part Number
Mellanox Technologies
.
38
Getting Started
� Chassis Serial Number � Management MAC � System Profile � MLNX-OS Release Version The corresponding subtypes respectively are defined as:
DHCP_VENDOR_ENCAPSULATED_SUBOPTION_TLV_TYPE_MODEL
1
DHCP_VENDOR_ENCAPSULATED_SUBOPTION_TLV_TYPE_PARTNUM
2
DHCP_VENDOR_ENCAPSULATED_SUBOPTION_TLV_TYPE_SERIAL
3
DHCP_VENDOR_ENCAPSULATED_SUBOPTION_TLV_TYPE_MAC
4
DHCP_VENDOR_ENCAPSULATED_SUBOPTION_TLV_TYPE_PROFILE
5
DHCP_VENDOR_ENCAPSULATED_SUBOPTION_TLV_TYPE_RELEASE
6
Upon receiving such DHCP requests from a client, the server should be able to map the switchspecific information to the target file URLs according to predefined rules. Once MLNX-OS receives the URLs from the DHCP server, it executes ZTP as follows: 1. If the software image URL is not specified, this step is skipped. Otherwise:
� Perform disk space cleanup if necessary and fetch the image if it does not exist locally � Resolve the image version:
� If it is already installed on active partition, proceed to step 2 � If it is installed on a standby partition, switch partition and reboot � If it is not installed locally, install it and switch to the new image and then reboot � In case of reboot, ZTP performs step 1 again and no image upgrade will occur 2. If configuration file URL is not specified, skip this step. Otherwise: � Fetch the configuration file � Apply the configuration file 3. Skip these steps if a docker image file URL is not specified. Otherwise: � Fetch the docker image file � Load the docker image � Clean up the docker images with the same name and different tag. � Start the container based on the image � Remove the downloaded docker image file
While performing file transfer via HTTP, the same information as DHCP option 43 is expected to be carried in a HTTP GET request. MLNX-OS supports the following proprietary HTTP headers:
� MlnxSysProfile � MlnxMgmtMac � MlnxSerialNumber � MlnxModelName � MlnxPartNumber � MlnxReleaseVersion
Mellanox Technologies
.
39
Getting Started
In case of failure, the switch waits a random number of seconds between 1 and 20 and reattempts the operation. The switch attempts this up to 10 times.
ZTP progress is printed to terminals including console and active SSH sessions.
2.4.2
ZTP on Director Switches
For director switch systems, the two management nodes start ZTP individually. Status synchronization is then performed between the two nodes: � Target software image version needs to be the same, otherwise ZTP fails � Both nodes must install the software image successfully, otherwise ZTP fails � ZTP failure for one node leads to failure for both � ZTP disable on one node leads to ZTP disable for both � ZTP abort on one node leads to ZTP abort for both In ZTP configuration files, commands between #<CHASSIS_MASTER> and #</CHASSIS_ MASTER> pair are only executed on the master.
#<CHASSIS_MASTER> chassis ha bip 10.7.146.34 /24
#</CHASSIS_MASTER>
Node reboot caused by ZTP is also synchronized: 1. Master node asks slave to reboot. 2. Slave node switches to next boot location and acknowledges the reboot request. 3. Master node reboots slave node via hardware. 4. Master node reboots itself.
2.4.3
ZTP and MLNX-OS Software Upgrade
Software upgrade from non-ZTP versions to ZTP versions and vice versa is supported. When upgrading from a non-ZTP version, ZTP is disabled because ZTP is always assumed to start with an empty configuration, otherwise the final configuration becomes a mixture of the existing configuration from the stored database and new configuration from the server and hence not deterministic.
Mellanox Technologies
.
40
Getting Started
2.4.4
DHCPv4 Configuration Example
The following is a URL configuration example for ISC DHCPv4 server:
host master { hardware ethernet E4:1D:2D:5B:72:80; fixed-address 3.1.2.13; option tftp-server-name "scp://<user>:<password>@3.1.3.100/ztp/,scp:// <user>:<password>@3.1.3.100/ztp/,scp:// <user>:<password>@3.1.3.100/ztp/"; option bootfile-name "image-X86_64-3.6.4612.img, switch-1.conf,
ubuntu.img.gz"; }
DHCPv4 request is made out of the following components: � Option 43 (vendor-encapsulated-options) and option 60 (vendor-class-identifier) are
added in the DHCPv4 request packet � Option 66 (tftp-server-name) and option 67 (bootfile-name) are added in the parameter
request list of DHCPv4 request packet
2.4.5
DHCPv6 Configuration Example
The following is a DHCPv6 configuration example:
host master { ...... option dhcp6.bootfile-url "scp://<user>:<password>@[2000::1]/ztp/image-X86_643.6.4612.img, scp://<user>:<password>@[2000::1]/ztp/ switch.conf, scp://<user>:<password>@[2000::1]/ztp/ ubuntu.img.gz";
}
DHCPv6 request is made out of the following components: � Option 17 (vendor-opts) is added in the DHCPv6 request packet � Option 59 (bootfile-url) is added in the parameter request list of DHCPv6 request packet
Mellanox Technologies
.
41
Getting Started
2.4.6 Commands
no zero-touch suppress-write
no zero-touch suppress-write
The no form of the command disables suppression of configuration write.
Syntax Description N/A
Default
Enabled
Configuration Mode config
History
3.6.5000
Role
admin
Example
switch (config) # no zero-touch suppress-write
Related Commands show zero-touch
Notes
When ZTP is active, "configuration write" is suppressed because it may interfere with ZTP operation. Therefore, after running "no zero-touch suppress-write" if "configuration write" is performed, then ZTP is disabled as a consequence of the database save.
Mellanox Technologies
.
42
Getting Started
zero-touch abort
zero-touch abort
Aborts on-going zero-touch process.
Syntax Description N/A
Default
Enabled
Configuration Mode config
History
3.6.5000
Role
admin
Example
switch (config) # zero-touch abort
Related Commands Notes
Zero-touch failed [Zero-touch is aborted by operator] Zero-touch provisioning will be aborted
show zero-touch
Mellanox Technologies
.
43
Getting Started
show zero-touch
show zero-touch
Displays zero-touch status.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.5000
Role
admin
Example
switch (config) # show zero-touch Zero-Touch status:
Active: Status: Suppress-write: Configured by zero-touch: Configuration changed after zero-touch:
yes Waiting for zero-touch start no no no
Related Commands zero-touch abort zero-touch suppress-write
Notes
Mellanox Technologies
.
44
Getting Started
2.5 Licenses
MLNX-OS software package can be extended with premium features. Installing a license allows you to access the specified premium features.
This section is relevant only to switch systems with an internal management capability.
2.5.1
Installing MLNX-OS License (CLI)
To install an MLNX-OS license via CLI: Step 1. Before applying a license, please make sure your system's time is configured correctly by
manually setting it using the CLI command "clock set", or by using NTP using the command "ntp". Step 2. Login as admin and change to Config mode.
switch > enable switch # config terminal
Step 3. Install the license using the key. Run:
switch (config) # license install <license key>
Step 4. Display the installed license(s) using the following command.
switch (config) # show licenses License 1: <license key> Feature: EFM_SX Valid: yes Active: yes switch (config) #
Make sure that the "Valid" and "Active" fields both indicate "yes". Step 5. Save the configuration to complete the license installation. Run:
switch (config) # configuration write
If you do not save the installation session, you will lose the license at the next system start up.
2.5.2
Installing MLNX-OS License (Web)
To install an MLNX-OS license via WebUI: Step 1. Log in as admin. Step 2. Click the Setup tab and then Licensing on the left side navigation pane.
Mellanox Technologies
.
45
Figure 8: No Licenses Installed
Getting Started
Step 3. Enter your license key(s) in the text box. If you have more than one license, please enter each license in a separate line. Click "Add Licenses" after entering the last license key to install them.
If you wish to add another license key in the future, you can simply enter it in the text box and click "Add Licenses" to install it.
Mellanox Technologies
.
46
Figure 9: Enter License Key(s) in Text Box
Getting Started
All installed licenses should now be displayed.
Figure 10: Installed License
Mellanox Technologies
.
47
Getting Started
Step 4. Save the configuration to complete the license installation.
If you do not save the installation session, you will lose the installed licenses at the next system boot.
2.5.3
Retrieving a Lost License Key
In case of a lost MLNX-OS license key, contact your authorized Mellanox reseller and provide the switch's chassis serial number. To obtain the switch's chassis serial number:
Step 1. Login to the switch.
Step 2. Retrieve the switch's chassis serial number using the command "show inventory".
Step 3. Step 4.
switch (config) # show inventory
-----------------------------------------------------------------------------
Module
Part Number
Serial Number
Asic Rev. HW Rev.
-----------------------------------------------------------------------------
CHASSIS
MSB7800-ES2F
MT1602X17464
N/A
A1
MGMT
MSB7800-ES2F
MT1602X17464
0
A1
FAN1
MTEF-FANF-A
MT1602X16943
N/A
A3
FAN2
MTEF-FANF-A
MT1602X16944
N/A
A3
FAN3
MTEF-FANF-A
MT1602X16956
N/A
A3
FAN4
MTEF-FANF-A
MT1602X16957
N/A
A3
PS1
MTEF-PSF-AC-A
MT1601X09908
N/A
A3
Send your Mellanox reseller the following information to obtain the license key:
� The chassis serial number
� The type of license you need to retrieve. Refer to "Licenses" on page 45.
Once you receive the license key, you can install the license as described in the sections above.
Mellanox Technologies
.
48
Getting Started
2.5.4 Commands
file eula upload
file eula upload <filename> <URL>
Uploads the Mellanox End User License Agreement to a specified remote location.
Syntax Description filename
The Mellanox End User License Agreement
URL
URL or scp://username[:password]@hostname/path/ filename
Default
N/A
Configuration Mode config
History
3.4.1100
Role
monitor/admin
Example Related Commands
switch (config) # file help-docs upload Mellanox_End_User_ License_Agreement.pdf <scp://username[:password]@hostname/path/ filename> switch (config) #
license
Note
Mellanox Technologies
.
49
Getting Started
file help-docs upload
file help-docs upload <filename> <URL or scp://username[:password]@hostname/path/filename>
Syntax Description
Default Configuration Mode History Role Example Related Commands Note
Uploads the MLNX-OS UM or RN to a specified remote location.
filename
The file to upload to a remote host
URL
URL or scp://username[:password]@hostname/path/ filename
N/A
config
3.4.1100
admin
switch (config) # file help-docs upload MLNX-OS_IB_User_Manual.pdf <scp://username[:password]@hostname/path/filename>
Mellanox Technologies
.
50
Getting Started
license delete
license delete <license-number>
Removes license keys by ID.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.4.1100
Role
admin
Example
switch (config) # license delete <license-number>
Related Commands
Note
Before deleting a license from a switch which is configured to a system profile other than its default, the user must first disable all interfaces and then return the switch to its default system profile.
Mellanox Technologies
.
51
license install
license install <license-key>
Installs a new license key.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.4.1100
Role
admin
Example Related Commands
switch (config) # licenses install <license-key> switch (config) #
Note
Getting Started
Mellanox Technologies
.
52
Getting Started
show licenses
show licenses
Displays a list of all installed licenses. For each license, the following is displayed: � a unique ID which is a small integer � the text of the license key as it was added � whether or not it is valid and active � which feature(s) it is activating � a list of all licensable features specifying whether or not it is currently activated
by a license
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.4.1100
Role
admin
Example Related Commands
switch (config) # show licenses License 1: <license key> Feature: SX_CONFIG Valid: yes Active: yes switch (config) #
Note
Mellanox Technologies
.
53
User Interfaces
3 User Interfaces
3.1 LED Indicators
Table 9 - LED Behavior Details
LED
QSFP LEDs
Health LED
UID LED
Qty.
Color
Description
8 Green/Amber
Off � link is down
Solid green � link is up
Blinking green � data activity. Blinking frequency is proportional to data transfer speed.
Blinking amber � link error
1 Red/Green/Amber Off � no power
Blinking amber � fault Solid green � normal Solid red � CANMIC boot failure
1 Blue
Solid � LED is activated to identify this module
3.2 Command Line Interface Overview
Mellanox MLNX-OS� is equipped with an industry-standard command line interface (CLI). The CLI is accessed through SSH or Telnet sessions, or directly via the console port on the front panel (if it exists).
3.2.1
CLI Modes
The CLI can be in one of following modes, and each mode makes available a certain group (or level) of commands for execution. The following are some of the CLI configuration modes: Table 10 - CLI Modes and Config Context
Configuration Mode
Standard
Enable
Description
When the CLI is launched, it begins in Standard mode. This is the most restrictive mode and only has commands to query a restricted set of state information. Users cannot take any actions that directly affect the system, nor can they change any configuration.
The enable command moves the user to Enable mode. This mode offers commands to view all state information and take actions like rebooting the system, but it does not allow any configurations to be changed. Its commands are a superset of those in Standard mode.
Mellanox Technologies
.
54
User Interfaces
Table 10 - CLI Modes and Config Context
Configuration Mode
config
config interface management Any command mode
Description
The configure terminal command moves the user from Enable mode to Config mode. Config mode is allowed only for user accounts in the "admin" role (or capabilities). This mode has a full unrestricted set of commands to view anything, take any action, and change any configuration. Its commands are a superset of those in Enable mode. To return to Enable mode, enter exit or no configure.
Note that moving directly from/to Standard mode to/from Config mode is not possible.
Configuration mode for management interface mgmt0, mgmt1 and loopback
Several commands such as "show" can be applied within any context
3.2.2
Syntax Conventions
To help you identify the parts of a CLI command, this section explains conventions of presenting the syntax of commands. Table 11 - Syntax Conventions
Syntax Convention < > Angled brackets [ ] Square brackets
{ } Braces | Vertical bars
Description
Indicate a value/variable that must be replaced.
Enclose optional parameters. However, only one parameter out of the list of parameters listed can be used. The user cannot have a combination of the parameters unless stated otherwise.
Enclose alternatives or variables that are required for the parameter in square brackets.
Identify mutually exclusive choices.
Example <1...65535> or <switch interface> [destination-ip | destination-port | destination-mac]
[mode {active | on | passive}]
active | on | passive
Do not type the angled or square brackets, vertical bar, or braces in command lines. This guide uses these symbols only to show the types of entries.
CLI commands and options are in lowercase and are case-sensitive.
For example, when you enter the enable command, enter it all in lowercase. It cannot
be ENABLE or Enable. Text entries you create are also case-sensitive.
Mellanox Technologies
.
55
User Interfaces
3.2.3
Getting Help
You may request context-sensitive help at any time by pressing "?" on the command line. This will show a list of choices for the word you are on, or a list of top-level commands if you have not typed anything yet.
For example, if you are in Standard mode and you type "?" at the command line, then you will get the following list of available commands.
switch > ?
cli
Configure CLI shell options
enable
Enter enable mode
exit
Log out of the CLI
help
View description of the interactive help system
no
Negate or clear certain configuration options
show
Display system configuration or statistics
slogin
Log into another system securely using ssh
switch
Configure switch on system
telnet
Log into another system using telnet
terminal
Set terminal parameters
traceroute
Trace the route packets take to a destination
switch-11a596 [standalone: master] >
If you type a legal string and then press "?" without a space character before it, then you will either get a description of the command that you have typed so far or the possible command/ parameter completions. If you press "?" after a space character and "<cr>" is shown, this means that what you have entered so far is a complete command, and that you may press Enter (carriage return) to execute it.
Try the following to get started:
? show ? show c? show clock? show clock ? show interfaces ?
(from enable mode)
You can also enter "help" to view a description of the interactive help system.
Note also that the CLI supports command and/or parameter tab-completions and their shortened forms. For example, you can enter "en" instead of the "enable" command, or "cli cl" instead of "cli clear-history". In case of ambiguity (more than one completion option is available, that is), then you can hit double tabs to obtain the disambiguation options. Thus, if you are in Enable mode and wish to learn which commands start with the letter "c", type "c" and click twice on the tab key to get the following:
switch # c<tab>
clear
cli
switch # c
configure
(There are three commands that start with the letter "c": clear, cli and configure.)
Mellanox Technologies
.
56
User Interfaces
3.2.4
Prompt and Response Conventions
The prompt always begins with the hostname of the system. What follows depends on what command mode the user is in. To demonstrate by example, assuming the machine name is "switch", the prompts for each of the modes are:
switch > switch # switch (config) #
(Standard mode) (Enable mode) (Config mode)
The following session shows how to move between command modes: \
switch > switch > enable switch # switch # configure terminal switch (config) # switch (config) # exit switch # switch # disable switch >
(You start in Standard mode) (Move to Enable mode) (You are in Enable mode)
(Move to Config mode) (You are in Config mode) (Exit Config mode) (You are back in Enable mode) (Exit Enable mode) (You are back in Standard mode)
Commands entered do not print any response and simply show the command prompt after you press <Enter>.
If an error is encountered in executing a command, the response will begin with "%", followed by some text describing the error.
3.2.5
Using the "no" Form
Several Config mode commands offer the negation form using the keyword "no". This no form can be used to disable a function, to cancel certain command parameters or options, or to reset a parameter value to its default. To re-enable a function or to set cancelled command parameters or options, enter the command without the "no" keyword (with parameter values if necessary).
The following example performs the following:
1. Displays the current CLI session options.
2. Disables auto-logout.
3. Displays the new CLI session options (auto-logout is disabled).
4. Re-enables auto-logout (after 15 minutes).
5. Displays the final CLI session options (auto-logout is enabled)
// 1. Display the current CLI session options
switch (config) # show cli
CLI current session settings:
Maximum line size:
8192
Terminal width:
157 columns
Terminal length:
60 rows
Terminal type:
xterm
Auto-logout:
15 minutes
Paging:
enabled
Mellanox Technologies
.
57
User Interfaces
Progress tracking:
enabled
Prefix modes:
enabled
...
// 2. Disable auto-logout
switch (config) # no cli session auto-logout
// 3. Display the new CLI session options
switch-1 [standalone: master] (config) # show cli
CLI current session settings:
Maximum line size:
8192
Terminal width:
157 columns
Terminal length:
60 rows
Terminal type:
xterm
Auto-logout:
disabled
Paging:
enabled
Progress tracking:
enabled
Prefix modes:
enabled
...
// 4. Re-enable auto-logout after 15 minutes
switch (config) # cli session auto-logout 15
// 5. Display the final CLI session options
switch (config) # show cli
CLI current session settings:
Maximum line size:
8192
Terminal width:
157 columns
Terminal length:
60 rows
Terminal type:
xterm
Auto-logout:
15 minutes
Paging:
enabled
Progress tracking:
enabled
Prefix modes:
enabled
...
3.2.6
Parameter Key
This section provides a key to the meaning and format of all of the angle-bracketed parameters in all the commands that are listed in this document. Table 12 - Angled Brackets Parameter Description
Parameter <domain> <hostname> <ifname> <index>
Description A domain name, e.g. "mellanox.com". A hostname, e.g. "switch-1". An interface name, e.g. "mgmt0", "mgmt1", "lo" (loopback), etc. A number to be associated with aliased (secondary) IP addresses.
Mellanox Technologies
.
58
User Interfaces
Table 12 - Angled Brackets Parameter Description
Parameter <IP address> <log level>
<GUID>
<MAC address>
<netmask>
<network prefix>
<regular expression>
<node id> <cluster id> <port> <TCP port> <URL>
Description
An IPv4 address, e.g. "192.168.0.1".
A syslog logging severity level. Possible values, from least to most severe, are: "debug", "info", "notice", "warning", "error", "crit", "alert", "emerg".
Globally Unique Identifier. A number that uniquely identifies a device or component.
A MAC address. The segments may be 8 bits or 16 bits at a time, and may be delimited by ":" or ".". So you could say "11:22:33:44:55:66", "1122:3344:5566", "11.22.33.44.55.66", or "1122.3344.5566".
A netmask (e.g. "255.255.255.0") or mask length prefixed with a slash (e.g. "/ 24"). These two express the same information in different formats.
An IPv4 network prefix specifying a network. Used in conjunction with a netmask to determine which bits are significant. e.g. "192.168.0.0".
An extended regular expression as defined by the "grep" in the man page. (The value you provide here is passed on to "grep -E".)
ID of a node belonging to a cluster. This is a numerical value greater than zero.
A string specifying the name of a cluster.
TCP/UDP port number.
A TCP port number in the full allowable range [0...65535].
A normal URL, using any protocol that wget supports, including http, https, ftp, sftp, and tftp; or a pseudo-URL specifying an scp file transfer. The scp pseudoURL format is scp://username:password@hostname/path/filename. Note that the path is an absolute path. Paths relative to the user's home directory are not currently supported. The implementation of ftp does not support authentication, so use scp or sftp for that. Note also that if you omit the ":password" part, you may be prompted for the password in a follow up prompt, where you can type it securely (without the characters being echoed). This prompt will occur if the "cli default prompt empty-password" setting is true; otherwise, the CLI will assume you do not want any password. If you include the ":" character, this will be taken as an explicit declaration that the password is empty, and you will not be prompted in any case.
3.2.7 CLI Pipeline Operator Commands
3.2.7.1 "include" and "exclude" CLI Filtration Options The MLNX-OS CLI supports filtering "show" commands to display lines containing or excluding certain phrases or characters. To filter the outputs of the "show" commands use the following format:
switch (config) # <show command> | {include | exclude} <extended regular expression> [<ignore-case>] [next <lines>] [prev <lines>]
Mellanox Technologies
.
59
User Interfaces
The filtering parameters are separated from the show command they filter by a pipe character (i.e. "|"). Quotation marks may be used to include or exclude a string including space, and multiple filters can be used simultaneously. For example:
switch (config) # <show command> | {include <extended regular expression>} [<ignorecase>] [next <lines>] [prev <lines>] | exclude <extended regular expression> [<ignorecase>] [next <lines>] [prev <lines>]]
Examples:
switch (config) # show asic-version | include SX
MGMT
SX
9.3.3150
arc-switch14 [standalone: master] (config) # show module | exclude PS
======================
Module Status
======================
MGMT
ready
FAN1
ready
FAN2
ready
switch (config) # show interfaces | include "Eth|discard pac" Eth1/1 0 discard packets 0 discard packets
Eth1/2 0 discard packets 0 discard packets
Eth1/3 0 discard packets 0 discard packets Eth1/4 0 discard packets 0 discard packets
switch (config) # show interfaces | include "Tx" next 5 | exclude broad Tx 0 packets 0 unicast packets 0 multicast packets 0 bytes --
Tx 0 packets 0 unicast packets 0 multicast packets 0 bytes
3.2.7.2 "watch" CLI Monitoring Option
MLNX-OS also allows viewing a live feed of the progress of any "show" command by using the "watch" option as follows:
switch (config) # <show command> | watch [diff] [interval <1-100 secs>]
Mellanox Technologies
.
60
User Interfaces
Running the command as such displays an output of the show command that gets updated at a time interval which may be specified using the "interval" parameter (2 seconds by default). The "diff" parameter highlights the differences between each iteration of the command. For example running the command "show power | watch diff interval 1" yields something similar to the following:
With the highlighted black blocks indicating the change that has occurred between one iteration of the command from one second to the next. To exit "watch" mode, press Ctrl+C. The "watch" option may also be used in conjunction with the "include" and "exclude" options as follows:
switch (config) # <show command> | {include | exclude} <extended regular expression> | watch [diff] [interval <1-100 secs>]
For example:
switch (config) # show power | include PS | watch diff interval 1
3.2.7.3 "json-print" CLI Option
The OnyxMLNX-OS CLI supports printing "show" commands in JSON syntax. To print the output of the "show" commands as JSON, use the following format:
switch (config) # <show command> | json-print
Running the command displays an output of the "show" command in JSON syntax structure instead of its regular format. For example:
switch (config) # show system profile Profile: eth-single-switch Switch (config) # show system profile | json-print { "Profile": "eth-single-switch" }
The "json-print" option cannot be used together with filtering ("include" and "exclude") and/or monitoring ("watch"). For more information on JSON usage, please refer to Section 4.17.2, "JSON API," on page 500. For a list of commands supporting the JSON API, please refer to Appendix B,"Show Commands Not Supported by JSON," on page 1943.
Mellanox Technologies
.
61
User Interfaces
3.2.8
CLI Shortcuts
Table 13 presents the available keyboard shortcuts on the MLNX-OS CLI. Table 13 - CLI Keyboard Shortcuts
Key Combination Ctrl-a Ctrl-b Ctrl-c Ctrl-d
Ctrl-e Ctrl-f Ctrl-h Ctrl-i Ctrl-j Ctrl-k Ctrl-l Ctrl-m Ctrl-n Ctrl-p Ctrl-t Ctrl-u Ctrl-y Esc b Esc c Esc d Esc f Esc l Esc Ctrl-h Esc [ A Esc [ B Esc [ C Esc [ D
Description
Move cursor to beginning of line Move cursor backward one character without deleting Terminate operation If cursor is in the middle of the line, delete one character forward If cursor is at the end of the line, show auto-complete options for current word or word fragment If cursor at an empty line, same as Esc Move cursor to end of line Move cursor forward one character Delete one character backwards from cursor Auto-complete current word (same as TAB) Return carriage (same as ENTER) Delete line after cursor Clear screen and show line at the top of terminal window Return carriage (same as ENTER) Next line (same as DOWN ARROW) Next line (same as UP ARROW) Transpose the two characters on either side of cursor Delete line Retrieve ("yank") last item deleted Move cursor one word backward Capitalizes first letter in word after cursor Delete one word forward from cursor Move one word forward from cursor Change word after cursor to lowercase letters Delete one word backward from cursor Next line (same as DOWN ARROW) Next line (same as UP ARROW) Move forward one character from cursor Move backward one character from cursor
Mellanox Technologies
.
62
User Interfaces
3.3 Web Interface Overview
The MLNX-OS package equipped with web interface which is a web GUI that accept input and provide output by generating webpages which can be viewed by the user using a web browser. The web interface makes available the following perspective tabs: � Setup � System � Security � Ports � Status � IB SM Management � Fabric Inspector � IB Router
Make sure to save your changes before switching between menus or submenus. Click the "Save" button to the right of "Save Changes?".
Mellanox Technologies
.
63
Figure 11: WebUI
User Interfaces
3.3.1
Setup Menu
The Setup menu makes available the following submenus (listed in order of appearance from top to bottom): Table 14 - WebUI Setup Submenus
Submenu Title Interfaces
HA Routing Hostname
Description
Obtains the status of, configures, or disables interfaces to the fabric. Thus, you can: set or clear the IP address and netmask of an interface; enable DHCP to dynamically assign the IP address and netmask; and set interface attributes such as MTU, speed, duplex, etc.
Creates, joins or modifies an InfiniBand subnet
Configures, removes or displays the default gateway, and the static and dynamic routes
Configures or modifies the hostname Configures or deletes static hosts Note: Changing hostname stamps a new HTTPS certificate
Mellanox Technologies
.
64
User Interfaces
Table 14 - WebUI Setup Submenus
Submenu Title DNS Login Messages
Address Resolution IPSec Neighbors Virtualization Virtual Switch Mgmt Web SNMP Email Alerts XML gateway
JSON API Logging Configurations
Docker Date and Time NTP Licensing
Description
Configures, removes, modifies or displays static and dynamic name servers Edits the login messages: Message of the Day (MOTD), Remote Login message, and Local Login message Adds static and dynamic ARP entries, and clears the dynamic ARP cache Configures IPSec Displays IPv6 neighbor discovery protocol Manages the virtualization and virtual machines Configures the system profile Configures web user interface and proxy settings Configures SNMP attributes, SNMP admin user, and trap sinks Configures the destination of email alerts and the recipients to be notified Provides an XML request-response protocol to get and set hardware management information Manages JSON API Sets up system log files, remote log sinks, and log formats Manages, activates, saves, and imports MLNX-OS configuration files, and executes CLI commands Manages docker images and containers. Configures the date, time, and time zone of the switch system Configures NTP (Network Time Protocol) and NTP servers Manages MLNX-OS licenses
3.3.2
System Menu
The System menu makes available the following sub-menus (listed in order of appearance from top to bottom): Table 15 - WebUI System Submenus
Submenu Title Modules
Inventory
Description
Displays a graphic illustration of the system modules. By moving the mouse over the ports in the front view, a pop-up caption is displayed to indicate the status of the port. The port state (active/down) is differentiated by a color scheme (green for active, gray/black for down). By moving the mouse over the rear view, a pop-up caption is displayed to indicate the leaf part information.
Displays a table with the following information about the system modules: module name, type, serial number, ordering part number and ASIC firmware version
Mellanox Technologies
.
65
User Interfaces
Table 15 - WebUI System Submenus
Submenu Title Power Management
MLNX-OS Upgrade Reboot
Description
Displays a table with the following information about the system power supplies: power supply name, power, voltage level, current consumption, and status. A total power summary table is also displayed providing the power used, the power capacity, and the power available.
Displays the installed MLNX-OS images (and the active partition), uploads a new image, and installs a new image
Reboots the system. Make sure that you save your configuration prior to clicking reboot.
3.3.3
Security Menu
The Security menu makes available the following submenus (listed in order of appearance from top to bottom): Table 16 - WebUI Security Submenus
Submenu Title Users Admin Password SSH AAA
Login Attempts RADIUS TACACS+ LDAP Certificate
Description
Manages (setting up, removing, modifying) user accounts Modifies the system administrator password Displays and generate host keys Configures AAA (Authentication, Authorization, and Accounting) security services such as authentication methods and authorization Manages login attempts Manages Radius client Manages TACACS+ client Manages LDAP client Manages certificates
3.3.4
Ports Menu
The Ports menu displays the port state and enables some configuration attributes of a selected port. It also enables modification of the port configuration. A graphical display of traffic over time (last hour or last day) through the port is also available.
Table 17 - WebUI Ports Submenus
Submenu Title Ports
Phy Profile Monitor Session
Description
Manages port attributes, counters, transceiver info and displays a graphical counters histogram
Provides the ability to manage PHY profiles
Displays monitor session summary and enables configuration of a selected session
Mellanox Technologies
.
66
User Interfaces
Table 17 - WebUI Ports Submenus
Submenu Title Protocol Type Telemetry
Description Manages the link protocol type Displays and configures telemetry
3.3.5
Status Menu
The Status menu makes available the following submenus (listed in order of appearance from top to bottom): Table 18 - WebUI Status Submenus
Submenu Title Summary
Profile and Capabilities What Just Happened Temperature
Power Supplies Fans CPU Load Memory Network Logs Maintenance Alerts Virtualization
Description
Displays general information about the switch system and the MLNX-OS image, including current date and time, hostname, uptime of system, system memory, CPU load averages, etc.
Displays general information about the switch system capabilities such as the enabled profiles (e.g IB/ETH) and their corresponding values
Displays and configures What Just Happened packet drop reasons.
Provides a graphical display of the switch module sensors' temperature levels over time (1 hour). It is possible to display either the temperature level of one module's sensor or the temperature levels of all the module sensors' together.
Provides a graphical display of one of the switch's power supplies voltage level over time (1 hour)
Provides a graphical display of fan speeds over time (1 hour). The display is per fan unit within a fan module.
Provides a graphical display of the management CPU load over time (1 hour)
Provides a graphical display of memory utilization over time (1 day)
Provides a graphical display of network usage (transmitted and received packets) over time (1 day). It also provides per interface statistics.
Displays the system log messages. It is possible to display either the currently saved system log or a continuous system log.
Performs specific maintenance operations automatically on a predefined schedule
Displays a list of the recent health alerts and enables the user to configure health settings
Displays the virtual machines, networks and volumes
Mellanox Technologies
.
67
User Interfaces
3.3.6
IB SM Mgmt
The IB SM Mgmt menu makes available the following submenus (listed in order of appearance from top to bottom): Table 19 - WebUI IB SM Mgmt Submenus
Submenu Title Summary Base SM Advanced SM Expert SM
Compute nodes Root nodes Partitions Basic Qos
Description
Displays the local Subnet Manager (SM) status (running time, failures, etc)
Manages basic SM configuration (enabling SM, priority level, and restoring initial configuration)
Manages basic SM configuration (enabling SM, priority level, and restoring initial configuration)
1. Configures security and GUID based prefixes (m_key, sm_key, sa_key, etc), and manages special SM attributes that should not be changed except by expert users of the Subnet Manager who understand the risks of manipulating these attributes. 2. Fabric inspector, and many standalone InfiniBand utilities, may not function on subnets with a non-default m-key.
Adds compute nodes using network adapter port GUIDs
Adds root nodes using switch GUIDs
Manages partition keys (sets removes or displays the partition keys)
Configures basic QoS attributes such as default QoS settings, and VL arbitration low and high entries. It also displays and manages SL-to-VL mappings.
3.3.7 Fabric Inspector
The Fabric Inspctr menu requires a license (LIC-fabric-inspector).
The Fabric Inspctr menu makes available the following sub-menus (listed in order of appearance from top to bottom):
Table 20 - WebUI Fabric Inspctr Submenus
Submenu Title Summary IB Systems IB Nodes
Description
Displays a fabric status summary, including the time of last fabric update, what systems are in the fabric, what InfiniBand devices are identified, etc
Displays information about all identified InfiniBand systems in the fabric (adapters, switches, etc)
Displays information about InfiniBand nodes in the fabric. It is possible to filter display by the type of InfiniBand node (HCA adapter, switch, etc)
Mellanox Technologies
.
68
User Interfaces
Table 20 - WebUI Fabric Inspctr Submenus
Submenu Title IB Ports
Connections System Names
Description
Displays all active InfiniBand ports in the fabric. It is possible to filter display by the type of InfiniBand port (HCA port, switch port, switch management port, etc), by the port rate (speed or width), by the Subnet Manager status on the node, by node traffic, etc.
Displays all active connections in the fabric. It is possible to filter display by the link type (switch to switch, switch to HCA, etc) and by the link rate (speed or width)
Allows the mapping of System Names to GUIDs to ease system identification
3.3.8
IB Router
The IB Router menu makes available the following sub-menus (listed in order of appearance from top to bottom): Table 21 - WebUI IB Router Submenus
Submenu Title IB Router Global IB Router Configuration
Description Enables/disables IB router Manages IB router admin state and IB router interfaces
3.4 Secure Shell (SSH)
It is recommended not to use more than 50 concurrent SSH sessions to the switch.
3.4.1
Adding a Host and Providing an SSH Key
To add entries to the global known-hosts configuration file and its SSH value: Step 1. Change to Config mode Run:
switch [standalone: master] > enable switch [standalone: master] # configure terminal switch [standalone: master] (config) #
Step 2. Add an entry to the global known-hosts configuration file and its SSH value. Run:
switch [standalone: master] (config) # ssh client global known-host "myserver ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAIEAsXeklqc8T0EN2mnMcVcfhueaRYzIVqt4rVsrERIjmlJh4mkYYIa8hGGikN a+t5xw2dRrNxnHYLK51bUsSG1ZNwZT1Dpme3pAZeMY7G4ZMgGIW9xOuaXgAA3eBeoUjFdi6+1BqchWk0nTb+gM fI/MK/heQNns7AtTrvqg/O5ryIc=" switch [standalone: master] (config) #
Mellanox Technologies
.
69
User Interfaces
Step 3.
Verify what keys exist in the host. Run:
switch [standalone: master] (config) # show ssh client SSH client Strict Hostkey Checking: ask
SSH Global Known Hosts: Entry 1: myserver Finger Print: d5:d7:be:d7:6c:b1:e4:16:df:61:25:2f:b1:53:a1:06
No SSH user identities configured.
No SSH authorized keys configured.
switch [standalone: master] (config) #
3.4.2
Retrieving Return Codes when Executing Remote Commands
To stop the CLI and set the system to send return errors if some commands fail: Step 1. Connect to the system from the host SSH. Step 2. Add the -h parameter after the cli (as shown in the example below) to notify the system to
halt on failure and pass through the exit code.
ssh <username>@<hostname> cli -h '"enable" "show interfaces brief"'
3.5 Management Information Bases (MIBs)
The inventory in the switch system can be accessed through a MIB browser. These devices are indexed (entPhysicalIndex) using three levels:
1. Module layer which includes modules located on system (e.g. cables, fan, power supply, etc.). See table Table 22 for more details.
2. Device layer which includes system devices (e.g. switch devices, sensor aggregators, etc.). See table Table 23 for more details.
3. Sensor layer which includes system sensors (e.g. fan, and temperature sensors) located in the devices. See table Table 24 for more details.
Each layer is assigned a fixed position in the index number to represent it.
Mod. Type
2-Digit Module Index
Figure 12: Index Scheme
Device Device Name Index
#1
Device Index
#2
Sensor Type
Sensor Index
Mellanox Technologies
.
70
User Interfaces
Each position could indicate different types of component according to the following criteria: Table 22 - Module Type
Number
1 2 3 4 5 6 7 8 9
Chassis Management Spine Leaf Fan Power supply BBU x86 CPU Port module
Description
Table 23 - Device Type
Number
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21
PS FAN BOARD_MONITOR CPU_BOARD_MONITOR SX SIB CPU_MEZZ_TEMP CPU Package Sensor CPU Core Sensor SX_AMBIENT_TEMP SX_MONITOR AUX_IN_TMP_SNSR AUX_OUT_TMP_SNSR MAIN_IN_TMP_SNSR MAIN_OUT_TMP_SNSR CPU_MEZZ_TEMP Controller QSFP_TEMP QSFP-ASIC Board AMB temp Ports AMB temp
Description
Mellanox Technologies
.
71
User Interfaces
Table 23 - Device Type
Number 22 23 24 25 26
Power monitor PS_MONITOR SWB AMB temp pcie-switch-temp SPC
Description
Table 24 - Sensor Type
Number
Description
1
t � temperature sensor
2
f � fan sensor
For example: � 401191311
The first layer is "401" where: � "4", according to Table 22, indicates a leaf � "01" indicates index #1 (Leaf #1) The second layer is "1913" where: � "19", according to Table 23, indicates a QSFP ASIC � "1" indicates ASIC #1
� "3" indicates sensor #3 (QSFP-ASIC1-3) The third layer is "11" where: � "1", according to Table 24, indicates a temperature sensor � "1" indicates sensor #1 (T1) The resulting output in the entPhysicalDescr column of the MIB would be: L01/QSFP-ASIC-1/ T1. � 501020021 The first layer is 501 where � "5", according to Table 22, indicates a fan � "01 indicates index #1 (Fan #1) The second layer is 0200 where: � 02, according to Table 23, indicates a fan � 0 � indicates that there is no first index � 0 � indicates that there is no second index
The third layer is 21 where: � "2", according to Table 24, indicates a fan sensor � "1" indicates sensor #1 (F1)
Mellanox Technologies
.
72
User Interfaces
The resulting output in the entPhysicalDescr column of the MIB would be: FAN1/FAN/F1.
Mellanox Technologies
.
73
User Interfaces
3.6 Commands
3.6.1 CLI Session
This chapter displays all the relevant commands used to manage CLI session terminal.
cli clear-history
cli clear-history
Clears the command history of the current user.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # cli clear-history switch (config) #
Related Commands N/A
Note
Mellanox Technologies
.
74
User Interfaces
cli default
cli default {auto-logout <minutes> | paging enable | prefix-modes {enable | showconfig} | progress enable | prompt {confirm-reload | confirm-reset | confirmunsaved | empty-password}} no cli default {auto-logout | paging enable | prefix-modes {enable | show-config} | progress enable prompt {confirm-reload | confirm-reset | confirm-unsaved | empty-password}
Configures default CLI options for all future sessions. The no form of the command deletes or disables the default CLI options.
Syntax Description minutes
Configures keyboard inactivity timeout for automatic logout. Range is 0-35791 minutes. Setting the value to 0 or using the no form of the command disables the auto-logout.
paging enable
Enables text viewing one screen at a time.
prefix-modes {enable | show-config}
Configures the prefix modes feature of CLI. � "prefix-modes enable" enables prefix modes for
current and all future sessions � "prefix-modes show-config" uses prefix modes in
"show configuration" output for current and all future sessions
progress enable
Enables progress updates.
prompt confirm-reload
Prompts for confirmation before rebooting.
prompt confirm-reset
Prompts for confirmation before resetting to factory state.
prompt confirm-unsaved
Confirms whether or not to save unsaved changes before rebooting.
prompt empty-password
Prompts for a password if none is specified in a pseudoURL for SCP.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # cli default prefix-modes enable
Related Commands show cli
Note
Mellanox Technologies
.
75
User Interfaces
cli max-sessions
cli max-sessions <number> no cli max-sessions
Configures the maximum number of simultaneous CLI sessions allowed. The no form of the command resets this value to its default.
Syntax Description number
Range: 3-30
Default
30 sessions
Configuration Mode config
History
3.5.0200
Role
admin
Example
switch (config) # cli max-sessions 40
Related Commands show terminal
Note
Mellanox Technologies
.
76
User Interfaces
cli session
Syntax Description
Default
cli session {auto-logout <minutes> | paging enable | prefix-modes {enable | showconfig} | progress enable | terminal {length <size> | resize | type <terminal-type> | width} | x-display full <display>} no cli session {auto-logout | paging enable | prefix-modes {enable | show-config} | progress enable | terminal type | x-display}
Configures default CLI options for all future sessions. The no form of the command deletes or disables the CLI sessions.
minutes
Configures keyboard inactivity timeout for automatic logout. Range is 0-35791 minutes. Setting the value to 0 or using the no form of the command disables the auto logout.
paging enable
Enables text viewing one screen at a time.
prefix-modes enable | show-config
Configures the prefix modes feature of CLI. � "prefix-modes enable" enables prefix modes for
current and all future sessions � "prefix-modes show-config" uses prefix modes in
"show configuration" output for current and all future sessions
progress enable
Enables progress updates.
terminal length
Sets the number of lines for the current terminal. Valid range is 5-999.
terminal resize
Resizes the CLI terminal settings (to match the actual terminal window).
terminal-type
Sets the terminal type. Valid options are: � ansi � console � dumb � linux � unknown � vt52 � vt100 � vt102 � vt220 � vt320 � xterm
terminal width
Sets the width of the terminal in characters. Valid range is 34-999.
x-display full <display> Specifies the display as a raw string, e.g localhost:0.0.
N/A
Mellanox Technologies
.
77
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # cli session auto-logout
Related Commands show terminal
Note
User Interfaces
Mellanox Technologies
.
78
User Interfaces
terminal
terminal {length <number of lines> | resize | type <terminal type> | width <number of characters>} no terminal type
Configures default CLI options for all future sessions. The no form of the command clears the terminal type.
Syntax Description length
Sets the number of lines for this terminal Range: 5-999
resize
Resizes the CLI terminal settings (to match with real terminal)
type
Sets the terminal type. Possible values: ansi, console,
dumb, linux, screen, vt52, vt100, vt102, vt220, xterm.
width
Sets the width of this terminal in characters Range: 34-999
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # terminal length 500 switch (config) #
show terminal
Note
Mellanox Technologies
.
79
User Interfaces
terminal sysrq enable
terminal sysrq enable no terminal sysrq enable
Enable SysRq over the serial connection (RS232 or Console port). The no form of the command disables SysRq over the serial connection (RS232 or Console port).
Syntax Description N/A
Default
Enabled
Configuration Mode config
History
3.4.3000
Role
admin
Example
switch (config) # terminal sysrq enable switch (config) #
Related Commands show terminal
Note
Mellanox Technologies
.
80
User Interfaces
show cli
show cli
Displays the CLI configuration and status.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # show cli
CLI current session settings:
Maximum line size:
8192
Terminal width:
171 columns
Terminal length:
38 rows
Terminal type:
xterm
X display setting:
(none)
Auto-logout:
disabled
Paging:
enabled
Progress tracking:
enabled
Prefix modes:
disabled
CLI defaults for future sessions:
Auto-logout:
disabled
Paging:
enabled
Progress tracking:
enabled
Prefix modes:
enabled (and use in 'show configuration')
Related Commands Note
Settings for both this session and future ones:
Show hidden config:
yes
Confirm losing changes: yes
Confirm reboot/shutdown: no
Confirm factory reset:
yes
Prompt on empty password: yes
switch (config) #
cli default
Mellanox Technologies
.
81
show cli max-sessions
show cli max-sessions
Displays maximum number of sessions.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.5.0200
Role
admin
Example Related Commands
switch (config) # show cli max-sessions Maximum number of CLI sessions: 5 switch (config) #
Note
User Interfaces
Mellanox Technologies
.
82
show cli num-sessions
show cli num-sessions
Displays current number of sessions.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.5.0200
Role
admin
Example Related Commands
switch (config) # show cli num-sessions Current number of CLI sessions: 40 switch (config) #
Note
User Interfaces
Mellanox Technologies
.
83
User Interfaces
3.6.2 Banner
banner login
banner login <string> no banner login
Sets the CLI welcome banner message. The no form of the command resets the system login banner to its default.
Syntax Description string
Text string.
Default
"Mellanox MLNX-OS Switch Management"
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # banner login Example
Related Commands show banner
Note
If more than one word is used (there is a space) quotation marks should be added (i.e. "xxxx xxxx").
Mellanox Technologies
.
84
User Interfaces
banner login-local
banner login-local <string> no banner login-local
Syntax Description Default Configuration Mode History
Role Example
Related Commands Note
Sets system login local banner. The no form of the command resets the banner.
string
Text string.
N/A
config
3.1.0000
3.5.0200
Added no form of the command
admin
switch (config) # banner login-local Testing switch (config) #
show banner
� The login-local refers to the serial connection banner � If more than one word is used (there is a space) quotation marks should be added
(i.e. "xxxx xxxx").
Mellanox Technologies
.
85
User Interfaces
banner login-remote
banner login-remote <string> no banner login-remote
Syntax Description Default Configuration Mode History
Role Example
Related Commands Note
Sets system login remote banner. The no form of the command resets the banner.
string
Text string.
N/A
config
3.1.0000
3.5.0200
Added no form of the command
admin
switch (config) # banner login-remote Testing switch (config) #
show banner
� The login-remote refers to the SSH connections banner � If more than one word is used (there is a space) quotation marks should be added
(i.e. "xxxx xxxx").
Mellanox Technologies
.
86
User Interfaces
banner logout
banner logout <string> no banner logout
Set system logout banner (for both local and remote logins). The no form of the command resets the banner.
Syntax Description string
Text string.
Default
N/A
Configuration Mode config
History
3.5.0200
Role
admin
Example Related Commands
switch (config) # banner logout Testing switch (config) #
show banner
Note
If more than one word is used (there is a space) quotation marks should be added (i.e. "xxxx xxxx").
Mellanox Technologies
.
87
User Interfaces
banner logout-local
banner logout-local <string> no banner logout-local
Sets system logout local banner. The no form of the command resets the banner.
Syntax Description string
Text string.
Default
N/A
Configuration Mode config
History
3.5.0200
Role
admin
Example Related Commands
switch (config) # banner logout-local Testing switch (config) #
show banner
Note
� The logout-local refers to the serial connection banner � If more than one word is used (there is a space) quotation marks should be added
(i.e. "xxxx xxxx").
Mellanox Technologies
.
88
User Interfaces
banner logout-remote
banner logout-remote <string> no banner logout-remote
Sets system logout remote banner. The no form of the command resets the banner.
Syntax Description string
Text string.
Default
N/A
Configuration Mode config
History
3.5.0200
Role
admin
Example Related Commands
switch (config) # banner logout-remote Testing switch (config) #
show banner
Note
� The logout-remote refers to SSH connections banner � If more than one word is used (there is a space) quotation marks should be added
(i.e. "xxxx xxxx").
Mellanox Technologies
.
89
User Interfaces
banner motd
banner motd <string> no banner motd
Configures the message of the day banner. The no form of the command resets the system Message of the Day banner.
Syntax Description string
Text string
Default
"Mellanox Switch"
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # banner motd "My Banner"
Related Commands show banner
Note
� If more than one word is used (there is a space) quotation marks should be added (i.e. "xxxx xxxx").
� To insert a multi-line MotD, hit Ctrl-V (escape sequence) followed by Ctrl-J (new line sequence). The symbol "^J" should appear. Then, whatever is typed after it becomes the new line of the MotD. Remember to also include the string between quotation marks.
Mellanox Technologies
.
90
show banner
show banner
Displays configured banners.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
3.5.0200
Updated Example
3.6.6000
Updated Example
Role
Any command mode
Example
switch (config) # show banner
Banners: Message of the Day (MOTD): Mellanox Switch
Login: Mellanox MLNX-OS Switch Management
Related Commands Note
Logout:
Goodbye
banner login banner login-local banner login-remote banner logout banner logout-local banner logout-remote banner motd
User Interfaces
Mellanox Technologies
.
91
User Interfaces
3.6.3 SSH
ssh server enable
ssh server enable no ssh server enable
Enables the SSH server. The no form of the command disables the SSH server.
Syntax Description N/A
Default
SSH server is enabled
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ssh server enable
Related Commands show ssh server
Note
Disabling SSH server does not terminate existing SSH sessions, it only prevents new ones from being established.
Mellanox Technologies
.
92
User Interfaces
ssh server host-key
ssh server host-key {<key-type> {private-key <private-key>| public-key <publickey>} | generate}
Configures host keys for SSH.
Syntax Description key-type
� rsa1 - RSAv1 � rsa2 - RSAv2 � dsa2 - DSAv2
private-key
Sets new private-key for the host keys of the specified type
public-key
Sets new public-key for the host keys of the specified type
generate
Generates new RSA and DSA host keys for SSH
Default
SSH keys are locally generated
Configuration Mode config
History
3.1.0000
3.4.2300
Added notes
Role
admin
Example Related Commands
switch (config) # ssh server host-key dsa2 private-key Key: *********************************************** Confirm: ***********************************************
show ssh server system secure-mode enable
Note
When working in secure mode, the commands "ssh server host-key rsa1" and "ssh server host-key generate" do not create RSAv1 key-type.
Mellanox Technologies
.
93
User Interfaces
ssh server listen
ssh server listen {enable | interface <inf>} no ssh server listen {enable | interface <inf>}
Enables the listen interface restricted list for SSH. If enabled, and at least one nonDHCP interface is specified in the list, the SSH connections are only accepted on those specified interfaces. The no form of the command disables the listen interface restricted list for SSH. When disabled, SSH connections are not accepted on any interface.
Syntax Description enable
Enables SSH interface restrictions on access to this system.
interface <inf>
Adds interface to SSH server access restriction list. Possible interfaces are "lo", and "mgmt0".
Default
SSH listen is enabled
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ssh server listen enable
Related Commands show ssh server
Note
Mellanox Technologies
.
94
User Interfaces
ssh server login attempts
ssh server login attempts <number> no ssh server login attempts
Configures maximum login attempts on SSH server. The no form of the command resets the login attempts value to its default.
Syntax Description number
Range: 3-100 attempts.
Default
6 attempts
Configuration Mode config
History
3.5.0200
3.5.1000
Increased minimum number of attempts allowed
Role
admin
Example
switch (config) # ssh server login attempts 5
Related Commands show ssh server
Note
Mellanox Technologies
.
95
User Interfaces
ssh server login timeout
ssh server login timeout <time> no ssh server login timeout
Configures login timeout on SSH server. The no form of the command resets the timeout value to its default.
Syntax Description time
Range: 1-600 seconds
Default
120 seconds
Configuration Mode config
History
3.5.0200
Role
admin
Example
switch (config) # ssh server login timeout 130
Related Commands show ssh server
Note
Mellanox Technologies
.
96
User Interfaces
ssh server min-version
ssh server min-version <version> no ssh server min-version
Sets the minimum version of the SSH protocol that the server supports. The no form of the command resets the minimum version of SSH protocol supported.
Syntax Description version
Possible versions are 1 and 2.
Default
2
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ssh server min-version 2
Related Commands show ssh server
Note
Mellanox Technologies
.
97
User Interfaces
ssh server ports
ssh server ports {<port1> [<port2>...]}
Specifies which ports the SSH server listens on.
Syntax Description port
Port number in [1...65535].
Default
22
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ssh server ports 22
Related Commands show ssh server
Note
� Multiple ports can be specified by repeating the <port> parameter � The command will remove any previous ports if not listed in the command
Mellanox Technologies
.
98
User Interfaces
ssh server security strict
ssh server security strict
Enables strict security settings. The no form of the command disables strict security settings.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.3.5060 3.6.4000
Role
admin
Example
switch (config) # ssh server security strict
Related Commands show ssh server
Note
The following ciphers are disabled for SSH when strict security is enabled:
� aes256-cbc � aes192-cbc � aes128-cbc � arcfour � blowfish-cbc � cast128-cbc � rijndael-cbc@lysator.liu.se � 3des-cbc
Mellanox Technologies
.
99
User Interfaces
ssh server tcp-forwarding enable
ssh server tcp-forwarding enable
Syntax Description Default Configuration Mode History Role Example Related Commands Note
Enables TCP port forwarding. The no form of the command disables TCP port forwarding. N/A N/A config 3.1.0000 admin
switch (config) # ssh server tcp-forwarding enable
show ssh server
Mellanox Technologies
.
100
ssh server x11-forwarding
ssh server x11-forwarding enable no ssh server x11-forwarding enable
Syntax Description Default Configuration Mode History Role Example Related Commands Note
Enables X11 forwarding on the SSH server. The no form of the command disables X11 forwarding. N/A X11-forwarding is disabled. config 3.1.0000 admin
switch (config) # ssh server x11-forwarding enable
N/A
User Interfaces
Mellanox Technologies
.
101
User Interfaces
ssh client global
ssh client global {host-key-check <policy>} | known-host <known-host-entry>} no ssh client global {host-key-check | known-host localhost}
Configures global SSH client settings. The no form of the command negates global SSH client settings.
Syntax Description
host-key-check <policy>
Sets SSH client configuration to control how host key checking is performed. This parameter may be set in 3 ways. � If set to "no" it always permits connection, and
accepts any new or changed host keys without checking � If set to "ask" it prompts user to accept new host keys, but does not permit a connection if there was already a known host entry that does not match the one presented by the host � If set to "yes" it only permits connection if a matching host key is already in the known hosts file
known-host
Adds an entry to the global known-hosts configuration file.
known-host-entry
Adds/removes an entry to/from the global known-hosts configuration file. The entry consist of "<IP> <keytype> <key>".
Default
host-key-check - ask, no keys are configured by default
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ssh client global host-key-check no switch (config) # ssh client global known-host "72.30.2.2 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAIEArB9i5OnukAHNUOkwpCmEl0m88kJgBzL22+F5tfaSn+S0pVYxrceZeyuzXsoZ1VtFTk2Fydwy0YvMS0Kcv2PuCrPZV/ GYd31QEnn22rEmrlPrKCrMl1XlUy6DFlr3OgwWm1baobmDlG/gSziWz/gc4Jgqf2CyXFq4pzaR1jar1Vk="
switch (config) # show ssh client SSH client Strict Hostkey Checking: ask
SSH Global Known Hosts: Entry 1: 72.30.2.2 Finger Print: 1e:b7:8b:ec:ab:35:98:be:6b:d6:12:c2:18:72:12:d6
No SSH user identities configured.
No SSH authorized keys configured.
switch (config) #
Mellanox Technologies
.
102
Related Commands Note
show ssh client
User Interfaces
Mellanox Technologies
.
103
User Interfaces
ssh client user
ssh client user <username> {authorized-key sshv2 <public key> | identity <key type> {generate | private-key [<private key>] | public-key [<public key>]} | known-host <known host> remove} no ssh client user admin {authorized-key sshv2 <public key ID> | identity <key type>}
Adds an entry to the global known-hosts configuration file, either by generating new key, or by adding manually a public or private key. The no form of the command removes a public key from the specified user's authorized key list, or changes the key type.
Syntax Description username
The specified user must be a valid account on the system. Possible values for this parameter are "admin", "monitor", "xmladmin", and "xmluser".
authorized-key sshv2 <public key>
Adds the specified key to the list of authorized SSHv2 RSA or DSA public keys for this user account. These keys can be used to log into the user's account.
identity <key type>
Sets certain SSH client identity settings for a user, dsa2 or rsa2.
generate
Generates SSH client identity keys for specified user.
private-key
Sets private key SSH client identity settings for the user.
public-key
Sets public key SSH client identity settings for the user.
known-host <known host> Removes host from user's known host file. remove
Default
No keys are created by default
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ssh client user admin known-host 172.30.1.116 remove
Related Commands show ssh client
Note
If a key is being pasted from a cut buffer and was displayed with a paging program, it is likely that newline characters have been inserted, even if the output was not long enough to require paging. One can specify "no cli session paging enable" before running the "show" command to prevent the newlines from being inserted.
Mellanox Technologies
.
104
User Interfaces
slogin
slogin [<slogin options>] <hostname>
Invokes the SSH client. The user is returned to the CLI when SSH finishes.
Syntax Description slogin options
usage: slogin [-1246AaCfgkNnqsTtVvXxY] [-b bind_address] [-c cipher_spec] [-D port] [-e escape_char] [-F configfile] [-i identity_file] [-L port:host:hostport] [-l login_name] [-m mac_spec] [-o option] [-p port] [-R port:host:hostport] [user@]hostname [command]
Default
N/A
Configuration Mode config
History
3.1.0000
Role
monitor/admin
Example
switch (config) # slogin 192.168.10.70 The authenticity of host '192.168.10.70 (192.168.10.70)' can't be established. RSA key fingerprint is 2e:ad:2d:23:45:4e:47:e0:2c:ae:8c:34:f0:1a:88:cb. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added '192.168.10.70' (RSA) to the list of known hosts.
Mellanox MLNX-OS Switch Management
Last login: Sat Feb 28 22:55:17 2009 from 10.208.0.121
Mellanox Switch
Related Commands Note
switch (config) #
N/A
Mellanox Technologies
.
105
User Interfaces
show ssh client
show ssh client
Displays the client configuration of the SSH server.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show ssh client SSH client Strict Hostkey Checking: ask
SSH Global Known Hosts: Entry 1: 72.30.2.2 Finger Print: 1e:b7:8b:ec:ab:35:98:be:6b:d6:12:c2:18:72:12:d6
No SSH user identities configured.
No SSH authorized keys configured.
Related Commands Note
switch (config) #
N/A
Mellanox Technologies
.
106
User Interfaces
show ssh server
show ssh server
Displays SSH server configuration.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
3.5.0200
Added SSH login timeout and max attempts
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ssh server
SSH server configuration:
SSH server enabled:
yes
Server security strict mode: no
Minimum protocol version: 2
TCP forwarding enabled:
yes
X11 forwarding enabled:
no
SSH login timeout:
120
SSH login max attempts:
6
SSH server ports:
22
Interface listen enabled: yes Listen Interfaces: No interface configured.
Related Commands Note
Host Key Finger Prints and Key Lengths: RSA v1 host key: SHA256:sMgangJjG9FmSch/9Y9aZ/WJ2wKf3c+SeF8XKgYYdCA (2048) RSA v2 host key: SHA256:gVu6qLW1ZifEp8wRer2jkvILZMGNl6VCYU3HqC1INC8 (2048) DSA v2 host key: SHA256:JnldTEla20ZF/c5LdIqo9251DzO742k3hFCQh3Jt4ZA (1024)
ssh server
Mellanox Technologies
.
107
User Interfaces
show ssh server host-keys
show ssh server host-keys
Displays SSH host key configuration.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ssh server host-keys
SSH server configuration:
SSH server enabled:
yes
Server security strict mode: no
Minimum protocol version: 2
TCP forwarding enabled:
yes
X11 forwarding enabled:
no
SSH login timeout:
120
SSH login max attempts:
6
SSH server ports:
22
Interface listen enabled: yes Listen Interfaces: No interface configured.
Host Key Finger Prints and Key Lengths: RSA v1 host key: SHA256:sMgangJjG9FmSch/9Y9aZ/WJ2wKf3c+SeF8XKgYYdCA
(2048) RSA v2 host key: SHA256:gVu6qLW1ZifEp8wRer2jkvILZMGNl6VCYU3HqC1INC8
(2048) DSA v2 host key: SHA256:JnldTEla20ZF/c5LdIqo9251DzO742k3hFCQh3Jt4ZA
(1024)
Related Commands Note
Host Keys: RSA v1 host key: "kebo-2100-1 2048 65537 21801469875<...>27851" RSA v2 host key: "kebo-2100-1 ssh-rsa AAAAB3Nza<...>KE5" DSA v2 host key: "kebo-2100-1 ssh-dss AAAAB3Nza<...>/s="
ssh server host-keys
Mellanox Technologies
.
108
3.6.4 Remote Login
telnet
telnet
Logs into another system using telnet.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # telnet telnet>
Related Commands telnet-server
Note
User Interfaces
Mellanox Technologies
.
109
telnet-server enable
telnet-server enable no telnet-server enable
Syntax Description Default Configuration Mode History Role Example
Related Commands Note
Enables the telnet server. The no form of the command disables the telnet server. N/A Telnet server is disabled config 3.1.0000 admin
switch (config) # telnet-server enable switch (config) # show telnet-server Telnet server enabled: yes
show telnet-server
User Interfaces
Mellanox Technologies
.
110
show telnet-server
show telnet-server
Displays telnet server settings.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show telnet-server Telnet server enabled: yes switch (config) #
telnet-server enable
Note
User Interfaces
Mellanox Technologies
.
111
User Interfaces
3.6.5 Web Interface
web auto-logout
web auto-logout <number of minutes> no web auto-logout <number of minutes>
Configures length of user inactivity before auto-logout of a web session. The no form of the command disables the web auto-logout (web sessions will never logged out due to inactivity).
Syntax Description number of minutes
The length of user inactivity in minutes. 0 will disable the inactivity timer (same as a "no web auto-logout" command).
Default
60 minutes
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # web auto-logout 60
Related Commands show web
Note
The no form of the command does not automatically log users out due to inactivity.
Mellanox Technologies
.
112
User Interfaces
web cache-enable
web cache-enable no web cache-enable
Enables web clients to cache webpages. The no form of the command disables web clients from caching webpages.
Syntax Description N/A
Default
Enabled
Configuration Mode config
History
3.4.1100
Role
admin
Example
switch (config) # no web cache-enable
Related Commands N/A
Note
Mellanox Technologies
.
113
User Interfaces
web client cert-verify
web client cert-verify no web client cert-verify
Enables verification of server certificates during HTTPS file transfers. The no form of the command disables verification of server certificates during HTTPS file transfers.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # web client cert-verify
Related Commands N/A
Note
Mellanox Technologies
.
114
User Interfaces
web client ca-list
web client ca-list {<ca-list-name> | default-ca-list | none} no web client ca-list
Configures supplemental CA certificates for verification of server certificates during HTTPS file transfers. The no form of the command uses no supplemental certificates.
Syntax Description ca-list-name
Specifies CA list to configure.
default-ca-list
Configures default supplemental CA certificate list.
none
Uses no supplemental certificates.
Default
default-ca-list
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # web client ca-list default-ca-list
Related Commands N/A
Note
Mellanox Technologies
.
115
User Interfaces
web enable
web enable no web enable
Enables the web-based management console. The no form of the command disables the web-based management console.
Syntax Description N/A
Default
enable
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # web enable
Related Commands show web
Note
Mellanox Technologies
.
116
User Interfaces
web http
web http {enable | port <port number> | redirect} no web http {enable | port | redirect}
Syntax Description
Default Configuration Mode History Role Example Related Commands Note
Configures HTTP access to the web-based management console. The no form of the command negates HTTP settings for the web-based management console.
enable
Enables HTTP access to the web-based management console.
port number
Sets a port for HTTP access.
redirect
Enables redirection to HTTPS. If HTTP access is enabled, this specifies whether a redirect from the HTTP port to the HTTPS port should be issued to mandate secure HTTPS access.
HTTP is disabled HTTP TCP port is 80 HTTP redirect to HTTPS is disabled
config
3.1.0000
admin
switch (config) # web http enable
show web web enable
Enabling HTTP is meaningful if the WebUI as a whole is enabled.
Mellanox Technologies
.
117
User Interfaces
web httpd
web httpd listen {enable | interface <ifName>} no web httpd listen {enable | interface <ifName>}
Enables the listen interface restricted list for HTTP and HTTPS. The no form of the command disables the HTTP server listen ability.
Syntax Description enable
Enables Web interface restrictions on access to this system.
interface <ifName>
Adds interface to Web server access restriction list (i.e. mgmt0, mgmt1)
Default
Listening is enabled. all interfaces are permitted.
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # web httpd listen enable
Related Commands N/A
Note
If enabled, and if at least one of the interfaces listed is eligible to be a listen interface, then HTTP/HTTPS requests will only be accepted on those interfaces. Otherwise, HTTP/HTTPS requests are accepted on any interface.
Mellanox Technologies
.
118
User Interfaces
web https
web https {certificate {regenerate | name | default-cert} | enable | port <port number> | ssl ciphers {all | TLS | TLS1.2}} no web https {enable | port <port number>}
Configures HTTPS access to the web-based management console. The no form of the command negates HTTPS settings for the web-based management console.
Syntax Description certificate regenerate
Re-generates certificate to use for HTTPS connections.
certificate name
Configure the named certificate to be used for HTTPS connections
certificate default-cert
Configure HTTPS to use the configured default certificate
enable
Enables HTTPS access to the web-based management console.
port
Sets a TCP port for HTTPS access.
ssl ciphers {all | TLS | TLS1.2}
Sets ciphers to be used for HTTPS.
Default
HTTPS is enabled Default port is 443
Configuration Mode config
History
3.1.0000
3.4.0000
Added "ssl ciphers" parameter
3.4.0010
Added TLS parameter to "ssl ciphers"
Role
admin
Example
switch (config) # web https enable
Related Commands show web web enable
Note
� Enabling HTTPS is meaningful if the WebUI as a whole is enabled. � See the command "crypto certificate default-cert name" for how to change the
default certificate if inheriting the configured default certificate is preferred
Mellanox Technologies
.
119
User Interfaces
web https ssl renegotiation enable
web https ssl renegotiation enable no web https ssl renegotiation enable
Enables SSL renegotiation flag in httpd web server. The no form of the command disables SSL renegotiation flag in httpd web server.
Syntax Description N/A
Default
HTTPS is enabled Default port is 443
Configuration Mode config
History
3.6.8008
Role
admin
Example
switch (config) # web https ssl renegotiation enable
Related Commands show web web enable
Note
Mellanox Technologies
.
120
User Interfaces
web https ssl secure-cookie enable
web https ssl secure-cookie enable no web https ssl secure-cookie enable
Enables SSL secure-cookie flag in httpd web server. The no form of the command disables secure-cookie flag in httpd web server.
Syntax Description N/A
Default
Enabled
Configuration Mode config
History
3.6.8008
Role
admin
Example
switch (config) # web https ssl secure-cookie enable
Related Commands show web web enable
Note
Mellanox Technologies
.
121
User Interfaces
web proxy auth authtype
web https auth authtype <auth-type> no web https auth authtype
Configures type of authentication to use with web proxy. The no form of the command resets web proxy authentication type to its default.
Syntax Description auth-type
Possible values: � none � no authentication � basic � HTTP basic authentication
Default
Basic authentication settings
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # web https auth authtype basic
Related Commands show web web enable
Note
Mellanox Technologies
.
122
User Interfaces
web proxy auth basic
web https auth basic {password <password> | username <username>} no web https auth basic {password | username}
Configures HTTP basic authentication settings for proxy. The no form of the command clears password or username configuration.
Syntax Description password
Sets plaintext password for HTTP basic authentication with web proxy
username
Sets username for HTTP basic authentication with web proxy
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # web https auth basic password 57R0ngP455w0rD
Related Commands show web web enable
Note
Mellanox Technologies
.
123
User Interfaces
web proxy auth host
web https auth host <ip-address> [port <number>]
Configures web proxy host.
Syntax Description port
Sets web proxy default port
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # web https auth host 2001:0db8:85a3::8a2e:0370:7334 port 3
show web web enable
Note
Mellanox Technologies
.
124
show web
show web
Displays WebUI configuration.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.6000
3.6.8008
Updated Example
Role
admin
Example
switch (config) # show web
Web User Interface:
Web interface enabled: yes
Web caching enabled:
no
HTTP enabled:
no
HTTP port:
80
HTTP redirect to HTTPS: no
HTTPS enabled:
yes
HTTPS port:
443
HTTPS ssl-ciphers:
TLS1.2
HTTPS ssl-renegotiation: no
HTTPS ssl-secure-cookie: yes
HTTPS certificate name: default-cert
Listen enabled:
yes
Listen Interfaces:
No interface configured.
Inactivity timeout: Session timeout: Session renewal:
1 hr 2 hr 30 min 30 min
Web file transfer proxy: Proxy enabled: no
Related Commands Note
Web file transfer certificate authority: HTTPS server cert verify: yes HTTPS supplemental CA list: default-ca-list
User Interfaces
Mellanox Technologies
.
125
System Management
4 System Management
4.1 Management Interface
Management interfaces are used in order to provide access to switch management user interfaces (e.g. CLI, WebUI). Mellanox switches support out-of-band (OOB) dedicated interfaces (e.g. mgmt0, mgmt1) and in-band dedicated interfaces. In addition, most Mellanox switches feature a serial port that provides access to the CLI only.
On switch systems with two OOB management ports, both of them may be configured on the same VLAN if needed. In this case, ARP replies to the IP of those management interfaces is answered from either of them.
4.1.1
Configuring Management Interfaces with Static IP Addresses
If your switch system was set during initialization to obtain dynamic IP addresses through DHCP and you wish to switch to static assignments, perform the following steps: Step 1. Enter Config configuration mode. Run:
switch > switch > enable switch # configure terminal switch (config) #
Step 2. Disable setting IP addresses using the DHCP using the following command:
switch (config) # no interface <ifname> dhcp
Step 3. Define your interfaces statically using the following command:
switch (config) # interface <ifname> ip address <IP address> <netmask>
4.1.2
Configuring IPv6 Address on the Management Interface
Step 1. Enable IPv6 on this interface. Run:
switch (config) # interface mgmt0 ipv6 enable
Step 2. Set the IPv6 address to be configured automatically. Run:
switch (config) # interface mgmt0 ipv6 address autoconfig
Step 3. Verify the IPv6 address is configured correctly. Run:
switch (config) # show interfaces mgmt0 brief
Mellanox Technologies
.
126
System Management
4.1.3
Dynamic Host Configuration Protocol (DHCP)
DHCP is used for automatic retrieval of management IP addresses. For all other systems (and software versions) DHCP is disabled by default.
If a user connects through SSH, runs the wizard and turns off DHCP, the connection is immediately terminated as the management interface loses its IP address.
<localhost># ssh admin@<ip-address> Mellanox MLNX-OS Switch Management Password: Mellanox switch Mellanox configuration wizard Do you want to use the wizard for initial configuration? yes Step 1: Hostname? [my-switch] Step 2: Use DHCP on mgmt0 interface? [yes] no <localhost>#
In such case the serial connection should be used.
4.1.4
Default Gateway
To configure manually the default gateway, use the "ip route" command, with "0.0.0.0" as prefix and mask. The next-hop address must be within the range of one of the IP interfaces on the system.
switch (config)# ip route 0.0.0.0 0.0.0.0 10.10.0.2
switch (config)# show ip route
Destination
Mask
Gateway
Interface
default
0.0.0.0
10.10.0.2
mgmt0
10.10.0.0
255.255.254.0 0.0.0.0
mgmt0
switch (config)#
Source static direct
Distance/Metric 0/0 0/0
4.1.5
Configuring Hostname via DHCP (DHCP Client Option 12)
This feature, also known as the DHCP Client Option 12, is enabled by default and assigns the switch system a hostname via DHCP as long as network manager configures hostname to the management interfaces' (i.e. mgmt0, mgmt1) MAC address. If a network manager configures the hostname manually through any of the user interfaces, the hostname is not retrieved from the DHCP server.
Mellanox Technologies
.
127
System Management
To enable fetching hostname from DHCP server, run:
switch (config interface mgmt0) # dhcp hostname
To disable fetching hostname from DHCP server, run:
switch (config interface mgmt0) # no dhcp hostname
Getting the hostname through DHCP is enable by default and will change the switch hostname if the hostname is not set by the user. Therefore, if a switch is part of an HA cluster (e.g. SM HA, GW HA) the user would need to make sure the HA master has the same HA node names as the DHCP server.
Mellanox Technologies
.
128
System Management
4.1.6 Commands
4.1.6.1 Interface
This chapter describes the commands should be used to configure and monitor the management interface.
interface
interface {mgmt0 | mgmt1 | lo | vlan<id> | ib0}
Enters a management interface context.
Syntax Description mgmt0
Management port 0 (out of band).
mgmt1
Management port 1 (out of band).
lo
Loopback interface.
vlan<id>
In-band management interface (e.g. vlan10).
ib0
IPoIB in-band management
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # interface mgmt0 switch (config interface mgmt0) #
Related Commands show interfaces <ifname>
Notes
Mellanox Technologies
.
129
System Management
ip address
ip address <IP address> <netmask> no ip address
Syntax Description
Default Configuration Mode History Role Example
Related Commands Notes
Sets the IP address and netmask of this interface. The no form of the command clears the IP address and netmask of this interface.
IP address
IPv4 address
netmask
Subnet mask of IP address
0.0.0.0/0
config interface management
3.1.0000
admin
switch (config) # interface mgmt0 switch (config interface mgmt0) # ip address 10.10.10.10 255.255.255.0
show interfaces <ifname>
If DHCP is enabled on the specified interface, then the DHCP IP assignment will hold until DHCP is disabled.
Mellanox Technologies
.
130
System Management
ip default-gateway
ip default-gateway <next hop IP address or interface name> no ip default-gateway
Configures a default route. The no form of the command removes the current default route.
Syntax Description
next hop IP address or interface name
IP address, lo, mgmt0, or mgmt1.
Default
N/A
Configuration Mode config interface management
History
3.1.0000
Role
admin
Example
switch (config) # ip default-gateway mgmt1 switch (config) #
Related Commands
Notes
Mellanox Technologies
.
131
System Management
alias
alias <index> ip address < IP address> <netmask> no alias <index>
Adds an additional IP address to the specified interface. The secondary address will appear in the output of "show interface" under the data of the primary interface along with the alias. The no form of the command removes the secondary address to the specified interface.
Syntax Description index
A number that is to be aliased to (associated with) the secondary IP.
IP address
Additional IP address.
netmask
Subnet mask of the IP address.
Default
N/A
Configuration Mode config interface management
History
3.1.0000
Role
admin
Example Related Commands
switch (config interface mgmt0) # alias 2 ip address 9.9.9.9 255.255.255.255
show interfaces <ifname>
Notes
� If DHCP is enabled on the specified interface, then the DHCP IP assignment will hold until DHCP is disabled
� More than one additional IP address can be added to the interface
Mellanox Technologies
.
132
System Management
mtu
mtu <bytes> no mtu <bytes>
Sets the Maximum Transmission Unit (MTU) of this interface. The no form of the command resets the MTU to its default.
Syntax Description bytes
The entry range is 68-1500.
Default
1500
Configuration Mode config interface management
History
3.6.3004
Role
admin
Example
switch (config interface mgmt0) # mtu 1500
Related Commands show interfaces <ifname>
Notes
Mellanox Technologies
.
133
System Management
duplex
duplex <duplex> no duplex
Sets the interface duplex. The no form of the command resets the duplex setting for this interface to its default value.
Syntax Description duplex
Sets the duplex mode of the interface. The following are the possible values: � half - half duplex � full - full duplex � auto - auto duplex sensing (half or full)
Default
auto
Configuration Mode config interface management
History
3.1.0000
Role
admin
Example
switch (config interface mgmt0) # duplex auto
Related Commands show interfaces <ifname>
Notes
� Setting the duplex to "auto" also sets the speed to "auto" � Setting the duplex to one of the settings "half" or "full" also sets the speed to a
manual setting which is determined by querying the interface to find out its current auto-detected state
Mellanox Technologies
.
134
System Management
speed
speed <speed> no speed
Sets the interface speed. The no form of the command resets the speed setting for this interface to its default value.
Syntax Description speed
Sets the speed of the interface. The following are the possible values: � 10 - fixed to 10Mbps � 100 - fixed to 1000Mbps � 1000 - fixed to 1000Mbps � auto - auto speed sensing (10/100/1000Mbps)
Default
auto
Configuration Mode config interface management
History
3.1.0000
Role
admin
Example
switch (config interface mgmt0) # speed auto
Related Commands show interfaces <ifname>
Notes
� Setting the speed to "auto" also sets the duplex to "auto" � Setting the speed to one of the manual settings (generally "10", "100", or "1000")
also sets the duplex to a manual setting which is determined by querying the interface to find out its current auto-detected state
Mellanox Technologies
.
135
System Management
dhcp
dhcp [renew] no dhcp
Enables DHCP on the specified interface. The no form of the command disables DHCP on the specified interface.
Syntax Description renew
Forces a renewal of the IP address. A restart on the DHCP client for the specified interface will be issued.
Default
Could be enabled or disabled (per part number) manufactured with 3.2.0500
Configuration Mode config interface management
History
3.1.0000
Role
admin
Example
switch (config interface mgmt0) # dhcp
Related Commands show interfaces <ifname> configured
Notes
� When enabling DHCP, the IP address and netmask are received via DHCP hence, the static IP address configuration is ignored
� Enabling DHCP disables zeroconf and vice versa � Setting a static IP address and netmask does not disable DHCP. DHCP is disabled
using the "no" form of this command, or by enabling zeroconf.
Mellanox Technologies
.
136
System Management
dhcp hostname
dhcp hostname no dhcp hostname
Syntax Description Default Configuration Mode History Role Example
Related Commands
Notes
Enables fetching the hostname from DHCP for this interface. The no form of the command disables fetching the hostname from DHCP for this interface.
N/A
Enabled
config interface management
3.5.1000
admin
switch (config interface mgmt0) # dhcp hostname switch (config interface mgmt0) #
hostname <hostname> show interfaces <ifname> configured
� If a hostname is configured manually by the user, that configuration would override the "dhcp hostname" configuration
� After upgrading to version 3.5.1000 when a default hostname is not configured, the DHCP server assigns the new hostname for your machine
� These commands do not work on in-band interfaces
Mellanox Technologies
.
137
System Management
shutdown
shutdown no shutdown
Disables the specified interface. The no form of the command enables the specified interface.
Syntax Description N/A
Default
no shutdown
Configuration Mode config interface management
History
3.1.0000
Role
admin
Example
switch (config interface mgmt0) # no shutdown
Related Commands show interfaces <ifname> configured
Notes
Mellanox Technologies
.
138
System Management
zeroconf
zeroconf no zeroconf
Enables zeroconf on the specified interface. It randomly chooses a unique link-local IPv4 address from the 169.254.0.0/16 block. This command is an alternative to DHCP. The no form of the command disables the use of zeroconf on the specified interface.
Syntax Description N/A
Default
no zeroconf
Configuration Mode config interface management
History
3.1.0000
Role
admin
Example
switch (config interface mgmt0) # zeroconf
Related Commands show interfaces <ifname> configured
Notes
Enabling zeroconf disables DHCP and vice versa.
Mellanox Technologies
.
139
System Management
comment
comment <comment> no comment
Adds a comment for an interface. The no form of the command removes a comment for an interface.
Syntax Description comment
A free-form string that has no semantics other than being displayed when the interface records are listed.
Default
no comment
Configuration Mode config interface management
History
3.1.0000
Role
admin
Example
switch (config interface mgmt0) # comment my-interface
Related Commands N/A
Notes
Mellanox Technologies
.
140
System Management
ipv6 enable
ipv6 enable no ipv6 enable
Enables all IPv6 addressing for this interface. The no form of the command disables all IPv6 addressing for this interface.
Syntax Description N/A
Default
IPv6 addressing is disabled
Configuration Mode config interface management
History
3.1.0000
Role
admin
Example
switch (config interface mgmt0) # ipv6 enable
Related Commands ipv6 address show interface <ifname>
Notes
� The interface identifier is a 64-bit long modified EUI-64, which is based on the MAC address of the interface
� If IPv6 is enabled on an interface, the system will automatically add a link-local address to the interface. Link-local addresses can only be used to communicate with other hosts on the same link, and packets with link-local addresses are never forwarded by a router.
� A link-local address, which may not be removed, is required for proper IPv6 operation. The link-local addresses start with "fe80::", and are combined with the interface identifier to form the complete address.
Mellanox Technologies
.
141
System Management
ipv6 address
ipv6 address {<IPv6 address/netmask> | autoconfig [default | privacy]} no ipv6 {<IPv6 address/netmask> | autoconfig [default | privacy]}
Configures IPv6 address and netmask to this interface, static or autoconfig options are possible. The no form of the command removes the given IPv6 address and netmask or disables the autoconfig options.
Syntax Description IPv6 address/netmask
Configures a static IPv6 address and netmask. Format example: 2001:db8:1234::5678/64.
autoconfig
Enables IPv6 stateless address auto configuration (SLAAC) for this interface. An address will be automatically added to the interface based on an IPv6 prefix learned from router advertisements, combined with an interface identifier.
autoconfig default
Enables default learning routes. The default route will be discovered automatically, if the autoconfig is enabled.
autoconfig privacy
Uses privacy extensions for SLAAC to construct the autoconfig address, if the autoconfig is enabled.
Default
No IP address available, auto config is enabled
Configuration Mode config interface management
History
3.1.0000
Role
admin
Example
switch (config interface mgmt0) # ipv6 fe80::202:c9ff:fe5e:a5d8/64
Related Commands ipv6 enable show interface <ifname>
Notes
� On a given interface, up to 16 addresses can be configured � For Ethernet, the default interface identifier is a 64-bit long modified EUI-64,
which is based on the MAC address of the interface
Mellanox Technologies
.
142
System Management
ipv6 dhcp primary-intf
ipv6 dhcp primary-intf <if-name> no ipv6 dhcp primary-intf
Sets the interface from which non-interface-specific (resolver) configuration is accepted via DHCPv6. The no form of the command resets non-interface-specific (resolver) configuration.
Syntax Description if-name
Interface name: � lo � mgmt0 � mgmt1
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ipv6 dhcp primary-intf mgmt0 switch (config) #
Related Commands
ipv6 enable ipv6 address show interface <ifname>
Notes
Mellanox Technologies
.
143
System Management
ipv6 dhcp stateless
ipv6 dhcp stateless no ipv6 dhcp stateless
Syntax Description Default Configuration Mode History Role Example Related Commands
Notes
Enables stateless DHCPv6 requests. The no form of the command disables stateless DHCPv6 requests.
N/A
N/A
config
3.1.0000
admin
switch (config) # ipv6 dhcp stateless switch (config) #
ipv6 enable ipv6 address show interface <ifname>
� This command only gets DNS configuration, not an IPv6 address � The no form of the command requests all information, including an IPv6 address
Mellanox Technologies
.
144
System Management
show interfaces mgmt0
show interface mgmt0
Displays information on the management interface configuration and status.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.6.8008
Updated Example
Role
admin
Mellanox Technologies
.
145
Example
Related Commands Notes
switch (config) # show interfaces mgmt0
Interface mgmt0 status:
Comment
:
Admin up
: yes
Link up
: yes
DHCP running : yes
IP address
: 10.12.67.33
Netmask
: 255.255.255.128
IPv6 enabled : yes
Autoconf enabled: no
Autoconf route : yes
Autoconf privacy: no
DHCPv6 running : yes (but no valid lease)
IPv6 addresses : 1
IPv6 address: fe80::268a:7ff:fe53:3d8e/64
Speed
: 1000Mb/s (auto)
Duplex
: full (auto)
Interface type : ethernet
Interface source: bridge
MTU
: 1500
HW address
: 24:8A:07:53:3D:8E
Rx: 2055054 28830 0 0 0 0 0
bytes packets mcast packets discards errors overruns frame
Tx: 377716 3200 0 0 0 0 0 0
bytes packets discards errors overruns carrier collisions queue len
N/A
System Management
Mellanox Technologies
.
146
System Management
show interfaces mgmt0 brief
show interface mgmt0 brief
Displays brief information on the management interface configuration and status.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.6.8008
Updated Example
Role
admin
Example
switch (config) # show interfaces mgmt0 brief
Interface mgmt0 status:
Comment
:
Admin up
: yes
Link up
: yes
DHCP running : yes
IP address
: 10.12.67.33
Netmask
: 255.255.255.128
IPv6 enabled : yes
Autoconf enabled: no
Autoconf route : yes
Autoconf privacy: no
DHCPv6 running : yes (but no valid lease)
IPv6 addresses : 1
IPv6 address: fe80::268a:7ff:fe53:3d8e/64
Related Commands Notes
Speed
: 1000Mb/s (auto)
Duplex
: full (auto)
Interface type : ethernet
Interface source: bridge
MTU
: 1500
HW address
: 24:8A:07:53:3D:8E
N/A
Mellanox Technologies
.
147
System Management
show interfaces mgmt0 configured
show interface mgmt0 configured
Displays configuration information about the specified interface.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.5.1000
Updated Example with "DHCP Hostname"
3.6.8008
Updated Example
Role
admin
Example
switch (config) # show interfaces mgmt0 configured
Related Commands Notes
Interface mgmt0 configuration:
Comment
:
Enabled
: yes
DHCP
: yes
DHCP Hostname : yes
Zeroconf
: no
IP address
:
Netmask
:
IPv6 enabled : yes
Autoconf enabled: no
Autoconf route : yes
Autoconf privacy: no
DHCPv6 enabled : yes
IPv6 addresses : 0
Speed
: auto
Duplex
: auto
MTU
: 1500
N/A
Mellanox Technologies
.
148
System Management
4.1.6.2 Hostname Resolution
hostname
hostname <hostname> no hostname
Sets a static system hostname. The no form of the command clears the system hostname.
Syntax Description hostname
A free-form string.
Default
Default hostname
Configuration Mode config
History
3.1.0000
3.6.3004
Added support for the character "."
Role
admin
Example
switch (config) # hostname my-switch-hostname
Related Commands show hosts
Notes
� Hostname may contain letters, numbers, periods (`.'), and hyphens (`-'), in any combination
� Hostname may be 1-63 characters long � Hostname may not begin with a hyphen � Hostname may not contain other characters, such as "%", "_" etc. � Hostname may not be set to one of the valid logging commands (i.e. debug-files,
fields, files, format, level, local, monitor, receive, trap) � Changing the hostname stamps a new HTTPS certificate
Mellanox Technologies
.
149
System Management
ip name-server
ip name-server <IPv4/IPv6 address> no name-server <IPv4/IPv6 address>
Sets the static name server. The no form of the command clears the name server.
Syntax Description IPv4/v6 address
IPv4 or IPv6 address.
Default
No server name
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ip name-server 9.9.9.9
Related Commands show hosts
Notes
Mellanox Technologies
.
150
System Management
ip domain-list
ip domain-list <domain-name> no ip domain-list <domain-name>
Sets the static domain name. The no form of the command clears the domain name.
Syntax Description domain-name
The domain name in a string form. A domain name is an identification string that defines a realm of administrative autonomy, authority, or control in the Internet. Domain names are formed by the rules and procedures of the Domain Name System (DNS).
Default
No static domain name
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ip domain-list mydomain.com
Related Commands show hosts
Notes
Mellanox Technologies
.
151
System Management
ip/ipv6 host
{ip | ipv6} host <hostname> <IP Address> no {ip | ipv6} host <hostname> <IP Address>
Syntax Description
Default Configuration Mode History Role Example
Related Commands Notes
Configures the static hostname IPv4 or IPv6 address mappings. The no form of the command clears the static mapping.
hostname
The hostname in a string form.
IP Address
The IPv4 or IPv6 address.
No static domain name.
config
3.1.0000
admin
switch (config) # ip host my-host 2.2.2.2 switch (config) # ipv6 host my-ipv6-host 2001::8f9
show hosts
Mellanox Technologies
.
152
System Management
ip/ipv6 map-hostname
{ip |ipv6} map-hostname no {ip | ipv6} map-hostname
Maps between the currently-configured hostname and the loopback address 127.0.0.1. The no form of the command clears the mapping.
Syntax Description N/A
Default
IPv4 mapping is enabled by default IPv6 mapping is disabled by default
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ip map-hostname
Related Commands show hosts
Notes
� If no mapping is configured, a mapping between the hostname and the IPv4 loopback address 127.0.0.1 will be added
� The no form of the command maps the hostname to the IPv6 loopback address if there is no statically configured mapping from the hostname to an IPv6 address (disabled by default)
� Static host mappings are preferred over DNS results. As a result, with this option set, you will not be able to look up your hostname on your configured DNS server; but without it set, some problems may arise if your hostname cannot be looked up in DNS.
Mellanox Technologies
.
153
System Management
show hosts
show hosts
Displays hostname, DNS configuration, and static host mappings.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show hosts Hostname: my-host-name Name server: 9.9.9.9 (configured) Name server: 11.11.11.11 (dynamic) Name server: 12.12.12.12 (dynamic) Name server: 13.13.13.13 (dynamic) Domain name: mydomain.com (configured) Domain name: example1.com (dynamic) Domain name: example2.com (dynamic) Domain name: example3.com (dynamic) Domain name: example4.com (dynamic) IP 1.1.1.1 maps to hostname p IP 3.3.3.3 maps to hostname localhost IP 2.2.2.2 maps to hostname my-host IPv6 ::1 maps to hostname localhost6 Automatically map hostname to loopback address: yes Automatically map hostname to IPv6 loopback address: no
N/A
Notes
Mellanox Technologies
.
154
System Management
4.1.6.3 Routing
{ip | ipv6} route
{ip | ipv6} route [vrf <vrf-name>] {<network-prefix> <netmask> | <network- prefix>/<masklen>} <next-hop> no {ip | ipv6} route [vrf <vrf-name>] {<network-prefix> <netmask> | <networkprefix>/<masklen>} <next-hop>
Sets a static route for a given IP. The no form of the command deletes the static route.
Syntax Description network-prefix
IPv4 or IPv6 network prefix.
netmask
IPv4 netmask formats are: � /24 � 255.255.255.0 IPv6 netmask format is: � /48 (as a part of the network prefix)
nexthop-address
The IPv4 or IPv6 address of the next hop router for this route.
ifname
The interface name (e.g., mgmt0, mgmt1).
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ip route 20.20.20.0 255.255.255.0 mgmt0
Related Commands show ip route
Notes
Mellanox Technologies
.
155
System Management
ipv6 default-gateway
ipv6 default-gateway {<ip-address> | <ifname>} no ipv6 default-gateway
Sets a static default gateway. The no form of the command deletes the default gateway.
Syntax Description ip address
The default gateway IP address (IPv6).
ifname
The interface name (e.g., mgmt0, mgmt1).
Default
N/A
Configuration Mode config
History
3.1.0000
3.2.0500
removed IPv4 configuration option
Role
admin
Example
switch (config) # ipv6 default-gateway ::1
Related Commands show ip/ipv6 route show ipv6 default-gateway
Notes
� The configured default gateway will not be used if DHCP is enabled. � In order to configure ipv4 default-gateway use `ip route' command.
Mellanox Technologies
.
156
System Management
show ip/ipv6 route
show {ip | ipv6} route [static]
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Displays the routing table in the system.
static
Filters the table with the static route entries.
N/A
Any command mode
3.1.0000
admin
switch (config) # show ip route
Destination
Mask
Gateway
Interface Source
default
0.0.0.0
172.30.0.1
mgmt0
DHCP
10.10.10.10
255.255.255.255 0.0.0.0
mgmt0
static
20.10.10.10
255.255.255.255 172.30.0.1
mgmt0
static
20.20.20.0
255.255.255.0
0.0.0.0
mgmt0
static
172.30.0.0
255.255.0.0
0.0.0.0
mgmt0
interface
switch (config) # show ipv6 route
Destination prefix
Gateway
Interface Source
-----------------------------------------------------------------------
::/0
::
mgmt0
static
::1/128
::
lo
local
2222:2222:2222::/64
::
mgmt1
interface
ip route
Mellanox Technologies
.
157
System Management
show ipv6 default-gateway
show ipv6 default-gateway [static]
Displays the default gateway.
Syntax Description static
Displays the static configuration of the default gateway
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # ipv6 default-gateway 10.10.10.10 switch (config) # show ipv6 default-gateway Active default gateways:
172.30.0.1 (interface: mgmt0) switch (config) # show ipv6 default-gateway static Configured default gateway: 10.10.10.10
Related Commands ipv6 default-gateway
Notes
The configured IPv4 default gateway will not be used if DHCP is enabled.
Mellanox Technologies
.
158
System Management
4.1.6.4 Network to Media Resolution (ARP & NDP)
IPv4 network use Address Resolution Protocol (ARP) to resolve IP address to MAC address, while IPv6 network uses Network Discovery Protocol (NDP) that performs basically the same as ARP.
ip arp
ip arp <ip-address> <mac-address> no ip arp <ip-address> <mac-address>
Sets a static ARP entry. The no form of the command deletes the static ARP.
Syntax Description IP address
IPv4 address.
MAC address
MAC address.
Default
N/A
Configuration Mode config interface management
History
3.2.0500
Role
admin
Example
switch (config interface mgmt0) #ip arp 20.20.20.20 aa:aa:aa:aa:aa:aa
Related Commands show ip arp ip route
Notes
Mellanox Technologies
.
159
System Management
ip arp timeout
ip arp [vrf <vrf-name>] timeout <timeout-value> no ip arp [vrf <vrf-name>] timeout
Sets the dynamic ARP cache timeout. The no form of the command sets the timeout to default.
Syntax Description timeout-value
Time (in seconds) that an entry remains in the ARP cache. Range: 60-28800.
vrf-name
VRF session name
Default
1500 seconds
Configuration Mode config
History
3.2.0230
3.5.1000
Added VRF parameter and updated Notes
Role
admin
Example
switch (config) # ip arp timeout 2000 switch (config) #
Related Commands ip arp show ip arp
Notes
� This value is used as the default ARP timeout whenever a new IP interface is created
� The time interval after which each ARP entry becomes stale may actually vary from 50-150% of the configured value
Mellanox Technologies
.
160
System Management
show ip arp
show ip arp [interface <type> | <ip-address> | count]
Displays ARP table.
Syntax Description interface type
Filters the table according to a specific interface (i.e. mgmt0)
ip-address
Filters the table to the specific ip-address
count
Shows ARP statistics
Default
N/A
Configuration Mode Any command mode
History
3.3.3000
Role
admin
Example
switch-626a54 [standalone: master] (config) # show ip arp
Total number of entries: 3
Related Commands Notes
Address
Type
Hardware Address
Interface
---------------------------------------------------------------------
---
10.209.0.1
Dynamic ETH
00:00:5E:00:01:01
mgmt0
10.209.1.120
Dynamic ETH
00:02:C9:62:E8:C2
mgmt0
10.209.1.121
Dynamic ETH
00:02:C9:62:E7:42
mgmt0
switch (config) # show ip arp count
ARP Table size: 3 (inband: 0, out of band: 3)
switch (config) #
Mellanox Technologies
.
161
System Management
ipv6 neighbor
ipv6 neighbor <ipv6-address> <ifname> <mac-address> no ipv6 neighbor <ipv6-address> <ifname> <mac-address>
Adds a static neighbor entry. The no form of the command deletes the static entry.
Syntax Description IPv6 address
The IPv6 address
ifname
The management interface (i.e. mgmt0, mgmt1)
MAC address
The MAC address
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ipv6 neighbor 2001:db8:701f::8f9 mgmt0 00:11:22:33:44:55 switch (config) #
Related Commands
show ipv6 neighbor ipv6 route arp clear ipv6 neighbors
Notes
� ARP is used only with IPv4. In IPv6 networks, Neighbor Discovery Protocol (NDP) is used similarly.
� Use The no form of the command to remove static entries. Dynamic entries can be cleared via the "clear ipv6 neighbors" command.
Mellanox Technologies
.
162
System Management
clear ipv6 neighbors
clear ipv6 neighbors
Clears the dynamic neighbors cache.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
3.6.4110
Updated command.
Role
admin
Example
switch (config) # clear ipv6 neighbors switch (config) #
Related Commands
ipv6 neighbor show ipv6 neighbor arp
Notes
� Clearing Neighbor Discovery Protocol (NDP) cache removes only the dynamic entries learned and not the static entries configured
� Use the no form of the command to remove static entries
Mellanox Technologies
.
163
System Management
show ipv6 neighbors
show ipv6 neighbors [static]
Syntax Description Default Configuration Mode History Role Example
Related Commands
Notes
Displays the Neighbor Discovery Protocol (NDP) table.
static
Filters only the table of the static entries.
N/A
config
3.1.0000
admin
switch (config) # show ipv6 neighbors
IPv6 Address
Age MAC Address
State
Interf
------------------------------------- ----- ----------------- ---------- ---
2001::2
9428 AA:AA:AA:AA:AA:AA permanent mgmt0
switch (config) #
ipv6 neighbor clear ipv6 neighbor show ipv6
Mellanox Technologies
.
164
System Management
4.1.6.5 DHCP
ip dhcp
ip dhcp {default-gateway yield-to-static| hostname <hostname>| primary-intf <ifname> | send-hostname } no ip dhcp {default-gateway yield-to-static| hostname | | primary-intf | send-hostname}
Sets global DHCP configuration. The no form of the command deletes the DHCP configuration.
Syntax Description yield-to-static|
Does not allow you to install a default gateway from DHCP if there is already a statically configured one.
hostname
Specifies the hostname to be sent during DHCP client negotiation if send-hostname is enabled.
primary-intf <ifname>
Sets the interface from which a non-interface-specific configuration (resolver and routes) will be accepted via DHCP.
send-hostname
Enables the DHCP client to send a hostname during negotiation.
Default
no ip dhcp yield-to-static no ip dhcp hostname ip ip dhcp primary-intf mgmt0 no ip dhcp send-hostname
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ip dhcp default-gateway yield-to-static
Related Commands show ip dhcp dhcp [renew]
Notes
DHCP is supported for IPv4 networks only.
Mellanox Technologies
.
165
System Management
show ip dhcp
show ip dhcp
Displays the DHCP configuration and status.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.6.5000
Updated Example
Role
admin
Example
switch (config) # show ip dhcp
----------------------------------------
Interface DHCP
DHCP
Valid
Enabled Running lease
----------------------------------------
dummy0
no
no
no
lo
no
no
no
mgmt0
yes
yes
yes
mgmt1
no
no
no
mgmts0
no
no
no
mgmts1
no
no
no
vif1
no
no
no
IPv4 dhcp default gateway yields to static configuration: no
DHCP primary interface:
Configured: mgmt0
Active:
mgmt0
Related Commands Notes
DHCP client options: Send Hostname: no Client Hostname: 1.1.1.1
ip dhcp dhcp [renew]
Mellanox Technologies
.
166
System Management
4.1.6.6 IP Diagnostic Tools
ping
ping [-LRUbdfnqrvVaA] [-c count] [-i interval] [-w deadline] [-p pattern] [-s packetsize] [-t ttl] [-I interface or address] [-M mtu discovery hint] [-S sndbuf] [T timestamp option ] [-Q tos ] [hop1 ...] destination
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Sends ICMP echo requests to a specified host.
Linux Ping options
https://www.lifewire.com/uses-of-command-ping2201076
N/A
config
3.1.0000
admin
switch (config) # ping 172.30.2.2 PING 172.30.2.2 (172.30.2.2) 56(84) bytes of data. 64 bytes from 172.30.2.2: icmp_seq=1 ttl=64 time=0.703 ms 64 bytes from 172.30.2.2: icmp_seq=2 ttl=64 time=0.187 ms 64 bytes from 172.30.2.2: icmp_seq=3 ttl=64 time=0.166 ms 64 bytes from 172.30.2.2: icmp_seq=4 ttl=64 time=0.161 ms 64 bytes from 172.30.2.2: icmp_seq=5 ttl=64 time=0.153 ms 64 bytes from 172.30.2.2: icmp_seq=6 ttl=64 time=0.144 ms ^C --- 172.30.2.2 ping statistics --6 packets transmitted, 6 received, 0% packet loss, time 5004ms rtt min/avg/max/mdev = 0.144/0.252/0.703/0.202 ms switch (config) #
traceroutes
Mellanox Technologies
.
167
System Management
traceroute
Syntax Description
traceroute [-46dFITUnrAV] [-f first_ttl] [-g gate,...] [-i device] [-m max_ttl] [-N squeries] [-p port] [-t tos] [-l flow_label] [-w waittime] [-q nqueries] [-s src_addr] [-z sendwait] host [packetlen]
Traces the route packets take to a destination.
-4
Uses IPv4
-6
Uses IPv6
-d
Enables socket level debugging
-F
Sets DF (do not fragment bit) on
-I
Uses ICMP ECHO for tracerouting
-T
Uses TCP SYN for tracerouting
-U
Uses UDP datagram (default) for tracerouting
-n
Does not resolve IP addresses to their domain names
-r
Bypasses the normal routing and send directly to a host
on an attached network
-A
Performs AS path lookups in routing registries and
print results directly after the corresponding addresses
-V
Prints version info and exit
-f
Starts from the first_ttl hop (instead from 1)
-g
Routes packets through the specified gateway (maxi-
mum 8 for IPv4 and 127 for IPv6)
-i
Specifies a network interface with which to operate
-m
Sets the max number of hops (max TTL to be reached).
Default is 30
-N
Sets the number of probes to be tried simultaneously
(default is 16)
-p
Uses destination port. It is an initial value for the UDP
destination port (incremented by each probe, default is
33434), for the ICMP seq number (incremented as well,
default from 1), and the constant destination port for
TCP tries (default is 80).
-t
Sets the TOS (IPv4 type of service) or TC (IPv6 traffic
class) value for outgoing packets
-l
Uses specified flow_label for IPv6 packets
Mellanox Technologies
.
168
System Management
-w
Sets the number of seconds to wait for response to a
probe (default is 5.0). Non-integer (float point) values
allowed too.
-q
Sets the number of probes per each hop. Default is 3.
-s
Uses source src_addr for outgoing packets.
-z
Sets minimal time interval between probes (default is
0). If the value is more than 10, then it specifies a num-
ber in milliseconds, else it is a number of seconds (float
point values allowed too).
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # traceroute 192.168.10.70 traceroute to 192.168.10.70 (192.168.10.70), 30 hops max, 40 byte packets 1 172.30.0.1 (172.30.0.1) 3.632 ms 2.849 ms 3.544 ms 2 10.222.128.46 (10.222.128.46) 3.176 ms 3.289 ms 3.656 ms 3 10.158.128.30 (10.158.128.30) 15.331 ms 15.819 ms 16.388 ms 4 10.158.128.65 (10.158.128.65) 20.468 ms 7.893 ms 12.27 ms 5 10.7.34.115 (10.7.34.115) 16.405 ms 11.985 ms 12.264 ms 6 192.168.10.70 (192.168.10.70) 16.377 ms 16.091 ms 20.475 ms switch (config) #
Related Commands
Notes
Mellanox Technologies
.
169
System Management
tcpdump
tcpdump [-aAdDeflLnNOpqRStuUvxX] [-c count] [ -C file_size ] [ -E algo:secret ] [ -F file ] [ -i interface ] [ -M secret ] [ -r file ] [ -s snaplen ] [ -T type ] [ -w file ] [ -W filecount ] [ -y datalinktype ] [ -Z user ] [ -D list possible interfaces ] [ expression ]
Invokes standard binary, passing command line parameters straight through. Runs in foreground, printing packets as they arrive, until the user hits Ctrl+C.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # tcpdump ...... 09:37:38.678812 IP 192.168.10.7.ssh > 192.168.10.1.54155: P 1494624:1494800(176) ack 625 win 90 <nop,nop,timestamp 5842763 858672398> 09:37:38.678860 IP 192.168.10.7.ssh > 192.168.10.1.54155: P 1494800:1495104(304) ack 625 win 90 <nop,nop,timestamp 5842763 858672398> ... 9141 packets captured 9142 packets received by filter 0 packets dropped by kernel switch (config) #
N/A
Notes
Mellanox Technologies
.
170
System Management
4.2 NTP, Clock & Time Zones
Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched, variable-latency data networks. NTP is intended to synchronize all participating computers to within a few milliseconds of Coordinated Universal Time (UTC) and is designed to mitigate the effects of variable network latency. NTP can usually maintain time to within tens of milliseconds over the public Internet, and can achieve better than one millisecond accuracy in local area networks under ideal conditions.
For an example, please refer to "HowTo enable NTP on Mellanox switches" in the Mellanox Community (https://community.mellanox.com).
4.2.1
NTP Authenticate
When authentication of incoming NTP packets is enabled, the switch ensures that they come from an authenticated time source before using them for time synchronization on the switch. Authentication keys are created and added to the trusted list. To add a key to be used for authentication Step 1. Create the key. Run:
switch (config)# ntp authentication-key 1 md5 password
Step 2. Add the key to the trusted list. Run:
switch (config)# ntp trusted-key 1
Step 3. Assign the key to the server/peer. Run:
switch (config)# ntp server 10.34.1.1 keyID 1
4.2.2
NTP Authentication Key
An authentication key may be created and used to authenticate incoming NTP packets. For the key to be used: 1. It should be shared with the NTP server/peer sending the NTP packet. 2. It should be added to the trusted list. 3. NTP authenticate should be enabled on the switch.
Mellanox Technologies
.
171
4.2.3 Commands
clock set
clock set <hh:mm:ss> [<yyyy/mm/dd>]
Sets the time and date.
Syntax Description hh:mm:ss
Time.
yyyy/mm/dd
Date.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # clock set 23:23:23 2010/08/19
Related Commands show clock
Notes
If not specified, the date will be left the same.
System Management
Mellanox Technologies
.
172
System Management
clock timezone
clock timezone [<zone word> [<zone word> [<zone word>] [<zone word>]]]
Syntax Description
Default Configuration Mode History Role Example Related Commands Notes
Sets the system time zone. The time zone may be specified in one of three ways: � A nearby city whose time zone rules to follow. The system has a large list of cities
which can be displayed by the help and completion system. They are organized hierarchically because there are too many of them to display in a flat list. A given city may be required to be specified in two, three, or four words, depending on the city. � An offset from UTC. This will be in the form UTC-offset UTC, UTC-offset UTC+<0-14>, UTC-offset UTC-<1-12>. � UTC (Universal Time, which is almost identical to GMT), and this is the default time zone The no form of the command resets time zone to its default (GMT).
zone word
The possible forms this could take include: continent, city, continent, country, city, continent, region, country, city, ocean, and/or island.
GMT
config
3.1.0000
admin
switch (config) # clock timezone America North United_States Other New_York
show clock
Mellanox Technologies
.
173
System Management
ntp
ntp {disable | enable | {peer | server} <IP address> [version <number> | disable]} no ntp {disable | enable | {peer | server} <IP address> [version <number> | disable]}
Configures NTP. The no form of the command negates NTP options.
Syntax Description disable
Disables NTP
enable
Enables NTP
peer or server
Configures an NTP peer or server node
IP address
IPv4 or IPv6 address
version <number>
Specifies the NTP version number of this peer Possible values: 3 or 4
Default
NTP is enabled NTP version number is 4
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # no ntp peer 192.168.10.24 disable switch (config) #
N/A
Notes
Mellanox Technologies
.
174
System Management
ntpdate
ntpdate <IP address>
Sets the system clock using the specified SNTP server.
Syntax Description IP address
IP.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ntpdate 192.168.10.10 26 Feb 17:25:40 ntpdate[15206]: adjust time server 192.168.10.10 offset -0.000092 sec switch (config) #
Related Commands N/A
Notes
This is a one-time operation and does not cause the clock to be kept in sync on an ongoing basis. It will generate an error if SNTP is enabled since the socket it requires will already be in use.
Mellanox Technologies
.
175
System Management
ntp authenticate
ntp authenticate no ntp authenticate
Enables NTP authentication. The no form of the command disables NTP authentication.
Syntax Description N/A
N/A
Default
Disabled
Configuration Mode config
History
3.5.0200
Role
admin
Example
switch (config) # ntp authenticate
Related Commands N/A
Notes
Mellanox Technologies
.
176
System Management
ntp authentication-key
ntp authentication-key <key_id> <encrypt_type> [<password>] no ntp authentication-key <key_id>
Adds a new authentication key and stores it. The no form of the command removes key ID configuration if it exists.
Syntax Description key_id
Specifies a key ID, whether existing or a new one to be added. Range: 1-65534.
encrypt_type
Specifies encryption type to use (md5, or sha1)
password
Password string
Default
Disabled
Configuration Mode config
History
3.5.0200
Role
admin
Example
switch (config) # ntp authentication-key 123 md5 examplepass switch (config) # ntp authentication-key 1234 sha1 Password: ** Confirm: ** switch (config) #
Related Commands N/A
Notes
If a password is not entered, a prompt appears requiring that a password is introduced.
Mellanox Technologies
.
177
System Management
ntp peer disable
ntp peer <ip_address> disable no ntp peer <ip_address> disable
Temporarily disables this NTP peer. The no form of the command enables this NTP peer.
Syntax Description ip_address
IP address of the peer. IPv4, IPv6 and hostname (FQDN) are acceptable.
Default
Disabled
Configuration Mode config
History
3.5.0200
3.6.4000
Added hostname as option for ip_address, and added Notes.
Role
admin
Example
switch (config) # ntp peer 10.10.10.10 disable switch (config) #
Related Commands N/A
Notes
� IP addresses must be in IPv4 format (e.g., '192.168.0.1') or IPv6 format with scope zone id for IPv6 link-local addresses (e.g., '2001:db8:701f::8f9' or 'fe80::21c:23f:ec1:4fb%7'.)
� The length of a hostname is limited to 255 characters. Each label (node delimited by a dot in the hostname) is limited to 63 characters and may contain letters, numbers and hyphens ('-'), but may not begin with a hyphen.
Mellanox Technologies
.
178
System Management
ntp peer keyID
ntp peer <ip_address> keyID <key_id> no ntp peer <ip_address> keyID <key_id>
Specifies the KeyID of the NTP peer. The no form of the command removes key ID configuration from the NTP peer.
Syntax Description ip_address
IP address of the peer. IPv4, IPv6 and hostname (FQDN) are acceptable.
key_id
Range: 1-65534
Default
Disabled
Configuration Mode config
History
3.5.0200
3.6.4000
Added hostname as ip_address option and added Notes.
Role
admin
Example
switch (config) # ntp peer 10.10.10.10 keyID 120
Related Commands N/A
Notes
� IP addresses must be in IPv4 format (e.g., '192.168.0.1') or IPv6 format with scope zone id for IPv6 link-local addresses (e.g., '2001:db8:701f::8f9' or 'fe80::21c:23f:ec1:4fb%7'.)
� The length of a hostname is limited to 255 characters. Each label (node delimited by a dot in the hostname) is limited to 63 characters and may contain letters, numbers and hyphens ('-'), but may not begin with a hyphen.
Mellanox Technologies
.
179
System Management
ntp peer version
ntp peer <ip_address> version <ver_num> no ntp peer <ip_address> version <ver_num>
Specifies the NTP version number of this peer. The no form of the command defaults NTP to version 4.
Syntax Description ip_address
IP address of the peer. IPv4, IPv6 and hostname (FQDN) are acceptable.
ver_num
NTP version (3 or 4)
Default
4
Configuration Mode config
History
3.5.0200
3.6.4000
Added hostname as ip_address option and added Notes.
Role
admin
Example
switch (config) # ntp peer 10.10.10.10 version 4
Related Commands N/A
Notes
� IP addresses must be in IPv4 format (e.g., '192.168.0.1') or IPv6 format with scope zone id for IPv6 link-local addresses (e.g., '2001:db8:701f::8f9' or 'fe80::21c:23f:ec1:4fb%7'.)
� The length of a hostname is limited to 255 characters. Each label (node delimited by a dot in the hostname) is limited to 63 characters and may contain letters, numbers and hyphens ('-'), but may not begin with a hyphen.
Mellanox Technologies
.
180
System Management
ntp server disable
ntp server <ip_address> disable no ntp server <ip_address> disable
Temporarily disables this NTP server. The no form of the command enables this NTP server.
Syntax Description ip_address
IP address of the peer. IPv4, IPv6 and hostname (FQDN) are acceptable.
Default
Disabled
Configuration Mode config
History
3.5.0000
3.6.4000
Added hostname as ip_address option and added Notes.
Role
admin
Example
switch (config) # ntp server 10.10.10.10 disable switch (config) #
Related Commands N/A
Notes
� IP addresses must be in IPv4 format (e.g., '192.168.0.1') or IPv6 format with scope zone id for IPv6 link-local addresses (e.g., '2001:db8:701f::8f9' or 'fe80::21c:23f:ec1:4fb%7'.)
� The length of a hostname is limited to 255 characters. Each label (node delimited by a dot in the hostname) is limited to 63 characters and may contain letters, numbers and hyphens ('-'), but may not begin with a hyphen.
Mellanox Technologies
.
181
System Management
ntp server keyID
ntp server <ip_address> keyID <key_id> no ntp server <ip_address> keyID <key_id>
Specifies the KeyID of the NTP server. The no form of the command removes key ID configuration from the NTP server.
Syntax Description ip_address
IP address of the peer. IPv4, IPv6 and hostname (FQDN) are acceptable.
key_id
Range: 1-65534
Default
Disabled
Configuration Mode config
History
3.5.0200
3.6.4000
Added hostname as ip_address option and added Notes.
Role
admin
Example
switch (config) # ntp server 10.10.10.10 keyID 120
Related Commands N/A
Notes
� IP addresses must be in IPv4 format (e.g., '192.168.0.1') or IPv6 format with scope zone id for IPv6 link-local addresses (e.g., '2001:db8:701f::8f9' or 'fe80::21c:23f:ec1:4fb%7'.)
� The length of a hostname is limited to 255 characters. Each label (node delimited by a dot in the hostname) is limited to 63 characters and may contain letters, numbers and hyphens ('-'), but may not begin with a hyphen.
Mellanox Technologies
.
182
System Management
ntp server trusted-enable
ntp server <ip_address> trusted-enable no ntp server <ip_address> trusted-enable
Trusts this NTP server; if authentication is configured this will additionally force all time updates to only use trusted servers. The no form of the command removes trust from this NTP server
Syntax Description ip_address
IP address of the peer. IPv4, IPv6 and hostname (FQDN) are acceptable.
Default
N/A
Configuration Mode config
History
3.6.2002
3.6.4000
Added hostname as ip_address option and added Notes.
Role
admin
Example
switch (config) # ntp server 10.10.10.10 trusted-enable
Related Commands N/A
Notes
� IP addresses must be in IPv4 format (e.g., '192.168.0.1') or IPv6 format with scope zone id for IPv6 link-local addresses (e.g., '2001:db8:701f::8f9' or 'fe80::21c:23f:ec1:4fb%7'.)
� The length of a hostname is limited to 255 characters. Each label (node delimited by a dot in the hostname) is limited to 63 characters and may contain letters, numbers and hyphens ('-'), but may not begin with a hyphen.
� NTP trusted servers can be used as a mitigation for Sybil attacks which is a vulnerability caused by NTP peers sharing the same NTP key base. This mitigation adds the concept of trusted servers which if enabled in conjunction with NTP authentication ensures that time information will only be obtained from trusted servers.
Mellanox Technologies
.
183
System Management
ntp server version
ntp server <ip_address> version <ver_num> no ntp server <ip_address> version <ver_num>
Specifies the NTP version number of this server. The no form of the command defaults NTP to version 4.
Syntax Description ip_address
IP address of the peer. IPv4, IPv6 and hostname (FQDN) are acceptable.
ver_num
NTP version (3 or 4)
Default
4
Configuration Mode config
History
3.5.0200
3.6.4000
Added hostname as ip_address option and added Notes.
Role
admin
Example
switch (config) # ntp server 10.10.10.10 version 4
Related Commands N/A
Notes
� IP addresses must be in IPv4 format (e.g., '192.168.0.1') or IPv6 format with scope zone id for IPv6 link-local addresses (e.g., '2001:db8:701f::8f9' or 'fe80::21c:23f:ec1:4fb%7'.)
� The length of a hostname is limited to 255 characters. Each label (node delimited by a dot in the hostname) is limited to 63 characters and may contain letters, numbers and hyphens ('-'), but may not begin with a hyphen.
Mellanox Technologies
.
184
System Management
ntp trusted-key
ntp trusted-key <key(s)> no ntp trusted-key <key(s)>
Adds one or more keys to the trusted key list. The no form of the command removes keys from the trusted key list.
Syntax Description key(s)
Range: 1-65534.
Default
Disabled
Configuration Mode config
History
3.5.0200
Role
admin
Example Related Commands
switch (config) # ntp trusted-key 1,3,5 switch (config) # ntp trusted-key 1-5
ntp authentication-key
Notes
Keys may be separated with commas without any space, or they may be set as a range using a hyphen.
Mellanox Technologies
.
185
System Management
show clock
show clock
Displays the current system time, date and time zone.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show clock
Time:
02:48:41
Date:
2018/1/1
Time zone: UTC (Etc/UTC)
UTC offset: same as UTC
Related Commands N/A
Notes
Mellanox Technologies
.
186
System Management
show ntp
show ntp
Displays the current NTP settings.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.5.0200
Updated Example
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ntp NTP is administratively enabled. NTP Authentication is administratively disabled. Clock is synchronized. Reference: 108.61.73.244. Active servers and peers:
Offset: -2.833 ms.
108.61.73.244
# Hostname configuration
Configured as
: 0.us.pool.ntp.org
Conf Type
: server
Status
: sys.peer(*)
Stratum
: 2
Offset(msec)
: -2.833
Ref clock
: 128.59.0.245
Poll Interval (sec): 256
Last Response (sec): 203
Auth state
: none
Related Commands Notes
10.7.144.19
# IP configuration
Conf Type
: peer
Status
: sys.peer(*)
Stratum
: 2
Offset(msec)
: -1.747
Ref clock
: 128.59.0.245
Poll Interval (sec): 64
Last Response (sec): 1
Auth state
: none
N/A
Mellanox Technologies
.
187
System Management
show ntp configured
show ntp configured
Displays NTP configuration.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.5.0200
3.6.6102
Updated Example
Role
admin
Example Related Commands
switch (config) # show ntp configured
NTP enabled: yes
NTP Authentication enabled: no
NTP peer 0.us.pool.ntp.org # Hostname peer configuration
Resolved as: 45.79.111.114
Enabled: yes
NTP version: 4
Key ID: none
NTP peer 2.3.1.3
# IP peer configuration
Enabled: yes
NTP version: 4
Key ID: none
NTP server vnc23
# Hostname server configuration
Resolved as: 10.7.2.23
Enabled: yes
NTP version: 4
Key ID: none
Trusted: no
NTP server 1.2.3.4
# IP server configuration
Enabled: yes
NTP version: 4
Key ID: none
Trusted: no
NTP server idontexist (DNS resolution failed. Reset or reconfigure NTP
to try again)
Enabled: yes
NTP version: 4
Key ID: none
Trusted: no
N/A
Notes
Mellanox Technologies
.
188
show ntp keys
show ntp configured
Displays NTP keys.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.5.0200
Role
admin
Example Related Commands
switch (config) # show ntp keys NTP Key 1
Trusted: yes Encryption Type: MD5 NTP Key 2 Trusted: yes Encryption Type: MD5 NTP Key 3 Trusted: yes Encryption Type: MD5 NTP Key 4 Trusted: yes Encryption Type: md5 switch (config) #
N/A
Notes
System Management
Mellanox Technologies
.
189
System Management
Mellanox Technologies
.
190
System Management
Mellanox Technologies
.
191
System Management
Mellanox Technologies
.
192
System Management
Mellanox Technologies
.
193
System Management
Mellanox Technologies
.
194
System Management
Mellanox Technologies
.
195
System Management
Mellanox Technologies
.
196
System Management
Mellanox Technologies
.
197
System Management
Mellanox Technologies
.
198
System Management
Mellanox Technologies
.
199
System Management
Mellanox Technologies
.
200
System Management
4.3 Unbreakable Links
Mellanox MLNX-OS� offers phy profile configuration for InfiniBand interfaces. PHY profile includes Link Level Retransmission (LLR) configuration. A PHY profile is bound to any InfiniBand interface. Link Level Retransmission (LLR) is used on signal integrity marginal systems to decrease and/or eliminate the impact of physical errors on the system's performance. � LLR transmitter breaks the transmitted Layer 2 data stream into Cells and adds a CRC
checksum to each cell. � LLR receiver checks the Cell CRC, in case there is no CRC errors, it forwards the cell
and acknowledges the peer. If a cell is dropped by the receiver the transmitter retransmits the cell.
LLR is a Mellanox proprietary feature and will only work with Mellanox to Mellanox ports.
LLR is not operational for cables longer then 30m.
LLR Mode The following LLR modes are applicable per port per speed: � disable � no LLR � enable � the port becomes passive, only if it got a request to use LLR it activates, other-
wise it remains disabled � enable-request � the port becomes active, it keeps sending LLR requests to the peer
LLR Negotiation Both ports on the link perform LLR discovery and negotiation. In order the LLR to be in active state on the link, the following should apply: � One port must be configured with LLR "enable-request" on the specified speed. � The other port (peer) may be configured with LLR "enable-request" or "enable" on the
same specified speed
If both the local port and remote port configured with LLR "enabled" the LLR negotiation will not be activated - the ports will remain in LLR in-active state.
Mellanox Technologies
.
201
LLR Status LLR status is a port parameter that states the current state of the LLR. � Active � LLR is operationally running � In-Active � LLR is not running
System Management
Mellanox Technologies
.
202
4.3.1 Commands
show interfaces ib llr
show interfaces ib [<number>] llr
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Displays LLR status number N/A Any command mode 3.2.0500 admin
The interface number
switch (config) # show interfaces ib llr
-----------------------------
Interface
LLR status
-----------------------------
IB1/1
Inactive
IB1/2
Inactive
IB1/3
Inactive
IB1/4
Inactive
IB1/5
Inactive
IB1/6
Inactive
IB1/7
Inactive
IB1/8
Inactive
IB1/9
Inactive
IB1/10
Inactive
IB1/11
Inactive
IB1/12
Inactive
IB1/13
Inactive
...
System Management
Mellanox Technologies
.
203
System Management
4.4 Software Management
To inter-operate with Switch-IBTM 2 based switch systems, switch systems must at least be installed with MLNX-OS version 3.6.1002.
4.4.1
Important Pre-OS Upgrade Notes
Please consider the following items prior to upgrading the OS:
� Upgrading director switch systems can take up to 30 minutes during which time the system is indisposed.
� Upgrading the OS while embedded SM is enabled may cause the command "no hostname" to fail upon first execution. To resolve this, rerun the command.
� The upgrade procedure burns the software image as well as the firmware should there be a need
� Before upgrading the software image on your system, make sure to close all CLI sessions besides the one used to run the upgrade process
� If running a system with dual management cards, refer to Section 4.4.3, "Upgrading MLNX-OS Software on Director Switches," on page 208
� To upgrade the Mellanox MLNX-OS� version on an SM cluster, please refer to Section 4.4.4, "Upgrading MLNX-OS HA Groups," on page 209
� You have to read and accept the End-User License Agreement (EULA) after image upgrade in case the EULA is modified. The EULA link is only available upon first login to CLI.
� Linux docker container names are limited to 180 characters. Upgrading to this version removes containers which do not comply with this limitation and prints the following warning to the log: "Removed configuration of container: <container name>, container name is limited to 180 characters".
� When upgrading from a version older than 3.6.3130 with an MLAG cluster, output appears as in "UP" and "Peering" state instead of "Upgrade" on both MLAG VIP clusters. The upgrade process will not be affected.
4.4.2
Upgrading MLNX-OS Software
To upgrade MLNX-OS on your system, perform the following steps: Step 1. Enter Config mode. Run:
switch > enable switch # configure terminal switch (config) #
Mellanox Technologies
.
204
System Management
Step 2.
Display the currently available image (.img file).
switch (config) # show images Installed images:
Partition 1: <old_image>
Partition 2: <old_image>
Last boot partition: 1 Next boot partition: 1
Images available to be installed: webimage.tbz <old_image>
Serve image files via HTTP/HTTPS: no
No image install currently in progress.
Boot manager password is set.
Image signing: trusted signature always required Admin require signed images: yes
Step 3.
Settings for next boot only: Fallback reboot on configuration failure: yes (default)
Delete the image listed under "Images available to be installed" prior to fetching the new image. Use the command "image delete" for this purpose.
switch (config) # image delete <old_image>
When deleting an image, you delete the file but not the partition. This is recommended so as to not overload system resources.
Step 4. Step 5.
Fetch the new software image.
switch (config) # image fetch scp://<username>:<password>@<ip-address>/var/www/html/ <new_image> Password (if required): ****** 100.0%[###################################################s###############]
Display the available images again and verify that the new image now appears under "Images available to be installed".
To recover from image corruption (e.g. due to power interruption), there are two installed images on the system. See the commands "image boot next", and "image boot location" for more information.
Mellanox Technologies
.
205
System Management
switch (config) # show images Installed images:
Partition 1: <old_image>
Partition 2: <old_image>
Last boot partition: 1 Next boot partition: 1
Images available to be installed: webimage.tbz <new_image>
Serve image files via HTTP/HTTPS: no
No image install currently in progress.
Boot manager password is set.
Image signing: trusted signature always required Admin require signed images: yes
Step 6.
Settings for next boot only: Fallback reboot on configuration failure: yes (default)
Install the new image.
switch (config) # image install <new_image> Step 1 of 4: Verify Image 100.0% [#############################################################] Step 2 of 4: Uncompress Image 100.0% [#############################################################] Step 3 of 4: Create Filesystems 100.0% [#############################################################] Step 4 of 4: Extract Image 100.0% [#############################################################]
CPU utilization may go up to 100% during image upgrade.
Step 7. Have the new image activate during the next boot. Run:
switch (config) # image boot next
Mellanox Technologies
.
206
Step 8.
Run "show images" to review your images. Run:
switch (config) # show images Installed images:
Partition 1: <new_image>
Partition 2: <old_image>
Last boot partition: 1 Next boot partition: 1
Images available to be installed: webimage.tbz <new_image>
Serve image files via HTTP/HTTPS: no
No image install currently in progress.
Boot manager password is set.
Image signing: trusted signature always required Admin require signed images: yes
Settings for next boot only: Fallback reboot on configuration failure: yes (default)
Step 9. Save current configuration. Run:
switch (config) # configuration write
Step 10. Reboot the switch to run the new image. Run:
switch (config) # reload Configuration has been modified; save first? [yes] yes Configuration changes saved. Rebooting... switch (config)#
System Management
After software reboot, the software upgrade will also automatically upgrade the firmware version.
On systems with dual management, the software must be upgraded on both the master and the slave modules.
Mellanox Technologies
.
207
System Management
In order to upgrade the system on dual management system refer to Section 4.4.3, "Upgrading MLNX-OS Software on Director Switches," on page 208.
When performing upgrade from the WebUI, make sure that the image you are trying to upgrade to is not located already in the system (i.e. fetched from the CLI).
4.4.3 Upgrading MLNX-OS Software on Director Switches
Director switches feature dual management modules.
Step 1. Step 2.
Step 3. Step 4. Step 5.
Identify the chassis HA master. Run:
show chassis ha
Upgrade the chassis master according to steps 1-8 in section Section �, "When upgrading from a version older than 3.6.3130 with an MLAG cluster, output appears as in "UP" and "Peering" state instead of "Upgrade" on both MLAG VIP clusters. The upgrade process will not be affected.," on page 204. Please DO NOT reboot. Upgrade the second management module according to steps 1-8 in section Section �, "When upgrading from a version older than 3.6.3130 with an MLAG cluster, output appears as in "UP" and "Peering" state instead of "Upgrade" on both MLAG VIP clusters. The upgrade process will not be affected.," on page 204. Please DO NOT reboot. Reset the slave management module. In the master management module, run:
chassis ha reset other
After invoking the command above, please reboot the master management immediately. Run: On CS75x0 switch systems, run:
reload force immediate
An alternative for Step 4 and Step 5 is to power cycle the system.
Step 6.
Check that 'reset count' equals 0 or 1. Run:
show chassis ha
If the reset count is not equal to either 0 or 1, power cycle the system.
Mellanox Technologies
.
208
System Management
Step 7. Verify all the systems are back online as members of the IB subnet ID. Run:
show ib smnodes {brief}
Using a director switch with different software versions on its two management boards is not supported. When replacing a management board the software running on the replacement board must be aligned with the version of the software running on the other management board.
4.4.4
Upgrading MLNX-OS HA Groups
In case fallback is ever necessary in an HA group, all cluster nodes must have the same MLNXOS version installed and they must be immediately reloaded.
To upgrade MLNX-OS version without affecting an HA group:
Step 1. Identify the HA group master.
for IB HA. Run:
switch (config) # show ib ha
Global HA state
==================
IB Subnet HA name:subnet4
HA IP address: 192.168.10.43/24
Active HA nodes: 2
ID
State Role
IP
SM Priority
--------------------------------------------------------------------
switch
standalone
192.168.10.42
disabled
switch
master
192.168.10.18
disabled
Step 2. Step 3.
Upgrade standby node in the HA group according to steps 1-10 in Section �, "When upgrading from a version older than 3.6.3130 with an MLAG cluster, output appears as in "UP" and "Peering" state instead of "Upgrade" on both MLAG VIP clusters. The upgrade process will not be affected.," on page 204.
Wait until all standby nodes have rejoined the group.
In situations of heavy CPU load or noisy network, it is possible that another node assumes the role of cluster master before all standby nodes have rejoined the group. If this happens, you may stop waiting and proceed directly to Step 4.
Step 4.
Upgrade the master node in the HA group according to steps 1-10 in Section �, "When upgrading from a version older than 3.6.3130 with an MLAG cluster, output appears as in "UP" and "Peering" state instead of "Upgrade" on both MLAG VIP clusters. The upgrade process will not be affected.," on page 204.
4.4.5
Upgrading MLNX-OS MLAG-STP Setup
To upgrade the OS on an MLAG-STP setup from 3.6.610x to this version, there are two possible procedures: Procedure 1:
Mellanox Technologies
.
209
System Management
Step 1. Make sure there are no loops in the fabric. Step 2. Disable STP. Run:
switch (config) # no spanning-tree
Step 3. Perform the upgrade according to steps 1-10 in Section 4.4.4, on page 209. Step 4. Enable STP � this step may lead to traffic loss while the STP state is converging. Run:
switch (config) # spanning-tree
Procedure 2: Step 1. Shutdown all ports on the MLAG slave. Step 2. Save configuration. Run:
switch (config) # configuration write
Step 3. Upgrade MLAG slave according to steps 1-10 in Section 4.4.4, on page 209. Step 4. Upgrade MLAG master. Run:
switch (config) # reload force immediate
Step 5. Enable all ports on the MLAG slave.
4.4.6
Deleting Unused Images
To delete unused images: Step 1. Enter Config mode. Run:
switch > switch > enable switch # configure terminal
Step 2. Get a list of the unused images. Run
switch (config) # show images Images available to be installed:
image-PPC_M460EX-3.1.1224.img SX-OS_PPC_M460EX 3.1.1224 2011-04-28 12:29:48 ppc Installed images: Partition 1: SX-OS_PPC_M460EX 3.1.0000-dev-HA 2011-04-10 12:02:49 ppc Partition 2: SX-OS_PPC_M460EX 3.1.0000-dev-HA 2011-04-10 12:02:49 ppc
Last boot partition: 1 Next boot partition: 1 Boot manager password is set. No image install currently in progress. Require trusted signature in image being installed: yes switch (config) #
Mellanox Technologies
.
210
Step 3.
Delete the unused images. Run:
switch config) # image delete image-X86_64-3.6.3234-12.img switch (config) #
System Management
When deleting an image, you delete the file but not the partition. This is recommended so as to not overload system resources.
4.4.7
Downgrading MLNX-OS Software
Prior to downgrading software, please make sure the following prerequisites are met: Step 1. Log into your switch via the CLI using the console port. Step 2. Backup your configuration according to the following steps:
1. Change to Config mode. Run:
switch-112094 [standalone: master] > enable switch-112094 [standalone: master] # configure terminal switch-112094 [standalone: master] (config) #
2. Disable paging of CLI output. Run:
switch-112094 [standalone: master] (config) # no cli default paging enable
3. Display commands to recreate current running configuration. Run:
switch-112094 [standalone: master] (config) # show running-config
4. Copy the output to a text file.
4.4.7.1 Downloading Image
Step 1. Log into your system to obtain its product number. Run:
Step 2.
Step 3. Step 4.
switch-112094 [standalone: master] (config) # show inventory
Log into MyMellanox at https://mymellanox.force.com/support/SupportLoginand download the relevant MLNX-OS version to your system type. Log into the switch via the CLI using the console port. Change to Config mode. Run:
Step 5.
switch > enable
switch # configure terminal switch (config) #
Delete all previous images from the Images available to be installed prior to fetching the new image. Run:
switch (config) # image-X86_64-3.6.3234-12.img
Step 6. Fetch the requested software image. Run:
switch (config) # image fetch scp://username:password@192.168.10.125/var/www/html/ <image_name> 100.0%[################################################## ###############]
Mellanox Technologies
.
211
System Management
4.4.7.2 Downgrading Image
The procedure below assumes that booting and running is done from Partition 1 and the downgrade procedure is performed on Partition 2.
Step 1. Step 2. Step 3.
Step 4.
Step 5.
Log in as admin. Enter config mode. Run:
switch > enable switch # configure terminal
Display all image files on the system. Run:
switch (config) # show images Images available to be installed: new_image.img <downgrade version> 2010-09-19 16:52:50 Installed images: Partition 1: <current version> 2010-09-19 03:46:25 Partition 2: <current version> 2010-09-19 03:46:25 Last boot partition: 1 Next boot partition: 1 No boot manager password is set. switch (config) #
Install the MLNX-OS image. Run:
switch (config) # image install <image_name> Step 1 of 4: Verify Image 100.0% [#################################################################] Step 2 of 4: Uncompress Image 100.0% [#################################################################] Step 3 of 4: Create Filesystems 100.0% [#################################################################] Step 4 of 4: Extract Image 100.0% [#################################################################] switch (config) #
Display all image files on the system. Run:
switch (config) # show images Images available to be installed: new_image.img <downgrade version> 2010-09-19 16:52:50 Installed images: Partition 1: <current version> 2010-09-19 03:46:25
Mellanox Technologies
.
212
System Management
Step 6.
Partition 2: <downgrade version> 2010-09-19 16:52:50 Last boot partition: 1 Next boot partition: 2 No boot manager password is set. switch (config) #
Configure the boot location to be the other (next) partition. Run:
switch (config) # image boot next
There are two installed images on the system. Therefore, if one of the images gets corrupted (due to power interruption, for example), in the next reboot the image will go up from the second partition.
Step 7.
In case you are downloading to an older software version which has never been run yet on the switch, use the following command sequence as well: switch (config) # no boot next fallback-reboot enable switch (config) # configuration write
Reload the switch. Run:
switch (config) # reload
4.4.7.3 Switching to Partition with Older Software Version
The system saves a backup configuration file when upgrading from an older software version to a newer one. If the system returns to the older software partition, it uses this backup configuration file.
***IMPORTANT NOTE*** All configuration changes done with the new software are lost when returning to the older software version.
There are 2 instances where the backup configuration file does not exist: � The user has run "reset factory" command, which clears all configuration files in the sys-
tem � The user has run "configuration switch-to" to a configuration file with different name
then the backup file Note that the configuration file becomes empty if the switch is downgraded to a software version which has never been installed yet. To allow switching partition to the older software version for the 2 aforementioned cases only, follow the steps below: Step 1. Run the command:
switch (config)# no boot next fallback-reboot enable
Step 2. Set the boot partition. Run:
switch (config)# image boot next
Mellanox Technologies
.
213
System Management
Step 3. Step 4.
Save the configuration. Run:
switch (config)# configuration write
Reload the system. Run:
switch (config)# reload
4.4.8
Upgrading System Firmware
Each MLNX-OS software package version has a default switch firmware version. When you update the MLNX-OS software to a new version, an automatic firmware update process will be attempted by MLNX-OS. This process is described below.
4.4.8.1 After Updating MLNX-OS Software
Upon rebooting your switch system after updating the MLNX-OS software, MLNX-OS compares its default firmware version with the currently programmed firmware versions on all the switch modules (leafs and spines on director-class switches, or simply the switch card on edge switch systems).
If one or more of the switch modules is programmed with a firmware version other than the default version, then MLNX-OS automatically attempts to burn the default firmware version instead.
If a firmware update takes place, then the login process is delayed a few minutes.
To verify that the firmware update was successful, log into MLNX-OS and run the command "show asic-version" (can be run in any mode). This command lists all of the switch modules along with their firmware versions. Make sure that all the firmware versions are the same and match the default firmware version. If the firmware update failed for one or more modules, then the following warning is displayed.
Some subsystems are not updated with a default firmware.
If you detect a mismatch in firmware version for one or more modules of the switch system, please contact your assigned Mellanox Technologies field application engineer.
Mellanox Technologies
.
214
4.4.8.2 After Inserting a Switch Spine or Leaf
This section is applicable to director-class switch systems only.
System Management
If you insert a switch spine or leaf with a firmware version other than the default version of MLNX-OS, an automatic firmware update process will take place immediately to the inserted module only.
The firmware update may take a few minutes. It is recommended not to run any commands until the firmware update completes.
During firmware upgrade internal link status (up/down) notifications may be sent.
To verify that the firmware update was successful, run the command "show asic-version" (can be run in any mode). Check that the firmware version of the inserted switch spine or leaf has the default firmware version.
If you detect a firmware version mismatch for the newly inserted module, please contact your assigned Mellanox Technologies field application engineer.
4.4.8.3 Importing Firmware and Changing the Default Firmware To perform an automatic firmware update by MLNX-OS for a different switch firmware version without changing the MLNX-OS version, import the firmware package as described below. MLNX-OS sets it as the new default firmware and performs the firmware update automatically as described in the previous subsections.
From version 3.3.4400 and above, the firmware update file format has been changed to mfa format. TGZ format is no longer supported.
Mellanox Technologies
.
215
System Management
4.4.8.3.1 Default Firmware Change on Standalone Systems
Step 1. Import the firmware image (.mfa file). Run:
Step 2.
switch (config) # image fetch scp://root@1.1.1.1:/tmp/fw-SIB-rel-11_1600_0200-FIT.mfa Password (if required): ******* 100.0% [###############################################################################] switch (config) # image default-chip-fw fw-SIB-rel-11_1600_0200-FIT.mfa Installing default firmware image. Please wait... Default Firmware 11.1600.0200 updated. Please save configuration and reboot for new FW to take effect.
Save the configuration. Run:
switch (config) # configuration write
Step 3. Reboot the system to enable auto update.
4.4.8.3.2 Default Firmware Change Dual Management Systems
This flow should be implemented on both management modules in parallel. Step 1. Import the firmware image (.mfa file) on both management modules.
Step 2. Step 3.
switch (config) # image fetch scp://username:password@10.7.34.115//my_directory/fwSIB-rel-11_1600_0200-FIT.mfa 100.0% [##############################################################################]
Change default firmware on the management modules using the command image default-chip-fw.
Verify that both master and slave have successfully installed the new firmware. The following message should be displayed:
Step 4. Step 5. Step 6.
Default firmware <fw> updated. Please save configuration and reboot for new FW to take effect.
Run configuration write on both management modules. Run chassis ha reset other on master only. Run reload on master only.
Mellanox Technologies
.
216
System Management
4.4.9 Commands
image boot
image boot {location <location ID> | next}
Specifies the default location where the system should be booted from.
Syntax Description location ID
Specifies the default destination location. There can be up to 2 images on the system. The possible values are 1 or 2.
next
Sets the boot location to be the next once after the one
currently booted from, thus avoiding a cycle through all
the available locations.
Default
N/A
Configuration Mode enable/config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # image boot location 2 switch (config) #
show images
Notes
boot next
boot next fallback-reboot enable no boot next fallback-reboot enable
Sets the default setting for next boot. Normally, if the system fails to apply the configuration on startup (after attempting upgrades or downgrades, as appropriate), it will reboot to the other partition as a fallback. The no form of the command tells the system not to do that, only for the next boot.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.2.0506
Role
admin
Example
switch (config) # boot next fallback-reboot enable switch (config) #
Mellanox Technologies
.
217
System Management
Related Commands Notes
show images
� Normally, if the system fails to apply the configuration on startup (after attempting upgrades or downgrades, as appropriate) it reboots to the other partition as a fallback.
� The no form of this command tells the system not to do that only for the next boot. In other words, this setting is not persistent, and goes back to enabled automatically after each boot.
� When downgrading to an older software version which has never been run yet on a system, the "fallback reboot" always happens, unless the command "no boot next fallback-reboot enable" is used. However, this also happens when the older software version has been run before, but the configuration file has been switched since upgrading. In general, a downgrade only works (without having the fallback reboot forcibly disabled) if the process can find a snapshot of the configuration file (by the same name as the currently active one) which was taken before upgrading from the older software version. If that is not found, a fallback reboot is performed in preference to falling back to the initial database because the latter generally involves a loss of network connectivity, and avoiding that is of paramount importance.
Mellanox Technologies
.
218
System Management
boot system
boot system {location | next} no boot system next
Configures which system image to boot by default. The no form of the command resets the next boot location to the current active one.
Syntax Description location
Specifies location from which to boot system � 1 � installs to location 1 � 2 � installs to location 2
next
Boots system from next location after one currently
booted
Default
N/A
Configuration Mode config
History
3.2.0506
Role
admin
Example
switch (config) # boot system location 2 switch (config) #
Related Commands show images
Notes
Mellanox Technologies
.
219
System Management
image default-chip-fw
image default-chip-fw <filename> no image default-chip-fw <original-fw-filename>
Sets the default firmware package to be installed. The no form of the command resets default firmware package.
Syntax Description filename
Specifies the firmware filename.
Default
N/A
Configuration Mode config
History
3.1.0000
3.6.6000
Added no form of the command
Role
admin
Example
switch (config) # image default-chip-fw fw-SPC-rel-13_1600_0184-FIT.mfa
Related Commands show asic-version show images
Notes
Mellanox Technologies
.
220
System Management
image delete
image delete <image name>
Deletes the specified image file.
Syntax Description image name
Specifies the image name.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # image delete image-MLXNX-OS-201140526-010145.img switch (config) #
show images
Notes
Mellanox Technologies
.
221
System Management
image fetch
image fetch <URL> [<filename>]
Downloads an image from the specified URL or via SCP.
Syntax Description URL
HTTP, HTTPS, FTP, TFTP, SCP and SFTP are supported. Example: scp://username[:password]@hostname/path/filename.
filename
Specifies a filename for this image to be stored as locally.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # image fetch scp://<username>@192.168.10.125/var/www/ html/<image_name> Password ****** 100.0%[############################################################] switch (config) #
Other options:
switch (config) # image fetch http://10.1.0.40/path/filename switch (config) # image fetch http://[fd4f:13:cc00:1::40]/path/filename switch (config) # image fetch ftp://user:mypassword@10.1.0.40/foo/ bar.img switch (config) # image fetch ftp://user:mypassword@[fd4f:13:cc00:1: :40]/foo/bar.img switch (config) # image fetch tftp://hostname/dir/filename switch (config) # image fetch tftp://[fd4f:13:cc00:1::40]/dir/filename switch (config) # image fetch scp://user@myhost/dir/filename switch (config) # image fetch scp://user@myhost:1022/dir/filename switch (config) # image fetch scp://user:pass@[fd4f:13:cc00:1::40]/dir/ filename switch (config) # image fetch sftp://user@myhost/dir/filename switch (config) # image fetch sftp://user@[fd4f:13:cc00:1::40]:1022/ dir/filename switch (config) # image fetch sftp://user:pass@[fd4f:13:cc00:1::40]/ dir/filename
Mellanox Technologies
.
222
System Management
Related Commands Notes
show images
� Please delete the previously available image, prior to fetching the new image � The path to the file in the case of TFTP depends on the server configuration.
Therefore, it may not be an absolute path but a relative one. � See Section �, "When upgrading from a version older than 3.6.3130 with an
MLAG cluster, output appears as in "UP" and "Peering" state instead of "Upgrade" on both MLAG VIP clusters. The upgrade process will not be affected.," on page 204
Mellanox Technologies
.
223
System Management
image install
image install <image filename> [location <location ID>] | [progress <progoptions>]
Installs the specified image file.
Syntax Description image filename
Specifies the image name.
location ID
Specifies the image destination location.
prog-options
� "no-track" overrides CLI default and does not track the installation progress
� "track" overrides CLI default and tracks the installation progress
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # image install X86_64 4100-12 2017-07-26 06:54:12 x86_64 Step 1 of 4: Verify Image 100.0% [################################################################] Step 2 of 4: Uncompress Image 100.0% [################################################################] Step 3 of 4: Create Filesystems 100.0% [################################################################] Step 4 of 4: Extract Image 100.0% [################################################################] switch (config) #
Related Commands show images
Notes
� The image cannot be installed on the "active" location (the one which is currently being booted)
� On a two-location system, the location is chosen automatically if no location is specified
Mellanox Technologies
.
224
System Management
image move
image move <src image name> <dest image name>
Renames the specified image file.
Syntax Description src image name
Specifies the old image name.
dest image name
Specifies the new image name.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # image move image1.img image2.img switch (config) #
Related Commands show images
Notes
Mellanox Technologies
.
225
System Management
image options
image options serve all no image options serve all
Configures options and defaults for image usage. The no form of the command disables options and defaults for image usage.
Syntax Description serve all
Specifies that the image files present on this appliance should be made available for HTTP and/or HTTPS download
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # image options serve all
Related Commands show images
Notes
The parameter "serve all" affects not only the files currently present, but also any files that are later downloaded. It only applies to image files, not the installed images, which are not themselves in a downloadable format. After running "serve all" the URLs where the images will be available are: � http://<HOSTNAME>/system_images/<FILENAME> � https://<HOSTNAME>/system_images/<FILENAME>
Mellanox Technologies
.
226
System Management
show bootvar
show bootvar
Displays the installed system images and the boot parameters.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch [standalone: master] (config) # show bootvar Installed images:
Partition 1: X86_64 3.6.4110-12 2017-07-26 06:54:12 x86_64
Partition 2: X86_64 3.6.4006 2017-07-03 16:17:39 x86_64
Last boot partition: 1 Next boot partition: 1
Serve image files via HTTP/HTTPS: no
Boot manager password is set.
Image signing: trusted signature always required Admin require signed images: yes
Related Commands Notes
Settings for next boot only: Fallback reboot on configuration failure: yes (default)
switch [standalone: master] (config) #
N/A
Mellanox Technologies
.
227
System Management
show images
show image
Displays information about the system images and boot parameters.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch [standalone: master] (config) # show images Installed images:
Partition 1: X86_64 3.6.4110-12 2017-07-26 06:54:12 x86_64
Partition 2: X86_64 3.6.4006 2017-07-03 16:17:39 x86_64
Last boot partition: 1 Next boot partition: 1
Images available to be installed:
webimage.tbz X86_64 3.6.4071-12 2017-07-26 06:54:12 x86_64
Serve image files via HTTP/HTTPS: no
No image install currently in progress.
Boot manager password is set.
Image signing: trusted signature always required Admin require signed images: yes
Related Commands Notes
Settings for next boot only: Fallback reboot on configuration failure: yes (default)
N/A
Mellanox Technologies
.
228
System Management
4.5 Configuration Management
4.5.1
Saving a Configuration File
To save the current configuration to the active configuration file, you can either use the configuration write command (requires running in Config mode) or the write memory command (requires running in Enable mode). � To save the configuration to the active configuration file, run:
switch (config) # configuration write
� To save the configuration to a user-specified file without making the new file the active configuration file, run:
switch (config) # configuration write to myconf no-switch
� To save the configuration to a user-specified file and make the new file the active configuration file, run:
switch (config) # configuration write to myconf
� To display the available configuration files and the active file, run:
switch (config) # show configuration files initial myconf (active) switch (config) #
4.5.2
Loading a Configuration File
By default, or after a system reset, the system loads the default "initial" configuration file. To load a different configuration file and make it the active configuration:
switch [standalone: master] > switch [standalone: master] > enable switch [standalone: master] # configure terminal switch [standalone: master] (config) # configuration switch-to myconfig switch [standalone: master] (config) #
On director switch systems with dual management modules, load the configuration file according to the following: Step 1. Power cycle the system. Step 2. Load the configuration on the top CPU that serves as the chassis master according to the
procedure described above.
If the configuration file is loaded on a different CPU than the SM HA master (SM HA master that servers the VIP), the SM configuration is overwritten.
Mellanox Technologies
.
229
System Management
4.5.3
Restoring Factory Default Configuration
If system configuration becomes corrupted, it is suggested to restore factory default configuration. To restore factory default configuration on a single management module system, run:
switch (config) # reset factory keep-basic
To restore factory default configuration on a dual management module system:
If the system configuration ever becomes corrupted it is suggested to restore the factory default configuration.
Step 1. Step 2. Step 3.
Connect to a remote console/serial connection. Remove the slave management module. Run the command reset factory [keep-basic] [keep-all-config]:.
switch (config) # reset factory keep-basic
Step 4. Step 5. Step 6.
Please wait for reboot to complete before moving to the next step. Log in as "admin" and start running the Mellanox Configuration Wizard. Insert the slave management module. Remove the master management module.
A takeover will occur changing the Slave management module role to Master.
Step 7. Step 8. Step 9.
Repeat Step 3 on the new Master management module. Insert the other management module. No takeover will occur at this stage. Power cycle the system.
4.5.4
Managing Configuration Files
There are two types of configuration files that can be applied on the switch, BIN files (binary) and text-based configuration files.
4.5.4.1 BIN Configuration Files
BIN configuration files are not human readable. Additionally, these files are encrypted and contain integrity verification preventing them from being edited and used on the switch. To create a new BIN configuration file:
switch (config) # configuration new my-filename
A newly created BIN configuration file is always empty and is not created from the running-config.
Mellanox Technologies
.
230
System Management
To upload a BIN configuration file from a switch to an external file server:
switch (config) # configuration upload my-filename scp://myusername@my-server/path/to/ my/<file>
To fetch a BIN configuration file:
switch (config) # configuration fetch scp://myusername@my-server/path/to/my/<file>
To see the available configuration files:
switch (config) # show configuration files initial (active) my-filename
Active configuration: initial
Unsaved changes:
no
switch (config) #
To load a BIN configuration file:
switch (config) # configuration switch-to my-filename This requires a reboot. Type 'yes' to confirm: yes
Applying a new BIN configuration file changes the whole switch's configuration and
requires system reboot which can be preformed using the command reload.
A binary configuration file uploaded from the switch is encrypted and has integrity verification. If the file is modified in any manner, the fetch to the switch fails.
4.5.4.2 Text Configuration Files Text configuration files are text based and editable. It is similar in form to the output of the command "show running-config expanded". To create a new text-based configuration file:
switch (config) # configuration text generate active running save my-filename
A newly created text configuration file is always created from the running-config.
Mellanox Technologies
.
231
System Management
To apply a text-based configuration file:
switch (config) # configuration text file my-filename apply
Applying a text-based configuration file to an existing/running data port configuration may result in unpredictable behavior. It is therefore suggested to first clear the switch's configuration by applying a specific configuration file (following the procedure in Section 4.5.4.1) or by resetting the switch back to factory default.
To upload a text-based configuration file from a switch to an external file server
switch (config) # configuration text file my-filename upload scp://root@my-server/root/ tmp/my-filename
To fetch a text-based configuration file from an external file server to a switch
switch (config) # configuration text fetch scp://root@my-server/root/tmp/my-filename
To apply a text-based configuration file:
switch (config) # configuration text file my-filename apply
When applying a text-based configuration file, the configuration is appended to the switch's existing configuration. Only new or changed configuration is added. Reboot is not required.
Mellanox Technologies
.
232
System Management
4.5.5 Commands
4.5.5.1 File System
debug generate dump
debug generate dump
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Generates a debug dump. N/A N/A config 3.1.0000 admin
switch (config) # debug generate dump Generated dump sysdump-switch-112104-201140526-091707.tgz switch (config) #
file debug-dump The dump can then be manipulated using the "file debug-dump..." commands.
Mellanox Technologies
.
233
System Management
file debug-dump
file debug-dump {delete {<filename> | all | latest} | email {<filename> | latest} | upload {<filename> | latest} <URL>}
Manipulates debug dump files.
Syntax Description delete
Deletes a debug dump file. � all: Deletes all existing debug files from this
machine � latest: Deletes latest debug file from this machine
email
Emails a debug dump file to pre-configured recipients for "informational events", regardless of whether they have requested to receive "detailed" notifications or not. � latest: Emails the latest debug file to a pre-config-
ured recipients
upload
Uploads a debug dump file to a remote host. � latest: Uploads the latest debug file to a remote host
URL
The URL to the remote host: HTTP, HTTPS, FTP, TFTP, SCP and SFTP are supported. Example: scp:// username[:password]@hostname/path/filename.
Default
N/A
Configuration Mode config
History
3.1.0000
3.3.4000
Added "all" and "latest" options
Role
admin
Example
switch (config) # file debug-dump email sysdump-switch-112104-20114052091707.tgz
Related Commands show files debug-dump
Notes
Mellanox Technologies
.
234
System Management
file debug-dump
file debug-dump {delete {<filename> | latest} | email {<filename> | latest} | upload {{<filename> | latest} <URL>}}
Manipulates debug dump files.
Syntax Description
delete {<filename> | latest}
Deletes a debug dump file.
email {<filename> | latest}
Emails a debug dump file to pre-configured recipients for "informational events", regardless of whether they have requested to receive "detailed" notifications or not.
upload {{<filename> | latest} <URL>}}
Uploads a debug dump file to a remote host. The URL to the remote host: HTTP, HTTPS, FTP, TFTP, SCP and SFTP are supported. Example: scp://username[:password]@hostname/path/filename.
Default
N/A
Configuration Mode config
History
3.1.0000
3.3.4000
Added "latest" parameter
Role
admin
Example
switch (config) # file debug-dump email sysdump-switch-112104-20114052091707.tgz switch (config) #
Related Commands show files debug-dump
Notes
Mellanox Technologies
.
235
System Management
file stats
file stats {delete <filename> | move {<source filename> | <destination filename>} | upload <filename> <URL>}
Manipulates statistics report files.
Syntax Description delete <filename>
Deletes a stats report file.
move <source filename> <destination filename>
Renames a stats report file.
upload <filename> <URL>
Uploads a stats report file. URL - HTTP, HTTPS, FTP, TFTP, SCP and SFTP are supported. Example: scp://username[:password]@hostname/path/filename.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # file stats move memory-1.csv memory-2.csv switch (config) #
Related Commands show files stats show files stats <filename>
Notes
Mellanox Technologies
.
236
System Management
file tcpdump
file tcpdump {delete <filename> | upload <filename> <URL>}
Syntax Description
Manipulates tcpdump output files.
delete <filename>
Deletes the specified tcpdump output file.
upload <filename> <URL>
Uploads the specified tcpdump output file to the specified URL.
URL - HTTP, HTTPS, FTP, TFTP, SCP and SFTP are supported. Example: scp://username[:password]@hostname/path/filename.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # file tcmpdump delete my-tcpdump-file.txt switch (config) #
Related Commands show files stats tcpdump
Notes
Mellanox Technologies
.
237
System Management
reload
reload [force immediate | halt [noconfirm] | noconfirm]
Reboots or shuts down the system.
Syntax Description force immediate
Forces an immediate reboot of the system even if the system is busy.
halt
Shuts down the system.
noconfirm
Reboots the system without asking about unsaved changes.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # reload Configuration has been modified; save first? [yes] yes Configuration changes saved. ... switch (config) #
Related Commands reset factory
Notes
BBU discharge must be disabled before any planned shutdown of the switch
Mellanox Technologies
.
238
System Management
reset factory
reset factory [keep-all-config | keep-basic | keep-virt-vols | only-config] [halt]
Syntax Description
Clears the system and resets it entirely to its factory state.
keep-all-cofig
Preserves all configuration files including licenses. Removes the logs, stats, images, snapshots, history, known hosts.
The user is prompted for confirmation before honoring this command, unless confirmation is disabled with the command: "no cli default prompt confirm-reset".
keep-basic
Preserves licenses in the running configuration file
keep-virt-vols
Preserve all virtual disk volumes
only-config
Removes configuration files only. The logs, stats, images, snapshots, history, and known hosts are preserved.
halt
The system is halted after this process completes
Default
N/A
Configuration Mode config
History
3.1.0000
3.4.0000
Added notes and "keep-virt-vols" parameter
3.6.2002
Updated Example and Notes
Role
admin
Example
switch (config) # reset factory Warning - confirming will cause system reboot. Type 'YES' to confirm reset: YES Resetting and rebooting the system -- please wait... ...
Related Commands reload
Notes
� Effects of parameter "keep-all-cofig": Licenses � not deleted; profile � no change; configuration � unchanged; management IP � unchanged
� Effects of parameter "keep-basic": Licenses � not deleted; profile � reset; configuration � reset; management IP � reset
� Effects of parameter "keep-virt-vols": Licenses � deleted; profile � reset; configuration � reset; management IP � unchanged
� Confirming the command causes system reboot
Mellanox Technologies
.
239
System Management
show files debug-dump
show files debug-dump [<filename>]
Displays a list of debug dump files.
Syntax Description filename
Displays a summary of the contents of a particular debug dump file.
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch [standalone: master] (config) # show files debug-dump sysdump-switch-20170731-161038.tgz switch [standalone: master] (config) # show files debug-dump sysdumpswitch-20170731-161038.tgz ================================================== System information:
Hostname:
switch
Version:
X86_64 3.6.4006 2017-07-03 16:17:39 x86_64
Current time: 2017-07-31 16:10:38
System uptime: 19d 18h 20m 12s
==================================================
================================================== Output of 'uname -a':
Linux switch 3.10.0-327.36.3.el7smp-x86_64 X86_64 jenkins #1 2017-06-27 12:34:55 SMP x86_64 x86_64 x86_64 GNU/Linux
Related Commands Notes
==================================================
file debug-dump
Mellanox Technologies
.
240
System Management
show files stats
show files stats <filename>
Displays a list of statistics report files.
Syntax Description filename
Display the contents of a particular statistics report file.
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show files stats memory-201140524-111745.csv switch (config) #
file stats
Notes
Mellanox Technologies
.
241
System Management
show files system
show files system [detail]
Displays usage information of the file systems on the system.
Syntax Description detail
Displays more detailed information on file-system
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # show files system
Statistics for /config filesystem:
Bytes Total
100 MB
Bytes Used
3 MB
Bytes Free
97 MB
Bytes Percent Free 97%
Bytes Available
97 MB
Inodes Total
0
Inodes Used
0
Inodes Free
0
Inodes Percent Free 0%
Related Commands Notes
Statistics for /var filesystem:
Bytes Total
860 MB
Bytes Used
209 MB
Bytes Free
651 MB
Bytes Percent Free 75%
Bytes Available
651 MB
Inodes Total
0
Inodes Used
0
Inodes Free
0
Inodes Percent Free 0%
switch (config) #
N/A
Mellanox Technologies
.
242
show files tcpdump
show files tcpdump
Displays a list of statistics report files.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # show files stats test dump3 switch (config) #
Related Commands file tcpdump tcpdump
Notes
System Management
Mellanox Technologies
.
243
System Management
4.5.5.2 Configuration Files
configuration audit
configuration audit max-changes <number>
Chooses settings related to configuration change auditing.
Syntax Description max-changes
Set maximum number of audit messages to log per change.
Default
1000
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # configuration audit max-changes 100 switch (config) # show configuration audit Maximum number of changes to log: 100 switch (config) #
Related Commands show configuration
Notes
N/A
Mellanox Technologies
.
244
System Management
configuration copy
configuration copy <source name> <dest name>
Copies a configuration file.
Syntax Description source name
Name of source file.
dest name
Name of destination file. If the file of specified filename does not exist a new file will be created with said filename.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # configuration copy initial.bak example switch (config) #
Related Commands
Notes
� This command does not affect the current running configuration � The active configuration file may not be the target of a copy. However, it may be
the source of a copy in which case the original remains active.
Mellanox Technologies
.
245
System Management
configuration delete
configuration delete <filename>
Deletes a configuration file.
Syntax Description filename
Name of file to delete.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show configuration files
example
initial
initial.bak initial.prev
switch (config) # configuration delete example
switch (config) # show configuration files
initial
initial.bak initial.prev
switch (config) #
Related Commands show configuration
Notes
� This command does not affect the current running configuration � The active configuration file may not be deleted
Mellanox Technologies
.
246
System Management
configuration fetch
configuration fetch <URL> [<name>]
Downloads a configuration file from a remote host.
Syntax Description URL
HTTP, HTTPS, FTP, TFTP, SCP and SFTP are supported. Example: scp://username[:password]@hostname/path/filename.
name
The configuration file name.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # configuration fetch scp://root:password@ 192.168.10.125/tmp/conf1 switch (config) #
Related Commands configuration switch-to
Notes
� The downloaded file should not override the active configuration file, using the <name> parameter
� If no name is specified for a configuration fetch, it is given the same name as it had on the server
� No configuration file may have the name "active"
Mellanox Technologies
.
247
System Management
configuration jump-start
configuration jump-start
Runs the initial-configuration wizard.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # configuration jump-start Mellanox configuration wizard Step 1: Hostname? [switch-3cc29c] Step 2: Use DHCP on mgmt0 interface? y Step 3: Admin password (Enter to leave unchanged)? You have entered the following information: 1. Hostname: switch-3cc29c 2. Use DHCP on mgmt0 interface: yes 3. Enable IPv6: yes 4. Enable IPv6 autoconfig (SLAAC) on mgmt0 interface: yes 53. Admin password (Enter to leave unchanged): (unchanged) To change an answer, enter the step number to return to. Otherwise hit <enter> to save changes and exit. Choice: Configuration changes saved. switch (config) #
N/A
Notes
� The wizard is automatically invoked whenever the CLI is launched when the active configuration file is fresh (i.e. not modified from its initial contents)
� This command invokes the wizard on demand � see chapter "Initializing the Switch for the First Time" in the MLNX-OS User Manual
Mellanox Technologies
.
248
System Management
configuration merge
configuration merge <filename>
Merges the "shared configuration" from one configuration file into the running configuration.
Syntax Description filename
Name of file from which to merge settings
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # configuration merge new-config-file switch (config) #
Notes
� No configuration files are modified during this process � The configuration filename must be a non-active configuration file
Mellanox Technologies
.
249
System Management
configuration move
configuration move <source name> <dest name>
Moves a configuration file.
Syntax Description source name
Old name of file to move.
dest name
New name for moved file.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show configuration files
example1
initial
initial.bak initial.prev
switch (config) # configuration move example1 example2
switch (config) # show configuration files
example2
initial
initial.bak initial.prev
switch (config) #
Related Commands show configuration
Notes
� This command does not affect the current running configuration � The active configuration file may not be the target of a move
Mellanox Technologies
.
250
System Management
configuration new
configuration new <filename> [factory [keep-basic] [keep-connect]]
Creates a new configuration file under the specified name. The parameters specify what configuration, if any, to carry forward from the current running configuration.
Syntax Description filename
Names for new configuration file.
factory
Creates new file with only factory defaults.
keep-basic
Keeps licenses and host keys.
keep-connect
Keeps configuration necessary for connectivity (interfaces, routes, and ARP).
Default
Keeps licenses and host keys
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show configuration files
initial
initial.bak initial.prev
switch (config) # configuration new example2
switch (config) # show configuration files
example2
initial
initial.bak initial.prev
switch (config) #
show configuration
Notes
Mellanox Technologies
.
251
System Management
configuration revert
configuration revert {factory [keep-basic | keep-connect]| saved}
Reverts the system configuration to a previous state.
Syntax Description factory
Creates new file with only factory defaults.
keep-basic
Keeps licenses and host keys.
keep-connect
Keeps configuration necessary for connectivity (interfaces, routes, and ARP).
saved
Reverts running configuration to last saved configuration.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # configuration revert saved switch (config) #
Related Commands show configuration
Notes
This command is only available when working with an InfiniBand profile This command is not available on IB multi-SWID system profile
Mellanox Technologies
.
252
System Management
configuration switch-to
configuration switch-to <filename> [no-reboot]
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Loads the configuration from the specified file and makes it the active configuration file.
no-reboot
Forces configuration change without rebooting the switch
N/A
config
3.1.0000
3.6.1002
Added "no-reboot" option
admin
switch (config) # show configuration files initial (active) newcon initial.prev initial.bak switch (config) # configuration switch-to newcon no-reboot switch (config) # show configuration files initial newcon (active) initial.prev initial.bak switch (config) #
show configuration files
� The current running configuration is lost and not automatically saved to the previous active configuration file.
� When running the command without the "no-reboot" parameter, the user is prompted to OK a reboot. If the answer is "yes", the configuration is replaced and the switch is rebooted immediately.
Mellanox Technologies
.
253
System Management
configuration text fetch
configuration text fetch <URL> [apply [discard | fail-continue | filename | overwrite | verbose] | filename <filename> | overwrite [apply | filename <filename>]]
Fetches a text configuration file (list of CLI commands) from a specified URL.
Syntax Description apply
Applies the file to the running configuration (i.e. executes the commands in it). This option has the following parameters: � discard: Does not keep downloaded configuration
text file after applying it to the system � fail-continue: If applying commands, continues
execution even if one of them fails � overwrite: If saving the file and the filename
already exists, replaces the old file � verbose: Displays all commands being executed
and their output instead of just those that get errors
filename
Specifies filename for saving downloaded text file.
overwrite
Downloads the file and saves it using the same name it had on the server. This option has the following parameters: � apply: Applies the downloaded configuration to the
running system � filename: Specifies filename for saving downloaded
text file
Default
N/A
Configuration Mode config
History
3.2.1000
3.2.3000
Updated command
Role
admin
Example
switch (config) # configuration fetch text scp://username[:password]@hostname/path/filename
Related Commands N/A
Notes
Mellanox Technologies
.
254
System Management
configuration text file
configuration text file <filename> {apply [fail-continue] [verbose] | delete | rename <filename> | upload < URL>}
Performs operations on text-based configuration files.
Syntax Description filename <file>
Specifies the filename
apply
Applies the configuration on the system
fail-continue
Continues execution of the commands even if some commands fail
verbose
Displays all commands being executed and their output, instead of just those that get errors
delete
Deletes the file
rename <filename>
Renames the file
upload <URL>
Supported types are HTTP, HTTPS, FTP, TFTP, SCP and SFTP. For example: scp://username[:password]@hostname/path/filename.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # configuration text file my-config-file delete switch (config) #
Related Commands show configuration files
Notes
Mellanox Technologies
.
255
System Management
configuration text generate
configuration text generate {active {running | saved} | file <filename> } {save <filename> | upload <URL>}
Generates a new text-based configuration file from this system's configuration.
Syntax Description active
Generates from currently active configuration.
running
Uses running configuration.
saved
Uses saved configuration.
file <filename>
Generates from inactive saved configuration.
save
Saves new file to local persistent storage.
upload <URL>
Supported types are HTTP, HTTPS, FTP, TFTP, SCP and SFTP. For example: scp://username[:password]@hostname/path/filename.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # configuration text generate file initial.prev save
example
switch (config) # show configuration files
initial (active)
initial.prev
initial.bak
Active configuration: initial
Unsaved changes:
yes
switch (config) #
Related Commands show configuration files
Notes
Mellanox Technologies
.
256
System Management
configuration upload
configuration upload {active | <name>} <URL or scp or sftp://username:password@hostname[:port]/path/filename>
Uploads a configuration file to a remote host.
Syntax Description active
Upload the active configuration file.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # configuration upload active scp://root:password@ 192.168.10.125/tmp/conf1 switch (config) #
N/A
Notes
No configuration file may have the name "active".
Mellanox Technologies
.
257
System Management
configuration write
configuration write [local | to <filename> [no-switch]]
Saves the running configuration to the active configuration file.
Syntax Description local
Saves the running configuration locally (same as "write memory local")
to <filename>
Saves the running configuration to a new file under a different name and makes it the active file
no-switch
Saves the running configuration to this file but keep the current one active
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # configuration write switch (config) #
Related Commands write
Notes
Mellanox Technologies
.
258
System Management
write
write {memory [local] | terminal}
Saves or displays the running configuration.
Syntax Description memory
Saves running configuration to the active configuration file. It is the same as "configuration write".
local
Saves the running configuration only on the local node.
It is the same as "configuration write local".
terminal
Displays commands to recreate current running configuration. It is the same as "show running-config".
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # write terminal ## ## Running database "initial" ## Generated at 20114/05/27 10:05:16 +0000 ## Hostname: switch ## ## ## Network interface configuration ## interface mgmt0 comment "" interface mgmt0 create interface mgmt0 dhcp interface mgmt0 display interface mgmt0 duplex auto interface mgmt0 mtu 1500 no interface mgmt0 shutdown interface mgmt0 speed auto no interface mgmt0 zeroconf ## ## Local user account configuration ## username a** capability admin no username a** disable username a** disable password ...... switch (config) #
show running-config configuration write
Notes
Mellanox Technologies
.
259
System Management
show configuration
show configuration [audit | files [<filename>] | running | text files]
Syntax Description
Default Configuration Mode History Role Example
Displays a list of CLI commands that will bring the state of a fresh system up to match the current persistent state of this system.
audit
Displays settings for configuration change auditing.
files [<filename>]
Displays a list of configuration files in persistent storage if no filename is specified. If a filename is specified, it displays the commands to recreate the configuration in that file. In the latter case, only nondefault commands are shown, as for the normal "show configuration" command.
running
Displays commands to recreate current running configuration. Same as "show configuration" except that it applies to the currently running configuration, rather than the current persisted configuration.
text files
Displays names of available text-based configuration files.
N/A
config
3.1.0000
3.3.5006
Removed "running full" and "full" parameters
monitor/admin
switch (config) # show configuration ## ## Active saved database "newcon" ## Generated at 20114/05/25 10:18:52 +0000 ## Hostname: switch-3cc29c ## ## ## Network interface configuration ## interface mgmt0 comment "" interface mgmt0 create interface mgmt0 dhcp interface mgmt0 display interface mgmt0 duplex auto interface mgmt0 mtu 1500 no interface mgmt0 shutdown interface mgmt0 speed auto no interface mgmt0 zeroconf switch (config) #
Mellanox Technologies
.
260
Related Commands Notes
System Management
Mellanox Technologies
.
261
System Management
show running-config
show running-config [expanded | protocol <protocol>]
Displays commands to recreate current running configuration.
Syntax Description expanded
Displays commands in expanded format without compressing ranges
protocol
Only displays commands relating to the specified protocol
Default
N/A
Configuration Mode config
History
3.1.0000
3.3.4402
Removed "full" parameter
3.6.2002
Updated Example and added parameters
3.6.3640
Added support for forwarding mode configuration
Role
monitor/admin
Mellanox Technologies
.
262
System Management
Example
Related Commands Notes
switch (config) # show running-config ## ## Running database "initial" ## Generated at 2018/07/25 19:34:11 +0000 ## Hostname: switch ##
## ## Running-config temporary prefix mode setting ## no cli default prefix-modes enable
## ## License keys ##
license install <license>
## ## Other IP configuration ##
hostname switch
## ## Local user account configuration ##
username root nopassword
## ## AAA remote server configuration ## # ldap bind-password ******** # radius-server key ******** # tacacs-server key ********
## ## SNMP configuration ##
snmp-server user 7YLAyJrC77 v3 capability admin snmp-server user 7YLAyJrC77 v3 enable snmp-server user 7YLAyJrC77 v3 enable sets no snmp-server user 7YLAyJrC77 v3 require-privacy snmp-server user kRg5dmdogX v3 capability admin snmp-server user kRg5dmdogX v3 enable snmp-server user kRg5dmdogX v3 enable sets no snmp-server user kRg5dmdogX v3 require-privacy
## ## Network management configuration ## # web proxy auth basic password ********
## ## Persistent prefix mode setting ## cli default prefix-modes enable
Mellanox Technologies
.
263
System Management
4.6 Logging
4.6.1
Monitor
To print logging events to the terminal: Set the modules or events you wish to print to the terminal. For example, run:
switch (config) # logging monitor events notice switch (config) # logging monitor sx-sdk warning
These commands print system events in severity "notice" and "sx-sdk" module notifications in severity "warning" to the screen. For example, in case of interface-down event, the following gets printed to the screen.
switch (config) # Wed Jul 10 11:30:42 2013: Interface IB1/17 changed state to DOWN Wed Jul 10 11:30:43 2013: Interface IB1/18 changed state to DOWN
To see a list of the events, refer to Table 25, "Supported Event Notifications and MIB Mapping," on page 298.
4.6.2
Remote Logging
To configure remote syslog to send syslog messages to a remote syslog server: Step 1. Enter Config mode. Run:
switch > switch > enable switch # configure terminal
Step 2. Set remote syslog server. Run
switch (config) # logging <IP address/hostname>
Step 3. (Optional) Set the destination port of the remote host. Run:
switch (config) # logging <IP address/hostname> port <port>
Step 4. Set the minimum severity of the log level to info. Run:
switch (config) # logging <IP address/hostname> trap info
Step 5. Override the log levels on a per-class basis. Run:
switch (config) # logging <IP address/hostname> trap override class <class name> priority <level>
Mellanox Technologies
.
264
System Management
4.6.3 Commands
logging port
logging <syslog IPv4 address/hostname> port <destination-port> no logging <syslog IPv4 address/hostname> port
Configures remote server destination port for log messages. The no form of the command resets the remote log port to its default value.
Syntax Description destination-port
Range: 1-65535
Hostname
Max 64 characters
Default
514 (UDP)
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # logging 10.0.0.1 port 105
Related Commands logging <syslog IPv4 address/hostname> trap
Notes
Mellanox Technologies
.
265
System Management
logging trap
Syntax Description
logging <syslog IPv4 address/hostname> [trap {<log-level> | override class <class> priority <log-level>}] no logging <syslog IPv4 address/hostname> [trap {<log-level> | override class <class> priority <log-level>}]
Enables (by setting the IPv4 address/hostname) sending logging messages, with ability to filter the logging messages according to their classes. The no form of the command stops sending messages to the remote syslog server.
syslog IPv4 address/host- IPv4 address/hostname of the remote syslog server.
name
Hostname is limited to 64 characters
log-level
� alert � alert notification, action must be taken immediately
� crit � critical condition � debug � debug level messages � emerg � system is unusable (emergency) � err � error condition � info � informational condition � none � disables the logging locally and remotely � notice � normal, but significant condition � warning � warning condition
class
Sets or removes a per-class override on the logging
level. All classes which do not have an override set will
use the global logging level set with "logging local
<log level>". Classes that do have an override will do
as the override specifies. If "none" is specified for the
log level, the software will not log anything from this
class.
Classes available:
� iss-modules � protocol stack
� mgmt-back � system management back-end
� mgmt-core � system management core
� mgmt-front � system management front-end
� mlx-daemons � management daemons
� sx-sdk � switch SDK
log-level
� alert � alert notification, action must be taken immediately
� crit � critical condition � debug � debug level messages � emerg � system is unusable (emergency) � err � error condition � info � informational condition � none � disables the logging locally and remotely � notice � normal, but significant condition � warning � warning condition
Mellanox Technologies
.
266
Default
Remote logging is disabled
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # logging local info
Related Commands
show logging logging local override logging <syslog IPv4 address/hostname> port
Notes
System Management
Mellanox Technologies
.
267
System Management
logging debug-files
logging debug-files {delete {current | oldest} | rotation {criteria | force | maxnum} | update {<number> | current} | upload <log-file> <upload URL>}
Configures settings for debug log files.
Syntax Description delete {current | oldest}
Deletes certain debug-log files. � current: Deletes the current active debug-log file � oldest: Deletes some of the oldest debug-log files
rotation {criteria {frequency {daily | weekly | monthly} | size <size> | size-pct <percentage>} | force | max-num}
Configures automatic rotation of debug-logging files. � criteria: Sets how the system decides when to rotate
debug files. � frequency: Rotate log files on a fixed time-based
schedule � size: Rotate log files when they pass a size threshold
in megabytes � size-pct: Rotate logs when they surpass a specified
percentage of disk � forces: Forces an immediate rotation of the log files � max-num: Specifies the maximum number of old
log files to keep
update {<number> | current}
Uploads a local debug-log file to a remote host. � current: Uploads log file "messages" to a remote
host � number: Uploads compressed log file
"debug.<number>.gz" to a remote host. Range is 110
upload
Uploads debug log file to a remote host
log-file
Possible values: 1-7, or current
upload URL
HTTP, HTTPS, FTP, TFTP, SCP and SFTP are supported (e.g.: scp://username[:password]@hostname/ path/filename)
Default
N/A
Configuration Mode config
History
3.3.4150
Role
admin
Example
switch (config) # logging debug-files delete current switch (config) #
Related Commands
Notes
Mellanox Technologies
.
268
System Management
logging event enable
logging events {cpu-rate-limiters | interfaces | protocols} enable no logging events {cpu-rate-limiters | interfaces | protocols} enable
Activate event tracking for a certain group. The no form of the command deactivates event tracking for a certain group.
Syntax Description
cpu-rate-limiters | interfaces | protocols
Logical groups with specified set of counters
Default
N/A
Configuration Mode config
History
3.6.6000
Role
admin
Example
switch (config) # logging events interfaces enable
Related Commands
Notes
Mellanox Technologies
.
269
System Management
logging event error-threshold
logging events {interfaces | protocols} error-threshold <events> no logging events {interfaces | protocols} error-threshold <events>
Configures number of events after which the system begins to generate events to the log file. The no form of the command resets this parameter to its default value.
Syntax Description interfaces
Sets threshold for interface related events
protocols
Sets threshold for protocol related events
events
Number of events after which the system begins to generate events to the log file. Range: 0-4294967295.
Default
interfaces � 10 events protocols � 2 events
Configuration Mode config
History
3.6.6000
Role
admin
Example
switch (config) # logging events interfaces error-threshold 45
Related Commands
Notes
Mellanox Technologies
.
270
System Management
logging event interval
logging events {interfaces | protocols} interval <seconds> no logging events {interfaces | protocols} interval <seconds>
Configures interval in seconds between each sampling of counters in event type. The no form of the command resets this parameter to its default value.
Syntax Description interfaces | protocols
Logical groups with specified set of counters
seconds
Time between sampling. Range is different for each event type: � interfaces � 10-3600 � protocols � 10-3600
Default
interfaces � 5 minutes protocols � 1 minute
Configuration Mode config
History
3.6.6000
Role
admin
Example
switch (config) # logging events interfaces interval 120
Related Commands
Notes
Mellanox Technologies
.
271
System Management
logging event rate-limit
logging events [interfaces | protocols] rate-limit {short | medium | long} [count | window] no logging events [interfaces | protocols] rate-limit [short | medium | long] [count <number> | window <seconds>]
Syntax Description Default
Configures the number of allowed events per time window and that window's duration. The no form of the command resets these parameters to their default values.
interfaces | protocols
Logical groups with specified set of counters
rate-limit
Three configurable periods: short, medium, and long
count
Number of allowed events per time window
window
Window of time in seconds for the rate limit period
For "interfaces"
For "protocols"
Short window: event count � 5 window duration � 1 hour
Short window: event count � 10 window duration � 1 hour
Medium window: event count � 50 window duration � 1 day
Medium window: event count � 100 window duration � 1 day
Configuration Mode History Role Example Related Commands Notes
Long window: event count � 350 window duration � 7 days
config
Long window: event count � 600 window duration � 7 days
3.6.6000 admin
switch (config) # logging events interfaces interval 120
� The goal of this command is to restrict the number of events in the log. To achieve this end, it is possible to specify the allowed number (parameter "count") of messages per period of time (parameter "window").
Mellanox Technologies
.
272
System Management
logging fields
logging fields seconds {enable | fractional-digits <f-digit> | whole-digits <wdigit>} no logging fields seconds {enable | fractional-digits <f-digit> | whole-digits <wdigit>}
Specifies whether to include an additional field in each log message that shows the number of seconds since the Epoch or not. The no form of the command disallows including an additional field in each log message that shows the number of seconds since the Epoch.
Syntax Description enable
Specifies whether to include an additional field in each log message that shows the number of seconds since the Epoch or not.
f-digit
The fractional-digits parameter controls the number of digits to the right of the decimal point. Truncation is done from the right. Possible values are: 1, 2, 3, or 6.
w-digit
The whole-digits parameter controls the number of digits to the left of the decimal point. Truncation is done from the left. Except for the year, all of these digits are redundant with syslog's own date and time. Possible values: 1, 6, or all.
Default
disabled
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # logging fields seconds enable switch (config) # logging fields seconds whole-digits 1 switch (config) # show logging Local logging level: info
Override for class mgmt-front: warning Default remote logging level: notice No remote syslog servers configured. Allow receiving of messages from remote hosts: no Number of archived log files to keep: 10 Log rotation size threshold: 5.000% of partition (43 megabytes) Log format: standard Subsecond timestamp field: enabled Subsecond timestamp precision: 1 whole digit; 3 fractional digits Levels at which messages are logged:
CLI commands: notice Audit messages: notice switch (config) #
Mellanox Technologies
.
273
System Management
Related Commands Notes
show logging
This is independent of the standard syslog date and time at the beginning of each message in the format of "July 15 18:00:00". Aside from indicating the year at full precision, its main purpose is to provide subsecond precision.
Mellanox Technologies
.
274
System Management
logging files delete
logging files delete {current | oldest [<number of files>]}
Deletes the current or oldest log files.
Syntax Description current
Deletes current log file.
oldest
Deletes oldest log file.
number of files
Sets the number of files to be deleted.
Default
CLI commands and audit message are set to notice logging level
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # logging files delete current switch (config) #
Related Commands show logging show log files
Notes
Mellanox Technologies
.
275
System Management
logging files rotation
logging files rotation {criteria { frequency <freq> | size <size-mb>| size-pct <sizepercentage>} | force | max-number <number-of-files>}
Sets the rotation criteria of the logging files.
Syntax Description freq
Sets rotation criteria according to time. Possible options are: � Daily � Weekly � Monthly
size-mb
Sets rotation criteria according to size in mega bytes. The range is 1-9999.
size-percentage
Sets rotation criteria according to size in percentage of the partition where the logging files are kept in. The percentage given is truncated to three decimal points (thousandths of a percent).
force
Forces an immediate rotation of the log files. This does not affect the schedule of auto-rotation if it was done based on time: the next automatic rotation will still occur at the same time for which it was previously scheduled. Naturally, if the auto-rotation was based on size, this will delay it somewhat as it reduces the size of the active log file to zero.
number-of-files
The number of log files will be kept. If the number of log files ever exceeds this number (either at rotation time, or when this setting is lowered), the system will delete as many files as necessary to bring it down to this number, starting with the oldest.
Default
10 files are kept by default with rotation criteria of 5% of the log partition size
Configuration Mode config
History
3.1.0000
Role
admin
Mellanox Technologies
.
276
System Management
Example
Related Commands Notes
switch (config) # logging files rotation criteria size-pct 6 switch (config) # show logging Local logging level: info
Override for class mgmt-front: warning Default remote logging level: notice No remote syslog servers configured. Allow receiving of messages from remote hosts: no Number of archived log files to keep: 10 Log rotation size threshold: 6.000% of partition (51.60 megabytes) Log format: standard Subsecond timestamp field: enabled Subsecond timestamp precision: 1 whole digit; 3 fractional digits Levels at which messages are logged:
CLI commands: info Audit messages: notice switch (config)
show logging show log files
Mellanox Technologies
.
277
System Management
logging files upload
logging files upload {current | <file-number>} <url>
Uploads a log file to a remote host.
Syntax Description current
The current log file. The current log file will have the name "messages" if you do not specify a new name for it in the upload URL.
file-number
An archived log file. The archived log file will have the name "messages<n>.gz" (while "n" is the file number) if you do not specify a new name for it in the upload URL. The file will be compressed with gzip.
url
Uploads URL path.
FTP, TFTP, SCP, and SFTP are supported. For exam-
ple: scp://username[:password]@hostname/path/file-
name.
Default
10 files are kept by default with rotation criteria of 5% of the log partition size
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # logging files upload 1 scp://admin@scpserver
Related Commands show logging show log files
Notes
Mellanox Technologies
.
278
System Management
logging format
logging format {standard | welf [fw-name <hostname>]} no logging format {standard | welf [fw-name <hostname>]}
Sets the format of the logging messages. The no form of the command resets the format to its default.
Syntax Description standard
Standard format.
welf
WebTrends Enhanced Log file (WELF) format.
hostname
Specifies the firewall hostname that should be associated with each message logged in WELF format. If no firewall name is set, the hostname is used by default. hostname is limited to 64 characters.
Default
standard
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # logging format standard switch (config) # show logging Local logging level: info Default remote logging level: notice No remote syslog servers configured. Allow receiving of messages from remote hosts: yes Number of archived log files to keep: 10 Log rotation size threshold: 5.000% of partition (43 megabytes) Log format: standard Subsecond timestamp field: disabled Levels at which messages are logged:
CLI commands: notice Audit messages: notice switch (config) #
Related Commands show logging
Notes
Mellanox Technologies
.
279
System Management
logging level
logging level {cli commands <log-level> | audit mgmt <log-level>}
Sets the severity level at which CLI commands or the management audit message that the user executes are logged. This includes auditing of both configuration changes and actions.
Syntax Description cli commands
Sets the severity level at which CLI commands which the user executes are logged.
audit mgmt
Sets the severity level at which all network management audit messages are logged.
log-level
� alert � alert notification, action must be taken immediately
� crit � critical condition � debug � debug level messages � emerg � system is unusable (emergency) � err � error condition � info � informational condition � none � disables the logging locally and remotely � notice � normal, but significant condition � warning � warning condition
Default
CLI commands and audit message are set to notice logging level
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # logging level cli commands info switch (config) # show logging Local logging level: info
Override for class mgmt-front: warning Default remote logging level: notice No remote syslog servers configured. Allow receiving of messages from remote hosts: no Number of archived log files to keep: 10 Log rotation size threshold: 5.000% of partition (43 megabytes) Log format: standard Subsecond timestamp field: enabled Subsecond timestamp precision: 1 whole digit; 3 fractional digits Levels at which messages are logged:
CLI commands: info Audit messages: notice switch (config) #
Related Commands show logging
Notes
Mellanox Technologies
.
280
System Management
logging local override
logging local override [class <class> priority <log-level>] no logging local override [class <class> priority <log-level>]
Enables class-specific overrides to the local log level. The no form of the command disables all class-specific overrides to the local log level without deleting them from the configuration, but disables them so that the logging level for all classes is determined solely by the global setting.
Syntax Description override
Enables class-specific overrides to the local log level.
class
Sets or removes a per-class override on the logging
level. All classes which do not have an override set will
use the global logging level set with "logging local
<log level>". Classes that do have an override will do
as the override specifies. If "none" is specified for the
log level, the software will not log anything from this
class.
Classes available:
� debug-module - debug module functionality
� protocol-stack - protocol stack modules functional-
ity
� mgmt-back - system management back-end compo-
nents
� mgmt-core - system management core
� mgmt-front - system management front-end compo-
nents
� mlx-daemons - management daemons
� sx-sdk - switch SDK
log-level
� alert - alert notification, action must be taken immediately
� crit - critical condition � debug - debug level messages � emerg - system is unusable (emergency) � err - error condition � info - informational condition � none - disables the logging locally and remotely � notice - normal, but significant condition � warning - warning condition
Default
Override is disabled.
Configuration Mode config
History
3.1.0000
3.3.4150
Added debug-module class Changed iss-modules with protocol-stack
Role
admin
Mellanox Technologies
.
281
System Management
Example
Related Commands Notes
switch (config) # logging local override class mgmt-front priority warning switch (config) # show logging Local logging level: info
Override for class mgmt-front: warning Default remote logging level: notice No remote syslog servers configured. Allow receiving of messages from remote hosts: no Number of archived log files to keep: 10 Log rotation size threshold: 5.000% of partition (43 megabytes) Log format: standard Subsecond timestamp field: disabled Levels at which messages are logged:
CLI commands: notice Audit messages: notice switch (config) #
show logging logging local
Mellanox Technologies
.
282
System Management
logging monitor
logging monitor <facility> <priority-level> no logging monitor <facility> <priority-level>
Sets monitor log facility and level to print to the terminal. The no form of the command disables printing logs of facilities to the terminal.
Syntax Description facility
� mgmt-front � mgmt-back � mgmt-core � events � sx-sdk � mlnx-daemons � iss-modules
priority-level
� none � emerg � alert � crit � err � warming � notice � info � debug
Default
no logging monitor
Configuration Mode config
History
3.3.4000
Role
admin
Example
switch (config) # logging monitor events notice switch (config) #
Related Commands
Notes
Mellanox Technologies
.
283
System Management
logging receive
logging receive no logging receive
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables receiving logging messages from a remote host. The no form of the command disables the option of receiving logging messages from a remote host.
N/A
Receiving logging is disabled
config
3.1.0000
admin
switch (config) # logging receive switch (config) # show logging Local logging level: info Default remote logging level: notice No remote syslog servers configured. Allow receiving of messages from remote hosts: yes Number of archived log files to keep: 10 Log rotation size threshold: 5.000% of partition (43 megabytes) Log format: standard Subsecond timestamp field: disabled Levels at which messages are logged:
CLI commands: notice Audit messages: notice switch (config) #
show logging logging local logging local override
� This does not log to the console TTY port � In-band management should be enabled in order to open a channel from the host
to the CPU � If enabled, only log messages matching or exceeding the minimum severity spec-
ified with the "logging local" command will be logged, regardless of what is sent from the remote host
Mellanox Technologies
.
284
System Management
logging trap
logging trap <log-level> no logging trap
Configures the minimum severity of log messages sent to syslog servers. The no form of the command disables sending event log messages to syslog servers.
Syntax Description log-level
The minimum severity level for all configured syslog servers: � none � disable logging � emerg � emergency: system is unusable � alert � action must be taken immediately � crit � critical conditions � err � error conditions � warning � warning conditions � notice � normal but significant condition � info � informational messages � debug � debug-level messages
Default
Receiving logging is disabled
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # logging trap info switch (config) #
Notes
Mellanox Technologies
.
285
System Management
show log
show log [continuous | files [<file-number>]] [[not] matching <reg-exp>]
Displays the log file with optional filter criteria.
Syntax Description continues
Displays the last few lines of the current log file and then continues to display new lines as they come in until the user hits Ctrl+C, similar to LINUX "tail" utility.
files
Displays the list of log files.
<file-number>
Displays an archived log file, where the number may range from 1 up to the number of archived log files available.
[not] matching <reg-exp>
The file is piped through a LINUX "grep" utility to only include lines either matching, or not matching, the provided regular expression.
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.3.4402
Updated example and added note
Role
admin
Example
switch [standalone: master] (config) # show log matching "Executing|Action" Jul 31 16:11:23 M2100-aj cli[26502]: [cli.NOTICE]: user : Executing command: enable Jul 31 16:11:24 M2100-aj cli[26507]: [cli.NOTICE]: user : Executing command: enable Jul 31 16:11:29 M2100-aj cli[26514]: [cli.NOTICE]: user : Executing command: enable Jul 31 16:11:29 M2100-aj cli[26514]: [cli.NOTICE]: user : Executing command: show license Jul 31 16:11:41 M2100-aj cli[26548]: [cli.NOTICE]: user : Executing command: enable Jul 31 16:11:42 M2100-aj cli[26553]: [cli.NOTICE]: user : Executing command: enable Jul 31 16:11:42 M2100-aj cli[26553]: [cli.NOTICE]: user : Executing command: conf termina
Related Commands
logging fields logging files rotation logging level logging local logging receive show logging
Notes
� When using a regular expression containing | (OR), the expression should be surrounded by quotes ("<expression>"), otherwise it is parsed as filter (PIPE) command.
� The command's output has many of the options as the Linux "less" command. These options allow navigating the log file and perform searches. To see help for different option press "h" after running the "show log" command.
Mellanox Technologies
.
286
System Management
show logging
show logging
Displays the logging configurations.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show logging Local logging level: info
Override for class mgmt-front: warning Default remote logging level: notice No remote syslog servers configured. Allow receiving of messages from remote hosts: no Number of archived log files to keep: 10 Log rotation size threshold: 5.000% of partition (43 megabytes) Log format: standard Subsecond timestamp field: enabled Subsecond timestamp precision: 1 whole digit; 3 fractional digits Levels at which messages are logged:
CLI commands: info Audit messages: notice switch (config) #
logging fields logging files rotation logging level logging local logging receive logging <syslog IPv4 address/hostname>
Notes
Mellanox Technologies
.
287
System Management
show logging events
show logging events [interfaces | protocols]
Displays configuration per selected event group or all.
Syntax Description interfaces | protocols
Logical groups with specified set of counters
Default
N/A
Configuration Mode Any command mode
History
3.6.6000
Role
admin
Example
switch (config) # show logging events
interfaces:
Admin mode
: no
Interval
: 5 minutes
Error threshold: 10
Rate-limit short window: Event count : 5 Window duration: 1 hour
Rate-limit medium window: Event count : 50 Window duration: 1 day
Rate-limit long window: Event count : 350 Window duration: 7 days
Related Commands Notes
protocols:
Admin mode
: no
Interval
: 1 minute
Error threshold: 2
Rate-limit short window: Event count : 10 Window duration: 1 hour
Rate-limit medium window: Event count : 100 Window duration: 1 day
Rate-limit long window: Event count : 600 Window duration: 7 days
Mellanox Technologies
.
288
System Management
show logging events source-counters
show logging events [interfaces | protocols] source-counters
Displays set of counters for sampling.
Syntax Description interfaces | protocols
Logical groups with specified set of counters
Default
N/A
Configuration Mode Any command mode
History
3.6.6000
Role
admin
Example
switch (config) # show logging events interfaces source-counters
Related Commands Notes
interfaces: Counters: Rx discard packets, Rx error packets, Rx fcs errors, Rx
undersize packets, Rx oversize packets, Rx unknown control opcode, Rx symbol errors, Rx discard packets by Storm Control, Tx discard packets, Tx error packets, Tx hoq discard packets
Mellanox Technologies
.
289
System Management
4.7 Link Diagnostic Per Port
4.7.1
General
When debugging a system, it is important to be able to quickly identify the root of a problem. The Diagnostic commands enables an insight into the physical layer components where the user is able to see information such as a cable status (plugged/unplugged) or if Auto-Negotiation has failed.
4.7.2 List of Possible Output Messages
No issue was observed Closed by command Negotiation failure Link training failure Speed logical mismatch Remote faults detected Cable speed not enabled Bad signal integrity Other issues Speed degradation Information unavailable Cable is unplugged Unsupported cable I2C bus is stuck Module memory invalid Module overheated Module short circuit Power budget exceeded Management forced down
Mellanox Technologies
.
290
System Management
4.7.3 Commands
show interfaces ib link-diagnostics
show interfaces ib [device/port] link-diagnostics
Displays a specific InfiniBand module/port or all InfiniBand ports.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.4000
Role
admin
Example
switch (config) # show interfaces ib link-diagnostics
----------------------------------------------------------------------
Interface
Code
Status
----------------------------------------------------------------------
IB1/1
0
The port is Active.
IB1/2
0
The port is Active.
IB1/3
1024
Cable unplugged
IB1/4
1024
Cable unplugged
IB1/5
1024
Cable unplugged
IB1/6
1024
Cable unplugged
IB1/7
1024
Cable unplugged
IB1/8
1024
Cable unplugged
IB1/9
1024
Cable unplugged
IB1/10
1024
Cable unplugged
IB1/11
1024
Cable unplugged
IB1/12
1024
Cable unplugged
IB1/13
1024
Cable unplugged
IB1/14
1024
Cable unplugged
IB1/15
1024
Cable unplugged
IB1/16
1024
Cable unplugged
IB1/17
1024
Cable unplugged
IB1/18
1024
Cable unplugged
IB1/19
1024
Cable unplugged
IB1/20
1024
Cable unplugged
IB1/21
1024
Cable unplugged
IB1/22
1024
Cable unplugged
IB1/23
1024
Cable unplugged
IB1/24
1024
Cable unplugged
IB1/25
1024
Cable unplugged
IB1/26
1024
Cable unplugged
IB1/27
1024
Cable unplugged
IB1/28
1024
Cable unplugged
IB1/29
1024
Cable unplugged
IB1/30
1024
Cable unplugged
IB1/31
1024
Cable unplugged
IB1/32
1024
Cable unplugged
IB1/33
1024
Cable unplugged
IB1/34
1024
Cable unplugged
IB1/35
1
The port is closed by command.
IB1/36
2
Auto-Negotiation failure..
Mellanox Technologies
.
291
Related Commands Notes
System Management
Mellanox Technologies
.
292
System Management
show interfaces ib internal leaf link-diagnostics
show interfaces ib internal leaf <module/port> link-diagnostics
Displays a specific InfiniBand internal leaf module/port.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.4000
Role
admin
Example Related Commands
switch (config) # show interfaces ib internal leaf 1 link-diagnostics
----------------------------------------------------------------------
Interface
Code
Status
----------------------------------------------------------------------
IB1/1/19
0
No issue was observed
IB1/1/20
0
No issue was observed
IB1/1/21
0
No issue was observed
IB1/1/22
0
No issue was observed
IB1/1/23
0
No issue was observed
IB1/1/24
0
No issue was observed
IB1/1/25
0
No issue was observed
IB1/1/26
0
No issue was observed
IB1/1/27
0
No issue was observed
IB1/1/28
0
No issue was observed
IB1/1/29
0
No issue was observed
IB1/1/30
0
No issue was observed
Notes
Mellanox Technologies
.
293
System Management
show interfaces ib internal spine link-diagnostics
show interfaces ib internal spine <module/port> link-diagnostics
Displays a specific InfiniBand internal spine module/port.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.4000
Role
admin
Example
switch (config) # show interfaces ib internal spine 3/1/1 link-diagnos-
tics
-----------------------------------------------------------------------
Interface
Code
Status
-----------------------------------------------------------------------
IB3/1/1
0
No issue was observed
Related Commands
Notes
Mellanox Technologies
.
294
System Management
4.8 Signal Degradation Monitoring
A system can monitor the Bit Error Rate (BER) in order to ensure a quality of the link. As long as BER observed by the LRH layer is low enough, the rate of packet loss is low enough to allow successful operation of the applications running on top of the network.
The system continuously monitors the link BER and compares it to BER limits, when limits are crossed the system can generate an event indicating that link quality is degraded to the network operator that can take preemptive actions or even disable the low quality link.
When Forward Error Correction (FEC) is enabled a network operator can choose to monitor an amount of corrected errors by using the pre-FEC mode, or the amount of errors which the FEC failed to correct (uncorrectable errors) by using the post-FEC mode, when FEC is used then every error detected by the PHY will be monitored.
When link is disabled the system will keep it in shutdown state until either the port is explicitly enabled or the port's module is reinserted.
4.8.1 Effective-BER Monitoring
Effective-BER is the BER that the LRH/Application layer observe. Errors monitored by the Effective-BER may directly result in a packet drop. For links with no error correction, the Effective BER is the BER received by port, and it is monitored based on the received Phy symbols. For links with FEC, the Effective BER represents the rate of errors that the FEC decoder did not manage to correct and were passed to the LRH layer. The Effective BER for FEC links is monitored using the FEC decoder uncorrectable codewords data.
4.8.2
Configuring Signal Degradation Monitoring
Step 1. Enable signal degradation monitoring. Run:
switch (config) # ib 1/3 signal-degrade
If not indicated, the interface is disabled in case of signal degradation. Step 2. (Optional) To prevent the interface from shutting down in case of signal degradation, run:
switch (config) # ib 1/3 signal-degrade no-shutdown
Step 3. (Optional) Enable SNMP notifications on signal degradation events. Run:
switch (config) # snmp notify event health-module-status
Step 4.
Please refer to Section 4.17.1.7, "Configuring an SNMP Notification," on page 494 for a general explanation on how to enable SNMP notifications for specific events.
(Optional) Enable email notifications on signal degradation events. Run:
switch (config) # email notify event health-module-status
Please refer to Section 4.9.4, "Email Notifications," on page 301 for a general explanation on how to enable email notifications for specific events.
Mellanox Technologies
.
295
System Management
4.8.3 Commands
ib signal-degrade
ib <slot>/<port> signal-degrade [no-shutdown] no ib <slot>/<port> signal-degrade [no-shutdown]
Enables signal degradation operation per interface.
Syntax Description no-shutdown
Does not shutdown an affected interface
Default
Disabled
Configuration Mode config
History
3.6.6102
Role
admin
Example
switch (config) #ib 1/1 signal-degrade
Related Commands
Notes
Mellanox Technologies
.
296
System Management
show interfaces ib signal-degrade
show interfaces ib [<slot>/<port>] signal-degrade
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Displays signal degradation information. N/A N/A config 3.6.6102 admin
switch (config) # show interfaces ib signal-degrade
------------------------------------------------------------------------------------------
Interface Physical port state
Monitoring Action
FEC type
------------------------------------------------------------------------------------------
IB1/1
LinkUp
Disabled
Shutdown
no-fec/post-fec
IB1/2
LinkUp
Enabled
Shutdown
no-fec/post-fec
IB1/3
Polling
Disabled
Shutdown
no-fec/post-fec
IB1/4
Polling
Disabled
Shutdown
no-fec/post-fec
IB1/5
Polling
Disabled
Shutdown
no-fec/post-fec
IB1/6
Polling
Disabled
Shutdown
no-fec/post-fec
IB1/7
Polling
Disabled
Shutdown
no-fec/post-fec
...
This command is relevant only for 1U switch systems
Mellanox Technologies
.
297
System Management
4.9 Event Notifications
MLNX-OS features a variety of supported events. Events are printed in the system log file and can, optionally, be sent to the system administrator via email, SNMP trap or directly prompted to the terminal.
4.9.1
Supported Events
Table 25 presents the supported events and maps them to their relevant MIB OID. Table 25 - Supported Event Notifications and MIB Mapping
Event Name asic-chip-down
cpu-util-high
dcbx-ets-portadmin-state-trap dcbx-ets-port-operstate-trap dcbx-ets-port-peerstate-trap dcbx-pfc-modulestate-change dcbx-pfc-portadmin-state-trap dcbx-pfc-port-operstate-trap dcbx-pfc-port-peerstate-trap disk-space-low
health-module- status insufficient-fans
insufficient-fansrecover
insufficient-power
Event Description
ASIC (chip) down
CPU utilization has risen too high
DCBX ETS port admin state trap
DCBX ETS port oper state trap
DCBX ETS port peer state trap
DCBX PFC module state change
DCBX PFC port admin state trap
DCBX PFC port oper state trap
DCBX PFC port peer state trap
File system free space has fallen too low
Health module status changed
Insufficient amount of fans in system
Insufficient amount of fans in system recovered
Insufficient power supply
MIB OID
Mellanox-EFM-MIB: asicChipDown
Mellanox-EFM-MIB: cpuUtilHigh
MELLANOX-DCB-TRAPS-MIB: mellanoxETSPortAdminStateTrap
MELLANOX-DCB-TRAPS-MIB: mellanoxETSPortOperStateTrap
MELLANOX-DCB-TRAPS-MIB: mellanoxETSPortPeerStateTrap
MELLANOX-DCB-TRAPS-MIB: mellanoxPFCModuleStateTrap
MELLANOX-DCB-TRAPS-MIB: mellanoxPFCPortAdminStateTrap
MELLANOX-DCB-TRAPS-MIB: mellanoxPFCPortOperStateTrap
MELLANOX-DCB-TRAPS-MIB: mellanoxPFCPortPeerStateTrap
Mellanox-EFM-MIB: diskSpaceLow
Mellanox-EFM-MIB: systemHealthStatus
Mellanox-EFM-MIB: insufficientFans
Mellanox-EFM-MIB: insufficientFansRecover
Mellanox-EFM-MIB: insufficientPower
Comments Not supported N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
N/A
Mellanox Technologies
.
298
Table 25 - Supported Event Notifications and MIB Mapping
Event Name interface-down
Event Description
An interface's link state has changed to DOWN
MIB OID RFC1213: linkdown (SNMPv1)
interface-up
An interface's link state RFC1213: linkup (SNMPv1) has changed to UP
internal-bus-error Internal bus (I2C) error
internal-link-speed- mismatch
liveness-failure low-power
There is a mismatch in the speeds of the internal links between spine and leaf modules
A process in the system is detected as hung
Low power supply
low-power-recover
mstp-new-bridgeroot
mstp-new-root-port
mstp-topologychange N/A
ospf-auth-fail
ospf-config-error
Low power supply recover
The bridge become the root bridge root of a MSTI
The root port of a MSTI changed
Port in MSTI become forwarding of blocking
Reset occurred due to over-heating of ASIC
OSPF authentication failure
OSPF config error
ospf-if-rx-badpacket ospf-if-state-change
ospf-lsdb-approaching-overflow
Bad OSPF packet received
OSPF interface state change
OSPF LSDB is approaching overflow
Mellanox-EFM-MIB: internalBusError Mellanox-EFM-MIB: internalSpeedMismatch
Not implemented
Mellanox-EFM-MIB: lowPower Mellanox-EFM-MIB: lowPowerRecover MELLANOX-MSTP-MIB: mstpRootBridgeChange
MELLANOX-MSTP-MIB: mstpRootPortChange MELLANOX-MSTP-MIB: mstpTopologyChange Mellanox-EFM-MIB: asicOverTempReset OSPF-TRAP-MIB: ospfIfAuthFailure OSPF-TRAP-MIB: ospfIfConfigError OSPF-TRAP-MIB: ospfIfRxBadPacket OSPF-TRAP-MIB: ospfIfStateChange OSPF-TRAP-MIB: ospfLsdbApproachingOverflow
System Management
Comments Supported for InfiniBand and management interfaces for 1U and blade systems Supported for InfiniBand and management interfaces for 1U and blade systems N/A
Supported only for director switches
N/A
N/A
N/A
N/A
N/A
N/A
Not supported
N/A
N/A
N/A
N/A
Not supported
Mellanox Technologies
.
299
System Management
Table 25 - Supported Event Notifications and MIB Mapping
Event Name ospf-lsdb-overflow
ospf-nbr-statechange paging-high
power-redundancymismatch process-crash
process-exit
send-test
Event Description
OSPF LSDB overflow
OSPF neighbor state change Paging activity has risen too high Power redundancy mismatch A process in the system has crashed A process in the system unexpectedly exited Send a test notification
MIB OID
OSPF-TRAP-MIB: ospfLsdbOverflow OSPF-TRAP-MIB: ospfNbrStateChange N/A
Mellanox-EFM-MIB: powerRedundancyMismatch Mellanox-EFM-MIB: procCrash Mellanox-EFM-MIB: procUnexpectedExit testTrap
snmp-authtrap
temperature-toohigh unexpected- shutdown xstp-new-rootbridge xstp-root-portchange xstp-topologychange
An SNMPv3 request has failed authentication
Temperature is too high
Unexpected system shutdown
The bridge became the root bridge of STI
XSTP root port changed
Port in pvrst become forwarding of blocking
Not implemented
Mellanox-EFM-MIB: asicOverTemp Mellanox-EFM-MIB: unexpectedShutdown MELLANOX-XSTP-MIB: mellanoxXstpRootBridgeChange MELLANOX-XSTP-MIB: mellanoxXstpRootPortChange MELLANOX-XSTP-MIB: mellanoxXstpTopologyChange
Comments Not supported
N/A
Not supported
Supported only for director switches N/A
N/A
Run CLI command # snmp-server notify send-test N/A
N/A
N/A
N/A
N/A
N/A
4.9.2
SNMP Trap Notifications
To set SNMP notification see Section 4.17.1.7, "Configuring an SNMP Notification," on page 494.
4.9.3
Terminal Notifications
To print events to the terminal: Set the events you wish to print to the terminal. Run:
switch (config) # logging monitor events notice
Mellanox Technologies
.
300
System Management
This command prints system events in the severity "notice" to the screen. For example, in case of interface-down event, the following gets printed to the screen.
switch (config) # Wed Jul 10 11:30:42 2013: Interface IB1/17 changed state to DOWN Wed Jul 10 11:30:43 2013: Interface IB1/18 changed state to DOWN switch (config) #
4.9.4
Email Notifications
To configure MLNX-OS to send you emails for all configured events and failures: Step 1. Enter to Config mode. Run:
switch > switch > enable switch # configure terminal
Step 2. Set your mailhub to the IP address to be your mail client's server � for example, Microsoft Outlook exchange server.
switch (config) # email mailhub <IP address>
Step 3. Add your email address for notifications. Run:
switch (config) # email notify recipient <email address>
Step 4. Configure the system to send notifications for a specific event. Run:
switch (config) # email notify event <event name>
Step 5. Show the list of events for which an email is sent. Run:
switch (config) # show email events Failure events for which emails will be sent:
process-crash: A process in the system has crashed unexpected-shutdown: Unexpected system shutdown
Step 6.
Informational events for which emails will be sent: asic-chip-down: ASIC (Chip) Down cpu-util-high: CPU utilization has risen too high cpu-util-ok: CPU utilization has fallen back to normal levels disk-io-high: Disk I/O per second has risen too high disk-io-ok: Disk I/O per second has fallen back to acceptable levels disk-space-low: Filesystem free space has fallen too low
. . . switch (config) #
Have the system send you a test email. Run:
switch # email send-test
The last command should generate the following email: -----Original Message----From: Admin User [mailto:do-not-reply@switch.]
Mellanox Technologies
.
301
System Management
Sent: Sunday, May 01, 2011 11:17 AM To: <name> Subject: System event on switch: Test email for event notification
==== System information: Hostname: switch Version: <version> 2011-05-01 14:56:31
... Date: 2011/05/01 08:17:29 Uptime: 17h 8m 28.060s
This is a test email. ==== Done.
Mellanox Technologies
.
302
System Management
4.9.5 Commands
4.9.5.1 Email Notification
email autosupport enable
email autosupport enable no email autosupport enable
Sends automatic support notifications via email. The no form of the command stops sending automatic support notifications via email.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # email autosupport enable
Related Commands N/A
Notes
Mellanox Technologies
.
303
System Management
email autosupport event
email autosupport event <event> no email autosupport event
Syntax Description
Specifies for which events to send auto-support notification emails. The no form of the command resets auto-support email security mode to its default.
event
� process-crash � a process has crashed � process-exit � a process unexpectedly exited � liveness-failure � a process iss detected as hung � cpu-util-high � CPU utilization has risen too high � cpu-util-ok � CPU utilization has fallen back to normal
levels � paging-high � paging activity has risen too high � paging-ok � paging activity has fallen back to normal lev-
els � disk-space-low � filesystem free space has fallen too low � disk-space-ok � filesystem free space is back in the nor-
mal range � memusage-high � memory usage has risen too high � memusage-ok � memory usage has fallen back to accept-
able levels � netusage-high � network utilization has risen too high � netusage-ok � network utilization has fallen back to
acceptable levels � disk-io-high � disk I/O per second has risen too high � disk-io-ok � disk I/O per second has fallen back to accept-
able � levels � unexpected-cluster-join � node has unexpectedly joined
the cluster � unexpected-cluster-leave � node has unexpectedly left the
cluster � unexpected-cluster-size � the number of nodes in the
cluster is unexpected � unexpected-shutdown � unexpected system shutdown � interface-up � an interface's link state has changed to up � interface-down � an interface's link state has changed to
down � user-login � a user has logged into the system � user-logout � a user has logged out of the system � health-module-status � health module status � temperature-too-high � temperature has risen too high � low-power � low power supply � low-power-recover � low power supply recover � insufficient-power � insufficient power supply � power-redundancy-mismatch � power redundancy mis-
match � insufficient-fans � insufficient amount of fans in system � insufficient-fans-recover � insufficient amount of fans in
system recovered
Mellanox Technologies
.
304
System Management
� asic-chip-down � ASIC (chip) down � internal-bus-error � internal bus (I2C) error � internal-link-speed-mismatch � internal links speed mis-
match
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # email autosupport event process-crash
Related Commands N/A
Notes
Mellanox Technologies
.
305
System Management
email autosupport ssl mode
email autosupport ssl mode {none | tls | tls-none} no email autosupport ssl mode
Configures type of security to use for auto-support email. The no form of the command resets auto-support email security mode to its default.
Syntax Description none
Does not use TLS to secure auto-support email.
tls
Uses TLS over the default server port to secure auto-
support email and does not send an email if TLS fails.
tls-none
Attempts TLS over the default server port to secure auto-support email, and falls back on plaintext if this fails.
Default
tls-none
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # email autosupport ssl mode tls
Related Commands N/A
Notes
Mellanox Technologies
.
306
System Management
email autosupport ssl cert-verify
email autosupport ssl cert-verify no email autosupport ssl cert-verify
Verifies server certificates. The no form of the command does not verify server certificates.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # email autosupport ssl cert-verify
Related Commands N/A
Notes
Mellanox Technologies
.
307
System Management
email autosupport ssl ca-list
email autosupport ssl ca-list {<ca-list-name> | default_ca_list | none} no email autosupport ssl ca-list
Configures supplemental CA certificates for verification of server certificates. The no form of the command removes supplemental CA certificate list.
Syntax Description default_ca_list
Default supplemental CA certificate list.
none
No supplemental list; uses built-in list only.
Default
default_ca_list
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # email autosupport ssl ca-list default_ca_list
Related Commands N/A
Notes
Mellanox Technologies
.
308
System Management
email dead-letter
email dead-letter {cleanup max-age <duration> | enable} no email dead-letter
Configures settings for saving undeliverable emails. The no form of the command disables sending of emails to vendor auto-support upon certain failures.
Syntax Description duration
Example: "5d4h3m2s" for 5 days, 4 hours, 3 minutes, 2 seconds.
enable
Saves dead-letter files for undeliverable emails.
Default
Save dead letter is enabled The default duration is 14 days
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # email dead-letter enable switch (config) #
Related Commands show email
Notes
Mellanox Technologies
.
309
System Management
email domain
email domain <hostname or IP address> no email domain
Sets the domain name from which the emails will appear to come from (provided that the return address is not already fully-qualified). This is used in conjunction with the system hostname to form the full name of the host from which the email appears to come. The no form of the command clears email domain override.
Syntax Description hostname or IP address
IP address.
Default
No email domain
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # email domain mellanox switch (config) # show email Mail hub: 10.0.8.11 Mail hub port: 125 Domain: mellanox Return address: do-not-reply Include hostname in return address: yes ... switch (config) #
show emails
Notes
Mellanox Technologies
.
310
System Management
email mailhub
email mailhub <hostname or IP address> no email mailhub
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Sets the mail relay to be used to send notification emails. The no form of the command clears the mail relay to be used to send notification emails.
hostname or IP address
Hostname or IP address.
N/A
config
3.1.0000
admin
switch (config) # email mailhub 10.0.8.11 switch (config) # show email Mail hub: 10.0.8.11 Mail hub port: 25 Domain: (not specified) Return address: do-not-reply Include hostname in return address: yes ... switch (config) #
show email [events]
Mellanox Technologies
.
311
System Management
email autosupport mailhub
email autosupport mailhub <hostname or IP address> no email autosupport mailhub
Syntax Description Default Configuration Mode History Role Example
Sets the mail relay to be used for sending autosupport notification emails. The no form of the command clears the mail relay to be used for sending autosupport notification emails.
<Hostname or IP address> The mail hub Hostname or IP address.
N/A
config
3.7.10xx
Admin
switch (config) # email autosupport mailhub 10.10.10.1 switch (config) # show email
Related Commands Notes
Autosupport emails
Enabled:
no
Recipient:
Mail hub:
10.10.10.1
Security mode:
tls-none
Verify server cert: yes
Supplemental CA list: default-ca-list
show email
Mellanox Technologies
.
312
System Management
email autosupport recipient
email autosupport recipient <email addr> no email autosupport recipient
Sets the recipient for autosupport emails. The no form of the command clears the configured autosupport recipient.
Syntax Description <email addr>
The autosupport recipient email address.
Default
N/A
Configuration Mode config
History
3.7.10xx
Role
Admin
Example
switch (config) # email autosupport recipient user@example.com switch (config) # show email
Related Commands Notes
Autosupport emails
Enabled:
no
Recipient:
user@example.com
Mail hub:
Security mode:
tls-none
Verify server cert: yes
Supplemental CA list: default-ca-list
show email
Mellanox Technologies
.
313
System Management
email mailhub-port
email mailhub-port <hostname or IP address> no email mailhub-port
Sets the mail relay port to be used to send notification emails. The no form of the command resets the port to its default.
Syntax Description hostname or IP address
hostname or IP address.
Default
25
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # email mailhub-port 125 switch (config) # show email Mail hub: 10.0.8.11 Mail hub port: 125 Domain: (system domain name) Return address: do-not-reply Include hostname in return address: yes ... switch (config) #
show email
Notes
Mellanox Technologies
.
314
System Management
email notify event
email notify event <event name> no email notify event <event name>
Enables sending email notifications for the specified event type. The no form of the command disables sending email notifications for the specified event type.
Syntax Description event name
Example event names would include "process-crash" and "cpu-util-high".
Default
No events are enabled
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # email notify event process-crash switch (config) # show email events Failure events for which emails will be sent: process-crash: A process in the system has crashed unexpected-shutdown: Unexpected system shutdown
Informational events for which emails will be sent: liveness-failure: A process in the system was detected as hung process-exit: A process in the system unexpectedly exited cpu-util-ok: CPU utilization has fallen back to normal levels cpu-util-high: CPU utilization has risen too high disk-io-ok: Disk I/O per second has fallen back to acceptable levels ... temperature-too-high: Temperature has risen too high
Related Commands Notes
All events for which autosupport emails will be sent: process-crash: A process in the system has crashed liveness-failure: A process in the system was detected as hungswitch (config) # switch (config) #
show email
This does not affect auto-support emails. Auto-support can be disabled overall, but if it is enabled, all auto-support events are sent as emails.
Mellanox Technologies
.
315
System Management
email notify recipient
email notify recipient <email addr> [class {info | failure} | detail] no email notify recipient <email addr> [class {info | failure} | detail]
Adds an email address from the list of addresses to which to send email notifications of events. The no form of the command removes an email address from the list of addresses to which to send email notifications of events.
Syntax Description email addr
Email address of intended recipient.
class
Specifies which types of events are sent to this recipi-
ent.
info
Sends informational events to this recipient.
failure
Sends failure events to this recipient.
detail
Sends detailed event emails to this recipient.
Default
No recipients are added
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # email notify recipient user2@autosupport.mellanox.com switch (config) # show email Mail hub: Mail hub port: 25 Domain: (not specified) Return address: user1 Include hostname in return address: no Dead letter settings: Save dead.letter files: yes Dead letter max age: (none) Email notification recipients: user2@autosupport.mellanox.com (all events, in detail) Autosupport emails Enabled: no Recipient: autosupport@autosupport.mellanox.com Mail hub: autosupport.mellanox.com switch (config) #
show email
Notes
Mellanox Technologies
.
316
System Management
email return-addr
email return-addr <username> no email domain
Sets the username or fully-qualified return address from which email notifications are sent. � If the string provided contains an "@" character, it is considered to be fully-quali-
fied and used as-is. � Otherwise, it is considered to be just the username, and we append "@<host-
name>.<domain>". The default is "do-not-reply", but this can be changed to "admin" or whatnot in case something along the line does not like fictitious addresses. The no form of the command resets this attribute to its default.
Syntax Description username
Username.
Default
do-not-reply
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # email return-addr user1 switch (config) # show email Mail hub: Mail hub port: 25 Domain: (not specified) Return address: user1 Include hostname in return address: yes ... switch (config) #
show email
Notes
Mellanox Technologies
.
317
System Management
email return-host
email return-host no email return-host
Syntax Description Default Configuration Mode History Role Example
Includes the hostname in the return address for emails. The no form of the command does not include the hostname in the return address for emails.
N/A
No return host
config
3.1.0000
admin
switch (config) # no email return-host
switch (config) # show email
Mail hub:
Mail hub port: 25
Domain:
(system domain name)
Return address: my-address
Include hostname in return address: no
Current reply address: host@localdomain
Dead letter settings: Save dead.letter files: yes Dead letter max age: 5 days
No recipients configured.
Related Commands Notes
Autosupport emails
Enabled:
no
Recipient: autosupport@autosupport.mellanox.com
Mail hub:
autosupport.mellanox.com
switch (config) #
show email
This only takes effect if the return address does not contain an "@" character.
Mellanox Technologies
.
318
System Management
email send-test
email send-test
Sends test-email to all configured event and failure recipients.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # email send-test
Related Commands show email [events]
Notes
Mellanox Technologies
.
319
System Management
email ssl mode
email ssl mode {none | tls | tls-none} no email ssl mode
Sets the security mode(s) to try for sending email. The no form of the command resets the email SSL mode to its default.
Syntax Description none
No security mode, operates in plaintext.
tls
Attempts to use TLS on the regular mailhub port, with
STARTTLS. If this fails, it gives up.
tls-none
Attempts to use TLS on the regular mailhub port, with STARTTLS. If this fails, it falls back on plaintext.
Default
default-cert
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # email ssl mode tls-none
Related Commands N/A
Notes
Mellanox Technologies
.
320
System Management
email ssl cert-verify
email ssl cert-verify no email ssl cert-verify
Enables verification of SSL/TLS server certificates for email. The no form of the command disables verification of SSL/TLS server certificates for email.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # email ssl cert-verify
Related Commands N/A
Notes
This command has no impact unless TLS is used.
Mellanox Technologies
.
321
System Management
email ssl ca-list
email ssl ca-list {<ca-list-name> | default-ca-list | none} no email ssl ca-list
Specifies the list of supplemental certificates of authority (CA) from the certificate configuration database that is to be used for verification of server certificates when sending email using TLS, if any. The no form of the command uses no list of supplemental certificates.
Syntax Description ca-list-name
Specifies CA list name.
default-ca-list
Uses default supplemental CA certificate list.
none
Uses no list of supplemental certificates.
Default
default-ca-list
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # email ssl ca-list none
Related Commands N/A
Notes
This command has no impact unless TLS is used, and certificate verification is enabled.
Mellanox Technologies
.
322
System Management
show email
show email [events]
Displays email configuration or events for which email should be sent upon.
Syntax Description events
show event list
Default
N/A
Configuration Mode Any command mode
History
3.7.10xx
Role
admin
Example
switch (config) # show email
Related Commands Notes
Autosupport emails
Enabled:
no
Recipient:
Mail hub:
10.10.10.1
Security mode:
tls-none
Verify server cert: yes
Supplemental CA list: default-ca-list
show email
Mellanox Technologies
.
323
System Management
4.10
Telemetry
As it is becoming increasingly complex to manage networks, and network administrators need more tools to understand network behavior, it is necessary to provide basic information about network performance, identify network bottlenecks, and provide information for the purposes of network optimization and future planning.
Therefore, network administrators are required to constantly review network port behavior, record port buffer consumption, and identify shortage in buffer resources and record flows which lead to the excessive buffer consumption.
MLNX-OS provides the following mechanisms to perform these tasks:
� Sampling (histograms) � a network administrator can enable a sampling of the port buffer occupancy, record occupancy changes over time, and provide information for different levels of buffer occupancy, and amount of time the buffer has been occupied during the observation period.
� Thresholds � thresholds may be enabled per port to record the network time when port buffer occupancy crosses the defined threshold and when buffer occupancy drops below it.
� Flow recording � a record of the most active flows which cause an excessive usage of the port buffers may be kept. Once enabled, the system may identify flow patterns and present a user with a list of flows, based on which a network administrator can rearrange distribution of the data flows in the network and minimize data loss.
Mellanox Technologies
.
324
System Management
4.10.1 Commands
protocol telemetry
protocol telemetry no protocol telemetry
Unhides telemetry config CLIs. The no form of the command hides telemetry config CLIs.
Syntax Description N/A
Default
Disabled.
Configuration Mode config
History
3.6.3004
Role
admin
Example Related Commands
switch (config) # protocol telemetry switch (config) # no protocol telemetry
Notes
Mellanox Technologies
.
325
System Management
telemetry shutdown
telemetry shutdown no telemetry shutdown
Disables the telemetry protocol, threshold detection, and histogram fetching for all sampling enabled interfaces without changing any internal configuration. The no form of the command enables telemetry protocol.
Syntax Description N/A
Default
Disabled
Configuration Mode config
History
3.6.3004
Role
admin
Example
switch (config) # telemetry shutdown switch (config) # no telemetry shutdown
Related Commands
Notes
Mellanox Technologies
.
326
System Management
telemetry sampling
interface ib <slot>/<port> telemetry sampling no interface ib <slot>/<port> telemetry sampling
Enables sampling (histogram fetching) for a specific InfiniBand interface. The no form of the command disables sampling (histogram fetching).
Syntax Description N/A
Default
N/A
Configuration Mode config interface ib
History
3.6.3004
Role
admin
Example
switch (config interface ib 1/1) # telemetry sampling
Related Commands
Notes
Mellanox Technologies
.
327
System Management
telemetry sampling log
telemetry sampling log <time> no telemetry sampling log <time>
Enables the log interval value (histogram fetching) from device. The no form of the command disables the log interval value.
Syntax Description time
Input Range: 100 msec - 1 min
Default
1000 msec.
Configuration Mode config
History
3.6.3004
Role
admin
Example Related Commands
switch (config) # telemetry sampling log 1000 switch (config) # no telemetry sampling log
Notes
Mellanox Technologies
.
328
System Management
telemetry threshold
telemetry threshold no telemetry threshold
Enables telemetry threshold on hardware. The no form of the command disables threshold.
Syntax Description N/A
Default
false
Configuration Mode config interface ib
History
3.6.4006
Role
admin
Example
switch (config interface ib 1/1) # telemetry threshold
Related Commands
Notes
Mellanox Technologies
.
329
System Management
telemetry threshold level
telemetry threshold level no telemetry threshold level
Configures threshold level in hardware per port. The no form of the command resets threshold to default value.
Syntax Description Level
Input range: 96-1000000 (in bytes and in increments of 96)
Default
69984
Configuration Mode config interface ib
History
3.6.4006
Role
admin
Example
switch (config interface ib 1/1) # telemetry threshold level 288
Related Commands
Notes
Mellanox Technologies
.
330
System Management
telemetry threshold log
telemetry threshold log no telemetry threshold log
Enables logging of threshold events in syslog. The no form of the command disable logging.
Syntax Description N/A
Default
false
Configuration Mode config
History
3.6.4006
Role
admin
Example Related Commands
switch (config) # telemetry threshold log switch (config) # no telemetry threshold log
Notes
Mellanox Technologies
.
331
System Management
telemetry threshold record
telemetry threshold record no telemetry threshold record
Enables top talker configuration. The no form of the command disables top talker configuration.
Syntax Description N/A
Default
Disabled
Configuration Mode config interface ib
History
3.6.6105
3.6.8100
Updated notes
Role
admin
Example
switch (config interfaces ib 1/2) # telemetry threshold record
Related Commands clear telemetry threshold record show telemetry threshold record
Notes
� When top talker is enabled, the minimal threshold window supported is 20 msecs. � Due to event timing issues, very short threshold events may not gather sufficient
traffic samples to allow top-talker analysis. As a result, top-talkers may not be fully displayed in the relevant show command.
Mellanox Technologies
.
332
System Management
telemetry threshold syslog
telemetry threshold syslog <time> no telemetry threshold syslog <time>
The command sets threshold events logging rate on per hour basis. The no form of the command sets the logging rate back to default.
Syntax Description time
Max rate per hour. Input range: 1-3600
Default
100
Configuration Mode config
History
3.6.4006
Role
admin
Example
switch (config) # telemetry threshold syslog 400
Related Commands
Notes
Mellanox Technologies
.
333
System Management
clear telemetry
clear telemetry {threshold | sampling} [interface <type> <port-id>]]
Clears telemetry data.
Syntax Description type
Default
N/A
Configuration Mode config interface ib
Possible values: ib
History Role Example Related Commands Notes
3.6.5000 admin
switch (config ib 1/12) # clear telemetry threshold level 288
Mellanox Technologies
.
334
System Management
clear telemetry threshold
clear telemetry threshold [interface <type> <if>]
Clears threshold and top talker data.
Syntax Description type
Possible values: ib
Default
N/A
Configuration Mode config
History
3.6.6105
Role
admin
Example
switch (config) # clear telemetry threshold interface ib 1/34-1/36
Related Commands
Notes
Mellanox Technologies
.
335
System Management
clear telemetry threshold record
clear telemetry threshold record [interface ib <if>]
Clears top talker data.
Syntax Description type
Possible values: ib
Default
N/A
Configuration Mode config
History
3.6.6105
Role
admin
Example Related Commands
switch (config) # clear telemetry threshold record interface ib 1/34-1/ 36
telemetry threshold record show telemetry threshold record
Notes
Mellanox Technologies
.
336
System Management
stats export csv telemetry
stats export csv telemetry <slot>/<port>[/<subport>] [filename *] [after * *] [before * *]
Syntax Description
Default Configuration Mode History Role Example
Related Commands Notes
Exports histograms collected by stats to a csv file.
slot/port
Port number
subport
Sub-port number to be used in case of split port
N/A
Any command mode
3.6.3004
admin
switch (config) # stats export csv telemetry 1/1 Generated report file: telemetry-20170119-102715.csv
Mellanox Technologies
.
337
System Management
file stats telemetry delete
file stats telemetry delete <filename>
Deletes the given .csv file created by "stats export" command to user directory.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.3004
Role
admin
Example Related Commands
switch (config) # file stats telemetry delete telemetry-20171006102158.csv
Notes
Mellanox Technologies
.
338
System Management
file stats telemetry upload
file stats telemetry upload <filename> <upload-url>
Uploads .csv file created by "stats export" command to user directory.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.3004
Role
admin
Example Related Commands
switch (config) # file stats telemetry upload telemetry-20170119102715.csv scp://username:password@server//directory Password (if required): ******
Notes
Mellanox Technologies
.
339
System Management
show telemetry
show telemetry
Displays the global configuration of telemetry properties.
Syntax Description N/A
Default
Configuration Mode config
History
3.6.4000
Role
admin
Example
switch (config) # show telemetry Telemetry Status H/W Sampling Interval(nsec) S/W Sampling Interval(ms) Threshold Logging Threshold Logging(rate per hour)
: Enabled : 512 : 1000 : Disabled : 100
--------------------------------------------------------------------------------------------
Interface
Sampling
Threshold
Record
Level (bytes)
--------------------------------------------------------------------------------------------
IB1/1
Disabled
Enabled
Enabled
100 (96)
IB1/2
Disabled
Enabled
Enabled
100 (96)
IB1/3
Disabled
Disabled
Disabled
N/A
IB1/4
Disabled
Disabled
Disabled
N/A
IB1/5
Disabled
Disabled
Disabled
N/A
IB1/6
Disabled
Disabled
Disabled
N/A
IB1/7
Disabled
Disabled
Disabled
N/A
...
IB1/36
Disabled
Disabled
Disabled
N/A
Related Commands
Notes
Mellanox Technologies
.
340
System Management
show telemetry threshold record
show telemetry threshold record [interface ib <interface-id> | <interface-idrange>]
Displays top talker events for all configured ports.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.4006
3.6.6105
Updated Example
3.6.8100
Updated Example
Role
admin
Example
switch (config) # show telemetry threshold record interface ib 1/11-1/12
-----------------------------------------------------------------------------------------------------------------
Event-id Date
Time
Port
Level Duration(100 usec) Repeated DestQP DLID SLID Percent(%)
-----------------------------------------------------------------------------------------------------------------
1
07/10/18 14:00:31 IB 1/11 69984 48749.77
1
2741 29 32 62.30
2
07/10/18 14:01:47 IB 1/11 69984 63936.16
1
2745 29 32 54.55
Related Commands clear telemetry threshold
Notes
� The values displayed of the SLID, DLID, and QP fields are in decimal � The command supports displaying up to 1000 threshold events. As a result, if
more than 1000 thresholds configured in total, some interfaces may not be displayed. Therefore, to query thresholds for a specific interface, please use "show telemetry threshold interface ib <interface>".
Mellanox Technologies
.
341
System Management
show telemetry sampling interface ib
show telemetry sampling interface ib <slot>/<port>
Displays telemetry histogram samples for a specific ib interface.
Syntax Description slot/port
Infiniband port number
Default
N/A
Configuration Mode Any command mode
History
3.6.3004
Role
admin
Example
switch (config) # show telemetry sampling interface ib 1/32
-------------------------------------------------------------------------------------------------------------------------------------
Telemetry histogram: IB1/32
System-time
Bin sizes (128 nsec tx buffer was occupied in bytes range)
-------------------------------------------------------------------------------------------------------------------------------------
02/09/17
<2976
35744
68512
101280 134048 166816 199584 232352 265120 265120<
12:19:03.41948 1883
8538
7802080 0
0
0
0
0
0
0
12:19:04.42107 830
9001
7802670 0
0
0
0
0
0
0
12:19:05.42249 96
9705
7802700 0
0
0
0
0
0
0
12:19:06.42388 32
9035
7803434 0
0
0
0
0
0
0
12:19:07.42573 80
9461
7802960 0
0
0
0
0
0
0
12:19:08.42761 160
9302
7803040 0
0
0
0
0
0
0
12:19:09.42915 304
9369
7802829 0
0
0
0
0
0
0
12:19:10.43071 96
8906
7803500 0
0
0
0
0
0
0
12:19:11.43215 463
8907
7803132 0
0
0
0
0
0
0
12:19:12.43369 256
8571
7803675 0
0
0
0
0
0
0
Related Commands
Notes
In case requested entries are more than what the DB contains it will print the amount in the table.
Mellanox Technologies
.
342
System Management
show telemetry sampling interface ib last
show telemetry sampling interface ib <slot>/<port> last <num_of_entries>
Displays fetched unicast histogram details for tc_id of an Ethernet interface.
Syntax Description slot/port
Infiniband port number
num_of_entries
Default
N/A
Configuration Mode Any command mode
History
3.6.3004
Role
admin
Example
switch (config) # show telemetry sampling interface ib 1/36 last 20
Legend:
2976 bytes - between 0
- 2976 of tx bytes buffer consumed
35744 bytes - between 2977 - 35744 of tx bytes buffer consumed
-------------------------------------------------------------------------------------------------------------------------------------
Telemetry histogram: IB1/36
System-time
Bin sizes (128 nsec tx buffer was occupied in bytes range)
-------------------------------------------------------------------------------------------------------------------------------------
02/09/17
<2976
35744
68512
101280 134048 166816 199584 232352 265120 265120<
12:19:03.41948 1883
8538
7802080 0
0
0
0
0
0
0
12:19:04.42107 830
9001
7802670 0
0
0
0
0
0
0
12:19:05.42249 96
9705
7802700 0
0
0
0
0
0
0
12:19:06.42388 32
9035
7803434 0
0
0
0
0
0
0
12:19:07.42573 80
9461
7802960 0
0
0
0
0
0
0
Related Commands
Notes
If requested entries are more than what the DB contains, it prints the amount in the table.
Mellanox Technologies
.
343
System Management
show files stats telemetry
show files stats telemetry [filename]
Displays all files created by the command "stats export csv telemetry".
Syntax Description filename
Displays stats for the specified file
Default
N/A
Configuration Mode Any command mode
History
3.6.3004
3.6.8008
Updated Example
Role
admin
Example Related Commands
switch (config) # show files stats telemetry telemetry-20180527-
102715.csv
Hostname
:test-switch
Report
:telemetry histogram
Time lower bound(UTC) :2018/05/28 05:58:10
Time upper bound(UTC) :2018/05/28 05:58:25
Export time(UTC)
:2018/05/28 06:00:06
Time lower bound
:2018/05/28 08:58:10 +0300
Time upper bound
:2018/05/28 08:58:25 +0300
Export time
:2018/05/28 09:00:06 +0300
System version
:X86_64 sys_test 2018-05-15 04:02:13 x86_64
stats export csv telemetry
Notes
Mellanox Technologies
.
344
System Management
4.11
mDNS
Multicast DNS (mDNS) protocol is used by the SM HA to deliver control information between the InfiniBand nodes via the management interface. To block sending mDNS traffic from the management interface run the command no ha dns enable.
Mellanox Technologies
.
345
System Management
4.11.1 Commands
ha dns enable
ha dns enable no ha dns enable
Allows mDNS traffic. The no form of the command blocks mDNS traffic from being sent from mgmt0.
Syntax Description N/A
Default
Enabled.
Configuration Mode config
History
3.3.4000
Role
admin
Example Related Commands
switch (config) # no ha dns enable switch (config) #
Notes
Mellanox Technologies
.
346
System Management
4.12 User Management and Security
4.12.1 User Accounts
There are two general user account types: admin and monitor. As admin, the user is privileged to execute all the available operations. As monitor, the user can execute operations that display system configuration and status, or set terminal settings.
Table 26 - User Roles (Accounts) and Default Passwords
User Role
Default Password
admin
admin
monitor
monitor
xmladmin xmluser
xmladmin xmluser
To remove passwords from the XML users, run the command username <username> nopassword.
4.12.2 Authentication, Authorization and Accounting (AAA)
AAA is a term describing a framework for intelligently controlling access to computer resources, enforcing policies, auditing usage, and providing the information necessary to bill for services. These combined processes are considered important for effective network management and security. The AAA feature allows you to verify the identity of, grant access to, and track the actions of users managing the system. The MLNX-OS switch supports Remote Access Dial-In User Service (RADIUS) or Terminal Access Controller Access Control device Plus (TACACS+) or Lightweight Directory Access Protocol (LDAP) protocols.
� Authentication � authentication provides the initial method of identifying each individual user, typically by entering a valid username and password before access is granted. The AAA server compares a user's authentication credentials with the user credentials stored in a database. If the credentials match, the user is granted access to the network or devices. If the credentials do not match, authentication fails and network access is denied.
� Authorization � following the authentication, a user must gain authorization for performing certain tasks. After logging into a system, for instance, the user may try to issue commands. The authorization process determines whether the user has the authority to issue such commands. Simply put, authorization is the process of enforcing policies: determining what types or qualities of activities, resources, or services a user is permitted. Usually, authorization occurs within the context of authentication. Once you have authenticated a user, they may be authorized for different types of access or activity.
� Accounting � the last level is accounting, which measures the resources a user consumes during access. This includes the amount of system time or the amount of data a user has sent and/or received during a session. Accounting is carried out by logging of session statistics and usage information, and is used for authorization control, billing, trend analysis, resource utilization, and capacity planning activities.
Mellanox Technologies
.
347
System Management
Authentication, authorization, and accounting services are often provided by a dedicated AAA server, a program that performs these functions. Network access servers interface with AAA servers using the Remote Authentication Dial-In User Service (RADIUS) protocol.
4.12.2.1 User Re-authentication
Re-authentication prevents users from accessing resources or perform tasks for which they do not have authorization. If credential information (e.g. AAA server information like IP address, key, port number etc.) that has been previously used to authenticate a user is modified, that user gets immediately logged out of the switch and asked to re-authenticate.
4.12.2.2 RADIUS
RADIUS (Remote Authentication Dial-In User Service), widely used in network environments, is a client/server protocol and software that enables remote access servers to communicate with a central server to authenticate dial-in users and authorize their access to the requested system or service. It is commonly used for embedded network devices such as routers, modem servers, switches and so on. RADIUS is currently the de-facto standard for remote authentication. It is prevalent in both new and legacy systems. It is used for several reasons: � RADIUS facilitates centralized user administration � RADIUS consistently provides some level of protection against an active attacker
4.12.2.3 TACACS+
TACACS (Terminal Access Controller Access Control System), widely used in network environments, is a client/server protocol that enables remote access servers to communicate with a central server to authenticate dial-in users and authorize their access to the requested system or service. It is commonly used for providing NAS (Network Access Security). NAS ensures secure access from remotely connected users. TACACS implements the TACACS Client and provides the AAA (Authentication, Authorization and Accounting) functionalities. TACACS is used for several reasons: � Facilitates centralized user administration � Uses TCP for transport to ensure reliable delivery � Supports inbound authentication, outbound authentication and change password request
for the authentication service � Provides some level of protection against an active attacker
4.12.2.4 LDAP
LDAP (Lightweight Directory Access Protocol) is an authentication protocol that allows a remote access server to forward a user's log-on password to an authentication server to determine whether access can be allowed to a given system. LDAP is based on a client/server model. The switch acts as a client to the LDAP server. A remote user (the remote administrator) interacts only with the switch, not the back-end server and database. LDAP authentication consists of the following components:
Mellanox Technologies
.
348
System Management
� A protocol with a frame format that utilizes TCP over IP � A centralized server that stores all the user authorization information � A client: in this case, the switch Each entry in the LDAP server is referenced by its Distinguished Name (DN). The DN consists of the user-account name concatenated with the LDAP domain name. If the user-account name is John, the following is an example DN:
uid=John,ou=people,dc=domain,dc=com
4.12.3 System Secure Mode
System secure mode is a state that configures the switch system to run secure algorithms in compliance with FIPS 140-2 requirements. In this mode, unsecure algorithms are disabled and unsecure feature configurations are disallowed. In this mode the system supports Federal Information Processing Standards (FIPS) 140-2, Security Requirements for Cryptographic Modules, which is a NIST (National Institute of Standards and Technology) publication that specifies the requirement for system cypher functionality. When this mode is activated, all the modules which are used by the system are verified to work in compliance with the secure mode. Note that if system fails to load in secure mode it is loaded in non-secure mode. Prerequisites: Step 1. Disable SNMPv1 and v2. Run:
switch (config) # no snmp-server enable communities
Step 2. Only allow SNMPv3 users with sha and aes-128. Run:
switch (config) # snmp-server user <username> v3 auth sha <password1> priv aes-128 <password2>
Step 3. Only allow SNMPv3 traps with sha and aes-128. Run:
switch (config) # snmp-server host <ip-address> informs version 3 user <username> auth sha <password1> priv aes-128 <password2>
Step 4. Only allow SSHv2. Run:
switch (config) # ssh server min-version 2
Step 5. Enable SSH server strict security mode. Run:
switch (config) # ssh server security strict
Step 6. Disable HTTP access. Run:
switch (config) # no web http enable
Step 7. Enable HTTPS strict cyphers. Run:
switch (config) # web https ssl ciphers TLS1.2
Step 8. Disable router BGP neighbor password configuration. Run:
switch (config) # no router bgp <as-number> neighbor <ip-address> password
Mellanox Technologies
.
349
System Management
Step 9. Disable router BGP peer group password configuration. Run:
switch (config) # no router bgp <as-number> peer-group <peer-group-name> password
Step 10. Disable BGP password configuration. Run:
switch (config) # no neighbor <ip-address> password
Step 11. Disable MD5 password hashing on for users. Run:
switch (config) # username <username> password <password>
If a necessary prerequisite is not fulfilled the system does not activate secure mode and issues an advisory message accordingly.
Secure mode is not supported on director switch systems.
To activate secure mode:
switch (config) # system secure-mode enable Warning! Configuration is about to be saved and the system will be reloaded.
Type 'YES' to confirm the change in secure mode: YES
To deactivate secure mode:
switch (config) # no system secure-mode enable Warning! Configuration is about to be saved and the system will be reloaded.
Type 'YES' to confirm the change in secure mode: YES
To verify secure mode configuration and state:
switch (config)# show system secure-mode Secure mode configured: yes Secure mode enabled: yes
switch (config) #
Mellanox Technologies
.
350
System Management
4.12.4 Commands
4.12.4.1 User Accounts
username
username <username> [capability <cap> | disable [login | password] | disconnect | full-name <name> | nopassword | password [0 | 7] <password>] no username <username> [capability | disable [login | password] | full-name]
Creates a user and sets its capabilities, password and name. The no form of the command deletes the user configuration.
Syntax Description username
Specifies a username and creates a user account. New users are created initially with admin privileges but is disabled.
capability <cap>
Defines user capabilities. � admin - full administrative capabilities � monitor - read only capabilities, can not change the
running configuration � unpriv � can only query the most basic information,
and cannot take any actions or change any configuration � v_admin � basic administrator capabilities
disable [login | password]
� Disable - disable this account � Disable login - disable all logins to this account � Disable password - disable login to this account
using a local password
disconnect
Logs out the specified user from the system
name
Full name of the user
nopassword
The next login of the user will not require password.
0 | 7
� 0: specifies a login password in cleartext
� 7: specifies a login password in encrypted text
password
Specifies a password for the user in string form. If [0 | 7] was not specified then the password is in cleartext.
Default
The following usernames are available by default: � admin � monitor � xmladmin � xmluser
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Mellanox Technologies
.
351
System Management
Role Example
Related Commands Notes
3.4.1100 3.6.2002 admin
Updated Example Added "disconnect" parameter
switch (config) # username monitor full-name smith
switch (config) # show usernames
USERNAME FULL NAME
CAPABILITY ACCOUNT STATUS
USERID
System Administrator admin
Password set
admin
System Administrator admin
Password set
monitor
smith
monitor
Password set (SHA512)
xmladmin XML Admin User
admin
Password set (SHA512)
xmluser
XML Monitor User
monitor
Password set (SHA512)
switch (config) #
show usernames show users
� To enable a user account, just set a password on it (or use the command user-
name <user> nopassword to enable it with no password required for login)
� Removing a user account does not terminate any current sessions that user has open; it just prevents new sessions from being established
� Encrypted password is useful for the command show configuration, since
the cleartext password cannot be recovered after it is set
Mellanox Technologies
.
352
System Management
show usernames
show usernames
Displays list of users and their capabilities.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # show usernames
USERNAME FULL NAME
USERID
System Administrator
admin
System Administrator
monitor
smith
xmladmin XML Admin User
xmluser
XML Monitor User
switch (config) #
CAPABILITY admin admin monitor admin monitor
ACCOUNT STATUS Password set Password set Password set (SHA512) No password required No password required
Related Commands username show users
Notes
Mellanox Technologies
.
353
System Management
show users
show users [history]
Syntax Description Default Configuration Mode History Role Example
Displays logged in users and related information such as idle time and what host they have connected from.
history
Displays current and historical sessions.
N/A
Any command mode
3.1.0000
admin
switch (config) # show users
USERNAME FULL NAME
LINE HOST
IDLE
admin
System Administrator
pts/0 172.22.237.174
0d0h34m4s
admin
System Administrator
pts/1 172.30.0.127
1d3h30m49s
admin
System Administrator
pts/3 172.22.237.34
0d0h0m0s
switch (config) #show users history
admin pts/3 172.22.237.34 Wed Feb 1 11:56 still logged in
admin pts/3 172.22.237.34 Wed Feb 1 11:42 - 11:46 (00:04)
Related Commands Notes
wtmp begins Wed Feb 1 11:38:10 2012 switch (config) #
username show usernames
Mellanox Technologies
.
354
System Management
show whoami
show whoami
Displays username and capabilities of user currently logged in.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # show whoami Current user: admin Capabilities: admin switch (config) #
Related Commands
username show usernames show users
Notes
Mellanox Technologies
.
355
System Management
4.12.4.2 AAA Methods
aaa accounting
aaa accounting changes default stop-only tacacs+ no aaa accounting changes default stop-only tacacs+
Enables logging of system changes to an AAA accounting server. The no form of the command disables the accounting.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
3.2.3000
Removed `time' parameter from the command.
Role
admin
Example Related Commands
switch (config) # aaa accounting changes default stop-only tacacs+ switch (config) # show aaa AAA authorization:
Default User: admin Map Order: local-only Authentication method(s): local radius tacacs+ ldap Accounting method(s): tacacs+ switch (config) #
show aaa
Notes
� TACACS+ is presently the only accounting service method supported � Change accounting covers both configuration changes and system actions that are
visible under audit logging, however this feature operates independently of audit logging, so it is unaffected by the "logging level audit mgmt" or "configuration audit" commands � Configured TACACS+ servers are contacted in the order in which they appear in the configuration until one accepts the accounting data, or the server list is exhausted � Despite the name of the "stop-only" keyword, which indicates that this feature logs a TACACS+ accounting "stop" message, and in contrast to configuration change accounting, which happens after configuration database changes, system actions are logged when the action is started, not when the action has completed
Mellanox Technologies
.
356
System Management
aaa authentication login
aaa authentication login default <auth method> [<auth method> [<auth method> [<auth method> [<auth method>]]]] no aaa authentication login
Sets a sequence of authentication methods. Up to four methods can be configured. The no form of the command resets the configuration to its default.
Syntax Description auth-method
� local � radius � tacacs+ � ldap
Default
local
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # aaa authentication login default local radius tacacs+ ldap switch (config) # show aaa AAA authorization:
Default User: admin Map Order: local-only Authentication method(s): local radius tacacs+ ldap Accounting method(s): tacacs+ switch (config) #
Related Commands show aaa
Notes
The order in which the methods are specified is the order in which the authentication is attempted. It is required that "local" is one of the methods selected. It is recommended that "local" be listed first to avoid potential problems logging in to local accounts in the face of network or remote server issues.
Mellanox Technologies
.
357
System Management
aaa authentication attempts fail-delay
aaa authentication attempts fail-delay <time> no aaa authentication attempts fail-delay
Configures delay for a specific period of time after every authentication failure. The no form of the command resets the fail-delay to its default value.
Syntax Description time
Range: 0-60 seconds
Default
0
Configuration Mode config
History
3.5.0200
Role
admin
Example
switch (config) # aaa authentication attempts fail-delay 1
Related Commands N/A
Notes
Mellanox Technologies
.
358
System Management
aaa authentication attempts track
aaa authentication attempts track {downcase | enable} no aaa authentication attempts track {downcase | enable}
Configure tracking for failed authentication attempts. The no form of the command clears configuration for tracking authentication failures.
Syntax Description downcase
Does not convert all usernames to lowercase (for authentication failure tracking purposes only).
enable
Disables tracking of failed authentication attempts
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # aaa authentication attempts track enable
Related Commands N/A
Notes
� This is required for the lockout functionality described below, but can also be used on its own for informational purposes.
� Disabling tracking does not clear any records of past authentication failures, or the locks in the database. However, it does prevent any updates to this database from being made: no new failures are recorded. It also disables lockout, preventing new lockouts from being recorded and existing lockouts from being enforced.
Mellanox Technologies
.
359
System Management
aaa authentication attempts lockout
aaa authentication attempts lockout {enable | lock-time | max-fail | unlock-time} no aaa authentication attempts lockout {enable | lock-time | max-fail | unlocktime} Configures lockout of accounts based on failed authentication attempts. The no form of the command clears configuration for lockout of accounts based on failed authentication attempts.
Mellanox Technologies
.
360
Syntax Description enable
lock-time max-fail unlock-time
Mellanox Technologies
.
System Management
Enables locking out of user accounts based on authentication failures. This both suspends enforcement of any existing lockouts, and prevents any new lockouts from being recorded. If lockouts are later re-enabled, any lockouts that had been recorded previously resume being enforced; but accounts which have passed the max-fail limit in the meantime are NOT automatically locked at this time. They would be permitted one more attempt, and then locked, because of how the locking is done: lockouts are applied after an authentication failure, if the user has surpassed the threshold at that time. Lockouts only work if tracking is enabled. Enabling lockouts automatically enables tracking. Disabling tracking automatically disables lockouts.
Sets maximum permitted consecutive authentication failures before locking out users. Unlike the "max-fail" setting, this does take effect immediately for all accounts If both unlock-time and lock-time are set, the unlocktime must be greater than the lock-time This is not based on the number of consecutive failures, and is therefore divorced from most of the rest of the tally feature, except for the tracking of the last login failure
Sets maximum permitted consecutive authentication failures before locking out users. This setting only impacts what lockouts are imposed while the setting is active; it is not retroactive to previous logins. So if max-fail is disabled or changed, this does not immediately cause any users to be changed from locked to unlocked or vice-versa.
Enables the auto-unlock of an account after a specified number of seconds if a user account is locked due to authentication failures, counting from the last valid login attempt. Unlike the "max-fail" setting, this does take effect immediately for all accounts. If both unlock-time and lock-time are set, the unlocktime must be greater than the lock-time. Careful with disabling the unlock-time, particularly if you have max-fail set to something, and have not overridden the behavior for the admin (i.e. they are subject to lockouts also). If the admin account gets locked out, and there are no other administrators who can aid, the user may be forced to boot single-user and use the pam_tallybyname command-line utility to unlock your account manually. Even if one is careful not to incur this many authentication failures, it makes the system more subject to DOS attacks.
361
System Management
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # aaa authentication attempts lockout enable
Related Commands N/A
Notes
Mellanox Technologies
.
362
System Management
aaa authentication attempts class-override
aaa authentication attempts class-override {admin [no-lockout] | unknown {notrack | hash-username}} no aaa authentication attempts class-override {admin | unknown {no-track | hash-username}}
Overrides the global settings for tracking and lockouts for a type of account. The no form of the command removes this override and lets the admin be handled according to the global settings.
Syntax Description admin
Overrides the global settings for tracking and lockouts for the admin account. This applies only to the single account with the username "admin". It does not apply to any other users with administrative privileges.
no-lockout
Prevents the admin user from being locked out, though the authentication failure history is still tracked (if tracking is enabled overall).
unknown
Overrides the global settings for tracking and lockouts for unknown accounts. The "unknown" class here contains the following categories: � Real remote usernames which simply failed authen-
tication � Mis-typed remote usernames � Passwords accidentally entered as usernames � Bogus usernames made up as part of an attack on
the system
hash-username
Applies a hash function to the username, and stores the hashed result in lieu of the original.
no-track
Does not track authentication for such users (which of course also implies no-lockout).
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example Related Commands
switch (config) # aaa authentication attempts class-override admin nolockout
N/A
Notes
Mellanox Technologies
.
363
System Management
aaa authentication attempts reset
aaa authentication attempts reset {all | user <username>} [{no-clear-history | nounlock}]
Clears the authentication history for and/or unlocks specified users.
Syntax Description all
Applies function to all users.
user
Applies function to specified user.
no-clear-history
Leaves the history of login failures but unlocks the account.
no-unlock
Leaves the account locked but clears the history of login failures.
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # aaa authentication attempts reset user admin all
Related Commands N/A
Notes
Mellanox Technologies
.
364
System Management
clear aaa authentication attempts
clear aaa authentication attempts {all | user <username>} [no-clear-history | nounlock]
Clears the authentication history for and/or unlocks specified users
Syntax Description all
Applies function to all users.
user
Applies function to specified user.
no-clear-history
Clears the history of login failures.
no-unlock
Unlocks the account.
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # aaa authentication attempts reset user admin noclear-history
Related Commands N/A
Notes
Mellanox Technologies
.
365
System Management
aaa authorization
aaa authorization map [default-user <username> | order <policy> | fallback] no aaa authorization map [default-user | order | fallback]
Sets the mapping permissions of a user in case a remote authentication is done. The no form of the command resets the attributes to default.
Syntax Description username
Specifies what local account the authenticated user will be logged on as when a user is authenticated (via RADIUS or TACACS+ or LDAP) and does not have a local account. If the username is local, this mapping is ignored.
order <policy>
Sets the user mapping behavior when authenticating users via RADIUS or TACACS+ or LDAP to one of three choices. The order determines how the remote user mapping behaves. If the authenticated username is valid locally, no mapping is performed. The setting has the following three possible behaviors: � local-only � maps all remote users to the user speci-
fied by the "aaa authorization map default-user <user name>" command. Any vendor attributes received by an authentication server are ignored. � remote-first � if a local-user mapping attribute is returned and it is a valid local username, it maps the authenticated user to the local user specified in the attribute. Otherwise, it uses the user specified by the default-user command. � remote-only � maps a remote authenticated user if the authentication server sends a local-user mapping attribute. If the attribute does not specify a valid local user, no further mapping is tried.
fallback
Sets the authenticating fallback behavior via RADIUS or TACACS+ or LDAP. This option attempts to authenticate username through the next authentication method listed in case of an error. � server-err � performs fallback if an error occurs
while connecting to remote AAA server (e.g. server is down, not responding, etc)
Default
Default user � admin Map order � remote-first Order fallback � server-err
Configuration Mode config
History
3.1.0000
3.7.00xx
Added "fallback" parameter
Mellanox Technologies
.
366
System Management
Role Example Related Commands
Notes
3.7.10xx admin
Updated syntax
switch (config) # aaa authorization map default-user admin
switch (config) #
show aaa username
� If, for example, the user is locally defined to have admin permission, but in a remote server such as RADIUS the user is authenticated as monitor and the order is remote-first, then the user is given monitor permissions.
� If AAA authorization order policy is configured to remote-only, then when upgrading to 3.4.3000 or later from an older MLNX-OS version, this policy is changed to remote-first.
� The user must be careful when disabling AAA authorization map fallback servererr, because if the remote server stops working then the user may lock themselves out.
Mellanox Technologies
.
367
show aaa
show aaa
Displays the AAA configuration.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.7.0020
Example updated
Role
admin
Example
switch (config) # show aaa AAA authorization:
Default User: admin Map Order: remote-first Fallback on server-err: yes Authentication method(s): local Accounting method(s): tacacs+ switch (config) #
Related Commands
aaa accounting aaa authentication aaa authorization show aaa show usernames username
Notes
System Management
Mellanox Technologies
.
368
System Management
show aaa authentication attempts
show aaa authentication attempts [configured | status user <username>]]
Shows the current authentication, authorization and accounting settings.
Syntax Description authentication attempts
Displays configuration and history of authentication failures.
configured
Displays configuration of authentication failure tracking.
status user
Displays status of authentication failure tracking and lockouts for specific user.
Default
N/A
Configuration Mode Any command mode
History
3.2.1000
3.5.0200
Updated Example
Role
admin
Example
switch (config) # show aaa authentication attempts
Configuration for authentication failure tracking and locking:
Track authentication failures:
yes
Lock accounts based on authentication failures: yes
Override treatment of 'admin' user:
(none)
Override treatment of unknown usernames:
hash-usernames
Convert usernames to lowercase for tracking:
no
Delay after each auth failure (fail delay):
none
Related Commands Notes
Configuration for lockouts based on authentication failures: Lock account after consecutive auth failures: 5 Allow retry on locked accounts (unlock time): after 15 second(s) Temp lock after each auth failure (lock time): none
Username
Known Locked Failures Last fail time
Last fail from
--------
----- ------ -------- --------------
--------------
0Q72B43EHBKT8CB5AF5PGRX3U3B3TUL4CYJP93N(*) no no
1 2012/08/20 14:29:19 ttyS0
(*) Hashed for security reasons switch-627d3c [standalone: master] (config) # switch (config) #
N/A
Mellanox Technologies
.
369
System Management
4.12.4.3 RADIUS
radius-server
radius-server {key <secret>| retransmit <retries> | timeout <seconds>} no radius-server {key | retransmit | timeout}
Sets global RADIUS server attributes. The no form of the command resets the attributes to their default values.
Syntax Description secret
Sets a secret key (shared hidden text string), known to the system and to the RADIUS server.
retries
Number of retries (0-5) before exhausting from the authentication.
seconds
Timeout in seconds between each retry (1-60).
Default
3 seconds, 1 retry
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # radius-server retransmit 3
Related Commands
aaa authorization radius-server host show radius
Notes
Each RADIUS server can override those global parameters using the command "radius-server host".
Mellanox Technologies
.
370
System Management
radius-server host
radius-server host <IP address> [enable | auth-port <port> | key <secret> | prompt-key | retransmit <retries> | timeout <seconds>] no radius-server host <IP address> [auth-port | enable]
Configures RADIUS server attributes. The no form of the command resets the attributes to their default values and deletes the RADIUS server.
Syntax Description IP address
RADIUS server IP address
enable
Administrative enable of the RADIUS server
auth-port
Configures authentication port to use with this RADIUS server
port
RADIUS server UDP port number
key
Configures shared secret to use with this RADIUS
server
prompt-key
Prompt for key, rather than entering on command line
retransmit
Configures retransmit count to use with this RADIUS server
retries
Number of retries (0-5) before exhausting from the authentication
timeout
Configures timeout between each try
seconds
Timeout in seconds between each retry (1-60)
Default
3 seconds, 1 retry Default UDP port is 1812
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # radius-server host 40.40.40.40
Related Commands
aaa authorization radius-server show radius
Notes
� RADIUS servers are tried in the order they are configured � If you do not specify a parameter for this configured RADIUS server, the config-
uration will be taken from the global RADIUS server configuration. Refer to "radius-server" command.
Mellanox Technologies
.
371
show radius
show radius
Displays RADIUS configurations.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show radius
RADIUS defaults:
Key
: ********
Timeout : 3
Retransmit: 1
Related Commands Notes
RADIUS servers:
1.1.1.1:1812:
Enabled : yes
Key
: ********
Timeout : 3 (default)
Retransmit: 1 (default)
aaa authorization radius-server radius-server host
System Management
Mellanox Technologies
.
372
System Management
4.12.4.4 TACACS+
tacacs-server
tacacs-server {key <secret>| retransmit <retries> | timeout <seconds>} no tacacs-server {key | retransmit | timeout}
Sets global TACACS+ server attributes. The no form of the command resets the attributes to default values.
Syntax Description secret
Set a secret key (shared hidden text string), known to the system and to the TACACS+ server.
retries
Number of retries (0-5) before exhausting from the authentication.
seconds
Timeout in seconds between each retry (1-60).
Default
3 seconds, 1 retry
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # tacacs-server retransmit 3
Related Commands
aaa authorization show radius show tacacs tacacs-server host
Notes
Each TACACS+ server can override those global parameters using the command "tacacs-server host".
Mellanox Technologies
.
373
System Management
tacacs-server host
tacacs-server host <IP address> {enable | auth-port <port> | auth-type <type> | key <secret> | prompt-key | retransmit <retries> | timeout <seconds>} no tacacs-server host <IP address> {enable | auth-port}
Configures TACACS+ server attributes. The no form of the command resets the attributes to their default values and deletes the TACACS+ server.
Syntax Description IP address
TACACS+ server IP address
enable
Administrative enable for the TACACS+ server
auth-port
Configures authentication port to use with this TACACS+ server
port
TACACS+ server UDP port number
auth-type
Configures authentication type to use with this TACACS+ server
type
Authentication type. Possible values are:
� ASCII
� PAP (Password Authentication Protocol)
key
Configures shared secret to use with this TACACS+
server
secret
Sets a secret key (shared hidden text string), known to the system and to the TACACS+ server
prompt-key
Prompts for key, rather than entering key on command line
retransmit
Configures retransmit count to use with this TACACS+ server
retries
Number of retries (0-5) before exhausting from the authentication
timeout
Configures timeout to use with this TACACS+ server
seconds
Timeout in seconds between each retry (1-60)
Default
3 seconds, 1 retry Default TCP port is 49 Default auth-type is PAP
Configuration Mode config
History
3.1.0000
Role
admin
Mellanox Technologies
.
374
System Management
Example Related Commands
Notes
switch (config) # tacacs-server host 40.40.40.40
aaa authorization show tacacs tacacs-server
� TACACS+ servers are tried in the order they are configured � A PAP auth-type similar to an ASCII login, except that the username and pass-
word arrive at the network access server in a PAP protocol packet instead of being typed in by the user, so the user is not prompted � If the user does not specify a parameter for this configured TACACS+ server, the configuration will be taken from the global TACACS+ server configuration. Refer to "tacacs-server" command.
Mellanox Technologies
.
375
show tacacs
show tacacs
Displays TACACS+ configurations.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show tacacs
TACACS+ defaults:
Key
: ********
Timeout : 3
Retransmit: 1
Related Commands Notes
TACACS+ servers:
1.1.1.1:49:
Enabled : yes
Auth Type : pap
Key
: ********
Timeout : 3 (default)
Retransmit: 1 (default)
aaa authorization tacacs-server tacacs-server host
System Management
Mellanox Technologies
.
376
System Management
4.12.4.5 LDAP
ldap base-dn
ldap base-dn <string> no ldap base-dn
Sets the base distinguished name (location) of the user information in the schema of the LDAP server. The no form of the command resets the attribute to its default values.
Syntax Description string
A case-sensitive string that specifies the location in the LDAP hierarchy where the server should begin searching when it receives an authorization request. For example: "ou=users,dc=example,dc=com", with no spaces. when: ou - Organizational unit dc - Domain component cn - Common name sn - Surname
Default
ou=users,dc=example,dc=com
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Role
admin
Example
switch (config) # ldap base-dn ou=department,dc=example,dc=com
Related Commands show ldap
Notes
Mellanox Technologies
.
377
System Management
ldap bind-dn/bind-password
ldap {bind-dn | bind-password} <string> no ldap {bind-dn | bind-password}
Gives the distinguished name or password to bind to on the LDAP server. This can be left empty for anonymous login (the default). The no form of the command resets the attribute to its default values.
Syntax Description string
A case-sensitive string that specifies distinguished name or password to bind to on the LDAP server.
Default
""
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Role
admin
Example
switch (config) # ldap bind-dn my-dn switch (config) # ldap bind-password my-password
Related Commands show ldap
Notes
For anonymous login, bind-dn and bind-password should be empty strings "".
Mellanox Technologies
.
378
System Management
ldap group-attribute/group-dn
ldap {group-attribute {<group-att> |member | uniqueMember} | group-dn <group-dn>} no ldap {group-attribute | group-dn}
Sets the distinguished name or attribute name of a group on the LDAP server. The no form of the command resets the attribute to its default values.
Syntax Description group-att
Specifies a custom attribute name.
member
groupOfNames or group membership attribute.
uniqueMember
groupOfUniqueNames membership attribute.
group-dn
DN of group required for authorization.
Default
group-att: member group-dn: ""
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Role
admin
Example Related Commands
switch (config) # ldap group-attribute member switch (config) # ldap group-dn my-group-dn
show ldap
Notes
� The user's distinguished name must be listed as one of the values of this attribute, or the user will not be authorized to log in
� After login authentication, if the group-dn is set, a user must be a member of this group or the user will not be authorized to log in. If the group is not set ("" - the default) no authorization checks are done.
Mellanox Technologies
.
379
System Management
ldap host
ldap host <IP Address> [order <number> last] no ldap host <IP Address>
Adds an LDAP server to the set of servers used for authentication. The no form of the command deletes the LDAP host.
Syntax Description IP Address
IPv4 or IPv6 address.
number
The order of the LDAP server.
last
The LDAP server will be added in the last location.
Default
No hosts configured
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Role
admin
Example
switch (config) # ldap host 10.10.10.10
Related Commands show aaa show ldap
Notes
� The system will select the LDAP host to try according to its order � New servers are by default added at the end of the list of servers
Mellanox Technologies
.
380
System Management
ldap hostname-check enable
ldap hostname-check enable no ldap hostname-check enable
Enables LDAP hostname check. The no form of the command disables LDAP hostname check.
Syntax Description N/A
Default
No hosts configured
Configuration Mode config
History
3.6.8008
Role
admin
Example
switch (config) # ldap hostname-check enable
Related Commands show aaa show ldap
Notes
Mellanox Technologies
.
381
System Management
ldap login-attribute
ldap login-attribute {<string> | uid | sAMAccountName} no ldap login-attribute
Sets the attribute name which contains the login name of the user. The no form of the command resets this attribute to its default.
Syntax Description string
Custom attribute name.
uid
LDAP login name is taken from the user login user-
name.
sAMAccountName
SAM Account name, active directory login name.
Default
sAMAccountName
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Role
admin
Example
switch (config) # ldap login-attribute uid
Related Commands show aaa show ldap
Notes
Mellanox Technologies
.
382
System Management
ldap port
ldap port <port> no ldap port
Sets the TCP port on the LDAP server to connect to for authentication. The no form of the command resets this attribute to its default value.
Syntax Description port
TCP port number.
Default
389
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Role
admin
Example
switch (config) # ldap port 1111
Related Commands show aaa show ldap
Notes
Mellanox Technologies
.
383
System Management
ldap referrals
ldap referrals no ldap referrals
Enables LDAP referrals. The no form of the command disables LDAP referrals.
Syntax Description N/A
Default
LDAP referrals are enabled
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Role
admin
Example
switch (config) # no ldap referrals
Related Commands show aaa show ldap
Notes
Referral is the process by which an LDAP server, instead of returning a result, will return a referral (a reference) to another LDAP server which may contain further information.
Mellanox Technologies
.
384
System Management
ldap scope
ldap scope <scope> no ldap scope
Specifies the extent of the search in the LDAP hierarchy that the server should make when it receives an authorization request. The no form of the command resets the attribute to its default value.
Syntax Description scope
� one-level - searches the immediate children of the base dn
� subtree - searches at the base DN and all its children
Default
subtree
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Role
admin
Example
switch (config) # ldap scope subtree
Related Commands show aaa show ldap
Notes
Mellanox Technologies
.
385
ldap ssl
System Management
ldap ssl {ca-list <options> | cert-verify | ciphers {all | TLS1.2} | crl-check {enable | file fetch <path>} | mode <mode> | port <port-number>} no ldap ssl {cert-verify | ciphers | crl-check enable | mode | port} Sets SSL parameter for LDAP. The no form of the command resets the attribute to its default value.
Mellanox Technologies
.
386
System Management
Syntax Description options
This command specifies the list of supplemental certificates of authority (CAs) from the certificate configuration database that is to be used by LDAP for authentication of servers when in TLS or SSL mode. The options are: � default-ca-list - uses default supplemental CA cer-
tificate list � none - no supplemental list, uses the built-in one
only CA certificates are ignored if "ldap ssl mode" is not configured as either "tls" or "ssl", or if "no ldap ssl cert-verify" is configured. The default-ca-list is empty in the factory default configuration. Use the command: "crypto certificate ca-list default-ca-list name" to add trusted certificates to that list. The "default-ca-list" option requires LDAP to consult the system's configured global default CA-list for supplemental certificates.
cert-verify
Enables verification of SSL/TLS server certificates. This may be required if the server's certificate is selfsigned, or does not match the name of the server.
ciphers {all | TLS1.2}
Sets SSL mode to be used.
crl-check enable
Enables LDAP CRL check
crl-check file fetch
Fetches CRL from remote server. CRL must be a valid PEM file unless a proper message shown. Supported formats: SCP, HTTP, HTTPS, FTP, and FTPS.
mode
Sets the security mode for connections to the LDAP server. � none � requests no encryption for the LDAP con-
nection � ssl � the SSL-port configuration is used, an SSL
connection is made before LDAP requests are sent (LDAP over SSL) � start-tls � the normal LDAP port is used, an LDAP connection is initiated, and then TLS is started on this existing connection
port-number
Sets the port on the LDAP server to connect to for authentication when the SSL security mode is enabled (LDAP over SSL).
Default
cert-verify: enabled mode: none (LDAP SSL is not activated) port-number: 636 ciphers: all
Configuration Mode config
Mellanox Technologies
.
387
System Management
History
Role Example
Related Commands Notes
3.1.0000 3.2.3000 3.4.0000 3.6.8008 admin
Added ca-list argument. Added "ssl ciphers" parameter and updated Example Added the parameter "crl-check"
switch (config) # ldap ssl crl-check file fetch scp:// root:pass@1.1.1.1/etc/pki/crl.pem
100.0% [#####################################################################]
show aaa show ldap
� If available, the TLS mode is recommended, as it is standardized, and may also be of higher security
� The port number is used only for SSL mode. In case the mode is TLS, the LDAP port number will be used.
Mellanox Technologies
.
388
System Management
ldap timeout
ldap {timeout-bind | timeout-search} <seconds> no ldap {timeout-bind | timeout-search}
Sets a global communication timeout in seconds for all LDAP servers to specify the extent of the search in the LDAP hierarchy that the server should make when it receives an authorization request. The no form of the command resets the attribute to its default value.
Syntax Description timeout-bind
Sets the global LDAP bind timeout for all LDAP servers.
timeout-search
Sets the global LDAP search timeout for all LDAP servers.
seconds
Range: 1-60 seconds.
Default
5 seconds
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Role
admin
Example
switch (config) # ldap timeout-bind 10
Related Commands show aaa show ldap
Notes
Mellanox Technologies
.
389
System Management
ldap version
ldap version <version> no ldap version
Sets the LDAP version. The no form of the command resets the attribute to its default value.
Syntax Description version
Sets the LDAP version. Values: 2 and 3.
Default
3
Configuration Mode config
History
3.1.0000
3.4.0000
Updated Example
Role
admin
Example
switch (config) # ldap version 3
Related Commands show aaa show ldap
Notes
Mellanox Technologies
.
390
System Management
show ldap
show ldap
Displays LDAP configurations.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.4.0000
Updated Example
3.6.8008
Updated Example
Role
admin
Example
switch (config) # show ldap
Related Commands Notes
User base DN
: ou=users,dc=example,dc=com
User search scope : subtree
Login attribute
: sAMAccountName
Bind DN
:
Bind password
: ********
Group base DN
:
Group attribute
: member
LDAP version
: 3
Referrals
: yes
Server port
: 389
Search Timeout
: 5
Bind Timeout
: 5
Server Hostname check: no
SSL mode
: none
Server SSL port
: 636 (not active)
SSL ciphers
: all (not active)
SSL cert verify
: yes
SSL ca-list
: default-ca-list
SSL CRL check
: no
show aaa show ldap
Mellanox Technologies
.
391
show ldap crl
show ldap crl
Displays current CRL configured by the user.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.8008
Role
admin
Example
switch (config) # show ldap crl -----BEGIN CERTIFICATE----MIIDVzCSd...... -----END CERTIFICATE-----
Related Commands show aaa show ldap
Notes
System Management
Mellanox Technologies
.
392
System Management
4.12.4.6 System Secure Mode
system secure-mode enable
system secure-mode enable no system secure-mode enable
Syntax Description Default Configuration Mode History Role Example
Enables secure mode on the switch. The no form of the command disables secure mode. N/A Disabled config 3.5.0200 admin
switch (config) # system secure-mode enable
Related Commands Notes
Warning! Configuration is about to be saved and the system will be
reloaded.
Type 'YES' to confirm the change in secure mode: YES
user <username> password <password> ssh server min-version ssh server security strict snmp-server user no neighbor <ip-address> password ntp server disable ntp server keyID router bgp neighbor password router bgp peer-group password
Before enabling secure mode, the command performs the following configuration checks: � NTP Key ID cannot be MD5 when secure mode is enabled � SSH min-version cannot be 1 when enabling secure mode � SSH security must be set to strict security � SNMPv3 user auth cannot be md5 when enabling secure mode � SNMPv3 user priv cannot be des when enabling secure mode � SNMPv3 trap auth cannot be md5 when enabling secure mode � SNMPv3 trap priv cannot be des when enabling secure mode � Router BGP neighbor password cannot be set when enabling secure mode � Router BGP peer-group password cannot be set when enabling with secure mode � User password hash cannot be MD5 when secure mode is enabled Only if the check passes, secure mode is enabled on the switch system.
Mellanox Technologies
.
393
System Management
show system secure-mode
show system secure-mode
Displays the security mode of the switch system.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.4.2300
Role
admin
Example
switch (config) # show system secure-mode
Related Commands Notes
Secure mode configured: yes Secure mode enabled : yes switch (config) #
system secure-mode enable
"Secure mode configuration" describes the user configuration "Secure mode enabled" describes the system state
Mellanox Technologies
.
394
System Management
4.13 Cryptographic (X.509, IPSec) and Encryption
This chapter contains commands for configuring, generating and modifying x.509 certificates used in the system. Certificates are used for creating a trusted SSL connection to the system. Crypto commands also cover IPSec configuration commands used for establishing a secure connection between hosts over IP layer which is useful for transferring sensitive information.
4.13.1 System File Encryption
This feature encrypts all sensitive data on Mellanox systems including logs certificates, keys, etc. To activate encryption on the switch: Step 1. Enable encryption and configure key location as USB (if you are using a USB device). Run:
switch (config)# crypto encrypt-data key-location usb key mypassword
Warning! All sensitive files are about to be encrypted - System will perform reset factory, configuration files will be preserved - System will be rebooted - Active configuration will be preserved - Do not power-off, wait for the system to boot
Type 'YES' to confirm this action: YES
***IMPORTANT NOTE*** Encryption and decryption perform "reset factory keep-config" on the switch system once configured. This means that sysdumps, logs, and images are deleted.
The key may be saved locally as well by using the parameter "local" instead of "usb" but that configuration is less secure.
Step 2.
After the system reboots, verify configuration. Run:
switch (config)# show crypto encrypt-data
Sensitive files encryption:
Status:
enabled
Key location: usb
Cipher:
aes256
Once encryption is enabled, reverting back to an older version while encrypted is not possible. The command "no crypto encrypt-data" must be run before attempting to downgrade to an older MLNX-OS version.
Mellanox Technologies
.
395
System Management
If encryption is enabled, upgrading to a new MLNX-OS version maintains the encryption configuration.
Mellanox Technologies
.
396
System Management
4.13.1.1 Commands
crypto encrypt-data
crypto encrypt-data key-location <local | usb> key <password> no crypto encrypt-data
Enables and configures system file encryption. The no form of the command decrypts sensitive information on the system.
Syntax Description key-location
Configures where to store the encryption key: � local � Stores the key locally � usb � Stores the key on a USB device
key
Configures a key
Default
N/A
Configuration Mode config
History
3.6.1002
Role
admin
Example
switch (config)# crypto encrypt-data key-location usb key mypassword
Warning! All sensitive files are about to be encrypted - System will perform reset factory, configuration files will be preserved - System will be rebooted - Do not power-off, wait for the system to boot
Related Commands Notes
Type 'YES' to confirm this action: YES
� It is recommended to store the encryption password on a USB device rather than locally
� Enabling encryption may slightly slow system performance � If the key is stored on the USB, it must be plugged into the switch in order for the
switch to boot. After the switch has booted, the USB key is no longer required and, for security purposes, it is recommended to remove it after running "usb eject". The USB key may be needed again if the switch is rebooted or if the switch needs to be decrypted.
Mellanox Technologies
.
397
System Management
crypto ipsec ike
crypto ipsec ike {clear sa [peer {any | <IPv4 or IPv6 address>} local <IPv4 or IPv6 address>] | restart}
Manage the IKE (ISAKMP) process or database state
Syntax Description clear
Clears IKE (ISAKMP) peering state
sa
Clears IKE generated ISAKMP and IPSec security
associations (remote peers are affected)
peer
Clears security associations for the specified IKE peer
(remote peers are affected)
all � clears security associations for all IKE peerings
with a specific local address (remote peers are affected)
IPv4 or IPv6 address � clears security associations for
specific IKE peering with a specific local address
(remote peers are affected)
IPv4 or IPv6 address
Clears security associations for the specified IKE peering (remote peer is affected)
local
Clear security associations for the specified/all IKE
peering (remote peer is affected)
restart
Restarts the IKE (ISAKMP) daemon (clears all IKE state, peers may be affected)
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config)# crypto ipsec ike restart switch (config)#
Related Commands N/A
Notes
Mellanox Technologies
.
398
System Management
crypto ipsec peer local
crypto ipsec peer <IPv4 or IPv6 address> local <IPv4 or IPv6 address> {enable | keying {ike [auth {hmac-md5 | hmac-sha1 | hmac-sha256 | null} | dh-group | disable | encrypt | exchange-mode | lifetime | local | mode | peer-identity | pfs-group | preshared-key | prompt-preshared-key | transform-set] | manual [auth | disable | encrypt | local-spi | mode | remote-spi]}} Configures ipsec in the system.
Mellanox Technologies
.
399
Syntax Description
enable ike
keying
Default
manual N/A
Mellanox Technologies
.
System Management
Enables IPSec peering.
Configures IPSec peering using IKE ISAKMP to manage SA keys. It has the following optional parameters: � auth: Configures the authentication algorithm for
IPSec peering � dh-group: Configures the phase1 Diffie-Hellman
group proposed for secure IKE key exchange � disable: Configures this IPSec peering administra-
tively disabled � encrypt: Configures the encryption algorithm for
IPSec peering � exchange-mode: Configures the IKE key exchange
mode to propose for peering � lifetime: Configures the SA lifetime to propose for
this IPSec peering � local-identity: Configures the ISAKMP payload
identification value to send as local endpoint's identity � mode: Configures the peering mode for this IPSec peering � peer-identity: Configures the identification value to match against the peer's ISAKMP payload identification � pfs-group: Configures the phase2 PFS (Perfect Forwarding Secrecy) group to propose for Diffie-Hellman exchange for this IPSec peering � preshared-key: Configures the IKE pre-shared key for the IPSec peering � prompt-preshared-key: Prompts for the pre-shared key, rather than entering it on the command line � transform-set: Configures transform proposal parameters
Configures key management for this IPSec peering: � auth: Configures the authentication algorithm for
this IPSec peering � disable: Configures this IPSec peering administra-
tively disabled � encrypt: Configures the encryption algorithm for
this IPSec peering � local-spi: Configures the local SPI for this manual
IPSec peering � mode: Configures the peering mode for this IPSec
peering � remote-spi: Configures the remote SPI for this man-
ual IPSec peering
Configures IPSec peering using manual keys.
400
System Management
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config)# crypto ipsec peer 10.10.10.10 local 10.7.34.139 enable switch (config)#
Related Commands N/A
Notes
Mellanox Technologies
.
401
System Management
crypto certificate ca-list
crypto certificate ca-list [default-ca-list name {<cert-name> | system-selfsigned}] no crypto certificate ca-list [default-ca-list name {<cert-name> | system-selfsigned}]
Adds the specified CA certificate to the default CA certificate list. The no form of the command removes the certificate from the default CA certificate list.
Syntax Description cert-name
The name of the certificate.
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # crypto certificate default-cert name test
Related Commands N/A
Notes
� Two certificates with the same subject and issuer fields cannot both be placed onto the CA list
� The no form of the command does not delete the certificate from the certificate database
� Unless specified otherwise, applications that use CA certificates will still consult the well-known certificate bundle before looking at the default-ca-list
Mellanox Technologies
.
402
System Management
crypto certificate default-cert
crypto certificate default-cert name {<cert-name> | system-self-signed} no crypto certificate default-cert name {<cert-name> | system-self-signed}
Designates the named certificate as the global default certificate role for authentication of this system to clients. The no form of the command reverts the default-cert name to "system-self-signed" (the "cert-name" value is optional and ignored).
Syntax Description cert-name
The name of the certificate.
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example
switch (config) # crypto certificate default-cert name test
Related Commands N/A
Notes
� A certificate must already be defined before it can be configured in the defaultcert role
� If the named default-cert is deleted from the database, the default-cert automatically becomes reconfigured to the factory default, the "system-self-signed" certificate
Mellanox Technologies
.
403
System Management
crypto certificate generation
crypto certificate generation default {country-code | days-valid | email-addr | hash-algorithm {sha1 | sha256} | key-size-bits | locality | org-unit | organization | state-or-prov}
Configures default values for certificate generation.
Syntax Description country-code
Configures the default certificate value for country code with a two-alphanumeric-character code or -- for none.
days-valid
Configures the default certificate valid days. Default value: 365 days.
email-addr
Configures the default certificate value for email address.
hash-algorithm {sha1 | sha256}
Configures the default certificate hashing algorithm.
key-size-bits
Configures the default certificate value for private key size. (Private key length in bits � at least 1024, but 2048 is strongly recommended.)
locality
Configures the default certificate value for locality.
org-unit
Configures the default certificate value for organizational unit.
organization
Configures the default certificate value for the organization name.
state-or-prov
Configures the default certificate value for state or province.
Default
N/A
Configuration Mode config
History
3.2.1000
3.3.4350
Added "hash-algorithm" parameter
3.6.4000
Added "days-valid" parameter
Role
admin
Example
switch (config) # crypto certificate generation default hash-algorithm sha256
Related Commands N/A
Notes
The default hashing algorithm used is sha1.
Mellanox Technologies
.
404
System Management
crypto certificate name
crypto certificate name {<cert-name> | system-self-signed} {comment <new comment> | generate self-signed [comment <cert-comment> | common-name <domain> | country-code <code> | days-valid <days> | email-addr <address> | hash-algorithm {sha1 | sha256} | key-size-bits <bits> | locality <name> | org-unit <name> | organization <name> | serial-num <number> | state-or-prov <name>]} | private-key pem <PEM string> | prompt-private-key | public-cert [comment <comment string> | pem <PEM string>] | regenerate days-valid <days> | rename <new name>} no crypto certificate name <cert-name>
Configures default values for certificate generation. The no form of the command clears/deletes certain certificate settings.
Mellanox Technologies
.
405
System Management
Syntax Description cert-name
Unique name by which the certificate is identified.
comment
Specifies a certificate comment.
generate self-signed
Generates certificates. This option has the following parameters which may be entered sequentially in any order: � comment: Specifies a certificate comment (free
string) � common-name: Specifies the common name of the
issuer and subject (e.g. a domain name) � country-code: Specifies the country codwo-alpha-
numeric-character country code, or "--" for none) � days-valid: Specifies the number of days the certifi-
cate is valid � email-addr: Specifies the email address � hash-algorithm: Specifies the hashing function used
for signature algorithm. Default value is SHA256. � key-size-bits: Specifies the size of the private key in bits (private key length in bits - at least 1024 but 2048 is strongly recommended) � locality: Specifies the locality name � org-unit: Specifies the organizational unit name � organization: Specifies the organization name � serial-num: Specifies the serial number for the certificate (a lower-case hexadecimal serial number prefixed with "0x") � state-or-prov: Specifies the state or province name
private-key pem
Specifies certificate contents in PEM format.
prompt-private-key
Prompts for certificate private key with secure echo.
public-cert
Installs a certificate.
regenerate
Regenerates the named certificate using configured certificate generation default values for the specified validity period
rename
Renames the certificate.
Default
N/A
Configuration Mode config
History
3.2.3000
3.3.4402
Added "hash-algorithm" parameter
3.6.4000
Added "hash-algorithm" parameter
Role
admin
Example
switch (config) # crypto certificate name system-self-signed generate self-signed hash-algorithm sha256
Mellanox Technologies
.
406
Related Commands N/A Notes
System Management
Mellanox Technologies
.
407
System Management
crypto certificate system-self-signed
crypto certificate system-self-signed regenerate [days-valid <days>]
Configures default values for certificate generation.
Syntax Description days-valid
Specifies the number of days the certificate is valid
Default
N/A
Configuration Mode config
History
3.2.1000
Role
admin
Example Related Commands
switch (config) # crypto certificate system-self-signed regenerate days-valid 3
N/A
Notes
Mellanox Technologies
.
408
System Management
show crypto certificate
show crypto certificate [detail | public-pem | default-cert [detail | public-pem] | [name <cert-name> [detail | public-pem] | ca-list [default-ca-list]]
Displays information about all certificates in the certificate database.
Syntax Description ca-list
Displays the list of supplemental certificates configured for the global default system CA certificate role.
default-ca-list
Displays information about the currently configured default certificates of the CA list.
default-cert
Displays information about the currently configured default certificate.
detail
Displays all attributes related to the certificate.
name
Displays information about the certificate specified.
public-pem
Displays the uninterpreted public certificate as a PEM formatted data string
Default
N/A
Configuration Mode config
History
3.2.1000
Role
admin
Mellanox Technologies
.
409
System Management
Example
Related Commands Notes
switch (config)# show crypto certificate
Certificate with name 'system-self-signed' (default-cert)
Comment:
system-generated self-signed certif-
icate
Private Key:
present
Serial Number:
0x546c935511bcafc21ac0e8249fbe0844
SHA-1 Fingerprint:
fe6df38dd26801971cb2d44f62d-
be492b6063c5f
Validity: Starts: Expires:
2012/12/02 13:45:05 2013/12/02 13:45:05
Subject: Common Name: Country: State or Province: Locality: Organization: Organizational Unit: E-mail Address:
IBM-DEV-Bay4 IS
Issuer: Common Name: Country: State or Province: Locality: Organization: Organizational Unit: E-mail Address:
switch (config)#
N/A
IBM-DEV-Bay4 IS
Mellanox Technologies
.
410
show crypto encrypt-data
show encrypt-data
Displays sensitive data encryption information.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.1002
Role
admin
Example
switch (config)# show crypto encrypt-data
Sensitive files encryption:
Status:
enabled
Key location: usb
Cipher:
aes256
switch (config)#
Related Commands N/A
Notes
System Management
Mellanox Technologies
.
411
System Management
show crypto ipsec
show crypto ipsec [brief | configured | ike | policy | sa]
Displays information ipsec configuration.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.2.1000
Role
admin
Example
switch (config)# show crypto ipsec IPSec Summary ------------Crypto IKE is using pluto (Openswan) daemon. Daemon process state is stopped.
No IPSec peers configured.
IPSec IKE Peering State ----------------------Crypto IKE is using pluto (Openswan) daemon. Daemon process state is stopped.
No active IPSec IKE peers.
IPSec Policy State ------------------
No active IPSec policies.
Related Commands Notes
IPSec Security Association State --------------------------------
No active IPSec security associations. switch (config)#
N/A
Mellanox Technologies
.
412
System Management
4.14 Scheduled Jobs
Use the commands in this section to manage and schedule the execution of jobs
4.14.1 Commands
job
job <job ID> no job <job ID>
Creates a job. The no form of the command deletes the job.
Syntax Description job ID
An integer.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # job 100 switch (config job 100) #
show jobs
Notes
Job state is lost on reboot.
Mellanox Technologies
.
413
System Management
command
command <sequence #> | <command> no command <sequence #>
Adds a CLI command to the job. The no form of the command deletes the command from the job.
Syntax Description sequence #
An integer that controls the order the command is executed relative to other commands in this job. The commands are executed in an ascending order.
command
A CLI command.
Default
N/A
Configuration Mode config job
History
3.1.0000
Role
admin
Example
switch (config)# job 100 switch (config job 100) # command 10 "show power" switch (config job 100) #
Related Commands show jobs
Notes
� The command must be defined with inverted commas ("") � The command must be added as it was executed from the "config" mode. For
example, in order to change the interface description you need to add the command: "interface <type> <number> description my-description".
Mellanox Technologies
.
414
System Management
comment
comment <comment> no comment
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Adds a comment to the job. The no form of the command deletes the comment.
comment
The comment to be added (string).
""
config job
3.1.0000
admin
switch (config)# job 100 switch (config job 100) # comment Job_for_example switch (config job 100) #
show jobs
Mellanox Technologies
.
415
System Management
enable
enable no enable
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables the specified job. The no form of the command disables the specified job.
N/A
N/A
config job
3.1.0000
admin
switch (config)# job 100 switch (config job 100) # enable switch (config job 100) #
show jobs
If a job is disabled, it will not be executed automatically according to its schedule; nor can it be executed manually.
Mellanox Technologies
.
416
System Management
execute
execute
Forces an immediate execution of the job.
Syntax Description N/A
Default
N/A
Configuration Mode config job
History
3.1.0000
Role
admin
Example Related Commands
switch (config)# job 100 switch (config job 100) # execute switch (config job 100) #
show jobs
Notes
� The job timer (if set) is not canceled and the job state is not changed: i.e. the time of the next automatic execution is not affected
� The job will not be run if not currently enabled
Mellanox Technologies
.
417
System Management
fail-continue
fail-continue no fail-continue
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Continues the job execution regardless of any job failures. The no form of the command returns fail-continue to its default. N/A A job will halt execution as soon as any of its commands fails config job 3.1.0000 admin
switch (config)# job 100 switch (config job 100) # fail-continue switch (config job 100) #
show jobs
Mellanox Technologies
.
418
System Management
name
name <job name> no name
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Configures a name for this job. The no form of the command resets the name to its default.
name
Specifies a name for the job (string).
"".
config job
3.1.0000
admin
switch (config)# job 100 switch (config job 100) # name my-job switch (config job 100) #
show jobs
Mellanox Technologies
.
419
System Management
schedule type
schedule type <recurrence type> no schedule type
Sets the type of schedule the job will automatically execute on. The no form of the command resets the schedule type to its default.
Syntax Description recurrence type
The available schedule types are: � daily - the job is executed every day at a specified
time � weekly - the job is executed on a weekly basis � monthly - the job is executed every month on a
specified day of the month � once - the job is executed once at a single specified
date and time � periodic - the job is executed on a specified fixed
time interval, starting from a fixed point in time.
Default
once
Configuration Mode config job
History
3.1.0000
Role
admin
Example Related Commands
switch (config)# job 100 switch (config job 100) # schedule type once switch (config job 100) #
show jobs
Notes
A schedule type is essentially a structure for specifying one or more future dates and times for a job to execute.
Mellanox Technologies
.
420
System Management
schedule <recurrence type>
schedule <recurrence type> <interval and date> no schedule
Sets the type of schedule the job will automatically execute on. The no form of the command resets the schedule type to its default.
Syntax Description recurrence type
The available schedule types are: � daily - the job is executed every day at a specified
time � weekly - the job is executed on a weekly basis � monthly - the job is executed every month on a
specified day of the month � once - the job is executed once at a single specified
date and time � periodic - the job is executed on a specified fixed
time interval, starting from a fixed point in time.
interval and date
Interval and date, per recurrence type.
Default
once
Configuration Mode config job
History
3.1.0000
Role
admin
Example Related Commands
switch (config)# job 100 switch (config job 100) # schedule monthly interval 10 switch (config job 100) #
show jobs
Notes
A schedule type is essentially a structure for specifying one or more future dates and times for a job to execute.
Mellanox Technologies
.
421
System Management
show jobs
show jobs [<job-id>]
Syntax Description Default Configuration Mode History Role Example
Displays configuration and state (including results of last execution, if any exist) of all jobs, or of one job if a job ID is specified.
job-id
Job ID.
N/A
config
3.1.0000
admin
switch (config) # show jobs 10
Job 10:
Status:
inactive
Enabled:
yes
Continue on failure: no
Schedule Type:
once
Time and date:
1970/01/01 00:00:00 +0000
Last Exec Time:
Thu 2012/04/05 13:11:42 +0000
Next Exec Time:
N/A
Commands:
Command 10: show power
Last Output:
=====================
Module
Status
=====================
PS1
OK
PS2
NOT PRESENT
Related Commands Notes
switch (config) #
show jobs
Mellanox Technologies
.
422
System Management
4.15 Statistics and Alarms
4.15.1 Commands
stats alarm <alarm-id> clear
stats alarm <alarm ID> clear
Clears alarm state.
Syntax Description alarm ID
Alarms supported by the system, for example: � cpu_util_indiv - Average CPU utilization too high:
percent utilization � disk_io - Operating System Disk I/O per second too
high: kilobytes per second � fs_mnt - Free filesystem space too low: percent of
disk space free � intf_util - Network utilization too high: bytes per
second � memory_pct_used - Too much memory in use: per-
cent of physical memory used � paging - Paging activity too high: page faults � temperature - Temperature is too high: degrees
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # stats alarm cpu_util_indiv clear switch (config) #
show stats alarm
Notes
Mellanox Technologies
.
423
System Management
stats alarm <alarm-id> enable
stats alarm <alarm-id> enable no stats alarm <alarm-id> enable
Enables the alarm. The no form of the command disables the alarm, notifications will not be received.
Syntax Description alarm ID
Alarms supported by the system, for example: � cpu_util_indiv - Average CPU utilization too high:
percent utilization � disk_io - Operating System Disk I/O per second too
high: kilobytes per second � fs_mnt - Free filesystem space too low: percent of
disk space free � intf_util - Network utilization too high: bytes per
second � memory_pct_used - Too much memory in use: per-
cent of physical memory used � paging - Paging activity too high: page faults � temperature - Temperature is too high: degrees
Default
The default is different per alarm-id
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # stats alarm cpu_util_indiv enable switch (config) #
show stats alarm
Notes
Mellanox Technologies
.
424
System Management
stats alarm <alarm-id> event-repeat
stats alarm <alarm ID> event-repeat {single | while-not-cleared} no stats alarm <alarm ID> event-repeat
Configures repetition of events from this alarm.
Syntax Description alarm ID
Alarms supported by the system, for example: � cpu_util_indiv - Average CPU utilization too high:
percent utilization � disk_io - Operating System Disk I/O per second too
high: kilobytes per second � fs_mnt - Free filesystem space too low: percent of
disk space free � intf_util - Network utilization too high: bytes per
second � memory_pct_used - Too much memory in use: per-
cent of physical memory used � paging - Paging activity too high: page faults � temperature - Temperature is too high: degrees
single
Does not repeat events: only sends one event whenever the alarm changes state.
while-not-cleared
Repeats error events until the alarm clears.
Default
single
Configuration Mode config
History
3.1.0000
Role
monitor/admin
Example
switch (config) # stats alarm cpu_util_indiv event-repeat single switch (config) #
Related Commands show stats alarm
Notes
Mellanox Technologies
.
425
System Management
stats alarm <alarm-id> {rising | falling}
stats alarm <alarm ID> {rising | falling} {clear-threshold | error-threshold} <threshold-value>
Configure alarms thresholds.
Syntax Description alarm ID
Alarms supported by the system, for example: � cpu_util_indiv - Average CPU utilization too high:
percent utilization � disk_io - Operating System Disk I/O per second too
high: kilobytes per second � fs_mnt - Free filesystem space too low: percent of
disk space free � intf_util - Network utilization too high: bytes per
second � memory_pct_used - Too much memory in use: per-
cent of physical memory used � paging - Paging activity too high: page faults � temperature - Temperature is too high: degrees
falling
Configures alarm for when the statistic falls too low.
rising
Configures alarm for when the statistic rises too high.
error-threshold
Sets threshold to trigger falling or rising alarm.
clear-threshold
Sets threshold to clear falling or rising alarm.
threshold-value
The desired threshold value, different per alarm.
Default
Default is different per alarm-id
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # stats alarm cpu_util_indiv falling clear-threshold 10 switch (config) #
Related Commands show stats alarm
Notes
Not all alarms support all four thresholds.
Mellanox Technologies
.
426
System Management
stats alarm <alarm-id> rate-limit
stats alarm <alarm ID> rate-limit {count <count-type> <count> | reset | window <window-type> <duration>}
Configures alarms rate limit.
Syntax Description alarm ID
Alarms supported by the system, for example: � cpu_util_indiv - Average CPU utilization too high:
percent utilization � disk_io - Operating System Disk I/O per second too
high: kilobytes per second � fs_mnt - Free filesystem space too low: percent of
disk space free � intf_util - Network utilization too high: bytes per
second � memory_pct_used - Too much memory in use: per-
cent of physical memory used � paging - Paging activity too high: page faults � temperature - Temperature is too high: degrees
count-type
Long medium, or short count (number of alarms).
reset
Set the count and window durations to default values
for this alarm.
window-type
Long medium, or short count, in seconds.
Default
Short window: 5 alarms in 1 hour Medium window: 20 alarms in 1 day Long window: 50 alarms in 7 days
Configuration Mode config
History
3.1.0000
Role
monitor/admin
Example
switch (config) # stats alarm paging rate-limit window long 2000 switch (config) #
Related Commands show stats alarm
Notes
Mellanox Technologies
.
427
System Management
stats chd <chd-id> clear
stats chd <CHD ID> clear
Clears CHD counters.
Syntax Description CHD ID
CHD supported by the system, for example: � cpu_util - CPU utilization: percentage of time spent � cpu_util_ave - CPU utilization average: percentage
of time spent � cpu_util_day - CPU utilization average: percentage
of time spent � disk_device_io_hour - Storage device I/O read/
write statistics for the last hour: bytes � disk_io - Operating system aggregate disk I/O aver-
age (KB/sec) � eth_day � eth_hour � eth_ip_day � eth_ip_hour � fs_mnt_day - Filesystem system usage average:
bytes � fs_mnt_month - Filesystem system usage average:
bytes � fs_mnt_week - Filesystem system usage average:
bytes � ib_day � ib_hour � intf_day - Network interface statistics aggregation:
bytes � intf_hour - Network interface statistics (same as
"interface" sample) � intf_util - Aggregate network utilization across all
interfaces � memory_day - Average physical memory usage:
bytes � memory_pct - Average physical memory usage � paging - Paging activity: page faults � paging_day - Paging activity: page faults
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # stats chd memory_day clear switch (config) #
Mellanox Technologies
.
428
Related Commands Notes
show stats chd
System Management
Mellanox Technologies
.
429
System Management
stats chd <chd-id> enable
stats chd <chd-id> enable no stats chd <chd-id> enable
Syntax Description
Default Configuration Mode History Role Example
Enables the CHD. The no form of the command disables the CHD.
chd-id
CHD supported by the system, for example: � cpu_util - CPU utilization: percentage of time spent � cpu_util_ave - CPU utilization average: percentage
of time spent � cpu_util_day - CPU utilization average: percentage
of time spent � disk_device_io_hour - Storage device I/O read/
write statistics for the last hour: bytes � disk_io - Operating system aggregate disk I/O aver-
age: KB/sec � eth_day � eth_hour � fs_mnt_day - Filesystem system usage average:
bytes � fs_mnt_month - Filesystem system usage average:
bytes � fs_mnt_week - Filesystem system usage average:
bytes � ib_day � ib_hour � intf_day - Network interface statistics aggregation:
bytes � intf_hour - Network interface statistics (same as
"interface" sample) � intf_util - Aggregate network utilization across all
interfaces � memory_day - Average physical memory usage:
bytes � memory_pct - Average physical memory usage � paging - Paging activity: page faults � paging_day - Paging activity: page faults
Enabled
config
3.1.0000
monitor/admin
switch (config) # stats chd memory_day enable switch (config) #
Mellanox Technologies
.
430
Related Commands Notes
show stats chd
System Management
Mellanox Technologies
.
431
System Management
stats chd <chd-id> compute time
stats chd <CHD ID> compute time {interval | range} <number of seconds>
Sets parameters for when this CHD is computed.
Syntax Description CHD ID
Possible IDs: � cpu_util - CPU utilization: percentage of time spent � cpu_util_ave - CPU utilization average: percentage
of time spent � cpu_util_day - CPU utilization average: percentage
of time spent � disk_device_io_hour - Storage device I/O read/
write statistics for the last hour: bytes � disk_io - Operating system aggregate disk I/O aver-
age: KB/sec � eth_day � eth_hour � fs_mnt_day - Filesystem system usage average:
bytes � fs_mnt_month - Filesystem system usage average:
bytes � fs_mnt_week - Filesystem system usage average:
bytes � ib_day � ib_hour � intf_day - Network interface statistics aggregation:
bytes � intf_hour - Network interface statistics (same as
"interface" sample) � intf_util - Aggregate network utilization across all
interfaces � memory_day - Average physical memory usage:
bytes � memory_pct - Average physical memory usage � paging - Paging activity: page faults � paging_day - Paging activity: page faults
interval
Specifies calculation interval (how often to do a new calculation) in number of seconds.
range
Specifies calculation range, in number of seconds.
number of seconds
Number of seconds.
Default
Different per CHD
Configuration Mode config
History
3.1.0000
Role
monitor/admin
Mellanox Technologies
.
432
System Management
Example
Related Commands Notes
switch (config) # stats chd memory_day compute time interval 120 switch (config) # show stats chd memory_day CHD "memory_day" (Average physical memory usage: bytes): Source dataset: sample "memory" Computation basis: time Interval: 120 second(s) Range: 1800 second(s) switch (config) #
show stats chd
Mellanox Technologies
.
433
System Management
stats sample <sample-id> clear
stats sample <sample ID> clear
Clears sample history.
Syntax Description sample ID
Possible sample IDs are: � congested � cpu_util - CPU utilization: milliseconds of time
spent � disk_device_io - Storage device I/O statistics � disk_io - Operating system aggregate disk I/O: KB/
sec � eth � eth-abs � eth_ip � fan - Fan speed � fs_mnt_bytes - Filesystem usage: bytes � fs_mnt_inodes - Filesystem usage: inodes � ib � interface - Network interface statistics � intf_util - Network interface utilization: bytes � memory - System memory utilization: bytes � paging - Paging activity: page faults � power - Power supply usage � power-consumption � temperature - Modules temperature
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # stats sample temperature clear switch (config) #
Related Commands show stats sample
Notes
Mellanox Technologies
.
434
System Management
stats sample <sample-id> enable
stats sample <sample-id> enable no states sample <sample-id> enable
Enables the sample. The no form of the command disables the sample.
Syntax Description sample-id
Possible sample IDs are: � congested � cpu_util - CPU utilization: milliseconds of time
spent � disk_device_io - Storage device I/O statistics � disk_io - Operating system aggregate disk I/O: KB/
sec � eth � fan - Fan speed � fs_mnt_bytes - Filesystem usage: bytes � fs_mnt_inodes - Filesystem usage: inodes � ib � interface - Network interface statistics � intf_util - Network interface utilization: bytes � memory - System memory utilization: bytes � paging - Paging activity: page faults � power - Power supply usage � power-consumption � temperature - Modules temperature
Default
Enabled
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # stats sample temperature enable switch (config) #
show stats sample
Notes
Mellanox Technologies
.
435
System Management
stats sample <sample-id> interval
stats sample <sample ID> interval <number of seconds>
Sets the amount of time between samples for the specified group of sample data.
Syntax Description sample ID
Possible sample IDs are: � congested � cpu_util - CPU utilization: milliseconds of time
spent � disk_device_io - Storage device I/O statistics � disk_io - Operating system aggregate disk I/O: KB/
sec � eth � fan - Fan speed � fs_mnt_bytes - Filesystem usage: bytes � fs_mnt_inodes - Filesystem usage: inodes � ib � interface - Network interface statistics � intf_util - Network interface utilization: bytes � memory - System memory utilization: bytes � paging - Paging activity: page faults � power - Power supply usage � power-consumption � temperature - Modules temperature
number of seconds
Interval in seconds.
Default
Different per sample
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # stats sample temperature interval 1
switch (config) # show stats sample temperature
Sample "temperature" (Modules temperature):
Enabled:
yes
Sampling interval: 1 second
switch (config) #
show stats sample
Notes
Mellanox Technologies
.
436
System Management
stats clear-all
stats clear all
Clears data for all samples, CHDs, and status for all alarms.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # stats clear-all switch (config) #
N/A
Notes
Mellanox Technologies
.
437
System Management
stats export
stats export <format> <report name> [{after | before} <yyyy/mm/dd> <hh:mm:ss>] [filename <filename>]
Exports statistics to a file.
Syntax Description format
Currently the only supported value for <format> is "csv" (comma-separated value).
report name
Determines dataset to be exported. Possible report names are: � memory - Memory utilization � paging - Paging I/O � cpu_util - CPU utilization
after | before
Only includes stats collected after or before a specific time.
yyyy/mm/dd
Date: It must be between 1970/01/01 and 2038/01/19.
hh:mm:ss
Time: It must be between 00:00:00 and 03:14:07 UTC and is treated as local time.
filename
Specifies filename to give new report. If a filename is specified, the stats will be exported to a file of that name; otherwise a name will be chosen automatically and will contain the name of the report and the time and date of the export. Any automatically-chosen name will be given a .csv extension.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # stats export csv memory filename mellanoxexample before 2000/08/14 15:59:50 after 2000/08/14 15:01:50 Generated report file: mellanoxexample.csv switch (config) # show files stats mellanoxexample.csv switch (config) #
show files stats
Notes
Mellanox Technologies
.
438
System Management
show stats alarm
show stats alarm [<Alarm ID> [rate-limit]]
Displays status of all alarms or the specified alarm.
Syntax Description Alarm ID
May be: � cpu_util_indiv - Average CPU utilization too high:
percent utilization � disk_io - Operating System Disk I/O per second too
high: kilobytes per second � fs_mnt - Free filesystem space too low: percent of
disk space free � intf_util - Network utilization too high: bytes per
second � memory_pct_used - Too much memory in use: per-
cent of physical memory used � paging - Paging activity too high: page faults � temperature - Temperature is too high: degrees
rate-limit
Displays rate limit parameters.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show stats alarm
Alarm cpu_util_indiv (Average CPU utilization too high): ok
Alarm disk_io (Operating System Disk I/O per second too high): (dis-
abled)
Alarm fs_mnt (Free filesystem space too low):
ok
Alarm intf_util (Network utilization too high):
(disabled)
Alarm memory_pct_used (Too much memory in use):
(disabled)
Alarm paging (Paging activity too high):
ok
Alarm temperature (Temperature is too high):
ok
switch (config) #
Related Commands stats alarm
Notes
Mellanox Technologies
.
439
System Management
show stats chd
show stats chd [<CHD ID>]
Displays configuration of all statistics CHDs.
Syntax Description CHD ID
May be: � cpu_util_indiv - Average CPU utilization too high:
percent utilization � disk_io - Operating System Disk I/O per second too
high: kilobytes per second � fs_mnt - Free filesystem space too low: percent of
disk space free � intf_util - Network utilization too high: bytes per
second � memory_pct_used - Too much memory in use: per-
cent of physical memory used � paging - Paging activity too high: page faults � temperature - Temperature is too high: degrees
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show stats chd disk_device_io_hour
Related Commands Notes
CHD "disk_device_io_hour" (Storage device I/O read/write statistics for
the last
hour: bytes):
Enabled:
yes
Source dataset: sample "disk_device_io"
Computation basis: data points
Interval:
1 data point(s)
Range:
1 data point(s)
switch (config) #
stats chd
Mellanox Technologies
.
440
System Management
show stats cpu
show stats cpu
Syntax Description Default Configuration Mode History Role Example
Displays some basic stats about CPU utilization: � the current level � the peak over the past hour � the average over the past hour
N/A
N/A
config
3.1.0000
admin
switch (config) # show stats cpu
Related Commands Notes
CPU 0
Utilization:
6%
Peak Utilization Last Hour: 16% at 2012/02/28 08:47:32
Avg. Utilization Last Hour: 8%
switch (config) #
N/A
Mellanox Technologies
.
441
System Management
show stats sample
show stats sample [<sample ID>]
Displays sampling interval for all samples, or the specified one.
Syntax Description sample ID
Possible sample IDs are: � congested � cpu_util - CPU utilization: milliseconds of time
spent � disk_device_io - Storage device I/O statistics � disk_io - Operating system aggregate disk I/O: KB/
sec � eth � fan - Fan speed � fs_mnt_bytes - Filesystem usage: bytes � fs_mnt_inodes - Filesystem usage: inodes � ib � interface - Network interface statistics � intf_util - Network interface utilization: bytes � memory - System memory utilization: bytes � paging - Paging activity: page faults � power - Power supply usage � power-consumption � temperature - Modules temperature
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show stats sample fan
Sample "fan" (Fan speed):
Enabled:
yes
Sampling interval: 1 minute 11 seconds
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies
.
442
System Management
4.16
Chassis Management
The chassis manager provides the user access to the following information: Table 27 - Chassis Manager Information
Accessible Parameters
Description
switch temperatures power supply voltages fan unit power unit Flash memory
Displays system's temperature Displays power supplies' voltage levels Displays system fans' status Displays system power consumers Displays information about system memory utilization.
Additionally, it monitors: � AC power to the PSUs � DC power out from the PSUs � Chassis failures
4.16.1 System Health Monitor
The system health monitor scans the system to decide whether or not the system is healthy. When the monitor discovers that one of the system's modules (leaf, spine, fan, or power supply) is in an unhealthy state or returned from an unhealthy state, it notifies the users through the following methods:
� System logs � accessible to the user at any time as they are saved permanently on the system
� Status LEDs � changed by the system health monitor when an error is found in the system and is resolved
� email/SNMP traps � notification on any error found in the system and resolved
4.16.1.1 Re-Notification on Errors
When the system is in an unhealthy state, the system health monitor notifies the user about the current unresolved issue every X seconds. The user can configure the re-notification gap by running the "health notif-cntr <counter>" command.
Mellanox Technologies
.
443
System Management
4.16.1.2 System Health Monitor Alerts Scenarios
� System Health Monitor sends notification alerts in the following cases: Table 28 - System Health Monitor Alerts Scenarios (Sheet 1 of 2)
Alert Message
<fan_name> speed is below minimal range
Fan <fan_number> speed in spine number <spine_number> is below minimal range
<fan_name> is unresponsive
Fan <fan_number> in spine number <spine_number> is unresponsive
<fan_name> is not present
Fan <fan_number> in spine number <spine_number> is not present.
Insufficient number of working fans in the system
Power Supply <ps_number> voltage is out of range
Scenario A chassis fan speed is below minimal threshold: 15% of maximum speed A spine fan speed is below minimal threshold: 30% of maximum speed
A chassis fan is not responsive on MLNX-OS systems A spine fan is not responsive on MLNX-OS systems
A chassis fan is missing
A spine fan is missing
Insufficient number of working fans in the system
The power supply voltage is out of range.
Notification Indicator Email, fan LED and system status LED set red, log alert, SNMP. Email, fan LED and system status LED set red, log alert, SNMP
Email, fan LED and system status LED set red, log alert, SNMP
Email, fan LED and system status LED set red, log alert, SNMP
Email, fan LED and system status LED set red, log alert, SNMP Email, fan LED and system status LED set red, log alert, SNMP
Email, fan LED and system status LED set red, log alert, SNMP
Email, power supply LED and system status LED set red, log alert, SNMP
Recovery Action Check the fan and replace it if required Check the fan and replace it if required
Check fan connectivity and replace it if required Check fan connectivity and replace it if required
Insert a fan unit
Insert a fan unit
Plug in additional fans or change faulty fans Check the power connection of the PS
Recovery Message
"<fan_name> has been restored to its normal state"
"Fan speed <fan_number> in spine number <spine_number> has been restored to its normal state"
"<fan_name> has been restored to its normal state"
"Fan <fan_number> in spine number <spine_number> has been restored to its normal state"
"<fan_name> has been restored to its normal state"
"Fan <fan_number> in spine number <spine_number> has been restored to its normal state"
"The system currently has sufficient number of working fans"
"Power Supply <ps_number> voltage is in range"
Mellanox Technologies
.
444
System Management
Table 28 - System Health Monitor Alerts Scenarios (Sheet 2 of 2)
Alert Message Power supply <ps_number> temperature is too hot
Power Supply <number> is unresponsive
Unit/leaf/spine <leaf/spine number> is unresponsive
Unit/leaf/spine voltage is out of range
ASIC temperature is too hot
Scenario A power supply unit temperature is higher than the maximum threshold of 70 Celsius on MLNX-OS systems
A power supply is malfunctioning or disconnected
A leaf/spine is not responsive
One of the voltages in a MLNX-OS unit is below minimal threshold or higher than the maximum threshold - both thresholds are 15% of the expected voltage A ASIC unit temperature is higher than the maximum threshold of 105 Celsius on MLNX-OS systems.
Notification Indicator Email, power supply LED and system status LED set red, log alert, SNMP
Email, system status LED set red, log alert, SNMP
Email, system status LED set red, log alert, SNMP
Email, system status LED set red, log alert, SNMP
Email, system status LED set red, log alert, SNMP
Recovery Action Check chassis fans connections. On MLNX-OS systems, check system fan connections. Connect power cable or replace malfunctioning PS
Check leaf/ spine connectivity and replace it if required Check leaf connectivity
Check the fans system
Recovery Message "Power supply <ps_number> temperature is back to normal"
"Power supply has been removed" or "PS has been restored to its normal state" "Leaf/spine number <leaf/spine number> has been restored to its normal state" "Unit voltage is in range"
"ASIC temperature is back to normal"
4.16.2 Power Management
4.16.2.1 Power Supply Options
MLNX-OS offers power redundancy configurations and monitoring for director switch systems. Director switch systems have the following redundancy configuration modes: � "combined" � no power supply is reserved, the redundancy is not enabled. � "ps-redundant" � one power supply unit is redundant to the rest. The system can work
with one less power supply unit. � "grid-redundant" � the power supplies are split into two logical power supply grids, first
half of the PSUs belongs to grid A and the second half to grid B. The systems can work with only one grid. When using grid-redundancy mode the power budget is calculated according to the minimum power budget between the grids. This mode is available on CS75xx chassis systems. During switch initialization, or hot-plugging of switch compo-
Mellanox Technologies
.
445
System Management
nents, MLNX-OS enables and/or disables switch components according to the available power budget. MLNX-OS may send power alarms (via SNMP or email) as follow: � If the available budget is insufficient for all the system components an insufficientPower event is generated. In this mode several switch components may be disabled. � If the total power of the system is insufficient for redundancy, a lowPower event is generated. � If a connected power supply provides below 1.6K Watts or grid-redundancy mode is configured and a power supply is connected to a 110V grid, then a powerRedundancyMismatch event is generated, where grid redundancy can not be achieved in such configuration. In case of an insufficient-power mode, the order in which the FRUs are turned ON is first spines (1,2,3...max) and then the leafs (1,2,3...max), while the order of the FRUs in case of turning them OFF is first the spines (max...3) and then the leafs (max...1). The management modules are not affected. For the trap OID, please refer to the Mellanox-MIB file.
Power cycle is needed after changing power redundancy mode on a director switch system.
4.16.2.2 Width Reduction Power Saving
Link width reduction (LWR) is a Mellanox proprietary power saving feature to be utilized to economize the power usage of the fabric. LWR may be used to manually or automatically configure a certain connection between Mellanox switch systems to lower the width of a link from 4X operation to 1X based on the traffic flow. LWR is relevant only for InfiniBand FDR speeds in which the links are operational at a 4X width.
When "show interfaces" is used, a port's speed appears unchanged even when only one lane is active.
LWR has three operating modes per interface: � Disabled � LWR does not operate and the link remains in 4X under all circumstances. � Automatic � the link automatically alternates between 4X and 1X based on traffic flow. � Force � a port is forced to operate in 1X mode lowering the throughput capability of the
port. This mode should be chosen in cases where constant low throughput is expected on
Mellanox Technologies
.
446
System Management
the port for a certain time period � after which the port should be configured to one of the other two modes, to allow higher throughput to pass through the port.
See command "power-management width" on page 459.
Table 29 - LWR Configuration Behavior
Switch-A Configuration Disable Disable Disable
Auto
Auto Force
Switch-B Configuration Disable Force Auto
Force
Auto Force
Behavior
LWR is disabled.
Transmission from Switch-B to Switch-A operates at 1X. On the opposite direction, LWR is disabled.
Depending on traffic flow, transmission from Switch-B to Switch-A may operate at 1X. On the opposite direction, LWR is disabled.
Transmission from Switch-B to Switch-A operates at 1 lane. Transmission from Switch-A to Switch-B may operate at 1X depending on the traffic.
Width of the connection depends on the traffic flow
Connection between the switches operates at 1x
4.16.2.3 Managing Chassis Power
It is possible to shut down or power up modules in a chassis by using the commands "power enable" and "no power enable".
Step 1. Change to Config mode. Run:
switch > enable switch # configure terminal switch (config) #
Step 2. Step 3.
Run the command "show power" to get a list of modules that are available to power up or down.
To power down a module run the command "no power enable" followed by a module.
switch (config) # no power enable ps1
Step 4. To power up a module run the command "power enable" followed by a module.
switch (config) # power enable ps1
Using the show power command it is possible to see the power consumption of the system and also the power consumption by power supply unit.
Mellanox Technologies
.
447
System Management
4.16.3 Monitoring Environmental Conditions
Step 1. Display module's temperature. Run:
switch (config) # show temperature
---------------------------------------------------------
Module
Component
Reg CurTemp Status
(Celsius)
---------------------------------------------------------
MGMT
SIB
T1 33.00
OK
MGMT
Board AMB temp
T1 24.50
OK
MGMT
Ports AMB temp
T1 27.00
OK
MGMT
CPU package Sensor T1 29.00
OK
MGMT
CPU Core Sensor
T1 28.00
OK
MGMT
CPU Core Sensor
T2 24.00
OK
PS1
power-mon
T1 22.00
OK
PS2
power-mon
T1 23.00
OK
Step 2. Display measured voltage levels of power supplies. Run:
switch (config) # show voltage
--------------------------------------------------------------------------------------
Module Power Meter
Reg
Expected Actual Status High Low
Voltage Voltage
Range Range
--------------------------------------------------------------------------------------
MGMT acdc-monitor1
DDR3 0.675V
0.68
0.67 OK
0.78 0.57
MGMT acdc-monitor1
CPU 0.9V
0.90
0.86 OK
1.03 0.77
MGMT acdc-monitor1
SYS 3.3V
3.30
3.36 OK
3.79 2.80
MGMT acdc-monitor1
CPU 1.8V
1.80
1.82 OK
2.07 1.53
MGMT acdc-monitor1
CPU/PCH 1.05V 1.05
1.06 OK
1.21 0.89
MGMT acdc-monitor1
CPU 1.05V
1.05
1.06 OK
1.21 0.89
MGMT acdc-monitor1
DDR3 1.35V
1.35
1.35 OK
1.55 1.15
MGMT acdc-monitor1
USB 5V
5.00
5.04 OK
5.75 4.25
MGMT acdc-monitor1
1.05V LAN
1.50
1.51 OK
1.72 1.27
MGMT ASICVoltMonitor1 Asic 1.2V
1.20
1.21 OK
1.38 1.02
MGMT ASICVoltMonitor1 Asic 3.3V
3.30
3.31 OK
3.79 2.80
MGMT ASICVoltMonitor2 Vcore SX
0.95
0.96 OK
1.09 0.81
MGMT ASICVoltMonitor2 Asic 1.8V
1.80
1.81 OK
2.07 1.53
MGMT acdc-monitor2
3.3V Switch IB 3.30
3.36 OK
3.79 2.80
PS1
power-mon
vout 12V
12.00 12.07 OK
13.80 10.20
Mellanox Technologies
.
448
System Management
Step 3. Step 4.
Display the fan speed and status. Run:
switch (config) # show fan
-----------------------------------------------------
Module
Device
Fan Speed Status
(RPM)
-----------------------------------------------------
FAN1
FAN
F1 6297.00 OK
FAN1
FAN
F2 5421.00 OK
FAN2
FAN
F1 6355.00 OK
FAN2
FAN
F2 5378.00 OK
FAN3
FAN
F1 6183.00 OK
FAN3
FAN
F2 5421.00 OK
FAN4
FAN
F1 6268.00 OK
FAN4
FAN
F2 5399.00 OK
PS1
FAN
F1 10336.00 OK
PS2
FAN
- -
NOT PRESENT
Display the voltage current and status of each module in the system. Run:
switch (config) # show power consumers
------------------------------------------------------------------
Module Device
Sensor Power Voltage Current Status
[Watts] [Volts] [Amp]
------------------------------------------------------------------
PS1 power-mon
input 39.94 12.07 3.31 OK
MGMT acdc-monitor1 input 2.11 12.00 0.18 OK
Total power used : 42.05 Watts
4.16.4 USB Access
MLNX-OS can access USB devices attached to switch systems. USB devices are automatically recognized and mounted upon insertion. To access a USB device for reading or writing a file, you need to provide the path to the file on the mounted USB device in the following format:
scp://username:password@hostname/var/mnt/usb1/<file name>
While username and password are the admin username and password and hostname is the IP of the switch.
Mellanox Technologies
.
449
System Management
Examples: To fetch an image from a USB device, run the command:
switch (config) # "image fetch scp://admin:admin@127.0.0.1/var/mnt/usb1/image.img
To save log file `my-logfile' to a USB device under the name test_logfile using the logging files command, run (in Enable or Config mode):
switch (config) # logging files upload my-logfile scp://username:password@hostname/var/ mnt/usb1/test_logfile
To safely remove the USB and to flush the cache, after writing (log files, for example) to a USB, use the usb eject command (in Enable or Config mode).
switch (config) # usb eject
4.16.5 Unit Identification LED
The unit identification (UID) LED is a hardware feature used as a means of locating a specific switch system in a server room.
To activate the UID LED on a switch system, run:
switch (config) # led MGMT uid on
To verify the LED status, run:
switch (config) # show leds
Module LED
Status
--------------------------------------------------------------------------
MGMT STATUS
Green
MGMT FAN1
Green
MGMT FAN2
Green
MGMT FAN3
Green
MGMT FAN4
Green
MGMT PS_STATUS
Green
MGMT PS1
Green
MGMT PS2
Green
MGMT UID
Blue
To deactivate the UID LED on a switch system, run:
switch (config) # led MGMT uid off
4.16.6 High Availability (HA)
Mellanox high end management director switch systems support redundant management modules. Chassis HA reduces downtime as it assures continuity of the work even when a management module dies. Chassis HA management allows the systems administrator to associate a single IP address with the appliance. Connecting to that IP address allows the user to change and review the system's chassis parameters regardless of the active management module.
4.16.6.1 Chassis High Availability Nodes Roles
Every node in the Chassis HA has one of the following roles/modes:
Mellanox Technologies
.
450
System Management
� Master � the node that manages chassis configurations and services the chassis IP addresses
� Slave � the node that replaces the Master node and takes over its responsibilities once the Master node is down.
The master node is the only node that has access to chassis components such as temperature, inventory and firmware.
The CPU role of the current management node can be recognized by the following methods: � Run the show chassis ha command.
switch (config) # show chassis ha 2-node HA state:
Box management IP: 172.30.1.200/16 interface: mgmt0
local role: master local slot: 1 other state: ready reset count: 0
switch (config) #
� Check the LEDs in the management modules as displayed in the figure below. � Go to the WebUI => System => Modules page and see the information on the LEDs.
4.16.6.2 Malfunctioned CPU Behavior When a CPU in not responding to an internal communication with the other CPU, the non responding CPU will be reset by the other CPU. Each time a CPU resets, a counter is incremented. After 5 resets a CPU is considered malfunctioned and will be shut down. To verify how many times a CPU is reset, run the following command:
switch [default: master] (config) # show chassis ha 2-node HA state:
Box management IP: 172.30.1.200/16 interface: mgmt0
local role: master local slot: 1 other state: ready reset count: 1
switch-11a14e [default: master] (config) #
Mellanox Technologies
.
451
System Management
To verify if a CPU has been shut down, either run the following command:
switch [default: master] (config) # show chassis ha 2-node HA state:
Box management IP: 172.30.1.200/16 interface: mgmt0
local role: master local slot: 1 other state: powered-off reset count: 5
switch-11a14e [default: master] (config) #
Or check the system page in the WebUI, the management figure will be grayed out. To enable the malfunctioned CPU, first replace it and run chassis ha reset other.
4.16.6.3 Box IP Centralized Location Box IP (BIP) centralized management infrastructure enables you to configure and monitor the system. The BIP continues to function even if one of the management blades dies. Box IP is defined by running the chassis ha bip <board IP address> command. The created BIP is used as the master IP's alias. Example:
switch [standalone: master] (config) # chassis ha bip 192.168.10.100 255.255.255.0 switch [standalone: master] (config) #
4.16.6.4 System Configuration System configuration changes should be performed by the master using the BIP otherwise they are overridden by the master configuration. Chassis HA is based on database replication enabling the entire master configuration to be replicated to the slave. Data such as chassis configuration is replicated. However, run time information such as time, logs, active user lists, is not copied. Additionally, node specific configuration information such as host name and IP address is not copied..
Chassis HA requires connectivity of both management modules (mgmt0, mgmt1) in the same broadcast domain.
4.16.6.5 Takeover Functionally Management CPU functional takeover takes up to 20-30 seconds. However, when plugging in a module, you need to wait for approximately 3 minutes before making any other hardware change. During the takeover process, the Master LED status is differentiated by a color scheme. To verify the system's status, run the "show chassis ha" command on both managements. In case of CPU malfunction the system tries to reset it 5 times to solve the issue. If the CPU is not activated after resetting, the system powers it off as well as its attached spine. Once the CPU is
Mellanox Technologies
.
452
System Management
powered off, the user should replace the malfunctioned CPU module. To power on the CPU and the attached spine, plug the module in, log into the Master CPU and run the "chassis ha power enable other" command.
Although the LEDs are functional during the takeover, wait for approximately 3 minutes before making any other hardware change.
Master example:
switch [default: master] (config) # show chassis ha 2-node HA state:
Box management IP: 172.30.1.200/16 interface: mgmt0
local role: master local slot: 1 other state: ready reset count: 1
switch [default: master] (config) #
Slave example:
switch [default: master] (config) # show chassis ha 2-node HA state:
Box management IP: 172.30.1.200/16 interface: mgmt0
local role: slave local slot: 2 other state: ready reset count: 0
switch [default: master] (config) #
Not following these instructions may result in some errors in the log. These errors may be safely ignored.
Mellanox Technologies
.
453
System Management
4.16.7 System Reboot
4.16.7.1 Rebooting 1U Switches To reboot a 1U switch system: Step 1. Enter Enable or Config mode. Run:
switch > switch > enable switch # configure terminal
Step 2. Reboot the system. Run:
switch (config) # reload
4.16.7.2 Rebooting Director Switches Mellanox high end management director switch systems support redundant management modules. Chassis HA reduces downtime as it assures continuity of the work even when a management module dies. Chassis HA management allows the systems administrator to associate a single IP address with the appliance. Connecting to that IP address allows the user to change and review the system's chassis parameters regardless of the active management module. To reboot director switches: Step 1. Connect to BIP. Please refer to Section 4.16.6.3, "Box IP Centralized Location," on page 452 for more information. Step 2. Enter Config mode. Run:
switch > switch > enable switch # configure terminal
Step 3. Reboot the slave management. Run:
switch [default: master] (config) # chassis ha reset other switch [default: master] (config) #
Step 4. Reboot the master management. Run:
switch [default: master] (config) # reload
Mellanox Technologies
.
454
System Management
4.16.8 Commands
4.16.8.1 Chassis Management
clear counters
clear counters [all | interface <type> <number>] [ethernet | port-channel]
Clears switch counters.
Syntax Description all
Clears all switch counters
type
A specific interface type
number
The interface number
Default
N/A
Configuration Mode config
History
3.2.3000
3.6.4000
Added note
Role
admin
Example
switch (config) # clear counters
Related Commands
Notes
The command also clears storm-control counters.
Mellanox Technologies
.
455
System Management
health
health {max-report-len <length> | re-notif-cntr <counter> | report-clear}
Configures health daemon settings.
Syntax Description
max-report-len <length>
Sets the length of the health report - number of line entries. Range: 10-2048.
re-notif-cntr <counter>
Health control changes notification counter, in seconds. Range: 120-7200 seconds.
report-clear
Clears the health report.
Default
max-report-len: 50 re-notif-cntr:
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # health re-notif-cntr 125 switch (config) #
Related Commands show health-report
Notes
Mellanox Technologies
.
456
System Management
led uid
led <module> uid <on | off>
Configures the UID LED.
Syntax Description module
Specifies the module whose UID LED to configure
on
Turns on UID LED
off
Turns off UID LED
Default
N/A
Configuration Mode config
History
3.6.1002
3.6.2002
Added director switch support
Role
admin
Example
switch (config) # led MGMT uid on switch (config) #
Related Commands N/A
Notes
� On 1U switch systems, the module parameter can only be MGMT � On director switch systems, the module parameter may be MGMT#, L#, S# (e.g.
MGMT1, L01, S01)
Mellanox Technologies
.
457
System Management
power enable
power enable <module name> no power enable <module name>
Powers on the module. The no form of the command shuts down the module.
Syntax Description module name
Enables power for selected module.
Default
Power is enabled on all modules.
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # power enable L01 switch (config) #
show power show power consumers
Notes
� This command is not applicable on 1U systems � It is recommended to run this command prior to extracting a module from the
switch system, else errors are printed in the log
Mellanox Technologies
.
458
System Management
power-management width
power-management width {auto | force} no power-management width
Sets the width of the interface to be automatically adjusted. The no form of the command disables power-saving.
Syntax Description auto
Allows the system to automatically decide whether to work in power-saving mode or not.
force
Forces power-saving mode on the port.
Default
Disabled
Configuration Mode config interface ib
History
3.3.4000
Role
admin
Example
switch (config interface ib 1/1) # power-management width auto
Related Commands show interface
Notes
Mellanox Technologies
.
459
System Management
power redundancy-mode
power redundancy-mode [combined | grid-redundant | ps-redundant]
Controls the power supply redundancy mode.
Syntax Description combined
No redundancy - no alarm threshold.
grid-redundant
N+N � the alarm threshold will be set to a level, indicating when the power availability falls below power that can support N+N scheme
ps-redundant
N+1 � the alarm threshold will be set to a level, indicating when the power availability falls below power that can support N+1 scheme
Default
N/A
Configuration Mode config
History
3.1.0000, 3.2.0000
Role
admin
Example
switch (config) # power redundancy-mode combined switch (config) #
Related Commands N/A
Notes
� The difference between the modes sets the threshold for power supply redundancy failure. It does not change any power supply configuration.
� This command is not applicable for 1U or blade systems.
Mellanox Technologies
.
460
System Management
system profile
system profile {ib-single-switch | ib-no-adaptive-routing-single-switch | ib [splitready] [num-of-swids <swid-num>] [no-adaptive-routing] [ib-router] [adaptiverouting-groups <value>]} [force]
Sets the profile of the system to InfiniBand with various parameters
Syntax Description ib-single-switch
Enables InfiniBand switch profile All network interfaces link protocol set to InfiniBand
ib-no-adaptive-routingsingle-switch
Enables InfiniBand switch profile without adaptive routing capabilities All network interfaces link protocol set to InfiniBand with disabled adaptive routing
split-ready
Enables the system to reboot in split enable mode with capability to configure 2x the number of ports exposed to IB utilities. Note: This parameter is available only on Quantumbased systems.
ib-router
Enables IB Routing capability on the system
num-of-swids
Enables IB Router Multiple switch IDs are configurable � adaptive routing � enables adaptive routing � ib-router � enables IB router Note: If num-of-swids is not defined then it is set to 1 by default.
adaptive-routing-groups
Sets adaptive routing groups. Range: 128-4096 (must be multiples of 128) Note: Allowed only when adaptive routing is enabled.
Default
The default system profile depends on the system: SB7780 system has "IB Router" and 2 SWIDs as default
Configuration Mode config
History
3.1.0000
3.2.1100
Added "vpi-single-switch" option
3.6.1002
Added system profile "ib num-of-swids"
3.6.6162
Added system profile "num of adaptive routing"
3.7.0020
Added system profile "ib split-ready"
Role
admin
Example
switch (config) # system profileib-single-switch switch (config) #
Mellanox Technologies
.
461
System Management
Related Commands Notes
port type show system profile show ports type
� This command requires a license. Refer to "Licenses" section in the MLNX-OS
SwitchX User Manual � This command requires approval because reboot is performed and all configura-
tion is removed � This command deletes all switch configuration (keeping IP connectivity) and
resets the system � System profile "ib-no-adaptive-routing-single-switch profile" is the default pro-
file for InfiniBand switches � The parameter "adaptive-routing-groups" is only available when "adaptive-rout-
ing" is configured � Refer to the `port type' command in order to change the link protocol � System profile "ib split-ready" must run together with num-of-swids <count> � IB router and adaptive routing are enabled only if specified but cannot be enabled
at the same time � IB router only works when adaptive routing is disabled.
Mellanox Technologies
.
462
usb eject
usb eject
Gracefully turns off the USB interface.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # usb eject switch (config) #
N/A
Notes
Applicable only for systems with USB interface.
System Management
Mellanox Technologies
.
463
System Management
show asic-version
show asic-version
Displays firmware ASIC version.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.4.2008
Updated Example
3.4.3050
Updated Example
3.6.1002
Updated Example
Role
admin
Example
switch (config) # show asic-version
===================================================
Module
Device
Version
===================================================
L05
SIB2-1
15.0200.0092
L05
SIB2-2
15.0200.0092
Related Commands N/A
Notes
Mellanox Technologies
.
464
show bios
show bios
Displays the BIOS version information.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.3.4150
Role
admin
Example Related Commands
switch (config) # show bios BIOS version : 4.6.5 BIOS subversion : Official AMI Release BIOS release date : 07/02/2013 switch (config) #
Notes
System Management
Mellanox Technologies
.
465
show cpld
show cpld
Displays status of all CPLDs in the system.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.3.4302
Updated example
Role
admin
Example
switch (config) # show cpld
=====================================
Name
Type
Version
=====================================
Cpld1
CPLD_TOR
4
Cpld2
CPLD_PORT1
2
Cpld3
CPLD_PORT2
2
Cpld4
CPLD_MEZZ
3
switch (config) #
Related Commands N/A
Notes
System Management
Mellanox Technologies
.
466
System Management
show fan
show fan
Displays fans status.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show fan
switch (config) # show fan
=====================================================
Module
Device
Fan Speed
Status
(RPM)
=====================================================
FAN
FAN
F1 5340.00 OK
FAN
FAN
F2 5340.00 OK
FAN
FAN
F3 5640.00 OK
FAN
FAN
F4 5640.00 OK
PS1
FAN
F1 5730.00 OK
PS2
FAN
- -
NOT PRESENT
switch (config) #
N/A
Notes
Mellanox Technologies
.
467
show health-report
show health-report
Displays health report.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.3.0000
Output update
Role
admin
Example Related Commands
switch (config) # show health-report
========================
| ALERTS CONFIGURATION |
========================
Re-notification counter (sec):[3600]
Report max counter:
[50]
========================
| HEALTH REPORT
|
========================
No Health issues file
switch (config) #
N/A
Notes
System Management
Mellanox Technologies
.
468
System Management
show inventory
show inventory
Displays system inventory.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.4.1604
Removed CPU module output from Example
3.5.1000
Removed Type column from Example
3.6.1002
Updated Example
Role
admin
Example
switch (config) # show inventory
-----------------------------------------------------------------------
Module
Part Number
Serial Number
Asic Rev. HW Rev.
-----------------------------------------------------------------------
CHASSIS MSB7800-ES2F
MT1602X17464
N/A
A1
MGMT
MSB7800-ES2F
MT1602X17464
0
A1
FAN1
MTEF-FANF-A
MT1602X16943
N/A
A3
FAN2
MTEF-FANF-A
MT1602X16944
N/A
A3
FAN3
MTEF-FANF-A
MT1602X16956
N/A
A3
FAN4
MTEF-FANF-A
MT1602X16957
N/A
A3
PS1
MTEF-PSF-AC-A
MT1601X09908
N/A
A3
Related Commands N/A Notes
Mellanox Technologies
.
469
System Management
show leds
show leds [<module>]
Displays the LED status of the switch system.
Syntax Description module
Specifies the module whose LED status to display
Default
N/A
Configuration Mode config
History
3.6.1002
3.6.2002
Updated Example
Role
admin
Example Related Commands
switch (config) # show leds
Module
LED
Status
--------------------------------------------
MGMT1
STATUS
Green
MGMT1
REAR_FAN
Green
MGMT1
PS
Green
MGMT1
FRONT_FAN
Green
MGMT1
MASTER/SLAVE
Green
L01
STATUS
Green
L01
UID
Blue
L02
STATUS
Green
L02
UID
Blue
L03
STATUS
Green
L03
UID
Off
L04
STATUS
Green
L04
UID
Off
L05
STATUS
Green
L05
UID
Off
L06
STATUS
Green
L06
UID
Off
S01
STATUS
Green
S01
FAN
Green
S02
STATUS
Green
S02
FAN
Green
S03
STATUS
Green
S03
FAN
Green
FAN1
STATUS
Green
FAN2
STATUS
Green
FAN3
STATUS
Green
FAN4
STATUS
Green
N/A
Notes
Mellanox Technologies
.
470
System Management
show memory
show memory
Displays memory status.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.7.10xx
Example updated
Role
admin
Example
scorpion-167 [standalone: master] (config) # show memory
-----------------------------------------------------------------------
Memory Space Total
Used
Free
Used+B/C Free-B/C
-----------------------------------------------------------------------
Physical
15848 MB 2849 MB
12999 MB 3854 MB
11994 MB
Swap
0 MB
0 MB
0 MB
Related Commands Notes
Physical Memory Borrowed for System Buffers and Cache:
Buffers
: 27 MB
Cache
: 910 MB
Total Buffers/Cache: 937 MB
N/A
Mellanox Technologies
.
471
System Management
show module
show module
Displays modules status.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.3.0000
Added "Is Fatal" column
3.4.2008
Updated command output
3.4.3000
Updated command output and added note
Role
admin
Example Related Commands
switch (config) # show module
======================
Module Status
======================
MGMT
ready
FAN1
ready
FAN2
ready
PS1
ready
PS2
not-present
switch (config) #
N/A
Notes
The Status column may have one of the following values: error, fatal, not-present, powered-off, powered-on, ready.
Mellanox Technologies
.
472
System Management
show power
show power
Displays power supplies and power usage.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.5.1000
Updated Example
Role
admin
Example
switch (config) # show power
----------------------------------------------------------------------------------
Module Device Sensor Power Voltage Current Capacity Feed Status
[Watts] [Volts] [Amp]
[Watts]
----------------------------------------------------------------------------------
PS1
power-mon input 32.25 12.11 1.26
800.00 DC OK
PS2
power-mon input 46.56 12.13 2.33
800.00 DC OK
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies
.
473
System Management
show power consumers
show power consumers
Displays power consumption information.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.5.1000
Updated Example
Role
admin
Example
switch (config) # show power consumers
-------------------------------------------------------------------------
Module Device
Sensor Power Voltage Current Status
[Watts] [Volts] [Amp]
-------------------------------------------------------------------------
MGMT CURR_MONITOR
12V
52.96 11.71 4.52
OK
Related Commands Notes
Total power used : 52.96 Watts switch (config) #
N/A
Mellanox Technologies
.
474
show protocols
show protocols
Displays all protocols enabled in the system.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.2.3000
3.3.4550
Updated Example
3.6.1002
Updated Example
Role
admin
Example
switch (config) # show protocols
Related Commands Notes
Infiniband sm router
N/A
enabled enabled disabled
System Management
Mellanox Technologies
.
475
System Management
show resources
show resources
Displays system resources.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # show resources
Total
Used
Free
Physical 2027 MB 761 MB 1266 MB
Swap
0 MB
0 MB
0 MB
Number of CPUs: 1 CPU load averages: 0.11 / 0.23 / 0.23
Related Commands Notes
CPU 1
Utilization:
5%
Peak Utilization Last Hour: 19% at 2012/02/15 13:26:19
Avg. Utilization Last Hour: 7%
switch (config) #
N/A
Mellanox Technologies
.
476
System Management
show system capabilities
show system capabilities
Displays system capabilities.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.3.0000
Added gateway support
3.6.1002
Updated Example
3.7.00xx
Updated Example
Role
admin
Example
switch (config) # show system capabilities IB: Supported, L2, Adaptive Routing, Split Ready Max SM nodes: 648 IB Max licensed speed: EDR
Related Commands show system profile
Notes
Mellanox Technologies
.
477
show system profile
show system profile
Displays system profile.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.2.0000
3.7.00xx
Updated Example
Role
admin
Example
switch (config) # show system profile
Related Commands Notes
Profile Number of SWIDs Adaptive Routing Adaptive Routing Groups IB Routing
system profile
: ib : 1 : yes : 2048 : no
System Management
Mellanox Technologies
.
478
System Management
show system profile detailed
show system profile detailed
Displays detailed system profile.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.6000
Role
admin
Example
switch (config) # show system profile detailed
Profile: eth-default
Related Commands Notes
-----------------------------------------------
Parameter
Guaranteed Max Value
-----------------------------------------------
FDB size
102400
IPMC-L2 lists
10240
IPMC-L3 lists
10240
IPv4 MC/IGMP routes
10240
IPv4 neighbors
51200
IPv6 neighbors
8192
IPv4 routes
100000
IPv6 shorts
51200
IPv6 routes
21504
VRF
64
RIF
999
Mellanox Technologies
.
479
show system type
show system type
Displays system type.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.5.1000
Role
admin
Example
switch (config) # show system type SB7700
Related Commands Notes
System Management
Mellanox Technologies
.
480
System Management
show temperature
show temperature
Displays system temperature sensors status.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # show temperature
---------------------------------------------------------
Module
Component
Reg CurTemp Status
(Celsius)
---------------------------------------------------------
MGMT
SIB2
T1 32.00
OK
MGMT
Board AMB temp
T1 23.50
OK
MGMT
Ports AMB temp
T1 27.50
OK
MGMT
CPU package Sensor
T1 27.00
OK
MGMT
CPU Core Sensor
T1 18.00
OK
MGMT
CPU Core Sensor
T2 27.00
OK
PS1
power-mon
T1 22.50
OK
Related Commands N/A
Notes
Mellanox Technologies
.
481
System Management
show version
show version
Displays version information for the currently running system image.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # show version
Product name:
MLNX-OS
Product release: 3.6.8008
Build ID:
#1-dev
Build date:
2018-07-18 13:46:44
Target arch:
x86_64
Target hw:
x86_64
Built by:
jenkins@c5de6027485e
Version summary: X86_64 3.6.8008 2018-07-18 13:46:44 x86_64
Product model: Host ID: System UUID:
x86 7CFE9058E01E 03000200-0400-0500-0006-000700080009
Related Commands Notes
Uptime:
16h 50m 41.260s
CPU load averages: 2.38 / 2.25 / 2.24
Number of CPUs: 2
System memory:
2860 MB used / 12988 MB free / 15848 MB total
Swap:
0 MB used / 0 MB free / 0 MB total
N/A
Mellanox Technologies
.
482
System Management
show version concise
show version concise
Displays concise version information for the currently running system image.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show version concise X86_64 3.6.4006 2017-07-03 16:17:39 x86_64
N/A
Notes
Mellanox Technologies
.
483
System Management
show voltage
show voltage
Displays voltage level measurements on different sensors.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.3.5006
Updated Example
Role
admin
Example
switch (config) # show voltage
===========================================================================================
Module Power Meter
Reg
Expected Actual Status High Low
Voltage Voltage
Range Range
===========================================================================================
MGMT BOARD_MONITOR
USB 5V sensor
5.00
5.15 OK
5.55 4.45
MGMT BOARD_MONITOR
Asic I/O sensor
2.27
2.11 OK
2.55 1.99
MGMT BOARD_MONITOR
1.8V sensor
1.80
1.79 OK
2.03 1.57
MGMT BOARD_MONITOR
SYS 3.3V sensor
3.30
3.28 OK
3.68 2.92
MGMT BOARD_MONITOR
CPU 0.9V sensor
0.90
0.93 OK
1.04 0.76
MGMT BOARD_MONITOR
1.2V sensor
1.20
1.19 OK
1.37 1.03
MGMT CPU_BOARD_MONITOR 12V sensor
12.00 11.67 OK
13.25 10.75
MGMT CPU_BOARD_MONITOR 12V sensor
2.50
2.46 OK
2.80 2.20
MGMT CPU_BOARD_MONITOR 2.5V sensor
3.30
3.26 OK
3.68 2.92
MGMT CPU_BOARD_MONITOR SYS 3.3V sensor
3.30
3.24 OK
3.68 2.92
MGMT CPU_BOARD_MONITOR SYS 3.3V sensor
1.80
1.79 OK
2.03 1.57
MGMT CPU_BOARD_MONITOR 1.8V sensor
1.20
1.24 OK
1.37 1.03
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies
.
484
System Management
4.16.8.2 Chassis High Availability
chassis ha bip
chassis ha bip <board IP address>
Configures Chassis Board IP (BIP).
Syntax Description board IP address
Sets the chassis virtual IP address.
Default
0.0.0.0
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # chassis ha bip 192.168.10.100 switch (config) #
show chassis ha
Notes
This command is applicable only for director switch systems.
Mellanox Technologies
.
485
System Management
chassis ha
chassis ha reset other
Performs a reset to the other management card in the chassis.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # chassis ha reset other switch (config) #
show chassis ha
Notes
This command is applicable only for director switch systems.
Mellanox Technologies
.
486
System Management
chassis ha power enable other
chassis ha power enable other no chassis ha power enable other
Enables the other management card in the chassis. The no form of the command disables the other management card in the chassis.
Syntax Description N/A
Default
The other management card is enabled.
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # chassis ha power enable other switch (config) #
show chassis ha
Notes
This command is applicable only for director switch systems.
Mellanox Technologies
.
487
System Management
show chassis ha
show chassis ha
Displays Chassis HA parameters and status.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show chassis ha 2-node HA state:
Box management IP: 172.30.1.200/16 interface: mgmt0
Related Commands Notes
local role: master local slot: 1 other state: ready reset count: 0 switch (config) #
chassis ha
This command is applicable only for director switch systems.
Mellanox Technologies
.
488
System Management
show chassis ha
show chassis ha
Displays Chassis HA parameters and status.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show chassis ha 2-node HA state:
Box management IP: 172.30.1.200/16 interface: mgmt0
Related Commands Notes
local role: master local slot: 1 other state: ready reset count: 0 switch (config) #
chassis ha
This command is applicable only for director switch systems.
Mellanox Technologies
.
489
System Management
4.17 Network Management Interfaces
4.17.1 SNMP
Simple Network Management Protocol (SNMP), is a network protocol for the management of a network and the monitoring of network devices and their functions. SNMP supports asynchronous event (trap) notifications and queries. MLNX-OS supports: � SNMP versions v1, v2c and v3 � SNMP trap notifications � Standard MIBs � Mellanox private MIBs
4.17.1.1 Standard MIBs Table 30 - Standard MIBs � Textual Conventions and Conformance MIBs
MIB
INET-ADDRESS-MIB SNMPV2-CONF SNMPV2-TC SNMPV2-TM SNMP-USM-AES-MIB IANA-LANGUAGE-MIB IANA-RTPROTO-MIB IANAifType-MIB IANA-ADDRESS-FAMILY-NUMBERSMIB
Standard RFC-4001
RFC 2579 RFC 3417 RFC 3826 RFC 2591 RFC 2932
Comments
Table 31 - Standard MIBs � Chassis and Switch
MIB RFC1213-MIB IF-MIB ENTITY-MIB ENTITY-STATE-MIB ENTITY-SENSOR-MIB
Standard RFC 1213 RFC 2863 RFC 4133 RFC 4268 RFC 3433
Comments
ifXTable only supported.
Fan and temperature states � Port module transmit/receiver power sen-
sors (for 1U systems only) � Fan and temperature sensors
Mellanox Technologies
.
490
System Management
4.17.1.2 Private MIB Table 32 - Private MIBs Supported
MIB MELLANOX-SMI-MIB MELLANOX-PRODUCTS-MIB MELLANOX-IF-VPI-MIB MELLANOX-EFM-MIB
MELLANOX-ENTITY-MIB
MELLANOX-POWER-CYCLE MELLANOX-SW-UPDATE-MIB
MELLANOX-CONFIG-DB MELLANOX-ENTITY-STATE-MIB
MELLANOX-XSTP-MIB MELLANOX-DCB-TRAPS MELLANOX-QOS
Description
Mellanox Private MIB main structure (no objects)
List of OID � per managed system (sysObjID)
IfTable extensions
Partially deprecated MIB (based on Mellanox-MIB) Traps definitions and test trap set scalar are supported.
Enhances the standard ENTITY-MIB (contains GUID and ASIC revision).
Allows rebooting the switch system
Allows viewing what SW images are installed, uploading and installing new SW images
Allows loading, uploading, or deleting configuration files
Extension to support state change traps Note: Currently supported for power supply insertion and extraction only
Extension to support STP information
Extension traps for ETC and PFC
Proprietary QoS MIBs
Mellanox private MIBs can be downloaded from the Mellanox Support webpage.
4.17.1.3 Proprietary Traps The following private traps are supported by MLNX-OS.
Table 33 - SNMP MELLANOX-EFM-MIB Traps
Trap asicChipDown asicOverTempReset asicOverTemp lowPower internalBusError procCrash cpuUtilHigh procUnexpectedExit diskSpaceLow
systemHealthStatus
Action Required
Reboot the system. Check fans and environmental temperature. Check fans and environmental temperature. Add/connect power supplies. N/A Generate SysDump and contact Mellanox support. N/A Generate SysDump and contact Mellanox support. Clean images and sysDump files using the commands "image delete" and "file debug-dump delete". Refer to Health Status table.
Mellanox Technologies
.
491
System Management
Table 33 - SNMP MELLANOX-EFM-MIB Traps
Trap lowPowerRecover insufficientFans insufficientFansRecover insufficientPower
insufficientPowerRecover
Action Required
N/A Check Fans and environmental conditions. N/A Add/connect power supplies, or change power mode using the command "power redundancy mode". N/A
For additional information refer to MELLANOX-EFM-MIB.
For event-to-MIB mapping, please refer to Table 25, "Supported Event Notifications and MIB Mapping," on page 298.
Table 34 - SNMP MELLANOX-POWER-CYCLE Traps
Trap mellanoxPowerCyclePlannedReload N/A
Action Required
4.17.1.4 Configuring SNMP
To set up the SNMP: Step 1. Activate the SNMP server on the MLNX-OS switch (in configure mode) using the follow-
ing commands:
Community strings are case sensitive.
Director switches require SNMP timeout configuration on the agent of 60 seconds.
switch (config) # snmp-server enable switch (config) # snmp-server enable notify switch (config) # snmp-server community public ro switch (config) # snmp-server contact "contact name" switch (config) # snmp-server host <host IP address> traps version 2c public switch (config) # snmp-server location "location name" switch (config) # snmp-server user admin v3 enable switch (config) # snmp-server user admin v3 prompt auth md5 priv des
Mellanox Technologies
.
492
4.17.1.5 Resetting SNMPv3 Engine ID
System Management
Resetting SNMP engine ID is not supported on director switch systems.
Switch systems shipped with OS versions older than 3.6.6102 have all had the exact same SNMPv3 engine ID. Going forward, however, all switch systems will ship with a system-specific engine ID. Upgrading the OS version to 3.6.6102 or higher does not automatically change the current engine ID. That can be done through one of the following methods after performing the software upgrade: � Changing a switch system's profile � Running "reset factory" � Using the command "snmp-server engineID reset" (for more details, please see the pro-
cedure below) To reset SNMP engine ID using "snmp-server engineID reset": Prerequisites: Step 1. If any of the following SNMP configurations exist, please delete/disable them and re-
enable/reconfigure them only after SNMP engine ID reset is performed: 1. Make sure SNMP is disabled. Run:
switch (config) # no snmp-server enable
2. Make sure no SNMP trap host is configured. Run:
switch (config) # no snmp-server host <ip-address>
3. Make sure no SNMP users are configured. Run:
switch (config) # no snmp-server user <username> v3
Procedure: Step 1. Check existing engine ID:
switch (config) # show snmp engineID Local SNMP engineID: <current_key>
Step 2. Reset existing engine ID:
switch (config) # snmp-server engineID reset
Step 3. Verify new engine ID:
switch (config) # show snmp engineID Local SNMP engineID: <new_key>
Mellanox Technologies
.
493
System Management
4.17.1.6 Configuring an SNMPv3 User
To configure SNMPv3 user: Step 1. Configure the user using the command:
switch (config) # snmp-server user [role] v3 prompt auth <hash type> priv <privacy type>
� � �
Step 2. Step 3.
where user role � admin auth type � md5 or sha or sha224 or sha256 or sha384 or sha512 priv type � des or aes-128 or 3des or aes-192 or aes-256 Enter authentication password and its confirmation. Enter privacy password and its confirmation.
switch (config) # snmp-server user admin v3 prompt auth md5 priv des Auth password: ********
Confirm: ******** Privacy password: ********
Confirm: ******** switch (config) #
To retrieve the system table, run the following SNMP command:
snmpwalk -v3 -l authPriv -a MD5 -u admin -A "<Authentication password>" -x DES -X "<privacy password>" <system ip> SNMPv2-MIB::system
4.17.1.7 Configuring an SNMP Notification
To set up the SNMP Notification (traps or informs): Step 1. Make sure SNMP and SNMP notification are enable. Run:
switch (config) # snmp-server enable switch (config) # snmp-server enable notify
Step 2. Configure SNMP host with the desired arguments (IP Address, SNMP version, authentication methods). More than one host can be configured. Each host may have different attributes. Run:
switch (config) # snmp-server host 10.134.47.3 traps version 3 user my-username auth sha my-password
Mellanox Technologies
.
494
Step 3.
Verify the SNMP host configuration. Run:
switch (config) # show snmp host
Notifications enabled:
yes
Default notification community: public
Default notification port:
162
Notification sinks:
Step 4.
10.134.47.3
Enabled:
yes
Port:
162 (default)
Notification type: Username:
SNMP v3 trap my-username
Authentication type: sha
Privacy type:
aes-128
Authentication password: (set)
Privacy password:
(set)
Configure the desired event to be sent via SNMP. Run:
switch (config) # snmp-server notify event interface-up
System Management
This particular event is used as an example only.
Step 5.
Verify the list of traps and informs being sent to out of the system. Run:
switch (config) # show snmp events Events for which traps will be sent:
asic-chip-down: ASIC (Chip) Down cpu-util-high: CPU utilization has risen too high disk-space-low: Filesystem free space has fallen too low health-module-status: Health module Status insufficient-fans: Insufficient amount of fans in system insufficient-fans-recover: Insufficient amount of fans in system recovered insufficient-power: Insufficient power supply interface-down: An interface's link state has changed to down interface-up: An interface's link state has changed to up internal-bus-error: Internal bus (I2C) Error liveness-failure: A process in the system was detected as hung low-power: Low power supply low-power-recover: Low power supply Recover new_root: local bridge became a root bridge paging-high: Paging activity has risen too high power-redundancy-mismatch: Power redundancy mismatch process-crash: A process in the system has crashed process-exit: A process in the system unexpectedly exited snmp-authtrap: An SNMP v3 request has failed authentication topology_change: local bridge triggered a topology change unexpected-shutdown: Unexpected system shutdown
Mellanox Technologies
.
495
System Management
To print event notifications to the terminal (SSH or CONSOLE) refer to Section 4.6.1, "Monitor," on page 264.
4.17.1.8 SNMP SET Operations
MLNX-OS allows the user to use SET operations via SNMP interface. This is needed to configure a user/community supporting SET operations.
4.17.1.8.1Enabling SNMP SET
To allow SNMP SET operations using SNMPv1/v2: Step 1. Enable SNMP communities. Run:
switch (config) # snmp-server enable communities
Step 2. Configure a read-write community. Run:
switch (config) # snmp-server community my-community-name rw
Step 3. Make sure SNMP communities are enabled (they are enabled by default). Make sure "(DISABLED)" does not appear beside "Read-only communities" / "Read-write communities". Run:
switch (config) # show snmp
SNMP enabled : yes
SNMP port
: 161
System contact :
System location:
Read-only communities: public
Read-write communities: my-community-name
Interface listen enabled: yes
Listen Interfaces: Interface: mgmt0
Step 4.
switch (config) # show snmp No Listen Interfaces.
Configure this RW community in your MIB browser.
Mellanox Technologies
.
496
System Management
To allow SNMP SET operations using SNMPv3: Step 1. Create an SNMPv3 user. Run:
switch (config) # snmp-server user myuser v3 auth sha <password1> priv aes-128 <password2>
It is possible to use other configuration options not specified in the example above. Please refer to the command "snmp-server user" on page 532 for more information.
Step 2.
Make sure the username is enabled for SET access and has admin capability level. Run:
switch (config) # show snmp user
User name: myuser
Enabled overall:
yes
Authentication type: sha
Privacy type:
aes-128
Authentication password: (set)
Privacy password:
(set)
Require privacy:
yes
SET access:
Enabled:
yes
Capability level: admin
MLNX-OS supports the OIDs for SET operation listed in Table 35 which are expanded upon in the following subsections.
Table 35 - Supported SET OIDs
MIB Name MELLANOX-EFM-MIB SNMPv2-MIB MELLANOX-CONFIG-DB
MELLANOX-POWERCYCLE MELLANOX-SW-UPDATE
OID Name
sendTestTrapSet
sysName
mellanoxConfigDBCmdExecute mellanoxConfigDBCmdFilename mellanoxConfigDBCmdStatus mellanoxConfigDBCmdStatusString mellanoxConfigDBCmdUri
mellanoxPowerCycleCmdExecute mellanoxPowerCycleCmdStatus mellanoxPowerCycleCmdStatusString
mellanoxSWUpdateCmdSetNext mellanoxSWUpdateCmdUri mellanoxSWUpdateCmdExecute mellanoxSWUpdateCmdStatus mellanoxSWUpdateCmdStatusString mellanoxSWActivePartition mellanoxSWNextBootPartition
OID
1.3.6.1.4.1.33049.2.1.1.1.6.0
1.3.6.1.2.1.1.5.0
1.3.6.1.4.1.33049.12.1.1.2.3.0 1.3.6.1.4.1.33049.12.1.1.2.2.0 1.3.6.1.4.1.33049.12.1.1.2.4.0 1.3.6.1.4.1.33049.12.1.1.2.5.0 1.3.6.1.4.1.33049.12.1.1.2.1.0
1.3.6.1.4.1.33049.10.1.1.2.1.0 1.3.6.1.4.1.33049.10.1.1.2.2.0 1.3.6.1.4.1.33049.10.1.1.2.3.0
1.3.6.1.4.1.33049.11.1.1.2.1.0 1.3.6.1.4.1.33049.11.1.1.2.2.0 1.3.6.1.4.1.33049.11.1.1.2.3.0 1.3.6.1.4.1.33049.11.1.1.2.4.0 1.3.6.1.4.1.33049.11.1.1.2.5.0 1.3.6.1.4.1.33049.11.1.1.3.0.0 1.3.6.1.4.1.33049.11.1.1.4.0.0
Mellanox Technologies
.
497
System Management
4.17.1.8.2Sending a Test Trap SET Request
MLNX-OS allows the user to use test the notification mechanism via SNMP SET. Sending a SET request with the designated OID triggers a test trap. Prerequisites: 1. Enable SET operations by following the instructions in Section 4.17.1.8.1, "Enabling SNMP
SET," on page 496. 2. Configure host to which to send SNMP notifications. 3. Set a trap receiver in the MIB browser. To send a test trap: Step 1. Send a SET request to the switch IP with the OID 1.3.6.1.4.1.33049.2.1.1.1.6.0. Step 2. Make sure the test trap is received by the aforementioned trap receiver (OID:
1.3.6.1.4.1.33049.2.1.2.13).
4.17.1.8.3Setting Hostname with SNMP
Mellanox supports setting system hostname using an SNMP SET request as described in SNMPv2-MIB (sysName, OID: 1.3.6.1.2.1.1.5.0). The restrictions on setting a hostname via CLI also apply to setting a hostname through SNMP. Refer to the command "hostname" on page 149 for more information.
4.17.1.8.4Power Cycle with SNMP
Mellanox supports power cycling its systems using an SNMP SET request as described in MELLANOX-POWER-CYCLE MIB. Power cycle command is issued via the OID mellanoxPowerCycleCmdExecute. The following options are available: � Reload � saves any unsaved configuration and reloads the switch � Reload discard � reboots the system and discards of any unsaved changes � Reload force � forces an expedited reload on the system even if it is busy without saving
unsaved configuration (equals the CLI command reload force) � Reload slave � reloads the slave management on dual management systems (must be
executed from the master management module)
On dual management systems it is advised to connect via the BIP to make sure commands are executed from the master management.
4.17.1.8.5Changing Configuration with SNMP
Mellanox supports making configuration changes on its systems using SNMP SET requests. Configuration requests are performed by setting several values (arguments) and then executing a command by setting the value for the relevant operation.
Mellanox Technologies
.
498
System Management
It is possible to set the parameters and execute the commands on the same SNMP request or separate them to several SET operations. Upon executing a command, the values of its arguments remain and can be read using GET commands.
Once a command is executed there may be two types of errors:
� Immediate: This error results in a failure of the SNMP request. This means a critical error in the SNMP request has occurred or that a previous SET request is being executed
� Delayed: The SET request has been accepted by the switch but an error occurred during its execution.
For example, when performing a fetch (download) operation, an immediate error can occur when the given URL is invalid. A delayed error can occur if the download process fails due to network connectivity issues.
The following parameters are arguments are supported:
� Command URI � URI to fetch the configuration file from or upload the file to (for supported URI format please refer to the CLI command "configuration fetch" for more details)
� Config file name � filename to save the configuration file to or to upload to remote location
The following commands are supported:
� BinarySwitchTo � replaces the configuration file with a new binary configuration file. This option fetches the configuration file from the URI provided in the mellanoxConfigD-
BCmdUri and switches to that configuration file. This command should be preceded by a reload command in order for the new configuration to apply.
� TextApply � fetches a configuration file in human-readable format and applies its configuration upon the current configuration.
� BinaryUpload � uploads a binary format configuration file of the current running configuration or an existing configuration file on the switch to the URI in the mellanoxConfigD-
BCmdUri command. The filename parameter indicates what configuration file on the switch to upload.
� TextUpload � uploads a human-readable configuration file of the current running configuration of an existing configuration file on the switch to the URI in the mellanoxConfigDBCmdUri command. The filename parameter indicates what configuration file on the switch to upload (same as the CLI command configuration text generate file <filename> upload).
� ConfigWrite � saves active configuration to a filename on the switch as given in the filename parameter. In case filename is "active", active configuration is saved to the current saved configuration (same as the CLI command configuration write).
� BinaryDelete � deletes a binary based configuration file
� TextDelete � deletes a text based configuration file
4.17.1.8.6Upgrading MLNX-OS Software with SNMP
Mellanox supports upgrading MLNX-OS software using an SNMP SET request as described in MELLANOX-SW-UPDATE MIB.
Mellanox Technologies
.
499
System Management
The software upgrade command is issued via the OID mellanoxSWUpdateCmdExecute. The following options are available: � Update � fetches the image from a specified URI (equivalent to the command "image
fetch" followed by "image install") The image to update from is defined by the OID mellanoxSWUpdateCmdUri. The restrictions on the URI are identical to what is supported in the CLI command "image fetch" on page 222. � Set-Next � changes the image for the next boot equivalent to the CLI command "image boot") The partition from which to boot is defined by the OID mellanoxSWUpdateCmdSetNext. The parameters for this OID are as follows: � 0 � no change � 1 � partition 1 � 2 � partition 2 � 3 � next partition (default) Using the OIDs mellanoxSWUpdateCmdStatus and mellanoxSWUpdateCmdStatusString you may view the status of the latest operation performed from the aforementioned in either integer values, or human-readable forms, respectively. The integer values presented may be as follows: � 0 � no operation � 1-100 � progress in percentage � 101 � success � 200 � failure
4.17.1.9 IF-MIB and Interface Information
MLNX-OS supports displaying information of switch ports, LAG ports, MLAG ports and VLAN interfaces on all systems via SNMP interface. This feature is enabled by default. The interface information is available in the ifTables, ifXTable and mellanoxIfVPITable. Additionally, traps for interface up/down, and internal link suboptimal speed are enabled. The user has the ability to enable one or both of these traps. Interface up/down traps are sent whenever there is a change in the interface's operational state. These traps are suppressed for internal links when the internal link's speed does not match the configured speed of the link (mismatch condition).
4.17.2 JSON API
JavaScript Object Notation (JSON) is a machine-to-machine data-interchange format which is supported in MLNX-OS CLI. The JSON API allows executing CLI commands and receiving outputs in JSON format which can be easily parsed by the calling software.
4.17.2.1 Authentication
The JSON API protocol runs over HTTP/HTTPS and uses the existing web authentication mechanism.
Mellanox Technologies
.
500
System Management
In order to access the system via HTTP/HTTPS, an HTTP/HTTPS client is needed to send POST requests to the system.
HTTPS access to the web-based management console needs to be enabled using the command "web https enable" to allow POST requests.
The HTTPS client must first be authenticated by sending a POST request to the following URL:
https://<switch-ip-address>/admin/launch?script=rh&template=login&action=login
The POST request content should contain the following data:
"f_user_id=<user name>&f_password=<user password>"
After a successful login, a session id (cookie) is returned to be used for other HTTPS requests in the system. See Section 4.17.2.6, "JSON Examples," on page 506 for examples.
4.17.2.2 Sending the Request After successful authentication, the HTTPS client can start sending JSON requests. All requests (POST and GET) should be sent to the following URL:
https://<switch-ip-address>/admin/launch?script=json
After the request is handled in the system the HTTPS client receives a JSON response with an indication of the request execution result. If there is data resulting from the request, it is returned as part of the response. See Section 4.17.2.3, "JSON Request Format," on page 501 for the CLI request format. See Section 4.17.2.4, "JSON Response Format," on page 503 for the reply format. JSON requests may also be sent using the WebUI. For more information on using the WebUI with JSON, please refer to Section 4.17.2.7, "JSON Request Using WebUI," on page 511.
4.17.2.3 JSON Request Format
4.17.2.3.1JSON Execution Requests
JSON execution requests are HTTPS POST requests that contain CLI commands to be executed in the system. Execution request can contain a single command or multiple commands to be executed.
Single command execution request format:
{ "cmd": "<CLI command to execute>"
}
Mellanox Technologies
.
501
System Management
Example:
{ "cmd": "show 1/1"
}
Multiple command execution request format:
{ "commands":["<CLI cmd 1>", "<CLI cmd 2>", ... , <CLI cmd n>]
}
Example:
{ "commands": [ "show 1/1", "show 1/2" ]
}
In case of a multiple command request, the execution of the commands is done in the order they appear in the execution list. Note that the execution of a multiple command request will be stopped upon first failure. That is, in case the execution of one of the commands fails, none of the remaining commands will be executed. See Section 4.17.2.6, "JSON Examples," on page 506 for examples.
Execution Types
Execution requests can be either synchronous (default) or asynchronous. Synchronous requests will wait for a JSON response from the system. The synchronous request has a defined wait time after which the user will receive a timeout response. The timeout for a synchronous request is configurable by the user and is 30 seconds by default (see the CLI command "json-gw synchronous-request-timeout" on page 543). Asynchronous requests will return immediately after sending the request with a reply containing a "job_id" key. The user can use the given job ID to later query for request status and execution results. Queries for asynchronous request results are guaranteed to be accessible up to 60 seconds after the request has been completed. To specify the execution type, the user needs to add the following key to the JSON execution request:
"execution_type":"<async|sync>"
Example:
{ "execution_type":"async", "cmd": "show 1/1"
}
See Section 4.17.2.6, "JSON Examples," on page 506 for examples.
Mellanox Technologies
.
502
System Management
4.17.2.3.2JSON Query Requests
JSON Query requests are HTTPS GET requests that contain a job ID parameter. Using a query request, the user can get information on the current execution state of an ongoing request or the execution results of a completed request. To send a query request, the user should add the following parameters to the JSON URL:
job_id=<job number>
Example:
https://<switch-ip-address>/admin/launch?script=json&job_id=<job number>
See Section 4.17.2.6, "JSON Examples," on page 506 for more examples.
4.17.2.4 JSON Response Format
Set commands normally do not return any data or output. If a set command does return an output, it will be displayed in the "status_message" field.
4.17.2.4.1Single Command Response Format
The HTTPS POST response format structure is a JSON object consisting of 4 name-value pairs as follows:
{ "executed_command": "<CLI command that was executed>", "status" = "<OK|ERROR>", "status_message" = "<information on the status received>", "data" = {the information that was asked for in the request}
}
� executed_command � the CLI command that was executed in the request � status � the result of the request execution:
� "OK" if the execution is successful � "ERROR" in case of a problem with the execution
The value type of this key is "string". � data � a JSON object containing the information requested. Returns an empty string if
there is no data. � status message � additional information on the received status. May be empty. The value
type of this key is "string".
Mellanox Technologies
.
503
System Management
Example:
{ "executed_command": "show 1/1 "status": "OK", "status_message": "", "data": { "speed": "40GbE", "admin_state": "up" }
}
See Section 4.17.2.6, "JSON Examples," on page 506 for more examples.
4.17.2.4.2Multiple Command Response Format
The HTTPS response format structure is a JSON object consisting of a list of JSON results. Each JSON structure in the list is structured the same as in the single command execution response (see the previous section). However, the status field can contain in this case an additional value, "ABORTED", in case a previous command failed. This status value indicates that the command has not been executed at all in the system.
{ "results": [ { "executed_command": "<...>", "status": "<OK|ERROR|ABORTED>", "status_message": "<...>", "data": {...} }, { "executed_command": "<...>", "status": "<OK|ERROR|ABORTED>", "status_message": "<...>", "data": {...} },
... { "executed_command": "<...>", "status": "<OK|ERROR|ABORTED>", "status_message": "<...>", "data": {...} } ]
}
Mellanox Technologies
.
504
System Management
Example:
{ "results": [ { "executed_command": "show 1/1", "status": "OK", "status_message": "" "data": {"speed":"40GbE", "admin_state":"up"} }, { "executed_command": "show 1/100", "status": "ERROR", "status_message": "wrong interface name", "data": "" }, { "executed_command": "show 1/2", "status": "ABORTED", "status_message": "", "data": "" } ]
}
See Section 4.17.2.6, "JSON Examples," on page 506 for more examples.
4.17.2.4.3Query Response Format
Response to a query request can be of two types. In case the request completes its execution, the response will be similar to the single/multiple command response format, depending on the format of the request, and will display the execution results. In case the execution is not complete yet, the response format will be similar to the single command response format. However, the status field will contain in this case the value "PENDING" to indicate that the request is still in progress. In addition, the "executed_command" field will contain the current request command being handled by the system. Example:
{ "executed_command": "show 1/1", "status": "PENDING", "status_message": "", "data":""
}
See Section 4.17.2.6, "JSON Examples," on page 506 for examples.
4.17.2.4.4Asynchronous Response Format
Response to an asynchronous request is similar to the HTTPS response format of the single command response. However, an additional unique field will be added, "job_id", containing the job id number for querying the request later. The value of the job_id key is of type string.
Mellanox Technologies
.
505
System Management
Another difference is that the "executed_command" field will be empty. Example:
{ "executed_command": "" "status": "OK" "status_message": "" "data": "" "job_id": "2754930426"
}
See Section 4.17.2.6, "JSON Examples," on page 506 for examples.
4.17.2.5 Supported Commands
4.17.2.5.1Set Commands
All non-interactive CLI set commands are supported.
Interactive commands are commands which require user interaction to complete (e.g., type "yes" to confirm). These commands are not supported by the JSON API.
4.17.2.5.2Show Commands
Not all CLI show commands are currently supported by the JSON API. Unsupported commands return an error indication. Support for all show commands will be completed in future MLNX-OS releases. For a list "show" commands not currently supported, please refer to Appendix B,"Show Commands Not Supported by JSON," on page 1943.
4.17.2.6 JSON Examples The following examples use curl (a common tool in Linux systems) to send HTTPS POST requests to the system.
4.17.2.6.1Authentication Example
Before sending JSON HTTPS request, the user must first authenticate. Run the following from your server's shell to create a login session ID in the file: /tmp/cookie.
curl -c /tmp/cookie -d "f_user_id=admin&f_password=admin" "https://10.10.10.10/admin/launch?script=rh&template=login&action=login"
Mellanox Technologies
.
506
System Management
Upon a successful login, you will receive a reply similar to the following:
<!DOCTYPE HTML PUBLIC "-//IETF//DTD HTML 2.0//EN"> <html><head> <title>302 Found</title> </head><body> <h1>Found</h1> <p>The document has moved <a href="https://10.10.10.10/admin/launch?script=rh&template=home">here</a>.</p> <hr> <address>Apache Server at 10.10.10.10 Port 80</address> </body></html>
The session id can now be used in all other JSON HTTPS requests to the system.
4.17.2.6.2 Synchronous Execution Request Example
Single Command
This example sends a request to query the system profile. Request (save it to a file named req.json):
{"cmd": "show system profile"}
Send the request:
curl -b /tmp/cookie -X POST -d @req.json "https://10.10.10.10/admin/launch?script=json"
Response: When the system finishes processing the request, the user will receive a response similar to the following:
{ "status": "OK", "executed_command": "show system profile", "status_message": "", "data": { "Profile": "ib", "Adaptive Routing": "yes", "Number of SWIDs": "1" }
}
Multiple Commands
This example sends a request to change an interface description and then queries for its status. Request (save it to a file named req.json):
{"commands": ["interface ib 1/1 description test description", "show interfaces ib 1/1 status"]}
Send the request:
curl -b /tmp/cookie -X POST -d @req.json "https://10.10.10.10/admin/launch?script=json"
Mellanox Technologies
.
507
System Management
Response: When the system finishes processing the request, the user will receive a response similar to the following:
{ "results": [ { "status": "OK", "executed_command": "interface ib 1/1 description test description", "status_message": "", "data": "" }, { "status": "OK", "executed_command": "show interfaces ib 1/1 status", "status_message": "", "data": { "IB1/1": [ { "Description": "test description", "Speed": "fdr", "Logical port state": "Initialize", "Physical port state": "LinkUp", "Current line rate": "56.0 Gbps", "IB Subnet": "infiniband-default" } ] } } ]
}
4.17.2.6.3Asynchronous Execution Request Example
This example sends an asynchronous request to change an interface description and then queries for its status. Request (save it to a file named req.json):
{"execution_type":"async", "commands": ["interface ib 1/1 description test description", "show interfaces ib 1/1 status"]}
Send the request:
curl -b /tmp/cookie -X POST -d @req.json "https://10.10.10.10/admin/launch?script=json"
Mellanox Technologies
.
508
System Management
Response: The system immediately returns a response similar to the following:
{ "executed_command": "", "status": "OK", "status_message": "", "data": "", "job_id": "91329386"
}
4.17.2.6.4Query Request Example
This example sends a request to query for a job ID received from a previous execution request. Request: The request is a an HTTPS GET operation to the JSON URL with the "job_id" parameter. Send the request:
curl -b /tmp/cookie -X GET "https://10.10.10.10/admin/ launch?script=json&job_id=91329386"
Response: If the system is still processing the request, the user receives a response similar to the following:
{ "executed_command": " interface ib 1/1 description test description ", "status": "PENDING", "status_message": "", "data": ""
}
Mellanox Technologies
.
509
System Management
If the system is done processing the request, the user receives a response similar to the following:
{ "results": [ { "status": "OK", "executed_command": "interface ib 1/1 description test description", "status_message": "", "data": "" }, { "status": "OK", "executed_command": "show interfaces ib 1/1 status", "status_message": "", "data": { "IB1/1": [ { "Description": "test description", "Speed": "fdr", "Logical port state": "Initialize", "Physical port state": "LinkUp", "Current line rate": "56.0 Gbps", "IB Subnet": "infiniband-default" } ] } } ]
}
4.17.2.6.5Error Response Example
General Error
This example sends a request with an illegal JSON structure. Request - without closing bracket "]" (save it to a file named req.json):
{"commands": ["interface ib 1/1 description test description", "show interfaces ib 1/1 status"}
Send the request:
curl -b /tmp/cookie -X POST -d @req.json "https://10.10.10.10/admin/launch?script=json"
Error response:
{ "status": "ERROR", "executed_command": "", "status_message": "Handle request failed. Reason:\nIllegal JSON structure found in
given JSON data.\nExpecting , delimiter: line 1 column 95 (char 94)", "data": ""
}
Mellanox Technologies
.
510
System Management
Multiple Command Request Failure
This example sends a multiple command request where one command fails. Request - with a non-existing interface (1/200) (save it to a file named req.json):
{ "execution_type": "sync", "commands": [ "interface ib 1/1 speed sdr", "interface ib 1/200 speed sdr", "interface ib 1/3 speed sdr"]
}
Send the request:
curl -b /tmp/cookie -X POST -d @req.json "https://10.10.10.10/admin/launch?script=json"
Error response:
{ "results": [ { "status": "OK", "executed_command": "interface ib 1/1 speed sdr", "status_message": "", "data": "" }, { "status": "ERROR", "executed_command": "interface ib 1/200 speed sdr", "status_message": "% 1st Interface does not exist", "data": "" }, { "status": "ABORTED", "executed_command": "interface ib 1/3 speed sdr", "status_message": "", "data": "" } ]
}
4.17.2.7 JSON Request Using WebUI The MLNX-OS WebUI also allows users to send JSON HTTPS POST and GET requests. Log into the WebUI, go to the "Setup" tab, and select "JSON API" from the left side menu.
This section is displayed only if JSON API is enabled using the command "json-gw enable".
Mellanox Technologies
.
511
System Management
4.17.2.7.1To Execute a JSON Request
Step 1. Choose "Execute JSON command". Step 2. Choose the "execution_type" from the drop down list. Step 3. In the "commands" field, type the CLI command(s) to execute.
Use the "+" and "-" buttons to add or remove additional commands to the request. Step 4. Click "Submit". The JSON response is then shown in the "JSON Response" box below. The HTTPS method (HTTPS POST in this instance) and the URL used to send the request will be displayed next to the "HTTPS Method" and "URL" field respectively.
Figure 13: JSON API WebUI Example
4.17.2.7.2To Query an Asynchronous JSON Request
Step 1. Choose "Query asynchronous job status". Step 2. Type the job ID in the "Job ID" text box.
Mellanox Technologies
.
512
System Management
Step 3. Press "Query Status". The JSON response is then shown in the "JSON Response" box below. The HTTPS method (HTTPS GET in this instance) and the URL used to send the request will be displayed next to the "HTTPS Method" and "URL" field respectively.
Figure 14: JSON API Asynchronous Job WebUI Example
4.17.3 XML API
MLNX-OS XML API is documented in the MLNX-OS XML API Reference Guide.
Mellanox Technologies
.
513
System Management
4.17.4 Commands
4.17.4.1 SNMP Commands The commands in this section are used to manage the SNMP server.
snmp-server auto-refresh
snmp-server auto-refresh {enable | interval <time>} no snmp-server auto-refresh enable
Configures SNMPD refresh settings. The no form of the command disables SNMPD refresh mechanism.
Syntax Description enable
Enables SNMPD refresh mechanism.
interval
Sets SNMPD refresh interval.
time
In seconds. Range: 20-500.
Default
Enabled. Interval: 60 secs
Configuration Mode config
History
3.2.3000
3.4.1100
Added time parameter and updated notes
Role
admin
Example
switch (config) # snmp-server auto-refresh interval 120
Related Commands show snmp
Notes
� When configuring an interval lower than 60 seconds, the following warning message appears asking for confirmation: "Warning: this configuration may increase CPU utilization, Type 'YES' to confirm: YES".
� When disabling SNMP auto-refresh, information is retrieved no more than once every 60 seconds just like SNMP tables that do not have an auto-refresh mechanism.
Mellanox Technologies
.
514
System Management
snmp-server cache enable
[no] snmp-server cache enable
Syntax Description
Enables/disables snmp cache in case auto-refresh is disabled. If snmp cache is disabled, every snmp request will get updated data.
Default
Enabled
Configuration Mode Configure terminal
History
3.7.00xx
Role
admin
Example
scorpion2-75 [standalone: master] (config) # snmp-server cache enable
Related Commands show snmp auto-refresh [no] snmp-server auto-refresh enable
Notes
If snmp auto-refresh is enabled, the value of cache is meaningless
Mellanox Technologies
.
515
System Management
snmp-server community
snmp-server community <community> [ ro | rw] no snmp-server community <community>
Sets a community name for either read-only or read-write SNMP requests. The no form of the command sets the community string to default.
Syntax Description community
Community name.
ro
Sets the read-only community string.
rw
Sets the read-write community string.
Default
Read-only community: "public" Read-write community: ""
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch(config) # snmp-server community private rw
switch (config) # show snmp
SNMP enabled:
yes
SNMP port:
161
System contact:
System location:
Read-only community: public
Read-write community: private
Interface listen enabled: yes No Listen Interfaces.
Traps enabled: Default trap community: Default trap port:
yes public 162
Related Commands Notes
No trap sinks configured. switch(config) #
show snmp
� If neither the "ro" or the "rw" parameters are specified, the read-only community is set as the default community
� If the read-only community is specified, only queries can be performed � If the read-write community is specified, both queries and sets can be performed
Mellanox Technologies
.
516
System Management
snmp-server contact
snmp-server contact <contact name> no snmp-server contact
Sets a value for the sysContact variable in MIB-II. The no form of the command resets the parameter to its default value.
Syntax Description contact name
Contact name.
Default
""
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # snmp-server contact my-name
Related Commands show snmp
Notes
Mellanox Technologies
.
517
System Management
snmp-server enable
snmp-server enable no snmp-server enable
Enables SNMP-related functionality (SNMP engine, and traps) The no form of the command disables the SNMP server.
Syntax Description N/A
Default
SNMP is enabled by default
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # snmp-server enable
Related Commands show snmp
Notes
Mellanox Technologies
.
518
System Management
snmp-server enable
snmp-server enable no snmp-server enable
Enables SNMP-related functionality (SNMP engine, and traps) The no form of the command disables the SNMP server.
Syntax Description N/A
Default
SNMP is enabled by default
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # snmp-server enable
Related Commands show snmp
Notes
Mellanox Technologies
.
519
System Management
snmp-server engineID reset
snmp-server engineID reset
Resets the SNMPv3 engine ID to be node unique.
Syntax Description N/A
Default
Default engineID is unchanged
Configuration Mode config
History
3.6.6102
Role
admin
Example
switch (config) # snmp-server engienID reset
Related Commands show snmp engineID
Notes
Changing system profile or performing "reset factory..." causes the engine ID to change to the new node-unique one.
Mellanox Technologies
.
520
System Management
snmp-server enable mult-communities
snmp-server enable mult-communities no snmp-server enable mult-communities
Enables multiple communities to be configured. The no form of the command disables multiple communities to be configured.
Syntax Description N/A
Default
SNMP server multi-communities are disabled by default
Configuration Mode config
History
N/A
Role
admin
Example
switch (config) # snmp-server enable mult-communities
Related Commands show snmp
Notes
Mellanox Technologies
.
521
System Management
snmp-server enable notify
snmp-server enable notify no snmp-server enable notify
Enables sending of SNMP traps and informs from this system. The no form of the command disables sending of SNMP traps and informs from this system.
Syntax Description N/A
Default
SNMP notifies are enabled by default
Configuration Mode config
History
N/A
Role
admin
Example
switch (config) # snmp-server enable notify
Related Commands show snmp
Notes
SNMP traps are only sent if there are trap sinks configured with the "snmp-server host..." command, and if these trap sinks are themselves enabled.
Mellanox Technologies
.
522
System Management
snmp-server enable set-permission
snmp-server enable set-permission <MIB-name> no snmp-server enable set-permission <MIB-name>
Allows SNMP SET requests for items in a specified MIB. The no form of the command disallows SNMP SET requests for items in a specified MIB.
Syntax Description N/A
Default
SNMP MIBs are all given permission for SET requests by default
Configuration Mode config
History
3.6.3004
Role
admin
Example
switch (config) # snmp-server enable set-permission MELLANOX-SW-UPDATE
Related Commands show snmp set-permission
Notes
Mellanox Technologies
.
523
System Management
snmp-server host disable
snmp-server host <ip-address> disable no snmp-server host <ip-address> [disable]
Temporarily disables sending of all notifications to this host. The no form of the commands resumes sending of all notifications to this host
Syntax Description IP address
IPv4 or IPv6 address
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # snmp-server host 10.10.10.10 disable
Related Commands show snmp snmp-server enable
Notes
Mellanox Technologies
.
524
System Management
snmp-server host informs
snmp-server host <ip-address> informs [<community> | port <port> | version 2c | version 3 {engineID <engineID> | user <name> {auth <hash-type> <auth- password> [priv <privacy-type> [<priv-password>]] | encrypted auth ... | prompt auth ...}}] no snmp-server host <ip-address> informs port
Syntax Description Default
Send SNMP v2c informs to this host with the default trap community. The no form of the commands removes a host from which SNMP traps should be sent.
IP address
IPv4 or IPv6 address
community
Specifies trap community string
port
Overrides default UDP port for this trap sink
version
Specifies the SNMP version of traps to send to this host
engineID
Specifies engine ID of this inform sink
user
Specifies username for this inform sink
auth
Configures SNMP v3 security parameters, specifying
passwords in plaintext on the command line (passwords
are always stored encrypted)
hash-type
� MD5 � SHA
auth-password
Plaintext password to use for authentication. If "priv" is not specified the default privacy algorithm is used with the same privacy password as that specified for authentication.
priv
Specifies SNMPv3 privacy settings for this user
privacy-type
� aes-128 � uses AES-128 encryption for privacy � des � uses DES encryption for privacy
priv-password
Plaintext password to use for privacy. If not specified, then auth-password is used.
encrypted
Configure SNMP v3 security parameters, specifying passwords in encrypted form
prompt
Configure SNMP v3 security parameters, specifying passwords securely in follow-up prompts, rather than on the command line
Default community is "public" Default UDP port is 162 Default SNMP version is 2
Mellanox Technologies
.
525
System Management
Configuration Mode config
History
3.2.1050
Role
admin
Example Related Commands
switch (config) # snmp-server host 1.1.1.1 informs version 3 engineID 0x800041da04643265363932653432303135 user test auth md5 password priv aes-128 password
show snmp snmp-server enable snmp-server host informs version 3
Notes
Mellanox Technologies
.
526
System Management
snmp-server host traps
snmp-server host <ip-address> traps [<community> | port <port> | version {1 | 2c} | version 3 {user <name> {auth <hash-type> <auth-password> [priv <privacy-type> [<priv-password>]] | encrypted auth ... | prompt auth ...}}] no snmp-server host <ip-address> traps port
Send SNMP v2c traps to this host with the default trap community. The no form of the commands removes a host from which SNMP traps should be sent.
Syntax Description IP address
IPv4 or IPv6 address
community
Specifies trap community string
port
Overrides default UDP port for this trap sink
version
Specifies the SNMP version of traps to send to this host
user
Specifies username for this inform sink
auth
Configures SNMP v3 security parameters, specifying
passwords in plaintext on the command line (passwords
are always stored encrypted)
hash-type
� MD5 � SHA
auth-password
Plaintext password to use for authentication. If "priv" is not specified the default privacy algorithm is used with the same privacy password as that specified for authentication.
priv
Specifies SNMPv3 privacy settings for this user
privacy-type
� aes-128 � uses AES-128 encryption for privacy � des � uses DES encryption for privacy
priv-password
Plaintext password to use for privacy. If not specified, then auth-password is used.
encrypted
Configure SNMP v3 security parameters, specifying passwords in encrypted form
prompt
Configure SNMP v3 security parameters, specifying passwords securely in follow-up prompts, rather than on the command line
Default
Default community is "public" Default UDP port is 162 Default SNMP version is 2
Configuration Mode config
Mellanox Technologies
.
527
System Management
History Role Example Related Commands
Notes
3.1.0000
admin
switch (config) # snmp-server host 1.1.1.1 informs version 3 user test auth md5 password priv aes-128 password
show snmp snmp-server enable snmp-server host informs version 3
Mellanox Technologies
.
528
System Management
snmp-server listen
snmp-server listen {enable | interface <ifName>} no snmp-server listen {enable | interface <ifName>}
Configures SNMP server interface access restrictions. The no form of the command disables the listen interface restricted list for SNMP server.
Syntax Description enable
Enables SNMP interface restrictions on access to this system.
ifName
Adds an interface to the "listen" list for SNMP server. For example: "mgmt0", "mgmt1".
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # snmp listen enable
Related Commands show snmp
Notes
If enabled, and if at least one of the interfaces listed is eligible to be a listen interface, then SNMP requests will only be accepted on those interfaces. Otherwise, SNMP requests are accepted on any interface.
Mellanox Technologies
.
529
System Management
snmp-server notify
snmp-server notify {community <community> | event <event name> | port <port> | send-test} no snmp-server notify {community | event <event name> | port}
Configures SNMP notifications (traps and informs). The no form of the commands negate the SNMP notifications.
Syntax Description community
Sets the default community for traps sent to hosts which do not have a custom community string set.
event
Specifies which events will be sent as traps.
port
Sets the default port to which traps are sent.
send-test
Sends a test trap.
Default
Community: public All informs and traps are enabled Port: 162
Configuration Mode config
History
3.1.0000
3.2.1050
Changed traps to notify
Role
admin
Example
switch (config) # snmp-server community public
Related Commands show snmp show snmp events
Notes
� This setting is only meaningful if traps are enabled, though the list of hosts may still be edited if traps are disabled
� Refer to Mellanox MIB file for the list of supported traps
Mellanox Technologies
.
530
System Management
snmp-server port
snmp-server port <port> no snmp-server port
Sets the UDP listening port for the SNMP agent. The no form of the command resets the parameter to its default value.
Syntax Description port
UDP port.
Default
161
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # snmp-server port 1000
Related Commands show snmp
Notes
Mellanox Technologies
.
531
System Management
snmp-server user
snmp-server user {admin | <username>} v3 {[encrypted] auth <hash-type> <password> [priv <privacy-type> [<password>]] | capability <cap> | enable <sets> | prompt auth <hash-type> [priv <privacy-type>] | require-privacy} no snmp-server user {admin | <username> } v3 {[encrypted] auth <hash-type> <password> [priv <privacy-type> [<password>]] | capability <cap> | enable <sets> | prompt auth <hash-type> [priv <privacy-type>]}
Syntax Description
Specifies an existing username, or a new one to be added. The no form of the command disables access via SNMP v3 for the specified user.
v3
Configures SNMP v3 users
auth
Configures SNMP v3 security parameters, specifying
passwords in plaintext on the command line (note:
passwords are always stored encrypted).
Available hash-type options are: <md5|sha|sha224|sha256|sha384|sha512>.
capability
Sets capability level for SET requests
enable
Enables SNMP v3 access for this user
encrypted
Configures SNMP v3 security parameters, specifying passwords in encrypted form
prompt
Configures SNMP v3 security parameters, specifying passwords securely in follow-up prompts, rather than on the command line
require-privacy
Requires privacy (encryption) for requests from this user
priv
Configures SNMP v3 security parameters, specifying
which protocol to use for traffic encryption. Available
priv-type options: <des|3des|aes-128|aes-192|aes-256>.
Default
No SNMP v3 users defined
Configuration Mode config
History
3.1.0000
3.7.00xx
Role
admin
Example
switch (config) # snmp-server user admin v3 enable
Mellanox Technologies
.
532
System Management
Related Commands Notes
show snmp user
� The username chosen here may be anything that is valid as a local UNIX username (alphanumeric, plus '-', '_', and '.'), but these usernames are unrelated to, and independent of, local user accounts. That is, they need not have the same capability level as a local user account of the same name. Note that these usernames should not be longer than 31 characters, or they will not work.
� The hash algorithm specified is used both to create digests of the authentication and privacy passwords for storage in configuration, and also in HMAC form for the authentication protocol itself.
� There are three variants of the command, which branch out after the "v3" keyword. If "auth" is used next, the passwords are specified in plaintext on the command line. If "encrypted" is used next, the passwords are specified encrypted (hashed) on the command line. If "prompt-pass" is used, the passwords are not specified on the command line the user is prompted for them when the command is executing. If "priv" is not specified, only the auth password is prompted for. If "priv" is specified, the privacy password is prompted for; entering an empty string for this prompt will result in using the same password specified for authentication.
� AES privacy type encryption using the newest algorithm, which means we use aes-blumenthal. For more information see - http://www.snmp.com/eso/esoConsortiumMIB.txt
� No more than 30 SNMP V3 users are allowed in the database.
Mellanox Technologies
.
533
System Management
show snmp
show snmp [events | host]
Displays SNMP-server configuration and status.
Syntax Description events
SNMP events
host
List of notification sinks
Default
N/A
Configuration Mode config
History
3.1.0000
3.6.8008
Updated Example
Role
admin
Example
switch (config) # show snmp
SNMP enabled : no
SNMP port
: 161
System contact : Test
System location: Boston
Read-only communities: public
Read-write communities: good
Interface listen enabled: yes
Related Commands Notes
Listen Interfaces: Interface: mgmt0
show snmp
Mellanox Technologies
.
534
show snmp auto-refresh
show snmp auto-refresh
Displays SNMPD refresh mechanism status.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
3.6.6000
Updated Example
3.7.00xx
Updated Example
Role
admin
Example
switch (config) # show snmp auto-refresh
SNMP auto refresh:
Auto-refresh enabled:
yes
Refresh interval (sec):
60
Cache enabled:
yes
Related Commands Notes
Auto-Refreshed tables: ifTable ifXTable mellanoxIfVPITable
snmp-server auto-refresh
System Management
Mellanox Technologies
.
535
System Management
show snmp engineID
show snmp engineID
Displays SNMPv3 engine ID key.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.6102
Role
admin
Example Related Commands
switch (config) # show snmp engineID Local SNMP engineID: 0x80004f4db1dd435e80accf4a4d4d3031
snmp-server engineID
Notes
Mellanox Technologies
.
536
System Management
show snmp set-permission
show snmp set-permission
Displays SNMP SET permission settings.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.3004
Role
admin
Example
switch (config) # show snmp set-permission
---------------------------------------------
MIB Name
Set Enable
---------------------------------------------
MELLANOX-CONFIG-DB-MIB
yes
MELLANOX-EFM-MIB
yes
MELLANOX-POWER-CYCLE
yes
MELLANOX-SW-UPDATE
no
RFC1213-MIB
no
Related Commands snmp-server enable set-permission
Notes
Mellanox Technologies
.
537
show snmp user
show snmp user
Displays SNMP user information.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
3.6.8008
Updated Example
Role
admin
Example Related Commands
switch (config) # show snmp user
User name: Hendrix
Enabled overall:
yes
Authentication type:
sha
Privacy type:
des
Authentication password: (set)
Privacy password:
(set)
Require privacy: yes
SET access:
Enabled:
yes
Capability level:
admin
switch (config) #
show snmp
Notes
System Management
Mellanox Technologies
.
538
System Management
show interfaces ib internal notification
show interfaces ib internal notification
Displays information about internal links notification.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.3.4318
3.4.3000
Updated Example
Role
admin
Example
switch (config) # show interfaces ib internal notification
==========================
Internal links information
==========================
State change enabled
: yes
Speed mismatch enabled : yes
Periodic notifications : 6 (hours)
Related Commands interfaces ib internal notification
Notes
Mellanox Technologies
.
539
4.17.4.2 XML API Commands
xml-gw enable
xml-gw enable no xml-gw enable
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables the XML gateway. The no form of the command disables the XML gateway.
N/A
XML Gateway is enabled
config
3.1.0000
admin
switch (config) # xml-gw enable switch (config) # show xml-gw XML Gateway enabled: yes switch (config) #
show xml-gw
System Management
Mellanox Technologies
.
540
show xml-gw
show xml-gw
Displays the XML gateway setting.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show xml-gw XML Gateway enabled: yes switch (config) #
xml-gw enable
Notes
System Management
Mellanox Technologies
.
541
4.17.4.3 JSON API Commands
json-gw enable
json-gw enable no json-gw enable
Enables the JSON API. The no form of the command disables the JSON API.
Syntax Description N/A
Default
JSON API is enabled
Configuration Mode config
History
3.6.3004
Role
admin
Example
switch (config) # json-gw enable
Related Commands show json-gw
Notes
System Management
Mellanox Technologies
.
542
System Management
json-gw synchronous-request-timeout
json-gw synchronous-request-timeout <time out value> no json-gw synchronous-request-timeout
Syntax Description Default Configuration Mode History
Role Example
Defines a timeout value for synchronous JSON requests (in seconds). The no form of the command returns the timeout value to its default.
N/A
N/A
Any command mode
3.6.3004
3.6.4000
Updated Example and Related Commands.
admin
switch (config) # show json-gw
Related Commands Notes
JSON Gateway enabled: yes
Synchronous request timeout: 30
JSON API version:
1.0
json-gw enable json-gw synchronous-request-timeout <time out value> no json-gw synchronous-request-timeout
Mellanox Technologies
.
543
System Management
show json-gw
show json-gw
Displays the JSON API setting.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.3004
3.6.4000
Updated Example and Related Commands.
Role
admin
Example
switch (config) # show json-gw
Related Commands Notes
JSON Gateway enabled: yes
Synchronous request timeout: 30
JSON API version:
1.0
json-gw enable json-gw synchronous-request-timeout <time out value> no json-gw synchronous-request-timeout
Mellanox Technologies
.
544
System Management
4.18
Puppet Agent
Puppet is a software that allows network administrators to automate repetitive tasks. MLNX-OS includes a built-in agent for the open-source "Puppet" configuration change management system. The Puppet agent enables configuring Mellanox switches in accordance with the standard "puppet-netdev-stdlib" type library and with the "Mellanox-netdev-stdlib-mlnxos" and "Mellanoxnetdev-ospf-stdlib" type libraries provided by Mellanox Technologies to the Puppet community.
For more information, please refer to the CLI commands, to the NetDev documentation at https:/ /github.com/puppetlabs/puppet-netdev-stdlib and to Mellanox's Puppet modules GitHub page at https://github.com/Mellanox.
4.18.1 Setting the Puppet Server
To set the puppet server: Step 1. Define the Puppet server (the name has to be a DNS and not IP). Run:
switch (config) # puppet-agent master-hostname <please_type_your_hostname_DNS_here> switch (config) #
Step 2. Enable the Puppet agent. Run:
switch (config) # puppet-agent enable switch (config) #
Step 3. (Optional) Verify there are no errors in the Puppet agent log. Run:
switch (config) # show puppet-agent log continuous switch (config) #
4.18.2 Accepting the Switch Request
This is to be performed on the first run only.
To accept the switch's request: Option 1 � using Puppet CLI commands: Step 1. Ensure the certificate request. Run:
# puppet cert list "<switch>" (F4:B4:20:3B:2B:11:76:37:14:34:D0:D1:03:ED:3D:B5)
Step 2. Sign the certificate request if the cert_name parameter (e.g. switch1.domain) is in the list. Run:
# puppet cert sign <full_domain_name>
Step 3. Verify the request is removed from the Puppet certification list. Run:
# puppet cert list
Mellanox Technologies
.
545
System Management
Option 2 � accept certificate requests in the puppet server console: Step 1. Go to the "nodes requests" page (the button is at the top right), and wait for a certificate
request for the switch and then accept it.
Figure 15: Accepting an Agent Request through the Console
4.18.3 Installing Modules on the Puppet Server
Mellanox uses netdev-stdlib types and provides a package of Mellanox providers for those types which have to be installed at the Puppet server prior to the first Puppet configuration run (before configuring resources on the Mellanox switch). To install those modules, run the following commands in the Puppet server:
# puppet module install netdevops-netdev_stdlib # puppet module install mellanox-netdev_ospf_stdlib # puppet module install mellanox-netdev_stdlib_mlnxos
In case of an already installed module, please use the command "puppet module upgrade <module_name>" or "puppet module install <module_name> -force" instead of "puppet module install <module_name>" to reinstall the
modules.
For more information please refer to the Network Automation Tools document or Puppet category in the Mellanox community site at: http://community.mellanox.com/community/support/ solutions.
4.18.4 Supported Configuration Capabilities
4.18.4.1 InfiniBand Interface Capabilities
Table 36 - Ethernet and Port-Channel Interface Capabilities
Field ensure
speed
Description
Sets the given values or restores the interface to default
Sets the speed of the interface.
Values absent, present
auto*|10m|100m|1g|10g|40 g|56g
Example ensure => present
speed => 1g
Mellanox Technologies
.
546
System Management
Table 36 - Ethernet and Port-Channel Interface Capabilities
Field admin
mtu
Description
Disables/enables interface admin state.
Configures the maximum transmission unit frame size for the interface.
Values up, down
4.18.4.2 SNMP Capabilities
Table 37 - Protocol Enable/Disable Capabilities
Field ensure
Description
Enables/disables the protocol specified in the resource ID
Values present, absent
4.18.4.3 Fetched Image Capabilities
Table 38 - Fetched Image Capabilities
Field ensure
protocol host user password location
force_delete
Description
Enables/disables the protocol specified in the resource ID
Specifies the protocol for fetch method
The host where the filename located
The username for fetching the image
The password for fetching the image
The location of the file name in the host file system
Remove all the images or only the ones which are not installed on any partition, before fetching
Values present, absent
http, https, ftp, tftp, scp, sftp DNS/IP Username Password Directory full path
yes, no
Example admin => up mtu => 1520
Example ensure => present
Example ensure => present protocol => scp host => my_DNS user => my_username password => my_pass location => '/tmp' force_delete => no
Mellanox Technologies
.
547
System Management
4.18.4.4 Installed Image Capabilities
Table 39 - Installed Image Capabilities
Field ensure
is_next_boot configuration_write force_reload
Description
Specifies if the image version given in as resource ID is ensured to be installed or not
Ensures that the installed image is the next boot partition
Writes configurations to database.
Reload if image is in other partition.
Values present, absent
yes, no yes, no yes, no
Example ensure => present
is_next_boot => yes configuration_write => yes force_reload => no
4.18.5 Supported Resources for Each Type
Table 40 - Fetched Image Capabilities
Resource Type Network device
Puppet Type Name netdev_device
Fetched image
mlnx_fetched_img
Installed image
mlnx_installed_img
Supported Resource IDS $hostname The image file name
The image version name
Example
netdev_device { $hostname: }
mlnx_fetched_image { 'image-X86_643.6.8008.img': ensure => present}
mlnx_installed_img { '3.3.4300': ensure => present}
4.18.6 Troubleshooting
This section presents common issues that may prevent the switch from connecting to the puppet server.
4.18.6.1 Switch and Server Clocks are not Synchronized This can be fixed by using NTP to synchronize the clocks at the switch (using the CLI command ntp) and at the server (e.g. using ntpdate).
4.18.6.2 Outdated or Invalid SSL Certificates Either on the Switch or the Server This can be fixed on the switch using the CLI command puppet-agent clear-certificates (requires puppet-agent restart to take effect).
Mellanox Technologies
.
548
System Management
On the server it can be fixed by running puppet cert clean <switch_fqdn> (FQDN is the Fully Qualified Domain Name which consists of a hostname and a domain suffix).
4.18.6.3 Communications Issue Make sure it is possible to ping the puppet server hostname from the switch (using the CLI command ping). If the hostname is not reachable (e.g. no DNS server) it can be statically added to the switch local hosts lookup (using the CLI command ip host). Make sure that port 8140 is open (using the command tracepath {<hostname> | <ip>}/8140).
Mellanox Technologies
.
549
4.18.7 Commands
puppet-agent
puppet-agent
Enters puppet agent configuration mode.
Syntax Description N/A
Default
None
Configuration Mode config
History
3.3.4200
Role
admin
Example
switch (config) # puppet-agent switch (config puppet-agent) #
Related Commands
Notes
System Management
Mellanox Technologies
.
550
System Management
master-hostname
master-hostname <hostname> no master-hostname
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Sets the puppet server hostname. The no form of the command resets the parameter to its default.
hostname
Puppet server hostname. Free string may be entered.
puppet
config puppet
3.3.4200
admin
switch (config puppet-agent) # master-hostname my-puppet-server-hostname switch (config puppet-agent) #
Mellanox Technologies
.
551
System Management
enable
enable no enable
Enables the puppet server on the switch. The no form of the command disables the puppet server.
Syntax Description N/A
Default
Disabled
Configuration Mode config puppet
History
3.3.4200
Role
admin
Example Related Commands
switch (config puppet-agent) # enable switch (config puppet-agent) #
Notes
Mellanox Technologies
.
552
System Management
run-interval
run-interval <time>
Configures the time interval in which the puppet agent reports to the puppet server.
Syntax Description time
Can be in seconds ("30" or "30s"), minutes ("30m"), hours ("6h"), days ("2d"), or years ("5y").
Default
30m
Configuration Mode config puppet
History
3.3.4302
Role
admin
Example Related Commands
switch (config puppet-agent) # run-interval 40m switch (config puppet-agent) #
show puppet-agent
Notes
Mellanox Technologies
.
553
restart
puppet-agent restart
Restarts the puppet agent.
Syntax Description N/A
Default
N/A
Configuration Mode config puppet
History
3.3.4200
Role
admin
Example Related Commands
switch (config puppet-agent) # restart switch (config puppet-agent) #
Notes
System Management
Mellanox Technologies
.
554
System Management
show puppet-agent
show puppet-agent
Displays Puppet agent status and configuration.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.3.4200
3.3.4302 3.7.00xx
Updated Example with "Run interval" Updated Example with "Puppet agent: disabled"
Role
admin
Example
switch (config puppet-agent) # show puppet-agent Puppet agent: disabled Puppet master hostname: puppet Run interval: 30m switch (config puppet-agent) #
Related Commands
Notes
Mellanox Technologies
.
555
System Management
4.19 Control Plane Policing
show puppet-agent log
show puppet-agent log [[not] [matching | continuous] <string> | files [[not] matching] <string>]
Displays the Puppet agent's log file.
Syntax Description continuous
Puppet agent log messages as they arrive.
files
Displays archived Puppet agent log files.
matching
Displays Puppet agent log that match a given string.
not
Displays Puppet agent log that do not meet a certain
string.
string
Free string.
Default
N/A
Configuration Mode Any command mode
History
3.3.4200
Role
admin
Example
switch (config puppet-agent) # show puppet-agent log Mon Nov 04 11:52:42 +0000 2013 Puppet (notice): Starting Puppet client version 3.2.3 Mon Nov 04 11:52:44 +0000 2013 Puppet (warning): Unable to fetch my node definition, but the agent run will continue: Mon Nov 04 11:52:44 +0000 2013 Puppet (warning): Could not intern from pson: source '"#<Puppet::Node:0x7f' not in PSON! Mon Nov 04 11:53:21 +0000 2013 /Netdev_vlan[Vlan104]/ensure (notice): created Mon Nov 04 11:53:22 +0000 2013 /Netdev_vlan[Vlan101]/ensure (notice): created Mon Nov 04 11:53:23 +0000 2013 /Netdev_vlan[Vlan102]/ensure (notice): created Mon Nov 04 11:53:24 +0000 2013 /Netdev_vlan[Vlan103]/ensure (notice): created Mon Nov 04 11:53:40 +0000 2013 /Netdev_l2_interface[ethernet 1/6]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan103' Mon Nov 04 11:53:43 +0000 2013 /Netdev_l2_interface[ethernet 1/7]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan103' Mon Nov 04 11:53:48 +0000 2013 /Netdev_vlan[Vlan100]/ensure (notice): created Mon Nov 04 11:53:48 +0000 2013 /Netdev_l2_interface[ethernet 1/5]/vlan_tagging (notice): vlan_tagging changed 'enable' to 'disable' Mon Nov 04 11:53:48 +0000 2013 /Netdev_l2_interface[ethernet 1/5]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan100,Vlan101,Vlan102]' Mon Nov 04 11:53:51 +0000 2013 /Netdev_l2_interface[ethernet 1/1]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan101,Vlan104]' Mon Nov 04 11:53:51 +0000 2013 /Netdev_l2_interface[ethernet 1/1]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan100' Mon Nov 04 11:53:54 +0000 2013 /Netdev_l2_interface[ethernet 1/3]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan101,Vlan104]' Mon Nov 04 11:53:54 +0000 2013 /Netdev_l2_interface[ethernet 1/3]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan100' Mon Nov 04 11:53:58 +0000 2013 /Netdev_l2_interface[ethernet 1/4]/vlan_tagging (notice): vlan_tagging changed 'enable' to 'disable' Mon Nov 04 11:53:58 +0000 2013 /Netdev_l2_interface[ethernet 1/4]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan100,Vlan101,Vlan102]' Mon Nov 04 11:54:03 +0000 2013 /Netdev_l2_interface[ethernet 1/2]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan101,Vlan104]' Mon Nov 04 11:54:03 +0000 2013 /Netdev_l2_interface[ethernet 1/2]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan100' Mon Nov 04 11:54:06 +0000 2013 Puppet (notice): Finished catalog run in 47.90 seconds switch (config puppet-agent) #
Related Commands
Notes
Mellanox Technologies
.
556
System Management
Control Plane Policing or Policies (CoPP) ensures the CPU and control plane are not over-utilized which is essential for the robustness of the switch. CoPP limits the number of control plane packets. MLNX-OS implements several CoPP mechanisms: � ACLs may be used to limit the rate of packets or bytes of a certain type, including L3
control packets (L2 control packets are forwarded to the CPU before the ACL) � Policers on traffic going to the CPU � these policers are configured by MLNX-OS and
cannot be modified by the user � IP filter tables limit the traffic to the CPU coming in from the management ports.
4.19.1 IP Table Filtering
IP table filtering is a mechanism that allows the user to apply actions to a specific control packet flow identified by a certain flow key. This mechanism is used in order to protect switch control traffic against attacks. For example, it could allow traffic coming from a specific trusted management subnet only, block the SNMP UDP port from receiving traffic, and force ping rate to be lower than a specific threshold. Each IP table rule is defined by key, priority, and action: � Key � the key is a combination of physical port and layer 3 parameters (e.g. SIP, DIP,
SPORT, DPORT, etc.), and other fields. Each part of the key, can be set to a specific value or masked. � Priority � each rule in the IP table is assigned a priority, and the rule with the highest priority whose key matches the packet executes the action. � Action � the action describes the behavior of packets which match the key. The action type may be drop, accept, rate limit, etc. An IP table rule is bound to an IP interface that can be a management out-of-band interface, VLAN interface, or router port interface. Once bound, all traffic received (ingress rule) or transmitted (egress rule) in this direction is being verified with all bounded rules. Once a match was found, the rule action is executed. If no match is found, the default policy of the chain shall apply.
IP table rules get a lower priority than ACL mechanism.
4.19.1.1 Configuring IP Table Filtering
Prerequisite for IPv6:
switch (config) # ipv6 enable
Mellanox Technologies
.
557
System Management
To configure IPv4 table filtering: Step 1. Select the policy that applies to the input/output chain (default is "accept"). Run:
switch (config)# ip filter chain input policy drop switch (config)# ip filter chain output policy accept
Step 2. Append filtering rules to the list or set a specific rule number, select a target, and (optional) any additional filter conditions. For example, run:
switch (config)# ip filter chain input rule append tail target rate-limit 2 protocol udp switch (config)# ip filter chain input rule set 2 target drop protocol icmp in-intf mgmt1 switch (config)# ip filter chain output rule append tail target drop protocol icmp
Step 3. Enable IP table filtering. Run:
switch (config) # ip filter enable
Step 4. Verify IP table filtering configuration. Run:
switch (config) # show ip filter configured
Packet filtering for IPv4: enabled
IPv4 configuration:
Chain 'input' Policy 'accept':
Rule 1:
Target
: rate-limit 2 pps
Protocol : udp
Source
: all
Destination : all
Interface : all
State
: any
Other Filter: -
Rule 2:
Target
: drop
Protocol : icmp
Source
: all
Destination : all
Interface : mgmt1 (ingress)
State
: any
Other Filter: -
Chain 'output' Policy 'accept':
Rule 1:
Target
: drop
Protocol : icmp
Source
: all
Destination : all
Interface : all
State
: any
Other Filter: -
Mellanox Technologies
.
558
System Management
4.19.1.2 Modifying IP Table Filtering
To modify IP table filtering configuration:
switch (config) # ip filter chain input rule modify 3 target reject-with icmp6-adm-prohibited source-addr 10::0 /126
To delete an existing IP table filtering rule:
switch (config) # no ip filter chain input rule 2
To delete all existing IP table filtering rules:
switch (config) # no ip filter chain output rule all
To insert an IP table filtering rule in a chain:
switch (config) # ip filter chain input rule 2 set target drop protocol tcp dest-port 22 in-intf mgmt1
4.19.1.3 Rate-limit Rule Configuration
Using a rate-limit target allows to create a rule to limit the rate of certain traffic types. The limit is specified in packets per second (pps) and can be anywhere between 1-1000 pps. When enabled, the system takes the user specified rate and converts it into units of 1/10000 of a second. Therefore, any value greater than 100 can have a slight difference when the rule is displayed using the show command. Unlike other rules which are a match type of rule, limiting packets should be followed by a rule that drops additional packets of the same "type". Alternatively, this can be implicitly achieved by setting the chain policy to "drop" so that it drops packets not processed by matching rules. Otherwise, no effect of the rule is observed as the remaining traffic simply gets accepted.
Rate-limit is implemented with an average rate and a burst-limit. Rate values are specified in pps and take a range from 1-1000 pps. For rate values in the range 1-100, the burst value is set equal to the rate value. For rate values in the range 101-1000, the burst limit is set to 100.
Mellanox Technologies
.
559
System Management
4.19.2 Commands
ip filter enable ipv6 filter enable
{ip | ipv6} filter enable no {ip | ipv6} filter enable
Enables IP filtering. The no form of the command disables IP filtering.
Syntax Description N/A
Default
Disabled
Configuration Mode config
History
3.5.1000
Role
admin
Example
switch (config) # ip filter enable switch (config) #
Related Commands N/A
Notes
It is recommended to run this command only after configuring all of the IP table filter parameters.
Mellanox Technologies
.
560
System Management
ip filter chain policy ipv6 filter chain policy
{ip | ipv6} filter chain <chain_name> policy {accept | drop} no {ip | ipv6} filter chain <chain_name> policy
Configures default policy for a specific chain (if no rule matches this default policy action shall apply). The no form of the command resets default policy for a specific chain.
Syntax Description chain_name
Selects a chain for which to add or modify a filter: � input � input chain or ingress interfaces � output � output chain or egress interfaces
accept
Accepts all traffic by default for this chain
drop
Drops all traffic by default for this chain
Default
Accept for input and output chains
Configuration Mode config
History
3.5.1000
Role
admin
Example
switch (config) # ipv6 filter chain input policy accept switch (config) #
Related Commands N/A
Notes
Mellanox Technologies
.
561
System Management
ip filter chain rule target ipv6 filter chain rule target
{ip | ipv6} filter chain <chain_name> rule <oper> target <target> [<param>] no {ip | ipv6} filter chain <chain_name> rule {<number> | all}
Syntax Description
Inserts rule before specified rule number. The no form of the command deletes rule for a specific chain.
chain_name
A chain to which to add or modify a filter: � input � input chain or ingress interfaces � output � output chain or egress interfaces
rule
� append tail � appends operation to the bottom of
operation list
� insert <oper_num> � inserts operation at specified
position (existing operation at that position moves
back in the list)
� modify <oper_num> � modifies existing operation
at specified position. Only the parameters specified
in this invocation are altered; everything else is left
untouched.
� move <oper_num1> to <oper_num2> � moves one
operation to another place in the operation list
� set <oper_num> � sets operation at specified posi-
tion (overwrites existing)
target
� accept � allows the packets that match the rule into the management plane
� drop � drops packets that match the rule � rate-limit � allows with rate limiting in packets per
sec (PPS) � reject-with � drops the packet and replies with an
ICMP error message
Mellanox Technologies
.
562
param param4 (cont.)
Mellanox Technologies
.
System Management
� comment <text> � specifies description string for this rule (60 chars max)
� dest-addr <ip> � IP matching a specific destination address or address range. A specific IPv4 address can be provided or an entire subnet by giving an address along with netmask in dot notation or as a CIDR notation (e.g. /24).
� not-dest-addr <ip> � IP not matching a specific destination address range
� dest-port <port(s)> � matching a specific destination port or port range
� not-dest-port <port(s)> � port not matching a specific destination port or port range
� dup-delete � deletes any preexisting duplicates of this rule
� in-intf � interface matching a specific inbound interface
� not-in-intf <if_name> � interface not matching a specific inbound interface
� out-intf <if_name> � matches a specific outbound interface
� not-out-intf <if_name> � interface not matching a specific outbound interface
� protocol <if_name> � matches a specific protocol � tcp � udp � icmp � all
� not-protocol <protocol> � does not match a specific protocol � tcp � udp � icmp � all
� source-addr <ip> � matches a specific source address range
� not-source-addr <ip> � does not match a specific source address range
� source-port <port(s)> � matches a specific source port or port range
� not-source-port <port(s)> � does not match a specific source port or port range
� state � matches packets in a particular state. Possible values: � established � packet associated with an established connection which has seen traffic in both directions � related � packet that starts a new connection but is related to an existing connection � new � packet that starts a new, unrelated connection � A combination can be entered separated by commas
563
System Management
Default
N/A
Configuration Mode config
History
3.5.1000
Role
admin
Example Related Commands
switch (config) # ipv6 filter enable chain input rule append tail target drop state related protocol all dup-delete switch (config) #
N/A
Notes
� The source and destination ports may each be either a single number, or a range specified as "<low>-<high>". For example: "10-20" would specify ports 10 through 20 (inclusive).
� The port parameter only works in conjunction with TCP and UDP. � Setting a "positive" rule removes any corresponding "not-" rules, and vice-versa � The "state" parameter is a classification of the packet relative to existing connec-
tions � If TCP or UDP are selected for the "protocol" parameter, source and/or destina-
tion ports may be specified. If ICMP is selected, these options are either ignored, or an error is produced.
Mellanox Technologies
.
564
System Management
show ip filter
show ip filter
Displays IPv4 filtering state.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ip filter
Packet filtering for IPv4: enabled
Active IPv4 filtering rules (omitting any not from configuration):
Chain 'input' Policy 'accept':
Rule 1:
Target
: accept
Protocol : all
Source
: all
Destination : 1.1.1.0/24
Interface : all
State
: any
Other Filter: -
Related Commands Notes
Chain 'output' Policy 'accept':
Rule 1:
Target
: reject-with icmp-net-unreachable
Protocol : tcp
Source
: all
Destination : all
Interface : all
State
: any
Other Filter: dest-port 1000
N/A
N/A
Mellanox Technologies
.
565
System Management
show ip filter all
show ip filter all
Displays IPv4 filtering state (including un-configured rules).
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ip filter all
Packet filtering for IPv4: enabled
All active IPv4 filtering rules:
Chain 'input' Policy 'accept':
Rule 1:
Target
: accept
Protocol : all
Source
: all
Destination : 1.1.1.0/24
Interface : all
State
: any
Other Filter: -
Related Commands Notes
Chain 'output' Policy 'accept':
Rule 1:
Target
: reject-with icmp-net-unreachable
Protocol : tcp
Source
: all
Destination : all
Interface : all
State
: any
Other Filter: dest-port 1000
N/A
N/A
Mellanox Technologies
.
566
System Management
show ip filter configured
show ip filter configured
Displays IPv4 filtering configuration.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ip filter configured
Packet filtering for IPv4: enabled
IPv4 configuration:
Chain 'input' Policy 'accept':
Rule 1:
Target
: accept
Protocol : all
Source
: all
Destination : 1.1.1.0/24
Interface : all
State
: any
Other Filter: -
Related Commands Notes
Chain 'output' Policy 'accept':
Rule 1:
Target
: reject-with icmp-net-unreachable
Protocol : tcp
Source
: all
Destination : all
Interface : all
State
: any
Other Filter: dest-port 1000
N/A
N/A
Mellanox Technologies
.
567
System Management
show ipv6 filter
show ipv6 filter
Displays IPv6 filtering state.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ipv6 filter
Packet filtering for IPv6: enables
Active IPv6 filtering rules (omitting any not from configuration):
Chain 'input' Policy 'accept':
Rule 1:
Target
: accept
Protocol : all
Source
: all
Destination : 1.1.1.0/24
Interface : all
State
: any
Other Filter: -
Related Commands Notes
Chain 'output' Policy 'accept':
Rule 1:
Target
: reject-with icmp-net-unreachable
Protocol : tcp
Source
: all
Destination : all
Interface : all
State
: any
Other Filter: dest-port 1000
N/A
N/A
Mellanox Technologies
.
568
System Management
show ipv6 filter all
show ipv6 filter all
Displays IPv6 filtering state (including un-configured rules).
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ipv6 filter all
Packet filtering for IPv6: enables
All active IPv6 filtering rules:
Chain 'input' Policy 'accept':
Rule 1:
Target
: accept
Protocol : all
Source
: all
Destination : 1.1.1.0/24
Interface : all
State
: any
Other Filter: -
Related Commands Notes
Chain 'output' Policy 'accept':
Rule 1:
Target
: reject-with icmp-net-unreachable
Protocol : tcp
Source
: all
Destination : all
Interface : all
State
: any
Other Filter: dest-port 1000
N/A
N/A
Mellanox Technologies
.
569
System Management
show ipv6 filter configured
show ipv6 filter configured
Displays IPv6 filtering configuration.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ipv6 filter configured
Packet filtering for IPv6: enables
IPv6 configuration:
Chain 'input' Policy 'accept':
Rule 1:
Target
: accept
Protocol : all
Source
: all
Destination : 1.1.1.0/24
Interface : all
State
: any
Other Filter: -
Related Commands Notes
Chain 'output' Policy 'accept':
Rule 1:
Target
: reject-with icmp-net-unreachable
Protocol : tcp
Source
: all
Destination : all
Interface : all
State
: any
Other Filter: dest-port 1000
N/A
N/A
Mellanox Technologies
.
570
System Management
Mellanox Technologies
.
571
4.19.3
System Management
Mellanox Technologies
.
572
System Management
Mellanox Technologies
.
573
System Management
Mellanox Technologies
.
574
InfiniBand Switching
5 InfiniBand Switching
5.1 Node Name
5.1.1 Commands
ib nodename
ib nodename <guid> name <name> no ib nodename <guid>
Maps between GUID and node name.
Syntax Description guid
System GUID
name
User defined string
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # ib nodename 00:00:00:00:60:04:03:30 name my-name switch (config) # show ib nodename
GUID='00:00:00:00:60:04:03:30', name='my-name', discovered='no' switch (config) #
Notes
If an entry with GUID exists, the existing name will be replaced with a new name.
Mellanox Technologies
.
575
InfiniBand Switching
show ib nodename
show ib nodename
Maps between GUID and node name.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib nodename GUID='00:00:00:00:60:04:03:30', name='my-name', discovered='no'
switch (config) #
ib nodename
Notes
Mellanox Technologies
.
576
5.2 Fabric
5.2.1 Commands
fabric zero-counters
fabric zero-counters
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Clears the performance counters of the node. N/A N/A config 3.1.0000 monitor/admin
switch (config) # fabric zero-counters Counters zeroed successfully switch (config) #
InfiniBand Switching
Mellanox Technologies
.
577
InfiniBand Switching
show fabric
show fabric {pm | sm}
Syntax Description
Default Configuration Mode History
Role Example
Displays InfiniBand fabric details.
pm
Displays InfiniBand fabric performance measurements.
sm
Displays InfiniBand fabric SMs.
N/A
config
3.1.0000
3.4.0000
Added note
admin
switch (config) # show fabric sm % # This database file was automatically generated by IBDIAG
Related Commands Notes
ibdiagnet fabric SM report SM - master Port=0 lid=0x0005 guid=0x0002c903004a2980 dev=51000 priority:15 SM - standby Port=0 lid=0x0001 guid=0x0000000000000111 dev=51000 priority:0
switch (config) #
This command requires a fabric inspector license (LIC-fabric-inspector).
Mellanox Technologies
.
578
InfiniBand Switching
show guids
show guids
Displays GUIDs per ASIC in the chassis.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
3.4.2008
Updated Example
3.6.1002
Updated Example
Role
admin
Example Related Commands
switch (config) # show guids
===============================================================
Module Device IB Subnet
GUID
===============================================================
SYSTEM -
-
E4:1D:2D:03:00:2E:49:40
MGMT
SIB
infiniband-default E4:1D:2D:03:00:2E:49:40
MGMT
SIB
infiniband-1
E4:1D:2D:03:00:2E:49:41
MGMT
SIB
infiniband-2
E4:1D:2D:03:00:2E:49:42
switch (config) #
Notes
Mellanox Technologies
.
579
show system guid
show {guids | system guid}
Displays the system GUID.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show system guid 00:02:C9:03:00:43:D9:00 switch (config) #
Notes
InfiniBand Switching
Mellanox Technologies
.
580
InfiniBand Switching
show lids
show lids
Displays the LIDs of each module in the switch system
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
3.4.2008
Updated Example
3.6.1002
Updated Example
Role
admin/monitor
Example
switch (config) # show lids
=============================================
Module Device IB Subnet
LID
=============================================
MGMT
SIB infiniband-default
1
MGMT
SIB infiniband-1
8
MGMT
SIB infiniband-2
3
switch (config) #
Related Commands
Notes
Mellanox Technologies
.
581
InfiniBand Switching
5.3 IB Router
IB router provides the ability to send traffic between two or more IB subnets thereby potentially expanding the size of the network to over 40k end-ports, enabling separation and fault resilience between islands and IB subnets, and enabling connection to different topologies used by different subnets. The forwarding between the InfiniBand subnets is performed using GRH (global route header) lookup. IB router capabilities are supported only on SB7780 switch system which comes with the following default configuration: � L3 capabilities enabled � 2 SWIDs, with interface 1/1 mapped to infiniband-default and interface 1/2 mapped to
infiniband-1 The IB router's basic functionality includes: � Removal of current L2 LRH (local routing header) � Routing table lookup � using GID from GRH � Building new LRH according to the destination and the routing table The DLID in the new LRH is built using simplified GID-to-LID mapping (where LID = 16 LSB bits of GID) thereby not requiring to send for ARP query/lookup.
Figure 16: Site-Local Unicast GID Format
LID[15:0]
For this to work, the SM allocates an alias GID for each host in the fabric where the alias GID = {subnet prefix[127:64], reserved[63:16], LID[15:0]}. Hosts should use alias GIDs in order to transmit traffic to peers on remote subnets.
Mellanox Technologies
.
582
InfiniBand Switching
Figure 17: Host-to-Host IB Router Unicast Flow
Source Host in Subnet A
GID DNS
SM of Subnet A
IB Router
SM of Subnet B
Dest IP Address
1. IP address Dest GID resolution
Path Query (Dst GID)
2. Search in SRTM and select a router
Match between local path parameters to router path parameters (router path parameters are preconfigured in routed SM). Returns the
intersection of both.
Path Query (Path, Router LID)
User data with Destination GID and IB Router LID
3. Search in RTM and decide on next hop subnet
Mapping between L3 address to L2 address
Destination Host in Subnet B
User data with Destination GID and Destination LID
For more information on IB router architecture and functionality, please refer to the following Mellanox Community page: https://community.mellanox.com/docs/DOC-2384.
IB router requires HCA configuration such as SM, partition key, MPI, GID translation, and more. To learn more about these configurations, please refer to the following Mellanox Community page: https://community.mellanox.com/docs/DOC-2466.
5.3.1
Configuring IB Router
Prerequisites: Step 1. Check system capabilities to make sure IB L3 is supported. Run:
switch (config) # show system capabilities IB: Supported, L2, L3, Adaptive Routing Max SM nodes: 2048 IB Max licensed speed: EDR
Step 2. Configure system profile to multi-switch with 2 SWIDs. Run:
switch (config) # system profile ib num-of-swids 2 no-adaptive-routing ib-router
Mellanox Technologies
.
583
InfiniBand Switching
Note that some of the interfaces may not be mapped to a SWID.
Step 3. Verify system profile configuration. Run:
switch (config) # show system profile
Profile:
ib
Number of SWIDs: 2
Adaptive Routing: no
IB Routing:
yes
To configure IB router: Step 1. Map an interface to a SWID. Run:
switch (config) # interface ib 1/1 switchport access subnet infiniband-default force switch (config) # interface ib 1/2 switchport access subnet infiniband-1 force
Step 2. Verify SWID configuration. Run:
switch (config) # show interfaces ib status
Interface Description IB Subnet
Speed
--------- ----------- ---------
---------
IB1/1
infiniband-default -
IB1/2
infiniband-1
edr
IB1/3
-
-
...
Current line rate Logical port state Physical port state
----------------- ------------------ -------------------
-
Down
Polling
100.0 Gbps
Initialize
LinkUp
-
-
-
Step 3. Configure and enable IB router. Run:
switch (config) # ib router switch (config) # no ib router shutdown
Step 4. Enable IB subnet interface. Run:
switch (config) # no interface ib-subnet infiniband-default shutdown switch (config) # no interface ib-subnet infiniband-1 shutdown
Step 5. Verify configuration. Run:
switch (config) # show ib router Routing state: enabled
IB subnet infiniband-default infiniband-1
Routing enabled enabled enabled
Mellanox Technologies
.
584
InfiniBand Switching
switch (config) # show interfaces ib-subnet infiniband-default
infiniband-default state:
GUID
: F4:52:14:03:00:6E:F2:8B
Alias GID
: N/A
LID
: 10
Subnet prefix
: FE:C0:00:00:00:00:00:08
Physical state
: LinkUp
Logical state
: Active
L3 interface state : Up
switch (config) #
For more advanced information on IB router configuration, please refer to the following Mellanox Community page: https://community.mellanox.com/docs/DOC-2466.
5.3.2
Subnet Prefix Checking
The SB7780 IB router expects the subnet prefix to be constructed according to some very specific rules. By default, the command which enables IB routers validates the subnet prefix prior to allowing the change. The commands which affect subnet prefix checking are as follows: � ib sm <name> enable � starts SM on this node or any node in cluster � ib sm subnet-prefix <subnet-prefix> � configures the subnet prefix � ib sm rtr-aguid-enable <1 | 2> � enables support for alias GIDs as needed by IB routers When any of these commands is run, while the other two have already been issued, the value of the subnet prefix is checked. If it is not valid, the current commit is rejected and the OpenSM state does not change. To disable subnet prefix checking Step 1. Verify the status of subnet prefix override. Run:
switch (config) # show ib sm subnet-prefix-override enable
Step 2. If enabled, disable subnet-prefix-override. Run:
switch (config) # ib sm subnet-prefix-override
Step 3. Verify configuration. Run:
switch (config) # show ib sm subnet-prefix-override disable
Mellanox Technologies
.
585
InfiniBand Switching
5.3.3 Commands
ib router
ib router no ib router
Enables the set of commands that allow control of IB router functionality. The no form of the command disables IB router commands and removes all related configurations.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.0500
Role
admin
Example Related Commands
switch (config) # ib router switch (config) #
system profile
Notes
Mellanox Technologies
.
586
ib router shutdown
ib router shutdown no ib router shutdown
Disables IB router. The no form of the command enables IB router.
Syntax Description N/A
Default
Disabled
Configuration Mode config
History
3.6.0500
Role
admin
Example Related Commands
switch (config) # no ib router shutdown switch (config) #
Notes
This command does not clear IB router configuration
InfiniBand Switching
Mellanox Technologies
.
587
InfiniBand Switching
interface ib-subnet
interface ib-subnet <swid-name> no interface ib-subnet <swid-name>
Creates routing on IB router subnet. The no form of the command removes routing on router interface.
Syntax Description swid-name
Name of the SWID: infiniband-default, infiniband1...infiniband-5
Default
N/A
Configuration Mode config
History
3.6.0500
Role
admin
Example
switch (config) # interface ib-subnet infiniband-3 switch (config) #
Related Commands system profile
Notes
The maximum number of SWIDs depends on the number of SWIDs defined in the profile
Mellanox Technologies
.
588
InfiniBand Switching
interface ib-subnet shutdown
interface ib-subnet <swid-name> shutdown no interface ib-subnet <swid-name> shutdown
Disables routing on IB router subnet. The no form of the command enables routing on router interface.
Syntax Description swid-name
Name of the SWID: infiniband-default, infiniband1...infiniband-5
shutdown
Admin down on router interface Admin up on router interface with no form of command
Default
Disabled
Configuration Mode config
History
3.6.0500
Role
admin
Example
switch (config) # no interface ib-subnet infiniband-3 shutdown switch (config) #
Related Commands
Notes
Mellanox Technologies
.
589
show ib router
show ib router
Displays current IB router functionality.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.0500
Role
admin
Example
switch (config) # show ib router Routing state: enabled
IB Subnet infiniband-default infiniband-1 infiniband-2 infiniband-3
Routing enabled enabled disabled enabled enabled
Related Commands Notes
switch (config) #
InfiniBand Switching
Mellanox Technologies
.
590
InfiniBand Switching
show interfaces ib-subnet
show interfaces ib-subnet [<swid-name>] [brief]
Displays statistics of one or all IB subnets with enabled IB routing.
Syntax Description swid-name
Name of the SWID: infiniband-default, infiniband1...infiniband-5
brief
Displays output in a table format
Default
Disabled
Configuration Mode config
History
3.6.0500
Role
admin
Example
switch (config) # show interfaces ib-subnet infiniband-3
infiniband-3 state:
GUID
: F4:52:14:03:00:6E:F2:8B
Alias GID
: N/A
LID
: 10
Subnet prefix
: FE:C0:00:00:00:00:00:08
Physical state
: LinkUp
Logical state
: Active
L3 interface state : Up
Related Commands
Notes
Mellanox Technologies
.
591
InfiniBand Switching
5.4 Interface
5.4.1
Transceiver Information
Mellanox MLNX-OS offers the option of viewing the transceiver information of a module or cable connected to a specific interface. The information is a set of read-only parameters burned onto the EEPROM of the transceiver by the manufacture. The parameters include identifier (connector type), cable type, speed and additional inventory attributes.
To display transceiver information of a specific interface, run:
switch (config) # show interfaces ib 1/36 transceiver
Slot 1 port 36 state
identifier
: QSFP+
cable/module type
: Passive copper, unequalized
infiniband speeds
: SDR , DDR , QDR , FDR
vendor
: Mellanox
cable length
: 2m
part number
: MC2207130-0A1
revision
: A3
serial number
: MT1324VS02215
switch (config) #
The indicated cable length is rounded up to the nearest natural number.
5.4.2
High Power Transceivers
Mellanox switch systems offer high power transceiver (e.g. LR4) support on all ports of the Switch-IB family switch systems.
If a high power transceiver (e.g. LR4) is inserted to a port that does not support it, the link does not go up, and the following warning message is displayed: "Warning: High power transceiver is not supported" when the command "show interfaces ib" is run.
5.4.3
Forward Error Correction
Forward Error Correction (FEC) mechanism adds extra data to the transmitted information. The receiving device uses this additional data to verify that the received data contains no errors. If the receiving side discovers errors within the received data it is able to correct some of these errors. The number or errors that can be corrected depends on the FEC algorithm.
Switch-IBTM EDR (100Gb/s) Mellanox-to-Mellanox InfiniBand connections enable standard low-latency Reed Solomon (LL RS) FEC on active optical cables longer than 30 meters and passive copper cables longer than 2m.
Mellanox Technologies
.
592
5.4.4 Break-Out Cables
This feature is available only for Quantum based switch systems.
InfiniBand Switching
The break-out cable is a unique Mellanox capability, where a single physical quad-lane QSFP port is divided into 2 dual-lane ports. It maximizes the flexibility of the end user to use the Mellanox switch with a combination of dual-lane and quad-lane interfaces according to the specific requirements of its network. All system ports may be split into 2-lane ports. Splitting a port changes the notation of that port from x/y to x/y/z with "x/y" indicating the previous notation of the port prior to the split and "z" indicating the number of the resulting single-lane port (1,2). Each sub-physical port is then handled as an individual port. For example, splitting port 5 into 2 lanes gives the following new ports: 1/5/1 & 1/5/2.
Figure 18: Break-Out Cable
Splitting the interface deletes all configuration on that interface.
In order to use this feature, the system's profile must be configured to "ib split-ready" as described in Section 5.4.4.1, "Changing System Profile to Allow for Split-Ready Configuration," on page 594 using the command "system profile" on page 461.
Mellanox Technologies
.
593
InfiniBand Switching
5.4.4.1 Changing System Profile to Allow for Split-Ready Configuration
If system does not have system-ready configuration, change its profile to allow for it. Step 1. Change the system's profile to "ib split-ready". Run:
switch (config) # system profile ib split-ready Warning - confirming will cause system reboot and all configuration will be deleted Type 'yes' to confirm profile change: yes
Step 2. Verify system profile configuration. Run:
switch (config) # show system profile Profile: ib Number of SWIDs: 1 Adaptive Routing: yes Adaptive Routing Groups: N/A Split Ready: yes IB Routing: no
5.4.4.2 Changing the Module Type to a Split Mode
To split an interface:
Step 1. Shut down all the ports related to the interface. In case of split-2, shut down the current interface only.
Step 2. Split the ports as desired. Run:
switch (config interface ib 1/4) # module-type qsfp-split-2
Step 3. New ports can be shown by the interfaces IB status command:
switch (config) # show interfaces ib status
Interface Description
IB Subnet
--------- -----------
---------
IB1/1/1
infiniband-default
IB1/1/2
infiniband-default
IB1/2
infiniband-default
IB1/3
infiniband-default
IB1/4/1
infiniband-default
IB1/4/2
infiniband-default
IB1/5
infiniband-default
IB1/6
infiniband-default
IB1/7
infiniband-default
IB1/8
infiniband-default
Speed ------edr edr -
Current line rate -----------------
25.0 Gbps 100.0 Gbps -
Logical port state ------------------
Active Down Active Down Down Down Down Down Down Down
Physical port state ------------------LinkUp Polling LinkUp Polling Polling Polling Polling Polling Polling Polling
Mellanox Technologies
.
594
InfiniBand Switching
5.4.4.3 Unsplitting a Split Port To unsplit a split port: Step 1. Shut down all of the split ports. Run:
switch (config) # interface ib 1/4/1 switch (config interface ib 1/4/1) # shutdown switch (config interface ib 1/4/1) # exit switch (config) # interface ib 1/4/2 switch (config interface ib 1/4/2) # shutdown switch (config interface ib 1/4/2) # exit
Step 2. From the first member of the split (1/4/1), change the module-type back to QSFP. Run:
switch (config interface ib 1/4/1) # module-type qsfp
Mellanox Technologies
.
595
InfiniBand Switching
5.4.5 Commands
interface ib
interface ib [internal] {<inf> | <inf-range>}
Enters the InfiniBand interface configuration mode.
Syntax Description [internal] <inf>
For 1U switches: interface 1/<interface>
For director switches: interface ib <interface> interface ib internal leaf <interface> interface ib internal spine <interface>
inf-range
Enters the configuration mode of a range of interfaces. Format: <slot>/<port>-<slot>/<port>
Default
N/A
Configuration Mode config
History
3.1.0000
3.4.2008
Added internal leaf and spine options
Role
admin
Example
switch (config) # interface ib 1/1 switch (config interface ib 1/1) #
Related Commands show interfaces ib
Notes
Interface range (inf-range) option is not valid on director switch systems.
Mellanox Technologies
.
596
InfiniBand Switching
mtu
mtu <frame-size>
Configures the Maximum Transmission Unit (MTU) frame size for the interface.
Syntax Description frame-size
Possible Value for MTU
� 256
256 bytes
� 512
512 bytes
� 1K
1K bytes
� 2K
2K bytes
� 4K
4K bytes
Default
4096 bytes
Configuration Mode config interface ib
History
3.1.0000
Role
admin
Example
switch (config interface ib 1/1) # mtu 4K switch (config interface ib 1/1) #
Related Commands show interfaces ib
Notes
Mellanox Technologies
.
597
shutdown
shutdown no shutdown
Disables the interface. The no form of the command enables the interface.
Syntax Description N/A
Default
The interface is enabled.
Configuration Mode config interface ib
History
3.1.0000
Role
admin
Example Related Commands
switch (config interface ib 1/1) # shutdown switch (config interface ib 1/1) #
show interfaces ib
Notes
N/A
InfiniBand Switching
Mellanox Technologies
.
598
InfiniBand Switching
description
description <string>
Sets an interface description.
Syntax Description string
40 bytes
Default
""
Configuration Mode config interface ib
History
3.1.0000
Role
admin
Example Related Commands
switch (config interface ib 1/1) # description my-interface switch (config interface ib 1/1) #
show interfaces ib
Notes
Mellanox Technologies
.
599
InfiniBand Switching
speed
speed <port speed> [force]
Sets the speed negotiation of the interface.
Syntax Description port speed
The following options are available: � sdr � 10.0Gb/s rate on 4 lane width � ddr � 20.0Gb/s rate on 4 lane width � qdr � 40.0Gb/s rate on 4 lane width � fdr10 � 40.0Gb/s rate on 4 lane width � fdr � 56.0Gb/s rate on 4 lane width � edr � 100.0Gb/s rate on 4 lane width
force
Forces configuration of speed-list not containing SDR bit
Default
Depends on the port module type, not all interfaces support all speed options
Configuration Mode config interface ib
History
3.1.0000
3.4.1604
Updated Syntax Description and Example
Role
admin
Example
switch (config interface ib 1/1) # speed fdr10 fdr edr
Related Commands show interfaces ib
Notes
� This command is backwards compatible so old configuration file containing this command with the old form (with legal bit mask) are still supported
� Configuring more than one speed is possible by typing in consecutive speed names separated by spaces
� If the speed-options list does not include SDR speed, it is configured automatically. However, if the force option is used (supported on FDR10 only), SDR is not configured.
� If the other side of the link is a ConnectX�-3 device, to allow the link to raise in FDR speed, QDR speed must also be allowed
Mellanox Technologies
.
600
InfiniBand Switching
op-vls
op-vls <value>
Sets the operational VLs of the interface. The no form of the command sets the operational VLs to its default value.
Syntax Description value
Possible value for operational VLs
�1
VL0
�2
VL0, VL1
�4
VL0 - VL3
�8
VL0 - VL7
Default
8 (VL0 - VL7)
Configuration Mode config interface ib
History
3.1.0000
Role
admin
Example
switch (config interface ib 1/1) # op-vls 1 switch (config interface ib 1/1) #
Related Commands show interfaces ib
Notes
Mellanox Technologies
.
601
InfiniBand Switching
width
width <value> no width
Sets the width of the interface. The no form of the command resets the parameter to its default value.
Syntax Description value
Possible value for width: � 1 � 1X � 5 � 1X, 4X
Default
5 (1X, 4X)
Configuration Mode config interface ib
History
3.1.0000
3.6.5000
Added "no" option
Role
admin
Example
switch (config interface ib 1/1) # width 1 switch (config interface ib 1/1) #
Related Commands show interfaces ib
Notes
Mellanox Technologies
.
602
InfiniBand Switching
clear counters
clear counters
Clears the interface counters.
Syntax Description N/A
Default
N/A
Configuration Mode config interface ib
History
3.1.0000
Role
admin
Example Related Commands
switch (config interface ib 1/1) # clear counters switch (config interface ib 1/1) #
show interfaces ib
Notes
Mellanox Technologies
.
603
InfiniBand Switching
interface ib internal notification link-speed-mismatch
interface ib internal notification link-speed-mismatch [<time>] no interface ib internal notification link-speed-mismatch
Enables notifications on internal link speed mismatch in SNMP. The no form of the command disables notifications on internal inks speed mismatch in SNMP.
Syntax Description time
Enables periodic notifications (traps and log) on internal link speed mismatch status. The time is in hours. "0" disables the feature
Default
Disabled
Configuration Mode config
History
3.4.3000
Role
admin
Example Related Commands
switch (config) # interface ib internal link-speed-mismatch 6
switch (config) # show interfaces ib internal notification
==========================
Internal links information
==========================
State change enabled
: no
Speed mismatch enabled : yes
Periodic notifications : 6 (hours)
show interfaces ib internal notification
Notes
Link-speed-mismatch shows internal link entries in the ifVPITable.
Mellanox Technologies
.
604
InfiniBand Switching
interfaces ib internal notification link-state-change
interfaces ib internal notification link-state-change no interfaces ib internal notification link-state-change
Enables notifications on internal links state change in SNMP. The no form of the command disables notifications on internal links state change in SNMP.
Syntax Description N/A
Default
Disabled
Configuration Mode config
History
3.3.4318
3.3.4550
Added note
Role
admin
Example
switch [master] (config) # interfaces ib internal notification switch [master] (config) #
Related Commands show interfaces ib internal notification
Notes
Link-state-change shows internal link entries in the ifTable and the ifXTable
Mellanox Technologies
.
605
InfiniBand Switching
switchport access subnet
switchport access subnet <swid-name> [force] no switchport access subnet <swid-name> [force]
Maps interface to SWID. The no form of the command unmaps an interface from a SWID.
Syntax Description swid-name
Name of the SWID: infinibad-default, infiniband1...infinibad-5
force
Forces configuration (no need to shutdown interface before running command)
Default
Unmapped
Configuration Mode config interface ib
History
3.6.0500
Role
admin
Example
switch (config interface ib1/36) # switchport access subnet infiniband1
Related Commands
Notes
� Mapping an interface automatically enables it � Remapping an interface resets all its configuration except for interface description � Unmapping an interface resets all its configuration except for interface descrip-
tion � An interface needs to be disabled before remapping/unmapping unless the "force"
parameter is used
Mellanox Technologies
.
606
InfiniBand Switching
show interfaces ib
show interfaces ib <inf>
Displays the configuration and status for the interface.
Syntax Description internal
Internal interfaces.
inf
� Slot/Port (i.e. 1/1)
� LXX/SXX (i.1 L01 or S01)
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
3.4.1604
Updated Example
3.6.1002
Updated Example
3.6.6105
Updated Example
Role
admin
Example
switch (config) # show interfaces ib 1/36
IB1/36 state:
Logical port state
: Active
Physical port state
: LinkUp
Current line rate
: 10.0 Gbps
Supported speeds
: sdr
Speed
: sdr
Supported widths
: 1X, 4X
Width
: 4X
Max supported MTUs
: 4096
MTU
: 4096
VL capabilities
: VL0 - VL7
Operational VLs
: VL0 - VL7
Description
: Test
IB Subnet
: infiniband-default
Phy-profile
: high-speed-ber
Width reduction mode
: Not supported
RX bytes RX packets RX errors Symbol errors VL15 dropped packets
: 33258342076 : 16231513 : 0 : 0 : 0
Related Commands Notes
TX bytes TX packets
: 34313606888 : 16046018
Mellanox Technologies
.
607
InfiniBand Switching
show interfaces ib capabilities
show interfaces ib <inf> capabilities
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Shows interface capabilities.
inf
Slot/port (i.e. 1/1).
N/A
Any command mode
3.2.0500
admin
switch (config) # show interfaces ib 1/1 capabilities
Ib 1/1 LLR: FDR10, FDR, switch (config)
Mellanox Technologies
.
608
InfiniBand Switching
show interfaces ib status
show interfaces ib [<inf>] status
Displays the status, speed and negotiation mode of the specified interface.
Syntax Description internal
Internal interfaces
leaf-ports
filter to leaf-ports only
inf
Interface number: <slot>/<port>
Default
N/A
Configuration Mode Any command mode
History
3.2.0500
3.4.1604
Updated Example
3.6.1002
Updated Example
Role
admin
Example
switch (config) # show interfaces ib status
Related Commands Notes
Interface Description IB Subnet
--------- ----------- ---------
IB1/1
infiniband-1
IB1/2
infiniband-2
IB1/3
infiniband-default
IB1/4
infiniband-default
IB1/5
infiniband-default
IB1/6
infiniband-default
IB1/7
infiniband-default
IB1/8
infiniband-default
IB1/9
infiniband-default
IB1/10
infiniband-default
IB1/11
infiniband-default
....
switch (config) #
Speed --------fdr fdr -
Current line rate ----------------56.0 Gbps 56.0 Gbps -
Logical port state -----------------Active Active Down Down Down Down Down Down Down Down Down
Physical port state ------------------LinkUp LinkUp Polling Polling Polling Polling Polling Polling Polling Polling Polling
Mellanox Technologies
.
609
InfiniBand Switching
show interfaces ib internal
show interfaces ib internal [leaf | spine] [<slot/module/port>]
Displays running state for the internal ports of leafs or spines.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.2.0500
Role
admin
Example
switch (config) # show interfaces ib internal spine 1/1/4
IB1/1/4 state:
Connected to slot/chip : 4/1
Connected to port
: 19
Connected device active: 1
Error state
: 0
Logical port state
: Active
Physical port state : LinkUp
Current line rate
: 56.0 Gbps
Supported speeds
: sdr, ddr, qdr, fdr10, fdr
Speed
: fdr
Supported widths
: 1X, 4X
Width
: 4X
Max supported MTUs
: 4096
MTU
: 4096
VL capabilities
: VL0 - VL7
Operational VLs
: VL0 - VL7
Description
:
Phy-profile
: high-speed-ber
Width reduction mode : disabled
Related Commands Notes
switch (config) #
Mellanox Technologies
.
610
InfiniBand Switching
show interfaces ib internal capabilities
show interfaces ib internal [leaf | spine] [<slot/module/port>] capabilities
Displays capabilities of internal leaf or spine interfaces.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.2.0500
Role
admin
Example
switch (config) # show interfaces ib internal leaf 1/1/26 capabilities
IB1/1/26 LLR: FDR10, FDR,
Related Commands Notes
switch (config) #
Mellanox Technologies
.
611
InfiniBand Switching
show interfaces ib internal llr
show interfaces ib internal [leaf | spine] [<slot/module/port>] llr
Displays LLR state of internal leaf or spine interfaces.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.2.0500
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show interfaces ib internal leaf 1/1/26 llr
----------------------------------
Interface
LLR status
----------------------------------
IB1/1/26
Active
Related Commands Notes
switch (config) #
Mellanox Technologies
.
612
InfiniBand Switching
show interfaces ib internal status
show interfaces ib internal [leaf | spine] [<slot/module/port>] status
Displays detailed running state of internal leaf or spine interfaces.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.2.0500
Role
admin
Example
switch (config) # show interfaces ib internal leaf 1/1/26 status
Interface state --------IB1/1/26
Description Speed
Current line rate Logical port state Physical port
----------- --------- ----------------- ------------------ -------------
fdr
56.0 Gbps
Active
LinkUp
Related Commands Notes
switch (config) #
Mellanox Technologies
.
613
InfiniBand Switching
show interfaces ib transceiver
show interfaces ib [<inf>] transceiver
Displays the transceiver info.
Syntax Description inf
interface number: <slot>/<port>
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # show interfaces ib 1/1 transceiver
IB1/1 state
identifier
: QSFP+
cable/module type
: Passive copper, unequalized
infiniband speeds
: SDR , DDR , QDR
vendor
: Mellanox
cable length
: 2 m
part number
: MC2207130-002
revision
: B0
serial number
: AA051150077
switch (config) #
Related Commands
Notes
� For a full list of the supported cables and transceivers, please refer to the LinkXTM Cables and Transceivers webpage in Mellanox.com: http://www.mellanox.com/ page/cables?mtag=cable_overview.
Mellanox Technologies
.
614
InfiniBand Switching
show interfaces ib transceiver diagnostics
show interfaces ib [<inf>] transceiver diagnostics
Displays cable channel monitoring and diagnostics info for this interface.
Syntax Description inf
Interface number: <slot>/<port>
Default
N/A
Configuration Mode Any command mode
History
3.6.2002
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show interfaces ib transceiver diagnostics
IB1/1 Transceiver Diagnostic Data: Message: No Diagnostic Data Available. Module is not DDMI capable
IB1/3 Transceiver Diagnostic Data: Message: Non present module
IB1/5 Transceiver Diagnostic Data:
Temperature (-127C to +127C):
Temperature
: 28 C
Hi Temp Alarm Thresh : 80 C
Low Temp Alarm Thresh: -10 C
Temperature Alarm : None
Voltage (0 to 6.5535 V):
Voltage
: 3.28980 V
Hi Volt Alarm Thresh : 3.50000 V
Low Volt Alarm Thresh: 3.10000 V
Voltage Alarm
: None
Tx Bias Current (0 to 131 mA):
Ch1 Tx Current
: 6.60000 mA
Ch2 Tx Current
: 6.60000 mA
Ch3 Tx Current
: 6.60000 mA
Ch4 Tx Current
: 6.60000 mA
Hi Tx Crnt Alarm Thresh : 8.50000 mA
Low Tx Crnt Alarm Thresh: 5.49200 mA
Ch1 Tx Current Alarm : None
Ch2 Tx Current Alarm : None
Ch3 Tx Current Alarm : None
Ch4 Tx Current Alarm : None
Mellanox Technologies
.
615
InfiniBand Switching
Related Commands Note
Tx Power (0 mW to 6.5535 mW / 8.1647 dBm):
Ch1 Tx Power
: 1.01170 mW / 0.05052 dBm
Ch2 Tx Power
: 0.96240 mW / -0.16644 dBm
Ch3 Tx Power
: 0.95980 mW / -0.17819 dBm
Ch4 Tx Power
: 0.95800 mW / -0.18634 dBm
Hi Tx Power Alarm Thresh : 3.46730 mW / 5.39991 dBm
Low Tx Power Alarm Thresh: 0.07240 mW / -11.40261 dBm
Ch1 Tx Power Alarm
: None
Ch2 Tx Power Alarm
: None
Ch3 Tx Power Alarm
: None
Ch4 Tx Power Alarm
: None
Rx Power (0 mW to 6.5535 mW / 8.1647 dBm):
Ch1 Rx Power
: 0.99160 mW / -0.03663 dBm
Ch2 Rx Power
: 1.08800 mW / 0.36629 dBm
Ch3 Rx Power
: 1.09810 mW / 0.40642 dBm
Ch4 Rx Power
: 0.97500 mW / -0.10995 dBm
Hi Rx Power Alarm Thresh : 3.46730 mW / 5.39991 dBm
Low Rx Power Alarm Thresh: 0.04670 mW / -13.30683 dBm
Ch1 Rx Power Alarm
: None
Ch2 Rx Power Alarm
: None
Ch3 Rx Power Alarm
: None
Ch4 Rx Power Alarm
: None
Vendor Date Code (dd-mm-yyyy): 07-11-2016
This example is for a QSFP transceiver
Mellanox Technologies
.
616
InfiniBand Switching
show interfaces ib transceiver raw
show interfaces ib [<inf>] transceiver raw
Displays cable info for this interface.
Syntax Description inf
interface number: <slot>/<port>
Default
N/A
Configuration Mode Any command mode
History
3.6.1002
Role
admin
Example
switch (config) # show interfaces ib 1/7 transceiver raw IB1/7 raw transceiver data:
Related Commands Notes
I2C Address 0x50, Page 0, 0:255: 0000 0d 02 06 00 00 00 00 00 00 00 00 00 00 00 00 00 0010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0030 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0040 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0050 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0060 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0070 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0080 0d 00 23 08 00 00 00 00 00 00 00 05 8d 00 00 00 0090 00 00 01 a0 4d 65 6c 6c 61 6e 6f 78 20 20 20 20 00a0 20 20 20 20 0f 00 02 c9 4d 43 32 32 30 37 31 33 00b0 30 2d 30 30 41 20 20 20 41 33 02 03 05 00 46 66 00c0 00 00 00 00 4d 54 31 32 32 37 56 53 30 30 36 34 00d0 32 20 20 20 31 32 30 37 30 38 20 20 00 00 00 e4 00e0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00f0 00 00 00 00 00 00 00 00 00 00 02 00 00 30 00 00
I2C Address 0x50, Pages 1, 128:255: 0080 0d 02 06 00 00 00 00 00 00 00 00 00 00 00 00 00 0090 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00a0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00b0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00c0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00d0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00e0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
...
................ ................ ................ ................ ................ ................ ................ ................ ..#............. ....Mellanox ....MC220713 0-00A A3....Ff ....MT1227VS0064 2 120708 .... ................
................ ................ ................ ................ ................ ................ ................
Mellanox Technologies
.
617
InfiniBand Switching
5.5 Subnet Manager (SM)
The InfiniBand Subnet Manager (SM) is a centralized entity running in the switch. The SM discovers and configures all the InfiniBand fabric devices to enable traffic flow between those devices.
The SM applies network traffic related configurations such as Quality of Service (QoS), routing, and partitioning of the fabric devices. You can view and configure the Subnet Parameters (SM) via the CLI/WebUI menu. The embedded SM on the MLNX-OS can be used to manage fabrics up to 2048 nodes on x86 based systems. The SM is used to discover and configure all the InfiniBand fabric devices to enable traffic flow between those devices. To enable Subnet Manager: Step 1. Enable Subnet Manager (disabled by default). Run:
switch (config) # ib smnode my-sm enable
Step 2. (Optional) Set the priority for the Subnet Manager. Run:
switch (config) # ib smnode my-sm sm-priority <priority>
5.5.1
Partitions
Partitioning enforces isolation among systems sharing an InfiniBand fabric. Partitioning is not related to boundaries established by subnets, switches, or routers. Rather, a partition describes a set of end nodes within the fabric that may communicate. Each port of an end node is a member of at least one partition and may be a member of multiple partitions. A partition manager (part of the SM) assigns partition keys (PKEYs) to each channel adapter port. Each PKEY represents a partition. Reception of an invalid PKEY causes the packet to be discarded. Switches and routers may optionally be used to enforce partitioning. In this case the partition manager programs the switch or router with PKEY information and when the switch or router detects a packet with an invalid PKEY, it discards the packet.
Fabric administration can assign certain Service Levels (SLs) for particular partitions. This allows the SM to isolate traffic flows between those partitions, and even if both partitions operate at the same QoS level, each partition can be guaranteed its fair share of bandwidth regardless of whether nodes in other partitions misbehave or are over subscribed.
The switch enables the configuration of partitions in an InfiniBand fabric.
The default partition is created by the SM unconditionally (whether it was defined or not).
5.5.1.1 Relationship with ib0 Interface
IP interface "ib0" is running under the default PKEY (0x7fff) and can be used for in-band management connectivity to the system.
Mellanox Technologies
.
618
InfiniBand Switching
5.5.1.2 Configuring Partition
The partitions configuration is applicable and to be used only when the SM is enabled and running on the system.
To configure a partition: Step 1. Create a partition. Run:
switch (config) # ib partition my-partition pkey 0x7ff2
Step 2. Enter partition configuration mode. Run:
switch (config) # partition my-partition switch (config partition name my-partition) #
Step 3. Add partition members. Run:
switch (config partition my-partition) # member all
Step 4. Verify the partition configuration. Run:
switch (config partition my-partition) # show ib partition
Default
PKey
= 0x7FFF
defmember = full
ipoib = yes
members
GUID='ALL' member='full'
my-partition
PKey
= 0x7ff2
members GUID='ALL' member='default'
switch (config partition name my-partition) #
5.5.2
Adaptive Routing
Adaptive routing (AR) allows optimizing data traffic flow. The InfiniBand protocol uses multiple paths between any two points. Thus, when unexpected traffic patterns cause some paths to be overloaded, AR can automatically move traffic to less congested paths according to the current temporal state of the network.
The embedded SM over the switch does not support configuring adaptive routing. To use this option in the fabric please use an external SM.
Mellanox Technologies
.
619
InfiniBand Switching
AR support is enabled by default on system profile "ib-single-switch". To disable AR run either the command "system profile ib-no-adaptive-routing-single-switch" or "system profile ib" with no-adaptive-routing parameter.
The AR option needs to be enabled in the SM for it to take affect.
5.5.3
Scatter Ports
When assigning logical paths to physical links, the UpDn algorithm tries to map the same number of paths per link to maximize use of the available bandwidth. This balancing is done statically, without knowledge of actual workloads and traffic patterns. Path balancing decisions are made locally, at each switch, without assuming anything about the physical topology. The resulting path assignments may not be optimal for typical Clos/Fat Tree workloads.
A routing option called "scatter-ports" is available for MinHop and UpDn routing engines which instructs the routing algorithm to randomize the local assignments of paths to links, which often results in better link utilization. The scatter-ports option requires an integer argument, which is the seed for the random number generator. It is recommended to use a prime number for the seed; a seed of zero turns off randomization.
5.5.4
GUID Routing Order
GUID routing order list allows managing the order in which the SM processes the destination LIDs in the calculations of output port as part of MinHop or Up/Down routing algorithms only.
The order of GUID appearance is important as destinations corresponding to GUIDs appearing earlier in the routing list get precedence during the routing calculations over other destinations in the fabric. This can improve load balancing towards a specific set of end ports (e.g. storage nodes or other service nodes requiring high throughput).
If scatter-ports (randomization of the output port) option is set to non-zero, guid-routing-orderno-scatter defines whether or not a randomization should be applied to the destinations GUIDs mentioned in GUID routing order list.
5.5.5
Bulk Update Mode
Bulk update mode allows users to set multiple IB SM configurations without applying them until bulk mode is disabled.
When bulk update is disabled (default situation) every SM configuration is applied immediately. When bulk is enabled, all SM configuration is saved internally and is not applied until this mode is disabled.
Bulk mode is a non-persistent state. That is, if the switch is restarted, it boots up with this mode disabled, and all the configuration changes which are saved before system restart are applied.
Mellanox Technologies
.
620
InfiniBand Switching Show commands convey every configuration change even if it is not applied yet.
Mellanox Technologies
.
621
5.5.6 Commands
5.5.6.1 Subnet Manager (SM)
ib sm
ib sm no ib sm Enables the SM on this node. The no form of the command disables the SM on this node.
Syntax Description N/A
Default
disable
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # ib sm switch (config) #
show ib sm
Notes
InfiniBand Switching
Mellanox Technologies
.
622
InfiniBand Switching
ib sm accum-log-file
ib sm accum-log-file no ib sm accum-log-file
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Adds SM log entries at the end of the current log. The no form of the command overwrites SM log file on every restart.
N/A
Enabled
config
3.1.0000
admin
switch (config) # ib sm accum-log-file switch (config) # show ib sm accum-log-file enable switch (config) #
show ib sm accum-log-file
Mellanox Technologies
.
623
InfiniBand Switching
ib sm allow-both-pkeys
ib sm allow-both-pkeys no ib sm allow-both-pkeys
Syntax Description Default Configuration Mode History Role Example
Related Commands
Notes
Enables having both full and limited membership on the same partition. The no form of the command disables having both full and limited membership on the same partition.
N/A
Disabled
config
3.4.1100
admin
switch (config) # ib sm allow-both-pkeys switch (config) #
defmember member
Mellanox Technologies
.
624
InfiniBand Switching
ib sm babbling-policy
ib sm babbling-policy no ib sm babbling-policy
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables the SM to disable babbling ports (i.e., generating frequent traps). The no form of the command disables the SM babbling policy.
N/A
disable
config
3.1.0000
admin
switch (config) # no ib sm babbling-policy switch (config) # show ib sm babbling-policy disable switch (config) #
show ib sm babbling-policy
In case the babbling policy is enabled, and decides to close a babbling interface (one which sends 129,130,131 traps, for example), the SM disables the port.
Mellanox Technologies
.
625
InfiniBand Switching
ib sm connect-roots
ib sm connect-roots no ib sm connect-roots
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Forces the routing engine to make connectivity between root switches. The no form of the command disables logical LID path between root switches.
N/A
true
config
3.1.0000
admin
switch (config) # ib sm connect-roots switch (config) # show ib sm connect-roots true switch (config) #
show ib sm connect-roots
� This command is relevant only for `updn' and `ftree' algorithm (refer to `ib sm routing-engines' command)
� This option enforces routing engines (up/down and fat-tree) to make connectivity between root switches and in this way to be fully IBA complaint. This may violate the "deadlock-free" status of the algorithm. Hence, it is recommended to use the command carefully.
Mellanox Technologies
.
626
InfiniBand Switching
ib sm drop-event-subscription
ib sm drop-event-subscription no ib sm drop-event-subscription
Configures IB SM to drop interface subscribe or unsubscribe events. The no form of the command resets this parameter to its default value.
Syntax Description N/A
Default
IB SM does not drop interface subscribe or unsubscribe events
Configuration Mode config
History
3.4.2008
Role
admin
Example Related Commands
switch (config) # ib sm drop-event-subscription switch (config) #
Notes
Mellanox Technologies
.
627
InfiniBand Switching
ib sm enable-quirks
ib sm enable-quirks no ib sm enable-quirks
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables the SM to use high risk features and handle hardware workarounds. The no form of the command disables the SM from using high risk features and hardware workarounds.
N/A
disable
config
3.1.0000
admin
switch (config) # ib sm enable-quirks switch (config) # show ib sm enable-quirks enable switch (config) #
show ib sm enable-quirks
Mellanox Technologies
.
628
InfiniBand Switching
ib sm exit-on-fatal
ib sm exit-on-fatal no ib sm exit-on-fatal
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables the SM to exit upon fatal initialization errors. The no form of the command disables the SM from exiting upon fatal initialization errors.
N/A
enable
config
3.1.0000
admin
switch (config) # ib sm exit-on-fatal switch (config) # show ib sm exit-on-fatal enable switch (config) #
show ib sm exit-on-fatal
Mellanox Technologies
.
629
InfiniBand Switching
ib sm force-link-speed
ib sm force-link-speed <speed-options> no ib sm force-link-speed
Defines the SM behavior for PortInfo:LinkSpeedEnabled, PortInfo:LinkSpeedExtEnabled and MLNX ExtendedPortInfo on the switch ports.
Syntax Description speed-options
The following options are available: � sdr � 10.0 Gb/s rate on 4 lane width � ddr � 20.0 Gb/s rate on 4 lane width � qdr � 40.0 Gb/s rate on 4 lane width � fdr10 � 40.0 Gb/s rate on 4 lane width � fdr � 56.0 Gb/s rate on 4 lane width � edr � 100.0 Gb/s rate on 4 lane width
Default
Set to PortInfo:LinkSpeedExtSupported
Configuration Mode config
History
3.1.0000
3.4.1604
Updated Syntax Description, Example and Notess
Role
admin
Example Related Commands
switch (config) # ib sm force-link-speed sdr ddr qdr fdr10 switch (config) #
show ib sm force-link-speed show ib sm force-link-speed-ext show ib sm fdr10
Notes
� The following options, as defined in InfiniBand Specification 1.2.1 section 14.2.5.6, table 145 "PortInfo"
� This command updates force-link-speed, force-link-speed ext and fdr10 which are open sm parameters
� This command is backwards compatible so old configuration file containing this command with the old form (with legal bit mask) are still supported
� If the speed-options list does not include SDR speed, it is configured automatically
� Configuring more than one speed is possible by typing in consecutive speed names separated by spaces
Mellanox Technologies
.
630
InfiniBand Switching
ib sm force-log-flush
ib sm force-log-flush no ib sm force-log-flush
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Forces every log message generated to be flushed. The no form of the command does not force a flush after every log write.
N/A
disable
config
3.1.0000
admin
switch (config) # ib sm force-log-flush switch (config) # show ib sm force-log-flush enable switch (config) #
show ib sm force-log-flush
Mellanox Technologies
.
631
InfiniBand Switching
ib sm guid2lid-cache
ib sm guid2lid-cache no ib sm guid2lid-cache
Allows SM to use cached GUID-to-lid mapping data. When enabled, the SM honors the cached GUID-to-lid mapping information if: � It exists � It is valid � sm_reassign_lids is disabled The no form of the command disallows use of cached GUID-to-lid mapping data.
Syntax Description N/A
Default
disable
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm guid2lid-cache switch (config) # show ib sm guid2lid-cache enable switch (config) #
Related Commands show ib sm guid2lid-cache
Notes
Mellanox Technologies
.
632
InfiniBand Switching
ib sm honor-partitions
ib sm honor-partitions no ib sm honor-partitions
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Sets the no_partition_enforcement flag to 0. This setting controls global support for partitioning in the subnet. The no form of the command disables subnet partition support.
N/A
Enable
config
3.1.0000
admin
switch (config) # no ib sm honor-partitions switch (config) # show ib sm honor-partitions disable switch (config) #
show ib sm honor-partitions
� If partitioning is disabled (no_partition_enforcement=1), then no named partitions can be enabled
� If partitioning is enabled globally, the no_partition_enforcement changes from 1 to 0, and all defined partitions with state enabled are instantiated
� If partitioning is globally disabled, all partitions are removed from the subnet, but the state (enabled or disabled) associated with defined partitions is not modified
Mellanox Technologies
.
633
InfiniBand Switching
ib sm hoq-lifetime
ib sm hoq-lifetime <time>
Syntax Description
Default Configuration Mode History Role Example
Related Commands Notes
Sets the maximum time a frame can wait at the head of a switch-to-switch port queue before it is dropped.
time
The time is 4.096 uS * 2time. The range of time is 0 to
20. A time of 20 means infinite, and the default value is
18 which translates to about 1 second.
0x12 (~ 1 second)
config
3.1.0000
admin
switch (config) # ib sm hoq-lifetime 15 switch (config) # show ib sm hoq-lifetime 0xF (About 134 mS) switch (config) #
show ib sm hoq-lifetime
Mellanox Technologies
.
634
InfiniBand Switching
ib sm ignore-other-sm
ib sm ignore-other-sm no ib sm ignore-other-sm
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Ignores all the rules governing SM elections and attempts to manage the fabric. The no form of the command does not allow the SM to manage fabric if it loses the election.
N/A
Disable
config
3.1.0000
admin
switch (config) # ib sm ignore-other-sm switch (config) # show ib sm ignore-other-sm enable switch (config) #
show ib sm ignore-other-sm
Mellanox Technologies
.
635
InfiniBand Switching
ib sm ipv6-nsm
ib sm ipv6-nsm no ib sm ipv6-nsm
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Consolidates IPv6 SNM group joins to 1 MC group per-MGID PKEY. The no form of the command disables the consolidation of IPv6 SNM.
N/A
Disable
config
3.1.0000
admin
switch (config) # ib sm ipv6-nsm switch (config) # show ib sm ipv6-nsm enable switch (config) #
show ib sm ipv6-nsm
Mellanox Technologies
.
636
InfiniBand Switching
ib sm lash
ib sm lash {do-mesh-analysis | start-vl <vl-value>} no ib sm lash do-mesh-analysis
Modifies "lash" routing method parameters. The no form of the command disables SM "lash" routing for mesh analysis.
Syntax Description do-mesh-analysis
Enables SM "lash" routing for mesh analysis.
start-vl <vl-value>
Configures the starting VL for SM "lash" routing for mesh analysis (assuming that lash routing is enabled)
Default
do-mesh-analysis: disable start-vl: 0
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm lash do-mesh-analysis switch (config) # show ib sm lash do-mesh-analysis enable switch (config) #
Related Commands show ib sm lash do-mesh-analysis
Notes
Mellanox Technologies
.
637
InfiniBand Switching
ib sm leafhoq-lifetime
ib sm leafhoq-lifetime <time>
Syntax Description
Default Configuration Mode History Role Example
Related Commands Notes
Sets the maximum time a frame can wait at the head of a switch-to-CA_or_Router port queue before it is dropped.
time
The time is 4.096 uS * 2time. The range of time is 0 to
20. A time of 20 means infinite, and the default value is
16 which translates to about 268 millisecond.
0x10 (about 268 mS)
config
3.1.0000
admin
switch (config) # ib sm leafhoq-lifetime 8 switch (config) # show ib sm leafhoq-lifetime 0x8 (About 1 mS) switch (config) #
show ib sm leafhoq-lifetime
Mellanox Technologies
.
638
InfiniBand Switching
ib sm leafvl-stalls
ib sm leafvl-stalls <count>
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Sets the number of sequential frame drops that cause a switch-to-CA_or_Router port to enter the VLStalled state.
count
1-255
7
config
3.1.0000
admin
switch (config) # ib sm leafvl-stalls 3 switch (config) # show ib sm leafvl-stalls 3 switch (config) #
show ib sm leafvl-stalls
Mellanox Technologies
.
639
InfiniBand Switching
ib sm lmc
ib sm lmc <mask>
Sets the LID Mask Control (LMC) value to be used on this subnet.
Syntax Description mask
Valid values are 0-7.
Default
The default value is 0, which means that every port has exactly one unique LID.
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm lmc 7 switch (config) # show ib sm lmc 0x7 switch (config) #
Related Commands show ib sm lmc
Notes
Mellanox Technologies
.
640
InfiniBand Switching
ib sm lmc-esp0
ib sm lmc-esp0 no ib sm lmc-esp0
Sets the LMC for the subnet to be used for Enhanced Switch Port 0.
Syntax Description N/A
Default
disable
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # ib sm lmc-esp0 switch (config) #
show ib sm lmc-esp0
Notes
Mellanox Technologies
.
641
InfiniBand Switching
ib sm log-flags
ib sm log-flags [all] [debug] [error] [frames] [funcs] [info] [none] [routing] [verbose] no ib sm log-flags
Controls what messages the SM logs. The no form of the command indicates to the SM not to run on this node.
Syntax Description all
Turns on all the flags that follow (error info verbose debug funcs frames routing).
debug
Logs diagnostic messages, high volume.
error
Logs error messages.
frames
Logs all SMP and GMP frames.
funcs
Logs function entry/exit, very high volume.
info
Logs basic messages, low volume.
none
Turns off all logging flags.
routing
Logs FDB routing information.
verbose
Logs interesting stuff, moderate volume.
Default
0x3 (error, info)
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm log-flags error verbose funcs frames switch (config) # show ib sm log-flags 0x35 (error, verbose, funcs, frames) switch (config) #
Related Commands show ib sm log-flags
Notes
� Every execution of this command replaces the current logging flags � The options "all" and "none" must be specified as the only parameter
Mellanox Technologies
.
642
InfiniBand Switching
ib sm log-max-size
ib sm log-max-size <size>
Sets the maximum size of the log file to be <size> megabytes.
Syntax Description size
Range: 1-60
Default
20 MBytes
Configuration Mode config
History
3.1.0000
3.5.1000
Updated Syntax Description, and Default
Role
admin
Example
switch (config) # ib sm log-max-size 50 switch (config) # show ib sm log-max-size 50 MBytes switch (config) #
Related Commands show ib sm log-max-size
Notes
� The log file "opensm_<switch_name>.log" is rotated when it exceeds the configured maximum file size up to 5 compressed files
� When the log gets to the maximum size, or system storage fills up, the current log is deleted and messages start accumulating
� To successfully upgrade from a version prior to 3.5.1000, this parameter must be set to a value in the range specified in the syntax description
Mellanox Technologies
.
643
InfiniBand Switching
ib sm m-key
ib sm m-key <m-key>
Sets the MKey used by SM.
Syntax Description m-key
64-bit MKey.
Default
00:00:00:00:00:00:00:00
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm m-key 00:00:00:00:00:00:00:05 switch (config) # show ib sm m-key 00:00:00:00:00:00:00:05 switch (config) #
Related Commands show ib sm m-key
Notes
Mellanox Technologies
.
644
InfiniBand Switching
ib sm max-op-vls
ib sm max-op-vls <count>
Sets the maximum number of VLs supported on this subnet.
Syntax Description count
Possible values: 1, 2, 4, 8, or 15.
Default
15
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm max-op-vls 4 switch (config) # show ib sm max-op-vls 4 switch (config) #
Related Commands show ib sm max-op-vls
Notes
Mellanox Technologies
.
645
InfiniBand Switching
ib sm max-reply-time
ib sm max-reply-time <time>
Sets the maximum time the SM waits for a reply before the transaction times out.
Syntax Description time
Must be an integer (in milliseconds).
Default
200 milliseconds
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm max-reply-time 500 switch (config) # show ib sm max-reply-time 500 milliseconds switch (config) #
Related Commands show sm max-reply-time
Notes
Mellanox Technologies
.
646
InfiniBand Switching
ib sm max-reverse-hops
ib sm max-reverse-hops <max-reverse-hops>
Sets the maximum number of hops from the top switch to an I/O node.
Syntax Description N/A
Default
0 hops
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm max-reverse-hops 500 switch (config) # show ib sm max-reverse-hops 500 hops switch (config) #
Related Commands show ib sm max-reverse-hops
Notes
Mellanox Technologies
.
647
InfiniBand Switching
ib sm max-reverse-hops
ib sm max-reverse-hops <max-reverse-hops>
Sets the maximum number of hops from the top switch to an I/O node.
Syntax Description N/A
Default
0 hops
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm max-reverse-hops 500 switch (config) # show ib sm max-reverse-hops 500 hops switch (config) #
Related Commands show ib sm max-reverse-hops
Notes
Mellanox Technologies
.
648
InfiniBand Switching
ib sm aguid_default_hop_limit
ib sm aguid_default_hop_limit <count> no ib sm aguid_default_hop_limit
Configures the default value for hop limit returned in path records where either the source or destination are alias an GUID. The no form of the command resets the count to its default value.
Syntax Description count
Number of concurrent management packets (must be an integer)
Default
1
Configuration Mode config
History
3.6.6102
Role
admin
Example
switch (config) # ib sm aguid-default-hop-limit 3
Related Commands show ib sm aguid-default-hop-limit
Notes
Mellanox Technologies
.
649
InfiniBand Switching
ib sm max-wire-smps2
ib sm max-wire-smps2 <count>
Sets the maximal timeout based outstanding SM management packets.
Syntax Description count
Number of concurrent management packets. The value must be an integer.
Default
4
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm max-wire-smps 8 switch (config) # show ib sm max-wire-smps 8 switch (config) #
Related Commands show ib sm max-wire-smps2
Notes
Mellanox Technologies
.
650
InfiniBand Switching
ib sm m-key
ib sm m-key <mkey> no ib sm m-key
Configures the MKey used by the SM. The no form of the command resets the MKey configuration to its default value.
Syntax Description mkey
64-bit MKey
Default
00:00:00:00:00:00:00:00
Configuration Mode config
History
3.1.0000
3.6.2002
Added no form of the command
3.7.00xx
Added note
Role
admin
Example
switch (config) # ib sm m-key 11:33:55:77:99:aa:cc:ee
Related Commands
ib sm mkey-lease ib sm mkey-lookup ib sm mkey-protect-level show ib sm m-key show ib sm mkey-lease
Notes
� All nodes in the subnet may have to be reset or power-cycled after altering the SM MKey configuration
� Fabric inspector, and many standalone InfiniBand utilities, may not function on subnets with a non-default MKey.
Mellanox Technologies
.
651
InfiniBand Switching
ib sm mkey-lease
ib sm mkey-lease <time> no ib sm mkey-lease
Configures the lease period used when MKey is non-zero. The no form of the command resets this value to its default.
Syntax Description time
MKey lease period in seconds Range: 0-65535; 0=unlimited
Default
0
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # ib sm mkey-lease 660
Related Commands show ib sm mkey-lease
Notes
Mellanox Technologies
.
652
InfiniBand Switching
ib sm mkey-lookup
ib sm mkey-lookup no ib sm mkey-lookup
Enables using a file cache (guid2mkey) to resolve unknown node MKey. The no form of the command disables using a file cache to resolve unknown node MKey and the configured MKey is used for all ports.
Syntax Description N/A
Default
Enabled
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # ib sm mkey-lookup
Related Commands show ib sm mkey-lookup
Notes
MKey lookup is a boolean value that controls how the SM finds the MKey of ports.
Mellanox Technologies
.
653
InfiniBand Switching
ib sm mkey-protect-level
ib sm mkey-protect-level <level> no ib sm mkey-protect-level
Controls what data is returned to a get_PortInfo MAD request when the MKey in the request does not match the MKey on the port. The no form of the command resets the parameter to its default value.
Syntax Description level
� 0 � when PortInfo is "read", the actual MKey is returned in port info data
� 1 � when PortInfo is "read", and the MKey in the MAD does not match the MKey on the port, the MKey value in the returned PortInfo data is set to 0.
� 2 � when PortInfo is "read", and the MKey in the MAD does not match the MKey on the port, no data is returned.
Default
0
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # ib sm mkey-protect-level 0
Related Commands show ib sm mkey-protect-level
Notes
Mellanox Technologies
.
654
InfiniBand Switching
ib sm msgfifo-timeout
ib sm msgfifo-timeout <time>
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Sets the time value to be used by the subnet administrator to control when a BUSY status is returned to a client.
time
In milliseconds.
10 seconds
config
3.1.0000
admin
switch (config) # ib sm msgfifo-timeout 50000 switch (config) # show ib sm msgfifo-timeout 50.000 seconds switch (config) #
show ib sm msgfifo-timeout
If there is more than one message in the SA queue, and it has been there longer than time milliseconds, all additional incoming requests are immediately replied to with BUSY status.
Mellanox Technologies
.
655
InfiniBand Switching
ib sm multicast
ib sm multicast no ib sm multicast
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables the SM to support multicasts on the fabric. The no form of the command disables the SM from supporting multicasts on the fabric.
N/A
Disable
config
3.1.0000
admin
switch (config) # ib sm multicast switch (config) # show ib sm multicast enable switch (config) #
show ib sm multicast
Mellanox Technologies
.
656
InfiniBand Switching
ib sm no-client-rereg
ib sm no-client-rereg no ib sm no-client-rereg
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables client re-registration requests. The no form of the command disables client re-registration requests.
N/A
disable
config
3.1.0000
admin
switch (config) # ib sm no-client-rereg switch (config) # show ib sm no-client-rereg enable switch (config) #
show ib sm no-client-rereg
Mellanox Technologies
.
657
InfiniBand Switching
ib sm overrun-trigger
ib sm overrun-trigger <count>
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables SMA to generate standard InfiniBand trap number 130 when the number of local buffer overrun errors equals the count value, and the port's SMA supports traps.
count
Range: 0-255.
8
config
3.1.0000
admin
switch (config) # ib sm overrun-trigger 3 switch (config) # show ib sm overrun-trigger 3 switch (config) #
show ib sm overrun-trigger
Refer to the InfiniBand Architecture Specification V1 r1.2.1, section 14.2.5.1 table 131: Traps.
Mellanox Technologies
.
658
InfiniBand Switching
ib sm packet-life-time
ib sm packet-life-time <time>
Sets the maximum time a frame can live in a switch.
Syntax Description time
The time is 4.096 uS * 2*<time>. The rang is: 0-20. A time of 20 means infinite. The value 0x14 disables this mechanism.
Default
0x12 (about 1 second)
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm packet-life-time 20 switch (config) # show ib sm packet-life-time 0x14 (Infinite) switch (config) #
Related Commands show ib sm packet-life-time
Notes
Mellanox Technologies
.
659
InfiniBand Switching
ib sm phy-err-trigger
ib sm phy-err-trigger <count>
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables SMA to generate trap 129 when the number of local link integrity errors equals the <count> value, and the port's SMA supports traps.
count
Range is: 0-255.
8
config
3.1.0000
admin
switch (config) # ib sm phy-err-trigger 5 switch (config) # show ib sm phy-err-trigger 5 switch (config) #
show ib sm phy-err-trigger
Mellanox Technologies
.
660
InfiniBand Switching
ib sm polling-retries
ib sm polling-retries <value>
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
This variable defines the number of consecutive times an active SM must fail to respond before it is declared dead.
value
Must be an integer.
4
config
3.1.0000
admin
switch (config) # ib sm polling-retries 8 switch (config) # show ib sm polling-retries 8 switch (config) #
show ib sm polling-retries
The time between when the active SM fails and the time this SM declares it dead is: (sm_sminfo_polling_timeout * value) milliseconds.
Mellanox Technologies
.
661
InfiniBand Switching
ib sm port-prof-switch
ib sm port-prof-switch no ib sm port-prof-switch
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables the counting of adapters, routers, and switches routed through links. The no form of the command disables the counting of adapters, routers, and switches routed through links.
N/A
False
config
3.1.0000
admin
switch (config) # ib sm port-prof-switch switch (config) # show ib sm port-prof-switch true switch (config) #
show ib sm port-prof-switch
Mellanox Technologies
.
662
InfiniBand Switching
ib sm reassign-lids
ib sm reassign-lids no ib sm reassign-lids
Controls the ability of the SM to reassign LIDs to nodes it finds already configured with a valid LID. The no form of the command disables the SM from reassigning LIDs to nodes it finds already configured with a valid LID.
Syntax Description N/A
Default
disable
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm reassign-lids switch (config) # show ib sm reassign-lids enable switch (config) #
Related Commands show ib sm reassign-lids
Notes
� If enabled (ib sm reassign-lids), the SM can, but is not required to, reassign the LID on a node with a pre-configured LID
� If disabled (no ib sm reassign-lids), the SM does not reassign LIDs � There are times when the SM is required to reassign LIDs or the fabric cannot be
brought to a stable state, or a fabric option (like LMC) can not be fully applied
Mellanox Technologies
.
663
ib sm reset-config
ib sm reset-config
Resets all SM configuration options to defaults.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # ib sm reset-config switch (config) #
Notes
InfiniBand Switching
Mellanox Technologies
.
664
InfiniBand Switching
ib sm root-guid
ib sm root-guid <guid> no ib sm root-guid <guid>
Adds a root GUID for the SM. The no form of the command removes the GUID from the root GUID list.
Syntax Description guid
The root GUID number in hexadecimal notation
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config)# ib sm root-guid aa:bb:00:11:22:33:44:55 switch (config) #
show ib sm routing-engines
Notes
The list of root GIDs are relevant when IB SM is running on the switch, and the routing algorithm is up-down or fat-tree.
Mellanox Technologies
.
665
InfiniBand Switching
ib sm routing-engines
ib sm routing-engines [dor] [file] [ftree] [lash] [minhop] [none] [updn] no ib sm routing-engines
Sets the routing engine of the SM. The no form of the command sets the routing engine to be "none". The default SM routing engine is used.
Syntax Description dor
Includes "dor" engine in selection of routing engines
file
Includes "file" engine in selection of routing engines
ftree
Includes "ftree" engine in selection of routing engines
lash
Includes "lash" engine in selection of routing engines
minhop
Includes "minhop" engine in selection of routing engines
none
No routing engines specified; use SM default(s)
updn
Includes "up/down" engine in selection of routing engines
Default
None
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm routing-engines none
Related Commands show ib sm routing-engines
Notes
Multiple routing engines can be specified separated by spaces so that specific ordering of routing algorithms will be tried if earlier routing engines fail.
Mellanox Technologies
.
666
InfiniBand Switching
ib sm rtr-aguid-enable
ib sm rtr-aguid-enable <value> sm ib sm rtr-aguid-enable <value>
Configures SM alias GUID control option. The no form of the command resets SM alias GUID control to its default value.
Syntax Description value
Possible values: � 0 � does not configure alias GIDs required by rout-
ers � 1 � configures alias GIDs required by routers � 2 � clears and does not configure alias GIDs
required by routers
Default
0
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # ib sm rtr-aguid-enable 1
Related Commands
Notes
Mellanox Technologies
.
667
InfiniBand Switching
ib sm rtr-pr-flow-label
ib sm rtr-pr-flow-label <value> no ib sm rtr-pr-flow-label <value>
Configures inter-subnet PathRecord FlowLabel. The no form of the command resets inter-subnet PathRecord FlowLabel to its default value.
Syntax Description value
Range: 0-1048575
Default
0
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # ib sm rtr-pr-flow-label 1
Related Commands
Notes
Mellanox Technologies
.
668
InfiniBand Switching
ib sm rtr-pr-mtu
ib sm rtr-pr-mtu <value> no ib sm rtr-pr-mtu <value>
Configures inter-subnet PathRecord MTU. The no form of the command resets inter-subnet PathRecord MTU to its default value.
Syntax Description value
Possible values: 256, 512, 1K, 2K, 4K
Default
2K
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # ib sm rtr-pr-mtu 2k
Related Commands
Notes
Mellanox Technologies
.
669
InfiniBand Switching
ib sm rtr-pr-rate
ib sm rtr-pr-rate <value> no ib sm rtr-pr-rate <value>
Configures inter-subnet PathRecord rate. The no form of the command resets inter-subnet PathRecord rate to its default value.
Syntax Description value
Possible values: 2.5, 5, 10, 14, 20, 25, 40, 56, 100
Default
100
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # ib sm rtr-pr-rate 5
Related Commands
Notes
Mellanox Technologies
.
670
InfiniBand Switching
ib sm rtr-pr-sl
ib sm rtr-pr-sl <value> no ib sm rtr-pr-sl <value>
Configures inter-subnet PathRecord SL. The no form of the command resets inter-subnet PathRecord SL to its default value.
Syntax Description value
Range: [0-15]
Default
0
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # rtr-pr-sl 0
Related Commands
Notes
Mellanox Technologies
.
671
InfiniBand Switching
ib sm rtr-pr-tclass
ib sm rtr-pr-tclass <value> no ib sm rtr-pr-tclass <value>
Configures inter-subnet PathRecord T-class. The no form of the command resets inter-subnet PathRecord T-class to its default value.
Syntax Description value
Range: [0-255]
Default
0
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # ib sm rtr-pr-tclass 1
Related Commands
Notes
Mellanox Technologies
.
672
InfiniBand Switching
ib sm sa-key
ib sm sa-key <SA_Key>
Sets the SA_Key 64-bit value used by SA to qualify that a query is "trusted".
Syntax Description SA Key
64 bit
Default
00:00:00:00:00:00:00:01
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm sa-key 5 switch (config) # show ib sm sa-key 00:00:00:00:00:00:00:05 switch (config) #
Related Commands show ib sm sa-key
Notes
OpenSM version 3.2.1 and lower used the default value of "1" in host byte order. You may need to change this value to inter-operate with older subnet managers.
Mellanox Technologies
.
673
InfiniBand Switching
ib sm single-thread
ib sm single-thread no ib sm single-thread
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables the Subnet Manager to use a single thread to service all requests. The no form of the command enables SA to use multiple service threads.
N/A
Disable (use multiple service threads).
config
3.1.0000
admin
switch (config) # ib sm single-thread switch (config) # show ib sm single-thread enable switch (config) #
show ib sm single-thread
Mellanox Technologies
.
674
InfiniBand Switching
ib sm sm-inactive
ib sm sm-inactive no ib sm sm-inactive
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Configures the SM to start in the "inactive" SM state. This option can be used to run a standalone system without the SM/SA function. The no form of the command configures the SM to start in "init" SM state.
N/A
Disable
config
3.1.0000
admin
switch (config) # ib sm sm-inactive switch (config) # show ib sm sm-inactive enable switch (config) #
show ib sm sm-inactive
Mellanox Technologies
.
675
InfiniBand Switching
ib sm sm-key
ib sm sm-key <SM_Key>
Sets the SM 64-bit SM_Key.
Syntax Description SM Key
64 bit
Default
00:00:00:00:00:00:00:01
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm sm-key 00:00:00:00:00:00:00:05 switch (config) # show ib sm sm-key 00:00:00:00:00:00:00:05 switch (config) #
Related Commands show ib sm sm-key
Notes
OpenSM version 3.2.1 and lower used the default value of "1" in host byte order. You may need to change this value to inter-operate with older subnet managers.
Mellanox Technologies
.
676
InfiniBand Switching
ib sm sm-priority
ib sm sm-priority <priority>
Prioritizes the desired SM compared to other SMs on the fabric.
Syntax Description priority
Priority 0 is the least important, 15 the most important.
Default
0
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm sm-priority 1 switch (config) # show ib sm sm-priority 1 switch (config) #
Related Commands show ib sm sm-priority
Notes
If two or more active SMs have the same highest priority, the one with the lowest port GUID manages the fabric.
Mellanox Technologies
.
677
InfiniBand Switching
ib sm sm-sl
ib sm sm-sl <sm-sl>
Sets the SM service level for SM/SA communication.
Syntax Description sm-sl
0-15.
Default
0
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm sm-sl 10 switch (config) # show ib sm sm-sl 10 switch (config) #
Related Commands show ib sm sm-sl
Notes
Selects the SL that is used for MADs.
Mellanox Technologies
.
678
InfiniBand Switching
ib sm sminfo-poll-time
ib sm sminfo-poll-time <time>
This variable controls the timeout between two polls of an active subnet manager.
Syntax Description time
In milliseconds.
Default
10 seconds
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm sminfo-poll-time 15 switch (config) # show ib sm sminfo-poll-time 15 milliseconds switch (config) #
Related Commands show ib sm sminfo-poll-time
Notes
Mellanox Technologies
.
679
InfiniBand Switching
ib sm subnet-prefix
ib sm subnet-prefix <prefix> no ib sm subnet-prefix <prefix>
Sets the SM "Subnet Prefix" used to create scope qualifiers for all elements managed by the SM. The no form of the command resets the subnet prefix to its default value.
Syntax Description prefix
64 bit
Default
FE:80:00:00:00:00:00:00
Configuration Mode config
History
3.6.1002
3.6.2002
Added no form of the command
Role
admin
Example
switch (config) # ib sm subnet-prefix ff:ff:ff:ff:ff:ff:ff:00 switch (config) # show ib sm subnet-prefix FF:FF:FF:FF:FF:FF:FF:00 switch (config) #
Related Commands show ib sm subnet-prefix
Notes
The default value is also the InfiniBand default for a locally administered subnet.
Mellanox Technologies
.
680
InfiniBand Switching
ib sm subnet-prefix-override
ib sm subnet-prefix-override no ib sm subnet-override
Disables IB Router subnet prefix checking. The no form of the command enables IB Router subnet prefix checking.
Syntax Description N/A
Default
Enabled
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # ib sm subnet-prefix-override switch (config) #
show ib sm subnet-prefix-override
Notes
Mellanox Technologies
.
681
InfiniBand Switching
ib sm subnet-timeout
ib sm subnet-timeout <time>
Sets the global per-port subnet timeout value (PortInfo:SubnetTimeOut). This value also controls the maximum trap frequency in which no traps are allowed to be sent faster than the subnet_timeout value.
Syntax Description time
The actual timeout is 4.096 uS * 2*<time>. The range of time is 0-31 for this parameter which supports 32 discrete time values between 4 uS and about 2.4 hours.
Default
0x12 (About 1 second)
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm subnet-timeout 5 switch (config) # show ib sm subnet-timeout 0x5 (About 131 uS) switch (config) #
Related Commands show ib sm subnet-timeout
Notes
If the SMA generates a sequence of traps, the interval between successive traps should not be smaller than <time>.
Mellanox Technologies
.
682
InfiniBand Switching
ib sm sweep-interval
ib sm sweep-interval <time> no ib sm sweep-interval
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Specifies the time between subnet sweeps. The no form of the command disables periodic sweeps.
time
Range: Between 0 and 36000 seconds (0 - disable).
10 seconds
config
3.1.0000
admin
switch (config) # ib sm sweep-interval 20 switch (config) # show ib sm sweep-interval 20 seconds switch (config) #
show ib sm sweep-interval
Mellanox Technologies
.
683
InfiniBand Switching
ib sm sweep-on-trap
ib sm sweep-on-trap no ib sm sweep-on-trap
Enables every TRAP received by the SM to initiate a heavy sweep in addition to the processing required by the TRAP. The no form of the command enables SM to use a combination of light and heavy sweeps based on the type of TRAP and other internal states.
Syntax Description N/A
Default
enable
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm sweep-on-trap switch (config) # show ib sm sweep-on-trap enable switch (config) #
Related Commands show ib sm sweep-on-trap
Notes
More than 10 successive identical TRAPs disable the automatic sweep behavior until at least one different TRAP has been received.
Mellanox Technologies
.
684
InfiniBand Switching
ib sm transaction-retries
ib sm transaction-retries <transaction-retries-count>
Sets the maximum retries for failed transactions.
Syntax Description transaction-retries-count Must be an integer.
Default
3
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib sm transaction-retries 10 switch (config) # show ib sm transaction-retries 10 switch (config) #
Related Commands show ib sm transaction-retries
Notes
Mellanox Technologies
.
685
InfiniBand Switching
ib sm use-heavy-sweeps
ib sm use-heavy-sweeps no ib sm use-heavy-sweeps
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Turns every fabric sweep to a heavy sweep. The no form of the command enables the SM to use a combination of light and heavy sweeps.
N/A
disable
config
3.1.0000
admin
switch (config) # ib sm use-heavy-sweeps switch (config) # show ib sm use-heavy-sweeps enable switch (config) #
show ib sm use-heavy-sweeps
Mellanox Technologies
.
686
InfiniBand Switching
ib sm use-ucast-cache
ib sm use-ucast-cache no ib sm use-ucast-cache
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables the SM to use cached routine data (LMC=0 only). The no form of the command disables the SM to use cached routine data.
N/A
Disable
config
3.1.0000
admin
switch (config) # ib sm use-ucast-cache switch (config) # show ib sm use-ucast-cache true switch (config) #
show ib sm use-ucast-cache
Mellanox Technologies
.
687
InfiniBand Switching
ib sm vl-stalls
ib sm vl-stalls <count>
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Sets the number of sequential frame drops that cause a switch-to-switch port to enter the VLStalled state.
count
1-255
7
config
3.1.0000
admin
switch (config) # ib sm vl-stalls 10 switch (config) # show ib sm vl-stalls 10 switch (config) #
show ib sm vl-stalls
Mellanox Technologies
.
688
InfiniBand Switching
ib sm virt
ib sm virt {enable | disable | ignore} no ib sm virt
Configures IB SM port virtualization support. The no form of the command resets this parameter to its default value.
Syntax Description enable
IB SM supports virtualization, and configures virtual ports
disable
IB SM disables virtual ports
ignore
IB SM ignores virtual ports and does not change their configuration
Default
Ignore
Configuration Mode config
History
3.4.2008
Role
admin
Example
switch (config) # ib sm virt configure switch (config) #
Related Commands
Notes
Mellanox Technologies
.
689
InfiniBand Switching
ib sm virt-default-hop-limit
ib sm virt-default-hop-limit <value> no ib sm virt-default-hop-limit
Configures the default value for hop limit to be returned in path records. The no form of the command resets this parameter to its default value.
Syntax Description value
Range: 0-255
Default
2
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # ib sm virt-default-hop-limit 3
Related Commands
Notes
Mellanox Technologies
.
690
InfiniBand Switching
ib sm virt-max-ports-in-process
ib sm virt-max-ports-in-process <value> no ib sm virt-max-ports-in-process
Configures the maximum number of ports to be processed simultaneously. The no form of the command resets this parameter to its default value.
Syntax Description value
Range:0-65535 `0' processes all pending ports
Default
4
Configuration Mode config
History
3.6.2002
Role
admin
Example
switch (config) # ib sm virt-max-ports-in-process 5
Related Commands
Notes
Mellanox Technologies
.
691
show ib sm
show ib sm
Displays the SM admin state.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm enable switch (config) #
ib sm
Notes
InfiniBand Switching
Mellanox Technologies
.
692
show ib sm accum-log-file
show ib sm accum-log-file
Displays the accum-log-file configuration.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm accum-log-file enable switch (config) #
ib sm accum-log-file
Notes
InfiniBand Switching
Mellanox Technologies
.
693
InfiniBand Switching
show ib sm babbling-policy
show ib sm babbling-policy
Displays the ability of the SM to disable babbling ports (i.e., generating frequent traps).
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm babbling-policy disable switch (config) #
ib sm babbling-policy
Notes
Mellanox Technologies
.
694
InfiniBand Switching
show ib sm connect-roots
show ib sm connect-roots
Displays the IBA compliant multi-stage switch directive.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm connect-roots true switch (config) #
ib sm connect-roots
Notes
Mellanox Technologies
.
695
InfiniBand Switching
show ib sm enable-quirks
show ib sm enable-quirks
Displays if the SM uses high risk features and handles HW workarounds.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm enable-quirks disable switch (config) #
ib sm enable-quirks
Notes
Mellanox Technologies
.
696
show ib sm exit-on-fatal
show ib sm exit-on-fatal
Displays if the SM exits upon a fatal error.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm exit-on-fatal enable switch (config) #
ib sm exit-on-fatal
Notes
InfiniBand Switching
Mellanox Technologies
.
697
show ib sm fdr10
show ib sm fdr10
Displays the status of the SM use of FDR10.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm fdr10 SM use of fdr10 is off switch (config) #
Notes
InfiniBand Switching
Mellanox Technologies
.
698
InfiniBand Switching
show ib sm force-link-speed
show ib sm force-link-speed
Displays SM behavior for PortInfo:LinkSpeedEnabled parameter on switch ports.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
3.4.1604
Updated Syntax Description, Example and Notess
Role
admin
Example Related Commands
switch (config) # show ib sm force-link-speed Default: set to PortInfo:LinkSpeedSupported switch (config) #
ib sm force-link-speed
Notes
Possible outputs: � Default: set to PortInfo:LinkSpeedExtSupported � Disabled: extended link speed not in use � Negotiate: <a list containing fdr, edr speeds>
Mellanox Technologies
.
699
InfiniBand Switching
show ib sm force-link-speed-ext
show ib sm force-link-speed-ext
Syntax Description Default Configuration Mode History
Role Example
Related Commands Notes
Displays SM behavior for PortInfo:LinkSpeedExtEnabled parameter on the switch ports.
N/A
N/A
config
3.1.0000
3.4.1604
Updated description and Example
admin
switch (config) # show ib sm force-link-speed-ext Negotiate: fdr edr switch (config) #
Possible outputs: � Default: set to PortInfo:LinkSpeedExtSupported � Disabled: extended link speed not in use � Negotiate: <a list containing fdr, edr speeds>
Mellanox Technologies
.
700
InfiniBand Switching
show ib sm force-log-flush
show ib sm force-log-flush
Displays if every log message generated forces the log to be flushed.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm force-log-flush enable switch (config) #
ib sm force-log-flush
Notes
Mellanox Technologies
.
701
InfiniBand Switching
show ib sm guid2lid-cache
show ib sm guid2lid-cache
Displays whether or not the SM honors the cached GUID-to-LID mapping information.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm guid2lid-cache disable switch (config) #
ib sm guid2-lid-cache
Notes
Mellanox Technologies
.
702
InfiniBand Switching
show ib sm honor-partitions
show ib sm honor-partitions
Displays the partition enforcement settings in the subnet.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm honor-partitions disable switch (config) #
ib sm honor-partitions
Notes
Mellanox Technologies
.
703
InfiniBand Switching
show ib sm hoq-lifetime
show ib sm hoq-lifetime
Displays the maximum time a frame can wait at the head of a switch-to-switch port queue before it is dropped.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm hoq-lifetime 0x12 (About 1 second) switch (config) #
ib sm hoq-lifetime
Notes
Mellanox Technologies
.
704
InfiniBand Switching
show ib sm ignore-other-sm
show ib sm ignore-other-sm
Displays if the rules governing SM elections and attempt to manage the fabric on the node are ignored by the SM.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm ignore-other-sm enable switch (config) #
ib sm ignore-other-sm
Notes
Mellanox Technologies
.
705
InfiniBand Switching
show ib sm ipv6-nsm
show ib sm ipv6-nsm
Displays the consolidation of IPv6 Solicited Node Multicast (SNM) group join requests.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm ipv6-nsm enable switch (config) #
ib sm ipv6-nsm
Notes
Mellanox Technologies
.
706
InfiniBand Switching
show ib sm lash
show ib sm lash {do-mesh-analysis | start-vl}
Display 'lash' routing method parameters.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm lash do-mesh-analysis enable switch (config) #
ib sm lash
Notes
Mellanox Technologies
.
707
InfiniBand Switching
show ib sm leafhoq-lifetime
show ib sm leafhoq-lifetime
Displays the maximum time a frame can wait at the head of a switch-toCA_or_Router port queue before it is dropped.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm leafhoq-lifetime 0x10 (About 268 mS) switch (config) #
ib sm leafhoq-lifetime
Notes
Mellanox Technologies
.
708
InfiniBand Switching
show ib sm leafvl-stalls
show ib sm leafvl-stalls
Displays the number of sequential frame drops that case a switch-to-CA_or_Router port to enter the VLStalled state.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm leafvl-stalls 7 switch (config) #
ib sm leafvl-stalls
Notes
Mellanox Technologies
.
709
InfiniBand Switching
show ib sm lmc
show ib sm lmc
Displays the LID Mask Control (LMC) value to be used on this subnet.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm lmc 0x0 switch (config) #
ib sm lmc
Notes
Mellanox Technologies
.
710
InfiniBand Switching
show ib sm lmc-esp0
show ib sm lmc-esp0
Displays whether the LMC for the subnet is also used for Enhanced Switch Port 0 (ib sm lmc-esp0) or if the LMC for ESP0 ports is 0 (no ib sm lmc-esp0).
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm lmc-esp0 enable switch (config) #
ib sm lmc-esp0
Notes
Mellanox Technologies
.
711
InfiniBand Switching
show ib sm log
show ib sm log [continuous] [[not] [matching <reg-expression>]]
Displays IB SM event logs.
Syntax Description continuous
Displays IB SM new event log messages as they arrive
not
Displays IB SM new event logs that do not match a
given regular expression.
matching <regular expres- Displays IB SM event log messages that match a given
sion>
regular expression.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show ib sm log Jul 18 12:00:40 165863 [48026660] 0x03 -> OpenSM 3.3.13.MLNX_20121224_9b362db Jul 18 12:00:40 168685 [48026660] 0x80 -> OpenSM 3.3.13.MLNX_20121224_9b362db Jul 18 12:00:40 170789 [48026660] 0x02 -> osm_vendor_init: 1000 pending umads specified Jul 18 12:00:40 175696 [48026660] 0x80 -> Entering DISCOVERING state Jul 18 12:00:40 249448 [48026660] 0x02 -> osm_vendor_bind: Binding to port 0x2c903008b0440 Jul 18 12:00:40 293959 [48026660] 0x02 -> osm_vendor_bind: Binding to port 0x2c903008b0440 Jul 18 12:00:40 296921 [48026660] 0x02 -> osm_vendor_bind: Binding to port 0x2c903008b0440 Jul 18 12:00:40 304702 [48026660] 0x02 -> osm_opensm_bind: Setting IS_SM on port 0x0002c903008b0440 Jul 18 12:00:40 399744 [4A85D4B0] 0x80 -> Entering MASTER state
Related Commands Notes
switch (config) #
show ib sm log-flags
Mellanox Technologies
.
712
show ib sm log-flags
show ib sm log-flags
Displays what type of messages the SM will log.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm log-flags 0x3 (error, info) switch (config) #
ib sm log-flags
Notes
InfiniBand Switching
Mellanox Technologies
.
713
show ib sm log-max-size
show ib sm log-max-size
Displays the maximum size of the log file.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm log-max-size 50 MBytes switch (config) #
is sm log-max-size
Notes
InfiniBand Switching
Mellanox Technologies
.
714
InfiniBand Switching
show ib sm max-op-vls
show ib sm max-op-vls
Displays the maximum number of VLs supported on this subnet.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm max-op-vls 15 switch (config) #
ib sm max-op-vls
Notes
Mellanox Technologies
.
715
show ib sm max-ports
show ib sm max-ports
Displays the number of CA ports SM can manage
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm max-ports 2048 switch (config) #
ib sm max-ports
Notes
InfiniBand Switching
Mellanox Technologies
.
716
InfiniBand Switching
show ib sm max-reply-time
show ib sm max-reply-time
Displays the maximum time in milliseconds that the SM will wait for a reply before the transaction times out.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm max-reply-time 200 milliseconds switch (config) #
ib sm max-reply-time
Notes
Mellanox Technologies
.
717
InfiniBand Switching
show ib sm max-reverse-hops
show ib sm max-reverse-hops
Displays max hops IO node to top switch
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm max-reverse-hops 0 hops
ib sm max-reverse-hops
Notes
Mellanox Technologies
.
718
InfiniBand Switching
show ib sm max-reverse-hops
show ib sm max-reverse-hops
Displays max hops IO node to top switch
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm max-reverse-hops 0 hops switch (config) #
ib sm max-reverse-hops
Notes
Mellanox Technologies
.
719
InfiniBand Switching
show ib sm aguid-default-hop-limit
show ib sm aguid-default-hop-limit
Displays the default value for hop limit returned in path records where either the source or destination is an alias GUID.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.6102
Role
admin
Example Related Commands
switch (config) # show ib sm aguid-default-hop-limit 1
ib sm aguid-default-hop-limit
Notes
Mellanox Technologies
.
720
InfiniBand Switching
show ib sm max-wire-smps
show ib sm max-wire-smps
Displays the maximal number of MADs the SM will have outstanding at one time to count.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm max-wire-smps 8 switch (config) #
ib sm max-wire-snmps
Notes
Mellanox Technologies
.
721
InfiniBand Switching
show ib sm max-wire-smps2
show ib sm max-wire-smps2
Displays maximal SM timeout based packets allowed to be outstanding.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm max-wire-smps2 4 switch (config) #
Notes
Mellanox Technologies
.
722
show ib sm mkey-lease
show ib sm mkey-lease
Displays MKey period in seconds.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm mkey-lease 0 (No timeout) switch (config) #
ib sm mkey-lease
Notes
InfiniBand Switching
Mellanox Technologies
.
723
show ib sm m-key
show ib sm m-key
Displays the MKey used by the SM
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
3.6.2002
Updated example
Role
admin
Example
switch (config) # show ib sm m-key 11:33:55:77:99:aa:cc:ee
Related Commands ib sm m-key
Notes
InfiniBand Switching
Mellanox Technologies
.
724
InfiniBand Switching
show ib sm mkey-lookup
show ib sm mkey-lease
Displays whether SM looks in file cache for unknown node MKeys or not.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # show ib sm mkey-lookup enable
ib sm mkey-lookup
Notes
Mellanox Technologies
.
725
InfiniBand Switching
show ib sm mkey-protect-level
show ib sm mkey-protect-level
Displays MKey protection level.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # show ib sm mkey-protect-level 0
ib sm mkey-protect-level
Notes
Mellanox Technologies
.
726
InfiniBand Switching
show ib sm msgfifo-timeout
show ib sm msgfifo-timeout
Displays the elapsed time in milliseconds before a frame at the head of Subnet Agent queue causes an immediate BUSY state.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm msgfifo-timeout 10.000 seconds switch (config) #
ib sm msgfifo-timeout
Notes
Mellanox Technologies
.
727
InfiniBand Switching
show ib sm multicast
show ib sm multicast
Displays whether the SM supports multicast on the fabric.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm multicast enable switch (config) #
ib sm multicast
Notes
Mellanox Technologies
.
728
show ib sm no-client-rereg
show ib sm no-client-rereg
Displays client re-registration admin state.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm no-client-rereg enable switch (config) #
ib no-client-rereg
Notes
InfiniBand Switching
Mellanox Technologies
.
729
InfiniBand Switching
show ib sm overrun-trigger
show ib sm overrun-trigger
Displays count of local buffer overrun errors for Infiniband trap 130
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm overrun-trigger 3 switch (config) #
ib sm overrun-trigger
Notes
Mellanox Technologies
.
730
InfiniBand Switching
show ib sm packet-life-time
show ib sm packet-life-time
Displays the maximum time a frame can live in a switch.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm packet-life-time 0x14 (Infinite) switch (config) #
ib sm packet-life-time
Notes
Mellanox Technologies
.
731
InfiniBand Switching
show ib sm phy-err-trigger
show ib sm phy-err-trigger
Displays the number of local link integrity errors and the port's SMA supports traps.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm phy-err-trigger 5 switch (config) #
ib sm phy-err-trigger
Notes
Mellanox Technologies
.
732
InfiniBand Switching
show ib sm polling-retries
show ib sm polling-retries
Displays the number of consecutive times an active SM must fail to respond before it is declared dead.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm polling-retries 8 switch (config) #
ib sm polling-retries
Notes
Mellanox Technologies
.
733
InfiniBand Switching
show ib sm port-prof-switch
show ib sm port-prof-switch
Displays whether or not the counting of adapters, routers, and switches through the links is being done.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm port-prof-switch true switch (config) #
ib sm port-prof-switch
Notes
Mellanox Technologies
.
734
InfiniBand Switching
show ib sm reassign-lids
show ib sm reassign-lids
Displays the ability of the SM to reassign LIDs to nodes it finds already configured with a valid LID.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm reassign-lids enable switch (config) #
ib sm reassign-lids
Notes
Mellanox Technologies
.
735
InfiniBand Switching
show ib sm root-guid
show ib sm root-guid
Displays the configured root GUIDs for the SM.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config)# show ib sm root-guid AA:00:11:22:33:44:55 AA:00:11:22:33:44:56 AA:00:11:22:33:44:57 ... switch (config)#
Related Commands ib sm routing-engine
Notes
The list of root GUIDs are relevant when IB SM is running on the switch, and the routing algorithm is up-down or fat-tree.
Mellanox Technologies
.
736
show ib sm routing-engines
show ib sm routing-engines
Displays an ordered list of routing engines
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm routing-engine none switch (config) #
ib sm routing-engine
Notes
InfiniBand Switching
Mellanox Technologies
.
737
show ib sm routing-info
show ib sm routing-info
Displays current routing engine information.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm routing-info Current routing engine minhop switch (config) #
Notes
InfiniBand Switching
Mellanox Technologies
.
738
InfiniBand Switching
show ib sm rtr-aguid-enable
show ib sm rtr-aguid-enable
Displays GUID option configuration.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # show ib sm rtr-aguid-enable 0
ib sm rtr-aguid-enable
Notes
Mellanox Technologies
.
739
InfiniBand Switching
show ib sm rtr-pr-flow-label
show ib sm rtr-pr-flow-label
Displays inter-subnet PathRecord FlowLabel.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # show ib sm rtr-pr-flow-label 0
ib sm rtr-pr-flow-label
Notes
`0' means Inter-subnet PathRecord FlowLabel is disabled
Mellanox Technologies
.
740
show ib sm rtr-pr-mtu
show ib sm rtr-pr-mtu
Displays inter-subnet PathRecord MTU.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # show ib sm rtr-pr-mtu 2K
ib sm rtr-pr-mtu
Notes
InfiniBand Switching
Mellanox Technologies
.
741
show ib sm rtr-pr-rate
show ib sm rtr-pr-rate
Displays inter-subnet PR rate.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # show ib sm rtr-pr-rate 100
ib sm rtr-pr-rate
Notes
InfiniBand Switching
Mellanox Technologies
.
742
show ib sm rtr-pr-sl
show ib sm rtr-pr-sl
Displays inter-subnet PathRecord service level.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # show ib sm rtr-pr-sl 0
ib sm rtr-pr-sl
Notes
InfiniBand Switching
Mellanox Technologies
.
743
InfiniBand Switching
show ib sm sa-key
show ib sm sa-key
Displays the SM sa-key value used by SA to qualify that a query is "trusted".
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm sa-key 00:00:00:00:00:00:00:05 switch (config) #
ib sm sa-key
Notes
Mellanox Technologies
.
744
InfiniBand Switching
show ib sm single-thread
show ib sm single-thread
Displays if the SM uses a single thread to service all requests.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm single-thread enable switch (config) #
ib sm single-thread
Notes
Mellanox Technologies
.
745
InfiniBand Switching
show ib sm sm-inactive
show ib sm sm-inactive
Displays whether or not the SM starts in "inactive" rather than "init" SM state.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm sm-inactive enable switch (config) #
ib sm sm-inactive
Notes
Mellanox Technologies
.
746
show ib sm sm-key
show ib sm sm-key
Displays the SM 64-bit SM_Key.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm sm-key 00:00:00:00:00:00:00:05 switch (config) #
ib sm sm-key
Notes
InfiniBand Switching
Mellanox Technologies
.
747
InfiniBand Switching
show ib sm sm-priority
show ib sm sm-priority
Displays the importance of this SM compared to other SMs on the fabric.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm sm-priority 1 switch (config) #
ib sm sm-priority
Notes
Priority 0 is the least important, 15 the most important. If 2 or more active SMs have the same highest priority, the one with the lowest port GUID will manage the fabric.
Mellanox Technologies
.
748
show ib sm sm-sl
show ib sm sm-sl
Display SL used for SM/SA communication
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm sm-sl 1 switch (config) #
ib sm sm-sl
Notes
InfiniBand Switching
Mellanox Technologies
.
749
InfiniBand Switching
show ib sm sminfo-poll-time
show ib sm sminfo-poll-time
Displays the timeout in milliseconds between two polls of an active SM.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm sminfo-poll-time 15 milliseconds switch (config) #
ib sm sminfo-poll-time
Notes
Mellanox Technologies
.
750
InfiniBand Switching
show ib sm subnet-prefix
show ib sm subnet-prefix
Displays the SM "Subnet Prefix" used to create scope qualifiers for all elements managed by the SM.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm subnet-prefix FF:FF:FF:FF:FF:FF:FF:00 switch (config) #
ib sm subnet-prefix
Notes
Mellanox Technologies
.
751
InfiniBand Switching
show ib sm subnet-prefix-override
show ib sm subnet-prefix
Displays whether IB Router subnet prefix checking is enabled or disabled.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # show ib sm subnet-prefix-override disable
ib sm subnet-prefix-override
Notes
Mellanox Technologies
.
752
InfiniBand Switching
show ib sm subnet-timeout
show ib sm subnet-timeout
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Displays the global per-port subnet timeout value (PortInfo:SubnetTimeOut). This value also controls the maximum trap frequency in which no traps are allowed to be sent faster than the subnet_timeout value. The time is 4.096 uS * 2*time.
N/A
N/A
config
3.1.0000
admin
switch (config) # show ib sm subnet-timeout 0x5 (About 131 uS) switch (config) #
ib sm subnet-timeout
Mellanox Technologies
.
753
show ib sm sweep-interval
show ib sm sweep-interval
Displays the time in seconds between subnet sweeps.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm sweep-interval 20 seconds switch (config) #
ib sm sweep-interval
Notes
InfiniBand Switching
Mellanox Technologies
.
754
InfiniBand Switching
show ib sm sweep-on-trap
show ib sm sweep-on-trap
Displays whether or not a heavy sweep is initiated by the TRAP received by the SM.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm sweep-on-trap enable switch (config) #
ib sm sweep-on-trap
Notes
Mellanox Technologies
.
755
InfiniBand Switching
show ib sm transaction-retries
show ib sm transaction-retries
Displays maximum retries before failing a transaction
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm transaction-retries 3 switch (config) #
ib sm transaction-retries
Notes
Mellanox Technologies
.
756
InfiniBand Switching
show ib sm use-heavy-sweeps
show ib sm use-heavy-sweeps
Displays SM requirement to always use heavy sweeps.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm use-heavy-sweeps disable switch (config) #
ib sm use-heavy-sweeps
Notes
Mellanox Technologies
.
757
show ib sm use-ucast-cache
show ib sm use-ucast-cache
Displays if the SM uses cached routine data.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm use-ucast-cache false switch (config) #
ib sm user-ucase-cache
Notes
InfiniBand Switching
Mellanox Technologies
.
758
InfiniBand Switching
show ib sm version
show ib sm version
Displays the open SM version that is currently running.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.2.3000
Role
admin
Example Related Commands
switch (config) # show ib sm version OpenSM3.3.7 switch (config) #
Notes
Mellanox Technologies
.
759
InfiniBand Switching
show ib sm virt-default-hop-limit
show ib sm virt-default-hop-limit
Displays the default value for hop limit to be returned in path records.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # show ib sm virt-default-hop-limit 2
ib sm virt-default-hop-limit
Notes
Mellanox Technologies
.
760
InfiniBand Switching
show ib sm virt-max-ports-in-process
show ib sm virt-max-ports-in-process
Displays the maximum number of ports to be processed simultaneously.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.2002
Role
admin
Example Related Commands
switch (config) # show ib sm virt-max-ports-in-process 4
ib sm virt-max-ports-in-process
Notes
Mellanox Technologies
.
761
InfiniBand Switching
show ib sm vl-stalls
show ib sm use-vl-stalls
Displays the number of sequential frame drops that cause a switch-to-switch port to enter the VLStalled state.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib sm vl-stalls 7 switch (config) #
ib sm vl-stalls
Notes
Mellanox Technologies
.
762
InfiniBand Switching
5.5.6.2 Partitions
ib partition
ib partition <partition-name> [pkey <pkey number>] no ib partition <partition-name> [force]
Enters the context of the partition specified. The no form of the command deletes the partition.
Syntax Description partition-name
Name of partition context to be entered
pkey
Creates a partition and enters a new configuration mode
force
Forces configuration
Default
Default partition is available (PKEY 0x7fff)
Configuration Mode config
History
3.2.0500
3.6.8008
Added "force" parameter to "no" form
Role
admin
Example
switch (config) # ib partition my-partition switch (config partition my-partition) #
Related Commands
Notes
Mellanox Technologies
.
763
InfiniBand Switching
pkey
pkey <number> [force] no pkey <number>
Specifies PKEY number for this partition. The no form of the command removes the PKEY configuration from partitions.conf file.
Syntax Description number
0x001-0x7fff
force
Forces configuration
Default
N/A
Configuration Mode Config Partition
History
3.2.0500
3.5.1000
Added "force" parameter
Role
admin
Example
switch (config) # ib partition my-partition switch (config partition my-partition) # pkey 0x7777 switch (config partition my-partition) #
Related Commands
Notes
PKEY must be unique.
Mellanox Technologies
.
764
InfiniBand Switching
defmember
defmember <type> [force] no defmember
Sets the default membership for port GUID list. The no form of the command set the defmember configuration to default (it will not appear in the partitions.conf file).
Syntax Description type
Default membership for GUIDs in this partition: � full � limited � both
force
Forces configuration
Default
limited
Configuration Mode Config Partition
History
3.2.0500
3.4.1100
Added "both" option
3.5.1000
Added "force" parameter
Role
admin
Example Related Commands
switch (config) # ib partition my-partition switch (config ib partition my-partition) # defmember full switch (config ib partition my-partition) #
ib sm allow-both-pkeys member
Notes
This parameter can be overwritten for specific GUID, using the "member" command.
Mellanox Technologies
.
765
InfiniBand Switching
member
member {<guid> | all | self} [type <member-type>] [force] no member {<guid> | all | self} [type] [force]
Adds static members to partition. The no form of the command will remove the static member from the partition (it will not appear in the partitions.conf file).
Syntax Description guid
The GUID number
all | self
The option "all" can be used for all GUIDs in the fabric, or "self" for the switch guide
member-type
Default membership for GUIDs in this partition: � full � limited � both
force
Forces configuration
Default
N/A
Configuration Mode Config Partition
History
3.2.0500
3.4.1100
Added "both" parameter
3.5.1000
Added "force" parameter
Role
admin
Example Related Commands
switch (config) # ib partition my-partition switch (config ib partition my-partition) # member all
ib partition ib sm allow-both-pkeys defmember
Notes
Mellanox Technologies
.
766
InfiniBand Switching
ipoib
ipoib [force] no ipoib [force]
Enables this partition to use IPoIB. As a result IPoIB multicast group will be created. The no form of the command removes the use of IPoIB in this partition (it will not appear in the partitions.conf file).
Syntax Description force
Forces configuration
Default
no ipoib
Configuration Mode Config Partition
History
3.2.0500
3.5.1000
Added "force" parameter
3.6.8008
Added "force" parameter to "no" form
Role
admin
Example
switch (config) # ib partition my-partition switch (config partition my-partition) # ipoib
Related Commands
ib partition rate mtu sl scope
Notes
"rate", "mtu", "sl" and "scope" commands can be used only when the IPoIB parameter is enabled.
Mellanox Technologies
.
767
InfiniBand Switching
mtu
mtu <256, 512, 1K, 2K,4K> [force] no mtu
Specifies MTU for this IPoIB multicast group. The no form of the command sets the mtu to default (it will not appear in the partitions.conf file).
Syntax Description force
Forces configuration
Default
2K
Configuration Mode Config Partition
History
3.2.0500
3.5.1000
Added "force" parameter
Role
admin
Example
switch (config) # ib partition my-partition switch (config partition my-partition) # mtu 4K switch (config partition my-partition) #
Related Commands ipoib
Notes
IPoIB parameter on the partitions must be enabled in order to use this parameter
Mellanox Technologies
.
768
InfiniBand Switching
rate
rate <rate> [force] no rate
Specifies rate for this IPoIB multicast group. The no form of the command set the rate to default (removes the rate from the partitions.conf)
Syntax Description rate
� default - Default � 2.5 - 2.5 Gbps � 5 - 5 Gbps � 10 - 10 Gbps � 14 - 14 Gbps � 20 - 20 Gbps � 25 - 25 Gbps � 40 - 40 Gbps � 56 - 56 Gbps � 100 - 100 Gbps
force
Forces configuration
Default
10 Gbps.
Configuration Mode Config Partition
History
3.2.0500
3.4.1100
Updated rate Syntax Description
3.5.1000
Added "force" parameter
Role
admin
Example
switch (config) # ib partition my-partition switch (config partition my-partition) # rate 20 switch (config partition my-partition) #
Related Commands
Notes
� Ports that do not support the IPoIB rate are not added to the partition
Mellanox Technologies
.
769
InfiniBand Switching
scope
scope <type> [force] no scope <link-local, site-local, organization-local, global>
Specifies scope for this IPoIB multicast group. The no form of the command removes the scope configuration from the partitions.conf file
Syntax Description type
link-local site-local organization-local global
force
Forces configuration
Default
link-local
Configuration Mode Config Partition
History
3.2.0500
3.5.1000
Added "force" parameter
Role
admin
Example Related Commands
switch (config) # ib partition my-partition switch (config partition my-partition) # scope global switch (config partition my-partition) #
Notes
ipoib parameter on the partitions must be enabled in order to use this parameter.
Mellanox Technologies
.
770
InfiniBand Switching
sl
sl <0-14, "default"> [force] no sl
Specifies SL (Service Level - QoS) for this IPoIB multicast group. The no form of the command sets it to default (the sl configuration is removed from the partitions.conf file).
Syntax Description 0-14
force
Forces configuration
Default
default (0)
Configuration Mode Config Partition
History
3.2.0500
3.5.1000
Added "force" parameter
Role
admin
Example
switch (config) # ib partition my-partition switch (config partition my-partition) # sl 7 switch (config partition my-partition) #
Related Commands
Notes
ipoib parameter on the partitions must be enabled in order to use this parameter.
Mellanox Technologies
.
771
InfiniBand Switching
show ib partition
show ib partition [<partition-name> [member [<member-name>]]]
Displays partition info, with optional to filters.
Syntax Description partition-name
Filters the output per partition name
member <member-name> Filters the output by a specific member
Default
N/A
Configuration Mode Any command mode
History
3.2.0500
3.6.8008
Updated Example and note
Role
admin
Example
switch (config) # show ib partition Default
Default PKey = 0x7FFF ipoib = yes
Related Commands Notes
members GUID='ALL' member='full'
If bulk update mode is enabled, this command notifies the user that these changes may not have been applied yet.
Mellanox Technologies
.
772
InfiniBand Switching
5.5.6.3 Quality of Service (SM)
ib baseqos <port-type> high-limit
ib baseqos <port-type> high-limit <count>
Sets the high-limit value for the indicated port type. Thus the system will send at least 4096 * <count> bytes from the high priority list before sending any from the low priority list.
Syntax Description port-type
� ca - channel adapters � rtr - routers � sw0 - ports 0 only of the switches � swe - external ports of the switches
high-limit
Possible values are: -1...255 � -1 - default SM high-limit � 0 - 1 frame � i =1...254 - 4K * i � 255 - unlimited
Default
-1 (default SM high-limit).
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # ib baseqos ca high-limit 255 switch (config) #
show ib baseqos
Notes
A high-limit value of 255 means unlimited, and that makes it possible to starve the low priority list.
Mellanox Technologies
.
773
InfiniBand Switching
ib baseqos <port-type> max-vls <value>
ib baseqos <port-type> max-vls <value>
Sets the maximum number of VLs for the indicated port type.
Syntax Description port-type
ca - channel adapters rtr - routers sw0 - ports 0 only of the switches swe - external ports of the switches
value
Max VLs range between 1 and 15.
Default
15
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib baseqos ca max-vls 15 switch (config) # show ib baseqos ca max-vls 15 switch (config) #
Related Commands show ib baseqos
Notes
Mellanox Technologies
.
774
InfiniBand Switching
ib baseqos <port-type> sl2vl
ib baseqos <port-type> sl2vl {sl0 | sl0 sl1 | sl0 sl1 sl2 |...} no ib baseqos <port-type> sl2vl
Sets a list of up to 16 entries that map the SL entry to an appropriate VL. The no form of the command sets the attributes to their default settings.
Syntax Description port-type
ca - channel adapters rtr - routers sw0 - ports 0 only of the switches swe - external ports of the switches
sl[i]
A single vector (1 ... 16 elements), the command line
vector determine the SL [0...15] that is mapped to the
specified VL [0...15].
Default
The default mapping is: 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,7
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) #show ib baseqos ca sl2vl 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,7 switch (config) # ib baseqos ca sl2vl 10 10 10 switch (config) # show ib baseqos ca sl2vl 10,10,10,15,15,15,15,15,15,15,15,15,15,15,15,15 switch (config) #
show ib baseqos
Notes
Any missing SLs will be mapped to VL15.
Mellanox Technologies
.
775
InfiniBand Switching
ib baseqos <port-type> vlarb-high <value>
ib baseqos <port-type> vlarb-high {VW1 | VW1 VW2 | ...} no ib baseqos <port-type> vlarb-high
Sets up to 15 VL to Weight mapping pairs for high priority processing. The no form of the command sets the attributes to their default settings.
Syntax Description port-type
ca - channel adapters rtr - routers sw0 - ports 0 only of the switches swe - external ports of the switches
VW[i]
There are two possible options for this parameter: � A single vector (1 ...15) in the format of "#:#" sepa-
rated by spaces, see example below. � Format of "i#=X:Y" in order to change a specific
entry (see example below)
Default
The default mapping is: 0:4,1:0,2:0,3:0,4:0,5:0,6:0,7:0,8:0,9:0,10:0,11:0,12:0,13:0,14:0
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) #show ib baseqos ca vlarb-high 0:4,1:0,2:0,3:0,4:0,5:0,6:0,7:0,8:0,9:0,10:0,11:0,12:0,13:0,14:0 switch (config) # ib baseqos ca vlarb-high 0:10 1:10 switch (config) # show ib baseqos ca vlarb-high 0:10,1:10,2:0,3:0,4:0,5:0,6:0,7:0,8:0,9:0,10:0,11:0,12:0,13:0,14:0 switch (config) # ib baseqos sw0 vlarb-high i2=4:3 switch (config) # show ib baseqos sw0 vlarb-high 0:10,1:10,4:3,3:0,4:0,5:0,6:0,7:0,8:0,9:0,10:0,11:0,12:0,13:0,14:0
Related Commands show ib baseqos
Notes
� Unspecified elements will be filled with (index:0) � You may have multiple entries with the same VL on this list.
Mellanox Technologies
.
776
InfiniBand Switching
ib baseqos <port-type> vlarb-low <value>
ib baseqos <port-type> vlarb-low {VW1 | VW1 VW2 | ...} no ib baseqos <port-type> vlarb-low
Sets up to 15 VL to Weight mapping pairs for low priority processing. The no form of the command sets the attributes to their default settings.
Syntax Description port-type
ca - channel adapters rtr - routers sw0 - ports 0 only of the switches swe - external ports of the switches
VW[i]
There are two possible options for this parameter: � A single vector (1 ...15) in the format of "#:#" sepa-
rated by spaces, see example below. � Format of "i#=X:Y" in order to change a specific
entry (see example below)
Default
The default mapping is: 0:0,1:4,2:4,3:4,4:4,5:4,6:4,7:4,8:4,9:4,10:4,11:4,12:4,13:4,14:4
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib baseqos sw0 vlarb-low 1:1 switch (config) # show ib baseqos sw0 vlarb-low 1:1, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0, 14:0 switch (config) # ib baseqos sw0 vlarb-low i2=4:3 switch (config) # show ib baseqos sw0 vlarb-low 1:1, 1:0, 4:3, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0, 14:0 switch (config) #
Related Commands show ib baseqos
Notes
You may have multiple entries with the same VL on this list.
Mellanox Technologies
.
777
InfiniBand Switching
ib baseqos reset-config
ib baseqos reset-config
Resets all basic QoS configuration options to defaults.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # ib baseqos reset-config switch (config) #
Notes
Mellanox Technologies
.
778
InfiniBand Switching
show ib baseqos
show ib baseqos <port-type> <baseqos-parameters>
Displays the base ib QoS configuration.
Syntax Description port-type
� ca - channel adapters � rtr - routers � sw0 - ports 0 only of the switches � swe - external ports of the switches
baseqos-parameters
Possible values are: � high-limit - Display high limit (how many high pri
before low) � max-vls - Display maximum number of VLs sup-
ported on CAs in subnet � sl2vl - Display current SL-to-VL mapping vector � vlarb-high - Display current high priority VL arbi-
tration � vlarb-low - Display current low priority VL arbitra-
tion
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example
switch (config) # show ib baseqos ca high-limit 0 switch (config) #
Related Commands
Notes
Mellanox Technologies
.
779
InfiniBand Switching
ib qos
ib qos no ib qos
Syntax Description Default Configuration Mode History Role Example
Related Commands Notes
Enables advanced QoS management on this node The no form of the command disables advance QoS on this node.
N/A
advance qos is disabled.
config
3.1.0000
admin
switch (config) # ib qos switch (config) # show ib qos enable switch (config) #
show ib qos
Mellanox Technologies
.
780
InfiniBand Switching
ib qos level
ib qos level {<name> | default} {mtu-limit <mtu> | packet-life <time> | pkey <number> | rate-limit <rate-value> | sl <sl-value>| use <description>} no ib qos level {<name> | default} {mtu-limit | packet-life | pkey | rate-limit | sl | use}
Specifies a QoS level <name> or "default" parameters. The no form of the command set the parameters to default.
Syntax Description <name> | default
Specify a name for this qos group, or use the "default" for the default qos parameters.
mtu-limit <mtu>
MTU in bytes. Possible values are: 1k, 256, 2k, 4k, 512
packet-life <time>
Time a packet can wait in switch egress queue before being dropped. The bytes from 4 microsecond up to 2 seconds or infinite. Possible values are 0-20 0 - 4usec 1 - 8usec ... 20 - unlimited
pkey <number>
PKEY value: ranges between -1 and 32767 (hex 0x7fff)
rate-limit <rate-value>
Manages rate limits for QoS Policy levels. Possible values are (in Gbps): default, 2.5, 5, 10, 14, 20, 25, 40, 56, 100.
sl <sl-value>
Manages service level for QoS Policy levels. Range: 0-15.
use <description>
Specify usage description for this QoS level
Default
The default values are: use = "default QoS Level" sl = 0 mtu-limit = default rate-limit = default packet-life = 0x12 pkey = -1
Configuration Mode config
History
3.1.0000
3.4.1100
Updated description of "rate-limit" parameter
Role
admin
Mellanox Technologies
.
781
InfiniBand Switching
Example
Related Commands Notes
switch (config) # ib qos level my-qos-group mtu-limit 2K
switch (config) # show ib qos my-qos-group
my-qos-group:
use
= default QoS Level
sl
= 0
mtu-limit = 2K
rate-limit = default
packet-life = 0x12
pkey
= -1
switch (config) #
show ib qos
Mellanox Technologies
.
782
InfiniBand Switching
ib qos match-rule
ib qos match-rule <rule-index> { {destination | source} <string> | {pkey | qosclass | service-id} <index> {first | last} <value>} | qos-level-name <name>| use <description>} no ib qos match-rule <rule-index> { {destination | source} | {pkey | qos-class | service-id} <index> {first | last} } | qos-level-name | use }
Manages QoS Policy match rules. The no form of the command set the QoS match-rule to default.
Syntax Description rule-index
Index of this match-rule. Possible range is: 0-4294967295
destination | source <string>
Manages destination or source for QoS Policy match rules.
pkey | qos-class | service- Manages values for QoS Policy match rules. id <index>
{first | last} <value>
First or last value range (per PKEY / qos-class of service id.
qos-level-name <name> Name for the QoS level
use <description>
Specify usage description for this QoS level
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib qos match-rule 10 use my-use switch (config) # show ib qos match-rule 10 match-rule/10: match-rules: use = my-use match-rules: qos-level-name = DEFAULT switch (config) #
Related Commands show ib qos
Notes
Mellanox Technologies
.
783
InfiniBand Switching
ib qos port-group
ib qos port-group <name> {node-type <index> type <node-type> | partition <name>| pkey <number> | port-guid <index> {first | last} <value> | port-name <index> name <name-value>| use <description>} no ib qos port-group <name> {node-type <index> type | partition | pkey | portguid <index> {first | last} | port-name <index> name | use }
Manages QoS Policy port groups. The no form of the command removes a QoS port-group.
Syntax Description <name>
Port group name
node-type <index>
Node type index
type <node-type>
A node type for this port group
partition <name>
A Partition name
pkey <number>
A PKEY number
port-guid <index> {first | Port-guid range last} <value>
port-name <index> name Port index name <name-value>
use <description>
Specify usage description for this QoS level
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config)# ib qos port-group my-group use my-use switch (config)# show ib qos port-group my-group port-group/my-group: port-groups: pkey = -1 port-groups: use = my-use switch (config)#
Related Commands show ib qos
Notes
Mellanox Technologies
.
784
InfiniBand Switching
ib qos ulp any
ib qos ulp any {pkey | service-id | target-port-guid <index> {first | last | sl} <value> | sl <sl-vlaue>} no ib qos ulp any {pkey | service-id | target-port-guid <index> {first | last | sl} | sl}
Configures ULP any attributes. The no form of the command deletes ULP any attributes.
Syntax Description pkey <index>
Manages ULP default PKEY assignment.
service-id <index>
Manages default ULP Service ID match rule.
target-port-quid <index> Manages ULP default target port GUID rule.
first | last | sl <value>
� first - first value in range � last - last value n range � sl - Service level for the ULP rule
sl <sl-value>
Sets default SL.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # ib qos ulp any sl 2 switch (config) #
show ib qos
Notes
Mellanox Technologies
.
785
InfiniBand Switching
ib qos ulp ipoib
ib qos ulp ipoib {default sl <sl-value>| pkey <index> {first | last | sl} <value> } no ib qos ulp ipoib {default sl | pkey <index>}
Manages ULP IPoIB settings. The no form of the command deletes IPoIB settings.
Syntax Description default sl <sl-value>
Set the default sl. Range 1-15
pkey <index>
Manages ULP default PKEY assignment.
first | last | sl <value>
� first - first value in range � last - last value n range � sl - Service level for the ULP rule
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib qos ulp ipoib default sl 5 switch (config) #
Related Commands show ib qos
Notes
Mellanox Technologies
.
786
InfiniBand Switching
ib qos ulp <protocol-type>
ib qos ulp <protocol-type> {default sl <sl-value> | port-num< index> <first | last | sl> <value>} no ib qos ulp iser {default <sl> | port-num1 <first | last | sl>}
Syntax Description
Default Configuration Mode History Role Example Related Commands Notes
Configures ULP IScsi Extensions for RDMA, Reliable Datagram Sockets or Sockets Direct Protocol attributes. The no form of the command deletes all rules.
protocol-type
iser - Scsi Extensions for RDMA rds - Reliable Datagram Sockets sdp - Sockets Direct Protocol
default sl <sl-value>
Set the default sl. Range 1-15
port-num< index>
Port number index
first | last | sl
� first - First in range � last - in range � sl - Service level for the ULP rule
N/A
config
3.1.0000
admin
switch (config) # ib qos ulp iser default sl 2 switch (config) #
show ib qos
Mellanox Technologies
.
787
InfiniBand Switching
ib qos ulp srp
ib qos ulp srp target-port-guid <index> <first | last | sl> <value> no ib qos ulp srp target-port-guid <index>
Configures Scsi Rdma Protocol attributes The no form of the command deletes the rules.
Syntax Description target-port-guid <index> The index of the target port GUID
first | last | sl
� first - First in range � last - in range � sl - Service level for the ULP rule
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # ib qos ulp srp target-port-guid 1 sl 2 switch (config) #
Related Commands show ib qos
Notes
Mellanox Technologies
.
788
InfiniBand Switching
show ib qos
show ib qos [level | match-rule | port-group | ulp]
Displays InfiniBand QoS configurations
Syntax Description level
Displays QoS level configurations
match-rule
Displays QoS match-rule configurations
port-group
Displays QoS port-group configurations
ulp
Displays QoS ulp configurations
Default
N/A
Configuration Mode Any command mode
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # show ib qos level my-qos-level
my-qos-level:
use
= my-use
sl
= 0
mtu-limit = 2K
rate-limit = default
packet-life = 0x12
pkey
= -1
switch (config) #
Notes
Mellanox Technologies
.
789
InfiniBand Switching
5.5.6.4 Scatter Ports
ib sm scatter-ports
ib sm scatter-ports <seed> no ib sm scatter-ports
Activates scatter ports and sets seed for random number generation. The no form of the command deactivates the partition.
Syntax Description seed
Integer between 0-4294967295
Default
Disabled
Configuration Mode config
History
3.6.8008
Role
admin
Example
switch (config) # ib sm scatter-ports 123
Related Commands ib sm guid-routing-order-no-scatter
Notes
Setting seed value 0 disables scatter ports
Mellanox Technologies
.
790
show ib sm scatter-ports
show ib sm scatter-ports
Displays scatter port seed.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.8008
Role
admin
Example
switch (config) # show ib sm scatter-ports
Scatter ports seed: 234
switch (config) # show ib sm scatter-ports
Related Commands Notes
Scatter ports: disable
ib sm scatter-ports
InfiniBand Switching
Mellanox Technologies
.
791
InfiniBand Switching
5.5.6.5 GUID Routing Order
ib sm guid-routing-order add
ib sm guid-routing-order add <guid> [position <pos>]
Adds a new GUID to routing order list.
Syntax Description guid
GUID to add
position
A position for the new GUID may be specified
Default
If no position is specified, the new GUID is added to the end of the list
Configuration Mode config
History
3.6.8008
Role
admin
Example Related Commands
switch (config) # ib sm guid-routing-order add E4:1D:2D:03:00:3D:5E:87 position 6
ib sm guid-routing-order-no-scatter
Notes
Mellanox Technologies
.
792
InfiniBand Switching
ib sm guid-routing-order delete
ib sm guid-routing-order delete {<guid> | position <pos>}
Syntax Description
Default Configuration Mode History Role Example
Related Commands Notes
Deletes a guid from routing order list. The guid can be chosen by its guid or by its position on guid routing order list.
guid
GUID to delete
position
Deletes a GUID by specifying position number
N/A
config
3.6.8008
admin
switch (config) # ib sm guid-routing-order delete position 3 switch (config) # ib sm guid-routing-order delete E4:1D:2D:03:00:3D:5E:91
ib sm guid-routing-order-no-scatter
Mellanox Technologies
.
793
InfiniBand Switching
ib sm guid-routing-order move
ib sm guid-routing-order move <guid> to-position <pos>
Moves a GUID in the list to a specified position.
Syntax Description guid
GUID to move
position
A position for the new GUID may be specified
Default
N/A
Configuration Mode config
History
3.6.8008
Role
admin
Example
switch (config) # ib sm guid-routing-order move E4:1D:2D:03:00:3D:5E:91 to-position 2
Related Commands ib sm guid-routing-order-no-scatter
Notes
Mellanox Technologies
.
794
InfiniBand Switching
ib sm guid-routing-order move-down
ib sm guid-routing-order move-down <guid>
Moves a GUID position down in the GUID routing order list.
Syntax Description guid
GUID to move
Default
N/A
Configuration Mode config
History
3.6.8008
Role
admin
Example Related Commands
switch (config) # ib sm guid-routing-order move-down E4:1D:2D:03:00:3D:5E:91
ib sm guid-routing-order-no-scatter
Notes
Mellanox Technologies
.
795
InfiniBand Switching
ib sm guid-routing-order move-up
ib sm guid-routing-order move-up <guid>
Moves a GUID position up in the GUID routing order list.
Syntax Description guid
GUID to move
Default
N/A
Configuration Mode config
History
3.6.8008
Role
admin
Example Related Commands
switch (config) # ib sm guid-routing-order move-up E4:1D:2D:03:00:3D:5E:91
ib sm guid-routing-order-no-scatter
Notes
Mellanox Technologies
.
796
InfiniBand Switching
no ib sm guid-routing-order
no ib sm guid-routing-order
Disables the GUID routing order feature and cleans GUID routing order list.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.8008
Role
admin
Example
switch (config) # no ib sm guid-routing-order
Related Commands ib sm guid-routing-order-no-scatter
Notes
Mellanox Technologies
.
797
InfiniBand Switching
show ib sm guid-routing-order
show ib sm guid-routing-order
Displays current GUID routing order list.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.8008
Role
admin
Example
switch (config) # show ib sm guid-routing-order
Related Commands Notes
1: E4:1D:2D:03:00:3D:5E:85 2: E4:1D:2D:03:00:3D:5E:82 3: E4:1D:2D:03:00:3D:5E:81 4: E4:1D:2D:03:00:3D:5E:84 5: E4:1D:2D:03:00:3D:5E:86 6: E4:1D:2D:03:00:3D:5E:87 7: E4:1D:2D:03:00:3D:5E:90 8: E4:1D:2D:03:00:3D:5E:88 9: E4:1D:2D:03:00:3D:5E:83
ib sm guid-routing-order-no-scatter
Mellanox Technologies
.
798
InfiniBand Switching
ib sm guid-routing-order-no-scatter
ib sm guid-routing-order-no-scatter no ib sm guid-routing-order-no-scatter
Enables randomization for destinations mentioned in GUID order list. The no form of the command disables randomization for destinations mentioned in GUID order list.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.6.8008
Role
admin
Example
switch (config) # ib sm guid-routing-order-no-scatter
Related Commands ib sm guid-routing-order * ib sm scatter-ports
Notes
If scatter ports (randomization of the output port) is set to anything but zero, guidrouting-order-no-scatter defines whether or not randomization should be applied to the destination GUIDs mentioned in the GUID routing order list.
Mellanox Technologies
.
799
InfiniBand Switching
show ib sm guid-routing-order-no-scatter
show ib sm guid-routing-order-no-scatter
Displays the status of the GUID-routing-order-no-scatter feature
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.8008
Role
admin
Example
switch (config) # show ib sm guid-routing-order-no-scatter
Related Commands Notes
guid_routing_order_no_scatter: disabled
ib sm guid-routing-order * ib sm scatter-ports
Mellanox Technologies
.
800
5.5.6.6 Bulk Update Mode
ib sm bulk-update enable
ib sm bulk-update enable no ib sm bulk-update enable
Enables bulk update mode. The no form of the command disables bulk update mode.
Syntax Description N/A
Default
Disabled
Configuration Mode config
History
3.6.8008
Role
admin
Example
switch (config) # ib sm bulk-update enable
Related Commands show ib partition show ib sm bulk-update
Notes
InfiniBand Switching
Mellanox Technologies
.
801
show ib sm bulk-update
show ib sm bulk-update
Displays the status of bulk-update mode.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.6.8008
Role
admin
Example
switch (config) # show ib sm bulk-update
Related Commands Notes
ib sm bulk-update: enabled
show ib partition ib sm bulk-update enable
InfiniBand Switching
Mellanox Technologies
.
802
InfiniBand Switching
5.6 Subnet Manager (SM) High Availability (HA)
All nodes in an SM HA subnet must be of the same CPU type (e.g. x86), and must run the same MLNX-OS version.
High availability (HA) refers to a system or component that is continuously operational for a desirably extended period of time.
Figure 19: SM HA Subnet
Mellanox Subnet Manager (SM) HA reduces subnet downtime and disruption as it is continuously operational for a desirably long length of time. It assures continuity of the work even when one of the SMs dies. The database is synchronized with all the nodes participating in the InfiniBand subnet and a configuration change is prepared. The synchronization is done out-of-band using an Ethernet management network.
Mellanox SM HA allows the systems' manager to enter and modify all InfiniBand SM configuration of different subnet managers from a single location. It creates an InfiniBand subnet and associates all the Mellanox management appliances that are attached to the same InfiniBand subnet into that InfiniBand subnet ID. All subnet managers can be controlled, started, or stopped from this address.
All the nodes that participate in the Mellanox SM HA are joined to the InfiniBand subnet ID and once joined, the synchronized SMs are launched. One of the nodes is elected as Master and the others are Slaves (or down). Mellanox SM HA uses an IP address (VIP) that is always directed to the SM HA master to monitor the SM state and to verify that all configurations are executed.
5.6.1
Joining, Creating or Leaving an InfiniBand Subnet ID
When transitioning from standalone into a group or vice versa, a few seconds are required for the node state to stabilize. During that time, group feature commands (e.g. SM HA commands) should not be executed. To run group features, wait for the CLI prompt to turn into [standalone:master], [<group>:master] or [<group>:standby] instead of [standalone:*unknown*] or [<group>:*unknown*].
An InfiniBand subnet is formed by a network of InfiniBand nodes interconnected via InfiniBand switches. It includes all systems that can run an SM and is part of the SM HA domain. A switch that can potentially run an SM must be a member of an InfiniBand subnet ID to be associated with the Mellanox SM HA domain. An IB subnet is recognized by its ID which is used by the system to either join or leave the subnet.
Mellanox Technologies
.
803
InfiniBand Switching
Every system that is not associated to an existing IB subnet (has never been part of an IB subnet or has left an existing one) or does not have MLNX-OS license installed, is by default associated to a subnet called "Standalone".
In order to create, join or leave an InfiniBand subnet, one may use the following commands:
� Create � "ib ha <IB_subnet_ID> ip <ip_addr> <netmask>"
� Join � "ib ha <IB_subnet_ID>"
� Leave � "no ib ha"
When leaving an SM HA cluster, SM configuration is not saved on the node leaving the cluster. After leaving, the configuration is reset to its default values.
For further information see Section 5.6.5, "Creating and Adding Systems to an InfiniBand Subnet ID," on page 805.
5.6.2
MLNX-OS Management Centralized Location
MLNX-OS centralized management infrastructure enables the user to configure or modify an existing configuration and monitor the subnet running status. MLNX-OS centralized management IP (VIP) is defined when a new subnet manager is created by running the command ib ha <IB_subnet_ID> ip <ip_addr> <netmask>. The created VIP is used as the current subnet master's alias thus, assumes the same roles as the master.
The VIP always points to one of the systems part of the SM HA domain. It is always active even if one or more of the members are down. For example:
switch [standalone: master] (config) # ib ha subnet2 ip 192.168.10.110 255.255.255.0
switch [subnet2: master] (config) #
5.6.3
High Availability Node Roles
A node is an InfiniBand switch system. Every node member of an IB subnet ID has one of the following roles: � Master � the node that manages SM configurations and provides services to the Virtual
IP (VIP) addresses � Standby � the node that replaces the Master node and takes over its responsibilities once
the Master node is down � Offline � has run an SM in the past and is currently offline, or it was created manually by
the "ib smnode <node name> create" command. If the node has been removed from the environment, you can remove it from the list with the "no ib smnode xxx" command. To see the mode of the current node, look at the CLI prompt for the following format:
<host name> [<subnet ID>:<mode>] [standalone: master] (config) #
For example:
switch [ibstandalone: master] (config) #
Mellanox Technologies
.
804
InfiniBand Switching
To see a list of the existing nodes and details about the running state, run the command show ib smnodes {brief}.
5.6.4
Configuring MLNX-OS SM HA Centralized Location
The IP is used to configure or modify the existing configuration and monitor the subnet running status. To configure the IP: Step 1. Enter config mode. Run:
switch [standalone: master] > switch [standalone: master] > enable switch [standalone: master] # configure terminal
Step 2. Configure your IP using the ib ha <IB_subnet_ID> ip <ip_addr> <netmask> command.
switch [standalone: master] (config) # ib ha subnet2 ip 192.168.10.110 255.255.255.0 switch [subnet2: master] (config) #
5.6.5
Creating and Adding Systems to an InfiniBand Subnet ID
To create and add systems to a subnet: Step 1. Log into the system from where you are creating the subnet. Step 2. Enter config mode. Run:
switch [standalone: master] > switch [standalone: master] > enable switch [standalone: master] # configure terminal
Step 3. Create a new subnet using the ib ha <IB_subnet_ID> ip <ip_addr> <netmask> command.
switch [standalone: master] (config) # ib ha subnet2 ip 192.168.10.110 255.255.255.0 switch [subnet2: master] (config) #
You must run the ib ha <IB_subnet_ID> ip <ip_addr> <netmask> com-
mand only once per subnet ID.
Step 4. Step 5.
Log into the system that you are going to join to the new created subnet. Join the system to the subnet, using the ib ha <IB_subnet_ID> command.
switch [standalone: master] (config) # ib ha subnet2 switch [subnet2: standby] (config) #
5.6.6
Restoring Subnet Manager Configuration
In cases where the Subnet Manger configuration becomes corrupted or the subnet manager cannot raise any logical links it is suggested that you restore the default SM configuration.
Mellanox Technologies
.
805
To restore subnet manager configuration: Step 1. Enter config mode. Run:
switch [subnet2: master] > enable switch [subnet2: master] # configure terminal switch [subnet2: master] (config) #
Step 2. Run the command ib sm reset-config.
switch [subnet2: master] (config) # ib sm reset-config
InfiniBand Switching
The asterisk in the example above (*switch-11a15e) indicates the local system from where the command is running.
In order to receive information on the running state of a specific node one could run one of the following commands with its requested parameter: � show ib smnode <name> sm-licensed � show ib smnode <name> sm-running � show ib smnode <name> sm-state � show ib smnode <name> sm-priority � show ib smnode <name> active � show ib smnode <name> ha-state � show ib smnode <name> ha-role
5.6.6.1 Subnet Manager Configuration To configure the subnet manager, log into the centralized management IP (VIP). Once the SM configuration is created, the SM database is duplicated to the other nodes.
The SM must be configured from MLNX-OS centralized management IP (VIP). All the configurations that are not created or modified in the master node (using the VIP) are overridden by the master configuration.
The user can configure different SM parameters such as where to run the SM(s) or the SM priority by running the commands according to the desired action.
5.6.6.2 Mellanox High Availability and Opensm Handover/Failover
Mellanox Technologies products are fully compliant and interoperable with OpenSM.
Once an SM fails, the SM which takes over the subnet needs to reproduce the internal state of the failed master. Most of the information required is obtained by scanning the subnet and extracting the information from the devices. However, some information which is not stored directly in the network devices cannot be reproduced this way. InfiniBand management architecture limits such
Mellanox Technologies
.
806
InfiniBand Switching
information to data exchanged between clients (either user-level programs or kernel modules) and the Subnet Administration (SA) service (attached to the SM). The SA keeps this set of client registrations in an internal data structure called SA-DB. The SA-DB information includes the multicast groups, the multicast group members, subscriptions for event forwarding and service records.
The new SM may retrieve the SA-DB by requesting the clients to re-register with the SA or by obtaining a copy of the previous master SM internal SA-DB via an SA-DB dump file. The clientre-registration offers database correctness and the SA-DB dump file replication provides lower setup time. Client re-registration is required since the SA-DB may not be up-to-date on the registrations listed in the master SM.
Furthermore, since the SM does not maintain SA-DB information for unknown nodes, it is very possible that some of the SA-DB information relating to nodes momentarily disconnected from the master SM become purged. Therefore, these nodes must re-register with the new SM when they are reconnected (they receive a client-re-register request from the SM). Relying only on client re-registration is also non-optimal as it takes some time to recreate the entire SA-DB and the network state.
Mellanox SM HA replicates the SA-DB dump file from the current master SM to all the standby SMs running on Mellanox switches. The SA-DB dump file replication provides further optimization to the standby SM that becomes master.
Standby SM loads the existing SA-DB file the old master has used. By using the existing SA-DB the amount of processing needed on client re-registration is lessened resulting in a reduced time to complete setting up the network.
SM HA does not replace InfiniBand spec requirement for client reregistration.
Mellanox Technologies
.
807
InfiniBand Switching
5.6.7 Commands
ib ha
ib ha <IB_subnet_ID> [ip <IP address> <subnet mask> [force]] no ib ha
Creates a subnet <IB_subnet_ID> with the specified IP. The no form of the command removes this node from an InfiniBand subnet ID.
Syntax Description IB subnet ID
Simple group name for shared IB config
ip <IP address>
Assigns management IP address
netmask
Netmask (e.g. 255.255.255.0 or /24)
force
Joins if exists or creates if not
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # ib ha my-subnet switch (config) #
show ib ha
Notes
� A new subnet may be joined only after leaving the current one
Mellanox Technologies
.
808
InfiniBand Switching
ib smnode
ib smnode <hostname> [create | disable | enable | sm-priority <priority>] no ib smnode <hostname> [create | disable | enable | sm-priority]
Manages HA SM. The no form of the command removes HA SM node configuration.
Syntax Description hostname
Specifies <hostname> SM configuration to modify.
create
Creates SM configuration for selected node.
disable
Makes SM inactive on selected node.
enable
Makes SM active on selected node.
sm-priority <priority>
Sets SM selected node priority (0=low, 15=high).
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example Related Commands
switch (config) # ib smnode switch-1133ce create switch (config) #
show ib smnode show ib smnodes
Notes
Mellanox Technologies
.
809
InfiniBand Switching
show ib smnode
show ib smnode <hostname> {active | ha-role | ha-state | ip | sm-licensed | sm-priority | sm-running | sm-state}
Displays SM High availability information.
Syntax Description hostname
Specifies <hostname> SM configuration to display.
active
Displays whether <hostname> is currently active.
ha-role
Displays the High Availability role of <hostname>. Possible return values are: offline, unknown, master, standby, or disabled.
ha-state
Possible return values are: offline, init, searching, joining, online, creating, waiting, leaving, join-sync, failed, removed, or regroup.
ip
Displays the local management IP address associated
with the active node, <hostname>. If <hostname> is not
active, the command displays "offline".
sm-licensed
Displays if <hostname> has an SM license. The command will display "active" only if <hostname> is currently active and has a license.
sm-priority
Displays the SM priority for SM running on <hostname>.
sm-running
Displays if <hostname> has an SM running. The command will display "active" (that is, SM is running) only if <hostname> is currently active, has a license, is enabled as a potential SM, is active as SM, and if there is a maximum of 2 SMs in the fabric.
sm-state
Displays if SM is enabled to run on <hostname>.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show ib smnode my-hostname sm-state enabled switch (config) #
Related Commands show ib smnodes
Notes
Mellanox Technologies
.
810
InfiniBand Switching
show ib smnodes
show ib smnodes [brief]
Displays information about all the systems that are active or might be able to run SM.
Syntax Description brief
Displays brief info on all HA nodes.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show ib smnodes
HA state of switch infiniband-default
========================================
IB Subnet HA name: Piranha-648-324
HA IP address:
10.7.6.238/22
Active HA nodes: 1
HA node local information
Name:
43 (active)
SM-HA state: master
SM Licensed: yes
SM Running: stopped
SM Enabled: disabled
SM Priority: 0
IP:
10.7.7.43
<--- (local node)
HA node local information
Name:
324-A (not active)
SM Enabled: enabled
SM Priority: 10
IP:
offline
switch (config) # show ib smnodes brief
HA state of switch infiniband-default
========================================
IB Subnet HA name: Piranha-648-324
HA IP address:
10.7.6.238/22
Active HA nodes: 1
ID
SM-HA state IP
SM
Priority
--------------------------------------------------------------------
*43
master
10.7.7.43
disabled
0
324-A offline
offline
enabled
10
switch (config) #
Mellanox Technologies
.
811
Related Commands Notes
show ib smnode
InfiniBand Switching
Mellanox Technologies
.
812
InfiniBand Switching
show ib ha
show ib ha [brief]
Displays information about all the systems that are active or might be able to run SM.
Syntax Description brief
Displays HA information briefly.
Default
N/A
Configuration Mode config
History
3.1.0000
Role
admin
Example
switch (config) # show ib ha
Global HA state
==================
IB Subnet HA name:subnet4
HA IP address: 192.168.10.43/24
Active HA nodes: 2
ID
State Role
IP
SM Priority
--------------------------------------------------------------------
switch
standalone 192.168.10.42
disabled
switch
master
192.168.10.18
disabled
switch (config) #
Related Commands
Notes
Mellanox Technologies
.
813
5.7 Fabric Inspector
5.7.1
Running Diagnostics
To run ib fabric diagnostics: Step 1. Run test ib fabric to analyze the fabric.
switch (config) # test ib fabric % -W- Topology file is not specified.
Reports regarding cluster links will use direct routes. -I- Using port 0 as the local port. -I- Discovering ... 25 nodes (24 Switches & 1 CA-s) discovered.
InfiniBand Switching
-I---------------------------------------------------I- Bad Guids/LIDs Info -I---------------------------------------------------I- skip option set. no report will be issued
-I---------------------------------------------------I- Links With Logical State = INIT -I---------------------------------------------------W- link with LOG=INI found at direct path "24,19,17,20"
From: a Switch PortGUID=0x0002c90200405b98 Port=20 To: a Switch PortGUID=0x0002c90200405f98 Port=18 -W- link with LOG=INI found at direct path "24,19,17,21" From: a Switch PortGUID=0x0002c90200405b98 Port=21 To: a Switch PortGUID=0x0002c90200405fa0 Port=18 -W- link with LOG=INI found at direct path "24,19,17,22" From: a Switch PortGUID=0x0002c90200405b98 Port=22 To: a Switch PortGUID=0x0002c90200405fa0 Port=17 -W- link with LOG=INI found at direct path "24,19,17,23" From: a Switch PortGUID=0x0002c90200405b98 Port=23 To: a Switch PortGUID=0x0002c90200405f70 Port=17 -W- link with LOG=INI found at direct path "24,19,17,24" From: a Switch PortGUID=0x0002c90200405b98 Port=24 To: a Switch PortGUID=0x0002c90200405f70 Port=18 -W- link with LOG=INI found at direct path "24,19,17,25" From: a Switch PortGUID=0x0002c90200405b98 Port=25 To: a Switch PortGUID=0x0002c90200405f80 Port=17 -W- link with LOG=INI found at direct path "24,19,17,26" From: a Switch PortGUID=0x0002c90200405b98 Port=26 To: a Switch PortGUID=0x0002c90200405f80 Port=18 -W- link with LOG=INI found at direct path "24,19,17,27" From: a Switch PortGUID=0x0002c90200405b98 Port=27
Mellanox Technologies
.
814
InfiniBand Switching
To: a Switch PortGUID=0x0002c90200405f60 Port=17 -W- link with LOG=INI found at direct path "24,19,17,28"
From: a Switch PortGUID=0x0002c90200405b98 Port=28 To: a Switch PortGUID=0x0002c90200405f60 Port=18 -W- link with LOG=INI found at direct path "24,19,17,29" From: a Switch PortGUID=0x0002c90200405b98 Port=29 To: a Switch PortGUID=0x0002c90200405f68 Port=17 -W- link with LOG=INI found at direct path "24,19,17,30" From: a Switch PortGUID=0x0002c90200405b98 Port=30 To: a Switch PortGUID=0x0002c90200405f68 Port=18 -W- link with LOG=INI found at direct path "24,19,17,31" From: a Switch PortGUID=0x0002c90200405b98 Port=31 To: a Switch PortGUID=0x0002c90200405f88 Port=17 -W- link with LOG=INI found at direct path "24,19,17,32" From: a Switch PortGUID=0x0002c90200405b98 Port=32 To: a Switch PortGUID=0x0002c90200405f88 Port=18 -W- link with LOG=INI found at direct path "24,19,17,33" From: a Switch PortGUID=0x0002c90200405b98 Port=33 To: a Switch PortGUID=0x0012c90200405fa9 Port=18 -W- link with LOG=INI found at direct path "24,19,17,34" From: a Switch PortGUID=0x0002c90200405b98 Port=34 To: a Switch PortGUID=0x0012c90200405fa9 Port=17 -W- link with LOG=INI found at direct path "24,19,17,35" From: a Switch PortGUID=0x0002c90200405b98 Port=35 To: a Switch PortGUID=0x0002c90200405f90 Port=17 -W- link with LOG=INI found at direct path "24,19,17,36" From: a Switch PortGUID=0x0002c90200405b98 Port=36 To: a Switch PortGUID=0x0002c90200405f90 Port=18
-I---------------------------------------------------
-I- PM Counters Info
-I---------------------------------------------------
-W- lid=0x0016 guid=0x0002c90200405a90 dev=48438 Port=23
Performance Monitor counter : Value
symbol_error_counter
: 0xffff (overflow)
-I---------------------------------------------------I- Fabric Partitions Report (see ibdiagnet.pkey for a full hosts list) -I---------------------------------------------------I- PKey:0x7fff Hosts:1 full:1 partial:0
-I---------------------------------------------------I- IPoIB Subnets Check -I---------------------------------------------------
Mellanox Technologies
.
815
InfiniBand Switching
-I- Subnet: IPv4 PKey:0x7fff QKey:0x00000b1b MTU:2048Byte rate:10Gbps SL:0x00 -W- Suboptimal rate for group. Lowest member rate:20Gbps > group-rate:10Gbps
-I---------------------------------------------------I- Bad Links Info -I- No bad link were found -I---------------------------------------------------
Step 2.
-I- Done. Run time was 511 seconds. switch [subnet2: master] (config) #
Run show fabric sm to list the subnet managers.
switch [subnet2: master] (config) # show fabric sm
SM - master Port=9 lid=0x0001 guid=0x0002c90200405f60 dev=48438 priority:0
Step 3.
SM - standby The Local Device : Port=0 lid=0x0017 guid=0x0002c9020040c6d0 Port=10 lid=0x0018 guid=0x0002c9020040b2e8 dev=48438 priority:0 switch [subnet2: master] (config) #
dev=48438 priority:0
Run show fabric pm to display the performance counters' status.
switch [subnet2: master] (config) # show fabric pm % -------------------------------------------------------------------------------Port=27 lid=0x0014 guid=0x0012c90200405a81 dev=48438 -------------------------------------------------------------------------------symbol_error_counter = 0x0 link_error_recovery_counter = 0x0 link_down_counter = 0x0 port_rcv_errors = 0x0 port_xmit_discard = 0x0 vl15_dropped = 0x0 port_rcv_constraint_errors = 0x0 local_link_integrity_errors = 0x0 port_xmit_constraint_errors = 0x0 excesive_buffer_errors = 0x0 port_xmit_data = 0x7a1d8 port_rcv_data = 0x7a1d8 port_xmit_pkts = 0x1b23 port_rcv_pkts = 0x1b23 port_rcv_remote_physical_errors = 0x0 port_rcv_switch_relay_errors = 0x0 -------------------------------------------------------------------------------Port=28 lid=0x0014 guid=0x0012c90200405a81 dev=48438
Mellanox Technologies
.
816
InfiniBand Switching
-------------------------------------------------------------------------------symbol_error_counter = 0x0 link_error_recovery_counter = 0x0 link_down_counter = 0x0 port_rcv_errors = 0x0 port_xmit_discard = 0x0 vl15_dropped = 0x0 port_rcv_constraint_errors = 0x0 local_link_integrity_errors = 0x0 port_xmit_constraint_errors = 0x0 excesive_buffer_errors = 0x0 port_xmit_data = 0x7d7cf0 port_rcv_data = 0x7d7cf0 port_xmit_pkts = 0x1be2e port_rcv_pkts = 0x1be2e port_rcv_remote_physical_errors = 0x0 port_rcv_switch_relay_errors = 0x0 -------------------------------------------------------------------------------Port=10 lid=0x0006 guid=0x0002c90200405f98 dev=48438 -------------------------------------------------------------------------------symbol_error_counter = 0x0 link_error_recovery_counter = 0x0 link_down_counter = 0x0 port_rcv_errors = 0x0 ... ... ... -------------------------------------------------------------------------------Port=26 lid=0x0014 guid=0x0012c90200405a81 dev=48438 -------------------------------------------------------------------------------symbol_error_counter = 0x0 link_error_recovery_counter = 0x0 link_down_counter = 0x0 port_rcv_errors = 0x0 port_xmit_discard = 0x0 vl15_dropped = 0x0 port_rcv_constraint_errors = 0x0 local_link_integrity_errors = 0x0 port_xmit_constraint_errors = 0x0 excesive_buffer_errors = 0x0 port_xmit_data = 0x536d0 port_rcv_data = 0x536d0 port_xmit_pkts = 0x128a port_rcv_pkts = 0x128a
Mellanox Technologies
.
817
InfiniBand Switching
Step 4.
port_rcv_remote_physical_errors = 0x0
port_rcv_switch_relay_errors = 0x0
switch [subnet2: master] (config) #
Run show interfaces ib to display the status and configuration of the system's InfiniBand ports.
switch [subnet2: master] (config) # show interfaces ib
Slot 1 port 1 state
Logical port state : Active
Physical port state : 10
Current line rate : 40.0 Gbps
Supported speeds : 10
Speed
: 10.0 Gbps
Supported widths : 10
Width
: 12X
Max supported MTUs : 10
MTU
: 10
VL capabilities : 10
Operational VLs : 10
RX bytes
: 255
RX packets
: 255
RX errors
: 255
Symbol errors
: 255
VL15 dropped packets: 255
TX bytes
: 255
TX packets
: 255
TX wait
: 255
TX discarded packets: 255
Slot 1 port 2 state
Logical port state : Active
Physical port state : 10
Current line rate : 40.0 Gbps
Supported speeds : 10
Speed
: 10.0 Gbps
Supported widths : 10
Width
: 12X
Max supported MTUs : 10
MTU
: 10
VL capabilities : 10
Operational VLs : 10
RX bytes
: 255
Mellanox Technologies
.
818
InfiniBand Switching
RX packets
: 255
RX errors
: 255
Symbol errors
: 255
VL15 dropped packets: 255
TX bytes
: 255
TX packets
: 255
TX wait
: 255
TX discarded packets: 255
Slot 1 port 3 state
...
...
Slot 1 port 36 state
Logical port state : Active
Physical port state : 10
Current line rate : 40.0 Gbps
Supported speeds : 10
Speed
: 10.0 Gbps
Supported widths : 10
Width
: 12X
Max supported MTUs : 10
MTU
: 10
VL capabilities : 10
Operational VLs : 10
RX bytes
: 255
RX packets
: 255
RX errors
: 255
Symbol errors
: 255
VL15 dropped packets: 255
TX bytes
: 255
TX packets
: 255
TX wait
: 255
TX discarded packets: 255
switch [subnet2: master] (config) #
5.7.2
Mapping GUIDs to Node Names
To replace module GUIDs and assign meaningful names to modules use the ib nodename command.
Mellanox Technologies
.
819
InfiniBand Switching
5.7.3
Importing ibdiagnet Fabric Data
The ib fabric import command imports a "snapshot" of fabric data. The imported file is an output of the ibdiagnet tool that has previously run on any node connected to the fabric. Prior to importing fabric data, it is required to run the ibdiagnet tool to produce fabric data files. Note that there are two versions of the ibdiagnet tool. The earlier version produces three output files describing the fabric (ibdiagnet.db, ibdiagnet.pm, and ibdiagnet.sm), whereas the new version produces a single file (ibdiagnet.db_csv). To make an ibdiagnet run and import its fabric data: Step 1. Collect ibdiagnet data.
Run the following command from any node connected to the fabric. By default, ibdiagnet places the output file(s) under /tmp. Old ibdiagnet version:
> ibdiagnet -csv -skip dup_guids zero_guids logical_state part ipoib -pm
New ibdiagnet version:
> ibdiagnet -pm
Step 2. Change directory to the ibdiagnet output directory. The default directory is /tmp.
> cd <ibdiagnet output directory>
Step 3. Create an ibdiagnet output tarball. Run:
> tar cvzf <filename>.tgz ibdiagnet*
Step 4. Copy the tarball <filename>.tgz to the switch using the image fetch command. Run (in enable or config mode):
switch # image fetch scp://<user name>:<password>@<hostname>/<full path to <filename>.tgz> 100.0%[################################################################################# ###################################################] switch #
Step 5. Import the ibdiagnet file(s). Run:
switch [subnet2: master] (config) # ib fabric <filename>.tgz Fabric data import successful switch [subnet2: master] (config) #
Mellanox Technologies
.
820
5.7.4 Commands
InfiniBand Switching
ib fabric import
ib fabric import <filename>
Imports a "snapshot" of fabric data. It retrieves fabric data from the following ibdiagnet output files: ibdiagnet.db, ibdiagnet.sm and ibdiagnet.pm.
Syntax Description filename
The imported file. It is an output of the ibdiagnet tool that has previously run on any node connected to the fabric, and is assumed to be a zip file with a .gz or .tgz extension.
Default
N/A
Configuration Mode config
History
3.1.1400
Role
admin
Example
switch (config) # ib fabric import snapshot.tgz switch (config) #
Related Commands show ib fabric node
Notes
� To display the results of this import, you may run "show ib fabric" commands (e.g., "show ib fabric node type switch")
� Imported data can be displayed as long as you do not run the command "ib fabric refresh", which overwrites the imported data
� The import command cannot execute without the ibdiagnet.db file
Mellanox Technologies
.
821
InfiniBand Switching
ib fabric monitor
ib fabric monitor no ib fabric monitor
Enables fabric monitoring. The no form of the command disables fabric monitoring.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.1400
Role
admin
Example
switch (config) # ib fabric monitor
Related Commands show ib fabric monitor
Notes
Mellanox Technologies
.
822
InfiniBand Switching
ib fabric nodenames
ib fabric nodenames no ib fabric nodenames
Imports fabric SysNames. The no form of the command removes imported SysNames.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.1400
Role
admin
Example Related Commands
switch (config) # ib fabric nodenames switch (config) #
Notes
Mellanox Technologies
.
823
InfiniBand Switching
ib fabric refresh
ib fabric refresh
Takes a "snapshot" of the current fabric data.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.1400
Role
admin
Example Related Commands
switch (config) # ib fabric refresh switch (config) #
show ib fabric node
Notes
If the fabric is large, this command may take a long time to complete. this command requires license (LIC-fabric-inspector)
Mellanox Technologies
.
824
InfiniBand Switching
ib fabric transceiver-info
ib fabric transceiver-info enable no ib fabric transceiver-info enable
Enables collection of active cable info. The no form of the command disables collection of active cable info.
Syntax Description N/A
Default
N/A
Configuration Mode config
History
3.1.1400
Role
admin
Example
switch (config) # ib fabric transceiver-info enable
Related Commands show ib fabric node
Notes
Mellanox Technologies
.
825
test ib fabric
test ib fabric [route]
Perform infiniband fabric test
Syntax Description route
Default
N/A
Configuration Mode config
History
3.1.0000
Role
monitor/admin
InfiniBand Switching
Mellanox Technologies
.
826
Example
InfiniBand Switching
switch (config) # (config) # test ib fabric % ----------I- Plugins load will be skipped
--------------------------------------------Discovery -I- Discovering ... 1 nodes (1 Switches & 0 CA-s) discovered. -I- Discovery finished successfully
-I- Duplicated GUIDs detection finished successfully
-I- Duplicated Nodes Descriptions detection finished successfully
--------------------------------------------Lids Check -E- Lids Check finished with errors
--------------------------------------------Links Check -I- Links Check finished successfully
--------------------------------------------Subnet Manager -I- SM Info retrieving finished successfully
-E- Subnet Manager Check finished with errors -E- Not found master subnet manager in fabric
--------------------------------------------Port Counters -I- Lids Check failed, no response for some MADs can occurred -I- Ports counters retrieving finished successfully
-I- Ports counters value Check finished successfully
-I- Ports counters Difference Check will be skipped - pause time is zero --------------------------------------------Nodes Information -I- Lids Check failed, no response for some MADs can occurred -W- Nodes Info retrieving finished with errors
-I- FW Check finished successfully
--------------------------------------------Speed / Width checks -I- Link Speed Check (Compare to supported link speed) -I- Links Speed Check finished successfully
-I- Link Width Check (Compare to supported link width) -I- Links Width Check finished successfully
---------------------------------------------
Summary
-I- Stage
Warnings Errors
-I- Discovery
0
0
-I- Lids Check
0
1
-I- Links Check
0
0
-I- Subnet Manager
0
1
-I- Port Counters
0
0
-I- Nodes Information
1
0
-I- Speed / Width checks
0
0
...
switch (config) #
Comment
Mellanox Technologies
.
827
Related Commands Notes
InfiniBand Switching
Mellanox Technologies
.
828
InfiniBand Switching
show ib fabric connections
show ib fabric connections [attrib <speed/width>] [details] [type]
Displays the ib fabric connections with optional relevant filter.
Syntax Description attrib <speed/width>
Attribute of connection to filter on.
details
Displays details info.
type
Filter connections by type.
� sw-2-sw-any - Any sort of switch to switch connec-
tion
� sw-2-sw-int - Internal switch to switch connection
� sw-2-sw-ext - External switch to switch connection
� sw-2-ca - Switch to host connection
� ca-2-ca - Host to host connection
Default
N/A
Configuration Mode Any command mode
History
3.1.1400
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ib fabric connections
-----------------------------------------------------------------------------------------------------
PORT-1
PORT-2
DESCRIPTION
-----------------------------------------------------------------------------------------------------
00:08:F1:00:01:08:B5:C0-0001 00:08:F1:05:00:20:2F:7B-0035 Active 4X @ 5.0 Gbps mtu=4096 VL0
00:02:C9:03:00:61:FA:20-0001 00:08:F1:05:00:20:2F:7B-0011 Active 4X @ 10 Gbps mtu=4096 VL0, VL1
00:02:C9:03:00:61:FA:30-0002 00:08:F1:05:00:20:2F:7B-0013 Active 4X @ 10 Gbps mtu=4096 VL0, VL1
00:02:C9:03:00:61:FA:30-0001 00:08:F1:05:00:20:2F:7B-0014 Active 4X @ 10 Gbps mtu=4096 VL0, VL1
00:02:C9:03:00:5D:30:72-0004 00:08:F1:05:00:20:2F:7B-0017 Active 4X @ 10 Gbps mtu=4096 VL0 - VL7
00:02:C9:03:00:5D:30:72-0001 00:08:F1:05:00:20:2F:7B-0034 Active 4X @ 10 Gbps mtu=4096 VL0 - VL7
00:02:C9:03:00:30:95:90-0001 00:02:C9:03:00:5D:D7:B0-0003 Active 4X @ 10 (FDR10) mtu=2048 VL0 - VL7
00:02:C9:03:00:4A:E6:FE-0001 00:02:C9:03:00:5D:D7:B0-0007 Active 4X @ 10 Gbps mtu=2048 VL0 - VL7
00:02:C9:03:00:30:95:A0-0001 00:02:C9:03:00:5D:D7:B0-0008 Active 4X @ 10 (FDR10) mtu=2048 VL0 - VL7
00:02:C9:03:00:2E:E3:F0-0001 00:02:C9:03:00:5D:D7:B0-0011 Active 4X @ 10 (FDR10) mtu=2048 VL0 - VL7
Related Commands
Notes
Mellanox Technologies
.
829
InfiniBand Switching
show ib fabric messages
show ib fabric messages
Displays the InfiniBand fabric error and warning messages.
Syntax Description N/A
Default
N/A
Configuration Mode Any command mode
History
3.1.1400
3.7.00xx
Updated Example
Role
admin
Example
switch (config) # show ib fabric messages
0: Error : No SM on fabric
1: Warning: Port m_key_violations found
Additional information: port E4:1D:2D:03:00:5D:1E:A4-0001
2: Warning: Port m_key_violations found
Additional information: port E4:1D:2D:03:00:68:EA:CA-0001
3: Warning: Loopback cable
Related Commands Notes
Additional information: port 7C:FE:90:03:00:A5:A4:60-0035 port 7C:FE:90:03:00:A5:A4:60-0036
Mellanox Technologies
.
830
InfiniBand Switching
show ib fabric monitor
show ib fabric monitor [<type>]
Displays the InfiniBand fabric monitor admin state and statistics count.
Syntax Description type
� active-links - Displays number of active point-topoint links
� active-ports - Displays number of active ports in subnet
� host-ports - Displays number of CA ports in subnet � nodes - Displays number of active IB chips in sub-
net � snapshot-time - Date/time of this snapshot � switches - Displays number of switches in subnet � systems - Displays number of active systems in sub-
net � unique-GUIDs - Displays total number of unique
GUIDs on fabric � warnings - Displays number of topology warnings
issued
Default
N/A
Configuration Mode Any command mode
History
3.1.1400
Role
admin
Example
switch (config) # show ib monitor active-links 17 switch (config) # show ib monitor enable switch (config) #
Related Commands
Notes
Mellanox Technologies
.
831
InfiniBand Switching
show ib fabric node
show ib fabric node <system-guid>
Displays InfiniBand fabric info on one node.
Syntax Description system-guid
GUID of node to be displayed
Default
N/A
Configuration Mode Any command mode
History
3.1.1400
3.6.6000
Updated Example
Role
admin
Example Related Commands
switch (config) # show ib fabric node 7C:FE:90:03:00:6F:3A:6B
System - 7C:FE:90:03:00:6F:3A:6A node 7C:FE:90:03:00:6F:3A:6B Node
details:
System GUID:
7C:FE:90:03:00:6F:3A:6A
Type:
CA standalone PCI 4115:713
Ports:
1
Cable support: Supported
PCI Device ID: 4115
PCI Vendor ID: 0x0002c9
Base version: 1
Class version: 1
Revision:
0
Partition cap: 128
Descriptions: fit152 HCA-6
Notes
Mellanox Technologies
.
832
InfiniBand Switching
show ib fabric node ports
show ib fabric node <system-guid> ports
Displays InfiniBand fabric and port info for this node.
Syntax Description system-guid
GUID of node to be displayed
Default
N/A
Configuration Mode Any command mode
History
3.1.1400
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ib fabric node 7C:FE:90:03:00:6F:3A:6B ports
System - 7C:FE:90:03:00:6F:3A:6A node 7C:FE:90:03:00:6F:3A:6B Node details:
System GUID: 7C:FE:90:03:00:6F:3A:6A
Type:
CA standalone PCI 4115:713
Ports:
1
Cable support: Supported
PCI Device ID: 4115
PCI Vendor ID: 0x0002c9
Base version: 1
Class version: 1
Revision:
0
Partition cap: 128
Descriptions: fit152 HCA-6
Related Commands Notes
------------------------------------------------------------------------------
Type Port
Desc
State Rate
------------------------------------------------------------------------------
CA
7C:FE:90:03:00:6F:3A:6B-0001 Port 1
Link Up 100 Gbps
Mellanox Technologies
.
833
InfiniBand Switching
show ib fabric nodes
show ib fabric nodes [cable <cable-options>] [role <role-options>] [type <system-type>]
Displays InfiniBand fabric info on all nodes with filtering options.
Syntax Description cable-options
Filters the list by cable type: � errors - Node with cable errors � no-errors - Node with no cable errors � supports - Node support active cables � no-support - Node does not support active cables
role-options
Filters the list by role: � multi-chip - Systems with more than 1 nodes � single-chip - Systems with 1 node � leaf - Leaf node � spine - Spine node � <system> - Any supported system
system-type
Filters the list by system type: � switch - Switches only � host - Hosts only � router - Routers only � unknown - Unknowns systems only
Default
N/A
Configuration Mode Any command mode
History
3.1.1400
3.6.6000
Updated Example
Role
admin
Example Related Commands
switch (config) # show ib fabric node
-------------------------------------------------------------------------------
System name/GUID
Type
Node GUID
Description
-------------------------------------------------------------------------------
00:02:C9:03:00:5C:F7:20 SW
00:02:C9:03:00:5C:F7:20
PCI 51000:713
00:02:C9:03:00:09:DA:BD CA
00:02:C9:03:00:09:DA:BA
PCI 26428:713
00:02:C9:03:00:09:28:17 CA
00:02:C9:03:00:09:28:14
PCI 26428:713
00:02:C9:03:00:5C:6E:00 SW
00:02:C9:03:00:5C:6E:00
PCI 51000:713
switch (config) #
Notes
Mellanox Technologies
.
834
InfiniBand Switching
show ib fabric port
show ib fabric port <port-guid>
Displays InfiniBand fabric info on one port in the fabric.
Syntax Description port-guid
GUID of port to be displayed
Default
N/A
Configuration Mode Any command mode
History
3.1.1400
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ib fabric port 7C:FE:90:03:00:6F:3A:6B-0001
System - Model Node 7C:FE:90:03:00:6F:3A:6A port
7C:FE:90:03:00:6F:3A:6B-0001:
Capabilities:
[Trap,SL_Map,sys-
GUID,Cbl_Info,Ext_Spd,Ext_CM2,CM,VendClass,CapMask,Rereg,Lcl_No-
tice,MC_Pkey_Trp]
Type:
CA
Port state:
Link Up
Speed:
25 Gbps
Supported speeds:
2.5 / 5 / 10 / 10 (FDR10) /14 / 25 Gbps
Width:
4X
Supported widths:
1X, 4X
Operational VLs:
VL0 - VL3
VL capabilities:
VL0 - VL3
LID:
2
LMC:
0
M-Key:
00:00:00:00:00:00:00:00
Lease period:
0
Subnet prefix:
FE:80:00:00:00:00:00:00
HOQ lifetime:
About 4 uS
LID of master SM:
1 (SL 0)
SM on port:
No
Port GUID:
7C:FE:90:03:00:6F:3A:6B
System GUID:
7C:FE:90:03:00:6F:3A:6A
MTU:
4096
Max supported MTUs: 4096
VL arbitration high: 8
VL Arbitration low: 8
VL high limit:
4
VL stall count:
0
Has errors:
true
Has traffic:
true
Data traffic statistics:
Xmit frames:
25032
Recv frames:
25033
Xmit bytes:
7209216
Recv bytes:
7209504
Non-zero error counters:
Mellanox Technologies
.
835
Related Commands Notes
InfiniBand Switching
Mellanox Technologies
.
836
InfiniBand Switching
show ib fabric ports
show ib fabric ports [attrib <attrib-options>] [data <data-options>] [errors <errors-options>] [sm <sm-options>] [state <state-options>] [type <port-typeoptions>]
Syntax Description
Displays InfiniBand fabric info on all ports with filtering options.
attrib-options
Filters the speed and width.
data-options
Filters port by data transfer counts: � none - No data � any - Any data � lots - High rate of data � little - Low rate of data
errors-options
Filters port by error counts: � none- No errors � any - Any errors � symbol - Any symbol errors � recv - Any receive errors � sym-or-recv - Any symbol or receive errors � cable - Any cable errors
sm-options
Filters port by SM running states: � active - Has an active SM � none - Does not have an SM � master - Has master SM � standby - Has a standby SM
state-options
Filters port by port state: � linkup - Link up state � polling - Polling state � unusual - Any unusual state � normal - Link up or polling state
port-type-options
Filters port by port type: � switch-any-port - All switch ports � switch-port0 - Switch port 0 only � switch-not-P0 - Switch ports except 0 � switch-int - Internal switch ports � switch-ext - External switch ports � port-has-lid - CA or switch port 0 � has-cable-info - Port has an active cable � has-no-cable-info - No active cable on port � host - Host ports � router - Router ports � has-valid-LID - Ports with valid LIDs � invalid-LID - Ports with invalid LIDs � unknown - Unknown ports
Mellanox Technologies
.
837
InfiniBand Switching
Default
Configuration Mode Any command mode
History
3.1.1400
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ib fabric ports
-----------------------------------------------------------------------------------------------------------
System GUID
Type Port
Desc
State Rate
-----------------------------------------------------------------------------------------------------------
F4:52:14:03:00:44:87:C0 SW F4:52:14:03:00:44:87:C2-0000 Switch port 0 Link Up 10 Gbps
F4:52:14:03:00:44:87:C0 SW F4:52:14:03:00:44:87:C2-0001 Port 1
Polling Up to 10 Gbps
F4:52:14:03:00:44:87:C0 SW F4:52:14:03:00:44:87:C2-0002 Port 2
Polling Up to 10 Gbps
F4:52:14:03:00:44:87:C0 SW F4:52:14:03:00:44:87:C2-0003 Port 3
Polling Up to 10 Gbps
Related Commands
Notes
Mellanox Technologies
.
838
InfiniBand Switching
show ib fabric sys
show ib fabric sys [config <config> | type <type>]
Displays list of all systems on the fabric.
Syntax Description config
Configuration of system according to which to filter
type
Type of system according to which to filter
Default
N/A
Configuration Mode Any command mode
History
3.6.6000
Role
admin
Example
switch (config) # show ib fabric sys
------------------------------------------------------------------------------------
System GUID
Model
Port Count
Type
Node Count
------------------------------------------------------------------------------------
F4:52:14:03:00:71:55:30
36
SW
1 node
7C:FE:90:03:00:6F:3A:6A
1
host
1 node
7C:FE:90:03:00:2E:A2:B8
1
host
1 node
Related Commands
Notes
Mellanox Technologies
.
839
InfiniBand Switching
show ib fabric system
show ib fabric system <system-guid>
Displays InfiniBand fabric info on a specific system.
Syntax Description system-guid
GUID of system to be displayed
Default
N/A
Configuration Mode Any command mode
History
3.1.1400
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ib fabric system F4:52:14:03:00:71:55:30
System - F4:52:14:03:00:71:55:30:
System:
36 port SW
Element count: 1
Description:
SB7800
Related Commands
Notes
Mellanox Technologies
.
840
InfiniBand Switching
show ib fabric system nodes
show ib fabric system <system-guid> nodes
Displays InfiniBand fabric info on a specific system as well as a list of node info.
Syntax Description system-guid
GUID of system to be displayed
Default
N/A
Configuration Mode Any command mode
History
3.1.1400
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ib fabric system F4:52:14:03:00:71:55:30 nodes
System - F4:52:14:03:00:71:55:30:
System:
36 port SW
Element count: 1
Description:
SB7800
Related Commands Notes
----------------------------------------------------------------------
Node GUID
Role
Ports Type Description
----------------------------------------------------------------------
F4:52:14:03:00:71:55:30
standalone 36 SW
PCI 52000:713
Mellanox Technologies
.
841
InfiniBand Switching
show ib fabric system ports
show ib fabric system <system-guid> ports
Displays InfiniBand fabric info on a specific system as well as a list of port info.
Syntax Description system-guid
GUID of system to be displayed
Default
N/A
Configuration Mode Any command mode
History
3.1.1400
3.6.6000
Updated Example
Role
admin
Example
switch (config) # show ib fabric system F4:52:14:03:00:71:55:30 ports
System - F4:52:14:03:00:71:55:30:
System:
36 port SW
Element count: 1
Description: SB7800
Related Commands Notes
------------------------------------------------------------------------------
Type Port
Desc
State Rate
------------------------------------------------------------------------------
SW
F4:52:14:03:00:71:55:30-0000 Switch port 0
Link Up 10 Gbps
SW
F4:52:14:03:00:71:55:30-0001 Port 1
Link Up 100 Gbps
SW
F4:52:14:03:00:71:55:30-0002 Port 2
Link Up 100 Gbps
SW
F4:52:14:03:00:71:55:30-0003 Port 3
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0004 Port 4
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0005 Port 5
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0006 Port 6
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0007 Port 7
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0008 Port 8
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0009 Port 9
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0010 Port 10
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0011 Port 11
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0012 Port 12
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0013 Port 13
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0014 Port 14
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0015 Port 15
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0016 Port 16
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0017 Port 17
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0018 Port 18
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0019 Port 19
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0020 Port 20
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0021 Port 21
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0022 Port 22
Polling Up to 100 Gbps
SW
F4:52:14:03:00:71:55:30-0024 Port 23
Link Up 56 Gbps
...
Mellanox Technologies
.
842
Appendix A: Enhancing System Security According to NIST SP 800-131A
Mellanox switch systems comply by default with NIST SP 800-131A as described in the table below.
Table 41 - Supported Event Notifications and MIB Mapping
Component HTTP HTTPS
SSH
Configuration
HTTP disabled HTTPS enabled SSL ciphers = TLS1.2 SSL renegotiation disabled SSH version = 2 SSH ciphers = aes256-ctr, aes192-ctr, aes128-ctr, aes128-gcm@openssh.com, aes256-gcm@openssh.com
Command no web http enable no web https enable web https ssl ciphers all web https ssl renegotiation enable ssh server min-version 1 no ssh server security strict
A.1
Overview
This appendix describes how to enhance the security of a system in order to comply with the NIST SP 800-131A standard. This standard is a document which defines cryptographically "acceptable" technologies. This document explains how to protect against possible cryptographic vulnerabilities in the system by using secure methods. Because of compatibility issues, this security state is not the default of the system and it should be manually set.
Some protocols, however, cannot be operated in a manner that complies with the NIST SP 800-131A standard.
A.2 Web Certificate
MLNX-OS supports signature generation of sha256WithRSAEncryption, sha1WithRSAEncryption self-signed certificates, and importing certificates as text in PEM format.
Mellanox Technologies
.
843
To configure a default certificate: Step 1. Create a new sha256 certificate. Run:
switch (config) # crypto certificate name <cert name> generate self-signed hash-algorithm sha256
For more details and parameters refer to the command crypto certificate name in the Mellanox MLNX-OS User Manual.
Step 2. Show crypto certificate detail. Run:
switch (config) # show crypto certificate detail
Search for "signature algorithm" in the output. Step 3. Set this certificate as the default certificate. Run:
switch (config) # crypto certificate default-cert name <cert name>
To configure default parameters and create a new certificate: Step 1. Define the default hash algorithm. Run:
switch (config) # crypto certificate generation default hash-algorithm sha256
Step 2. Generate a new certificate with default values. Run:
switch (config) # crypto certificate name <cert name> generate self-signed
When no options are selected, the generated certificate uses the default values for each field.
To test strict mode connect to the WebUI using HTTPS and get the certificate. Search for "signature algorithm".
There are other ways to configure the certificate to sha256. For example, it is possible to use certificate generation default hash-algorithm and then regenerate the certificate using these default values. Please refer to the Mellanox MLNX-OS User Manual for further details.
It is recommended to delete browsing data and previous certificates before retrying to connect to the WebUI.
Make sure not to confuse "signature algorithm" with "Thumbprint algorithm".
Mellanox Technologies
.
844
A.3 Code Signing
Code signing is used to verify that the data in the image is not modified by any third-party. MLNX-OS supports signing the image files with SHA256, RSA2048 using GnuPG.
Strict mode is operational by default.
A.4
SNMP
SNMPv3 supports configuring username, authentication keys and privacy keys. For authentication keys it is possible to use MD5 or SHA. For privacy keys AES or DES are to be used. To configure strict mode, create a new user with HMAC-SHA1-96 and AES-128. Run:
switch (config) # snmp-server user <username> v3 auth sha <password1> priv aes-128 <password2>
To verify the user in the CLI, run:
switch (config) # show snmp user
To test strict mode, configure users and check them using the CLI, then run an SNMP request with the new users.
For more information please refer to the Mellanox MLNX-OS User Manual.
SNMPv1 and SNMPv2 are not considered to be secure. To run in strict mode, only use SNMPv3.
A.5
SSH
The SSH server on the switch by default uses secure ciphers only, message authentication code (MAC), key exchange methods, and public key algorithm. When configuring SSH server to strict mode, the aforementioned security methods only use approved algorithms as detailed in the NIST 800-181A specification and the user can connect to the switch via SSH in strict mode only.
Mellanox Technologies
.
845
To enable strict security mode, run:
switch (config) # ssh server security strict
The following ciphers are disabled for SSH when strict security is enabled: � 3des-cbc � aes256-cbc � aes192-cbc � aes128-cbc � arcfour � blowfish-cbc � cast128-cbc � rijndael-cbc@lysator.liu.se
The no form of the command disables strict security mode. Make sure to configure the SSH server to work with minimum version 2 since 1 is vulnerable to security breaches. To configure min-version to strict mode, run:
switch (config) # ssh server min-version 2
Once this is done, the user cannot revert back to minimum version 1.
A.6
HTTPS
By default, MLNX-OS supports HTTPS encryption using TLS1.2 only. Working in TLS1.2 mode also bans MD5 ciphers which are not allowed per NIST 800-131a. In strict mode, the switch supports encryption with TLS1.2 only with the following supported ciphers: � RSA_WITH_AES_128_CBC_SHA256 � RSA_WITH_AES_256_CBC_SHA256 � DHE_RSA_WITH_AES_128_CBC_SHA256 � DHE_RSA_WITH_AES_256_CBC_SHA256 � TLS_RSA_WITH_AES_128_GCM_SHA256 � TLS_RSA_WITH_AES_256_GCM_SHA384 � TLS_DHE_RSA_WITH_AES_128_GCM_SHA256 � TLS_DHE_RSA_WITH_AES_256_GCM_SHA384
Mellanox Technologies
.
846
To enable all encryption methods, run:
switch (config) # web https ssl ciphers all
To enable only TLS ciphers (enabled by default), run:
switch (config) # web https ssl ciphers TLS
To enable HTTPS strict mode, run:
switch (config) # web https ssl ciphers TLS1.2
To verify which encryption methods are used, run:
switch (config)# show web Web User Interface: Web interface enabled: yes HTTP enabled: yes HTTP port: 80 HTTP redirect to HTTPS: no HTTPS enabled: yes HTTPS port: 443 HTTPS ssl-ciphers: TLS1.2 HTTPS certificate name: default-cert Listen enabled: yes No Listen Interfaces.
Inactivity timeout: disabled Session timeout: 2 hr 30 min Session renewal: 30 min
Web file transfer proxy: Proxy enabled: no
Web file transfer certificate authority: HTTPS server cert verify: yes HTTPS supplemental CA list: default-ca-list switch (config)#
On top of enabling HTTPS, to prevent security breaches HTTP must be disabled. To disable HTTP, run:
switch (config) # no web http enable
A.7
LDAP
By default, supports LDAP encryption SSL version 3 or TLS1.0 up to TLS1.2. The only banned algorithm is MD5 which is not allowed per NIST 800-131a. In strict mode, the switch supports encryption with TLS1.2 only with the following supported ciphers:
� DHE-DSS-AES128-SHA256
� DHE-RSA-AES128-SHA256
� DHE-DSS-AES128-GCM-SHA256
� DHE-RSA-AES128-GCM-SHA256
Mellanox Technologies
.
847
� DHE-DSS-AES256-SHA256 � DHE-RSA-AES256-SHA256 � DHE-DSS-AES256-GCM-SHA384 � DHE-RSA-AES256-GCM-SHA384 � ECDH-ECDSA-AES128-SHA256 � ECDH-RSA-AES128-SHA256 � ECDH-ECDSA-AES128-GCM-SHA256 � ECDH-RSA-AES128-GCM-SHA256 � ECDH-ECDSA-AES256-SHA384 � ECDH-RSA-AES256-SHA384 � ECDH-ECDSA-AES256-GCM-SHA384 � ECDH-RSA-AES256-GCM-SHA384 � ECDHE-ECDSA-AES128-SHA256 � ECDHE-RSA-AES128-SHA256 � ECDHE-ECDSA-AES128-GCM-SHA256 � ECDHE-RSA-AES128-GCM-SHA256 � ECDHE-ECDSA-AES256-SHA384 � ECDHE-RSA-AES256-SHA384 � ECDHE-ECDSA-AES256-GCM-SHA384 � ECDHE-RSA-AES256-GCM-SHA384 � AES128-SHA256 � AES128-GCM-SHA256 � AES256-SHA256 � AES256-GCM-SHA384 To enable LDAP strict mode, run:
switch (config) # ldap ssl mode {start-tls | ssl}
Both modes operate using SSL. The different lies in the connection initialization and the port used.
Mellanox Technologies
.
848
Appendix B: Splunk Integration with Mellanox Products
Splunk automatically clusters millions of log records in real time back into their patterns and finds connections between those patterns to form the baseline flows of each software individually, thus enables you to search, monitor and analyze that data to discover powerful insights across multiple use cases.
This appendix provides a guide on the first steps with Splunk and helps you to begin enjoying reduced time in detecting and resolving production problems.
B.1
Getting Started with Splunk
Step 1. Step 2.
Download Splunk and extract the Splunk Enterprise version. (Splunk software is available as an RPM or TGZ.)
Create a Splunk User /group. Run:
[root@server] groupadd splunk [root@server] useradd -d /opt/splunk -m -g splunk splunk
Step 3. Splunk installation. Run:
[root@server] tar -xzvf splunk-7.0.0-c8a78efdd40f-Linux-x86_64.tgz [root@server] ls
Step 4. A new folder called Splunk is created.
[root@server] cp -rp splunk/* /opt/splunk/ [root@server] chown -R splunk: /opt/splunk/ [root@server] su - splunk [splunk@server] cd bin [splunk@server] ./splunk start --accept-license
Now you can access your Splunk WebUI at http://IP:8000/ or http://hostname:8000/. You need to make sure that port 8000 is open in your server firewall.
B.2 Switch Configuration
In this example we are not using the default UDP port 514 to show that any other port can be also used.
Step 5. In order to add a task, the switch must be configured to send logs to our Splunk server. Run:
switch > enable
switch # configure terminal
switch (config) # show snmp
SNMP enabled:
yes
SNMP port:
161
System contact:
System location:
Read-only communities: public
Mellanox Technologies
.
849
Read-write communities: (none)
Interface listen enabled: yes No Listen Interfaces.
switch (config) # snmp-server host 10.212.23.1 informs port 8597 switch (config) # snmp-server host 10.212.23.1 traps port 8597 switch (config) # snmp host 10.212.23.1 informs 8597 switch (config) # snmp host 10.212.23.1 traps 8597
Summary configuration:
switch (config) # show running-config ## Logging configuration ##
logging 10.212.23.1 logging 10.212.23.1 port 8597 logging 10.212.23.1 trap info logging 10.212.23.1 trap override class events priority err logging monitor events notice logging receive ## SNMP configuration no snmp-server host 10.209.21.221 disable snmp-server host 10.209.21.221 traps port 8597 version 2c no snmp-server host 10.212.23.1 disable snmp-server host 10.212.23.1 traps port 8597 version 2c 8597
B.3 Adding a Task
Step 6. The first screen encountered after signing into the Splunk WebUI includes the "Add Data" icon.
Figure 20: Add Data Option
Mellanox Technologies
.
850
Step 7. The "Add Data" tab opens up with three options: Upload, Monitor, and Forward. Here our task is to monitor a folder, so we click Monitor. to proceed
Figure 21: Monitor Icon
In the Monitor option, the following four categories are available: � File & Directories: Monitor files/folders � HTTP Event Collector: Monitor data streams over HTTP � TCP/UDP: Monitor service ports � Scripts: Monitor scripts
Mellanox Technologies
.
851
B.4 Retrieving Data from TCP and UDP Ports
Step 8. Per our current purpose, we choose TCP/UDP option.
Figure 22: TCP/UDP
Step 9. Click the TCP or UDP button to choose between a TCP or UDP input, and enter a port number in the "Port" field.
Step 10. In the "Source name override" field, enter a new source name to override the default source value, if required.
Figure 23: TCP/UDP Fields
Mellanox Technologies
.
852
Step 11. Click "Next" to continue to the Input Settings page where we will create a new source type called Mellanox-Switch.
Figure 24: Input Settings
Mellanox Technologies
.
853
Step 12. Click Next > Review > Done > Start Searching
Figure 25: Start Searching
B.5 SNMP Input to Poll Attribute Values and Catch Traps
SNMP represents an incredibly rich source of data that you can get into Splunk for visibility across a very diverse IT landscape.
SNMP agents may also send notifications, called Traps, to an SNMP trap listening daemon.
B.5.1
Getting Started
Browse to Splunkbase and download the SNMP Modular Input from https://splunkbase.splunk.com/app/1537/. To install, simply untar the file to SPLUNK_HOME/etc/apps and restart Splunk.
B.5.2
Configuration
Login to the Splunk WebUI and go to Manager > Add Data > Monitor > SNMP > New, and set up your input data.
Mellanox Technologies
.
854
Figure 26: SNMP
Figure 27: SNMP Attributes Polling Settings
Mellanox Technologies
.
855
Figure 28: SNMP Attributes Polling Settings
Step 13. After configuration is complete it is recommend to run Mellanox-Switch again: Search > Data Summary > Sourcetypes > Mellanox-Switch.
Figure 29: Mellanox-Switch
Mellanox Technologies
.
856
Step 14. Select "Mellanox-Switch" and "Add to search".
Figure 30: Add to Search
Step 15. You can add to search any value that is relevant for you.
Figure 31: Search Options
Patterns can be viewed not on real time and you can create alert on most repeatable events.
Mellanox Technologies
.
857
