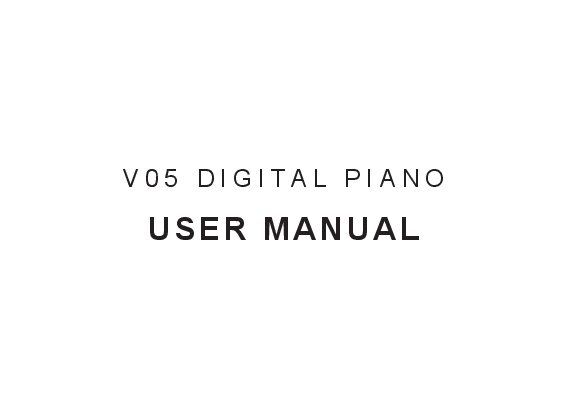

V05 DIGITAL PIANO
USER MANUAL

Safety Guideline
Before playing the digital piano, please read the following content. *Please put this instruction book in a safety place, in order to read it in the future.
Warning
In case of getting seriously injured or killed because of electric shock, short circuit, damage, fire or other dangers, please obey the following warnings. These warnings include but not limited to the following situations:
Power/Electric Cable * The rated voltage of this device is fixed. The required voltage is printed on the
nameplate of this device. * Check the plug regularly, clean the dirt and ash piled up on the plug. * This digital piano only matches with the provided power cable and plug. * Please don't put electric cable beside heaters or radiators. Don't bend too much or
cause damage to electric cable. Don't put any heavy stuff on the wire. Don't put it where it may be run over or trampled to make people stumble.
Do Not Open * Please do not open this device and try to dismantle inner components or transform
it in any ways. This device does not include any components for users to fix. If you find any problems, please stop using and ask our qualified service staffs to examine and repair the device.
1

Warning about humidity * In case of any liquid splashing into the device, please do not get this device
rained or use it nearby water, in a wet surrounding or put a container of liquid on it. If any liquid, like water, splashes into the instrument, please cut off power and pull out the electric cable from the AC socket immediately. Then ask our qualified service staffs to examine and repair the device. * Do not plug with wet hands.
Fire * Do not place any burning stuff, like candle, on the instrument. It may cause fire. * When sensing any unusual situations, such as worn away and damage of power
cable, sound suddenly stops during playing and the smell and smoke it causes, please turn off the power immediately and pull out plug from the socket. Ask our qualified service staffs to examine and repair the device.
Attention
In case that people around you and you get injured or get loss of device and property, please obey the following basic instructions. These instructions include but not limited to following situations.
Power/Electric Cable * When pulling out plug from socket, please grab the plug instead of power cable.
Drawing directly will cause damage to the power cable.
2

* If not using the instruments for a long time or during a lighting storm, please lpull out plug from the socket
* Do not connect the instrument to the socket by multiple connector, or it will lower the sound quality, or it will make socket overheat
Assemble Use * Please carefully read the attachment that explains the assemble process. If assem-
bling the instrument in a wrong order, it will damage the instrument and hurt the user. * Please connect the external equipment while the digital piano is off. * Before using, please install the supporting screw and adjust it close to the ground, in
case of trampling pedal.
Installation place * In case of deformation of control panel and damage to inner components, please do not
place this device in an environment with a lot of dirt, vibration, extreme cold and hot (such as, direct sunshine, closing to heater and inside a car under the burning sun). * Please do not use this device near the television, radio, stereo, cell phone or other electronic devices. This may make noise on the device itself and television or radio nearby. * Please do not put this device on unstable place, or it may cause a sudden fall down. * Before moving the device, please pull out all electric cables from the socket. * When you set this device, please confirm the AC socket going to be used is reachable. The device should be connected to the socket with protecting grounding connection. If
3

you find any problems and questions, please immediately turn off the power and pull out the plug from the socket. Even though the power is turned off, there is still a small amount of electricity current flowing though it. If you decide not using this device for a long time, please pull out the plug from AC socket. * This product uses all extreme power switch as a device to cut off from network power. The power switch button is on the right side of the keyboard.
The contents in this hand book is only for introduction purpose. It may be different from the instrument you buy.
4

INDEX
Attention to installation ........................................................................................ 7 Control Panel .................................................................................................... 8 Power On\Adjust Volume\Headphone Connection ................................................... 9 Record Function\Play/Stop\ Play Demo Song ......................................................... 10 Accompany Function\ Syn Start\Variation ...............................................................11 Voice Control\Teaching Function .......................................................................... 12 Voice Restoration\Metronome ............................................................................. 13 Function Control\Chord ...................................................................................... 14 Accompany Volume\Octave ................................................................................ 15 Transposition\Soundboard resonance ................................................................... 16 Dual Voice ....................................................................................................... 17 Split ................................................................................................................ 18 Keyboard Split Point Setting\Effect ....................................................................... 19 Reverb\ Chorus ................................................................................................ 20 Beat\ Touch ...................................................................................................... 21
5

Percussion ....................................................................................................... 22 Bluetooth function ............................................................................................. 23 Back Inserting Panel Funciton\USB MIDI Function .................................................. 24 Audio Connection .............................................................................................. 25 Voice List ......................................................................................................... 26 Rhythm List ...................................................................................................... 27 MIDI Keyboard Percussion Check List .................................................................. 28 Demo Song List ............................................................................................... 31 Technical Specification ...................................................................................... 32 Trouble Shooting ............................................................................................... 34
6

Thank you for buying Our Digital Piano. No matter you are a student, piano hobbyist or the professional, this digital piano will impress you with its perfect sound and fashion design. It can be competent with piano studying, music listening, MIDI production, which satisfies your entertainment demand. It also has grand hammer dynamics keyboard, making you express yourself easily.
For further information about this new digital piano, we suggest you should read this hand book carefully in order to make full use of its advanced and convenient functions. Meanwhile, we also suggest you should keep this hand book well for reference in the future.
If you like Our digital piano, please recommend to your friends.
Attention to installation
In the process of installing the piano, be sure to contact the ground with the screw under the pedal, to make it close to the ground, in order to avoid any damage of the pedal.
7

Control Panel
All the function keys are on the left side control panel of the digital piano.

VOICES

120

000

FUNCTION

METRONOME

RECORD

PLAY/STOP

PRELUDE/CODA A/FILL 1

START/STOP SYNC START

B/FILL 1

DATA/ TEMPO

DEMO/TEACHING

RHYTHM

VOICES

Power On
1) Connect the power to the piano and turn on the piano by pressing [Power] button. Press the power button over 2seconds to turn off the piano.
2) The default voice is grand piano.
Adjust Volume
Turn the Volume button on the control panel to set the volume. Turn the button clockwise to raise volume. Turn the button anticlo ckwise to reduce volume
Warning: Too loud sound, especially when you wear the headphone, will do damage to hearing.

POWER

Volume

Min

Max

Headphone Connection
Apart from the built-in speaker system, you can alsoconnect two standard stereo headphones.Headphone jack is on the left side under the keyboard.The built-in speaker system doesn't work after connecting the headphone.And just the headphone volume by switching master volume button.
9

Record Function
Start recording: Press [RECORD] button and the indicate light turns on, which means entering the record status. Meanwhile, the metronome starts automatically. It can be turned off manually if it isn't needed. (This digital piano has accompaniment track which can be recorded)
End recording: Automatic Ending: During the recording process, when the storage space is full, recording will end automatically.
Manual Ending: Press the [RECORD] button during recording, and it will end recording.
Play/Stop
Record playing:Press [PLAY/STOP] button and start replaying record. Press [PLAY/STOP] button again to stop replaying.

RECORD PLAY/STOP

Play Demo Song
Play all demo composition: Built-in 75 demo composition. Press [DEMO/TEACHING] button to loop demo composition. Press [DEMO/TEACHING] button again to stop playing. During the playing status, press [DATA/TEMPO+/-] button to select corresponding composition.

DATA/ TEMPO
DEMO/TEACHING

Accompany Function
Select Rhythm: Press [RHYTHM] button to activate rhythm selection. Press [DATA/TEMPO+/-] button to select rhythm within 5 seconds. (The rhythm list is in the appendix)

RHYTHM

Adjust accompaniment velocity: The [RHYTHM] indicator light turns off 5 seconds later after the rhythm is activated. Meanwhile, press [DATA/TEMPO+/-] button to adjust automaticaccompaniment velocity.
Sync Start
Long press [SYNC START] button, and the LED flashes. Press SYNC START any button on the keyboard and the automatic accompaniment will start. Only the left keyboard will work if Chord Function is turned on.

DATA/ TEMPO
DEMO/TEACHING

Variation
PRELUDE/CODA: Before the automatic accompaniment starts, press [PRELUDE/CODA] button to start prelude and enter the main musical A status automatically; When the automatic accompaniment is playing, press the [PRELUDE/CODA]button and the automatic accompaniment will stop automatically after playing a piece of coda.
Fill in A-B: In automatic accompaniment status, press[A/FILL 1] and accompaniment will enter main musical A status; In automatic accompaniment status, press [B/FILL 2] and accompaniment will enter main musical B status.

PRELUDE/CODA

A/FILL 1

B/FILL 2

Voice Control

1) The default voice is 000 after power on.

2) Voices select: Press [VOICES] Button to activate voices selection function. OLED will display corresponding voice number. Press [DATA/TEMPO+/-] button to select any voice within 5 seconds.

VOICES

120

DATA/ TEMPO

000

DEMO/TEACHING Select Next Voice
Teaching Function
Press one key and [DEMO/TEACHING] button to start teaching function. It will play the teaching composition.
DATA/ TEMPO

Press one key

DEMO/TEACHING
Press [DEMO/TEACHING] button at the same time

Voice Restoration
No matter in what playing status, long press [VOICES] button twice and the digital piano will return to original status. The default voice is Grand piano.

VOICES

Metronome
1) Press [METRONOME] button on control panel to start metronome and the indicator light will flash. OLED will display the beat velocity. The default velocity is 120 beats/min.
2) Press [DATA/TEMPO+/-] button to adjust beat velocity from 20 to 280 beats/min. 3) Press [METRONOME] button again to exit metronome setting. The digital piano will automatically save the
current setting. 4) Restart digital piano to return to default beat setting.

METRONOME

VOICES

120

000

DATA/ TEMPO

DEMO/TEACHING
Use [DATA/TEMPO+/-]button to change current beat velocity

Function Control
As a user-friendly instrument, all functions in this digital piano can be activated easily. Every function is corresponding to a key. (The name of each function is printed under the key for reference.)

ON OFF CHORD

ACCOMPANYVOLUME

OCTAVE

TRANSPOSE

OFF DUALVOICE OFF SPLIT SPLITPIANO OFF EFFECT EFFECTOFF REVERB REVERBOFF CHORUS CHORUSOFF 1 5 2 6 3

OFF SOFT STANDARD HARD ON

OFF SPLIT POINT

SOUNDBOARD

RESONANCE

KEYBOARD FUNCTION

EFFECT

BEAT

TOUCH

PRECUSSION

1) Press [Function] button, the indicator light turns on and function selection is activated.

Press a key within 5 seconds to select corresponding function.

2) Press [Function] button again or wait for 5 seconds without controlling, the indicator light

will turn off and exit function setting status. Now you can play the digital piano according

to the chosen function mode. (PS: Under the status of function setting, key pressing is

soundless.)
Chord

1) This digital piano contains one chord mode; press [Function] button and the indicator light turns on. Press [Chord On] button within 5 seconds to start automatic chord function.
14

FUNCTION

ON OFF CHORD

ACCOMPANYVOLUME

OCTAVE

TRANSPOSE

2) Press [FUNCTION] button, indicator light turns on. Press [CHORD OFF] button within 5 seconds to turn off automatic chord function.

Accompany Volume
1) Press [FUNCTION] button, indicator light turns on. Press [ACCOMPANIMENT VOLUME+/-] button within 5 seconds to adjust accompaniment volume.
2) Press [FUNCTION] button again or wait for 5 seconds without controlling, the indicator light will turn off and exit accompaniment volume adjusting.

FUNCTION

ON OFF CHORD

ACCOMPANYVOLUME

OCTAVE

TRANSPOSE

Octave
1) Press [FUNCTION] button, indicator light turns on. Press [OCTAVE+/-] button within 5 seconds to adjust pitch.
2) Press [FUNCTION] button again or wait for 5 seconds without controlling, the indicator light will turn off and exit pitch adjusting.

FUNCTION

ON OFF CHORD

ACCOMPANYVOLUME

OCTAVE

TRANSPOSE

Transposition
This function can transpose a note to +/-12 semitone in a range of octachord.

1) Press [FUNCTION] button and indicator light turns on. Press [TRANSPOSITION +/-] button within 5 seconds to

FUNCTION

adjust pitch. Adjusting range: -12 to +12.

2) Press [FUNCTION] button again or wait for 5 seconds

without controlling, the indicator light will turn off and

transposition select function turns off.

ON OFF CHORD

ACCOMPANYVOLUME

OCTAVE

TRANSPOSE

Soundboard Resonance
1) Press [FUNCTION]button, The indicator light up, Press [SOUNDBOARD RESONANCE]key within 5 seconds, the Soundboard Resonance function is activated. The piano will play with soundboard resonance effect.
2) Press[FUNCTION],the indicator light on, press [SOUNDBOARD RESONANCE OFF] key within 5 seconds, the function will be off.

FUNCTION

OFF DUALVOICE OFF SPLIT SPLITPIANO OFF

SOUNDBOARD

RESONANCE

KEYBOARD FUNCTION

Dual Voice
1) Press [FUNCTION] button, indicator light turns on. Press [DUAL VOICE] button within 5 seconds toenter dual voices status.

FUNCTION

2) Select 2nd voice by [DATA/TEMPO+/-] button. 1st voice should be adjusted

before pressing [DUAL VOICE] button.
VOICES

DATA/ TEMPO

OFF DUALVOICE OFF SPLIT SPLITPIANO OFF

SOUNDBOARD

RESONANCE

KEYBOARD FUNCTION

DEMO/TEACHING
3) Press [Function] button and indicator light turns on. Press [Dual Voice Off] button to turnoff dual voice effect within 5 seconds to return to 1st voice.

Select Next Voice FUNCTION

OFF DUALVOICE OFF SPLIT SPLITPIANO OFF

SOUNDBOARD

RESONANCE

KEYBOARD FUNCTION

Split

This function can divide the keyboard into two individual playing zones.

Left keyboard

Right keyboard

1) Before pressing [SPLIT] button, select voice for the left keyboard; Press [FUNCTION] button,the indicator light turns on, press [SPLIT] button within 5 seconds to enter split status. The keyboard is divided into two individual zones. The split point is Central C. Select voice for the right keyboard by [DATA/TEMPO+/-] button.

FUNCTION

VOICES

DATA/ TEMPO

OFF DUALVOICE OFF SPLIT SPLITPIANO OFF

SOUNDBOARD

RESONANCE

KEYBOARD FUNCTION

DEMO/TEACHING

2) Press [FUNCTION] button and the indicator light turns on. Press [SPLIT OFF] button to exit split status within 5 seconds. Press [FUNCTION] button and the indicator light turns on. Press [SPLIT] button within 5 seconds to enter split status. The split point divides the keyboard into two individual playing zones.

Keyboard Split Point Setting
Press [FUNCTION] button and the indicator light turns on. Press [SPLIT POINT] button within 5 seconds to enter split point setting status. Now press a key to set the split point; Press [FUNCTION] button again or wait for 5 seconds without controlling until the indicator light turns off, the split point is set.
FUNCTION

OFF SPLIT POINT

PRECUSSION

Effect
1) Press [FUNCTION] button and the indicator light turns on.

Press [EFFECT] button within 5 seconds to activate effect

FUNCTION

function and sound will have special effect.

2) Press [FUNCTION] button and the indicator light turns on.

Press [EFFECT OFF] button within 5 seconds to turn off effect function.

EFFECT EFFECTOFF REVERB REVERBOFF CHORUS CHORUSOFF EFFECT

Reverb
1) Press [FUNCTION] button and the indicator light turns on. Press [REVERB] button within 5 seconds to activate reverb function and sound will have reverb effect.
2) Press [FUNCTION] button and the indicator light turns on. Press [REVERB OFF] button within 5 seconds to turn off reverb effect.

FUNCTION

EFFECT EFFECTOFF REVERB REVERBOFF CHORUS CHORUSOFF EFFECT

Chorus
1) Press [FUNCTION] button and the indicator light turns on. Press [CHORUS] button within 5 seconds to activate chorus function and sound will have chorus effect.
2) Press [FUNCTION] button and the indicator light turns on. Press [CHORUS OFF] button within 5 seconds to turn off chorus function.
FUNCTION

EFFECT EFFECTOFF REVERB REVERBOFF CHORUS CHORUSOFF EFFECT

Beat
This digital piano has six kinds of beats, which are 1,2,3,4,5,6. Press [FUNCTION] button and the indicator light turnson. Press corresponding beat key within 5 seconds to set. Press [FUNCTION] button again or wait for 5 seconds without controlling, the indicator light turns off, so as to set split point. (5,6 is separately matched to the black key)

FUNCTION

Touch

This digital piano has 5 touchs curves:defaultsoftstandardhardtouch off.

Press [FUNCTION] button and the indicator light turns on.

Press the corresponding touch key within 5 seconds to activate touch function.

The default touch is default.

FUNCTION

1 5263

OFF SOFT STANDARD HARD

BEAT

TOUCH

1 5263

OFF SOFT STANDARD HARD

BEAT

TOUCH

Percussion
1) Press [FUNCTION] button and the indicator light turns on. Press [PERCUSSION ON] button within 5 seconds to activate percussion.
2) Press [FUNCTION] button and the indicator light turns on. Press [PERCUSSION OFF] button within 5 seconds to turn off percussion function. The digital piano will return to the original voice.
FUNCTION

OFF SPLIT POINT

PRECUSSION

Bluetooth Function
The digital piano supports the audio Bluetooth and Bluetooth MIDI connection, you can use phone or iPad to connect the audio Bluetooth and Bluetooth MIDI at the same time. Note: We suggest to use two phone or iPad to connect with the piano separately, in order to avoid music stuttering while playing.
1 . Audio Bluetooth function (1) Turn on the piano, the Bluetooth function will be on at the same time. (2) Open your phone or iPad to get into Setting--Bluetooth, search [V05] device, the password is "6666", input the
password if needed. (3) After successful pairing, we can play music through the phone or iPad. (4) You can switch song and volume with your phone. (Phone support required)
2. Bluetooth MIDI function (Software support required) (1) The Bluetooth MIDI transfer function is available on the piano. (2) Turn on the piano, the Bluetooth function will be on at the same time. (3) Turn on the Bluetooth function of your computer/phone/iPad, search MIDI Bluetooth device named [V05 MIDI] . (4) After successful pairing, we can transfer MIDI data through the phone or iPad.
Note: Bluetooth MIDI connection need your device support (computer/phone/iPad), different software have different connection method. For the specific connection method, please check the instruction of your software.
23

Back Inserting Panel Funciton

L
LINE OUT
R

L
LINE IN
R

USB

DC 12V

PEDAL

(1) Line out (2) Line in (3) USB (4) Power (5) Pedal

Stereo output, connect the digital piano to a peripheral speaker system Stereo Input, connect the digital piano to a built-in speaker system USB MIDI Jack Connect power adapter Pedal jack (Sustain, soft, sostenuto pedal)

USB MIDI function
Connect the computer to the USB MIDI Jack in the back inserting plate to get MIDI Production Function.

USB to host connection
Digital piano rear board USB
24

Audio connection
Line In: Connect the musical instrument to the built-in speaker system, regarding the digital piano as speaker.

AUDIO CONNECTION

L
LINE IN
R

Line Out: Regarding this digital piano as sound source, connect it to the external speaker system.

AUDIO CONNECTION

L
LINE OUT
R

Voice List
(Number)
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21
26

Instrument
PIANO GRD PIANO BRITE HONKY-TONK
E PIANO1 E PIANO2 HARPSCRD MARIMBA HAMND ORG CHURCH ORG GTR NYLON ACOU BASS STR PIZZ
HARP STRINGS 2 STR SYN 2 MUTE TPT SAX ALTO CLARINET PAN FLUTE SHAKHACHI WARM PAD
SWEEP

1 2 2 2

LCD
"""GrdPiano""" """BrtPiano""" """HonkTonk""" """E Piano1""" """E Piano2""" """Harpsi""" """Marimba """ """Jazz Org""" """ChrchORg""" """NylonGtr""" """AcouBass""" """Pizz Str""" """Harp """ """Strings2""" """Syn Str2""" """Mute Tpt""" """Alto Sax""" """Clarinet""" """PanFlute""" """ShkHachi""" """WarmPad """ """Sweep """

(Number)
22 23 24
Percussion music
0

Instrument
CRYSTAL FX SITAR
SHAMISEN
Standard Drums

Rhythm List
(Number)
00 01 02 03 04 05 06 07 08 09

(English)
8 Beat 1 8 Beat Pop 2
16 Beat 1 Bluse Ballad
Pop Ballad Electro Pop Ballad
Polk Ballad Salsa
Club Dance Disco Tropic

(Chinese)
8 1 8 2
16 1

LCD
"""Crystal""" """Sitar """ """Shamisen"""
Std.Kit
LCD
"8Beat 1" "8Bt Pop2" "16Beat 1" "BlusBald" "Pop Bald" "E.Ballad" "PolkBald" "Salsa " "ClubDanc" "DiscoTro"

MIDI Keyboard Percussion Check List

Note#
27 28 29 30 31 32 33 34 35 36 37
38 39 40 41
42
43

Note Ostand set 1Room set 2Power set 3Electric set 4Synth set

Syn Sound

C#1

Slap

Scratch1

Slap

Scratch1

D#1

Scratch2

Sticks

Click

F#1 Metronome Click Metronome Click Metronome Click Metronome Click Metronome Click

G1 Metronome Bell Metronome Bell Metronome Bell Metronome Bell Metronome Bell

G#1

Kick2

Electric Kick2

Kick2

Kick1

Power Kick1 Electric Kick1 Synth Kick

A#1

Side Stick

Snare Drum2

Side Stick Snare Drum2

Side Stick Power Snare

Side Stick
Electric Snare Drum2

Synth Side Stick
Synth Snare

Hand Clap

C#2 Snare Drum1

Room Snare1

Snare Drum1

Electric Room Snare 1

Snare Drum1

Low Tom2

Power Low Tom2 Power Low Tom2 Electric Low Synth Low Tom2

Tom2

D#2 Closed Hi-Hat Closed Hi-Hat Closed Hi-Hat Closed Hi-Hat Synth Closed HiHat

Low Tom1

Power Low Tom1 Power Low Tom1 Electric Low Synth Low Tom1

Tom1

Note#
44
45 46
47 48
49
50 51 52
53 54 55 56 57 58 59 60 61 62 63

Note
F2
F#2 G2
G#2 A2
A#2
B2 C3 C#3
D3 D#3 E3 F3 F#3 G3 G#3 A3 A#3 B3 C4

Ostand set
Pedal Hi-Hat
Mid Tom2 Open Hi-Hat
Mid Tom1 High Tom2
Crash Cymbal
High Tom1 Ride Cymbal Chinese Cymbal
1 Ride Bell Tambourine Splash Cymbal Cowbell Crash Cymbal Vibra-Slap Ride Cymbal1 High bomgo Low conga Mute conga High conga

1Room set
Low Tom1
Power Mid Tom2 Open Hi-Hat
Power Mid Tom1 Power High Tom2
Crash Cymbal
Power High Tom1 Ride Cymbal
Chinese Cymba1
Ride Bell Tambourine Splash Cymbal
Cowbell Crash Cymbal Vibra-Slap Ride Cymbal1 High bomgo
Low conga Mute conga High conga

2Power set 3Electric set 4Synth set

Pedal Hi-Hat Pedal Hi-Hat Synth Pedal Hi-

Hat

Power Mid Tom2 Eleotry Mid Tom2 Synth Mid Tom2

Open Hi-Hat

Open Hi-Hat Synth Open Hi-

Hat

Power Mid Tom1 Eleotry Mid Tom1 Synth Mid Tom1

Power High Tom2 Eleotry High Synth Tom2

Tom2

Crash Cymbal Crash Cymbal

Synth Crash Cymbal

Power High Tom1 Power High Tom1 Synth High Tom1

Ride Cymbal

Chinese Cymbal Chinese Cymbal Chinese Cymbal

Ride Bell

Tambourine

Splash Cymbal Splash Cymbal Splash Cymbal

Cowbell

Crash Cymbal Crash Cymbal Crash Cymbal

Vibra-Slap

Ride Cymbal1 Ride Cymbal1 Ride Cymbal1

High bomgo

Low conga

Mute conga

High conga

Note#
64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87
30

Note Ostand set 1Room set 2Power set 3Electric set 4Synth set

C#4

Low conga

High Timbale High Timbale High Timbale High Timbale High Timbale

D#4

Low Timbale

High Agogo

Low Agogo

F#4

Cabasa

Msracas

G#4 Short Hi Whistle Short Hi Whistle Short Hi Whistle Short Hi Whistle Short Hi Whistle

A4 Long low whistle Long low whistle Long low whistle Long low whistle Long low whistle

A#4

ShortGuiro

logn Guiro

Claves

C#5 Hi Wood Block Hi Wood Block Hi Wood Block Hi Wood Block Hi Wood Block

D5 Low Wood Block Low Wood Block Low Wood Block Low Wood Block Low Wood Block

D#5

Mute Cuica

Open Cueca

F5 Mute Triangle Mute Triangle Mute Triangle Mute Triangle Mute Triangle

F#5 Open Triangle Open Triangle Open Triangle Open Triangle Open Triangle

Shaker

G#5

Jingle Bell

Bell Tree

Castanets

Mute Surdo

Open Surdo

Demo Song List

No.

Name

000

Chopin Fi

001 AMASON Rock

002

Fountain

003

Bach Piano

004 Minuet Bach

005 Love Romance

006 Four Cygnets

007 Puppy Wlatz

008

CpnEtude

009 Turkey March

010 Chopin No.6

011

Menuett

012

MarciaAT

013 Chopin Night

014 Piano Ballad

015

Ragetime

016 Zi Zhu Diao

017

Sad Person

018

Fn Rhythm

019

Eugenia

020 Dolly's Dream

021

4 Cygnets

No.

Name

022

Old France

023

Minuet Bath

024

Song of Joy

025

Busker

026 NewsPaper Sale

027

Doves

028 Mai Tang Yuan

No.

Name

No.

044 Minuet Piano

066

045 Little Starts 067

046

Deep Sea

068

047

Wa Ha Ha

069

048 Snail & Bird

070

049 In Moonshine

071

050 Nature Wonder Land 072

029

Trout

051

Years Ago

073

030 Curvet Piano 052 CuaiYunZhuiYue 074

031 Spring Waltz 053

Liang Zhu

032

Aledeman

054 Jingle Bells

033 Bach 2 Creative 055 Run Hours On Hall

034 Moonlight Debussy 056 Moscow Nights

035 Tea & Butterfly 057

Shear

036 Gavotte Dance 058 North Spring

037

Canon Piano

059

Youth Dance

038 Cowboy & Flute 060

Rainbow

039 Turkey March 061 On Wings Of Song

040

Humoresque

062

Arirang

041 England March 063 TianXianPei

042

Little Boat

064

Sakura

043 Happy Farmer 065

Bella Ciao

Name
Oh, Susanna August Flower Palom Blanca
Picking Tea Camellia Girl When Child Born FebruaryComing Fengyang Flower
Drum Lonely Goatherd

Technical Specification
Sound source: Pearl River Amason independently developed the DSP sound source, Germany Famous grand piano sound sampling. 8 Layers dynamic, String overtone resonance analog audio technology. Keyboard: Independent development 88 keys dynamic curve hammer action weighted keyboard Polyphony: 512(Stereo) Demo: 75 demos Touch: 5 piano standard touch curves, DefaultSoftStandardHardTouch off. Voice: 26 voices Rhythm: 10 Rhythm control: Auto Chord Switch,SYN start, SYN stop, A fill 1, B fill 2, Prelude\Finale. Record function:2 record tracks,recordreplay supported,Maximum notes for one single song is 22000,MIDI,64tracks and 16c hannels,Support MIDI 0&1 file. Sound Control: Grand piano tone, Dual voice, Double keyboard, Split mode, Split point. Dual voice: Dual voice can be set when playing. Keyboard Split: Double piano, Piano duet, String ensemble, Wind orchestra, It can make different setting. Volume control: Master volume, Accompany volume (0-32), adjustable volume control when playing at night. Transpose: 25 (0,-/+12) Octave: 3 octaves,-8,0,+8
32

Effect function: 64 reverb, 64 chorus,127 Tremolo effect.

Metronome: Dynamics click as per beat,1,2,3,4,5,6,

Tempo:20-280

Bluetooth:Bulit in Bluetooth.

Pedal: Imitated traditional grand piano pedal function, Soft, selected sustain, sustain.

Interface: USB MIDI jack, pedal jack, Power jack, Headphone jack, Line IN/OUT.

Power:DC12V 2000mA

Dimension:1375*420*810mm

Net weight: 42.5kg

Accessories:Power coder, Guarantee card, Quality certificate, User manua

Trouble Shooting

Problem

Cause/Action

There is noise when turn on/off the power This is normal , please don't worry.

After turning on, no sound is produced when Please adjust the master volume or check if there is a

press the keys

headphone connected in the device.

The note and its timber are of a little differences under the same patch When using the sustaining function, some patches are different long or short

This is normal. This is normal.

The volume is too low

Please adjust the master volume knob.

MIDI Cord

transmission function connecting well

fail

when

the

MIDI

This

normal.

Noise caused when near phone

This is normal, In order to avoid it please keep away when calling.

When playing piano, the pitch is not in

Please check if you have activated the SPLIT mode function and

accordance with the keyboard

turn it off.

Pitch can not be changed when playing

Please check if you have activated the SPLIT mode function

piano, and the pitch is not in accordance with and set the split point to the highest level, Turn off the split mode

the keyboard

function and set the split point back to the original.

Distortion or intermittent when playing demo songs
Two tones come out at the same time when playing Pitch wrong

The cause could be the overheating of the speakers,when you play for a long time with the maximum volume, at this point please lower the volume or turn the piano off for a while. Dual sound function might by activated, please turn off it to avoid it.
Please confirm the pitch setting or set it to "Zero"

Problem
No automatic Accompaniment and Chord
Dynamics is not same as before

Cause/Action
Please confirm the accompaniment volume or if the Chord function is turned on. There are 5 piano touch curve, DefaultSoftStandard HardTouch off. You might choose the wrong dynamics. Please set the one you need.

NOTE: This instrument has been tested and it is according with the relevant regulations of EMC.
Wireless communication might caused the interference with this instrument. Or the instrument might
caused the interference with wireless. The user should adopt the following measure to improve it.
- Relocation or adjust the receiving antenna. - Keep a distance between the device and receiver. - Connect the receiver and the device cord in different plug. - Please consult your dealer or experienced wireless technician.
Caution:Do not modified the device by yourself.
**Our company reserves the right to change or modify products or specifications at any time without prior notice.

Presented by Guangzhou Pearl River Piano Group Co.,Ltd
Manufactured by Gangzhou Pearl River Amason Digital Musical Instrument Co.,Ltd
Add:No.38.Xiangshan Ave,Zengcheng E c o n o m i c a n d Te c h n o l o g i c a l D e v e l o p m e n t Zone,Guangzhou China Te l : + 8 6 - 2 0 - 3 6 5 7 4 6 1 8 F a x : + 8 6 - 2 0 - 8 1 7 6 4 9 4 8 Email:wmk@pearlriverpiano.com

2B030515

FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
