Accessories (optional). PAW-TD20C1E5. Tank 200L ‑ Stainless steel. PAW-TD30C1E5. Tank 300L ‑ Stainless steel. PAW-TA20C1E5STD. Tank 200L ‑ Enamelled.
NEW AQUAREA HIGH PERFORMANCE MONO-BLOC J GENERATION e Rat Accessories (optional) PAW-TD20C1E5 Tank 200L ‑ Stainless steel PAW-TD30C1E5 Tank 300L ‑ Stainless steel PAW-TA20C1E5STD Tank 200L ‑ Enamelled PAW-TA30C1E5STD Tank 300L ‑ Enamelled PAW-TD20B8E3-1 Combo Tank 185L 80L ‑ Enamelled PAW-TD23B6E5 Combo Tank 230L 60L ‑ Stainless steel PAW-3WYVLV-HW 3 way valve for DHW Tanks

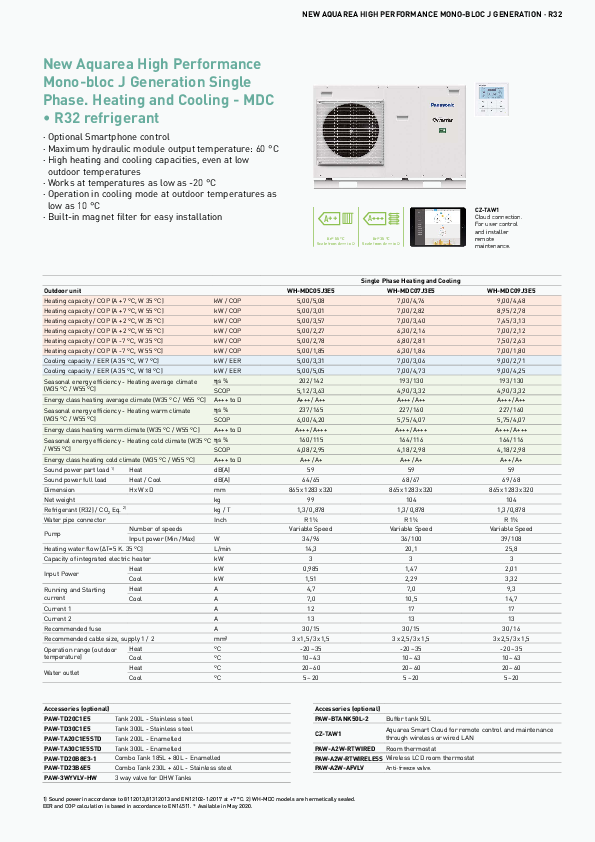

NEW AQUAREA HIGH PERFORMANCE MONOBLOC J GENERATION · R32 New Aquarea High Performance Monobloc J Generation Single Phase. Heating and Cooling - MDC · R32 refrigerant · Optional Smartphone control · Maximum hydraulic module output temperature: 60 °C · High heating and cooling capacities, even at low outdoor temperatures · Works at temperatures as low as -20 °C · Operation in cooling mode at outdoor temperatures as low as 10 °C · Built-in magnet filter for easy installation A++ A+++ ScaleEEfrrroPPm5555A°+°C+C+ to D ScaleEEfrrroPPm3355A°+°C+C+ to D CZ-TAW1 Cloud connection. For user control and installer remote maintenance. Outdoor unit Heating capacity / COP (A +7 °C, W 35 °C) kW / COP Heating capacity / COP (A +7 °C, W 55 °C) kW / COP Heating capacity / COP (A +2 °C, W 35 °C) kW / COP Heating capacity / COP (A +2 °C, W 55 °C) kW / COP Heating capacity / COP (A -7 °C, W 35 °C) kW / COP Heating capacity / COP (A -7 °C, W 55 °C) kW / COP Cooling capacity / EER (A 35 °C, W 7 °C) kW / EER Cooling capacity / EER (A 35 °C, W 18 °C) kW / EER Seasonal energy efficiency - Heating average climate (W35 °C / W55 °C) s % SCOP Energy class heating average climate (W35 °C / W55 °C) A+++ to D Seasonal energy efficiency - Heating warm climate (W35 °C / W55 °C) s % SCOP Energy class heating warm climate (W35 °C / W55 °C) A+++ to D Seasonal energy efficiency - Heating cold climate (W35 °C s % / W55 °C) SCOP Energy class heating cold climate (W35 °C / W55 °C) A+++ to D Sound power part load 1) Heat dB(A) Sound power full load Heat / Cool dB(A) Dimension HxWxD mm Net weight kg Refrigerant (R32) / CO2 Eq. 2) Water pipe connector kg / T Inch Pump Number of speeds Input power (Min/Max) W Heating water flow (T=5 K. 35 °C) L/min Capacity of integrated electric heater kW Heat kW Input Power Cool kW Running and Starting Heat A current Cool A Current 1 A Current 2 A Recommended fuse A Recommended cable size, supply 1 / 2 mm² Operation range (outdoor Heat °C temperature) Cool °C Heat °C Water outlet Cool °C WH-MDC05J3E5 5,00/5,08 5,00/3,01 5,00/3,57 5,00/2,27 5,00/2,78 5,00/1,85 5,00/3,31 5,00/5,05 202/142 5,12/3,63 A+++/A++ 237/165 6,00/4,20 A+++/A+++ 160/115 4,08/2,95 A++/A+ 59 64/65 865x1283x320 99 1,3/0,878 R1¼ Variable Speed 34/96 14,3 3 0,985 1,51 4,7 7,0 12 13 30/15 3x1,5/3x1,5 -20~35 10~43 20~60 5~20 Single Phase Heating and Cooling WH-MDC07J3E5 7,00/4,76 7,00/2,82 7,00/3,40 6,30/2,16 6,80/2,81 6,30/1,86 7,00/3,06 7,00/4,73 193/130 4,90/3,32 A+++/A++ 227/160 5,75/4,07 A+++/A+++ 164/116 4,18/2,98 A++/A+ 59 68/67 865x1283x320 104 1,3/0,878 R1¼ Variable Speed 36/100 20,1 3 1,47 2,29 7,0 10,5 17 13 30/15 3x2,5/3x1,5 -20~35 10~43 20~60 5~20 WH-MDC09J3E5 9,00/4,48 8,95/2,78 7,45/3,13 7,00/2,12 7,50/2,63 7,00/1,80 9,00/2,71 9,00/4,25 193/130 4,90/3,32 A+++/A++ 227/160 5,75/4,07 A+++/A+++ 164/116 4,18/2,98 A++/A+ 59 69/68 865x1283x320 104 1,3/0,878 R1¼ Variable Speed 39/108 25,8 3 2,01 3,32 9,3 14,7 17 13 30/16 3x2,5/3x1,5 -20~35 10~43 20~60 5~20 Accessories (optional) PAW-TD20C1E5 Tank 200L - Stainless steel PAW-TD30C1E5 Tank 300L - Stainless steel PAW-TA20C1E5STD Tank 200L - Enamelled PAW-TA30C1E5STD Tank 300L - Enamelled PAW-TD20B8E3-1 Combo Tank 185L + 80L - Enamelled PAW-TD23B6E5 Combo Tank 230L + 60L - Stainless steel PAW-3WYVLV-HW 3 way valve for DHW Tanks Accessories (optional) PAW-BTANK50L-2 Buffer tank 50L CZ-TAW1 Aquarea Smart Cloud for remote control and maintenance through wireless or wired LAN PAW-A2W-RTWIRED Room thermostat PAW-A2W-RTWIRELESS Wireless LCD room thermostat PAW-A2W-AFVLV Anti-freeze valve. 1) Sound power in accordance to 8112013,81312013 and EN12102-1:2017 at +7 °C. 2) WH-MDC models are hermetically sealed. EER and COP calculation is based in accordance to EN14511. * Available in May 2020.Adobe InDesign 15.0 (Macintosh) Adobe PDF Library 15.0
