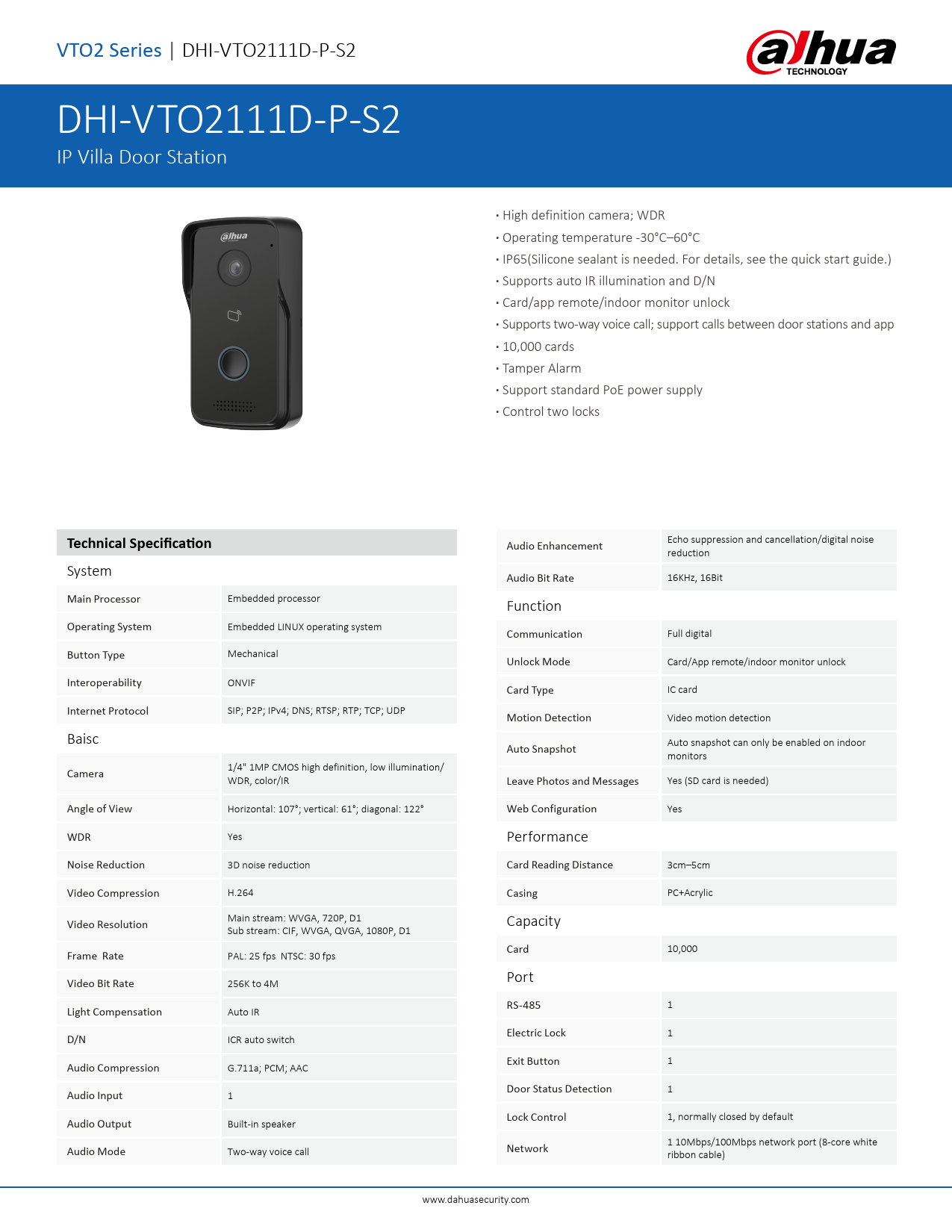

VTO2 Series | DHI-VTO2111D-P-S2
DHI-VTO2111D-P-S2
IP Villa Door Station

· High definition camera; WDR · Operating temperature -30°C­60°C · IP65(Silicone sealant is needed. For details, see the quick start guide.) · Supports auto IR illumination and D/N · Card/app remote/indoor monitor unlock · Supports two-way voice call; support calls between door stations and app · 10,000 cards · Tamper Alarm · Support standard PoE power supply · Control two locks

Technical Specification System

Main Processor

Embedded processor

Operating System

Embedded LINUX operating system

Button Type

Mechanical

Interoperability

ONVIF

Internet Protocol

SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Baisc

Camera

1/4" 1MP CMOS high definition, low illumination/ WDR, color/IR

Angle of View

Horizontal: 107°; vertical: 61°; diagonal: 122°

WDR

Yes

Noise Reduction

3D noise reduction

Video Compression Video Resolution Frame Rate

H.264
Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1
PAL: 25 fps NTSC: 30 fps

Video Bit Rate

256K to 4M

Light Compensation

Auto IR

D/N

ICR auto switch

Audio Compression

G.711a; PCM; AAC

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way voice call

Audio Enhancement Audio Bit Rate
Function
Communication Unlock Mode Card Type Motion Detection Auto Snapshot Leave Photos and Messages Web Configuration
Performance
Card Reading Distance Casing
Capacity
Card
Port
RS-485 Electric Lock Exit Button Door Status Detection Lock Control Network

Echo suppression and cancellation/digital noise reduction 16KHz, 16Bit
Full digital Card/App remote/indoor monitor unlock IC card Video motion detection Auto snapshot can only be enabled on indoor monitors Yes (SD card is needed) Yes
3cm­5cm PC+Acrylic
10,000
1 1 1 1 1, normally closed by default 1 10Mbps/100Mbps network port (8-core white ribbon cable)

www.dahuasecurity.com

VTO2 Series | DHI-VTO2111D-P-S2

Alarm
Tamper
General
Color Power Supply Mode Installation
Certifications
Accessory Dimensions Protection Grade Operating Temperature Operating Humidity Operating Altitude Power Consumption Gross Weight

Yes
Black 12V DC 1A Standard PoE Surface mount CE FCC UL Brackets and alarm ribbon cable 135mm×70.4mm×34.4mm (5.31"×2.77"×1.35") IP65 (silicone sealant is needed, see the quick start guide) -30°C to +60°C (-20°F to +60°F ) 10%RH­90%RH (non-condensing) Beneath 3000 m (9842.52 ft) Standby1W, working5W 326 g (0.72 lb)

Application

Dimensions (mm[inch])

Rev 001.001

© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail.
