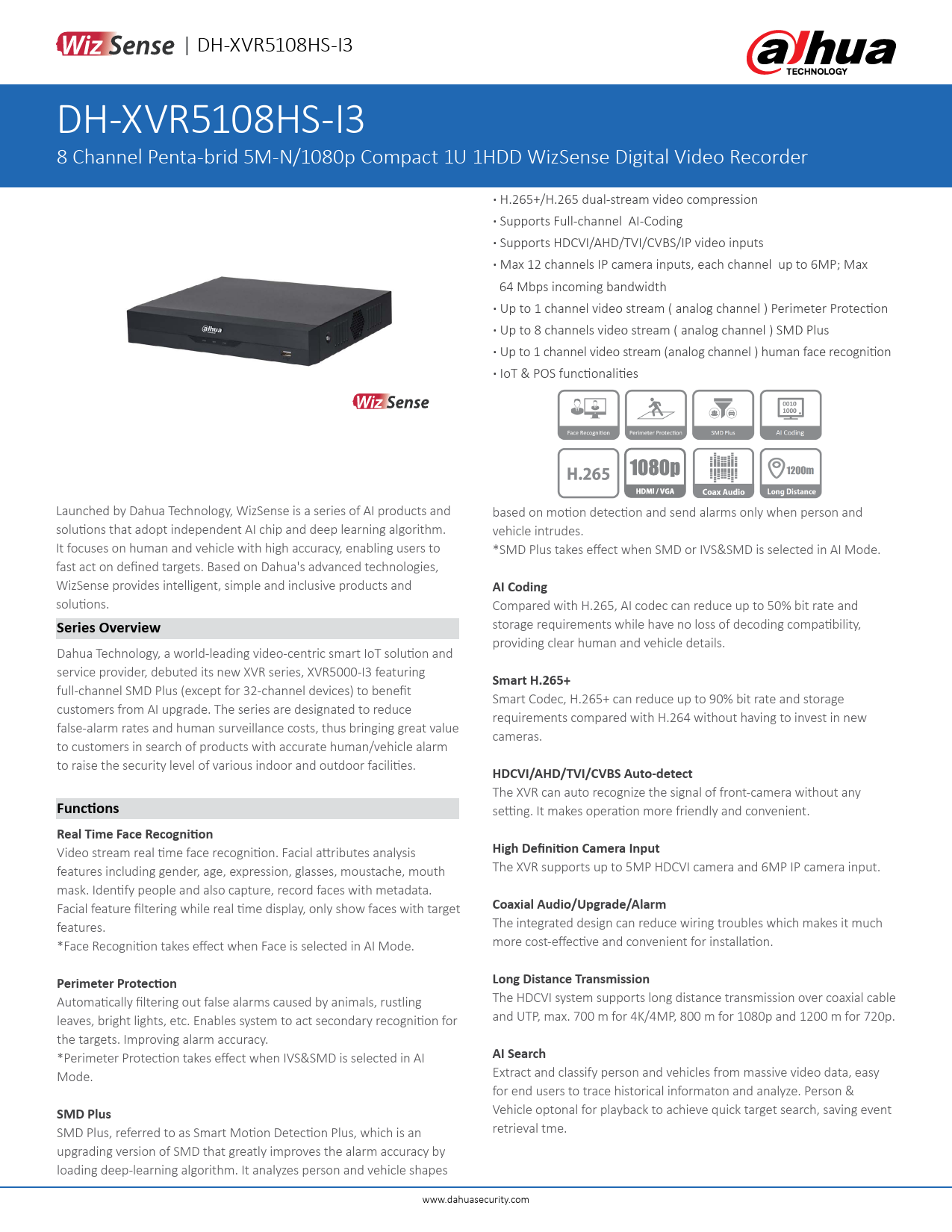

| DH-XVR5108HS-I3
DH-XVR5108HS-I3
8 Channel Penta-brid 5M-N/1080p Compact 1U 1HDD WizSense Digital Video Recorder
� H.265+/H.265 dual-stream video compression � Supports Full-channel AI-Coding � Supports HDCVI/AHD/TVI/CVBS/IP video inputs � Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth � Up to 1 channel video stream ( analog channel ) Perimeter Protection � Up to 8 channels video stream ( analog channel ) SMD Plus � Up to 1 channel video stream (analog channel ) human face recognition � IoT & POS functionalities

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Series Overview
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 featuring full-channel SMD Plus (except for 32-channel devices) to benefit customers from AI upgrade. The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
Functions
Real Time Face Recognition Video stream real time face recognition. Facial attributes analysis features including gender, age, expression, glasses, moustache, mouth mask. Identify people and also capture, record faces with metadata. Facial feature filtering while real time display, only show faces with target features. *Face Recognition takes effect when Face is selected in AI Mode.

based on motion detection and send alarms only when person and vehicle intrudes. *SMD Plus takes effect when SMD or IVS&SMD is selected in AI Mode.
AI Coding Compared with H.265, AI codec can reduce up to 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details.
Smart H.265+ Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.
HDCVI/AHD/TVI/CVBS Auto-detect The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.
High Definition Camera Input The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

Perimeter Protection Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy. *Perimeter Protection takes effect when IVS&SMD is selected in AI Mode.
SMD Plus SMD Plus, referred to as Smart Motion Detection Plus, which is an upgrading version of SMD that greatly improves the alarm accuracy by loading deep-learning algorithm. It analyzes person and vehicle shapes

Long Distance Transmission The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p.
AI Search Extract and classify person and vehicles from massive video data, easy for end users to trace historical informaton and analyze. Person & Vehicle optonal for playback to achieve quick target search, saving event retrieval tme.

www.dahuasecurity.com

| DH-XVR5108HS-I3

Technical Specification

Audio Compression

G.711A; G.711U; PCM

System

Audio Sample Rate

8 KHz, 16 bit per channel

Main Processor

Embedded processor

Audio Bit Rate

64 kbps per channel

Operating System

Embedded linux

Display

Perimeter Protection

Interface

1 HDMI; 1 VGA

Performance Object classification AI Search
Face Recognition
Performance
Stranger Mode AI Search
Database Management
Database Application Trigger Events
SMD Plus
Performance AI Search
Video and Audio
Analog Camera Input HDCVI Camera Input AHD Camera Input TVI Camera Input CVBS Camera Input IP Camera Input Audio In/Out Two-way Talk
Recording
Compression Resolution
Record Rate
Bit Rate Record Mode Record Interval

1 channel, 10 IVS for each channel Human/Vehicle secondary recognition for tripwire and intrusion Search by target classification (Human, Vehicle)
Max 8 face pictures/sec processing 1 channel video stream face recognition, only support analog camera Detect strangers' faces (not in device's face database). Similarity threshold can be set manually Up to 8 target face images search at same time, similarity threshold can be set for each target face image Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries&regions and state can be added to each face picture Each database can be applied to video channels independently Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
8 channels
Search by target classification (Human, Vehicle)
8 channels, BNC 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
PAL/NTSC
8+4 channels, each channel up to 6MP
1/1, RCA
Reuse audio in/out, RCA
AI Coding/H.265+/H.265/H.264+/H.264
5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF Main stream: All channel 5M-N (1 fps�10 fps); 4M-N/1080p (1 fps�15 fps); 1080N/720p/960H/ D1/CIF (1 fps�25/30 fps) Sub stream: D1/CIF (1 fps�15 fps) 32 kbps�6144 kbps per channel Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop 1 min�60 min (default: 60 min), Pre-record: 1 s�30 s, Post-record: 10 s�300 s

Resolution Multi-screen Display OSD
Network
Interface

1920 � 1080; 1280 � 1024; 1280 � 720 When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 Camera title, Time, Video loss, Camera lock, Motion detection, Recording
1 RJ-45 Port (100 MB)

Network Function

HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone; iPad; Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 � 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4/9 It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode.

Search Mode

Time/Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom

Backup Mode

USB Device/Network

Storage
Internal HDD

1 SATA port, up to 10 TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB ports (USB 2.0)

RS485

1 port, for PTZ control

RS232

N/A

Electrical
Power Supply
Power Consumption (Without HDD)

DC 12V/2A < 7W

www.dahuasecurity.com

| DH-XVR5108HS-I3

Construction
Dimensions Net Weight (without HDD) Gross Weight Installation
Environmental
Operating Conditions Storage Conditions

Compact 1U, 260.0 mm � 237.9 mm � 47.6 mm (10.24'' � 9.37'' � 1.87'') 1.19 kg (2.62 lb) 1.639 kg (3.61 lb) Desktop installation
-10�C to +55�C (+14�F to +131�F), 0%�90% (RH) -20�C to +70�C (-4�F to +158�F) , 0%�90% (RH)

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024

Panels

12

9

3 4 5678

1 VIDEO IN 2 AUDIO IN, RCA Connector 3 AUDIO OUT, RCA Connector 4 HDMI Interface 5 Network Interface

6 RS485 Interface 7 USB Interface 8 DC 12V Power Input 9 VGA Interface

Ordering Information

Type

Model

8 Channel WizSense XVR

DH-XVR5108HS-I3

Description
Compact 1U WizSense Digital Video Recorder

Dimensions (mm[inch])
260.0 [10.24]

44.7 [1.76] 47.6 [1.87]

226.6 [8.92] 237.7 [9.36]

Rev 001.001

� 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail.
