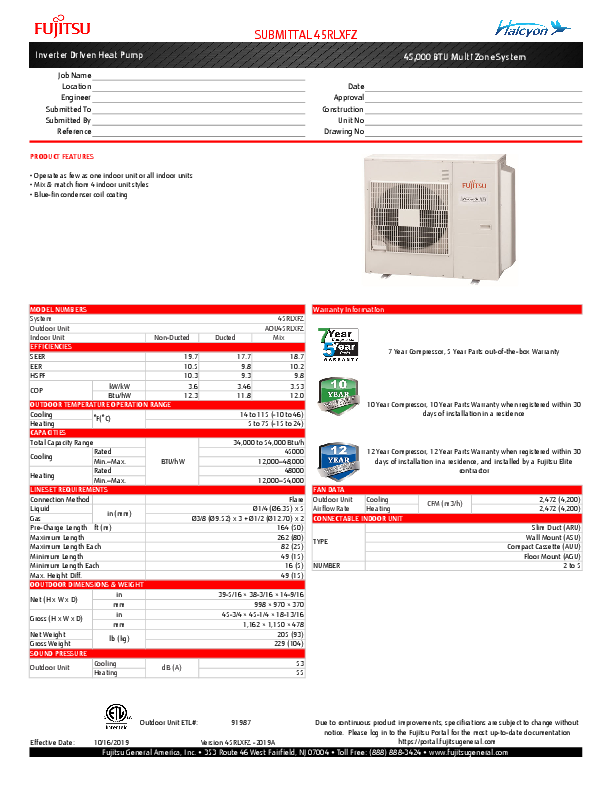

Fujitsu Halcyon 45RLXFZ Inverter Driven Heat Pump
Submittal 45RLXFZ - 45,000 BTU Multi Zone System
Product Features
- Operates as few as one indoor unit or all indoor units.
- Mix & match from 4 indoor unit styles.
- Features blue-fin condenser coil coating.
Model Numbers
| System | Outdoor Unit | Indoor Unit (Non-Ducted) | Indoor Unit (Ducted) | Indoor Unit (Mix) |
|---|---|---|---|---|
| 45RLXFZ | AOU45RLXFZ |
Efficiencies
| Efficiency Metric | Non-Ducted | Ducted | Mix |
|---|---|---|---|
| SEER | 19.7 | 17.7 | 18.7 |
| EER | 10.5 | 9.8 | 10.2 |
| HSPF | 10.3 | 9.3 | 9.8 |
| COP (kW/kW) | 3.6 | 3.46 | 3.53 |
| COP (Btu/hW) | 12.3 | 11.8 | 12.0 |
Outdoor Temperature Operation Range
| Mode | Temperature Range (°F (°C)) |
|---|---|
| Cooling | 14 to 115 (-10 to 46) |
| Heating | 5 to 75 (-15 to 24) |
Capacities
| Capacity Type | Rating | Units |
|---|---|---|
| Total Capacity Range | 34,000 to 54,000 | Btu/h |
| Cooling | Rated: 45000 | Btu/hW |
| Min.-Max.: 12,000-48,000 | ||
| Heating | Rated: 48000 | Btu/hW |
| Min.-Max.: 12,000-54,000 |
Lineset Requirements
| Requirement | Details |
|---|---|
| Connection Method | Flare |
| Liquid Line | Ø1/4 (Ø6.35) in (mm) x 5 |
| Gas Line | Ø3/8 (Ø9.52) x 3 + Ø1/2 (Ø12.70) x 2 in (mm) |
| Pre-Charge Length | 164 ft (50 m) |
| Maximum Length | 262 ft (80 m) |
| Maximum Length Each | 82 ft (25 m) |
| Minimum Length | 49 ft (15 m) |
| Minimum Length Each | 16 ft (5 m) |
| Max. Height Diff. | 49 ft (15 m) |
Outdoor Dimensions & Weight
| Dimension/Weight | Units | Value |
|---|---|---|
| Net (H × W × D) | in | 39-5/16 × 38-3/16 × 14-9/16 |
| mm | 998 × 970 × 370 | |
| Gross (H × W × D) | in | 45-3/4 × 45-1/4 × 18-13/16 |
| mm | 1,162 × 1,150 × 478 | |
| Net Weight | lb (kg) | 205 (93) |
| Gross Weight | lb (kg) | 229 (104) |
A Fujitsu Halcyon outdoor unit for a multi-zone heat pump system. It is a white, rectangular unit with a fan grille on the top. The Fujitsu logo and 'Halcyon' branding are visible on the front panel. The unit is designed for outdoor installation.
Sound Pressure
| Outdoor Unit | Mode | dB(A) |
|---|---|---|
| Cooling | 53 | |
| Heating | 55 |
Warranty Information
- [7-year warranty icon] 7 Year Compressor, 5 Year Parts out-of-the-box Warranty.
- [10-year warranty icon] 10 Year Compressor, 10 Year Parts Warranty when registered within 30 days of installation in a residence.
- [12-year warranty icon] 12 Year Compressor, 12 Year Parts Warranty when registered within 30 days of installation in a residence, and installed by a Fujitsu Elite contractor.
Electrical Specifications
| Specification | Details |
|---|---|
| Refrigerant | |
| Type | R410A |
| Charge | 8 lb 13 oz |
| Oil Type | RB68 |
| Electrical Details | |
| Voltage/Frequency/Phase | 1Ø 208/230 V 60 Hz |
| Voltage Range | 187-264V |
| Rated Current (A) | Cooling: 18.8 |
| Heating: 17 | |
| Maximum Operating Current | 23.8 A |
| Starting Current | 20.1 A |
| MCA | 28.9 A |
| Maximum Circuit Breaker | 30 A |
| Rated Input Power (kW) | Cooling: 4.28 |
| Heating: 3.88 | |
| Max. Input Power (kW) | Cooling: 4.77 |
| Heating: 4.32 | |
Dimensions
Diagrams illustrating the dimensions of the Fujitsu Halcyon 45RLXFZ outdoor unit. Views include front, side, and top perspectives. Key dimensions are provided in inches (in) and millimeters (mm), detailing height, width, and depth for both the unit itself and its packaging.
Note: Dimensions are provided in inches (in) and millimeters (mm).
Outdoor Unit Dimensions (Approximate):
- Height: 39-5/16 in (998 mm)
- Width: 38-3/16 in (970 mm)
- Depth: 14-9/16 in (370 mm)
Outdoor Unit Gross Dimensions (Approximate):
- Height: 45-3/4 in (1,162 mm)
- Width: 45-1/4 in (1,150 mm)
- Depth: 18-13/16 in (478 mm)
Connectable Indoor Units
| Type | Number of Units |
|---|---|
| Slim Duct (ARU) | |
| Wall Mount (ASU) | |
| Compact Cassette (AUU) | |
| Floor Mount (AGU) | |
| Total Connectable | 2 to 5 |
Fan Data
| Outdoor Unit | Mode | Airflow Rate CFM (m³/h) |
|---|---|---|
| Cooling | 2,472 (4,200) | |
| Heating | 2,472 (4,200) |
Certifications & Documentation
- Outdoor Unit ETL#: 91987
- Effective Date: 10/16/2019
- Version: 45RLXFZ -2019A
- ETL Listed
Notes and Disclaimers
Due to continuous product improvements, specifications are subject to change without notice. Please log in to the Fujitsu Portal for the most up-to-date documentation: https://portal.fujitsugeneral.com
Specifications Basis:
- Cooling: Indoor temperature of 80°F (26.7°C) DB/67°F (19.4°C) WB, and outdoor temperature of 95°F (35°C) DB/75°F (23.9°C) WB.
- Heating: Indoor temperature of 70°F (21.1°C) DB/60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB/43°F (6.1°C) WB.
- Pipe length: 25ft. (7.5m), Height difference: 0ft. (0m) (Outdoor unit - indoor unit).
Manufacturer: Fujitsu General America, Inc.
Address: 353 Route 46 West Fairfield, NJ 07004
Contact: Toll Free: (888) 888-3424 | Website: www.fujitsugeneral.com
