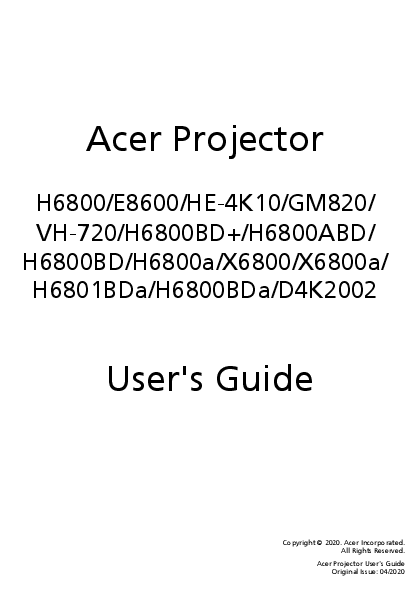

Acer Projector
H6800/E8600/HE-4K10/GM820/ VH-720/H6800BD+/H6800ABD/ H6800BD/H6800a/X6800/X6800a/ H6801BDa/H6800BDa/D4K2002
User's Guide
Copyright � 2020. Acer Incorporated. All Rights Reserved.
Acer Projector User's Guide Original Issue: 04/2020
Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose. Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your projector. All correspondence concerning your unit should include the serial number, model number and purchase information. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.
Model number: _________________________________ Serial number: __________________________________ Date of purchase: _______________________________ Place of purchase: ______________________________
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies. "HDMITM, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."
iii
Information for your safety and comfort
Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.
Turning the product off before cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Caution for plug as disconnecting device
Observe the following guidelines when connecting and disconnecting power to the external power supply unit:
� Install the power supply unit before connecting the power cord to the AC power outlet.
� Unplug the power cord before removing the power supply unit from the projector.
� If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.
Caution for Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.
Warnings!
� Do not use this product near water. � Do not place this product on an unstable cart, stand or table. If the product
falls, it could be seriously damaged. � Slots and openings are provided for ventilation to ensure reliable
operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. � This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided. � Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product. � To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
iv
� Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices, lamp.
Using electrical power
� This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
� Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
� If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
� Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
� This product's AC adapter is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.
Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.
Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.
� Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.
Product servicing
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel when: � the power cord or plug is damaged, cut or frayed
v
� liquid was spilled into the product � the product was exposed to rain or water � the product has been dropped or the case has been damaged � the product exhibits a distinct change in performance, indicating a need
for service � the product does not operate normally after following the operating
instructions
Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.
Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.
Your device and its enhancements may contain small parts. Keep them out of the reach of small children.
Additional safety information
� Do not look into the projector's lens when the lamp is on. The bright may hurt your eyes.
� Turn on the projector first and then signal sources � Do not place the product in following environments:
� Space that is poorly ventilated or confined. At least 50cm clearance from walls and free flow of air around the projector is necessary.
� Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up.
� Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the life span and darkening the image.
� Locations near fire alarms. � Locations with an ambient temperature above 40 �C/104 �F. � Locations where the altitudes are higher than 10000 feet.
� Unplug immediately if there is something wrong with your projector. Do not operate if smoke, strange noise or odor comes out of your projector. It might cause fire or electric shock. In this case, unplug immediately and contact your dealer.
� Do not keep using this product to break or drop it. In this case contact your dealer for inspection.
� Do not face the projector lens to the sun. It can lead to fire. � When switching the projector off, suggest to ensure the projector
completes its cooling cycle before disconnecting power. � Do not frequently turn off the main power abruptly or unplug the
projector during operation. The best way is to wait for the fan to turn off before turning main power off.
vi
� Do not touch air outlet grille and bottom plate which becomes hot. � Clean the air filter frequently if have. The temperature inside may rise and
cause damage when the filter/ventilation slots clogged with dirt or dust. � Do not look into the air outlet grille when projector is operating. It may
hurt your eyes. � Always open the lens shutter or remove the lens cap when the projector is
on. � Do not block the projector lens with any object when the projector is
under operation as this could cause the object to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press HIDE on the remote control. � The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement. � Do not operate lamps beyond the rated lamp life. It could cause it to break on rare occasions. � Never replace the lamp assembly or any electronic components unless the projector is unplugged. � The product will detect the life of the lamp itself. Please be sure to change the lamp when is showing warning message. � When changing the lamp, please allow unit to cool down, and follow all changing instructions. � Reset the "Lamp Hour Reset" function from the Onscreen display "Management" menu after replacing the lamp module. � Do not attempt to disassemble this projector. There are dangerous high voltages inside which may hurt you. The only user serviceable part is the lamp which has its own removable cover. Refer servicing only to suitable qualified professional service personnel. � Do not stand the projector on end vertically. It may cause the projector to fall over, causing injury or damage. � This product is capable of displaying inverted images for ceiling mount installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed. � The projector should be placed in a horizontal way by means of desktop or ceiling mount mode only, and its tilt angles should not exceed 6 degrees, otherwise it would cause dramatical decrease of lamp life or severe safety concern of system malfunction.
6�
6�
vii
Caution for Listening
To protect your hearing, follow these instructions. � Increase the volume gradually until you can hear clearly and comfortably. � Do not increase the volume level after your ears have adjusted. � Do not listen to music at high volumes for extended periods. � Do not increase the volume to block out noisy surroundings. � Decrease the volume if you can't hear people speaking near you.
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/Sustainability/sustainability01.htm
Mercury advisory
For projectors or electronic products containing an LCD/CRT monitor or display:
"Lamp(s) contain Mercury, Dispose Properly."
Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org
Do not stare into the beam, RG2
"As with any bright source, do not stare into the direct beam, RG2 IEC 624715:2015"
RG2
viii
First things first
Usage Notes
Do:
� Please plug in the UWA5 wireless dongle in the Wireless Kit port before
opening the projector for the first time.
� If user open the projector first, then plug in the UWA5 wireless dongle,
please re-start your projector.
� Turn off the product before cleaning. � Use a soft cloth moistened with mild detergent to clean the display
housing.
� Disconnect the power plug from AC outlet if the product is not being used
for a long period of time.
Don't:
� Block the slots and openings on the unit provided for ventilation. � Use abrasive cleaners, waxes or solvents to clean the unit. � Use under the following conditions:
� In extremely hot, cold or humid environments. � In areas susceptible to excessive dust and dirt. � Near any appliance that generates a strong magnetic field. � Place In direct sunlight.
Precautions
Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.
Warning:
� Do not look into the projector's lens when the lamp is on. The bright light may hurt
your eyes.
� To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
� Please do not open or disassemble the product as this may cause electric shock. � When changing the lamp, please allow unit to cool down, and follow all changing
instructions.
� This product will detect the life of the lamp itself. Please be sure to change the lamp
when it shows warning messages.
� Reset the "Lamp Hour Reset" function from the Onscreen display "Management"
menu after replacing the lamp module.
� When switching the projector off, please ensure the projector completes its cooling
cycle before disconnecting power.
� Turn on the projector first and then the signal sources.
ix
� Do not use lens cap when projector is in operation. � When the lamp reaches the end of its life, it will burn out and may make a loud
popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, contact your local dealer or Acer service center.
Cleaning the lens
� Before cleaning the lens, be sure to turn off the projector and unplug the
power cord to allow the projector to cool down for at least 30 minutes.
� Use a compressed air tank to remove the dust. � Use a special cloth for cleaning lens and gently wipe the lens. Do not touch
the lens with your fingers.
� Do not use alkaline/acid detergents or volatile solvents such as alcohol for
cleaning lens. If the lens is damaged due to the cleaning process, it is not covered by the warranty.
Warning:
� Do not use a spray containing flammable gases to remove dust or dirt from the lens.
This may cause a fire due to excessive heat inside the projector.
� Do not clean the lens if the projector is warming up as this may cause the lens' surface
film to peel off.
� Do not wipe or tap the lens with a hard object.
Contents
Information for your safety and comfort
iii
First things first
viii
Usage Notes
viii
Precautions
viii
Cleaning the lens
ix
Introduction
1
Product Features
1
Package Overview
2
Projector Overview
3
Projector Outlook
3
Control Panel
5
Remote Control Layout
6
Getting Started
8
Connecting the Projector
8
Turning the Projector On/Off
10
Turning on the Projector
10
Turning the projector off
10
Adjusting the Projected Image
12
Adjusting the Height of Projected Image
12
How to get a preferred image size by adjusting
distance and zoom
13
User Controls
14
Onscreen Display (OSD) Menus
14
Color
15
17
Setting
19
Management
20
Audio
21
Appendices
22
Troubleshooting
22
LED & Alarm Definition Listing
27
Replacing the Lamp (For service personnel only)
28
Ceiling Mount Installation
29
Specifications
32
Compatibility modes
34
Regulations and safety notices
39
English
1
Introduction
Product Features
This product is a single-chip DLP� projector. Outstanding features include:
� DLP� technology � Resolution 4K UHD � Enables projecting 3D content via DLP Link Technology: DLP 3D supported � High brightness and contrast ratio � Versatile display mode (Bright, Standard, sRGB, Rec 709, Movie, Dark
Cinema, Game, Football, ISF Day, IFS Night, HDR, HLG, User) enable optimum perofmance in any situation � Versatile display modes enable optimum performance in any situation � NTSC / PAL / SECAM compatible and HDTV (480i/p, 576i/p, 720p, 1080i/p) supported � Lower power consumption and economy (ECO) mode extend lamp life � Acer EcoProjeciton Technology delivers Intelligent power management approach and physical efficiency improvement � Equipped with HDMITM connection supporting HDCP � Multi-language onscreen display (OSD) menus � Manual focus/zoom projection lens � 0.8 ~ 2X digital zoom function � Microsoft� Windows� 2000, XP, Vista�, Windows 7, Windows 8.1, Windows 10, Macintosh� OS compliant � Support HDR format � Support 1080P/120Hz and 1080P/240Hz � Support 5ms low input lag � Smart projector: please find more details in Smart source User Manuel and CollaVision (WPS) Wireless Projection Support app User Manuel.
Note: Functions vary depending on model definition.
English
2
Package Overview
This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if any thing is missing.
Projector VGA cable (option)
Power cord
Quick Start Guide
Panduan ringkas
Ghid de pornire rapid
Strucn� p�rucka
Prirocnik za hiter zacetek
Hurtig start-guide
Strucn� pr�rucka
Schnellstartanleitung
Pikaopas
Gu�a de inicio r�pido
Snabbstartguide
H��ng da�n s�� du�ng nhanh
Guide de d�marrage rapide
Vodic za brzi pocetak rada
Guida rapida
Gyors �zembe helyez�si �tmutat�
Snelstartgids
Hurtigstartveiledning
Instrukcja szybkiego uruchomienia Vodic za brzo ucenje i pocetak rada
Guia de consulta r�pida
Hizli balangi� kilavuzu
Quick start guide
HDMI cable (option)
Carrying case (option)
Remote control
AAA battery x2 (option)
WirelessProjection-Kit (option)
Note: When projecting a 4K2K/60Hz signal, use an HDMI Premium certified 4K2K/60Hz cable supporting 18Gbps bandwidth.
Trust the cable with the label
English
3
Projector Overview
Projector Outlook
Front / upper side
12 34
56
7 8
#
Description
1 Lamp cover
2 Air outlet
3 Control panel
4 Power button
5 Zoom ring
6 Air inlet
9 10
11
#
Description
7 Focus ring
8 Remote control receiver
9 Projection lens
10 Lens cap
11 Tilt adjusting wheels
4 Rear side
English
1 2 34 5 6 7 89
Remove WIRELESS KIT
10
port label
#
Description
1 Power socket
2 HDMI connector
3
5V DC output connector (firmware upgrade functions)
4 PC analog signal/HDTV/component video input connector
5 KensingtonTM lock port
#
Description
6 RS232 connector
7 S/PDIF connector
8 Audio in connector
9 Audio out connector
10 USB connector (for wifi dongle)
Note 1: Functions vary depending on model definition. Note 2: wifi dongle no support hot plug
English
5
Control Panel
1
2
3
4
7
8
5
6
9
# Icon
Function
1 POWER POWER
2 LAMP LAMP
3 TEMP TEMP
4
POWER
Description Power Indicator LED Lamp Indicator LED Temp Indicator LED See the contents in "Turning the Projector On/Off" section.
:select OSD items under OSD main
5
Four directional select keys
menu and adjust image to compensate for distortion under no OSD menu.
:select OSD item under OSD main
menu
6 BACK BACK
Returns to the previous operation.
7 SOURCE SOURCE
Changes the active source.
8 ENTER ENTER
Confirm your selection of items.
9 MENU MENU
Press "MENU" to launch the Onscreen display (OSD) menu or exit the OSD menu.
Note 1: Functions vary depending on model definition. Note2: Keypad can not control and operate SMART content
English
Remote Control Layout
1
2 3 4 5
6
11 12 13 14 15 16 17
6
7 8 9 10
18 19 20 21 22 23 24
# Icon Function
Description
1
Infrared transmitter
Sends signals to the projector.
2
POWER
Refer to the "Turning the Projector On/Off" section.
3
Mouse
Smart mode : Switch to mouse mode for Navigation key. Others : Forbidden function.
4
SOURCE
Changes the active source.
5
Select/Enter Confirm your selection of items.
6
Four directional select keys
Use up, down, left, right buttons to select items or make adjustments to your selection.
7
Volume Up
8
Volume Down
9
MENU
Press "MENU" to launch the Onscreen display (OSD) menu or exit the OSD menu.
10
KEYSTONE
Adjusts the image to compensate for distortion caused by tilting the projector.
English
7
# Icon Function
Description
11
BACK
Returns to the previous operation.
12
VGA
Smart : Up, to select items.* Others : change source to the VGA connector.
13
FREEZE
Forbidden function.
Smart: Left, to select items.*
14
PgUp
Others : Select the previous page under VGA or HDMI
source.
Smart: CollaVision (WPS) Wireless Projection Support app
15
COMPONENT hot key.
Others: Forbidden funtion.
16
PgDn
Smart : Forbidden function. Others : Select the next page under VGA or HDMI source.
17
MEDIA
Smart: Down, to select items.* Others: Forbiddeb function.
18
HOME
Smart : Back to home page. Others : Switch to Smart mode.
19
HDMITM/MHL
Smart : Forbidden function. Others : Switch to HDMI source.
Smart : Forbidden function.
20
HIDE
Other : Momentarily turns off the video. Press "HIDE" to
hide the image, press again to display the image.
21
ZOOM IN
Smart : Forbidden function. Other : Zooms the projector display in.
22
VIDEO
Smart: Right, to select items.* Others: Forbidden function.
23
ZOOM OUT
Smart : Forbidden function. Other : Zooms the projector display out.
24
LAN/WiFi
No function.
Note 1: Functions vary depending on model definition. Note 2: "*"This feature will cause control compatibility issues depending on different level of app support.
English
MOLEX
MOLEX
HDTV adapter
Getting Started
Connecting the Projector
2 2
LR
3 3
10
7
5
RCA
4
6
8 2 9
1
8
Display
#
Description
1 Power cord
2 Audio cable
3 HDMI cable
4 VGA to component/HDTV adapter
5 VGA cable
#
Description
6 3 RCA component cable
7 USB cable
8 RS232 cable
9 S/PDIF cable
10 USB Dongle
English
9
Note 1: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector. Note 2: Functions vary depending on model definition Note 3: USB cable needs powered extender if the length is over 5 m. Note 4: USB DC 5V out connector support 5V power output for power bank charging.
English
10
Turning the Projector On/Off
Turning on the Projector
1 Ensure that the power cord and signal cable are securely connected. The Power indicator LED will solid red.
2 Turn on the projector by pressing "Power" button on the control panel or remote control, and the Power indicator LED will turn blue.
3 Turn on your source (computer, notebook, video player ,etc.). The projector will detect your source automatically. � If you connect to multiple sources at the same time, use the "Source" button on either control panel or the remote control or direct source key on the remote control to switch between inputs.
Turning the projector off
1 To turn the projector off, press and hold the power button. This message appears: "Power Off? Press power key again." Press the power button again.
2 The LED power indicator will turn RED and blink rapidly after the projector is turned off, and the fan(s) will continue to operate for about 10 minutes to ensure that the system cools properly.
3 Once the system has finished cooling, the LED power indicator will stop blinking and turn solid red to indicate standby mode.
4 It is now safe to unplug the power cord.
English
11
Warning indicators: � This onscreen message indicates that the projector has overheated.
The lamp with automatically turn off, the projector will automatically shut down, and the LED temp indicator will turn solid red. Contact your local dealer or service center.
� This onscreen message indicates that the fan has failed. The lamp will automatically turn off, the projector will automatically shut down, and the LED temp indicator will blink. Contact your local dealer or service center.
Note 1: Whenever the projector automatically shuts down and the LED lamp indicator turns solid red, contact your local reseller or service center. Note 2: Functions vary depending on model definition. Attention! The projector will enter a two minute cool down period to ensure continued optimal lamp operation. Attention! Please do not turn off projector within 1 minute after power on.
English
12
Adjusting the Projected Image
Adjusting the Height of Projected Image
The projector is equipped with elevator feet for adjusting the height of image.
To raise/lower the image:
Use Tilt adjusting wheel to fine-tune the display angle.
Tilt adjusting wheel
English
13
How to get a preferred image size by adjusting distance and zoom
The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring. � H6800/E8600/HE-4K10/GM820/VH-720/H6800BD+/H6800ABD/H6800BD/
H6800a/X6800/X6800a/H6801BDa/H6800BDa/D4K2002 To obtain an image size of 60" set the projector at a distance 2.0 m and 2.2 m from the screen.
A
60"
Desired image size
D Height: 87 cm
from base to top of image
2.2 m
C
2.0 m
B
Desired Distance
Desired Image Size
Diagonal (inch) <A>
W (cm) x H (cm)
27 50 60 70 80 90 100 120 150 200 250 300
Zoom Ratio: 1.1x
60 x 34 111 x 62 133 x 75 155 x 87 177 x 100 199 x 112 221 x 125 266 x 149 332 x 187 443 x 249 553 x 311 664 x 374
Distance (m)
Max zoom Min zoom
<B>
<C>
1.0
1.7
1.8
2.0
2.2
2.3
2.6
2.7
2.9
3.0
3.3
3.3
3.7
4.0
4.4
5.0
5.5
6.6
7.3
8.3
9.2
9.96
Top (cm) From base to top of
image <D> 39 72 87 101 116 130 144 173 217 289 361 433
English
14
User Controls
Onscreen Display (OSD) Menus
The projector has multilingual OSD that allow you to make image adjustments and change a variety of settings.
Using the OSD menus
� To open the OSD menu, press "MENU" on the remote control or control
panel.
� When the OSD is displayed, use the
keys to select any item in the
main menu. After selecting the desired main menu item, press "ENTER" to
enter submenu for feature setting.
� Use the
keys to select the desired item and adjust the settings by
using the
keys.
� Select the next item to be adjusted in the submenu and adjust as described
above.
� Press "BACK" on the remote control or control panel, the screen will return
to the main menu.
� To exit OSD, press "BACK" on the remote control or control panel. The
OSD menu will close and the projector will automatically save the new settings.
Main menu
Setting
Sub menu
Note 1: Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector. Note 2: Functions vary depending on model definition.
English
15
Color
HDR Display Mode
Wall color Brightness Contrast Saturation Tint
� Off: disable projection HDR signal automatically. � Auto: enable projection HDR signal automatically.
There are many factory presets optimized for various types of images.
� Bright: For brightness optimization. � Standard: For common environment. � sRGB: standard RGB color space. � Rec. 709: standard Rec. 709 color space. � Movie: For brighter and general movie/video/photo playing. � Dark Cinema: For dark movie content. � Game: For game content. � Football: For football performance. � ISF Day*: Calibrate and optimize the projection image based
on bright environment by an ISF Certified technician.
� ISF Night*: Calibrate and optimize the projection image based
on dark environment by an ISF Certified technician.
� HDR: For HDR content � HLG: For HLG content � User: Memorize user's settings.
Use this function to choose a proper color according to the wall. There are several choices, including white, light yellow, light blue, pink, dark green. It will compensate the color deviation due to the wall color to show the correct image tone.
Adjust the brightness of the image.
� Press
to darken the image.
� Press
to lighten the image.
"Contrast" controls the difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.
� Press
to decrease the contrast.
� Press
to increase the contrast.
Adjusts a video image from black and white to fully saturated color.
� Press
to decrease the amount of color in the image.
� Press
to increase the amount of color in the image.
Adjusts the color balance of red and green.
� Press
to increase the amount of green in the image.
� Press
to increase the amount of red in the image.
English
Color Temperature Gamma
Advanced
16
Mode Use this function to choose CT1, CT2, CT3, User mode.
Effects the representation of dark scenery. With greater gamma value, dark scenery looks brighter. Ind. Color Management Adjusts the red, green, blue, cyan, yellow and magenta colors. Ind. Hue Adjusts the color balance of red and green. Ind. Saturation Adjusts the selected color to be less or more saturated color. Ind. Gain Adjusts the selected color's contrast. Brilliant ColorTM Produces an expanded on-screen color spectrum that delivers enhanced color saturation for bright, true-to-life images. Exit Return to previous menu.
Note 1: "Saturation" and "Tint" functions are not supported under computer or HDMI mode. Note 2: Functions vary depending on model definition. Note 3: "*" Hot key "Power->up->down->up->up" to open ISF mode.
English
17
Projection
�
�
Projection Location
Front: The factory default setting.
Rear: Reverses the image so you can project from behind a translucent screen.
�
Auto: Automatically adjusts projection location of image.
�
Desktop
Aspect Ratio Sharpness
�
Ceiling: Turns the image upside down for ceiling-mounted
projection.
Use this function to choose your desired aspect ratio.
� Auto: Keep the image with original width-higth ratio and maxi
mize the image to fit native horizontal or vertical pixels.
� Full: Resize image to fit full screen by width (3840 pixels) and
height (2160 pixels).
� 4:3: The image will be scaled to fit the screen and displayed using
a 4:3 ratio.
� 16:9: The image will be scaled to fit the width of the screen and
the height adjusted to display the image using a 16:9 ratio.
� LBX: Keep original signal aspect ratio and zoom in by 1.333 times.
Adjusts the sharpness of the image.
Keystone
� Press
to decrease the sharpness.
� Press
to increase the sharpness.
Adjust image distortion caused by tilting projection.
Auto Keystone
� Off: Manually adjusts vertical image. � On: Automatically adjusts vertical image.
H. Keystone
Press the
or
button to adjust image distortion horizontally
and makes a squarer image.
V. Keystone
Press the
or
button to adjust image distortion vertically and
makes a squarer image.
English
18
4 Corner Correction Manually adjusts the shape and size of an image that is unevenly rectangular on all sides. Press "MODE" repeatedly to select the corner that you wish to adjust. Press four directional selection keys to adjust the image shape.
Image Shift Signal
HDMI Low Input Lag
<Note> The function is unavailable when H./ V. Keystone is adjusted.
� Image Shift: Shifts the projected image by pressing
.
H. Position (Horizontal position)
� Press
to move the image left.
� Press
to move the image right.
V. Position (Vertical position)
� Press
to move the image down.
� Press
to move the image up.
Frequency "Frequency" changes the projector's refresh rate to match the frequency of your computer's graphics card. If you can see a vertical flickering bar in the projected image, use this function to make the necessary adjustments.
Tracking Synchronizes the signal timing of the projector with the graphics card. If you experience an unstable or flickering image, use this function to correct it.
HDMI Color Range Adjust the color range of the HDMI image data to correct color display error.
� Auto: Automatically adjust by information from player. � Limited Range: Prosess the input image as limited color range data. � Full Range: Prosess the input image as full color range data.
HDMI Scan Info Adjust the overscan ratio of the HDMI image on screen.
� Auto: Automatically adjust by information from player. � Underscan: Always no overscan on HDMI image. � Overscan: Always keep overscan on HDMI image.
Use this function to make the projected screen smoothly without any lag. <Note> When the setting is set to "On", the 3D/Aspect Ratio/Keystone/ H. Position/V. Position/HDMI Scan Info/Tracking function will be reset to its factory default settings.
English
19
3D
3D Mode
Choose "On" to enable DLP 3D function.
� On: Choose this item while using DLP 3D glasses, 120Hz 3D
capable graphics cards and HQFS format file or DVD with
corresponding SW player.
� Off: Turn off 3D mode.
3D L/R Invert If you see a discrete or overlapping image while wearing DLP 3D glasses, you may need to execute "On" to get best match of left/right image sequence to get the correct image (for DLP 3D).
Note 1: "H. Position", "V. Position", "Frequency" and "Tracking" functions are not supported under HDMI or Video mode. Note 2: "HDMI Color Range" and "HDMI Scan Info" functions are only supported under HDMI mode.
Note 3: Functions vary depending on model definition. Note 4: 3D function is only supported for 120Hz.
Setting
Source Selection HDMI CEC Information
Manual by source menu, Auto by Smart Detection.
Default is "Off". Choose "On" to enable HDMI CEC function.
Display the projector information for Model Name, Input Source, Signal Type, Display Mode, Serial No., Software Version and QR code on the screen.
Scan QR code linking to Acer projector portal via mobile.
Reset
Reset OSD: Press the "ENTER" button and choose "Yes" to return the parameters on all menus to the factory default settings. Reset SMART: Press the "ENTER" button and choose "Yes" to reset SMART source.
Note: Functions vary depending on model definition.
English
20
Management
Lamp Mode High Altitude Auto Shutdown (Minutes) Menu Display Time (Seconds) Auto Power On
Lamp Information
Language
Normal: normal power consumption mode Eco: dim the projector lamp which will lower power consumption Dynamic:automatically optimize the display of dark ovie scenes enabling them to be shown in incredible detail.
Choose "On" to turn on High Altitude mode. Operate the fans at full speed continuously to allow for proper high altitude cooling of the projector.
The projector will automatically shutdown when there is no signal input after the allocated time. (default is 15 minutes)
Choose the OSD menu display time. (Default is 15 seconds). Select "Manual" to turn off main menu/one direct-key menu manually by user.
AC Power On Choose "On" to power on projector while AC power plug in.
HDMI Power On Choose "On" to power on projector while HDMI power plug in.
VGA Power On Choose "On" to power on projector while VGA power plug in.
Power Mode(Standby)
� Active: enable support power on the projector via Smart
source.
� Eco: disable support power on the projector via Smart source.
Lamp Hour Elapse Displays the lamp's elapsed operating time (in hours).
Lamp Reminding Activate this function to display a reminder to change the lamp 30 hours before its expected end-of-life.
Lamp Hour Reset Choose "Yes" and press "ENTER"to turn the lamp hour counter to 0 hours.
Choose the multilingual OSD menu. Use the
your preferred menu language.
� Press "ENTER" to confirm the selection.
key to select
Note: Functions vary depending on model definition.
English
21
Audio
Volume
Internal Speaker Mute
� Press
to decrease the volume.
� Press
to increase the volume.
� Choose "On" to enable internal speaker � Choose "Off" to disable internal speaker
� Choose "On" to mute the volume. � Choose "Off" to restore the volume.
Note 1: Functions vary depending on model definition. Note 2: Volume of SPIDF can not be adjusted.
22
Appendices
English
Troubleshooting
If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center.
Image Problems and Solutions
#
Problem
Solution
1
No image appears � Connected as described in the "Getting Started"
onscreen
section.
� Ensure none of the connector pins are bent or
broken.
� Check if the projector lamp has been securely
installed. Please refer to the "Replacing the Lamp
(For service personnel only)" section.
� Make sure you have removed the lens cap and the
projector is switched on.
2 Partial, scrolling
� For an incorrectly displayed image:
or incorrectly displayed image (for PC (Windows
� Open "My Computer", open the "Control
Panel", and then double-click the "Display"
2000/XP/Vista/
icon.
Windows 7/
� Select the "Settings" tab.
Windows 8))
� Verify that your display resolution setting is
lower than or equal to WUXGA-RB (1920 x
1200).
� Click the "Advanced Properties" button.
If the problem still appears, change the monitor display
you are using and follow the steps below:
� Verify that the resolution setting is lower than
or equal to WUXGA-RB (1920 x 1200).
� Click the "Change" button under the
"Monitor" tab.
� Click "Show all devices". Next, select "Standard
monitor types" under the SP box, and choose
the resolution mode you need under the
"Models" box.
� Verify that the resolution setting of the
monitor display is lower than or equal to
WUXGA-RB (1920 x 1200).
23
English
3 Partial, scrolling
� For an incorrectly displayed image:
or incorrectly displayed image (For notebooks)
� Follow the steps for item 2 (above) to adjust
the resolution of your computer.
� Press the toggle output settings. Example:
[Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8],
Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4],
NEC [Fn]+[F3], Toshiba [Fn]+[F5]
� If you experience difficulty changing resolutions or
your monitor freezes, restart all equipment
including the projector.
4
The screen of the � If you are using a Microsoft� Windows� based
notebook computer is not displaying your
notebook: Some notebook PCs may deactivate their own screens when a second display device is in use.
presentation
Each has a different way to be reactivated. Refer to
your computer's manual for detailed information.
� If you are using an Apple� Mac� OS based
notebook: In System Preferences, open Display and
select Video Mirroring "On".
5
Image is unstable � Adjust the "Tracking" to correct it. Refer to the
or flickering
"Image" section for more information.
� Change the display color depth settings on your
computer.
6
Image has vertical � Use "Frequency" to make an adjustment. Refer to
flickering bar
the "Image" section for more information.
� Check and reconfigure the display mode of your
graphics card to make it compatible with the
projector.
7 Image is out of focus
� Make sure the lens cap is removed.
� Adjusts the focus ring on the projector lens.
� Make sure the projection screen is within the
required distance from the projector. Refer to the "How to get a preferred image size by adjusting distance and zoom" section for more information.
8 Image is stretched When you play a DVD encoded in anamorphic or 16:9
when displaying a aspect ratio you may need to adjust the following
"widescreen"
settings:
DVD title
� If you play a 4:3 format DVD title, please change the
format to 4:3 in the projector OSD.
� If the image is still stretched, you will also need to
adjust the aspect ratio. Set up the display format to
16:9 (wide) aspect ratio on your DVD player.
� If you play an Letterbox (LBX) format DVD title,
please change the format to Letterbox (LBX) in the
projector OSD.
24
English
9
Image is too small � Adjust the zoom ring on the projector.
or too large
� Move the projector closer to or further from the
screen.
� Press "MENU" on the remote control. Go to "Image -
-> Aspect Ratio" and try different settings or press
"RATIO" on the remote control to adjust directly.
10 Image has slanted � If possible, reposition the projector so that it is
sides
centered on the screen.
� Press the "Keystone / " button on the remote
control until the sides are vertical.
11 Image is reversed � Select "Image --> Projection Mode" on the OSD and
adjust the projection direction.
12 LAN/WiFi, USB Display source show No signal
� Power off peojector and power on again.
13 Image hangs up when displaying photo or document in Media
� Power off peojector and power on again.
English
25
OSD Messages
# Condition
1 Message
Message Reminder � Fan Fail - the system fan is not working.
� Projector Overheated - the projector has exceeded its
recommended operating temperature and must be allowed to cool down before it may be used. Please check the following message.
Please also check the dust filters if they are installed. If the dust filter is clogged with dust, please clean it.
� Replace the lamp - the lamp is about to reach its maximum
lifetime. Prepare to replace it soon.
26
Problems with the Projector
English
#
Condition
Solution
1
The projector stops responding � If possible, turn off the projector, then
to all controls
unplug the power cord and wait at
least 30 seconds before reconnecting
power.
2 Lamp burns out or makes a popping sound
� When the lamp reaches the end of its
useful life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp (For service personnel only)" section.
3 Wifi or Bluetooth cannot be detected normally.
� Plug in wifi dongle agian and restart
projector.
27
English
LED & Alarm Definition Listing
LED Messages
Message
Standby Power button ON Lamp retry
Lamp_LED Red ----
Temp_LED Red ----
Power off (Cooling state)
--
--
Power button OFF (cooling completed; standby mode) Error (thermal failure) Error (fan lock)
Error (lamp breakdown) Error (color wheel fail)
--
---
ON Quick Flashing
--
ON Quick Flashing
---
Power LED
Red
Blue
ON
--
--
ON
--
Quick
Flashing
Quick
--
Flashing
ON
--
--
ON
--
ON
--
ON
--
ON
English
28
Replacing the Lamp (For service personnel only)
The projector will detect the lamp life. You will be shown a warning message "Lamp Warning! Lamp life exceeded." When you see this message, change the lamp as soon as possible. Make sure the projector has been cooling down for at least 45 minutes before changing the lamp.
Warning: The lamp compartment is hot! Allow it to cool down before changing the lamp. Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped. Warning: Do not attempt to replace the lamp yourself. Contact the qualified service personnel for replacement.
English
29
Ceiling Mount Installation
If you wish to install the projector using a ceiling mount, please refer to the steps below:
1 Drill four holes into a solid, structural ceiling member, and secure the ceiling mount base to the ceiling.
2 Choose the length combination based on actual environment. (CM-01S doesn't include Type 2 and Type 3.)
Type 1
Type 2
Type 3
English
30
3 Type 1: For the standard size use three bracket screws to mount the projector to the ceiling mount bracket. Type 2 and Type 3: Alternatively, for the larger size, use the sliding extensions for more supports.
Type 1:
Type 2:
Type 3:
Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution.
4 Connect the main body connector to the projector bracket (illustration 1), and then screw up four screws (illustration 2).
Illustration 1
Illustration 2
31
5 Adjust the angle and positioning as necessary.
360�
English
113.68mm 100.18mm
48.19mm 82.30mm 169.80mm 254.10mm 255.25mm
Screw Type B
Diameter (mm)
Length (mm)
4
25
Large V
Washer Type
Small V
55.00mm
55.00mm
SCREW SPEC. M4 x 25 mm
107.00mm
8.00mm 313.50mm
English
32
Specifications
The specifications listed below are subject to change without notice. For final specs, please refer to Acer's published marketing specifications.
Projection system Computer compatibility
Video compatibility
Displayable colors Horizontal scan rate Vertical refresh scan rate Digital zoom Power supply Operating temperature Standard package contents
DLP�
IBM PC and compatibles, Apple Macintosh, iMac and VESA standards: SXGA, XGA, VGA, SVGA, SXGA+, WXGA, WXGA+, WSXGA +
NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/ K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
1.07 billion colors
15 - 100 kHz
24 - 120 Hz
0.8x ~ 2.0x
AC input 100 - 240 V auto-switching power supply
0�C to 40�C / 32�F to 104�F
� AC power cord x1 � HDMI cable x1 (option) � VGA cable x1 (option) � Remote control x1 � AAA battery x2 (for remote control) (option) � Quick start guide (Projector) x1 � Carrying case x1 (option)
Note 1: Design and specifications are subject to change without notice. Note 2: * Functions vary depending on model definition.
English
33
\
H6800/E8600/HE-4K10/GM820/VH-720/H6800BD+/H6800ABD/H6800BD/ H6800a/X6800/X6800a/H6801BDa/H6800BDa/D4K2002
Resolution
Aspect ratio Optical zoom ratio Throw ratio Projection lens
Projection screen size (diagonal) Projection distance Lamp type Audio Weight Dimensions (W x D x H) (with feet) Power consumption
4K UHD resolution
� Maximum: UXGA (1600 x 1200), WSXGA+
(1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200), UHD(3840x2160),4K(4120x2160) Auto, Full, 4:3, 16:9, LBX 1.1X 1.50 ~ 1.66 (60"@2m) F = 1.98 ~ 2.02, f = 15.84mm ~ 17.44mm, Manual Zoom & Focus 27" ~ 301" (69cm ~ 765cm) 1.0m ~ 10m (3.3' ~ 32.7') 240W lamp Internal speaker with 10W x 1 output 3.2kg(7.0lbs) 313mm x 240mm x 113.7mm (12.3" x 9.4" x 4.5")
Normal mode:310W�10%@ 110VAC ECO mode:215W�10%@ 110VAC Standby mode< 0.5W
I/O connectors
Power socket
V
VGA IN
V
HDMI 1
V
HDMI 2
V
RS232
V
3.5 mm audio jack input
V
3.5 mm audio jack output
V
5V DC output
V
USB A1 (Wireless dongle)
V
S/PDIF
V
Note 1: Design and specifications are subject to change without notice. Note 2: * Functions vary depending on model definition.
34
English
Compatibility modes
A. VGA Analog
1 VGA Analog - PC Signal
Modes VGA
SVGA
XGA
SXGA
QuadVGA SXGA+ UXGA
PowerBook G4 PowerBook G4 PowerBook G4 PowerBook G4 PowerBook G4 PowerBook G4 i Mac DV (G3)
Resolution 640x480 640x480 640x480 640x480 640x480 800x600 800x600 800x600 800x600 800x600 800x600 1024x768 1024x768 1024x768 1024x768 1024x768 1152x864 1152x864 1152x864
1280x1024 1280x1024 1280x1024 1280x1024 1280x960 1280x960 1400x1050 1600x1200
640x480 640x480 800x600 1024x768 1152x870 1280x960 1024x768
V.Frequency [Hz] 60 72 75 85 120 56 60 72 75 85 120 60 70 75 85 120 70 75 85 60 72 75 85 60 75 60 60 60
66.6(67) 60 60 75 75 75
H.Frequency [KHz] 31.5 37.9 37.5 43.3 61.9 35.1 37.9 48.1 46.9 53.7 77.4 48.4 56.5 60.0 68.7 99.0 63.8 67.5 77.1 64.0 77.0 80.0 91.1 60.0 75.2 65.3 75.0 31.4 34.9 37.9 48.4 68.7 75.0 60.0
English
35
2 VGA Analog - Extended Wide timing
Modes WXGA
WSXGA+ WUXGA
Resolution 1280x768 1280x768 1280x768 1280x720 1280x720 1280x800 1280x800 1920x1200 1440x900 1680x1050 1920x1080 (1080P) 1366x768 1920x1200-RB
V.Frequency [Hz] 60 75 85 60 120 60
119.909 60 60 60
60
60 59.94
H.Frequency [KHz] 47.8 60.3 68.6 44.8 92.9 49.6 101.6 74 59.9 65.3
67.5
47.7 74.04
3 VGA Analog -Component Signal
Modes
480i 576i 480p 576p 720p 720p 1080i 1080i 1080p 1080p 1080p
Resolution
V.Frequency [Hz]
720x480(1440x480) 59.94 (29.97)
720x576(1440x576)
50(25)
720x480
59.94
720x576
50
1280x720
60
1280x720
50
1920x1080
60(30)
1920x1080
50(25)
1920x1080
23.97/24
1920x1080
60
1920x1080
50
H.Frequency [KHz]
15.7 15.6 31.5 31.3 45.0 37.5 33.8 28.1 27.0 67.5 56.3
B. HDMI Digital
1 HDMI - PC Signal
Modes VGA
Resolution 640x480 640x480 640x480 640x480
V.Frequency [Hz] 60 72 75 85
H.Frequency [KHz] 31.5 37.9 37.5 43.3
36
English
640x480
120
61.9
SVGA
800x600
56
35.1
800x600
60
37.9
800x600
72
48.1
800x600
75
46.9
800x600
85
53.7
800x600
120
77.4
XGA
1024x768
60
48.4
1024x768
70
56.5
1024x768
75
60.0
1024x768
85
68.7
1024x768
120
99.0
SXGA
1152x864
70
63.8
1152x864
75
67.5
1152x864
85
77.1
1280x1024
60
64.0
1280x1024
72
77.0
1280x1024
75
80.0
1280x1024
85
91.1
QuadVGA
1280x960
60
60.0
1280x960
75
75.2
SXGA+
1400x1050
60
65.3
UXGA
1600x1200
60
75.0
PowerBook G4
640x480
60
31.4
PowerBook G4
640x480
66.6(67)
34.9
PowerBook G4
800x600
60
37.9
PowerBook G4
1024x768
60
48.4
PowerBook G4
1152x870
75
68.7
PowerBook G4
1280x960
75
75.0
i Mac DV (G3)
1024x768
75
60.0
2 HDMI - Extended Wide timing
Modes WXGA
WSXGA+
Resolution 1280x768 1280x768 1280x768 1280x720 1280x720 1280x800 1280x800-RB 1440x900 1920x1200 1680x1050
V.Frequency [Hz] 60 75 85 60 120 60
119.909 60 60 60
H.Frequency [KHz] 47.8 60.3 68.6 44.8 92.9 49.6 101.6 59.9 74 65.3
English
37
WUXGA
1920x1080 (1080P)
1920x1080 (1080P) 1366x768
1920x1200-RB
60
50 60 59.94
67.5
56.3 47.7 74.04
3 HDMI - Video Signal
Modes
480i 576i 480p 576p 720p 720p 1080i 1080i 1080p 1080p 1080p 1080p 1080p 1080p 4K
Resolution
V.Frequency [Hz]
720x480(1440x480) 720x576(1440x576)
720x480 720x576
59.94 (29.97) 50(25) 59.94 50
1280x720 1280x720 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1200-RB 3840x2160 3840x2160 3840x2160 3840x2160 3840x2160 4096x2160 4096x2160 4096x2160 4096x2160 4096x2160
60 50 60(30) 50(25) 23.97/24 25 29.97/30 60 50 59.94 60 24 25 30 50 60 24 25 30 50
H.Frequency [KHz]
15.7 15.6 31.5 31.3 45.0 37.5 33.8 28.1 27.0 28.1 33.8 67.5 56.3 74.04 135 54 56.25 67.5 112.5 140 60 61.5 75.5 119
4 HDMI - 1.4a 3D Timing
Modes
720p (Frame Packing) 720p (Frame Packing) 1080p (Frame Packing )
Resolution
1280 x 720 1280 x 720 1920 x1080
V.Frequency [Hz] H.Frequency [KHz]
50
37.5
60
45.0
24
27.0
English
720p (Frame Packing) 1280 x 720
50
720p (Frame Packing) 1280 x 720
60
1080i (Top and Bottom) 1920 x1080
50 (25)
1080i (Top and Bottom) 1920 x1080
60 (30)
1080p (Top and Bottom) 1920 x1080
24
1080p (Top and Bottom) 1920 x1080
50
1080p (Top and Bottom) 1920 x1080
60
720p (Side by Side (Half)) 1280 x 720
60
1080i (Side by Side (Half)) 1920 x1080
50 (25)
1080i (Side by Side (Half)) 1920 x1080
60 (30)
1080p (Side by Side (Half)) 1920 x1080
50
1080p (Side by Side (Half)) 1920 x1080
60
Graphic source monitor range limits
Horizontal scan rate: Vertical scan rate:
Max. pixel rate:
38
37.5 45.0 28.1 33.8 27.0 56.3 67.5 45.0 28.1 33.8 56.3 67.5 15k-100kHz 24-120 Hz Analog:165MHz Digital:165MHz
Note 1: Functions vary depending on model definition. Note 2: MHL 1080p 3D 24p frame packing is not supported.
English
39
Regulations and safety notices
FCC notice
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: � Reorient or relocate the receiving antenna. � Increase the separation between the device and receiver. � Connect the device into an outlet on a circuit different from that to which
the receiver is connected. � Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.
Caution
Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this device.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
English
English
40
Remarque � l'intention des utilisateurs canadiens
Cet appareil num�rique de la classe B est conforme a la norme NMB-003 du Canada. Compliant with Russian/ Ukraine regulatory certification
Radio device regulatory notice
Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only.
General
This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).
Canada -- Low-power license-exempt radio communication devices (RSS-247)
a Common information Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device.
b Operation in 2.4 GHz band To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.
List of applicable countries
This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact the local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi New Taipei City 221, Taiwan
of Conformity
We, Acer Incorporated 8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
And, Acer Italy s.r.l. Viale delle Industrie 1/A, 20020 Arese (MI), Italy Tel: +39-02-939-921 ,Fax: +39-02 9399-2913 www.acer.it
Product: Trade Name: Model Number:
Marketing name:
DLP Projector Acer D4K2002
H6800/E8600/HE-4K10/GM820/VH-720/H6800BD+/H6800ABD/H6800BD/ H6800a/X6800/X6800a/H6801BDa/H6800BDa
We, Acer Incorporated, hereby declare under our sole responsibility that the product described above
standards and/or other relevant standards have been applied: Electromagnec compability
EN 55032:2015+AC:2016-07, Class B EN61000-3-2:2014Class D EN 61000-3-3:2013
Radio frequency spectrum usage
EN55024:2010+A1:2015 EN55035:2017 EN 301 489-1 V2.1.1 EN 301 489-3 V2.1.1
EN 301 489-3 V1.6.1 EN 301 489-7 V1.3.1
EN 301 489-17 V3.1.1 EN 301 489-24 V1.5.1
EN 300 328 V2.2.2 EN 300 440-1 V1.6.1 EN 300 440-2 V1.4.1 EN 302 291-1 V1.1.1
Healthy and Safety
EN 302 291-2 V1.1.1 EN 301 511 V9.0.2
EN 301 893 V2.1.1 EN 300 440 V2.1.1
EN301 908-1 V7.1.1 EN 301 908-2 V6.2.1 EN 301 908-13 V6.2.1
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
EN 62209-1:2006 EN 62209-2:2010
EN 62311:2008 EN 62479:2010
RoHS
EN 62368-1:2014+A11 EN 50360: 2001/A1: 2012
EN 50566:2017
EN 50581:2012
EN 62321:2012
ErP
Regulaon (EU) No. 617/ 2013 Regulaon (EC) No. 1275/ 2008; EN 50564:2011
Regulaon (EU) No. 2019/1782; EN 50563:2011
Radio Equipment (WiFi Dongle) Type:UWA5 or WL-7200-V2 Operaon frequency and radio-frequency power are listed as below: Bluetooth: 2402-2480MHz<10 dBm WLAN 2.4GHz: 2412MHz-2462MHz < 20dBm WLAN 5GHz: 5180-5320MHz <23dBm WLAN 5GHz: 5500-5700MHz < 23dBm
Year to begin affixing CE marking 20 1.
_______________________________ RU Jan / Sr. Manager Acer Incorporated (Taipei, Taiwan)
Nov. 29, 2019 Date
Acer America Corporation 333 West San Carlos St., Suite 1500 San Jose, CA 95110 U. S. A. Tel: 254-298-4000 Fax: 254-298-4147
www.acer.com
Federal Communications Commission Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The following local Manufacturer / Importer is responsible for this declaration:
Product:
DLP Projector
Model Number:
DAK2002
Machine Type:
H6800/E8600/HE-4K10/GM820/VH-720/H6800BD+/H6800ABD/H6800BD/ H6800a/X6800/X6800a/H6801BDa/H6800BDa
Name of Responsible Party: Acer America Corporation
Address of Responsible Party:
333 West San Carlos St. Suite 1500 San Jose, CA 95110 U. S. A.
Contact Person:
Acer Representative
Phone No.:
254-298-4000
Fax No.:
254-298-4147
