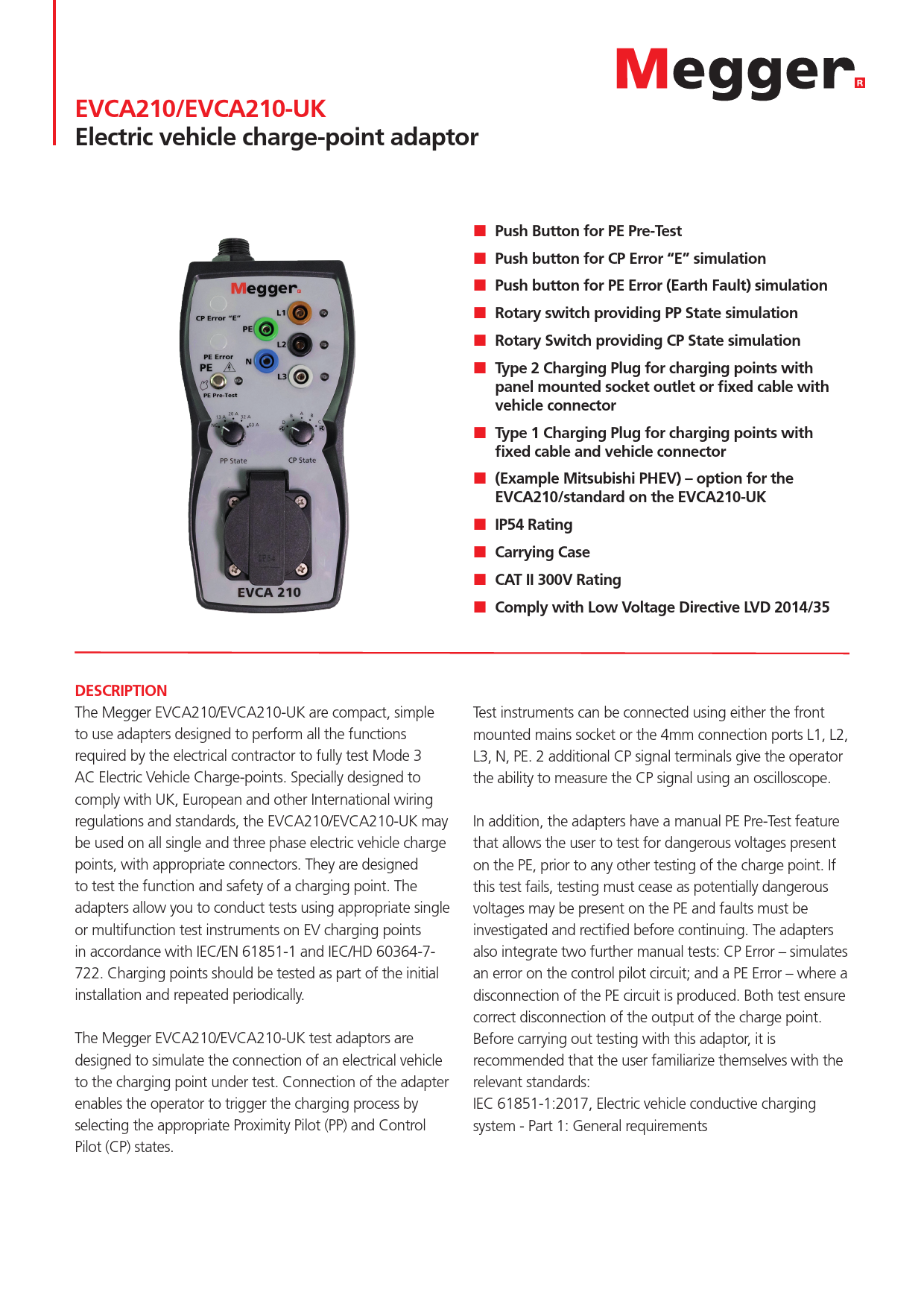

Megger EVCA210/EVCA210-UK Electric Vehicle Charge-Point Adaptor
Product Description
The Megger EVCA210 and EVCA210-UK are compact and user-friendly adaptors designed to perform all essential tests for Mode 3 AC Electric Vehicle Charge-points, as required by electrical contractors. These adaptors comply with UK, European, and international wiring regulations and standards, including IEC/EN 61851-1 and IEC/HD 60364-7-722. They are suitable for use on single and three-phase EV charge points with appropriate connectors, ensuring the function and safety of the charging station. The adaptors simulate the connection of an electric vehicle, allowing the operator to initiate the charging process by selecting the correct Proximity Pilot (PP) and Control Pilot (CP) states. Testing should be performed during initial installation and periodically thereafter.
The adaptors feature a manual PE Pre-Test function to check for dangerous voltages on the PE conductor before other tests. If this test fails, further testing should cease until the PE fault is rectified. Additionally, manual tests include CP Error simulation (simulating a control pilot circuit error) and PE Error simulation (simulating a PE circuit disconnection), both designed to ensure correct output disconnection from the charge point.
Key Features and Functions
- Push Button for PE Pre-Test ?
- Push button for CP Error "E" simulation ⚙️
- Push button for PE Error (Earth Fault) simulation ⚙️
- Rotary switch for PP State simulation
- Rotary switch for CP State simulation
- Type 2 Charging Plug for charging points with panel-mounted socket outlets or fixed cables
- Type 1 Charging Plug for charging points with fixed cables (standard with EVCA210-UK, example Mitsubishi PHEV)
- IP54 Rating ?
- Carrying Case ?
- CAT II 300V Rating ⚡
- Complies with Low Voltage Directive LVD 2014/35/EU
Specifications
| Specification | EVCA210 | EVCA210-UK |
|---|---|---|
| Input Voltage | Up to 250 V (single phase) / 430 V (three phase) | Up to 250 V (single phase) / 430 V (three phase) |
| Input Frequency | 50/60 Hz | 50/60 Hz |
| PE Pre-Test | Push button | Push button |
| PP Simulation | NC, 13 A, 20 A, 32 A, 63 A | NC, 13 A, 20 A, 32 A, 63 A |
| CP States | A, B, C, D | A, B, C, D |
| CP Error "E" | Yes | Yes |
| PE Error (Earth Fault) | Yes | Yes |
| Measuring Ports (L1, L2, L3, N and PE) | Max. 250/430 V, CAT II 300 V, max. 10 A | Max. 250/430 V, CAT II 300 V, max. 10 A |
| Mains Socket | Schuko socket (CEE 7/3) | 13A UK socket |
| CP Signal Test Ports | Approx. +/-12 V, CAT 0 | Approx. +/-12 V, CAT 0 |
| Measurement Category | CAT II 300 V | CAT II 300 V |
| IP Rating | IP54 | IP54 |
| Type 2 Plug | Included | Included |
| Type 1 Plug | Not included | Included |
| Soft Carry Case | Optional | Included |
Ordering Information
Standard Packages
| Description | Part number | Description | Part number |
|---|---|---|---|
| EVCA210-UK (UK Mains Socket) | 1012-732 | EVCA210 (Schuko Mains Socket) | 1013-317 |
| Included accessories: Type 1 Charging Plug, Type 2 Charging Plug, Soft Carry Case, Instruction Manual | Included accessories: Type 2 Charging Plug, Soft Carry Case, Instruction Manual |
Optional Accessories
| Description | Part number |
|---|---|
| EVCA210 Soft Carry Case | 1013-318 |
| Type 1 Charging Plug | 1013-319 |
| Type 2 Charging Plug | 1013-320 |
Relevant Standards
- IEC 61851-1:2017, Electric vehicle conductive charging system - Part 1: General requirements
- IEC 60364-7-722:2018 Low-voltage electrical installations - Part 7-722: Requirements for special installations or locations - Supplies for electric vehicles
Sales Office
Megger Limited
Archcliffe Road Dover
CT17 9EN England
T +44 (0) 1304 502101
E UKsales@megger.com
www.megger.com
ISO 9001
The word 'Megger' is a registered trademark.
