Datasheet UISP-R-Pro - FCC Report
Speci cations are subject to change. Ubiquiti products are sold with a limited warranty described at: ui.com/support/warranty.

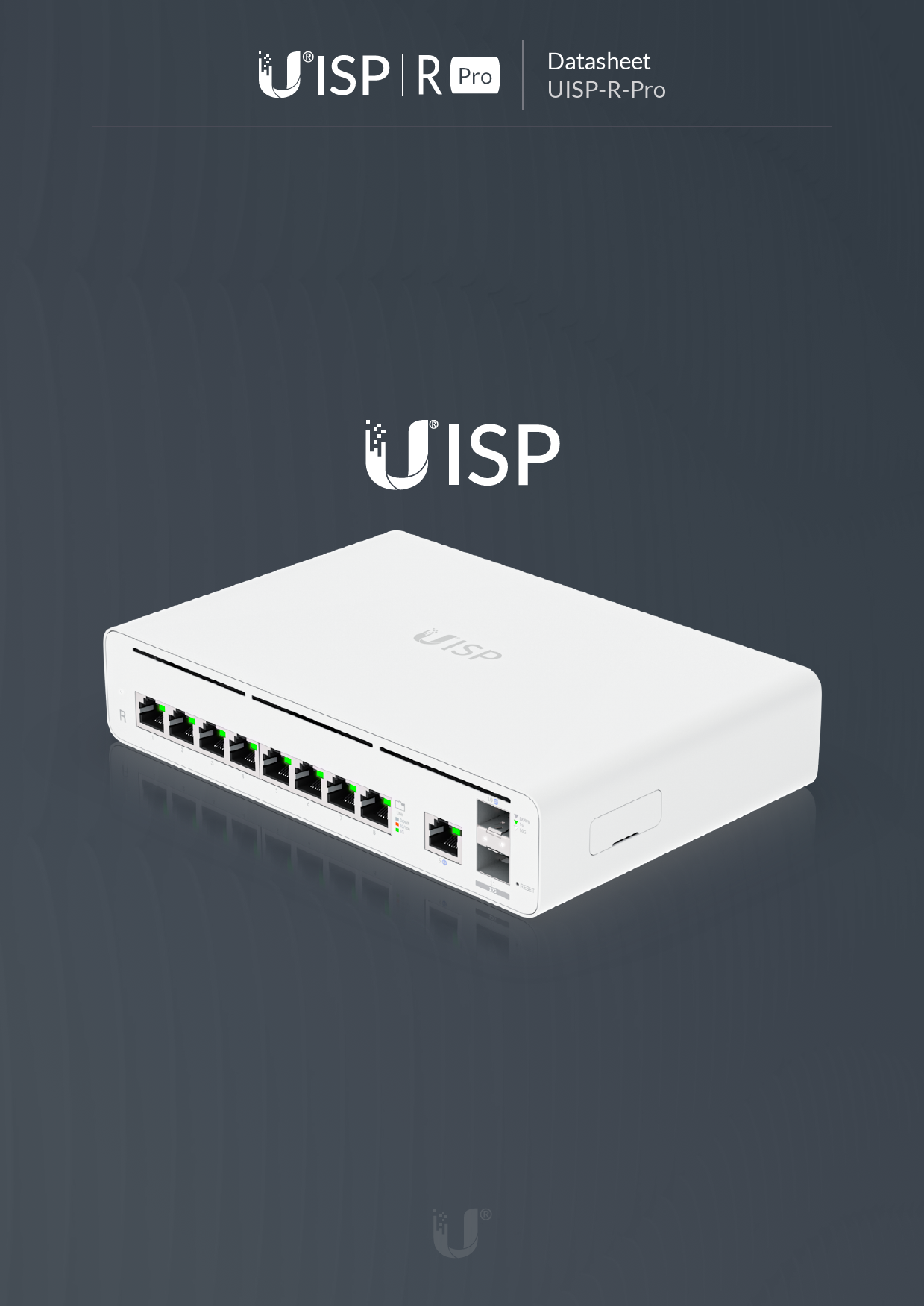

Datasheet UISP-R-Pro
Users Manual
Ubiquiti Inc. UISPRP UISP R Pro SWX-UISPRP SWXUISPRP uisprp
Extracted Text
Datasheet UISP-R-Pro UISP Router Pro UISP-R-Pro is a high-performance router with (2) high-speed SFP+ and (9) Gigabit RJ45 ports. By default, it supports dual-WAN ports: (1) 10G SFP+ and (1) Gigabit RJ45 and features builtin switching on (8) Gigabit RJ45 ports. Use the UISP Controller Software for centralized control and monitoring of all UISP devices. Mechanical Dimensions Weight Enclosure Material Hardware Networking Interfaces Management Interface Processor System Memory On-Board Flash Storage Power Method Power Supply Supported Voltage Range Max. Power Consumption ESD/EMP Protection Operating Temperature Operating Humidity Certi cations LEDs System RJ45 Data Ports SFP+ Data Ports 210.4 x 140.2 x 43.7 mm (8.28 x 5.52 x 1.72") 1.45 kg (3.2 lb) SGCC Steel (8) 10/100/1000 Mbps RJ45 LAN Ports (1) 10/100/1000 Mbps RJ45 WAN Port (1) 1/10 Gbps SFP+ LAN Port (1) 1/10 Gbps SFP+ WAN Port Ethernet In-Band Bluetooth BLE Quad ARM Cortex-A57 Core at 1.7 GHz 4 GB DDR4 16 GB eMMC (1) External AC/DC Adapter (1) Power TransPort DC Input 28VDC, 3A 24VDC, 2.5A Power Adapter (Included) 24 - 28VDC 30W Air: � 15 kV, Contact: � 8 kV -5 to 50� C (23 to 122� F) 5 to 95% Noncondensing CE, FCC, IC Status Speed/Link/Activity Speed/Link/Activity Speci cations are subject to change.Ubiquiti products are sold with a limited warranty described at: ui.com/support/warranty �2020 Ubiquiti Inc.All rights reserved.Ubiquiti,Ubiquiti Networks,the Ubiquiti U logo,the Ubiquiti beam logo,and UISP are trademarks or registered trademarks ofUbiquiti Inc.in the United States and in other countries.All other trademarks are the property oftheir respective owners. FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. "This equipment has been tested and found to comply with the limits for a Class B digital device. These limits are designed to provide reasonable protection against harmful interference in a resi dential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to ra dio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help." The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. SED Canada CAN ICES-3(B)/NMB-3(B) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-3(B)/NMB-3(B) Le pr�sent appareil est conforme aux CNR d'ISDE Canada applicables aux appareils radio ex empts de licence. L'exploitation est autoris�e aux deux conditions suivantes : 1. l'appareil ne doit pas produire de brouillage; 2. l'appareil doit accepter tout brouillage radio�lectrique subi, m�me si le brouillage est suscepti ble d'en compromettre le fonctionnement. RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilis�es pour ce transmetteur doivent �tre install� en consid�rant une distance de s�paration de toute personnes d'au moins 20 cm et ne doivent pas �tre localis� ou utilis� en conflit avec tout autre antenne ou transmetteur.
