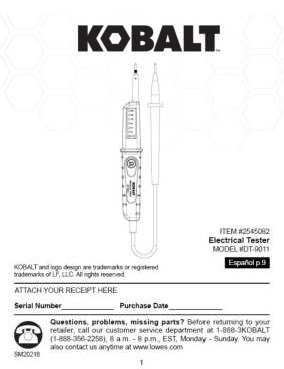

Kobalt DT-9011 Analog AC/DC Voltage Tester
Operating Manual
Introduction
This manual provides essential information for the safe and effective operation of the Kobalt DT-9011 Analog AC/DC Voltage Tester. Please read this manual thoroughly before using the tester.
Safety Precautions
Important Safety Information: Always adhere to the following safety guidelines to prevent personal injury and damage to the equipment.
- Electrical Hazard: Never test circuits with voltages exceeding the tester's maximum rating (240 Volts). Always assume circuits are live until proven otherwise.
- Probe Handling: Ensure the insulated tips of the test probes are clean and free from damage. Hold the tester by its insulated casing, not by the probes.
- Environmental Conditions: Do not use the tester in wet or damp environments. Operate within the specified temperature range.
- Fuse Protection: This tester is not fuse-protected for voltage measurements.
- Test Leads: Inspect test leads for damage before each use. If damaged, do not use.
- Input Limits: Refer to the Input Limits section in this manual for Maximum voltage ratings.
Product Features
The Kobalt DT-9011 is a versatile analog voltage tester designed for measuring AC and DC voltages. Key features include:
- Analog display with a clear needle indicator for voltage readings.
- Rotary selector dial for choosing voltage ranges and AC/DC modes.
- Durable, insulated casing for user safety.
- Two insulated test probes for convenient connection to circuits.
- Compact and portable design.
Specifications
| Parameter | Value |
|---|---|
| Model Number | DT-9011 |
| Power Source | None (Passive device) |
| Voltage Measurement Range | 6V to 240V AC/DC |
| Accuracy | Typically ±5% of full scale (analog display) |
| Display Type | Analog Meter |
| Test Probes | Insulated tip, connected via cable |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 50°C (14°F to 122°F) |
| Humidity | Less than 80% RH (non-condensing) |
| Dimensions | (Approximate dimensions would be listed here if known) |
| Weight | (Approximate weight would be listed here if known) |
Note: The tester is not fuse-protected for voltage measurements.
Operating Instructions
Follow these steps to use the Kobalt DT-9011 Voltage Tester:
- Inspect the Tester: Before use, visually inspect the tester, test leads, and probes for any signs of damage. Do not use if damaged.
- Select Voltage Range and Mode: Turn the rotary selector dial to the desired voltage range and to either AC or DC mode. Start with a higher range if the voltage is unknown.
- Connect the Probes:
- For DC voltage measurement, connect the red probe to the positive side of the circuit and the black probe to the negative side.
- For AC voltage measurement, the polarity of the probes does not matter.
- Perform the Test: Carefully touch the tip of one probe to one point in the circuit and the tip of the other probe to another point. Ensure good contact.
- Read the Display: Observe the analog meter's needle. The needle will deflect to indicate the measured voltage on the selected scale.
- Disconnect Probes: After taking the reading, carefully remove the probes from the circuit.
- Turn Off/Select Off Position: Return the rotary dial to the 'OFF' position when not in use.
Diagram Description: The tester features a clear analog display with a needle indicator, a rotary selector dial for choosing voltage ranges and AC/DC modes, and two insulated test probes connected by a flexible cable. The probes have insulated handles and metal tips for contact.
Maintenance and Care
To ensure the longevity and accuracy of your Kobalt DT-9011 Voltage Tester:
- Keep the tester clean and dry. Wipe with a soft, dry cloth.
- Store the tester in a cool, dry place away from direct sunlight and corrosive materials.
- Avoid dropping or subjecting the tester to strong impacts.
- Do not attempt to disassemble or repair the tester yourself. Contact authorized service personnel.
Troubleshooting
Problem: Needle does not move or shows zero reading.
Possible Causes & Solutions:
- Circuit is not live: Verify power to the circuit.
- Incorrect range selected: Ensure the dial is set to an appropriate voltage range.
- Poor probe contact: Ensure probes are making firm contact with the circuit points.
- Damaged test leads or tester: Inspect for damage. If damaged, discontinue use and seek service.
Contact Information
For service, support, or warranty inquiries regarding your Kobalt product, please refer to the official Kobalt website or your point of purchase for contact details.
