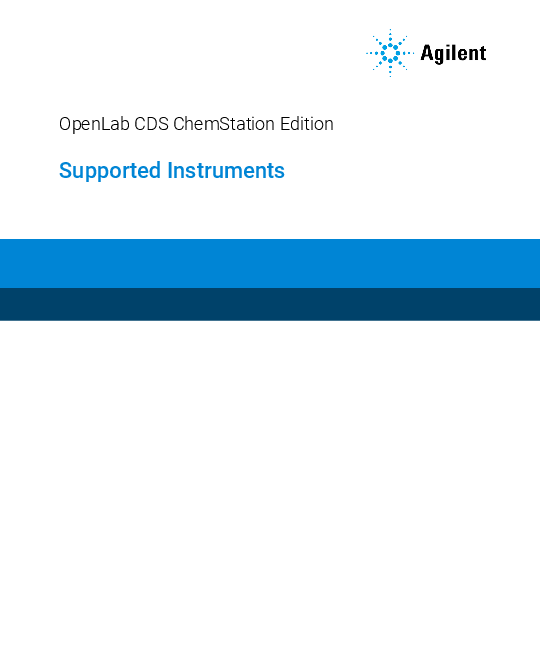

OpenLab CDS ChemStation Edition - Agilent
with regard to this manual and any information contained herein, including but not limited to the implied warranties of merchantability and fitness for a particular purpose. Agilent shall not be liable for errors or for…
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
OpenLab CDS ChemStation Edition Supported Instruments Notices Manual Part Number Warranty M8301-90059 Rev. B The material contained in this Edition 05/2020 document is provided "as is," and is subject to being changed, without Copyright notice, in future editions. Further, to the maximum extent permitted by � Agilent Technologies, Inc. 2010-2019, 2020 No part of this manual may be reproduced in any form or by any means (including electronic storage and retrieval or translation into a foreign language) without prior agreement and written consent from Agilent Technologies, Inc. as governed by United States and international copyright laws. applicable law, Agilent disclaims all warranties, either express or implied, with regard to this manual and any information contained herein, including but not limited to the implied warranties of merchantability and fitness for a particular purpose. Agilent shall not be liable for errors or for incidental or consequential damages in connection with the furnishing, use, or performance of this document or of any information contained herein. Should Agilent and the user have a separate written Agilent Technologies, Inc. 5301 Stevens Creek Blvd. Santa Clara, CA 95051 USA agreement with warranty terms covering the material in this document that conflict with these terms, the warranty terms in the separate agreement shall control. Software Revision This guide is valid for the C.01.10 revision update 3 or higher of Agilent OpenLab CDS ChemStation Edition, until superseded. Technology Licenses The hardware and/or software described in this document are furnished under a license and may be used or copied only in accordance with the terms of such license. Restricted Rights Legend U.S. Government Restricted Rights. Software and technical data rights granted to the federal government include only those rights customarily provided to end user customers. Agilent provides this customary commercial license in Software and technical data pursuant to FAR 12.211 (Technical Data) and 12.212 (Computer Software) and, for the Department of Defense, DFARS 252.227-7015 (Technical Data Commercial Items) and DFARS 227.7202-3 (Rights in Commercial Computer Software or Computer Software Documentation). Safety Notices CAUTION A CAUTION notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in damage to the product or loss of important data. Do not proceed beyond a CAUTION notice until the indicated conditions are fully understood and met. WARNING A WARNING notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in personal injury or death. Do not proceed beyond a WARNING notice until the indicated conditions are fully understood and met. Table of Contents 1 General OpenLab CDS Driver Information 6 Operating Systems 6 Instrument Driver types 6 Instrument Driver Revisions 7 Firmware Revisions 7 Instrument Communication Information 9 Instrument LAN Interface Card 9 GPIB Compatibility 9 2 Agilent HPLC and LC Instrument Compatibility 10 Recommended Firmware for Agilent HPLC/LC Modules 10 Supported Agilent HPLC/LC Modules 12 Agilent LC Sampling Systems 12 CTC PAL Autosamplers (Agilent and CTC) with LC 13 Agilent LC � Pumps 14 Agilent LC � Column Compartments and Valve Thermostat Cluster (VTC) 15 Agilent LC � Detectors 15 Agilent LC � Valves, Valve Drives and Clusters 18 Agilent LC � Fraction Collectors 18 Agilent LC � Other Module types 19 Agilent 218/SD1 Prep LC driver (formerly Varian Prep LC) 19 Agilent 1120 Compact LC Systems 20 Agilent 1220 Infinity LC Systems 20 3 Agilent LC/MS Module Compatibility 22 ChemStation C.01.10 - Supported Instruments 3 4 Agilent CE Module Compatibility 24 Agilent Capillary Electrophoresis 24 5 Agilent Analog/Digital Converter Information 25 Agilent A/D Converter 25 Other 25 6 Agilent GC Instrument Compatibility 26 Agilent GC support 26 Agilent Micro GC support 27 GC Sampler, Autosampler and Tray Compatibility 28 7650 ALS hardware: 28 7693 ALS hardware 28 7683B ALS hardware 28 7683A ALS hardware: 29 Other 29 Headspace support with GC 30 Control of PAL sampler with GC 30 7 Waters Driver Compatibility 31 M8505AA Waters LC Control for OpenLAB CDS EZChrom and ChemStation Edition 31 8 OpenLab CDS ChemStation Workstation VL 32 Overview 32 OpenLab CDS ChemStation Workstation VL rev. C.01.10 32 Supported Instruments with OpenLab CDS ChemStation Workstation VL 33 GC instrument 33 Agilent 1260 Infinity II LC instrument 33 Agilent 1220 Infinity II LC system 35 ChemStation C.01.10 - Supported Instruments 4 Agilent 1120 Compact LC 36 9 Classic Driver Support Information 37 ChemStation C.01.10 - Supported Instruments 5 General OpenLab CDS Driver Information 1 General OpenLab CDS Driver Information Operating Systems All instrument drivers are supported on the following OS unless otherwise noted Windows 7 SP1 Enterprise and Professional (64-bit) Windows 10 Enterprise and Professional (64-bit) For more detail and support information on server operating systems, please see OpenLab CDS ChemStation Edition Requirements guide. Instrument Driver types Agilent OpenLab CDS drivers are based on the RC.Net architecture. Information in this guide refers to this driver type, unless otherwise noted. RC.Net interface version 3.2.1 is integrated with this version of ChemStation. NO TE Instrument driver versions must always match in a network system For single quad Mass Spectrometer, only "Classic Plus" drivers are available with OpenLab CDS ChemStation Edition. The Classic Plus driver types can be combined with RC.Net drivers via their CIC ports. ChemStation C.01.10 - Supported Instruments 6 General OpenLab CDS Driver Information Instrument Driver Revisions The following Agilent instrument driver software revisions are part of the OpenLab CDS ChemStation C.01.10 software package and are installed with the software: Table 1 Driver Revisions provided with OpenLab CDS ChemStation C.01.10 update 3 RC.Net Instrument Driver Driver Software Revision Agilent LC 3.2 Agilent ELSD 1.8 Agilent GC 3.2 Agilent Micro GC 2.1.3 Agilent 35900E A/D Converter 2.3 If you are looking for information on the build number of the included drivers, please refer to Driver Revisions, accessible from the Resource Platform > Administration > Configuration. ChemStation C.01.10 - Supported Instruments 7 General OpenLab CDS Driver Information Firmware Revisions Agilent recommends using the most recent firmware revisions to provide the highest level of system capability. Agilent and other vendors may release RC.net drivers independent of the OpenLab CDS ChemStation Edition releases. Agilent driver software is forward compatible regarding firmware, i.e. the firmware can be updated without the need of updating the driver or CDS. To check the firmware of your instrument, do the following: In the ChemStation Edition Method and Run Control view, LC Instruments: In the menu, go to Instrument > Revisions & Serial #s GC Instruments: 1 In the menu, go to Instrument > Instrument Configuration. 2 Select the GC instrument under Selected modules, 3 Click the configure button, then select the configuration tab. ChemStation C.01.10 - Supported Instruments 8 General OpenLab CDS Driver Information Instrument Communication Information NOTE On Agilent's Analytical Instrument Controllers (AICs), OpenLab CDS ChemStation Edition exclusively supports instruments and modules connected via LAN. GPIB, RS-232, USB, or any converters are not supported on AICs. Instrument LAN Interface Card Table 2 Supported Instrument LAN Interface Cards Product G1369C G1369B G1369A Hardware Minimum required Firmware Revision LAN Interface B.06.40 card LAN Interface card LAN Interface card A.01.01 A.01.10 Notes CAN support for hosted modules/CAN slave (e.g. G1170A Universal Valve Drive) SW 7 and SW 8 must be in the OFF position 10/100BaseT SW 7 and SW 8 must be in the OFF position 10/100BaseT 2nd version � Board revision C.03.00 � firmware A.01.10 � Supported with 35900E and GC 1st version � firmware A.01.05 � Not Supported with GC and 35900E J4100A Jet Direct Card and 82357B USB /GPIB interface are not compatible with the current version of OpenLab CDS ChemStation GPIB Compatibility GPIB is not supported with this release of ChemStation ChemStation C.01.10 - Supported Instruments 9 Agilent HPLC and LC Instrument Compatibility 2 Agilent HPLC and LC Instrument Compatibility OpenLab CDS ChemStation Edition can control all Agilent LC modules in support using LC driver release 3.0 or higher. The tables in this chapter list the supported LC modules. Please note that using some driver features require current firmware versions such as valve-thermostat clusters or new temperature control modes. Recommended Firmware for Agilent HPLC/LC Modules Agilent recommends using current LC firmware sets with your OpenLab CDS ChemStation Edition. The latest LC firmware sets are 7.01, 6.50, and 6.30. Some of the modules are supported with firmware revisions lower than the ones available in the current firmware set. Please see the respective Release Note for Agilent LC and CE drivers for more information. Table 3 Recommended firmware per LC instrument series Device Agilent 1100 Series, 1200 Series and 1200 Infinity Recommended Firmware A.07.01 or later NOTE: 1100 Series Modules are supported on "best effort" basis. Agilent 1200 Series, 1200 Infinity, and 1120 Compact LC B.07.23 or later Agilent 1200 Infinity, hosted modules C.07.20 or later Agilent 1260/1290 Infinity II D.07.23 or later ChemStation C.01.10 - Supported Instruments 10 Agilent HPLC and LC Instrument Compatibility NOTE LC and CE firmware revisions are grouped into sets for each module or system. Firmware sets include just the latest firmware of each module. Modules of one LC instrument always need to have firmware from the same set. Firmware of one set is fully compatible with your CDS that supports this firmware set. However, if one module uses an older firmware revision newly added functionality might not be supported. Do not mix firmware revisions from one set with older or newer sets. Firmware is not tested across set borders! Please visit the Agilent site LC Firmware News and Downloads to download the latest Agilent LC firmware. Firmware Set 7.01 can be downloaded from http://www.agilent.com/enus/firmwareDownload?whid=99818. For more information, please see the respective LC driver release notes. The Release Notes for Agilent LC and CE drivers (ReleaseNotes_Driver_LC-CE.pdf) is available on your software media. You only need to upgrade ALL existing modules if A new LC module is added to the existing system (recommended) One of the existing modules requires an upgrade due to a bug fix solved with the latest release. Please note that the LC Driver releases are independent from CDS Releases. ChemStation C.01.10 - Supported Instruments 11 Agilent HPLC and LC Instrument Compatibility Supported Agilent HPLC/LC Modules The listed Agilent LC modules are supported to be controlled with OpenLab CDS ChemStation Edition unless stated otherwise. Only RC.net drivers are supported, unless stated otherwise. The Agilent LC-drivers are backwards compatible. Modules with identical product numbers are supported, even if the tables below list only the name of the current model version. 1100 Series models are supported on a best effort basis only. For details, please see the driver Release Notes of the driver revision you are using. Agilent LC Sampling Systems Product Number G1313A G1329A G1329B G1367A G1367B G1367C G1367D G1367E G1368A G1377A G1389A G2258A G2260A G4226A G4303A Module Name 1100 Series Autosampler 1200 Series Standard Autosampler 1260 Infinity Standard Autosampler 1100 Series Well-Plate Sampler 1200 Series High Performance Autosampler 1200 Series High Performance Autosampler SL 1200 Series High Performance Autosampler SL+ 1260 Infinity High Performance Autosampler Thermostatted Well plate sampler 1260 Infinity High Performance Micro Autosampler 1100 Micro-Scale Autosampler 1260 Infinity Dual-Loop Autosampler 1260 Infinity Preparative Autosampler (High flow) 1290 Infinity Autosampler 1260 Infinity SFC Standard Autosampler Comment Best effort Best effort Best effort ChemStation C.01.10 - Supported Instruments 12 Agilent HPLC and LC Instrument Compatibility Agilent LC Sampling Systems Product Number G4767A G5667A G5668A G7129A G7129B G7129C G7157A G7158B G7167A G7167B Module Name Comment 1260 Infinity II SFC Multisampler 1260 Infinity Bio-Inert High-Performance Autosampler 1260 Infinity II Bio-Inert Multisampler 1260 Infinity II Vialsampler 1290 Infinity II Vialsampler 1260 Infinity II Vialsampler 1260 Infinity II Preparative Autosampler 1290 Infinity II Open-bed Sampler / Collector 1260 Infinity II Multisampler 1290 Infinity II Multisampler Requires LC driver 3.1, and ChemStation C.01.10 update 2 or higher. Instrument configuration shows two modules: G7169B (injector) and G7159B (fraction collector) CTC PAL Autosamplers (Agilent and CTC) with LC Product Number G4277A G4278A G4270-CTC G4271-CTC Module Name Agilent 1290 Infinity LC Injector HTS Agilent 1290 Infinity LC Injector HTC CTC Analytics HTC PAL Injection System1 CTC Analytics HTS PAL Injection System1 Minimum required Revision CTC Firmware Software 4.3.0 B.01.08 4.3.0 B.01.08 2.5.2 (for legacy mainboard) 2.6.8 (for legacy mainboard) 4..3.0 (for new XT mainboard) B.01.08 Cycle Parameters in English ChemStation C.01.10 - Supported Instruments 13 Agilent HPLC and LC Instrument Compatibility Agilent LC � Pumps Product Number G1310A G1310B G1311A G1311B G1311C G1312A G1312B G1312C G1361A G1376A G2226A G4204A G4220A G4220B G4302A G4782A G5611A G5654A G7104A G7104C G7110B G7111A G7111B G7112B Module Name 1200 Series Isocratic Pump 1260 Infinity Isocratic Pump 1200 Series Quaternary Pump1 1260 Infinity Quaternary Pump 1 1260 Infinity Quaternary Pump VL 1 1260 Infinity Binary Pump 1 1260 Infinity Binary Pump SL1 1260 Infinity Binary Pump VL1 1260 Infinity Preparative Pump 1260 Infinity Capillary Pump 1260 Infinity Nanoflow Pump 1290 Quaternary Pump 1 1290 Infinity Binary Pump 1 1290 Infinity Binary Pump VL 1 1260 Infinity SFC Binary Pump 1 1260 Infinity II SFC Binary Pump 1260 Infinity Bio-inert Quaternary Pump 1 1260 Infinity II Bio-inert Pump 1 1290 Infinity II Flexible Pump 1260 Infinity II Flexible Pump 1260 Infinity II Isocratic Pump 1260 Infinity II Quaternary Pump VL 1 1260 Infinity II Quaternary Pump 1 1260 Infinity II Binary Pump 1 Comment 1 Pump valve clusters are possible for marked pumps with up to 2 valves of type G1160A and/or G1170A ChemStation C.01.10 - Supported Instruments 14 Agilent HPLC and LC Instrument Compatibility Product Number G7120A G7161A G7161B Module Name 1290 Infinity II High Speed Pump 1260 Infinity II Preparative Binary Pump 1290 Infinity II Preparative Binary Pump Comment Agilent LC � Column Compartments and Valve Thermostat Cluster (VTC) Product Number G1316A G1316B G1316C G7116A G7116B G7130A cluster VTC Module Name Comment 1260 Infinity Thermostatted Column Compartment 1200 Thermostatted Column Compartment SL 1290 Infinity Thermostatted Column Compartment 1260 Infinity II Multicolumn Thermostat (MCT) 1290 Infinity II Multicolumn Thermostat (MCT) Integrated Column Compartment ICC (option for G7129 A/B) Up to three G1316C with integrated 8pos/9port valves (products G4230A/B) can be clustered; minimum two G1316C TCCs; the third TCC can be a G1316A or B Exception: No support for new 2pos/6port or 2pos/10port valves The Valve Thermostat Cluster is a combination of G7116B, G1170A and G1316C as valve or column hosts and G1316A/B and G7130A as column hosts. Agilent LC � Detectors Product Number Module Name VWD G1314A G1314B 1100 Series Variable Wavelength Detector 1260 Infinity Variable Wavelength Detector VL ChemStation C.01.10 - Supported Instruments Comment 15 Agilent HPLC and LC Instrument Compatibility Product Number G1314C G1314D G1314E G1314F G7114A G7114B MWD G1365A G1365B G1365C G1365D G7165A FLD G1321A G1321B G1321C G7121A G7121B DAD G1315A G1315B G1315C G1315D G4212A G4212B Module Name 1260 Infinity Variable Wavelength Detector VL+ 1200 Series Variable Wavelength Detector 1290 Infinity Variable Wavelength Detector 1260 Infinity Variable Wavelength Detector 1260 Infinity II Variable Wavelength Detector 1290 Infinity II Variable Wavelength Detector 1100 Series Multiple Wavelength Detector 1200 Series Multiple Wavelength Detector 1260 Infinity Multiple Wavelength Detector 1260 Infinity Multiple Wavelength Detector VL 1260 Infinity II Multiple Wavelength Detector 1100 / 1200 Fluorescence Detector 1260 Infinity Fluorescence Detector Spectra 1260 Infinity Fluorescence Detector 1260 Infinity II Fluorescence Detector 1260 Infinity II Fluorescence Detector Spectra 1100 Series Diode Array Detector 1200 Series Diode Array Detector 1200 Series Diode Array Detector VL+ 1200 Series Diode Array Detector VL 1290 Infinity Diode Array Detector 1260 Infinity Diode Array Detector ChemStation C.01.10 - Supported Instruments Comment Best effort 16 Agilent HPLC and LC Instrument Compatibility Product Number G4212A/B HDR-DAD Cluster G7115A G7117A G7117B G7117C G7117A/B HDR-DAD Cluster RID G1362A G7162A G7162B ELSD G4218A G4260A G4261A G4260B G4261B G7102A Module Name Comment 2x G4212A or 2x G4212B or a combination of 1x G4212A and 1x G4212B 1260 Infinity II Diode Array Detector WR 1290 Infinity II Diode Array Detector FS 1290 Infinity II Diode Array Detector 1260 Infinity II Diode Array Detector HS 2x G7117A or 2x G7117B or a combination of 1x G7117A and 1x G7117B No add-on software required. HDR function included in RC.net drivers No add-on software required. HDR function included in RC.net drivers 1100/1200 Infinity Refractive Index Detector 1260 Infinity II Refractive Index Detector 1290 Infinity II Refractive Index Detector 1260 Infinity Evaporative Light Scattering Detector 1260 Infinity 380 Evaporative Light Scattering Detector 1290 Infinity 385 Evaporative Light Scattering Detector 1260 Infinity II Evaporative Light Scattering Detector 1290 Infinity Evaporative Light Scattering Detector 1290 Infinity II Evaporative Light Scattering Detector Not supported NOT localized for Japanese and Chinese ChemStation RS232, not supported on AIC. ChemStation C.01.10 - Supported Instruments 17 Agilent HPLC and LC Instrument Compatibility Agilent LC � Valves, Valve Drives and Clusters Product Number G1156A G1157A G1158A G1158B G1159A G1160A G1162A G1163A G1170A G4734A G9322A Valve Thermostat Cluster Module Name Comment 1200 6-Position / 7 Port Valve (400 bar) 1200 2-Position / 10 Port Valve Not configurable in ChemStation, requires an ALS 1200 2-Position / 6 Port Valve 1200 2-Position / 6 Port Valve (600bar) 1200 6-Position Selection Valve 1200 12-Position/13-Port Valve 1200 2-Position/ 6 Port Micro Valve 1200 2-Position/ 10 Port Micro Valve 1290 Infinity II Valve Drive Hosted valve: 6-Column-selector 1260 Infinity II Clustering Valve requires valve host G1170A or G7116A/B The Valve Thermostat Cluster is a combination of G7116B, G1170A and G1316C as valve or column hosts and G1316A/B and G7130A as column hosts. Agilent LC � Fraction Collectors Product Number G1364A G1364B G1364C G1364D G1364E G1364F Module Name 1100 Series Automatic Fraction Collector 1260 Infinity Preparative-Scale Fraction Collector 1260 Infinity Analytical-Scale Fraction Collector 1260 Infinity Micro-Scale Fraction Collector/Spotter 1260 Infinity II Preparative-Scale Fraction Collector 1260 Infinity II Analytical-Scale Fraction Collector Comment Best effort ChemStation C.01.10 - Supported Instruments 18 Agilent HPLC and LC Instrument Compatibility Product Number G5664A G5664B G7159B G7166A Fraction Collector Cluster Module Name Comment 1260 Infinity Bio-Inert Fraction Collector 1260 II Infinity Bio-Inert Fraction Collector 1290 Infinity II Preparative Open-Bed Fraction Collector 1260 Infinity II Preparative Valve-Based Fraction Collector Any combination of up to three G1364A/B/C or G5664A plus a fourth G1364A/B/C or G5664A for recovery can be clustered. controlling multiple un-clustered Fraction Collectors is not supported. G1364 E /F can be clustered with a G7166A or the same module type for recovery collection. G7159 can be clustered with a G7166A for recovery Agilent LC � Other Module types Product Number G1390A G1390B G2254A G4227A G4240A G4301A G7170B Module Name 1100 Series Universal Interface Box (UIB) InfinityLab Universal Interface Box 1260 Automation Interface 1290 Infinity Flexible Cube 1260 Chip Cube MS Interface 1260 Infinity Analytical SFC System 1290 Infinity II MS Flow Modulator Comment Not supported Agilent 218/SD1 Prep LC driver (formerly Varian Prep LC) Product Number Agilent 210 Agilent 218 Agilent SD-1 Agilent 325 Module Name Pump Pump Pump UV/VIS Detector Communication RS232 RS232 RS232 LAN Comment Not supported Not supported Not supported Not supported ChemStation C.01.10 - Supported Instruments 19 Agilent HPLC and LC Instrument Compatibility Product Number Agilent 410 Agilent 440 Module Name Autosampler Fraction Collector Communication RS232 RS232 Comment Not supported Not supported Agilent 1120 Compact LC Systems Product Number G4286A G4287A G4288A G4289A G4290A Module Name 1120 Compact LC, Isocratic pump 1120 compact LC. Isocratic with Oven and ALS 1120 Compact LC, Gradient 1120 Compact LC, Gradient with oven 1120 Compact LC, Gradient with oven and ALS Comment Agilent 1220 Infinity LC Systems Product Number G4286B G4287B G4288B G4289B G4290B G4291B G4292B G4293B G4294B G4288C G4289C G4290C Module Name 1220 Infinity LC System Isocratic, Man. Inj., VWD, 600 bar 1220 Infinity LC Isocratic, ALS, TCC, VWD, 600 bar 1220 Infinity LC Gradient, Man. Inj., VWD, 600 bar 1220 Infinity LC Gradient, ALS, TCC, VWD, 600 bar 1220 Infinity LC Gradient, ALS, Man. Inj., TCC, VWD, 600 bar 1220 Infinity LC Isocratic, Man. Inj., TCC, VWD, 600 bar 1220 Infinity LC Isocratic, ALS, VWD, 600 bar 1220 Infinity LC Gradient, ALS, VWD, 600 bar 1220 Infinity LC Gradient, ALS, TCC, DAD, 600 bar 1220 Infinity LC System VL, Gradient, Man. Inj. VWD, 400 bar 1220 Infinity LC System VL, Gradient, TCC, Man. Inj. VWD, 400 bar 1220 Infinity LC System VL, Gradient, ALS, TCC, VWD, 400 bar ChemStation C.01.10 - Supported Instruments Comment 20 Agilent HPLC and LC Instrument Compatibility Product Number G4293C G4294B Module Name 1220 Infinity LC System VL, Gradient, ALS, VWD, 400 bar 1220 LC Infinity Gradient System Comment ChemStation C.01.10 - Supported Instruments 21 Agilent LC/MS Module Compatibility 3 Agilent LC/MS Module Compatibility Requires Keysight I/O libraries. Product Number G6110A G6120A G6130A G6140A G6120B G6125B G6130B G6135B G6150B G6120C G6130C G6125C G6135C G6160A Single Quadrupole Modules listed in the table below are supported, unless stated otherwise. Module Name Comment 6100 Series Single Quadrupole LC/MS System 6100 Series Single Quadrupole LC/MS System LC/MSD 6100 Series Single Quadrupole LC/MS System LC/MSD XT 6100 Series Single Quadrupole LC/MS System 6100 Series Single Quadrupole LC/MS System 6100 Series Single Quadrupole LC/MS System LC/MSD LC/MSD XT LC/MSD iQ Single Quadrupole LC/MS System Not supported. OpenLab CDS version 2.x only Not supported. OpenLab CDS version 2.3 or higher. LC Single-Quad Sources G1947A APCI LC SQ Source G1947B APCI LC SQ Source G1971A APPI LC SQ Source G1971B APPI LC SQ Source G1948A ESI LC SQ Source Not supported Not supported Not supported ChemStation C.01.10 - Supported Instruments 22 Agilent LC/MS Module Compatibility Product Number G1948B G1978B G4240A G1968C Module Name ESI LC SQ Source Multimode Source Chip Cube Interface Active Splitter Kit CTC Autosampler G1979A G1958B G1951A SIDEBox Agilent Jet Stream for Single Quad Analog Output Accessory Comment Not supported supported on English ChemStation only Classic Driver only. Releases B.01.01 or later are NOT compatible with the Cycle Composer software from CTC. Cannot co-reside Not supported on Japanese and Chinese ChemStation Not supported ChemStation C.01.10 - Supported Instruments 23 Agilent LC/MS Module Compatibility 4 Agilent CE Module Compatibility NOTE When OpenLab CDS ChemStation Edition is used to control an Agilent 3D Capillary Electrophoresis system, no additional instruments are supported on the PC system. When OpenLab CDS ChemStation Edition is used to control the Agilent LC/MS, in conjunction with the Agilent 3D Capillary Electrophoresis system, no additional instruments are supported on the PC system (the one PC controls only the CE and MS system). CE/MS systems are supported with OpenLab CDS ChemStation Edition when configured as CE/MS system, workstation, and networked workstation only. Coinstallation is possible, but no Co-execution. Agilent Capillary Electrophoresis Product Number Module Name G1600 CE CE and CE/MS families G1600 CE/MS G7100A G7151A G7100 Capillary Electrophoresis II Diode Array Detector for CE II 35900E A/D converter (RC.net only, LAN only!) G1607B CE-ESI-MS Sprayer kit AJS compatible Comment Not supported Configure using Instrument Type "Agilent 7100 CE System." Only when configured as CE/MS system, workstation and networked workstation. ChemStation C.01.10 - Supported Instruments 24 Agilent A/D information for Agilent OpenLab CDS 5 Agilent Analog/Digital Converter Information Agilent A/D Converter Module Name 35900C/D 35900E 35900E Series II Comment Not supported Supported Other Module Name SS420x A/D interface Comment Not supported ChemStation C.01.10 - Supported Instruments 25 Agilent GC Instrument Compatibility 6 Agilent GC Instrument Compatibility Agilent recommends using the latest firmware revision to provide the highest level of system capability. See current Hardware Service Notes for latest firmware available. NO TE Communication is handled via LAN. GCs using GPIB must update to LAN. Agilent GC support Product Number G3950A G3952A G3953A G3540A G3542A G3543A G3545A Module Name Intuvo 9000 GC system 8890 Series GC System G2790A 8860 Series GC System G3440A G3442B G3443B G3445A G3440B G3442B G3443B G3445B G4350A G4350B G1530N G1540N G1530A G1540A 7890A 7890B 7820A 6890N 6890A 6890Plus ChemStation C.01.10 - Supported Instruments Comment Supported 7683 ALS family not supported Supported Supported Supported Supported Backflush and Easy SamplePrep are not supported with 7820A NON-EPC inlets and detectors are not supported NON-EPC inlets and detectors are not supported 26 Product Number G2629A G2630A G2630B Module Name 6850 handheld Controller Agilent Micro GC support Product Number G3588A G3581A Module Name 990 Micro GC 490 Micro GC G3582A 490 Micro GC Analyzer Other Product Number G1176A, G1180A 5890A Module Name 6820 GC 5890 Series II, 4890D Agilent GC Instrument Compatibility Comment Not Supported Supported Comment Supported Supported TCP/IP. For legacy mainboard: minimum required FW is 1.40 Supported Comment Not Supported Not Supported Not Supported ChemStation C.01.10 - Supported Instruments 27 Agilent GC Instrument Compatibility GC Sampler, Autosampler and Tray Compatibility 7650 ALS hardware: Product Number G4567A Model Name Injector Comment Supported 7693 ALS hardware Product Number G4513A G4514A G4515A G4516A G4517A Model Name 7693 Injector 7693 Tray BCR/Mixer/Heater ALS Controller Board for 6890 Plus GC ALS Controller for 6890A GC upgrade Comment Supported Supported Supported Supported Supported 7683B ALS hardware Product Number G2912A G2913A G2614A G2615A Model Name 7683B ALS Controller for 6890 7683B Injector Tray BCR/Mixer Comment Supported Supported Supported Supported ChemStation C.01.10 - Supported Instruments 28 7683A ALS hardware: Product Number G2612A G2613A G2614A G2615A G2880A Model Name 7683B ALS Controller for 6890 7683A Injector Tray BCR/Mixer Injector Agilent GC Instrument Compatibility Comment Supported Supported Supported Supported Other Product Number 19405A G1926A G8130A G7360A G7361A Model Name Sampler Event Control Module (SECM) Barcode Reader/Mixer WorkBench Tray Archon Purge and Trap Auto sampler for Water only Archon Purge and Trap Auto sampler for Needle Sparge Comment Not supported Not supported Not supported Not supported Not supported ChemStation C.01.10 - Supported Instruments 29 Agilent GC Instrument Compatibility Headspace support with GC NOTE License number no longer required for installation. The software registration packet will still include a license number. NO TE Communication is handled via LAN Product Number G1289B, G1290B, G1883A G4556A, G4557A G1888A Model Name 7694B 7694E Headspace 7697A Headspace G1888 Headspace Comment Not supported Supported, Supported Control of PAL sampler with GC Product Number G6501B, G6502B, G6509B G7366A, G7367A, G7368A, G7370A Model Name Agilent PAL-xt CTC Sampler Agilent PAL-3 CTC Autosampler Comment Supported PAL-xt method parameters are available to Intelligent Reporting beginning in PAL Software Rev. B.01.07. Supported. ChemStation C.01.10 - Supported Instruments 30 Agilent GC Instrument Compatibility 7 Waters Driver Compatibility The following driver is supported for OpenLab ChemStation. M8505AA Waters LC Control for OpenLAB CDS EZChrom and ChemStation Edition It includes the following drivers: Waters ACQUITY Driver Waters Alliance /eAlliance LC Driver NO TE English language only For further information please consult the respective driver user- and service documentation, your local Agilent sales representative or check into SubscribeNet. ChemStation C.01.10 - Supported Instruments 31 OpenLab CDS VL � Support Information 8 OpenLab CDS ChemStation Workstation VL Overview NOTE OpenLab CDS ChemStation Edition offers a VL version for Workstations. It provides the full functionality of the Workstation configuration while restricting instrument control to one LC or GC instrument only. In addition, it restricts the use of the instruments to standard modules. LC/MS configurations are not supported. The supported modules and firmware options for VL Systems are listed in more detail the following tables. OpenLab CDS ChemStation Workstation VL rev. C.01.10 Allows control of one of the below instruments: One 1260 Isocratic Infinity (II) LC system, or one 1260 Quaternary Infinity (II) LC system with selected 1260 Infinity (II) LC modules (see table 5). 1290 series LC modules are not compatible with VL. One Agilent 1220 Infinity LC System or one 1120 Compact LC. Control of supplemental Infinity LC modules is supported except for modular pumps. One 8860 GC, 7820A GC, or one Micro GC instrument. ChemStation C.01.10 - Supported Instruments 32 OpenLab CDS VL � Support Information Supported Instruments with OpenLab CDS ChemStation Workstation VL GC instrument Configure your GC instrument with instrument type Agilent GC Core System (VL). The appropriate instrument drivers are bundled with the instrument hardware. Table 4 Control supported with OpenLab CDS ChemStation Workstation VL Product Number Model Name G4350B 7820A GC System G2790A 8860 GC System G3581A 490 Micro GC System G3588A 990 Micro GC System Agilent 1260 Infinity II LC instrument Use instrument type Agilent LC Core System to configure your modular 1260 LC instrument The following table summarizes all 1260 Infinity LC modules that can be added to a 1260 Infinity LC system with a OpenLab CDS ChemStation Workstation VL license. Table 5 Agilent LC Core System modules: May be part of the LC instrument Product Number G1310B G1311B, G1311C G7110B G7111A G7111B G1316A Model Name 1260 Isocratic Pump 1260 Quaternary Pump 1260 Quaternary Pump VL 1260 Infinity II Pumps: 1260 Column Compartment Isocratic Quaternary Quaternary ChemStation C.01.10 - Supported Instruments 33 OpenLab CDS VL � Support Information Product Number G1328C G7116A G1329B, Model Name 1260 Manual Injector 1260 Infinity II Multicolumn Thermostat 1260 Autosampler G7129A G1315C, G1315D, G4212B G1365C, G1365D G1314B, G1314C G1362A, G7162A G1321B, G1321C G7114A G7115A, G7117C G7121A, G7162A G7165A G1390B 1260 Infinity II Vialsamplers 1260 Diode Array Detectors 1260 Multiple Wavelength Detectors. 1260 Variable Wavelength Detectors. 1260 Refractive Index Detector 1260 Fluorescence Detector 1260 Infinity II detectors: 1200 UIB II may add G1330B Thermostat Includes ICC: G7130A DAD MWD VWD RID FLD VWD DAD FLD, RID MWD ChemStation C.01.10 - Supported Instruments 34 OpenLab CDS VL � Support Information Agilent 1220 Infinity II LC system To configure your 1220 LC System, you may use instrument type Agilent 1220 LC System, or Agilent LC Core System. The appropriate instrument drivers are bundled with the instrument hardware. Table 7 Product Number G4286B G4287B G4288B G4289B G4290B G4291B G4292B G4293B G4294B G4288C G4289C G4290C G4293C Agilent 1220 (II) Infinity LC Systems configurable with ChemStation Workstation VL license Model Name 1220 Infinity LC - Isocratic, Man. Inj., VWD, 600 bar 1220 Infinity LC - Isocratic, ALS, TCC, VWD, 600 bar 1220 Infinity LC - Gradient, Man. Inj., VWD, 600 bar 1220 Infinity LC - Gradient, ALS, TCC, VWD, 600 bar 1220 Infinity LC - Gradient, ALS, Man. Inj., TCC, VWD, 600 bar 1220 Infinity LC - Isocratic, Man. Inj., TCC, VWD, 600 bar 1220 Infinity LC - Isocratic, ALS, VWD, 600 bar 1220 Infinity LC - Gradient, ALS, VWD, 600 bar 1220 Infinity LC - Gradient, ALS, TCC, DAD, 600 bar 1220 Infinity LC - System VL, Gradient, Man. Inj. VWD, 400 bar 1220 Infinity LC - System VL, Gradient, Man. Inj. VWD, 400 bar 1220 Infinity LC - System VL, Gradient, ALS, TCC, VWD, 400 bar 1220 Infinity LC - System VL, Gradient, ALS, VWD, 400 bar With exception of modular pumps all Agilent LC modules may be connected as supplemental module to your 1220 LC system. ChemStation C.01.10 - Supported Instruments 35 OpenLab CDS VL � Support Information Agilent 1120 Compact LC Use instrument type Agilent 1220 LC System to configure your 1120 Compact LC. The appropriate instrument drivers are bundled with the instrument hardware. Table 6 Agilent 1120 Compact LCs configurable with ChemStation Workstation VL Product Number G4286A G4287A G4288A G4289A G4290A G1321A G1362A G4260A G4261A G4260B G4261B Model Name 1120 Compact LC, Isocratic 1120 Compact LC Isocratic with oven and ALS 1120 Compact LC, gradient 1120 Compact LC, gradient with oven 1120 Compact LC gradient with oven and ALS 1100/1200 FLD 1100/1200 RID ELSD 380 Detector ELSD 385 Detector ELSD 1260 Infinity Detector ELSD 1290 Detector ChemStation C.01.10 - Supported Instruments 36 OpenLab CDS ChemStation Edition: Classic Driver Support Information 9 Classic Driver Support Information With exception of the MSD drivers, classic drivers are not supported with ChemStation C.01.10. For information how to reconfigure instruments with classic drivers to use RC.net drivers please see the OpenLab CDS ChemStation Edition Configuration Guide, Chapter 5, section "Convert Classic Instrument Drivers to RC.NET" (CDS_CS_Concepts.pdf). ChemStation C.01.10 - Supported Instruments 37 In This Book The manual describes the compatibility of OpenLab ChemStation software with the following instruments and drivers: Agilent HPLC and LC instruments Agilent LC/MS Modules Agilent CE Modules Agilent Analog/Digital converters Agilent GC instruments Waters LC ACQUITY/ Alliance It also provides information on OpenLab CDS ChemStation Workstation VL Classic Driver Support www.agilent.com � Agilent Technologies, Inc. 2010- 2019, 2020 Edition 05/2020 M8301-90059 Rev. B
