Datasheets - Alarms - ERA miGuard SL2KIT
Wireless Alarm System - Response Electronics
Fittings, Instruction Manual. Solar Siren Pet Friendly PIR Sensor Model No ESS260B Back up Power 3.7V 1800mAh Rechargeable Lithium Battery Start up Power 9V Alkaline Battery Solar Panel Output Current 2000LUX illuminati…
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

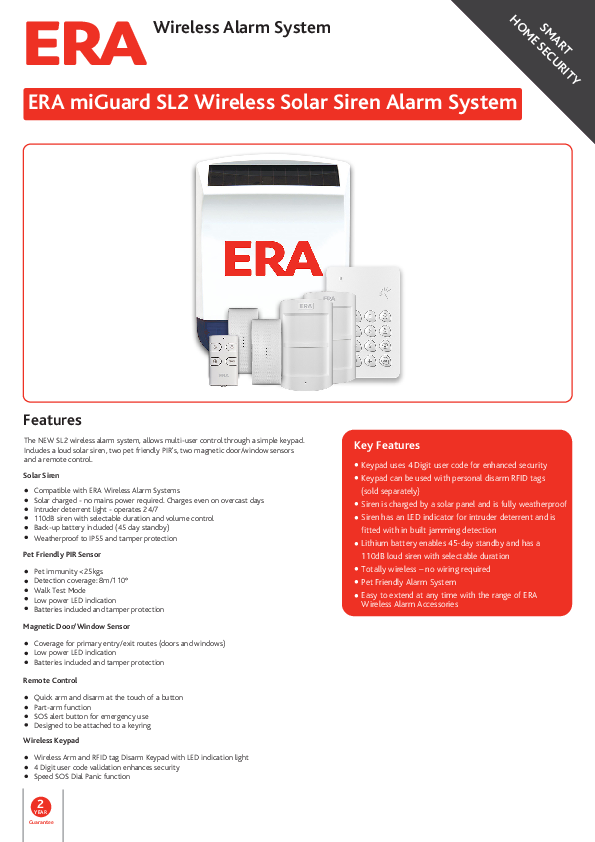

Wireless Alarm System CASWSEHLCMEIWODRAEOMITTNSINITHMEVLTGDETEPSIWERSRODTE&LMTSCOWINIETUACNOASDURARLRORTILSTSNWY ERA miGuard SL2 Wireless Solar Siren Alarm System S Features The NEW SL2 wireless alarm system, allows multi-user control through a simple keypad. Includes a loud solar siren, two pet friendly PIR's, two magnetic door/window sensors and a remote control. Solar Siren Compatible with ERA Wireless Alarm Systems Solar charged - no mains power required. Charges even on overcast days Intruder deterrent light - operates 24/7 110dB siren with selectable duration and volume control Back-up battery included (45 day standby) Weatherproof to IP55 and tamper protection Pet Friendly PIR Sensor Pet immunity <25kgs Detection coverage: 8m/110� Walk Test Mode Low power LED indication Batteries included and tamper protection Magnetic Door/Window Sensor Coverage for primary entry/exit routes (doors and windows) Low power LED indication Batteries included and tamper protection Remote Control Quick arm and disarm at the touch of a button Part-arm function SOS alert button for emergency use Designed to be attached to a keyring Wireless Keypad Wireless Arm and RFID tag Disarm Keypad with LED indication light 4 Digit user code validation enhances security Speed SOS Dial Panic function 2 YEAR Guarantee Key Features Keypad uses 4 Digit user code for enhanced security Keypad can be used with personal disarm RFID tags (sold separately) Siren is charged by a solar panel and is fully weatherproof Siren has an LED indicator for intruder deterrent and is fitted with in built jamming detection Lithium battery enables 45-day standby and has a 110dB loud siren with selectable duration Totally wireless � no wiring required Pet Friendly Alarm System Easy to extend at any time with the range of ERA Wireless Alarm Accessories Wireless Alarm System CASWSEHLCMEIWODRAEOMITTNSINITHMEVLTGDETEPSIWERSRODTE&LMTSCOWINIETUACNOASDURARLRORTILSTSNWY ERA miGuard SL2 Wireless Solar Siren Alarm System S Technical Information ERA SL2KIT Solar Siren Model No Back up Power Start up Power Solar Panel Output Current Standby Current Maximum Alarm Current Standby Time Maximum Siren Volume Receiving Distance Radio Frequency Housing Material Operation Conditions Dimensions (L x W x H) Pet Friendly PIR Sensor Model No Power Supply Standby Current Alarm Current Detection Scope Transmitting Distance Pet Immunity Radio Frequency Housing Material Operation Condition Dimensions (L x W x H) Alarm Kit EAN ESS260B 3.7V 1800mAh Rechargeable Lithium Battery 9V Alkaline Battery 2000LUX illumination >4mA (in sunlight) 1mA 500mA 45 days (in case of no sunlight) 110dB 80metres (in open field conditions) 433MHz PC + ABS Plastic + ANTI-UV Temperature: -10�C - 55�C Humidity: 80% (non-condensing) 309mm x 230mm x 79.7mm EPIR DC 3V (AA 1.5V LR6 Batteries x 2pcs) 50uA 9.5mA 8m/110� 80metres (in open field conditions) 25kg 433MHz ABS Plastic Temperature: -10�C - 55�C Humidity: 80% (non-condensing) Detector: 100mm x 59mm x 43mm Bracket: 52mm x 30mm x 26.5mm 5054040167570 Ordering Details Product ERA SLKIT Alarm kit Additional Accessories Remote Control Wifi HD Camera Ceiling Mounted PIR Sensor Narrow Beam PIR Sensor Vibration Sensor Water Detector Personal Alert Button Range Extender Indoor Plug-in Siren Part No. ERA-SL2KIT EREM IP116 P700 P800 WD80 WI210 SOS100 RT101 WS105 Packaging Kit Content Siren and Strobe (with back-up battery) x 1, Pet Friendly PIR Motion Sensor x 2, Door/Window Sensor x 2, Remote Control x 1, Wireless Keypad x 1, all Batteries, all Fittings, Instruction Manual. RFID Keypad Part Number Power Supply Standby Current Alarm Current Transmitting Distance Supported Accessories Radio Frequency Housing Material Operation Conditions Size (L x W x D) Remote Control Model No Power Supply Standby Current Alarm Current Transmitting Distance Radio Frequency Housing Material Operation Condition Dimensions (L x W x H) Door/Window Sensor Model No Power Supply Standby Current Alarm Current Transmitting Distance Radio Frequency Housing Material Operation Condition Dimensions (L x W x H) Parameter KP700 DC 12V or 3 x AAA Batteries 3uA (powered by batteries) 10m 80metres (in open field conditions) 50 RFID Tags 433MHz ABS Plastic Temperature - 10 C� - 55 C� Relative Humidity: 80% (non - condensing) 135mm x 90mm x 15mm EREM DC 3V (CR2025 Lithium Battery x 1pc) 35uA 7mA 80metres (in open field conditions) 433MHz ABS Plastic Temperature: -10�C - 55�C Humidity: 80% (non-condensing) 53mm x 31mm x 9.5mm EMAG DC 6V (CR2032 Lithium Batteries x 2pcs) 35uA 40mA 80metres (in open field conditions) 433MHz ABS Plastic Temperature: -10�C - 55�C Humidity: 80% (non-condensing) Transmitter: 71mm x 31.5mm x 15mm Magnet: 71mm x 12.5mm x 15mm Suggested Installation Layout SOS Remote Control Pet Friendly PIR Motion Sensor Magnetic Door/ Window Sensor Wireless External Siren ERA reserves the right to change specification without notice It is the responsibility of the householder or installer to ensure that the finished product meets any required safety and performance specification. ERA Valiant Way, Wolverhampton, West Midlands WV9 5GB United Kingdom Tel: +44 1922 490049 Fax: +44 1922 494420 info@erahomesecurity.com www.eraeverywhere.com
