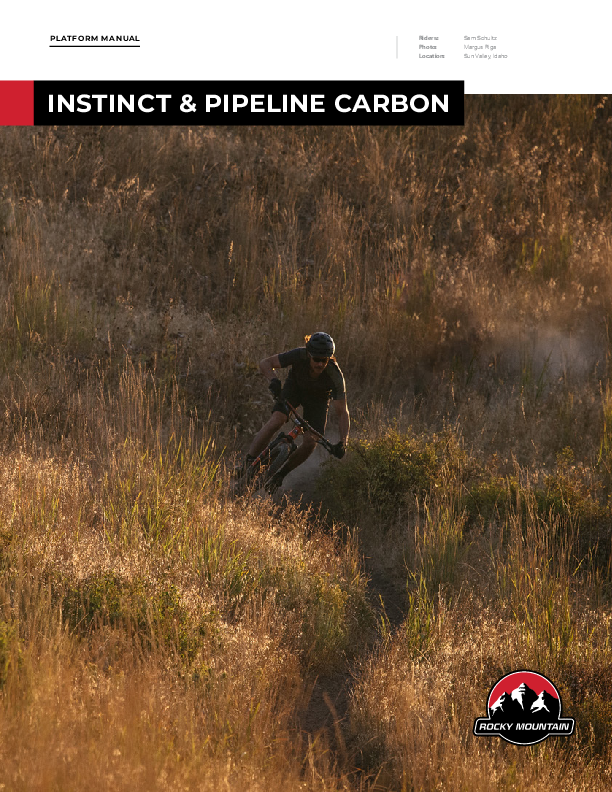

PL ATFORM MANUAL Riders: Photo: Location: Sam Schultz Margus Riga Sun Valley, Idaho INSTINCT & PIPELINE CARBON Instinct & Pipeline Carbon Platform Manual TABLE OF CONTENTS Introduction 3 Shrediquette 3 Getting to know your bike 4 Basic set-up 5 RIDE-9 6 Critical dimensions 7 Shock eyelet bearing 8 Cable/wire routing 9 Pro tips & tricks 12 Exploded view 12 Full list of parts 13 Small-parts kits 15 Warranty information 17 Table of Contents 2 Rider: Photo: Location: R�mi Gauvin Mattias Fredrikson Stryn, Norway Instinct & Pipeline Carbon Platform Manual INTRODUCTION This manual contains important safety, maintenance and user information. Read and understand it thoroughly before your first ride on your new Rocky Mountain bicycle. This material applies only to the specific platform you have chosen and should be used in conjunction with your Rocky Mountain Owner's Manual, which is included with your bike. Please read the Owner's Manual before your first ride. If you do not have a copy of the Owner's Manual, you can get it from your nearest authorized Rocky Mountain dealer. SHREDIQUETTE Riders Always be courteous to other trail users. Use extra caution around domestic animals, such as dogs and horses. Give other trail users right-of-way in all situations, during both climbing and descending. Trail Only ride your bicycle on trails and paths sanctioned for bicycle use. Follow all local laws and regulations. As for all trail users, care should be taken to avoid impacts on the trail or environment. Do not skid on or modify trails. Introduction & Shrediquette 3 Rider: Photo: Location: Matt Monod Robb Thompson Alberta Instinct & Pipeline Carbon Platform Manual GETTING TO KNOW YOUR BIKE Getting to know your bike 4 Technical details � Increased anti-squat for better pedalling efficiency � 29" Wide Trail and 27.5+ compatible � Bearings at all pivots, including at lower shock mount (compatible with aftermarket shocks as well) � Blind pivots maximize heel clearance � Single-sided pivots maximize heel clearance � Lighter, tooled rear axle � Improved cable management: large head-tube slot ports, full shift housing, large down-tube exit access port, and internal shift and brake housing � Future-proofed to be compatible (carbon only) with Di2, FOX Live, and a dropper post simultaneously � Seat-tube lengths optimized to accommodate longer dropper posts � Chainstay and down-tube protectors � Integrated Spirit Guide chain guide, with two-bolt ISCG05 � 1x only � Lower standover height � All sizes fit a water bottle in front triangle, even with a reservoir shock � Weight: � Frame and FOX FLOAT DPS shock: 2310 g / 5.09 lb. (size Medium) � Frame and FOX FLOAT DPX2 shock: 2550 g / 5.62 lb. (size Medium) � Protectors, chain guide and axle: 260 g / 0.57 lb. Instinct & Pipeline Carbon Platform Manual Basic set-up 5 BASIC SET-UP There are several variables that can be manipulated to fine-tune the set-up of your suspension. These are some basic guidelines to get you in the ballpark, and you should experiment to see what best suits you from there. The first step is to set your sag. Sag refers to how much the suspension moves under just the weight of the rider (including all riding accessories). Air pressure or coil preload is adjusted until the desired amount of sag is measured. Travel The Instinct and Pipeline models can be set up with either 140 mm or 155 mm (BC Edition) of travel, depending on the shock stroke and length. Please note: if you choose to convert a 140 mm frame to 155 mm, you MUST install the RIDE-9 chips in the most slack geometry position to avoid any potential tire collision with the seat tube. Instinct and Pipeline 140 mm Instinct BC Edition 155 mm 30�35% sag 16.5�19.5mm 30�35% sag 20�23 mm Shock stroke 55 mm Fork travel 140 mm 25�30% sag 35�42 mm Shock stroke 63.5 mm Fork travel 160 mm 25�30% sag 40�48 mm Rebound Rebound adjustment controls how quickly your suspension returns to full extension after it hits a bump. Too much rebound control, and the fork or shock will move too slowly, sinking deeper and deeper into its travel under repeated hits, which will feel harsh. Too little, and the suspension can spring back too quickly, causing a loss of traction and control. Follow the manufacturer's recommendations for base settings, and experiment to find your happy place. Instinct & Pipeline Carbon Platform Manual RIDE-9 6 RIDE-9 Suspension and geometry set-up are complex artforms with huge variations in rider style, preference, terrain and ability. We do recommend the use of professional services, but we also believe that learning to dial in your own bike is the best way to fully understand its performance. Adjust your RIDE-9TM position for geometry before considering suspension effects, or variables like air pressure and shock compression. Make gradual, incremental changes, take notes, and be methodical. Don't adjust in a hurry before a big ride. Take your time and enjoy the process. Go HERE to download the full guide. READY FOR ANY TRAIL The RIDE-9TM adjustment system allows you to quickly fine-tune your geometry and suspension with a pair of Allen keys. MORE PROGRESSIVE SUSPENSION STEEPER HE AD-TUBE ANGLE 369 258 147 SLACKER HE AD-TUBE ANGLE LESS PROGRESSIVE SUSPENSION 59 1 59 1 59 1 1 95 Position 1 SLACK Stability at high speeds. Recommended for more aggressive trail riding. 1 95 Position 5 NEUTRAL Balanced handling and stability. 1 95 Position 9 STEEP Quicker handling. Recommended for better climbing traction. Instinct & Pipeline Carbon Platform Manual Critical dimensions 7 CRITICAL DIMENSIONS Headset Lower Cup The Instinct and Pipelines can be converted between 29" and 27.5+ wheels. To maintain consistent geometry regardless of wheel size, we use 2 different lower headset cups: Ream depth (CARBON): S: 230 mm M: 245 mm L: 280 mm XL: 280 mm Ream depth (ALLOY): S: 190 mm M: 230 mm L: 235 mm XL: 250 mm Seatpost outer diameter: 30.9 mm For 29" wheels, use the 3mm tall cup For 27.5+ wheels, use the 13mm tall cup Headset standard: ZS44 top ZS56 bottom Seat QR inner diameter: 34.9 mm Minimum insertion: 100 mm Brake standard: 180 mm post mount Max rotor: 203 mm Rear hub spacing: Boost 148 mm Max tire size: 29" x 2.5" 27.5" x 2.8" (27.5" x 3.0" low profile) Chain guide standard: Rocky Mountain Spirit Guide only Bottom bracket standard: Press Fit BB92 Hardware: 25 mm x M8 Fork: Max travel 160 mm Offset 44 mm Hardware: Rocky Mountain bearing eyelets Shock dimensions: 140 mm: 210 x 55 mm (metric) 155 mm: 8.5" x 2.5" (imperial) Bashguard standard: Modified two-bolt ISCG05 Max chainring size: 36t (oval 34t) Shock fitment We check clearances for many shocks but cannot guarantee compatibility with all makes and models. Please contact your local dealer if you have a specific question regarding shock fitment. Approved shocks (210 x 55 mm) Fox � FLOAT DPS � FLOAT DPX � FLOAT X2 � DHX2 � Live Valve RockShox � Deluxe � Super Deluxe � Super Deluxe Coil Cane Creek � DBcoil � DBcoil IL � DBair � DBair IL Approved shocks (8.5" x 2.5") Fox � FLOAT DPS � FLOAT DPX � FLOAT X2 � DHX2 � Live Valve RockShox � Monarch � Monarch Plus Cane Creek � DBcoil � DBcoil IL � DBair � DBair IL Instinct & Pipeline Carbon Platform Manual SHOCK EYELET BEARING Service Your frame is equipped with cartridge bearings in the rear eyelet, allowing for better small-bump compliance. These bearings are carried by cups that have a very firm press fit into the shock shaft. Shock eyelet bearing 8 If you have your shock serviced, we highly recommend removing these components, as suspension service centres cannot guarantee they will be returned. To remove the system, follow these steps: � Use the Enduro Bearings BRT-006 tool, or a blind bearing puller (8 mm extension) to remove both bearings. � Remove the centre sleeve. � Use the blind bearing puller (10 mm extension) to remove the empty cups. NOTE: the inner diameter of the cups is 11 mm, which means the 12 mm extension won't fit (So don't force it). Use the 10 mm extension. To install new cups, use a bearing press or vice, making sure to press on the outer edge of the cups, and don't forget the centre spacer sleeve between the cups. Instinct & Pipeline Carbon Platform Manual Cable/wire routing 9 CABLE/WIRE ROUTING Your frame features internal cable routing for all cables, wires and hoses, keeping them out of harm's way while allowing the integration of the drivetrain of your choosing. Notes Head-tube panel detail PLEASE NOTE: 3 slots: 6 mm (outer diameter for hydraulic lines 5 mm (outer diameter) for shift cable 4 mm (outer diameter) for electrical wire PLEASE NOTE: Inside face features zip-tie slots to secure cables firmly PLEASE NOTE: Do not forget the anti-rattle foam tubes for all internal cables / hoses 2 sizes: 6 mm (inner diameter) for shift cables 7 mm (inner diameter) for hydraulic lines Can fit in through head-tube ports in both alloy and carbon frames PLEASE NOTE: Shimano Di2 battery holster built into access hatch Access hatch detail Shimano Di2 battery Cable/hose/wire pass-through clamp Port cover Instinct & Pipeline Carbon Platform Manual Cable/wire routing 10 Standard routing � Routing cables is always easiest in a workstand. � Remove the access hatch and pull the cable pass-through clamp out. � Disassemble the clamp to replace the housing or hoses. � To route dropper post housing or hoses, remove the access hatch. � Route the housing from front to back, using the port to guide the housing up the seat tube. � Remember to install the supplied foam noise-cancelling tubes over the housing/hoses when replacing housing. � For alloy frames, pulling the housing/hoses slowly out of the slots in the tubing will expose the foam tubes, allowing you to remove them. PLEASE NOTE It is extremely important to allow a 45 mm loop of housing/hose under the bottom bracket to allow for suspension compression. Also, a zip tie connecting the two is critical to prevent damage to both the shift housing and brake hose. R. BRAKE R. DERAILLEUR DROPPER DROPPER R. BRAKE R. DERAILLEUR 30�45 mm ZIP TIE RIGHT DROPPER LEFT RR.. BDREARKAEILLEUR BOTTOM VIEW R. DERAILLEUR R. BRAKE Instinct & Pipeline Carbon Platform Manual Cable/wire routing 11 R. BRAKE FOX Live Valve When installing a FOX Live Valve system, it's always easiest to run all the wiring before installing any shift/post housing or brake hoses. R. DERAILLEUR DROPPER FFO. ARCKCELEROMETER DROPPER R. BRAKE R. ACCELEROMETER R. DERAILLEUR 30�45 mm ZIP TIE SHOCK RIGHT DFROORPKPER LEFT R. R. F. ADBRCEARCAKEEILLELREOUMR ETER CONNECTOR INSIDE BIKE BOTTOM VIEW RR..DDEERRAIALLILEULREUR R. ACCELEROMETER R. BRAKE Shimano Di2 When installing a Shimano Di2 system, it's always easiest to run all the wiring before installing any post housing or brake hoses. R. BRAKE DROPPER R. BRAKE Di2 30�45 mm ZIP TIE DROPPER Di2 RIGHT DDRi2OPPER LEFT R. BRAKE LOOP ZIP TIE BOTTOM VIEW Di2 R. BRAKE Instinct & Pipeline Carbon Platform Manual PRO TIPS & TRICKS �When tuning your suspension, write down your settings so you can refer back to them. Better yet, use an online spreadsheet on your phone! �Use a 4 mm plastic housing ferrule to plug any unused cable ports at the head tube. �To avoid having to readjust your Spirit Guide if you remove your crank, remove the main pivot bolt and lift the chainstay up, allowing you to remove your crank without removing the chainring. �When removing your rear wheel, you can rest the chain on the driveside chainstay pivot to prevent it from dangling awkwardly. �The main bearing spacer sleeve (between the two bearings) has holes in it, to serve as a drift when removing bearings: �Use a dull punch (the flatter the better) and rest it inside the holes in the centre sleeve. �Tap the bearing out. Pro tips & tricks & Exploded view 12 �When replacing shift or post housing, you can use a RockShox reverb tool to simply pull a new piece of housing right into place, without disturbing the inner foam tubes. ROCKSHOX REVERB TOOL �When assembling pivot bolts, use grease to "glue" any spacers into place while you assemble. �Insert pivots through bearings/spacers so they sit flush with the inside face of the inner race, holding washers in place while you assemble. �Zip-tie a spare derailleur hanger to your saddle rails so you always have one with you when you're deep in the woods. EXPLODED VIEW Please refer to the table for torque values and assembly details. These views are provided to explain how your frame is assembled. 40 50 15 15 50 51 49 52 51 46 29 39 47 33 33 19 25 8 3 14 6 14 3 8 43 55 12 30 46 48 58 2 34 27 26 57 28 4 9 94 23 24 4 54 4 1 36 20 38 41 41 56 18 53 53 531617 45 44 44 35 44 44 42 5 4 7 31 4222 21 7 4 11 2122 10 42 5 4 7 32 7 4 13 37 Instinct & Pipeline Carbon Platform Manual Full list of parts 13 FULL LIST OF PARTS Please refer to the small-parts kits available for purchase. There are several kits that can help you maintain your bike for maximum trail performance: https://shop.bikes.com/collections/parts These are available from your local dealer and on www.bikes.com. # QTY ITEM 11 AXLE, MP 21 AXLE, REAR PARTS NO. 1807029 3227009 DESCRIPTION MP AXLE, M10 X 1.25, L: 84 MM, AL 7075-T6, HARD BLACK ANO REAR AXLE 12 X 173 MM, HARD BLACK ANO TORQUE (NM) 17 10 32 BEARING 1807036 ENDURO 698 LLU MAX 19 X 8 X 6 48 52 61 74 82 92 BEARING 1807042 BEARING CAP 1807043 BEARING SLEEVE 1807028 BEARING SPACER 1807044 BEARING SPACER 1807099 BOLT 1807046 ENDURO BEARING 6900 2RS MAX TYPE, 22 X 10 X 6 SIZE 6900 BEARING CAP, AL 7075-T6 HARD BLACK ANO BEARING EYELET SLEEVE FOR SR 19 X 8 X 6 CUP 6900 BEARING SPACER EYELET BEARING SPACER, 5.3 MM THK, FOR 40 MM LINK WIDTH BOLT, 10 MM X 15 MM, M10 X 1 EXT., AL 7075-T6, HARD BLACK ANO 17 10 1 BOLT 1807049 C'SUNK BOLT, 8 MM X 57 MM X M6 INT. 8 11 1 BOLT 1807060 BOLT, 10 MM X 54 MM, M6 X 1 INT., AL 7075T6, HARD BLACK ANO 8 12 1 BOLT, SHK. 1807062 SHOCK BOLT, SOLID, OD: 8 MM, L: 41 MM 8 13 1 14 2 15 2 16 1 17 1 18 1 19 1 20 1 21 2 22 2 BOLT, M10 X 78 BRG CUP BUSHING, FOX CABLE PORT CABLE PORT CHAIN GUIDE CHAINSTAY CHAINSTAY FLIP CHIP FLIP CHIP 1807061 1807026 N/A 1807066 1807067 3398001 1058140ALU 1058510CBN 1807003 1807004 BOLT, 10 MM X 78 MM, M6 X 1 INT., AL 7075T6, HARD BLACK ANO 8 BEARING EYELET FOR SR 19 X 8 X 6 BRG FOX_IGUS_BUSHING CABLE PORT, 2-PIECE, BOTTOM HALF CABLE PORT, 2-PIECE, TOP HALF CHAIN GUIDE CHAINSTAY INSTINCT/PIPELINE ALU CHAINSTAY INSTINCT/PIPELINE CARBON FLIP CHIP, OUTSIDE, AL 7075, BLACK ANODIZE FLIP CHIP, INSIDE, AL 7075, BLACK ANODIZE 23 1 FOAM TUBE N/A FOAM TUBE 24 1 FOX LIVE PLUG 1807057 FOX LIVE PLUG, ABS PLASTIC, BLACK (SPAENAUR 245-131) 25 1 FRONT TRIANGLE 1068270CBN1068273CBN FRONT TRIANGLE INSTINCT/PIPELINE CARBON 26 1 HANGER 1099031 REAR DER. HANGER, EXT THREAD, STD MOUNT 20 27 1 HANGER 1099041 REAR DER. HANGER, EXT THREAD, SHIMANO DIRECT MOUNT 20 28 1 HANGER NUT 1099033 HANGER NUT, M16 X 1, 8 MM HEX 20 29 1 HT PANEL, LEFT 1097136 HT PORT PANEL, LEFT 30 1 HT PANEL, RIGHT 1097140 HT PORT PANEL, RIGHT INSTALLATION NOTES GREASE ON SHOULDER ONLY GREASE ON OUTSIDE GREASE IN ALLOY, DRY IN CARBON GREASE INSIDE AND OUT BLUE LOCTITE ON THREADS BLUE LOCTITE ON THREADS, GREASE ON SHAFT BLUE LOCTITE ON THREADS, GREASE ON OUTSIDE BLUE LOCTITE ON THREADS, GREASE ON SHAFT BLUE LOCTITE ON THREADS, GREASE ON OUTSIDE GREASE INSIDE AND OUT GREASE INSIDE AND OUT GREASE INSIDE AND OUT INSTALL ON HOUSING BEFORE INSERTING IN FRAME BLUE LOCTITE ON THREADS BLUE LOCTITE ON THREADS BLUE LOCTITE ON THREADS Instinct & Pipeline Carbon Platform Manual Full list of parts 14 # QTY ITEM PARTS NO. DESCRIPTION TORQUE (NM) 31 1 LINK 1098101 INSTINCT LINK, 88 MM LONG, RIDE-9, AL 7075-T6, HARD BLACK ANO 32 1 LINK 1098102 INSTINCT BC LINK, 88 MM LONG, AL 7075T6, HARD BLACK ANO 33 2 PLUG 1808034 PLASTIC PLUG FOR M5 THREAD, 12 MM BUTTON HEAD, BLACK PLASTIC 34 1 PLUG YF WL-9202-3 FOX LIVE ACCELEROMETER PLUG 35 1 PORT COVER 1805056 SHIM. DI2 PORT COVER PLATE, PLASTIC 36 1 PROTECTOR 3708008 SEATSTAY PROTECTOR 37 1 PROTECTOR 3708022 MULTIBIKE DOWN-TUBE PROTECTOR 38 1 PROTECTOR 3708035 MULTIBIKE CHAINSTAY PROTECTOR 39 1 REAR SHOCK N/A REAR SHOCK 210 X 55 MM 40 1 REAR SHOCK, BC EDITION N/A 8.5 X 2.5" REAR SHOCK 41 2 SCREW 1807132 M6-1.0, 25 MM LONG, SOCKET HEAD 6 42 3 SCREW, M6 X 12 180566-012 FBY FLAT HEAD C'SUNK SOCKET SCREW, M6 1.0 X 12 MM, A4/316 SS, 55060.060.012 8 43 1 SCREW, M6 X 16 180566FBY016 FLAT HEAD C'SUNK SOCKET SCREW, M6 1.0 X 16 MM, A4/316 STAINLESS STEEL 8 44 4 SCREW, M4 X 16 1805077 C'SUNK SOCKET SCREW, M4 X 16 MM, ZINCPLATED 10.9 STEEL 1 45 1 SCREW, M4 X 8 1807068 C'SUNK SOCKET SCREW, M4 X 8 MM, ZINCPLATED 10.9 STEEL 2 46 2 SCREW, M5 X 16 1806009 FLAT HEAD C'SUNK SOCKET SCREW, M50.8 X 16 MM, ALUMINUM 8 47 1 SEATSTAY 1058142ALU SEATSTAY INSTINCT/PIPELINE ALU 48 1 SEATSTAY 1058512CBN SEATSTAY INSTINCT/PIPELINE CARBON 49 1 SHOCK BUSHING N/A SHOCK BUSHING, ID: 12.7 MM, OD: 15 MM, L: 12.7 MM, STEEL 50 2 SHOCK REDUCER N/A FOX STD REDUCER FOR 25 MM PIN 51 2 SHOCK REDUCER N/A SRAM STD REDUCER FOR 25 MM PIN 52 1 SHOCK PIN N/A SHOCK PIN: ID: 8 X 25 MM LONG; ALUMINUM 53 3 SPACER 3398002 CHAIN GUIDE SPACER 54 1 SPACER, MP 1807038 MAIN PIVOT CENTRE SPACER, ID: 10, L: 48 55 1 WASHER 1807064 C'SUNK WASHER (FOR M6 SCREW): ID: 6 X OD: 14.6 X 3.25 MM THK 56 1 WASHER 1807133 CHAIN GUIDE WASHER 57 1 WASHER 1808029 WASHER, 16 X 20 X 0.5 MM, 304 SS 58 1 WASHER 3227006 WASHER, 12 X 19 X 0.5 MM, 304 SS INSTALLATION NOTES BLUE LOCTITE ON THREADS BLUE LOCTITE ON THREADS BLUE LOCTITE ON THREADS BLUE LOCTITE ON THREADS BLUE LOCTITE ON THREADS BLUE LOCTITE ON THREADS GREASE ON OUTSIDE Instinct & Pipeline Carbon Platform Manual Small-parts kits 15 SMALL-PARTS KITS Please refer to the small-parts kits available for purchase. There are several kits that can help you maintain your bike for maximum trail performance: https://shop.bikes.com/collections/parts These are available from your local dealer, as well as on www.bikes.com. # QTY ITEM 31 1 LINK 4 4 BEARING PARTS NO. 1819015 1098101 1807042 DESCRIPTION INSTINCT LINK WITH BEARING KIT INSTINCT LINK, 88 MM LONG, RIDE-9, AL 7075-T6, HARD BLACK ANO ENDURO BEARING 6900 2RS MAX TYPE, 22 X 10 X 6 SIZE 32 1 LINK 4 4 BEARING 1819016 1098102 1807042 INSTINCT BC LINK WITH BEARING KIT INSTINCT BC LINK, 88 MM LONG, AL 7075-T6, HARD BLACK ANO ENDURO BEARING 6900 2RS MAX TYPE, 22 X 10 X 6 SIZE 27 1 HANGER 28 1 HANGER NUT 57 1 WASHER 1818012 1099041 1099033 1808029 HANGER KIT SHIMANO DIRECT MOUNT REAR DER. HANGER, EXT THREAD, SHIMANO DIRECT MOUNT HANGER NUT, M16 X 1, 8 MM HEX WASHER, 16 X 20 X 0.5 MM, 304 SS 26 1 HANGER 28 1 HANGER NUT 57 1 WASHER 1818013 1099031 1099033 1808029 KIT STANDARD HANGER REAR DER. HANGER, EXT THREAD, STD MOUNT HANGER NUT, M16 X 1, 8 MM HEX WASHER, 16 X 20 X 0.5 MM, 304 SS 1810005 PIVOT BOLT KIT 1 1 AXLE, MP 1807029 MP AXLE, M10 X 1.25, L: 84 MM, AL7075-T6, HARD BLACK ANO 5 2 BEARING CAP 1807043 6900 BEARING CAP, AL 7075-T6, HARD BLACK ANO 7 4 BEARING SPACER 1807044 6900 BEARING SPACER 9 2 BOLT 1807046 BOLT, 10 MM X 15 MM, M10 X 1 EXT., AL 7075-T6, HARD BLACK ANO 10 1 BOLT 1807049 C'SUNK BOLT, 8 MM X 57 MM X M6 INT. 11 1 BOLT 1807060 BOLT, 10 MM X 54 MM, M6 X 1 INT., AL 7075-T6, HARD BLACK ANO 13 1 BOLT, M10 X 78 1807061 BOLT, 10 MM X 78 MM, M6 X 1 INT., AL 7075-T6, HARD BLACK ANO 42 3 SCREW, M6 X 12 180566-012 FBY FLAT HEAD C'SUNK SOCKET SCREW, M6-1.0 X 12 MM, A4/316 SS, 55060.060.012 55 1 WASHER 1807064 C'SUNK WASHER (FOR M6 SCREW): ID: 6 X OD: 14.6 X 3.25 MM THK 43 1 SCREW, M6 X 16 180566FBY-016 FLAT HEAD C'SUNK SOCKET SCREW, M6-1.0 X 16 MM, A4/316 STAINLESS STEEL 12 1 BOLT, SHK. 1807062 SHOCK BOLT, SOLID, OD: 8 MM, L: 41 MM 54 1 SPACER, MP 1807038 MAIN PIVOT CENTRE SPACER, ID: 10, L: 48 18 1 CHAIN GUIDE 41 2 SCREW 56 1 WASHER 53 3 SPACER 1810006 3398001 1807132 1807133 3398002 CHAIN GUIDE KIT CHAIN GUIDE M6-1.0, 25 MM LONG, SOCKET HEAD CHAIN GUIDE WASHER CHAIN GUIDE SPACER Instinct & Pipeline Carbon Platform Manual Small-parts kits 16 # QTY ITEM 36 1 PROTECTOR 37 1 PROTECTOR 38 1 PROTECTOR PARTS NO. 1810007 3708008 3708022 3708035 2 1 AXLE, REAR 58 1 WASHER 1817011 3227009 3227006 1818003 3 2 BEARING 1807036 6 1 BEARING SLEEVE 1807028 8 2 BEARING SPACER 1807099 14 2 BRG CUP 1807026 4 8 BEARING 1817017 1807042 18187023 29 1 HT PANEL, LEFT 1097136 30 1 HT PANEL, RIGHT 1097140 46 2 SCREW, M5 X 16 1806009 1810008 35 1 PORT COVER 1805056 16 1 CABLE PORT 1807066 17 1 CABLE PORT 1807067 44 4 SCREW, M4 X 16 1805077 45 1 SCREW, M4 X 8 1807068 21 2 FLIP CHIP 22 2 FLIP CHIP 1810009 1807003 1807004 DESCRIPTION BIKE PROTECTION KIT A SEATSTAY PROTECTOR MULTIBIKE DOWN-TUBE PROTECTOR MULTIBIKE CHAINSTAY PROTECTOR AXLE KIT BOOST REAR AXLE 12 X 173 MM, HARD BLACK ANO WASHER, 12 X 19 X 0.5 MM, 304 SS SHOCK BEARING EYELET KIT ENDURO 698 LLU MAX 19 X 8 X 6 BEARING EYELET SLEEVE FOR SR 19 X 8 X 6 CUP EYELET BEARING SPACER, 5.3 MM THK, FOR 40 MM LINK WIDTH BEARING EYELET FOR SR 19 X 8 X 6 BRG PIVOT BEARING KIT ENDURO BEARING 6900 2RS MAX TYPE, 22 X 10 X 6 SIZE HEAD-TUBE PANEL KIT HT PORT PANEL, LEFT HT PORT PANEL, RIGHT FLAT HEAD C'SUNK SOCKET SCREW, M5-0.8 X 16 MM, ALUMINUM DOWN-TUBE PORT COVER KIT SHIM. DI2 PORT COVER PLATE, PLASTIC CABLE PORT, 2-PIECE, BOTTOM HALF CABLE PORT, 2-PIECE, TOP HALF C'SUNK SOCKET SCREW, M4 X 16 MM, ZINC-PLATED 10.9 STEEL C'SUNK SOCKET SCREW, M4 X 8 MM, ZINC-PLATED 10.9 STEEL RIDE-9 FLIP CHIP KIT FLIP CHIP, OUTSIDE, AL 7075, BLACK ANODIZE FLIP CHIP, INSIDE, AL 7075, BLACK ANODIZE Instinct & Pipeline Carbon Platform Manual Warranty information 17 WARRANTY INFORMATION Your bicycle is warrantied against defects in materials and manufacturing as per the following table: CATEGORY Frame members Hardware Electronics Drive wear items Battery Components TERM 5 years 1 year 2 years 1 year 24 months or 500 Wh: 70% of full capacity remaining after 300 full charging cycles (0% to 100% charge) 632 Wh: 75% of full capacity remaining after 500 full charging cycles (0% to 100% charge) As per original manufacturer warranty NOTES Front triangle + rear triangle, links Pivots, axles, etc. Drive, iWoc, sensors, charger Pulleys, pinions, transfer chain When the battery level falls below 5%, the Powerplay drive will gradually reduce power output to maximize range. Range varies depending on several factors, such as assist level, ambient temperature, acceleration, wind resistance, quality of maintenance, battery age, quality of terrain (e.g., hilly and rough), and/or rider weight. If stored for three or more months, charge battery every three months. Failure to do so may cause damage. All warranty and after-sale service must be handled by the authorized dealer who sold the complete bicycle or frame. We cover your Rocky Mountain frame for defects in material and workmanship from the original date of purchase of your new Rocky Mountain bicycle according to the frame material and the type of use. Frame material / type of use � Carbon fibre: 5 years � Limited* � Aluminum � front and fully suspended: 5 years � Limited* � Downhill and freeride: 3 years � Limited* * Please refer to the limitations stated below. NOTE � Warranty is not valid for: �Any bicycles previously used for commercial activity, such as rental, courier, police or security bicycles �The installation of components, parts or accessories that are not originally intended for or compatible with the bicycle (or frame) as sold �The purchase of a Rocky Mountain bicycle from an unauthorized dealer �The purchase of a Rocky Mountain bicycle or frame from third-party internet sites (such as eBay), no matter what the listing says �This limited warranty covers bicycles previously used for commercial activity such as rental (bike park), courier, police, security, etc. against defects in material and workmanship. Hardware, bearings, pivots and bushings are excluded from our warranty policy. Warranty coverage against other defects in workmanship and materials �Coating � paint and decals: 1 year �Full suspension frame hardware, bearings, pivots and bushings*: 1 year. *Links are part of the frame. �Downhill and freeride frame hardware, suspension: 6 months Instinct & Pipeline Carbon Platform Manual What is not covered? � Normal wear and tear �Damage or failure caused by accident, misuse, abuse or neglect �Extreme or improper use of your Rocky Mountain bicycle outside of its intended purpose �Improper assembly and/or lack of proper maintenance �Paint fading caused by the effects of ultraviolet light (UV) or outdoor exposure is not covered by this limited warranty. �Scratches and/or chips in the paint caused by dirt, rocks, road debris, roof rack transport, etc. are not covered by this limited warranty. �Components, parts or accessories not compatible with the bicycle (or frame) �Damage on pressfit bottom bracket caused by improper service or materials/parts is not covered by the Rocky Mountain Limited Warranty. Details of what is not covered under warranty � Normal wear and tear on tires, tubes, brakes, gear cables, brake pads, etc. is not covered. Your authorized Rocky Mountain dealer will tell you what these normal maintenance items are. � Consequential damage or any damage caused by accident, misuse or abuse. � Improper assembly and/or lack of proper maintenance, sandblasting, sanding, grinding, wire brushing, filing, welding, brazing, drilled holes, anodizing, repainting and chrome plating are not covered under your warranty and may void the warranty of the component manufacturers. Warranty information 18 � If you ride in extreme terrain, as depicted in mountain biking videos (e.g., by taking "trial"-style riding courses, riding ramps, performing stunts, riding on BMX tracks, riding in the city down stairs and embankments or riding in other similar terrain), you put yourself at great personal risk and forfeit the warranty as outlined in the Warranty Table. It is important to note that bent components, frames, forks, handlebars, seat posts, pedals, cranks and wheel rims are signs of accidents and/or abuse. �Labour for part replacement or changeover is not included. � Rocky Mountain Bicycles reserves the right to repair or replace at its discretion any part that is deemed to be covered by a valid warranty. � Please note that Rocky Mountain Bicycles cannot guarantee a colour match to the original part. �This warranty extends from the date of purchase, applies only to the original owner, and is not transferable. EXCLUSION AND LIMITATION OF DAMAGES THE WARRANTY OF ROCKY MOUNTAIN BICYCLES IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCTS AND DOES NOT GRANT ANY WARRANTY, EITHER EXPRESSED OR IMPLIED, LEGAL OR CONVENTIONAL, AND DISCLAIMS ANY AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSES, AND ROCKY MOUNTAIN SHALL UNDER NO CIRCUMSTANCES BE LIABLE FOR DIRECT OR INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN WHERE ROCKY MOUNTAIN HAS BEEN ADVISED OF SUCH DAMAGES, AND ROCKY MOUNTAIN'S LIABILITY SHALL BE LIMITED TO $50.00. Development Centre 1225 East Keith Road, Unit #10 North Vancouver, BC V7J 1J3 Canada T. 604-980-9938 F. 604-980-9975 Head Office 9095 25th Avenue Saint-Georges, QC G6A 1A1 Canada T. 1-800-663-2512 F. 1-800-570-8356 Rocky Mountain, its logo and other trade names are used by Rocky Mountain. Some technologies on Rocky Mountain products are patented or patent pending � 2019 Rocky Mountain�
