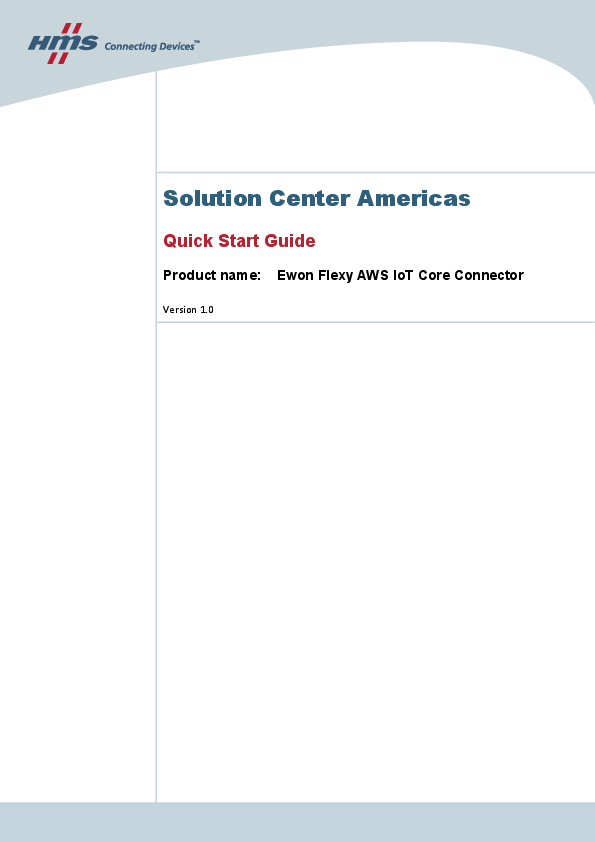

Solution Center Americas
Quick Start Guide
Product name: Ewon Flexy AWS IoT Core Connector
Version 1.0
Version history
Version History
1.0
Release
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
Author Tom Kimsey
Date D-M-Y 28-5-2020
HMS Networks Inc
Page 2 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
Table of Contents
1 Introduction ________________________________________________________________________4 2 Configuration _______________________________________________________________________4
2.1 Configure AWS IoT Core ___________________________________________________________4 2.1.1 Create a policy _______________________________________________________________4 2.1.2 Create a New Device __________________________________________________________7 2.1.3 Attach Policy to New Device ___________________________________________________11
2.2 Configure Ewon Flexy ____________________________________________________________13 2.2.1 Configure Tags on the Ewon Flexy_______________________________________________13 2.2.2 Configure and Load the Connector Application ____________________________________15
3 Testing ___________________________________________________________________________16
HMS Networks Inc
Page 3 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
1 Introduction
The HMS Networks MU Americas Solution Center has produced a connector application for linking the Ewon Flexy to AWS IoT Core. This quick start guide details the minimal steps required to setup an Ewon Flexy to connect to AWS IoT Core.
2 Configuration
2.1 Configure AWS IoT Core
IoT Core needs to be configured before an Ewon Flexy can be connected. The process consists of creating a policy, creating a device, downloading the device certificates, and attaching the created policy to the device.
2.1.1 Create a policy
A policy defines a device's access permissions to IoT Core. To create a policy, navigate to Secure -> Policies in the left-hand navigation menu. Then click Create in the top right of the page.
HMS Networks Inc
Page 4 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
A new policy must be given a name and policy statements. For more about IoT Core policies see: https://docs.aws.amazon.com/iot/latest/developerguide/iot-policies.html.
HMS Networks Inc
Page 5 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
Sample Policy
For getting started this sample policy document will provide an Ewon Flexy with the ability to connect to IoT Core as well as publish, receive, and subscribe to all topics. The resource will have to be modified to match the unique Amazon Resource Name (ARN) of the device.
Note: This policy should be used for testing only. A policy used in production should only allow topics required by the application.
{ "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [ "iot:Publish", "iot:Receive", "iot:Subscribe" ], "Resource": [ "*" ] }, { "Effect": "Allow", "Action": [ "iot:Connect" ], "Resource": [ "arn:aws:iot:XXXXXXXX:YYYYYYYYYYY:client/*" ] } ]
}
HMS Networks Inc
Page 6 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
2.1.2 Create a New Device
To create a new device, navigate to Manage -> Things in the left-hand navigation menu. Then click Create in the top right of the page.
Then click Create a single thing.
HMS Networks Inc
Page 7 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
Then, name the new device. This example uses the name newDevice. Once named, click Next at the bottom right-hand section of the page.
HMS Networks Inc
Page 8 of 16
Create a unique certificate for the device by clicking Create certificate.
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
Download the certificate, public key, and private key for the device by clicking Download next to each item (Box 1). Next, download the root CA for AWS IoT by clicking to the Download link in Box 2 then clicking the link for RSA 2048 bit key: Amazon Root CA 1. Once all the certificate and keys have been downloaded, click Activate (Box 3). Finally, click Done (Box 4).
HMS Networks Inc
Page 9 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
The device has now been created and activated.
HMS Networks Inc
Page 10 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
2.1.3 Attach Policy to New Device
The last step to configuring the device is attaching a policy. To attach a policy to a new device, navigate to Manage -> Things in the left-hand navigation menu. Then click on the device that was just created.
On the left-hand navigation menu click Security, then click the certificate created in the previous steps.
HMS Networks Inc
Page 11 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
On the certificate page click on Policies in the left-hand navigation menu. Next, click the Actions drop down on the right of the page. In the Actions drop down menu click Attach Policy.
Select the policy created in section 2.1.1, then click Attach.
HMS Networks Inc
Page 12 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
2.2 Configure Ewon Flexy
2.2.1 Configure Tags on the Ewon Flexy
Each tag that should be sent to AWS IoT Core must have historical logging enabled. The historical logging interval configured for a tag sets the interval it will be posted to IoT Core. For information on the Ewon's historical logging functionality, and how to set it up, please visit https://www.ewon.biz/technicalsupport/pages/data-services/data-logging.
In addition to historical logging being enabled, the Ewon AWS IoT Core Connector application uses tag groups to determine which tags are to be sent to IoT Core. There are four tag groups, A, B, C, and D. Any tag assigned to one of the four tag groups will be sent to IoT Core, but tags that have not been assigned a tag group will be ignored.
To create a new tag click the + / + Add button above the tag list on the Values page of the Ewon Flexy webserver.
HMS Networks Inc
Page 13 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
Create the tag following standard Ewon Flexy documentation. Make sure that Historical Logging is enabled and configured to the desired settings.
Add the tag to a Tag group then click Add Tag at the bottom right-hand side of the page.
HMS Networks Inc
Page 14 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
2.2.2 Configure and Load the Connector Application
2.2.2.1 Modify AwsConnectorConfig.json Replace the values for IoTCoreURL and DeviceID in the AwsConnectorConfig.json file to match the values being used.
IoTCoreURL URL for IoT Core instance. DeviceID Must match name given to device during IoT Core device registration.
{ "Connector": { "LogLevel": 1 }, "Aws": { "DeviceMode": 1, "IoTCoreURL": "xxxxxxxxxxx.iot.yyyyyyy.amazonaws.com", "DeviceID": "newDevice" }
}
2.2.2.2 Transfer Application Files Using an FTP client transfer the following files to the /usr directory of the Ewon Flexy.
· AwsConnectoConfig.json · flexy-aws-connector.jar · jvmrun
2.2.2.3 Transfer Certificates
1. Using an FTP client create a directory named "AwsCertificates" in the /usr directory of the Ewon Flexy.
2. Rename the root CA certificate to "rootCA.crt" and transfer it to the "AwsCertificates" directory on the Ewon Flexy.
3. Rename the device certificate to "device.cert.pem" and transfer it to the "AwsCertificates" directory on the Ewon Flexy.
4. Rename the private key to "device.private.key" and transfer it to the "AwsCertificates" directory on the Ewon Flexy.
HMS Networks Inc
Page 15 of 16
Solution Center Americas Ewon Flexy AWS IoT Core Connector
Quick Start Guide Version 1.0
3 Testing
Once the Ewon Flexy has been rebooted the application will automatically start and begin publishing data to IoT Core. Data publishing verified by subscribing to the "ewonTelemetry" topic using the Test page.
