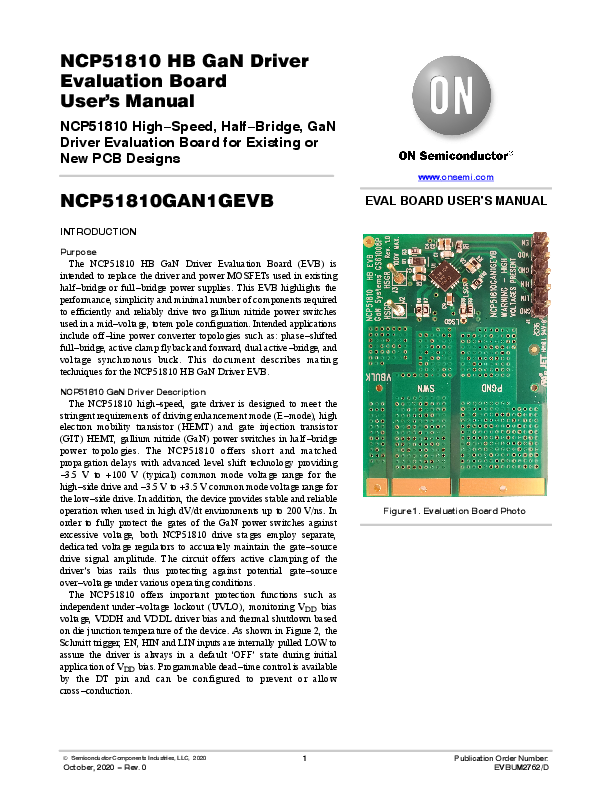

EVBUM2762/D. NCP51810 HB GaN Driver. Evaluation Board. User's Manual. NCP51810 High−Speed, Half−Bridge, GaN. Driver Evaluation Board for Existing ...
NCP51810 HB GaN Driver Evaluation Board User'sManual NCP51810 High-Speed, Half-Bridge, GaN Driver Evaluation Board for Existing or New PCB Designs NCP51810GAN1GEVB INTRODUCTION Purpose The NCP51810 HB GaN Driver Evaluation Board (EVB) is intended to replace the driver and power MOSFETs used in existing half-bridge or full-bridge power supplies. This EVB highlights the performance, simplicity and minimal number of components required to efficiently and reliably drive two gallium nitride power switches used in a mid-voltage, totem pole configuration. Intended applications include off-line power converter topologies such as: phase-shifted full-bridge, active clamp flyback and forward, dual active-bridge, and voltage synchronous buck. This document describes mating techniques for the NCP51810 HB GaN Driver EVB. NCP51810 GaN Driver Description The NCP51810 high-speed, gate driver is designed to meet the stringent requirements of driving enhancement mode (E-mode), high electron mobility transistor (HEMT) and gate injection transistor (GIT) HEMT, gallium nitride (GaN) power switches in half-bridge power topologies. The NCP51810 offers short and matched propagation delays with advanced level shift technology providing -3.5 V to +100 V (typical) common mode voltage range for the high-side drive and -3.5 V to +3.5 V common mode voltage range for the low-side drive. In addition, the device provides stable and reliable operation when used in high dV/dt environments up to 200 V/ns. In order to fully protect the gates of the GaN power switches against excessive voltage, both NCP51810 drive stages employ separate, dedicated voltage regulators to accurately maintain the gate-source drive signal amplitude. The circuit offers active clamping of the driver's bias rails thus protecting against potential gate-source over-voltage under various operating conditions. The NCP51810 offers important protection functions such as independent under-voltage lockout (UVLO), monitoring VDD bias voltage, VDDH and VDDL driver bias and thermal shutdown based on die junction temperature of the device. As shown in Figure 2, the Schmitt trigger, EN, HIN and LIN inputs are internally pulled LOW to assure the driver is always in a default `OFF' state during initial application of VDD bias. Programmable dead-time control is available by the DT pin and can be configured to prevent or allow cross-conduction. www.onsemi.com EVAL BOARD USER'S MANUAL Figure 1. Evaluation Board Photo © Semiconductor Components Industries, LLC, 2020 1 October, 2020 - Rev. 0 Publication Order Number: EVBUM2762/D NCP51810GAN1GEVB The NCP51810 can be considered as having two independent high-side and low-side "floating" drive stages. The high-side can float up to 100 V referenced to SW and the low-side can float up to 3.5 V referenced to PGND, making it well suited for applications where the driver has to float above a low-side current sense resistor as described in "Connection Method #2" section. Each drive stage includes dedicated input level shifting to ensure accurately matched propagation delays to within 5 ns. Each output includes separate source and sink allowing rise and fall times to be set independently with a single resistor, eliminating additional, discrete circuitry often required for high-speed turn-off. VBST VDD EN HIN LIN DT SGND VDD UVLO 8.5V/8V (ON/OFF) SCHMITT TRIGGER INPUT SHOOT THOUGH PREVENTION CYCLE-By- CYCLE EDGE TRIGGERED SHUTDOWN DEAD-TIME MODE CONTROL HO LEVEL SHIFTER VBST UVLO SR R Q VDDH REGULATOR VDDH UVLO LO LEVEL SHIFTER VDDL REGULATOR VDDL UVLO DELAY DRIVER DRIVER VDDH HOSRC HOSNK SW VDDL LOSRC LOSNK PGND Figure 2. NCP51810, Functional Block Diagram NCP51810 HB GaN Driver EVB Description The NCP51810 HB GaN Driver EVB is designed using an 1880 mil x 1310 mil, four-layer printed circuit board (PCB) and includes the NCP51810 GaN driver, two E-mode GaN power switches connected in a high-side, low-side configuration and all necessary drive circuitry. The EVB does not include a PWM controller, and is generic from the point of view that it is not dedicated to any one topology, and can be used in any topology that requires the use of a high-side/low-side FET combination. The EVB can be connected into an existing power supply, and will replace the HS/LS driver and MOSFETs. The EVB has preset, but configurable dead-time control and driver enable/disable. The GaN power switches are rated up to 100 V, 90 A, making them well suited for half-bridge topologies operating from an output in the range of 100 V. However, due to RDS(ON) temperature dependence, the maximum, practical case temperature should not exceed ~90°C (90°C = 1.6 x RDS(ON), normalized at 25°C). The EVB has only 27 components and its small size allows it to be installed in tight areas. Even with the small size, several pins are available to probe the circuit. HS and LS gate drives, as well as SWN are accessible. Note: In half-bridge operation, the HS gate drive can only be probed with a high-voltage differential probe on the Hi-Side Gate Drive (HSGD) pin and the Hi-Side Gate Return (HSGR) pin. The LS gate drive has two plated holes for a tip-and-barrel probe measurement (LSGD). The plated hole closest to the NCP51810 is probe GND, as shown in Figure 3. A tip-and-barrel measurement is performed by removing the "hat" from a passive probe and using the probe "pin" for the measurement and a spring pin fit on the GND barrel of the probe for ground. Figure 4 shows the typical tip-and-barrel measurement method for LSGD using a LeCroy passive probe and GND spring. www.onsemi.com 2 NCP51810GAN1GEVB Figure 3. NCP51810 HB GaN Driver EVB Figure 4. Tip-and-Barrel Measurement Method www.onsemi.com 3 NCP51810 EVB Schematic NCP51810GAN1GEVB Figure 5. NCP51810 EVB Schematic www.onsemi.com 4 NCP51810GAN1GEVB NCP51810 EVB Bill of Materials (BOM) Table 1. NCP51810 EVB BILL OF MATERIALS Item Qty Reference Value Part Number 1 1 C1 10 pF CC0603JRNPO9BN100 2 1 C5 470 nF CC0603KRX7R8BB474 3 3 C2 C6 C9 1 mF CL10B105KA8NNNC 4 2 C3 C7 0.1 mF C1206J104K2RAC7800 5 2 C4 C8 100 nF CC0603KRX7R8BB104 6 1 D1 RB558VYM150FHTR 7 1 J1 68000-206HLF 8 2 J2-3 1352-1 9 2 Q1-2 GS61008P 10 1 R4 (Note 1) 60.4 kW RMCF0603FT60K4 11 1 R10 (Note 2) 0 W RC0603JR-070RL 12 3 R1-2 R5 10 kW RC0603FR-0710KL 13 3 R3 R7 R9 2 W CPF0603F2R0C1 14 2 R6 R8 10 W RC0603FR-0710RL 15 1 U1 NCP51810 1. R4 used to set dead-time (DT). 2. R10 used to connect SGND to LS gate return. Description CAP, SMD, CERAMIC, 50 V, NPO CAP, SMD, CERAMIC, 25 V, X7R CAP, SMD, CERAMIC, 25 V, X7R CAP, SMD, CERAMIC, 200 V, X7R CAP, SMD, CERAMIC, 25 V, X7R Diode_Shottky, 150 V, 500 mA, 6.35 ns RR Header, SIP6 100mil pitch, Post - 95 mil, Mate - 230 mil Testpin, Gold, 40 mil, 28 mil solder length GaNFET, 100 V, E-mode, 90 A, 7 mW, Kelvin Source RES, SMD, 1/10 W RES, SMD, 1/10 W RES, SMD, 1/10 W RES, SMD, 1/10 W RES, SMD, 1/10 W High Speed Half Bridge GaN Driver, 200 V Manufacturer Yageo Yageo Samsung Kemet Yageo Rohm Pkg Type 603 603 603 1206 603 SOD-323 Amphenol Thru-Hole Keystone Thru-Hole GaN Systems 7.55 x 4.59 mm Stackpole Yageo Yageo TE Connectivity Yageo ON Semiconductor 603 603 603 603 603 MLP 4x4-15 www.onsemi.com 5 NCP51810GAN1GEVB NCP51810 Layers · Top Layer: The large copper high current carrying etches used to connect the HS/LS GaN power switches also act as heat spreaders. A heatsink (if utilized) will be attached to this layer. · Layer 2 (Internal): This layer has a shielding plane for the driver and driver components as well as additional high current carrying etches for the HS/LS GaN power switches. · Layer 3 (Internal): Layer 3 has additional high current carrying etches for the HS/LS GaN power switches. · Bottom Layer: The high current carrying etches for the HS/LS GaN power switches on the bottom layer also act as heat spreaders. Top Layer Layer 2, Internal Layer 3, Internal Figure 6. PCB Assembly and Layers Bottom Layer www.onsemi.com 6 NCP51810 EVB I/C Connections NCP51810GAN1GEVB Power Stage 6 5 4 321 Input Connector Figure 7. EVB I/O Connections Table 2. I/O CONNECTOR DESCRIPTION Pin Name Pin Type Description EN (Note 3) J1-1 Logic input for enabling/disabling the driver VDD J1-2 Bias voltage for high current driver GND J1-3,6 Signal ground on the driver HIN J1-4 Logic input for high-side gate driver LIN J1-5 Logic input for low-side gate driver VBULK PAD VIN connection SWN PAD Switch Node connection PGND PAD Power Ground connection 3. EN pin tied to driver VDD through 10 kW resistor (R1) on EVB. Value 2.5 V < EN < VDD + 0.3 V 8 V < VDD < 20 V 0 V 0 V < HIN < VDD + 0.3 V 0 V < LIN < VDD + 0.3 V 100 V max 100 V max 0 V www.onsemi.com 7 NCP51810GAN1GEVB NCP51810 EVB CONNECTION METHODS There are two different methods for connecting the EVB to an existing power board. Power topologies not using a current sense resistor connected in series with the LS GaN power switch source (a current sense transformer or other method of sensing current used) will use Connection Method #1, shown in "Connection Method #1" section. Power topologies using a current sense resistor (RCS) connected in series with the LS GaN source, will use Connection Method #2, shown in "Connection Method #2" section. Preparing Power Board for EVB Connection 1. Remove HS and LS MOSFETs and HS and LS gate drive resistors from the power board as illustrated in Figure 8. 2. Remove any gate turn off circuitry. This is any circuit used to help drive the gate to 0 V during turn off. 3. Before connecting the EVB, ensure that VDD, HIN, LIN, and VBULK are within the parameters listed in Table 2. Figure 8. Power Board Preparation Connection Method #1 - No GaN LS Current Sense Resistor on Power Board Connect the EVB as shown in Figure 9. AWG #22 wire is suggested for LIN, HIN and VDD. AWG #18 or larger wire is suggested for VBULK, SWN and PGND. Keeping both the Input connections and the VBLK, SWN and PGND connections as short as possible is preferred. Connection Method #2 - LS GaN Current Sense Resistor (RCS) Present on Power Board Low-power applications, such as an active-clamp flyback or forward converter often use a current sensing resistor, RCS, located in the low-side GaN power switch-source leg. In such applications, the EVB PGND and SGND pins must be isolated on the EVB (normally connected by R10) because RCS would essentially be shorted through this resistor if not removed. The NCP51810 low-side drive circuit is able to withstand -3.5 V to +3.5 V of common mode voltage. Since most current sense voltage signals are less than 1 V, the low-side drive stage can easily "float" above the voltage, VRCS, generated by the current sense resistor. Connection Method #2: Remove R10 on the EVB to isolate LS gate drive return from GND as shown in Figure 10 and Figure 13. Failure to remove R10 will short out RCS. Connect the EVB as shown in Figure 10. AWG #22 wire is suggested for LIN, HIN and VDD. AWG #18 or larger wire is suggested for VBULK, SWN and PGND. Keeping both the input and power connections as short as possible is preferred. www.onsemi.com 8 NCP51810GAN1GEVB + + VBULK LS SWN HS PWM PGND CONTROLLER LOUT HOUT VDD GND TWISTED PAIR TWISTED PAIR R10 INSTALLED Figure 9. Connection Method #1 - No LS Current Sense Resistor FLOATING AT VCS CS RESISTOR + + VBULK LS SWN HS PGNDCONPTWRMOLLER VCS CS VDD LOUT HOUT GND TWISTED PAIR TWISTED PAIR R10 REMOVED Figure 10. Connection Method #2 - LS Current Sense Resistor on Power Board www.onsemi.com 9 NCP51810GAN1GEVB External VDD An external VDD can be used, as long as the HIN and LIN signals still fall within the parameters listed in Table 2. If an external VDD is used, the external VDD GND connection must be connected to the power board VDD GND, as shown in Figure 11. An external VDD can be used for boards either with or without an LS Current Sense Resistor. When using an external VDD, put a 1N4148 blocking diode (or similar 60 V, 1A minimum diode) in series with VDD + to protect the VDD supply. It's also suggested to put a small electrolytic decoupling capacitor (example: 22 mF, 35 V) across the External VDD supply output, as shown in Figure 11. VDD voltage should be measured and set after the blocking diode to take into account the voltage drop across the diode. + + VBULK LS SWN HS PWM PGND CONTROLLER LOUT HOUT VDD GND TWISTED PAIR TWISTED PAIR R10 INSTALLED + - + Decoupling Capacitor External VDD (8 V < VDD < 20 V) Figure 11. External VDD Connection Thermal Considerations Applications where higher currents could cause GaN power switch temperatures to exceed 90°C (such as a high power, synchronous buck), a voltage-isolated adhesive heatsink can be attached to the top of the EVB. The GaN power switches on this EVB are bottom-cooled. Copper heat spreaders are part of the top and bottom layer of this EVB. A voltage-isolated adhesive heatsink attached to the EVB top will aid in reducing the GaN power switch temperatures. Figure 12 shows the positioning of a heatsink. Figure 12. NCP51810 HB GaN Driver EVB and Heatsink www.onsemi.com 10 NCP51810GAN1GEVB CONFIGURING ENABLE (EN) AND DEAD-TIME (DT) EN Function and External Control The NCP51810 GaN Driver EN is internally pulled low to SGND, so the driver is always defaulted to a disabled output status. Similar to HIN and LIN, EN is a Schmitt trigger TTL compatible input. Pulling the EN pin above 2.5 V typical, enables the outputs, placing the NCP51810 into an active ready state. Due to the nature of high-speed switching associated with GaN power stages, and for improved noise immunity, the EN pin is tied to VDD through a 10-kW (R1) pull-up resistor and is bypassed by a 10 pF capacitor (C1). If an external enable signal is preferred, the external enable signal must conform to the value limits listed in Table 2. More information on EN control can be found in the NCP51810 datasheet. When using an external active enable signal, remove R1 and connect a signal to the EN pin on the EVB. The external enable signal GND must connect to the EVB GND. The 10 pF EN bypass capacitor (C1) on the EVB must remain installed. Refer to Figure 13 for R1 and C1 locations. DT Function and Mode Configuration Accurately ensuring some minimal amount of dead-time between the high-side and low-side gate drive output signals is critical for safe, reliable optimized operation of any high-speed, half-bridge power stage. The NCP51810 uses a voltage-configured, dead-time control pin (DT). The NCP51810 offers four unique mode settings to utilize dead-time in such a way to be fully compatible with any control algorithm. The EVB dead-time is preset to Mode B by a single, 60.4 kW resistor (R4) connected between the DT and SGND pins. This sets the dead-time voltage to 1.3 V, proportional to approximately 65 ns of dead-time. When adjusting the dead-time is required, the resistor value can be changed, which will change the voltage level on the DT pin. Follow the instructions outlined In DT Mode Descriptions to change DT modes. For noise immunity, the DT pin is bypassed with a 0.1 mF capacitor (C8). This capacitor must not be removed. More information on dead-time control can be found in the NCP51810 datasheet. Refer to Figure 13 for R4 and C8 locations. DT Mode Descriptions 1. MODE A: Connect DT to SGND; When the DT pin voltage, VDT, is less than 0.5 V typical (RDT = 0 W), the DT programmability is disabled and fixed dead-time, anti-cross-conduction protection is enabled. If HIN and LIN are overlapping by X ns, then X ns of dead-time is automatically inserted. Conversely, if HIN and LIN have greater than 0 ns of dead-time then the dead-time is not modified by the NCP51810 and is passed through to the output stage as defined by the controller. This type of dead-time control is preferred when the controller will be making the necessary dead-time adjustments but needs to rely on the NCP51810 dead-time control function for anti-cross-conduction protection. 2. MODE B: Connect a 25 kW < RDT < 200 kW Resistor from DT to SGND; Dead-time is programmable by a single resistor connected between the DT and SGND pins. The amount of desired dead time can be programmed via the dead time resistor, RDT, between the range of 25 kW < RDT < 200 kW to obtain an equivalent dead-time, proportional to RDT, in the range of 25 ns < tDT < 200 ns. If either edge between HIN and LIN result in a dead-time less than the amount set by RDT, the set DT value shall be dominant. If either edge between HIN and LIN result in a dead-time greater than the amount set by RDT, the controller dead-time shall be dominant. 3. MODE C: Connect a 249 kW Resistor from DT to SGND; Connect a 249 kW resistor between DT and SGND to program the maximum dead-time value of 200 ns. The control voltage range, VDT, for assuring tDT = 200 ns is 4 V < VDT < 5 V. 4. MODE D: Connect DT to VDD; When the DT pin voltage, VDT, is greater than 6 V (pulled up to VDD through 10 kW resistor), anti-cross-conduction protection is disabled, allowing the output signals to overlap. If choosing this operating mode while driving a half-bridge power stage, extreme caution should be taken, as cross conduction can potentially damage power components if not accounted for. This type of dead-time control is preferred when the controller will be making extremely accurate dead-time adjustments and can respond to the potential of over-current faults on a cycle-by-cycle basis. www.onsemi.com 11 NCP51810GAN1GEVB EN Bypass Capacitor EN Resistor DT Bypass Capacitor DT Resistor SGND = PGND Resistor Figure 13. EN and DT Resistor and Capacitor Locations CONCLUSION When using this EVB with an existing silicon (Si) half-bridge power stage at normal Si frequencies (40-500 kHz), the true benefits of GaN technology (higher running frequencies, smaller magnetics, higher power density) will not be realized at the lower frequencies that Si typically operates. The goal of this EVB is to easily enable the evaluation of the NCP51810 GaN driver, mating it with existing half-bridge power topologies, and not to significantly change their operation or efficiency. This EVB can be run at high frequencies, but care must be applied to both the input signals and the power connections to be as short as possible to avoid noise injection and ringing. More information on GaN driver PCB design and layout techniques are available at ON Semiconductor/NCP51810. www.onsemi.com 12 ON Semiconductor and the ON Semiconductor logo are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor's product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. The evaluation board/kit (research and development board/kit) (hereinafter the "board") is not a finished product and is as such not available for sale to consumers. The board is only intended for research, development, demonstration and evaluation purposes and should as such only be used in laboratory/development areas by persons with an engineering/technical training and familiar with the risks associated with handling electrical/mechanical components, systems and subsystems. This person assumes full responsibility/liability for proper and safe handling. Any other use, resale or redistribution for any other purpose is strictly prohibited. The board is delivered "AS IS" and without warranty of any kind including, but not limited to, that the board is production-worthy, that the functions contained in the board will meet your requirements, or that the operation of the board will be uninterrupted or error free. ON Semiconductor expressly disclaims all warranties, express, implied or otherwise, including without limitation, warranties of fitness for a particular purpose and non-infringement of intellectual property rights. ON Semiconductor reserves the right to make changes without further notice to any board. You are responsible for determining whether the board will be suitable for your intended use or application or will achieve your intended results. Prior to using or distributing any systems that have been evaluated, designed or tested using the board, you agree to test and validate your design to confirm the functionality for your application. Any technical, applications or design information or advice, quality characterization, reliability data or other services provided by ON Semiconductor shall not constitute any representation or warranty by ON Semiconductor, and no additional obligations or liabilities shall arise from ON Semiconductor having provided such information or services. The boards are not designed, intended, or authorized for use in life support systems, or any FDA Class 3 medical devices or medical devices with a similar or equivalent classification in a foreign jurisdiction, or any devices intended for implantation in the human body. Should you purchase or use the board for any such unintended or unauthorized application, you shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the board. This evaluation board/kit does not fall within the scope of the European Union directives regarding electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and may not meet the technical requirements of these or other related directives. FCC WARNING This evaluation board/kit is intended for use for engineering development, demonstration, or evaluation purposes only and is not considered by ON Semiconductor to be a finished end product fit for general consumer use. It may generate, use, or radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15 of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this equipment may cause interference with radio communications, in which case the user shall be responsible, at its expense, to take whatever measures may be required to correct this interference. ON Semiconductor does not convey any license under its patent rights nor the rights of others. LIMITATIONS OF LIABILITY: ON Semiconductor shall not be liable for any special, consequential, incidental, indirect or punitive damages, including, but not limited to the costs of requalification, delay, loss of profits or goodwill, arising out of or in connection with the board, even if ON Semiconductor is advised of the possibility of such damages. In no event shall ON Semiconductor's aggregate liability from any obligation arising out of or in connection with the board, under any theory of liability, exceed the purchase price paid for the board, if any. For more information and documentation, please visit www.onsemi.com. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com ON Semiconductor Website: www.onsemi.com TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800-282-9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative www.onsemi.com 1Acrobat Distiller 19.0 (Windows)
