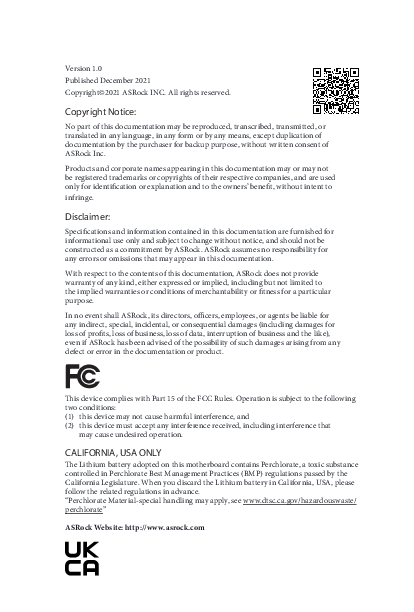

Version 1.0 Published December 2021 Copyright�2021 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. "Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate"
ASRock Website: http://www.asrock.com
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply)
The terms HDMI� and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.
LICENSE. Licensee has a license under Intel's copyrights to reproduce Intel's Software only in its unmodified and binary form, (with the accompanying documentation, the "Software") for Licensee's personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions:
(a) Licensee may not disclose, distribute or transfer any part of the Software, and You agree to prevent unauthorized copying of the Software.
(b) Licensee may not reverse engineer, decompile, or disassemble the Software.
(c) Licensee may not sublicense the Software.
(d) The Software may contain the software and other intellectual property of third party suppliers, some of which may be identified in, and licensed in accordance with, an enclosed license.txt file or other text or file.
(e) Intel has no obligation to provide any support, technical assistance or updates for the Software.
OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Software remains with Intel or its licensors or suppliers. The Software is copyrighted and protected by the laws of the United States and other countries, and international treaty provisions. Licensee may not remove any copyright notices from the Software. Except as otherwise expressly provided above, Intel grants no express or implied right under Intel patents, copyrights, trademarks, or other intellectual property rights. Transfer of the license terminates Licensee's right to use the Software.
DISCLAIMER OF WARRANTY. The Software is provided "AS IS" without warranty of any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS LICENSORS OR SUPPLIERS WILL BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAG
ES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
LICENSE TO USE COMMENTS AND SUGGESTIONS. This Agreement does NOT obligate Licensee to provide Intel with comments or suggestions regarding the Software. However, if Licensee provides Intel with comments or suggestions for the modification, correction, improvement or enhancement of (a) the Software or (b) Intel products or processes that work with the Software, Licensee grants to Intel a non-exclusive, worldwide, perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under Licensee's intellectual property rights, to incorporate or otherwise utilize those comments and suggestions.
TERMINATION OF THIS LICENSE. Intel or the sublicensor may terminate this license at any time if Licensee is in breach of any of its terms or conditions. Upon termination, Licensee will immediately destroy or return to Intel all copies of the Software.
THIRD PARTY BENEFICIARY. Intel is an intended beneficiary of the End User License Agreement and has the right to enforce all of its terms.
U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S. Government. Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95054.
EXPORT LAWS. Licensee agrees that neither Licensee nor Licensee's subsidiaries will export/re-export the Software, directly or indirectly, to any country for which the U.S. Department of Commerce or any other agency or department of the U.S. Government or the foreign government from where it is shipping requires an export license, or other governmental approval, without first obtaining any such required license or approval. In the event the Software is exported from the U.S.A. or re-exported from a foreign destination by Licensee, Licensee will ensure that the distribution and export/re-export or import of the Software complies with all laws, regulations, orders, or other restrictions of the U.S. Export Administration Regulations and the appropriate foreign government.
APPLICABLE LAWS. This Agreement and any dispute arising out of or relating to it will be governed by the laws of the U.S.A. and Delaware, without regard to conflict of laws principles. The Parties to this Agreement exclude the application of the United Nations Convention on Contracts for the International Sale of Goods (1980). The state and federal courts sitting in Delaware, U.S.A. will have exclusive jurisdiction over any dispute arising out of or relating to this Agreement. The Parties consent to personal jurisdiction and venue in those courts. A Party that obtains a judgment against the other Party in the courts identified in this section may enforce that judgment in any court that has jurisdiction over the Parties.
Licensee's specific rights may vary from country to country.
Motherboard Layout
B660M Phantom Gaming 4
English
1
No. Description 1 ATX 12V Power Connector (ATX12V1) 2 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) 3 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2) 4 CPU Fan Connector (CPU_FAN1) 5 CPU/Water Pump Fan Connector (CPU_FAN2/WP) 6 ATX Power Connector (ATXPWR1) 7 USB 3.2 Gen1 Header (USB3_5_6) 8 SATA3 Connector (SATA3_3)(Lower) 9 SATA3 Connector (SATA3_2)(Upper) 10 System Panel Header (PANEL1) 11 SATA3 Connector (SATA3_0) 12 SATA3 Connector (SATA3_1) 13 SPI TPM Header (SPI_TPM_J1) 14 Post Status Checker (PSC) 15 USB 2.0 Header (USB_5_6) 16 USB 2.0 Header (USB_3_4) 17 Chassis Intrusion and Speaker Header (SPK_CI1) 18 Chassis/Water Pump Fan Connector (CHA_FAN2/WP) 19 Chassis/Water Pump Fan Connector (CHA_FAN3/WP) 20 5-pin Thunderbolt AIC Connector (TB1) 21 Clear CMOS Jumper (CLRMOS1) 22 Front Panel Audio Header (HD_AUDIO1) 23 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
2
English
I/O Panel
1
B660M Phantom Gaming 4
3
2
4
10
9
8
No. Description 1 USB 2.0 Ports (USB_12) 2 LAN RJ-45 Port* 3 Line In (Light Blue)** 4 Front Speaker (Lime)** 5 Microphone (Pink)**
7
6
5
No. Description 6 USB 3.2 Gen1 Ports (USB3_3_4) 7 USB 3.2 Gen1 Ports (USB3_1_2) 8 DisplayPort 1.4 9 HDMI Port 10 PS/2 Mouse/Keyboard Port
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status
Off Blinking On
Description
No Link Data Activity Link
Speed LED
Status Off Orange Green
** Function of the Audio Ports in 7.1-channel Configuration:
Description
10Mbps connection 100Mbps connection 1Gbps connection
Port
Light Blue (Rear panel) Lime (Rear panel) Pink (Rear panel) Lime (Front panel)
Function
Rear Speaker Out Front Speaker Out Central /Subwoofer Speaker Out Side Speaker Out
3
English
Chapter 1 Introduction
Thank you for purchasing ASRock B660M Phantom Gaming 4 motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.
Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.
1.1 Package Contents
� ASRock B660M Phantom Gaming 4 Motherboard (Micro ATX Form Factor) � ASRock B660M Phantom Gaming 4 Quick Installation Guide � ASRock B660M Phantom Gaming 4 Support CD � 2 x Serial ATA (SATA) Data Cables (Optional) � 3 x Screws for M.2 Sockets (Optional) � 1 x I/O Panel Shield
4
English
B660M Phantom Gaming 4
1.2 Specifications
Platform
� Micro ATX Form Factor � Solid Capacitor design
CPU
� Supports 12th Gen Intel� CoreTM Processors (LGA1700) � Digi Power design � 8 Power Phase design � Supports Intel� Hybrid Technology � Supports Intel� Turbo Boost Max 3.0 Technology
Chipset
� Intel� B660
Memory
� Dual Channel DDR4 Memory Technology � 4 x DDR4 DIMM Slots � Supports DDR4 non-ECC, un-buffered memory up to
4800+(OC)* * Supports DDR4 3200 natively. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) � Supports ECC UDIMM memory modules (operate in non-
ECC mode) � Max. capacity of system memory: 128GB � Supports Intel� Extreme Memory Profile (XMP) 2.0
Expansion Slot
� 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Supports NVMe SSD as boot disks � 1 x PCIe Gen3x1 Slot � Supports AMD CrossFireTM � 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module and Intel� CNVi (Integrated WiFi/BT)
Graphics
� Intel� UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU
integrated. � Intel� Xe Graphics Architecture (Gen 12) � Dual graphics output: support HDMI and DisplayPort 1.4
ports by independent display controllers
5
English
� Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
� Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
� Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Audio
� 7.1 CH HD Audio (Realtek ALC897 Audio Codec) � Supports Surge Protection � Nahimic Audio
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Supports Wake-On-LAN � Supports Lightning/ESD Protection � Supports Energy Efficient Ethernet 802.3az � Supports UEFI PXE
Rear Panel I/O
� 3 x Antenna Mounting Points � 1 x PS/2 Mouse/Keyboard Port � 1 x HDMI Port � 1 x DisplayPort 1.4 � 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports
ESD Protection) � 2 x USB 2.0 Ports (Supports ESD Protection) � 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED) � HD Audio Jacks: Line in / Front Speaker / Microphone
Storage
� 4 x SATA3 6.0 Gb/s Connectors � 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* � 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280
PCIe Gen4x4 (64 Gb/s) mode* * Supports Intel� OptaneTM Technology (M2_2 only) * Supports Intel� Volume Management Device (VMD) * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit
English
6
B660M Phantom Gaming 4
RAID
� Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connector
� 1 x SPI TPM Header � 1 x Chassis Intrusion and Speaker Header � 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. � 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. � 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. � 1 x 24 pin ATX Power Connector � 1 x 8 pin 12V Power Connector (Hi-Density Power Connec-
tor) � 1 x Front Panel Audio Connector � 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock
Thunderbolt 4 AIC Card) � 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
ESD Protection) � 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
(Supports ESD Protection)
BIOS Feature
� AMI UEFI Legal BIOS with multilingual GUI support � ACPI 6.0 Compliant wake up events � SMBIOS 2.7 Support � CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN
AUX, +1.05V PROC, +0.82V PCH , +1.05V PCH Voltage
Multi-adjustment
English
7
Hardware Monitor
OS Certifications
� Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
� Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
� Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/ Water Pump Fans
� CASE OPEN detection � Voltage monitoring: CPU Vcore, +1.05V_PCH, DRAM, VC-
CIN AUX, VCCSA, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V
� Microsoft� Windows� 10 64-bit / 11 64-bit
� FCC, CE � ErP/EuP Ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
English
8
B660M Phantom Gaming 4
Chapter 2 Installation
This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings. � Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard components. � In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components. � Hold components by the edges and do not touch the ICs. � Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components. � When placing screws to secure the motherboard to the chassis, please do not overtighten the screws! Doing so may damage the motherboard.
9
English
2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A B
2
3
English
10
B660M Phantom Gaming 4
4
5
6
7
English
11
Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.
12
English
2.2 Installing the CPU Fan and Heatsink
B660M Phantom Gaming 4
1
2
CPU_FAN
13
English
2.3 Installing Memory Modules (DIMM)
This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.
1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.
Dual Channel Memory Configuration
Priority
1 2
DDR4_A1 Populated
DDR4_A2
Populated Populated
DDR4_B1 Populated
DDR4_B2
Populated Populated
The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
English
14
B660M Phantom Gaming 4 1 2
3 15
English
2.4 Expansion Slots (PCIe Slots)
There are 3 PCIe slots on the motherboard.
Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
PCIe slots:
PCIE1 (PCIe 4.0 x16 slot) is used for PCIe x16 lane width graphics cards. PCIE2 (PCIe 3.0 x1 slot) is used for PCIe x1 lane width cards. PCIE3 (PCIe 3.0 x16 slot) is used for PCIe x4 lane width graphics cards.
PCIe Slot Configurations
Single Graphics Card
PCIE1 Gen4x16
PCIE3 N/A
Two Graphics Cards in CrossFireTM Mode
Gen4x16
Gen3x4
For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1/WP, CHA_FAN2/WP or CHA_FAN3/WP) when using multiple graphics cards.
English
16
B660M Phantom Gaming 4
2.5 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open".
Clear CMOS Jumper (CLRMOS1) (see p.1, No. 21)
2-pin Jumper
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed. Please remember toremove the jumper cap after clearing the CMOS.
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.
English
17
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
System Panel Header (9-pin PANEL1) (see p.1, No. 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.
PWRBTN (Power Switch): Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.
RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.
Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1, No. 17)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Please connect the chassis intrusion and the chassis speaker to this header.
English
18
B660M Phantom Gaming 4
Serial ATA3 Connectors Vertical: (SATA3_0: see p.1, No. 11) (SATA3_1: see p.1, No. 12) Right Angle: (SATA3_2: see p.1, No. 9)(Upper) (SATA3_3: see p.1, No. 8)(Lower)
SATA3_2 SATA3_3
SATA3_1 SATA3_0
These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.
USB 2.0 Headers (9-pin USB_3_4) (see p.1, No. 16) (9-pin USB_5_6) (see p.1, No. 15)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
There are two USB 2.0 headers on this motherboard. Each USB 2.0 header can support two ports.
USB 3.2 Gen1 Header (19-pin USB3_5_6) (see p.1, No. 7)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
There is one USB 3.2 Gen1 header on this motherboard. This USB 3.2 Gen1 header can support two ports.
Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 22)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
This header is for connecting audio devices to the front audio panel.
English
19
1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel. E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".
Chassis/Water Pump Fan Connectors (4-pin CHA_FAN1/WP) (see p.1, No. 23)
(4-pin CHA_FAN2/WP) (see p.1, No. 18) (4-pin CHA_FAN3/WP) (see p.1, No. 19)
1
GND
2
FAN_VOLTAGE
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
This motherboard provides three 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
1 2 3 4
CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 4)
4 3 2 1
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL
This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
CPU/Water Pump Fan Connector (4-pin CPU_FAN2/WP) (see p.1, No. 5)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
This motherboard provides a 4-Pin water cooling CPU fan connector. If you plan to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3.
English
20
B660M Phantom Gaming 4
ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 6)
ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 1)
SPI TPM Header (13-pin SPI_TPM_J1) (see p.1, No. 13)
Thunderbolt AIC Connector (5-pin TB1) (see p.1, No. 20)
12
24
1
13
This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.
8
5
This motherboard provides
a 8-pin ATX 12V power con-
nector. To use a 4-pin ATX
4
1
power supply, please plug it
along Pin 1 and Pin 5.
*Warning: Please make sure that the power cable connected is for the CPU and not the graphics card. Do not plug the PCIe power cable to this connector.
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.
Please connect a ThunderboltTM addin card (AIC) to this connector via the GPIO cable. *Please install the ThunderboltTM AIC card to PCIE3 (default slot).
English
21
2.7 Post Status Checker
Post Status Checker (PSC) diagnoses the computer when users power on the machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four mentioned above are functioning normally.
22
English
B660M Phantom Gaming 4
2.8 M.2 WiFi/BT PCIe WiFi Module and Intel� CNVi (Integrated WiFi/BT) Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel� CNVi (Integrated WiFi/BT). * The M.2 socket does not support SATA M.2 SSDs.
Before you install Intel� Integrated Connectivity (CNVi) module, be sure to turn off the AC power.
Installing the WiFi/BT module or Intel� CNVi (Integrated WiFi/BT)
Step 1
Prepare a type 2230 WiFi/BT PCIe WiFi module or Intel� CNVi (Integrated WiFi/BT) and the screw.
PCB Length: 3cm Module Type: Type2230
Step 2 Find the nut location to be used.
A
English
23
A
A
20o
A
Step 3 Gently insert the WiFi/BT module or Intel� CNVi (Integrated WiFi/ BT) into the M.2 slot. Please be aware that the module only fits in one orientation.
Step 4 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
English
24
B660M Phantom Gaming 4
2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1, Key M) supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode.
Installing the M.2_SSD (NGFF) Module
Step 1 Prepare a M.2_SSD (NGFF) module and the screw.
3 2
1
Step 2
Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.
C
B
A
No. Nut Location PCB Length Module Type
1 A 4.2cm Type2242
2 B 6cm Type2260
3 C 8cm Type 2280
English
25
C
B
A
C
B
A
C
B
A
Step 3
Move the standoff based on the module type and length. The standoff is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
Step 4
Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.
Step 5
Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
English
C
B
A
20o
26
NUT2
NUT1
Step 6
Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
B660M Phantom Gaming 4
M.2_SSD (NGFF) Module Support List
Vendor ADATA ADATA ADATA ADATA ADATA Apacer Corsair Intel Intel Kingston Kingston OCZ PATRIOT Plextor Plextor Plextor Plextor Plextor Plextor Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung SanDisk SanDisk TEAM TEAM WD WD
Interface PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe2 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4
P/N ASX7000NP-128GT-C ASX8000NP-256GM-C ASX7000NP-256GT-C ASX8000NP-512GM-C ASX7000NP-512GT-C AP240GZ280 CSSD-F240GBMP500 SSDPEKKF256G7 SSDPEKKF512G7 SKC1000/480G SH2280S3/480G RVD400 -M2280-512G (NVME) PH240GPM280SSDR NVME PX-128M8PeG PX-1TM8PeG PX-256M8PeG PX-512M8PeG PX-G256M6e PX-G512M6e SM961 MZVPW128HEGM (NVM) PM961 MZVLW128HEGR (NVME) 960 EVO (MZ-V6E250) (NVME) 960 EVO (MZ-V6E250BW) (NVME) SM951 (NVME) SM951 (MZHPV256HDGL) SM951 (MZHPV512HDGL) SM951 (NVME) XP941-512G (MZHPU512HCGL) SD6PP4M-128G SD6PP4M-256G TM8FP2240G0C101 TM8FP2480GC110 WDS256G1X0C-00ENX0 (NVME) WDS512G1X0C-00ENX0 (NVME)
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
English
27
2.10 M.2_SSD (NGFF) Module Installation Guide (M2_2)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_2, Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode.
Installing the M.2_SSD (NGFF) Module
Step 1 Prepare a M.2_SSD (NGFF) module and the screw.
Step 2 Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.
No. Nut Location PCB Length Module Type
1 A 8cm Type2280
English
28
B660M Phantom Gaming 4
Step 3 Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
A
A
20o
NUT2
NUT1
Step 4
Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
English
29
M.2_SSD (NGFF) Module Support List
Vendor ADATA ADATA ADATA ADATA ADATA Apacer Corsair Intel Intel Kingston Kingston OCZ PATRIOT Plextor Plextor Plextor Plextor Plextor Plextor Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung SanDisk SanDisk TEAM TEAM WD WD
Interface PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe2 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4
P/N ASX7000NP-128GT-C ASX8000NP-256GM-C ASX7000NP-256GT-C ASX8000NP-512GM-C ASX7000NP-512GT-C AP240GZ280 CSSD-F240GBMP500 SSDPEKKF256G7 SSDPEKKF512G7 SKC1000/480G SH2280S3/480G RVD400 -M2280-512G (NVME) PH240GPM280SSDR NVME PX-128M8PeG PX-1TM8PeG PX-256M8PeG PX-512M8PeG PX-G256M6e PX-G512M6e SM961 MZVPW128HEGM (NVM) PM961 MZVLW128HEGR (NVME) 960 EVO (MZ-V6E250) (NVME) 960 EVO (MZ-V6E250BW) (NVME) SM951 (NVME) SM951 (MZHPV256HDGL) SM951 (MZHPV512HDGL) SM951 (NVME) XP941-512G (MZHPU512HCGL) SD6PP4M-128G SD6PP4M-256G TM8FP2240G0C101 TM8FP2480GC110 WDS256G1X0C-00ENX0 (NVME) WDS512G1X0C-00ENX0 (NVME)
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
English
30
B660M Phantom Gaming 4
1 Einleitung
Vielen Dank, dass Sie sich f�r das ASRock B660M Phantom Gaming 4 entschieden haben � ein zuverl�ssiges Motherboard, das konsequent unter der strengen Qualit�tskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRock Streben nach Qualit�t und Best�ndigkeit erf�llt.
Da die technischen Daten des Motherboards sowie die BIOS-Software aktualisiert werden k�nnen, kann der Inhalt dieser Dokumentation ohne Ank�ndigung ge�ndert werden. Falls diese Dokumentation irgendwelchen �nderungen unterliegt, wird die aktualisierte Version ohne weitere Hinweise auf der ASRock-Webseite zur Verf�gung gestellt. Sollten Sie technische Hilfe in Bezug auf dieses Motherboard ben�tigen, erhalten Sie auf unserer Webseite spezifischen Informationen �ber das von Ihnen verwendete Modell. Auch finden Sie eine aktuelle Liste unterst�tzter VGA-Karten und Prozessoren auf der ASRock-Webseite. ASRockWebseite http://www.asrock.com.
1.1 Lieferumfang
� ASRock B660M Phantom Gaming 4-Motherboard (Micro-ATX-Formfaktor) � ASRock B660M Phantom Gaming 4-Schnellinstallationsanleitung � ASRock B660M Phantom Gaming 4-Support-CD � 2 x Serial-ATA- (SATA) Datenkabel (optional) � 3 x Schrauben f�r M.2-Sockel (optional) � 1 x E/A-Blendenabschirmung
31
Deutsch
1.2 Technische Daten
Plattform
� Micro-ATX-Formfaktor � Feststoffkondensator-Design
Prozessor
� Unterst�tzt Intel� CoreTM-Prozessoren der 12. Gen. (LGA1700) � Digi Power design � 8-Leistungsphasendesign � Unterst�tzt Intel� Hybrid-Technologie � Unterst�tzt Intel� Turbo Boost Max Technology 3.0
Chipsatz
� Intel� B660
Speicher
� Dualkanal-DDR4-Speichertechnologie � 4 x DDR4-DIMM-Steckpl�tze � Unterst�tzt ungepufferten DDR4-Non-ECC-Speicher bis
4800+(OC)* * Unterst�tzt nativ DDR4 3200. * Weitere Informationen finden Sie in der Speicherkompatibilit�tsliste auf der ASRock-Webseite. (http://www.asrock.com/) � Unterst�tzt ECC-UDIMM-Speichermodule (Betrieb im non-ECC-
Modus) � Systemspeicher, max. Kapazit�t: 128GB � Unterst�tzt Intel� Extreme Memory Profile (XMP) 2.0
Erweiterungs- � 2 x PCIe-x16-Steckplatz (PCIE1/PCIE3: einzeln bei Gen4x16
steckplatz
(PCIE1); doppelt bei Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Unterst�tzt NVMe-SSD als Bootplatte
� 1 x PCIe-Gen3x1-Steckpl�tze
� Unterst�tzt AMD CrossFireTM
� 1 x M.2-Sockel (Key E), unterst�tzt Typ-2230-WLAN-/-BT-PCIe-
WLAN-Modul und Intel� CNVi (WLAN/BT integriert)
Grafikkarte
� Integrierte Intel� UHD Graphics-Visualisierung und VGAAusg�nge k�nnen nur mit Prozessoren unterst�tzt werden, die
GPU-integriert sind. � Intel� Xe-Grafikarchitektur (12. Gen.) � Dualer Grafikkartenausgang: Unterst�tzt HDMI- und DisplayPort
1.4-Ports durch unabh�ngige Monitor-Controller
Deutsch
32
B660M Phantom Gaming 4
� Unterst�tzt HDMI 2.1 TMDS (komprimiert) mit max. Aufl�sung bis 4K x 2K (4096x2160) bei 60 Hz
� Unterst�tzt DisplayPort 1.4 mit DSC (komprimiert) max. Aufl�sung bis 8K (7680x4320) bei 60 Hz / 5K (5120x3200) bei 120 Hz
� Unterst�tzt HDCP 2.3 mit TMDS-kompatiblen HDMI-2.1- und DisplayPort-1.4-Ports
Audio
� 7.1-Kanal-HD-Audio (Realtek ALC897-Audiocodec) � Unterst�tzt �berspannungsschutz � Nahimic Audio
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Unterst�tzt Wake-On-LAN � Unterst�tzt Schutz gegen Blitzschlag/elektrostatische Entladung � Unterst�tzt energieeffizientes Ethernet 802.3az � Unterst�tzt UEFI PXE
R�ckblende, E/A
� 3 x Antennenmontagepunkte � 1 x PS/2-Maus-/Tastaturanschluss � 1 x HDMI-Port � 1 x DisplayPort 1.4 � 4 x USB-3.2-Gen1-Ports (ASMedia-ASM1074-Hub) (unterst�tzt
Schutz vor elektrostatischer Entladung) � 2 x USB-2.0-Ports (unterst�tzt Schutz gegen elektrostatische
Entladung) � 1 x RJ-45-LAN-Port mit LED (Aktivit�t/Verbindung-LED und
Geschwindigkeit-LED) � HD-Audioanschl�sse: Line-in / Vorderer Lautsprecher / Mikrofon
Speicher
� 4 x SATA-III-6,0-Gb/s-Anschl�sse � 1 x Hyper-M.2-Sockel (M2_1, Key M), unterst�tzt Typ-
2242/2260/2280-PCIe-Gen4x4-Modus (64 Gb/s)* � 1 x Hyper-M.2-Sockel (M2_2, Key M), unterst�tzt Typ-2280-PCIe-
Gen4x4-Modus (64 Gb/s)* * Unterst�tzt Intel� OptaneTM-Technologie (nur M2_2) * Unterst�tzt Intel� Volume Management Device (VMD) * Unterst�tzt NVMe-SSD als Bootplatte * Unterst�tzt ASRock U.2-Kit
33
Deutsch
RAID Anschluss
BIOSFunktion
� Unterst�tzt RAID 0, RAID 1, RAID 5 und RAID 10 f�r SATASpeicherger�te
� 1 x SPI-TPM-Stiftleiste � 1 x Geh�useeingriff- und Lautsprecher-Stiftleiste � 1 x CPU-L�fteranschluss (4-polig) * Der CPU-L�fteranschluss unterst�tzt einen CPU-L�fter mit einer maximalen L�fterleistung von 1 A (12 W). � 1 x Anschluss f�r CPU-/Wasserpumpenl�fter (4-polig) (intelligente
L�ftergeschwindigkeitssteuerung) * Der CPU-/Wasserpumpenl�fter unterst�tzt einen Wasserk�hlerl�fter mit einer maximalen L�fterleistung von 2 A (24 W). � 3 x Anschlusse f�r Geh�use-/Wasserpumpenl�fter (4-polig)
(intelligente L�ftergeschwindigkeitssteuerung) * Der Geh�use-/Wasserpumpenl�fter unterst�tzt einen Wasserk�hlerl�fter mit einer maximalen L�fterleistung von 2 A (24 W). * CPU_FAN2/WP und CHA_FAN1~3/WP k�nnen automatisch erkennen, ob ein 3- oder 4-poliger L�fter verwendet wird. � 1 x 24-poliger ATX-Netzanschluss � 1 x 8-poliger 12-V-Netzanschluss (hochdichter Netzanschluss) � 1 x Audioanschluss an Frontblende � 1 x Thunderbolt Erweiterungskartenanschluss (5-polig) (unterst�tzt
ASRock Thunderbolt 4 AIC-Karten) � 2 x USB 2.0-Stiftleisten (unterst�tzt 4 USB 2.0-Ports) (unterst�tzt
Schutz gegen elektrostatische Entladung) � 1 x USB 3.2 Gen1-Stiftleiste (unterst�tzt zwei USB 3.2 Gen1-Ports)
(unterst�tzt Schutz gegen elektrostatische Entladung)
� AMI-UEFI-Legal-BIOS mit Unterst�tzung mehrsprachiger grafischer Benutzerschnittstellen
� ACPI 6.0-konforme Aufweckereignisse � SMBIOS 2.7-Unterst�tzung � CPU-Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN
AUX, +1,05 V PROC, +0,82 V PCH, +1,05 V PCH / Mehrfachspannungsanpassung
Deutsch
34
B660M Phantom Gaming 4
Hardware�berwachung
� L�ftertachometer: CPU-, CPU-/Wasserpumpen-, Geh�use-/ Wasserpumpenl�fter
� Lautloser L�fter (automatische Anpassung der Geh�usel�ftergeschwindigkeit durch CPU-Temperatur): CPU-, CPU-/Wasserpumpen-, Geh�use-/Wasserpumpenl�fter
� Mehrfachgeschwindigkeitssteuerung: CPU-, CPU-/ Wasserpumpen-, Geh�use-/Wasserpumpenl�fter
� Geh�use-offen-Erkennung � Spannungs�berwachung: CPU Vcore, +1,05 V PCH, DRAM,
VCCIN AUX, VCCSA, +1,05 V PROC, +0,82 V PCH, +12 V, +5 V, +3,3 V
Betriebssystem
� Microsoft� Windows� 10 64 Bit / 11 64 Bit
Zertifizierun- � FCC, CE
gen
� ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich)
* Detaillierte Produktinformationen finden Sie auf unserer Webseite: http://www.asrock.com
Bitte beachten Sie, dass mit einer �bertaktung, zu der die Anpassung von BIOSEinstellungen, die Anwendung der Untied Overclocking Technology oder die Nutzung von �bertaktungswerkzeugen von Drittanbietern z�hlen, bestimmte Risiken verbunden sind. Eine �bertaktung kann sich auf die Stabilit�t Ihres Systems auswirken und sogar Komponenten und Ger�te Ihres Systems besch�digen. Sie sollte auf eigene Gefahr und eigene Kosten durchgef�hrt werden. Wir �bernehmen keine Verantwortung f�r m�gliche Sch�den, die durch eine �bertaktung verursacht wurden.
Deutsch
35
1.3 Jumpereinstellung
Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper ,,kurzgeschlossen". Wenn keine Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper ,,offen".
CMOS-l�schen-Jumper (CLRMOS1) (siehe S. 1, Nr. 21)
2-poliger Jumper
CLRMOS1 erm�glicht Ihnen die L�schung der Daten im CMOS. Zum L�schen und R�cksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer bitte ab und ziehen das Netzkabel aus der Steckdose. Warten Sie 15 Sekunde, schlie�en Sie dann die Kontakte an CLRMOS1 5 Sekunden lang mit einer Jumper-Kappe kurz. L�schen Sie den CMOS jedoch nicht direkt nach der BIOS-Aktualisierung. Falls Sie den CMOS direkt nach Abschluss der BIOS-Aktualisierung l�schen m�ssen, starten Sie das System zun�chst; fahren Sie es dann vor der CMOS-L�schung herunter. Bitte beachten Sie, dass Kennwort, Datum, Zeit und Benutzerstandardprofil nur gel�scht werden, wenn die CMOS-Batterie entfernt wird. Bitte denken Sie daran, die Jumper-Kappe nach der CMOSL�schung zu entfernen.
Falls Sie den CMOS l�schen, wird m�glicherweise ein Geh�useeingriff erkannt. Bitte passen Sie die BIOS-Option ,,Status l�schen" zur L�schung der Aufzeichnung des vorherigen Geh�useeingriffstatus an.
Deutsch
36
B660M Phantom Gaming 4
1.4 Integrierte Stiftleisten und Anschl�sse
Integrierte Stiftleisten und Anschl�sse sind KEINE Jumper. Bringen Sie KEINE Jumper-Kappen an diesen Stiftleisten und Anschl�ssen an. Durch Anbringen von Jumper-Kappen an diesen Stiftleisten und Anschl�ssen k�nnen Sie das Motherboard dauerhaft besch�digen.
Systemblende-Stiftleiste (9-polig, PANEL1) (siehe S. 1, Nr. 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Verbinden Sie Netzschalter, ResetTaste und Systemstatusanzeige am Geh�use entsprechend der nachstehenden Pinbelegung mit dieser Stiftleiste. Beachten Sie vor Anschlie�en der Kabel die positiven und negativen Kontakte.
PWRBTN (Ein-/Austaste): Mit der Ein-/Austaste an der Frontblende des Geh�uses verbinden. Sie k�nnen die Abschaltung Ihres Systems �ber die Ein-/Austaste konfigurieren.
RESET (Reset-Taste): Mit der Reset-Taste an der Frontblende des Geh�uses verbinden. Starten Sie den Computer �ber die Reset-Taste neu, wenn er abst�rzt oder sich nicht normal neu starten l�sst.
PLED (Systembetriebs-LED): Mit der Betriebsstatusanzeige an der Frontblende des Geh�uses verbinden. Die LED leuchtet, wenn das System l�uft. Die LED blinkt, wenn sich das System im S1/S3-Ruhezustand befindet. Die LED ist aus, wenn sich das System im S4-Ruhezustand befindet oder ausgeschaltet ist (S5).
HDLED (Festplattenaktivit�ts-LED): Mit der Festplattenaktivit�ts-LED an der Frontblende des Geh�uses verbinden. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.
Das Design der Frontblende kann je nach Geh�use variieren. Ein Frontblendenmodul besteht haupts�chlich aus Ein-/Austaste, Reset-Taste, Betrieb-LED, Festplattenaktivit�t-LED, Lautsprecher etc. Stellen Sie beim Anschlie�en Ihres Frontblendenmoduls an diese Stiftleiste sicher, dass Kabel- und Pinbelegung richtig abgestimmt sind.
Geh�useeingriffs- und Lautsprecher-Stiftleiste (7-polig, SPK_CI1) (siehe S. 1, Nr. 17)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Bitte verbinden Sie Geh�useeingriffsvorrichtung und den Geh�uselautsprecher mit dieser Stiftleiste.
Deutsch
37
Serial-ATA-III-Anschl�sse Vertikal: (SATA3_0: siehe S. 1, Nr. 11) (SATA3_1: siehe S. 1, Nr. 12) Winkel rechts: (SATA3_2: siehe S. 1, Nr. 9) (obere) (SATA3_3: siehe S. 1, Nr. 8) (untere)
SATA3_2 SATA3_3
SATA3_1 SATA3_0
Diese vier SATA-III-Anschl�sse unterst�tzen SATA-Datenkabel f�r interne Speicherger�te mit einer Daten�bertragungsgeschwindigkeit bis 6,0 Gb/s.
USB 2.0-Stiftleisten (9-polig, USB_3_4) (siehe S. 1, Nr. 16) (9-polig, USB_5_6) (siehe S. 1, Nr. 15)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Es gibt zwei USB-2.0-Stiftleisten an diesem Motherboard. Jede USB 2.0-Stiftleiste kann zwei Ports unterst�tzen.
USB 3.2 Gen1-Stiftleiste (19-polig, USB3_5_6) (siehe S. 1, Nr. 7)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Es gibt eine USB-3.2 Gen1Stiftleiste an diesem Motherboard. Diese USB-3.2-Gen1-Stiftleiste kann zwei Ports unterst�tzen.
Audiostiftleiste Frontblende (9-polig, HD_AUDIO1) (siehe S. 1, Nr. 22)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Diese Stiftleiste dient dem Anschlie�en von Audioger�ten an der Frontblende.
Deutsch
38
B660M Phantom Gaming 4
1. High Definition Audio unterst�tzt Anschlusserkennung, der Draht am Geh�use muss dazu jedoch HDA unterst�tzt. Bitte befolgen Sie zum Installieren Ihres Systems die Anweisungen in unserer Anleitung und der Anleitung zum Geh�use.
2. Bei Nutzung eines AC'97-Audiopanels dieses bitte anhand folgender Schritte an der Audiostiftleiste der Frontblende installieren: A. Mic_IN (Mikrofon) mit MIC2_L verbinden. B. Audio_R (RIN) mit OUT2_R und Audio_L (LIN) mit OUT2_L verbinden. C. Erde (GND) mit Erde (GND) verbinden. D. MIC_RET und OUT_RET sind nur f�r das HD-Audiopanel vorgesehen. Sie m�ssen sie nicht f�r das AC'97-Audiopanel verbinden. E. Rufen Sie zum Aktivieren des vorderen Mikrofons das ,,FrontMic (Vorderes Mikrofon)"-Register in der Realtek-Systemsteuerung auf und passen ,,Recording Volume (Aufnahmelautst�rke)" an.
Geh�use-/WasserpumpenL�fteranschlusse (4-polig, CHA_FAN1/WP) (siehe S. 1, Nr. 23)
(4-polig, CHA_FAN2/WP) (siehe S. 1, Nr. 18) (4-polig, CHA_FAN3/WP) (siehe S. 1, Nr. 19)
1
GND
2
FAN_VOLTAGE
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
1 2 3 4
Dieses Motherboard bietet drei 4-polige Wasserk�hlungGeh�usel�fteranschl�sse. Falls Sie einen 3-poligen Geh�useWasserk�hlerl�fter anschlie�en m�chten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
CPU-L�fteranschluss (4-polig, CPU_FAN1) (siehe S. 1, Nr. 4)
4 3 2 1
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL
Dieses Motherboard bietet einen 4-poligen CPU-L�fteranschluss (lautloser L�fter). Falls Sie einen 3-poligen CPU-L�fter anschlie�en m�chten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
CPU-/WasserpumpenL�fteranschluss (4-polig, CPU_FAN2/WP) (siehe S. 1, Nr. 5)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
Dieses Motherboard bietet einen 4-poligen Wasserk�hlungCPU-L�fteranschluss. Falls Sie einen 3-poligen CPUWasserk�hlerl�fter anschlie�en m�chten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
Deutsch
39
ATX-Netzanschluss (24-polig, ATXPWR1) (siehe S. 1, Nr. 6)
12
24
1
13
Dieses Motherboard bietet einen 24-poligen ATX-Netzanschluss. Bitte schlie�en Sie es zur Nutzung eines 20-poligen ATXNetzteils entlang Kontakt 1 und Kontakt 13 an.
ATX-12-V-Netzanschluss (8-polig, ATX12V1) (siehe S. 1, Nr. 1)
SPI-TPM-Stiftleiste (13-polig, SPI_TPM_J1) (siehe S. 1, Nr. 13)
ThunderboltErweiterungskartenanschluss (5-polig, TB1) (siehe S. 1, Nr. 20)
8
5
4
1
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Dieses Motherboard bietet einen 8-poligen ATX-12-VNetzanschluss. Bitte schlie�en Sie es zur Nutzung eines 4-poligen ATX-Netzteils entlang Kontakt 1 und Kontakt 5 an. *Warnung: Bitte stellen Sie sicher, dass das Stromkabel der CPU und nicht das der Grafikkarte angeschlossen ist. Schlie�en Sie das PCIeStromkabel nicht an diesen Anschluss an.
Dieser Anschluss unterst�tzt das SPI Trusted Platform Module- (TPM) System, das Schl�ssel, digitale Zertifikate, Kennw�rter und Daten sicher aufbewahren kann. Ein TPMSystem hilft zudem bei der St�rkung der Netzwerksicherheit, sch�tzt digitale Identit�ten und gew�hrleistet die Plattformintegrit�t.
Bitte verbinden Sie eine ThunderboltTM-Erweiterungskarte �ber das GPIO-Kabel mit diesem Anschluss. *Bitte installieren Sie die ThunderboltTM -AIC-Karte am PCIE3 (Standardsteckplatz).
Deutsch
40
B660M Phantom Gaming 4
1 Introduction
Nous vous remercions d'avoir achet� cette carte m�re ASRock B660M Phantom Gaming 4, une carte m�re fiable fabriqu�e conform�ment au contr�le de qualit� rigoureux et constant appliqu� par ASRock. Fid�le � son engagement de qualit� et de durabilit�, ASRock vous garantit une carte m�re de conception robuste aux performances �lev�es.
Les sp�cifications de la carte m�re et du logiciel BIOS pouvant �tre mises � jour, le contenu de ce document est soumis � modification sans pr�avis. En cas de modifications du pr�sent document, la version mise � jour sera disponible sur le site Internet ASRock sans notification pr�alable. Si vous avez besoin d'une assistance technique pour votre carte m�re, veuillez visiter notre site Internet pour plus de d�tails sur le mod�le que vous utilisez. La liste la plus r�cente des cartes VGA et des processeurs pris en charge est �galement disponible sur le site Internet de ASRock. Site Internet ASRock http://www.asrock.com.
1.1 Contenu de l'emballage
� Carte m�re ASRock B660M Phantom Gaming 4 (facteur de forme Micro ATX) � Guide d'installation rapide ASRock B660M Phantom Gaming 4 � CD de support pour la ASRock B660M Phantom Gaming 4 � 2 x c�bles de donn�es Serial ATA (SATA) (Optionnel) � 3 x vis pour sockets M.2 (Optionnel) � 1 x panneau de protection E/S
41
Fran�ais
1.2 Sp�cifications
Plateforme
� Facteur de forme Micro ATX � Conception � condensateurs solides
Processeur
� Prend en charge les processeurs 12�me g�n�ration Intel� CoreTM (LGA1700)
� Digi Power design � Alimentation � 8 phases � Prend en charge Intel� Hybrid Technology � Prend en charge la technologie Intel� Turbo Boost Max 3.0
Chipset
� Intel� B660
M�moire
� Technologie m�moire double canal DDR4 � 4 x fentes DIMM DDR4 � Prend en charge les m�moires sans tampon non ECC DDR4 jusqu'�
4800+(OC)* * Prend en charge la DDR4 3200 de fa�on native. * Veuillez consulter la liste de prise en charge des m�moires sur le site Web d'ASRock pour de plus amples informations. (http://www.asrock.com/) � Prend en charge les modules m�moire UDIMM ECC (fonctionne
en mode non-ECC) � Capacit� max. de la m�moire syst�me : 128GO � Prend en charge Intel� Extreme Memory Profile (XMP) 2.0
Fente d'expansion
� 2 x fentes PCIe x16 (PCIE1/PCIE3 : simple en mode Gen4x16 (PCIE1), double � Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Prend en charge les SSD NVMe comme disques de d�marrage � 1 x fente PCIe Gen3x1 � Prend en charge AMD CrossFireTM � 1 x socket M.2 (Touche E), prend en charge les emplacements
modules WiFi/BT type 2230, WiFi PCIe et Intel� CNVi (WiFi/BT
int�gr�)
Graphiques
� La technologie Intel� UHD Graphics Built-in Visuals et les sorties VGA sont uniquement prises en charge par les processeurs
int�grant un contr�leur graphique. � Architecture graphique Intel� Xe (Gen 12) � Double sortie graphique : Prend en charge les ports HDMI et
DisplayPort 1.4 via contr�leurs d'affichage ind�pendants
Fran�ais
42
B660M Phantom Gaming 4
� Prend en charge la technologie HDMI 2.1 TMDS Compatible avec r�solution maximale de 4K x 2K (4096x2160) @ 60 Hz
� Prend en charge DisplayPort 1.4 avec r�solution max. DSC (compress�e) jusqu'� 8K (7680x4320) @ 60 Hz / 5K (5120x3200) @ 120 Hz
� Prend en charge HDCP 2.3 avec ports HDMI 2.1 compatibles TMDS et DisplayPort 1.4
Audio
� Audio 7.1 CH HD (Codec audio Realtek ALC897) � Prend en charge la protection contre les surtensions � Audio Nahimic
R�seau
� Gigabit LAN 10/100/1000 Mo/s � Giga PHY Intel� I219V � Prend en charge la fonction Wake-On-LAN � Prend en charge la protection contre la foudre/les d�charges
�lectrostatiques � Prend en charge la fonction d'�conomie d'�nergie Ethernet 802.3az � Prend en charge UEFI PXE
Connectique du panneau arri�re
� 3 x points de montage d'antenne � 1 x port souris/clavier PS/2 � 1 x port HDMI � 1 x DisplayPort 1.4 � 4 x ports USB 3.2 Gen1 (concentrateur ASMedia ASM1074)
(Protection contre les d�charges �lectrostatiques) � 2 x ports USB 2.0 (Protection contre les d�charges �lectrostatiques) � 1 x port RJ-45 LAN avec LED (LED ACT/LIEN et LED VITESSE) � Connecteurs jack audio HD : Entr�e ligne / haut-parleur avant /
microphone
Stockage
� 4 x connecteur SATA3 6,0 Go/s � 1 x Socket Hyper M.2 (M2_1, Key M), supporte le mode PCIe
Gen4x4 (64 Go/s) de type 2242/2260/2280* � 1 x Socket Hyper M.2 (M2_2, Key M), supporte le mode PCIe
Gen4x4 (64 Go/s) de type 2280* * Prend en charge Intel� OptaneTM Technology (Uniquement M2_2) * Prend en charge Intel� Volume Management Device (VMD) * Prend en charge les SSD NVMe comme disques de d�marrage * Prend en charge le kit ASRock U.2
43
Fran�ais
RAID
� Prend en charge RAID 0, RAID 1, RAID 5 et RAID 10 pour les p�riph�riques de stockage SATA
Connecteur
� 1 x embase SPI TPM � 1 x prise LED d'alimentation et emplacement sur ch�ssis � 1 x connecteur pour ventilateur de CPU (4 broches) * Le connecteur pour ventilateur de CPU prend en charge un ventilateur de CPU d'une puissance maximale de 1 A (12 W). � 1 x connecteur pour ventilateur de processeur /pompe � eau
(4 broches) (contr�le de vitesse de ventilateur intelligent) * Le ventilateur de processeur /pompe � eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 2 A (24 W). � 3 x connecteurs pour ventilateur de ch�ssis /pompe � eau
(4 broches) (contr�le de vitesse de ventilateur intelligent) * Le ventilateur de ch�ssis /pompe � eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 2 A (24 W). * CPU_FAN2/WP et CHA_FAN1~3/WP peuvent d�tecter automatiquement si un ventilateur 3 broches ou 4 broches est utilis�. � 1 x connecteur d'alimentation ATX 24 broches � 1 x connecteur d'alimentation 12 V 8 broches (connecteur
d'alimentation haute densit�) � 1 x connecteur audio panneau frontal � 1 x connecteur Thunderbolt AIC (5 broches) (Prise en charge de la
carte ASRock Thunderbolt 4 AIC) � 2 x embases USB 2.0 (4 ports USB 2.0 pris en charge) (Protection
contre les d�charges �lectrostatiques) � 1 x embase USB 3.2 Gen1 (2 ports USB 3.2 Gen1 pris en charge)
(Protection contre les d�charges �lectrostatiques)
Caract�ristiques du BIOS
� BIOS UEFI AMI avec prise en charge d'interface graphique multilingue
� Compatible ACPI 6.0 Wake Up Events � Compatible SMBIOS 2.7 � R�glage de la tension CPU Core/Cache, CPU GT, DRAM, VDD_
IMC, VCCIN AUX, +1,05V PROC, +0,82V PCH, +1,05V PCH
Fran�ais
44
B660M Phantom Gaming 4
Surveillance du mat�riel
� Tachym�tre de ventilateur : Ventilateurs de CPU, CPU /pompe � eau, ch�ssis /pompe � eau
� Ventilateur silencieux (r�glage automatique de la vitesse du ventilateur du ch�ssis d'apr�s la temp�rature du CPU) : Ventilateurs de CPU, CPU /pompe � eau, ch�ssis /pompe � eau
� Contr�le simultan� des vitesses du ventilateur : Ventilateurs de CPU, CPU /pompe � eau, ch�ssis /pompe � eau
� D�tection CH�SSIS OUVERT � Surveillance de la tension d'alimentation : CPU Vcore, +1,05V
PCH, DRAM, VCCIN AUX, VCCSA, +1,05V PROC, +0,82V PCH, +12V, +5V, +3,3V
Syst�me
� Microsoft� Windows� 10 64-bits / 11 64-bits
d'exploitation
Certifications � FCC, CE � ErP/EuP Ready (alimentation ErP/EuP ready requise)
* pour des informations d�taill�es de nos produits, veuillez visiter notre site : http://www.asrock.com
Il est important de signaler que l'overclocking pr�sente certains risques, incluant des modifications du BIOS, l'application d'une technologie d'overclocking d�li�e et l'utilisation d'outils d'overclocking d�velopp�s par des tiers. La stabilit� de votre syst�me peut �tre affect�e par ces pratiques, voire provoquer des dommages aux composants et aux p�riph�riques du syst�me. L'overclocking se fait � vos risques et p�rils. Nous ne pourrons en aucun cas �tre tenus pour responsables des dommages �ventuels provoqu�s par l'overclocking.
Fran�ais
45
1.3 Configuration des cavaliers (jumpers)
L'illustration ci-dessous vous renseigne sur la configuration des cavaliers (jumpers). Lorsque le capuchon du cavalier est install� sur les broches, le cavalier est � court-circuit� �. Si le capuchon du cavalier n'est pas install� sur les broches, le cavalier est � ouvert �.
Cavalier Clear CMOS (CLRMOS1) (voir p.1, No. 21)
Cavalier (jumper) � 2 broches
CLRMOS1 vous permet d'effacer les donn�s de la CMOS. Pour effacer les param�tres du syst�me et r�tablir les valeurs par d�faut, veuillez �teindre votre ordinateur et d�brancher son cordon d'alimentation. Patientez 15 secondes, puis utilisez un capuchon de cavalier pour court-circuiter les broches sur CLRMOS1 pendant 5 secondes. Toutefois, n'effacez pas la CMOS imm�diatement apr�s avoir mis � jour le BIOS. Si vous avez besoin d'effacer les donn�es CMOS apr�s une mise � jour du BIOS, vous devez tout d'abord red�marrer le syst�me, puis l'�teindre avant de proc�der � l'effacement de la CMOS. Veuillez noter que les param�tres mot de passe, date, heure et profil de l'utilisateur seront uniquement effac�s en cas de retrait de la pile de la CMOS. N'oubliez pas de retirer le capuchon du cavalier une fois les donn�es CMOS effac�es.
Si vous effacez la CMOS, l'alerte de ch�ssis ouvert peut se d�clencher. Veuillez r�gler l'option du BIOS sur � Effacer � pour supprimer l'historique des intrusions de ch�ssis pr�c�dentes.
Fran�ais
46
B660M Phantom Gaming 4
1.4 Embases et connecteurs de la carte m�re
Les embases et connecteurs situ�s sur la carte NE SONT PAS des cavaliers. Ne placez JAMAIS de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capuchon de cavalier sur ces embases ou connecteurs endommagera irr�m�diablement votre carte m�re.
Embase du panneau syst�me (PANNEAU1 � 9 broches) (voir p.1, No. 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Branchez le bouton de mise en marche, le bouton de r�initialisation et le t�moin d'�tat du syst�me pr�sents sur le ch�ssis sur cette embase en respectant la configuration des broches illustr�e ci-dessous. Rep�rez les broches positive et n�gative avant de brancher les c�bles.
PWRBTN (bouton d'alimentation): pour brancher le bouton d'alimentation du panneau frontal du ch�ssis. Vous pouvez configurer la fa�on dont votre syst�me doit s'arr�ter � l'aide du bouton de mise en marche.
RESET (bouton de r�initialisation): pour brancher le bouton de r�initialisation du panneau frontal du ch�ssis. Appuyez sur le bouton de r�initialisation pour red�marrer l'ordinateur en cas de plantage ou de dysfonctionnement au d�marrage.
PLED (LED d'alimentation du syst�me) : pour brancher le t�moin d'�tat de l'alimentation du panneau frontal du ch�ssis. Le LED est allum� lorsque le syst�me fonctionne. Le LED clignote lorsque le syst�me se trouve en mode veille S1/S3. Le LED est �teint lorsque le syst�me se trouve en mode veille S4 ou hors tension (S5).
HDLED (LED d'activit� du disque dur) : pour brancher le t�moin LED d'activit� du disque dur du panneau frontal du ch�ssis. Le LED est allum� lorsque le disque dur lit ou �crit des donn�es.
La conception du panneau frontal peut varier en fonction du ch�ssis. Un module de panneau frontal est principalement compos� d'un bouton de mise en marche, bouton de r�initialisation, LED d'alimentation, LED d'activit� du disque dur, haut-parleur etc. Lorsque vous reliez le module du panneau frontal de votre ch�ssis sur cette embase, veillez � parfaitement faire correspondre les fils et les broches.
Prise LED d'alimentation et emplacement sur ch�ssis (SPK_CI1 � 7 broches) (voir p.1, No. 17)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Veuillez brancher l'emplacement sur le ch�ssis et le haut-parleur du ch�ssis sur ce connecteur.
47
Fran�ais
Connecteurs Serial ATA3 Vertical: (SATA3_0: voir p.1, No. 11) (SATA3_1: voir p.1, No. 12) Angle droit: (SATA3_2: voir p.1, No. 9) (Sup�rieur) (SATA3_3: voir p.1, No. 8) (Inf�rieur)
Embases USB 2.0 (USB_3_4 � 9 broches) (voir p.1, No. 16) (USB_5_6 � 9 broches) (voir p.1, No. 15)
SATA3_2 SATA3_3
SATA3_1 SATA3_0
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Ces quatre connecteurs SATA3 sont compatibles avec les c�bles de donn�es SATA pour les appareils de stockage internes avec un taux de transfert maximal de 6,0 Go/s.
Cette carte m�re comprend deux embases USB 2.0. Chaque embase USB 2.0 peut prendre en charge deux ports.
Embase USB 3.2 Gen1 (USB3_5_6 � 19 broches) (voir p.1, No. 7)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Cette carte m�re comprend une embase USB 3.2 Gen1. Cette embase USB 3.2 Gen1 peut prendre en charge deux ports.
Embase audio du panneau frontal (HD_AUDIO1 � 9 broches) (voir p.1, No. 22)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Cette embase sert au branchement des appareils audio au panneau audio frontal.
Fran�ais
48
B660M Phantom Gaming 4
1. L'audio haute d�finition prend en charge la technologie Jack Sensing (d�tection de la fiche), mais le panneau grillag� du ch�ssis doit �tre compatible avec la HDA pour fonctionner correctement. Veuillez suivre les instructions figurant dans notre manuel et dans le manuel du ch�ssis pour installer votre syst�me.
2. Si vous utilisez un panneau audio AC'97, veuillez le brancher sur l'embase audio du panneau frontal en proc�dant comme suit : A. branchez Mic_IN (MIC) sur MIC2_L. B. branchez Audio_R (RIN) sur OUT2_R et Audio_L (LIN) sur OUT2_L. C. branchez la mise � terre (GND) sur mise � terre (GND). D. MIC_RET et OUT_RET sont exclusivement r�serv�s au panneau audio HD. Il est inutile de les brancher avec le panneau audio AC'97. E. Pour activer le micro frontal, s�lectionnez l'onglet � FrontMic � du panneau de contr�le Realtek et r�glez le param�tre � Volume d'enregistrement �.
Connecteurs du ventilateur de ch�ssis/ pompe � eau (CHA_FAN1/WP � 4 broches) (voir p.1, No. 23)
(CHA_FAN2/WP � 4 broches) (voir p.1, No. 18) (CHA_FAN3/WP � 4 broches) (voir p.1, No. 19)
1
GND
2
FAN_VOLTAGE
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
Cette carte m�re est dot�e de trois connecteurs pour ventilateur de ch�ssis � refroidissement par eau � 4 broches. Si vous envisagez de connecter un ventilateur de refroidisseur d'eau pour ch�ssis � 3 broches, veuillez le brancher sur la Broche 1-3.
1 2 3 4
Connecteur du ventilateur du processeur (CPU_FAN1 � 4 broches) (voir p.1, No. 4)
4 3 2 1
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL
Cette carte m�re est dot�e d'un connecteur pour ventilateur de processeur (Quiet Fan) � 4 broches. Si vous envisagez de connecter un ventilateur de processeur � 3 broches, veuillez le brancher sur la Broche 1-3.
Connecteur pour ventilateur de processeur / pompe � eau (CPU_FAN2/WP � 4 broches) (voir p.1, No. 5)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
Cette carte m�re est dot�e d'un connecteur pour ventilateur de processeur � refroidissement par eau � 4 broches. Si vous envisagez de connecter un ventilateur de refroidisseur d'eau pour processeur � 3 broches, veuillez le brancher sur la Broche 1-3.
49
Fran�ais
Connecteur d'alimentation ATX (ATXPWR1 � 24 broches) (voir p.1, No. 6)
12
24
1
13
Cette carte m�re est dot�e d'un connecteur d'alimentation ATX � 24 broches. Pour utiliser une alimentation ATX � 20 broches, veuillez effectuer les branchements sur la Broche 1 et la Broche 13.
Connecteur d'alimentation ATX 12 V (ATX12V1 � 8 broches) (voir p.1, No. 1)
Embase SPI TPM (SPI_TPM_J1 � 13 broches) (voir p.1, No. 13)
Connecteur Thunderbolt AIC (TB1 � 5 broches) (voir p.1, No. 20)
8
5
4
1
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Cette carte m�re est dot�e d'un connecteur d'alimentation ATX 12 V � 8 broches. Pour utiliser une alimentation ATX � 4 broches, veuillez effectuer les branchements sur la Broche 1 et la Broche 5. *Avertissement : Veuillez v�rifier que le c�ble d'alimentation connect� est pour l'unit� centrale et non pour la carte graphique. Ne branchez pas le c�ble d'alimentation PCIe sur ce connecteur.
Ce connecteur prend en charge un module SPI TPM (Trusted Platform Module � Module de plateforme s�curis�e), qui permet de sauvegarder cl�s, certificats num�riques, mots de passe et donn�es en toute s�curit�. Le syst�me TPM permet �galement de renforcer la s�curit� du r�seau, de prot�ger les identit�s num�riques et de pr�server l'int�grit� de la plateforme.
Veuillez connecter une carte d'extension ThunderboltTM (AIC) � ce connecteur via le c�ble GPIO. *Veuillez installer la carte ThunderboltTM AIC sur PCIE3 (emplacement par d�faut).
Fran�ais
50
B660M Phantom Gaming 4
1 Introduzione
Congratulazioni per l'acquisto della scheda madre ASRock B660M Phantom Gaming 4, una scheda madre affidabile prodotta secondo i severissimi controlli di qualit� ASRock. La scheda madre offre eccellenti prestazioni con un design robusto che si adatta all'impegno di ASRock di offrire sempre qualit� e durata.
Dato che le specifiche della scheda madre e del software BIOS possono essere aggiornate, il contenuto di questa documentazione sar� soggetto a variazioni senza preavviso. Nel caso di eventuali modifiche della presente documentazione, la versione aggiornata sar� disponibile sul sito Web di ASRock senza ulteriore preavviso. Per il supporto tecnico correlato a questa scheda madre, visitare il nostro sito Web per informazioni specifiche relative al modello attualmente in uso. � possibile trovare l'elenco di schede VGA pi� recenti e di supporto di CPU anche sul sito Web di ASRock. Sito Web di ASRock http://www.asrock.com.
1.1 Contenuto della confezione
� Scheda madre ASRock B660M Phantom Gaming 4 (fattore di forma Micro ATX) � Guida all'installazione rapida di ASRock B660M Phantom Gaming 4 � CD di supporto ASRock B660M Phantom Gaming 4 � 2 x cavi dati Serial ATA (SATA) (opzionali) � 3 x viti per Socket M.2 (opzionali) � 1 x mascherina metallica posteriore I/O
51
Italiano
1.2 Specifiche
Piattaforma
� Fattore di forma Micro ATX � Design condensatore solido
CPU
� Supporta processori 12th Generation Intel� CoreTM (LGA1700)
� Digi Power design
� Potenza a 8 fasi
� Supporta la tecnologia Intel� Hybrid
� Supporta la tecnologia Intel� Turbo Boost Max 3.0
Chipset
� Intel� B660
Memoria
� Tecnologia memoria DDR4 Dual Channel � 4 x alloggi DIMM DDR4 � Supporta DDR4 non ECC, memoria senza buffer fino a
4800+(OC)* * Supporta DDR4 3200 in modo nativo. * Per maggiori informazioni fare riferimento all'elenco dei supporti di memoria sul sito di ASRock. (http://www.asrock.com/) � Supporta moduli di memoria ECC UDIMM (funziona in modalit�
non ECC) � Capacit� max. della memoria di sistema: 128GB � Supporto di XMP (Extreme Memory Profile) Intel� 2.0
Alloggio d'espansione
� 2 x PCIe x16 slot (PCIE1/PCIE3: singolo a Gen4x16 (PCIE1); doppio a Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Supporto di SSD NVMe come disco d'avvio � 1 alloggi PCIe Gen3x1 � Supporta AMD CrossFireTM � 1 x Socket M.2 (Key E), supporta il modulo WiFi tipo 2230 WiFi/
BT PCIe e Intel� CNVi (Integrated WiFi/BT)
Grafica
� La videografica integrata della scheda video UHD Intel� e le uscite VGA possono essere supportate soltanto con processori con GPU
integrata. � Architettura grafica Intel� Xe (Gen 12) � Doppia uscita grafica: supporto di porte HDMI e DisplayPort 1.4
tramite controller display indipendenti
Italiano
52
B660M Phantom Gaming 4
� Supporta HDMI 2.1 compatibile TMDS con risoluzione massima fino a 4K x 2K (4096 x 2160) a 60 Hz
� Supporta DisplayPort 1.4 con DSC (compresso) risoluzione max. fino a 8K (7680 x 4320) a 60 Hz / 5K (5120 x 3200) a 120 Hz
� Supporta HDCP 2.3 con HDMI 2.1 compatibile TMDS e porte DisplayPort 1.4
Audio
� Audio HD 7.1 CH (codec audio Realtek ALC897) � Supporta protezione da sovratensione � Audio Nahimic
LAN
� LAN Gigabit 10/100/1000 Mb/s � Giga PHY Intel� I219V � Supporto WOL (Wake-On-LAN) � Supporta protezione da fulmini/scariche elettrostatiche � Supporto Energy Efficient Ethernet 802.3az � Supporto UEFI PXE
I/O pannello posteriore
� 3 punti di montaggio antenna � 1 x porta mouse/tastiera PS/2 � 1 x porta HDMI � 1 x DisplayPort 1.4 � 4 porte USB 3.2 Gen1 (hub ASMedia ASM1074) (Supporta la
protezione ESD) � 2 x porte USB 2.0 (supporto protezione da scariche elettrostatiche) � 1 x porta LAN RJ-45 con LED (ACT/LINK LED e SPEED LED) � Connettori audio HD: Ingresso linea / altoparlante frontale /
microfono
Archiviazione
� 4 x Connettori SATA3 6,0 Gb/s � 1 x socket Hyper M.2 (M2_1, key M), supporta le modalit� di tipo
2242/2260/2280 PCIe Gen4x4 (64 Gb/s)* � 1 x socket Hyper M.2 (M2_2, key M), supporta la modalit� PCIe
Gen4x4 (64 Gb/s) tipo 2280* * Supporta la tecnologia Intel� OptaneTM (solo M2_2) * Supporta il dispositivo di gestione del volume Intel� (VMD) * Supporto di SSD NVMe come disco d'avvio * Supporta kit ASRock U.2
Italiano
53
RAID
� Supporta RAID 0, RAID 1, RAID 5 e RAID 10 per dispositivi di archiviazione SATA
Connettore
� 1 x connettore SPI TPM � 1 x collegamento altoparlante e intrusione telaio � 1 x connettore ventola CPU (4-pin) * Il connettore ventola CPU supporta ventole CPU con potenza massima di 1 A (12 W). � 1 x connettore ventola CPU/ventola pompa dell'acqua (4-pin)
(Controllo intelligente della velocit� della ventola) * La ventola CPU/ventola pompa dell'acqua supporta ventole di sistemi di raffreddamento ad acqua di potenza massima di 2A (24W). � 3 x connettori ventola telaio/ventola pompa dell'acqua (4-pin)
(Controllo intelligente della velocit� della ventola) * La ventola Chassis/ventola pompa dell'acqua supporta ventole di sistemi di raffreddamento ad acqua di potenza massima di 2 A (24W). * CPU_FAN2/WP e CHA_FAN1~3/WP sono in grado di rilevare se � in uso una ventola a 3 pin o 4 a pin. � 1 x connettore alimentazione ATX 24-pin � 1 x connettore alimentazione 12V 8-pin (connettore alimentazione
ad alta densit�) � 1 x connettore audio pannello frontale � 1 connettore Thunderbolt AIC (5-pin) (supporta carta ASRock
Thunderbolt 4 AIC) � 2 x connettori USB 2.0 (supporto di 4 porte USB 2.0) (supporta
protezione da scariche elettrostatiche) � 1 x connettore USB 3.2 Gen1 (supporto di 2 porte USB 3.2 Gen1)
(supporto protezione da scariche elettrostatiche)
Caratteristiche del BIOS
� AMI UEFI Legal BIOS con interfaccia di supporto multilingue � Eventi di riattivazione conformi a ACPI 6.0 � Supporto di SMBIOS 2.7 � CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX,
+1,05 V PROC, + 0,82 V PCH, Regolazione multipla della tensione
+1,05 V PCH
Italiano
54
B660M Phantom Gaming 4
Hardware Monitor
� Tachimetro ventola: Ventole CPU, CPU/pompa dell'acqua, telaio/ pompa dell'acqua
� Ventola silenziosa (regolazione automatica velocit� in base alla temperatura della CPU): Ventole CPU, CPU/pompa dell'acqua, telaio/pompa dell'acqua
� Controllo velocit� ventola: Ventole CPU, CPU/pompa dell'acqua, telaio/pompa dell'acqua
� Rilevamento CASE OPEN � Monitoraggio tensione: CPU Vcore, +1,05 V PCH, DRAM, VCCIN
AUX, VCCSA, +1,05 V PROC, + 0,82 V PCH, +12 V, + 5 V, + 3,3 V
SO
� Microsoft� Windows� 10 64 bit / 11 64 bit
Certificazioni � FCC, CE � ErP/EuP Ready (� necessaria alimentazione ErP/EuP ready)
* Per informazioni dettagliate sul prodotto, visitare il nostro sito Web: http://www.asrock.com
Prestare attenzione al potenziale rischio previsto nella pratica di overclocking, inclusa la regolazione delle impostazioni nel BIOS, l'applicazione di tecnologia di Untied Overclocking o l'utilizzo di strumenti di overclocking di terze parti. L'overclocking pu� influenzare la stabilit� del sistema o perfino provocare danni ai componenti e ai dispositivi del sistema. Occorre eseguirlo a proprio rischio e spese. Non ci riterremo responsabili per possibili danni provocati da overclocking.
Italiano
55
1.3 Impostazione jumper
L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio del jumper � posizionato sui pin, il jumper � "cortocircuitato". Se sui pin non � posizionato alcun cappuccio del jumper, il jumper � "aperto".
Jumper per azzerare la CMOS (CLRMOS1) (vedere pag. 1, n. 21)
Jumper a 2 pin
CLRMOS1 permette si azzerare i dati nella CMOS. Per azzerare e reimpostare i parametri del sistema alla configurazione predefinita, spegnere il computer e scollegare il cavo di alimentazione dalla rete. Attendere 15 secondi, quindi usare un cappuccio jumper per cortocircuitare i di CLRMOS1 per 5 secondi. Tuttavia, non azzerare la CMOS subito dopo aver aggiornato il BIOS. Se � necessario azzerare la CMOS dopo l'aggiornamento del BIOS, � necessario riavviare prima il sistema e in seguito spegnerlo prima di eseguire l'operazione di azzeramento della CMOS. La password, la data, l'ora e il profilo predefinito dell'utente saranno azzerati solo se viene rimossa la batteria della CMOS. Ricordarsi di rimuovere il cappuccio jumper prima di cancellare la CMOS.
Se si azzera la CMOS, pu� essere rilevato il case aperto. Regolare l'opzione del BIOS "Azzerare stato" per azzerare il registro del precedente stato di intrusione nello chassis.
Italiano
56
B660M Phantom Gaming 4
1.4 Header e connettori su scheda
Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del jumper su questi header e connettori. Il posizionamento di cappucci del jumper su header e connettori provocher� danni permanenti alla scheda madre.
Header sul pannello del sistema (PANEL1 a 9 pin) (vedere pag. 1, n. 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Collegare l'interruttore dell'alimentazione, l'interruttore di reset e l'indicatore dello stato del sistema sullo chassis su questo header secondo la seguente assegnazione dei pin. Annotare i pin positivi e negativi prima di collegare i cavi.
PWRBTN (interruttore di alimentazione): collegare all'interruttore dell'alimentazione sul pannello anteriore dello chassis. � possibile configurare il modo in cui spegnere il sistema utilizzando l'interruttore dell'alimentazione.
RESET (interruttore di reset): collegare all'interruttore di reset sul pannello anteriore dello chassis. Premere l'interruttore di reset per riavviare il computer se il computer si blocca e non riesce ad eseguire un normale riavvio.
PLED (LED alimentazione del sistema): collegare all'indicatore di stato dell'alimentazione sul pannello anteriore dello chassis. Il LED � acceso quando il sistema � in funzione. Il LED continua a lampeggiare quando il sistema si trova nello stato di sospensione S1/S3. Il LED � spento quando il sistema si trova nello stato di sospensione S4 o quando � spento (S5).
HDLED (LED di attivit� disco rigido): collegare al LED di attivit� disco rigido sul pannello anteriore dello chassis. Il LED � acceso quando il disco rigido sta leggendo o scrivendo dati.
Il design del pannello anteriore pu� cambiare a seconda dello chassis. Un modulo di pannello anteriore � composto principalmente da interruttore di alimentazione, interruttore di reset, LED di alimentazione, LED di attivit� disco rigido, altoparlante, ecc. Quando si collega il modulo del pannello anteriore dello chassis a questo header, accertarsi che le assegnazioni del filo e le assegnazioni del pin corrispondano correttamente.
Collegamento altoparlante e intrusione telaio (SPK_CI1 a 7 pin) (vedere pag. 1, n. 17)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Collegare l'intrusione telaio e l'altoparlante a questo collegamento.
57
Italiano
SATA3_2 SATA3_3
Connettori Serial ATA3 Verticale: (SATA3_0: vedere pag. 1, n. 11) (SATA3_1: vedere pag. 1, n. 12) Angolo destroy: (SATA3_2: vedere pag.1, n. 9) (Superiore) (SATA3_3: vedere pag.1, n. 8) (Inferiore)
Header USB 2.0 (USB_3_4 a 9 pin) (vedere pag. 1, n. 16) (USB_5_6 a 9 pin) (vedere pag. 1, n. 15)
SATA3_1 SATA3_0
Questi quattro connettori SATA3 supportano cavi dati SATA per dispositivi di archiviazione interna, con una velocit� di trasferimento dati fino a 6,0 Gb/s.
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Ci sono due connettori USB 2.0 su questa scheda madre. Ciascun header USB 2.0 pu� supportare due porte.
Header USB 3.2 Gen1 (USB3_5_6 a 19 pin) (vedere pag. 1, n. 7)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Su questa scheda madre c'� un connettore USB 3.2 Gen1. Questa basetta USB 3.2 Gen1 pu� supportare due porte.
Header audio pannello anteriore (HD_AUDIO1 a 9 pin) (vedere pag. 1, n. 22)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Questo header serve a collegare i dispositivi audio al pannello audio anteriore.
Italiano
58
B660M Phantom Gaming 4
1. L'audio ad alta definizione supporta le funzioni Jack sensing, ma il filo del pannello sullo chassis deve supportare HDA per funzionare correttamente. Seguire le istruzioni presenti nel nostro manuale e nel manuale dello chassis per installare il sistema.
2. Se si utilizza un pannello audio AC'97, installarlo sull'header audio del pannello anteriore seguendo le fasi di seguito: A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Collegare Ground (GND) a Ground (GND). D. MIC_RET e OUT_RET servono soltanto per il pannello audio HD. Non � necessario collegarli per il pannello audio AC'97. E. Per attivare il microfono anteriore, andare alla scheda "FrontMic" nel pannello di controllo Realtek e regolare il "Volume di registrazione".
Connettori ventola chassis / pompa dell'acqua (CHA_FAN1/WP a 4 pin) (vedere pag. 1, n. 23)
(CHA_FAN2/WP a 4 pin) (vedere pag. 1, n. 18) (CHA_FAN3/WP a 4 pin) (vedere pag. 1, n. 19)
1
GND
Questa scheda madre � dotata di
2 3
FAN_VOLTAGE CHA_FAN_SPEED
tre connettori ventola a 4 pin per
4
FAN_SPEED_CONTROL il raffreddamento ad acqua del
telaio. Se si decide di collegare una
ventola telaio con raffreddamento
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
ad acqua a 3 pin, collegarla al pin 1-3.
1 2 3 4
Connettore ventola CPU (CPU_FAN1 a 4 pin) (vedere pag. 1, n. 4)
4 3 2 1
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL
Questa scheda madre � dotata di un connettore per la ventola della CPU (Ventola silenziosa) a 4 pin. Se si decide di collegare una ventola della CPU a 3 pin, collegarla al pin 1-3.
Connettore ventola CPU / pompa dell'acqua (CPU_FAN2/WP a 4 pin) (vedere pag. 1, n. 5)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
Questa scheda madre � dotata di un connettore per la ventola della CPU con raffreddamento ad acqua a 4 pin. Se si decide di collegare una ventola della CPU con raffreddamento ad acqua a 3 pin, collegarla al pin 1-3.
Italiano
59
Connettore di alimentazione ATX (ATXPWR1 a 24 pin) (vedere pag. 1, n. 6)
Connettore di alimentazione ATX da 12 V (ATX12V1 a 8 pin) (vedere pag. 1, n. 1)
Connettore SPI TPM (SPI_TPM_J1 a 13 pin) (vedere pag. 1, n. 13)
ConnettoreThunderbolt AIC (TB1 a 5 pin) (vedere pag. 1, n. 20)
12
24
1
13
Questa scheda madre � dotata di un connettore di alimentazione ATX a 24 pin. Per utilizzare un'alimentazione ATX a 20 pin, collegarla lungo il pin 1 e il pin 13.
8
5
4
1
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Questa scheda madre � dotata di un connettore di alimentazione ATX da 12 V a 8 pin. Per utilizzare un'alimentazione ATX a 4 pin, collegarla lungo il pin 1 e il pin 5. *Attenzione: Assicurarsi che il cavo di alimentazione collegato sia per la CPU e non la scheda grafica. Non inserire il cavo di alimentazione PCIe in questo connettore.
Questo connettore supporta il sistema SPI Trusted Platform Module (TPM), che pu� archiviare in modo sicuro chiavi, certificati digitali, password e dati. Un sistema TPM permette anche di potenziare la sicurezza della rete, di proteggere identit� digitali e di garantire l'integrit� della piattaforma.
Collegare una scheda aggiuntiva ThunderboltTM (AIC) a questo connettore utilizzando il cavo GPIO. * Installare la scheda ThunderboltTM AIC nell'alloggio (predefinito) PCIE3.
Italiano
60
B660M Phantom Gaming 4
1 Introducci�n
Gracias por comprar la placa base ASRock B660M Phantom Gaming 4, una placa base fiable fabricada seg�n el riguros�simo control de calidad de ASRock. Ofrece un rendimiento excelente con un dise�o resistente de acuerdo con el compromiso de calidad y resistencia de ASRock.
Ya que las especificaciones de la placa base y el software de la BIOS podr�n ser actualizados, el contenido que aparece en esta documentaci�n estar� sujeto a modificaciones sin previo aviso. Si esta documentaci�n sufre alguna modificaci�n, la versi�n actualizada estar� disponible en el sitio web de ASRock sin previo aviso. Si necesita asistencia t�cnica relacionada con esta placa base, visite nuestro sitio web para obtener informaci�n espec�fica sobre el modelo que est� utilizando. Podr� encontrar las �ltimas tarjetas VGA, as� como la lista de compatibilidad de la CPU, en el sitio web de ASRock. Sitio web de ASRock http://www.asrock.com.
1.1 Contenido del paquete
� Placa base ASRock B660M Phantom Gaming 4 (Factor de forma Micro ATX) � Gu�a de instalaci�n r�pida de ASRock B660M Phantom Gaming 4 � CD de soporte de ASRock B660M Phantom Gaming 4 � 2 x Cables de datos Serie ATA (SATA) (Opcional) � 3 x Tornillos para sockets M.2 (Opcional) � 1 x escudo panel E/S
61
Espa�ol
1.2 Especificaciones
Plataforma
� Factor de forma Micro ATX � Dise�o de condensador s�lido
CPU
� Compatible con la 12a generaci�n de procesadores Intel� CoreTM
(LGA1700)
� Digi Power design
� Dise�o de 8 fases de alimentaci�n
� Compatible con la Tecnolog�a H�brido de Intel�
� Admite tecnolog�a Intel� Turbo Boost Max 3.0
Conjunto de � Intel� B660 chips
Memoria
� Tecnolog�a de memoria DDR4 de doble canal � 4 x ranuras DIMM DDR4 � Admite memoria DDR4 no ECC, sin b�fer de hasta 4800+(OC)* * Admite DDR4 3200 de forma nativa.
* Para obtener m�s informaci�n, consulte la lista de memorias
compatibles en el sitio web de ASRock. (http://www.asrock.com/) � Admite m�dulos de memoria UDIMM ECC (funcionamiento en
modo no ECC) � Capacidad m�xima de memoria del sistema: 128GB � Admite Perfil de memoria extremo de Intel� (XMP) 2.0
Ranura de expansi�n
� 2 x Ranuras PCIe x16 (PCIE1/PCIE3: simple a Gen4x16 (PCIE1); dual a Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Admite unidad de estado s�lido de NVMe como disco de arranque � 1 ranura PCIe Gen3x1 � Compatible con AMD CrossFireTM � 1 x Z�calo M.2 (Clave E), es compatible con los PCIe WiFi m�dulos
WiFi/BT tipo 2230 e Intel� CNVi (WiFi/BT integrado)
Gr�ficos
� Intel� UHD Graphics Built-in Visuals y las salidas de VGA son compatibles �nicamente con procesadores con GPU integrado.
� Arquitectura de gr�ficos Intel� Xe (Generaci�n 12) � Salida gr�fica dual: compatible con puertos HDMI y DisplayPort 1.4
mediante controladores de pantalla independientes
Espa�ol
62
B660M Phantom Gaming 4
� Compatible con HDMI 2.1 TMDS con una resoluci�n m�xima de 4K x 2K (4096x2160) a 60Hz
� Admite DisplayPort 1.4 con DSC (comprimido), resoluci�n m�xima hasta 8K (7680x4320) a 60Hz o 5K (5120x3200) a 120Hz
� Admite HDCP 2.3 con HDMI 2.1 compatible con TMDS y puertos DisplayPort 1.4
Audio
� 7.1 Audio CH HD (C�dec de audio Realtek ALC897) � Admite protecci�n contra sobretensiones � Audio Nahimic
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Admite la funci�n Reactivaci�n de LAN � Admite protecci�n contra rayos y descargas electrost�ticas (ESD) � Admite Ethernet 802.3az de eficiencia energ�tica � Admite UEFI PXE
E/S en panel posterior
� 3 x Puntos de instalaci�n para la antena � 1 x puerto de rat�n/teclado PS/2 � 1 x puerto HDMI � 1 x DisplayPort 1.4 � 4 x Puerto USB 3.2 Gen1 (concentrador ASMedia ASM1074)
(Admite protecci�n contra descargas electrost�ticas) � 2 x Puertos USB 2.0 (admite protecci�n contra descargas
electrost�ticas) � 1 x Puerto LAN RJ-45 con LED (LED DE ACTIVIDAD/ENLACE y
LED DE VELOCIDAD) � Conector de audio HD: Entrada de l�nea / Altavoz frontal /
Micr�fono
Almacenamiento
� 4 x conectores SATA3 de 6,0 Gb/s � 1 x Z�calo Hyper M.2 (M2_1, Clave M), compatible con los modos
de tipo 2242/2260/2280 PCIe Generaci�n 4 x 4 (64 Gb/s)* � 1 x Z�calo Hyper M.2 (M2_2, Clave M), compatible con el modo de
tipo 2280 PCIe Generaci�n 4 x 4 (64 Gb/s)* * Compatible con la tecnolog�a OptaneTM de Intel� (Solo M2_2) * Admite el Dispositivo de Administraci�n de Volumen (VMD, seg�n sus siglas en ingles) de Intel� * Admite unidad de estado s�lido de NVMe como disco de arranque * Admite el Kit U.2 de ASRock
63
Espa�ol
RAID
� Admite RAID 0, RAID 1, RAID 5 y RAID 10 para dispositivos de almacenamiento SATA
Conector
� 1 x Conector SPI TPM � 1 x cabezal de intrusi�n de chasis y de altavoces � 1 x Conector para ventilador de la CPU (4 contactos) * El conector para ventilador de la CPU admite ventilador de la CPU con una potencia de ventilador de 1 A (12 W) m�xima. � 1 x Conector (4 contactos) para el ventilador de la bomba de agua/
CPU (control de velocidad de ventilador inteligente) * El ventilador de la CPU/bomba de agua admite ventilador del disipador por agua con una potencia de ventilador m�xima de 2 A (24 W). � 3 x Conectores (4 contactos) para el ventilador de la bomba de
agua/chasis (control de velocidad de ventilador inteligente) * El ventilador de la bomba de agua/Chasis admite ventilador del disipador por agua con una potencia de ventilador m�xima de 2 A (24 W). * CPU_FAN2/WP y CHA_FAN1~3/WP se pueden detectar autom�ticamente si se usa el ventilador de 3 o 4 contactos. � 1 x conector de alimentaci�n ATX de 24 contactos � 1 Conector de alimentaci�n de 8 contactos y 12 V (conector de
alimentaci�n de alta densidad) � 1 x Conector de audio en el panel frontal � 1 x Conector Thunderbolt AIC (5 contactos) (solamente se admite
tarjeta ASRock Thunderbolt 4 AIC) � 2 x Bases de conexiones USB 2.0 (Admite 4 puertos USB 2.0)
(Admite protecci�n contra descargas electrost�ticas) � 1 x base de conexiones USB 3.2 Gen1 (Admite 2 puertos USB 3.2
Gen1) (Admite protecci�n contra descargas electrost�ticas)
Caracter�sticas del BIOS
� BIOS legal UEFI AMI compatible con interfaz gr�fica de usuario multiling�e
� Eventos de reactivaci�n compatibles con ACPI 6.0 � Admite SMBIOS 2.7 � Varios ajustes de voltaje de n�cleo y cach� de CPU, GT de CPU,
DRAM, VDD_IMC, VCCIN AUX, +1,05V PROC, +0,82V PCH,
+1,05V PCH
Espa�ol
64
B660M Phantom Gaming 4
Monitor de hardware
� Tac�metro del ventilador: Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
� Ventilador silencioso (ajuste autom�tico de la velocidad del ventilador del chasis por temperatura de la CPU): Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
� Control de varias velocidades del ventilador: Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
� Detecci�n de CARCASA ABIERTA � Supervisi�n del voltaje: CPU Vcore, +1,05V PCH, DRAM, VCCIN
AUX, VCCSA, +1,05V PROC, +0,82V PCH, +12V, +5V, +3,3V
SO
� Microsoft� Windows� 10 64 bits/11 64 bits
Certificaciones � FCC y CE � Preparado para ErP/EuP (se necesita una fuente de alimentaci�n preparada para ErP/EuP)
* Para obtener informaci�n detallada del producto, visite nuestro sitio Web: http://www.asrock.com
Tenga en cuenta que hay un cierto riesgo impl�cito en las operaciones de overclocking, incluido el ajuste de la BIOS, aplicando la tecnolog�a de overclocking liberada o utilizando las herramientas de overclocking de otros fabricantes. El overclocking puede afectar a la estabilidad del sistema e, incluso, da�ar los componentes y dispositivos del sistema. Esta operaci�n se debe realizar bajo su propia responsabilidad y usted debe asumir los costos. No asumimos ninguna responsabilidad por los posibles da�os causados por el overclocking.
Espa�ol
65
1.3 Instalaci�n de los puentes
La instalaci�n muestra c�mo deben instalarse los puentes. Cuando la tapa de puente se coloca en los contactos, el puente queda "Corto". Si no coloca la tapa de puente en los contactos, el puente queda "Abierto".
Puente de borrado de CMOS (CLRMOS1) (consulte la p�g. 1, n� 21)
Puente de 2 contactos
CLRMOS1 le permite borrar los datos del CMOS. Para borrar y restablecer los par�metros del sistema a los valores predeterminados de instalaci�n, apague el ordenador y desenchufe el cable de alimentaci�n de la toma de alimentaci�n. Despu�s de esperar 15 segundos, utilice una tapa de puente para acortar los contactos en el CLRMOS1 durante 5 segundos. Sin embargo, no borre el CMOS justo despu�s de que haya actualizado la BIOS. Si necesita borrar el CMOS cuando acabe de actualizar la BIOS, deber� arrancar el sistema primero y, a continuaci�n, deber� apagarlo antes de que realice el borrado del CMOS. Tenga en cuenta que la contrase�a, la fecha, la hora y el perfil de usuario predeterminado ser�n eliminados �nicamente si se retira la pila del CMOS. Acu�rdese de retirar la tapa de puente despu�s de borrar el CMOS.
Si borra el CMOS, podr� detectarse la cubierta abierta. Ajuste la opci�n del BIOS "Clear Status" (Borrar estado) para borrar el registro del estado de intrusi�n anterior del chasis.
Espa�ol
66
B660M Phantom Gaming 4
1.4 Conectores y cabezales incorporados
Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de puente sobre estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores da�ar� de forma permanente la placa base.
Cabezal del panel del sistema (PANEL1 de 9 contactos) (consulte la p�g. 1, n� 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Conecte el interruptor de alimentaci�n, restablezca el interruptor y el indicador del estado del sistema del chasis a los valores de este cabezal, seg�n los valores asignados a los contactos como se indica a continuaci�n. Cerci�rese de cu�les son los contactos positivos y los negativos antes de conectar los cables.
PWRBTN (Interruptor de alimentaci�n): Con�ctelo al interruptor de alimentaci�n del panel frontal del chasis. Deber� configurar la forma en la que su sistema se apagar� mediante el interruptor de alimentaci�n.
RESET (Interruptor de reseteo): Con�ctelo al interruptor de reseteo del panel frontal del chasis. Pulse el interruptor de reseteo para resetear el ordenador si �ste est� bloqueado y no se puede reiniciar de forma normal.
PLED (Indicador LED de la alimentaci�n del sistema): Con�ctelo al indicador de estado de la alimentaci�n del panel frontal del chasis. El indicador LED permanece encendido cuando el sistema est� funcionando. El indicador LED parpadea cuando el sistema se encuentra en estado de suspensi�n S1/S3. El indicador LED se apaga cuando el sistema se encuentra en estado de suspensi�n S4 o est� apagado (S5).
HDLED (Indicador LED de actividad en el disco duro): Con�ctelo al indicador LED de actividad en el disco duro del panel frontal del chasis. El indicador LED permanece encendido cuando el disco duro est� leyendo o escribiendo datos.
El dise�o del panel frontal puede ser diferente dependiendo del chasis. Un m�dulo de panel frontal consta principalmente de: interruptor de alimentaci�n, interruptor de reseteo, indicador LED de alimentaci�n, indicador LED de actividad en el disco duro, altavoz, etc. Cuando conecte su m�dulo del panel frontal del chasis a este cabezal, aseg�rese de que las asignaciones de los cables y los contactos coinciden correctamente.
Cabezal de intrusi�n de chasis y de altavoces (SPK_CI1 de 7 contactos) (consulte la p�g. 1, n� 17)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Conecte la intrusi�n de chasis y el altavoz del chasis a este cabezal.
67
Espa�ol
Conectores Serie ATA3 Vertical: (SATA3_0: consulte la p�g.1, n� 11) (SATA3_1: consulte la p�g.1, n� 12) �ngulo recto: (SATA3_2: consulte la p�g. 1, n� 9) (Superior) (SATA3_3: consulte la p�g. 1, n� 8) (Inferior)
Cabezales USB 2.0 (USB_3_4 de 9 contactos) (consulte la p�g. 1, n� 16) (USB_5_6 de 9 contactos) (consulte la p�g. 1, n� 15)
SATA3_2 SATA3_3
SATA3_1 SATA3_0
Estos cuatro conectores SATA3 son compatibles con cables de datos SATA para dispositivos de almacenamiento interno con una velocidad de transferencia de datos de hasta 6,0 Gb/s.
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Hay dos bases de conexiones USB 2.0 en esta placa base. Cada cabezal USB 2.0 admite dos puertos.
Cabezal USB 3.2 Gen1 (USB3_5_6 de 19 contactos) (consulte la p�g. 1, n� 7)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Esta placa base tiene otra base de conexiones USB 3.2 Gen1. Esta base de conexiones USB 3.2 Gen1 admite dos puertos.
Cabezal de audio del panel frontal (HD_AUDIO1 de 9 contactos) (consulte la p�g. 1, n� 22)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Este cabezal se utiliza para conectar dispositivos de audio al panel de audio frontal.
Espa�ol
68
B660M Phantom Gaming 4
1. El Audio de Alta Definici�n (HDA, en ingl�s) es compatible con el m�todo de sensor de conectores, sin embargo, el cable del panel del chasis deber� ser compatible con HDA para que pueda funcionar correctamente. Siga las instrucciones que se indican en nuestro manual y en el manual del chasis para instalar su sistema.
2. Si utiliza un panel de audio AC'97, col�quelo en el cabezal de audio del panel frontal siguiendo los pasos que se describen a continuaci�n: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) a OUT2_L. C. Conecte Ground (Conexi�n a tierra) (GND) a Ground (GND). D. MIC_RET y OUT_RET se utilizan �nicamente con el panel de audio HD. No es necesario que los conecte en el panel de audio AC'97. E. Para activar el micr�fono frontal, vaya a la ficha "micr�fono frontal" (Front Mic) en el panel de control de Realtek y ajuste el "Volumen de grabaci�n" (Recording Volume).
Conectores del ventilador de la bomba de agua/chasis (CHA_FAN1/WP de 4 contactos) (consulte la p�g. 1, n� 23)
(CHA_FAN2/WP de 4 contactos) (consulte la p�g. 1, n� 18) (CHA_FAN3/WP de 4 contactos) (consulte la p�g. 1, n� 19)
1
GND
2
FAN_VOLTAGE
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
1 2 3 4
Esta placa base proporciona tres conectores para el ventilador del chasis para refrigeraci�n por agua de 4 contactos. Si tiene pensando conectar un ventilador de disipador por agua del chasis de 3 contactos, con�ctelo al contacto 1-3.
Conector del ventilador de la CPU (CPU_FAN1 de 4 contactos) (consulte la p�g. 1, n� 4)
4 3 2 1
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL
Esta placa base contiene un conector de ventilador (ventilador silencioso) de CPU de 4 contactos. Si tiene pensando conectar un ventilador de CPU de 3 contactos, con�ctelo al Pin 1-3.
Conector del ventilador de la bomba de agua/CPU (CPU_FAN2/WP de 4 contactos) (consulte la p�g. 1, n� 5)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
Esta placa base proporciona un conector de ventilador de CPU de refrigeraci�n por agua de 4 contactos. Si tiene pensando conectar un ventilador de disipador por agua de CPU de 3 contactos, con�ctelo al contacto 1-3.
69
Espa�ol
Conector de alimentaci�n ATX (ATXPWR1 de 24 contactos) (consulte la p�g. 1, n� 6)
12
24
1
13
Esta placa base contiene un conector de alimentaci�n ATX de 24 contactos. Para utilizar una toma de alimentaci�n ATX de 20 contactos, con�ctela en los contactos del 1 al 13.
Conector de alimentaci�n ATX de 12 V (ATX12V1 de 8 contactos) (consulte la p�g. 1, n� 1)
Conector SPI TPM (SPI_TPM_J1 de 13 contactos) (consulte la p�g. 1, n� 13)
Conector Thunderbolt AIC (TB1 de 5 contactos) (consulte la p�g. 1, n� 20)
8
5
4
1
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Esta placa base contiene un conector de alimentaci�n ATX de 12 V y 8 contactos. Para utilizar una toma de alimentaci�n ATX de 4 contactos, con�ctela en los contactos del 1 al 5. *Advertencia: Aseg�rese de que el cable de alimentaci�n conectado corresponda a este CPU y no a la tarjeta gr�fica. No conecte el cable de alimentaci�n PCIe a este conector.
Este conector es compatible con el sistema SPI M�dulo de Plataforma Segura (TPM, en ingl�s), que puede almacenar de forma segura claves, certificados digitales, contrase�as y datos. Un sistema TPM tambi�n ayuda a aumentar la seguridad en la red, protege identidades digitales y garantiza la integridad de la plataforma.
Enchufe una tarjeta complementaria (AIC) ThunderboltTM a este conector mediante el cable GPIO. * Instale la tarjeta ThunderboltTM AIC a PCIE3 (ranura predeterminada).
Espa�ol
70
B660M Phantom Gaming 4
1
ASRock B660M Phantom Gaming 4, ASRock. ASRock .
BIOS . - ASRock . , , - . - ASRock VGA- . - ASRock http://www.asrock.com.
1.1
� ASRock B660M Phantom Gaming 4 (- Micro ATX) � ASRock B660M Phantom Gaming 4 � ASRock B660M Phantom Gaming 4 � 2 Serial ATA (SATA) ( ) � 3 M.2 ( ) � 1 -
71
1.2
� - Micro ATX �
� 12- Intel� CoreTM
(LGA 1700)
� Digi Power design
� 8
� Intel� Hybrid
� Intel� Turbo Boost Max 3.0
� Intel� B660
� DDR4 � 4 x DDR4 DIMM � DDR4 -ECC
4800+(OC)* * DDR4 3200 . * (Memory Support List ) - ASRock. (http://www.asrock.com/) � ECC UDIMM ( ,
) � : 128 � Intel� Extreme Memory Profile (XMP) 2.0
� 2 x PCIe x16 (PCIE1/PCIE3: Gen4x16 (PCIE1); Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* SSD- NVMe � 1 x PCIe Gen3x1 � AMD CrossFireTM � M.2 ( E) 2230 Wi-Fi/BT PCIe Wi-Fi
Intel� CNVi ( Wi-Fi/BT) 1 .
� Intel� UHD Graphics VGA
. � Intel� Xe (12 ) � : HDMI
DisplayPort 1.4
72
B660M Phantom Gaming 4
� HDMI 2.1 TMDS 4K � 2K (4096x2160) 60
� DisplayPort 1.4 DSC ( ), . 8 (7680x4320) 60 / 5K (5120x3200) 120
� HDCP 2.3 , HDMI 2.1 TMDS, DisplayPort 1.4
� 7.1- ( Realtek ALC897)
� � Nahimic
LAN
� Gigabit Ethernet 10/100/1000 / � Giga PHY Intel� I219V � � � Energy Efficient Ethernet 802.3az � UEFI PXE
� , 3 . � 1 x PS/2 / � 1 x HDMI � 1 DisplayPort 1.4 � 4 USB 3.2 Gen1 ( ASMedia ASM1074)
( ) � 2 x USB 2.0 ( ) � 1 x RJ-45 (/
) � HD Audio: / /
� 4 SATA3 6,0 / � Hyper M.2 (M2_1, M)
2242/2260/2280 PCIe Gen4x4 (64 /) 1 .* � Hyper M.2 (M2_2, M) 2280
PCIe Gen4x4 (64 /) 1 .* * Intel� OptaneTM ( M2_2) * Intel� Volume Management Device (VMD) * SSD- NVMe * ASRock U.2
73
RAID
� RAID 0, RAID 1, RAID 5 RAID 10 SATA
� 1 x SPI � 1 � 1 x (4-) * 1 (12 ). � 1 x
(4-) (- ) * 2 (24 ). � 3 x (4-) (- ) * 2 (24 ). * CPU_FAN2/WP CHA_FAN1~3/WP : 3- 4-. � 1 , 24- � 1 12 (8- ) � 1 � 1 AIC- Thunderbolt (5-) ( ASRock Thunderbolt 4 AIC) � 2 USB 2.0 (4 USB 2.0) ( ) � 1 USB 3.2 Gen1 (2 USB 3.2 Gen1) ( )
BIOS
� AMI UEFI Legal BIOS
� ACPI 6.0 � SMBIOS 2.7 � / , CPU GT, DRAM,
VDD_IMC, VCCIN AUX, +1,05 PROC, +0,82 PCH, +1,05
PCH
74
B660M Phantom Gaming 4
� : ; ;
� ( ): ; ;
� : ; ;
� � : CPU Vcore, +1,05 PCH, DRAM,
VCCIN AUX, VCCSA, +1,05 PROC, +0,82 PCH, +12 , +5 , +3,3
- � Microsoft� Windows� 10 (64-) / 11 (64-)
� FCC, CE � ErP/EuP ( ,
ErP/EuP)
* -: http://www.asrock.com
, , BIOS, Untied Overclocking , . . . , .
75
1.3
. - ��. - , ��.
CMOS (CLRMOS1) (. . 1, 21)
2-
CLRMOS1 CMOS. , . 15 CLRMOS1 5 . CMOS BIOS. CMOS BIOS , CMOS. , , , , CMOS. CMOS .
CMOS . , Clear Status ( ) BIOS.
76
B660M Phantom Gaming 4
1.4 ,
. -. - .
(9-, PANEL1) (. . 1, 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
, , . .
PWRBTN ( ): , . .
RESET ( ): , . , , .
PLED ( ): , . , . S1/S3, . S4 (S5), .
HDLED ( ): , . , .
. , , , , . . .
(7-, SPK_CI1) (. . 1, 17)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
.
77
Serial ATA3 : (SATA3_0: . . 1, 11) (SATA3_1: . . 1, 12) : (SATA3_2: . .1, 9) () (SATA3_3: . .1, 8) ()
USB 2.0 (9-, USB_3_4) (. . 1, 16) (9-, USB_5_6) (. . 1, 15)
SATA3_2 SATA3_3
SATA3_1 SATA3_0
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
SATA3 SATA 6,0 /.
USB 2.0. USB 2.0 .
USB 3.2 Gen1 (19-, USB3_5_6) (. . 1, 7)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
USB 3.2 Gen1. USB 3.2 Gen1 .
(9-, HD_ AUDIO1) (. . 1, 22)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
.
78
B660M Phantom Gaming 4
1. , , HDA. . .
2. AC'97 , : A. Mic_IN (MIC) MIC2_L. B. Audio_R (RIN) OUT2_R, Audio_L (LIN) OUT2_L. C. (GND) (GND). D. MIC_RET OUT_RET . AC'97 . E. , FrontMic Realtek Recording Volume ( ).
1
2 3
4
(4- CHA_
FAN1/WP)
(. . 1, 23)
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
4- . 3- 1�3.
(4- CHA_ FAN2/WP) (. . 1, 18) (4- CHA_ FAN3/WP) (. . 1, 19)
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
1 2 3 4
(4-, CPU_FAN1) (. . 1, 4)
4 3 2 1
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL
4- . 3- , 1-3.
(4- CPU_ FAN2/WP) (. . 1, 5)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
4- . 3- 1-3.
79
(24-, ATXPWR1) (. . 1, 6)
12
24
1
13
24- . 20- ATX, 1 13.
12
8
(8-, ATX12V1)
(. . 1, 1)
4
5
8-
1
12 .
4-
ATX,
1 5.
*! ,
, .
PCIe .
SPI (13-, SPI_ TPM_J1) (. . 1, 13)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI Trusted Platform Module (TPM), , , . , .
Thunderbolt AIC (5-, TB1) (. . 1, 20)
80
(AIC-) ThunderboltTM GPIO-. * ThunderboltTM PCIE3 ( ).
B660M Phantom Gaming 4
1 Introdu��o
Obrigado por comprar a placa m�e ASRock B660M Phantom Gaming 4, uma placa m�e confi�vel fabricada sob um r�gido e consistente controle de qualidade da ASRock. Esta placa principal oferece um excelente desempenho com um design robusto em conformidade com o compromisso da ASRock em fabricar produtos de qualidade e resistentes.
Como as especifica�es da placa-m�e e do software do BIOS podem ser atualizadas, o conte�do desta documenta��o estar� sujeito a altera�es sem aviso pr�vio. Caso ocorram modifica�es a esta documenta��o, a vers�o atualizada estar� dispon�vel no site da ASRock sem aviso pr�vio. Se precisar de assist�ncia t�cnica relacionada a esta placa principal, visite o nosso site para obter informa�es espec�ficas sobre o modelo que estiver utilizando. Voc� tamb�m poder� encontrar a lista de placas VGA e CPU mais recentes suportadas no site da ASRock. Site da ASRock http://www.asrock.com.
1.1 Conte�do da embalagem
� Placa-m�e ASRock B660M Phantom Gaming 4 (Micro ATX Form Factor) � Guia de Instala��o R�pida da ASRock B660M Phantom Gaming 4 � CD de Suporte da ASRock B660M Phantom Gaming 4 � 2 x Cabos de dados Serial ATA (SATA) (Opcional) � 3 x Parafusos para Soquetes M.2 (Opcional) � 1 x Painel de E/S
81
Portugu�s
1.2 Especifica�es
Plataforma CPU Chipset Mem�ria
Slot de expans�o
Gr�ficos
� Micro ATX Form Factor � Design de condensador s�lido
� Suportas Processadores 12th Gen Intel� CoreTM (LGA1700) � Digi Power design � Design com 8 fases de alimenta��o � Suporta Tecnologia H�brida Intel� � Suporta Tecnologia Intel� Turbo Boost Max 3.0
� Intel� B660
� Tecnologia de mem�ria DDR4 de dois canais � 4 x Slots DIMM DDR4 � Suporta DDR4 n�o-ECC, mem�ria sem buffer at� 4800+(OC)* * Suporta DDR4 3200 nativamente. * Por favor, consulte a Lista de Suporte de Mem�ria no site da ASRock para obter mais informa��o. (http://www.asrock.com/) � Suporta m�dulos de mem�ria ECC UDIMM (opera em modo n�o-
ECC) � Capacidade m�xima da mem�ria do sistema: 128GB � Suporta Extreme Memory Profile (XMP) 2.0 da Intel�
� 2 x Slots PCIe x16 (PCIE1/PCIE3: �nico a Gen4x16 (PCIE1); duplo a Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
* Suporta NVMe SSD nos discos de inicializa��o � 1 x Slot PCIe Gen3x1 � Suporta AMD CrossFireTM � 1 Soquete M.2 (Chave E), suporta m�dulo 2230 WiFi/BT PCIe
WiFi e Intel� CNVi (WiFi/BT Integrado)
� Os gr�ficos incorporados Intel� UHD e as sa�das VGA s� podem ser suportados com processadores com GPU integrada.
� Arquitetura Gr�fica Intel� Xe (Gen 12) � Sa�da gr�fica dupla: Suporta portas HDMI e DisplayPort 1.4 por
controladores de v�deo independentes
Portugu�s
82
B660M Phantom Gaming 4
Portugu�s
� Suporta HDMI 2.1 TMDS Compat�vel com resolu��o m�x. at� 4K x 2K (4096x2160) przy 60Hz
� Obsluga DisplayPort 1.4 z DSC (skompresowany) maks. rozdzielczo do 8K (7680x4320) przy 60Hz / 5K (5120x3200) przy 120Hz
� Obsluga HDCP 2.3 przy zgodnoci z HDMI 2.1 TMDS i porty DisplayPort 1.4
�udio
� �udio 7.1 CH HD com prote��o de conte�do (Codec de �udio Realtek ALC897)
� Suporta Prote��o de Sobretens�o � �udio Nahimic
LAN
� LAN Gigabit a 10/100/1000 Mb/s � Giga PHY Intel� I219V � Suporta Wake-On-LAN � Oferece Suporte � Prote��o de Rel�mpago/ESD � Suporta Energy Efficient Ethernet 802.3az � Suporta UEFI PXE
E/S do painel posterior
� 3 Pontos de Montagem da Antena � 1 x Porta PS/2 para mouse/teclado � 1 x Porta HDMI � 1 x DisplayPort 1.4 � 4 portas USB 3.2 Gen1 (Hub ASMedia ASM1074) (Suporta
Prote��o ESD) � 2 x Portas USB 2.0 (Suporta Prote��o ESD) � 1 x Porta LAN RJ-45 com LED (LED ACT/LINK e LED DE
VELOCIDADE) � Fichas de �udio HD: Entrada de Linha / Autofalante Frontal /
Microfone
Armazenamento
� 4 x Conectores SATA3 6,0 Gb/s � 1 x Hiper Soquete M.2 (M2_1, Chave M), suporta modo Gen4x4
tipo 2242/2260/2280 PCIe (64 Gb/s)* � 1 Soquete Hyper M.2 (M2_2, Chave M), suporta modo PCIe
Gen4x4 (64 Gb/s) tipo 2280* * Suporta a tecnologia Intel� OptaneTM (M2_2 apenas) * Suporta o Dispositivo de Gerenciamento de Volume Intel� (VMD) * Suporta NVMe SSD nos discos de inicializa��o * Suporta Kit U.2 ASRock
83
RAID Conector
Fun�es da BIOS
� Suporta RAID 0, RAID 1, RAID 5 e RAID 10 para dispositivos de armazenagem SATA
� 1 x Suporte SPI TPM � 1 x Intrus�o do Chassi e Cabe�ote de Autofalante � 1 x Conector da ventoinha da CPU (4 pinos) * O Conector do Ventilador de CPU suporta o ventilador de CPU de alimenta��o m�xima 1A do ventilador (12W). � 1 x Conector de Ventilador de CPU/Ventilador da Bomba de �gua
(4 pinos) (Controle de Velocidade de Ventoinha Inteligente) * O Ventilador de CPU/Ventilador da Bomba de �gua suporta o ventilador de refrigerador a �gua de 2A m�ximo (24W) pot�ncia do ventilador. � 3 x Conectores de Ventilador de Chassi/Ventilador da Bomba de
�gua (4 pinos) (Controle de Velocidade de Ventoinha Inteligente) * O Ventilador de Chassi/Ventilador da Bomba de �gua suporta o ventilador de refrigerador a �gua de 2A m�ximo (24W) pot�ncia do ventilador. * CPU_FAN2/WP, CHA_FAN1~3/WP pode detectar automaticamente se o ventilador de 3 pinos ou 4 pinos est� em uso. � 1 x Conector alimenta��o ATX 24-pinos � 1 x Conector de energia 8-pinos 12V (Conector de energia de alta
densidade) � 1 x Conector de �udio do painel frontal � 1 Conector Thunderbolt AIC (5-pin) (Suporta Placa ASRock
Thunderbolt 4 AIC) � 2 x Plataformas USB 2.0 (Suporta 4 portas USB 2.0) (Suporta
Prote��o ESD) � 1 x Plataforma USB 3.2 Gen1 (Suporta 2 portas USB 3.2 Gen1)
(Suporta Prote��o ESD)
� AMI Legal UEFI BIOS com suporte multilingue GUI � ACPI 6.0 compat�vel com eventos de despertar � Suporte SMBIOS 2.7 � CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX,
+1,05V PROC, +0,82V PCH, +1,05V PCH de Tens�o de Multiajuste
Portugu�s
84
B660M Phantom Gaming 4
Monitor de hardware
� Tac�metro da ventoinha: CPU, CPU/Bomba de �gua, Chassis/ Ventoinhas da bomba de �gua
� Ventoinha Silenciosa (Auto ajusta velocidade da ventoinha do chassi pela temperatura da CPU): CPU, CPU/Bomba de �gua, Chassis/Ventoinhas da bomba de �gua
� Controle multi-velocidade da ventoinha: CPU, CPU/Bomba de �gua, Chassis/Ventoinhas da bomba de �gua
� Detec��o de ABERTURA da CAIXA � Monitoramento da tens�o: CPU Vcore, +1,05V PCH, DRAM,
VCCIN AUX, VCCSA, +1,05V PROC, +0,82V PCH, +12V, +5V, +3,3V
SO
� Microsoft� Windows� 10 64-bit / 11 64-bit
Certifica�es
� FCC, CE � Preparada para ErP/EuP (� necess�ria uma fonte de alimenta��o
preparada para ErP/EuP)
* Para obter informa�es detalhadas sobre o produto, por favor, visite o nosso site: http://www.asrock.com
Por favor, observe que existe um certo risco envolvendo overclocking, incluindo o ajuste das defini�es na BIOS, a aplica��o de tecnologia Untied Overclocking ou a utiliza��o de ferramentas de overclocking de terceiros. O overclocking poder� afetar a estabilidade do sistema ou mesmo causar danos nos componentes e dispositivos do seu sistema. Ele deve ser realizado por sua conta e risco. N�o nos responsabilizamos por poss�veis danos causados pelo overclocking.
Portugu�s
85
1.3 Configura��o dos jumpers
A imagem abaixo mostra como os jumpers s�o configurados. Quando a tampa do jumper � colocada nos pinos, o jumper � "Curto". Se n�o for colocada uma tampa de jumper nos pinos, o jumper � "Aberto".
Apagar o Jumper CMOS (CLRMOS1) (ver p.1, N.� 21)
Jumper de 2 pinos
CLRMOS1 permite que voc� limpe os dados do CMOS. Para apagar e reinicializar os par�metros do sistema nos valores predefinidos, desligue o computador e desplugue a tomada da alimenta��o. Depois de aguardar 15 segundos, use uma capa de jumper para fazer curto dos pinos no CLRMOS1 por 5 segundos. No entanto, n�o apague o CMOS logo ap�s ter realizado a atualiza��o da BIOS. Se voc� precisar apagar o CMOS logo ap�s ter terminado uma atualiza��o da BIOS, dever� primeiro iniciar o sistema e voltar a encerr�lo antes de apagar o CMOS. Por favor, observe que a senha, data, hora e perfil padr�o do usu�rio ser�o apagados s� se a bateria CMOS for removida. Por favor, n�o se esque�a de retirar a tampa do jumper depois de apagar o CMOS.
Se voc� apagar o CMOS, poder� ser detectada a abertura da caixa. Ajuste a op��o do BIOS "Limpar estado" para limpar o registo anterior de estado de intrus�o no chassis.
Portugu�s
86
B660M Phantom Gaming 4
1.4 Suportes e conectores onboard
Os conectores e suportes onboard N�O s�o jumpers. N�O coloque tampas de jumpers sobre estes terminais e conectores. Colocar tampas de jumpers sobre os terminais e conectores ir� causar danos permanentes � placa-m�e.
Suporte do painel de sistema (PAINEL1 de 9 pinos) (ver p.1, N.� 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Ligue o bot�o de alimenta��o, o bot�o de reinicializa��o e o indicador do estado do sistema no chassi deste suporte, de acordo com a descri��o abaixo. Observe os pinos positivos e negativos antes de conectar os cabos.
PWRBTN (Bot�o de alimenta��o): Conecte o bot�o de alimenta��o no painel frontal do chassi. Voc� pode configurar a forma para desligar o seu sistema atrav�s do bot�o de alimenta��o.
RESET (Bot�o de reinicializa��o): Conecte o bot�o de reinicializa��o no painel frontal do chassi. Pressione o bot�o de reinicializa��o para reiniciar o computador, se ele congela e falha ao realizar um rein�cio normal.
PLED (LED de alimenta��o do sistema): Conecte o indicador do estado da alimenta��o no painel frontal do chassi. O LED ficar� aceso quando o sistema estiver em funcionamento. O LED ficar� piscando quando o sistema estiver nos estados de suspens�o S1/S3. O LED ficar� desligado quando o sistema estiver no estado de suspens�o S4 ou desligado (S5).
HDLED (LED de atividade do disco r�gido): Conecte o LED de atividade do disco r�gido no painel frontal do chassi. O LED ficar� aceso quando o disco r�gido estiver lendo ou registrando dados.
O design do painel frontal poder� variar dependendo do chassi. Um m�dulo de painel frontal consiste principalmente em um bot�o de alimenta��o, um bot�o de reinicializa��o, um LED de alimenta��o, um LED de atividade do disco r�gido, um alto-falante, etc. Ao conectar seu m�dulo de painel frontal do chassi a este conector, certifique-se de que os fios e os pinos correspondem de forma correta.
Intrus�o do Chassi e Cabe�ote de Autofalante (SPK_CI1 de 7 pinos) (ver p.1, N.� 17)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Conecte a instrus�o do chassi e autofalante do chassi a este cabe�ote.
Portugu�s
87
SATA3_2 SATA3_3
Conectores s�rie ATA3 Vertical: (SATA3_0: ver p.1, N.� 11) (SATA3_1: ver p.1, N.� 12) �ngulo reto: (SATA3_2: ver p.1, N.� 9) (superior) (SATA3_3: ver p.1, N.� 8) (inferior)
Plataformas USB 2.0 (USB_3_4 de 9 pinos) (ver p.1, N.� 16) (USB_5_6 de 9 pinos) (ver p.1, N.� 15)
SATA3_1 SATA3_0
Estes quatro conectores SATA3 suportam cabos de dados SATA para dispositivos de armazenamento interno com uma taxa de transfer�ncia de dados de at� 6,0 Gb/s.
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
H� dois cabe�otes USB 2.0 nesta placa-m�e. Cada suporte USB 2.0 pode suportar duas portas.
Plataforma USB 3.2 Gen1 (USB3_5_6 de 19 pinos) (ver p.1, N.� 7)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
H� um cabe�ote USB 3.2 Gen1 nesta placa-m�e. Este suporte USB 3.2 Gen1 pode suportar duas portas.
Suporte de �udio do painel frontal (HD_AUDIO1 de 9 pinos) (ver p.1, N.� 22)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Este suporte destina-se � conex�o dos dispositivos de �udio no painel de �udio frontal.
Portugu�s
88
B660M Phantom Gaming 4
Portugu�s
1. O �udio de alta defini��o suporta Sensor de Adaptador, mas o fio do painel no chassi dever� suportar HDA para funcionar corretamente. Por favor, siga as instru�es no nosso manual e no manual do chassi para instalar o seu sistema.
2. Se utilizar um painel de �udio AC'97, instale-o no terminal de �udio do painel frontal de acordo com os passos abaixo: A. Ligue Mic_IN (MIC) a MIC2_L. B. Conecte o Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Conecte a liga��o Terra (GND) � Terra (GND). D. MIC_RET e OUT_RET destinam-se apenas ao painel de �udio HD. Voc� n�o precisa lig�-los ao painel de �udio AC'97. E. Para ativar o microfone frontal, v� � guia "Microfone Frontal" no painel de controle Realtek e ajuste o "Volume de grava��o".
Chassis / Conectores da ventoinha de bomba de �gua (CHA_FAN1/WP de 4 pinos) (ver p.1, N.� 23)
(CHA_FAN2/WP de 4 pinos) (ver p.1, N.� 18) (CHA_FAN3/WP de 4 pinos) (ver p.1, N.� 19)
1
GND
2
FAN_VOLTAGE
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
Esta placa m�e fornece tr�s conectores do chassi de refrigera��o a �gua de 4 pinos. Se voc� pretende conectar um ventilador de refrigera��o a �gua de chassis de 3 pinos, por favor, conecte-o ao Pino 1-3.
1 2 3 4
Conector da Ventoinha da CPU (CPU_FAN1 de 4 pinos) (ver p.1, N.� 4)
4 3 2 1
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL
Esta placa m�e inclui um conector de ventilador da CPU (Ventilador silencioso) de 4 pinos. Se voc� pretende conectar um ventilador da CPU de 3 pinos, por favor, conecte-o ao Pino 1-3.
Conector da ventoinha de bomba de �gua/CPU (CPU_FAN2/WP de 4 pinos) (ver p.1, N.� 5)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
Esta placa m�e inclui um conector de ventilador da CPU de refrigera��o a �gua de 4 pinos. Se voc� pretende conectar um ventilador de refrigera��o a �gua da CPU de 3 pinos, por favor, conecte-o ao Pino 1-3.
89
Conector de alimenta��o ATX (ATXPWR1 de 24 pinos) (ver p.1, N.� 6)
Conector de alimenta��o de 12V ATX (ATX12V1 de 8 pinos) (ver p.1, N.� 1)
12
24
1
13
8
5
4
1
Esta placa-m�e inclui um conector de alimenta��o ATX de 24 pinos. Para utilizar uma fonte de alimenta��o ATX de 20 pinos, introduza-a no Pino 1 e Pino 13.
Esta placa-m�e inclui um conector de alimenta��o de 12V ATX de 8 pinos. Para utilizar uma fonte de alimenta��o ATX de 4 pinos, introduza-a no Pino 1 e Pino 5. *Aviso: Certifique-se que o cabo de for�a conectado � para o CPU e n�o para a placa gr�fica. N�o ligue o cabo de for�a PCIe a este conector.
Plataforma SPI TPM (SPI_TPM_J1 de 13 pinos) (ver p.1, N.� 13)
Conector Thunderbolt AIC (TB1 de 5 pinos) (ver p.1, N.� 20)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Este conector suporta um sistema com SPI M�dulo de Plataforma Confi�vel (TPM), que pode armazenar com seguran�a chaves, certificados digitais, senhas e dados. Um sistema TPM tamb�m ajuda a melhorar a seguran�a de rede, a proteger identidades digitais e a garantir a integridade da plataforma.
Por favor, conecte uma placa adicional ThunderboltTM (AIC) a este conector atrav�s do cabo GPIO. * Por favor, instale o cart�o ThunderboltTM AIC para PCIE3 (slot padr�o).
Portugu�s
90
Polski
B660M Phantom Gaming 4
1 Wprowadzenie
Dzikujemy za zakupienie plyty gl�wnej ASRock B660M Phantom Gaming 4, niezawodnej plyty gl�wnej produkowanej z konsekwentnie wykonywan przez firm ASRock, rygorystyczn kontrol jakoci. Plyta ta zapewnia doskonal jako dzialania i solidn konstrukcj, spelniajc zobowizanie firmy ASRock do dostarczania produkt�w o wysokiej jakoci i wytrzymaloci.
Poniewa specyfikacje plyty gl�wnej i oprogramowanie BIOS mog zosta zaktualizowane, zawarto tej dokumentacji moe zosta zmieniona bez powiadomienia. W przypadku jakichkolwiek modyfikacji tej dokumentacji, zaktualizowana wersja bdzie dostpna na stronie internetowej ASRock, bez dalszego powiadomienia. Jeli wymagana jest pomoc techniczna w odniesieniu do tej plyty gl�wnej, naley odwiedzi stron internetow w celu uzyskania specyficznych informacji o uywanym modelu. Na stronie internetowej ASRock, mona take pobra list najnowszych kart VGA i obslugiwanych CPU. Strona internetowa ASRock http://www.asrock.com.
1.1 Zawarto opakowania
� Plyta gl�wna ASRock B660M Phantom Gaming 4 (Wsp�lczynnik ksztaltu Micro ATX) � Skr�cona instrukcja instalacji ASRock B660M Phantom Gaming 4 � Pomocnicza plyta CD ASRock B660M Phantom Gaming 4 � 2 x kable danych Serial ATA (SATA) (Opcjonalne) � 3 x ruby do gniazda M.2 (Opcjonalne) � 1 x oslona panelu Wejcia/Wyjcia
91
1.2 Specyfikacje
Platforma
� Wsp�lczynnik ksztaltu Micro ATX � Konstrukcja kondensatorami stalymi
CPU
� Obsluga 12-tej generacji procesor�w Intel� CoreTM (LGA1700) � Digi Power design � Sekcja zasilania 8 Power Phase Design � Obsluga technologii Intel� Hybrid � Obsluga technologii Intel� Turbo Boost Max 3.0
Chipset
� Intel� B660
Pami
� Technologia pamici Dual Channel DDR4 � 4 x gniazda DDR4 DIMM � Obsluga niebuforowanej pamici DDR4 non-ECC, do 4800+(OC)* * Natywna obsluga pamici DDR4 3200.
* Sprawd list obslugiwanej pamici na stronie internetowej ASRock
w celu uzyskania dalszych informacji. (http://www.asrock.com/) � Obsluga modul�w pamici ECC UDIMM (dzialanie w trybie non-
ECC) � Maks. wielko pamici systemowej: 128GB � Obsluga Intel� Extreme Memory Profile (XMP) 2.0
Gniazdo rozszerzenia
� 2 x gniazda PCIe x 16 (tryb PCIE1/PCIE3: pojedyncze w 4 generacji x 16 (PCIE1); podw�jne w 4 generacji x 16 (PCIE1) / 3 generacji x
4 (PCIE3))
* Obsluga SSD NVMe, jako dysk�w rozruchowych � 1 x gniazda PCIe Gen3x1 � Obsluga AMD CrossFireTM � 1 x gniazdo M.2 (Key E), z obslug modulu WiFi/BT PCIe typu
2230 i Intel� CNVi (Zintegrowany WiFi/BT)
Grafika
� Wbudowana grafika Intel� UHD i wyjcia VGA s obslugiwane wylcznie z procesorami, kt�re maj zintegrowane GPU.
� Architektura grafiki Intel� Xe (Generacja 12) � Podw�jne wyjcie graficzne: Obsluga HDMI i DisplayPort 1.4 przez
niezalene sterowniki graficzne
Polski
92
B660M Phantom Gaming 4
� Obsluga HDMI 2.1 TMDS zgodnoci z maks. rozdzielczoci do 4K x 2K (4096x2160) przy 60Hz
� Obsluga DisplayPort 1.4 z DSC (skompresowany) maks. rozdzielczo do 8K (7680x4320) przy 60Hz / 5K (5120x3200) przy 120Hz
� Obsluga HDCP 2.3 przy zgodnoci z HDMI 2.1 TMDS i porty DisplayPort 1.4
Audio
� Dwik HD 7.1 CH (kodek audio Realtek ALC897) � Obsluga zabezpieczenia przed przepiciami � Nahimic Audio
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Obsluga Wake-On-LAN � Obsluga zabezpieczenia przed wyladowaniami atmosferycznymi/
ESD � Obsluga Energy Efficient Ethernet 802.3az � Obsluga UEFI PXE
Tylny panel Wejcia/ Wyjcia
� 3 x punkty montau anteny � 1 x port myszy/klawiatury PS/2 � 1 x port HDMI � 1 x DisplayPort 1.4 � 4 x porty USB 3.2 Gen1 (ASMedia ASM1074 hub)(Obsluga
zabezpieczenia ESD) � 2 x porty USB 2.0 (Obsluga zabezpieczenia ESD) � 1 x port LAN RJ-45 z LED (LED ACT/LINK i LED SPEED) � Gniazda audio HD: Wejcie liniowe / Glonik przedni / Mikrofon
Przechowywanie
� 4 x zlcza SATA3 6,0 Gb/s � 1 x Hyper M.2 Socket (M2_1, Key M), z obslug trybu
2242/2260/2280 PCIe Gen4x4 (64 Gb/s)* � 1 x Hyper M.2 Socket (M2_2, Key M), z obslug trybu 2280 PCIe
Gen4x4 (64 Gb/s)* * Obsluga technologii Intel� OptaneTM (tylko dla M2_2) * Obsluga Intel� Volume Management Device (VMD) * Obsluga SSD NVMe, jako dysk�w rozruchowych * Obsluga ASRock U.2 Kit
Polski
93
RAID
� Obsluga RAID 0, RAID 1, RAID 5 i RAID 10 dla urzdze pamici masowej SATA
Zlcze
� 1 x zlcze gl�wkowe SPI TPM � 1 x zlcze gl�wkowe naruszenia obudowy i glonika � 1 x zlcze wentylatora CPU (4-pinowe) * Zlcze wentylatora CPU obsluguje wentylator CPU maksymalnym prdem zasilania wentylatora 1A (12W). � 1 x zlcze wentylatora CPU/pompy wodnej (4-pinowe) (Inteligentne
sterowanie prdkoci obrotow wentylatora) * Zlcze wentylatora CPU/pompy wodnej obsluguje wentylator ukladu chlodzenia maksymalnym prdem zasilania wentylatora 2A (24W). � 3 x zlcza wentylatora obudowy/pompy wodnej (4-pinowe)
(Inteligentne sterowanie prdkoci obrotow wentylatora) * Zlcze wentylatora obudowy/pompy wodnej obsluguje wentylator ukladu chlodzenia maksymalnym prdem zasilania wentylatora 2A (24W). * CPU_FAN2/WP i CHA_FAN1~3/WP moe automatycznie wykrywa, jeli uywany jest wentylator 3-pinowy lub 4-pinowy. � 1 x 24 pinowe zlcze zasilania ATX � 1 x 8 pinowe 12V zlcze zasilania (Zlcze zasilania Hi-Density) � 1 x zlcze audio na panelu przednim � 1 x zlcze Thunderbolt AIC (5-pinowe) (Obsluga kart ASRock
Thunderbolt 4 AIC) � 2 x zlcza gl�wkowe USB 2.0 (Obsluga 4 port�w USB 2.0)
(Obsluga zabezpieczenia ESD) � 1 x porty gl�wkowe USB 3.2 Gen1 (Obsluga 2 port�w USB 3.2
Gen1) (obsluga zabezpieczenia ESD)
Funkcja BIOS
� Obsluga starszych wersji BIOS AMI UEFI z wielojzycznym GUI � Zgodno zdarze wybudzania z ACPI 6.0 � Obsluga SMBIOS 2.7 � Wiele regulacji napicia CPU Core/Cache, CPU GT, DRAM,
VDD_IMC, VCCIN AUX, +1,05V PROC, +0,82V PCH, +1,05V
PCH
Polski
94
B660M Phantom Gaming 4
Monitor sprztu
System operacyjny Certyfikaty
� Obrotomierz wentylatora: CPU, CPU/pompa wodna, wentylatory obudowy/pompy wodnej
� Cichy wentylator (Automatyczna regulacja prdkoci obrotowej wentylatora obudowy przez temperatur CPU): CPU, CPU/pompa wodna, wentylatory obudowy/pompy wodnej
� Kontrola wielu prdkoci obrotowych wentylatora: CPU, CPU/ pompa wodna, wentylatory obudowy/pompy wodnej
� Wykrywanie OTWARCIA OBUDOWY � Monitorowanie napicia: CPU Vcore, +1,05V PCH, DRAM,
VCCIN AUX, VCCSA, +1,05V PROC, +0,82V PCH, +12V, +5V, +3,3V
� Microsoft� Windows� 10 64-bitowy / 11 64-bitowy
� FCC, CE � Gotowo do obslugi ErP/EuP (Wymagane zasilanie z gotowoci
obslugi ErP/EuP)
* Dla uzyskania szczeg�lowej informacji o produkcie, naley odwiedzi nasz stron internetow: http://www.asrock.com
Naley pamita, e przetaktowywanie jest zwizane z pewnym ryzykiem, wlcznie z regulacj ustawie w BIOS, zastosowaniem Untied Overclocking Technology lub uywaniem narzdzi przetaktowywania innych firm. Przetaktowywanie moe wplywa na stabilno systemu lub nawet powodowa uszkodzenie komponent�w i urzdze systemu. Powinno to zosta zrobione na wlasne ryzyko i koszt. Nie odpowiadamy za moliwe uszkodzenia spowodowane przetaktowywaniem.
Polski
95
1.3 Ustawienia zworek
Ta ilustracja pokazuje ustawienia zworek. Po umieszczeniu nasadki zworki na pinach, zworka jest "Zwarta". Jeli nasadka zworki nie jest umieszczona na pinach, zworka jest "Otwarta".
Zworka usuwania danych z pamici CMOS (CLRMOS1) (sprawd s.1, Nr 21)
2-pinowa zworka
CLRMOS1 umoliwia usunicie wszystkich danych z pamici CMOS. Aby usun i zresetowa parametry systemu do ustawie domylnych, wylcz komputer i odlcz przew�d zasilajcy od zasilania. Po odczekaniu 15 sekund, uyj nasadk zworki do zwarcia pin�w CLRMOS1 na 5 sekund. Jednak, nie naley usuwa danych z pamici CMOS zaraz po wykonaniu aktualizacji BIOS. Jeli wymagane jest usunicie danych z pamici CMOS po zakoczeniu aktualizacji BIOS, przed rozpoczciem usuwania danych z pamici CMOS naley najpierw uruchomi system, a nastpnie wylczy go. Naley pamita, e haslo, data, czas i domylny profil uytkownika zostan usunite tylko po wyjciu baterii CMOS. Naley pamita, aby po usuniciu danych z pamici CMOS, usun nasadk zworki.
Po usuniciu danych z pamici CMOS, moe by wykrywane otwarcie obudowy. Wyreguluj opcj BIOS "Clear Status (Stan usuwania)", aby usun zapis poprzedniego stanu naruszenia obudowy.
Polski
96
B660M Phantom Gaming 4
Polski
1.4 Wbudowane zlcza gl�wkowe i inne zlcza
Wbudowane zlcza gl�wkowe i inne zlcza s bezzworkowe. NIE naley umieszcza zworek nad tymi zlczami gl�wkowymi i zlczami. Umieszczanie zworek nad zlczami gl�wkowymi i zlczami spowoduje trwale uszkodzenie plyty gl�wnej.
Zlcze gl�wkowe na panelu systemu (9-pinowe PANEL1) (sprawd s.1, Nr 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Podlcz do tego zlcza gl�wkowego przelcznik zasilania, przelcznik resetowania i wskanik stanu systemu na obudowie, zgodnie z pokazanym poniej przydzialem pin�w. Przed podlczeniem kabli naley zapisa pozycj pin�w plus i minus.
PWRBTN (Przelcznik zasilania): Podlcz do przelcznika zasilania na panelu przednim obudowy. Mona skonfigurowa spos�b wylczania systemu z uyciem przelcznika zasilania.
RESET (Przelcznik resetowania): Podlcz do przelcznika resetowania na panelu przednim obudowy. Nacinij przelcznik resetowania w celu ponownego uruchomienia komputera, jeli komputer zawiesi si i nie wykona normalnego ponownego uruchomienia.
PLED (Dioda LED zasilania systemu): Podlczenie do wskanika stanu zasilania na panelu przednim obudowy. Ta dioda LED jest wlczona podczas dzialania systemu. Ta dioda LED miga, gdy system znajduje si w stanie upienia S1/S3. Ta dioda LED jest wylczona, gdy system znajduje si w stanie upienia S4 lub wylczenia zasilania (S5).
HDLED (Dioda LED aktywnoci dysku twardego): Podlczenie do diody LED aktywnoci dysku twardego na panelu przednim obudowy. Dioda LED jest wlczona, podczas odczytu lub zapisu danych przez dysk twardy.
Konstrukcja panelu przedniego zaley od obudowy. Modul panelu przedniego zawiera przede wszystkim przelcznik zasilania, przelcznik resetowania, diod LED zasilania, diod LED aktywnoci dysku twardego, glonik, itd. Po podlczeniu modulu panelu przedniego obudowy do tego zlcza gl�wkowego upewnij si, e jest prawidlowo dopasowany przydzial przewod�w i przydzial pin�w.
Zlcze gl�wkowe naruszenia obudowy i glonika (7-pinowe SPK_CI1) (sprawd s.1, Nr 17)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Podlcz to tego zlcza gl�wkowego naruszenie obudowy i glonik obudowy.
97
Zlcza Serial ATA3 Pionowy: (SATA3_0: sprawd s.1, Nr 11) (SATA3_1: sprawd s.1, Nr 12) Kt prosty: (SATA3_2: sprawd s.1, Nr 9) (G�rny) (SATA3_3: sprawd s.1, Nr 8) (Dolny)
Zlcza gl�wkowe USB 2.0 (9-pinowe USB_3_4) (sprawd s.1, Nr 16) (9-pinowe USB_5_6) (sprawd s.1, Nr 15)
SATA3_2 SATA3_3
SATA3_1 SATA3_0
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Te cztery zlcza SATA3 obsluguj kable danych SATA dla wewntrznych urzdze pamici z szybkoci transferu danych do 6,0 Gb/s.
Na tej plycie gl�wnej znajduj si dwa zlcza gl�wkowe USB 2.0. Kade zlcze gl�wkowe USB 2.0 moe obslugiwa dwa porty.
Zlcza gl�wkowe USB 3.2 Gen1 (19-pinowe USB3_5_6) (sprawd s.1, Nr 7)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Na tej plycie gl�wnej znajduje si jedno zlcze gl�wkowe USB 3.2 Gen1. To zlcze gl�wkowe USB 3.2 Gen1 moe obslugiwa dwa porty.
Zlcze gl�wkowe audio panelu przedniego (9-pinowe HD_AUDIO1) (sprawd s.1, Nr 22)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
To zlcze gl�wkowe sluy do podlczania urzdze audio do przedniego panelu audio.
Polski
98
B660M Phantom Gaming 4
Polski
1. High Definition Audio obsluguje wykrywanie gniazda, ale aby dziala prawidlowo przew�d panelu na obudowie musi obslugiwa HDA. W celu instalacji systemu naley wykona instrukcje z naszego podrcznika i podrcznika obudowy.
2. Jeli uywany jest panel audio AC'97, naley go zainstalowa w zlczu gl�wkowym audio panelu przedniego, poprzez wykonanie wymienionych poniej czynnoci: A. Podlcz Mic_IN (MIC) do MIC2_L. B. Podlcz Audio_R (RIN) do OUT2_R i Audio_L (LIN) do OUT2_L. C. Podlcz uziemienie (GND) do uziemienia (GND). D. MIC_RET i OUT_RET slu wylcznie dla panelu audio HD. Nie naley ich podlcza dla panelu audio AC'97. E. Aby uaktywni mikrofon przedni, przejd do zakladki "FrontMic" w panelu Realtek Control i wyreguluj "Glono nagrywania".
Zlcza /wentylatora pompy wodnej obudowy (4-pinowe CHA_FAN1/ WP) (sprawd s.1, Nr 23)
(4-pinowe CHA_FAN2/ WP) (sprawd s.1, Nr 18) (4-pinowe CHA_FAN3/ WP) (sprawd s.1, Nr 19)
1
GND
2
FAN_VOLTAGE
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
Ta plyta gl�wna udostpnia trzy 4-pinowe zlcza obudowy wentylatora chlodzenia wodnego. Jeli planowane jest podlczenie 3-pinowego wentylatora chlodzenia wodnego obudowy, naley go podlczy do pin�w 1-3.
1 2 3 4
Zlcze wentylatora CPU (4-pinowe CPU_FAN1) (sprawd s.1, Nr 4)
4 3 2 1
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL
Ta plyta gl�wna udostpnia 4-pinowe zlcze wentylatora CPU (Cichy wentylator). Jeli planowane jest podlczenie 3-pinowego wentylatora CPU, naley je podlczy do pin�w 1-3.
Zlcze wentylatora pompy wodnej /CPU (4-pinowe CPU_FAN2/ WP) (sprawd s.1, Nr 5)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
Ta plyta gl�wna udostpnia 4-pinowe zlcze obudowy wentylatora chlodzenia wodnego CPU. Jeli planowane jest podlczenie 3-pinowego wentylatora chlodzenia wodnego CPU, naley je podlczy do pin�w 1-3.
99
Zlcze zasilania ATX (24-pinowe ATXPWR1) (sprawd s.1, Nr 6)
12
24
1
13
Ta plyta gl�wna udostpnia 24-pinowe zlcze zasilania ATX. W celu uycia 20-pinowego zasilacza ATX, naley podlczy je wzdlu pinu 1 i pinu 13.
Zlcze zasilania ATX 12V
8
5
(8-pinowe ATX12V1)
(sprawd s.1, Nr 1)
4
1
Zlcze gl�wkowe SPI TPM (13-pinowe SPI_TPM_J1) (sprawd s.1, Nr 13)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Zlcze Thunderbolt AIC (5-pinowe TB1) (sprawd s.1, Nr 20)
Ta plyta gl�wna udostpnia 8-pinowe zlcze zasilania ATX 12 V. W celu uycia 4-pinowego zasilacza ATX, naley podlczy je wzdlu pinu 1 i pinu 5. *Ostrzeenie: Upewnij si, e podlczony kabel zasilajcy jest przeznaczony do CPU, a nie do karty graficznej. Nie podlczaj do tego zlcza kabla zasilajcego PCIe.
To zlcze obsluguje system SPI Trusted Platform Module (TPM), kt�ry moe bezpiecznie przechowywa klucze, certyfikaty cyfrowe, hasla i dane. System TPM pomaga take w zwikszeniu zabezpieczenia sieci, ochronie cyfrowych danych osobowych i zapewnieniu integralnoci platformy.
Podlcz do tego zlcza dodatkow kart ThunderboltTM (AIC) przez kabel GPIO. * Naley zainstalowa kart ThunderboltTM AIC do PCIE3 (gniazdo domylne).
Polski
100
B660M Phantom Gaming 4
1
ASRock B660M Phantom Gaming 4 . ASRock . ASRock .
BIOS , . , ASRock . , . ASRock VGA CPU . ASRock http://www.asrock.com.
1.1
� ASRock B660M Phantom Gaming 4 (Micro ATX ) � ASRock B660M Phantom Gaming 4 � ASRock B660M Phantom Gaming 4 CD � ATA (SATA) 2 ( ) � M.2 3 ( ) � I/O 1
101
1.2
CPU
� Micro ATX �
� 12 Intel� CoreTM (LGA1700) � Digi Power design � 8 � Intel� Hybrid � Intel� Turbo Boost Max Technology 3.0
� Intel� B660
� DDR4 � DDR4 DIMM 4 � DDR4 ECC, 4800+(OC) * * DDR4 3200 .
* ASRock
. (http://www.asrock.com/) � ECC UDIMM ( -ECC ) � : 128GB � Intel� Extreme Memory Profile (XMP) 2.0
� PCIe x16 2(PCIE1/PCIE3: @ Gen4x16(PCIE1), @ Gen4x16(PCIE1) / Gen3x4(PCIE3))
* NVMe SSD � PCIe Gen3x1 1 � AMD CrossFireTM � M.2 (E ) 1 , 2230 WiFi/BT PCIe WiFi
Intel� CNVi( WiFi/BT)
� Intel� UHD - VGA GPU .
� Intel� Xe (Gen 12) � : HDMI
DisplayPort 1.4
102
B660M Phantom Gaming 4
� HDMI 2.1 TMDS ( 4K x 2K (4096x2160) @ 60Hz)
� 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz DSC( ) DisplayPort 1.4 .
� HDMI 2.1 TMDS HDCP 2.3 DisplayPort 1.4
� 7.1 CH HD (Realtek ALC897 ) � � Nahimic
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Wake-On-LAN � /ESD � 802.3az � UEFI PXE
I/O
� 3 � PS/2 / 1 � HDMI 1 � DisplayPort 1.4 1 � USB 3.2 Gen1 4 (ASMedia ASM1074 ) (ESD
)
� USB 2.0 2 (ESD ) � LED RJ-45 LAN 1(ACT/LINK LED SPEED LED) � HD : / /
� SATA3 6.0 Gb/s 4 � M.2 1(M2_1, Key M), 2242/2260/2280 PCIe
Gen 4x4(64Gb/s) * � M.2 1 (M2_2, Key M), 2280 PCIe
Gen4x4(64Gb/s) * * Intel� OptaneTM (M2_2 ) * Intel� Volume Management Device(VMD)
* NVMe SSD
* ASRock U.2
103
RAID
BIOS OS
� SATA RAID 0, RAID 1, RAID 5 RAID 10
� SPI TPM 1 � 1 � CPU (4 ) 1 * CPU 1A(12W) CPU . � CPU/ (4 ) 1 ( ) * CPU/ 2A(24W) . � / (4 ) 3 ( ) * / 2A(24W) . * 3 4 , CPU_FAN2/WP CHA_FAN1~3/WP . � 24 ATX 1 � 8 12V 1 ( ) � 1 � Thunderbolt AIC 1(5)(ASRock Thunderbolt 4 AIC
) � USB 2.0 2 (USB 2.0 4 ) (ESD ) � USB 3.2 Gen1 1 (USB 3.2 Gen1 2 ) (ESD
)
� GUI AMI UEFI BIOS � ACPI 6.0 � SMBIOS 2.7 � CPU / , CPU GT, DRAM, VDD_IMC, VCCIN AUX,
+1.05V PROC, +0.82V PCH, +1.05V PCH
� : CPU, CPU/ , / � (CPU ): CPU,
CPU/ , / � : CPU, CPU/ , / � � : CPU Vcore, +1.05V PCH, DRAM, VCCIN AUX,
VCCSA, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V
� Microsoft� Windows� 10 64 / 11 64
104
B660M Phantom Gaming 4
� FCC, CE � ErP/EuP (ErP/EuP )
* : http://www.asrock.com
BIOS Untied Overclocking Technology . . . .
105
1.3
. "" . "" .
Clear CMOS (CLRMOS1) (1 , 21 )
2
CLRMOS1 CMOS . . 15 CLRMOS1 5 . BIOS CMOS . BIOS CMOS , CMOS . CMOS , , , . CMOS .
CMOS . BIOS "Clear Status( )" .
106
B660M Phantom Gaming 4
1.4
. . .
(9 PANEL1) (1 , 10 )
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
, , . .
PWRBTN( ): . .
RESET( ): . .
PLED( LED): . LED . S1/S3 LED . S4 (S5) LED .
HDLED( LED): LED . LED .
. , , LED, LED, . .
(7 SPK_CI1) (1 , 17 )
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
.
107
ATA3 : (SATA3_0: 1 , 11 ) (SATA3_1: 1 , 12 ) : (SATA3_2: 1 , 9 ) ( ) (SATA3_3: 1 , 8 ) ( )
SATA3_2 SATA3_3
SATA3_1 SATA3_0
SATA3 6.0 Gb/s SATA .
USB 2.0 (9 USB_3_4) (1 , 16 ) (9 USB_5_6) (1 , 15 )
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
USB 2.0 . USB 2.0 .
USB 3.2 Gen1 (19 USB3_5_6) (1 , 7 )
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
USB 3.2 Gen1 . USB 3.2 Gen1 2 .
(9 HD_AUDIO1) (1 , 22 )
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
.
108
B660M Phantom Gaming 4
1. HDA . .
AC'97 : A. Mic_IN (MIC) MIC2_L . B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L . C. (GND) (GND) . D. MIC_RET OUT_RET HD . AC'97 . E. Realtek "FrontMic" "Recording Volume( )" .
/ 1
2
(4 CHA_FAN1/WP)
3
4
(1 , 23 )
GND FAN_VOLTAGE
4
CHA_FAN_SPEED
3
FAN_SPEED_CONTROL
. 3
(4 CHA_FAN2/WP) (1 , 18 ) (4 CHA_FAN3/WP)
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
1-3 .
(1 , 19 ) 1 2 3 4
CPU
4 3 2 1
(4 CPU_FAN1)
(1 , 4 )
GND +12V CPU_FAN_SPEED
FAN_SPEED_CONTROL
4 CPU ( ) . 3 CPU 1-3 .
CPU/ (4 CPU_FAN2/WP) (1 , 5 )
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
4 CPU . 3 CPU 1-3 .
109
ATX (24 ATXPWR1) (1 , 6 )
ATX 12V (8 ATX12V1) (1 , 1 )
12
24
1
13
8
5
4
1
24 ATX . 20 ATX 1 13 .
8 ATX 12V . 4 ATX 1 5 . * : CPU . PCIe .
SPI TPM (13 SPI_TPM_J1) (1, 13 )
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
, , SPI TPM(Trusted Platform Module) . TPM , .
Thunderbolt AIC (5 TB1) (1, 20 )
ThunderboltTM (AIC) GPIO . * ThunderboltTM AIC PCIE3 ( ) .
110
B660M Phantom Gaming 4
1
ASRock ASRock B660M Phantom Gaming 4 ASRock
BIOS ASRock ASRock VGA CPU ASRock http://www.asrock.com.
1.1
� ASRock B660M Phantom Gaming 4 ATX
� ASRock B660M Phantom Gaming 4 � ASRock B660M Phantom Gaming 4 CD � 2 x ATA (SATA) � 3 x M.2 � 1 x I/O
111
1.2
CPU
� ATX �
� 12 Intel� CoreTM (LGA1700) � � 8 � Intel� Hybrid � Intel� Max 3.0
� Intel� B660
� DDR4 � 4 x DDR4 DIMM � 4800+(OC) DDR4 ECC
* * DDR4 3200 * ASRock (http://www.asrock.com/) � ECC UDIMM non-ECC
� 128GB � Intel� (XMP) 2.0
� 2 x PCIe x16 (PCIE1/PCIE3: Gen4x16 (PCIE1) Gen4x16 (PCIE1)/Gen3x4 (PCIE3) )
* NVMe SSD � 1 x PCIe Gen3x1 � AMD CrossFireTM � 1 x M.2 (Key E) 2230 WiFi/BT PCIe
WiFi Intel� CNVi WiFi/BT
� Intel� UHD VGA GPU
� Intel� Xe (Gen 12) �
HDMI DisplayPort 1.4
112
B660M Phantom Gaming 4
� HDMI 2.1 TMDS 4K x 2K (4096x2160) @ 60Hz
� DSC 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz DisplayPort 1.4
� HDMI 2.1 TMDS DisplayPort 1.4 HDCP 2.3
� 7.1 CH HD (Realtek ALC897 Audio Codec) � � Nahimic
LAN
� LAN 10/100/1000 Mb/s
� PHY Intel� I219V
� Wake-On-LAN
� / (ESD)
� 802.3az
� UEFI PXE
I/O
� 3 x � 1 x PS/2 / � 1 x HDMI � 1 x DisplayPort 1.4 � 4 x USB 3.2 Gen1 ASMedia ASM1074 ESD
� 2 x USB 2.0 (ESD) � LED 1 x RJ-45 LAN ACT/LINK LED SPEED
LED � HD /
/
� 4 x SATA3 6.0 Gb/s � 1 x Hyper M.2 (M2_1 M)
2242/2260/2280 PCIe Gen4x4 (64 Gb/s) * � 1 x Hyper M.2 (M2_2 M) 2280
PCIe Gen4x4 (64 Gb/s) * * Intel� OptaneTM M2_2 * Intel� (VMD) * NVMe SSD * ASRock U.2
113
RAID
BIOS
� SATA RAID 0RAID 1RAID 5 RAID 10
� 1 x SPI TPM � 1 x � 1 x CPU 4 * CPU 1A (12W) CPU � 1 x CPU/ 4
* CPU/ 2A (24W) � 3 x / 4
* / 2A (24W) * CPU_FAN2/WP CHA_FAN1~3/WP 3 4 � 1 x 24 ATX � 1 x 8 12V � 1 x � 1 x Thunderbolt AIC 5 Thunderbolt
4 AIC � 2 x USB 2.0 4 USB 2.0
(ESD) � 1 x USB 3.2 Gen1 2 USB 3.2 Gen1
(ESD)
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPU / CPU GTDRAMVDD_IMCVCCIN
AUX+1.05V PROC+0.82V PCH +1.05V PCH
114
B660M Phantom Gaming 4
� CPUCPU/ /
� CPU CPUCPU/ /
� CPUCPU/ /
� � CPU Vcore+1.05V PCHDRAMVCCIN AUX
VCCSA+1.05V PROC+0.82V PCH+12V+5V+3.3V
OS
� Microsoft� Windows� 10 64 /11 64
� FCCCE � ErP/EuP ReadyErP/EuP
* http://www.asrock.com
BIOS
115
1.3
CMOS (CLRMOS1) p.1No. 21
2
CLRMOS1 CMOS 15 CLRMOS1 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
CMOS BIOSClear Status
116
B660M Phantom Gaming 4
1.4
9 PANEL1 p.1No. 10
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN
RESET
PLED LED LED S1/S3 LED S4 S5LED
HDLED LED LED LED
LEDLED
7 SPK_CI1 p.1No. 17
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
117
SATA3_2 SATA3_3
ATA3 SATA3_0: p.1No. 11 SATA3_1: p.1No. 12 SATA3_2: p.1No. 9 SATA3_3: p.1No. 8
SATA3_1 SATA3_0
4 SATA3 6.0 Gb/s SATA
USB 2.0 9 USB_3_4 p.1No. 16 9 USB_5_6 p.1No. 15
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
2 USB 2.0 USB 2.0 2
USB 3.2 Gen1 19 USB3_5_6 p.1No. 7
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
1 USB 3.2 Gen1 USB 3.2 Gen1 2
9 HD_AUDIO1 p.1No. 22
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
118
B660M Phantom Gaming 4
1. HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET HD AC'97 E. RealtekFrontMic
/ 4 CHA_FAN1/WP p.1No. 23
4 CHA_FAN2/WP p.1No. 18 4 CHA_FAN3/WP p.1No. 19
1
GND
3
2 3
FAN_VOLTAGE CHA_FAN_SPEED
4
4
FAN_SPEED_CONTROL 3
GND FAN_VOLTAGE CHA_FAN_SPEED
1-3
FAN_SPEED_CONTROL
1 2 3 4
CPU 4 CPU_FAN1 p.1No. 4
4 3 2 1
4 CPU
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL
3 CPU 1-3
CPU/ 4 CPU_FAN2/WP p.1No. 5
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
4 CPU 3 CPU 1-3
119
ATX 24 ATXPWR1 p.1No. 6
12
24
1
13
24 ATX 20 ATX 1 13
ATX 12V 8 ATX12V1 p.1No. 1
SPI TPM 13 SPI_TPM_ J1 p.1No. 13
Thunderbolt AIC 5 TB1 p.1No. 20
120
8
5
8
ATX12V
4
1
4 ATX
1 5
*
CPU
PCIe
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI (TPM) TPM
GPIO ThunderboltTM (AIC) * PCIE3 ThunderboltTM AIC
B660M Phantom Gaming 4
1
B660M Phantom Gaming 4
BIOS VGA CPU http://www.asrock.com
1.1
� B660M Phantom Gaming 4 Micro ATX � B660M Phantom Gaming 4 � B660M Phantom Gaming 4 � 2 x ATA (SATA) � 3 x M.2 � 1 x I/O
121
1.2
CPU
� Micro ATX �
� 12 Intel� CoreTM (LGA1700) � Digi Power design � 8 � Intel� Hybrid Technology � Intel� Turbo Boost Max Technology 3.0
� Intel� B660
� DDR4 � 4 x DDR4 DIMM � DDR4 ECC 4800+(OC)* * DDR4 3200
* Memory Support List
(http://www.asrock.com/) � ECC UDIMM ECC � 128GB � Intel� Extreme Memory Profile (XMP) 2.0
� 2 x PCIe x16 PCIE1/PCIE3 - Gen4x16 (PCIE1) - Gen4x16 (PCIE1)/Gen3x4 (PCIE3)
* NVMe SSD � 1 x PCIe Gen3x1 � AMD CrossFireTM � 1 x M.2 Socket(Key E) 2230 WiFi/BT PCIe WiFi
Intel� CNVi WiFi/BT
� GPU Intel� UHD Graphics VGA
� Intel� Xe (Gen 12) � HDMI DisplayPort
1.4
122
B660M Phantom Gaming 4
� TMDS HDMI 2.160Hz 4K x 2K (4096x2160)
� DisplayPort 1.4DSC 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
� HDCP 2.3 TMDS HDMI 2.1 DisplayPort 1.4
� 7.1 CH Realtek ALC897 � � Nahimic
LAN
� Gigabit LAN 10/100/1000 Mb/s
� Giga PHY Intel� I219V
� Wake-On-LAN
� /ESD
� 802.3az
� UEFI PXE
I/O
� 3 x � 1 x PS/2 / � 1 x HDMI � 1 x DisplayPort 1.4 � 4 x USB 3.2 Gen1 ASMedia ASM1074 ESD
� 2 x USB 2.0 ESD � 1 x RJ-45 LAN LEDACT/LINK LED SPEED
LED
� / /
� 4 x SATA3 6.0 Gb/s � 1 x M.2 M2_1Key M 2242/2260/2280
PCIe Gen4x4 (64 Gb/s) * � 1 x M.2 M2_2Key M 2280 PCIe
Gen4x4 (64 Gb/s) * * Intel� OptaneTM Technology M2_2
* Intel� (VMD)
* NVMe SSD
* U.2
123
RAID
BIOS
� RAID 0RAID 1RAID 5 RAID 10 SATA
� 1 x SPI TPM � 1 x � 1 x CPU 4 * CPU 1A (12W) CPU � 1 x CPU/ 4 * CPU/ 2A (24W) � 3 x / 4 * / 2A (24W) * CPU_FAN2/WP CHA_FAN1~3/WP 3 4 � 1 x 24 ATX � 1 x 8 12V � 1 x � 1 x Thunderbolt AIC 5 ASRock Thunderbolt
4 AIC � 2 x USB 2.0 4 USB 2.0 ESD � 1 x USB 3.2 Gen1 2 USB 3.2 Gen1
ESD
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPU / CPU GTDRAMVDD_IMC
VCCIN AUX+1.05V PROC+0.82V PCH+1.05V PCH
� CPUCPU/ / � CPU
CPUCPU/ / � CPUCPU/ / � CASE OPEN � CPU Vcore+1.05V PCHDRAMVCCIN
AUXVCCSA+1.05V PROC+0.82V PCH+12V+5V +3.3V
� Microsoft� Windows� 10 64 /11 64
124
B660M Phantom Gaming 4
� FCCCE � ErP/EuP ErP/EuP
* http://www.asrock.com
BIOS ""
125
1.3
"" ""
CMOS (CLRMOS1) 1 21
2
CLRMOS1 CMOS 15 CLRMOS1 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
CMOS BIOS "Clear Status"
126
B660M Phantom Gaming 4
1.4
9 PANEL1 1 10
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN
RESET
PLED LED LED S1/S3 LED S4 (S5) LED
HDLED LED LED LED
LED LED
7 SPK_CI1 1 17
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
127
ATA3 SATA3_0: 1 11 SATA3_1: 1 12 SATA3_2: 1 9 SATA3_3: 1 8
SATA3_2 SATA3_3
SATA3_1 SATA3_0
SATA3 6.0 Gb/s SATA
USB 2.0 9 USB_3_4 1 16 9 USB_5_6 1 15
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
2 USB 2.0 USB 2.0
USB 3.2 Gen1 19 USB3_5_6 1 7
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
USB 3.2 Gen1 USB 3.2 Gen1
9 HD_AUDIO1 1 22
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
128
B660M Phantom Gaming 4
1. HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET AC'97 E. Realtek "FrontMic" "Recording Volume"
/
1
4 CHA_FAN1/WP
2 3
4
1 23
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
4 CHA_FAN2/WP 1 18 4 CHA_FAN3/WP 1 19
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
1 2 3 4
4 3 1-3
CPU
4 3 2 1
4 CPU_FAN1 1 4
GND +12V CPU_FAN_SPEED FAN_SPEED_CONTROL
4 CPU 3 CPU 1-3
CPU/ 4 CPU_FAN2/WP 1 5
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
4 3 CPU 1-3
129
ATX 24 ATXPWR1 1 6
12
24
24 ATX 20 ATX 1 13
1
13
ATX 12V
8
8 ATX12V1
1 1
4
5
8 ATX 12V
4 ATX
1
1 5
*
CPU
PCIe
SPI TPM 13 SPI_TPM_J1 1 13
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI Trusted Platform ModuleTPM TPM
Thunderbolt AIC 5 TB1 1 20
GPIO ThunderboltTM (AIC) * ThunderboltTM AIC PCIE3
130
B660M Phantom Gaming 4
SJ/T 11364-2006 10
(Pb) (Cd) (Hg) (Cr(VI)) (PBB) (PBDE)
X
O
O
O
O
O
X
O
O
O
O
O
O: SJ/T 11363-2006 X: SJ/T 11363-2006 2002/95/EC
131
1
B660M Phantom Gaming 4
BIOS VGA CPU http://www.asrock.com
1.1
� B660M Phantom Gaming 4 Micro ATX � B660M Phantom Gaming 4 � B660M Phantom Gaming 4 � 2 x Serial ATA (SATA) � 3 x M.2 � 1 x I/O
132
B660M Phantom Gaming 4
1.2
CPU
� Micro ATX �
� 12 Intel� CoreTM (LGA1700) � Digi Power design � 8 � Intel� � Intel� Turbo Boost Max 3.0
� Intel� B660
� DDR4 � 4 x DDR4 DIMM � DDR4 ECC 4800+(OC)* * DDR4 3200
*
(http://www.asrock.com/) � ECC UDIMM ECC � 128GB � Intel� Extreme Memory Profile (XMP) 2.0
� 2 x PCIe x16 PCIE1/PCIE3 Gen4x16 (PCIE1) Gen4x16 (PCIE1) / Gen3x4 (PCIE3)
* NVMe SSD � 1 x PCIe Gen3x1 � AMD CrossFireTM � 1 x M.2 (Key E) 2230 WiFi/BT PCIe WiFi
Intel� CNVi WiFi/BT
� GPU Intel� UHD Graphics Built-in Visuals VGA
� Intel� Xe 12 � HDMI DisplayPort
1.4
133
� 4K x 2K (4096x2160) @ 60Hz HDMI 2.1 TMDS
� DisplayPort 1.4DSC ( ) 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
� HDCP 2.3 HDMI 2.1 TMDS DisplayPort 1.4
� 7.1 CH HD Realtek ALC897 � � Nahimic
LAN
� Gigabit LAN 10/100/1000 Mb/s
� Giga PHY Intel� I219V
�
�
� 802.3az EEE
� UEFI PXE
I/O
� 3 x � 1 x PS/2 � 1 x HDMI � 1 x DisplayPort 1.4 � 4 x USB 3.2 Gen1 ASMedia ASM1074
� 2 x USB 2.0 � 1 x RJ-45 LAN LEDACT/LINK LED SPEED
LED
� HD
� 4 x SATA3 6.0 Gb/s � 1 x Hyper M.2 M2_1Key M 2242/2260/2280
PCIe Gen4x4 (64 Gb/s) * � 1 x Hyper M.2 M2_2Key M 2280 PCIe
Gen4x4 (64 Gb/s) * * Intel� OptaneTM M2_2
* Intel� (VMD)
* NVMe SSD
* U.2
134
B660M Phantom Gaming 4
RAID
� SATA RAID 0RAID 1RAID 5 RAID 10
� 1 x SPI TPM � 1 x � 1 x CPU (4-pin) * CPU 1A (12W) CPU � 1 x CPU (4-pin) * CPU 2A (24W)
� 3 x (4-pin) * 2A (24W)
* 3-pin 4-pin CPU_FAN2/WP
CHA_FAN1~3/WP � 1 x 24 pin ATX � 1 x 8 pin 12V � 1 x � 1 x Thunderbolt AIC 5-pin Thunderbolt 4
AIC � 2 x USB 2.0 4 USB 2.0 � 1 x USB 3.2 Gen1 2 USB 3.2 Gen1
BIOS
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPU CPU GTDRAMVDD_IMCVCCIN
AUX+1.05V PROC+0.82V PCH+1.05V PCH
� CPUCPU / / � CPU CPU
CPU / / � CPUCPU / /
� � CPU Vcore+1.05V PCHDRAMVCCIN
AUXVCCSA+1.05V PROC+0.82V PCH+12V+5V
+3.3V
135
� Microsoft� Windows� 10 64 / 11 64
� FCCCE � ErP/EuP Ready ErP/EuP ready
* http://www.asrock.com
BIOS
136
B660M Phantom Gaming 4
1.3
CMOS (CLRMOS1) 1 21
2-pin
CLRMOS1 CMOS 15 CLRMOS1 pin 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
CMOS BIOS
137
1.4
(9-pin PANEL1) 1 10
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN
RESET
PLED LED LED S1/S3 LED S4 (S5) LED
HDLED LED LEDLED
LED LED
(7-pin SPK_CI1) 1 17
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
138
SATA3_2 SATA3_3
B660M Phantom Gaming 4
Serial ATA3 SATA3_0: 1 11 SATA3_1: 1 12 SATA3_2: 1 9 SATA3_3: 1 8
SATA3_1 SATA3_0
SATA3 SATA 6.0 Gb/s
USB 2.0 9-pin USB_3_4) 1 16 9-pin USB_5_6) 1 15
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
USB 2.0 USB 2.0
USB 3.2 Gen1 19-pin USB3_5_6) 1 7
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
USB 3.2 Gen1 USB 3.2 Gen1
9-pin HD_AUDIO1) 1 22
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
139
1. (Jack Sensing) HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET HD AC'97 E. Realtek FrontMic
1
2
4-pin CHA_FAN1/WP) 3
4
1 23
GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL
4-Pin 3-Pin CPU
Pin 1-3
4-pin CHA_FAN2/WP)
GND FAN_VOLTAGE
1 18
CHA_FAN_SPEED
4-pin CHA_FAN3/WP)
FAN_SPEED_CONTROL
1 19
1 2 3 4
CPU
4 3 2 1
4-pin CPU_FAN1)
1 4
GND +12V CPU_FAN_SPEED
FAN_SPEED_CONTROL
4-Pin CPU 3-Pin CPU Pin 1-3
CPU 4-pin CPU_FAN2/WP) 1 5
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
4-Pin CPU 3-Pin CPU Pin 1-3
140
B660M Phantom Gaming 4
ATX (24-pin ATXPWR1)
12
24
1 6
1
13
24-pin ATX 20-pin ATX Pin 1 Pin 13
ATX 12V
8
(8-pin ATX12V1)
1 1
4
5
8-pin ATX
12V 4-pin
1
ATX Pin 1
Pin 5
* CPU
PCIe
SPI TPM (13-pin SPI_TPM_J1) 1 13
SPI_DQ3
SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI (TPM) TPM
Thunderbolt AIC (5-pin TB1) 1 20
GPIO ThunderboltTM (AIC) * ThunderboltTM AIC PCIE3 ( )
141
Bahasa Indonesia
Spesifikasi
Platform
� Bentuk dan Ukuran Micro ATX � Desain Kapasitor Solid
CPU
� Mendukung Prosesor Intel� CoreTM Gen ke-12 (LGA1700)
� Desain Digi Power
� Desain 8 Fase Daya
� Mendukung Teknologi Intel� Hybrid
� Mendukung Teknologi Intel� Turbo Boost Max 3.0
Chipset
� Intel� B660
Memori
� Teknologi Memori DDR4 Dua Saluran � 4 x Slot DIMM DDR4 � Mendukung memori DDR4 non-ECC, tanpa buffer hingga
4800+(OC)* * Mendukung DDR4 3200 secara native. * Lihat Daftar Dukungan Memori pada situs web ASRock untuk informasi selengkapnya. (http://www.asrock.com/) � Mendukung modul memori ECC UDIMM (berjalan dalam mode
non-ECC) � Kapasitas maksimum memori sistem: 128GB � Mendukung Intel� Extreme Memory Profile (XMP) 2.0
Slot Ekspansi
� 2 slot PCIe x16 (PCIE1/PCIE3: satu pada Gen4x16 (PCIE1); dua pada Gen4x16(PCIE1) / Gen3x4 (PCIE3))
* Mendukung SSD NVMe sebagai disk boot � 1 slot PCIe Gen3x1 � Mendukung AMD CrossFireTM � 1 x Soket M.2 (Tombol E), mendukung modul jenis 2230 WiFi/
WiFi BT PCIe dan Intel� CNVi (WiFi/BT terintegrasi)
Grafis
� Intel� UHD Graphics Built-in Visuals dan output VGA hanya didukung dengan prosesor yang terintegrasi GPU.
� Arsitektur Grafis Intel� Xe (Gen 12) � Output grafis ganda: Mendukung port HDMI dan DisplayPort 1.4
melalui pengontrol layar mandiri
142
B660M Phantom Gaming 4
Bahasa Indonesia
� Mendukung HDMI 2.1 TMDS Kompatibel dengan maks. resolusi hingga 4K x 2K (4096x2160) @ 60Hz
� Mendukung DisplayPort 1.4 dengan resolusi maks, DSC (terkompresi) hingga 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
� Mendukung HDCP 2.3 dengan Port HDMI 2.1 yang Kompatibel dengan TMDS dan DisplayPort 1.4
Audio
� Audio HD 7.1 CH (Realtek ALC897 Audio Codec) � Mendukung Perlindungan dari Lonjakan Arus � Audio Nahimic
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Mendukung Wake-On-LAN � Mendukung Perlindungan dari Petir/ESD � Mendukung Ethernet 802.3az Hemat Energi � Mendukung UEFI PXE
I/O Panel Belakang
� 3 x Titik Pemasangan Antena � 1 x Port Mouse/Keyboard PS/2 � 1 x Port HDMI � 1 x DisplayPort 1.4 � 4 x Port USB 3.2 Gen1 (ASMedia ASM1074 hub) (Mendukung
Perlindungan ESD) � 2 x Port USB 2.0 (Mendukung Perlindungan dari ESD) � 1 x Port LAN RJ-45 dengan LED (LED ACT/LINK dan LED
SPEED) � Soket Audio HD: Saluran Masuk/Speaker Depan/Mikrofon
Penyimpanan
� 4 x Konektor SATA3 6,0 Gb/s � 1 x Soket Hyper M.2 (M2_1, Key M), mendukung PCIe tipe
2242/2260/2280 mode Gen4x4 (64 Gb/s)* � 1 x Soket Hyper M.2 (M2_2, Key M), mendukung PCIe tipe 2280
mode Gen4x4 (64 Gb/s)* ** Mendukung Intel� OptaneTM Technology (hanya M2_2) * Mendukung Intel� Volume Management Device (VMD) * Mendukung SSD NVMe sebagai disk boot * Mendukung Kit U.2 ASRock
143
Bahasa Indonesia
RAID Konektor
Fitur BIOS
� Mendukung RAID 0, RAID 1, RAID 5 dan RAID 10 untuk perangkat penyimpanan SATA
� 1 x Header SPI TPM � 1 x Intrusi Sasis dan Header Speaker � 1 x Konektor Kipas CPU (4-pin) * Konektor Kipas CPU mendukung kipas CPU dengan daya kipas maksimum 1A (12W). � 1 x Konektor Kipas CPU/Pompa Air (4-pin) (Kontrol Kecepatan
Kipas Pintar) * CPU/Kipas Pompa Air mendukung kipas berpendingin air dengan daya kipas maksimum 2A (24W). � 3 x Konektor Sasis/Kipas Pompa Air (4-pin) (Kontrol Kecepatan
Kipas Pintar) * Chassis/Kipas Pompa Air mendukung kipas berpendingin air dengan daya kipas maksimum 2A (24W). * CPU_FAN2/WP dan CHA_FAN1~3/WP dapat mendeteksi otomatis jika kipas 3-pin atau 4-pin sedang digunakan. � 1 x Konektor Daya ATX 24 pin � 1 x Konektor Daya 12 V 8 pin (Konektor Daya dengan Densitas
Tinggi) � 1 x Konektor Audio Panel Depan � 1 x Konektor Thunderbolt AIC (5-pin) (Mendukung Thunderbolt 4
AIC) � 2 x Header USB 2.0 (Mendukung 4 port USB 2.0) (Mendukung
Perlindungan dari ESD) � 1 x Header USB 3.2 Gen1 (Mendukung 2 port USB 3.2 Gen1)
(Mendukung Perlindungan dari ESD)
� AMI UEFI Legal BIOS dengan dukungan GUI multibahasa � ACPI 6.0 Kompatibel dengan aktivitas pengaktifan � Dukungan SMBIOS 2.7 � CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX,
+1,05V PROC, +0,82V PCH, Multi penyesuaian Tegangan +1,05V PCH
144
Bahasa Indonesia
B660M Phantom Gaming 4
Monitor Perangkat Keras
OS Sertifikasi
� Takometer Kipas: Kipas CPU, CPU/Pompa Air, Sasis/Pompa Air � Kipas Hening (Penyesuaian otomatis kecepatan kipas sasis
berdasarkan suhu CPU): Kipas CPU, CPU/Pompa Air, Sasis/Pompa Air � Kontrol Multikecepatan Kipas: Kipas CPU, CPU/Pompa Air, Sasis/ Pompa Air � Deteksi CASE OPEN � Pemantauan tegangan: CPU Vcore, +1,05V PCH, DRAM, VCCIN AUX, VCCSA, +1,05V PROC, +0,82V PCH, +12V, +5V, +3,3V
� Microsoft� Windows� 10 64-bit / 11 64-bit
� FCC, CE � Mendukung ErP/EuP (Memerlukan catu daya untuk ErP/EuP)
* Untuk informasi rinci tentang produk, kunjungi situs web kami: http://www.asrock.com
Perlu diketahui, overclocking memiliki risiko tertentu, termasuk menyesuaikan pengaturan pada BIOS, menerapkan Teknologi Untied Overclocking, atau menggunakan alat bantu overclocking pihak ketiga. Overclocking dapat mempengaruhi stabilitas sistem, atau bahkan mengakibatkan kerusakan komponen dan perangkat sistem. Risiko dan biaya apa pun menjadi tanggungan Anda. Kami tidak bertanggung jawab atas kemungkinan kerusakan karena overclocking.
145
Contact Information
If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp
ASRock Incorporation 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)
ASRock EUROPE B.V. Bijsterhuizen 11-11 6546 AR Nijmegen The Netherlands Phone: +31-24-345-44-33 Fax: +31-24-345-44-38
ASRock America, Inc. 13848 Magnolia Ave, Chino, CA91710 U.S.A. Phone: +1-909-590-8308 Fax: +1-909-590-1026
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: ASRock Incorporation Address: 13848 Magnolia Ave, Chino, CA91710
Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product
Product Name : Motherboard Model Number : B660M Phantom Gaming 4 Conforms to the following specifications:
FCC Part15, SubpartB,Unintentional Radiators Supplementary Information:
is device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) is device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Representative Person's Name: James
Signature : Date : May 12, 2017
EU Declaration of Conformity
For the following equipment: Motherboard (Product Name)
B660M Phantom Gaming4 / ASRock (Model Designation / Trade Name)
ASRock Incorporation (Manufacturer Name)
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address)
EMC Directive - 2014/30/EU
�EN 55032:2015/A11:2020 �EN 61000-3-2:2014 �EN 61000-3-3:2013
�EN 55024:2010/A1:2015 �EN 55035:2017/A11:2020 �EN 61000-4-2:2009 �EN 61000-4-3:2006/A1:2008/A2:2010 �EN 61000-4-4:2012 �EN 61000-4-5:2014/A1:2017 �EN 61000-4-6:2014/AC:2015 �EN 61000-4-8:2010 �EN 61000-4-11:2004/A1:2017
Low Voltage Directive - 2014/35/EU
�EN 62368-1:2014 �EN 62368-1:2014/A11:2017
RoHS Directive - 2011/65/EU
�(EU) 2015/863�EN 50581:2012
CE marking
(EU conformity marking)
ASRock EUROPE B.V. (Company Name)
Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands (Company Address)
Person responsible for making this declaration:
(Name, Surname) A.V.P (Position / Title) January 21, 2022 (Date)
P/N: 15G062346000AK V1.0
