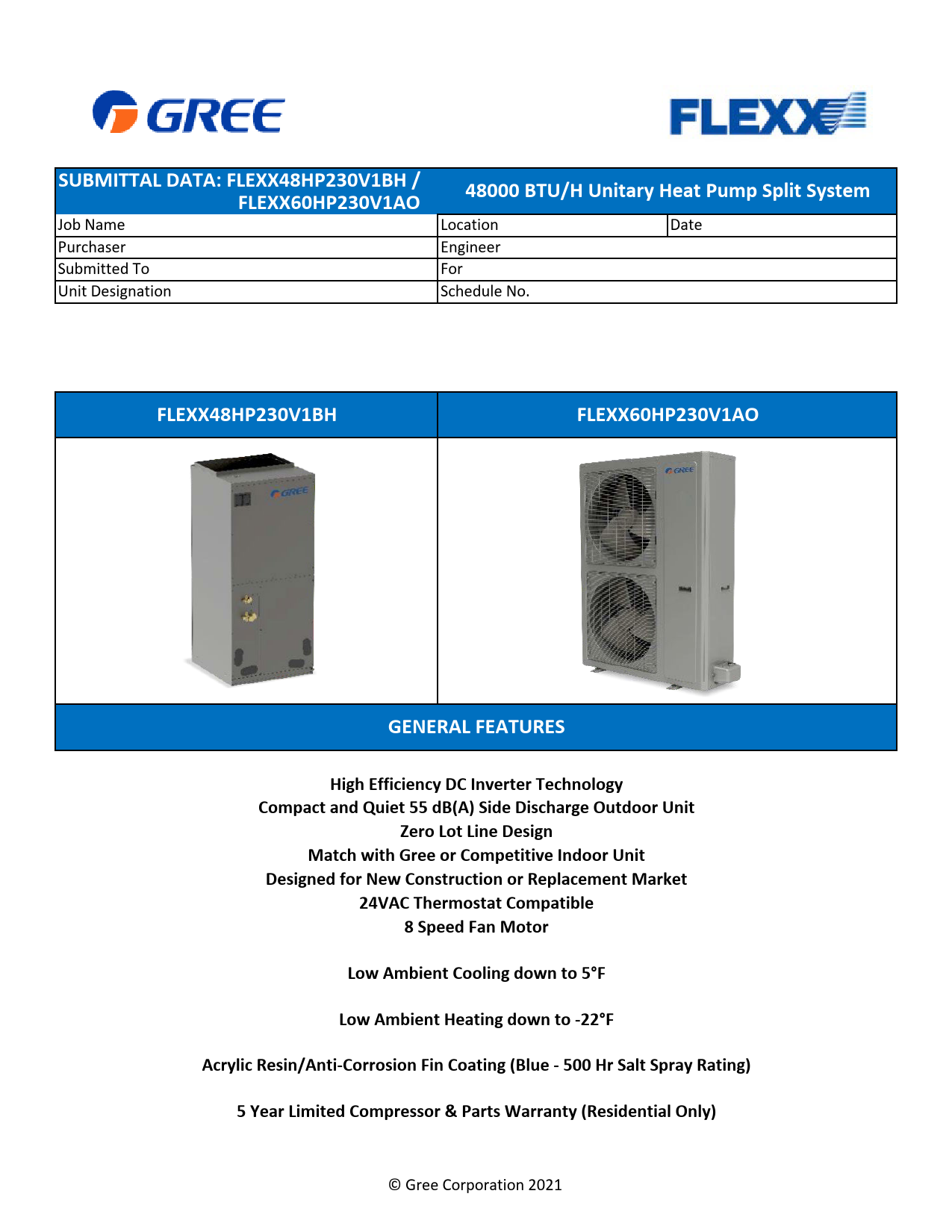

SUBMITTAL DATA: FLEXX48HP230V1BH / FLEXX60HP230V1AO
Job Name
Purchaser
Submitted To
Unit Designation

48000 BTU/H Unitary Heat Pump Split System

Location

Date

Engineer

For

Schedule No.

FLEXX48HP230V1BH

FLEXX60HP230V1AO

GENERAL FEATURES
High Efficiency DC Inverter Technology Compact and Quiet 55 dB(A) Side Discharge Outdoor Unit
Zero Lot Line Design Match with Gree or Competitive Indoor Unit Designed for New Construction or Replacement Market
24VAC Thermostat Compatible 8 Speed Fan Motor
Low Ambient Cooling down to 5�F
Low Ambient Heating down to -22�F
Acrylic Resin/Anti-Corrosion Fin Coating (Blue - 500 Hr Salt Spray Rating)
5 Year Limited Compressor & Parts Warranty (Residential Only)
� Gree Corporation 2021

SPECIFICATIONS

FLEXX48HP230V1BH / FLEXX60HP230V1AO

System Type

SYSTEM PERFORMANCE Rated Capacity @ 95�F

Cooling

Min-Max Capacity

Rated Power Input (Min - Max)

Rated Capacity @ 47�F

Heating

Rated Capacity @ 17�F Min-Max Capacity

Rated Power Input (Min - Max)

SEER / EER

HSPF / COP

Energy Star�

Cooling Temperature Range

Heating Temperature Range

INDOOR UNIT

Fan Motor Output Power

Fan Motor FLA

Air Flow (Min - Max)

Static Pressure (Rated / Maximum)

Sound Pressure Level (Cooling / Heating)

Dehumidification

Condensate Drain Size (OD)

Unit Dimension (WxHxD)

Package Dimension (WxHxD)

Weight (Net / Gross)

Electric Heater (Optional)

OUTDOOR UNIT

Compressor Type

Compressor RLA

Fan Motor Output Power

Fan Motor (2)

Sound Pressure Level (Cooling / Heating)

Unit Dimension (WxHxD)

Package Dimension (WxHxD)

Weight (Net / Gross)

Refrigerant Charge - R410A

Coil Type (Blue Fin)

REFRIGERANT PIPING

Line Set Size (Liquid - Gas)

Pre-Charge Lengh

Additional Charge

Pipe Length (Min - Max)

Max. Pipe Elevation

ELECTRICAL

Power Supply (Voltage Operating Range)

Outdoor

Rated Current (Cooling / Heating)

Unit

MCA / MOCP

Indoor

Rated Current (Cooling / Heating)

Unit

MCA / MOCP

Main Power Wire Size

LIMITED WARRANTY

HEAT PUMP

Btu/h Btu/h
W Btu/h Btu/h Btu/h
W
�F �F
W amps CFM In w.c dB(A) pt/hr
in in in lbs kW
amps W
amps dB(A)
in in lbs oz

48000 34000 - 48000
48000 33000 34000 - 52000
18 / 11 10.5 / 3.6
NO 5 - 129 -22 - 75 FLEXX48HP230V1BH
746 5
1380 0.2 / 1.0
50 9.94 3 / 4 24 3/4 x 57 x 21 1/4 27 5/16 x 59 3/8 x 26 202 / 218 10, 15, 20 FLEXX60HP230V1AO Inverter Rotary 19 149 1.5 Ea 58 39 3/8 x 53 5/8 x 14 1/2 45 7/16 � 59 1/4 � 19 7/16 308 / 337 220.5 Copper Tube / Aluminum Fin

in

3/8 - 3/4

ft

31

oz/ft

0.32

ft

10 - 100

ft

50

208/230V / 1Ph / 60 Hz

amps

30 / 31

amps

35 / 45

amps

5/ 5

amps

8 / 15

AWG

Size Per Local Code

5 Years Parts and Compressor - Residential

� Gree Corporation 2021

FAN PERFORMANCE

FLEXX48HP230V1BH

2500

2000

1500

Airflow -

1000

CFM

500

0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Static Pressure-Inches W.C.

Speed 1-CFM Speed 2-CFM Speed 3-CFM Speed 4-CFM Speed 5-CFM Speed 6-CFM Speed 7-CFM Speed 8-CFM

Static

Pressure-

0

Inches W.C.

Speed 1-CFM Speed 2-CFM Speed 3-CFM Speed 4-CFM Speed 5-CFM Speed 6-CFM Speed 7-CFM Speed 8-CFM

1640 1680 1810 1930 2200 2240 2280 2300

0.1
1500 1560 1690 1830 2110 2190 2240 2260

0.15
1450 1500 1620 1770 2040 2145 2200 2220

0.2
1350 1380 1550 1710 1980 2100 2180 2190

0.3
1300 1380 1580 1860 2010 2130 2140

0.4
1430 1720 1870 2080 2090

0.5
1280 1620 1750 2000 2040

0.6
1490 1615 1880 1980

0.7
1380 1500 1750 1930

0.8
1380 1600 1800

0.9
1420 1700

1.0 1550

� Gree Corporation 2021

EXTENDED RATINGS

FLEXX48HP230V1BH / FLEXX60HP230V1AO

COOLING PERFORMANCE

HEATING PERFORMANCE

Outdoor Ambient Temperature (DB)

Return Air Temperature 80�F (DB)

TC (Btu/h) SHR

EER

Power Input (W)

Outdoor Ambient Temperature (DB)

Return Air Temperature 70�F (DB)

TC (Btu/h)

COP

Power Input (W)

MAX OUTPUT MAX OUTPUT

5�F 10�F 15�F 20�F 25�F 30�F 35�F 40�F 45�F 50�F 55�F 60�F 65�F 70�F 75�F 80�F 85�F 90�F 95�F 100�F 105�F 110�F 115�F 120�F 125�F 129�F

48000 48000 48000 48000 48000 48000 48000 48000 48000 48000 48000 48000 48000 48000 48000 48000 48900 48900 48900 48900 48000 46000 43500 36000 31000 27000

71.5% 73.8% 73.0% 74.0% 74.6% 72.8% 73.9% 72.5% 74.2% 73.0% 73.8% 74.0% 73.0% 74.5% 72.8% 73.4% 72.5% 74.7% 73.0% 73.8% 72.0% 73.9% 74.0% 71.7% 70.6% 71.0%

15.74 15.53 15.38 15.29 15.19 15.14 15.00 14.72 14.41 14.12 13.71 13.22 12.80 12.63 12.47 12.06 11.93 11.11 10.36 9.78 9.06 9.02 8.95 8.00 7.05 6.21

3050 3090 3120 3140 3160 3170 3200 3260 3330 3400 3500 3630 3750 3800 3850 3980 4100 4400 4720 5000 5300 5100 4860 4500 4400 4350

-22�F 26400 1.36 5700 -20�F 27000 1.37 5800 -15�F 28500 1.42 5900 -10�F 32000 1.55 6050 -5�F 34200 1.62 6200 0�F 38000 1.71 6500 5�F 43000 1.82 6920 10�F 45000 1.91 6900 15�F 47000 2.00 6890 17�F 48000 2.05 6880 20�F 48000 2.17 6500 25�F 48000 2.27 6200 30�F 48000 2.41 5850 35�F 48000 2.56 5500 40�F 48000 2.82 5000 45�F 49000 3.19 4500 47�F 50000 3.48 4210 50�F 50000 3.49 4200 55�F 51000 3.52 4250 60�F 52000 3.55 4300 65�F 52000 3.56 4280 70�F 52000 3.59 4250 75�F 48000 3.66 3850

LEGEND:

W - Watts DB - Dry Bulb TC - Total Capacity SHR - Sensible Heat Ratio COP - Coeffecient of Performance

� Gree Corporation 2021

FEATURES SUMMARY

FLEXX48HP230V1BH / FLEXX60HP230V1AO

SYSTEM FEATURES Compressor Ultra Low Frequency Torque Control Power Factor Correction Compressor Type Refrigerant Type Outdooor Electronic Expansion Valve (EEV) Indoor TXV Control Basepan With Electric Heater Compressor With Electric Heater Fin Coating (Outdoor & Indoor) Intelligent Defrosting Intelligent Preheating Low Voltage Startup Memory/Power Failure Recovery Self Diagnosis Low Ambient Cooling 24VAC Thermostat Compatible Indoor Fan Type Multi Fan Speeds Auxiliary Electrical Heater

Inverter YES YES Rotary
R410A YES YES YES YES
Acrylic Resin YES YES YES YES YES YES YES
Centrifugal 8 Speeds Optional

� Gree Corporation 2021

DIMENSIONS & CLEARANCES

FLEXX48HP230V1BH

Dimensions

A

11 5/8

B

20

H

57

W

24 3/4

D

21 1/4

Filter Size Supplied* 20 5/8 x 20 5/16 x 1/2 Suggested 20 5/8 x 20 5/16 x 1 *Supplied filter is metal mesh
Clearances Front > 24
Allow a minimum of 24" in front of the unit for service clearance. When installing in an area directly over a finished ceiling (such as an attic), an emergency drain pan is required directly under the unit. See local and state codes for requirements. When installing this unit in an area that may become wet, elevate the unit with a sturdy, non-porous material. In installations that may lead to physical damage (i.e. a garage) it is advised to install a protective barrier to prevent such damage. This air handler is designed for a complete supply and return ductwork system.
Multi-Position Capabilities

� Gree Corporation 2021

ACCESSORY HEATER AND GENERAL INFORMATION

FLEXX48HP230V1BH

Model

Heat Kit Model

FLEXXHTR10KW FLEXXHTR15KW FLEXX48HP230V1BH FLEXXHTR20KW 21-4216-01 21-4217-00 21-4228-00

Electric Heat (kW)

240V 10 15 20 10 15 20

208V 7.51 11.25 15.02 7.51 11.25 15.02

Min. Circuit Ampacity
Heater Only

Max.Fuse or Breaker

- Ampacity

-

Heater Only

240V 52

208V 45

240V 60

208V 45

52 & 26 45 & 22.6 60 & 30 45 & 25

52 & 52 52
52 & 26 52 & 52

45 & 45 45
45 & 22.6 45 & 45

60 & 60 60
60 & 30 60 & 60

45 & 45 45
45 & 25 45 & 45

� Gree Corporation 2021

DIMENSIONS & CLEARANCES

FLEXX60HP230V1AO

Dimensions

A

42 3/4

B

16 7/8

C

53 5/8

D

24 3/8

E

15 5/8

G

14 1/2

W

39 3/8

Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specificaitons or designs without notice or without incurring obligations. All Rights reserved.
� Gree Corporation 202C1at No. GREE_FLEXX48BH_60HP230V1AO_SUBMITTAL_09142021
