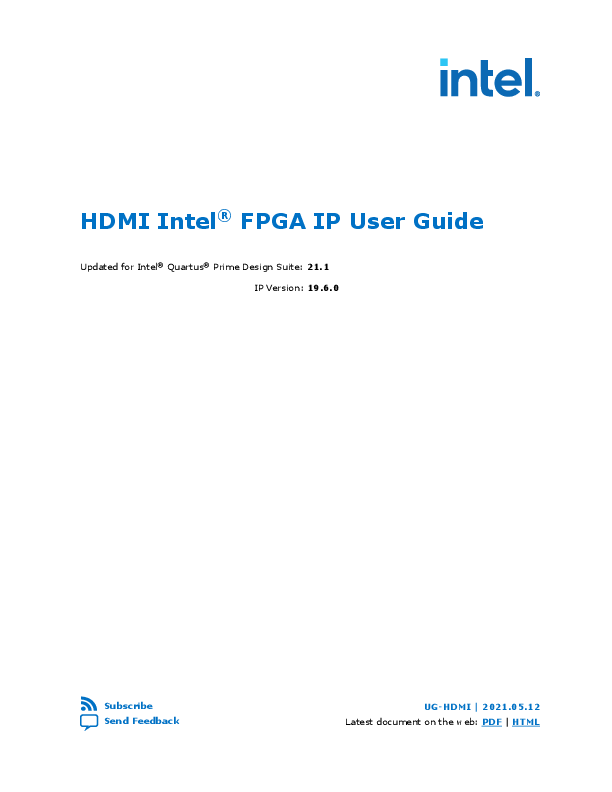

HDMI Intel� FPGA IP User Guide
Updated for Intel� Quartus� Prime Design Suite: 21.1 IP Version: 19.6.0
Subscribe Send Feedback
UG-HDMI | 2021.05.12 Latest document on the web: PDF | HTML
Contents
Contents
1. HDMI Intel� FPGA IP Quick Reference............................................................................ 4
2. HDMI Overview............................................................................................................... 6 2.1. Release Information............................................................................................. 12 2.2. Device Family Support.......................................................................................... 13 2.3. Feature Support...................................................................................................14 2.4. Resource Utilization..............................................................................................14
3. HDMI Intel FPGA IP Getting Started............................................................................. 17 3.1. Installing and Licensing Intel FPGA IP Cores............................................................ 17 3.1.1. Intel FPGA IP Evaluation Mode................................................................... 18 3.2. Specifying IP Parameters and Options.....................................................................20
4. HDMI Hardware Design Examples................................................................................. 21 4.1. HDMI Hardware Design Examples for Intel Arria 10, Intel Cyclone 10 GX, and Intel Stratix 10 Devices............................................................................................. 21 4.2. HDCP Over HDMI Design Example for Intel Arria 10 and Intel Stratix 10 Devices.......... 21 4.3. HDMI Hardware Design Examples for Arria V and Stratix V Devices.............................22 4.3.1. HDMI Hardware Design Components.......................................................... 22 4.3.2. HDMI Hardware Design Requirements.........................................................37 4.3.3. Design Walkthrough................................................................................. 38
5. HDMI Source................................................................................................................. 42 5.1. Source Functional Description................................................................................42 5.1.1. Source Scrambler, TMDS/TERC4 Encoder.....................................................43 5.1.2. Source Video Resampler........................................................................... 44 5.1.3. Source Window of Opportunity Generator.................................................... 46 5.1.4. Source Auxiliary Packet Encoder.................................................................46 5.1.5. Source Auxiliary Packet Generators............................................................ 48 5.1.6. Source Auxiliary Data Path Multiplexers...................................................... 48 5.1.7. Source Auxiliary Control Port..................................................................... 48 5.1.8. Source Audio Encoder...............................................................................53 5.1.9. HDCP 1.4 TX Architecture......................................................................... 59 5.1.10. HDCP 2.3 TX Architecture........................................................................63 5.1.11. FRL Packetizer....................................................................................... 69 5.1.12. FRL Character Block and Super Block Mapping........................................... 69 5.1.13. Reed-Solomon (RS) Forward Error Correction (FEC) Generation and Insertion.................................................................................................69 5.1.14. FRL Scrambler and Encoder..................................................................... 69 5.1.15. Source FRL Resampler............................................................................ 69 5.1.16. TX Oversampler..................................................................................... 70 5.1.17. Clock Enable Generator...........................................................................70 5.1.18. I2C Master.............................................................................................71 5.2. Source Interfaces................................................................................................ 71 5.3. Source Clock Tree................................................................................................ 84 5.4. Link Training Procedure.........................................................................................85 5.5. FRL Clocking Scheme........................................................................................... 86 5.6. Valid Video Data.................................................................................................. 88 5.7. Source Deep Color Implementation When Support FRL = 0........................................89
HDMI Intel� FPGA IP User Guide 2
Send Feedback
Contents
5.8. Source Deep Color Implementation When Support FRL = 1.......................................90
6. HDMI Sink.....................................................................................................................92 6.1. Sink Functional Description................................................................................... 92 6.1.1. Sink Word Alignment and Channel Deskew.................................................. 93 6.1.2. Sink Descrambler, TMDS/TERC4 Decoder.................................................... 96 6.1.3. Sink Video Resampler............................................................................... 96 6.1.4. Sink Auxiliary Decoder..............................................................................97 6.1.5. Sink Auxiliary Packet Capture.................................................................... 98 6.1.6. Sink Auxiliary Data Port............................................................................ 99 6.1.7. Sink Audio Decoder................................................................................ 100 6.1.8. Status and Control Data Channel (SCDC) Interface..................................... 100 6.1.9. HDCP 1.4 RX Architecture........................................................................101 6.1.10. HDCP 2.3 RX Architecture......................................................................106 6.1.11. FRL Depacketizer..................................................................................110 6.1.12. Sink FRL Character Block and Super Block Demapper................................ 110 6.1.13. Sink FRL Descrambler and Decoder.........................................................111 6.1.14. Sink FRL Resampler.............................................................................. 111 6.1.15. RX Oversampler................................................................................... 111 6.1.16. I2C Slave............................................................................................ 111 6.1.17. I2C and EDID RAM Blocks......................................................................111 6.2. Sink Interfaces.................................................................................................. 112 6.3. Sink Clock Tree.................................................................................................. 126 6.4. Link Training Procedure.......................................................................................128 6.5. Sink Deep Color Implementation When Support FRL = 0......................................... 129 6.6. Sink Deep Color Implementation When Support FRL = 1......................................... 131
7. HDMI Parameters....................................................................................................... 133 7.1. HDMI Source Parameters.................................................................................... 133 7.2. HDMI Sink Parameters........................................................................................ 135
8. HDMI Simulation Example...........................................................................................138 8.1. Simulation Walkthrough...................................................................................... 139
9. HDMI Intel FPGA IP User Guide Archives.................................................................... 142
10. Document Revision History for the HDMI Intel FPGA IP User Guide.......................... 143
Send Feedback
HDMI Intel� FPGA IP User Guide 3
UG-HDMI | 2021.05.12 Send Feedback
1. HDMI Intel� FPGA IP Quick Reference
The Intel� FPGA High-Definition Multimedia Interface (HDMI) IP provides support for
next-generation video display interface technology. The HDMI Intel FPGA IP is part of the Intel FPGA IP Library, which is distributed with the Intel Quartus� Prime software.
Note:
All information in this document refers to the Intel Quartus Prime Pro Edition software, unless stated otherwise.
Information Core Features
IP Information
Typical Application
Device Family Design Tools
Description
� Conforms to the High-Definition Multimedia Interface (HDMI) Specification versions 1.4, 2.0b, and 2.1
� Supports transmitter and receiver on a single device transceiver quad
� Supports pixel frequency up to 600 MHz for HDMI 2.0 and 1,200 MHz for HDMI 2.1
� Supports fixed rate link (FRL) for HDMI 2.1 � Supports RGB and YCbCr 444, 422, and 420 color modes � Accepts standard H-SYNC, V-SYNC, data enable, RGB
video format, and YCbCr video format � Supports up to 32 audio channels in 2-channel and 8-
channel layouts. � Supports 8, 10, 12, or 16 bits per component (bpc) � Supports single link Digital Visual Interface (DVI) � Supports High Dynamic Range (HDR) InfoFrame
insertion and filter through the provided design examples � Supports the High-bandwidth Digital Content Protection (HDCP) feature for Intel Arria� 10 and Intel Stratix� 10 devices � Supports Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM) for HDMI 2.1
� Interfaces within a PC and monitor � External display connections, including interfaces
between a PC and monitor or projector, between a PC and TV, or between a device such as a DVD player and TV display
Supports Intel Stratix 10 (H-tile and L-tile), Intel Arria 10, Intel Cyclone� 10 GX, Arria V, and Stratix V FPGA devices
Note: HDMI 2.1 with FRL enabled supports only Intel Stratix 10 and Intel Arria 10 devices.
� Intel Quartus Prime software for IP design instantiation and compilation
� Timing Analyzer in the Intel Quartus Prime software for timing analysis
� ModelSim* - Intel FPGA Edition or ModelSim - Intel FPGA Starter Edition, NCSim, Riviera-PRO*, VCS*, VCS MX, and Xcelium* Parallel software for design simulation
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, eASIC, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
1. HDMI Intel� FPGA IP Quick Reference UG-HDMI | 2021.05.12
Note:
The High-bandwidth Digital Content Protection (HDCP) feature is not included in the Intel Quartus Prime Pro Edition software. To access the HDCP feature, contact Intel at https://www.intel.com/content/www/us/en/broadcast/products/programmable/ applications/connectivity-solutions.html.
Related Information
� HDMI Intel Arria 10 FPGA IP Design Example User Guide For more information about the Intel Arria 10 design examples.
� HDMI Intel Cyclone 10 GX FPGA IP Design Example User Guide For more information about the Intel Cyclone 10 GX design examples.
� HDMI Intel Stratix 10 FPGA IP Design Example User Guide For more information about the Intel Stratix 10 design examples.
� HDMI Intel FPGA IP User Guide Archives on page 142 Provides a list of user guides for previous versions of the HDMI Intel FPGA IP.
Send Feedback
HDMI Intel� FPGA IP User Guide 5
UG-HDMI | 2021.05.12 Send Feedback
2. HDMI Overview
The HDMI Intel FPGA IP provides support for next generation video display interface technology.
The HDMI standard specifies a digital communications interface for use in both internal and external connections: � Internal connections--interface within a PC and monitor � External display connections--interface between a PC and monitor or projector,
between a PC and TV, or between a device such a DVD player and TV display.
The HDMI system architecture consists of sinks and sources. A device may have one or more HDMI inputs and outputs.
The HDMI cable and connectors carry four differential pairs that make up the Transition Minimized Differential Signaling (TMDS) data and clock channels for HDMI 1.4 and HDMI 2.0. For HDMI 2.1, HDMI cable and connectors carry four fixed rate link (FRL) lanes of data. You can use these channels to carry video, audio, and auxiliary data.
The HDMI also carries a Video Electronics Standards Association (VESA) Display Data Channel (DDC) and Status and Control Data Channel (SCDC). The DDC configures and exchanges status between a single source and a single sink. The source uses the DDC to read the sink's Enhanced Extended Display Identification Data (E-EDID) to discover the sink's configuration and capabilities.
The optional Consumer Electronics Control (CEC) protocol provides high-level control functions between various audio visual products in your environment.
The optional HDMI Ethernet and Audio Return Channel (HEAC) provides Ethernet compatible data networking between connected devices and an audio return channel in the opposite direction of TMDS. The HEAC also uses Hot-Plug Detect (HPD) line for link detection.
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, eASIC, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
2. HDMI Overview UG-HDMI | 2021.05.12
Figure 1.
HDMI Intel FPGA IP Block Diagram for TMDS Mode
The figure below illustrates the blocks in the HDMI Intel FPGA IP for TMDS Mode.
HDMI Intel FPGA IP Core
TMDS Channel 0 Video
TMDS Channel 1 Audio
HDMI
TMDS Channel 2
Transmitter
HDMI Receiver
Control/Status
TMDS Clock Channel
Video Audio
Control/Status
Note:
Status and Control Data Channel (SCDC) Display Data Channel (DDC)
CEC
CEC Line
Utility Line HEAC
Detect
HPD Line
EDID ROM CEC HEAC
High/Low
Based on TMDS encoding, the HDMI protocol allows the transmission of both audio and video data between source and sink devices.
An HDMI interface consists of three color channels accompanied by a single clock channel. You can use each color line to transfer both individual RGB colors and auxiliary data.
Refer to AN 837: Design Guidelines for Intel FPGA HDMI to know more about the channel mapping to the RGB colors for HDMI 1.4 and HDMI 2.0.
The receiver uses the TMDS clock as a frequency reference for data recovery on the three TMDS data channels. This clock typically runs at the video pixel rate.
TMDS encoding is based on an 8-bit to 10-bit algorithm. This protocol attempts to minimize data channel transition, and yet maintain sufficient transition so that a sink device can lock reliably to the data stream.
Send Feedback
HDMI Intel� FPGA IP User Guide 7
Figure 2. Fixed Rate Link (FRL)
HDMI TX FRL mode of operation
FRL Lane 0
FRL Lane 1
FRL Lane 2
FRL Lane 3
SCL SDA CEC Utility HPD
2. HDMI Overview UG-HDMI | 2021.05.12
HDMI RX FRL mode of operation
In HDMI 1.4 and HDMI 2.0, 3 lanes carry data and 1 lane carries TMDS clock. When operating in FRL mode, the clock channel carries data as well. As the HDMI 2.1 specification requires backward compatibility with HDMI 1.4 and HDMI 2.0, you need to configure the 4th lane to carry data or clock during run time.
You can configure the FRL mode to 3 lanes and 4 lanes. In 3-lane FRL mode, each lane can operate at 3 Gbps or 6 Gbps. In 4-lane FRL mode, each lane can operate at 6 Gbps, 8 Gbps, 10 Gbps, or 12 Gbps.
Use category 3 (Cat 3) cable for FRL mode to ensure good signal integrity.
HDMI Intel� FPGA IP User Guide 8
Send Feedback
2. HDMI Overview UG-HDMI | 2021.05.12
Figure 3. HDMI Intel FPGA IP Video Stream Data
Video
Data Island
Video
Guard
Guard
Guard
Band
Band
Band
Active Video
Active Video
Data Island Preamble
Active Aux/Audio
Video Preamble
vid_de
aux_de
Video Guard Band Case (TMDS Channel Number): 0:q_out[9:0] = 10'b1011001100; 1:q_out[9:0] = 10'b0100110011; 2:q_out[9:0] = 10'b1011001100; endcase
Video Preamble {c3, c2, c1, c0} = 4'b0001
Data Island Guard Band Case (TMDS Channel Number): 0:q_out[9:0] = 10'bxxxxxxxxxx; 1:q_out[9:0] = 10'b0100110011; 2:q_out[9:0] = 10'b0100110011; endcase
Data Island Preamble {c3, c2, c1, c0} = 4'b0101
The figure above illustrates two data streams: � Data stream in green--transports color data � Data stream in dark blue--transports auxiliary data
Table 1.
Video Data and Auxiliary Data
The table below describes the function of the video data and auxiliary data.
Data
Description
Video data
� Packed representation of the video pixels clocked at the source pixel clock. � Encoded using the TMDS 8-bit to 10-bit algorithm.
Auxiliary data
� Transfers audio data together with a range of auxiliary data packets. � Sink devices use auxiliary data packets to correctly reconstruct video and audio data. � Encoded using the TMDS Error Reduction Coding�4 bits (TERC4) encoding algorithm.
Each data stream section is preceded with guard bands and pre-ambles. The guard bands and pre-ambles allow for accurate synchronization with received data streams.
The following figures show the arrangement of the video data, video data enable, video H-SYNC, and video V-SYNC in 1, 2, 4, and 8 pixels per clock.
Send Feedback
HDMI Intel� FPGA IP User Guide 9
2. HDMI Overview UG-HDMI | 2021.05.12
Figure 4. Figure 5.
Video Data, Video Data Valid, H-SYNC, and V-SYNC--1 Pixel per Clock
One Pixel per Clock
vid_clk vid_data[47:0] D0 D1 D2 D3 D4 D5 D6 D7
vid_de[0] E0 E1 E2 E3 E4 E5 E6 E7 vid_hsync[0] H0 H1 H2 H3 H4 H5 H6 H7 vid_vsync[0] V0 V1 V2 V3 V4 V5 V6 V7
Video Data, Video Data Valid, H-SYNC, and V-SYNC--2 Pixels per Clock
Two Pixels per Clock
vid_clk
vid_data[95:0]
D1 D0
D3 D2
D5 D4
D7 D6
vid_de[1:0]
E1 E0
E3 E2
E5 E4
E7 E6
vid_hsync[1:0]
H1 H0
H3 H2
H5 H4
H7 H6
vid_vsync[1:0]
V1 V0
V3 V2
V5 V4
V7 V6
HDMI Intel� FPGA IP User Guide 10
Send Feedback
2. HDMI Overview UG-HDMI | 2021.05.12
Figure 6.
Video Data, Video Data Valid, H-SYNC, and V-SYNC--4 Pixels per Clock
Four Pixels per Clock
vid_clk
D3
D7
vid_data[191:0]
D2 D1
D6 D5
D0
D4
E3
E7
vid_de[3:0]
E2 E1
E6 E5
E0
E4
H3
H7
vid_hsync[3:0]
H2 H1
H6 H5
H0
H4
V3
V7
vid_vsync[3:0]
V2 V1
V6 V5
V0
V4
Send Feedback
HDMI Intel� FPGA IP User Guide 11
2. HDMI Overview UG-HDMI | 2021.05.12
Figure 7.
Video Data, Video Data Valid, H-SYNC, and V-SYNC--8 Pixels per Clock
Eight Pixels per Clock
vid_clk
D7
D6
D5
vid_data[383:0]
D4 D3
D2
D1
D0
E7
E6
E5
vid_de[7:0]
E4 E3
E2
E1
E0
H7
H6
H5
vid_hsync[7:0]
H4 H3
H2
H1
H0
V7
V6
V5
vid_vsync[7:0]
V4 V3
V2
V1
V0
Related Information AN 837: Design Guidelines for Intel FPGA HDMI
2.1. Release Information
Intel FPGA IP versions match the Intel Quartus Prime Design Suite software versions until v19.1. Starting in Intel Quartus Prime Design Suite software version 19.2, Intel FPGA IP has a new versioning scheme.
HDMI Intel� FPGA IP User Guide 12
Send Feedback
2. HDMI Overview UG-HDMI | 2021.05.12
The Intel FPGA IP version (X.Y.Z) number can change with each Intel Quartus Prime software version. A change in:
� X indicates a major revision of the IP. If you update the Intel Quartus Prime software, you must regenerate the IP.
� Y indicates the IP includes new features. Regenerate your IP to include these new features.
� Z indicates the IP includes minor changes. Regenerate your IP to include these changes.
Table 2.
HDMI Intel FPGA IP Release Information
Item
Description
IP Version
19.6.0
Intel Quartus Prime Version
21.1 (Intel Quartus Prime Pro Edition)
Release Date
2021.05.12
Ordering Code
IP-HDMI
Related Information
HDMI Intel FPGA IP Release Notes Describes changes to the IP in a particular release.
2.2. Device Family Support
Table 3.
Intel Device Family Support
Device Family Intel Stratix 10 (H-tile and L-tile) (Intel Quartus Prime Pro Edition)
Intel Arria 10 (Intel Quartus Prime Pro Edition) Intel Cyclone 10 GX (Intel Quartus Prime Pro Edition)
Arria V (Intel Quartus Prime Standard Edition) Stratix V (Intel Quartus Prime Standard Edition)
Support Level Final Final Final Final Final
Send Feedback
HDMI Intel� FPGA IP User Guide 13
2. HDMI Overview UG-HDMI | 2021.05.12
The following terms define device support levels for Intel FPGA IP cores:
� Advance support--the IP core is available for simulation and compilation for this device family. Timing models include initial engineering estimates of delays based on early post-layout information. The timing models are subject to change as silicon testing improves the correlation between the actual silicon and the timing models. You can use this IP core for system architecture and resource utilization studies, simulation, pinout, system latency assessments, basic timing assessments (pipeline budgeting), and I/O transfer strategy (data-path width, burst depth, I/O standards tradeoffs).
� Preliminary support--the IP core is verified with preliminary timing models for this device family. The IP core meets all functional requirements, but might still be undergoing timing analysis for the device family. It can be used in production designs with caution.
� Final support--the IP core is verified with final timing models for this device family. The IP core meets all functional and timing requirements for the device family and can be used in production designs.
2.3. Feature Support
Table 4.
HDMI Intel FPGA IP FRL Feature Support in Intel Stratix 10 and Intel Arria 10 Devices
Feature
Support Level
Support FRL = 1
Preliminary
Support FRL = 0
Final
The following terms define IP feature support levels for HDMI Intel FPGA IP:
� Preliminary support--The IP meets the functional requirement for the feature set as listed in this user guide. Additional features, characterization, and system level design guidelines shall be covered in future releases. The IP can be used in production designs for the supported device family with caution.
� Final support--The IP is compliant to the protocol CTS requirement for the supported device family and can be used in production design. Characterization report and system level design guidelines are available to facilitate meeting PHY CTS requirements.
2.4. Resource Utilization
The resource utilization data indicates typical expected performance for the HDMI Intel FPGA IP in the Intel Quartus Prime Pro Edition software.
Table 5.
HDMI Data Rate
The table lists the maximum data rates for HDMI Intel FPGA IP configurations.
Devices
Maximum Data Rate (Mbps)
2 Pixels per Clock (Support FRL = 0)
8 Pixels per Clock (Support FRL = 1)
Intel Stratix 10
5,940
12,000 continued...
HDMI Intel� FPGA IP User Guide 14
Send Feedback
2. HDMI Overview UG-HDMI | 2021.05.12
Devices
Intel Arria 10 Intel Cyclone 10 GX
Maximum Data Rate (Mbps)
2 Pixels per Clock (Support FRL = 0)
8 Pixels per Clock (Support FRL = 1)
(Example: 4Kp60 8 bpc)
(Example: 8Kp30 12 bpc)
5,940 (Example: 4Kp60 8 bpc)
12,000 (Example: 8Kp30 12 bpc)
5,940 (Example: 4Kp60 8 bpc)
Not Supported
Table 6.
HDMI Intel FPGA IP Resource Utilization
The table lists the performance data for the different Intel FPGA devices.
Device
Pixels per Clock
Direction
ALMs
Logic Registers Primary Secondary
Intel Stratix 10 H-
2
tile
(Support FRL = 0)
2
(1)
Intel Stratix 10 L-
2
tile
(Support FRL = 0)
2
(1)
Intel Arria 10
2
(Support FRL = 0)
(1)
2
2 Intel Cyclone 10 GX
2
RX
5.041
6,633
902
TX
4,975
7,559
1,368
RX
5,025
6,584
967
TX
4,966
7,539
1,425
RX
3,768
5,716
1,049
TX
4,445
7,016
1,701
RX
4,000
5,768
965
TX
4,484
7,167
1,629
Memory
Bits
M10K or M20K
38,400
14
37,568
13
38,400
14
37,568
13
36,352
14
36,968
13
38,400
14
36,968
13
Table 7.
Recommended Speed Grades for Intel Stratix 10 and Intel Arria 10 Devices (Support FRL = 1)
Device
Intel Stratix 10 Intel Arria 10
Lane Rate (Mbps)
12,000 12,000
Transceiver Interface Width (bits)
40
40
Speed Grade
-1, -2 (2) -1, -2
Table 8.
Recommended Speed Grades for Intel Stratix 10, Intel Arria 10, and Intel Cyclone 10 GX Devices (Support FRL = 0)
Device
Lane Rate (Mbps)
Interface Width (bits)
Speed Grades
Intel Stratix 10
6,000
20
-1, -2
Intel Arria 10
6,000
20
-1, -2
Intel Cyclone 10 GX
6,000
20
-5
(1) Resource data for Support FRL = 1 design is not finalized. (2) Contact Intel Sales if you need to use -2 speed grade.
Send Feedback
HDMI Intel� FPGA IP User Guide 15
2. HDMI Overview UG-HDMI | 2021.05.12
Table 9.
HDCP Resource Utilization
The table lists the HDCP resource data for Intel Arria 10 and Intel Stratix 10 devices.
Device
HDCP IP
Support FRL
Pixels/ TMDS Symbols Per Clock
ALMs
Combinational Registers ALUTs
M20K
Intel Arria HDCP 2.3
0
10
TX
2
6,479
10,548
12,015
10
HDCP 2.3
0
RX
2
7,119
11,685
12,673
11
HDCP 1.4
0
TX
2
1,665
2,626
4,411
2
HDCP 1.4
0
RX
2
1,170
1,850
3,407
3
Intel
HDCP 2.3
0
Stratix 10
TX
1
2
7,213
11,582
12,810
10
8
17,755
29,784
24,428
10
HDCP 2.3
0
RX
1
2
8,145
12,691
13,438
11
8
18,482
30,881
25,422
11
HDCP 1.4 TX
0, 1
2
2,320
2,937
4,544
2
HDCP 1.4 RX
0, 1
2
1,784
2,135
3,605
3
DSP
3 3 0 0 3 3 3 3 0 0
HDMI Intel� FPGA IP User Guide 16
Send Feedback
UG-HDMI | 2021.05.12 Send Feedback
3. HDMI Intel FPGA IP Getting Started
This chapter provides a general overview of the Intel IP core design flow to help you quickly get started with the HDMI Intel FPGA IP. The Intel FPGA IP Library is installed as part of the Intel Quartus Prime installation process. You can select and parameterize any Intel FPGA IP from the library. Intel provides an integrated parameter editor that allows you to customize the HDMI Intel FPGA IP to support a wide variety of applications. The parameter editor guides you through the setting of parameter values and selection of optional ports.
Related Information
� Introduction to Intel FPGA IP Cores Provides general information about all Intel FPGA IP cores, including parameterizing, generating, upgrading, and simulating IP cores.
� Creating Version-Independent IP and Platform Designer Simulation Scripts Create simulation scripts that do not require manual updates for software or IP version upgrades.
� Project Management Best Practices Guidelines for efficient management and portability of your project and IP files.
3.1. Installing and Licensing Intel FPGA IP Cores
The Intel Quartus Prime software installation includes the Intel FPGA IP library. This library provides many useful IP cores for your production use without the need for an additional license. Some Intel FPGA IP cores require purchase of a separate license for production use. The Intel FPGA IP Evaluation Mode allows you to evaluate these licensed Intel FPGA IP cores in simulation and hardware, before deciding to purchase a full production IP core license. You only need to purchase a full production license for licensed Intel IP cores after you complete hardware testing and are ready to use the IP in production.
The Intel Quartus Prime software installs IP cores in the following locations by default:
Figure 8.
IP Core Installation Path
intelFPGA(_pro) quartus - Contains the Intel Quartus Prime software ip - Contains the Intel FPGA IP library and third-party IP cores altera - Contains the Intel FPGA IP library source code <IP name> - Contains the Intel FPGA IP source files
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, eASIC, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
3. HDMI Intel FPGA IP Getting Started UG-HDMI | 2021.05.12
Table 10. IP Core Installation Locations
Location <drive>:\intelFPGA_pro\quartus\ip\altera
Software Intel Quartus Prime Pro Edition
<drive>:\intelFPGA\quartus\ip\altera
Intel Quartus Prime Standard Edition
<home directory>:/intelFPGA_pro/quartus/ip/altera Intel Quartus Prime Pro Edition
<home directory>:/intelFPGA/quartus/ip/altera
Intel Quartus Prime Standard Edition
Platform Windows* Windows
Linux* Linux
Note:
The Intel Quartus Prime software does not support spaces in the installation path.
3.1.1. Intel FPGA IP Evaluation Mode
The free Intel FPGA IP Evaluation Mode allows you to evaluate licensed Intel FPGA IP cores in simulation and hardware before purchase. Intel FPGA IP Evaluation Mode supports the following evaluations without additional license:
� Simulate the behavior of a licensed Intel FPGA IP core in your system.
� Verify the functionality, size, and speed of the IP core quickly and easily.
� Generate time-limited device programming files for designs that include IP cores.
� Program a device with your IP core and verify your design in hardware.
Intel FPGA IP Evaluation Mode supports the following operation modes:
� Tethered--Allows running the design containing the licensed Intel FPGA IP indefinitely with a connection between your board and the host computer. Tethered mode requires a serial joint test action group (JTAG) cable connected between the JTAG port on your board and the host computer, which is running the Intel Quartus Prime Programmer for the duration of the hardware evaluation period. The Programmer only requires a minimum installation of the Intel Quartus Prime software, and requires no Intel Quartus Prime license. The host computer controls the evaluation time by sending a periodic signal to the device via the JTAG port. If all licensed IP cores in the design support tethered mode, the evaluation time runs until any IP core evaluation expires. If all of the IP cores support unlimited evaluation time, the device does not time-out.
� Untethered--Allows running the design containing the licensed IP for a limited time. The IP core reverts to untethered mode if the device disconnects from the host computer running the Intel Quartus Prime software. The IP core also reverts to untethered mode if any other licensed IP core in the design does not support tethered mode.
When the evaluation time expires for any licensed Intel FPGA IP in the design, the design stops functioning. All IP cores that use the Intel FPGA IP Evaluation Mode time out simultaneously when any IP core in the design times out. When the evaluation time expires, you must reprogram the FPGA device before continuing hardware verification. To extend use of the IP core for production, purchase a full production license for the IP core.
You must purchase the license and generate a full production license key before you can generate an unrestricted device programming file. During Intel FPGA IP Evaluation Mode, the Compiler only generates a time-limited device programming file (<project name>_time_limited.sof) that expires at the time limit.
HDMI Intel� FPGA IP User Guide 18
Send Feedback
3. HDMI Intel FPGA IP Getting Started UG-HDMI | 2021.05.12
Figure 9.
Intel FPGA IP Evaluation Mode Flow
Install the Intel Quartus Prime Software with Intel FPGA IP Library
Parameterize and Instantiate a Licensed Intel FPGA IP Core
Verify the IP in a Supported Simulator
Compile the Design in the Intel Quartus Prime Software
Generate a Time-Limited Device Programming File
Program the Intel FPGA Device and Verify Operation on the Board
No IP Ready for Production Use?
Yes
Purchase a Full Production IP License
Include Licensed IP in Commercial Products
Note:
Refer to each IP core's user guide for parameterization steps and implementation details.
Intel licenses IP cores on a per-seat, perpetual basis. The license fee includes firstyear maintenance and support. You must renew the maintenance contract to receive updates, bug fixes, and technical support beyond the first year. You must purchase a full production license for Intel FPGA IP cores that require a production license, before generating programming files that you may use for an unlimited time. During Intel FPGA IP Evaluation Mode, the Compiler only generates a time-limited device programming file (<project name>_time_limited.sof) that expires at the time limit. To obtain your production license keys, visit the Self-Service Licensing Center.
The Intel FPGA Software License Agreements govern the installation and use of licensed IP cores, the Intel Quartus Prime design software, and all unlicensed IP cores.
Send Feedback
HDMI Intel� FPGA IP User Guide 19
3. HDMI Intel FPGA IP Getting Started UG-HDMI | 2021.05.12
Related Information � Intel FPGA Licensing Support Center � Introduction to Intel FPGA Software Installation and Licensing
3.2. Specifying IP Parameters and Options
Follow these steps to specify the HDMI Intel FPGA IP parameters and options. 1. Create a Intel Quartus Prime project using the New Project Wizard available
from the File menu. 2. On the Tools menu, click IP Catalog. 3. Under Installed IP, double-click Library Interface Protocols
Audio&Video HDMI Intel FPGA IP. The parameter editor appears. 4. Specify a top-level name for your custom IP variation. This name identifies the IP variation files in your project. If prompted, also specify the targeted FPGA device family and output file HDL preference. Click OK. 5. Specify parameters and options in the HDMI parameter editor: � Optionally select preset parameter values. Presets specify all initial parameter
values for specific applications (where provided). � Specify parameters defining the IP functionality, port configurations, and
device-specific features. � Specify options for generation of a timing netlist, simulation model, testbench,
or example design (where applicable). � Specify options for processing the IP files in other EDA tools. 6. Click Generate to generate the IP and supporting files, including simulation models. 7. Click Close when file generation completes. 8. Click Finish. 9. If you generate the HDMI Intel FPGA IP instance in a Intel Quartus Prime project, you are prompted to add Intel Quartus Prime IP File (.qip) and Intel Quartus Prime Simulation IP File (.sip) to the current Intel Quartus Prime project.
HDMI Intel� FPGA IP User Guide 20
Send Feedback
UG-HDMI | 2021.05.12 Send Feedback
4. HDMI Hardware Design Examples
Intel offers design examples that you can simulate, compile, and test in hardware.
The implementation of the HDMI Intel FPGA IP on hardware requires additional components specific to the targeted device.
4.1. HDMI Hardware Design Examples for Intel Arria 10, Intel Cyclone 10 GX, and Intel Stratix 10 Devices
The HDMI Intel FPGA IP offers design examples that you can generate through the IP catalog in the Intel Quartus Prime Pro Edition software.
Related Information
� HDMI Intel Arria 10 FPGA IP Design Example User Guide For more information about the Intel Arria 10 design examples.
� HDMI Intel Cyclone 10 GX FPGA IP Design Example User Guide For more information about the Intel Cyclone 10 GX design examples.
� HDMI Intel Stratix 10 FPGA IP Design Example User Guide For more information about the Intel Stratix 10 design examples.
4.2. HDCP Over HDMI Design Example for Intel Arria 10 and Intel Stratix 10 Devices
The High-bandwidth Digital Content Protection (HDCP) over HDMI hardware design example helps you to evaluate the functionality of the HDCP feature and enables you to use the feature in your Intel Arria 10 and Intel Stratix 10 designs.
For detailed information about the HDCP over HDMI design examples, refer to the Intel Arria 10 and Intel Stratix 10 design example user guides.
Note:
The HDCP feature is not included in the Intel Quartus Prime Pro Edition software. To access the HDCP feature, contact Intel at https://www.intel.com/content/www/us/en/ broadcast/products/programmable/applications/connectivity-solutions.html.
Related Information
� HDMI Intel Arria 10 FPGA IP Design Example User Guide For more information about the HDCP over HDMI design example for Intel Arria 10 devices and the security considerations when using the HDCP features.
� HDMI Intel Stratix 10 FPGA IP Design Example User Guide For more information about the HDCP over HDMI design example for Intel Stratix 10 devices and the security considerations when using the HDCP features.
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, eASIC, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
4.3. HDMI Hardware Design Examples for Arria V and Stratix V Devices
The HDMI hardware design example helps you evaluate the functionality of the HDMI Intel FPGA IP and provides a starting point for you to create your own design for Arria V and Stratix V devices in the Intel Quartus Prime Standard Edition software.
The design example runs on the following device kits: � Arria V GX starter kit � Stratix V GX development kit � Bitec HDMI HSMC 2.0 Daughter Card Revision 8
Related Information AN 837: Design Guidelines for Intel FPGA HDMI
4.3.1. HDMI Hardware Design Components
The demonstration designs instantiate the Video and Image Processing (VIP) Suite IP cores or FIFO buffers to perform a direct HDMI video stream passthrough between the HDMI sink and source.
The hardware demonstration design comprises the following components: � HDMI sink
-- Transceiver Native PHY (RX) -- Transceiver PHY Reset Controller (RX) -- PLL -- PLL Reconfiguration -- Multirate Reconfiguration Controller (RX) -- Oversampler (RX) -- DCFIFO � Sink Display Data Channel (DDC) and Status and Control Data Channel (SCDC) � Transceiver Reconfiguration Controller
HDMI Intel� FPGA IP User Guide 22
Send Feedback
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
� VIP bypass and Audio, Auxiliary and InfoFrame buffers � Platform Designer system
-- VIP passthrough for HDMI video stream -- Source SCDC controller -- HDMI source reconfiguration controller � HDMI source -- Transceiver Native PHY (TX) -- Transceiver fPLL -- Transceiver PHY Reset Controller (TX) -- PLL -- PLL Reconfiguration -- Oversampler (TX) -- DCFIFO -- Clock Enable Generator
Figure 10.
HDMI Hardware Design Example Block Diagram
The figure below shows a high level architecture of the design.
HDMI Sink
PLL Intel FPGA IP
PLL Reconfig Intel FPGA IP
Transceiver PHY
(12)
Reset Controller
(RX)
Rate Detect
Multirate Reconfiguration Controller (RX)
Transceiver Reconfiguration Controller
Platform Designer System (HDMI Source SCDC Control, and VIP Passthrough)
Avalon-MM Master Translator
Avalon-MM Slave Translator
Avalon-MM Slave Translator
HDMI Source
PLL Reconfig Intel FPGA IP
PLL Intel FPGA IP
Transceiver PHY Reset Controller
(TX)
Transceiver
(1)
Native PHY
(RX)
Oversampler (RX) (2)
Sink DDC and SCDC (14)
DCFIFO (2)
(11)
(3) HDMI Intel (4) FPGA IP (RX)
(5) Clocked Video Input InteL FPGA IP
I2C Slave (SCDC) (15)
I2C Slave (EDID)
RAM 1-Port Intel FPGA IP
Nios II CPU
(13)
Video Frame Buffer InteL FPGA IP
External Memory Controller
Clocked Video Output (5) InteL FPGA IP
(6)
Source SCDC
I2C Master
(14)
(SCDC)
DCFIFO DCFIFO
VIP Bypass and Audio/Aux/IF Buffers
Transceiver Native PHY (TX)
(10)
Clock Enable Generator
(9)
HDMI Intel FPGA IP (RX)
(7)
DCFIFO (8)
Oversampler (TX) (8)
Arrow Legend Data Avalon-ST Video
Avalon-MM Control/Status
Clock Legend RX Transceiver Reference Clock
RX TMDS Clock
RX Transceiver Recovered Clock TX Transceiver Reference Clock
External Memory (DDR3)
RX Link Speed Clock RX Video Clock
TX Transceiver Clock Out TX Link Speed Clock
Management Clock
TX Video Clock
VIP Main Clock
I2C Clock
Memory Clock
The following details of the design example architecture correspond to the numbers in the block diagram.
1. The sink TMDS data has three channels: data channel 0 (blue), data channel 1 (green), and data channel 2 (red).
2. The Oversampler (RX) and dual-clock FIFO (DCFIFO) instances are duplicated for each TMDS data channel (0,1,2).
3. The video data input width for each color channel of the HDMI RX core is equivalent to RX transceiver PCS-PLD parallel data width per channel.
Send Feedback
HDMI Intel� FPGA IP User Guide 23
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
4. Each color channel is fixed at 16 bpc. The video data output width of the HDMI RX core is equivalent to the value of symbols per clock*16*3.
5. The video data input width of the Clocked Video Input (CVI) and Clocked Video Output (CVO) IP cores are equivalent to the value of NUMBER_OF_PIXELS_IN_PARALLEL * BITS_PER_PIXEL_PER_COLOR_PLANE * NUMBER_OF_COLOR_PLANES. To interface with the HDMI core, the values of NUMBER_OF_PIXELS_IN_PARALLEL, BITS_PER_PIXEL_PER_COLOR_PLANE, and NUMBER_OF_COLOR_PLANES must match the symbols per clock, 16 and 3 respectively.
6. The video data input width of the HDMI TX core is equivalent to the value of symbols per clock*16*3. You can use the user switch to select the video data from the CVO IP core (VIP passthrough) or DCFIFO (VIP bypass).
7. The video data output width for each color channel of the HDMI TX core is equivalent to TX transceiver PCS-PLD parallel data width per channel.
8. The DCFIFO and the Oversampler (TX) instances are duplicated for each TMDS data channel (0,1,2) and clock channel.
9. The Oversampler (TX) uses the clock enable signal to read data from the DCFIFO.
10. The source TMDS data has four channels: data channel 0 (blue), data channel 1 (green), data channel 2 (red), and clock channel.
11. The RX Multirate Reconfiguration Controller requires the status of TMDS_Bit_clock_Ratio port to perform appropriate RX reconfiguration between the TMDS character rates below 340 Mcsc (HDMI 1.4b) and above 340 Mcsc (HDMI 2.0b). The status of the port is also required by the Nios II processor and the HDMI TX core to perform appropriate TX reconfiguration and scrambling.
12. The reset control and lock status signals from HDMI PLL, RX Transceiver Reset Controller and HDMI RX core.
13. The reset and oversampling control signals for HDMI PLL, TX Transceiver Reset Controller, and HDMI TX core. The lock status and rate detection measure valid signals from the HDMI sink initiate the TX reconfiguration process.
14. The I2C SCL and SDA lines with tristate buffer for bidirectional configuration. Use the ALTIOBUF IP core for Arria V and Stratix V devices.
15. The SCDC is mainly designed for the source to update the TMDS_Bit_Clock_Ratio and Scrambler_Enable bits of the sink TMDS Configuration register. .
HDMI Intel� FPGA IP User Guide 24
Send Feedback
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
4.3.1.1. Transceiver Native PHY (RX)
� Transceiver Native PHY in Arria V devices
-- To operate the TMDS bit rate up to 3,400 Mbps, configure the Transceiver Native PHY at 20 bits at PCS � PLD interface with the HDMI RX core at 2 symbols per clock. When the PCS � PLD interface width is 20 bits, the minimum link rate is 611 Mbps.
-- To operate the TMDS bit rate up to 6,000 Mbps, configure the Transceiver Native PHY at 40 bits with the HDMI RX core at 4 symbols per clock. When the PCS � PLD interface width is 40 bits, the minimum link rate is 1,000 Mbps.
-- Oversampling is required for TMDS bit rate which is below the minimum link rate.
� Transceiver Native PHY in Stratix V devices
-- To operate the TMDS bit rate up to 6,000 Mbps, configure the Transceiver Native PHY at 20 bits at PCS � PLD interface with the HDMI RX core at 2 symbols per clock. When the PCS � PLD interface width is 20 bits, the minimum link rate is 611 Mbps.
Table 11.
Arria V and Stratix V Transceiver Native PHY (RX) Configuration Settings (6,000 Mbps)
This table shows an example of Arria V and Stratix V Transceiver Native PHY (RX) configuration settings for TMDS bit rate of 6,000 Mbps.
Parameters
Settings
Datapath Options
Enable TX datapath
Off
Enable RX datapath
On
Enable Standard PCS
On
Initial PCS datapath selection
Standard
Number of data channels
3
Enable simplified data interface
On
Data rate Enable CDR dynamic reconfiguration Number of CDR reference clocks Selected CDR reference clock Selected CDR reference clock frequency PPM detector threshold
RX PMA
6,000 Mbps On 2 (3) 0 (3)
600 MHz 1,000 PPM
continued...
(3) The Bitec HDMI HSMC 2.0 daughter card routes the TMDS clock pin to the transceiver serial data pin. To use the TMDS clock to drive the HDMI PLL, the TMDS clock must also drive the transceiver dedicated reference clock pin. The number of CDR reference clocks is 2 with reference clock 1 (unused) driven by the TMDS clock and reference clock 0 driven by the HDMI PLL output clock. The selected CDR reference clock will be fixed at 0.
Send Feedback
HDMI Intel� FPGA IP User Guide 25
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
RX PMA
Enable rx_pma_clkout port
On
Enable rx_is_lockedtodata port
On
Enable rx_is_lockedtoref port
On
Enable rx_set_locktodata and rx_set_locktoref ports
On
Standard PCS protocol Standard PCS/PMA interface width Enable RX byte deserializer
Standard PCS
Basic
� 10 (for 1 symbol per clock) � 20 (for 2 and 4 symbols per clock)
� Off (for 1 and 2 symbols per clock) � On (for 4 symbols per clock)
Table 12.
Arria V and Stratix V Transceiver Native PHY (RX) Common Interface Ports
This table describes the Arria V and Stratix V Transceiver Native PHY (RX) common interface ports.
Signals
Direction
Description
Clocks
rx_cdr_refclk[1:0]
Input
Input reference clock for the RX CDR circuitry.
� To support arbitrary wide data rate range from 250 Mbps to 6,000 Mbps, you need a generic core PLL to obtain a higher clock frequency from the TMDS clock. You need a higher clock frequency to create oversampled stream for data rates below the minimum transceiver data rate--for example, 611 Mbps or 1,000 Mbps).
� If the TMDS clock pin is routed to the transceiver dedicated reference clock pin, you only need to create one transceiver reference clock input. You can use the TMDS clock as reference clock for a generic core PLL to drive the transceiver.
� If you use Bitec HDMI HSMC 2.0 daughter card, the TMDS clock pin is routed to the transceiver serial data pin. In this case, to use the TMDS clock as a reference clock for a generic core PLL, the clock must also drive the transceiver dedicated reference clock. Connect bit 0 to the generic core PLL output and bit 1 to the TMDS clock and set the selected CDR reference clock at 0.
rx_std_clkout[2:0]
Output
RX parallel clock output.
� The CDR circuitry recovers the RX parallel clock from the RX data stream when the CDR is configured at lock-todata mode.
� The RX parallel clock is a mirror of the CDR reference clock when the CDR is configured at lock-to-reference mode.
rx_std_coreclkin[2:0]
Input
RX parallel clock that drives the read side of the RX phase compensation FIFO.
Connect to rx_std_clkout ports.
rx_pma_clkout[2:0]
Output
RX parallel clock (recovered clock) output from PMA. Leave unconnected.
rx_analogreset[2:0]
Input
Resets Active-high, edge-sensitive, asynchronous reset signal. continued...
HDMI Intel� FPGA IP User Guide 26
Send Feedback
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
rx_digitalreset[2:0]
Input
Resets
When asserted, resets the RX CDR circuit, deserializer. Connect to Transceiver PHY Reset Controller IP core.
Active-high, edge-sensitive, asynchronous reset signal. When asserted, resets the digital component of the RX data path. Connect to the Transceiver PHY Reset Controller IP core.
rx_set_locktoref[2:0]
Input
rx_set_locktodata[2:0] rx_is_lockedtoref[2:0]
Input Output
rx_is_lockedtodata[2:0]
Output
rx_serial_data[2:0]
Input
PMA Ports
When asserted, programs the RX CDR to lock to reference mode manually. The lock to reference mode enables you to control the reset sequence using rx_set_locktoref and rx_set_locktodata. The Multirate Reconfiguration Controller (RX) sets this port to 1 if oversampling mode is required. Otherwise, this port is set to 0. Refer "Transceiver Reset Sequence" in Transceiver Reset Control in Arria V/Stratix V Devices for more information about manual control of the reset sequence.
Always driven to 0. When rx_set_locktoref is driven to 1, the CDR is configured to lock-to-reference mode. Otherwise, the CDR is configured to lock-to-data mode.
When asserted, the CDR is locked to the incoming reference clock. Connect this port to rx_is_lockedtodata port of the Transceiver PHY Reset Controller IP core when rx_set_locktoref is 1.
When asserted, the CDR is locked to the incoming data. Connect this port to rx_is_lockedtodata port of Transceiver PHY Reset Controller IP core when rx_set_locktoref is 0.
RX differential serial input data.
unused_rx_parallel_data
rx_parallel_data[S*3*10-1: 0]
Output Output
PCS Ports Leave unconnected.
PCS RX parallel data. Note: S=Symbols per clock.
rx_cal_busy[2:0]
Output
Calibration Status Port
When asserted, indicates that the initial RX calibration is in progress. This port is also asserted if the reconfiguration controller is reset. Connect to the Transceiver PHY Reset Controller IP core.
reconfig_to_xcvr[209:0] reconfig_from_xcvr[137:0]
Input Output
Reconfiguration Ports
Reconfiguration signals from the Transceiver Reconfiguration Controller.
Reconfiguration signals to the Transceiver Reconfiguration Controller.
Send Feedback
HDMI Intel� FPGA IP User Guide 27
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
4.3.1.2. PLL Intel FPGA IP Cores
Use the PLL Intel FPGA IP core as the HDMI PLL to generate reference clock for RX or TX transceiver, link speed, and video clocks for the HDMI RX or TX IP core.
The HDMI PLL is referenced by the arbitrary TMDS clock. For HDMI source, you can reference the HDMI PLL by a separate clock source in the VIP passthrough design, which contains frame buffer. The HDMI PLL for TX has the same desired output frequencies as RX across symbols per clock and color depth.
� For TMDS bit rates ranging from 3,400 Mbps to 6,000 Mbps (HDMI 2.0), the TMDS clock rate is 1/40 of the TMDS bit rate. The HDMI PLL generates reference clock for RX/TX transceiver at 4 times the TMDS clock.
� For TMDS bit rates below 3,400 Mbps (HDMI 1.4b), the TMDS clock rate is 1/10 of the TMDS bit rate. The HDMI PLL generates reference clock for RX/TX transceiver at identical rate as the TMDS clock.
If the TMDS link operates at TMDS bit rates below the minimum RX/TX transceiver link rate, your design requires oversampling and a factor of 5 is chosen. The minimum link rate of the RX/TX transceiver vary across device families and symbols per clock. The HDMI PLL generates reference clock for RX/TX transceiver at 5 times the TMDS clock.
Note:
Place the PLL Intel FPGA block on the transmit path (pll_hdmi_tx) in the physical location next to the transceiver PLL.
Table 13.
HDMI PLL Desired Output Frequencies for 8-bpc Video
This table shows an example of HDMI PLL desired output frequencies across various TMDS clock rates and symbols per clock for all supported device families using 8-bpc video.
Device Family
Symbols Per
Clock
Minimum Link Rate
(Mbps)
TMDS Bit Rate
(Mbps)
Oversampli ng (5x) Required
TMDS Clock RX/TX RX/TX Link
Rate (MHz) Transceiver Speed
Refclk
Clock
(MHz)
(MHz)
RX/TX Video Clock (MHz)
270
Yes
27
135
13.5
13.5
742.5
No
74.25
74.25
37.125
37.125
2
611
1,485
No
148.5
148.5
74.25
74.25
Arria V
2,970
No
270
Yes
297
297
148.5
148.5
27
135
6.75
6.75
742.5
Yes
74.25
371.25
18.5625
18.5625
4
1,000
1,485
No
148.5
148.5
37.125
37.125
5,940
No
148.5
594
148.5
148.5
540
Yes
54
270
27
27
Stratix V
2
611
1,620
No
162
162
81
81
5,934
No
296.7
593.4
296.7
296.7
The color depths greater than 8 bpc or 24 bpp are defined to be deep color. For a color depth of 8 bpc, the core carries the pixels at a rate of one pixel per TMDS clock. At deeper color depths, the TMDS clock runs faster than the source pixel clock to provide the extra bandwidth for the additional bits.
HDMI Intel� FPGA IP User Guide 28
Send Feedback
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
The TMDS clock rate is increased by the ratio of the pixel size to 8 bits: � 8 bits mode--TMDS clock = 1.0 � pixel or video clock (1:1) � 10 bits mode--TMDS clock = 1.25 � pixel or video clock (5:4) � 12 bits mode--TMDS clock = 1.5 � pixel or video clock (3:2) � 16 bits mode--TMDS clock = 2 � pixel or video clock (2:1)
Table 14.
HDMI PLL Desired Output Frequencies for Deep Color Video
This table shows an example of HDMI PLL desired output frequencies across symbols per clock and color depths.
Symbols Per Clock
Oversam pling (5x)
Required
Bits Per Compone
nt
TMDS Bit Rate (Mbps) (4)
TMDS Clock Rate (MHz)
RX/TX Transceiver Refclk (MHz)
RX/TX Link Speed Clock
(MHz)
RX/TX Video Clock (MHz)
8
270
10 (5)
337.5
2
Yes
12 (5)
405
16 (5)
540
27 33.75 40.5
54
135 168.75 202.5
270
13.5 16.875 20.25
27
13.5 13.5 13.5 13.5
8
1,485
148.5
148.5
37.125
37.125
10 (5)
1,856.25
185.625
185.625
46.40625
37.125
4
No
12 (5)
2,227.5
222.75
222.75
55.6875
37.125
16 (5)
2,970
297
297
74.25
37.125
The default frequency setting of the HDMI PLL is fixed at possible maximum value for each clock for appropriate timing analysis.
Note:
This default combination is not valid for any HDMI resolution. The core will reconfigure to the appropriate settings upon power up.
4.3.1.3. PLL Reconfig Intel FPGA IP Core
The PLL Reconfig Intel FPGA IP core facilitates dynamic real-time reconfiguration of PLLs in Intel FPGAs.
Use the IP core to update the output clock frequency, PLL bandwidth in real-time, without reconfiguring the entire FPGA.
You can run this IP core at 100 MHz in Stratix V devices. In Arria V devices, you need to run at 75 MHz for timing closure. To simplify clocking in Arria V devices, the entire management clock domain is capped at 75 MHz.
(4) The TMDS bit rate is 10x the TMDS character rate. For information about how the TMDS character rate is derived from the pixel clock rate, refer to the HDMI Specifications.
(5) For this release, deep color video is only demonstrated in VIP bypass mode. It is not available in VIP passthrough mode.
Send Feedback
HDMI Intel� FPGA IP User Guide 29
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
4.3.1.4. Multirate Reconfig Controller (RX)
The Multirate Reconfig Controller implements rate detection circuitry with the HDMI PLL to drive the RX transceiver to operate at any arbitrary link rates ranging from 250 Mbps to 6,000 Mbps. Link rate of 6,000 Mbps is not the absolute maximum but the intention is to support HDMI 2.0b link rate.
The Multirate Reconfig Controller performs rate detection on the HDMI PLL arbitrary reference clock, which is also the TMDS clock, to determine the clock frequency band. Based on the detected clock frequency band, the circuitry dynamically reconfigures the HDMI PLL and transceiver settings to accommodate for the link rate change.
Figure 11.
Multirate Reconfiguration Sequence Flow
This figure illustrates the multirate reconfiguration sequence flow of the controller when it receives input data stream and reference clock frequency, or when the transceiver is unlocked.
Reset the RX HDMI PLL and RX transceiver.
Enable the rate detection circuit to measure incoming TMDS clock.
Accept acknowledgement with clock frequency band and desired RX HDMI PLL and RX transceiver settings.
Determine if RX HDMI PLL and/or RX transceiver reconfiguration is required based on the previous and current detected clock frequency band and color depth. Different color depths may fall within the same clock frequency band.
Reconfiguration Is Required
Request RX HDMI PLL and/or RX transceiver reconfiguration if the previous and current clock frequency band or color depth differs.
Reconfiguration Is Not Required
The controller reconfigures the RX HDMI PLL and/or RX transceiver.
When all reconfiguration processes complete or the previous and current clock frequency band and color depth do not differ, reset the RX HDMI PLL and RX transceiver.
Enable rate the detection circuit periodically to monitor the reference clock frequency. If the clock frequency band changes or the RX HDMI PLL or RX transceiver or HDMI core lose lock, repeat the process.
HDMI Intel� FPGA IP User Guide 30
Send Feedback
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
4.3.1.5. Oversampler (RX)
The Oversampler (RX) extracts data from the oversampled incoming data stream when the detected clock frequency band is below the transceiver minimum link rate.
The oversampling factor is fixed at 5 and you can program the data width to support different number of symbols. The supported data width is 20 bit for 2 symbols per clock and 40 bits for 4 symbols per clock. The extracted bit will be accompanied by data valid pulse which asserts every 5 clock cycles.
4.3.1.6. DCFIFO
The DCFIFO transfers data from the RX transceiver recovered clock domain to the RX link speed clock domain. The DCFIFO transfers data from the TX link speed clock domain to the TX transceiver parallel clock out domain.
� Sink
-- When the Multirate Reconfig Controller (RX) detects an incoming input stream that is below the transceiver minimum link rate, the DCFIFO accepts the data from the Oversampler with data valid pulse as write request asserted every 5 clock cycles.
-- Otherwise, it accepts data directly from the transceiver with write request asserted at all times.
� Source
-- When Nios II processor determines the outgoing data stream is below the TX transceiver minimum link rate, the TX transceiver accepts the data from the Oversampler (TX).
-- Otherwise, the TX transceiver reads data directly from the DCFIFO with read request asserted at all times.
4.3.1.7. Sink Display Data Channel (DDC) & Status and Control Data Channel (SCDC)
The HDMI source uses the DDC to determine the capabilities and characteristics of the sink by reading the Enhanced Extended Display Identification Data (E-EDID) data structure.
The E-EDID memory is stored using the RAM 1-Port IP core. A standard two-wire (clock and data) serial data bus protocol (I2C slave-only controller) is used to transfer CEA-861-D compliant E-EDID data structure.
The 8-bit I2C slave addresses for the E-EDID are 0xA0/0xA1. The LSB indicates the access type: 1 for read and 0 for write. When an HPD event occurs, the I2C slave responds to E-EDID data by reading from the RAM.
The I2C slave-only controller is also used to support SCDC for HDMI 2.0b operation. The 8-bit I2C slave addresses for the SCDC are 0xA8/0xA9. When an HPD event occurs, the I2C slave performs write/read transaction to/from SCDC interface of HDMI RX core. This I2C slave-only controller for SCDC is not required if HDMI 2.0b is not intended.
Send Feedback
HDMI Intel� FPGA IP User Guide 31
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
4.3.1.8. Transceiver Reconfiguration Controller
You can use the Transceiver Reconfiguration Controller IP core to change the device transceiver settings at any time.
You can selectively reconfigure any portion of the transceiver. The reconfiguration of each portion requires a read-modify-write operation (read first, then write). The readmodify-write operation modifies only the appropriate bits in a register and does not affect the other bits.
The Transceiver Reconfiguration Controller is only available and required in Arria V and Stratix V devices. Because the RX and TX transceivers share a single controller, the controller requires Platform Designer interconnects, such as Avalon-MM Master Translator and Avalon-MM Slave Translator, in the Platform Designer system.
� The Avalon-MM Master Translator provides an interface between this controller and the RX Multirate Reconfig Controller.
� The Avalon-MM Slave Translator arbitrates the RX and TX reconfiguration event for this controller.
4.3.1.9. VIP Bypass and Audio, Auxiliary and InfoFrame Buffers
The video data output and synchronization signals from HDMI RX core is looped through a DCFIFO across RX and TX video clock domains. The General Control Packet (GCP), InfoFrames (AVI, VSI, and AI), auxiliary data and audio data are looped through DCFIFOs across RX and TX link speed clock domains.
The auxiliary data port of the HDMI TX core controls the auxiliary data that flow through DCFIFO through backpressure. The backpressure ensures there is no incomplete auxiliary packet on the auxiliary data port. This block also performs external filtering on the audio data and audio clock regeneration packet from the auxiliary data stream before sending to the HDMI TX core auxiliary data port.
4.3.1.10. Transceiver Native PHY (TX)
The Arria V and Stratix V Transceiver Native PHY (TX) configuration settings are typically the same as RX.
Table 15.
Arria V and Stratix V Transceiver Native PHY (TX) Configuration Settings (6,000 Mbps)
This table shows an example of Arria V and Stratix V Transceiver Native PHY (TX) configuration settings for TMDS bit rate of 6,000 Mbps.
Parameters
Settings
Datapath Options
Enable TX datapath
On
Enable RX datapath
Off
Enable Standard PCS
On
Initial PCS datapath selection
Standard
Number of data channels
4
Bonding mode
xN
Enable simplified data interface
On
HDMI Intel� FPGA IP User Guide 32
Send Feedback
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
Data rate TX local clock division factor Enable TX PLL dynamic reconfiguration Use external TX PLL Number of TX PLLs Main TX PLL logical index Number of TX PLL reference clocks PLL type Reference clock frequency Selected reference clock source Selected clock network
TX PMA
6,000 Mbps 1 On Off 1 0 1
CMU 600 MHz
0 xN
Standard PCS protocol Standard PCS/PMA interface width Enable TX byte serializer
Standard PCS
Basic
� 10 (for 1 symbol per clock) � 20 (for 2 and 4 symbols per clock)
� Off (for 1 and 2 symbols per clock) � On (for 4 symbols per clock)
Table 16.
Arria V and Stratix V Transceiver Native PHY (TX) Common Interface Ports
This table describes the Arria V and Stratix V Transceiver Native PHY (TX) common interface ports.
Signals
Direction
Description
Clocks
tx_pll_refclk
Input
The reference clock input to the TX PLL.
tx_std_clkout[3:0]
Output
TX parallel clock output.
tx_std_coreclkin[3:0]
Input
TX parallel clock that drives the write side of the TX phase compensation FIFO.
Connect to tx_std_clkout[0] ports.
tx_analogreset[3:0] tx_digitalreset[3:0]
Input Input
Resets
When asserted, resets all the blocks in TX PMA. Connect to Transceiver PHY Reset Controller (TX) IP core.
When asserted, resets all the blocks in TX PCS. Connect to the Transceiver PHY Reset Controller (TX) IP core.
pll_powerdown pll_locked
Input Output
TX PLL
When asserted, resets the TX PLL. Connect to the Transceiver PHY Reset Controller (TX) IP core.
When asserted, indicates that the TX PLL is locked. Connect to the Transceiver PHY Reset Controller (TX) IP core.
Send Feedback
HDMI Intel� FPGA IP User Guide 33
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
unused_tx_parallel_data
tx_parallel_data[S*4*10-1: 0]
Input Input
PCS Ports Leave unconnected.
PCS TX parallel data. Note: S=Symbols per clock.
tx_serial_data[3:0]
Output
PMA Port TX differential serial output data.
tx_cal_busy[3:0]
Output
Calibration Status Port
When asserted, indicates that the initial TX calibration is in progress. This port is also asserted if the reconfiguration controller is reset. Connect to the Transceiver PHY Reset Controller (TX) IP core.
reconfig_to_xcvr[349:0] reconfig_from_xcvr[229:0]
Input Output
Reconfiguration Ports
Reconfiguration signals from the Transceiver Reconfiguration Controller.
Reconfiguration signals to the Transceiver Reconfiguration Controller.
4.3.1.11. Transceiver PHY Reset Controller
The Transceiver PHY Reset Controller IP core ensures a reliable initialization of the RX and TX transceivers.
The reset controller has separate reset controls per channel to handle synchronization of reset inputs, lagging of PLL locked status, and automatic or manual reset recovery mode.
4.3.1.12. Oversampler (TX)
The Oversampler (TX) transmits data by repeating each bit of the input word a given number of times and constructs the output words.
The oversampling factor is fixed at 5. The Oversampler (TX) assumes that the input word is only valid every 5 clock cycles. This block enables when the outgoing data stream is determined to be below the TX transceiver minimum link rate by reading once from the DCFIFO every 5 clock cycles.
4.3.1.13. Clock Enable Generator
The Clock Enable Generator is a logic that generates a clock enable pulse.
This clock enable pulse asserts every 5 clock cycles and serves as a read request signal to clock the data out from DCFIFO.
4.3.1.14. Platform Designer System
The Platform Designer system consists of the VIP passthrough for HDMI video stream, source SDC controller, and source reconfiguration controller blocks.
HDMI Intel� FPGA IP User Guide 34
Send Feedback
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
4.3.1.14.1. VIP Passthrough for HDMI Video Stream
For certain example designs, you can loop the video data output and synchronization signals from HDMI RX core through the VIP data path.
The Clocked Video Input II (CVI II) Intel FPGA IP core converts clocked video formats to Avalon-ST video by stripping incoming clocked video of horizontal and vertical blanking, leaving only active picture data.
� The IP core provides clock crossing capabilities to allow video formats running at different frequencies to enter the system.
� The IP core also detects the format of the incoming clocked video and provides this information in a set of registers.
� The Nios II processor uses this information to reconfigure the video frame mode registers of the CVO IP core in the VIP passthrough design.
The Video Frame Buffer II Intel FPGA IP core buffers video frames into external RAM.
� The IP core supports double and triple buffering with a range of options for frame dropping and repeating.
� You can use the buffering options to solve throughput issues in the data path and perform simple frame rate conversion.
In a VIP passthrough design, you can reference the HDMI source PLL and sink PLL using separate clock sources. However, in a VIP bypass design, you must reference the HDMI source PLL and sink PLL using the same clock source.
The Clocked Video Output II (CVO II) Intel FPGA IP core converts data from the flowcontrolled Avalon-ST video protocol to clocked video.
� The IP core provides clock crossing capabilities to allow video formats running at different frequencies to be created from the system.
� It formats the Avalon-ST video into clocked video by inserting horizontal and vertical blanking and generating horizontal and vertical synchronization information using the Avalon-ST video control and active picture packets.
� The video frame is described using the mode registers that are accessed through the Avalon-MM control port.
Table 17. Difference between VIP Passthrough Design and VIP Bypass Design
VIP Passthrough Design
VIP Bypass Design
� Can reference the HDMI source PLL and sink PLL using separate clock sources
� Demonstrates only certain video formats--640�480p60, 720�480p60, 1280�720p60, 1920�1080p60, and 3840�2160p24
� Must reference the HDMI source PLL and sink PLL using the same clock source
� Demonstrates all video formats.
Table 18. VIP Passthrough and VIP Bypass Options for the Supported Devices
Device Family Arria V
Stratix V
Symbols Per
HDMI
Bitec HDMI HSMC
Clock
Specification 2.0 Daughter Card
Support
2
1.4b
HSMC (Rev8)
4
2.0b
HSMC (Rev8)
2
2.0b
HSMC (Rev8)
Directory
av_sk av_sk_hdmi2
sv_hdmi2
VIP Passthrough
VIP Bypass
Supported Not supported Not supported
Supported Supported Supported
Send Feedback
HDMI Intel� FPGA IP User Guide 35
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
4.3.1.14.2. Source SCDC Controller
The source SCDC Controller contains the I2C master controller. The I2C master controller transfers the SCDC data structure from the FPGA source to the external sink for HDMI 2.0b operation.
For example, if the outgoing data stream is 6,000 Mbps, the Nios II processor commands the I2C master controller to update the TMDS_Bit_Clock_Ratio and Scrambler_Enable bits of the sink TMDS configuration register to 1. The same I2C master can also transfer the DDC data structure (E-EDID) between the HDMI source and external sink.
4.3.1.14.3. Source Reconfiguration Controller
The Nios II CPU acts as the multirate reconfiguration controller for the HDMI source.
The CPU relies on the periodic rate detection from the Multirate Reconfig Controller (RX) to determine if TX requires reconfiguration. The Avalon-MM slave translator provides the interface between the Nios II processor Avalon-MM master interface and the Avalon-MM slave interfaces of the externally instantiated HDMI source's PLL Reconfig Intel FPGA IP and Transceiver Native PHY (TX).
HDMI Intel� FPGA IP User Guide 36
Send Feedback
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
Figure 12.
Nios II Software Flow
The reconfiguration sequence flow for TX is the same as RX, except that the PLL and transceiver reconfiguration, and the reset sequence is performed sequentially. The figure illustrates the Nios II software flow that involves the controls for CVO, I2C master and HDMI source.
Reset the TX HDMI PLL and TX transceiver. Initialize the I2C master controller core.
Reconfiguration Is Not Required
Poll periodic measure valid signal from RX rate detection circuit to determine whether TX reconfiguration is required. Also, poll the TX hot-plug request to determine whether a TX hot-plug event has occurred.
Measure Valid Received
Read TMDS_Bit_Clock_Ratio value from the HDMI sink and the measure value.
Retrieve the clock frequency band based on the measure and TMDS_Bit_Clock_Ratio values and read the color depth information from the HDMI sink to determine whether TX HDMI PLL and TX transceiver reconfiguration and oversampling is required.
A TX Hot-Plug Event Has Occurred
Send SCDC via the I2C interface based on the TMDS_Bit_Clock_Ratio register value from the HDMI sink.
Reconfiguration Is Required
The Nios II processor commands the I2C master to send SCDC information.
The Nios II processor sends sequential commands to reconfigure the TX HDMI PLL and TX transceiver and reset sequence after reconfiguration. It then sends a reset to the HDMI TX core.
CVO Update Is Not Required
Retrieve incoming video width and height from the CVI to determine whether the CVO should be updated to adjust the outgoing video frame resolution.
CVO Update Is Required
The Nios II processor sends commands to update the CVO video frame resolution.
4.3.2. HDMI Hardware Design Requirements
The HDMI design requires an Intel FPGA board and supporting hardware.
� Intel FPGA board � Bitec HDMI HSMC 2.0 daughter card � Standard HDMI source--for example, PC with a graphic card and HDMI output � Standard HDMI sink--for example, monitor with HDMI input � 2 HDMI cables
-- A cable to connect the graphics card to the Bitec daughter card RX connector. -- A cable to connect the Bitec daughter card TX connector to the monitor.
Send Feedback
HDMI Intel� FPGA IP User Guide 37
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
Table 19.
Intel FPGA Boards and Bitec HDMI HSMC 2.0 Daughter Cards Supported for the Design
Design Example
Arria V (av_sk) Arria V (av_sk_hdmi2) Stratix V (sv_hdmi2)
Intel FPGA Board
Arria V GX FPGA Starter Kit Arria V GX FPGA Starter Kit Stratix V GX FPGA Development Kit
Bitec HDMI HSMC 2.0 Daughter Card
HSMC (Rev8)
HSMC (Rev8)
HSMC (Rev8)
Related Information � Arria V GX Starter Kit User Guide � Stratix V GX FPGA Development Kit User Guide
4.3.3. Design Walkthrough
Setting up and running the HDMI hardware design consists of four stages.
You can use the Intel-provided scripts to automate these stages. 1. Set up the hardware. 2. Copy the design files to your working directory. 3. Build and compile the design. 4. View the results.
4.3.3.1. Set Up the Hardware
The first stage of the demonstration is to set up the hardware.
To set up the hardware for the demonstration:
1. Connect the Bitec HDMI HSMC 2.0 daughter card to the FPGA development board.
2. Connect the FPGA board to your PC using a USB cable.
Note: The Arria V GX FPGA Starter Kit and Stratix V GX FPGA Development Kit have an On-Board Intel FPGA Download Cable II connector. If your version of the board does not have this connector, you can use an external Intel FPGA Download Cable cable.
3. Connect an HDMI cable from the HDMI RX connector on the Bitec HDMI HSMC 2.0 daughter card to a standard HDMI source, in this case a PC with a graphic card and HDMI output.
4. Connect another HDMI cable from the HDMI TX connector on the Bitec HDMI HSMC 2.0 daughter card to a standard HDMI sink, in this case a monitor with HDMI input.
4.3.3.2. Copy the Design Files
After you set up the hardware, you copy the design files. Copy the hardware demonstration files from one of the following paths to your working directory:
HDMI Intel� FPGA IP User Guide 38
Send Feedback
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
� Arria V -- 2 symbols per clock (HDMI 1.4b) demonstration: <IP root directory>/ altera_hdmi/hw_demo/av_sk -- 4 symbols per clock (HDMI 2.0b) demonstration: <IP root directory>/ altera_hdmi/hw_demo/av_sk_hdmi2
� Stratix V -- 2 symbols per clock (HDMI 2.0b) demonstration: <IP root directory>/ altera_hdmi/hw_demo/sv_hdmi2
4.3.3.3. Build and Compile the Design
After you copy the design files, you can build the design.
You can use the provided Tcl script to build and compile the FPGA design. 1. Open a Nios II Command Shell. 2. Change the directory to your working directory. 3. Type the command and enter source runall.tcl.
This script executes the following commands: � Generate IP catalog files � Generate the Platform Designer system � Create an Intel Quartus Prime project � Create a software work space and build the software � Compile the Intel Quartus Prime project � Run Analysis & Synthesis to generate a post-map netlist for DDR assignments
--for VIP passthrough design only � Perform a full compilation Note: If you are a Linux user, you will get a message cygpath: command not
found. You can safely ignore this message; the script will proceed to generate the next commands.
4.3.3.4. View the Results
At the end of the demonstration, you will be able to view the results on the standard HDMI sink (monitor).
To view the results of the demonstration, follow these steps: 1. Power up the Intel FPGA board. 2. Type the following command on the Nios II Command Shell to download the
Software Object File (.sof) to the FPGA. nios2-configure-sof output_files/<Quartus project name>.sof 3. Power up the standard HDMI source and sink (if you haven't done so). The design displays the output of your video source (PC).
Send Feedback
HDMI Intel� FPGA IP User Guide 39
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
Note: If the output does not appear, press cpu_resetn to reinitialize the system or perform HPD by unplugging the cable from the standard source and plug it back again.
4. Open the graphic card control utility (if you are using a PC as source). Using the control panel, you can switch between various video resolutions.
The av_hdmi2 and sv_hdmi2 demonstration designs allow any video resolutions up to 4Kp60. The av_sk design allows 640�480p60, 720�480p60, 1280�720p60, 1920�1080p60, and 3840�2160p24 when you select the VIP passthrough mode (user_dipsw[0] = 0). If you select the VIP bypass mode (user_dipsw[0] = 1, the design allows any video resolutions up to 4Kp60.
4.3.3.4.1. Push Buttons, DIP Switches and LED Functions
Use the push buttons, DIP switches, and LED functions on the board to control your demonstration.
Table 20. Push Buttons, DIP Switches and LEDs Functions
Push Button/ DIP Switch/LED
cpu_resetn user_pb[0] user_pb[1] user_pb[2]
user_dipsw[0]
user_led[0] user_led[1] user_led[2]
user_led[3]
user_led[4]
Pins av_sk/av_sk_hdmi2
D5
A14
sv_hdmi2 AM34 A7
B15
B7
B14
C7
D15
Unused
F17 G15 G16
J11 U10 U9
G17 D16
AU24 AF28
Functions
Press once to perform system reset.
Press once to turn on and turn off HPD signal to the standard HDMI source.
Press and hold to instruct the TX to send DVI encoded signal and release to send HDMI encoded signal.
Press and hold to instruct the TX to stop sending InfoFrames and release to resume sending.
Only used in av_sk design which demonstrates the VIP passthrough feature. � 0: VIP passthrough � 1: VIP bypass
RX HDMI PLL lock status. � 0: Unlocked � 1: Locked
RX transceiver ready status. � 0: Not ready � 1: Ready
RX HDMI core lock status � 0: At least 1 channel unlocked � 1: All 3 channels locked
RX oversampling status. � 0: Non-oversampled (more than
611 Mbps for av_sk and sv_hdmi2, more than 1,000 Mbps for av_sk_hdmi2) � 1: Oversampled (less than 611 Mbps for av_sk and sv_hdmi2, less than 1,000 Mbps for av_sk_hdmi2)
TX HDMI PLL lock status. continued...
HDMI Intel� FPGA IP User Guide 40
Send Feedback
4. HDMI Hardware Design Examples UG-HDMI | 2021.05.12
Push Button/ DIP Switch/LED
user_led[5] user_led[6]
user_led[7]
Pins av_sk/av_sk_hdmi2
sv_hdmi2
C13 C14
AE29 AR7
C16
AV10
Functions
� 0: Unlocked � 1: Locked
TX transceiver ready status. � 0: Not ready � 1: Ready
TX transceiver PLL lock status. � 0: Unlocked � 1: Locked
TX oversampling status. � 0: Non-oversampled (more than
611 Mbps for av_sk and sv_hdmi2, more than 1,000 Mbps for av_sk_hdmi2) � 1: Oversampled (less than 611 Mbps for av_sk and sv_hdmi2, less than 1,000 Mbps for av_sk_hdmi2)
Send Feedback
HDMI Intel� FPGA IP User Guide 41
UG-HDMI | 2021.05.12 Send Feedback
5. HDMI Source
5.1. Source Functional Description
The HDMI source core provides direct connection to the Transceiver Native PHY through a 20-bit or 40-bit parallel data path. The clock domains for the auxiliary and audio ports, and the internal modules are different for Support FRL = 1 and Support FRL = 0.
Figure 13.
HDMI Source Signal Flow Diagram for TMDS (Support FRL = 0) Design
The figure below shows the flow of the HDMI source signals. The figure shows the various clocking domains
used within the core.
Encoder Control Port HDCP Port
Video Data Port
VVViiidddeeeooo DDDaaatttaaa (((BRGelruedeeCnChhCaahnnannneenl)le)l)
General Control Packet
Auxiliary Control Port
AVI InfoFrame Vendor-Specific
Infoframe
Auxiliary Data Port
Audio Metadata
Audio Clock
Audio Regeneration (N, CTS)
Port
Audio Infoframe
Video Resampler
AVI Control VSI Control
Auxiliary Packet Dropper
AM Control Timestamp Scheduler AI Control
WOP Generator
Auxiliary Packet Multiplexer Generator
Auxiliary Packet Generator
Auxiliary Packet Generator
Multiplexer
Multiplexer
Auxiliary Packet Encoder
Auxiliary Packet Generator
Auxiliary Packet Generator
Auxiliary Packet Generator
Audio Sample
Audio Packetizer
Auxiliary Packet Generator
Audio Encoder
vid_clk domain Is_clk domain HDCP clocks domain
HDCP 2.3 TX
HDCP 1.4 TX
Scrambler, TMDS/TERC4
Encoder
AUX
AUX
AUX
TMDS Data (Red Channel) TMDS Data (Green Channel) TMDS Data (Blue Channel) TMDS Data (Clock Channel)
TMDS Data Port
The source core provides four 20-bit parallel data paths corresponding to the 3 color channels and the clock channel.
The source core accepts video, audio, and auxiliary channel data streams. The core produces a scrambled and TMDS/TERC4 encoded data stream that would typically connect to the high-speed transceiver parallel data inputs.
Note:
The scrambled data only applies for HDMI 2.0b stream with TMDS Bit Rate higher than 3.4 Gbps.
Central to the core is the Scrambler, TMDS/TERC4 Encoder. The encoder processes either video or auxiliary data.
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, eASIC, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
5. HDMI Source UG-HDMI | 2021.05.12
Figure 14.
HDMI Source Signal Flow Diagram for Support FRL = 1 Design
Encoder Control Port HDCP Port
Video Video Data (Red Channel) Data Video Data (Green Channel) Port Video Data (Blue Channel)
Video Resampler
Auxiliary Control Port
General Control Packet
AVI InfoFrame Vendor-Specific
Infoframe
Auxiliary Data Port
Audio Port
Audio Metadata Audio Clock
Regeneration (N, CTS)
Audio Infoframe
AVI Control VSI Control
Auxiliary Packet Dropper
AM Control
Timestamp Scheduler AI Control
Audio Sample Audio Packetizer
vid_clk domain (pixels per clock) tx_clk domain (transceiver width per lane) frl_clk domain (FRL characters per clock) HDCP clocks domain
WOP Generator
Multiplexer
Auxiliary Packet Generator Auxiliary Packet Generator Auxiliary Packet Generator
Multiplexer AUX
Auxiliary Packet Encoder
Auxiliary Packet Generator Auxiliary Packet Generator Auxiliary Packet Generator
Auxiliary Packet Generator
Multiplexer
HDCP 2.3 TX
DCFIFO
HDCP 1.4 TX
FRL Packetizer FRL Character block and Super Block Mapping RS FEC Parity Generation and Insertion FRL Scrambler and Encoder
FRL Resampler
Scrambler, TMDS/TERC4
Encoder
Data Lane 0
Data Lane 1
TMDS Data
Data Lane 2 Port
Data Lane 3
Multiplexer
For FRL path design, the video resampler and WOP generator operating at video clock domain accept video data running in the video clock (vid_clk) domain. The auxiliary data port, audio data port, and the auxiliary sideband signals also run in the video clock domain.
� A DCFIFO clocks the HDMI data stream from the WOP generator in the video clock domain to the scrambler, TMDS/TERC4 encoder in the transceiver recovered clock (tx_clk) domain to create a TMDS data stream.
� The HDMI data stream is also fed into the FRL path in FRL clock (frl_clk) domain to create an FRL data stream.
The multiplexer selects either TMDS data stream or FRL data stream as output data for lanes 0�3 based on the FRL rate.
� If FRL rate is 0, the multiplexer selects TMDS data streams as output.
� If FRL rate is non-zero, the multiplexer selects FRL data streams as output.
5.1.1. Source Scrambler, TMDS/TERC4 Encoder
The TMDS/TERC4 encoder implements 8-bit to 10-bit and 4-bit to 10-bit algorithms as defined in the HDMI 1.4b Specification Section 5.4. Each data channel, with exception of the clock channel, has its own encoder. You can configure the core to enable scrambling, as defined in the HDMI 1.4b Specification Section 6.1.2, before TMDS/ TERC4 encoding.
The encoder processes symbol data at 1, 2, or 4 symbols per clock. When the encoder operates in 2 or 4 symbols per clock, it also produces the output in the form of two or four encoded symbols per clock.
The TMDS/TERC4 encoder also produces digital visual interface (DVI) signaling when you deassert the mode input signal. DVI signaling is identical to HDMI signaling, except for the absence of data and video islands and TERC4 auxiliary data.
Send Feedback
HDMI Intel� FPGA IP User Guide 43
5. HDMI Source UG-HDMI | 2021.05.12
5.1.2. Source Video Resampler
The video resampler consists of a dual-clock FIFO (DCFIFO) and a gearbox.
The gearbox converts data of 8, 10, 12, or 16 bits per component to 8-bit per component data based on the current color depth. The General Control Packet (GCP) conveys the color depth information.
Figure 15.
Source Video Resampler Signal Flow Diagram
The figure below shows the components of the video resampler and the signal flow between these components.
Resampled
H-SYNC V-SYNC
de
r[15:0] g[15:0] b[15:0]
data
q
DCFIFO
Gearbox
H-SYNC V-SYNC de
r[7:0] g[7:0] b[7:0]
Phase
packing-phase (pp)
1
wr
rd
Counter
bits per pixel (bpp)
vid_clk
wrclk
rdclk
ls_clk
The resampler adheres to the recommended phase encoding method described in HDMI 1.4b Specification Section 6.5.
� The phase counter must register the last pixel packing-phase (pp) of the last pixel of the last active line.
� The core then transmits the pp value to the attached sink device in the GCP for packing synchronization.
The HDMI cable may send across four different pixel encodings: RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 (as described in HDMI 1.4b Specification Section 6.5), and YCbCr 4:2:0 (as described in HDMI 2.0b Specification Section 7.1).
Figure 16.
Pixel Data Input Format RGB/YCbCr 4:4:4
The figure below shows the RGB/YCbCr 4:4:4 color space pixel bit-field mappings per symbol. When the actual color depth is below 16 bpc, the unused LSBs are set to zero.
24 bpp RGB/YCbCr 4:4:4 (8 bpc)
30 bpp RGB/YCbCr 4:4:4 (10 bpc)
36 bpp RGB/YCbCr 4:4:4 (12 bpc)
48 bpp RGB/YCbCr 4:4:4 (16 bpc)
47
32 31
16 15
0 vid_data[47:0]
HDMI Intel� FPGA IP User Guide 44
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Figure 17.
Pixel Data Input Format YCbCr 4:2:2 (12 bpc)
The figure below shows the YCbCr 4:2:2 color space pixel bit-field mappings per symbol. As with 4:4:4 color space, the unused LSBs are set to zero.
47
40
31
24
15
8
0
Cb/Cr[11:4]
Y[11:4]
Cb/Cr[3:0]
Y[3:0]
The higher order 8 bits of the Y samples are mapped to the 8 bits of Channel 1 and the lower order 4 bits are mapped to the lower order 4 bits of Channel 0.
The first pixel transmitted within a Video Data Period contains three components, Y0, Cb0 and Cr0. The Y0 and Cb0 components are transmitted during the first pixel period while Cr0 is transmitted during the second pixel period. This second pixel period also contains the only component for the second pixel, Y1. In this way, the link carries one Cb sample for every two pixels and one Cr sample for every two pixels. These two components (Cb and Cr) are multiplexed onto the same signal paths on the link.
Figure 18.
Pixel Data Input Format YCbCr 4:2:0
The figure shows the YCbCr 4:2:0 color space pixel bit-field mappings. As with 4:4:4 color space, the unused LSBs are set to zero.
n + 1
n
12 bpp YCbCr 4:2:0 (8 bpc)
n + 1
n
15 bpp YCbCr 4:2:0 (10 bpc)
n + 1
n
18 bpp YCbCr 4:2:0 (12 bpc)
n + 1
n
24 bpp YCbCr 4:2:0 (16 bpc)
47
32 31
16 15
0 vid_data[47:0]
n = Pixel Index
The two horizontally successive 8-bit Y components are transmitted in TMDS Channels 1 and 2, in that order. The 8-bit Cb or Cr components are transmitted alternately in TMDS Channel 0, line by line.
For even lines starting with line 0: � vid_data[47:32] always transfer the Yn+1 component � vid_data[31:16] always transfer the Yn component � vid_data[15:0] always transfer the Cbn component
For odd lines: � vid_data[47:32] always transfer the Yn+1 component � vid_data[31:16] always transfer the Yn component � vid_data[15:0] always transfer the Crn component
The frequency of vid_clk must be halved when YCbCr 4:2:0 is used, because two pixels are fed into a single clock cycle.
Send Feedback
HDMI Intel� FPGA IP User Guide 45
5. HDMI Source UG-HDMI | 2021.05.12
Figure 19.
YCbCr 4:2:0 Transport Using 1 Symbol Per Clock Mode
The figure below shows the YCbCr 4:2:0 transmission when the core operates in 1 symbol per clock mode.
vid_clk = pixel clock / 2
(Channel 2) vid_data[47:32] Y01
Y03
Y05
Y07
Y11
Y13
Y15
Y17
(Channel 1) vid_data[31:16] Y00
Y02
Y04
Y06
Y10
Y12
Y14
Y16
(Channel 0) vid_data[15:0] Cb00
Cb02
Cb04
Cb06
Cr10
Cr12
Cr14
Cr16
Even Line (0)
For example:
Pixel number
Y00 = Y Component, Line 0, Pixel 0 Line number
Y01 = Y Component, Line 0, Pixel 1 Component
Odd Line (1)
5.1.3. Source Window of Opportunity Generator
The source Window of Opportunity (WOP) generator creates valid data islands within the blanking regions.
During horizontal blanking region, the WOP generator creates a leading region to hold at least 12 period symbols that include eight preamble symbols. The generator also creates a trailing region to hold two data island trailing guard band symbols, at least 12 control period symbols that include eight preamble symbols and two video leading guard band symbols.
During vertical blanking region, the source cannot send more than 18 auxiliary packets consecutively. The WOP generator deasserts the data island output enable (aux_wop) line after every 18th auxiliary packet for 32-symbol clocks.
The WOP generator also has an integral number of auxiliary packet cycles: 24 clocks when processing in 1-symbol mode, 16 clocks when processing in 2-symbol mode, and 8 clocks when processing in 4-symbol mode.
Figure 20.
Typical Window of Opportunity
The figure below shows a typical output from the WOP generator.
Video Data Enable V Sync H Sync
Data Island Output Enable
Vertical Blanking
Active
Horizontal
Active
Video
Blanking
Video
Control Period
Data Island Guard Band
Video Guard Band
Data Island
5.1.4. Source Auxiliary Packet Encoder
Auxiliary packets are encoded by the source auxiliary packet encoder.
The auxiliary packets originate from several sources, which are multiplexed into the auxiliary packet encoder in a round-robin schedule. The auxiliary packet encoder converts a standard stream into the channel data format required by the TERC4 encoder.
HDMI Intel� FPGA IP User Guide 46
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
The auxiliary packet encoder also calculates and inserts the Bose-ChaudhuriHocquenghem (BCH) error correction code.
Figure 21.
Auxiliary Packet Encoder Input
The figure below shows the auxiliary packet encoder input from a 72-bit input data.
Phase 0
Phase 1
Phase 2
PB22
Byte[8]
PB24
PB26
PB21
PB23
PB25
PB15
PB17
PB19
PB14
PB16
PB18
Input Data
PB8
PB10
PB12
PB7
PB9
PB11
PB1
PB3
PB5
PB0
PB2
PB4
HB0
Byte[0]
HB1
HB2
Phase 3 0
PB27 0
PB20 0
PB13 0
PB6 0
BCH Block 3 BCH Block 2 BCH Block 1 BCH Block 0
Startofpacket Endofpacket
Valid Clock Cycle 1 Symbol Cycle 2 Symbol Cycle 4 Symbol
Phase 0
Phase 1
Phase 2
Phase 3
0
-
-
8
-
- 16
-
- 24
0
-
-
4
-
-
8
-
- 12
0
-
-
2
-
-
4
-
-
6
The encoder assumes the data valid input will remain asserted for the duration of a packet to complete. A packet is always 24 clocks (in 1-symbol mode), 12 clocks (in 2symbol mode), or 6 clocks (in 4-symbol mode).
Send Feedback
HDMI Intel� FPGA IP User Guide 47
5. HDMI Source UG-HDMI | 2021.05.12
Figure 22.
Typical Auxiliary Packet Stream During Blanking Interval
The figure below shows a typical auxiliary packet stream in 1-symbol per clock mode, where 0 denotes a null packet.
19th Packet Skipped
aux_wop
aux_de
Auxilliary Packet Clock Cycle
AD AD AD AD AD AD AD AD 0 31 63 95
AD: Audio Data AVI: Auxilliary Video Infoframe AI: Audio Information Infoframe VSI: Vendor Specific Infoframe
AD AD
AVI
575
AI VSI
5.1.5. Source Auxiliary Packet Generators
The source core uses various auxiliary packet generators. The packet generators convert the packet field inputs to the auxiliary packet stream format.
The packet generator propagates backpressure from the output ready signal to the input ready signal. The generator asserts the input valid signal when a packet is ready to be transmitted. The input valid signal remains asserted until the end of the packet and the generator receives a ready acknowledgment.
5.1.6. Source Auxiliary Data Path Multiplexers
The auxiliary data path multiplexers provide paths for the various auxiliary packet generators.
The various auxiliary packet generators traverse a multiplexed routing path to the auxiliary packet encoder. The multiplexers obey a round-robin schedule and propagate backpressure.
5.1.7. Source Auxiliary Control Port
To simplify the user logic, the source core has control ports to send the most common auxiliary control packets.
These packets are: General Control Packet, Auxiliary Video Information (AVI) InfoFrame, and HDMI Vendor Specific InfoFrame (VSI).
The core sends the default values in the auxiliary packets. The default values allow the core to send video data compatible with the HDMI 1.4b Specification with minimum description.
You can also override the generators using the customized input values. The override values replace the default values when the input checksum is non-zero.
HDMI Intel� FPGA IP User Guide 48
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Table 21. Insertion and Filtration
Auxiliary Packets
Insertion/Filtration
Frequency of Insertion
General Control Packet
�
The core always inserts GCP packets from the Once per frame.
(GCP)
GCP sideband upon the rising edge of vsync.
The core always removes the GCP in the Auxiliary Data Port.
You must provide the pixel packing and color depth information through the gcp port.
Auxiliary Video Information (AVI)
InfoFrame
info_avi[112]=1'b0
The core inserts info_avi when there is a non-zero bit upon the rising edge of vsync.
The core send default values when all bits are zero. The core filters the AVI InfoFrame packet on the Auxiliary Data Port.
Once per frame.
Support FRL=0: info_avi[112] =1'b1
Support FRL =1: info_avi[122]=1'b1
The core does not insert info_avi.
The AVI InfoFrame packet on the Auxiliary Data Port passes through.
Vendor Specific InfoFrame (VSI)
info_vsi[61]=1'b0
The core inserts info_vsi[60:0] when there is a non-zero bit upon the rising edge of vsync.
The core sends default values when all bits are zero. The core filters the VSI InfoFrame packet on the Auxiliary Data Port.
Once per frame.
info_vsi[61]=1'b1
The core does not insert info_vsi[60:0].
The VSI InfoFrame packet on the Auxiliary Data Port passes through.
Audio Metadata (AM)
audio_metadata[165]=1'b0
The core inserts audio_metadata[164:0] when audio_format[3:0] is 3D audio or MST audio upon the rising edge of vsync.
The core filters the AM packet on the Auxiliary Data Port.
Once per frame.
audio_metadata[165]=1'b1
The core does not insert audio_metadata[164:0].
The AM packet on the Auxiliary Data Port passes through.
Audio InfoFrame (AI)
audio_info_ai[48]=1'b0
The core inserts audio_info_ai[47:0] when there is a non-zero bit upon the rising edge of vsync.
The core sends default values when all bits are zero. The core filters the AI packet on the Auxiliary Data Port.
Once per frame.
audio_info_ai[48]=1'b1
The core does not insert audio_info_ai[47:0].
The AI packet on the Auxiliary Data Port passes through.
Audio Control Regeneration (ACR)
�
The core always inserts the audio_N and
Every 1 ms.
audio_CTS.
The core does not filter the ACR packet in the auxiliary. If there is ACR packet in the Auxiliary Data Port, you must remove it before passing into the Auxiliary Data Port.
Audio Sample
�
The core always inserts audio_data.
Based on audio
sample rate.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 49
5. HDMI Source UG-HDMI | 2021.05.12
Auxiliary Packets
Insertion/Filtration
The core does not filter the audio sample packet in the Auxiliary Data Port. If there is audio sample packet in the Auxiliary Data Port, you must remove it before passing into the Auxiliary Data Port.
Frequency of Insertion
5.1.7.1. Source General Control Packet (GCP)
Table 22.
Source GCP Bit-Fields
This table lists the controllable bit-fields for the Source gcp[5:0] port.
Bit Field
Name
Value
gcp[3:0]
Color Depth (CD)
CD3 0
CD2 0
CD1 0
CD0 0
0
1
0
0
gcp[4] gcp[5]
0
1
0
1
0
1
1
0
0
1
1
1
Others
Set_AVMUTE Refer to HDMI 1.4b Specification Section 5.3.6.
Clear_AVMUT Refer to HDMI 1.4b Specification Section 5.3.6. E
Comment Color depth Color depth not indicated 8 bpc or 24 bits per pixel (bpp) 10 bpc or 30 bpp 12 bpc or 36 bpp 16 bpc or 48 bpp Reserved
All other fields for the source GCP, (for example, Pixel Packing Phase and Default Phase as described in HDMI 1.4b Specification Section 5.3.6) are calculated automatically inside the core. You must provide the bit-field values in the table above through the source gcp[5:0] port. The GCP on the Auxiliary Data Port will always be filtered.
5.1.7.2. Source Auxiliary Video Information (AVI) InfoFrame Bit-Fields
Table 23.
Source Auxiliary Video Information (AVI) InfoFrame for Support FRL = 0 Designs
The signal bundle is clocked by ls_clk for Support FRL = 0 designs.
Bit-field
Name
Description
Default Value
7:0
Checksum
Checksum
8'h67
9:8
S
Scan information
2'h0
11:10
B
Bar info data valid
2'h0
12
A0
Active information present
1'h0
14:13
Y
RGB or YCbCr indicator
2'h0
15
Reserved
Returns 0
1'h0
19:16
R
Active format aspect ratio
4'h8 continued...
HDMI Intel� FPGA IP User Guide 50
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Bit-field 21:20 23:22 25:24 27:26 30:28 31 38:32 39 43:40 45:44 47:46 63:48 79:64 95:80 111:96 112
Name M C SC Q EC ITC VIC
Reserved PR CN YQ ETB SBB ELB SRB
Control
Description
Picture aspect ratio
Colorimetry (for example: ITU BT.601, BT.709)
Non-uniform picture scaling
Quantization range
Extended colorimetry
IT content
Video format identification code
Returns 0
Picture repetition factor
Content type
YCC quantization range
Line number of end of top bar
Line number of start of bottom bar
Pixel number of end of left bar
Pixel number of start of right bar
Disables the core from inserting the InfoFrame packet. � 1: The core does not insert
info_avi[111:0]. The AVI InfoFrame packet on the Auxiliary Data Port passes through. � 0: The core inserts info_avi[111:0] when there is a non-zero bit. The core sends default values when all bits are zero. The core filters the AVI InfoFrame packet on the Auxiliary Data Port.
Default Value 2'h0 2'h0 2'h0 2'h0 3'h0 1'h0 7'h00 1'h0 4'h0 2'h0 2'h0
16'h0000 16'h0000 16'h0000 16'h0000
�
By default, the HDMI source sets the AVI version to version 2. If the value of info_avi[30:28] (EC2, EC1, EC0) is 3'b111, then the HDMI source sets the AVI version to version 4. If the value of info_avi[39] is 1'b1 (VIC >= 128) or info_avi[15] (Y2) is set to 1, the HDMI source sets the AVI version to version 3.
Table 24.
Source Auxiliary Video Information (AVI) InfoFrame for Support FRL = 1 Designs
This signal bundle is clocked by vid_clk for Support FRL = 1 designs.
Bit-field
Name
Description
Default Value
7:0
Checksum
Checksum
8'h67
9:8
S
Scan information
2'h0
11:10
B
Bar info data valid
2'h0
12
A0
Active information present
1'h0
15:13
Y
RGB or YCbCr indicator
3'h0
19:16
R
Active format aspect ratio
4'h8
21:20
M
Picture aspect ratio
2'h0 continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 51
5. HDMI Source UG-HDMI | 2021.05.12
Bit-field 23:22 25:24 27:26 30:28 31 39:32 43:40 45:44 47:46 63:48 79:64 95:80 111:96
115:112 119:116 121:120
122
Name C SC Q EC
ITC VIC PR CN YQ ETB SBB ELB SRB F143-F140 ACE3-ACE0
� Control
Description
Colorimetry (for example: ITU BT.601, BT.709)
Non-uniform picture scaling
Quantization range
Extended colorimetry
IT content
Video format identification code
Picture repetition factor
Content type
YCC quantization range
Line number of end of top bar
Line number of start of bottom bar
Pixel number of end of left bar
Pixel number of start of right bar
Future use 14
Additional colorimetry extension
Reserved
Disables the core from inserting the InfoFrame packet. � 1: The core does not insert
info_avi[120:0]. The AVI InfoFrame packet on the Auxiliary Data Port passes through. � 0: The core inserts info_avi[120:0] when there is a non-zero bit. The core sends default values when all bits are zero. The core filters the AVI InfoFrame packet on the Auxiliary Data Port.
Default Value 2'h0 2'h0 2'h0 3'h0 1'h0 8'h00 4'h0 2'h0 2'h0
16'h0000 16'h0000 16'h0000 16'h0000
4'h0 4'h0
� 2'h0
5.1.7.3. Source HDMI Vendor Specific InfoFrame (VSI)
Table 25.
Source HDMI Vendor Specific InfoFrame Bit-Fields
The table below lists the bit-fields for VSI (as described in HDMI 1.4b Specification Section 8.2.3).
The signal bundle is clocked by ls_clk.
Note:
For the HDMI Forum-VSI InfoFrame (HF-VSIF) transmission, use external VSI by asserting control bit to 1 and send the data through the Auxiliary Data Port.
Bit-field 4:0 12:5
36:13 41:37
Name Length Checksum
IEEE Reserved
Description Length of HDMI VSI payload Checksum 24-bit IEEE registration identifier (0�000C03) Reserved (0)
Default Value 5'h06 8'h69
24'h000C03 5'h00 continued...
HDMI Intel� FPGA IP User Guide 52
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Bit-field 44:42 52:45
56:53 60:57
61
Name HDMI_Video_Format
HDMI_VIC or 3D_Structure
Reserved 3D_Ext_Data
Control
Description
Structure of extended video formats exclusively defined in HDMI 1.4b Specification
� If HDMI_Video_Format = 3'h1, [52:45] = HDMI proprietary video format identification code
� If HDMI_Video_Format = 3'h2, [52:49] = 3D_Structure and [48:45] = Reserved (0)
Reserved (0)
3D extended data
Disables the core from inserting the InfoFrame packet. � 1: The core does not insert
info_vsi[60:0]. The VSI InfoFrame packet on the Auxiliary Data Port passes through. � 0: The core inserts info_vsi[60:0] when there is a non-zero bit. The core sends default values when all bits are zero. The core filters the VSI InfoFrame packet on the Auxiliary Data Port.
Default Value 3'h0 8'h00
4'h00 4'h0
�
5.1.8. Source Audio Encoder
Audio transport allows four packet types: � Audio Clock Regeneration � Audio InfoFrame � Audio Metadata � Audio Sample
The Audio Clock Regeneration packet contains the CTS and N values.
Note:
You need to provide these values as recommended in HDMI 1.4b Specification, Section 7.2.1 through 7.2.3 and HDMI 2.0b Specification, Section 9.2.1 for TMDS mode and HDMI 2.1 Specification, Section 9.2.2 for FRL mode.
The core schedules this packet to be sent every ms. The timestamp scheduler uses the audio_clk and N value to determine a 1-ms interval. The audio data queues on a DCFIFO. The core also uses the DCFIFO to synchronize its clock to ls_clk when you turn off Support FRL and synchronized to vid_clk when you turn on Support FRL. The Audio Packetizer packs the audio data into the Audio Sample packets according to the specified audio format (as described in HDMI 1.4b Specification Section 5.3.4). An Audio Sample packet can contain up to 4 audio samples, based on the required audio sample clock. The core sends the Audio Sample packets whenever there is an available slot in the auxiliary packet stream.
The core determines the payload data packet type from the audio_format[3:0] signal.
Send Feedback
HDMI Intel� FPGA IP User Guide 53
5. HDMI Source UG-HDMI | 2021.05.12
Table 26. Definition of the Supported audio_format[3:0]
Value 0 4 6 Others
Name Linear Pulse-Code Modulation (LPCM)
3D Audio (LPCM) Multi-Stream(MST) Audio for LPCM
�
Description Use packet type 0x02 to transport payload data Use packet type 0x0B to transport payload data Use packet type 0x0E to transport payload data Reserved
The 32-bit audio data is packed in IEC-60958 standard. The least significant word is the left channel sample.
Figure 23. Audio Data Packing
31
24
0
SP x x B P C U V Audio Sample
The fields are defined as:
SP : Sample Present x : Not Used B : Start of 192-bit IEC-60958 Channel Status P : Parity Bit C : Channel Status U : User Data Bit V : Valid Bit
The audio_data port is always at a fixed value of 256 bits. In the LPCM format, the core can send up to 8 channels of audio data.
� Channel 1 audio data should be present at audio_data[31:0].
� Channel 2 audio data should be present at audio_data[63:32] and so on.
The Sample Present (SP) bit determines whether to use 2-channel or 8-channel layout. If the SP bit from Channel 3 is high, then the core uses the 8-channel layout. If otherwise, the core uses the 2-channel layout. The core ignores all other fields if the SP bit is 0.
The core requires an audio_de port for designs in which the audio_clk port frequency is higher than the actual audio sample clock. The audio_de port qualifies the audio data. If audio_clk is the actual audio sample clock, you can tie the audio_de signal to 1. For audio channels fewer than 8, insert 0 to the respective audio data of the unused audio channels.
The Audio Clock Regeneration and Audio Sample packets on the Auxiliary Data Port are not filtered by the core. You must filter these packets externally if you want to loop back the auxiliary data stream from the sink.
HDMI Intel� FPGA IP User Guide 54
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
3D Audio Format
In 3D format, the core sends up to 32 channels audio data by consuming up to 4 writes of 8 channels. Assert audio_format[4] to indicate the first 8 channels of each sample. For audio channels greater than 8, do not drive audio_clk at actual audio sample clock; instead drive audio_clk with ls_clk and qualify audio_data with audio_de.
Figure 24.
3D Audio Input Example
Figure below shows the three examples of 3D audio: Full 32 channels, 24 channels, and 12 channels. In the 12
channels example, the 4 most significant audio channels of the last beat are zero.
32 Channels
24 Channels
12 Channels
audio_de
audio_data[255:224] S0_Ch8 S0_Ch16 S0_Ch24 S0_Ch32
S0_Ch8 S0_Ch16 S0_Ch24
S0_Ch8
0
S1_Ch8 0
audio_data[223:192] S0_Ch7 S0_Ch15 S0_Ch23 S0_Ch31
S0_Ch7 S0_Ch15 S0_Ch23
S0_Ch7
0
S1_Ch7 0
audio_data[191:160] S0_Ch6 S0_Ch14 S0_Ch22 S0_Ch30
S0_Ch6 S0_Ch14 S0_Ch22
S0_Ch6
0
S1_Ch6 0
audio_data[159:128] S0_Ch5 S0_Ch13 S0_Ch21 S0_Ch29
S0_Ch5 S0_Ch13 S0_Ch21
S0_Ch5
0
S1_Ch5 0
audio_data[127:96] S0_Ch4 S0_Ch12 S0_Ch20 S0_Ch28
S0_Ch4 S0_Ch12 S0_Ch20
S0_Ch4 S0_Ch12
S1_Ch4 S1_Ch12
audio_data[95:64] S0_Ch3 S0_Ch11 S0_Ch19 S0_Ch27
S0_Ch3 S0_Ch11 S0_Ch19
S0_Ch3 S0_Ch11
S1_Ch3 S1_Ch11
audio_data[63:32] S0_Ch2 S0_Ch10 S0_Ch18 S0_Ch26
S0_Ch2 S0_Ch10 S0_Ch18
S0_Ch2 S0_Ch10
S1_Ch2 S1_Ch10
audio_data[31:0] S0_Ch1 S0_Ch9 S0_Ch17 S0_Ch25
S0_Ch1 S0_Ch9 S0_Ch17
S0_Ch1 S0_Ch9
S1_Ch1 S1_Ch9
audio_format[3:0]
4
4
4
4
audio_format[4]
MST Audio Format
In MST format, the core sends 2, 3, or 4 streams of audio. For audio streams fewer than 4, you must set the respective audio data to zero for the unused streams as shown in the figure below.
Figure 25.
MST Audio Input Example
2 Streams audio_de
audio_data[255:224] 0
0
audio_data[223:192] 0
0
audio_data[191:160] 0
0
audio_data[159:128] 0
0
audio_data[127:96] ST2-R0
ST2-R1
audio_data[95:64] ST2-L0
ST2-L1
audio_data[63:32] ST1-R0
ST1-R1
audio_data[31:0] ST1-L0
ST1-L1
audio_format[3:0] 6
6
3 Streams
0 0 ST3-R0 ST3-L0 ST2-R0 ST2-L0 ST1-R0 ST1-L0 6
0 0 ST3-R1 ST3-L1 ST2-R1 ST2-L1 ST1-R1 ST1-L1 6
4 Streams
ST4-R0 ST4-L0 ST3-R0 ST3-L0 ST2-R0 ST2-L0 ST1-R0 ST1-L0
6
ST4-R1 ST4-L1 ST3-R1 ST3-L1 ST2-R1 ST2-L1 ST1-R1 ST1-L1
6
Send Feedback
HDMI Intel� FPGA IP User Guide 55
5. HDMI Source UG-HDMI | 2021.05.12
5.1.8.1. Audio InfoFrame (AI) Bundle Bit-Fields The core sends the AI default values in the auxiliary packets.
The default values are overridden by the customized input values (audio_info_ai[47:0]) when the input checksum is non-zero. The core sends the AI packet on the active edge of the V-SYNC signal to ensure that the packet is sent once per field.
Table 27. Source Audio InfoFrame Bundle Bit-Fields
Table below lists the AI signal bit-fields (as described in HDMI 1.4b Specification Section 8.2.2). The signal bundle is clocked by ls_clk for Support FRL = 0 designs and by vid_clk for Support FRL = 1 designs.
Bit-field 7:0 10:8 11
15:12 17:16 20:18 23:21 31:24
39:32
41:40
42 46:43
47 48
Name Checksum
CC Reserved
CT SS SF Reserved CXT
CA
LFEPBL
Reserved LSV
DM_INH Control
Description
Checksum
Channel count
Returns 0
Audio format type
Bits per audio sample
Sampling frequency
Returns 0
Audio format type of the audio stream
Speaker location allocation FL, FR
LFE playback level information, dB
Returns 0
Level shift information, dB
Down-mix inhibit flag
Disables the core from inserting the AI packet. � 1: The core does not
insert audio_info_ai[47:0 ]. The AI packet on the Auxiliary Data Port passes through. � 0: The core inserts audio_info_ai[47:0 ] when there is a nonzero bit. The core sends default values when all bits are zero. The core filters the AI packet on the Auxiliary Data Port.
Default Value 8'h71 3'h0 1'h0 4'h0 2'h0 3'h0 3'h0 8'h00
8'h00
2'h0
1'h0 4'h0 1'h0
�
5.1.8.2. Audio Metadata Bundle Bit-Fields
The Audio Metadata (AM) packet carries additional information related to 3D Audio and Multi-Stream Audio (MST).
HDMI Intel� FPGA IP User Guide 56
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
The core sends the AM packet on the active edge of the V-SYNC signal to ensure that the packet is sent once per field. The signal bundle of audio_metadata[165:0] is clocked by ls_clk for Support FRL = 0 designs and by vid_clk for Support FRL = 1 designs.
Table 28. Audio Metadata Bundle Bit-Fields for Packet Header and Control
Table below lists the AM signal bit-fields for packet header (as described in the HDMI 2.0b Specification Section 8.3) and control.
Bit-field 0
2:1 4:3 165
Name 3D_AUDIO
NUM_VIEWS NUM_AUDIO_STR
Control
Description
� 1: Transmits 3D audio � 0: Transmits MST audio
Number of views for an MST stream
Number of audio streams - 1
Disables the core from inserting the AM packet. � 1: The core does not insert audio_metadata[164:0]. The
AM packet on the Auxiliary Data Port passes through. � 0: The core inserts audio_metadata[164:0] when audio
format[3:0] is 3D audio or MST audio. The core filters the AM packet on the Auxiliary Data Port.
Table 29. Audio Metadata Bundle Bit-Fields for Packet Content when 3D_AUDIO = 1
Table below lists the AM signal bit-fields for packet content when 3D_AUDIO = 1 (as described in the HDMI 2.0b Specification Section 8.3.1).
Bit-field 9:5
12:10 16:13 20:17 28:21 164:29
Name 3D_CC Reserved ACAT Reserved 3D_ACAT Reserved
Description Channel count of the transmitted 3D audio Reserved (0) Audio channel allocation standard Reserved (0) Channel/Speaker allocation for 3D audio Reserved (0)
Table 30. Audio Metadata Bundle Bit-Fields for Packet Content when 3D_AUDIO = 0
Table below lists the AM signal bit-fields for packet content when 3D_AUDIO = 0 (as described in the HDMI 2.0b Specification Section 8.3.2).
Bit-field
Name
Description
5
Multiview_Left_0
Left stereoscopic picture (Subpacket 0 in MST Audio Sample
Packet)
6
Multiview_Right_0
Right stereoscopic picture (Subpacket 0 in MST Audio Sample
Packet)
12:7
Reserved
Reserved (0)
15:13
Suppl_A_Type_0
Supplementary audio type (Subpacket 0 in MST Audio Sample Packet)
16
Suppl_A_Mixed_0
Mix of main audio components and a supplementary audio track
(Subpacket 0 in MST Audio Sample Packet)
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 57
Bit-field 17
19:18 20
44:21 45 46
52:47 55:53
56 57 59:58 60 84:61 85 86 92:87 95:93 96 97 99:98 100 124:101 125 126 132:127 135:133
5. HDMI Source UG-HDMI | 2021.05.12
Name Suppl_A_Valid_0
Reserved LC_Valid_0 Language_Code_0 Multiview_Left_1 Multiview_Right_1 Reserved Suppl_A_Type_1 Suppl_A_Mixed_1 Suppl_A_Valid_1 Reserved LC_Valid_1 Language_Code_1 Multiview_Left_2 Multiview_Right_2 Reserved Suppl_A_Type_2 Suppl_A_Mixed_2 Suppl_A_Valid_2 Reserved LC_Valid_2 Language_Code_2 Multiview_Left_3 Multiview_Right_3 Reserved Suppl_A_Type_3
Description
Audio stream contains a supplementary audio track (Subpacket 0 in MST Audio Sample Packet)
Reserved (0)
Validity of Language_Code (Subpacket 0 in MST Audio Sample Packet)
Audio stream language (Subpacket 0 in MST Audio Sample Packet)
Left stereoscopic picture (Subpacket 1 in MST Audio Sample Packet)
Right stereoscopic picture (Subpacket 1 in MST Audio Sample Packet)
Reserved (0)
Supplementary audio type (Subpacket 1 in MST Audio Sample Packet)
Mix of main audio components and a supplementary audio track (Subpacket 1 in MST Audio Sample Packet)
Audio stream contains a supplementary audio track (Subpacket 1 in MST Audio Sample Packet)
Reserved (0)
Validity of Language_Code (Subpacket 1 in MST Audio Sample Packet)
Audio stream language (Subpacket 1 in MST Audio Sample Packet)
Left stereoscopic picture (Subpacket 2 in MST Audio Sample Packet)
Right stereoscopic picture (Subpacket 2 in MST Audio Sample Packet)
Reserved (0)
Supplementary audio type (Subpacket 2 in MST Audio Sample Packet)
Mix of main audio components and a supplementary audio track (Subpacket 2 in MST Audio Sample Packet)
Audio stream contains a supplementary audio track (Subpacket 2 in MST Audio Sample Packet)
Reserved (0)
Validity of Language_Code (Subpacket 2 in MST Audio Sample Packet)
Audio stream language (Subpacket 2 in MST Audio Sample Packet)
Left stereoscopic picture (Subpacket 3 in MST Audio Sample Packet)
Right stereoscopic picture (Subpacket 3 in MST Audio Sample Packet)
Reserved (0)
Supplementary audio type (Subpacket 3 in MST Audio Sample Packet)
continued...
HDMI Intel� FPGA IP User Guide 58
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Bit-field 136 137
139:138 140
164:141
Name Suppl_A_Mixed_3 Suppl_A_Valid_3
Reserved LC_Valid_3 Language_Code_3
Description
Mix of main audio components and a supplementary audio track (Subpacket 3 in MST Audio Sample Packet)
Audio stream contains a supplementary audio track (Subpacket 3 in MST Audio Sample Packet)
Reserved (0)
Validity of Language_Code (Subpacket 3 in MST Audio Sample Packet)
Audio stream language (Subpacket 3 in MST Audio Sample Packet)
5.1.9. HDCP 1.4 TX Architecture
The HDCP 1.4 transmitter block encrypts video and auxiliary data prior to the transmission over serial link that has HDCP 1.4 device connected.
The HDCP 1.4 TX core consists of the following entities: � Control and Status Registers Layer � Authentication Layer � Video Stream and Auxiliary Layer
Send Feedback
HDMI Intel� FPGA IP User Guide 59
5. HDMI Source UG-HDMI | 2021.05.12
Figure 26. Architecture Block Diagram of HDCP 1.4 TX IP Control & Status Port (Avalon-MM)
Control & Status
Regs
Register Layer
Color Legend: csr_clk Is_clk
HDCP Key Port
Authentication Layer
CTL
(KM Gen)
SHA-1
TRNG
HDCP Cipher
Video Stream & Auxiliary Layer
Stream Mapper
Video & Aux Data Output Port
Table 31.
Video & Aux Control Port
Video & Aux Data Input Port
The Nios II processor typically drives the HDCP 1.4 TX core. The processor implements the authentication protocol. The processor accesses the IP through the Control and Status Port using Avalon Memory Mapped (Avalon-MM) interface.
The HDCP specifications requires the HDCP 1.4 TX core to be programmed with the DCP-issued production keys � Device Private Keys (Akeys) and Key Selection Vector (Aksv). The IP retrieves the key from the on-chip memory externally to the core through the HDCP Key Port. The on-chip memory must store the key data in the arrangement in the table below.
HDCP 1.4 TX Key Port Addressing
Address 6'h28 6'h27 6'h26
Content {16'd0, Aksv[39:0]}
Akeys39[55:0] Akeys38[55:0]
continued...
HDMI Intel� FPGA IP User Guide 60
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Address ...
6'h01 6'h00
Content ...
Akeys01[55:0] Akeys00[55:0]
When authenticating with the HDCP 1.4 repeater device, the HDCP 1.4 TX core must perform the second part of the authentication protocol. This second part corresponds to the computation of the SHA-1 hash digest for all downstream device KSVs which are written to the registers in Control and Status Register Layer using the Control and Status Port (Avalon-MM).
The Video Stream and Auxiliary layer receives audio and video content over its Video and Aux Data Input Port, and performs the encryption operation. The Video Stream and Auxiliary Layer detects the Encryption Status Signaling (ESS) provided by the HDMI TX core to determine when to encrypt frames.
You can use the HDCP 1.4 registers to customize your design configurations. The HDCP 1.4 TX core supports full handshaking mechanism for authentication. Every issued command should be followed by polling of the assertion of its corresponding status bit before proceeding to issuing the next command. The value of AUTH_CMD must be in one-hot format that only one bit can be set at a time.
Table 32. HDCP 1.4 TX Registers Mapping
Address 0x00
Register AUTH_CMD (one-hot)
R/W WO
Reset
0x00000 000
Bit 31:6
5
4 3
2 1 0
0x01
AUTH_MSGDATAIN
WO
0x00000
31:8
000
7:0
Bit Name Reserved
GO_V
Reserved GEN_RI
GO_KM GEN_AKSV
GEN_AN Reserved MSGDATAIN
Description
Reserved.
Set to 1 to compute V and compare against V' during authentication with repeater. Self-cleared.
Reserved.
Set to 1 to generate and receive R0 during authentication exchange or Ri during link integrity verification. Ri-Ri' comparison should be performed by Nios� II processor. Selfcleared.
Set to 1 to compute master key (km). Self-cleared.
Set to 1 to request and receive Aksv. Self-cleared.
Set to 1 to generate and receive new true random An. Selfcleared.
Reserved.
Write messages (in byte) from receiver in burst mode. 1. Master key computation:
Prior to setting GO_KM to 1, the BCAPS.REPEATER bit had
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 61
5. HDMI Source UG-HDMI | 2021.05.12
Address
Register
R/W
Reset
Bit
0x02
AUTH_STATUS
RO
0x00000
31
000
30
29:6 5
4 3
2
1
0
0x03 AUTH_MSGDATAOUT
RO
0x00000
31:8
000
Bit Name
KM_OK V_OK Reserved V_DONE Reserved RI_DONE KM_DONE AKSV_DONE AN_DONE Reserved
Description
to be set and the following messages had to be written in this sequence: a. 5 bytes of Bksv with least
significant byte (lsb) first. 2. V generation: Prior to setting
GO_V to 1, the following messages had to be written in this sequence: a. 20 bytes of V' with lsb first b. Variable length of KSV list
with lsb first c. 2 bytes of Bstatus with lsb
first
Asserted by the core to indicate the received Bksv is valid. Poll KM_DONE until it is set before reading KM_OK.
Asserted by the core to indicate V-V' comparison is passed. Poll V_DONE until it is set before reading V_OK.
Reserved.
Asserted by the core when V is generated. Self-cleared upon next GO_V is set.
Reserved
Asserted by the core when Ri is generated. Self-cleared upon next GEN_RI is set.
Asserted by the core when Km is generated. Self-cleared upon next GO_KM is set.
Asserted by the core when Aksv is ready to be read from MSGDATAOUT. Self-cleared upon next GEN_AKSV is set.
Asserted by the core when new random An is generated and ready to be read from MSGDATAOUT. Self-cleared upon next GEN_AN is set.
Reserved.
continued...
HDMI Intel� FPGA IP User Guide 62
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Address
Register
0x04
VID_CTL
0x05
BCAPS
R/W
RW RW
Reset
0x00000 000
0x00000 000
Bit 7:0
31:1 0
31:2 1 0
Bit Name
Description
MSGDATAOUT
Read messages (in byte) from the IP in burst mode.
1. An generation: When AN_DONE is set to 1, reading this offset 8 times to obtain An with lsb first.
2. Aksv request: When AKSV_DONE is set to 1, reading this offset 5 times to obtain Aksv with lsb first.
3. Ri request: When RI_DONE is set to 1, reading this offset 2 times to obtain Ri with lsb first.
Reserved
Reserved.
HDCP_ENABLE
Set to 1 to enable HDCP 1.4 encryption. Set to 0 if HDCP 1.4 encryption is not required especially when it is in unauthenticated state.
Reserved
Reserved.
REPEATER
Downstream repeater capability. Write bit 6 (REPEATER) of Bcaps received from downstream to this offset.
Reserved
Reserved.
5.1.10. HDCP 2.3 TX Architecture
The HDCP 2.3 transmitter block encrypts video and auxiliary data prior to the transmission over serial link that has HDCP 2.3 device connected.
The HDCP 2.3 TX core consists of the following entities: � Control and Status Registers Layer � Authentication and Cryptographic Layer � Video Stream and Auxiliary Layer
Send Feedback
HDMI Intel� FPGA IP User Guide 63
5. HDMI Source UG-HDMI | 2021.05.12
Figure 27. Architecture Block Diagram of HDCP 2.3 TX IP
Control & Status Port (Avalon-MM)
Control & Status Register Layer
Regs
HDCP Key Port
Authentication & Cryptographic Layer
Authenticator (MGF1, HMAC)
TRNG RSA
Dual Port Memories
AES128 (Block)
SHA256
Color Legend: csr_clk crypto_clk Is_clk
Table 33.
Video Stream & Auxiliary Layer
HDCP Cipher
AES128 (Stream)
Video & Aux Control Port
Video & Aux Data Input Port
Video & Aux Data Output Port
The Nios II processor typically drives the HDCP 2.3 TX core. The processor implements the authentication protocol. The processor accesses the IP through the Control and Status Port using Avalon Memory Mapped (Avalon-MM) interface.
The HDCP specifications requires the HDCP 2.3 TX core to be programmed with the DCP-issued production key � Global Constant (lc128). The IP retrieves the key from the on-chip memory externally to the core through the HDCP Key Port. The on-chip memory must store the key data in the arrangement in the table below.
HDCP 2.3 TX Key Port Addressing
Address 2'h3 2'h2 2'h1 2'h0
Content lc128[127:96] lc128[95:64] lc128[63:32]
lc128[31:0]
The Video Stream and Auxiliary Layer receives audio and video content over its Video and Aux Data Input port, and performs the encryption operation. The Video Stream and Auxiliary Layer detects the Encryption Status Signaling (ESS) provided by the HDMI TX core to determine when to encrypt frames.
You can use the HDCP 2.3 registers to perform authentication. The HDCP 2.3 TX core supports full handshaking mechanism for authentication. Every issued command should be followed by polling of the assertion of its corresponding status bit before proceeding to issuing the next command. The value of CRYPTO_CMD must be in onehot encoding format that only one bit can be set at a time.
HDMI Intel� FPGA IP User Guide 64
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Table 34.
Address 0x00
HDCP 2.3 TX Registers Mapping
Register
CRPYTO_CMD (onehot)
R/W WO
Reset
0x00000 000
Bit 31:11
10
9
8
7
6
5
4
3
2
1
0
0x01 CRYPTO_MSGDATAIN
WO
0x00000
31:8
000
7:0
Bit Name
Description
Reserved
Reserved
GO_HMAC_M
Set to 1 to compute M and verify against M'. Self-cleared upon operation is busy.
GO_HMAC_V
Set to 1 to compute V and verify against V'. Self-cleared upon operation is busy.
GEN_RIV
Set to 1 to generate and receive new random riv. Self-cleared upon operation is busy.
GEN_EDKEYKS
Set to 1 to generate and receive new random Edkey(ks). Selfcleared upon operation is busy.
GO_HMAC_L
Set to 1 to compute L and verify against L'. Self-cleared upon operation is busy.
GEN_RN
Set to 1 to generate and receive new random rn. Self-cleared upon operation is busy.
GO_HMAC_H
Set to 1 to compute H and verify against H'. Self-cleared upon operation is busy.
GO_KD
Set to 1 to compute kd (dkey0, dkey1). Self-cleared upon operation is busy.
GEN_EKPUBKM
Set to 1 to generate and receive new random Ekpub(km). Selfcleared upon operation is busy.
GO_SIG
Set to 1 to verify signature (certrx or SRM). Self-cleared upon operation is busy.
GEN_RTX
Set to 1 to generate and receive new random rtx. Self-cleared upon operation is busy.
Reserved
Reserved
MSGDATAIN
Write messages (in byte) from receiver in burst mode.
1. Signature verification (certrx): Prior to setting GO_SIG to 1, the following messages had to be written in this sequence:
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 65
Address
Register
5. HDMI Source UG-HDMI | 2021.05.12
R/W
Reset
Bit
Bit Name
Description
a. 384 bytes of signature with least significant byte (lsb) first
b. 5 bytes of Receiver ID with most significant byte (msb) first
c. 128 bytes of Receiver Public Key modulus (n) with msb first
d. 3 bytes of Receiver Public Key exponent (e) with msb first
e. 2 bytes of Reserved with msb first
2. Signature verification (SRM): Prior to setting GO_SIG to 1, the following messages had to be written in this sequence:
a. 384 bytes of signature with lsb first
b. All preceding fields of the SRM (except signature) with msb first
3. Master Key encryption: Prior to setting GEN_EKPUBKM to 1, the following messages had to be written in this sequence:
a. 128 bytes of Receiver Public Key modulus (n) with msb first
b. 3 bytes of Receiver Public Key exponent (e) with msb first.
4. Compute kd for HMAC: Prior to setting GO_KD to 1, the following messages had to be written in this sequence:
a. 8 bytes of rrx with msb first
b. 3 bytes of RxCaps with msb first
5. H-H' comparison: Prior to setting GO_HMAC_H to 1, the following messages had to be written in this sequence:
a. 32 bytes of H' with msb first
6. L-L' comparison: Prior to setting GO_HMAC_L to 1, the following messages had to be written in this sequence:
a. 32 bytes of L' with msb first
7. V-V' comparison: Prior to setting GO_HMAC_V to 1, the following messages had to be written in this sequence:
continued...
HDMI Intel� FPGA IP User Guide 66
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Address
Register
0x02
CRYPTO_STATUS
R/W RO
Reset
0x00000 000
Bit
31 30 29 28 27 26:11 10 9 8 7
Bit Name
Description
a. 16 bytes of V' with msb first
b. Variable length of ReceiverID_List with msb first
c. 2 bytes of RxInfo with msb first
d. 3 bytes of seq_num_V with msb first
8. M-M' comparison: Prior to setting GO_HMAC_M to 1, the following messages had to be written in this sequence:
a. 32 bytes of M' with msb first
b. 2 bytes of StreamID_Type with msb first
c. 3 bytes of seq_num_M with msb first
SIG_OK
Asserted by the core to indicate signature verification is passed. Poll SIG_DONE until it is set before reading SIG_OK.
H_OK
Asserted by the core to indicate H-H' comparison is passed. Poll H_DONE until it is set before reading H_OK.
L_OK
Asserted by the core to indicate L-L' comparison is passed. Poll L_DONE until it is set before reading L_OK.
V_OK
Asserted by the core to indicate V-V' comparison is passed. Poll V_DONE until it is set before reading V_OK.
M_OK
Asserted by the core to indicate M-M' comparison is passed. Poll M_DONE until it is set before reading M_OK.
Reserved
Reserved
M_DONE
Asserted by the core when M-M' comparison is done. Self-cleared upon next GO_HMAC_M is set.
V_DONE
Asserted by the core when V-V' comparison is done. Self-cleared upon next GO_HMAC_V is set.
RIV_DONE
Asserted by the core when riv is generated and ready to be read from MSGDATAOUT. Self-cleared upon next GEN_RIV is set.
EDKEYKS_DON E
Asserted by the core when Edkey(ks) is generated and ready to be read from MSGDATAOUT. Self-cleared upon next GEN_EDKEYKS is set.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 67
5. HDMI Source UG-HDMI | 2021.05.12
Address
Register
R/W
0x03 CRYPTO_MSGDATAOU
RO
T
0x04
VID_CTL
RW
Reset
0x00000 000
0x00000 000
Bit 6 5 4 3 2 1 0
31:8 7:0
31:1 0
Bit Name
Description
L_DONE
Asserted by the core when L-L' comparison is done. Self-cleared upon next GO_HMAC_L is set.
RN_DONE
Asserted by the core when rn is generated and ready to be read from MSGDATAOUT. Self-cleared upon next GEN_RN is set.
H_DONE
Asserted by the core when H-H' comparison is done. Self-cleared upon next GO_HMAC_H is set.
KD_DONE
Asserted by the core when kd is generated. Self-cleared upon next GO_KD is set.
EKPUBKM_DON E
Asserted by the core when Ekpub(km) is generated and ready to be read from MSGDATAOUT. Self-cleared upon next GEN_EKPUBKM is set.
SIG_DONE
Asserted by the core when signature verification is done. Self-cleared upon next GO_SIG is set.
RTX_DONE
Asserted by the core when rtx is generated and ready to be read from MSGDATAOUT. Self-cleared upon next GEN_RTX is set.
Reserved
Reserved.
MSGDATAOUT
Read messages (in byte) from IP core in burst mode.
1. Rtx generation: When RTX_DONE is set to 1, reading this offset 8 times to obtain rtx with msb first.
2. Master Key generation: When EKPUBKM_DONE is set to 1, reading this offset 128 times to obtain Ekpub(km) with msb first.
3. Rn generation: When RN_DONE is set to 1, reading this offset 8 times to obtain rn with msb first.
4. Session Key generation: When EDKEYKS_DONE is set to 1, reading this offset 16 times to obtain Edkey(ks) with msb first.
5. Riv generation: When RIV_DONE is set to 1, reading this offset 8 times to obtain riv with msb first.
Reserved
Reserved.
HDCP_ENABLE
Set to 1 to enable HDCP 2.3 encryption. Set to 0 if HDCP 2.3 encryption is not required especially when it is in unauthenticated state.
HDMI Intel� FPGA IP User Guide 68
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
5.1.11. FRL Packetizer
The FRL packetizer separates HDMI data into FRL packets.
Each FRL packet comprises a single map character of 0 to 1022 data characters.
5.1.12. FRL Character Block and Super Block Mapping
An FRL Super Block contains four FRL Character Blocks. FRL Character Blocks transport one or more FRL packets.
Each Character Block contains up to 502 FRL characters transporting FRL packets and eight FRL characters carrying Reed-Solomon parity data.
Each FRL Super Block is preceded by a group of three or four Start Super Blocks (SSB) or a group of three or four Scrambler Reset (SR) characters. SSB and SR characters are comma characters used by a receiver for character alignment.
5.1.13. Reed-Solomon (RS) Forward Error Correction (FEC) Generation and Insertion
FEC protects the FRL stream by using the Reed-Solomon (RS) encoding with an RS (255,251) code over GF (256).
The IP demultiplexes the data on the link into four RS blocks to create the RS parity words. The parity data are interleaved onto the data lanes.
The primitive polynomial used to form the GF (256) field is: p(x)= X8 + x4 + x3 + x2 + 1
The corresponding RS code generator polynomial used by the encoder is: g(x) = x4 + 15x3 + 54x2 + 120x + 64
5.1.14. FRL Scrambler and Encoder
The IP scrambles all FRL data, except the SSB and SR special characters, for EMI/RFI reduction.
The IP then encodes the scrambled data into FRL characters using 16B/18B encoding.
5.1.15. Source FRL Resampler
FRL resampler consists of the mixed-width DCFIFO to clock the FRL characters from the frl_clk domain to tx_clk domain.
In FRL path, the IP processes video data in FRL characters per clock*18 bits. FRL characters per clock are always 16. The mixed-width FIFO converts the data width into (Number of lanes*Effective transceiver width) bits width. For each link rate, the frl_clk and tx_clk frequency is reconfigured to the specific ratio to keep the throughput of the data the same from frl_clk domain to tx_clk domain.
Send Feedback
HDMI Intel� FPGA IP User Guide 69
5. HDMI Source UG-HDMI | 2021.05.12
5.1.16. TX Oversampler
The TX oversampler transmits data by repeating each bit of the input word a given number of times and constructs the output words.
There are three possible oversampling factors: 3, 4, and 5. The oversampler assumes that the input word is only valid for the number of clock cycles defined by the oversampling factor. The oversampler is enabled when the outgoing data stream is determined to be below the TX transceiver minimum data rate. The oversampler then reads the DCFIFO once every number of clock cycles determined by the oversampling factor.
5.1.17. Clock Enable Generator
The clock enable generator is a logic block that generates a clock enable pulse.
This clock enable pulse asserts every number of clock cycles defined by the oversampling factor and serves as a read request signal to clock the data out from the DCFIFO.
Figure 28. Oversampling Blocks and Clock Enable Blocks When Support FRL = 0 tx_os
Clock Enable (x3) Clock Enable (x4) Clock Enable (x5)
DCFIFO
20
Inner core video out
rd_req
20
tx_os: 0 (No oversample) - rate 1 Gbps 1 (Oversample x3) - 350 Mbps rate < 500 Mbps 2 (Oversample x4) - 300 Mbps rate < 350 Mbps 3 (Oversample x5) - 250 Mbps rate < 300 Mbps
or 500 Mbps rate < 1 Gbps
Oversample (x3)
Oversample (x4)
Oversample (x5)
20
Core video out
HDMI Intel� FPGA IP User Guide 70
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Figure 29.
Oversampling Blocks and Clock Enable Block When Support FRL = 1
tx_os: 0 - FRL mode 1 - TMDS mode (1 Gbps < rate 6 Gbps) 2 - TMDS mode (rate 1 Gbps)
Enable
(tx_os ! = 0)
40
Inner core video out: FRL mode - 40b TMDS mode - 20b (actual data width)
Oversample (x2)
Enable
40
DCFIFO
(tx_os = = 2) 40
Oversample (x4)
40
rd_req
Core video out
Clock Enable (x4)
5.1.18. I2C Master
When you enable the Include I2C parameter, the HDMI source includes the Intel FPGA Avalon� I2C core in the design.
The HDMI source uses the I2C core to communicate with the SCDC and EDID from the HDMI sink through the DDC signals.
Related Information Embedded Peripherals IP User Guide
For more information about the Intel FPGA Avalon I2C core.
5.2. Source Interfaces
The table lists the port interfaces of the source.
Table 35.
HDMI Source Interfaces
N is the number of pixels per clock.
Interface
Port Type
Clock Domain
Reset
Reset
�
Port reset
Reset
�
reset_vid
Clock
Clock
�
ls_clk
Direction
Description
Input Input
Input
Main asynchronous reset input.
Reset input for the video domain.
Note: This signal is only available when Support FRL = 0.
Link speed clock input. The out_c(3), out_r(2), out_g(1), and out_b(0)TMDS encoded data outputs run at this clock frequency. ls_clk frequency = data rate per lane/ 20 This signal connects to the transceiver output clock only if TMDS bit rate is
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 71
Interface
Port Type
Clock Domain
Clock
�
Port vid_clk
5. HDMI Source UG-HDMI | 2021.05.12
Direction
Description
Input
above the minimum transceiver data rate, which means no oversampling is required.
This signal should connect to a PLL output clock that supplies the ls_clk frequency if the TMDS bit rate is below the minimum transceiver data rate, which means oversampling is required.
In TMDS mode, data rate per lane is a function of pixel frequency and color depth ratio.
Data rate per lane = Pixel frequency x 10 x Color depth ratio.
� 8 bpc: Color depth ratio = 1
� 10 bpc: Color depth ratio = 1.25
� 12 bpc: Color depth ratio = 1.5
� 16 bpc: Color depth ratio = 2
Note: This port is not available when the SUPPORT_FRL parameter is enabled.
Video data clock input.
When Support FRL = 0, vid_clk frequency = data rate per lane/transceiver width/color depth ratio.
� For RGB and YCbCr 4:4:4/4:2:2 transport: vid_clk frequency = (data rate per lane/ transceiver width)/color depth ratio.
� For YCbCr 4:2:0 transport: vid_clk frequency = ((data rate per lane/transceiver width)/color depth ratio)/2.
� vid_clk needs to be synchronous to ls_clk.
continued...
HDMI Intel� FPGA IP User Guide 72
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Clock
�
Clock
�
Clock
�
Port tx_clk frl_clk
audio_clk
Direction
Description
Input Input
Input
When Support FRL = 1,vid_clk frequency = 225 MHz.
� vid_clk runs at the maximum frequency across all resolutions and FRL rates.
� The video data is qualified by the vid_valid signal.
� vid_clk can be asynchronous to ls_clk and frl_clk.
Transceiver recovered clock. Connect this signal to the output clock of the TX transceiver output clock.
Clock supplied to the FRL path.
FRL clock frequency = (data rate * number of lane)s / (FRL characters per clock * 18).
frl_clk needs to be synchronous to tx_clk.
Note: The number of lanes is always 4. For FRL rates 3, 4, 5, and 6, all 4 FRL lanes are used to transmit data. For FRL rates 1 and 2, only 3 FRL lanes are used to transmit data, and the 4th lane is unused.
Audio clock input. Connect this signal to ls_clk when Support FRL = 0 or to vid_clk when Support FRL = 1 by qualifying the slower frequency of audio_data with audio_de.
If you connect this signal to a clock at actual audio sample frequency, you must tie audio_de to 1.
For audio channels greater than 8, do not drive audio_clk at actual audio sample clock; instead drive audio_clk with ls_clk when Support FRL = 0 or to vid_clk when Support FRL = 1, and qualify audio_data with audio_de.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 73
5. HDMI Source UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Clock
�
Video Data Port Conduit
vid_clk
Conduit vid_clk
Conduit Conduit Conduit
vid_clk vid_clk vid_clk
Conduit
vid_clk
Port mgmt_clk vid_data[N*48-1:0] vid_de[N-1:0] vid_hsync[N-1:0] vid_vsync[N-1:0] vid_ready
vid_valid
Direction
Description
Input Input Input Input Input Output
Input
Note: Applicable only when you turn on the Support auxiliary and Support audio parameters.
Free-running system clock input (100 MHz). This clock connects to the I2C master and HPD debouncing logic.
Note: This signal is not available if you turn off the Include I2C parameter.
Video 48-bit pixel data input port. For N pixels per clock, this port accepts N 48-bit pixels per clock.
Video data enable input that indicates active picture region.
Video horizontal sync input.
Video vertical sync input.
Indicates if the TX core is ready to process new data. When vid_ready is asserted, the TX core is ready to process new data.
Note: This signal is only available when Support FRL = 1.
vid_ready is always high for 8 bits per component (BPC). This signal toggles for different color depths. � For 10 bpc, vid_ready
is high for 4 out of 5 clock cycles. � For 12 bpc, vid_ready is high for 2 out of 3 clock cycles. � For 16 bpc, vid_ready is high for 1 out of 2 clock cycles.
Indicates if the video data is valid. When in TMDS mode and vid_clk is running at the actual pixel clock, this signal should always be asserted.
Note: This signal is only available when Support FRL = 1.
When you generate the video data at a frequency higher than the actual pixel clock, use vid_valid to qualify the validity of the
continued...
HDMI Intel� FPGA IP User Guide 74
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Conduit vid_clk
TMDS/FRL Data Conduit Port
tx_clk/ ls_clk
Conduit
tx_clk/ ls_clk
Conduit
tx_clk/ ls_clk
Port vid_overflow out_b[transceiver
width-1:0]
out_g[transceiver width-1:0]
out_r[transceiver width-1:0]
Direction
Description
Output Output
Output
Output
video data. vid_valid and vid_clk guarantee the exact pixel clock rate.
Indicates if the FIFO clocking the data from the video path to the FRL path is overflowing.
Applicable only for FRL mode.
When in TMDS mode, this signal is TMDS encoded blue channel (0) output.
When in FRL mode, this signal is FRL lane 0.
� When Support FRL = 0, transceiver width is configured to 20 bits.
� When Support FRL = 1, transceiver width is configured to 40 bits.
Note: For TMDS mode, only the 20 bits from the least significant bits are used. For FRL mode, all 40 bits are used.
When in TMDS mode, this signal is TMDS encoded green channel (1) output.
When in FRL mode, this signal is FRL lane 1.
� When Support FRL = 0, transceiver width is configured to 20 bits.
� When Support FRL = 1, transceiver width is configured to 40 bits.
Note: For TMDS mode, only the 20 bits from the least significant bits are used. For FRL mode, all 40 bits are used.
When in TMDS mode, this signal is TMDS encoded red channel (2) output.
When in FRL mode, this signal is FRL lane 2.
� When Support FRL = 0, transceiver width is configured to 20 bits.
� When Support FRL = 1, transceiver width is configured to 40 bits.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 75
5. HDMI Source UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Conduit
tx_clk/ ls_clk
Conduit
ls_clk
Encoder Control Conduit Port
tx_clk/ ls_clk
Conduit
tx_clk/ ls_clk
Conduit
tx_clk/ ls_clk
Conduit
tx_clk/ ls_clk
Port
out_c[transceiver width-1:0]
in_lock mode
TMDS_Bit_clock_Ratio
Scrambler_Enable ctrl[N*6-1:0]
Direction
Description
Output
Input Input Input Input Input
Note: For TMDS mode, only the 20 bits from the least significant bits are used. For FRL mode, all 40 bits are used.
When in TMDS mode, this signal is TMDS encoded clock channel (3) output.
When in FRL mode, this signal is FRL lane 3.
� When Support FRL = 0, transceiver width is configured to 20 bits.
� When Support FRL = 1, transceiver width is configured to 40 bits.
Note: For TMDS mode, only the 20 bits from the least significant bits are used. For FRL mode, all 40 bits are used.
When asserted, the HDMI TX core begins to operate.
Encoding mode input. � 0: DVI � 1: HDMI
Indicates if TMDS Bit Rate is greater than 3.4 Gbps in TMDS mode.
� 0: (TMDS Bit Rate) / (TMDS Clock Rate) ratio is 10
� 1 = (TMDS Bit Rate) / (TMDS Clock Rate) ratio is 40
Enables scrambling.
� 0: Instructs the source device not to perform scrambling
� 1: Instructs the source device to perform scrambling
DVI control side-band inputs to override the necessary control and synchronization data in the green and red channels.
Bit-Field
Name
N*6+5
CTL3
N*6+4
CTL2
N*6+3
CTL1
N*6+2
CTL0 continued...
HDMI Intel� FPGA IP User Guide 76
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Link Training Control Port
Conduit frl_clk
Conduit frl_clk
Conduit frl_clk
Auxiliary Data Port (Applicable only when you enable
Conduit
aux_clk
Port
Direction
Description
N*6+1 N*6
Reserved (0) Reserved (0)
scdc_frl_start scdc_frl_rate[3:0] scdc_frl_pattern[15:0]
aux_ready
Input Input Input
Output
� When set to 1, the TX core transmits normal video data.
� When set to 0, the TX core transmits link training pattern data.
Specifies the FRL rate (link rate and number of lanes) that the TX core is running. � 0: Disable FRL � 1: Fixed rate link at 3
Gbps per lane on 3 lanes � 2: Fixed rate link at 6
Gbps per lane on 3 lanes � 3: Fixed rate link at 6
Gbps per lane on 4 lanes � 4: Fixed rate link at 8
Gbps per lane on 4 lanes � 5: Fixed rate link at 10
Gbps per lane on 4 lanes � 6: Fixed rate link at 12
Gbps per lane on 4 lanes
Indicates the link training pattern that each lane on the TX core is transmitting . � scdc_frl_pattern[3:
0]: Link training pattern for lane 0 � scdc_frl_pattern[7: 4]: Link training pattern for lane 1 � scdc_frl_pattern[11 :8]: Link training pattern for lane 2 � scdc_frl_pattern[15 :12]: Link training pattern for lane 3 � 4'd0: No link training pattern � 4'd1: All 1's pattern � 4'd2: All 0's pattern � 4'd3: Nyquist clock pattern � 4'd4: TxFFE Compliance Test Pattern � 4'd5: LFSR 0 � 4'd6: LFSR 1 � 4'd7: LFSR 2 � 4'd8: LFSR 3
Auxiliary data channel ready output. Asserted high to indicate that the core is ready to accept data.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 77
5. HDMI Source UG-HDMI | 2021.05.12
Interface Port Type
Support
auxiliary parameter) (6)
Conduit Conduit
Clock Domain aux_clk
aux_clk
Port aux_valid aux_data[71:0]
Conduit aux_clk
aux_sop
Conduit aux_clk
aux_eop
Auxiliary Control Port (Applicable only when you enable Support auxiliary parameter) (6)
Conduit Conduit
Conduit
aux_clk
gcp[5:0]
aux_clk
info_avi[122:0] (Support FRL = 1)
info_avi[112:0] (Support FRL = 0)
aux_clk
info_vsi[61:0]
Audio Port (Applicable only when you enable Support auxiliary and Support audio parameters) (6)
Conduit Conduit Conduit
Conduit Conduit
audio_clk audio_clk audio_clk
audio_clk audio_clk
audio_CTS[19:0] audio_N[19:0]
audio_data[255:0]
audio_de audio_mute
Conduit aux_clk
audio_info_ai[48:0]
Direction Input Input
Input Input Input
Input
Input
Input Input Input
Input Input Input
Description
Auxiliary data channel valid input to qualify the data.
Auxiliary data channel data input. For information about the bit-fields, refer to Figure 21 on page 47.
Auxiliary data channel startof-packet input to mark the beginning of a packet.
Auxiliary data channel endof-packet input to mark the end of a packet.
General Control Packet user input. For information about the bit-fields, refer to Table 22 on page 50.
Auxiliary Video Information InfoFrame user input. For information about the bit-fields, refer to Table 23 on page 50.
Vendor Specific Information InfoFrame user input. For information about the bit-fields, refer to Table 25 on page 52.
Audio CTS value input.
Audio N value input.
Audio data input. For audio channel values, refer to Table 38 on page 83.
Audio data valid input.
Audio mute input. No audio will be transmitted when this signal is asserted high.
Audio InfoFrame user input. Note: If you provide
audio_info_ai[48:0] using audio_clk with actual audio sample frequency, you must synchronize the clock domain to ls_clk externally.
continued...
(6) aux_clk = ls_clk (Support FRL = 0) aux_clk = vid_clk (Support FRL = 1)
HDMI Intel� FPGA IP User Guide 78
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Port
Conduit aux_clk
audio_metadata[165:0]
Conduit audio_clk
audio_format[4:0]
PHY Interface Control Port
Conduit
tx_clk/ ls_clk
os[1:0]
Direction
Description
Input Input Input
For information about the bit-fields, refer to Table 27 on page 56.
Carries additional information related to 3D audio and MST audio.
Note: If you provide audio_metadata[165:0] using audio_clk with actual audio sample frequency, you must synchronize the clock domain to ls_clk externally.
For information about the bit-fields, refer to Table 28 on page 57, Table 29 on page 57, and Table 30 on page 57.
Controls the transmission of the 3D audio and indicates the audio format to be transmitted.
Bit-Field Description
4
Assert to
indicate the
first 8 channels
of each 3D
audio sample.
3:0
For information
about the bit-
fields, refer to
Table 26 on
page 54.
Oversampling control signal to control the oversampling factor.
Support FRL = 1
� 0: No oversample. Send this when you are transmitting FRL.
� 1: 2x oversampling: Send this when you are transmitting TMDS rate between 1 Gb/s < rate 6 Gb/s
� 2: 8x oversampling: Send this when you are transmitting TMDS rate 1 Gb/s
Support FRL = 0
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 79
5. HDMI Source UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Hot Plug Detect Conduit
�
�
I2C Master
Conduit
�
Interface Port
Conduit
�
Avalon MM
Avalon MM
Avalon MM
Avalon MM
Avalon MM
mgmt_clk mgmt_clk mgmt_clk mgmt_clk mgmt_clk
Port
tx_hpd tx_hpd_req
i2c_scl i2c_sda i2c_master_address[3:0] i2c_master_write i2c_master_read i2c_master_writedata[31
:0] i2c_master_readdata[31:
0]
Direction
Input Output
Inout Inout Input Input Input Input Output
Description
� 0: No oversample. Send this when you are transmitting TMDS rate 1 Gb/s.
� 1: 3x oversampling: Send this when you are transmitting data rate between 350 Mb/s rate < 500 Gb/s
� 2: 4x oversampling: Send this when you are transmitting data rate between 300 Mb/s rate < 350 Gb/s
� 3: 5x oversampling: Send this when you are transmitting data rate between 250 Mb/s rate < 300 Gb/s or data rate between 500 Mb/s rate < 1 Gb/s
Detects the Hot Plug Detect (HPD) status. This signal should be driven with the same signal to the HPD pin on the HDMI connector.
The core asserts the tx_hpd_req signal if the tx_hpd signal holds for more than 100 milliseconds, indicating a valid HPD. The tx_hpd_req signal deasserts if the tx_hpd signal is not detected.
The SCL signal from the I2C bus on the HDMI connector.
Note: This signal is not available if you turn off the Include I2C parameter.
The SDA signal from the I2C bus on the HDMI connector.
Note: This signal is not available if you turn off the Include I2C parameter.
The Avalon memorymapped interface signals to the I2C master. Connect these signals to an Avalon memory-mapped slave such as the Nios processor to perform read and write operations to the EDID block.
Note: These signals are not available if you turn off the Include I2C parameter.
continued...
HDMI Intel� FPGA IP User Guide 80
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Interface Port Type
HDCP Port (Applicable only when you enable Support HDCP 2.3 or Support HDCP 1.4 parameters)
Reset Clock
Clock Domain
� �
�
Port hdcp_reset
csr_clk
crypto_clk
AvalonMM
csr_clk
csr_addr[7:0] csr_wr csr_rd
csr_wrdata[31:0] csr_rddata[31:0]
Conduit (Key)
crypto_cl k
kmem_wait
kmem_rdaddr[3:0] (HDCP 2.3)
kmem_rdaddr[9:4] (HDCP 1.4)
kmem_q[31:0] (HDCP 2.3) kmem_q[87:32] (HDCP 1.4)
Direction Input Input Input
Input Input Input Input Output
Input
Output Input
Description
Main asynchronous reset.
HDCP clock for control and status registers. Typically, shares the Nios II processor clock (100 MHz).
HDCP 2.3 clock for authentication and cryptographic layer. You can use any clock with a frequency of up to 200 MHz. Not applicable for HDCP 1.4.
Note: The clock frequency determines the authentication latency.
The Avalon-MM slave port that provides access to internal control and status register, mainly for authentication messages transfer. This interface is expected to operate at Nios II processor clock domain. Because of the extremely large bit portion of message, the IP transfers the message in burst mode with full handshaking mechanism. Write transfers always have a wait time of 0 cycle while read transfers have a wait time of 1 cycle. The addressing should be accessed as word addressing in the Platform Designer flow. For example, addressing of 4 in the Nios II software selects the address of 1 in the slave.
Always keep this signal asserted until the key is ready to be read. This signal is not available if you turn on the Support HDCP Key Management parameter.
Key read address bus. [3:2] = Reserved. This signal is not available if you turn on the Support HDCP Key Management parameter.
32-bit (HDCP 2.3) or 56-bit (HDCP 1.4) data for read transfers. Read transfer always have a wait time of 1 cycle.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 81
5. HDMI Source UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Port
AvalonMM
csr_clock
hdcp1_kmem_wr
hdcp1_kmem_wrdata[31:0]
hdcp1_kmem_addr[6:0]
AvalonMM
csr_clk
hdcp2_kmem_wr hdcp2_kmem_wrdata[31:0]
hdcp2_kmem_addr[3:0]
Conduit
ls_clk
csr_clk
hdcp1_enabled hdcp2_enabled hdcp1_disable
Direction Input Input Input
Input Input Input
Output Output Input
Description
This signal is not available if you turn on the Support HDCP Key Management parameter.
The Avalon memorymapped slave port provides write access to internal HDCP 1.4 key storage. Write transfers always have a wait time of 0 The Avalon memorymapped master access the addressing as word addressing in the Platform Designer flow. For example, addressing of 4 in the Avalon memorymapped master selects the address of 1 in the slave. These signals are only available if you turn on the Support HDCP Key Management parameter and the Support HDCP 1.4 parameter.
The Avalon memorymapped slave port provides write access to internal HDCP 2.3 key storage. Write transfers always have a wait time of 0 The Avalon memorymapped master access the addressing as word addressing in the Platform Designer flow. For example, addressing of 4 in the Avalon memorymapped master selects the address of 1 in the slave. These signals are only available if you turn on the Support HDCP Key Management parameter and the Support HDCP 2.3 parameter.
This signal is asserted by the IP if the outgoing video and auxiliary data are HDCP 1.4 encrypted.
This signal is asserted by the IP if the outgoing video and auxiliary data are HDCP 2.3 encrypted.
Assert this signal to disable the HDCP 1.4 IP.
continued...
HDMI Intel� FPGA IP User Guide 82
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Port hdcp2_disable
Direction
Description
Input
Note: You must reset the HDCP IP (hdcp_reset) after toggling this signal. You must not call the software API hdcp_main() while this signal is asserted. You must call the software API hdcp_unauth() after deasserting this signal.
Assert this signal to disable the HDCP 2.3 IP.
Note: You must reset the HDCP IP (hdcp_reset) after toggling this signal. You must not call the software API hdcp_main() while this signal is asserted. You must call the software API hdcp_unauth() after deasserting this signal.
Table 36.
out_c Value for TMDS Bit Rate Less than 3.4 Gbps
TMDS_Bit_clock_Ratio = 0 and out_c value is constant.
N
out_c Value
1
10'b1111100000
2
20'b1111100000_1111100000
4
40'b1111100000_1111100000 1111100000_1111100000
Table 37.
out_c Value for TMDS Bit Rate Greater than 3.4 Gbps in TMDS Mode
TMDS_Bit_clock_Ratio = 1 and out_c value is repeated indefinitely.
N
out_c Value
t
t+1
t+2
t+3
1
10'h000
10'h000
10'h3ff
10'h3ff
2
20'h00000
20'hfffff
20'h00000
20'hfffff
4
40'hfffff 00000
40'hfffff 00000
40'hfffff 00000
40'hfffff 00000
Table 38.
Audio Channels
Bit-Field
255:224 223:192
Audio Channel
LPCM and 3D Audio (LPCM)
MST Audio (LPCM)
8 or 16 or 24 or 32
Stream 4 right channel
7 or 15 or 23 or 31
Stream 4 left channel continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 83
5. HDMI Source UG-HDMI | 2021.05.12
Bit-Field
191:160 159:128 127:96
95:64 63:32 31:0
Audio Channel
LPCM and 3D Audio (LPCM)
MST Audio (LPCM)
6 or 14 or 22 or 30
Stream 3 right channel
5 or 13 or 21 or 29
Stream 3 left channel
4 or 12 or 20 or 28
Stream 2 right channel
3 or 11 or 19 or 27
Stream 2 left channel
2 or 10 or 18 or 26
Stream 1 right channel
1 or 9 or 17 or 25
Stream 1 left channel
5.3. Source Clock Tree
The source uses various clocks.
Figure 30.
Source Clock Tree
The figure shows how the different clocks connect in the source core.
vid_clk frl_clk
ls_clk
wrclk
rdclk
DCFIFO
Oversampling Logic
HDMI Source Core
wrclk
rdclk
DCFIFO
Oversampling Logic
wrclk
rdclk
DCFIFO
Oversampling Logic
wrclk
rdclk
DCFIFO
Oversampling Logic
tx_clk tx_clk[0]
0 1
tx_clk[1]
0 1
tx_clk[2]
0 1
tx_clk[3]
0 1
HSSI[0] HSSI[1] HSSI[2] HSSI[3]
For HDMI source, you must instantiate 4 transceiver channels: 3 channels to transmit data and 1 channel to transmit clock information.
The core uses a general purpose phase-locked loop (GPLL), that is referenced by a transceiver output clock, to generate the link speed clock (ls_clk), FRL clock (frl_clk), and video clock (vid_clk). The transceiver PLL has two reference clocks:
� Reference clock 0 which supplied with arbitrary TMDS clock frequency
� Reference clock 1 supplied with free running 100 MHz clock
HDMI Intel� FPGA IP User Guide 84
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
The link speed clock (ls_clk) is not required when you turn on the Support FRL parameter, and the FRL clock (frl_clk) is not required when you turn off the Support FRL parameter. When you turn on the Support FRL parameter, you can fix the video clock (vid_clk) at a static frequency of 225 MHz.
The transceiver PLL switches between reference clock 0 and reference clock 1 in TMDS and FRL modes.
The video data clocks into the core at vid_clk, the TMDS or FRL data clocks out from the core at tx_clk/ls_clk, and the FRL data clocks with frl_clk.
If an application requires low TMDS Bit Rate (below the transceiver minimum data rate requirement), then the application needs a user logic consisting of a DCFIFO and oversampling logic. � The DCFIFO synchronizes the TMDS data from ls_clk to a faster transceiver
output clock (tx_clk[0]). � The oversampling logic repeats each bit of the TMDS data a given number of
times. � When you enable the oversampling control bit, the transceiver transmits the TMDS
data between the HDMI source core and the oversampling logic. � You can use tx_clk[0] across four channels if the transceiver is in bonding
mode.
If an application does not require low TMDS Bit Rate, you can connect the core output directly to the transceiver with tx_clk[0] driving the core ls_clk. You do not require the GPLL to generate CLK1 (ls_clk).
Related Information � HDMI Hardware Design Examples for Arria V and Stratix V Devices on page 22 � HDMI Hardware Design Examples for Intel Arria 10, Intel Cyclone 10 GX, and Intel
Stratix 10 Devices on page 21
5.4. Link Training Procedure
The HDMI TX core does not handle the link training process.
Instead, the Nios II software manages the link training process, which is demonstrated in the Intel Arria 10 FRL design example.
Implement the link training external to the HDMI TX core according to the TX link training flow diagram shown below. The HDMI TX core generates different link training patterns on each lane based on your input through the scdc_frl_pattern port when scdc_frl_start is deasserted. When scdc_frl_start is asserted, the source core generates normal video.
Send Feedback
HDMI Intel� FPGA IP User Guide 85
5. HDMI Source UG-HDMI | 2021.05.12
Figure 31. Source Link Training Flow Diagram
LTS:0 TX Transceiver is ready? No
LTS:1
Check the sink SCDC: MAX_FRL_RATE >1 AND SCDC_present == 1 AND SCDC_SINK_VERSION !=0
LTS:2 Check flt_ready Set the frl rate
LTS:3
LTS:L
If SCDC_Present == 1? Yes No
Set frl rate = 0
Yes
If FLT_Update == 1?
Clear FLT_Update
No
Yes LTS:P
FLT_start == 1? No
Clear FRL start Set frl_start to 1 to send normal video FLT_update == 1? No
Yes Clear FLT update Set LTP to 0x2 to stop data transmission Set frl_start to 0
No FLT_update == 1?
Yes LTP_chx == 0?
No
LTP_chx == 0xF?
Yes
No Write LTP
Clear FLT_UPDATE
FRL rate == 0?
Yes
No LTS:4 Lower FRL rate Set new FRL rate Wait for TX transceiver to be ready Clear FLT Update
Indicate link training failed
5.5. FRL Clocking Scheme
The HDMI 2.1 design is not limited to run at the actual pixel clock, but the data can be processed at a faster clock rate.
The vid_valid signal at the HDMI TX core qualifies the validity of the data for every clock cycle. Due to the timing consideration on maximum FRL data rate, the transceiver width is set to 40 bits.
HDMI Intel� FPGA IP User Guide 86
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Note:
In the FRL clock domain, the TX core always processes the data in multiple of 18 bits because of the 16B/18B encoder in the FRL path. The FRL modules can process N (FRL char per clock) FRL characters in parallel. However, the FRL modules always process 8 or 16 FRL characters per clock due to timing considerations.
Hence, frl_clk frequency = (data rate per lane * number of lanes) / (FRL char per clock*18)
The number of lanes is always four.
� For FRL rates 3�6, all four lanes carry the FRL characters.
� For FRL rates 1 and 2, only 3 lanes carry the FRL characters and 1 lane is unused.
Similarly, in the vid_clk domain, the TX core processes data in multiples of pixels (24 bits) in parallel. You can configure the number of pixels to be processed in parallel through the pixels per clock GUI parameter. However, due to timing consideration and backward compatibility, the IP sets the pixels per clock to 2 when you turn off Support FRL, and to 8 when you turn on Support FRL. Because the actual pixel clock may differ based on different resolutions, you can configure vid_clk to the maximum frequency per the specified link rate according to the following calculation:
vid_clk frequency = (data rate per lane * number of lanes) / (pixels per clock * 24)
Because vid_clk can be asynchronous to frl_clk and ls_clk, you can set the vid_clk frequency according to the maximum pixel frequency of the highest allowed resolution divided by 8, to simplify the clocking scheme. Intel recommends that you set the vid_clk frequency to 225 MHz, as demonstrated in the HDMI Intel FPGA IP FRL design example.
Pixels per clock*24 bits width
Number of FRL characters per clock*18 bits width
No of lanes*Transceiver width
VID
FRL
LS
vid_clk = (Data rate per lane*number of lanes/ (Pixels per clock*24)
frl_clk = (Data rate per lane*4)/ (Number of FRL characters per clock*18)
Is_clk = (Data rate per lane*number of lanes)/ (Number of lanes*transceiver witdh)
Table 39. Clock Frequencies for FRL Mode at Different Link Rates
FRL Rate
TX PLL Refclk Frequency (MHz)
TX Clkout Frequency
(MHz)
1
100.00
75.00
2
100.00
150.00
3
100.00
150.00
4
100.00
200.00
5
100.00
250.00
6
100.00
300.00
ls_clk Frequency
(MHz)
75.00 150.00 150.00 200.00 250.00 300.00
Maximum vid_clk
Frequency (MHz)
62.50
125.00
125.00
166.67
208.33
250.00
frl_clk Frequency (MHz)
Intel Arria 10 Intel Stratix
Devices
10 Devices
41.665
83.33
83.33
166.67
83.33
166.67
111.11
222.22
138.89
277.78
166.67
333.33
Send Feedback
HDMI Intel� FPGA IP User Guide 87
5. HDMI Source UG-HDMI | 2021.05.12
Table 40. Clock Frequencies for TMDS Mode at Different Link Rates
TMDS_BIT_ CLOCK_RAT
IO
TMDS Refclk (MHz)
Min
Max
TMDS_BIT_ CLOCK_RAT IO = 0
25.00
100.00
TMDS_BIT_ CLOCK_RAT IO = 0
100.00
340.00
TMDS_BIT_ CLOCK_RAT IO = 1
85.00
150.00
TX PLL Refclk Frequency (MHz)
Min
Max
25.00 100.00
100.00 340.00
85.00 150.00
TX Clkout Frequency (MHz)
Min
Max
100.00 400.00
50.00 170.00
170.00 300.00
ls_clk Frequency vid_clk Frequency
(MHz)
(MHz)
Min
Max
Min
Max
12.50
50.00
3.13
12.5
50.00 170.00 12.50
42.50
170.00 300.00 42.50
75.00
5.6. Valid Video Data
You can generate video data using a different clock, other than vid_clk used in the HDMI TX core.
To generate video data, you need to use the actual pixel clock but vid_clk runs at a faster frequency. You can use a FIFO buffer to clock the data between the actual pixel clock and vid_clk while generating the valid video data (vid_valid) based on the inverted empty FIFO buffer.
For example, when operating at 8 Gbps link rate while transmitting 7680 x 4320p30 RGB resolution, a test pattern generator configured at 8 pixels in parallel runs at 148.5 MHz with the vid_clk domain of the HDMI TX core operating at 166.67 MHz. Like this case, not every vid_clk has valid video data. You can handle similar cases using the inverted empty signal of the DCFIFO.
When vid_clk runs at a faster frequency than the actual pixel clock frequency/pixels per clock, toggle vid_valid to qualify the video data.
Figure 32. Video Clock Running at Faster Frequency
Test Pattern Generator (8Kp30 RGB)
(8 pixels in parallel)
FIFO empty
vid_clk Domain (8 pixels in parallel) vid_valid
frl_clk Domain (16 FRL characters
per clock)
ls_clk Domain (40-bit transceiver width)
148.5 MHz
166.67 MHz
111 MHz
200 MHz
When vid_clk runs at the actual pixel clock frequency/pixels per clock, vid_valid should always remain asserted.
Figure 33. Video Clock Running at Actual Frequency
Test Pattern Generator (8Kp30 RGB)
(8 pixels in parallel)
1'b1
vid_clk Domain (8 pixels in parallel)
vid_valid
frl_clk Domain (16 FRL characters
per clock)
ls_clk Domain (40-bit transceiver width)
148.5 MHz
111 MHz
200 MHz
HDMI Intel� FPGA IP User Guide 88
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
5.7. Source Deep Color Implementation When Support FRL = 0
When Support FRL = 0, you need to provide the ls_clk and vid_clk clocks according to the color depth ratio. The HDMI TX core carries 24, 30, 36 or 48 bits per pixel (bpp).
ls_clk frequency = data rate per lane / effective transceiver width = data rate per lane / 20
Note:
The effective transceiver width in TMDS mode is also 20.
Table 41.
vid_clk frequency = (data rate per lane / effective transceiver width) / color depth ratio
Color Depth Ratio for Bits per Color
Bits per Color 8 10 12 16
Color Depth Ratio 1.6 1.25 1.5 2.0
Figure 34.
Deep Color Implementation When Support FRL = 0
data
data
data
Programmable Oscillator (TMDS clock frequency)
HDMI TX Core
DCFIFO
vid_clk
IOPLL
Is_clk
tx_clk
TX Transceiver (TX PLL + PMA + PCS)
serial data
TX PLL refclk
Figure 35.
10 Bits per Component (30 Bits per Pixel)
When operating in 10 bits per component, the vid_clk frequency to ls_clk frequency ratio is 4:5. For every 5 ls_clk cycles, there should be 4 vid_clk cycles.
ls_clk
vid_clk
Figure 36.
12 Bits per Component (36 Bits per Pixel)
When operating in 12 bits per component, the vid_clk frequency to ls_clk frequency ratio is 2:3. For every 3 ls_clk cycles, there should be 2 vid_clk cycles.
ls_clk
vid_clk
Send Feedback
HDMI Intel� FPGA IP User Guide 89
5. HDMI Source UG-HDMI | 2021.05.12
Figure 37.
16 Bits per Component (48 Bits per Pixel)
When operating in 16 bits per component, the vid_clk frequency to ls_clk frequency ratio is 1:2. For every 1 ls_clk cycle, there should be 2 vid_clk cycles.
ls_clk
vid_clk
5.8. Source Deep Color Implementation When Support FRL = 1
When Support FRL = 1, you can drive vid_clk regardless of the color depth ratio. � In TMDS mode:
vid_clk frequency = (data rate per lane / effective transceiver width) / 4 � In FRL mode:
vid_clk frequency = 225 MHz
Figure 38.
Deep Color Implementation When Support FRL = 1
data
Showahead
data
Mode
empty
vid_valid
DCFIFO
HDMI TX Core
rden
vid_ready
vid_clk
IOPLL
TX Transceiver (TX PLL + PMA + PCS)
serial data
TX PLL refclk 0
TX PLL refclk 1
Programmable Oscillator (TMDS clock frequency)
tx_clk 100 MHz
The vid_ready signal toggles to indicate if the HDMI TX core is ready to take in new video data. In this case, you can use a DCFIFO IP to store the video data when the HDMI TX core is not ready (vid_ready is low). You need to configure the DCFIFO IP to show-ahead mode, with the vid_ready signal connected to the rden signal of the DCFIFO IP.
When vid_ready is low, the DCFIFO IP holds the video data immediately. When vid_ready goes high, the HDMI TX core processes the stored data without losing any valid video data.
The inverted empty signal from the DCFIFO IP sets the vid_valid signal to the HDMI TX core.
HDMI Intel� FPGA IP User Guide 90
Send Feedback
5. HDMI Source UG-HDMI | 2021.05.12
Figure 39.
10 Bits per Component (30 Bits per Pixel)
When operating in 10 bits per component, the vid_ready signal is high for 4 out of 5 clock cycles. For every 5 clock cycles, the HDMI TX core processes 4 video data with 10 bits per component.
vid_clk
tx_clk
vid_valid vid_ready
Figure 40.
12 Bits per Component (36 Bits per Pixel)
When operating in 12 bits per component, the vid_ready signal is high for 2 out of 3 clock cycles. For every 3 clock cycles, the HDMI TX core processes 2 video data with 12 bits per component.
vid_clk tx_clk vid_valid vid_ready
Figure 41.
16 Bits per Component (48 Bits per Pixel)
When operating in 16 bits per component, the vid_ready signal is high for 1 out of 2 clock cycles. For every 2 clock cycles, the HDMI TX core processes 1 video data with 16 bits per component.
vid_clk tx_clk vid_valid vid_ready
Send Feedback
HDMI Intel� FPGA IP User Guide 91
UG-HDMI | 2021.05.12 Send Feedback
6. HDMI Sink
6.1. Sink Functional Description
The HDMI sink core provides direct connection to the Transceiver Native PHY through a 20-bit or 40-bit parallel data path. The clock domains for the auxiliary and audio ports, and the internal modules are different for FRL path and non-FRL path.
Figure 42.
HDMI Sink Signal Flow Diagram for TMDS (Support FRL = 0) Design
The figure below shows the flow of the HDMI sink signals. The figure shows the various clocking domains used within the core.
HDCP Port
Decoder Status Port
TMDS TMDS Data (Red Channel) Data TMDS Data (Green Channel) Port TMDS Data (Blue Channel)
World Alignment and Channel Deskew
Descrambler, TMDS and TERC4
Decoder
HDCP 2.3 RX
HDCP 1.4 RX
AUX
AUX
SCDC Control and Status Port
Avalon-MM SCDC Management Interface
Character Error
Detection SCDC Register
Video Resampler
Auxiliary
AUX
Decoder
Audio Decoder
Video Timing Geometry
Measurement
Video Lock
Video Data (Red Channel) Video Data (Green Channel) Video Data (Blue Channel)
Video Data Port
Memory Map
Capture GCP
Auxiliary Data Port Auxiliary Memory Interface General Control Packet
Capture AVI AVI InfoFrame
Capture VSI Vendor Specific InfoFrame
Auxiliary Status Port
Capture AI Audio InfoFrame
Capture ACR
Audio Clock Regeneration (N, CTS)
Audio
Capture AM Audio Metadata
Port
Audio Depacketizer
Audio Sample
vid_clk domain ls_clk domain i2c_clk domain HDCP clocks domain
The sink core provides three (TMDS mode) or four (FRL mode) 20-bit or 40-bit data input paths corresponding to the color channels. The sink core clocks the three 20-bit or 40-bit channels from the transceiver outputs using the respective transceiver clock outputs.
� Blue channel: 0
� Green channel: 1
� Red channel: 2
� Clock channel: 3
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, eASIC, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
6. HDMI Sink UG-HDMI | 2021.05.12
Figure 43.
HDMI Sink Signal Flow Diagram for Support FRL = 1 Design
TMDS/FRL Data Port
FRL Data (Channel 3) FRL Data (Channel 2) FRL Data (Channel 1) FRL Data (Channel 0)
TMDS Data (Red Channel) TMDS Data (Green Channel)
TMDS Data (Blue Channel)
FRL Resampler
FRL Word Alignment and Channel Deskew
World Alignment and Channel Deskew
Decoder Status Port HDCP Port
FRL Descrambler and Decoder
FRL Character Block and Super Block Demapper
FRL Depacketizer
Descrambler,
TMDS and TERC4 Decoder
AUX
HDCP 1.4 RX AUX
SCDC Control and Status Port Avalon Memory-Mapped SCDC Management Interface
Character Error
Detection SCDC Register
Link Training Control and Status Port
Link Training State Machine
vid_clk domain (pixels per clock) transceiver recovered clock domain (transceiver width per lane) frl_clk domain (FRL characters per clock) i2c_clk domain
HDCP clocks domain
AUX DCFIFO AUX
Video Timing Geometry
Measurement
Video Lock
HDCP 2.3 AUX RX
Video Resampler
Video Data (Red Channel) Video Data (Green Channel) Video Data (Blue Channel)
AUX
Auxiliary Decoder
Memory Map
Capture GCP
Auxiliary Data Port Auxiliary Memory Interface General Control Packet
Capture AVI AVI InfoFrame
Capture VSI Vendor Specific InfoFrame
Audio Decoder
Capture AI Audio InfoFrame
Capture ACR Capture AM
Audio Clock Regeneration (N, CTS) Audio Metadata
Audio Depacketizer
Audio Sample
Video Data Port Auxiliary Status Port Audio Port
For Support FRL = 1 design, in TMDS mode, a DCFIFO clocks the HDMI data stream from the scrambler, TMDS/TERC4 decoder in the transceiver recovered clock domain to vid_clk domain. All the blocks in the FRL path and video data operate in vid_clk domain.
When operating TMDS mode, the sink core accepts three 20-bit data input paths corresponding to each color channel. The sink core clocks the three 20-bit channels from the transceiver outputs using respective transceiver clock outputs.
� Blue channel: Data channel 0
� Green channel: Data channel 1
� Red channel: Data channel 2
Note:
Data channel 3 is unused in TMDS mode. Data channels 0�3 are always 40-bit wide, but only 20 bits from the least significant bits are used in TMDS mode.
When operating in FRL mode, the sink core accepts four 40-bit data input paths corresponding to each FRL channel. The sink core clocks the four 40-bit channels from the transceiver outputs using respective transceiver clock outputs. � FRL channel 0: Data channel 0 � FRL channel 1: Data channel 1 � FRL channel 2: Data channel 2 � FRL channel 3: Data channel 3
The sink core provides N*48 bit video data per channel for each color channel, where N is number of pixels per clock.
6.1.1. Sink Word Alignment and Channel Deskew
The input stage of the sink is responsible for synchronizing the incoming parallel data channels correctly. The synchronization is split to two stages: word alignment and channel deskew.
Send Feedback
HDMI Intel� FPGA IP User Guide 93
6. HDMI Sink UG-HDMI | 2021.05.12
Table 42. Synchronization Stages
Stage Word Alignment
Channel Deskew
Description
TMDS Mode
� Correctly aligns the incoming parallel data to word boundaries using bit-slip and pattern-matching technique.
� TMDS encoding does not guarantee unique control codes, but the core can still use the sequence of continuous symbols found in data and video preambles to align.
� The alignment algorithm searches for 8 consecutive 0�54 or 0�ab corresponding to the data and video preambles.
Note: The preambles are also present in Digital Video Interface (DVI) coding.
� The alignment logic asserts a marker indicator when the 8 consecutive signals are detected. Similarly, the logic infers alignment loss when 8K symbol clocks elapse without a single marker assertion.
Note: If you are using Intel Arria 10 or Intel Cyclone 10 GX devices, soft word alignment logic in the HDMI RX core is disabled for HDMI 2.0 resolution (data rate >3.4 Gbps). Hard transceiver PCS word alignment is used with some control logic to achieve faster word alignment with more optimized resource utilization. Refer to the design example user guides for more information.
Note: If you are using Intel Stratix 10 devices, the HDMI RX core uses a new word alignment algorithm logic to achieve fast word alignment time for HDMI 2.0 resolution (data rate >3.4Gbps).
FRL Mode
� Correctly aligns the incoming parallel data to word boundaries using bit-slip and pattern-matching technique.
� FRL encoding uses unique Scrambler Reset (SR) and Start of Super Block (SSB) characters to achieve alignment.
� The FRL encoding loses lock when it does not receive the SR or SSB on one lane while other lane receive SR or SSB continuously for seven times.
� When the data channels are aligned, the core then attempts to deskew each channel. � The sink core deskews at the rising edge of the marker insertion. � For every correct deskewed lane, the marker insertion will appear in all three TMDS encoded
streams. � The sink core deskews using three dual-clock FIFOs. � The dual-clock FIFOs also synchronize all three data streams to the blue channel clock to be
used later throughout the decoder core.
HDMI Intel� FPGA IP User Guide 94
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Figure 44.
Channel Deskew DCFIFO Arrangement
The figure below shows the signal flow diagram of the deskew logic.
Alignment Detection
marker[3] marker[2] marker[1]
marker[0]
marker_in[0] data_in[0]
DCFIFO Channel 0
marker_in[1] data_in[1]
ls_clk[0]
rdreq wrclk
rdclk ls_clk[0]
DCFIFO Channel 1
marker_in[2] data_in[2]
ls_clk[1]
rdreq wrclk
rdclk ls_clk[0]
DCFIFO Channel 2
marker_in[3] data_in[3]
ls_clk[2]
rdreq wrclk
rdclk ls_clk[0]
DCFIFO Channel 3*
ls_clk[3] * Channel 3 is applicable only for FRL mode.
rdreq wrclk
rdclk ls_clk[0]
data[0] data[1] data[2] data[3]
Send Feedback
HDMI Intel� FPGA IP User Guide 95
6. HDMI Sink UG-HDMI | 2021.05.12
The FIFO read signal of the channels is normally asserted. The sink core deasserts a particular FIFO read signal if a marker appears at its output and not in the other two FIFO outputs. By deasserting, the sink core stalls the data stream for sufficient cycles to remove the channel skew. If any of the FIFO channels overflow, the sink core asserts a reset signal which propagates backwards to the word alignment logic.
6.1.2. Sink Descrambler, TMDS/TERC4 Decoder
The sink TMDS/TERC4 decoder follows the HDMI/DVI specification. The core enable descrambling automatically when it detects the Scramble_Enable bit of the SCDC registers.
The sink core feeds the aligned channels into the TMDS/TERC4 decoder. You can parameterize the decoder to operate in 1, 2, or 4 TMDS symbols per clock. If you choose 2 or 4 TMDS symbols per clock, the decoder will produce 2 or 4 decoded symbols per clock. The decoded symbols per clock output supports high pixel clock resolutions on low-end FPGA devices.
6.1.3. Sink Video Resampler
The video resampler consists of a gearbox and a dual-clock FIFO (DCFIFO).
The gearbox converts 8-bpc data to 8-, 10-, 12- or 16-bpc data based on the current color depth. The GCP conveys the color depth (bpp) information.
Figure 45. Sink Resampler Signal Flow Diagram
H-SYNC V-SYNC r[7:0] de g[7:0] b[7:0]
pp
bpp ls_clk
Gearbox
Phase Counter
data
q
DCFIFO
wr
rd
wrclk
rdwrclk
Resampled H-SYNC V-SYNC de r[15:0] g[15:0] b[15:0]
1 vid_clk
The resampler adheres to the recommended phase count method described in HDMI 1.4b Specification Section 6.5.
� To keep the source and sink resamples synchronized, the source must send the packing-phase (pp) value to the sink during the vertical blanking phase, using the general control packet.
� The pp corresponds to the phase of the last pixel in the last active video line.
� The phase-counter logic compares its own pp value to the pp value received in the general control packet and slips the phase count if the two pp values do not agree.
The output from the resampler is fixed at 16 bpc. When the resampler operates in lower color depths, the low order bits are zero. The pixel data output format across color space are are described in Figure 10-12.
HDMI Intel� FPGA IP User Guide 96
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
6.1.4. Sink Auxiliary Decoder
The sink core decodes the auxiliary data path into a 72-bit wide standard packet stream. The stream contains a valid, start-of-packet (SOP) and end-of-packet (EOP) marker.
Table 43.
Auxiliary Packet Memory Map
This table lists the addresses corresponding to the captured packets.
Memory Start Address
Packet Name
0
NULL PACKET
4
Audio Clock Regeneration (N/CTS)
8
Audio Sample
12
General Control
16
ACP Packet
20
ISRC1 Packet
24
ISRC2 Packet
28
One Bit Audio Sample Packet 5.3.9
32
DST Audio Packet
36
High Bit rate (HBR) Audio Stream Packet
40
Gamut Metadata Packet
44
3D Audio Sample Packet
48
One Bit 3D Audio Sample Packet
52
Audio Metadata Packet
56
Multi-Stream Audio Sample Packet
60
One Bit Multi-Stream Audio Sample Packet
64
Vendor-Specific InfoFrame
68
AVI InfoFrame
72
Source Product Descriptor InfoFrame
76
Audio InfoFrame
80
MPEG Source InfoFrame
84
TSC VBI InfoFrame
88
Dynamic Range and Mastering InfoFrame
Send Feedback
HDMI Intel� FPGA IP User Guide 97
6. HDMI Sink UG-HDMI | 2021.05.12
Table 44.
Packet Payload Data Byte
This table shows the representation of each packet payload data byte.
Byte Offset
Word Offset
8
7
6
5
4
3
0
PB22
PB21
PB15
PB14
PB8
PB7
1
PB24
PB23
PB17
PB16
PB10
PB9
2
PB26
PB25
PB19
PB18
PB12
PB11
3
BCH3
PB27
BCH2
PB20
BCH1
PB13
2 PB1 PB3 PB5 BCH0
1
0
PB0
HB0
PB2
HB1
PB4
HB2
PB6
HBCH0
Figure 46.
Auxiliary Data Stream Signal
The figure below shows the relationship between the data bit-field and its clock cycle based on 1-, 2-, or 4-
symbol per clock mode.
Phase 0
Phase 1
Phase 2
Phase 3
PB22
Byte[8]
PB24
PB26
BCH3
BCH Block 3
PB21
PB23
PB25
PB27
PB15
PB17
PB19
BCH2
BCH Block 2
PB14
PB16
PB18
PB20
PB8
PB10
PB12
BCH1
Output Data
BCH Block 1
PB7
PB9
PB11
PB13
PB1
PB3
PB5
BCH0
BCH Block 0
PB0
PB2
PB4
PB6
HB0
Byte[0]
HB1
HB2
0
Note:
Startofpacket Endofpacket
Valid Clock Cycle 1 Symbol Cycle 2 Symbol Cycle 4 Symbol
Phase 0
Phase 1
Phase 2
Phase 3
0
-
-
8
-
- 16 -
- 24
0
-
-
4
-
-
8
-
- 12
0
-
-
2
-
-
4
-
-
6
The data output at EOP contains the received BCH error correcting code. The sink core does not perform any error correction within the core. The auxiliary data is available outside the core.
You can find the bit-field nomenclature in the HDMI 2.0b Specification.
6.1.5. Sink Auxiliary Packet Capture
To simplify user applications and minimize external logic, the core captures 3 different packet types and presents the packets outside the core.
These packets are: General Control Packet (GCP), Auxiliary Video Information (AVI) InfoFrame, and HDMI Vendor Specific InfoFrame (VSI).
HDMI Intel� FPGA IP User Guide 98
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
The GCP, AVI and VSI bit-fields (excluding control bit) are defined in Table 22 on page 50. Table 23 on page 50. and Table 25 on page 52 respectively with reserved bits return 0.
6.1.6. Sink Auxiliary Data Port
The auxiliary port is attached to external memory. This port allows you to write packets to memory for use outside the HDMI core.
The core calculates the address for the data port using the header byte of the received packet. The core writes packet types 0�15 into a contiguous memory region.
Figure 47.
Typical Application of AUX Packet Register Interface
The figure below shows a typical application of the auxiliary data port.
HDMI Sink Core
data[71:0] addr[6:0] wr
On-Chip Memory
data[71:8] addr[6:0] rd
From 64 bit Nios II Avalon-MM
Table 45. Auxiliary Packet Memory Map
Memory Start Address 0 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64 68
Packet Name NULL PACKET Audio Clock Regeneration (N/CTS) Audio Sample General Control
ACP Packet ISRC1 Packet ISRC2 Packet One Bit Audio Sample Packet 5.3.9 DST Audio Packet High Bitrate (HBR) Audio Stream Packet Gamut Metadata Packet 3D Audio Sample Packet One Bit 3D Audio Sample Packet Audio Metadata Packet Multi-Stream Audio Sample Packet One Bit Multi-Stream Audio Sample Packet Vendor-Specific InfoFrame AVI InfoFrame
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 99
6. HDMI Sink UG-HDMI | 2021.05.12
Memory Start Address 72 76 80 84 88
Packet Name Source Product Descriptor InfoFrame
Audio InfoFrame MPEG Source InfoFrame
TSC VBI InfoFrame Dynamic Range and Mastering InfoFrame
Table 46.
Word Offset 0 1 2 3
Packet Payload Data Byte
The table below lists the representation of each packet payload data byte.
Byte Offset
8
7
6
5
4
3
2
PB22
PB21
PB15
PB14
PB8
PB7
PB1
PB24
PB23
PB17
PB16
PB10
PB9
PB3
PB26
PB25
PB19
PB18
PB12
PB11
PB5
BCH3
PB27
BCH2
PB20
BCH1
PB13
BCH0
1 PB0 PB2 PB4 PB6
0 HB0 HB1 HB2 HBCH0
Note:
The packet fields (PB0-PB26) are described in the HDMI 1.4b Specification (Chapter 8.2.1).
6.1.7. Sink Audio Decoder
The Audio Clock Regeneration packet transmits the CTS and N values required to synthesize the audio sample clock. The core also makes the CTS and N values available outside the core.
An audio clock synthesizer uses a phase-counter to recover the audio sample rate. The output from the audio clock synthesizer generates a valid pulse at the same rate as the audio sample clock from the attached source device. This valid pulse is available outside the core as an audio sample valid signal. This signal reads from a FIFO, which governs the rate of audio samples. The audio depacketizer drives the input to the FIFO.
The audio depacketizer extracts the 32-bit audio sample data from the incoming Audio Sample packets. The Audio Sample packets can hold from one to four sample data values. The audio format indicates the format of the received audio data as defined in Table 26 on page 54.
The Audio InfoFrame and Audio Metadata packets are not used within the core. The packets are captured and presented outside the core. The bit fields (excluding control bit) are defined in Table 27 on page 56, Table 28 on page 57, Table 29 on page 57, and Table 30 on page 57 with reserved bits return 0.
6.1.8. Status and Control Data Channel (SCDC) Interface
For applications using the HDMI 2.0b feature, the core provides a memory slave port to the SCDC registers.
HDMI Intel� FPGA IP User Guide 100
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
This memory slave port connects to an I2C slave component. The TMDS_Bit_clock_Ratio output from the SCDC interface indicates when the core requires the TMDS Bit Rate/TMDS Clock Rate ratio of 40. This bit is also stored in its corresponding field in the SCDC registers.
The HDMI 2.0b Specification requires the core to respond to the presence of the 5V input from the connector and the state of the HPD signal. The 5V input and HPD signal are used in the register mechanism updates. The signals are synchronous to the i2c_clk clock domain. You must create a 100-ms delay on the HPD signal externally to the core.
For more information about the Status and Control Data Channel, you may refer to HDMI 2.0b Specification Chapter 10.4. You can obtain the address map for the registers in the HDMI 2.0b Specification.
6.1.9. HDCP 1.4 RX Architecture
The HDCP 1.4 receiver block decrypts the protected video and auxiliary data from the connected HDCP 1.4 device. The HDCP 1.4 receiver block has identical structure layers as the HDCP 1.4 transmitter block.
Figure 48. Architecture Block Diagram of HDCP 1.4 RX IP
HDCP Register Port (Avalon-MM)
Control & Status Register Layer
Regs
Repeater Message Port (Avalon-MM)
Rpt Regs
Color Legend: hdcp_reg_clk rpt_msg_clk Is_clk
HDCP Key Port
Authentication Layer
SHA-1 Ctl (KM Gen)
HDCP Cipher
Video Stream & Auxiliary Layer
Stream Mapper
Video & Aux Control Port
Video & Aux Data Input Port
Video & Aux Data Output Port
Send Feedback
HDMI Intel� FPGA IP User Guide 101
6. HDMI Sink UG-HDMI | 2021.05.12
Table 47.
The HDCP 1.4 RX core is fully autonomous. For HDMI application, the transmitter drives the HDCP 1.4 RX core using the standard DDC interface supporting I2C protocol. You need an I2C slave externally to drive the IP through the HDCP Register
Port (Avalon-MM).
The HDCP specifications requires the HDCP 2.3 RX core to be programmed with the DCP-issued production key � Device Private Keys (Bkeys) and Key Selection Vector (Bksv). The IP retrieves the key from the on-chip memory externally to the core through the HDCP Key Port. The on-chip memory must store the key data in the arrangement shown in the table below.
HDCP 1.4 RX Key Port Addressing
Address 6'h28 6'h27 6'h26 ... 6'h01 6'h00
Content {16'd0, Bksv[39:0]}
Bkeys39[55:0] Bkeys38[55:0]
... Bkeys01[55:0] Bkeys00[55:0]
The Video Stream and Auxiliary Layer receives audio and video content over its Video and Aux Data Input Port, and performs the decryption operation. The Video Stream and Auxiliary Layer detects the Encryption Status Signaling (ESS) provided by the HDMI IP to determine when to decrypt frames.
To implement the HDCP 1.4 RX core as a repeater upstream interface, the IP must propagate certain information such as KSV list and Bstatus to the upstream transmitter and to be used for SHA-1 hash digest. The repeater downstream interface (TX) must provide this information using the Repeater Message Port (Avalon-MM). You can use the same clock source to drive the clocking for the HDCP Register Port and Repeater Message Port.
The RX registers mapping defined in the following table is equivalent to the address space for HDCP 1.4 receiver defined in the HDCP specification.
Table 48. HDCP 1.4 RX Registers Mapping
Address 0x00
Register BKSV0
R/W
Reset
Bit
RO
-
7:0
0x01
BKSV1
-
7:0
0x02
BKSV2
-
7:0
0x03
BKSV3
-
7:0
0x04
BKSV4
-
7:0
0x05-0x0 7
Rsvd
RO
0x00
7:0
Bit Name -
-
Description Bit [7:0] of HDCP Receiver KSV.
Bit [15:8] of HDCP Receiver KSV.
Bit [23:16] of HDCP Receiver KSV. Bit [31:24] of HDCP Receiver KSV. Bit [39:32] of HDCP Receiver KSV. Reserved. All bytes read as 0x00.
continued...
HDMI Intel� FPGA IP User Guide 102
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Address 0x08
Register RI_PRIME0
R/W
Reset
Bit
RO
0x00
7:0
0x09
RI_PRIME1
0x00
7:0
0x0A
0x0B � 0x0F
0x10
PJ_PRIME Rsvd
AKSV0
RO
0x00
7:0
RO
0x00
7:0
WO
0x00
7:0
0x11
AKSV1
0x00
7:0
0x12
AKSV2
0x00
7:0
0x13
AKSV3
0x00
7:0
0x14
AKSV4
0x00
7:0
0x15
0x16 � 0x17
0x18
AINFO Rsvd
AN0
WO
0x00
7:0
RO
0x00
7:0
WO
0x00
7:0
0x19
AN1
0x00
7:0
0x1A
AN2
0x00
7:0
0x1B
AN3
0x00
7:0
0x1C
AN4
0x00
7:0
0x1D
AN5
0x00
7:0
0x1E
AN6
0x00
7:0
0x1F
AN7
0x00
7:0
0x20
V_PRIME_H0_0
RO
0x00
7:0
0x21 0x22 0x23 0x24
V_PRIME_H0_1 V_PRIME_H0_2 V_PRIME_H0_3 V_PRIME_H1_0
0x00
7:0
0x00
7:0
0x00
7:0
RO
0x00
7:0
Bit Name -
-
-
Description
Link verification response. Bit [7:0] of Ri'.
Link verification response. Bit [15:8] of Ri'.
Reserved. All bytes read as 0x00.
Reserved. All bytes read as 0x00.
-
Bit [7:0] of HDCP Transmitter
KSV.
Bit [15:8] of HDCP Transmitter KSV.
Bit [23:16] of HDCP Transmitter KSV.
Bit [31:24] of HDCP Transmitter KSV.
Bit [39:32] of HDCP Transmitter KSV.
-
Reserved.
-
Reserved. All bytes read as 0x00.
-
Bit [7:0] of HDCP Session
Random Number An.
Bit [15:8] of HDCP Session Random Number An.
Bit [23:16] of HDCP Session Random Number An.
Bit [31:24] of HDCP Session Random Number An.
Bit [39:32] of HDCP Session Random Number An.
Bit [47:40] of HDCP Session Random Number An.
Bit [55:48] of HDCP Session Random Number An.
Bit [63:56] of HDCP Session Random Number An.
-
H0 part of SHA-1 hash value
used in the authentication
protocol HDCP repeaters. Bit
[7:0] of H0 value.
Bit [15:8] of H0 value.
Bit [23:16] of H0 value.
Bit [31:24] of H0 value.
-
H1 part of SHA-1 hash value
used in the authentication
protocol HDCP repeaters. Bit
[7:0] of H1 value.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 103
6. HDMI Sink UG-HDMI | 2021.05.12
Address 0x25 0x26 0x27 0x28
Register V_PRIME_H1_1 V_PRIME_H1_2 V_PRIME_H1_3 V_PRIME_H2_0
0x29 0x2A 0x2B 0x2C
V_PRIME_H2_1 V_PRIME_H2_2 V_PRIME_H2_3 V_PRIME_H3_0
0x2D 0x2E 0x2F 0x30
V_PRIME_H3_1 V_PRIME_H3_2 V_PRIME_H3_3 V_PRIME_H4_0
0x31 0x32 0x33 0x34 � 0x3F 0x40
V_PRIME_H4_1 V_PRIME_H4_2 V_PRIME_H4_3
Rsvd
BCAPS
R/W RO
Reset 0x00 0x00 0x00 0x00
0x00
0x00
0x00
RO
0x00
0x00
0x00
0x00
RO
0x00
0x00
0x00
0x00
RO
0x00
RO
0x00
Bit
Bit Name
Description
7:0
Bit [15:8] of H1 value.
7:0
Bit [23:16] of H1 value.
7:0
Bit [31:24] of H1 value.
7:0
-
H2 part of SHA-1 hash value
used in the authentication
protocol HDCP repeaters. Bit
[7:0] of H2 value.
7:0
Bit [15:8] of H2 value.
7:0
Bit [23:16] of H2 value.
7:0
Bit [31:24] of H2 value.
7:0
-
H3 part of SHA-1 hash value
used in the authentication
protocol HDCP repeaters. Bit
[7:0] of H3 value.
7:0
Bit [15:8] of H3 value.
7:0
Bit [23:16] of H3 value.
7:0
Bit [31:24] of H3 value.
7:0
-
H4 part of SHA-1 hash value
used in the authentication
protocol HDCP repeaters. Bit
[7:0] of H4 value.
7:0
Bit [15:8] of H4 value.
7:0
Bit [23:16] of H4 value.
7:0
Bit [31:24] of H4 value.
7:0
-
Reserved. All bytes read as 00.
7
HDMI_RESERV 0 = Receiver not capable of
ED
supporting HDMI
1 = Receiver capable of
supporting HDMI
6
REPEATER HDCP repeater capability.
0 = Receiver is not a repeater.
1 = Receiver is a repeater.
5
READY
KSV FIFO ready. When set to 1,
the receiver has built the list of
attached KSVs and computed the
verification value V'. This value is
always 0 during the computation
of V'.
4
FAST
This bit reads as 0.
3:2
Reserved These bits read as 0.
1
FEATURES_1_ Reserved. This bit reads as 0.
1
0
FAST_
This bit reads as 1.
continued...
HDMI Intel� FPGA IP User Guide 104
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Address
Register
0x41
BSTATUS0
0x42
BSTATUS1
0x43
0x44 � 0xBF 0xC0 � 0x100
KSV_FIFO Rsvd DBG
R/W
Reset
RO
0x00
0x00
RO
0x00
RO
0x00
RW
0x00
Bit
Bit Name
Description
REAUTHENTIC ATION
7
MAX_DEVS_ Topology error indicator. When
EXCEEDED
set to 1, more than 127 downstream devices, or the
capacity of the KSV FIFO, are
attached.
6:0
DEVICE_COUN Total number of attached
T
downstream devices. Always 0
for HDCP Receivers. This count
does not include the HDCP
Repeater itself, but only
downstream devices downstream
from the HDCP Repeater.
7:6
Rsvd
These bits read as 0.
5
HDMI_RESERV Reserved for future possible
ED_2
HDMI use.
4
HDMI_MODE HDMI mode. When set to 1, the
HDCP Receiver has transitioned
from DVI mode to HDMI mode.
3
MAX_CASCADE Topology error indicator. When
_EXCEEDED set to 1, more than 7 levels of
video repeater have been
cascaded together.
2:0
DEPTH
3-bit repeater cascade depth.
This value gives the number of
attached levels through the
connection topology.
7:0
-
Key selection vector FIFO. Used
to pull downstream KSVs from
HDCP Repeaters.
7:0
-
Reserved. All bytes read as 0x00.
7:0
-
Implementation-specific debug
registers.
Table 49.
Address 0x00
HDCP 1.4 RX Repeater Registers Mapping
Register RPT_KSV_LIST
R/W WO
Reset
0x00000 000
Bit 31:8 7:0
Bit Name Reserved KSV_LIST
0x01
RPT_BSTATUS
RW
0x00000 31:19
000
18
Reserved REQUEST
Description
Reserved
Byte write KSV List in big endian order.
Reserved
Read-only. Asserted by the core to request for KSV_LIST and BSTATUS. This usually happens when re-authentication is triggered by the connected upstream. Note that when REQUEST is asserted, the READY should also be asserted.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 105
6. HDMI Sink UG-HDMI | 2021.05.12
Address
Register
0x02
RPT_MISC
R/W
Reset
Bit
17
16
15:0
RW
�
31:1
0
Bit Name READY
VALID
BSTATUS
Reserved REPEATER
Description
Read-only. Asserted by the core to indicate KSV_LIST and BSTATUS are processed. Write KSV_LIST and BSTATUS after this bit is asserted.
Set to 1 after KSV_LIST and BSTATUS are written. Selfcleared by the core after KSV_LIST and BSTATUS are read.
[15:12]: Reserved. [11]: MAX_CASCADE_EXCEEDED [10:8]: DEPTH [7]: MAX_DEVS_EXCEEDED [6:0]: DEVICE_COUNT
Reserved.
Set to 0 if no downstream is connected or if the connected downstream is not HDCP 1.4capable. This means the receiver IP core is an end-point receiver rather than a repeater. Set to 1 if the connected downstream is HDCP-capable.
6.1.10. HDCP 2.3 RX Architecture
The receiver block decrypts the protected video and auxiliary data from the connected HDCP 2.3 device. The HDCP 2.3 receiver block has identical structure layers as the HDCP 2.3 transmitter block.
HDMI Intel� FPGA IP User Guide 106
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Figure 49. Architecture Block Diagram of HDCP 2.3 RX IP
HDCP Register Port (Avalon-MM)
Repeater Message Port (Avalon-MM)
Control & Status Register Layer
Regs
Regs
HDCP Key Port
Authentication & Cryptographic Layer
Authenticator (MGF1, HMAC)
TRNG RSA
Dual Port Memories
AES128 (Block)
SHA256
Color Legend: csr_clk rpt_msg_clk
crypto_clk Is_clk
Table 50.
Video Stream and Auxiliary Layer
HDCP Cipher
AES128 (Stream)
Video & Aux Data Output Port
Video & Aux Control & Status Port
Video & Aux Data Input Port
The HDCP 2.3 RX core is fully autonomous. For HDMI application, the transmitter drives the HDCP 2.3 RX core using the standard DDC interface supporting I2C protocol.
The HDCP specifications requires the HDCP 2.3 RX core to be programmed with the DCP-issued production key � Global Constant (lc128), RSA private key (kprivrx) and RSA Public Key Certificate (certrx). The IP retrieves the key from the on-chip memory externally to the core through the HDCP Key Port. The on-chip memory must store the key data in the arrangement shown in the table below.
HDCP 2.3 RX Key Port Addressing
Address 8'hE3 8'hE2 8'hE1 8'hE0 8'hDF ... 8'hD0 8'hCF ... 8'hC0
Content lc128[127:96] lc128[95:64] lc128[63:32]
lc128[31:0] kprivrx_p[511:480]
... kprivrx_p[31:0] kprivrx_q[511:480]
... kprivrx_q[31:0]
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 107
6. HDMI Sink UG-HDMI | 2021.05.12
Address 8'hBF ... 8'hB0 8'hAF ... 8'hA0 8'h9F ... 8'h90
8'h83�8'h8F 8'h82 8'h81 ... 8'h01 8'h00
Content kprivrx_dp[511:480]
... kprivrx_dp[31:0] kprivrx_dq[511:480]
... kprivrx_dq[31:0] kprivrx_qinv[511:480]
... kprivrx_qinv[31:0]
Reserved {16'd0, certrx[4175:4160]}
certrx[4159:4128] ...
certrx[63:32] certrx[31:0]
The Video Stream and Auxiliary Layer receives audio and video content over its Video and Aux Data Input Port, and performs the decryption operation. The Video Stream and Auxiliary Layer detects the Encryption Status Signaling (ESS) provided by the HDMI IP to determine when to decrypt frames.
To implement the HDCP 2.3 RX core as a repeater upstream interface, the IP must propagate certain information such as ReceiverID List and RxInfo to the upstream transmitter and to be used for HMAC computation. The repeater downstream interface (TX) must provide this information using the Repeater Message Port (Avalon-MM). You can use the same clock source to drive the clocking for the HDCP Register Port and Repeater Message Port.
The RX registers mapping defined in the following table is equivalent to the address space for HDCP 2.3 receiver defined in the HDCP specification.
Table 51. HDCP 2.3 RX Registers Mapping
Address
Register
R/W
Reset
Bit
0x44 � 0x4F
Rsvd
RO
0x00
7:0
0x50
HDCP2VERSION
RO
0x04
7:3
2
1:0
0x51 � 0x5F
Rsvd
RO
0x00
7:0
0x60
WRITE_MESSAGE
WO
0x00
7:0
Bit Name Reserved
Description Reserved.
Reserved HDCP22
Reserved Reserved
Reserved.
When set to 1, the core supports HDCP 2.2 and above.
Reserved.
Reserved.
WR_MSG
Variable length message written by the transmitter as a single burst write to this address.
continued...
HDMI Intel� FPGA IP User Guide 108
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Address
0x61 � 0x6F
0x70
Register Rsvd
RXSTATUS0
0x71
RXSTATUS1
0x72 � 0x7F
0x80
Rsvd READ_MESSAGE
0x81 � 0xBF
0xC0 � 0xFF
Rsvd DBG
R/W RO
RO
Reset 0x00
0x00
RO
0x00
RO
0x00
RO
0x00
RO
0x00
RW
0x00
Bit
Bit Name
Description
7:0
Reserved
Reserved.
7:0
MSG_SIZE0 The lower part of message size in
bytes available at the receiver for
reading by the transmitter.
7:4
Reserved
Reserved
3
REAUTH_REQ When set to 1, indicates the link
integrity check failure at the
receiver (including upstream side
of the repeater) or the upstream
side of the repeater has
transitioned into an
unauthenticated state. Self-
cleared by the core on every new
authentication initiated by the
AKE_Init message.
2
READY
When set to 1, the repeater has
built the list of downstream
Receiver IDs and computed the
verification value V'. Self-cleared
by the core as soon as the
RepeaterAuth_Send_ReceiverID_
List message has been read by
the transmitter or on every new
authentication request by the
transmitter.
1:0
MSG_SIZE1 The upper part of message size
in bytes available at the receiver
for reading by the transmitter.
7:0
Reserved
Reserved.
7:0
RD_MSG
Variable length message read by
the transmitter as a single burst
read from this address.
7:0
Reserved
Reserved.
7:0
DBG_REGS Implemented specific debug
registers.
Table 52.
Address 0x00
0x01
HDCP 2.3 RX Repeater Registers Mapping
Register RPT_RCVDID_LIST
RPT_RXINFO
R/W WO
RW
Reset 0x00000
000
0x00000 000
Bit 31:8 7:0
31:19 18
Bit Name
Description
Reserved
Reserved
RCVDID_LIST Byte write ReceiverID_List in big endian order.
Reserved
Reserved
REQUEST
Read-only. Asserted by the core to request for RCVDID_LIST and RXINFO. This usually happens when re-authentication is triggered by the connected upstream. Note that when REQUEST is asserted, the READY should also be asserted.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 109
6. HDMI Sink UG-HDMI | 2021.05.12
Address
Register
0x02
RPT_TYPE
0x03
RPT_MISC
R/W
Reset
Bit
17
16 15:0
RO
0x00000
31:9
000
8
7:0
RW
0x00000
31:1
000
0
Bit Name READY
VALID RXINFO
Reserved VALID TYPE
Reserved REPEATER
Description
Read-only. Asserted by the core to indicate RCVDID_LIST and RXINFO are processed. Write RCVDID_LIST and RXINFO after this bit is asserted.
Set to 1 after RCVDID_LIST and RXINFO are written. Self-cleared by the core after RCVDID_LIST and RXINFO are read.
[15:12]: Reserved. [11:9]: DEPTH [8:4]: DEVICE_COUNT [3]: MAX_DEVS_EXCEEDED [2]: MAX_CASCADE_EXCEEDED [1]: HDCP2_REPEATER_DOWNSTREAM [0]: HDCP1_DEVICE_DOWNSTREAM
Reserved
Asserted by the core to indicate content stream TYPE is valid. Self-cleared by the core after TYPE is read.
0x00: Type 0 Content Stream 0x01: Type 1 Content Stream 0x02-0xFF: Reserved. Treated as Type 1 Content Stream.
Reserved.
Set to 0 if no downstream is connected or if the connected downstream is not HDCP 2.3capable. This means the receiver IP core is an end-point receiver rather than a repeater. Set to 1 if the connected downstream is HDCP- capable.
6.1.11. FRL Depacketizer
FRL depacketizer reconstructs the FRL packets into HDMI data.
FRL depacketizer contains a mixed-width DCFIFO to clock the data from the frl_clk domain to the vid_clk domain. This block also demaps the HDMI data from number of FRL characters per clock * 16 bits to pixels per clock * 24 bits, where number of FRL characters per clock is always 16 and pixels per clock is always 8 in FRL mode.
6.1.12. Sink FRL Character Block and Super Block Demapper
The HDMI RX core extracts the FRL character blocks from the FRL super block, and demaps the FRL packets from the FRL characters in the FRL character blocks.
The HDMI RX core achieves FRL character alignment based on the Start Super Block (SSB) or Scrambler Reset (SR) character proceeded FRL super block.
HDMI Intel� FPGA IP User Guide 110
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
6.1.13. Sink FRL Descrambler and Decoder
FRL data is decoded using 16B/18B decoder. The HDMI RX core then descrambles the decoded data to obtain the FRL super block.
6.1.14. Sink FRL Resampler
FRL resampler consists of the mixed-width DCFIFO to clock the FRL characters from the transceiver recovered clock domain to frl_clk domain.
The mixed-width FIFO buffer demaps the FRL data in effective transceiver width bits to FRL characters per clock*18 bits. For FRL mode, the transceiver width is always 40 bits and number of FRL characters per clock is 8 or 16.
6.1.15. RX Oversampler
The HDMI design requires oversampling on the RX side in case the data received is below the minimum data rate of the transceiver at 1 Gb/s.
The oversampling factor on the RX is set to 5. For example, a video resolution with TMDS Bit Rates of 742.5 Mb/s should configure the transceiver to operate at 5 times its data rate, which is 3.7125 Gb/s.
Figure 50. RX Oversampler Block
os
Oversample (x5)
1
Parallel data
2
from PHY
rx_clk ls_clk
DCFIFO
Parallel data to inner core
6.1.16. I2C Slave
The core includes a pair of I2C slaves when you turn on the Include I2C parameter. � One slave is for the EDID address (0x50).
You need to instantiate a separate memory (ROM/RAM) to interface with this slave. The HDMI IP also has an optional feature to include a RAM for EDID. � The other slave is for the SCDC address (0x54). The I2C slave for the SCDC will be directly interfaced with the HDMI core for the SCDC registers operation.
6.1.17. I2C and EDID RAM Blocks
The HDMI IP includes a RAM to store your EDID information for the sink.
You need to specify your EDID content in a .mif or .hex file before you start generating the IP. You can also modify your EDID contents at run time.
Send Feedback
HDMI Intel� FPGA IP User Guide 111
6. HDMI Sink UG-HDMI | 2021.05.12
The edid_ram_access signal acts as a trigger to the EDID RAM. When this signal is asserted, the IP holds the hpd signal low. During this period, you are free to modify the RAM content by accessing its Avalon memory-mapped interface through an Avalon memory-mapped master, such as NIOS.
After you are done modifying the RAM contents, deassert the edid_ram_access signal to reassert the hpd signal. The source device rereads the new EDID content.
Figure 51. Modifying EDID RAM
SCL signal from I2C bus
SDA signal from I2C bus
GPIO Intel FPGA IP
edid_ram_access
HDMI I2C Slave
SCDC I2C Slave
EDID I2C Slave
HDMI Link Layer
EDID
EDID
Handling
RAM
Avalon memory-mapped interface to modify RAM content
Optional blocks (turn on Include EDID parameter)
6.2. Sink Interfaces
The table lists the port interfaces of the sink.
Table 53.
Sink Interfaces
N is the number of pixels per clock.
Interface
Port Type
Clock Domain
Reset
Reset
�
Port reset
Reset
�
reset_vid
Clock
Clock
�
ls_clk
Direction
Description
Input Input
Main asynchronous reset input.
Note: Asserting the reset input resets the SCDC register.
Reset input for the video domain.
Note: This signal is only available when Support FRL = 0.
Link speed clock input.
The out_c(3), out_r(2), out_g(1), and out_b(0)TMDS/FRL encoded data inputs run at this clock frequency.
ls_clk frequency = data rate per lane/20 This signal connects to the transceiver output clock only if TMDS Bit Rate is
continued...
HDMI Intel� FPGA IP User Guide 112
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Clock
�
Port vid_clk
Direction
Description
Input
above the minimum transceiver data rate, which means no oversampling is required.
This signal should connect to a PLL output clock that meets the vid_clk relationship if TMDS Bit Rate is below the minimum transceiver data rate, which means oversampling is required.
In TMDS mode, data rate per lane is a function of pixel frequency and color depth ratio.
Data rate per lane = Pixel frequency * 10 * Color depth ratio.
� 8 bpc: Color depth ratio = 1
� 10 bpc: Color depth ratio = 1.25
� 12 bpc: Color depth ratio = 1.5
� 16 bpc: Color depth ratio = 2
Note: The ls_clk signal is 3 bits wide for Intel Quartus Prime Pro Edition software versions 19.2 and earlier.
Video data clock input.
When Support FRL = 0, vid_clk frequency = data rate per lane/transceiver width/color depth ratio.
� For RGB and YCbCr 4:4:4/4:2:2 transport: vid_clk frequency = (data rate per lane/ transceiver width)/color depth ratio.
� For YCbCr 4:2:0 transport: vid_clk frequency = ((data rate per lane/transceiver width)/color depth ratio)/2.
� vid_clk needs to be synchronous to ls_clk.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 113
6. HDMI Sink UG-HDMI | 2021.05.12
Interface Video Data Port
Port Type
Clock Domain
Clock
�
Clock
�
Clock
�
Clock
�
Clock
�
Clock
�
Conduit
vid_clk
Conduit
vid_clk
Port
Direction
Description
frl_clk
clk_b clk_g clk_r clk_c i2c_clk vid_data[N*48-1:0] vid_de[N-1:0]
Input
Input Input Input Input Input Output Output
When Support FRL = 1,vid_clk frequency = 225 MHz. � vid_clk runs at the
maximum frequency across all resolutions and FRL rates. � The video data is qualified by the vid_valid signal.
� vid_clk can be asynchronous to ls_clk and frl_clk.
Clock supplied to the FRL path. FRL clock frequency = (data rate * number of lane)s / (FRL characters per clock * 18).
frl_clk needs to be synchronous to clk_b.
Note: The number of lanes is always 4. For FRL rates 3, 4, 5, and 6, all 4 FRL lanes are used to transmit data. For FRL rates 1 and 2, only 3 FRL lanes are used to transmit data, and the 4th lane is unused.
Transceiver recovered clock from the "Blue" data channel.
Transceiver recovered clock from the "Green" data channel.
Transceiver recovered clock from the "Red" data channel.
Transceiver recovered clock from the clock data channel.
Avalon-MM SCDC Management Interface clock input.
Video 48-bit pixel data output port. For N pixels per clock, this port produces N 48-bit pixels per clock.
Video data enable output that indicates active picture region.
continued...
HDMI Intel� FPGA IP User Guide 114
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
TMDS/FRL Data Port (7)
Port Type Conduit
Clock Domain
vid_clk
Conduit Conduit
vid_clk vid_clk
Port vid_hsync[N-1:0] vid_vsync[N-1:0]
vid_valid
Conduit
vid_clk
locked
Conduit
vid_clk
vid_lock
Conduit
clk_b/ ls_clk[0]
in_b[transceiver width-1:0]
Direction
Description
Output Output Output
Output
Output Input
Video horizontal sync output.
Video vertical sync output.
Indicates if the video data is valid. When in TMDS mode and vid_clk is running at the actual pixel clock, this signal should always be asserted.
When you generate the video data at a frequency higher than the actual pixel clock, use vid_valid to qualify the validity of the video data. vid_valid and vid_clk guarantee the exact pixel clock rate.
Indicates that the HDMI sink core is locked to the TMDS or FRL signals with successful lane deskew and word alignment.
Note: The locked[2:0] signal is 3 bits wide for Intel Quartus Prime Pro Edition software versions 19.2 and earlier, where each bit represents the locked status of a TMDS color channel.
Asserted when the length or duration of vid_de is consistent for 3 frames. If the length or duration of vid_de is inconsistent for 2 frames, this signal deasserts.
TMDS encoded blue channel (0) input or FRL encoded channel 0.
When in TMDS mode, this signal is TMDS encoded blue channel (0) output.
continued...
(7) Connect to the transceiver data output if no oversampling is required. If oversampling is required, the port should connect to a DCFIFO and an oversampling user logic before connecting to a transceiver data output. Refer to Sink Clock Tree on page 126 for more information.
Send Feedback
HDMI Intel� FPGA IP User Guide 115
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Port
Conduit
clk_g/ ls_clk[1]
in_g[transceiver width-1:0]
Conduit
clk_r/ ls_clk[2]
in_r[transceiver width-1:0]
Conduit
clk_c/ ls_clk[2]
in_c[transceiver width-1:0]
Direction
Description
Input Input Input
When in FRL mode, this signal is FRL lane 0.
� When Support FRL = 0, transceiver width is configured to 20 bits.
� When Support FRL = 1, transceiver width is configured to 40 bits.
Note: For TMDS mode, only the 20 bits from the least significant bits are used. For FRL mode, all 40 bits are used.
TMDS encoded green channel (1) input or FRL encoded channel 1.
When in TMDS mode, this signal is TMDS encoded green channel (1) output.
When in FRL mode, this signal is FRL lane 1.
� When Support FRL = 0, transceiver width is configured to 20 bits.
� When Support FRL = 1, transceiver width is configured to 40 bits.
Note: For TMDS mode, only the 20 bits from the least significant bits are used. For FRL mode, all 40 bits are used.
TMDS encoded red channel (2) input or FRL encoded channel 2.
When in TMDS mode, this signal is TMDS encoded red channel (2) output.
When in FRL mode, this signal is FRL lane 2.
� When Support FRL = 0, transceiver width is configured to 20 bits.
� When Support FRL = 1, transceiver width is configured to 40 bits.
Note: For TMDS mode, only the 20 bits from the least significant bits are used. For FRL mode, all 40 bits are used.
When in TMDS mode, this signal is unused.
continued...
HDMI Intel� FPGA IP User Guide 116
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
Decoder Status Port
Link Training Control and Status Port
Port Type Conduit Conduit
Conduit Conduit
Clock Domain
Port
clk_b/ ls_clk
in_lock
clk_b/ ls_clk[0]
ctrl[N*6-1:0]
clk_b/ ls_clk
mode
i2c_clk scdc_frl_ffe_levels[ 3:0]
Direction Input Output
Output Input
Description
When in FRL mode, this signal is FRL lane 3.
When Support FRL = 1, transceiver width is configured to 40 bits
Indicates the HDMI RX core is ready to operate. This signal should be driven by the ready signal from the transceiver reset controller that indicates transceiver are locked.
Note: The in_lock signal is 3 bits wide for Intel Quartus Prime Pro Edition software versions 19.2 and earlier.
DVI (mode = 0) status signals that overwrite the control and synchronization character in the green and red channels.
Bit-Field
Name
N*6+5
CTL3
N*6+4
CTL2
N*6+3
CTL1
N*6+2
CTL0
N*6+1
Reserved (0)
N*6
Reserved (0)
Refer to the HDMI 1.4b Specification for more information.
Indicates the encoding mode of the incoming TMDS signals.
� 0: DVI
� 1: HDMI
Note: This signal is unused in FRL mode.
Indicates the maximum TxFFE level supported by the source at current FRL rate, These bits correspond to the SCDC sink configuration register 0x31 bits 4-7.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 117
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
Port Type Conduit
Conduit Conduit
Clock Domain i2c_clk
i2c_clk
i2c_clk
Port
Direction
Description
scdc_frl_rate[3:0]
scdc_frl_locked[3:0]
scdc_frl_ltp_req[15: 0]
Output Output Input
Indicates the FRL rate (link rate and number of lanes) that the RX core is running.
� 0: Disable FRL
� 1: Fixed rate link at 3 Gbps per lane on 3 lanes
� 2: Fixed rate link at 6 Gbps per lane on 3 lanes
� 3: Fixed rate link at 6 Gbps per lane on 4 lanes
� 4: Fixed rate link at 8 Gbps per lane on 4 lanes
� 5: Fixed rate link at 10 Gbps per lane on 4 lanes
� 6: Fixed rate link at 12 Gbps per lane on 4 lanes
Each bit indicates the corresponding FRL lane achieving lock.
� For 3-lane mode, the RX core asserts the lock bit when it detects SR or SSB followed by 680 FRL Character Periods, repeating for 3 times. Bit 3 is never asserted at 3-lane mode.
� For 4-lane mode, the RX core asserts the lock bit when it detects SR or SSB followed by 510 Character Periods, repeating for 3 times.
Write to the SCDC status flags 0x41 and 0x42 to request the source to transmit specific link training pattern. Set scdc_frl_ltp_req[15: 0] 0x0000 to pass the link training process.
� Bit [15:12]: Link training pattern for lane 3 (SCDC status flag 0x42 bit[7:4])
� Bit [11:8]: Link training pattern for lane 2 (SCDC status flag 0x42 bit[3:0])
� Bit [7:4]: Link training pattern for lane 1 (SCDC status flag 0x41 bit[7:4])
continued...
HDMI Intel� FPGA IP User Guide 118
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
Port Type
Conduit Conduit
SCDC Control Port
Conduit Conduit
Clock Domain
i2c_clk i2c_clk
i2c_clk �
Port
Direction
Description
scdc_frl_flt_ready scdc_frl_src_test_co
nfig[7:0]
in_5v_power rx_hpd_req
Input Input
Input Output
� Bit [3:0]: Link training pattern for lane 0 (SCDC status flag 0x41 bit[3:0])
� By default this port is disabled. Sink will always request link training pattern 0x5678. To enable other link training pattern please contact Sale.
� Sink does not support FFE. Pattern 0xEEEE are not supported.
� Sink link training process will not automatically change to other FRL rate. Pattern 0xFFFF are not supported.
Set this bit to 1 when the HDMI RX core is ready for the link training process. When asserted, the FLT_Ready bit in the SCDC status flag 0x40 bit 6 is set to 1, the FRL start flag is cleared, and the FLT update flag is set for the link training process.
Configure the Source Test Configuration register (SCDC register 0x35)
� Bit 7 : FRL_Max
� Bit 6: SDC_FRL_Max
� Bit 5: FLT_no_timeout
� Bit 4: Reserved
� Bit 3: TxFFE_No_FFE
� Bit 2: TxFFE_De_Emphasis_o nly
� Bit 1: TxFFE_Pre_Shoot_Only
� Bit 0: Reserved
For more information about these bits, refer to the 10.4.1.6.1 Source Test Configuration Request section of the HDMI 2.1 Specifications.
Detects the presence of 5V input voltage.
Indicates the Hot Plug Detect (HPD) status. This signal should be driven to the HPD pin on the HDMI connector.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 119
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
Port Type
Conduit
Avalon-MM SCDC
Management Interface (8)
Avalon-MM Avalon-MM
Avalon-MM
Avalon-MM
Auxiliary Data Port (Applicable only when you enable Support auxiliary parameter)
Avalon-MM Conduit
Conduit
Conduit
Auxiliary Status Port (Applicable only when you
Conduit Conduit Conduit
Clock Domain
i2c_clk
i2c_clk i2c_clk i2c_clk i2c_clk i2c_clk aux_clk aux_clk
aux_clk aux_clk aux_clk aux_clk
Port
Direction
Description
TMDS_Bit_clock_Ratio
scdc_i2c_addr[7:0] scdc_i2c_r
scdc_i2c_rdata[7:0] scdc_i2c_w
scdc_i2c_wdata[7:0] aux_valid
aux_data[71:0]
aux_sop aux_eop aux_error gcp[5:0]
Output
Input Input Output Input Input Output Output
Output Output Output Output
� Sink will deassert rx_hpd_req if in_5v_power is low or after reset.
� Sink will assert rx_hpd_req after 1 second in_5v_power is detected, or after reset
� Contact sale team if want to change the HPD duration.
Indicates if the TMDS Bit Rate is greater than 3.4 Gbps � 0: (TMDS Bit Rate) /
(TMDS Clock Rate) ratio is 10 or FRL mode � 1: (TMDS Bit Rate) / (TMDS Clock Rate) ratio is 40
Address.
Assert to indicate a read transfer.
Data driven from the core in response to a read transfer.
Assert to indicate a write transfer.
Data for write transfers.
Auxiliary data channel valid output to qualify the data.
Auxiliary data channel data output. For information about the bit-fields, refer to Figure 46 on page 98.
Auxiliary data channel start-of-packet output to mark the beginning of a packet.
Auxiliary data channel end-of-packet output to mark the end of a packet.
Asserted when there is auxiliary data channel CRC error.
General Control Packet output.
continued...
(8) Refer to HDMI 2.0b Specification Section 10.4 for address and data bit mapping.
HDMI Intel� FPGA IP User Guide 120
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
enable Support auxiliary parameter) (9)
Port Type Conduit
Conduit
Auxiliary Memory Interface (Applicable only when you enable Support auxiliary parameter) (9)
Conduit Conduit Conduit
Audio Port (Applicable only when you enable Support auxiliary and Support audio parameters)(9)
Conduit Conduit Conduit
Conduit Conduit
Conduit
Clock Domain
aux_clk
aux_clk
aux_clk aux_clk aux_clk aux_clk aux_clk aux_clk
aux_clk aux_clk
aux_clk
Port
Direction
Description
info_avi[122:0] (Support FRL = 1) info_avi[111:0] (Support FRL = 0)
info_vsi[60:0]
aux_pkt_addr[6:0] aux_pkt_data[71:0]
aux_pkt_wr audio_CTS[19:0]
audio_N[19:0] audio_data[255:0]
audio_de audio_metadata[164:0
]
audio_format[4:0]
Output
Output
Output Output Output Output Output Output Output Output
Output
For information about the bit-fields, refer to Table 22 on page 50.
Auxiliary Video Information InfoFrame output.
For information about the bit-fields, refer to Table 23 on page 50.
Vendor Specific Information InfoFrame output.
For information about the bit-fields, refer to Table 25 on page 52.
Auxiliary packet memory buffer address output.
Auxiliary packet memory buffer data output.
Auxiliary packet memory buffer write strobe output.
Audio CTS value output.
Audio N value output.
Audio data output.
For audio channel values, refer to Table 38 on page 83.
Audio data valid output.
Additional information related to 3D audio and MST audio.
For information about the bit-fields, refer to Table 28 on page 57, Table 29 on page 57, and Table 30 on page 57.
Indicates 3D audio status and the audio format detected.
Bit-Field
Descriptio n
4
The core
asserts to
indicate the
first 8
channels of
continued...
(9) aux_clk = ls_clk (Support FRL = 0) aux_clk = vid_clk (Support FRL = 1)
Send Feedback
HDMI Intel� FPGA IP User Guide 121
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
Port Type
Clock Domain
Port
Direction
Description
each 3D audio
sample.
3:0
For
information
about the
bit-fields,
refer to
Table 26 on
page 54.
PHY Control Interface Port
I2C Slave Interface Port
Conduit
aux_clk audio_info_ai[47:0]
Conduit
clk_b/
os
ls_clk
Conduit
�
i2c_scl
Conduit
�
i2c_sda
scdc_i2c_ edid_i2cslv_rdata[7:
clk
0]
Conduit
scdc_i2c_ edid_i2cslv_addr[31:
clk
0]
Output Input Input Inout Input
Output
Audio InfoFrame output bundle.
For information about the bit-fields, refer to Table 27 on page 56.
Indicates to the core that the current receiving data rate requires downsampling with a factor of 5.
Assert this signal when the receiving TMDS Bit Rates is less than 1 Gbps.
SCL signal from I2C bus on the HDMI connector.
This signal is not available if you turn off the Include I2C parameter.
SDA signal from I2C bus on the HDMI connector.
This signal is not available if you turn off the Include I2C parameter.
Connect this signal to the output q port of an EDID RAM. This signal returns the value from a certain address in the RAM to the internal I2C slave.
This signal is available only if you turn on the Include I2C parameter and turn off the Include EDID RAM parameter.
Connect this signal to the output address port of an EDID RAM. This signal indicates the address that the I2C slave would access to the RAM.
This signal is available only if you turn on the Include I2C slave parameter and turn off the Include EDID RAM parameter.
continued...
HDMI Intel� FPGA IP User Guide 122
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
EDID RAM Interface Port
HDCP Port (Applicable only when you enable Support HDCP 2.3 or Support HDCP 1.4 parameters)
Port Type Conduit
Conduit
Avalon-MM Avalon-MM Avalon-MM Avalon-MM Avalon-MM Avalon-MM
Reset Clock
Clock Domain
Port
scdc_i2c_ tmds_config_trans_de
clk
t
scdc_i2c_ clk
edid_ram_access
scdc_i2c_ clk
edid_ram_address
scdc_i2c_ clk
edid_ram_read
scdc_i2c_ clk
edid_ram_write
scdc_i2c_ edid_ram_waitrequest clk
scdc_i2c_ edid_ram_readdata[7:
clk
0]
scdc_i2c_ edid_ram_writedata[7
clk
:0]
�
hdcp_reset
�
hdcp_i2c_clk
�
crypto_clk
Direction Output
Input
Input Input Input Output Output Input Input Input Input
Description
Indicates that there is a new write operation to the SCDC address offset 0x20 (TMDS configuration). Connect this signal to a reconfiguration controller to restart the reconfiguration flow. This signal is not available if you turn off the Include I2C parameter.
Assert this signal when you are reading or writing to the EDID RAM. Deassert this signal when the read and write operations are complete. Asserting this signal would trigger an HPD event to the source. When you deassert this signal, the source reads the new EDID which you have just written into the RAM. This signal is not available if you turn off the Include EDID RAM parameter.
Avalon memory mapped interface to the EDID RAM. Connect these signals to an Avalon memory mapped master, such as NIOS, to perform read and write operation to the EDID RAM. These signals are not available if you turn off the Include EDID RAM parameter.
Main asynchronous reset.
HDCP clock for control and status registers. Typically, shares the I2C slave clock (100 MHz).
HDCP 2.3 clock for authentication and cryptographic layer. You can use any clock with a frequency up to 200 MHz. Not applicable for HDCP 1.4.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 123
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
Port Type
Avalon-MM Conduit
Avalon-MM
Conduit (Key)
Clock Domain
Port
�
rpt_msg_clk
hdcp_i2c_ clk
hdcp_i2c_addr[7:0] hdcp_i2c_wr
hdcp_i2c_rd
hdcp_i2c_wrdata[7:0]
hdcp_i2c_rddata[7:0]
hdcp_i2c_ clk
i2c_stop_det
rpt_msg_c lk
rpt_msg_addr[7:0] rpt_msg_wr
rpt_msg_rd
rpt_msg_wrdata[31:0]
rpt_msg_rddata[31:0]
crypto_cl k
kmem_wait
Direction
Input
Input Input Input Input Output Input Input Input Input Input Output
Input
Description
Note: The clock frequency determines the authentication latency.
HDCP clock for the Repeater registers in the Control and Status Register layer. Typically, shares the clock (100 MHz) that drives the repeater downstream Nios II processor. Available only when you turn on the SUPPORT_REPEATER parameter.
The Avalon-MM slave port that provides access to HDCP registers. The I2C slave must drive this port for HDMI application.
Assert this signal to indicate the stop condition for each I2C command.
The Avalon-MM slave port that provides access to the Repeater registers, mainly for Receiver ID List and RxInfo. This interface is expected to operate at repeater downstream Nios II processor clock domain. Because of the extremely large bit portion of message, the IP transfers the message in burst mode with full handshaking mechanism. Write transfers always have a wait time of 0 cycle while read transfers have a wait time of 1 cycle. The addressing should be accessed as word addressing in the Platform Designer flow. For example, addressing of 4 in the Nios II software selects the address of 1 in the slave.
Always keep this signal asserted until the key is ready to be read.
continued...
HDMI Intel� FPGA IP User Guide 124
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
Port Type Avalon-MM Avalon-MM
Clock Domain
Port
kmem_rdaddr[7:0] (HDCP 2.3)
kmem_rdaddr[13:8] (HDCP 1.4)
kmem_q[31:0] (HDCP 2.3)
kmem_q[87:32] (HDCP 1.4)
hdcp_i2c_ clk
hdcp1_kmem_wr
hdcp1_kmem_wrdata[31 :0]
hdcp1_kmem_addr[6:0]
hdcp_i2c_ clk
hdcp2_kmem_wr
hdcp2_kmem_wrdata[31 :0]
Avalon
hdcp2_kmem_addr[7:0]
Direction Output Input
Input Input Input
Input Input Input
Description
This signal is not available if you turn on the Support HDCP Key Management parameter.
Key read address bus.
This signal is not available if you turn on the Support HDCP Key Management parameter.
32-bit (HDCP 2.3) or 56bit (HDCP 1.4) data for read transfers.
Read transfer always have a wait time of 1 cycle.
This signal is not available if you turn on the Support HDCP Key Management parameter.
The Avalon-MM slave port provides write access to internal HDCP 1.4 key storage. Write transfers always have a wait time of 0.
The Avalon memorymapped master access the addressing as word addressing in the Platform Designer flow.
For example, addressing of 4 in the Avalon memorymapped master selects the address of 1 in the slave.
These signals are only available if you turn on the Support HDCP Key Management parameter and the Support HDCP 1.4 parameter
The Avalon memorymapped slave port that provides write access to internal HDCP 2.3 key storage. Write transfers always have a wait time of 0.
The Avalon memorymapped master access the addressing as word addressing in the Platform Designer flow.
For example, addressing of 4 in the Avalon memorymapped master selects the address of 1 in the slave.
These signals are only available if you turn on the Support HDCP Key Management parameter and the Support HDCP 2.3 parameter.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 125
6. HDMI Sink UG-HDMI | 2021.05.12
Interface
Port Type Conduit
Clock Domain
ls_clk
Port hdcp1_enabled
hdcp2_enabled
streamid_type
hdcp_i2c_ clk
hdcp1_disable
hdcp2_disable
Direction
Description
Output Output Output Input
Input
This signal is asserted by the IP if the incoming video and auxiliary data are HDCP 1.4 encrypted.
This signal is asserted by the IP if the incoming video and auxiliary data are HDCP 2.3 encrypted.
� 0: The received stream type is 0.
� 1: The received stream type is 1.
Assert this signal to disable the HDCP 1.4 IP.
Note: You must reset the HDCP IP (hdcp_reset) and trigger a Hot Plug event after toggling this signal.
Assert this signal to disable the HDCP 2.3 IP.
Note: You must reset the HDCP IP (hdcp_reset) and trigger a Hot Plug event after toggling this signal.
6.3. Sink Clock Tree
The sink core uses various clocks.
The logic clocks the transceiver data into the core using the three CDR clocks: (rx_clk[2:0]).
The TMDS and TERC4 decoding is done at the link-speed clock (ls_clk) or transceiver recovered clock when you turn on the Support FRL parameter. The sink then resamples the pixel data and presents the data at the output of the core at the video pixel clock (vid_clk).
The pixel data clock depends on the video format used (within HDMI specification).
HDMI Intel� FPGA IP User Guide 126
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Figure 52.
Sink Clock Tree
The figure shows how the different clocks connect in the sink core.
rx_clk
ls_clk
rx_clk[0]
HSSI[0]
Oversampling Logic
0 1
wrclk
rdclk
DCFIFO
rx_clk[1] HSSI[1]
Oversampling Logic
0 1
wrclk
rdclk
DCFIFO
rx_clk[2] HSSI[2]
Oversampling Logic
0 1
wrclk
rdclk
DCFIFO
rx_clk[3] HSSI[3]
Oversampling Logic
0 1
wrclk
rdclk
DCFIFO
frl_clk
vid_clk
Video Data HDMI Sink Core
Auxiliary Data
Note:
For HDMI sink, you must instantiate three receiver channels to receive data in TMDS mode or four receiver channels to receive data in FRL mode.
The core also uses a general purpose phase-locked loop GPLL that is referenced by the transceiver output clock, to generate the link speed clock (ls_clk), FRL (frl_clk) clock, and video clock (vid_clk) for the core. This GPLL switches between reference clock 0 and reference clock 1 based on TMDS or FRL mode. � For Support FRL =0 design, frl_clk is not required. � For Support FRL =1 design, ls_clk is not required and you can fix vid_clk at
a static frequency of 225 MHz.
The transceiver RX CDR has two reference clocks: � Reference clock 0, which is an output clock from the GPLL. � Reference clock 1 supplied with free running 100 MHz clock
GPLL refers to IOPLL Intel FPGA IP for Intel Arria 10, Intel Cyclone 10 GX, and Intel Stratix 10 devices; PLL Intel FPGA IP for Arria V and Stratix V devices.
� The TMDS/FRL data clocks into the core at ls_clk or transceiver recovered clock with all channels driven by the same clock source (GPLL CLK1).
� The video data clocks out from the core at vid_clk.
ls_clk, and vid_clk are derived based on the color depth, TMDS Bit clock ratio, user oversampling control bit information, and the detected Clock Channel frequency band in TMDS mode (Support FRL =0).
Related Information � HDMI Hardware Design Examples for Arria V and Stratix V Devices on page 22
Send Feedback
HDMI Intel� FPGA IP User Guide 127
6. HDMI Sink UG-HDMI | 2021.05.12
� HDMI Hardware Design Examples for Intel Arria 10, Intel Cyclone 10 GX, and Intel Stratix 10 Devices on page 21
6.4. Link Training Procedure
The HDMI RX core includes a state machine for link training process.
The state machine enables you to request any specific link training patterns through the scdc_frl_ltp_req ports for each lane, and performs the checking of the received link training patterns external to the core.
Sink will always request link training pattern 0x5678. These link training patterns start with 4 Scrambler Reset (SR) characters followed by 4096 encoded and scrambled data. After receiving the SR characters, the HDMI RX core achieves alignment and lane deskew lock to qualify the received link training pattern.
After detecting the pattern, sink will set link training pattern 0x0000 indicating link training passed.
HDMI Intel� FPGA IP User Guide 128
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Figure 53. Sink Link Training State Machine Flow Diagram
IDLE
in_5v_power == 0?
Yes
OR
in_hpd == 0?
No
LTS:2
scdc_frl_flt_ready == 1'b1?
Yes
� Set FLT_ready to 1 � Set FLT_Update to 1 � Clears FRL start � Load scdc_frl_ltp_req
to the SCDC status register
No Clear FLT_ready flag
LTS:3
� Set Source_Test_Update to 1 � Set Status_Update to 1 � Load scdc_frl_ltp_req to the SCDC status register
Link training pattern changed? No
FLT_Update flag cleared ?
Yes
Ln0_LTP_req == 0x0 AND Ln1_LTP_req == 0x0 AND Ln2_LTP_req == 0x0 AND
Ln3_LTP_req == 0x0 Yes
Set FRL_start flag to 1
Yes Set FLT_Update to 1
No
No
LTS:P
No
Yes
FRL_Rate field updated?
The HDMI RX core does not perform the checking for the link training pattern. Instead, it provides the avenue for you to request for the specific link training pattern and performs the link training pattern check external to the HDMI RX core by examining the received data from the RX transceiver.
6.5. Sink Deep Color Implementation When Support FRL = 0
When Support FRL = 0, the HDMI RX core requires you to derive vid_clk from ls_clk based on the color depth ratio.
Send Feedback
HDMI Intel� FPGA IP User Guide 129
6. HDMI Sink UG-HDMI | 2021.05.12
Table 54.
ls_clk frequency = data rate per lane / effective transceiver width
vid_clk frequency = (data rate per lane / effective transceiver width) / color depth ratio
Color Depth Ratio for Bits per Color
Bits per Color 8 10 12 16
Color Depth Ratio 1.0 1.25 1.5 2.0
Figure 54. Deep Color Implementation When FRL = 0
data
data
data
serial data
RX Transceiver (RX CDR + PMA + PCS)
DCFIFO
HDMI RX Core
TMDS clock
CDR refclk IOPLL
rx_clk ls_clk
vid_clk
When Support FRL = 0, the RX core uses the TMDS clock to drive the IOPLL reference clock. The IOPLL generates three output clocks that drive the CDR reference clock, ls_clk, and vid_clk.
When the HDMI RX core operates in vid_clk and ls_clk with the correct color depth ratio, the vid_valid signal is always high.
Figure 55.
10 Bits per Component (30 Bits per Pixel)
When operating in 10 bits per component, the vid_clk frequency to ls_clk frequency ratio is 4:5. For every 5 ls_clk cycles, there should be 4 vid_clk cycles.
ls_clk
vid_clk
HDMI Intel� FPGA IP User Guide 130
Send Feedback
6. HDMI Sink UG-HDMI | 2021.05.12
Figure 56.
12 Bits per Component (36 Bits per Pixel)
When operating in 12 bits per component, the vid_clk frequency to ls_clk frequency ratio is 2:3. For every 3 ls_clk cycles, there should be 2 vid_clk cycles.
ls_clk
vid_clk
Figure 57.
16 Bits per Component (48 Bits per Pixel)
When operating in 16 bits per component, the vid_clk frequency to ls_clk frequency ratio is 1:2. For every 1 ls_clk cycle, there should be 2 vid_clk cycles.
ls_clk
vid_clk
6.6. Sink Deep Color Implementation When Support FRL = 1
When Support FRL = 1, you should drive vid_clk based on their frequency, regardless of the color depth ratio.
vid_clk frequency = 225 MHz
In deep color mode, the video data (30 bpp, 36 bpp, or 48 bpp) in the vid_clk domain has higher throughput than the data in the ls_clk domain. The HDMI RX core uses the vid_valid signal to indicate the validity of the video data at a specific clock.
Figure 58. Deep Color Implementation When Support FRL = 1
data
data
serial data
RX Transceiver (RX CDR + PMA + PCS)
CDR refclk
rx_clk
TMDS
clock
vid_clk
HDMI RX Core
DCFIFO
wren rden
1
vid_valid
User Logic
Actual pixel clock
If your user logic cannot process the video data at a faster rate, you can use a DCFIFO to clock cross the video data from vid_clk to the actual pixel clock as shown in the diagram below. The wren signal of the DCFIFO IP connects to the vid_valid signal from the HDMI RX core. The rden signal is always asserted.
When operating in 10 bits per color, the vid_ready signal is high for 4 out of 5 clock cycles. For every 5 clock cycles, the HDMI RX core receives 4 valid video data with 10 bits per color.
Send Feedback
HDMI Intel� FPGA IP User Guide 131
6. HDMI Sink UG-HDMI | 2021.05.12
The timing diagrams and description below assume that the video data at the vid_clk domain is running at the actual deep color data rate. If the video data at the vid_clk domain is running faster than the actual deep color data rate, the vid_valid signal would toggle more.
Figure 59.
10 Bits per Component (30 Bits per Pixel)
When operating in 10 bits per component, the vid_ready signal is high for 4 out of 5 clock cycles. For every 5 clock cycles, the HDMI RX core receives 4 valid video data with 10 bits per component.
vid_clk
clk_b
vid_ready
Figure 60.
12 Bits per Component (36 Bits per Pixel)
When operating in 12 bits per component, the vid_ready signal is high for 2 out of 3 clock cycles. For every 3 clock cycles, the HDMI RX core receives 2 valid video data with 12 bits per component.
vid_clk
clk_b
vid_ready
Figure 61.
16 Bits per Component (48 Bits per Pixel)
When operating in 16 bits per component, the vid_valid signal is high for 1 out of 2 clock cycles. For every 2 clock cycles, the HDMI RX core receives 1 video valid data with 16 bits per component.
vid_clk clk_b
vid_valid
HDMI Intel� FPGA IP User Guide 132
Send Feedback
UG-HDMI | 2021.05.12 Send Feedback
7. HDMI Parameters
Use the settings in the HDMI parameter editor to configure your design.
7.1. HDMI Source Parameters
Table 55. HDMI Source Parameters
Parameter
Value
Description
Device family
Intel Stratix 10 Intel Arria 10 Intel Cyclone 10 GX
Arria V Stratix V
Targeted device family. This parameter inherits the value from the project device.
Direction
Transmitter Receiver
Select HDMI transmitter.
Pixels per clock
2 or 8 pixels per clock
Determines how many pixels are processed per clock.
� When you turn off Support FRL, supports 2 pixels per clock.
� When you turn on Support FRL, supports 8 pixels per clock.
Note: This parameter is available only with Intel Arria 10 and Intel Stratix 10 devices.
Transceiver width
20 or 40 bits
Determines the required transceiver width. The transceiver width depends on the number of TMDS symbols processed in parallel (symbols per clock).
� When you turn off Support FRL, transceiver width is 20 bits (2 symbols per clock).
� When you turn on Support FRL, transceiver width is 40 bits (4 symbols per clock).
Note: This parameter is available only with Intel Arria 10 and Intel Stratix 10 devices.
Support auxiliary
On, Off
Determines if auxiliary channel encoding is included. This parameter is turned on by default.
Support deep color
On, Off
Determines if the core can encode deep color formats. This parameter is turned on by default.
Support audio
On, Off
Determines if the core can encode audio data.
To enable this parameter, you must also enable the Support auxiliary parameter. This parameter is turned on by default.
Support FRL
On, Off
Turn on to enable the FRL path.
When enabled, the clock domains for the auxiliary and audio ports, and the internal modules are different Refer to the block diagram for more details.
continued...
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, eASIC, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
Parameter Support HDCP 2.3
Support HDCP 1.4
Support HDCP Key Management
Include I2C slave Include EDID RAM
Value On, Off
On, Off
On, Off
On, Off On, Off
7. HDMI Parameters
UG-HDMI | 2021.05.12
Description
Note: This parameter is available only with Intel Arria 10 and Intel Stratix 10 devices.
Turn on to enable HDCP 2.3 TX support. This parameter can only be used with Intel Arria 10 and Intel Stratix 10 devices. Note: The HDCP-related parameters are not
included in the Intel Quartus Prime Pro Edition software. To access the HDCP feature, contact Intel at https:// www.intel.com/content/www/us/en/ broadcast/products/programmable/ applications/connectivity-solutions.html.
Turn on to enable HDCP 1.4 TX support. This parameter can only be used with Intel Arria 10 and Intel Stratix 10 devices. Note: The HDCP-related parameters are not
included in the Intel Quartus Prime Pro Edition software. To access the HDCP feature, contact Intel at https:// www.intel.com/content/www/us/en/ broadcast/products/programmable/ applications/connectivity-solutions.html.
Turn on to enable HDCP key management support. You can only turn on this parameter if you turn on the Support HDCP 1.4 or Support HDCP 2.3 parameters. Note: The HDCP-related parameters are not
included in the Intel Quartus PrimeIntel Quartus Prime Pro EditionIntel Quartus Prime Pro Edition software. To access the HDCP feature, contact Intel at https:// www.intel.com/content/www/us/en/ broadcast/products/programmable/ applications/connectivity-solutions.html .
Turn on to include a pair of I2C slaves for EDID and SCDC registers. path.
Turn on to include RAM to store EDID information for RX. You can only turn on this parameter if you turned on the Include I2C slave parameter.
continued...
HDMI Intel� FPGA IP User Guide 134
Send Feedback
7. HDMI Parameters UG-HDMI | 2021.05.12
Parameter EDID RAM size
Value In multiple of 2N
RAM file path HPD signal polarity
� 0, 1
7.2. HDMI Sink Parameters
Table 56. HDMI Sink Parameters
Parameter Device family
Direction Pixels per clock
Value
Intel Stratix 10 Intel Arria 10 Intel Cyclone 10 GX
Arria V Stratix V
Transmitter Receiver
2 or 8 pixels per clock
Transceiver width
20 or 40 bits
Support auxiliary Support deep color
On, Off On, Off
Description
Specifies the memory size in number of N-bit words. The value must be in multiple of 2N. For example, the default memory size is 256 words which is 28 with N = 8. The N also determines the width of the address bus of the RAM's Avalon memory-mapped nterface. This parameter is enabled only if you turned on the Include EDID RAM parameter.
Initial content of the memory. The file must be in .hex or .mif file type. This parameter is enabled only if you turned on the Include EDID RAM parameter.
Specifies the polarity of Hot Plug Detect (HPD) signal from the connector. � 0: Negative � 1: Positive Note: For Bitec daughter card, always set the
polarity to 0.
Description
Targeted device family. This parameter inherits the value from the project device.
Select HDMI receiver.
Determines how many pixels are processed per clock. � When you turn off Support FRL, supports 2
pixels per clock. � When you turn on Support FRL, supports 8
pixels per clock. Note: This parameter is available only with Intel
Arria 10 and Intel Stratix 10 devices.
Determines the required transceiver width. The transceiver width depends on the number of TMDS symbols processed in parallel (symbols per clock). � When you turn off Support FRL, transceiver
width is 20 bits (2 symbols per clock). � When you turn on Support FRL, transceiver
width is 40 bits (4 symbols per clock). Note: This parameter is available only with Intel
Arria 10 and Intel Stratix 10 devices.
Determines if auxiliary channel encoding is included. This parameter is turned on by default.
Determines if the core can encode deep color formats. This parameter is turned on by default.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 135
Parameter Support audio Support FRL Support HDCP 1.4
Support HDCP 2.3
Support HDCP Key Management
Manufacturer OUI Device ID String Hardware Revision
HDMI Intel� FPGA IP User Guide 136
Value On, Off On, Off On, Off
On, Off
On, Off
-- -- --
7. HDMI Parameters
UG-HDMI | 2021.05.12
Description
Determines if the core can encode audio data. To enable this parameter, you must also enable the Support auxiliary parameter. This parameter is turned on by default.
Turn on to enable the FRL path. When enabled, the clock domains for the auxiliary and audio ports, and the internal modules are different Refer to the block diagram for more details. Note: This parameter is available only with Intel
Arria 10 and Intel Stratix 10 devices.
Turn on to enable HDCP 1.4 RX support. This parameter can only be used with Intel Arria 10 and Intel Stratix 10 devices. Note: The HDCP-related parameters are not
included in the Intel Quartus Prime Pro Edition software. To access the HDCP feature, contact Intel at https:// www.intel.com/content/www/us/en/ broadcast/products/programmable/ applications/connectivity-solutions.html.
Turn on to enable HDCP 2.3 RX support. This parameter can only be used with Intel Arria 10 and Intel Stratix 10 devices. Note: The HDCP-related parameters are not
included in the Intel Quartus Prime Pro Edition software. To access the HDCP feature, contact Intel at https:// www.intel.com/content/www/us/en/ broadcast/products/programmable/ applications/connectivity-solutions.html.
Turn on to enable HDCP key management support. You can only turn on this parameter if you turn on the Support HDCP 1.4 or Support HDCP 2.3 parameters. Note: The HDCP-related parameters are not
included in the Intel Quartus Prime Pro Edition software. To access the HDCP feature, contact Intel at https:// www.intel.com/content/www/us/en/ broadcast/products/programmable/ applications/connectivity-solutions.html.
The Manufacturer Organizationally Unique Identifier (OUI) assigned to the manufactured device to be written into the SCDC registers of address 0xD0, 0xD1, and 0xD2. Key in 3 byte hexadecimal data.
The Device Identification (ID) string to be written into the SCDC registers from addresses 0xD3 to 0xDa. Use this parameter to identify the sink device. You can key in up to eight ASCII characters. If you use less than eight characters, the unused bytes are set to 0x00.
Indicates the major and minor revisions of the hardware. Key in one byte of integer data. � Upper byte represents major revision. � Lower byte represents minor revision.
continued...
Send Feedback
7. HDMI Parameters UG-HDMI | 2021.05.12
Parameter
Include I2C slave Include EDID RAM EDID RAM size
RAM file path HPD signal polarity
Value
On, Off On, Off In multiple of 2N
� 0, 1
Description
The hardware major revision increments on a major silicon or board revision. The hardware minor revision increments on a minor silicon revision or minor board revision and resets to 0 when the major revision increments.
Turn on to include a pair of I2C slaves for EDID and SCDC registers. path.
Turn on to include RAM to store EDID information for RX. Note: You can only turn on this parameter if you
turned on the Include I2C slave parameter.
Specifies the memory size in number of N-bit words. The value must be in multiple of 2N. For example, the default memory size is 256 words which is 28 with N = 8. The N also determines the width of the address bus of the RAM's Avalon memory-mapped nterface. Note: This parameter is enabled only if you turned
on the Include EDID RAM parameter.
Initial content of the memory. The file must be in .hex or .mif file type.
Note: This parameter is enabled only if you turned on the Include EDID RAM parameter.
Specifies the polarity of Hot Plug Detect (HPD) signal from the connector. � 0: Negative � 1: Positive Note: For Bitec daughter card, always set the
polarity to 0.
Send Feedback
HDMI Intel� FPGA IP User Guide 137
UG-HDMI | 2021.05.12 Send Feedback
8. HDMI Simulation Example
Note:
The HDMI simulation example evaluates the functionality of the HDMI Intel FPGA IP and provides a starting point for you to create your own simulation.
This simulation example targets the ModelSim - Intel FPGA Starter Edition simulator. The simulation covers the following core features: � IEC-60958 audio format � Standard H/V/DE/RGB input video format � Support for HDMI 2.0b scrambled operation
This simulation flow applies only for the Intel Quartus Prime Standard Edition software using ModelSim - Intel FPGA Starter Edition. For the Intel Quartus Prime Pro Edition simulation flow, refer to the respective design example user guides.
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, eASIC, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
8. HDMI Simulation Example UG-HDMI | 2021.05.12
Figure 62.
HDMI Testbench
CRC Check
Video TPG
Audio Sample Gen
HDMI TX
HDMI RX
Video data CRC Check
Audio data Audio Data Check
Aux data Aux Data Check
Aux Sample Gen
The Test Pattern Generator (TPG) provides the video stimulus. The IP core stimulates the HDMI TX core using an audio packet generator and aux packet generator. The output from the HDMI TX core drives the HDMI RX core.
The IP core requires a memory-mapped master stimulus to operate the testbench for HDMI 2.0b scrambling. This stimulus implements the activity normally seen across the I2C DDC channel. At this point, the IP core asserts the scramble enable bit in the SCDC registers.
The testbench implements CRC checking on the input and output video. The testbench checks the CRC value of the transmitted data against the CRC calculated in the received video data. The testbench performs the checking after detecting 4 stable VSYNC signals from the receiver.
The aux sample generator generates a fixed data to be transmitted from the transmitter. On the receiver side, the generator compares whether the expected aux data is received and decoded correctly.
The audio sample generator generates an incrementing test data pattern to be transmitted through the audio channel. On the receiver side, the audio data checker checks and compares whether the incrementing test data pattern is received and decoded correctly.
8.1. Simulation Walkthrough
Setting up and running the HDMI simulation example consists of two steps.
Note:
This simulation flow applies only to Intel Quartus Prime Standard Edition using ModelSim - Intel FPGA Starter Edition. For Intel Quartus Prime Pro Edition flow, refer to the respective Design Example User Guides.
1. Copy the simulation files from <IP root directory>/altera/altera_hdmi/ sim_example to your working directory.
2. Generate the IP simulation files and scripts, compile, and simulate. a. Start the Nios II Command Shell. b. Type the command below and enter.
Send Feedback
HDMI Intel� FPGA IP User Guide 139
8. HDMI Simulation Example UG-HDMI | 2021.05.12
sh runall.sh This script executes the following commands:
Command Generate the simulation files for the HDMI cores.
� ip-generate --project-directory=./ -component-file=./hdmi_rx_single.qsys -output-directory=./hdmi_rx_single/sim/ -file-set=SIM_VERILOG --reportfile=sopcinfo:./hdmi_rx_single.sopcinfo -report-file=html:./hdmi_rx_single.html -report-file=spd:./hdmi_rx_single/sim/ hdmi_rx_single.spd --report-file=qip:./ hdmi_rx_single/sim/hdmi_rx_single.qip
� ip-generate --project-directory=./ -component-file=./hdmi_rx_double.qsys -output-directory=./hdmi_rx_double/sim/ -file-set=SIM_VERILOG --reportfile=sopcinfo:./hdmi_rx_double.sopcinfo -report-file=html:./hdmi_rx_double.html -report-file=spd:./hdmi_rx_double/sim/ hdmi_rx_double.spd --report-file=qip:./ hdmi_rx_double/sim/hdmi_rx_double.qip
� ip-generate --project-directory=./ -component-file=./hdmi_tx_single.qsys -output-directory=./hdmi_tx_single/sim/ -file-set=SIM_VERILOG --reportfile=sopcinfo:./hdmi_tx_single.sopcinfo -report-file=html:./hdmi_tx_single.html -report-file=spd:./hdmi_tx_single/sim/ hdmi_tx_single.spd --report-file=qip:./ hdmi_tx_single/sim/hdmi_tx_single.qip
� ip-generate --project-directory=./ -component-file=./hdmi_tx_double.qsys -output-directory=./hdmi_tx_double/sim/ -file-set=SIM_VERILOG --reportfile=sopcinfo:./hdmi_tx_double.sopcinfo -report-file=html:./hdmi_tx_double.html -report-file=spd:./hdmi_tx_double/sim/ hdmi_tx_double.spd --report-file=qip:./ hdmi_tx_double/sim/hdmi_tx_double.qip
Merge the four resulting msim_setup.tcl scripts to create a single mentor/msim_setup.tcl script.
ip-make-simscript --spd=./hdmi_tx_single/sim/ hdmi_tx_single.spd --spd=./ hdmi_tx_double/sim/hdmi_tx_double.spd -spd=./hdmi_rx_single/sim/hdmi_rx_single.spd --spd=./hdmi_rx_double/sim/hdmi_rx_double.spd
Compile and simulate the design in the ModelSim software. vsim -c -do msim_hdmi.tcl
Generate the simulation files for the HDMI cores.
Merge the resulting msim_setup.tcl scripts to create a single mentor/msim_setup.tcl script.
Compile and simulate the design in the ModelSim software.
Example successful result:
# SYMBOLS_PER_CLOCK = 4 # VIC = 0 # AUDIO_CLK_DIVIDE = 800 # TEST_HDMI_6G = 1 # Simulation pass # ** Note: $finish : bitec_hdmi_tb.v (647)
HDMI Intel� FPGA IP User Guide 140
Send Feedback
8. HDMI Simulation Example UG-HDMI | 2021.05.12
Time: 15702552 ns Iteration: 3 Instance: /bitec_hdmi_tb # End time: 14:39:02 on Feb 04,2016, Elapsed time: 0:03:17 # Errors: 0, Warnings: 134
Send Feedback
HDMI Intel� FPGA IP User Guide 141
UG-HDMI | 2021.05.12 Send Feedback
9. HDMI Intel FPGA IP User Guide Archives
IP versions are the same as the Intel Quartus Prime Design Suite software versions up to 19.1. From Intel Quartus Prime Design Suite software version 19.2 or later, IP cores have a new IP versioning scheme.
If an IP core version is not listed, the user guide for the previous IP core version applies.
Intel Quartus Prime Version
IP Core Version
User Guide
20.4
19.6.0
HDMI Intel FPGA IP User Guide
20.3
19.5.0
HDMI Intel FPGA IP User Guide
20.2
19.4.0
HDMI Intel FPGA IP User Guide
20.1
19.4.0
HDMI Intel FPGA IP User Guide
19.4
19.3.0
HDMI Intel FPGA IP User Guide
19.3
19.1.0
HDMI Intel FPGA IP User Guide
19.1
19.1
HDMI Intel FPGA IP User Guide
18.1
18.1
HDMI Intel FPGA IP User Guide
18.0
18.0
HDMI Intel FPGA IP User Guide
17.1
17.1
HDMI IP Core User Guide
17.0
17.0
HDMI IP Core User Guide
16.1
16.1
HDMI IP Core User Guide
16.0
16.0
HDMI IP Core User Guide
15.1
15.1
HDMI IP Core User Guide
15.0
15.0
HDMI IP Core User Guide
14.1
14.1
HDMI IP Core User Guide
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, eASIC, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
UG-HDMI | 2021.05.12 Send Feedback
10. Document Revision History for the HDMI Intel FPGA IP User Guide
Document Version 2021.05.12
2021.04.01 2020.12.14
Intel Quartus Prime Version
21.1
21.1
20.4
IP Version
Changes
19.6.0
19.6.0 19.6.0
� Removed (Support FRL = 0 only) from Support HDCP 2.3 and Support HDCP 1.4 in Table : HDMI Source Interfaces and Table : HDMI Sink Interfaces.
� Added Support HDCP Key Management in Table: HDMI Source Interfaces and Table: HDMI Sink Interfaces.
� Added Table: Source Interfaces and Sink Interfaces:
-- Added This signal is not available if you turn on the Support HDCP Key Management parameter under the description for Conduit (Key) port type.
-- Changed the port name from kmem_addr to kmem_rdaddr.
-- Changed the port name from kmem_rddata to kmem_q.
-- Added Avalon-MM port type.
� Updated Table: Sink Interfaces:
-- Updated the descriptions for the scdc_frl_ltp_req port.
-- Edited the port name rx_hpd to rx_hpd_req, change the direction from Inout to Output and updated the descriptions.
� Updated Link Training Procedure.
� Removed Figure Link Training Pattern.
� Added support for HDMI 2.1 with fixed rate link (FRL) enabled for Intel Stratix 10 devices.
� Edited the description in the HDMI Overview section.
� Updated table title HDMI Intel FPGA IP FRL Feature Support in Intel Arria 10 Devices Feature Support Level Support FRL to HDMI Intel FPGA IP FRL Feature Support in Intel Stratix 10 and Intel Arria 10 Devices Feature Support Level Support FRL.
� Updated the maximum data rates for Intel Stratix 10 devices in Table: HDMI Data Rate.
� Updated the resource utilization data in Table: HDMI Intel FPGA IP Resource Utilization and Table: HDCP Resource Utilization.
� Updated table title Recommended Speed Grades for Intel Arria 10 Devices (Support FRL = 1) to Recommended Speed Grades for Intel Stratix 10 and Intel Arria 10 Devices (Support FRL = 1) and added recommended speed grades for Intel Stratix 10 devices.
continued...
Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, eASIC, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
10. Document Revision History for the HDMI Intel FPGA IP User Guide UG-HDMI | 2021.05.12
Document Version
Intel Quartus Prime Version
IP Version
Changes
� Updated the FRL Clocking Scheme section:
-- Edited the FRL character processing description and associated figure.
-- Added frl_clk frequency for Intel Stratix 10 devices in Table: Clock Frequencies for FRL Mode at Different Link Rates.
� Edited the minimum and maximum TX clkout frequencies for TMDS_BIT_CLOCK_RATIO = 0 in Table: Clock Frequencies for TMDS Mode at Different Link Rates.
� Updated the description for the kmem_addr[3:0] (HDCP 2.3) and kmem_addr[9:4] (HDCP 1.4) ports in Table: HDMI Source Interfaces.
� Updated Table: Sink Interfaces:
-- Updated the descriptions for the vid_lock port.
-- Edited the port name kmem_addr[3:0] (HDCP 2.3) to kmem_addr[7:0] (HDCP 2.3), and kmem_addr[9:4] (HDCP 1.4) to kmem_addr[13:8] (HDCP 1.4).
-- Updated the description for the kmem_rddata[31:0] (HDCP 2.3) and kmem_rddata[87:32] (HDCP 1.4) ports.
� Edited the description in the Sink FRL Resampler section.
� Edited the description in the Sink Clock Tree section.
� Updated the following figures:
-- HDMI Source Signal Flow Diagram for Support FRL = 1 Design
-- HDMI Sink Signal Flow Diagram for Support FRL = 1 Design
� Edited the descriptions for Device family, Pixels per clock, Transceiver width, Support deep color, Support HDCP 2.3, Support HDCP 1.4, and Support FRL in Table: HDMI Source Parameters and Table: HDMI Sink Parameters.
� Removed the support for 4 symbols per clock feature in the HDMI Simulation Example section.
� Made editorial edits throughout the document.
continued...
HDMI Intel� FPGA IP User Guide 144
Send Feedback
10. Document Revision History for the HDMI Intel FPGA IP User Guide UG-HDMI | 2021.05.12
Document Version 2020.09.28
Intel Quartus Prime Version
20.3
IP Version
Changes
19.5.0
� The FRL path now uses the transceiver recovered clock domain instead of the ls_clk domain. Updated the following Source sections with the transceiver recovered clock domain information. -- Source Functional Description -- Source FRL Resampler -- Source Clock Tree
� Edited the description for the ls_clk signal in the Source Interfaces section.
� Added the following signals in the Source Interfaces section. -- tx_clk
-- os
-- mgmt_clk
-- in_lock
-- tx_hpd
-- tx_hpd_req
-- i2c_scl
-- i2c_sda
-- i2c_master_address[3:0]
-- i2c_master_write
-- i2c_master_read
-- i2c_master_writedata[31:0]
-- i2c_master_readdata[31:0]
-- mgmt_clk
� Removed the ls_clk domain information from the FRL Clocking Scheme section.
� Removed the ls_clk domain information and updated the block diagram and the timing diagrams with the transceiver recovered clock information in the Source Deep Color Implementation When Support FRL = 1 section.
� Added the following new Source sections: -- TX Oversampler -- Clock Enable Generator -- I2C Master
� Updated the following Sink sections with the transceiver recovered clock domain information. -- Sink Functional Description -- Sink FRL Resampler -- Sink Clock Tree
� Added the following new Sink sections: -- RX Oversampler -- I2C Slave -- EDID RAM
� Edited the description for the ls_clk signal and added information about the transceiver recovered clock, oversampling (os), I2C slave, and the EDID RAM signals in the Sink Interfaces section.
� Added a note in the description for the mode signal in the Sink Interfaces section. This signal is unused in FRL mode.
� Edited the scdc_i2c_clk clock domain to i2c_clk clock domain in the Status and Control Data Channel (SCDC) Interface and Sink Interfaces sections.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 145
10. Document Revision History for the HDMI Intel FPGA IP User Guide UG-HDMI | 2021.05.12
Document Version 2020.06.02 2020.04.13
Intel Quartus Prime Version
20.2
20.1
IP Version
Changes
19.4.0 19.4.0
� Edited the typo in the color depth ratio for 8 bits per color in the Sink Deep Color Implementation When Support FRL = 0 section. The correct color depth ratio for 8 bits per color should be 1.0, not 1.6.
� Removed the ls_clk domain information and updated the block diagram and the timing diagrams with the transceiver recovered clock information in the Sink Deep Color Implementation When Support FRL = 1 section.
� Updated the HDMI Parameters section with the following new parameters information.
-- Include I2C
-- Include EDID RAM
-- EDID RAM size
-- RAM file path
-- HPD polarity
� Added a note about the TMDS bit rate and TMDS character rate information in the PLL Intel FPGA IP Cores section.
� Updated HDCP feature support for Intel Stratix 10 devices.
Note: The HDCP feature is not included in the Intel Quartus Prime Pro Edition software. To access this feature, contact Intel at https:// www.intel.com/content/www/us/en/ broadcast/products/programmable/ applications/connectivity-solutions.html.
� Updated the HDCP resource utilization data for Intel Arria 10 devices and added data for Intel Stratix 10 devices in the Resource Utilization section.
� Updated the HDCP 1.4 Key Port address information in HDCP 1.4 TX Architecture and HDCP 1.4 RX Architecture sections.
� Added information about the reset_vid, hdcp1_disable, and hdcp2_disable signals in the Source Interfaces section.
� Added information about the reset_vid, streamid_type, hdcp1_disable, and hdcp2_disable signals in the Sink Interfaces section.
� Added a note and edited the bit-field information in the Source HDMI Vendor Specific InfoFrame (VSI) section. For the HF-VSIF transmission, use external VSI by asserting control bit to 1 and send the data through the Auxiliary Data Port.
� Updated the data rate for Intel Arria 10 devices in the Resource Utilization section.
� Removed the HDCP Over HDMI Design Examples for Intel Arria 10 Devices section. This information is now available in the HDMI Intel Arria 10 FPGA IP Design Example User Guide.
� Edited the port bit in avi[121] to avi[122] in the Source Auxiliary Control Port and Source Interfaces sections.
� Removed the AVI version bit information and added information about setting the AVI version for Support FRL = 1 in the Source Auxiliary Video Information section.
continued...
HDMI Intel� FPGA IP User Guide 146
Send Feedback
10. Document Revision History for the HDMI Intel FPGA IP User Guide UG-HDMI | 2021.05.12
Document Version 2020.02.10
Intel Quartus Prime Version
19.4
IP Version
Changes
19.3.0
� Added HDMI 2.1 Specification reference for FRL mode in the Source Audio Encoder section.
� Edited the description for ls_clk, vid_clk, and frl_clk in the Source Interfaces and Sink Interfaces sections.
� Edited the clocks information in the FRL Clocking Scheme section.
� Added the following sections for deep color implementation:
-- Source Deep Color Implementation When Support FRL = 0
-- Source Deep Color Implementation When Support FRL = 1
-- Sink Deep Color Implementation When Support FRL = 0
-- Sink Deep Color Implementation When Support FRL = 1
� Edited the port bit in info_avi[120] to info_avi[122] in the Sink Interfaces section.
� Added a note in the HDMI Simulation Example section that the simulation flow applies only for the Intel Quartus Prime Standard Edition software using ModelSim - Intel FPGA Starter Edition. For the Intel Quartus Prime Pro Edition simulation flow, refer to the respective design example user guides.
� Added support for HDMI 2.1 with fixed rate link (FRL) enabled. This feature is available only for Intel Arria 10 devices.
� Added information that HDMI 2.1 supports pixel frequency up to 1,118 MHz and supports only 8 bits per component in the HDMI Intel FPGA IP Quick Reference section.
� Added information about FRL in the HDMI Overview section.
� Added information about the signal flow for Support FRL = 1 in the Source Functional Description and Sink Functional Description sections.
� Updated the Source Auxiliary Video Information (AVI) InfoFrame section with Support FRL = 1 information.
� Updated the Source Clock Tree and Sink Clock Tree sections with FRL information.
� Updated the Source Interfaces and Sink Interfaces sections with FRL information.
� Updated the HDMI Parameters section to include Support FRL parameter.
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 147
10. Document Revision History for the HDMI Intel FPGA IP User Guide UG-HDMI | 2021.05.12
Document Version 2019.10.10
Intel Quartus Prime Version
19.3
IP Version
Changes
19.1.0
� Added the following new sections in the HDMI Source chapter: -- FRL Packetizer -- FRL Character Block and Super Block Mapping -- Reed Solomon (RS) Forward Error Correction (FEC) Generation and Insertion -- FRL Scrambler and Encoder -- Source FRL Resampler -- FRL Clocking Scheme -- Valid Video Data -- Source Link Training Procedure
� Added the following new sections in the HDMI Sink chapter: -- FRL Depacketizer -- Sink FRL Character Block and Super Block Demapper -- Sink FRL Descrambler and Decoder -- Sink FRL Resampler -- Sink Link Training Procedure
� Updated the diagrams in the Source Clock Tree and Sink Clock Tree sections.
� Added a new section about High-bandwidth Digital Content Protection (HDCP). This feature is available only for Intel Arria 10 devices.
Note: The HDCP feature is not included in the Intel Quartus Prime Pro Edition software. To access this feature, contact Intel at https:// www.intel.com/content/www/us/en/ broadcast/products/programmable/ applications/connectivity-solutions.html.
� Added information about the following HDCPrelated parameters in the HDMI Source Parameters and HDMI Sink Parameters sections: -- Support HDCP 1.4 -- Support HDCP 2.3
� Added information about HDCP-related signals in the Source Interfaces and Sink Interfaces sections.
� Added information about a new design example that demonstrates the HDCP feature for Intel Arria 10 devices in the Intel Quartus Prime Pro Edition software.
continued...
HDMI Intel� FPGA IP User Guide 148
Send Feedback
10. Document Revision History for the HDMI Intel FPGA IP User Guide UG-HDMI | 2021.05.12
Document Version 2019.04.29
2019.01.21
2018.05.07
Intel Quartus Prime Version
19.1
18.1
18.0
IP Version
Changes
19.1 18.1 18.0
� Added support for Intel Stratix 10 L-tile devices. Support for both Intel Stratix 10 L-tile and H-tile devices are final.
� Updated the support for YCbCr 4:2:2 pixel encoding in the Resource Utilization section. The HDMI IP core supports 8-bit and 10-bit color depth for YCbCr 4:2:2 pixel encoding.
� Added performance data for Intel Stratix 10 L-tile and H-tile devices, and updated the data for Intel Arria 10 and Intel Cyclone 10 GX devices for version 19.1.
� Updated the description for the locked[2:0], in_lock[2:0], and ctrl[N*6-1:0] ports.
� Added information insertion and filtration for the control ports in the Source Auxiliary Control Port section.
� Added a note in the Sink Word Alignment and Channel Deskew section that the word alignment logic in the HDMI RX core is disabled for HDMI 2.0 resolution (data rate >3.4 Gbps) in Intel Arria 10 and Intel Cyclone 10 GX devices. For Intel Stratix 10 devices, the HDMI RX core uses a new word alignment algorithm logic to achieve fast word alignment time for HDMI 2.0 resolution (data rate >3.4Gbps).
� Updated the description for the vid_lock port to add that the IP detects HTotal, VTotal, HSync Width, VSync Width, HSync Polarity, and VSync Polarity. and a change in these parameters across two frames will deassert the vid_lock signal.
� Update the HDMI specification reference to 2.0b. The HDMI Intel FPGA IP core now supports HDMI Specification 2.0b.
� Added preliminary support for Intel Stratix 10 (HTile) devices.
� Updated support for Intel Cyclone 10 GX devices to final.
� Clarified in the features list that HDMI IP core supports up to 32 channels in 2-channel or 8channel layouts.
� Added link to the HDMI Intel Cyclone 10 GX FPGA IP Design Example User Guide.
� Updated all IP names as part of standardization and rebranding exercise.
� Removed a note that said the HDMI RX core does not support SCDC read request feature for this release. The HDMI RX core fully supports SCDC features since version 17.1.
� Added a note in the Sink Clock Tree section that GPLL refers to IOPLL Intel FPGA IP for Intel Arria 10, Intel Cyclone 10 GX, and Intel Stratix 10 devices; PLL Intel FPGA IP for Arria V and Stratix V devices.
� Edited the recommended speed grade information forIntel Cyclone 10 GX. The recommended speed grade is -5.
� Edited typo in 3D Audio Input Example figure.
� Changed the term Video Format to Pixel Encoding to be consistent with HDMI Specification 2.0b.
� Restructured the document. Placed the HDMI Hardware Design chapter after the HDMI Getting Started chapter.
Send Feedback
HDMI Intel� FPGA IP User Guide 149
Date November 2017
May 2017 December 2016
10. Document Revision History for the HDMI Intel FPGA IP User Guide UG-HDMI | 2021.05.12
Version 2017.11.06
2017.05.08 2016.12.20
Changes
� Added advance support for Intel Cyclone 10 GX devices. � Added resource utilization data for Intel Cyclone 10 GX devices. � Changed bits per color (bpc) to bits per component (bpc) as stated in the
HDMI Specification 2.0. � Renamed HDMI IP core to HDMI Intel FPGA IP as per Intel rebranding. � Changed the term Qsys to Platform Designer. � Reorganized and updated the Source Functional Description and Source
Functional Description sections for better understanding. � Added description for the following new bit-fields:
-- Audio InfoFrame Bundle Bit-fields -- Audio Metadata Bundle Bit-Fields for Packet Header and Control -- Audio Metadata Bundle Bit-Fields for Packet Content When 3D_AUDIO
= 1 -- Audio Metadata Bundle Bit-Fields for Packet Content When 3D_AUDIO
= 0 � Added support for up to 32 audio channels. � Added support for up to 1,536 kHz audio sample frequency. � Updated the 3D Audio Format section and the description for audio_clk
that for audio channels greater than 8, do not drive audio_clk at actual audio sample clock. Instead drive audio_clk with ls_clk and qualify audio_data with audio_de � Updated the HDMI Intel FPGA IP Source Clock Tree and HDMI Intel FPGA IP Sink Clock Tree sections. � Updated the HDMI Intel FPGA IP Source Parameter and HDMI Intel FPGA IP Sink Parameter sections. � Updated the HDMI Intel FPGA IP Source Interfaces and HDMI Intel FPGA IP Sink Interfaces sections. � Updated the description for the Support for deep color parameter. The parameter is now turned on by default. � Edited the HDMI Intel FPGA IP testbench block diagram. Removed 4 symbols/clock to avoid confusion. � Added a note in the HDMI Intel FPGA IP Hardware Demonstration section that the demonstration is only applicable for Arria V and Stratix V devices. For Intel Arria 10 devices, refer to the HDMI Intel FPGA IP Design Example User Guide for Intel Arria 10 Devices. � Added a note in the Simulation Walkthrough section that the walkthrough is only applicable for Intel Quartus Prime Standard Edition. For Intel Quartus Prime Pro Edition, refer to the HDMI Intel FPGA IP Design Example User Guide for Intel Arria 10 Devices. � Moved information about the HDMI Intel FPGA IP design example parameters to the HDMI Intel FPGA IP Design Example User Guide for Intel Arria 10 Devices.
� Rebranded as Intel. � Added recommended speed grades for Intel Arria 10 devices.
� Updated the HDMI IP core resource utilization table with 16.1 information. � Added a note for YCbCr 4:2:2 video format that 8 and 10 bits per color
use the same pixel encoding as 12 bits per color, but the valid bits are left-justified with zeros padding the bits below the least significant bit. � Added information for the new Design Example parameters. � Removed all Arria 10 design example related information. For more information about Arria 10 design examples, refer to the HDMI IP Core Design Example User Guide. � Edited the typos in the HDMI Audio Format topic. � Added information that the HDMI IP core does not support 8-channel audio. � Added a new output port version[31:0] for HDMI source and sink.
continued...
HDMI Intel� FPGA IP User Guide 150
Send Feedback
10. Document Revision History for the HDMI Intel FPGA IP User Guide UG-HDMI | 2021.05.12
Date May 2016
November 2015
May 2015
Version 2016.05.02
2015.11.02
2015.05.04
Changes
� Updated the HDMI IP core resource utilization table with 16.0 information. � Added information about Audio Metadata Packet for HDMI Specification
Version 2.0. � Added information about new HDMI source ports:
-- audio_metadata[164:0] -- audio_format[4:0] � Added information about new HDMI sink ports: -- audio_metadata[164:0] -- audio_format[4:0] -- vid_lock -- aux_error � Provided detailed information about the HDMI source and sink audio_de[7:0] port. � Updated the testbench diagram and description to include audio data and auxiliary data information. � Added a note for Altera PLL to place the PLL in the transmit path (pll_hdmi_tx) in the physical location next to the transceiver PLL. � Updated the HDMI sideband signals (HDMI AVI and VSI bit-fields) with default values. � Added links to archived versions of the HDMI IP Core User Guide.
� Updated the HDMI IP core resource utilization table with 15.1 information. � Changed instances of Quartus II to Intel Quartus Prime. � Added full support for Arria 10 devices. � Added support for new features:
-- Deep color -- 8-channel audio � Added the following parameters for HDMI source: -- Support for 8-channel audio -- Support for deep color � Added the following parameters for HDMI sink: -- Support for 8-channel audio -- Support for deep color -- Manufacturer OUI -- Device ID String -- Hardware Revision � Updated the following interface ports for HDMI source: -- Added ctrl port -- Removed gcp_Set_AVMute and gcp_Clear_AVMute ports � Updated the following interface ports for HDMI sink: -- Added ctrl , mode, in_5v_power, and in_hpd ports -- Removed gcp_Set_AVMute and gcp_Clear_AVMute ports � Updated the HDMI sink and source block diagrams to reflect the new features. � Provided block diagrams for deep color mapping. � Generalized the HDMI hardware demonstration design for all supported device families (Arria V, Stratix V, and Arria 10) with detailed description.
� Updated the HDMI IP core resource utilization table with 15.0 information. � Added information about 4 symbols per clock mode. � Added information about Status and Control Data Channel (SCDC) for
HDMI specification version 2.0. � Added the following interface ports for HDMI source:
-- TMDS_Bit_clock_Ratio -- Scrambler_Enable
continued...
Send Feedback
HDMI Intel� FPGA IP User Guide 151
Date December 2014
10. Document Revision History for the HDMI Intel FPGA IP User Guide UG-HDMI | 2021.05.12
Version 2014.12.15
Changes
� Added the TMDS_Bit_clock_Ratio interface port for HDMI sink. � Updated the HDMI hardware demonstration design with HDMI 2.0
information. � Added software process flow for the HDMI hardware demonstration.
Initial release.
HDMI Intel� FPGA IP User Guide 152
Send Feedback
