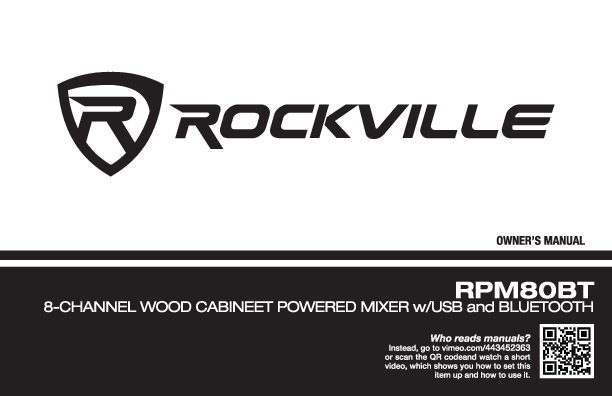

ROCKVILLE RPM80BT 8-Channel Wood Cabinet Powered Mixer with USB and Bluetooth Owner's Manual

Rockville Audio

9 Setup In this setup there is a powered stage monitor connected to the ¼˝ Line Out jack and two 8-ohm speakers connected to the ¼˝ 8-ohm Outputs on the back of the unit.

Owner's Manual - Rockville

Features/Specifications. • RMS power output: 350w x 2 @ 4 Ohm. 300w x 2 @ 8 Ohm. • Program power output: 700w x 2 @ 4 Ohm. 600w x 2 @ 8 Ohm.

Full PDF Document

Loading PDF...

−+Fit width100%View FullscreenDownload PDFPrint PDF

×

Loading PDF...

If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.

Extracted Text

Setup
In this setup there is a powered stage monitor connected to the � Line Out jack and two 8-ohm speakers connected to the � 8-ohm Outputs on the back of the unit.
9

Setup
Once your speakers are hooked up, there are a variety of devices that can be connected to the RPM80BT.

Microphones

Condenser Mics
(use phantom power)

Bass
Keyboard 10

Digital Recorder

Sampler

CD Player Guitar

Sampler Tape Deck

Mixing Console

DJ Controller

MP3 Player

Smart Phone

Laptop

Features/Specifications

� RMS power output: 350w x 2 @ 4 Ohm 300w x 2 @ 8 Ohm
� Program power output: 700w x 2 @ 4 Ohm 600w x 2 @ 8 Ohm
� Peak power output: 1400w x 2 @ 4 Ohm 1200w x 2 @ 8 Ohm

� +48V phantom power � Fan vent cooling system � Dimensions: 19.7 x 11.8 x 7.2 � Weight: 24Lbs.

� Built-in Bluetooth version 3.0 with 100-foot range and great sound quality

� Individual volume, reverb, bass, and treble controls

� Adjustable effects: echo and delay

� 5-Band EQ

� USB/SD input

� MP3 Volume control

� Line In Volume control

� Master Volume control

� 8 balanced XLR inputs

� 8 � TRS inputs

� 1 RCA Line input

� 1 RCA Rec output

� 2 amplified speaker outputs: � TS (8 ohm)

� � line output for adding a powered subwoofer or more amplifiers or powered speakers

11

Troubleshooting

PROBLEM

SOLUTION

No power

1. Make sure the unit is plugged in and the power switch is in the ON position. 2. Check that the power cable is plugged in tightly to the unit. 3. Check and replace the fuse if necessary. See fuse replacement diagram on the next page.

No sound Noise Buzzing sound

1. Check that all appropriate cables are plugged in correctly. 2. Check the Master Volume settings. 3. Check the individual level control of each channel as well as the MP3 Volume control and Line-Level Volume controls. 4. Be sure your microphone(s) is on.
1. Turn down the channel levels one by one. If you don't hear the sound, then the problem is either with the channel or whatever device is plugged into it. 2. Unplug the device(s) to see if the sound disappears. 3. Make sure you are using the proper cables. For � cables, there are three types: instrument, TS (unbalanced), and TRS (balanced). Check the requirements of the connected gear and make sure you are using the appropriate cable.
Make sure you are using a proper cable. For � cables, there are three types: instrument, TS (unbalanced), and TRS (balanced). Check the requirements of the connected gear and make sure you are using the appropriate cable.

Bluetooth pairing fails/no sound

1. Check to see that both devices are turned on and that your Bluetooth device is discoverable. 2. Turn both devices off and then on again. 3. Make sure you've selected the proper source on the RPM80BT. 4. Make sure that the Bluetooth device is within 5 feet of the unit. 5. Move both devices away from other Bluetooth devices, microwaves, wireless routers, and other electronics. 6. Make sure that the unit is not connected to a previously paired device. 7. Make sure that all volume controls are set properly: MP3 Volume control, the Master Volume control, and the paired device's volume controls.

No USB/SD playback

1. Make sure your SD card or USB flash drive is not damaged. 2. Check that the files on the media device are not corrupt. 3. Make sure that the files are properly formatted (WAV, MP3, WMA).

12

Fuse Replacement 1 Use a screwdriver to release the fuse holder.

2 Remove the fuse holder.

3 Remove the fuse.

4 Replace the fuse.

5 Reinsert the fuse holder.

13

14

FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION
Responsible party name: Rockville
Address: 600 Bayview Ave, Entrance A, Inwood, NY 11096
Hereby declares that the product Rockville RPM80BT 8-channel mixer complies with FCC rules as mentioned in the following paragraph:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
� Reorient or relocate the receiving antenna. � Increase the separation between the equipment and receiver. � Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. � Consult the dealer or an experienced radio/TV technician for help.
15
