Hikvision DS-2CD7A26G0/P-IZHSWG 2MP ANPR Varifocal Bullet Network Camera

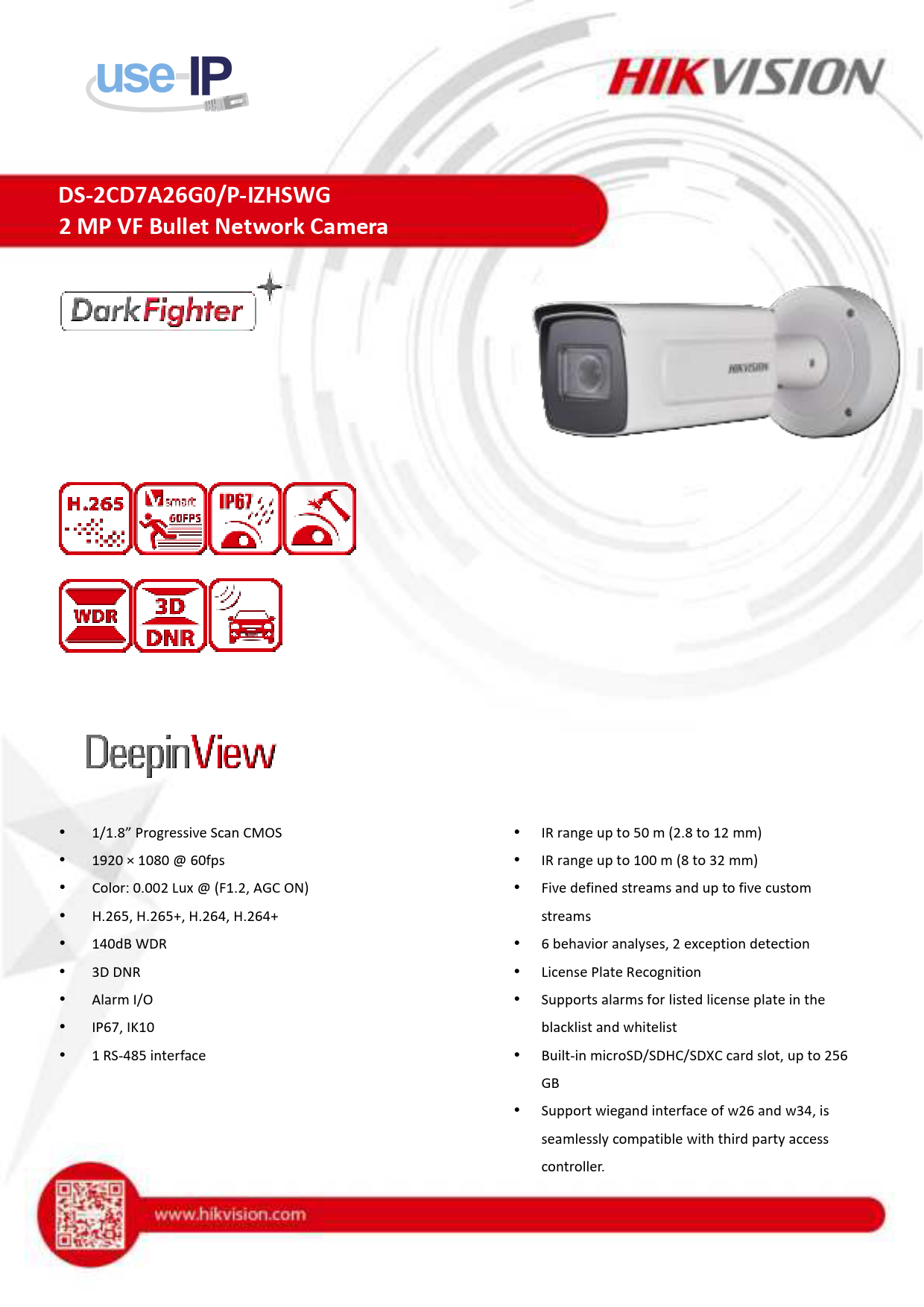

DS-2CD7A26G0/P-IZHSWG 2 MP VF Bullet Network Camera 1/1.8" Progressive Scan CMOS 1920 × 1080 @ 60fps Color: 0.002 Lux @ (F1.2, AGC ON) H.265, H.265+, H.264, H.264+ 140dB WDR 3D DNR Alarm I/O IP67, IK10 1 RS-485 interface IR range up to 50 m (2.8 to 12 mm) IR range up to 100 m (8 to 32 mm) Five defined streams and up to five custom streams 6 behavior analyses, 2 exception detection License Plate Recognition Supports alarms for listed license plate in the blacklist and whitelist Built-in microSD/SDHC/SDXC card slot, up to 256 GB Support wiegand interface of w26 and w34, is seamlessly compatible with third party access controller. Specifications Camera Image Sensor Min. Illumination Shutter Speed Slow Shutter Day & Night Digital Noise Reduction WDR Angle Adjustment Lens Focal length Aperture Focus FOV Lens Mount IR IR Range Wavelength Compression Standard Video Compression H.264 Type H.264+ H.265 Type H.265+ Video Bit Rate Audio Compression Audio Bit Rate Smart Feature-set Perimeter Protection Exception Detection Statistics Face Detection Recognition Region of Interest Road Traffic and Vehicle Detection 1/1.8 Progressive Scan CMOS Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR 1 s to 1/100,000 s Yes IR Cut Filter 3D DNR 140 dB Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° 2.8 to 12 mm 8 to 32 mm 2.8 to 12 mm: F1.2 8 to 32 mm: F1.6 Auto, semi-auto, manual 2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3° Integrated 2.8 to 12 mm: up to 50 m 8 to 32 mm: up to 100 m 850 nm Main stream: H.265/H.264/H.265+/H.264+ Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG Baseline Profile/Main Profile/High Profile Main stream supports Main Profile Main stream supports 32 Kbps to 16 Mbps No No Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Scene change detection, defocus detection No Yes License Plate Recognition 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking Accuracy (Under recommended installation and lighting conditions) Blacklist and whitelist No License Plate Detection Motorcycle LPR Image Max. Resolution Main Stream Sub Stream Third Stream Fourth Stream Fifth Stream Custom Stream Image Enhancement Image Setting Target Cropping SVC Day/Night Switch Picture Overlay Network Network Storage Alarm Trigger Protocols Security Measures General Function API Simultaneous Live View User/Host Client Web Browser Interface Audio Communication Interface Capture rate > 98% Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint) Max. 10,000 records Yes Yes (only applicable to checkpoint) 1920 × 1080 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480) 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) BLC, HLC, 3D DNR, Defog, EIS, lens distortion correction Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser Yes H.264 and H.265 encoding Day/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video LOGO picture can be overlaid on video with 128 × 128 24bit bmp format microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error, alarm for listed license plate in the blacklist and whitelist TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF One-key reset, anti-flicker, five streams and custom stream, heartbeat, password protection, privacy mask, watermark, IP address filter ONVIF (PROFILE S, PROFILE G), ISAPI, SDK Up to 20 channels Up to 32 users. 3 user levels: administrator, operator and user iVMS-4200, Hik-Connect, iVMS-5200, Hik-Central Plug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+ No 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Alarm Video Output On-board storage BNC Reset Button Audio Environment Noise Filtering Audio Sampling Rate General Firmware Version Operating Conditions Power Supply Power Consumption and Current Protection Level Heater Material Dimensions Weight 1 Wiegand (w26, w34) 2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA) 1Vp-p composite output (75 /CVBS) Built-in micro SD/SDHC/SDXC slot, up to 256 GB CVBS analog output (4CIF resolution), internal Yes No No 5.6.10 -40 °C to 60 °C (-40 °F to 140 °F) Humidity 95% or less (non-condensing) 12 VDC ± 20%, two-core terminal block PoE (802.3at, class 4) 12 VDC, 1.4 A, max. 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A IP67, IK10 yes Aluminum alloy Camera: 140 × 351 mm (5.5 × 13.8) With package: 405 × 190 × 180 mm (15.9 × 7.5 × 7.1) Camera: approx. 2.5 kg (5.51 lb.) With package: approx. 2.75 kg (6.06 lb.) * Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time. Available Model DS-2CD7A26G0/P-IZHSWG (2.8-12 mm), DS-2CD7A26G0/P-IZHSWG (8-32 mm) *-H: Heater supported Dimension 351[13.8] 236[9.3] Ø140[5.5] Accessory 151[5.9] 41[1.6] 99[3.9] Unit: mm[inch] DS-1475ZJ-SUS Vertical Pole Mount DS-1476ZJ-SUS Corner Mount DS-2251ZJ Column Mount 05056020190509
