User Manual for MUNBYN models including: Counterfeit Detector, IMC02
Operating Instructions. 3.1. Display Appearance. 3.2. Turn On/Off the Machine. 3.3. ... James Hu. Add the Maintenance. 1.02. 2020-12-05. 2021-1-16. 2021-6-01.
Thank you for purchasing our products. The IMC02 is the best solution for the banknote counterfeit detection. This user manual describes the operation steps ...

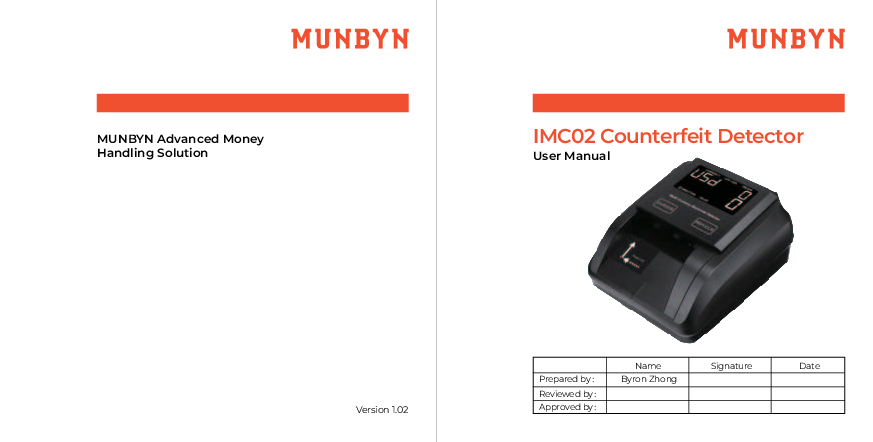

MUNBYN Advanced Money Handling Solution IMC02 Counterfeit Detector User Manual Version 1.02 Prepared by Reviewed by Approved by Name Byron Zhong Signature Date Contents Version History 1.0. Overview 1.1. Preface 1.2. Abbreviation 2.0. Packing Open and Installation 2.1. Packing List 2.2. Power Supply 3.0. 3.1. 3.2. 3.3. 3.3.1. 3.3.2. 3.4. 3.5. Operating Instructions Display Appearance Turn On/Off the Machine Button Functions CUR/DIR REP/CLR Inserting the Banknote Correctly EUR/GBP Currency Detecting 4.0. Maintenance 4.1. Error Code 4.2. Inaccurate Detection of Currency Detector 5.0. Technical Parameters Version History 2 Date By Changes Date 2020-12-05 Byron Zhong Initial Version 1.00 3 3 4 2021-1-16 Byron Zhong Add the EUR/GBP Currency Detecting Section 1.01 2021-6-01 James Hu Add the Maintenance 1.02 4 4 5 6 6 6 7 7 7 8 9 10 10 11 13 Version 1.02 IMC02 Counterfeit Detector User Manual Page 2 of 14 1.0. Overview 1.1. Preface Thank you for purchasing our products. The IMC02 is the best solution for the banknote counterfeit detection. This user manual describes the operation steps and precautions for this product. In order to improve the use and working efficiency of the product, please read this manual carefully before using, so as to operate the product accurately. Please contact us if you encounter any problem. We reserve the right to change the contents of this user manual at any time without notice. Version 1.02 Figure 1 - 1 IMC02 Counterfeit Detector IMC02 Counterfeit Detector User Manual Page 3 of 14 1.2. Abbreviation Abbreviation USD EUR GBP LBP AED CFD IR MG UV Definition United States Dollar Euro Great Britain Pound Lebanese Pound United Arab Emirates dirham Counterfeit Detection Infrared Magnetic Ultraviolet Table 1 - 1 Abbreviations 2.0. Packing Open and Installation 2.1. Packing List When you receive the package, open and check the packing list in the package. Version 1.02 IMC02 Counterfeit Detector User Manual Page 4 of 14 Item Name Counterfeit Detector Picture Battery Quantity (pcs) 1 1 Description Bill Counterfeit Detector 11.1V 500mAh rechargeable battery Power Adapter 1 Power Adaptor User Manual 1 Table 2 - 1 Packing List 2.2. Power Supply DC Power: Connect the power adapter to a 110V or 220V outlet, then connect the terminal to the machine's DC12V input socket. Lithium Battery (optional) : When the batt ery was fully charged, the machine can work without power adapter. Version 1.02 IMC02 Counterfeit Detector User Manual Page 5 of 14 3.0. Operating Instructions 3.1. Display Appearance Currency Type Banknote Exit Direction CUR/DIR Button Figure 3 - 1 IMC02 Display Appearance 3.2. Turn On / Off the Machine Number of Banknotes Denomination REP/CLR Button Version 1.02 Figure 3 - 2 IMC02 Power Interface IMC02 Counterfeit Detector User Manual Power switch button Page 6 of 14 Turn on the IMC02 by switch the power switch button to on, the screen will light up and the machine will start self-testing. If the self-test is successful, the number of banknote and the denomination will show as `0'. Turn off the IMC02 by switch the power switch to off. When the screen lights off, it means the machine has been turned off successfully. 3.3. Button Functions 3.3.1. CUR/DIR The CUR/DIR button is used to choose the currency or the banknote exit direction. 3.3.1.1. Choosing the Currency In the detection mode, the IMC02 will recognize the currency type automatically, so pressing "CUR/DIR" button cannot choose the currencies manually. In the report mode, press the button to choose the currencies to check the report detail. 3.3.1.2. Choosing the Direction Keep pressing the button about 2 seconds until you hear the "di" sound, then release the button. The direction indicator will be changed. The denotation of direction will be shown on the top part of the display. Up means the genuine banknote will go out from exit and down means the genuine banknote will retreat from the feeding hopper. 3.3.2. REP/CLR Press the button to check the pieces of each denomination, keep pressing the button for about 2 seconds to clear the records. Version 1.02 IMC02 Counterfeit Detector User Manual Page 7 of 14 After finish detecting banknotes, press "REP / CLR" to enter report mode. Display will show the currency type, pieces of each denomination and total value. You can switch to another currency by pressing "CUR / DIR". While checking the record, if you feed banknote, the detector will automatically exit the report mode. 3.4. Inserting the Banknote Correctly As shown in the following pictures, please insert the banknotes in; the left side. If a banknote was incorrectly inserted, the IMC02 may refuse it and alert. Version 1.02 Right Wrong Figure 3 - 3 Banknote Insertion Wrong IMC02 Counterfeit Detector User Manual Page 8 of 14 3.5. EUR/GBP Currency Detecting As shown in the following figures, please remove the banknote feeding limit block to adjust the banknote with bigger size. The banknote feeding limit block Figure 3 - 4 Banknote Insertion Version 1.02 Figure 3 - 5 EUR Banknote Detecting IMC02 Counterfeit Detector User Manual Page 9 of 14 4.0. Maintenance 4.1. Error Code Code Error Message E01 Length exceeds E02 Length alarm E03 Half a banknote E06 Double banknote E07 Tilted banknote E 10 Failed to refund E11 Basic image error E40 U V Handing Method (recommendation) Please check whether the banknote is in good condition and place the banknote to the left again. If the alarm continues , length calibration is required. Please check if the banknote is complete. Please put in only one banknote. Please put the banknotes to the left. Please check if your banknotes are too old or too soft. This may be a counterfeit currency. Please check whether the banknotes are damaged, severely wrinkled, or dirty. Please turn on the machine and clean the inside of the machine before checking banknotes. If the error continues, it means that the UV module has been damaged. Version 1.02 IMC02 Counterfeit Detector User Manual Page 10 of 14 E4 1 U V image error This may be a counterfeit currency. Please check whether the banknotes are damaged, severely wrinkled, or dirty. E60 Non-magnetic E61 Magnetic pulse 1 alarm Please clean the inside of the machine. E62 Magnetic pulse 2 alarm Please check whether there is magnetic interference E63 Magnetic pulse 3 alarm around the machine. If the error continues, it means that the magnetic E64 Too much magnetism module is damaged. E65 Magnetic prefix E66 Image magnetism error Please check if your banknotes are counterfeit. 4.2. Inaccurate Detection of Currency Detector There are several conditions to affect the accuracy of the currency detector. 1) The bill size is out of the range according to IMC02 specification. 2) The banknote is damaged with different ways such as lack of corner, tape, hole, tear and folded. As shown in Figure 4-1, it is not recommended to count this kind of bills. Figure 4 - 1 Bill Damaged Ways 3) Other abnormal operation or there is unknown thing inside the IMC02.If something inside the IMC02, you need to open the front cover to check, and clean the internal sensors. Version 1.02 IMC02 Counterfeit Detector User Manual Page 11 of 14 Version 1.02 IMC02 Counterfeit Detector User Manual Page 12 of 14 5.0. Technical Parameters Counterfeit Detection Error Detection Available currencies Display Button Interface Detecting Speed Power Consumption Power Supply Battery Operating Temperature Operating Temperature Storage Temperature Counterfeit Detection Error Detection Available currencies MG (Magnetic), IR (Infrared), UV (Ultraviolet) Image, paper quality, size, thickness detection USD, EUR, GBP, LBP, AED, MXN LED display CUR / DIR, REP / CLR USB , software upgrade interface <0.5 seconds/piece <10W AC 100V-240V 50-60Hz or DC 12V/1.0A Rechargeable lithium battery 11.1V / 500 mAh CE, FCC, ROHS 0°C - 40°C -20°C - 65°C MG (Magnetic), IR (Infrared), UV (Ultraviolet) Image, paper quality, size, thickness detection USD, EUR, GBP, LBP, AED, MXN Table 2 Technical Parameters Version 1.02 IMC02 Counterfeit Detector User Manual Page 13 of 14 Scan the QR code for Facebook online chat OUTLOOK: munbyn@outlook.com Whatsapp: +86-17817881067 If you meet any problem during using the IMC01, please contact us. Version 1.02 IMC02 Counterfeit Detector User Manual Page 14 of 14Adobe Illustrator CC 23.0 (Windows) iLovePDF
