QuickSpecs HP EliteBook 830 G5 Notebook PC Overview c05868480 — DA16135 — Worldwide — Version 17 — July 2, 2019 Page 3 AT A GLANCE • Eye-catching ultraslim design, premium precision-crafted machined aluminum (CNC), seam…
These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
Full PDF Document

If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

QuickSpecs
Overview
HP EliteBook 830 G5 Notebook PC

HP EliteBook 830 G5 Notebook PC

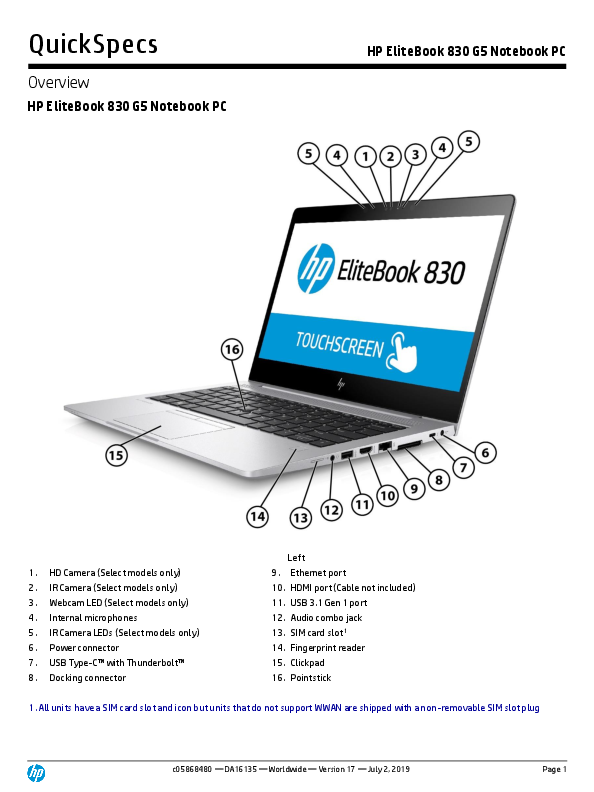

1. HD Camera (Select models only) 2. IR Camera (Select models only) 3. Webcam LED (Select models only) 4. Internal microphones 5. IR Camera LEDs (Select models only) 6. Power connector 7. USB Type-CTM with ThunderboltTM 8. Docking connector

Left 9. Ethernet port 10. HDMI port (Cable not included) 11. USB 3.1 Gen 1 port 12. Audio combo jack 13. SIM card slot1 14. Fingerprint reader 15. Clickpad 16. Pointstick

1. All units have a SIM card slot and icon but units that do not support WWAN are shipped with a non-removable SIM slot plug

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 1

QuickSpecs
Overview

HP EliteBook 830 G5 Notebook PC

1. Indicator LEDs: Power light Wireless light Storage usage light
2. Smartcard Reader (Select models)
3. USB 3.1 Gen 1 charging port

Right 4. Standard Security Lock Slot (Lock sold separately)
5. Power button

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 2

QuickSpecs

HP EliteBook 830 G5 Notebook PC

Overview
AT A GLANCE

� Eye-catching ultraslim design, premium precision-crafted machined aluminum (CNC), seamless formed aluminum chassis for clean, crisp, premium look and feel
� Choice of 8th Generation Intel� CoreTM i5, i7 Processors and 7th generation Intel� CoreTM i5 Processors � Designed to support all HP docking options including HP's traditional Ultraslim mechanical dock and all-new ThunderboltTM
dock2 (Available in May 2018)
� Featuring HP Collaboration Keyboard with Clickpad to manage most commonly used conferencing functions with a single keystroke
� Innovative world-facing third mic improves inbound ambient noise cancellation while 360 degree mic pick-up allows everyone to clearly hear and be heard
� Optional ultrabright displays with ambient light sensor � Enterprise grade security with HP SureStart Gen4, HP Privacy Camera3, HP Sure View2, HP Sure Run, HP Sure Recover,
SmartCard Reader2 and Fingerprint reader2
� Choice of displays: 33.8cm (13.3") diagonal FHD UWVA anti-glare LED-backlit non-touch, 220 cd/m2, 45% NTSC 33.8cm (13.3") diagonal FHD UWVA anti-glare LED-backlit non-touch, 400 cd/m2, 72% NTSC 33.8cm (13.3") diagonal FHD UWVA anti-glare LED-backlit non-touch, 300 cd/m2, 72% NTSC with HP Sure View 33.8cm (13.3") diagonal FHD UWVA LED-backlit Corning� Gorilla� Glass 3 touch, 220 cd/m2, 45% NTSC 33.8cm (13.3") diagonal FHD IPS LED-backlit with corning� Gorilla� Glass 3 touch, 300 cd/m2, 72% NTSC with HP Sure View
� Flexible wireless connectivity options � Preinstalled with Windows 10 versions or FreeDOS 2.0 � Choice of solid state drives up to 1 TB and DDR4 memory up to 32 GB � Supports fast charging (50% in 30 minutes) with no impact on battery recharge cycles4 � Optional HD camera or Infra Red camera with multi-array microphone � Battery life: UMA graphics: Up to 13 hours and 45 minutes (Intel� 7th generation CPU and 3-cell 50 WHr battery) � Passed MIL-SPEC 810G testing 5

2. Sold separately or as an optional feature. 3. Only available with non-touch configurations. 4. Recharges your battery up to 50% within 30 minutes when the system is off or in standby mode. Power adapter with a minimum capacity of 65 watts is required. After charging has reached 50% capacity, charging will return to normal. Charging time may vary +/-10% due to System tolerance. 5. MIL STD 810G testing is not intended to demonstrate fitness for Department of Defense contracts requirements or for military use. Test results are not a guarantee of future performance under these test conditions. Damage under the MIL STD test conditions or any accidental damage requires an optional HP Accidental Damage Protection Care Pack.
NOTE: See important legal disclosures for all listed specs in their respective features sections.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 3

QuickSpecs
Features
PRODUCT NAME
HP EliteBook 830 G5 Notebook PC

HP EliteBook 830 G5 Notebook PC

OPERATING SYSTEM

Preinstalled

Windows 10 Pro 641 Windows 10 Home 641 FreeDOS 2.0

1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com/.

PROCESSORS
Intel� CoreTM i5-7200U with Intel� HD Graphics 620 (2.5 GHz base frequency, up to 3.1 GHz with Intel� Turbo Boost Technology, 3 MB cache, 2 cores)2,3,4 Intel� CoreTM i5-7300U vProTM processor with Intel� HD Graphics 620 (2.6 GHz base frequency, up to 3.5 GHz with Intel� Turbo Boost Technology, 3 MB cache, 2 cores)2,3,4 Intel� CoreTM i5-8250U with Intel� UHD Graphics 620 (1.6 GHz base frequency, up to 3.4 GHz with Intel� Turbo Boost Technology, 6 MB cache, 4 cores)2,3,4 Intel� CoreTM i5-8350U vProTM processor with Intel� UHD Graphics 620 (1.7 GHz base frequency, up to 3.6 GHz with Intel� Turbo Boost Technology, 6 MB cache, 4 cores)2,3,4 Intel� CoreTM i7-7600U vProTM processor with Intel� HD Graphics 620 (2.8 GHz, up to 3.9 GHz with Intel Turbo Boost Technology, 4 MB cache, 2 cores)2,3,4 Intel� CoreTM i7-7500U with Intel� HD Graphics 620 (2.7 GHz, up to 3.5 GHz with Intel Turbo Boost Technology, 4 MB cache, 2 cores) 2,3,4 Intel� CoreTM i7-8550U with Intel� UHD graphics 620 (1.8 GHz base frequency, up to 4 GHz with Intel� Turbo Boost Technology, 8 MB cache, 4 cores)2,3,4 Intel� CoreTM i7-8650U vProTM processor with Intel� UHD graphics 620 (1.9 GHz base frequency, up to 4.2 GHz with Intel� Turbo Boost Technology, 8 MB cache, 4 cores)2,3,4
Processor Family 7th Generation Intel� CoreTM i5 processor (i5-7300U, i5-7200U models) 7th Generation Intel� CoreTM i7 processor (i7-7600U, i7-7500U models) 8th Generation Intel� CoreTM i5 processor (i5-8350U, i5-8250U models) 8th Generation Intel� CoreTM i7 processor (i7-8650U, i7-8550U models)
2. Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel's numbering, branding and/or naming is not a measurement of higher performance. 3. Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode. 4. NOTE: In accordance with Microsoft's support policy, HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel� and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7 drivers on http://www.support.hp.com.

CHIPSET

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 4

QuickSpecs
Features
Integrated with processor

HP EliteBook 830 G5 Notebook PC

GRAPHICS
Integrated Intel� HD Graphics 6205 Intel� UHD Graphics 6205
Supports Supports HD decode, DX12, HDMI 1.4b
5. HD content required to view HD images.
DISPLAY
Non-touch 33.8 cm (13.3") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m�, 45% NTSC (1920 x 1080)6,7,8 33.8 cm (13.3") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m�, 45% NTSC with HD camera (1920 x 1080)6,7,8 33.8 cm (13.3") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m�, 45% NTSC with HD IR webcam (1920 x 1080)6,7,8 33.8 cm (13.3") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m�, 45% NTSC for WWAN (1920 x 1080)6,7,8 33.8 cm (13.3") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m�, 45% NTSC with HD camera for WWAN (1920 x 1080)6,7,8 33.8 cm (13.3") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m�, 45% NTSC with HD IR webcam for WWAN (1920 x 1080)6,7,8 33.8 cm (13.3") diagonal FHD IPS anti-glare LED-backlit, 400 cd/m�, 72% NTSC with Ambient Light Sensor and HD IR webcam (1920 x 1080)6,7,8 33.8 cm (13.3") diagonal FHD IPS anti-glare LED-backlit, 400 cd/m�, 72% NTSC with Ambient Light Sensor and HD IR webcam for WWAN (1920 x 1080)6,7,8 HP Sure View Integrated Privacy Screen 33.8 cm (13.3") diagonal FHD IPS anti-glare LED-backlit, 300 cd/m�, 72% NTSC with HD IR webcam for WWAN (1920 x 1080)6,7,8
Touch 33.8 cm (13.3") diagonal FHD IPS LED-backlit touch screen with Corning� Gorilla� Glass 3, 220 cd/m�, 45% NTSC with HD IR webcam (1920 x 1080)6,7,8 33.8 cm (13.3") diagonal FHD IPS LED-backlit touch screen with Corning� Gorilla� Glass 3, 220 cd/m�, 45% NTSC with HD IR webcam for WWAN (1920 x 1080)6,7,8 HP Sure View Integrated Privacy Screen 33.8 cm (13.3") diagonal FHD IPS LED-backlit BrightView Touch with Corning� Gorilla� Glass 3, 300 cd/m�, 72% NTSC with HD IR webcam for WWAN (1920 x 1080)6,7,8
HDMI 1.4b Supports resolution up to 4k @ 24Hz

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 5

QuickSpecs

HP EliteBook 830 G5 Notebook PC

Features

Displays support

Docking station model HP UltraSlim Docking Station

Total number of supported displays (incl. the notebook display)
3

HP Thunderbolt Dock G2

3

(Available 2Q 2018)

HP Elite USB-C Dock G4

3

(Available 2Q 2018)

HP USB-C Universal Dock

3

HP USB-C Travel Dock

2

HP USB-C Mini Dock

2

Max.resolutions supported

Dock Connectors Technical limitations

Dual 2.5K @ 60Hz

2xDP, 1xVGA

Dual 4K @ 60Hz
Dual 2K @ 60Hz Single 4K @ 60Hz (3840 x 1440) Dual 4K @ 60Hz Single 5K @ 60Hz Single 2K @ 60Hz

2xDP, 1xVGA, 1xTB, 1xUSB-C altmode 1xHDMI, 2xDP
2xDP
1xHDMI, 1xVGA

Single 4K @ 30Hz

1xHDMI, 1xVGA

Dual 2.5k only with both displays into DP Dual 4k only with one display in to DP and + TB port or USB-C alt mode + TB port
Single external display Only HDMI or VGA at the time Single external display Only HDMI or VGA at the time

6. HD content required to view HD images. 7. Sold separately or as an optional feature. 8. Resolutions are dependent upon monitor capability, and resolution and color depth settings.

STORAGE AND DRIVES
Primary M.2 Storage 128 GB SATA-3 SS TLC9
256GB PCIe NVMe Value SS TLC9 256 GB PCIe Gen3x4 NVMe SS TLC9 256 GB SATA-3 SS TLC Opal 29 360 GB PCIe Gen3x4 NVMe SS TLC (Intel)9 512 GB PCIe Gen3x4 NVMe SS TLC9 512 GB PCIe Gen3x4 NVMe SS TLC Opal 29 512 GB SATA-3 SS TLC FIPS-140-29 1 TB PCIe Gen3x4 NVMe SS TLC9
9. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) is reserved for system recovery software.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 6

QuickSpecs

HP EliteBook 830 G5 Notebook PC

Features
MEMORY
Maximum Memory 32 GB DDR4-2400 SDRAM10
Memory 32 GB DDR4-2400 SDRAM (2 X 16 GB)10 16 GB DDR4-2400 SDRAM (1 X 16 GB)10 16 GB DDR4-2400 SDRAM (2 X 8 GB)10 8 GB DDR4-2400 SDRAM (1 x 8 GB)10 8 GB DDR4-2400 SDRAM (2 x 4 GB)10 4 GB DDR4-2400 SDRAM (1 x 4 GB)10
Memory Slots 2 SODIMM Both slots are customer upgradeable System runs at 2133 for Intel 7th generation processors System runs at 2400 for Intel 8th generation processors Supports Dual Channel Memory

10. Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

NETWORKING/COMMUNICATIONS
WLAN11 Intel� Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi� and Bluetooth� 4.2 Combo, vProTM12 Intel� Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi� and Bluetooth� 4.2 Combo, non-vProTM12 Realtek RTL8822BE 802.11ac (2x2) Wi-Fi� and Bluetooth� 4.2 Combo, non-vProTM13 WWAN11 HP lt4132 LTE/HSPA+ 4G Mobile Broadband13 Intel� XMMTM 7360 LTE-Advanced13
NFC11 NXP NPC300 Near Field Communication Module Miracast Native Miracast Support14
Ethernet Intel� I219-LM 10/100/1000 GbE, vProTM15 Intel� I219-V 10/100/1000 GbE, non-vProTM15
11. Sold separately or as an optional feature. 12. Wireless access point and Internet service required and sold separately. Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices. 13. WWAN module requires separately purchased service contract. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products, in all regions. 14. Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming 15. The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 7

QuickSpecs
Features

HP EliteBook 830 G5 Notebook PC

AUDIO/MULTIMEDIA
Audio Audio by Bang & Olufsen Integrated 3 Multi Array Microphone 2 Integrated Stereo Speakers (74Db)
Camera HD camera16,18 HD IR camera16,18
16. HD content required to view HD images. 18. Sold separately or as an optional feature.
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard HP Premium Collaboration Keyboard, spill resistant with drain Backlit keyboard available as an option
Pointing Device Clickpad with multi-touch gesture support image sensor, taps enabled as default Microsoft Precision Touchpad Default Gestures Support
Function Keys F1 - Display Switching F2 - F2 - Blank or Privacy F3 - Brightness Down F4 - Brightness Up F5 - Audio Mute F6 - Volume Down F7 � Volume Up F8 - Mic Mute F9 - Blank or Backlit Toggle F10 - numlk F11 - Wireless F12 - Calendar Share/Present Call Answer Call End
Hidden Functions Fn+R = Break Fn+S = Sys Rq Fn+C = Scroll Lock Fn+E = Insert Fn+W = Pause
SOFTWARE AND SECURITY
c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 8

QuickSpecs
Features
Preinstalled Software BIOS HP BIOSphere Gen419 HP Drive Lock & Automatic Drive Lock38 BIOS Update via Network Master Boot Record Security Power-on authentication Secure Erase20 Absolute Persistence Module21 Pre-boot Authentication HP Wireless Wakeup Software HP Native Miracast Support22 HP LAN-Wireless Protection HP Velocity HP ePrint + JetAdvantage23 HP Hotkey Support - CMIT HP Recovery Manager HP Jumpstart HP Support Assistant24 HP Noise Cancellation Software Buy Office

HP EliteBook 830 G5 Notebook PC

Manageability Features HP Driver Packs25 HP System Software Manager (SSM) HP BIOS Config Utility (BCU) HP Client Catalog HP Manageability Integration Kit Gen226 Ivanti Management Suite27 HP Collaboration Keyboard

Client Security Software HP Client Security Suite Gen4 including:28 HP Security Manager29 (including Credential Manager, HP Password Manager, HP Spare Key) Power On Authentication HP Fingerprint Sensor30 HP Device Access Manager HP Power On Authentication Microsoft Defender31

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 9

QuickSpecs

HP EliteBook 830 G5 Notebook PC

Features
Security Management HP BIOSphere Gen419 HP Drive Lock & Automatic Drive Lock37 BIOS Update via Network Secure Erase20 Pre-boot Authentication TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified) SATA 0,1 port disablement (viaBIOS) RAID configurations32 Serial, USB enable/disable (viaBIOS) Power-on password (viaBIOS) Setup password (viaBIOS) Support for chassis padlocks and cable lock devices HP Sure Click33 HP Sure Start Gen434 HP Sure Run35 HP Sure Recover36

Security TPM Model: Infineon SLB9670 Version: 7.62.3126.0 Revision: TPM 2.0 FIPS 140-2 Compliant: Yes (select models only)
Smartcard Reader Model number: Alcor AU9560 FIPS 201 Compliant: Yes
IPv6 Certification: Yes
MD5 Hash: Please follow the instructions below to access MD5 Hash. Log-on to http://hp.com/support, enter your product name, select software and drivers, select OS, select driver. After selecting the driver, click on "Associated files" and then click on "Download". When opening the file, under "Purpose" you should see the appropriate "SOFTPAQ MD5:" Field
Is the BIOS on this notebook ISO/IEC 19678:2015 (formerly NIST 800-147) compliant?: Yes UEFI version: 2.5

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 10

QuickSpecs
Features

HP EliteBook 830 G5 Notebook PC

19. HP BIOSphere Gen4 features may vary depending on the PC platform and configurations requires 8th Gen Intel� processors. 20. Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 800-88. Supported on Elite platforms with BIOS version F.03 or higher. 21. Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/computrace-agreement. Data Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software. 22. Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming. 23. HP ePrint Drive requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see http://www.hp.com/go/eprintcenter). Print times and connection speeds may vary. 24. HP Support Assistant requires Windows and Internet access. 25. HP Driver Packs not preinstalled, however available for download at http://www.hp.com/go/clientmanagement. 26. HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html 27. Ivanti Management Suite subscription required. 28. HP Client Security Suite Gen 4 requires Windows and Intel� or AMD 8th generation processors. 29. HP Password Manager requires Internet Explorer or Chrome or FireFox. Some websites and applications may not be supported. User may need to enable or allow the add-on / extension in the internet browser. 30. HP Fingerprint Sensor sold separately or as an optional feature. 31. Microsoft Defender Opt in and internet connection required for updates. 32. RAID configuration is optional and does require a second hard drive. 33. HP Sure Click is available on most HP PCs and supports Microsoft� Internet Explorer and ChromiumTM. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft Office or Adobe Acrobat are installed. 34. HP Sure Start Gen4 is available on HP EliteBook products equipped with Intel� 8th generation processors
35. HP Sure Run is available on HP Elite products equipped with Intel� or AMD� 8th generation processors
36. HP Sure Recover is available on HP Elite PCs with 8th generation Intel� or AMD processors and requires an open, wired network connection. You must back up important files, data, photos, videos, etc. before using HP Sure Recover to avoid loss of data
37. HP Drive Lock is not supported on NVMe drives

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 11

QuickSpecs

HP EliteBook 830 G5 Notebook PC

Features
POWER
Power Supply Smart 45 W External AC power adapter38 HP Smart 45 W External AC power adapter, 2-prong (Japan only)38 HP Smart 65 W External AC power adapter38 HP Smart 65 W EM External AC power adapter38 45 W USB Type-CTM adapter38 65 W USB Type-CTM adapter38

Primary Battery HP Long Life 3-cell, 50 Wh Li-ion39,40
Power Cord 2-wire plug - 1.0m (Japan only)38 3-wire plug - 1.0m38 3-wire plug - 1.8m38 Duckhead power cord - 1.0m38 Duckhead power cord - 1.8m38
Battery Life41 UMA graphics: Up to 13 hours and 45 minutes (Intel� 7th generation CPU and 3-cell 50 WHr battery)

38. Availability may vary by country. 39. Battery is internal and not replaceable by customer. Serviceable by warranty. 40. Supports HP Fast Charge with 65W AC Adapter. 41. Windows 10 MM14 battery life will vary depending on various factors including product model, configuration, loaded applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See http://www.bapco.com for additional details.

WEIGHTS & DIMENSIONS
Weight Starting at 2.94 lb (non-touch); Starting at 3.32 lb (touch)42 Starting at 1.33 kg (non-touch); Starting at 1.51 kg (touch)42
Dimensions (w x d x h) Non-touch 12.22 x 9.03 x 0.7 in 31 x 22.93 x 1.77 cm Touch 12.22 x 9.03 x 0.7 in 31 x 22.93 x 1.78 cm
42. Weight will vary by configuration.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 12

QuickSpecs
Features
PORTS/SLOTS
Ports 1 ThunderboltTM (USB Type-CTM connector) 2 USB 3.1 Gen 1 (1 charging) 1 HDMI 1.4b43 1 RJ-45 1 docking connector 1 headphone/microphone combo jack 1 AC power 1 SIM card slot44 1 Smartcard reader44 Standard Security Lock Slot (Lock sold separately) 43. HDMI cable sold separately. 44. Sold separately or as an optional feature.

HP EliteBook 830 G5 Notebook PC

SERVICE AND SUPPORT
3 year or 1 year limited warranty depending on country. 3 year limited warranty on HP Long Life Battery (only available with 3 year platform limited warranty). Optional HP Care Pack Services are available contracts which go beyond your standard limited warranties. For more details visit: http://www.hp.com/go/lookuptool. Service levels and response times for HP Care Packs may vary depending on your geographic location. Restrictions and limitations apply. For details, visit http://www.hp.com/go/cpc45
45. HP Care Packs are sold separately. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit http://www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 13

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

SYSTEM UNIT

Stand-Alone Power Requirements (AC Power)
Temperature
Relative Humidity Shock Random Vibration Altitude (unpressurized) Planned Industry Standard Certifications

Nominal Operating Voltage Average Operating Power Integrated graphics Max Operating Power
Operating
Non-operating Operating Non-operating Operating Non-operating Operating Non-operating Operating Non-operating UL CSA FCC Compliance ENERGY STAR 6.1� EPEAT� 2019 ICES Australia / NZ A-Tick Compliance CCC Japan VCCI Compliance KC BSMI CE Marking Compliance BNCI or BELUS CIT GOST Saudi Arabian Compliance (ICCP) SABS UKRSERTCOMPUTER

19V
Win 10 6.78W Discrete < 65W UMA < 45W 32� to 95� F (0� to 35� C) (not writing optical) 41� to 95� F (5� to 35� C) (writing optical) -4� to 140� F (-20� to 60� C) 10% to 90%, non-condensing 5% to 95%, 101.6� F (38.7� C) maximum wet bulb temperature 40 G, 2 ms, half-sine 200 G, 2 ms, half-sine 0.75 grms 1.50 grms -50 to 10,000 ft (-15.24 to 3,048 m) -50 to 40,000 ft (-15.24 to 12,192 m) Yes Yes Yes Select models46 Yes, Silver in U.S.47 Yes Yes
Yes Yes Yes Yes Yes Yes Yes Yes Yes
Yes Yes

46. Configurations of the HP Elitebook 830 G5 that are ENERGY STAR� certified are identified as HP Elitebook 830 G5 ENERGY STAR on HP websites and on http://www.energystar.gov. 47. Based on US EPEAT� registration according to IEEE 1680.1-2018 EPEAT�. Status varies by country. Visit http://www.epeat.net for more information.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 14

QuickSpecs

Technical Specifications

DISPLAYS

Panel LCD 13.3 inch FHD

Outline Dimensions (W x H)

(1920 x 1080) Anti-Glare WLED UWVA 45% NTSC 220nits eDP Active Area

slim NB Non-Touch

Weight

Diagonal Size

Thickness

Interface

Surface Treatment

Touch Enabled

Contrast Ratio

Refresh Rate

Brightness Pixel Resolution

Format of LCD Pixel Arrangement

Backlight

Color Gamut Coverage

Color Depth

Viewing Angle

HP Elitebook 830 G5 Notebook PC
300.56 x 187.77 max. 293.76 x 165.24 typ. <260 max. 13.3" 3.0mm max. eDP 1.2 (2 lanes) Anti-glare No 600:1 (typ) - AG 60Hz 220 nits typical (Panel Only) 1920 x 1080 (FHD) RGB LED 45% of NTSC 6 bits (Hi FRC @ system GFX output 8bits) UWVA 85/85/85/85

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

Panel LCD 13.3 inch FHD

Outline Dimensions (W x H)

(1920 x 1080) WLED UWVA

45% NTSC 220nits eDP slim NB Active Area

Touch

Weight

Diagonal Size

Thickness

Interface

Surface Treatment

Touch Enabled

Contrast Ratio

Refresh Rate

Brightness

300.56 x 187.77 max.
293.76 x 165.24 typ.
<383 max. 13.3" 3.2mm max. eDP 1.2 (2 lanes) BrightView Glass Yes 600:1 (typ) 60Hz 220 nits typical (Panel Only)

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 15

QuickSpecs
Technical Specifications
Pixel Resolution Format of LCD Pixel Arrangement Backlight Color Gamut Coverage Color Depth Viewing Angle

HP Elitebook 830 G5 Notebook PC
1920 x 1080 (FHD) RGB LED 45% of NTSC 6 bits (Hi FRC @ system GFX output 8bits) UWVA 85/85/85/85

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

Panel LCD 13.3 inch FHD

Outline Dimensions (W x H)

(1920 x 1080) Anti-Glare WLED UWVA 72% NTSC 400nits eDP Active Area

1.3+PSR ultraslim NB

Weight

Diagonal Size

Thickness

Interface

Surface Treatment

Touch Enabled

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Format of LCD Pixel Arrangement

Backlight

Color Gamut Coverage

Color Depth

Viewing Angle

300.172 x 187.42 max. 293.472 x 165.078 170g max. 13.3" 2.0mm / 2.2mm (PCB) max. eDP 1.3 w/ PSR (2 lane) Anti-glare No 600:1 (typ - AG) 60Hz 400 nits typical (Panel Only) 1920 x 1080 (FHD) RGB LED 72% of NTSC 6 bits + Hi FRC UWVA 85/85/85/85

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 16

QuickSpecs

Technical Specifications

Panel LCD 13.3 inch FHD (1920 x 1080) WLED UWVA 72% NTSC 300nits eDP 1.3 + PSR ultraslim Privacy

Outline Dimensions (W x H) Active Area Weight Diagonal Size Thickness Interface Surface Treatment Touch Enabled Contrast Ratio

Refresh Rate Brightness

Pixel Resolution Format of LCD Pixel Arrangement Backlight Color Gamut Coverage Color Depth Viewing Angle

HP Elitebook 830 G5 Notebook PC
300.56 x 187.57 mm (max.) 293.76 x 165.24 mm 205 g (max.) 13.3" 2.4 mm (max.) eDP 1.3 + PSR/MBO (4 lanes) Anti-glare No Sharing mode, 600:1 (typ.) Privacy mode, 150:1 (typ.) 120Hz Sharing mode, 300 nits (typ.) Privacy mode, 150 nits (typ.) 1920 x 1080 (FHD) RGB LED 72% of NTSC 6 bits + Hi FRC UWVA 85/85/85/85

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

Panel LCD 13.3 inch FHD (1920 x 1080) WLED UWVA 72% NTSC 300nits eDP 1.3 + PSR ultraslim Privacy Touch

Outline Dimensions (W x H) Active Area Weight Diagonal Size Thickness Interface Surface Treatment Touch Enabled Contrast Ratio

Refresh Rate Brightness

Pixel Resolution

300.56 x 187.57 mm (max.)
293.76 x 165.24 mm
<328g max. 13.3" 2.4 mm (max.) eDP 1.3 + PSR/MBO (4 lanes) BrightView Glass Yes Sharing mode, 600:1 (typ.) Privacy mode, 150:1 (typ.) 120Hz Sharing mode, 300 nits (typ.) Privacy mode, 150 nits (typ.) 1920 x 1080 (FHD)

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 17

QuickSpecs
Technical Specifications
Format of LCD Pixel Arrangement Backlight Color Gamut Coverage
Color Depth Viewing Angle

HP Elitebook 830 G5 Notebook PC
RGB LED Sharing mode, 72% of NTSC Privacy mode, 45% of NTSC 6 bits + Hi FRC UWVA 85/85/85/85

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 18

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

STORAGE1

SSD 128GB 2280 M2 SATA-3 TLC

Drive Weight Capacity Height Width Interface Maximum Sequential Read Maximum Sequential Write Logical Blocks Operating Temperature Features

0.02 lb (10 g) 128GB 0.09 in (2.3 mm) 0.87 in (22 mm) ATA-8, SATA 3.0 Up To 520 MB/s Up To 450 MB/s 250,069,680 32� to 158�F (0� to 70�C) [ambient temp] DIPM; TRIM; DEVSLP

SSD 1TB 2280 PCIe-3x4 NVMe Drive Weight

TLC DS

Capacity

Height

Width

Interface

Maximum Sequential Read

Maximum Sequential Write

Logical Blocks

Operating Temperature

Features

0.02 lb (10 g) 1024GB 0.09 in (2.3 mm) 0.87 in (22 mm) PCIe NVMe Gen3X4 Up To 2800 MB/s Up To 1600 MB/s 2,000,409,264 32� to 158�F (0� to 70�C) [ambient temp] TRIM; L1.2

SSD 256GB 2280 M2 PCIe-3x4 Drive Weight

SS NVMe TLC

Capacity

Height

Width

Interface

Maximum Sequential Read

Maximum Sequential Write

Logical Blocks

Operating Temperature

Features

0.02 lb (10 g) 256GB 0.09 in (2.3 mm) 0.87 in (22 mm) PCIe NVMe Gen3X4 Up To 2600 MB/s Up To 900 MB/s 500,118,192 32� to 158�F (0� to 70�C) [ambient temp] TRIM; L1.2

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 19

QuickSpecs
Technical Specifications

HP Elitebook 830 G5 Notebook PC

SSD 256GB 2280 M2 SATA-3 Self Encrypted OPAL2 TLC

Drive Weight Capacity Height Width Interface Maximum Sequential Read Maximum Sequential Write Logical Blocks Operating Temperature Features

0.02 lb (10 g) 256GB 0.09 in (2.3 mm) 0.87 in (22 mm) ATA-8, SATA 3.0 Up To 530 MB/s Up To 515 MB/s 500,118,192 32� to 158�F (0� to 70�C) [ambient temp] DIPM; TRIM; DEVSLP

256 GB 2280 PCIe NVMe Value Drive Weight

Solid State Drive

Capacity

Height

Width

Interface

Maximum Sequential Read

Maximum Sequential Write

Logical Blocks

Operating Temperature

Features

0.02 lb (10 g) 256GB 0.09 in (2.3 mm) 0.87 in (22 mm) PCIe NVMe Gen3X4 Up To 1700 MB/s Up To 600 MB/s 500,118,192 32� to 158�F (0� to 70�C) [ambient temp] TRIM; L1.2

SSD 360GB 2280 PCIe-3x4 NVMe TLC

Drive Weight Capacity Height Width Interface Maximum Sequential Read Maximum Sequential Write Logical Blocks Operating Temperature Features

0.02 lb (10 g) 360GB 0.09 in (2.3 mm) 0.87 in (22 mm) PCIe NVMe Gen3X4 Up To 1700 MB/s Up To 600 MB/s 703,282,608 32� to 158�F (0� to 70�C) [ambient temp] TRIM; L1.2

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 20

QuickSpecs
Technical Specifications

HP Elitebook 830 G5 Notebook PC

SSD 512GB 2280 M2 PCIe-3x4 Drive Weight

SS NVMe TLC

Capacity

Height

Width

Interface

Maximum Sequential Read

Maximum Sequential Write

Logical Blocks

Operating Temperature

Features

0.02 lb (10 g) 512GB 0.09 in (2.3 mm) 0.87 in (22 mm) PCIe NVMe Gen3X4 Up To 2600 MB/s Up To 1400 MB/s 1,000,215,216 32� to 158�F (0� to 70�C) [ambient temp] TRIM; L1.2

SSD 512GB 2280 M2 SATA-3 TLC FIPS

Drive Weight Capacity Height Width Interface Maximum Sequential Read Maximum Sequential Write Logical Blocks Operating Temperature Features

0.02 lb (10 g) 512GB 0.09 in (2.3 mm) 0.87 in (22 mm) ACS-3, SATA 3.2 Up To 530 MB/s Up To 400 MB/s 1,000,215,216 32� to 158�F (0� to 70�C) [ambient temp] DIPM; TRIM; DEVSLP

SSD 512GB 2280 PCIe-3x4 NVMe Self Encrypted OPAL2 TLC

Drive Weight Capacity Height Width Interface Maximum Sequential Read Maximum Sequential Write Logical Blocks Operating Temperature Features

0.02 lb (10 g) 512GB 0.09 in (2.3 mm) 0.87 in (22 mm) PCIe NVMe Gen3X4 Up To 2900 MB/s Up To 1400 MB/s 1,000,215,215 32� to 158�F (0� to 70�C) [ambient temp] TRIM; L1.2

1. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) is reserved for system recovery software.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 21

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

NETWORKING/COMMUNICATIONS

Intel� 802.11a/b/g/n/ac Wireless LAN Standards (2x2) WiFi and Bluetooth� 4.2 Combo1
Interoperability Frequency Band
Data Rates
Modulation Security3
Network Architecture Models Roaming Output Power2
Power Consumption
Power Management

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac
Wi-Fi certified
802.11b/g/n � 2.402 � 2.482 GHz 802.11a/n � 4.9 � 4.95 GHz (Japan) � 5.15 � 5.25 GHz � 5.25 � 5.35 GHz � 5.47 � 5.725 GHz � 5.825 � 5.850 GHz
� 802.11b: 1, 2, 5.5, 11 Mbps � 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps � 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps � 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz) � 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)
Direct Sequence Spread Spectrum BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
� IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only � AES-CCMP: 128 bit in hardware �802.1x authentication �WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES. �WPA2 certification �IEEE 802.11i �Cisco Certified Extensions, all versions through CCX4 and CCX Lite � WAPI Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
� 802.11b : +14dBm minimum � 802.11g : +12dBm minimum � 802.11a : +12dBm minimum � 802.11n HT20(2.4GHz) : +12dBm minimum � 802.11n HT40(2.4GHz) : +12dBm minimum � 802.11n HT20(5GHz) : +10dBm minimum � 802.11n HT40(5GHz) : +10dBm minimum � 802.11ac VHT80(5GHz) : +10dBm minimum
� Transmit mode 2.0 W � Receive mode 1.6 W � Idle mode (PSP) 180 mW (WLAN Associated) � Idle mode 50 mW (WLAN unassociated) � Connected Standby 10mW � Radio disabled 8 mW
ACPI compliant power management 802.11 compliant power saving mode

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 22

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications
Receiver Sensitivity4
Antenna type

802.11b, 1Mbps : -93.5dBm maximum 802.11b, 11Mbps : -84dBm maximum 802.11a/g, 6Mbps : -86dBm maximum 802.11a/g, 54Mbps : -72dBm maximum 802.11n, MCS07 : -67dBm maximum 802.11n, MCS15 : -64dBm maximum 802.11ac, MCS0 : -84dBm maximum 802.11ac, MCS9 : -59dBm maximum
High efficiency antenna with spatial diversity, mounted in the display enclosure

Form Factor Dimensions Weight Operating Voltage Temperature
Humidity
Altitude
LED Activity

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

PCI-Express Half-MiniCard

Type 2230 : 2.3 x 22.0 x 30.0 mm

Type 2230 : 2.8g

3.3v +/- 9%

Operating Non-operating

14� to 158� F (�10� to 70� C) �40� to 176� F (�40� to 80� C)

Operating Non-operating

10% to 90% (non-condensing) 5% to 95% (non-condensing)

Operating Non-operating

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

LED Amber � Radio OFF; LED White � Radio ON

HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology

Bluetooth Specification Frequency Band Number of Available Channels Data Rates and Throughput
Transmit Power Power Consumption
Electrical Interface

4.0/4.1/4.2 Compliant 2402 to 2480 MHz Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH) Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps BLE : 1 Mbps data rate; throughput up to 0.2 Mbps Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5) The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 4 dBm for BR and EDR. Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW USB 2.0 compliant

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 23

QuickSpecs
Technical Specifications
Bluetooth Software Supported Power Management Certifications Power Management Certifications
Bluetooth Profiles Supported

HP Elitebook 830 G5 Notebook PC
Microsoft Windows Bluetooth Software
Microsoft Windows ACPI, and USB Bus Support FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 �Link Layer Privacy LE Privacy 1.2 �Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

1. Wireless access point and Internet service is required. Availability of public wireless access point is limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices 2. The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels. 3. Check latest software/driver release for updates on supported security features. 4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 24

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

HP lt4132 LTE/HSPA+ 4G Technology/Operating

Mobile Broadband5

bands

Wireless protocol standards
GPS GPS bands Maximum data rates

Maximum output power

Maximum power consumption
Form Factor Weight Dimensions (Length x Width x Thickness)

LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3) MHz, 850 (Band 5), 2600 (Band 7), 900 (Band 8) MHz, 800 (Band 20), 700 (Band 28) MHz. HSPA+: 2100 (Band 1), 1900 (Band 2), 850 (Band 5), 900 (Band 8) MHz E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz
3GPP Release 10 LTE Specification CAT.4, 20MHz BW WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification E-GPRS: Class B, Multi-slot class 12, coding schemes CS1 - CS4 and MSC1 - MSC9
Standalone, A-GPS (MS-B and LTO)
1575.42 MHz � 1.023 MHz, GLONASS 1596-1607MHz
LTE: 150 Mbps (Download), 50 Mbps (Upload) DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload) HSPA+: 21Mbps (Download), 5.76 Mbps (Upload) EDGE: 236.8 kbps (Download), 236.8 kbps (Upload) GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
LTE: 23 dBm HSPA+: 23.5 dBm E-GPRS 1900/1800: 26 dBm E-GPRS 900/850: 27 dBm GPRS 1900/1800: 29.5 dBm GPRS 900/850: 32.5 dBm
LTE: 1,200 mA (peak); 900 mA (average) HSPA+: 1,100 mA (peak); 800 mA (average) E-GPRS: 2,600 mA (peak); 500 mA (average)
M.2, 3042-S3 Key B
6 g
42 30 x 2.3 mm

5. Wireless access point and Internet service is required. Availability of public wireless access point is limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 25

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

Intel� XMMTM 7360 LTEAdvanced6

Technology/Operating bands
Wireless protocol standards GPS GPS bands Maximum data rates Maximum output power

FDD LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3), 1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8), 1400 (Band 11), 700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 17 lower), 850 (Band 18 lower), 850 (Band 19 upper), 800 (Band 20), 1400 (Band 21), 850 (Band 26), 700 (Band 28), 700 (Band 29 RX only), 2300 (Band 30), 2100 (Band 66). TDD LTE: 2600 (Band 38), 1900 (Band 39), 2400 (Band 40), 2500 (Band 41). HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 900 (Band 8) MHz
3GPP Release 11 LTE Specification CAT.9, DL 60MHz BW throughput up to 450Mbps; UL 20MHz throughput up to 50Mbps WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
Standalone, A-GPS (MS-A, MS-B and XTRA)
1575.42 MHz � 1.023 MHz, GLONASS 1596-1607MHz, Beidou 1561.098 MHz
LTE: 450 Mbps (Download), 50 Mbps (Upload) DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload) HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)
LTE: 23 dBm HSPA+: 23.5 dBm

Maximum power consumption
Form Factor
Weight
Dimensions (Length x Width x Thickness)

LTE: 1,200 mA (peak); 900 mA (average) HSPA+: 1,100 mA (peak); 800 mA (average) M.2, 3042-S3 Key B 5.8 g 42 x 30 x 2.3 mm

6. Wireless access point and Internet service is required. Availability of public wireless access point is limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 26

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

Realtek 802.11b/g/n (2x2) WiFi and Bluetooth� 4.2 Combo7

Wireless LAN Standards
Interoperability Frequency Band Data Rates Modulation Security9
Network Architecture Models Roaming Output Power8
Power Consumption
Power Management Receiver Sensitivity10

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac
Wi-Fi certified
802.11b/g/n [2] � 2.402 � 2.482 GHz
802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: MCS 0 ~ MCS 07, (20MHz)
Direct Sequence Spread Spectrum BPSK, QPSK, CCK, 16-QAM, 64-QAM,
� IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only � AES-CCMP: 128 bit in hardware � 802.1x authentication � WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES. � WPA2 certification � IEEE 802.11i � Cisco Certified Extensions, all versions through CCX4 and CCX Lite � WAPI
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
� 802.11b : +14dBm minimum � 802.11g : +12dBm minimum � 802.11a : +12dBm minimum � 802.11n HT20(2.4GHz) : +12dBm minimum � 802.11n HT40(2.4GHz) : +12dBm minimum � 802.11n HT20(5GHz) : +10dBm minimum � 802.11n HT40(5GHz) : +10dBm minimum � 802.11ac VHT80(5GHz) : +10dBm minimum
� Transmit mode 2.0 W � Receive mode 1.6 W � Idle mode (PSP) 180 mW (WLAN Associated) � Idle mode 50 mW (WLAN unassociated) � Connected Standby 10mW �Radio disabled 8 mW
ACPI compliant power management 802.11 compliant power saving mode
802.11b, 1Mbps : -93.5dBm maximum 802.11b, 11Mbps : -84dBm maximum 802.11a/g, 6Mbps : -86dBm maximum 802.11a/g, 54Mbps : -72dBm maximum 802.11n, MCS07 : -67dBm maximum 802.11n, MCS15 : -64dBm maximum 802.11ac, MCS0 : -84dBm maximum

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 27

QuickSpecs
Technical Specifications
Antenna type
Form Factor Dimensions
Weight
Operating Voltage Temperature Humidity Altitude LED Activity

HP Elitebook 830 G5 Notebook PC
802.11ac, MCS9 : -59dBm maximum High efficiency antenna with spatial diversity, mounted in the display enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications PCI-Express M.2 MiniCard Type 2230 : 2.3 x 22.0 x 30.0 mm Or Type 1630 : 2.3 x 16.0 x 30.0 mm Type 2230 : 2.8g Or Type 1630 : 2g 3.3v +/- 9% Operating: 14� to 158� F (�10� to 70� C) Non-operating: �40� to 176� F (�40� to 80� C) Operating: 10% to 90% (non-condensing) Non-operating: 5% to 95% (non-condensing) Operating: 0 to 10,000 ft (3,048 m) Non-operating: 0 to 50,000 ft (15,240 m) LED Amber � Radio OFF LED White � Radio ON

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 28

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology

Bluetooth Specification 4.0/4.1/4.2 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH)

Data Rates and Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps BLE : 1 Mbps data rate; throughput up to 0.2 Mbps

Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 4 dBm for BR and EDR.

7. Wireless access point and Internet service is required. Availability of public wireless access point is limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices 8. The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels. 9. Check latest software/driver release for updates on supported security features. 10. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 29

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

Near Field Communications Controller (optional)

Dimensions (L x W x H) Chipset System interface NFC RF standards
NFC Forum Support Reader (PCD-VCD) Mode(1)
Card Emulation (PICCVICC) Mode(1)
Frequency NFC Modes Supported Raw RF Data Rates Operating temperature Storage temperature Humidity
Supply Operating voltage I/O Voltage Power Consumption (Booster enable, VBAT= 3.3V, VCC_BOOST = 5V)

Module 25 mm by 10 mm by 2.0 mm
NPC100 I2C ISO/IEC 14443 A ISO/IEC 14443 B ISO/IEC 15693 ISO/IEC 18092 ECMA-340 NFCIP-1 Target and Initiator ECMA-320 NFCIP-2 Tag Type 1, Type 2, Type3 and Type 4, NFCIP-1 and NFCIP-2 ISO/IEC 14443 A ISO/IEC 14443 B ISO/IEC 15693 MIFARE 1K MIFARE 4K MIFARE DESFire FeliCa Jewel and Topaz cards ISO/IEC 14443 A ISO/IEC 14443 B and B' MIFARE FeliCa 13.56 MHz Reader/Writer, Peer-to-Peer 106, 212, 424, 848 kbps 0�C to 70�C -20�C to 125�C 10-90% operating 5-95% non-operating 2.97 to 5.5 Volts
1.8V or 3.3V

Mode

Power Consumption, Typical

Polling

7.3 mA

Detected Test Tag Type 1 Total 283.8 mA Net Module 236.8 mA

Detected Test Tag Type 2 Total 288.8 mA Net Module 241.8 mA

Detected Test Tag Type 3 Total 287.7 mA Net Module 240.7 mA

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 30

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

Detected Test Tag Type 4 Total 282.3 mA Net Module 235.3 mA

Antenna

Antenna connector, 0.5mm pitch, 7 connector FPC. Antenna matching is external to module.

POWER

AC Adapter 65 Watt nPFC Dimensions

USB type CTM

Weight

Input

Output
Connector Environmental Design
EMI and Safety Certifications

74x74x28.5mm

unit: 245g +/- 10g

Input Efficiency

81.5% min at 115 Vac/ 230Vac @ 5V/3A 86.7% min at 115 Vac/ 230Vac @ 9V/3A 88% min at 115 Vac/ 230Vac @ 10V/5A 88% min at 115 Vac/ 230Vac @ 12V/5A 89% min at 115 Vac/ 230Vac @ 15V/4.33A 89% min at 115 Vac/ 230Vac @ 20V/3.25A

Input frequency range 47 ~ 63 Hz

Input AC current

1.7 A at 90 VAC and maximum load

Output power

65W

DC output

5V/9V/10V/12V/15V/20V

Hold-up time

5ms at 115 Vac input

Output current limit

<8.0A

Duck head / duck head power cord, without Smart ID DC connector

Operating temperature 32�Fto 95�F (0�to 35�C)

Non-operating (storage) -4�F to 185�F (-20�to 85�C) temperature

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

5% to 95%

Storage Humidity

5% to 95%

CE Mark - full compliance with LVD and EMC directives Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. MTBF - over 100,000 hours at 25�C ambient condition.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 31

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

AC Adapter 45 Watt nPFC

USB type CTM

Weight

Input

Output

Connector Environmental Design
Safety Certifications

62.0x62.0x28.5mm

unit: 220g +/- 10g

Input Efficiency Input frequency range

Average Efficiency of 25%, 50%, 75%, 100% load condition with 115Vac/230Vac Spec:5V : 81.5%9V : 86.7%10V : 87.5%12V : 87.8%15V : 87.8%20V : 87.8%
47 ~ 63Hz

Input AC current

Max. 1.4 A at 90 Vac

Output power DC output

5V/15W 9V/27W 10V/37.5W 12V/45W 15V/45W 20V/45W
5V / 9V / 10V /12V / 15V / 20V

Hold-up time

5ms at 115 Vac input

Output current limit USB Type-CTM

<5.0A

Operating temperature 32�F to 95�F (0�to 35�C)

Non-operating (storage) -4�F to 185�F (-20�to 85�C)

temperature

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

20% to 95%

Storage Humidity

10% to 95%

CE Mark - full compliance with LVD and EMC directives Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. MTBF - over 200,000 hours at 25�C ambient condition.

HP 45W Smart AC adapter Dimensions Weight Input
Output
Connector Environmental Design

3.74 x 1.57 x 1.04 in (9.5 x 4.0 x 2.65 cm)

0.386 lb (175g) max

90 to 265 VAC

Input Efficiency

87.74% at 115Vac and 88.4% at 230Vac

Input frequency range 47 to 63 Hz

Input AC current

1.4 A at 90 VAC

Output power

45W

DC output

19.5V

Hold-up time

5 msec at 115 VAC input

Output current limit

<8.0A

4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords

Operating temperature 32� to 95� F (0� to 35� C)

Non-operating (storage) -4� to 185� F (-20� to 85� C)

temperature

Altitude

0 to 16,400 ft (0 to 5,000 m)

Humidity

20% to 95%

Storage Humidity

10% to 95%

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 32

QuickSpecs
Technical Specifications
EMI and Safety Certifications

HP Elitebook 830 G5 Notebook PC
CE Mark - full compliance with LVD and EMC directives Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. MTBF - over 200,000 hours at 25�C ambient condition.

HP 65W Smart AC adapter Dimensions Weight Input
Output
Connector Environmental Design
EMI and Safety Certifications

107.0x47.0x30.0mm

unit: 250g +/- 10g

Input Efficiency

88.0 % at 115 Vac and 89.0 % at 230Vac

Input frequency range 47 ~ 63 Hz

Input AC current

Max. 1.7 A at 90 Vac

Output power

65W

DC output

19.5V

Hold-up time

5ms at 115 Vac input

Output current limit 4.5mm Barrel Type

<11.0A

Operating temperature 32�F to 95�F (0�to 35�C)

Non-operating (storage) -4�F to 185�F (-20�to 85�C)

temperature

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

20% to 95%

Storage Humidity

10% to 95%

CE Mark - full compliance with LVD and EMC directives Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. MTBF - over 200,000 hours at 25�C ambient condition.

HP 65W EM Smart AC adapter

Dimensions Weight Input
Output
Connector Environmental Design

102x55x30mm

270g +/- 10g

Input Efficiency

87% min at 115V/230V

Input frequency range 47 to 63 Hz

Input AC current

1.7 A at 90 VAC and maximum load

Output power

DC output

65W(19.5V/3.33A)

Hold-up time

5 msec at 115 VAC input

Output current limit

<11A, Over voltage protection- 29V max automatic shutdown

4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords

Operating temperature 0� to 35� C

Non-operating (storage) -20� to 85� C temperature

Altitude

0 to 5,000 m

Humidity

0% to 95%

Storage Humidity

0% to 95%

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 33

QuickSpecs
Technical Specifications
EMI and Safety Certifications

HP Elitebook 830 G5 Notebook PC
CE Mark - EMC directives; Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; Reliability - failure rate of less than 0.1% annually within the first three years of operation.

Battery SS 3 Cell 50 WHr Long Life -PL

Dimensions (H x W x L) Weight Cells/Type Energy
Temprature
Fuel Gauge LED Warranty Optional Travel Battery Available

L 278.7mm x W 76.3mm x H 7.1mm

193 +/- 10g

3cell Lithium-Ion Polymer cell / P604883A1

Voltage

11.55V/

Amp-hour capacity

4.113Ah/ 4.330Ah

Watt-hour capacity

50Wh

Operating (Charging) 0� to 50� C

Operating (Discharging) -10� to 60� C

N/A

3 years

No

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 34

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

ENVIRONMENTAL
Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

� IT ECO declaration � US ENERGY STAR� � EPEAT� 2019 silver registered in the United States. Based on US EPEAT� registration
according to IEEE 1680.1-2018 EPEAT�. Status varies by country. Visit http://www.epeat.net for more information.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Notebook model is based on a "Typically Configured Notebook".

Energy Consumption (in accordance with US ENERGY STAR� test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

4.99 W

4.94 W

5.02 W

Normal Operation (Long idle)

2.80 W

2.65 W

2.66 W

Sleep

0.83 W

0.85 W

0.84 W

Off

0.44 W

0.46 W

0.44 W

NOTE: Energy efficiency data listed is for an ENERGY STAR� compliant product if offered within the model family. HP computers marked with the ENERGY STAR� Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR� specifications for computers. If a model family does not offer ENERGY STAR� compliant configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows� operating system.

Heat Dissipation*
Normal Operation (Short idle)

115VAC, 60Hz 17 BTU/hr

230VAC, 50Hz 17 BTU/hr

100VAC, 50Hz 17 BTU/hr

Normal Operation (Long idle)

10 BTU/hr

9 BTU/hr

9 BTU/hr

Sleep

3 BTU/hr

3 BTU/hr

3 BTU/hr

Off

2 BTU/hr

2 BTU/hr

2 BTU/hr

NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 35

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications
Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power (LWAd, bels)

Sound Pressure (LpAm, decibels)

Typically Configured �

2.6

16

Idle

Fixed Disk � Random

3.5

31

writes

Longevity and Upgrading This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

Batteries Additional Information

� � 3 USB ports � � 1 PC card slot (type I/II) � � 1 ExpressCard/54 slot � � 1 IEEE 1394 Port � � 2 SODIMM memory slots � � Optional expansion base docking station � � 1 multi-bay II storage port � � Interchangeable HDD
Spare parts are available throughout the warranty period and or for up to "5" years after the end of production.
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain: Mercury greater the1ppm by weight Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell) Battery type: Lithium
� This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2011/65/EC.
� This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive � 2002/96/EC.
� This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).
� This product is in compliance with the IEEE 1680.1 (EPEAT) standard at the Silver level, see http://www.epeat.net
� Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.
� This product contains 0% post-consumer recycled plastic (by wt.) � This product is 95.1% recycle-able when properly disposed of at end of life.

Packaging Materials

External: PAPER/Corrugated

341 g

Internal: PLASTIC/Expanded Polyethylene - EPE

66 g

PLASTIC/Polyethylene low density - LDPE

13 g

PLASTIC/Polypropylene - PP

3 g

The plastic packaging material contains at least 50% recycled content. The corrugated paper packaging materials contains at least 70% recycled content.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 36

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

Packaging Usage

� Asbestos � Certain Azo Colorants � Certain Brominated Flame Retardants � may not be used as flame retardants in plastics � Cadmium � Chlorinated Hydrocarbons � Chlorinated Paraffins � Formaldehyde � Halogenated Diphenyl Methanes � Lead carbonates and sulfates � Lead and Lead compounds � Mercuric Oxide Batteries � Nickel � finishes must not be used on the external surface designed to be frequently
handled or carried by the user. � Ozone Depleting Substances � Polybrominated Biphenyls (PBBs) � Polybrominated Biphenyl Ethers (PBBEs) � Polybrominated Biphenyl Oxides (PBBOs) � Polychlorinated Biphenyl (PCB) � Polychlorinated Terphenyls (PCT) � Polyvinyl Chloride (PVC) � except for wires and cables, and certain retail packaging has
been voluntarily removed from most applications. � Radioactive Substances � Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product packaging: � Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials. � Eliminate the use of ozone-depleting substances (ODS) in packaging materials. � Design packaging materials for ease of disassembly. � Maximize the use of post-consumer recycled content materials in packaging materials. � Use readily recyclable packaging materials such as paper and corrugated materials. � Reduce size and weight of packages to improve transportation fuel efficiency. � Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 37

QuickSpecs

HP Elitebook 830 G5 Notebook PC

Technical Specifications

HP Inc.

For more information about HP's commitment to the environment:

Corporate Environmental Information

Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html Eco-label certifications http://www8.hp.com/us/en/hp-information/environment/ecolabels.html ISO 14001 certificates:
http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=c04755842
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

COUNTRY OF ORIGIN
China

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 38

QuickSpecs

HP EliteBook 830 G5 Notebook PC

Options and Accessories (sold separately and availability may vary by country)

Type
Cases

Description
HP Exec Midnight 15.6" Backpack HP Slim Top Load

Part #
1KM16AA F3W15AA

Docking

HP Thunderbolt Dock 120W G2 (Available in May 2018) HP USB-C Universal Dock HP USB-C Mini Dock HP UltraSlim Docking Station HP USB-C Dock G4 HP Elite 90W Thunderbolt 3 Dock

2UK37AA 1MK33AA 1PM64AA D9Y32AA 3FF69AA 1DT93AA

Input/Output

HP Slim Wireless Keyboard and Mouse HP Slim USB Keyboard and Mouse HP Wireless (Link-5) Keyboard HP Wireless Premium Mouse HP USB Premium Mouse HP Comfort Grip Wireless Mouse HP Ultra Mobile Wireless Mouse HP Slim Bluetooth Mouse HP Elite Presenter Mouse HP USB-C to USB-A Hub HP USB-C to DP HP USB-C to VGA HP HDMI to DVI HP HDMI to VGA HP USB-C to HDMI 2.0

T6L04AA T6T83AA T6U20AA 1JR31AA 1JR32AA H2L63AA H6F25AA F3J92AA 2CE30AA Z6A00AA N9K78AA N9K76AA F5A28AA H4F02AA 1WC36AA

Power

HP 45W USB-C Power Adapter HP 65W USB-C Power Adapter HP Notebook Power Bank HP USB-C Notebook Power Bank HP 65W Slim AC Adapter HP 90W Slim AC Adapter HP 90W Slim Combo AC Adapter w/ USB

1HE07AA 1HE08AA N9F71AA 1TZ86AA H6Y82AA H6Y83AA H6Y84AA

Storage

HP USB External DVDRW Drive HP 256GB M2 PCIe NVME SSD TLC (2280) HP 512GB M2 PCIe NVME SSD TLC (2280)

F2B56AA 1FU87AA 1FU88AA

Memory

HP 4GB 2400MHz DDR4 Memory HP 8GB 2400MHz DDR4 Memory HP 16GB 2400MHz DDR4 Memory

Z4Y84AA Z4Y85AA Z4Y86AA

Security

HP Docking Station Cable Lock

AU656AA

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 39

QuickSpecs

HP EliteBook 830 G5 Notebook PC

Options and Accessories (sold separately and availability may vary by country)

HP Keyed Cable Lock HP Keyed Cable Lock 10mm HP Dual Head Keyed Cable Lock

T0Y14AA T1A62AA T1A64AA

UCC

HP USB Collaboration Keyboard

HP Wireless Collaboration Keyboard

HP UC Wireless Mono Headset

HP UC Wireless Duo Headset

HP UC Speaker Phone

Z9N38AA Z9N39AA W3K08AA W3K09AA K7V16AA

Displays

HP EliteDisplay E273m 27-inch Monitor HP EliteDisplay E273q 27-inch Monitor HP EliteDisplay E243 23.8-inch Monitor

1FH51AA 1FH52AA 1FH47AA

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 40

QuickSpecs
Summary of Changes

HP EliteBook 830 G5 Notebook PC

Date of change: Version History:

February 12, 2018 V1 to V2

February 15, 2018 V2 to V3

February 28, 2018 V3 to V4

March 12, 2018 V4 to V5

May 7, 2018

V5 to V6

May 11, 2018

V6 to V7

May 14, 2018

V7 to V8

June 28, 2018

V8 to V9

July 16, 2018

V9 to V10

July 23, 2018

V10 to V11

September 3, 2018 V11 to V12

November 14, 2018 V12 to V13

February 13, 2019 V13 to V14

May 30, 2019

V14 to V15

June 7, 2019

V15 to v16

July 2, 2019

V16 to V17

Updated Updated Updated Updated Updated Updated Updated Updated Updated Updated Updated Added Removed Updated Updated Updated

Description of change: Environmental data added, Processor speed updated Panel specs updated 256GB 2280 PCIe NVMe Value Solid State Drive features specs added Processor list updated Display support matrix moved to Display Support section Displays and at a glance section updated Docking at options section updated Energy Star version updated to 6.1 in System Unit section Hidden functions Software section Display sections Processors Phonewise Software Lock Slot EPEAT Color Gamut

Copyright � 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Bluetooth is a trademark of its proprietor and used by HP Inc. under license. Intel�, CoreTM, Thunderbolt and Intel� vPro are trademarks of Intel� Corporation or its subsidiaries in the U.S. and/or other countries. USB Type-CTM and USB-CTM are trademarks of USB Implementers Forum. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

c05868480 -- DA16135 -- Worldwide -- Version 17 -- July 2, 2019

Page 41
