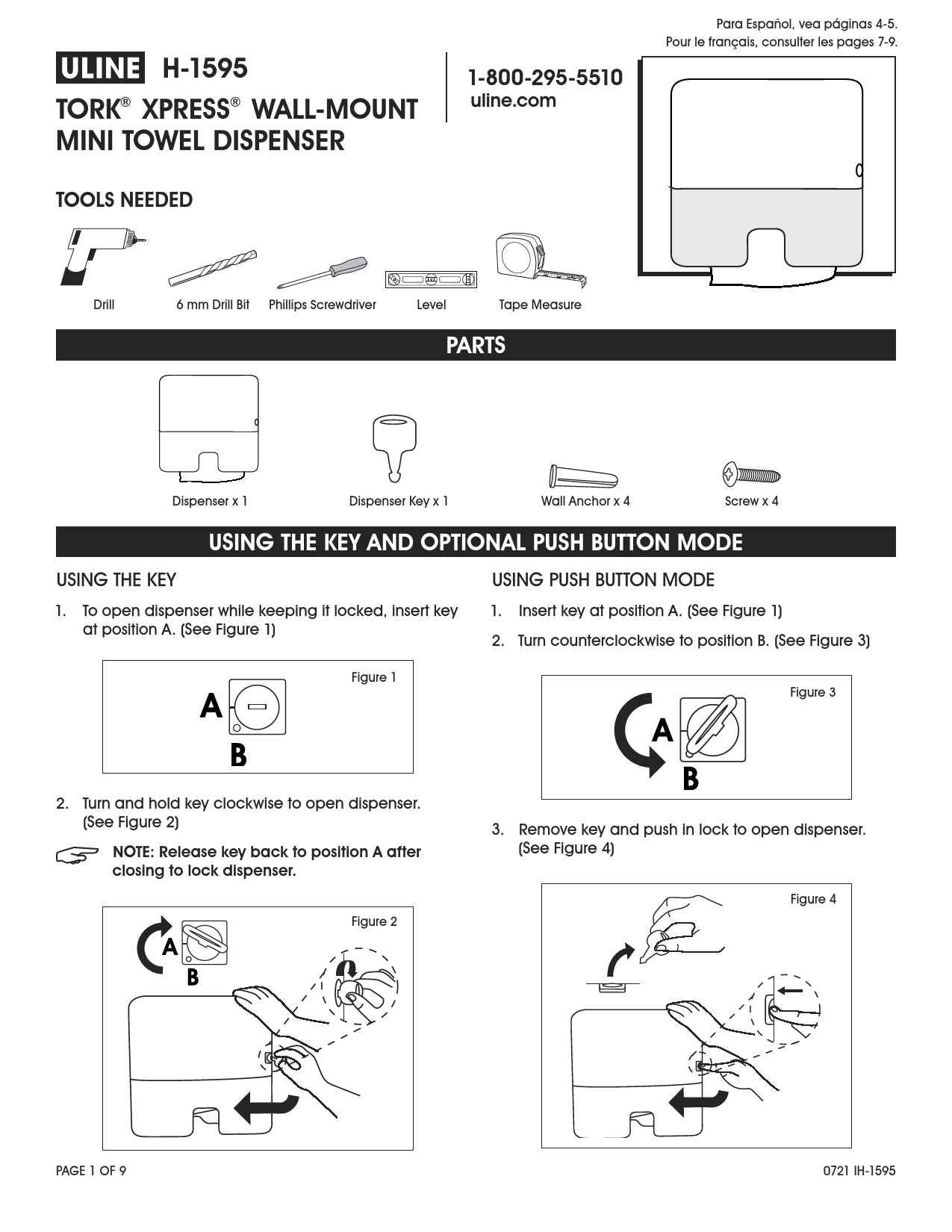

ULINE H-1595 TORK® XPRESS® WALL-MOUNT MINI TOWEL DISPENSER

Contact: 1-800-295-5510 | uline.com

For Spanish, see pages 4-5. For French, see pages 7-9.

Tools Needed

[drill icon] Drill
[6 mm drill bit icon] 6 mm Drill Bit
[screwdriver icon] Phillips Screwdriver
[level icon] Level
[tape measure icon] Tape Measure

Parts

[dispenser image] Dispenser x 1
[dispenser key image] Dispenser Key x 1
[wall anchor image] Wall Anchor x 4
[screw image] Screw x 4

Using the Key and Optional Push Button Mode

Using the Key

To open dispenser while keeping it locked, insert key [key icon] at position A. (See Figure 1)
Figure 1: Diagram of the dispenser lock mechanism with positions labeled A (locked) and B (unlocked).
Turn and hold key [key icon] clockwise to open dispenser. (See Figure 2)
Figure 2: Illustration showing turning the key clockwise from position A to open the dispenser. A small diagram shows the key turning.

NOTE: Release key [key icon] back to position A after closing to lock dispenser. [key turning diagram]

Using Push Button Mode

Insert key [key icon] at position A. (See Figure 1)
Figure 1: Diagram of the dispenser lock mechanism with positions labeled A (locked) and B (unlocked).
Turn counterclockwise to position B. (See Figure 3)
Figure 3: Diagram showing turning the key counterclockwise from position A to position B.
Remove key [key icon] and push in lock to open dispenser. (See Figure 4)
Figure 4: Depicts removing the key and pushing the lock mechanism inward to open the dispenser.

Mounting Instructions

NOTE: Recommended mounting height is 47" (1.19 m) from the floor to the bottom of the dispenser. If using a template, recommended mounting height is 47" from floor to bottom of piece of paper. [mounting height diagram]

Figure 5: Diagram showing a mounting template being taped to a wall at a specific height.

NOTE: Ensure that proper mounting hardware is used for appropriate wall composition, as enclosed hardware may not be compatible with your wall surface.

Tape mounting template to wall at desired height and ensure that template is level. (See Figure 5)
Figure 5: Diagram showing a mounting template being taped to a wall at a specific height.
Using a 6mm drill bit, drill into wall about 1½" (3.8 cm) at each marked screw location on template. [drilling diagram] (See Figure 6)
Figure 6: Illustration of a drill with a 6mm bit making holes in a wall according to the template.
Remove template from wall. Insert wall anchors [wall anchor icon] (if necessary) into four previously drilled holes. Hold dispenser up to wall so holes in wall and dispenser match up. Insert screws [screw icon] into circular base of top two holes but do not tighten completely. [dispenser alignment diagram] (See Figure 7)
Figure 7: Shows the dispenser being held against the wall, aligning holes, with screws inserted into the top two holes. Wall anchors are also shown.
Drop dispenser down so screws [screw icon] slide up into narrow slots and tighten screws [screw icon] completely. [dispenser mounting diagram] (See Figure 8)
Figure 8: Illustrates lowering the dispenser onto the wall screws, showing how they slide into the mounting slots.
Ensure the dispenser is level by looking at the level bar on the inside of the dispenser. If level, screw in last two screws [screw icon] into the bottom two holes. [level check diagram] (See Figure 9)
Figure 9: Depicts checking the dispenser's levelness using an internal level bar and then tightening the bottom screws.

Loading Instructions

Open the cover by using either the key [key icon] or push button.
Remove wrap from bundle of towels. Load dispenser being careful not to overload.
Close dispenser and pull first towel to begin dispensing. [dispensing diagram] (See Figure 10)
Figure 10: A sequence of three images showing: opening the dispenser cover, loading towels, and pulling the first towel.
