Parts Breakdown
Pressure Balance Tub & Shower Faucet Valve
MIR3001
Product Overview
This document provides a parts breakdown for the Mirabelle MIR3001 Pressure Balance Tub & Shower Faucet Valve.It includes a visual representation of the assembled valve and an exploded view detailing each component.
Image: Assembled ValveA close-up view of the Mirabelle MIR3001 pressure balance tub and shower faucet valve, showing its metallic construction and connection points.
Exploded View and Parts List

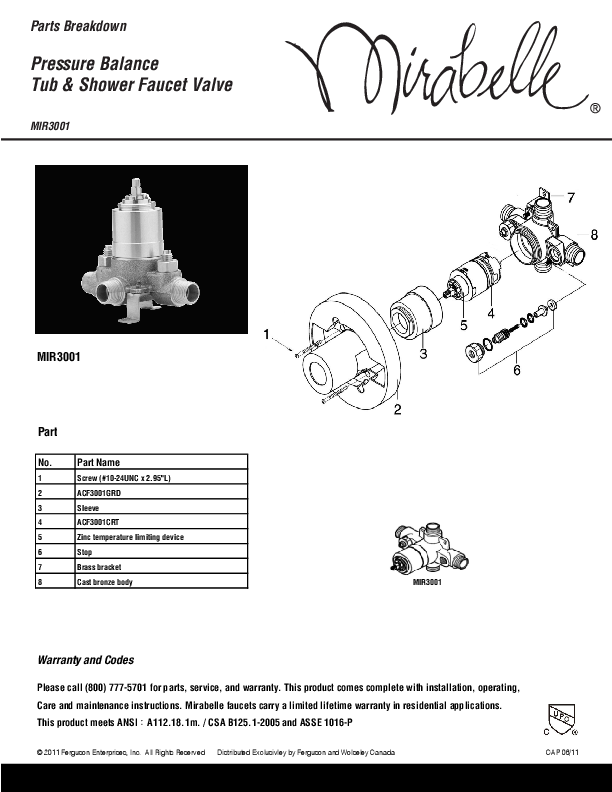

Diagram: Exploded View of MIR3001 Valve ComponentsThe diagram illustrates the individual parts of the MIR3001 valve, numbered for identification.The components are shown separated, with lines indicating their assembly order or relationship.Key parts include the cast bronze body, brass bracket, sleeve, stop, and a zinc temperature limiting device.A smaller diagram shows a sub-assembly of the valve mechanism.
| No. | Part Name |
|---|---|
| 1 | Screw (#10-24UNC x 2.95"L) |
| 2 | ACF3001GRD |
| 3 | Sleeve |
| 4 | ACF3001CRT |
| 5 | Zinc temperature limiting device |
| 6 | Stop |
| 7 | Brass bracket |
| 8 | Cast bronze body |
Warranty and Compliance
For parts, service, and warranty inquiries, please contact Ferguson at (800) 777-5701.This product comes complete with installation, operating, and care and maintenance instructions.Mirabelle faucets carry a limited lifetime warranty in residential applications.
This product meets the following standards:ANSI : A112.18.1m. / CSA B125.1-2005 and ASSE 1016-P.
The UPC (Uniform Plumbing Code) certification mark is present, indicating compliance with plumbing standards. [UPC Logo]
