TriBoard TC3X2
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0

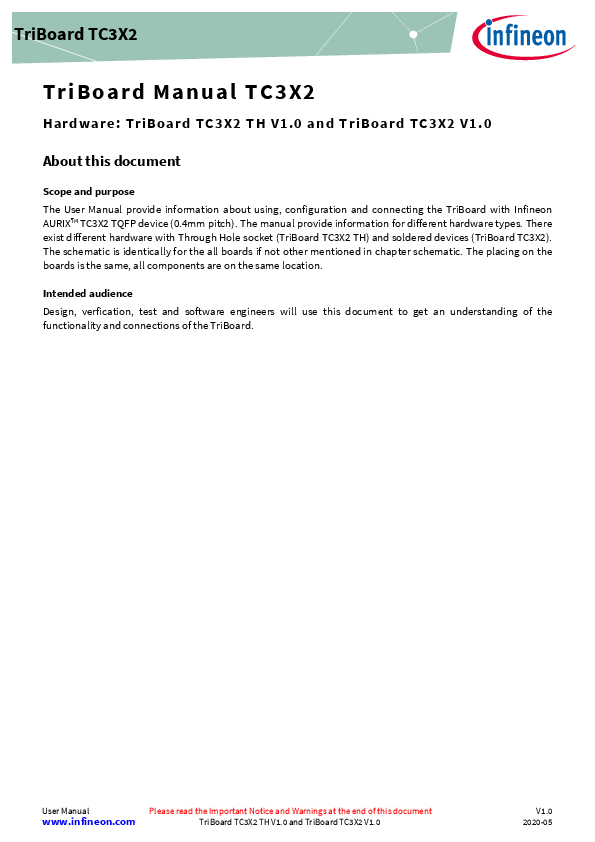

About this document
Scope and purpose The User Manual provide information about using, configuration and connecting the TriBoard with Infineon AURIXTM TC3X2 TQFP device (0.4mm pitch). The manual provide information for different hardware types. There exist different hardware with Through Hole socket (TriBoard TC3X2 TH) and soldered devices (TriBoard TC3X2). The schematic is identically for the all boards if not other mentioned in chapter schematic. The placing on the boards is the same, all components are on the same location.
Intended audience Design, verfication, test and software engineers will use this document to get an understanding of the functionality and connections of the TriBoard.
User Manual
Please read the Important Notice and Warnings at the end of this document
www.infineon.com
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Table of Contents
Table of Contents
About this document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Preface-1
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TOC-2
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
2 2.1 2.2 2.3
3 3.1 3.2 3.2.1 3.2.2 3.3 3.3.1 3.4 3.5 3.6 3.6.1 3.6.2 3.7 3.8 3.9 3.10 3.11 3.12 3.13 3.14 3.15 3.15.1 3.15.2 3.15.3 3.15.4 3.15.5 3.15.6
4 4.1 4.1.1 4.1.2 4.2 4.2.1 4.2.2
5 5.1 5.2 5.3 5.4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Summary of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
TriBoard Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Soldered board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Socketed board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Usable devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Restricted usable devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Failsafe handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 USB Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Serial Connection to PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 miniWiggler JDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 FlexRayTM (E-RAY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 Serial EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 MultiCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 LIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5 Other peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 Toggle LED's . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 Debug System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 OCDS1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 DAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 DAP_SCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 High speed with DAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 ETK connector (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 EmW Power (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
TriBoard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 HW Boot Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Default Pad State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Bootmode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Assembly Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 General optional resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 Resistors for peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Signal (on board used) Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Power Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Reset Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Config Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2 Clock Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
User Manual TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TOC-2
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Table of Contents
5.5 5.6
6 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 6.9 6.10 6.11
7 7.1 7.1.1 7.1.2 7.2 7.3 7.4
Debug Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2 Peripheral Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Connector Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 On Board only used signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 TC3X2 Connector / Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2 Power connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4 USB connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4 FlexRayTM (ERAY) connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4 CAN connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4 LIN connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5 OCDS1 connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5 DAP connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5 ETK connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 Ethernet miniWiggler power connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Schematic and Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 Known problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Known problems on TriBoard TC3X2 TH V1.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 Known problems on TriBoard TC3X2 V1.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9 Layout with Dimensioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
User Manual TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TOC-3
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Introduction
1
Introduction
We congratulate you on your purchase of the TriCoreTM Evaluation Board. This kit is a versatile tool, providing quick access to the capabilities of TriCoreTM's powerful architecture.
Applications can be developed easily. The Evaluation Board is equipped with a variety of memories and peripherals for connection to the environment. There is also an interface for the On Chip Debugging Features (OCDS1 and DAP).
The Evaluation Board allows easily the development of TriCoreTM applications with the corresponding tools.
Subsequently, the applications can be downloaded and can be tested with the powerful debugger software.
This TriBoard Hardware Manual familiarizes you with the TriCoreTM Evaluation Board and guides you through the initial configuration of the TriBoard.
For detailed technical information about the TC3X2 TQFP (e.g. TC332, TC322) please refer to the User Manual of the used device.
User Manual
1-1
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Features
2
Features
2.1
Summary of Features
� Infineon's TC3X2 (TC332, TC322) AURIXTM 2G Controller in TQFP-80 Package (0.4mm pitch) � FlexRayTM 1) Transceivers � High Speed CAN Transceivers (CAN-FD capable) � USB to UART bridge � Serial Eeprom � LIN Transceiver � Crystal 20MHz (default) or External Clock � USB miniWiggler JDS for easy debugging � 8 Low Power Status LEDs � 8-DIP switches for configuration � access to all pins of controller � 100mm x 160mm (EURO-Board)
Connectors
The TC3X2 TriBoard offers a wide variety of connectors:
� Standard power connector � Micro USB connector for ASC Interface (ASC0) and miniWiggler � 16-pin header for JTAG interface (OCDS) � 2 x 10-pin header for DAP and DAP_SCR � 10pin (2x5) Header for LIN Transceiver (LIN) � 2 x 10pin (2x5) Header for CAN High Speed Transceiver (CAN0 and CAN1) � 2 x 10pin (2x5) Header for FlexRayTM (ERAY-A and ERAY-B) � four 80-pin connectors (male) + four 80-pin connectors (female) with all I/O signals � optional ETK connector � optional 6pin (IEEE1394) Socket for HSCT
Components
� Infineon's Multi Voltage Safety Micro Processor Supply TLF35584QV � Three LEDs to validate power supply (5Volt / 3,3 Volt / 1,25 Volt) � LED indicating safe state signal 2 from TLF35584 � LED indicating /HDRST (ESR0) active state � LED indicating activ miniWiggler JDS � LED switched via DAS software � 2 x Infineon's FlexRayTM Transceiver TLE9221SX � 2 x Infineon's High Speed CAN-Transceiver TLE9251VSJ � Infineon's LIN-Transceiver TLE 7259-3GE � USB to UART bridge FT2232HL (FTDI) � 8 general purpose LEDs � 2K SPI Bus Serial Eeprom (MICROCHIP) � Reset switch � Enable switch � Generic switch
1) FlexRayTM is a trademark of FlexRay Consortium.
User Manual
2-1
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Features
� 4-pin Dip switch
Zero Ohm Bridges
Zero Ohm resistors give the flexibility to configure the systems functionality.
2.2
Block Diagram
XTAL
CAN0 CAN1
PLL TxCAN03 RxCAN03
Transceiver
TxCAN01 RxCAN01
TC3X2
Micro USB
USB
miniWiggler
OCDS1
TX0 RX0
(e.g. TC332, TC322)
LIN
LIN Transceiver
TX1 TriCoreTM
RX1
CPU
ERAY A
FlexRay Transceiver
ERAY B
QSPI1
8 LED s (P33.4 up to P33.7, P20.11 up to P20.14)
Serial EEPROM
Figure 2-1 TriBoard Block Schematic
WAKEUP
QSPI1
Multi Voltage Safety Micro Processor Supply TLF35584QV
ENA
User Manual
2-2
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Features
2.3
Placement
X604
BU401
Y401
U401
D401 D402 T301
X404
X301
U305 S201
U201
X303
X401
X304
T302
X302
L502 S501
U502
C303
C502
U501
D504
D507
D506
D508 D505
S502
L501 R501
X603
X305
X501
C501
Figure 2-2 TriBoard TC3X2 (TH) V1.0 Placement
D30 2 D30 3 D30 4 D30 5 D30 6 D30 7 D30 8 D30 9
Y201
X601 S202
X402 X502
X406 X602
User Manual
2-3
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Information
3
TriBoard Information
3.1
Soldered board
TriBoard TC3X2 V1.0 is the soldered board and will be available only with usable devices. Please see also chapter Usable devices.
3.2
Socketed board
TriBoard TC3X2 TH V1.0 is the socketed board.
3.2.1 Usable devices
Note:
Note: Please check always the latest manual for complete list of usable/tested devices.
The board can be used with the following devices:
� TC332 � TC322 (planned, not yet tested)
3.2.2 Restricted usable devices
� None
3.3
Power Supply
All needed voltages are generated via Infineon's Multi Voltage Safety Micro Processor Supply TLF35584QV and via the microcontroller itself (+1,25V).
The supply device is available as two different devices:
TLF35584QVVS1 -> +5V standby voltage, +5V TriCoreTM supply (V_UC)
TLF35584QVVS2 -> +3,3V standby voltage, +3,3V TriCoreTM supply (V_UC)
Dependent of the assembled device the board works with 5V or 3,3V IO.
The TLF35584QV provide the following voltages:
+3,3V or +5V for standby (connected to VEVRSB)
+3,3V or +5V for TriCoreTM (connected to VEXT)
+5V communcation supply (used by CAN and FlexRayTM transceivers)
+5V voltage reference (connected to VDDM and VAREFx)
+3,3V via LDO directly from pre regulator
Applying a stable supply voltage causes the power on reset after a short period. The three LED's (V_UC, +3.3V, VDD) indicate the status of the on board generated voltages.
A manual power on reset is executed by pressing the reset button.
The Board has to be connected to a +3,5V to +40V DC power supply.
The power consumption is not specified yet but a supply with 12V and 500mA is recommended. The pinout for the supply connector is shown in Figure 6-3. There can be used any standard power pack with a connector where the positive line is surrounded by the ground line.
User Manual
3-1
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Information
3.3.1 Failsafe handling
In case that the device don't contains a program which disable or service the window watchdog and error pin monitor of the TLF35584 then the TLF35584 is going to a FAILSAFE state where all supplies are switched off. This state can be left via reconnect the power plug or via the ENA button (S502). In this case you must connect a debugger which is able to disable the window watchdog and error pin monitor to reprogram the microcontroller. In the default state of the board the switching to FAILSAFE state is switched off via resistor R508. If you will use/evaluate all safety features of the TLF35584 make sure that R509 is assembled and R508 is not assembled. Make sure that you have a proper initialization of TLF35584 in your softare. Resistor R508 and R509 are red marked in the following Figure 3-1:
CB401
BU401
X303 L401
X604
Y401
R402 R403
U401
R390 X404
R399
S202
R256
D30 8 D30 9
D30 7
D30 6
D30 4 D30 5
D30 2 D30 3
R255
R439 R391
R392 R393 R394 R395 R396 R397 R398
CB309
R346
S2 01 R525
U404 CB40 8
CB416 CB4 18
U3 05
CB405
C402
R4 01
R335
R337
T301
CB402 D401 D402 U407
U408
R411
R456
CB417 R4 28
R446
R427
C B41 9 R455
CB415
CB414 U 406
X301
R348 U201
R423 R451 R454 R444
C301 R336
X401
C504 L502
C5 03 C B5 02
C509 C508 R5 08
R324
T302
C505
R354 R344
U502
C303 R361
D301
C502
U501
R424
S501
R426 R425 R532
R53 1
R202 R201
D504 D507 D506
D508 D505 R509
CB511 C208 C207
R246
R245
C507 R507
S502 R244
R222
X302 CB205
R233 R2 32 R23 4 R235
R524
R237
R241
R236
CB512
R240 R430
R429 R216 R213
X402
R212
R452
R215 R214
C202
R206 R205
R204
R2 07 Y201
C201 R203
X406
X502
R457
R357 R355 C302 R356
R248 R249
CB501
L501 R501
X603
X601 X602
X30 4
X305 R359
X501
C501
Figure 3-1 Resistors for TLF35584 Safety feature handling with switch on
3.4
LEDs
There are 15 LEDs on board:
� D302 up to D305 (blue) -> toogle LEDs connected to P33.4 ... P33.7 � D306 up to D309 (blue) -> toogle LEDs connected to P20.11 ... P20.14 � D504 RST (red) -> RESET LED indicate the reset state of the board (/ESR0) � D505 VDD (green) ->VDD (+1,25V) power supply indication � D506 +3V3 (green) -> +3,3V power supply indication � D507 V_UC (green) -> +5V/+3,3V power supply indication � D508 SS2 (green) -> safe state signal 2 indication � D402 ACT (green) -> on board miniWiggler JDS is ACTIV � D401 RUN (blue) -> Debug RUN mode (switched by DAS Server)
User Manual
3-2
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Information
3.5
Clock
On the board is a fixed crystal with 20MHz assembled. You can change this by replacing Y101 (soldered).
3.6
USB Connector
The USB connector is used for connection to a PC. Via the USB it is possible to power the board, using the ASCLIN0 as serial connection via USB and Debugging via DAS. For the pinout of USB socket see Figure 6-4.
NOTE: Before connecting the board to the PC, make sure that the actual DAS software is installed on the PC. For actual DAS software please contact your local FAE.
The software can also be found on:
DAS website
3.6.1 Serial Connection to PC
After the first connection of USB to a PC the needed driver will be installed automatically. During this there will be created a new COM port on PC. This COM port can be used to communicate with the board via ASCLIN0 of the device. Per default the ASCLIN0 is used on P14.0 and P14.1 (e.g. Generic Bootstrap Loader) . In case you will use the Generic Bootstrap Loader via CAN or ASCLIN0 via P15.2 and P15.3 you must:
� remove R436 and R437 (this disconnect the serial connection from P14.0 and P14.1) � remove R301 and R302 (this disconnect the CAN0 transceiver from P11.10 and P11.12) � assemble R438 and R440 with 0R resistor (size 0603) to connect P15.2 and P15.3 to serial connection � assemble R303 and R304 with 0R resistor (size 0603) to connect P14.0 and P14.1 to CAN0 transceiver
The mentioned resistors are red marked in Figure 3-2.
X701
X704
CB413 CB412
X702
R535
C519
CB516
CB201
CB202 R209
CB518 C517
CB517 CB510
R208 C5 16
C518
C203
R520
C B5 20 CB515
CB204 C205 C204
C406 CB409
C404 C405
C4 03 CB410 C401
R414 CB404
R433
R436
R304 R302
R449 R422
R438
R448 R447
R307
R3 09 CB407
R4 31
R419
R440 R420 R437
Q403 R418
R417 Q402 R416 R443
R413 R421 R410
U403
Q401
R409
R445 R415
CB403 R406
R412 R450
L402 CB411
R442
R405
R404
U405 R441
U402 CB406
R407
R334
CB301 R308
U30 1
R303
R521
R301
R306
R305
D403
R323
R330
R320
R321
CB305
R350 R338
CB302 R318
R312
R317
U302
R311 R513 R512
R31 9
R408
R322
R331
R316 R315 C515
R340 Q502
R341
R343
R342
CB308
R533 R538 Q503
R358 R351
R537
R364 R365
U304
U303
CB304 R333 CB303 R332
CB307 R353 CB306
R352 R362
R363
Q5 04
R510 R221 R220
R511
R503 R505
R504 C5 10 C512 C511
D501 Q501
R360
U306 C304
CB310 D503
Q505 R50 2 R534
R 50 6
X703
D502
Figure 3-2 Resistors for ASC connection (ASC0)
User Manual
3-3
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Information
3.6.2 miniWiggler JDS
The miniWiggler JDS is a low cost debug tool which allows you access to the JTAG of the device. Make sure that you have the latest DAS release. Debugging is possible via the DAS Server `UDAS`. Please contact your prefered debug vendor for support of DAS.
If you have connected the board to the PC and there runs the DAS server, then a working connection is visible via the green ACTIV LED.
The status RUN LED is switched on/off through the DAS Server, depending on the used debugger (client).
IMPORTANT: Make sure that there is no or a tristated connection on X401 (OCDS1) and X402 (DAP) if the ACTIV LED is on.
Per default the miniWiggler is connected to the DAP. If resistors R214, R215 and R216 assembled (default) then the standard DAP is connected to miniWiggler. If all this resistors are not assembled then the miniWiggler can't be used. In this case only the DAP connectors X402 and X406 can be used. See Figure 3-6.
3.7
FlexRayTM (E-RAY)
The board has 2 IDC10 plugs for FlexRayTM Communication (channel A and B) with up to 10 Mbit/s. For the pinout of the plugs see Figure 6-5. You can use a IDC female connector with crimpconnector, flat cable and SUB-D 9 plug with crimpconnector to have a 1:1 adapter to SUB-D 9.
The transceiver are connected to the TriCoreTM device via zero ohm resistors (R320 up to R324 and R340 up to R344) which must be removed to use the ports outside.
ERAY-A can be connected to P02.0, P02.1 and P02.4. Transceiver for channel A can be enabled/disabled via P20.8. The error state of transceiver channel A can be read out via P20.9.
ERAY-B is connected to P02.2, P02.3 and P02.5. Transceiver for channel B can be enabled/disabled via P02.6. The error state of transceiver channel A can be read out via P02.7.
For more information look in the user manual for TC3X2 TQFP.
3.8
Serial EEPROM
The QSPI1 of the TC3X2 TQFP is connected to a serial EEPROM with a size of 2KBit (256 x 8). As chip select for this EEPROM is used the port pin P23.1. P23.1 has no chip select functionality of QSPI. Therefore the software must generate the chip select manual via bit banging. To disconnect (disable) the EEPROM remove resistor R348.
3.9
MultiCAN
On the board are two CAN transceiver connected to the CAN0 and CAN1 of TC3X2 TQFP. The transceivers are connected to two IDC10 plug. For the pinout of IDC10 plug see Figure 6-6. You can use a IDC female connector with crimpconnector, flat cable and SUB-D 9 plug with crimpconnector to have a 1:1 adapter to SUB-D 9.
The transceiver are connected to the TriCoreTM device via zero ohm resistors (R301 up to R304 and R311 up to R314) which must be removed to use the ports outside.
CAN0 can be used via P11.10 and P11.12 (CAN0 node 3, default) or P14.0 and P14.1 (CAN0 node 1). CAN1 can be used via P15.2 and P15.3 (CAN0 node 1, default).
3.10 LIN
On the board is one LIN transceiver connected to the ASCLIN1 on TC3X2 TQFP (P15.0 and P15.1). The transceiver are connected to one IDC10 plug. For the pinout of IDC10 plug see Figure 6-7. You can use a IDC female connector with crimpconnector, flat cable and SUB-D 9 plug with crimpconnector to have a 1:1 adapter to SUB-D 9. To disconnect the LIN remove resistor R364 and R365.
User Manual
3-4
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Information
The LIN can be used in master and in slave mode. For the master mode there is per default a pull-up of 1K (R360) and a capacitor of 1nF (C304) on the BUS assembled. For using the LIN in slave mode the pull-up resistor R360 must be removed and maybe the capacitor changed to a smaller value (e.g. 220pF). The mentioned resistor and capacitor are red marked in Figure 3-3
X701
X704
CB413 CB412
X702
R535
C519
CB516
CB201
CB202 R209
CB518 C517
CB517 CB510
R208 C5 16
C518
C203
R520
C B5 20 CB515
CB204 C205 C204
C406 CB409
C404 C405
C4 03 CB410 C401
R414 CB404
R433
R436
R304 R302
R449 R422
R438
R448 R447
R307
R3 09 CB407
R4 31
R419
R440 R420 R437
Q403 R418
R417 Q402 R416 R443
R413 R421 R410
U403
Q401
R409
R445 R415
CB403 R406
R412 R450
L402 CB411
R442
R405
R404
U405 R441
U402 CB406
R407
R334
CB301 R308
U30 1
R303
R521
R301
R306
R305
D403
R323
R330
R320
R321
CB305
R350 R338
CB302 R318
R312
R317
U302
R311 R513 R512
R31 9
R408
R322
R331
R316 R315 C515
R340 Q502
R341
R343
R342
CB308
R533 R538 Q503
R358 R351
R537
R364 R365
U304
U303
CB304 R333 CB303 R332
CB307 R353 CB306
R352 R362
R363
Q5 04
R510 R221 R220
R511
R503 R505
R504 C5 10 C512 C511
D501 Q501
R360
U306 C304
CB310 D503
Q505 R50 2 R534
R 50 6
X703
D502
Figure 3-3 Components for LIN Master Mode
3.11 ADC
On this boards are 5 ADC channels prepared with a low pass filter. On pin AN5, AN11, AN12, AN32 and AN33 is assembled a capacitor of 47nF and a serial resistor of 4,7K. The filter components are red marked in the following figures (Figure 3-4 and Figure 3-5).
User Manual
3-5
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Information
CB401
BU401
L401 C402
R4 01 CB405
X303 R335
T301
X604
Y401
R402 R403
U401
R390 X404
R399
S202
R256
D30 7 D30 8 D30 9
D30 6
D30 4 D30 5
D30 2 D30 3
R255
R439 R391
R392 R393 R394 R395 R396 R397 R398
CB309
R346
S2 01 R525
U404 CB40 8
CB416 CB4 18
U3 05
R337
CB402 D401 D402 U407
U408
R411
R456
CB417 R4 28
R446
R427
C B41 9 R455
CB415
CB414 U 406
X301
R348 U201
R423 R451 R454 R444
C301 R336
X401
C504 L502
C5 03 C B5 02
C509 C508 R5 08
R324
C505
R354
R344
U502
C303 R361
D301
C502
U501
R424
S501
R426 R425 R532
R53 1
R202 R201
D504 D507
D506
D508 R509
D505
CB511 C208 C207
R246
R245
C507 R507
S502 R244
R222
X302 CB205
R233 R2 32 R23 4 R235
R524
R237
R241
R236
CB512
R240 R430
R429 R216 R213
X402
R212
R215 R214
C202
R452
R206 R205
R204
R2 07 Y201
C201 R203
X406
X502
R457
R248 R249
CB501
L501 R501
X603
X601 X602
X30 4 R357 R355
T302 C302 R356
X305 R359
X501
C501
Figure 3-4 Filter components of ADC channels on Top Side
X701
X704
CB413 CB412
X702
R535
C519
CB516
CB201
CB202 R209
CB518 C517
CB517 CB510
R208 C5 16
C518
C203
R520
C B5 20 CB515
CB204 C205 C204
C406 CB409
C404 C405
C4 03 CB410
C401
R414 CB404
R433
R436
R304 R302
R449 R422
R438
R448 R447
R307
R3 09 CB407
R4 31
R419
R440 R420 R437
Q403 R418
R417 Q402 R416 R443
R413 R421 R410
U403
Q401
R409
R445 R415
CB403 R406
R412 R450
L402 CB411
R442
R405
U402
R404 U405 R441
CB406 R407
R334
CB301 R308
U30 1
R303
R521
R301
R306
R305
D403
R323
R330
R320
R321
CB305
R350 R338
CB302 R318
R312
R317
U302
R311 R513 R512
R31 9
R408
R322
R331
R316 R315 C515
R340 Q502
R341
R343
R342
CB308
R533 R538 Q503
R358 R351
R537
R364 R365
U304
U303
CB304 R333 CB303 R332
CB307 R353 CB306
R352 R362
R363
Q5 04
R510 R221 R220
R511
R503 R505
R504 C5 10 C512 C511
D501 Q501
R360
U306 C304
CB310 D503
Q505 R50 2 R534
R 50 6
X703
D502
Figure 3-5 Filter components of ADC channels on Bottom Side
User Manual
3-6
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Information
3.12 Other peripherals
For all other peripherals there are no special plugs on the board. The peripheral signals are available on the different connectors. See "Connector Pin Assignment" on Page 6-1.
3.13 Toggle LED's
The status LED's are low active and can be controlled by Software. Port 20 pin 11 up to pin 14 are connected to single LED's (D306... D309) and powered by the normal microcontroller voltage. Port 33 pin 4 up to pin 7 are connected to single LED's (D302... D305) and powered by the standby voltage. This means that this LED's can be are activ also when the board is in standby mode and only the standby voltage available (port 33 is powered by VEVRSB pin which is connected to standby supply of TLF35584). In this case the port pins are controlled by the standby controller if available.
3.14 Buttons
On the board are three buttons. The reset button (S501) will apply a warm power on reset to the device. The ENA button (S502) will be used to enable/wakeup the TLF35584. The P33.9 button (S202) can be used by software as input. Also can this button used by the standby controller to react on an event when only standby supply is available (e.g. wakeup the TLF35584 via P33.10).
3.15 Debug System
3.15.1 OCDS1
The OCDS1 signals are connected to the IDC16 plug (X401). They work with the port supply of Microcontroller (+5V default or +3,3V). For pinout of the connector see Figure 6-8. You can connect any debugger to this connector. The signals /BRKIN and /BRKOUT are not connected per default. If you need this signals in the connector then assemble R424 and R425 or R426 with a 0R resistor. If you connect a debug hardware make sure that the miniWiggler JDS (see "miniWiggler JDS" on Page 3-4) is not activ (ACTIV LED is off) and on the DAP connector (X402) is no hardware connected or the hardware is tristated. If the ACTIV LED is on, then stop the active DAS Server 'UDAS' and/or remove the USB connection to the PC. If R214 up to R216 not assembled then the connector is not usable.
3.15.2 DAP
The board comes with a DAP connector (X402). For pinout of this connector see Figure 6-9. You can connect a DAP hardware here. If you use this connector make sure that the miniWiggler JDS is not activ (ACTIV LED is off) and a connected OCDS1 hardware is disconnected or tristated.
3.15.3 DAP_SCR
Additional DAP connector (X406) is connected to DAP_SCR. This DAP can be used as private DAP connection to the standby controller. For pinout of this connector see Figure 6-9. You can connect a DAP hardware here. This DAP use P33.6 and P33.7 which are connected to LED on the board. Maybe it is necessary to remove R393 and R394 if the speed of the connection is not fast enough.
User Manual
3-7
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Information
3.15.4 High speed with DAP
For use the DAP connection with 160 MHz you need to remove 3 resistors to have a very short connection between device and connector. On the TC3X2 Triboard this 3 resistors are R214, R215 and R216 for DAP (red marked in Figure 3-6). This resistors needs to be removed. Important: When the resistors are removed then only the DAP connector on the board can be used. The on board wiggler and the OCDS1 connector couldn't be use (are disconnected) in this case, also the DAP/JTAG part of the ETK connector couldn't be used. All resistors are red marked in the following figure:
CB401
BU401
L401 C402
R401 CB405
X303 R335
T301
X604
Y401
R402 R403
U401
R390 X404
R399
S202
R256
D30 8 D30 9
D30 7
D30 6
D30 4 D30 5
D30 2 D30 3
R2 55
R439 R39 1
R392 R393 R394 R395 R396 R397 R398
CB309
R346
S2 01 R525
U404 C B40 8
CB416 C B4 18
U305
R337
CB402 U407
D401 D402
U408
R411
R456
CB41 7 R428
R446
R427
CB419 R455
CB415
CB414 U406
X301
R348 U201
R423 R451 R454 R444
C301 R336
X401
C504 L502
C503 CB502
C509 C508 R508
R324
C505
R354
R344
U502
C303 R361
D301
C502
U501
R424
S501
R426 R425 R532
R531
R202 R201
D504 D507
D506
D508 R509
D505
CB511 C208 C207
R246
R245
C507 R507
S502 R244
R222
X302 CB205
R233 R2 32 R234 R235
R524
R23 7
R241
R236
CB512
R240 R430
R429 R216 R213
X402
R212
R215 R214
C202
R452
R206 R205 R204
R207 Y201
C201 R203
X406
X502
R457
R248 R249
CB501
L501 R501
X603
X601 X602
X304 R357 R355
T302 C302 R356
X305 R359
X501
C501
Figure 3-6 Location of DAP resistors on Top Side
3.15.5 ETK connector (optional)
The TriBoard provide a 10 pin samtec connector (X404) for connecting to an ETK. This connector should be assembled by your self if needed. For the pinout of connector see Figure 6-10. The needed Samtec connector is: TFM-105-02-A.
3.15.6 EmW Power (optional)
The TriBoard provide the 4 pin power connector (X502) for the Ethernet miniWiggler (EmW). This connector should be assembled by your self if needed. For the pinout of connector see Figure 6-11. The needed Samtec connector is the JST B4B-PH-K. The connector provide the input voltage to the Ethernet miniWiggler and an enable/wakeup signal connected to TLF35584.
User Manual
3-8
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Information
Because the device don't have a VDDSB pin the 1,25V standby supply pin of the connector is not connected on this board.
User Manual
3-9
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Configuration
4
TriBoard Configuration
4.1
HW Boot Configuration
P10.5 P10.6 P14.3 on
1
2
3
4
Figure 4-1 HW Configuration DIP-Switches
The picture above shows the definition of the boot HW configuration switch. The meaning of the switches will be described in the following table (Table 4-1).
Note: The ON position of the switch is equal to a logical LOW at the dedicated pin.
4.1.1 Default Pad State
P14.4 / HWCFG6 is used to select the Default Pad State. Dipswitch 1 used to select this.
In case that dispswitch1 is set to ON then all I/O pins are in tristate otherwise the internal pull-up devices are enabled on the I/O pins. Please note that after change Dipswitch 1 you must make a power cycle (switch off -> switch on) to use the new configuration.
In case that TriState is selected (Dipswitch 1 is set to ON) then the I/O pins are floating. If you need a specific level on different pins during startup (e.g. driver pins) then you must add the needed pull device (up or down). Some pins (especially the HWCFG pins) haven always the needed external pull-up and/or pull-down resistor assembled on the board.
4.1.2 Bootmode
Table 4-1 User Startup Modes 1)2)3)
HWCFG[5...3] Type of Boot
XX1
Start-up mode is selected by Boot Mode Index
110
Internal Start from Flash
100
Alternate Boot Mode, Generic Bootstrap Loader on fail (P14.0/P14.1)
010
Alternate Boot Mode, ASC Bootstrap Loader on fail (P15.2/P15.3)
000
Generic Bootstrap Loader (P14.0/P14.1)
1) The shadowed line indicates the default setting.
2) 'x' represents the don't care state.
3) 2 to 4 are the Dip Switch numbers.
234 X X OFF OFF OFF ON ON OFF ON OFF ON ON ON ON ON
User Manual
4-1
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Configuration
4.2
Assembly Options
4.2.1 General optional resistors
Table 4-2 General optional resistors (default assembly in brackets)
Component
Description
R202
Connect P20.2 (/TESTMODE) to GND (not assembled)
R203
XTAL1 Rload (50 Ohm) (not assembled)
R206
XTAL Rparallel (not assembled)
R207
XTAL2 Rserial (assembled)
R238
Switch off EVRC (not assembled)
R240
Switch off EVR33 (not assembled)
R390
Connect V_STBY to toggle LEDs D302...D305 (assembled)
R399
Connect V_UC to toggle LEDs D306...D309 (assembled)
R423
Connect P20.0 with miniWiggler JDS (not assembled)
R424
Connect P20.0 with OCDS1 connector (not assembled)
R425
Connect P21.7 with OCDS1 connector (not assembled)
R426
Connect P20.2 with OCDS1 connector (not assembled)
R427
Connect P21.7 with USR1 of miniWiggler JDS (not assembled)
R428
Connect P20.2 with USR1 of miniWiggler JDS (not assembled)
R429
Connect P21.6 (DAP3) with USR1 of DAP (assembled)
R430
Connect P20.2 with USR1 of DAP (not assembled)
R433
Connect P21.7 with ETK connector (not assembled)
R439
Connect P21.7 with ETK connector (not assembled)
R508
Connect pin MPS of TLF35584 to V_CO (not assembled)
R509
Connect pin MPS of TLF35584 to Ground (assembled)
R524
Connect VDDP3 to V_UC (not assembled)
R525
Connect VDDP3 to +3V3 (not assembled)
Note:
All resistors are red marked in the following figures
User Manual
4-2
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Configuration
CB401
BU401
X303 L401
X604
Y401
R402 R403
U401
R390 X404
R399
S202
R256
D30 8 D30 9
D30 7
D30 6
D30 4 D30 5
D30 2 D30 3
R255
R439 R391
R392 R393 R394 R395 R396 R397 R398
CB309
R346
S2 01 R525
U404 CB40 8
CB416 CB4 18
U3 05
C402 CB405
R4 01 T301
R335
R337
CB402 D401 D402 U407
U408
R411
R456
CB417 R4 28
R446
R427
C B41 9 R455
CB415
CB414 U406
X301
R348 U201
R423 R451 R454 R444
C301 R336
X401
C504 L502
C5 03 C B5 02
C509 C508 R5 08
R324
C505
R354 R344
U502
C303 R361
D301
C502
U501
R424
S501
R426 R425 R532
R53 1
R202 R201
D504 D507
D506
D508 R509
D505
CB511 C208 C207
R246
R245
C507 R507
S502 R244
R222
X302 CB205
R233 R2 32 R23 4 R235
R524
R237
R241
R236
CB512
R240
R430 R429 R216 R213
R212
R207 Y201
X402
R215 R214
C202
R452
R206 R205
R204
C201 R203
X502 X406
R457
R248 R249
CB501
L501 R501
X603
X601 X602
X30 4 R357 R355
T302 C302 R356
X305 R359
X501
C501
Figure 4-2 Location of general optional resistors on Top Side
X701
X704
CB413 CB412
X702
R535
C519
CB516
CB201
CB202 R209
CB518 C517
CB517 CB510
R208 C5 16
C518
C203
R520
C B5 20 CB515
CB204 C205 C204
C406 CB409
C404 C405
C4 03 CB410 C401
R414 CB404
R433
R436
R304 R302
R449 R422
R438
R448 R447
R307
R3 09 CB407
R4 31
R419
R440 R420 R437
Q403 R418
R417 Q402 R416 R443
R413 R421 R410
U403
Q401
R409
R445 R415
CB403 R406
R412 R450
L402 CB411
R442
R405
R404
U405 R441
U402 CB406
R407
R334
CB301 R308
U30 1
R303
R521
R301
R306
R305
D403
R323
R330
R320
R321
CB305
R350 R338
CB302 R318
R317 R312
R311 R513 R512
U302
R31 9
R408
R322 R331
R316 R315 C515
R340 Q502
R341
R343
R342
CB308
R533 R538 Q503
R358 R351
R537
R364 R365
U304
U303
CB304 R333 CB303 R332
CB307 R353 CB306
R352 R362
R363
Q5 04
R510 R221 R220
R511
R503 R505
R504 C5 10 C512 C511
D501 Q501
R360
U306 C304
CB310 D503
Q505 R50 2 R534
R 50 6
X703
D502
Figure 4-3 Location of general optional resistors on Bottom Side
User Manual
4-3
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Configuration
4.2.2 Resistors for peripherals
Table 4-3 Resistors for peripherals (default assembly in brackets)
Component
Description
R220
Connect V_VR with VDDM (assembled)
R221
Connect +3V3 with VDDM (not assembled)
R222
Connect VAREF1 with VDDM (assembled)
R301
Connect P11.10 with RXD of CAN0 transceiver (assembled)
R302
Connect P11.12 with TXD of CAN0 transceiver (assembled)
R303
Connect P14.1 with RXD of CAN0 transceiver (not assembled)
R304
Connect P14.0 with TXD of CAN0 transceiver (not assembled)
R311
Connect P15.3 with RXD of CAN1 transceiver (assembled)
R312
Connect P15.2 with TXD of CAN1 transceiver (assembled)
R320
Connect P02.0 with TXD of ERAY-A transceiver (assembled)
R321
Connect P02.4 with TXDEN of ERAY-A transceiver (assembled)
R322
Connect P02.1 with RXD of ERAY-A transceiver (assembled)
R323
Connect P20.8 with EN of ERAY-A transceiver (assembled)
R324
Connect P20.9 with ERRN of ERAY-A transceiver (assembled)
R340
Connect P02.2 with TXD of ERAY-B transceiver (assembled)
R341
Connect P02.5 with TXDEN of ERAY-B transceiver (assembled)
R342
Connect P02.3 with RXD of ERAY-B transceiver (assembled)
R343
Connect P02.6 with EN of ERAY-B transceiver (assembled)
R344
Connect P02.7 with ERRN of ERAY-B transceiver (assembled)
R348
Connect P23.1 with CS of SPI Eeprom (assembled)
R364
Connect P15.1 with RXD of LIN1 transceiver (assembled)
R365
Connect P15.0 with TXD of LIN1 transceiver (assembled)
R436
Connect P14.0 with RXD of USB to UART (assembled)
R437
Connect P14.1 with TXD of USB to UART (assembled)
R438
Connect P15.2 with RXD of USB to UART (not assembled)
R440
Connect P15.3 with TXD of USB to UART (not assembled)
Note:
All resistors are red marked in the following figures
User Manual
4-4
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
TriBoard Configuration
CB401
BU401
X303 L401
X604
Y401
R402 R403
U401
R390 X404
R399
S202
R256
D30 8 D30 9
D30 7
D30 6
D30 4 D30 5
D30 2 D30 3
R255
R439 R391
R392 R393 R394 R395 R396 R397 R398
CB309
R346
S2 01 R525
U404 CB40 8
CB416 CB4 18
U3 05
C402 CB405
R4 01 T301
R335
R337
CB402 D401 D402 U407
U408
R411
R456
CB417 R4 28
R446
R427
C B41 9 R455
CB415
CB414 U406
X301
R348 U201
R423 R451 R454 R444
C301 R336
X401
C504 L502
C5 03 C B5 02
C509 C508 R5 08
R324
C505
R354 R344
U502
C303 R361
D301
C502
U501
R424
S501
R426 R425 R532
R53 1
R202 R201
D504 D507
D506
D508 R509
D505
CB511 C208 C207
R246
R245
C507 R507
S502 R244
R222
X302 CB205
R233 R2 32 R23 4 R235
R524
R237
R241
R236
CB512
R240 R430
R429 R216 R213
X402
R212
R215 R214
C202
R452
R206 R205
R204
R2 07 Y201
C201 R203
X502 X406
R457
R248 R249
CB501
L501 R501
X603
X601 X602
X30 4 R357 R355
T302 C302 R356
X305 R359
X501
C501
Figure 4-4 Location of peripheral resistors on Top Side
X701
X704
CB413 CB412
X702
R535
C519
CB516
CB201
CB202 R209
CB518 C517
CB517 CB510
R208 C5 16
C518
C203
R520
C B5 20 CB515
CB204 C205 C204
C406 CB409
C404 C405
C4 03 CB410 C401
R414 CB404
R433
R436
R304 R302
R449 R422
R438
R448 R447
R307
R3 09 CB407
R4 31
R419
R440 R420 R437
Q403 R418
R417 Q402 R416 R443
R413 R421 R410
U403
Q401
R409
R445 R415
CB403 R406
R412 R450
L402 CB411
R442
R405
R404
U405 R441
U402 CB406
R407
R334
CB301 R308
U30 1
R303
R521
R301
R306
R305
D403
R323
R330
R320
R321
CB305
R350 R338
CB302 R318
R317 R312
R311 R513 R512
U302
R31 9
R408
R322 R331
R316 R315 C515
R340 Q502
R341
R343
R342
CB308
R533 R538 Q503
R358 R351
R537
R364 R365
U304
U303
CB304 R333 CB303 R332
CB307 R353 CB306
R352 R362
R363
Q5 04
R510 R221 R220
R511
R503 R505
R504 C5 10 C512 C511
D501 Q501
R360
U306 C304
CB310 D503
Q505 R50 2 R534
R 50 6
X703
D502
Figure 4-5 Location of peripheral resistors on Bottom Side
User Manual
4-5
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Signal (on board used) Description
5
Signal (on board used) Description
For more information about the signals please see the user manual/datasheet for TC3X2 and/or the schematics of the board.
All not mentioned signals are not used on the board and can be used outside. Optional marked signals are used only if they are connected (default is that they are not used on the board).
5.1
Power Signals
Table 5-1 Power Signals
Short name
Description
VCC_IN
Supply Input (3,5V...40V)
VIN
Input Voltage of Power Supply Device
GND
Ground
V_PREPEG
Pre Regulator Voltage (~5,8V)
V_UC
Microcontroller Supply Voltage (5V or 3,3V depends on assembled TLF35584)
V_CO
Communication Supply Voltage (5V)
V_VR
Reference Supply Voltage (5V)
V_STBY
Standby Supply Voltage (5V or 3,3V depends on assembled TLF35584)
VDD
Core Supply Voltage (1,25V)
VDDSB
Emulation Stand-by SRAM Supply Voltage (1,25V)
VDDP3
Flash Power Supply Voltage (3,3V)
VFLEX
Flexport Supply Voltage (3,3V)
VEXTOSC
Oscillator Port Supply Voltage (5V or 3,3V depends on assembled TLF35584)
VDDOSC
Oscillator Core Supply Voltage (1,25V)
VSSOSC
Oscillator Ground
VDDM
ADC Analog Part Supply Voltage (5V or 3,3V selectable via 0R resistors)
VAREF1
ADC Reference Voltage 1 (VDDM)
VDD_USB
Supply Voltage from USB (5V)
VDD_FT
Supply Voltage FT2232HL device (3,3V)
5.2
Reset Signals
Table 5-2 Reset Signals
Short name
Description
/PORST
Power On Reset
/DBG_PORST
Power On Reset from debug connectors
/ESR0
External Service Request 0 (Hardware Reset)
/ESR1
External Service Request 1 (Non Maskable Interrupt)
User Manual
5-1
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Signal (on board used) Description
5.3
Config Signals
Table 5-3 Config Signals
Short name
Description
P14.5
HWCFG1 (EVR33OFF / EVR33ON)
P14.3
HWCFG3 (Boot from pins / Boot from Flash BMI)
P10.5
HWCFG4 (see boot configuration Table 4-1)
P10.6
HWCFG5 (see boot configuration Table 4-1)
5.4
Clock Signals
Table 5-4 Clock Signals
Short name
Description
XTAL1
Crystal Oscillator Input
XTAL2
Crystal Oscillator Output
5.5
Debug Signals
Table 5-5 Debug Signals
Short name
Description
/TRST
Test Reset
DAP0
Device Access Port Line 0 / Test Data Clock (TCK)
DAP1
Device Access Port Line 1 / Test Data Select (TMS)
DAP2
Device Access Port Line 2 / Test Data Output (TDO)
P21.6
Test Data Input (TDI)
DAP0_A
DAP0 / TCK from debug connectors
DAP1_A
DAP1 / TMS from debug connectors
P21.7
DAP2 / TDO from debug connectors / TriCoreTM Breakpoint Input
P20.2
Test Mode Select Input
P20.0
TriCoreTM Breakpoint Output
5.6
Peripheral Signals
Table 5-6 Peripheral Signals
Short name
Description
P14.1
ASCLIN0 Receive Input A CAN01 Receive Input B (optional)
P14.0
ASCLIN0 Transmit Output CAN01 Transmit Output (optional)
P15.3
CAN01 Receive Input A ASCLIN0 Receive Input B (optional)
User Manual
5-2
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Signal (on board used) Description
Table 5-6 Peripheral Signals (continued)
Short name
Description
P15.2
CAN01 Transmit Output ASCLIN0 Transmit Output (optional)
P15.1
ASCLIN1 Receive Input A
P15.0
ASCLIN1 Transmit Output
P11.10
CAN03 Receive Input D
P11.12
CAN03 Transmit Output
P02.0
E-Ray Channel A Transmit Data Output
P02.4
E-Ray Channel A Transmit Data Output enable
P02.1
E-Ray Channel A Receive Data Input 2
P20.8
E-Ray Channel A Enable Output
P20.9
E-Ray Channel A Error Input
P02.2
E-Ray Channel B Transmit Data Output
P02.5
E-Ray Channel B Transmit Data Output enable
P02.3
E-Ray Channel B Receive Data Input 2
P02.6
E-Ray Channel B Enable Output
P02.7
E-Ray Channel B Error Input
P23.1
Slave Select Output for CS of eeprom 25LC020A
P11.6
QSPI1 Master Clock Output for SCL of TLF35584 and SCK of eeprom 25LC020A
P11.9
QSPI1 Master Transmit Output for SDI of TLF35584 and SI of eeprom 25LC020A
P11.3
QSPI1 Master Receive Input B for SDO from TLF35584 and SO of eeprom 25LC020A
P11.11
QSPI1 Slave Select Output 4 for SCS of TLF35584
P11.2
Output for Watchdog Input of TLF35584
P33.8
SMU_FSP0 Output for Error Signal Input of TLF35584
P02.8
Input for Safe State Signal 1 from TLF35584
P33.10
Output for Wake/Inhibit Input of TLF35584
P20.0
HSCT System Clock
P21.2
HSCT Data Negative Input
P21.3
HSCT Data Positive Input
P21.4
HSCT Data Negative Output
P21.5
HSCT Data Positive Output
P20[11...14]
On board LED's
P33[4...7]
On board LED's (standby voltage supplied)
User Manual
5-3
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Connector Pin Assignment
6
Connector Pin Assignment
The TriBoard will be shipped with four male (plug) connectors on top layer and four female (socket) connectors on bottom layer. The default connectors are 80-pol. Board to Board connectors from Samtec:
http://www.samtec.com
Plug: FTSH-140-02-L-DV-ES-A
Socket: FLE-140-01-G-DV-A
6.1
On Board only used signals
Following port pins are only used on board and are not connected to any connector also not via resistor:
Table 6-1 On Board only used Signals
Short name
Description
VCAP0
Used as VCAP0 for EVRC
VCAP1
Used as VCAP1 for EVRC
P14.5
Used as HWCFG1
User Manual
6-1
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Connector Pin Assignment
6.2
TC3X2 Connector / Top View
BUS EXPANSION (X601,X701)
GND GND
12 34 56 78 9 10
GND GND P21.6 P21.7
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
65 66
67 68
69 70
71 72
73 74
75 76
77 78
79 80
Figure 6-1 Connector for TC3X2 - Pinout (Part I, Top View)
PERIPHERALS (X602,X702)
GND GND VCC_IN VCC_IN
12 34 56 78 9 10
GND GND VCC_IN VCC_IN
11 12
13 14
/ESR1
15 16 17 18
/ESR0
GND P10.5
19 20 21 22 23 24 25 26
GND /PORST
27 28
P23.1
29 30
31 32
33 34
35 36
P20.9 P20.13 P33.5
37 38 39 40 41 42 43 44
P20.2
P00.0
45 46 47 48
GND XTAL1 XTAL2 P15.3 P15.2 P14.1
49 50 51 52 53 54 55 56 57 58 59 60
GND P15.1
P14.0 P20.11 P20.14 P20.12
61 62 63 64 65 66 67 68 69 70 71 72
P15.0 P20.8
73 74
75 76
GND
VEXT
77 78
+3V3
VEXT
79 80
+3V3
User Manual
6-2
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Connector Pin Assignment
GND GND
AN4 AN5
GND VDDM GND GND AN32 AN33 AN34
GND
VEXT P02.6 P02.7 P02.8 P33.7
ADC (X603, X703)
12
GND
34
GND
56
78
AN8
9 10
11 12
13 14
AN9
15 16
17 18
19 20
21 22
AN11
23 24
AN12
25 26
AN13
27 28
AN14
29 30
AN15
31 32
33 34
35 36
37 38
GND
39 40
VAREF1
41 42
43 44
GND
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
GND
63 64
P33.6
65 66
67 68
69 70
+3V3
71 72
73 74
75 76
77 78
P14.3
79 80
Figure 6-2 Connector for TC3X2 - Pinout (Part II, Top View)
GTM / PORTS (X604,X704)
GND
12
GND
GND
34
GND
56
78
P02.0
9 10
P02.1
11 12
P02.2
13 14
P02.3
15 16
P02.4
17 18
P02.5
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
P10.6
35 36
37 38
39 40
41 42
43 44
P11.2
45 46
P11.3
47 48
49 50
51 52
P11.6
53 54
55 56
P33.8
57 58
P33.9
P11.9
59 60
P33.10
P11.10
61 62
P11.11
63 64
P11.12
65 66
67 68
69 70
71 72
73 74
VEXT
75 76
VEXT
77 78
+3V3
VEXT
79 80
+3V3
User Manual
6-3
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Connector Pin Assignment
6.3
Power connector pinout
+3,5V...40V
Figure 6-3 Power connector pinout (Roka 520 2550
6.4
USB connector pinout
GND
VCC DD+ ID GND
Figure 6-4 USB connector pinout (Micro USB B-type)
6.5
FlexRayTM (ERAY) connector pinout
2
4
6
8
1 0
13579
BP BM GND
Figure 6-5 FlexRayTM (ERAY) connector pinout (IDC10)
6.6
CAN connector pinout
2
4
6
8
1 0
13579
GND CANH CANL
GND
Figure 6-6 CAN connector pinout (IDC10)
User Manual
6-4
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Connector Pin Assignment
6.7
LIN connector pinout
2
4
6
8
1 0
13579
GND BUS GND VIN opt
Figure 6-7 LIN connector pinout (IDC10)
6.8
OCDS1 connector pinout
V_UC GND GND /PORST /BRKOUT GND
2 4 6 8 10 12 14 16 1 3 5 7 9 11 13 15
TMS TDO TDI /TRST TCK /BRKIN
Figure 6-8 OCDS1 connector pinout (IDC16)
6.9
DAP connector pinout
DAP1 DAP0 USR0_IO USR1_IO /PORST
2 4 6 8 10 13579
V_UC GND GND Key GND
Figure 6-9 DAP connector pinout (Samtec FTSH10)
User Manual
6-5
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TCK / DAP0 TDO / DAP2 TDI V_UC /PORST
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Connector Pin Assignment
6.10 ETK connector pinout
2 4 6 8 10 13579
Figure 6-10 ETK connector pinout (Samtec TFM-105)
6.11 Ethernet miniWiggler power connector pinout
GND /TRST TMS / DAP1 BRKIO /ESR0
VCC_IN GND WAKEUP VDDSB
1
2
3
4
Figure 6-11 Ethernet miniWiggler connector pinout (JST B4B-PH)
User Manual
6-6
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
7
Schematic and Layout
7.1
Known problems
7.1.1 Known problems on TriBoard TC3X2 TH V1.0
No problems known.
7.1.2 Known problems on TriBoard TC3X2 V1.0
No problems known.
7.2
Schematic
User Manual
7-1
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
V1.0 2020-05
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
7-2
User Manual
Figure 7-1 Schematic - Project
1 A
B
C
D 1
2
3
4
5
/ESR1 /PORST
wiggler_Dbg_con.sch
miniWiggler and Debug Connectors
DEBUG..
PORT[00..34]
/PORST
DEBUG..
XTAL[1..2]
AN[0..34]
Clk_Cfg_Dbg_Ports_Adc.sch
Clock, Config, Debug, Ports and ADC
AN[0..34]
XTAL[1..2]
PORT[00..34]
DEBUG..
Peripherals.sch
On Board Peripherals
PORT[00..34]
Supply.sch
Power Supply
/PORST
PORT[00..34]
/ESR1
2
3
4
5
PORT[00..34] NC1[5..80] NC2[5..80] NC3[5..80] NC4[5..80]
6
7
8
A
Connectm.sch
Connector Plug
PORT[00..34]
AN[0..34]
NC1[5..80]
XTAL[1..2]
B
NC2[5..80]
NC3[5..80] NC4[5..80]
/PORST /ESR1
Connectf.sch
Connector Socket
AN[0..34] NC4[5..80]
C
NC3[5..80]
XTAL[1..2]
NC2[5..80]
NC1[5..80] PORT[00..34]
/PORST /ESR1
D
TriBoard TC3X2 Project
Sheet: 1 of 7
Infineon Technologies AG ATV MC ACE ATV CES
Number:
Am Campeon 1-12
Revision: 1.0
D-85579 Neubiberg
Date: 15.11.2019
Tel.: +49-89-234-0
File: G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X2\TriBoard TC3X2 V1.X\TriBoard_TC3X2_V10.prj
6
7
8
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
Figure 7-2 Schematic - Clock, Config, Debug, Ports and ADC
User Manual
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
1
2
3
4
5
6
7
8
V_UC
A
AN[0..34]
R244 AN5 4K7
AN4 AN5_I
U201E
EVADC
27 26
AN4 AN5
VDDM 24
VDDM
FOR 5V ADC V_VR
R220 1R2
FOR 3,3V ADC
XTAL[1..2]
XTAL[1..2]
R203
VSSOSC 50R_opt
XTAL1 XTAL2
R204
0R R205 0R
R206 opt
2
1
R202 GND opt
P20.2
R201 10K
Y201 20MHz
R207 0R
U201B CLOCK & TESTMODE
51 P20.2 / TESTMODE VEXT(OSC)
43 XTAL1
VDD(OSC)
44 XTAL2 JTAG / DAP / OCDS1
45
VEXTOSC R209 V_UC
VDDOSC 42
R208 VDD
CB201 0R 330n
CB202 0R 330n
VSSOSC
VSSOSC GND
A
C203 47nF
GND
R245 AN11 4K7
AN8 AN9
AN11_I AN12_I AN13 AN14 AN15
22 21
AN8 AN9
20 19 18 17 16
AN11 AN12 AN13 AN14 AN15
VSSM 25
CB204 470n
GND
+3V3 R221 1R2_opt
VAREF1 VAREF1 23
VDDM R222
C201 10pF
C202 10pF
VSSOSC VSSOSC
DAP0
R214 0R
DAP0_A
/TRST DAP0 DAP1
R212 33R
49 50 47 46
TRST TCK / DAP0 TMS / DAP1 P21.6 / TDI
P21.7 / TDO / DAP2
48
TC3X2
R213 33R
C204 47nF
GND
AN32_I AN33_I AN34
15 14 13
AN32 / P40.4 AN33 / P40.5 AN34
TC3X2
CB205 6R8 2,2F
GND
DAP1
R215 0R
DAP2
V_STBY
DAP1_A
R246
4K7 C205 47nF
AN12
GND
B R248 AN32 4K7
C207 47nF
GND
R249
4K7 C208 47nF
AN33
GND
AN[0..34]
S202 P33.9 GND
R256 1K5
R255 47K
P33.9
P00.0
U201D
PORTS
10 P00.0
P23.1 41
TC3X2
P23.1
P14.1 P15.1 P11.10 P15.3 P11.11 P11.3 P02.8
DAP2 P20.2 P21.6
R216 P21.7 0R
U201C
ON BOARD USED PERIPHERALS / PINS
66 P14.1 / ARX0A
P14.0 / ATX0 65
62
ASCLIN P15.1 / ARX1A
P15.0 / ATX1 61
76 P11.10 / CAN03_RXDD P11.12 / CAN03_TXD 78
64
CAN P15.3 / CAN01_RXDA P15.2 / CAN01_TXD
63
77 73
9
P11.11 / SLSO14 P11.3 / MRST1B
QSPI / TLF35584 P02.8
P11.6 / SCLK1 P11.9 / MTSR1
P11.2 P33.8 / SMU_FSP0
P33.10
74 75 72 34 36
P14.0
P15.0
P11.12
P15.2
P11.6 P11.9 P11.2 P33.8 P33.10
DEBUG..
DEBUG..
PORT[00..34]
PORT[00..34]
B
V_UC
P02.1 P02.4 P02.0 P20.9 P20.8
2 5 1 56 55
P02.1 / RXD0A
P02.4 / TXEN0A
P02.0 / TXD0A
P20.9 / REQ7_0
P20.8
ERAY
P02.3 / RXD0B P02.5 / TXEN0B
P02.2 / TXD0B P02.7 P02.6
4 6 3 8 7
P02.3 P02.5 P02.2 P02.7 P02.6
C
R240
R241 47K P14.5
P14.5 P14.3 P10.5 P10.6
68 67 79 80
P14.5 / HWCFG1 HWCFG P14.3 / HWCFG3 P10.5 / HWCFG4 P10.6 / HWCFG5
C
1K5_opt GND
P33.9
35 P33.9
BUTTON
V_UC
P20.11 P20.12 P20.13 P20.14
57 58 59 60
P20.11 P20.12 P20.13 P20.14
TC3X2
LEDs
P33.4 P33.5 P33.6 P33.7
30 31 32 33
P33.4 P33.5 P33.6 P33.7
S201
1
8
1
7
2
6
3
5
4
DIPSW-4 GND
HWCFG4 R232 1K5
HWCFG5 R234 1K5
R233 47K
V_UC
P10.5
R235 47K
V_UC
P10.6
NOTE: S201 is for device configuration (about configuration see the manual of assembled device) Switch ON means the corresponding signal is low. Switch OFF means the corresponding signal is high.
HWCFG3 R236 1K5
R237 47K P14.3
D
D
7-3
TriBoard TC3X2 Clock, Config, Debug, Ports, ADC
Sheet: 2 of 7
Infineon Technologies AG ATV MC ACE ATV CES
Number:
Am Campeon 1-12
Revision: 1.0
D-85579 Neubiberg
Date: 15.11.2019
Tel.: +49-89-234-0
File: G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X2\TriBoard TC3X2 V1.X\Clk_Cfg_Dbg_Ports_Adc.sch
1
2
3
4
5
6
7
8
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
Figure 7-3 Schematic - On Board Peripherals
User Manual
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
1
2
3
4
5
6
7
8
PORT[00..34]
PORT[00..34]
V_UC
P33.4 P33.5 P33.6 P33.7 P20.11 P20.12 P20.13 P20.14
R391 R392 R393 R394 R395 R396 R397 R398 470R 470R 470R 470R 470R 470R 470R 470R
D302 LB T673
D303 LB T673
D304 LB T673
D305 LB T673
D306 LB T673
D307 LB T673
D308 LB T673
D309 LB T673
A
V_STBY R390 0R
V_UC R399 0R
P11.10
R301
CB301 V_CO
GND
100n
U301
3 4
VCC VIO RXD CANH
5 7
R306 0R
R308
R307 0R
X301
V_UC
P11.12 P14.1 P14.0
R302 0R 0R R303 R304 0R_opt 0R_opt
1 2
TXD CANL GND STB
6 8
120R R309 0R
1
2
3
4
5
6
A
TLE9251VSJ
7
8
9 10
R305
CAN0
R346
0R
V_UC
U305
6
CB309 100n 2
VDD CS SCK SI
VSS SO
5 1 3 4
GND
25LC020AT-E/OT
10K
R348
P23.1
0R P11.6
P11.9
P11.3
P15.3 P15.2
R311 R312 0R 0R
GND
V_UC
CB302 V_CO
GND
100n
U302
3 4
VCC VIO RXD CANH
5 7
1 2
TXD CANL GND STB
6 8
R316 0R
R318
R317 0R 120R R319
0R
GND
X302
1
2
3
4
5
6
TLE9251VSJ
7
8
9 10
VIN D301
R315
1 3
2
BAT54-04
C303 22F/50V
CB310 100n
U306 7 VS
8 INH
GND 5 WK 3
GND VIN
R361
V_UC R363 10K
0R GND
B
GND
X305
1
2
3
4
5
6
7
8
9 10
GND
R360 1K
R359 VIN
0R_opt
GND
C304 1n
GND
6 BUS
RXD TXD
1 4
EN 2
TLE7259-3GE
10K
V_UC R362 0R
R364 0R R365 0R
P15.1 P15.0
V_UC
LIN1
GND
P02.0
R320
CAN1
GND
B
P02.4 P02.1 P20.8
0R R321
0R R322
0R R323
0R
P20.9
R324 0R
R338 4K7
V_UC
TXDA TXENA RXDA BGEA ENA
R330
R331 4K7
4K7
U303
4 5 6 7
TXD TXDEN RXD BGE
2 EN 8 STBN
ERRNA 10 9
R332 opt
ERRN RXEN
TLE9221SX
BP BM
15 14
BPA BMA
VBAT VDD VIO
11 16 3
T301
1
2
4
3
VIN B82789-C0104 V_CO V_UC
GND 13
GND
INH WAKE
1 12
INHA
CB303 100n
CB304 100n
CB305 100n
R333 R334 GND GND GND opt opt
R335 51R
GND R336 51R
R337 0R
C301 10nF
GND
X303
1
2
3
4
5
6
7
8
9 10
ERAY-A
C
GND
C
GND GND
P02.2
R340
V_UC
P02.5 P02.3 P02.6
0R R341 0R R342 0R
R343 0R
P02.7
R344 0R
R358 4K7
V_UC
TXDB TXENB RXDB BGEB ENB
R350
R351 4K7
4K7
U304
4 5 6 7
TXD TXDEN RXD BGE
2 EN 8 STBN
ERRNB 10 9
R352 opt
ERRN RXEN
TLE9221SX
BP BM
15 14
BPB BMB
VBAT VDD VIO
11 16 3
T302
1
2
4
3
VIN B82789-C0104 V_CO V_UC
GND 13
GND
INH WAKE
1 12
INHB
CB306 100n
CB307 100n
CB308 100n
R353 opt
R354 opt
GND
GND
GND
R355 51R
GND R356 51R
R357 0R
C302 10nF
GND
X304
1
2
3
4
5
6
7
8
9 10
ERAY-B
GND
GND GND
D
D
7-4
TriBoard TC3X2 On Board Peripherals
Sheet: 3 of 7
Infineon Technologies AG ATV MC ACE ATV CES
Number:
Am Campeon 1-12
Revision: 1.0
D-85579 Neubiberg
Date: 15.11.2019
Tel.: +49-89-234-0
File: G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X2\TriBoard TC3X2 V1.X\Peripherals.sch
1
2
3
4
5
6
7
8
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
Figure 7-4 Schematic - miniWiggler JDS and Debug connectors
User Manual
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
1
2
3
4
5
6
7
8
VDD_FT L401
VDD_FT
L402
VDD_FT
VDD_FT
V_UC V_UC
MMZ1608R300A C402 CB405 4u7/6V 100n
CB412 100n
VDD_FT CB402
100n
CB413 100n
C403 MMZ1608R300A 4u7/6V
VDD_FT
D402 LP T67K
R410 10K
R415 R409 10K 10K
V_UC
FOR USING WIGGLER WITH JTAG: Assemble R447-R451
GND GND
CB411
100n
U405
GND
CB410 100n
A
VDD_USB
TLE4274GSV33 VDD_FT 1 IN OUT 3
+1V8
2 GND
CB401 100n
C401 10/6V
GND
GND GND
C406
49 VREGOUT
GND
3,3uF VDD_FT
50 VREGIN
BU401
VBUS DD+ ID
GND
1 2 3 4 5 GND
R402 27R R403 27R
7 DM 8 DP
Micro USB
C404 8pF
C405 8pF
3
1
GND
R404 12K/1%
Y401 NX3225SA-12MHz
6 REF 2 OSCI 3 OSCO
GND
VDD_FT R401
14 RESET
B
1K VDD_FT
R441
10K R442
63 62 61
EECS EECLK EEDATA
VDD_FT
CB406 100n GND
U402
8 5
7 4
VCC CS GND CLK
D DNC Q ORG
1 2 3
6
93LC46B-I/SN
R406
10K R405
10K
GND
VDD_FT R407 opt
13 TEST
36 SUSPEND 60 PWREN
2K2
1 5 11 15 25 35 47 51
GND GND GND GND GND GND GND GND
VCORE VCORE VCORE
12 37 64
VPLL VPHY
9 4
GND
10 AGND
VCCIO VCCIO VCCIO VCCIO
20 31 42 56
CB403 CB404 CB409
100n 100n
GND GND
GND
R411 100R
2 5
R412
680R ADBUS4 1
6
Q401A
3
4
Q401B
U403
1 19
G G
VCC GND
20 10
CB407 100n
Remove R455-R456
100n U401 GND
R450 1K_opt
ADBUS0 ADBUS1 ADBUS2 ADBUS3 ADBUS4 ADBUS5 ADBUS6 ADBUS7
16 17 18 19 21 22 23 24
ADBUS0 ADBUS1 ADBUS2 ADBUS3 ADBUS4 ADBUS5 ADBUS6 ADBUS7
D401 LB T673
BSD235N ADBUS0 ADBUS1 ADBUS3 ADBUS6 ACBUS0 ACBUS1
ACBUS5
VDD_FT
BSD235N 2 4 6 8
11 13 15 17
R413
GND
1A1 1A2 1A3 1A4 2A1 2A2 2A3 2A4
1Y1 1Y2 1Y3 1Y4 2Y1 2Y2 2Y3 2Y4
18 DAP0_A 16 TDI 14 TMS 12 USR0 9 /TRST_J 7 /RESET 5 3 USR8
SN74AHC244PW
R421 opt
R422 opt
R447 R448 R449
0R_opt 0R_opt 0R_opt
DAP0_A P21.6 DAP1_A /TRST
D403
3
1 /PORST
BAT54 R454 5K1
DAP1_A
ACBUS0 ACBUS1 ACBUS2 ACBUS3 ACBUS4 ACBUS5 ACBUS6 ACBUS7
26 27 28 29 30 32 33 34
BDBUS0 BDBUS1 BDBUS2 BDBUS3 BDBUS4 BDBUS5 BDBUS6 BDBUS7
38 39 40 41 43 44 45 46
BCBUS0 BCBUS1 BCBUS2 BCBUS3 BCBUS4 BCBUS5 BCBUS6 BCBUS7
48 52 53 54 55 57 58 59
FT2232HL
ACBUS0 ACBUS1 ACBUS2 ACBUS3 ACBUS4 ACBUS5 ACBUS6 ACBUS7
BDBUS0 BDBUS1
VDD_FT
R416 10K
2
BDBUS0 1
6
Q402A
BSD235N
VDD_FT
R414
R418
2
4K7
10K
BDBUS1 1
6
Q403A BSD235N
R443
10K
10K ACBUS4 1
2
U404
/OE A
4Y
VCC GND
VDD_FT 5
CB408
3
100n
GND GND
ADBUS1 ADBUS2 ACBUS5 ACBUS3 ACBUS7 ACBUS2 ACBUS6
V_UC
SN74LVC1G125
GND
VDD_FT
GND
CB414
U406
1 VCCA VCCB
ADBUS2 100n 3 A
B
V_UC 6 4
ACBUS5
R444 4K7
5 DIR GND 2 SN74LVC1T45DBV GND
R417 10K
5
3
4
Q402B BSD235N
R419
V_UC
V_UC
R420 4K7
R437 R440 0R 0R_opt
VDD_FT
GND GND
CB416
U407
1 VCCA VCCB
ACBUS3 100n 3 A
B
V_UC 6 4
ACBUS7
R445 4K7
5 DIR GND 2 SN74LVC1T45DBV GND
5
10K
3
4
Q403B BSD235N
R436 R438
VDD_FT
GND GND
CB418
U408
1 VCCA VCCB
ACBUS2 100n 3 A
B
ACBUS6
5 DIR GND
V_UC 6 4 2
CB415 GND
100n R455 DAP1_A 0R R451 P21.7 0R_opt
CB417 GND
100n R456 P21.7
0R R423 P21.6
0R_opt V_UC
CB419 GND R431
100n USR1 100K
R427 P21.7
0R 0R_opt
R446 4K7
SN74LVC1T45DBV GND
0R_opt R428 P20.2
DEBUG.. P21.6
P21.7 P21.7 P21.6 P21.7 P20.2
DEBUG..
A B
GND
0R_opt
7-5
P21.6 P20.2 P33.6 P33.7
P14.0 P15.2 P14.1 P15.3
P21.7 P21.6 P21.7 P20.2
P21.6
C
D PORT[00..34]
PORT[00..34]
R424 0R_opt
V_UC
GND
/DBG_PORST /BRKOUT
GND
X401
2 4 6 8 10 12 14 16
VCC
TMS
GND
TDO
GND CPUCLOCK
PORST
TDI
BRKOUT
TRST
GND
TCK
OCDSE
BRKIN
KEY
N.C.
OCDS1
1 3 5 7 9 11 13 /BRKIN 15
R425 0R_opt
R426 0R_opt
DAP1_A
/TRST DAP0_A
/DBG_PORST
DAP0_A
X404
P21.7 P21.6
R439
DAP0_A 2 4
22R_opt
6
/DBG_PORSTV_UC
8 10
TCK / DAP0 GND
TDO / DAP2 /TRST
TDI / - TMS / DAP1
VDDsense BRKIO
/PORST
ESR0
1 3 5 7 9
P21.7
R433
ETK_CON_opt
0R_opt
GND
/TRST DAP1_A
R429 0R
R430 0R_opt
X406
2 4 6 8 10
DAP1 DAP0 USER0 USER1 RESET
VREF GND GND KEY GND
1 3 5 7 9
DAP_SCR
X402
DAP1
2
DAP0
4
DAP2
6
DAP3_USR1 8
/DBG_PORST 10
DAP1 DAP0 USER0 USER1 RESET
VREF GND GND KEY GND
1 3 5 7 9
DAP
V_STBY R457 0R
GND V_UC
R452 0R
GND
/DBG_PORST
1
2
3
4
5
C
R408 0R
/PORST
D
TriBoard TC3X2 miniWiggler and Debug connectors
Sheet: 4 of 8
Infineon Technologies AG ATV MC ACE ATV CES
Number:
Am Campeon 1-12
Revision: 1.0
D-85579 Neubiberg
Date: 15.11.2019
Tel.: +49-89-234-0
File: G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X2\TriBoard TC3X2 V1.X\Wiggler_Dbg_con.sch
6
7
8
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
Figure 7-5 Schematic - Power Supply
User Manual
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
1
2
3
4
5
6
7
8
7-6
V_STBY C507
GND
1F/10V U501
U502
POWER 2 4
1,2,5,6
QST 5
A
X501 VCC_IN D502 1 SS26
GND VDD_USB D503
VIN
L501
D501
XAL5050-223MEB
MSS2P2
C501
C502
47F/40V
GND
2 VST
45 44
VS1 VS2
100F/40V CB501
SSTWWL12F355448324QVVSX1A/2L4L053002-472MEC
V_PREREG
TLS205B0EJV33
8 IN
Q
C503
V_UC
SENSE/ADJ
1 2
PG1 PG2
41 40
CB502
22F/10V GND
5 EN
GND GND
BYP 4
+3V3
C504
C505 10F
10nF
GND
A
GND SS22_opt
/PORST
Q501 BSL606SN
3
R501 250mR
100n 25
46
47 48
1
STU
DRG
RSH RSL BSG
GND 17 ROT
FB1 FB2 FB3 FB4 FB5
34 35 36 37 38
SYN EVC VCI SEC
19 21 26 23
100n GND
6 HS
GND
+3V3
+3V3
V_UC
/ESR1
P11.11 P11.6 P11.9 P11.3
18 INT
15 14 12 13
SCS SCL SDI SDO
QUC 30 QCO 31
V_UC C508
V_CO 4,7F C509
V_VR 4,7F
GND GND
R511 620R
R512 680R
R513 1K5
VDD
Q504
R510
1
3
D505 LP T67K
D506 LP T67K
D507 LP T67K
GND
GND
P11.2
16 WDI
QVR 29
C510 GND
82K
BC848C
2
B
P33.8 P02.8
R503
D508
1K R504
GND LP T67K VCC_IN
470R V_STBY R507 100K
20 11 10
ERR SS1 SS2
24 3 4
FRE ENA WAK
GND AG1 AG2 AG3 AG4 AG5 AGS
QT1 33
QT2 32
TM GST
22 27
QT1 4,7F C511 GND
QT2 4,7F C512 GND
4,7F
V_CO
GND
GND
GND
V_STBY
CB510
GND R520 0R
C516 10F
VDD
CB515
100n CB516
B
PORT[00..34]
3
X502 1
Q505
HS 6 7 8 28 39 9
R508
100n
2 3
GND
4
1BSS138N GND
R502
0R R509
V_UC
R521
100n CB517
2
10K
20K
EmW_Pwr_opt
GND
0R
100n
P33.10
GND
C517
CB518
PORT[00..34]
S502 VIN
ENA
R505
10K R506 100K
V_UC
GND +3V3
CB511 4,7F CB512 100n
100n GND
GND
V_UC
S501 RESET
R531 4K7
R532
3
1 C515
Q502 BC848C
R533 0R
100n R524 R525 VDDP3 0R_opt 0R_opt
2
10K
4,7F
71 54 29 11
69 12 37
C
C519 CB520
C
V_UC
2,2F 100n
U201A
VDD VDD VDD VDD
VDDO 40
VEVRSB 28
VEXT VEXT VEXT
VDDP3 70
/PORST
/PORST
/PORST
R534 2K2
GND GND /PORST
GND
GND
GND /PORST
53 PORST
TC3X2
V_UC
/ESR1
/ESR1
R535 4K7
/ESR1
V_UC
2
R537 1 10K
3
Q503 BC858C
R538
120R
D504 GND
LS T67K
/ESR1 VCAP1
C518 1F VCAP0
52 ESR1
38 VCAP1 39 VCAP0
POWER
HS VSS
GND
V_UC
5V
3,3V
U501
TLF35584QVVS1 TLF35584QVVS2
R524
opt
0R
R240
opt
1K5
D
R241
47K
opt
D
R513
1K5
680R
R391-398
470R
100R
TriBoard TC3X2 Power supply
Sheet: 5 of 7
Infineon Technologies AG ATV MC ACE ATV CES
Number:
Am Campeon 1-12
Revision: 1.0
D-85579 Neubiberg
Date: 15.11.2019
Tel.: +49-89-234-0
File: G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X2\TriBoard TC3X2 V1.X\Supply.sch
1
2
3
4
5
6
7
8
V1.0 2020-05
V1.0 2020-05
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
7-7
User Manual
Figure 7-6 Schematic - Connectors (Plug)
1
2
3
NC1[5..80] NC1[5..80]
X601
GND
1 PLUG2
A B
NC1.5 NC1.7 NC1.9 NC1.11 NC1.13 NC1.15 NC1.17 NC1.19 NC1.21 NC1.23 NC1.25 NC1.27 NC1.29 NC1.31 NC1.33 NC1.35 NC1.37 NC1.39 NC1.41 NC1.43 NC1.45 NC1.47 NC1.49 NC1.51 NC1.53 NC1.55 NC1.57 NC1.59 NC1.61 NC1.63 NC1.65 NC1.67 NC1.69 NC1.71 NC1.73 NC1.75 NC1.77 NC1.79
3
4
5
6
7
8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
65 66
67 68
69 70
71 72
73 74
75 76
77 78
79 80
P21.6 P21.7 NC1.10 NC1.12 NC1.14 NC1.16 NC1.18 NC1.20 NC1.22 NC1.24 NC1.26 NC1.28 NC1.30 NC1.32 NC1.34 NC1.36 NC1.38 NC1.40 NC1.42 NC1.44 NC1.46 NC1.48 NC1.50 NC1.52 NC1.54 NC1.56 NC1.58 NC1.60 NC1.62 NC1.64 NC1.66 NC1.68 NC1.70 NC1.72 NC1.74 NC1.76 NC1.78 NC1.80
FTSH-140-02-L-DV-ES-A
4
/ESR1
XTAL[1..2]
XTAL[1..2]
AN[0..34]
AN[0..34]
NC3[5..80] NC3[5..80] C
ADC
D
NC3.5 NC3.7 NC3.9 NC3.11 AN4 AN5 NC3.17 NC3.19 NC3.21 NC3.23 NC3.25 NC3.27 NC3.29 NC3.31 NC3.33 NC3.35
GND VDDM
GND AN32 GND AN33 AN34 NC3.51 NC3.53 NC3.55 NC3.57 NC3.59
NC3.63GND NC3.65 NC3.67
P02.6 V_UC P02.7 P02.8 P33.7 NC3.79
X603
1 PLUG2
3
4
5
6
7
8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
65 66
67 68
69 70
71 72
73 74
75 76
77 78
79 80
GND
NC3.6 AN8 NC3.10 NC3.12 AN9 NC3.16 NC3.18 NC3.20 AN11 AN12 AN13 AN14 AN15 NC3.32 NC3.34 NC3.36
GND VAREF1 NC3.42
GND
NC3.46 NC3.48 NC3.50 NC3.52 NC3.54 NC3.56 NC3.58 NC3.60
GND P33.6 NC3.66 NC3.68
+3V3 NC3.72 NC3.74 NC3.76 P14.3 NC3.80
FTSH-140-02-L-DV-ES-A
PORT[00..34]
PORT[00..34]
1
2
3
4
5
6
VCC_IN
NC2.9 NC2.11 NC2.13 /ESR1 NC2.17
NC2.21GND P10.5 NC2.25 NC2.27 NC2.29 NC2.31 NC2.33 NC2.35 P20.9 P20.13 P33.5 NC2.43 P00.0 NC2.47
XTAL1GND XTAL2 P15.3 P15.2 P14.1 P14.0 P20.11 P20.14 P20.12 NC2.69 NC2.71 NC2.73 NC2.75
V_UC
X602
1 PLUG2
3
4
5
6
7
8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
65 66
67 68
69 70
71 72
73 74
75 76
77 78
79 80
GND VCC_IN
NC2.10 NC2.12 NC2.14 NC2.16 NC2.18
GND
/PORST NC2.24 NC2.26 P23.1 NC2.30 NC2.32 NC2.34 NC2.36 NC2.38 NC2.40 NC2.42 P20.2 NC2.46 NC2.48
GND
NC2.52 NC2.54 NC2.56 NC2.58 P15.1 P15.0 NC2.64 NC2.66 NC2.68 P20.8 NC2.72 NC2.74
GND
+3V3
FTSH-140-02-L-DV-ES-A
NC4.5 NC4.7 P02.0 P02.1 P02.2 P02.3 P02.4 P02.5 NC4.21 NC4.23 NC4.25 NC4.27 NC4.29 NC4.31 NC4.33 P10.6 NC4.37 NC4.39 NC4.41 NC4.43 P11.2 P11.3 NC4.49 NC4.51 P11.6 NC4.55 NC4.57 P11.9 P11.10 P11.11 P11.12 NC4.67 NC4.69 NC4.71 NC4.73
V_UC
V_UC
X604
1 PLUG2
3
4
5
6
7
8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
65 66
67 68
69 70
71 72
73 74
75 76
77 78
79 80
GND
NC4.6 NC4.8 NC4.10 NC4.12 NC4.14 NC4.16 NC4.18 NC4.20 NC4.22 NC4.24 NC4.26 NC4.28 NC4.30 NC4.32 NC4.34 NC4.36 NC4.38 NC4.40 NC4.42 NC4.44 NC4.46 NC4.48 NC4.50 NC4.52 NC4.54 P33.8 P33.9 P33.10 NC4.62 NC4.64 NC4.66 NC4.68 NC4.70 NC4.72 NC4.74 NC4.76
+3V3
FTSH-140-02-L-DV-ES-A
5
6
7 NC2[5..80] NC2[5..80]
/PORST
8
TOP
A
PERIPHERALS
B NC4[5..80] NC4[5..80]
C
PORTS
D
TriBoard TC3X2 Connectors plug
Sheet: 6 of 7
Infineon Technologies AG ATV MC ACE ATV CES
Number:
Am Campeon 1-12
Revision: 1.0
D-85579 Neubiberg
Date: 15.11.2019
Tel.: +49-89-234-0
File: G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X2\TriBoard TC3X2 V1.X\Connectm.sch
7
8
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
V1.0 2020-05
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
7-8
User Manual
Figure 7-7 Schematic - Connectors (Socket)
1
2
3
NC1[5..80] NC1[5..80]
X701
GND
1SOCKE2T
A B
NC1.5 NC1.7 NC1.9 NC1.11 NC1.13 NC1.15 NC1.17 NC1.19 NC1.21 NC1.23 NC1.25 NC1.27 NC1.29 NC1.31 NC1.33 NC1.35 NC1.37 NC1.39 NC1.41 NC1.43 NC1.45 NC1.47 NC1.49 NC1.51 NC1.53 NC1.55 NC1.57 NC1.59 NC1.61 NC1.63 NC1.65 NC1.67 NC1.69 NC1.71 NC1.73 NC1.75 NC1.77 NC1.79
3
4
5
6
7
8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
65 66
67 68
69 70
71 72
73 74
75 76
77 78
79 80
P21.6 P21.7 NC1.10 NC1.12 NC1.14 NC1.16 NC1.18 NC1.20 NC1.22 NC1.24 NC1.26 NC1.28 NC1.30 NC1.32 NC1.34 NC1.36 NC1.38 NC1.40 NC1.42 NC1.44 NC1.46 NC1.48 NC1.50 NC1.52 NC1.54 NC1.56 NC1.58 NC1.60 NC1.62 NC1.64 NC1.66 NC1.68 NC1.70 NC1.72 NC1.74 NC1.76 NC1.78 NC1.80
FLE-140-01-G-DV-A
4
/ESR1
XTAL[1..2]
XTAL[1..2]
AN[0..34]
AN[0..34]
NC3[5..80] NC3[5..80] C
ADC
D
NC3.5 NC3.7 NC3.9 NC3.11 AN4 AN5 NC3.17 NC3.19 NC3.21 NC3.23 NC3.25 NC3.27 NC3.29 NC3.31 NC3.33 NC3.35
GND VDDM
GND AN32 GND AN33 AN34 NC3.51 NC3.53 NC3.55 NC3.57 NC3.59
NC3.63GND NC3.65 NC3.67
P02.6 V_UC P02.7 P02.8 P33.7 NC3.79
X703
1SOCKE2T
3
4
5
6
7
8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
65 66
67 68
69 70
71 72
73 74
75 76
77 78
79 80
GND
NC3.6 AN8 NC3.10 NC3.12 AN9 NC3.16 NC3.18 NC3.20 AN11 AN12 AN13 AN14 AN15 NC3.32 NC3.34 NC3.36
GND VAREF1 NC3.42
GND
NC3.46 NC3.48 NC3.50 NC3.52 NC3.54 NC3.56 NC3.58 NC3.60
GND P33.6 NC3.66 NC3.68
+3V3 NC3.72 NC3.74 NC3.76 P14.3 NC3.80
FLE-140-01-G-DV-A
PORT[00..34]
PORT[00..34]
1
2
3
4
5
6
VCC_IN
NC2.9 NC2.11 NC2.13 /ESR1 NC2.17
NC2.21GND P10.5 NC2.25 NC2.27 NC2.29 NC2.31 NC2.33 NC2.35 P20.9 P20.13 P33.5 NC2.43 P00.0 NC2.47
XTAL1GND XTAL2 P15.3 P15.2 P14.1 P14.0 P20.11 P20.14 P20.12 NC2.69 NC2.71 NC2.73 NC2.75
V_UC
X702
1SOCKE2T
3
4
5
6
7
8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
65 66
67 68
69 70
71 72
73 74
75 76
77 78
79 80
GND VCC_IN
NC2.10 NC2.12 NC2.14 NC2.16 NC2.18
GND
/PORST NC2.24 NC2.26 P23.1 NC2.30 NC2.32 NC2.34 NC2.36 NC2.38 NC2.40 NC2.42 P20.2 NC2.46 NC2.48
GND
NC2.52 NC2.54 NC2.56 NC2.58 P15.1 P15.0 NC2.64 NC2.66 NC2.68 P20.8 NC2.72 NC2.74
GND
+3V3
FLE-140-01-G-DV-A
NC4.5 NC4.7 P02.0 P02.1 P02.2 P02.3 P02.4 P02.5 NC4.21 NC4.23 NC4.25 NC4.27 NC4.29 NC4.31 NC4.33 P10.6 NC4.37 NC4.39 NC4.41 NC4.43 P11.2 P11.3 NC4.49 NC4.51 P11.6 NC4.55 NC4.57 P11.9 P11.10 P11.11 P11.12 NC4.67 NC4.69 NC4.71 NC4.73
V_UC
V_UC
X704
1SOCKE2T
3
4
5
6
7
8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53 54
55 56
57 58
59 60
61 62
63 64
65 66
67 68
69 70
71 72
73 74
75 76
77 78
79 80
FLE-140-01-G-DV-A
GND
NC4.6 NC4.8 NC4.10 NC4.12 NC4.14 NC4.16 NC4.18 NC4.20 NC4.22 NC4.24 NC4.26 NC4.28 NC4.30 NC4.32 NC4.34 NC4.36 NC4.38 NC4.40 NC4.42 NC4.44 NC4.46 NC4.48 NC4.50 NC4.52 NC4.54 P33.8 P33.9 P33.10 NC4.62 NC4.64 NC4.66 NC4.68 NC4.70 NC4.72 NC4.74 NC4.76
+3V3
5
6
7 NC2[5..80] NC2[5..80]
8
BOTTOM
A /PORST
PERIPHERALS
B NC4[5..80] NC4[5..80]
C
PORTS
D
TriBoard TC3X2 Connectors socket
Sheet: 7 of 7
Infineon Technologies AG ATV MC ACE ATV CES
Number:
Am Campeon 1-12
Revision: 1.0
D-85579 Neubiberg
Date: 15.11.2019
Tel.: +49-89-234-0
File: G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X2\TriBoard TC3X2 V1.X\Connectf.sch
7
8
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
User Manual
7-9
Figure 7-8 Component Plot Top Layer
R390 X404
Y401 R402 R403
X 501
X305 R359
C 303 R3 61
D301
C501
L501 R501
CB 501
U501
C507 R507
C502
C504 L502
C503 CB502
C 509
C508 R508
C505
X304
R357
R355
C 302
R356
T302
R324
R337 C301
X303
R335 T301
R 336
L401
C402
R401
CB405
BU401 CB401
U401
CB402 D401
R411
R354 R344
D402 R456
U 502
S501
R426 R425 R532
R531
R202 R201
X401
R424
U408
R427
CB 417 R428
R446
R423
R451
R454
R444
CB415
CB419 R455
CB414 U406
U407
U 404 CB416
CB408
CB418
D504
D508 R509
X603
R248 R249
S502 R244
R222
D507 D506 D505
CB511 C208 C207
R246
R245
X302 CB205
X301
R439 R391
U305
R346 CB309
R348 U 201
CB 512
R233 R232
R234 R235
R237
R241
R524 R236
S201 R525
R255
R398
R397
R396
R395
R394
R 393
R392
D302 D303 D304 D305 D306 D307 D308 D309
R256
X604
R399
R457
R2 40
S202
R429 R216 R213
R212
X406
R 430
R207 Y201
X402
R215 R214
C202
R206
C201 R203
R205 R204
R452
X502
X601 X602
7.3
Layout
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
V1.0 2020-05
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
7-10
User Manual
Figure 7-9 Component Plot Bottom Layer
X701 X702
X704
CB413 CB 412
R535
CB51 6
C B201 CB202 R 209
C51 9
CB518
C517
R 208 C 516
C518
C 203
R520
CB 517 CB 510 CB 204 C205 C204
CB520 CB 515
C406 CB409
C404
C 405
C401
R414 CB404
R433
R436 R304 R 302
R308
R 449 R43 8
R 307
R422 R 448 R 447
R309 CB 407
R431
R419
R440 R420 R437
Q403
R418
R417
Q 402
R 416 R44 3
R413 R421
R410
U403
Q401
R409
R445
R41 5
CB403
R412 R450
L 402 CB411
R442
R40 5
C403
CB 410
R404 U405
R441
R 406
U402
CB40 6 R407
R334
U301
CB 301
R303
R521
R301 R 312
R306 R 317
CB302 R 318
U 302
R311 R5 13 R512
R319
R 305
D403
R320 R 321
R323 R330
CB305
R 338
R408
R322
R331
R315 C515
Q50 2
R340
R341
R342
R350
R343 CB30 8
R316
R538
R 533 Q 503
R358 R351
R 537
R3 64 R365
U304
U303
CB 304 R333 CB 303 R332
CB307 R353 CB 306
R3 52 R362
R3 63
Q504
R510
R221
R220
R502
R511
R5 03 R 505
R534
R504 C510 C512 C511
D501 Q5 01
R360
U306
C304
CB 310 D503
R506
Q505
X703
D502
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
7.4
Layout with Dimensioning
The following dimensions should be used for development of extension boards.
Figure 7-10 Dimensioning (mm)
User Manual
7-11
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Schematic and Layout
Figure 7-11 Dimensioning (mil)
The dimensioning is valid for all TriBoards.
User Manual
7-12
TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
V1.0 2020-05
TriBoard Manual TC3X2
Hardware: TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
Revision History Page or Item Subjects (major changes since previous revision) V1.0, 2020-05
First version
User Manual TriBoard TC3X2 TH V1.0 and TriBoard TC3X2 V1.0
RevisionHistory-1
V1.0 2020-05
Please read the Important Notice and Warnings at the end of this document
Trademarks of Infineon Technologies AG �HVICTM, �IPMTM, �PFCTM, AU-ConvertIRTM, AURIXTM, C166TM, CanPAKTM, CIPOSTM, CIPURSETM, CoolDPTM, CoolGaNTM, COOLiRTM, CoolMOSTM, CoolSETTM, CoolSiCTM, DAVETM, DI-POLTM, DirectFETTM, DrBladeTM, EasyPIMTM, EconoBRIDGETM, EconoDUALTM, EconoPACKTM, EconoPIMTM, EiceDRIVERTM, eupecTM, FCOSTM, GaNpowIRTM, HEXFETTM, HITFETTM, HybridPACKTM, iMOTIONTM, IRAMTM, ISOFACETM, IsoPACKTM, LEDrivIRTM, LITIXTM, MIPAQTM, ModSTACKTM, my-dTM, NovalithICTM, OPTIGATM, OptiMOSTM, ORIGATM, PowIRaudioTM, PowIRStageTM, PrimePACKTM, PrimeSTACKTM, PROFETTM, PRO-SILTM, RASICTM, REAL3TM, SmartLEWISTM, SOLID FLASHTM, SPOCTM, StrongIRFETTM, SupIRBuckTM, TEMPFETTM, TRENCHSTOPTM, TriCoreTM, UHVICTM, XHPTM, XMCTM.
Trademarks updated November 2015
Other Trademarks All referenced product or service names and trademarks are the property of their respective owners.
Edition 2020-05 Published by Infineon Technologies AG 81726 Munich, Germany
� 2020 Infineon Technologies AG. All Rights Reserved.
Do you have a question about any aspect of this document? Email: erratum@infineon.com
Document reference Doc_Number
IMPORTANT NOTICE
The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics ("Beschaffenheitsgarantie").
With respect to any examples, hints or any typical values stated herein and/or any information regarding the application of the product, Infineon Technologies hereby disclaims any and all warranties and liabilities of any kind, including without limitation warranties of non-infringement of intellectual property rights of any third party.
In addition, any information given in this document is subject to customer's compliance with its obligations stated in this document and any applicable legal requirements, norms and standards concerning customer's products and any use of the product of Infineon Technologies in customer's applications.
The data contained in this document is exclusively intended for technically trained staff. It is the responsibility of customer's technical departments to evaluate the suitability of the product for the intended application and the completeness of the product information given in this document with respect to such application.
For further information on technology, delivery terms and conditions and prices, please contact the nearest Infineon Technologies Office (www.infineon.com).
WARNINGS Due to technical requirements products may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies office.
Except as otherwise explicitly approved by Infineon Technologies in a written document signed by authorized representatives of Infineon Technologies, Infineon Technologies' products may not be used in any applications where a failure of the product or any consequences of the use thereof can reasonably be expected to result in personal injury.
