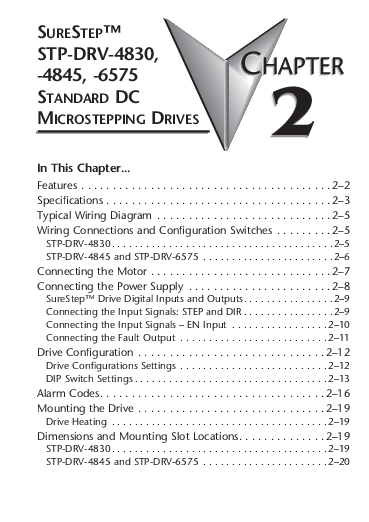

SureStep™ DC Microstepping Drives
This document introduces the SureStep™ series of DC Microstepping Drives, specifically the STP-DRV-4830, STP-DRV-4845, and STP-DRV-6575 models manufactured by AutomationDirect.
These drives are designed for precise motion control applications, offering a balance of cost-effectiveness and digital performance in a compact package.
Key Features Include:
- Low-cost, digital step motor driver
- Flexible operation with Step & Direction or Step CW/CCW signals
- Optically isolated I/O for enhanced noise immunity
- Selectable digital filters to prevent position errors
- Automatic idle current reduction for heat management
- Switch-selectable step resolution for various motion requirements
- Support for a wide range of DC power supplies
This manual provides comprehensive details on installation, configuration, specifications, and troubleshooting for these advanced microstepping drives.
