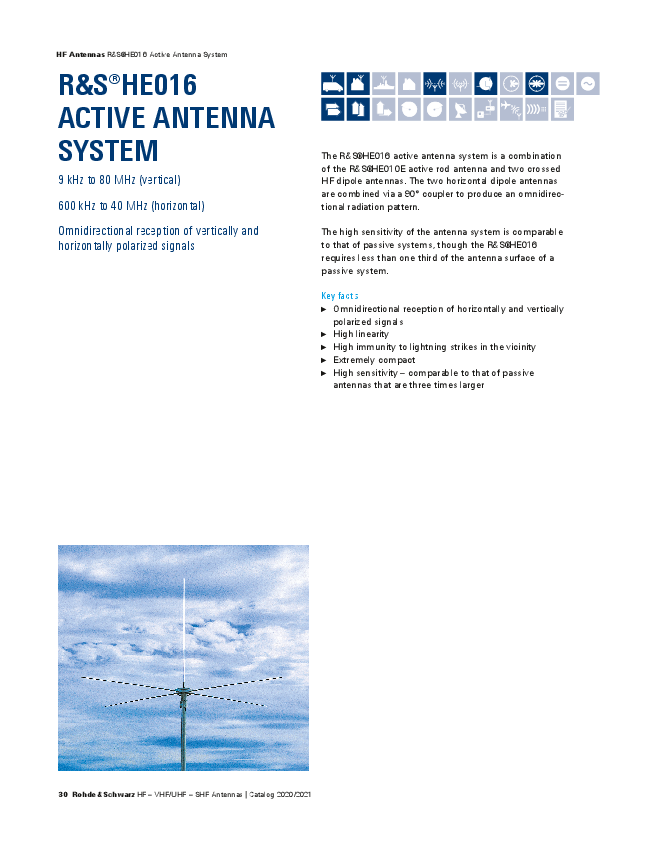

HF Antennas R&S�HE016 Active Antenna System R&S�He016 ACtIVe AntennA SYSteM 9 kHz to 80 MHz (vertical) 600 kHz to 40 MHz (horizontal) Omnidirectional reception of vertically and horizontally polarized signals The R&S�HE016 active antenna system is a combination of the R&S�HE010E active rod antenna and two crossed HF dipole antennas. The two horizontal dipole antennas are combined via a 90� coupler to produce an omnidirectional radiation pattern. The high sensitivity of the antenna system is comparable to that of passive systems, though the R&S�HE016 requires less than one third of the antenna surface of a passive system. Key facts Omnidirectional reception of horizontally and vertically polarized signals High linearity High immunity to lightning strikes in the vicinity Extremely compact High sensitivity � comparable to that of passive antennas that are three times larger 30 Rohde & Schwarz HF � VHF/UHF � SHF Antennas | Catalog 2020/2021 10 kHz 1.5 10 100 MHz HF Antennas R&S�HE016 Active Antenna System 1 1.3 GHz 10 18 26.5 40 1 2 Specifications Frequency range Input impedance VSWR Sensitivity IP2 IP3 Power supply Power consumption Connector MTBF Operating temperature range Protection class Max. wind speed Dimensions Weight vertical polarization horizontal polarization 9 kHz to 20 kHz 20 kHz to 80 MHz vertical (> 1 MHz) horizontal up to 30 MHz up to 30 MHz vertical horizontal without ice deposit � � H 9 kHz to 80 MHz 600 kHz to 40 MHz 3 50 < 3 < 2 < �50 dB(uV/m/Hz) 4 < �30 dB(uV/m/Hz) 50 dBm 30 dBm 21 V to 26 V DC (max. 500 mA) 5 max. 160 mA at 24 V DC max. 340 mA at 24 V DC 2 � N female > 25 000 h 6 �40 �C to +65 �C IP55 188 km/h approx. 2.85 m � 1.4 m (9 ft � 6 ft) 7 approx. 5.5 kg (12 lb) ordering information type order no. Active antenna system R&S�HE016 4051.8504.02 8 Recommended extras Bias unit R&S�IN600 4094.3004.x2 Mast, length: 6 m, pluggable R&S�KM011 0273.9116.02 9 typical radiation patterns 6 m mast: Vertical pattern of vertical section 6 m mast: Vertical pattern of horizontal section 10 kHz 1 MHz 0� 10 MHz 30� 20 MHz 30 MHz 60� 90� 0 0.2 0.4 0.6 0.8 1 1 MHz 10 MHz 0� 20 MHz 30� 30 MHz 60� 90� 0 0.2 0.4 0.6 0.8 1 10 typical inherent noise compared with different standard noise environments F in dB 11 160 Industrial area 140 Residential area Undisturbed site Extremely quiet site 120 Galactic noise 12 Atmospheric noise 100 R&S�HE016 vertical R&S�HE016 horizontal 80 R&S�HE016 vertical on 6 m mast 60 13 40 20 0 0.01 0.1 1 10 100 Frequency in MHz Rohde & Schwarz HF � VHF/UHF � SHF Antennas | Catalog 2020/2021 31
