TEKTELIC COMMUNICATIONS INC.

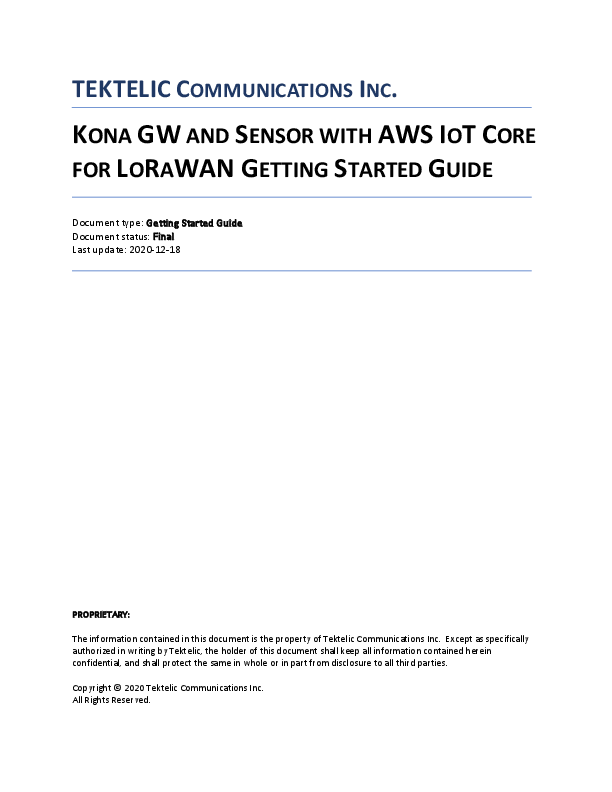

KONA GW AND SENSOR WITH AWS IOT CORE FOR LORAWAN GETTING STARTED GUIDE
Document type: Getting Started Guide Document status: Final Last update: 2020-12-18
PROPRIETARY: The information contained in this document is the property of Tektelic Communications Inc. Except as specifically authorized in writing by Tektelic, the holder of this document shall keep all information contained herein confidential, and shall protect the same in whole or in part from disclosure to all third parties. Copyright © 2020 Tektelic Communications Inc. All Rights Reserved.

Table of Contents
1 Document Information .........................................................................................................................................3 2 Overview...............................................................................................................................................................3 3 Hardware Description...........................................................................................................................................3 4 Setup your AWS account and Permissions ............................................................................................................3 5 Set up and Configure the Gateway .....................................................................................................................10 6 Verifying Operation ­ a "Hello World" example .................................................................................................13 7 Support ...............................................................................................................................................................18

1 Document Information
1.1 Naming Conventions
The term "downlink device" or "endpoint device" is used in this document to refer to a LoRaWAN device that connects to a LoRaWAN "Gateway". The "Gateway" in turn, connects to AWS IoT Core for LoRaWAN.
1.2 Revision History (Version, Date, Description of change)
Revision: v0.3 Date: Dec. 18, 2020 Description of the change: Updated Section 4.4, 6.4.3 and Section 5.
2 Overview
Introducing the Developer Starter Kit containing the Versatile LoRaWAN® Smart Room Sensor and the Highly Scalable KONA Micro Gateway. The KONA Smart Room Sensor integrates practical functionality into a very small form factor. The Smart Room Sensor is an ideal solution for holistically monitoring the home and office environment. The device is capable of measuring and reporting temperature, humidity, light, movement, motion, shock, detecting leaks, open / closed doors and windows. It also supports battery status updates for easy maintenance. Paired with the KONA Micro IoT Gateway, which is designed for enterprise and lightweight industrial applications that require "Always On" connectivity. Configured with an internal 3G/4G modem and a built-in battery backup, the KONA Micro IoT gateway continues to operate and transmits sensor data to the network even when the main site has lost power.
3 Hardware Description
3.1 DataSheet
KONA Micro Gateway: https://tektelic.com/uploads/Brochures/Kona%20Micro.pdf Smart Room Sensor Base & PiR : https://tektelic.com/uploads/Brochures/Smart%20Room%20Sensor.pdf
3.2 Standard Kit Contents
Contents of standard shipping hardware package contain: 1. KONA Micro Gateway 2. Power Adapter 3. Ethernet Cable 4. LoRa Antenna 5. Smart Room Sensor Base
3.3 Smart Room Sensor PiRUser Provided items
Power Source for Gateway
3.4 3rd Party purchasable items
None
3.5 Additional Hardware References
None
4 Setup your AWS account and Permissions
If you don't have an AWS account, refer to the instructions in the guide here. The relevant sections are Sign up for an AWS account and Create a user and grant permissions.

4.1 Overview
The high-level steps to get started with AWS IoT Core for LoRaWAN are as follows: 1. Set up Roles and Policies in IAM 2. Add a Gateway (see section Add the Gateway to AWS IoT) 3. Add Device(s) (see section Add a LoRaWAN Device to AWS IoT) a. Verify device and service profiles b. Set up a Destination to which device traffic will be routed and processed by a rule.
These steps are detailed below. For additional details, refer to the AWS LoRaWAN developer guide.
4.2 Set up Roles and Policies in IAM
4.2.1 Add an IAM Role for CUPS server
Add an IAM role that will allow the Configuration and Update Server (CUPS) to handle the wireless gateway credentials.
This procedure needs to be done only once, but must be performed before a LoRaWAN gateway tries to connect with AWS IoT Core for LoRaWAN.
· Go to the IAM Roles page on the IAM console · Choose Create role. · On the Create Role page, choose Another AWS account. · For Account ID, enter your account id. · Choose Next: Permissions · In the search box next to Filter policies, enter AWSIoTWirelessGatewayCertManager.
o If the search results show the policy named AWSIoTWirelessGatewayCertManager, select it by clicking on the checkbox.
o If the policy does not exist, please create it as follows:  Go to the IAM console  Choose Policies from the navigation pane.  Choose Create Policy. Then choose the JSON tab to open the policy editor. Replace the existing template with this trust policy document: { "Version": "2012-10-17", "Statement": [ { "Sid": "IoTWirelessGatewayCertManager", "Effect": "Allow", "Action": [ "iot:CreateKeysAndCertificate", "iot:DescribeCertificate", "iot:ListCertificates", "iot:RegisterCertificate" ], "Resource": "*" } ] }
 Choose Review Policy to open the Review page.  For Name, enter AWSIoTWirelessGatewayCertManager. Note that you must enter the
name as AWSIoTWirelessGatewayCertManager and must not use a different name. This is for consistency with future releases.  For Description, enter a description of your choice.

 Choose Create policy. You will see a confirmation message showing the policy has been created.
· Choose Next: Tags, and then choose Next: Review. · In Role name, enter IoTWirelessGatewayCertManagerRole, and then choose Create role.
o Note that you must not use a different name. This is for consistency with future releases. · In the confirmation message, choose IoTWirelessGatewayCertManagerRole to edit the new role. · In the Summary, choose the Trust relationships tab, and then choose Edit trust relationship. · In the Policy Document, change the Principal property to represent the IoT Wireless service:
"Principal": { "Service": "iotwireless.amazonaws.com"
},
After you change the Principal property, the complete policy document should look like this:
{ "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Principal": { "Service": "iotwireless.amazonaws.com" }, "Action": "sts:AssumeRole", "Condition": {} } ]
}
· Choose Update Trust Policy to save your changes and exit.
At this point, you've created the IoTWirelessGatewayCertManagerRole and you won't need to do this again.
4.2.2 Add IAM role for Destination to AWS IoT Core for LoRaWAN
Prepare your AWS account to work with AWS IoT Core for LoRaWAN. First, create an IAM role with permissions to describe the IoT end point and to deliver messages to IoT cloud. Then, update the trust policy to grant AWS IoT Core for LoRaWAN permission to assume this IAM role when delivering messages from devices to your account.
NOTE ­ The examples in this document are intended only for dev environments. All devices in your fleet must have credentials with privileges that authorize only intended actions on specific resources. The specific permission policies can vary for your use case. Identify the permission policies that best meet your business and security requirements. For more information, refer to Example policies and Security Best practices.
First, create a policy with the permissions described above. · Go to the IAM console · Choose Policies from the navigation pane. · Choose Create Policy. Then choose the JSON tab to open the policy editor. Replace the existing template with this trust policy document:
{ "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [

"iot:DescribeEndpoint", "iot:Publish" ], "Resource": "*" } ] }
· Choose Review Policy to open the Review page. For Name, enter a name of your choice. For Description, enter a description of your choice.
· Choose Create policy.
Now, create a role that will use the above policy.
· In the IAM console, choose Roles from the navigation pane to open the Roles page. · Choose Create Role. · In Select type of trusted entity, choose Another AWS account. · In Account ID, enter your AWS account ID, and then choose Next: Permissions. · Choose Next: Permissions · Search for your IAM policy created in the step above. Type in the policy name to find your policy. Select it. · Choose Next: Tags. · Choose Next: Review to open the Review page. For Role name, enter an appropriate name of your choice.
For Description, enter a description of your choice. · Choose Create role.
Update your policy's trust relationship.
· In the IAM console, choose Roles from the navigation pane to open the Roles page · Enter the name of the role you created earlier in the search window, and click on the role name in the
search results · Choose the Trust relationships tab to navigate to the Trust relationships page. · Choose Edit trust relationship. The principal AWS role in your trust policy document defaults to root.
Replace the existing policy with this:
{ "Version": "2012-10-17", "Statement": [ { "Sid": "", "Effect": "Allow", "Principal": { "Service": "iotwireless.amazonaws.com" }, "Action": "sts:AssumeRole", "Condition": {} } ]
}
· Choose Update Trust Policy
4.3 Add the Gateway to AWS IoT 4.3.1 Preparation
To complete setting up your gateway, you need: · LoRaWAN region. For example, if the gateway is deployed in a US region, the gateway must support LoRaWAN
region US915.

· Gateway LNS-protocols. Currently, the LoRa Basics Station protocol is supported. · Gateway ID (DevEUI) or serial number. This is used to establish the connection between the LNS and the
gateway. Consult the documentation for your gateway to locate this value. · Your gateway's Basics Station version must be 2.0.5 or higher.
4.3.2 Add the LoRaWAN Gateway
To register the Gateway with AWS IoT Core for LoRaWAN, follow these steps: · Go to the AWS IoT Core console (console.aws.amazon.com/iot) and login. · Select Wireless connectivity in the navigation panel on the left. · Choose Intro, and then choose Get started. This step is needed to pre-populate the default profiles. · Under Add LoRaWAN gateways and wireless devices, choose Add gateway. · In the Add gateway section, fill in the GatewayEUI (found on the bottom of your gateway as GW ID) and
Frequency band (RF Region) fields. · Enter a descriptive name in the Name ­ optional field. We recommend that you use the Gateway EUI as the
name. · Choose Add gateway · On the Configure your Gateway page, find the section titled Gateway certificate. · Select Create certificate. · Once the Certificate created and associated with your gateway message is shown, select Download certificates
to download the certificate (xxxxx.cert.pem) and private key (xxxxxx.private.key). We recommend that you store all the downloaded files in the same folder.
o Then rename xxxx.cert.pem file to cups.crt and xxxx.private.key to cups.key. o Create a copy of cups.key and name it tc.key. o Create a copy of cups.crt and name it tc.crt. · In the section Provisioning credentials, choose Download server trust certificates to download the CUPS (cups.trust) and LNS (lns.trust) server trust certificates. o Keep the cups.trust file as it is. o Rename the lns.trust file to tc.trust. · Copy the CUPS and LNS endpoints and save them for use while configuring the gateway. o Create cups.uri file with CUPS Endpoint URL:
e.g: https://EXAMPLE.cups.lorawan.REGION.amazonaws.com:443 o Create tc.uri file with LNS Endpoint URL:
e.g: wss://EXAMPLE.gateway.lorawan.REGION.amazonaws.com:443
Make sure that you have the following 8 files from the steps above as you'll need them to configure your gateway: o tc.uri o tc.trust o tc.key o tc.crt o cups.uri o cups.trust o cups.key o cups.crt
· Choose Submit to add the gateway.
4.4 Add a LoRaWAN Device to AWS IoT
4.4.1 Preparation
Locate and note the following specifications about your endpoint device. o LoRaWAN region. This must match the gateway LoRaWAN region. The following Frequency bands (RF regions) are supported: o EU868

o US915 o EU433 o MAC Version. This must be one of the following: o V1.0.2 o v1.0.3 o v1.1 o OTAA v1.0x and OTAA v1.1 are supported. o ABP v1.0x and ABP v1.1 are supported.
Locate and note the following information from your device manufacturer: o For OTAA v1.0x devices: DevEUI, AppKey, AppEUI o For OTAA v1.1 devices: DevEUI, AppKey, NwkKey, JoinEUI o For ABP v1.0x devices: DevEUI, DevAddr, NwkSkey, AppSkey o For ABP v1.1 devices: DevEUI, DevAddr, NwkSEnckey, FNwkSIntKey, SNwkSIntKey, AppSKey
Note: Tektelic Devices support v1.0.2. So, If you are using Tektelic Device choose "OTAA v1.0.x" from the list.

4.4.2 Verify Profiles
AWS IoT Core for LoRaWAN supports device profiles and service profiles. Device profiles contain the communication and protocol parameter values the device needs to communicate with the network server. Service profiles describe the communication parameters the device needs to communicate with the application server.

Some pre-defined profiles are available for device and service profiles. Before proceeding, verify that these profile settings match the devices you will be setting up to work with AWS IoT Core for LoRaWAN.

· Navigate to the AWS IoT Core console. In the navigation pane, choose Wireless connectivity.

· In the navigation pane, choose Profiles

· In the Device Profiles section, there are some pre-defined profiles listed.

· Check each of the profiles to determine if one of them will work for you.

· If not, select Add device profile and set up the parameters as needed. For US 915 as an example, the values

are:

o MacVersion 1.0.3

o RegParamsRevision RP002-1.0.1

o MaxEirp 10

o MaxDutyCycle 10

o RfRegion US915

o SupportsJoin true

· Continue once you have a device profile that will work for you.

· In the Service Profiles section, there are some pre-defined profiles listed. Check each of the profiles to

determine if one of them will work for you.

· If not, select Add service profile and set up the parameters as needed. As an example, the default service

profile parameters are shown below. However, only the AddGwMetadata setting can be changed at this

time.

o UlRate 60

o UlBucketSize 4096

o DlRate 60

o DlBucketSize 4096

o AddGwMetadata true

o DevStatusReqFreq

24

o DrMax 15

o TargetPer

5

o MinGwDiversity 1

Proceed only if you have a device and service profile that will work for you.
4.4.3 Set up a Destination for device traffic
Because most LoRaWAN devices don't send data to AWS IoT Core for LoRaWAN in a format that can be consumed by AWS services, traffic must first be sent to a Destination. A Destination represents the AWS IoT rule that processes a device's data for use by AWS services. This AWS IoT rule contains the SQL statement that selects the device's data and the topic rule actions that send the result of the SQL statement to the services that will use it.
For more information on Destinations, refer to the AWS LoRaWAN developer guide.
A destination consists of a Rule and a Role. To set up the destination: · Navigate to the AWS IoT Core console. In the navigation pane, choose Wireless connectivity, and then Destinations · Choose Add Destination · On the Add destination page, in the Permissions section select the IAM role you had created earlier, from the drop-down. · Under Destination details enter ProcessLoRa as the Destination name, and an appropriate description under Destination description ­ optional.
NOTE: The Destination name can be anything. For getting started and consistency, choose ProcessLoRa for the first integration with AWS IoT Core for LoRaWAN.
· For Rule name enter LoRaWANRouting. Ignore the section Rules configuration ­ Optional for now. The Rule will be set up later in the "Hello World" sample application ­ see Create the IoT Rule for the destination
· Choose Add Destination. You will see a message "Destination added", indicating the destination has been successfully added.
4.4.4 Register the Device
All the Tektelic Devices support v1.0.2. Now register an endpoint device with AWS IoT Core for LoRaWAN as follows:
· Go to the AWS IoT Core console. · Select Wireless connectivity in the navigation panel on the left. · Select Devices · Choose Add wireless device · On the Add device page, select the LoRaWAN specification version in the drop-down under Wireless device
specification. o Tektelic Devices support v1.0.2. So, If you are using Tektelic Device choose "OTAA v1.0.x" from the list.
· Under LoRaWAN specification and wireless device configuration, enter the DevEUI and confirm it in the Confirm DevEUI field.
· Enter the remaining fields as per the OTAA/ABP choice you made above. o v1.0.2 supports only Appkey.
· Enter a name for your device in the Wireless device name ­ optional field. · In the Profiles section, under Wireless device profile, find a drop-down option that corresponds to your
device and region. o NOTE: Compare your device details to ensure the device profile is correct. If there are no valid default options, you will have to create a new profile (see the section Verify Profiles).
· Choose Next · Choose the destination you created earlier (ProcessLoRa) from the drop-down under Choose destination. · Choose Add device
You will see a message saying "Wireless device added", indicating that your device has been set up successfully.

5 Set up and Configure the Gateway
5.1 Set up Gateway hardware
KONA Micro Gateway Unboxing
KONA Micro Gateway Setup steps. Box contains:
· KONA Micro Gateway · Power Adapter · Ethernet Cable · LoRa Antenna · Smart Room Sensor Base · Smart Room Sensor PiR Setup: o Remove items from box o Connect LoRa Antenna to Micro Gateway o Plug into power source o Plug into ethernet source Your KONA Micro is now live and ready to connect!
Detailed Quick start guides are available for KONA Micro Gateway and Smart Room Sensors at support@tektelic.com https://support.tektelic.com/portal/en/kb/support
5.2 Set up Gateway Software
The minimum BSP version is required for this is, For Mega and Macro, BSP Version should be 4.x.x and for Micro, BSP version should be 3.x.x.
· Login to your Gateway using SSH. By default, user name is "root" and the password is "Gateway's 9digit serial number" (You can find this information on the label on your Gateway)
You can check the BSP version on your gateway by issuing "system_version" command on the Gateway's console (using SSH).
5.2.1 Preparing Basic Station for the installation on BSP 3.0.x and 3.1.x (Micro) and 4.0.x and 4.1.x (Mega and Macro):
· Please create an account on our support portal (https://support.tektelic.com/portal/en/signin) and go to knowledge base -> Basic Station
· Download the Basic Station Package. (Basic-Station-packages-vx.x.x-for-Tektelic-gateways.tar.gz) · Then, upload the Basic-Station-packages-vx.x.x-for-Tektelic-gateways.tar.gz to the directory /lib/firmware
on the target gateway and extract it using following command. tar -C /lib/firmware \ -zxvf /lib/firmware/Basic-Station-packages-vx.x.x-for-Tektelic-gateways.tar.gz
· Add the feed location to the package manager configuration file by using following command: echo "src/gz bstn file:///lib/firmware/Basic-Station-packages-vx.x.x-for-Tektelic-gateways" \ > /etc/opkg/bstn-feed.conf
· Then enter the following command. opkg update
5.2.1.1 Installing Basic Station packages using command line: To install the basic Station packages, run the following command:
· opkg install tektelic-bstn curl libcurl4

5.2.2 Preparing Basic Station for the installation on Micro BSP 3.2.x, Mega/Macro 4.2.x or later:
· Obtain the ipk/bsp package by contacting our support team. Please create an account on our support portal (https://support.tektelic.com/portal/en/signin) or send an email to support@tektelic.com to contact us.
· Upload the ipk/bsp folder to the gateway and extract it into /lib/firmware. · Add the feed location to the package manager configuration file by running following command.
echo "src/gz bstn file:///lib/firmware/bsp" > /etc/opkg/bstn-feed.conf · Then enter the following command.
opkg update 5.2.2.1 Installing Basic Station packages using command line: To install the basic Station packages, run the following command:
· opkg install tektelic-bstn curl libcurl4 Note: Please create an account on our support portal (https://support.tektelic.com/portal/en/signin) and go to knowledge base for Gateway and Device Guides and Documentation. To get up to date information about our new BSP Releases for Gateways and Firmware releases for Devices, please go to community in our support portal and select "FOLLOW" button under TEKTELIC announcements. Then you will receive email notifications whenever we release new software.
If you have any questions or issues reach out to support@tektelic.com, one of our Customer Support Specialists will assist you.
5.3 Additional Software References
None
5.4 Configure the Gateway
This configuration is applicable for Kona Mega, Kona Macro and Kona Micro gateways.

a. Login to your Gateway using SSH. By default, user name is "root" and the password is "Gateway's 9digit serial number" (You can find this information on the label on your Gateway)
b. Make sure Basic Station and Packet Forwarder are installed. · To check whether the packet forwarder is installed, enter "system_version" command on the console and look for Packet Forwarder, if it is listed then which means packet forwarder is installed.
· To check whether the Basic Station is installed, enter "opkg list-installed | grep bstn" command on the console.
· If they are not installed, please reach out to us on our support portal (sign up required https://support.tektelic.com/portal/en/signin), or support email ­ support@tektelic.com
c. Then make sure Basic Station and Packet Forwarder are running. · To check whether they are running, enter "ps aux | grep pkt" and "ps aux | grep bstn" command on the console, if they both show up with process id which means they both are running. For Packet Forwarder: For Basic Station: · If they are not running, please reach out to us on our support portal (sign up required https://support.tektelic.com/portal/en/signin), or support email ­ support@tektelic.com
d. Configure Packet Forwarder: · Update the "server address" in /etc/default/config.json file to 127.0.0.1. Then restart the packet forwarder. (/etc/init.d/pkt_fwd restart)

e. Configure Basic Station: · Keys and certificates required: · tc.uri · tc.trust · tc.key · tc.crt · cups.uri · cups.trust · cups.key · cups.crt · Copy the previously downloaded and created keys and certificates (see section 4.3.2). and put them into /etc/bstn directory on your GW. (You can use winscp to transfer files from windows PC) · By default, CUPS is enabled in the Basic Station to connect with Server. If you don't want to use CUPS then you can disable that by set "skip_cups=true" in /etc/default/bstn.toml file. · Then enter the following command to restart the Basic Station. /etc/init.d/tektelic-bstn restart · Now your Gateway should be able to connect to the server. · You can find the packet forwarder log file in /var/log/pkt_fwd.log · You can find the Basic Station log file in /var/log/syslog (If your GW has 3.0.x, 3.1.x, 4.0.x and 4.1.x BSPs) · You can find the Basic Station log file in /var/log/bstn.log (If your GW has 3.2.x and 4.2.x or later)
If you have any questions or issues, please reach out to us on our support portal (sign up required https://support.tektelic.com/portal/en/signin), or support email ­ support@tektelic.com
6 Verifying Operation ­ a "Hello World" example
Once setup is completed, provisioned OTAA devices can join the network and start to send messages. Messages from devices can then be received by AWS IoT Core for LoRaWAN and forwarded to the IoT Rules Engine.
Instructions for a sample Hello World application are given below, assuming that the device has joined and is capable of sending uplink traffic. The architecture for this sample application is:
6.1 Create lambda function for destination rule
Create the lambda function to process device messages processed by the destination rule. · Go to AWS IoT Core (https://console.aws.amazon.com/iot/home) · In the navigation tab, select Settings and note Endpoint URL. Leave this tab open as we'll need this further.

· In a new tab, go to the AWS Lambda console (https://console.aws.amazon.com/lambda). · Click on Functions in the navigation pane · Click on Create function · Select Author from scratch. Under Basic information, enter the function name "sailboatdecoder" and
choose Runtime Node.js 12.x. from the drop-down under Runtime. · Click on Create function. · Navigate to https://tek-aws-gsg.s3.amazonaws.com/lambda.txt and copy the code for the lambda function. · Under Function code, paste the copied code into the editor under the index.js tab. · At the top of the index.js text, change INSERT_ENDPOINT_URL_HERE with the link from the IoT Core
Settings tab. · Once the code has been pasted, choose "Deploy" to deploy the lambda code. · Click on the Permissions tab of the lambda function · Change the Lambda Role Policy permission
o Under Execution role, click on the hyperlink under Role name o On the Permissions tab, find the policy name and click on it o Choose Edit policy, and choose the JSON tab o Append the following to the Statement section of the policy to allow publishing to AWS IoT.
{ "Effect": "Allow", "Action": [ "iot:Publish" ], "Resource": [ "*" ]
}
o Choose Review Policy, then Save changes · Create a test event that will allow you to test the functionality of the lambda function.
o In the drop-down for Select a test event, choose Configure test events o Enter a name for the test event under Event name o Paste the following sample payload in the area under Event name:
{ "MessageId": "55d122ab-6355-2233-9874-ff47c5222108", "WirelessDeviceId": "65d128ab-90dd-4668-9556-fe47c589610b", "PayloadData": "AgAAA2cA3QRoLA==", "WirelessMetadata": { "LoRaWAN": { "DevEui": "647FDAXXXXXXXXXX", "FPort": 10, "DataRate": 0, "Frequency": 904500000, "Gateways": [ { "GatewayEui": "647FDAXXXXXXXXXX", "Snr": 12.25, "Rssi": -47 } ], "Timestamp": "2020-11-10T20:23:56Z", } }

}
· Choose Create to save the event · Navigate to the AWS IoT Core console, choose Test on the navigation pane, and select MQTT client. · Configure the MQTT client to subscribe to "#" (all topics) · Click on Test in the Lambda function page to generate the test event you just created · Verify the published data in the AWS IoT Core MQTT Test client
o Open another window. Goto AWS IoT Console, select Test, under Subscription Topic, enter # and select to Subscribe to topic
o The output should look similar to this:
{ "raw": "[02, 00, 00, 03, 67, 00, DD, 04, 68, 2C]", "port": "10", "light_detected": 0, "temperature": 22.1, "relative_humidity": 22, "deveui": "647FDAXXXXXXXXXX" "timestamp": "1234567890123"
}
6.2 Create the Destination rule
In this step, you create the IoT rule that forwards the device payload to your application. This rule is associated with the destination created earlier in Set up a Destination for device traffic.
· Navigate to the AWS IoT Core console. · In the navigation pane, choose Act. Then, choose Rules. · On the Rules page, choose Create. · On the Create a rule page, for Name, enter LoRaWANRouting. For Description, enter a description of your
choice. Note the name of your rule. The information will be needed when you provision devices to run on AWS IoT Core for LoRaWAN. · Leave the default Rule query statement: `SELECT * FROM 'iot/topic' unchanged. This query has no effect at this time, as traffic is currently forwarded to the rules engine based on the destination. · Under Set one or more actions choose Add action. · On the Select an action page, choose Republish a message to an AWS IoT topic. Scroll down and choose Configure action. · On the Configure action page, for Topic, enter project/sensor/observed. The AWS IoT Rules Engine will forward messages to this topic. · Under Choose or create a role to grant AWS IoT access to perform this action, choose Create Role. · For Name, enter a name of your choice. · Choose Create role to complete the role creation. You will see a "Policy Attached" tag next to the role name, indicating that the Rules Engine has been given permission to execute the action. · Choose Add action. · Add one more action to invoke the Lambda function. Under Set one or more actions choose Add action. · Choose Send a message to a Lambda function · Choose Configure action · Select the sailboatdecoder lambda function created earlier and choose Add action · Then, choose Create rule. · A "Success" message will be displayed at the top of the panel, and the destination has a rule bound to it.
You can now check that the decoded data is received and republished by AWS by triggering a condition or event on the device itself.
1. Go to the AWS IoT console. In the navigation pane, select Test, and choose MQTT client. 2. Subscribe to the wildcard topic `#" to receive messages from all topics

3. You should see traffic similar to that shown below."
{ "raw": "[02, 00, 00, 03, 67, 00, DD, 04, 68, 2C]", "port": "10", "light_detected": 0, "temperature": 22.1, "relative_humidity": 22, "deveui": "647FDAXXXXXXXXXX" "timestamp": "1234567890123"
}
6.3 Configuring SNS
We will use the Amazon Simple Notification Service to send text messages (SMS) when certain conditions are met.
· Go to the AWS SNS console. · Click on the Hamburger menu in the left corner to open the navigation pane. · Select Text Messaging (SMS) and choose Publish text message. · Under Message type, select Promotional. · Enter your phone number (phone number that will receive text alerts) · Enter "Test message" for the Message and choose Publish message. · If the phone number you entered is valid, you will receive a text message and your phone number will be
confirmed. · Create an SNS Topic as follows:
o In the navigation pane, choose Topics o Select Create topic o Under Details, select Standard o Enter a name of your choice. Here we will use "text_topic". o Select Access Policy ­ optional o Under Choose method, select Basic o For Define who can send messages to this topic, select Everyone o Choose Create topic · Create a subscription for this topic: o In the page for the newly created text_topic, choose the Subscriptions tab o Choose Create subscription o Select Protocol as SMS from the drop-down o Under Endpoint, enter the previously validated phone number to receive the SMS alerts o Choose Create subscription. You should see a "Subscription to text_topic created successfully"
message.
6.3.1 Add a rule for SNS notification
Now add a new rule to send an SNS notification when certain conditions are met in a decoded message.
· Navigate to the AWS IoT Core console. · In the navigation pane, choose Act. Then, choose Rules. · On the Rules page, choose Create · Enter the Name as text_alert, and provide an appropriate Description · Under Rule query statement, enter the following query:
SELECT deveui, "Temperature exceeded 22" as message, relative_humidity, temperature, time FROM 'project/sensor/decoded' where temperature > 22

· Choose Add action · Choose Send a message as an SNS push notification · Choose Configure action · Under SNS target, select text_topic from the drop-down · Select RAW under Message format · Under Choose or create a role to grant AWS IoT access to perform this action, choose Create role. · Enter a name for the role and choose Add action · Choose Create rule. You should see a "Success" message, indicating that the rule has been created.
6.4 IoT Analytics
We will use IoT Analytics to visually display data via graphs if there is a need in the future to do further analysis.
6.4.1 Create an IoT Analytics Rule
First create a rule · Navigate to the AWS IoT Core console. · In the navigation pane, choose Act. Then, choose Rules. · On the Rules page, choose Create · Enter the Name as Visualize, and provide an appropriate Description · Under Rule query statement, enter the following query: SELECT * FROM 'project/sensor/decoded' · Choose Add action · Select Send a message to IoT Analytics · Choose Configure Action · Choose Quick Create IoT Analytics Resources · Under Resource Prefix, enter an appropriate prefix for your resources, such as LoRa · Choose Quick Create · Once the Quick Create Finished message is displayed, choose Add action. · Choose Create rule. You should see a Success message, indicating that the rule has been created.
6.4.2 Configure IoT Analytics
Set up IoT Analytics as follows:
· Go to the AWS IoT Analytics console. · In the navigation panel, choose Data sets · Select the data set that was generated by the Quick Create in Create an IoT Analytics Rule · In the Details section, Edit the SQL query. · Replace the query with:
select temperature, relative_humidity, deveui, time from LoRa_datastore
· Under Schedule, choose Add schedule · Under Frequency, choose Every 1 minute, and choose Save
6.4.3 Configure QuickSight
QuickSight lets you easily create and publish interactive BI dashboards that include Machine Learning-powered insights.
· Go to AWS Management console. · From the management console, enter "QuickSight" in the "Search for services, features.." search box.

· Click on QuickSight in the search results · If you haven't signed up for the service before, go ahead and sign up, as there is a free trial period. · Select the Standard Edition, and choose Continue · Enter a unique name in the field QuickSight account name · Fill in the Notification email address · Review the other checkbox options and change them as necessary. The AWS IoT Analytics option must be
selected. · Choose Finish. You will see a confirmation message. · Choose Go to Amazon QuickSight · Select Datasets · Select New dataset · Select AWS IoT Analytics · Under Select an AWS IoT Analytics data set to import, choose the data set created in Create an IoT
Analytics Rule · Choose Create data source, and then choose Visualize · Select dataset created, then select Refresh or Schedule Refresh for periodic refresh of dataset.
6.5 Testing your "Hello World" Application
Using your device, create a condition to generate an event such as a high temperature condition. If the temperature is above the configured threshold then you will receive a text alert on your phone. This alert will include key parameters about the alert.
You can also visualize the data set as follows:
· Go to the AWS IoT Analytics console · Choose Data sets · Select the dataset created earlier · Select Content. and ensure there are at least few uplink entries available in the data set. · Go to the QuickSight console · Choose New analysis · Choose the dataset created in Create an IoT Analytics Rule · Select time on the X-axis, Value as temp (Average) and Color as device_id to see a chart of your dataset.
7 Support
If at any step you encounter problems ­ feel free to reach out to us on our support portal (sign up required https://support.tektelic.com/portal/en/signin), or support email ­ support@tektelic.com


Microsoft Word 2016
