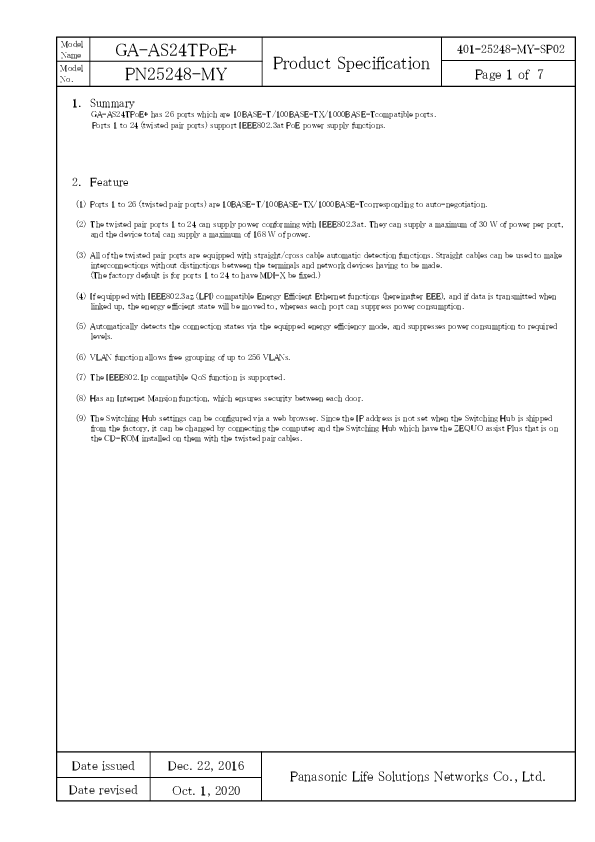

Model Name GA-AS24TPoE+ Model No. PN25248-MY Product Specification 1. Summary GA-AS24TPoE+ has 26 ports which are 10BASE-T/100BASE-TX/1000BASE-Tcompatible ports. Ports 1 to 24 (twisted pair ports) support IEEE802.3at PoE power supply functions. 401-25248-MY-SP02 Page 1 of 7 2. Feature 1 Ports 1 to 26 (twisted pair ports) are 10BASE-T/100BASE-TX/1000BASE-Tcorresponding to auto-negotiation. 2 The twisted pair ports 1 to 24 can supply power conforming with IEEE802.3at. They can supply a maximum of 30 W of power per port, and the device total can supply a maximum of 168 W of power. 3 All of the twisted pair ports are equipped with straight/cross cable automatic detection functions. Straight cables can be used to make interconnections without distinctions between the terminals and network devices having to be made. (The factory default is for ports 1 to 24 to have MDI-X be fixed.) 4 If equipped with IEEE802.3az (LPI) compatible Energy Efficient Ethernet functions (hereinafter EEE), and if data is transmitted when linked up, the energy efficient state will be moved to, whereas each port can suppress power consumption. 5 Automatically detects the connection states via the equipped energy efficiency mode, and suppresses power consumption to required levels. 6 VLAN function allows free grouping of up to 256 VLANs. 7 The IEEE802.1p compatible QoS function is supported. 8 Has an Internet Mansion function, which ensures security between each door. 9 The Switching Hub settings can be configured via a web browser. Since the IP address is not set when the Switching Hub is shipped from the factory, it can be changed by connecting the computer and the Switching Hub which have the ZEQUO assist Plus that is on the CD-ROM installed on them with the twisted pair cables. Date issued Date revised Dec. 22, 2016 Oct. 1, 2020 Panasonic Life Solutions Networks Co., Ltd. Model Name GA-AS24TPoE+ Model No. PN25248-MY 401-25248-MY-SP02 Product Specification Page 2 of 7 3. Rated/Environmental Conditions 31. Power supply 32. Power consumption 33. Operating environment AC100-240V, 50/60Hz, 4.0A (with a built-in power supply) Normally, Max.209W 23.7W when not supplying power, Min.13.8W Temperature: 0 - 40 Humidity: 20 - 80%RH no condensation If the supply power for the entire device is going to be used at 80 W or less, corresponds to 0 to 50. 34. Storage environment 35. EMC compliance Temperature: -20 - 70 Humidity: 10 - 90%RH no condensation CISPR 22 Class A, EN 55022 Class A, EN 55032 Class A AS/NZS CISPR22 Class A VCCI Class A EN 61000-3-2, EN 61000-3-3 CISPR 24, EN 55024 IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 36. Safety compliance 37. Environment compliance IEC 60950-1 EN 60950-1 RoHS compliant 4. Form 41. Form and materials/colors Dimensions Case material Color 42. MassWeight 3,800g 44mmHeight×440mmWidth×257mmDepth Excluding protruding sections SECC : Main unit: Green 03, Front face: Black 03, Face plate label: Black 04 5. Hardware Specifications 51. Interface Twisted pair port 1-26 RJ45 connector 1 Transmitting and receiving network system IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T Energy Efficient Ethernet IEEE802.3az (LPI) 2 Transmission speed 10/100Mbps full/half duplex, 1000Mbps full duplex, Compatible cable Twisted pair cable At least equivalent to EIA/TIA568 category 5e If there is Category 3 cable used in a connection, the communication at a speed of 10Mbps can not be established. You must use category 5e or higher crossover cable. Maximum transmission distance 100m Auto-Negotiation Communication speed and full/half duplex are automatically recognized. The setting can be fixed to 10Mbps, 100Mbps, 1000Mbps and full duplex or half duplex. Up to 168 W of power can be supplied to ports 1 to 24 in total. (Maximum power supplied to a port: 30.0W) 1 Automatically detects the connection states via the equipped Power Saving Mode, and suppresses power consumption to required levels. Factory default : Half 2 Port 1-24 equipped with IEEE802.3az (LPI) compatible Energy Efficient Ethernet functions(hereinafter EEE), and if data is transmitted when linked up, the energy efficient state will be moved to, whereas each port can suppress power consumption. Factory default : Enable Date issued Date revised Dec. 22, 2016 Oct. 1, 2020 Panasonic Life Solutions Networks Co., Ltd. Model Name GA-AS24TPoE+ Model No. PN25248-MY 401-25248-MY-SP02 Product Specification Page 3 of 7 5. Hardware Specifications 52. Switching mode 53. LED display Switching method Switching capacity Packet transfer capability MAC Address table Buffer memory Flow control Aging timeout Jumbo frame supported Transmittable frames HOL Blocking 1POWERPowerLED Green Light Power is ON Off Power is OFF Store and Forward 52.0Gbps Non-blocking Max 14,880pps/port10Mbps Max 148,800pps/port100Mbps Max 1,488,000pps/port1000Mbps Max 8K entry/unit 512K Byte/unit half-duplex Back pressure full-duplex IEEE802.3x 10to 1,000,000 sec. 9KB EAP, BPDU 2STATUS (status) LED Green Light System is normally operating Green Blink : After powering on, and the system startup is completed, blinks for five minutes Orange Light System is starting up Orange Blink System is malfunctioning 3 PoE LIM. (PoE limit) LED Off : Supplies power in a range of 0 161 W Green Light : Supplies power in a range of 161 W 168 W Green Blink : When the requested power supply capacity exceeds 168 W (overload of the device overall) 4 Port LED (Left) LINK/ACT (ports 1-26) LED Green Light : Link is established. Green Blink : Data is being sent/received. Off : No terminal is connected. 5 Port LED (Right) PoE (ports 1-24) LED Green Light : Power is supplied normally. Green Blink : Overload power supply Off : Power is not supplied or PoE receiving equipment is not connected. 54. Cascade connections 55. FAN Port 1-26 corresponding to the Auto MDI / MDI-X (Allowed change by the setting for the application) The factory default is for ports 1 to 24 are fixed to be MDI-X. Installed Date issued Date revised Dec. 22, 2016 Oct. 1, 2020 Panasonic Life Solutions Networks Co., Ltd. Model Name GA-AS24TPoE+ Model No. PN25248-MY 401-25248-MY-SP02 Product Specification Page 4 of 7 6. Software Specifications 61. Configuration 611. IP address setting 62. Switching Hub Control 63. System reboot 64. Agent 65. Log 66. Others It can be set from a remote terminal according to the Web screen. (1) Setting by the Web screen. (2) Setting by the IP address easy setting function of ZEQUO assist Plus. It can be set from a remote terminal according to the Web screen. Possible to confirm the switch operating status by the following features. (1) CPU utilization, memory usage display function. It can be reset in the following three modes from software. (1) Warm start. (2) Reset back to the factory default settings. (3) Reset to return the non-IP address to the factory default setting. It can be used in combination reboot timer function in each mode Management protocol Data transfer protocol :HTTP :TFTP (RFC 2616) (RFC 783) Maximum retention number:1,024 Syslog forwarding function Ping response (ICMP echo reply) function Syslog Client (system log sent to a Syslog server) TFTP Client (Firmware upgrade, save and read of configuration information) SNTP Client IP Address Easy Setting 7. Layer 2 Switching Functions 71. Port grouping function 72. VLAN 73. Link aggregation 74. Port Monitoring 75. QoS 76. PoE power supply function 77. Time setting 78. Multicast 79. Storm control function It can communicate control only the same group. (It can be up to 256 groups of registration.) IEEE802.1Q tag VLAN protocol Port-based VLAN VLAN registration number 256 (including the default) Internet Mansion function VLAN invalid setting function IEEE802.3ad link aggregation function (Manual) Configurable up to 8 groups (Max. 8 ports per group) It can be sent by copying the port where you specify the traffic of the target port. (A plurality of target port can be specified.) (Link Aggregation Configuration port can also be monitoring.) IEEE802.1p 4 stage priority control of Scheduling scheme: Priority Queuing (PQ: Absolute priority scheduling) IEEE802.3af/at power supply function. Up to 168 W of power can be supplied to ports 1 to 24 in total. (Maximum power supplied to a port: 30 W) Supply method Alternative ACable signal lines 1, 2, 3, and 6 are used. SNMP settings, time manual setting Multicast address group registration function. (can be up to 256 groups of registration) Unknown unicast / Broadcast / Multicast of possible control the storm Date issued Date revised Dec. 22, 2016 Oct. 1, 2020 Panasonic Life Solutions Networks Co., Ltd. Model Name GA-AS24TPoE+ Model No. PN25248-MY 401-25248-MY-SP02 Product Specification Page 5 of 7 8. Web management function 81. Software specification 811. Enabled browser 82. Setting function 821. Switching configuration 822. Time setting 83. Monitoring function 831. Basic information 832. Learning and recording information Microsoft Internet Explorer 11 Administration config IP config Port config (basic, extend, Power saving) System security Syslog transmission config ID/Password change FDB reference Time setting Static ARP table VLAN settings QoS settings Link aggregation config Storm control config SNTP setting, manual setting Port monitoring config Static multicast address config Port group config Software update Reboot Save current config Statistics System log config Config file transfer Ping execution Exception handler Watchdog timer System information, Hardware information, Management information [Host name (sysName)], System address information FDB table, ARP table, Statistics, System log 84. System management tools Software upgrade, Reboot, Save current config, Config file transfer, Ping execution 9. Connector Pin Arrangement 91. Port 1 - 26 Status Pin No. 1 2 3 6 4 5 7 8 MDI-X Signal BI_DB+ BI_DB- BI_DA+ BI_DA- BI_DD+ BI_DD- BI_DC+ BI_DC- MDI Signal BI_DA+ BI_DA- BI_DB+ BI_DB- BI_DC+ BI_DC- BI_DD+ BI_DD- Pin No. 1 2 3 4 5 6 7 8 10. Accessories 10-1. Accessories 1 Installation Guide* 1 2 CD-ROM (PDF version of Operating Instructions)*1 1 3 Rubber foot 4 4 Mounting bracked (for 19-inch rack) 2 5 Screw (for 19-inch rack 4 6 Screw for fixing the main unit and 19-inch mount bracket 8 7 Power cord (TIS166-2549)*2 1 *1 We discontinued the CD-ROM from October 2020's production lots. *2 The attached power cord is dedicated for AC 100 - 240 V use. Date issued Date revised Dec. 22, 2016 Oct. 1, 2020 Panasonic Life Solutions Networks Co., Ltd. Model Name GA-AS24TPoE+ Model No. PN25248-MY 401-25248-MY-SP02 Product Specification Page 6 of 7 10. Prohibitions when Using the Product to Guarantee Safety The manufacturer assumes no responsibility for any problems occurring when the following conditions are not satisfied. Observe the following items when using the product. 1 Do not use power supply other than AC 100 - 240 V. Deviation could lead to fire, electric shock, and/or equipment failure. 2 Do not handle the power cord with wet hand. Deviation could lead to electric shock, and/or equipment failure. 3 Do not handle this Switching Hub and connection cables during a thunderstorm. Deviation could lead to electric shock. 4 Do not disassemble and/or modify this Switching Hub. Deviation could lead to fire, electric shock, and/or equipment failure. 5 Do not damage the power cord. Do not bend too tightly, stretch, twist, bundle with other cord, pinch, put under a heavy object and/or heat it. Damaged power cord could lead to fire, and/or electric shock. 6 Do not insert, nor drop foreign objects such as metal or combustible things into the inside from the openings or twisted pair ports. Deviation could lead to fire, electric shock, and/or equipment failure. 7 Do not connect equipments other than 10BASE-T/100BASE-TX/1000BASE-T to twisted pair port. When connecting to a 10BASE-T device, use a Cat5 or above cable. Deviation could lead to fire, electric shock, and/or equipment failure. 8 Do not place this Switching Hub in harsh environment (such as near water, high humid, and/or high dust). Deviation could lead to fire, electric shock, and/or equipment failure. 9 Do not place this Switching Hub under direct sunlight and/or high temperature. Deviation could lead to high internal temperature and fire. 10 Do not install this Switching Hub at the location with continuous vibration or strong shock, or at the unstable location. Deviation could lead to falling, injury and/or equipment failure. 11 Do not put this Switching Hub into fire. Deviation could lead to explosion and/or fire. (12) Double pole / Natural fusing Date issued Date revised Dec. 22, 2016 Oct. 1, 2020 Panasonic Life Solutions Networks Co., Ltd. Model Name GA-AS24TPoE+ Model No. PN25248-MY 401-25248-MY-SP02 Product Specification Page 7 of 7 11. Basic Instructions for the Use of This Product 1 Use the bundled power cord (AC 100 240 V specifications). Deviation could lead to electric shock, malfunction, and/or equipment failure. 2 Unplug the power cord in case of equipment failure. Deviation, such as keeping connected for a long time, could lead to fire. 3 Connect this Switching Hub to ground. Otherwise this might cause electrical shocks, misoperations and malfunctions. Connect the Switching Hub via the supplied power cord to the outlet which is connected to the ground. If the outlet is not connected to a ground, connect the ground cable (AWG18:green/yellow) to the ground terminal screw. 4 Connect the power cord firmly to the power port. Deviation could lead to electric fire, shock, and/or malfunction. 5 If the STATUS (Status) LED blinks orange, unplug the power cord since this is a malfunction. Deviation, such as keeping connected for a long time, could lead to fire. 6 Handle the Switching Hub carefully so that fingers or hands may not be damaged by twisted pair port or power cord hook block. 7 When connecting IEEE802.3at-enabled receiving equipment to the Switching Hub, use a CAT5e or above cable. Using cables other than those could lead them to cause heat to be generated, to catch on fire and/or cause malfunctions. 8 This Switching Hub is to be periodically serviced in order to maintain its performance. Please choose a product administrator, and have them be sure to implement periodic maintenance. When doing maintenance, check the inspection chart that is posted on our website which has the requisite items listed on it. 9 When using this Switching Hub to design systems, use it after applying appropriate measures such as setting up redundant configurations. Communications failures might be generated due to causes such as malfunctions or misoperations while the Switching Hub is being used. 10 When using this Switching Hub for applications which require extremely high reliability, be careful to expend all possible means to ensure safety and reliability. This Switching Hub was not designed nor manufactured with the intention that it be used for applications (in use with railways, aviation, and medical care, etc. whereas the influence rate due to communications failures is extremely high in regard to systems that directly affect systems and human lives) which require extremely high reliability. 11 Be aware of glitches which are caused in the usage environments such as age-related degradation, etc. This may vary depending upon conditions such as utilisation rates and usage environments, but performance might decrease due to the age-related degradation, etc. of components. It is recommended that this Switching Hub be replaced about five years after it has been installed. 12 Be careful in regards to environmental restrictions whereby the Switching Hub can be used. Please isolate the business power lines and communications lines. Isolate distribution lines and other distribution lines, and low current power lines, optical fiber cables, metallic water conduits, and gas conduits, etc. Noise may be generated in the communications lines which might cause communications glitches. Date issued Date revised Dec. 22, 2016 Oct. 1, 2020 Panasonic Life Solutions Networks Co., Ltd.Acrobat Distiller 10.0.0 (Windows)
