Manual. (2) Requires the selection of Dual Ethernet option code 2. (3) Not available with DeltaV Ready option code 5. (4) Not available with EtherNet/IP option codes 8 and 9. (5) The WL2, WL3, WL4, and WN2 options require minor assembly. (6) Not available in all countries. Table 3: Spare Parts Item description Part number Spare kit, WL2 ...

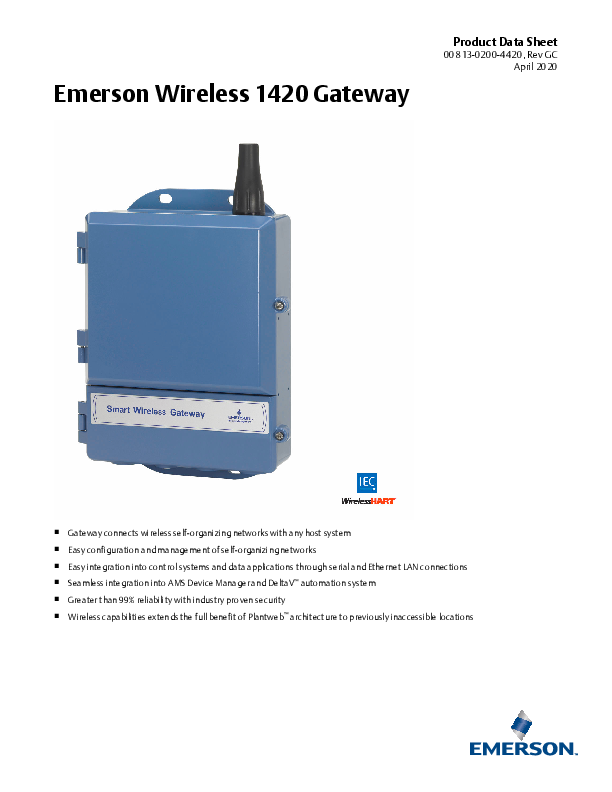

Emerson Wireless 1420 Gateway Product Data Sheet 00813-0200-4420, Rev GC April 2020 Gateway connects wireless self-organizing networks with any host system Easy configuration and management of self-organizing networks Easy integration into control systems and data applications through serial and Ethernet LAN connections Seamless integration into AMS Device Manager and DeltaVTM automation system Greater than 99% reliability with industry proven security Wireless capabilities extends the full benefit of PlantwebTM architecture to previously inaccessible locations Emerson Wireless 1420 Emerson's wireless solution IEC 62591 (WirelessHART®)... The industry standard Self-organizing, adaptive mesh routing No wireless expertise required, network automatically finds the best communication paths The self-organizing, self-healing network manages multiple communication paths for any given device. If an obstruction is introduced into the network, data will continue to flow because the device already has other established paths. The network will then lay in more communication paths as needed for that device. Reliable wireless architecture Standard IEEE 802.15.4 radios 2.4 GHz ISM band sliced into 15 radio-channels Time Synchronized Channel Hopping to avoid interference from other radios, Wi-Fi, and EMC sources and increase reliability Direct sequence spread spectrum (DSSS) technology delivers high reliability in challenging radio environment April 2020 Contents Emerson's wireless solution............................................................................................................................................................... 2 Emerson Wireless 1420 Gateway.......................................................................................................................................................4 Ordering information........................................................................................................................................................................ 6 Specifications.................................................................................................................................................................................... 8 Product certifications...................................................................................................................................................................... 12 Dimensional drawings..................................................................................................................................................................... 16 2 Emerson.com/Rosemount April 2020 Emerson Wireless 1420 Emerson's wireless Seamless integration via LAN to all existing host systems Native integration into DeltaV and OvationTM is transparent and seamless Gateways interface with existing host systems via LAN, using industry standard protocols including OPC, Modbus® TCP/IP, Modbus RTU, and EtherNet/IPTM Layered security keeps your network safe Ensures data transmissions are received only by the wireless Gateway Network devices implement industry standard Encryption, Authentication, Verification, Anti-Jamming, and Key Management Third party security verification including Achilles and FIPS197- User based login and enforced password strength. Password strength monitoring, user based log in, password reset requirements, automatic lockout, password expiration requirements. Based on guidelines from ISA99.03.03 standard approved level two. SmartPowerTM solutions Optimized Emerson instrumentation, both hardware and software, to extend power module life SmartPower technologies enable predictable power life Emerson.com/Rosemount 3 Emerson Wireless 1420 April 2020 Emerson Wireless 1420 Gateway Gain real-time process information with greater than 99% wireless data reliability The Wireless Gateway automatically manages wireless communications in constantly changing environments. Native integration with DeltaV and Ovation automation systems provides simple and fast commissioning for wireless field networks. Connect to data historians, legacy host systems, and other via a LAN applications through Ethernet, Modbus TCP/IP, Modbus RTU, OPC, EtherNet/IP, and HART® outputs. Guarantee system availability with redundant Wireless Gateways Never lose the wireless network with hot standby capability and automatic fault detection Wireless Gateways function as a single system, eliminating the need for duplicate host integration. One-click configuration and plug-and-play architecture Complete wireless network configuration tools provided with each Gateway The integrated web interface allows easy configuration of the wireless network and data integration without the need to install additional software. 4 Emerson.com/Rosemount April 2020 Emerson Wireless 1420 Complimentary AMS Wireless Configurator software provides Emerson Device Dashboards to configure devices and view diagnostic data. Drag and drop device provisioning enables a secure method to add new wireless devices to the wireless field network. Emerson.com/Rosemount 5 Emerson Wireless 1420 April 2020 Ordering information Specification and selection of product materials, options, or components must be made by the purchaser of the equipment. See Material selection for more information on material selection. Table 1: Wireless 1420 Gateway Ordering Information The Standard offering represents the most common options. The starred options () should be selected for best delivery. The Expanded offering is subject to additional delivery lead time. Model Product description 1420 Wireless Gateway Wireless configuration A 100 device network (10.5-30 VDC) Ethernet Communications - Physical Connection 1(1)(2) Single Ethernet connection 2(3)(4) Dual Ethernet connection Operating Frequency, and Protocol A3 2.4 GHz DSSS, WirelessHART Serial Communication N None A(5) Modbus RTU via RS485 Ethernet Communication - Data Protocols 2 Webserver, Modbus TCP/IP, AMS ready, HART-IPTM 4 Webserver, Modbus TCP/IP, AMS ready, HART-IP, OPC 5(6) DeltaV ready 6(6) Ovation ready 8 Webserver, EtherNet/IP, AMS ready, HART-IP 9 Webserver, EtherNet/IP, Modbus TCP/IP, AMS ready, HART-IP (1) Single active 10/100 baseT Ethernet port with RJ45 connector. (2) Additional ports disabled. (3) Dual active 10/100 baseT Ethernet ports with RJ45 connectors. (4) Multiple active ports have separate IP addresses, firewall isolation, and no packet forwarding. (5) Convertible to RS232 via adaptor, not included with Gateway. (6) Includes Webserver, Modbus TCP, AMS Ready, HART-IP, and OPC. Table 2: Options (Include with selected model number) Model Product description Product Certifications N5 U.S.A. Division 2 N6 CSA Division 2, Non-incendive N1(1) ATEX Type n ND(1) ATEX Dust N7(1) IECEx Type n 6 Emerson.com/Rosemount April 2020 Emerson Wireless 1420 Table 2: Options (Include with selected model number) (continued) Model Product description NF(1) IECEx Dust KD(1) USA and Canada Division 2, Non-incendive and ATEX Type n N2(1) INMETRO Type n N3(1) China Type n N4(1) TIIS Type n NM Technical Regulation Customs Union (EAC) Type N Redundancy options(2)(3)(4) RD Gateway redundancy Adapters J1 CM 20 conduit adapters J2 PG 13.5 conduit adapters J3 3/4 NPT conduit adapters Antenna options(5) WL2 Remote antenna kit, 50 ft (15,2 m) cable, lightning arrestor WL3 Remote antenna kit, 20 ft (6,1 m) and 30 ft (9,1 m) cables, lightning arrestor WL4 Remote antenna kit, 10 ft (3,0 m) and 40 ft (12,2 m) cables, lightning arrestor WN2(6) High-gain, remote antenna kit, 25 ft (7,6m) cable, lightning arrestor Typical model number: 1420 A 2 A3 A 2 N5 (1) Options may or may not come with POE. See terminal block configuration for determination if the device is compatible with POE or see the 1420 Manual. (2) Requires the selection of Dual Ethernet option code 2. (3) Not available with DeltaV Ready option code 5. (4) Not available with EtherNet/IP option codes 8 and 9. (5) The WL2, WL3, WL4, and WN2 options require minor assembly. (6) Not available in all countries. Table 3: Spare Parts Item description Spare kit, WL2 replacement(1), remote antenna, 50 ft (15,2 m) cable, and lightning arrestor Spare kit, WL3 replacement(1), remote antenna, 20/30 ft (6,1/9,1 m) cables, and lightning arrestor Spare kit, WL4 replacement(1), remote antenna, 10/40 ft (3,0/12,2 m) cables, and lightning arrestor Spare kit, WN2 replacement(1), high gain, remote antenna, 25 ft (7,6 m) cable, and lightning arrestor(2) Part number 01420-1615-0302 01420-1615-0303 01420-1615-0304 01420-1615-0402 (1) Can not upgrade from integral to remote antenna. (2) Not available in all countries. Emerson.com/Rosemount 7 Emerson Wireless 1420 Specifications Functional specifications Input power 10.530 VDC Current draw For non-POE enabled Gateways, the operation current draw is based on 3.6 Watts average power consumption. Momentary startup Current Draw up to twice Operating Current Draw. 250 April 2020 Current (mA) Operating 125 Region 10.5 12 30 24 Voltage (VDC) Power and Ethernet PSE mode 50 v57 vDC Output 9 per IEEE 802.3at-2009) 25.5 W maximum Radio frequency power output from antenna Maximum of 10 mW (10 dBm) EIRP Maximum of 40 mW (16 dBm) EIRP for WN2 High Gain option(1) Environmental Operating Temperature Range -40 to 158 °F (-40 to 70 °C) Operating Humidity Range 1090% relative humidity EMC performance Meets all industrial environment requirements of EN61326 and NAMUR NE-21. Maximum deviation <1% span during EMC disturbance.(2) Antenna options Integrated Omni-directional Antenna Optional remote mount Omni-directional Antenna (1) Not available in all countries. (2) During surge event, device may exceed maximum EMC deviation limit or reset; however, device will self-recover and return to normal operation within specified start-up time. 8 Emerson.com/Rosemount April 2020 Emerson Wireless 1420 Physical specifications Material selection Emerson provides a variety of Rosemount product with various product options and configurations including materials of construction that can be expected to perform well in a wide range of applications. The Rosemount product information presented is intended as a guide for the purchaser to make an appropriate selection for the application. It is the purchaser's sole responsibility to make a careful analysis of all process parameters (such as all chemical components, temperature, pressure, flow rate, abrasives, contaminants, etc.), when specifying product, materials, options and components for the particular application. Emerson is not in a position to evaluate or guarantee the compatibility of the process fluid or other process parameters with the product, options, configuration or materials of construction selected. Weight 10 lb (4.54 kg) Material of construction Housing Low-copper aluminum, NEMA 4X Paint Polyurethane Cover gasket Silicone rubber Antenna Integrated Antenna: PBT/PC Remote Antenna: Fiber Glass Certifications Class I Division 2 (U.S.) Equivalent Worldwide Communication specifications Isolated RS485 2-wire communication link for Modbus RTU multi drop connections Baud rate: 57600, 38400, 19200, or 9600 Protocol: Modbus RTU Wiring: Single twisted shielded pair, 18 AWG Wiring distance: up to 4,000 ft. (1,524 m) Ethernet 10/100base-TX Ethernet communication port Protocols: EtherNet/IP, Modbus TCP, OPC, HART-IP, https (for Web Interface) Wiring: Cat5E shielded cable Wiring distance: 328 ft (100 m) Modbus Supports Modbus RTU and Modbus TCP with 32-bit floating point values, integers, and scaled integers. Emerson.com/Rosemount 9 Emerson Wireless 1420 Modbus Registers are user-specified. OPC OPC server supports OPC DA v2, v3 EtherNet/IP Supports EtherNet/IP protocol with 32-bit Floating Point values and Integers. EtherNet/IP Assembly Input-Output instances are user configurable. EtherNet/IP specifications are managed and distributed by ODVA. For details on capabilities, see the Wireless Gateway Reference Manual. April 2020 Self-organizing network specifications Protocol IEC 62591 (WirelessHART), 2.42.5 GHz DSSS. Maximum network size 100 wireless devices @ eight seconds or more 50 wireless devices @ four seconds 25 wireless devices @ two seconds 12 wireless devices @ one second For information on network size and update rate, see the capacity estimator tool on the Wireless homepage. Supported device update rates 1, 2, 4, 8, 16, 32 seconds or 160 minutes Network size/latency 100 Devices: less than 10 sec. 50 Devices: less than five sec. Data reliability >99% PoE Supports IEEE 802.11 PoE as a PD or a PSE on either Port; jumper selectable. PSE ratings: IEEE 802.11af for 12VDC input and IEEE 802.11at for 24 VDC input System security specifications Ethernet Secure Sockets Layer (SSL)- enabled (default) TCP/IP communications Wireless Gateway Access Role-based Access Control (RBAC) including Administrator, Maintenance, Operator, and Executive. Administrator has complete control of the gateway and connections to host systems and the self-organizing network. 10 Emerson.com/Rosemount April 2020 Emerson Wireless 1420 Self-organizing network AES-128 Encrypted WirelessHART, including individual session keys. Drag and drop device provisioning, including unique join keys and white listing. Internal firewall User Configurable TCP ports for communications protocols, including Enable/Disable and user specified port numbers. Inspects both incoming and outgoing packets. Third party certification Wurldtech: Achilles Level 1 certified for network resiliency. National Institute of Standards and Technology (NIST): Advanced Encryption Standard (AES) Algorithm conforming to Federal Information Processing Standard Publication 197 (FIPS-197) Emerson.com/Rosemount 11 Emerson Wireless 1420 Product certifications Rev 2.1 April 2020 European Directive Information A copy of the EC Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EC Declaration of Conformity can be found at Emerson.com/Rosemount. Telecommunication Compliance All wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage. FCC and IC This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This device must be installed to ensure a minimum antenna separation distance of 20 cm from all persons. Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that the design meets the basic electrical, mechanical, and fire protection requirements by a nationally recognized test laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA). Installing Equipment in North America The US National Electrical Code® (NEC) and the Canadian Electrical Code (CEC) permit the use of Division marked equipment in Zones and Zone marked equipment in Divisions. The markings must be suitable for the area classification, gas, and temperature class. This information is clearly defined in the respective codes. USA N5 U.S.A. Division 2 Certificate CSA 70010780 Standards FM Class 3600 - 2011, FM Class 3611 - 2004, FM Class 3616 - 2011, UL 50 - 11th Ed, ANSI/ISA 61010-1 - 2012 Markings NI CL 1, DIV 2, GP A, B, C, D T4; Suitable for use in CL II, III, DIV 2, GP F, G T4; T4(-40 °C Ta +60 °C); Nonincendive outputs to remote antenna when connected per Rosemount drawing 01420-1011; Type 4X Special Conditions for Safe Use(X): 1. Explosion Hazard. Do not disconnect equipment when a flammable or combustible atmosphere is present. 12 Emerson.com/Rosemount April 2020 Emerson Wireless 1420 Canada N6 Canada Division 2 Certificate CSA 70010780 Standards CAN/CSA C22.2 No. 0-M91 (R2001), CAN/CSA Std C22.2 No. 94-M91 (R2001), CSA Std C22.2 No. 142-M1987, CSA Std C22.2 No. 213-M1987, CSA C22.2 No. 61010-1 2012 Markings Suitable for Class 1, Division 2, Groups A, B, C, and D, T4; when connected per Rosemount drawing 01420-1011; Type 4X Special Conditions for Safe Use(X) 1. Explosion Hazard. Do not disconnect equipment when a flammable or combustible atmosphere is present. Europe N1 ATEX Type n Certificate Standards Markings Baseefa07ATEX0056X EN 60079-0: 2012, EN 60079-15: 2010 II 3 G Ex nA IIC T4 Gc, T4(-40 °C Ta +65 °C), VMAX = 28 Vdc Special Conditions for Safe Use(X) 1. The equipment is not capable of withstanding the 500V insulation test required by clause 6.5.1 of EN 60079-15:2010. This must be taken into account when installing the equipment. 2. The surface resistivity of the antenna is greater than 1G. To avoid electrostatic charge build-up, it must not be rubbed with a dry cloth or cleaned with solvents. ND ATEX Dust Certificate Standards Markings Baseefa07ATEX0057X EN 60079-0: 2012, EN 60079-31: 2009 II 3 D Ex tc IIIC T135 °C Dc, (-40 °C Ta +65 °C) Special Conditions for Safe Use(X) 1. The surface resistivity of the antenna is greater than 1G. To avoid electrostatic charge build-up, it must not be rubbed with a dry cloth or cleaned with solvents. International N7 IECEx Type n Certificate Standards Markings IECEx BAS 07.0012X IEC 60079-0: 2011, IEC 60079-15: 2010 Ex nA IIC T4 Gc, T4(-40 °C Ta +65 °C), VMAX = 28 Vdc Special Conditions for Safe Use(X) 1. The apparatus is not capable of withstanding the 500 V electrical strength test as defined in Clause 6.5.1 of IEC 60079-15:2012. This must be taken into account during installation. Emerson.com/Rosemount 13 Emerson Wireless 1420 April 2020 2. The surface resistivity of the antenna is greater than 1G. To avoid electrostatic charge build-up, it must not be rubbed with a dry cloth or cleaned with solvents. NF IECEx Dust Certificate Standards Markings IECEx BAS 07.0013 IEC 60079-0: 2011, IEC 60079-31: 2008 Ex tc IIIC T135 °C Dc, (-40 °C Ta +65 °C) Special Conditions for Safe Use(X) 1. The surface resistivity of the antenna is greater than 1G. To avoid electrostatic charge build-up, it must not be rubbed with a dry cloth or cleaned with solvents. Brazil N2 INMETRO Type n Certificate Standards Markings UL-BR 15.0350X ABNT NBR IEC 60079-0:2008 + Errata 1:2011, IEC 60079-15:2012; Ex nA IIC T4 Gc, T4(-40 °C Ta +65 °C) Special Conditions for Safe Use(X) 1. See certificate for special conditions. China N3 China Type n Certificate Standards Markings CNEx13.1929X GB3836.1 2010, GB3836.8 - 2003 Ex nA nL IIC T4 Gc Special Conditions for Safe Use(X) 1. See certificate for special conditions. Japan N4 TIIS Type n Certificate Markings T64855 Ex nA nL IIC T4 EAC Belarus, Kazakhstan, Russia NM Technical Regulation Customs Union (EAC) Type n Certificate RU C-US.05.B.00578 14 Emerson.com/Rosemount April 2020 Markings 2Ex nA IIC T4 X; T4(-40 °C Ta +65 °C) IP66; Combinations KD Combination of N1, N5, and N6 Emerson Wireless 1420 Emerson.com/Rosemount 15 Emerson Wireless 1420 Dimensional drawings Figure 1: Wireless Gateway April 2020 6.72 (171) 4.78 (121) 3.08 (78) B A Lower cover (remove for electrical connections) B Ground lug C ½-in. NPT conduit connection (4 places) Dimensions are in inches (millimeters). 3.99 (101) C 1.59 (40) 16 Emerson.com/Rosemount April 2020 Figure 2: Remote Antenna Kit WL2 A WL3 A Emerson Wireless 1420 WL4 WN2 A A C B D F D E E G H I D D A Antenna B 20 ft (6,1 m) cable C 10 ft (3,0 m) cable D Lightning arrestor E Interchangeable cables F 50 ft (15,2 m) cable G 30 ft (9,1 m) cable H 40 ft (12,2 m) cable I 25 ft (7,6 m) cable The Remote Antenna kit includes sealant tape for remote antenna connection, as well as mounting brackets for the antenna, lightning arrestor, and the Wireless Gateway. Lightning protection is included on all the options. Note The cables lengths on the remote antenna options WL3 and WL4 are interchangeable for installation convenience. Emerson.com/Rosemount 17 Emerson Wireless 1420 April 2020 18 Emerson.com/Rosemount April 2020 Emerson Wireless 1420 Emerson.com/Rosemount 19 00813-0200-4420 Rev. GC April 2020 Global Headquarters Emerson Automation Solutions 6021 Innovation Blvd. Shakopee, MN 55379, USA +1 800 999 9307 or +1 952 906 8888 +1 952 204 8889 RFQ.RMD-RCC@Emerson.com Latin America Regional Office Emerson Automation Solutions 1300 Concord Terrace, Suite 400 Sunrise, FL 33323, USA +1 954 846 5030 +1 954 846 5121 RFQ.RMD-RCC@Emerson.com Asia Pacific Regional Office Emerson Automation Solutions 1 Pandan Crescent Singapore 128461 +65 6777 8211 +65 6777 0947 Enquiries@AP.Emerson.com North America Regional Office Emerson Automation Solutions 8200 Market Blvd. Chanhassen, MN 55317, USA +1 800 999 9307 or +1 952 906 8888 +1 952 204 8889 RMT-NA.RCCRFQ@Emerson.com Europe Regional Office Emerson Automation Solutions Europe GmbH Neuhofstrasse 19a P.O. Box 1046 CH 6340 Baar Switzerland +41 (0) 41 768 6111 +41 (0) 41 768 6300 RFQ.RMD-RCC@Emerson.com Middle East and Africa Regional Office Emerson Automation Solutions Emerson FZE P.O. Box 17033 Jebel Ali Free Zone - South 2 Dubai, United Arab Emirates +971 4 8118100 +971 4 8865465 RFQ.RMTMEA@Emerson.com Linkedin.com/company/Emerson-Automation-Solutions Twitter.com/Rosemount_News Facebook.com/Rosemount Youtube.com/user/RosemountMeasurement ©2020 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.Antenna House PDF Output Library 6.5.1231 (Windows (x64))
