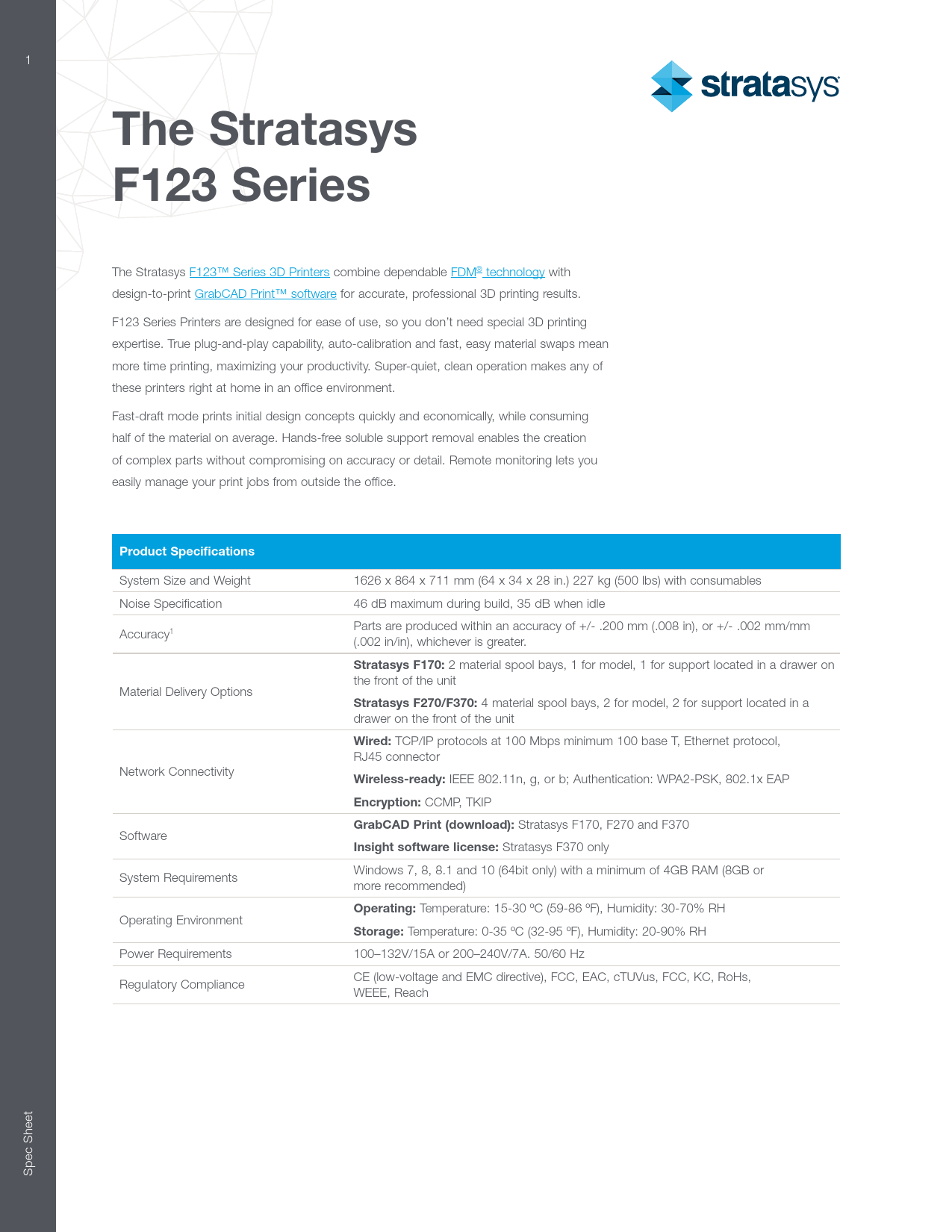

1
The Stratasys F123 Series
SThmeaSrtreartapsryostoFt1y2p3iTMngSfoerieyso3uDr ePnrtinirtersofcfiocme.bine dependable FDM� technology with Ndeoswigtnh-etore-p'sriantmGorraebcCaApDabPleri,nmtTMorseoaftfwfoardreabfoler apcrocfuersastieo,nparlorfaepsisdiopnraolto3tDyppinrigntsinoglurteiosnulftosr. your eFn1t2ir3e Soeffriciees--Prifnrotemrstahreeledaedseigrniend3fDorperianstiengo.f Tuhse,SstoraytaosuydsoFn1'2t 3neseedriesspeccoimalb3inDepsrpinotiwngerful FexDpMerteisceh.nToruloegpy luwgit-handde-spiglany-tcoa-prainbtiliGty,raabuCtoA-Dcasliobfrtawtiaorne afonrdthfaestm, eoasst yvemrsaatetirleiaal snwdainptselmligeeannt smooluretiotnimaevapirlainbtilneg. ,Pmroadxuimceizfiansgt,yoefufer cptrivoedupcrotivtoittyy.pSeuspfeorr-qcuoinect,ecplteadnevoeploepramtieont,maaskweselal nays of hthigehsley parcinctuerrasterigahntdartohboumstepianrtasnforffidceeseignnvivroanlidmaetinotn. and functional performance. Share pFarosjte-cdtrsafbt emtwodeeenpmrinutlstipinleitiaulsderess.igGnect oynocuer pnteswqupircokdlyucatnddeescigonnsomtoicmaallyr,kewthfialestceor.nAsunmd idnog it all whaitlhf oouf tththeemnaeteedriafloor ndeadveicraatgeed. eHxapnedrst -sftraefefinsgo.luItb'slejussutpopnoertmreomreovwaal yenwaeblsehsatphee wcrheaatt'sionnext. of complex parts without compromising on accuracy or detail. Remote monitoring lets you easily manage your print jobs from outside the office.
Product Specifications System Size and Weight Noise Specification Accuracy1
Material Delivery Options
Network Connectivity
Software System Requirements Operating Environment Power Requirements Regulatory Compliance
1626 x 864 x 711 mm (64 x 34 x 28 in.) 227 kg (500 lbs) with consumables
46 dB maximum during build, 35 dB when idle
Parts are produced within an accuracy of +/- .200 mm (.008 in), or +/- .002 mm/mm (.002 in/in), whichever is greater.
Stratasys F170: 2 material spool bays, 1 for model, 1 for support located in a drawer on the front of the unit Stratasys F270/F370: 4 material spool bays, 2 for model, 2 for support located in a drawer on the front of the unit
Wired: TCP/IP protocols at 100 Mbps minimum 100 base T, Ethernet protocol, RJ45 connector Wireless-ready: IEEE 802.11n, g, or b; Authentication: WPA2-PSK, 802.1x EAP Encryption: CCMP, TKIP GrabCAD Print (download): Stratasys F170, F270 and F370 Insight software license: Stratasys F370 only Windows 7, 8, 8.1 and 10 (64bit only) with a minimum of 4GB RAM (8GB or more recommended)
Operating: Temperature: 15-30 �C (59-86 �F), Humidity: 30-70% RH Storage: Temperature: 0-35 �C (32-95 �F), Humidity: 20-90% RH 100�132V/15A or 200�240V/7A. 50/60 Hz
CE (low-voltage and EMC directive), FCC, EAC, cTUVus, FCC, KC, RoHs, WEEE, Reach
Spec Sheet
2
The Stratasys F123 Series
Model Capabilities Printer Stratasys F170 Stratasys F270 Stratasys F370
Layer Thickness Material PLA ABS ASA PC-ABS TPU 92A
Maximum Build Size (XYZ)
254 x 254 x 254 mm (10 x 10 x 10 in.)
305 x 254 x 305 mm (12 x 10 x 12 in.)
355 x 254 x 355 mm (14 x 10 x 14 in.)
Model Materials
PLA1, ABS-M30TM, ASA, FDM TPU 92A, QSRTM Support material
PLA1, ABS-M30, ASA, FDM TPU 92A, QSR Support material
PLA2, ABS-M30, ASA, FDM TPU 92A, PC-ABS, QSR Support material
0.013 in. (0.330 mm)
0.010 in. (0.254 mm)
0.007 in. (0.178 mm)
0.005 in. (0.127 mm)
1 Accuracy is geometry-dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield. Z part accuracy includes an additional tolerance of -0.000/+slice height.
2 PLA does not utilize soluble support material. The supports are made of breakaway PLA.
