IR On/Off Control Auto/Manual IR LEDs 2 Lens Focal Length 2.7mm~11mm Max. Aperture F1.6 Angle of View H: 112.5° ~ 30° Optical Zoom 4x Focus Control Auto/Manual Close Focus Distance 100mm~ 1000mm DORI Distance *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs.
Wide Dynamic Range. The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR).

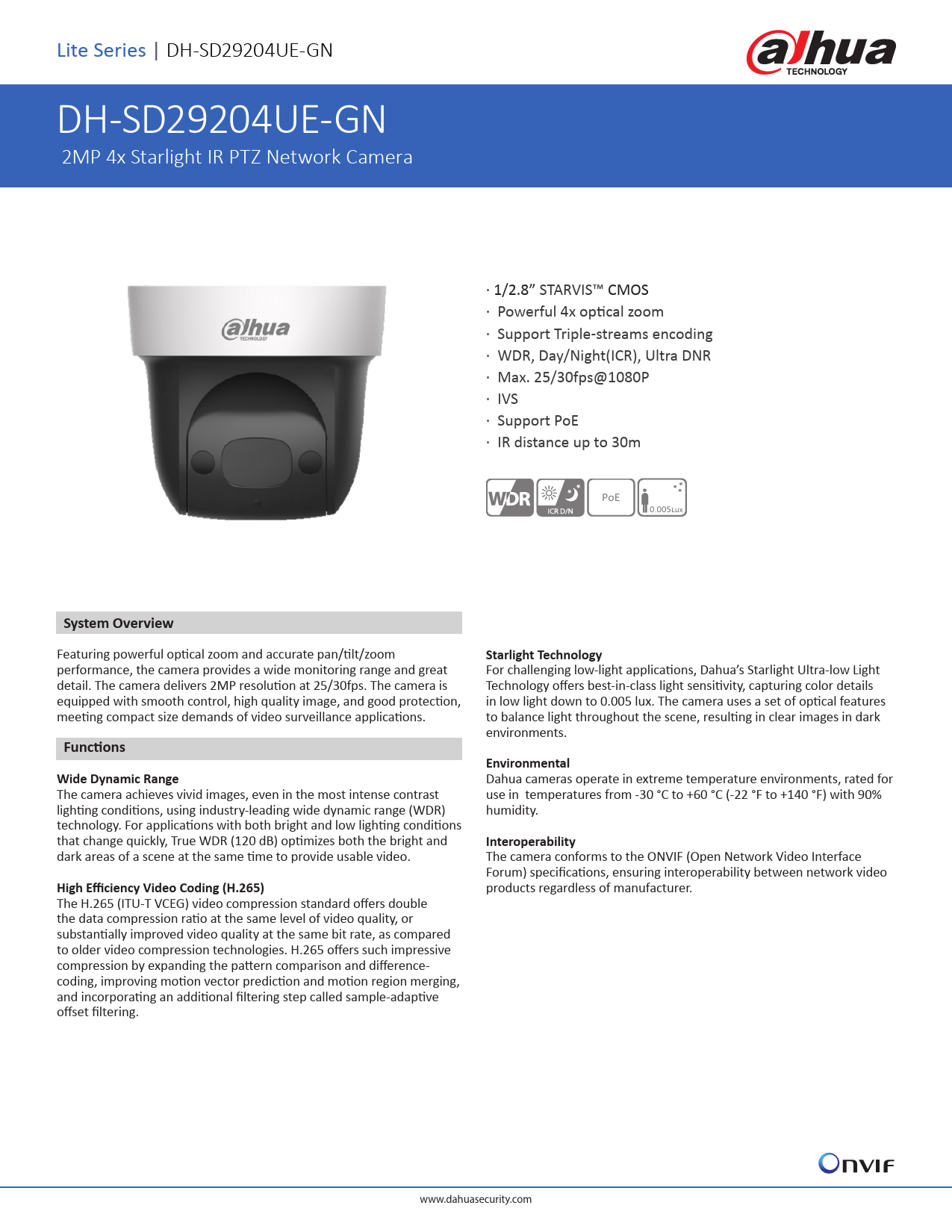

Lite Series | DH-SD29204UE-GN DH-SD29204UE-GN 2MP 4x Starlight IR PTZ Network Camera · 1/2.8" STARVISTM CMOS · Powerful 4x optical zoom · Support Triple-streams encoding · WDR, Day/Night(ICR), Ultra DNR · Max. 25/30fps@1080P · IVS · Support PoE · IR distance up to 30m PoE 0.005Lux System Overview Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the camera provides a wide monitoring range and great detail. The camera delivers 2MP resolution at 25/30fps. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications. Functions Wide Dynamic Range The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. High Efficiency Video Coding (H.265) The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and differencecoding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering. Starlight Technology For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments. Environmental Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30 °C to +60 °C (-22 °F to +140 °F) with 90% humidity. Interoperability The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer. www.dahuasecurity.com Lite Series | DH-SD29204UE-GN Technical Specification Camera Image Sensor 1/2.8" STARVISTM CMOS Effective Pixels 1920(H) x 1080(V), 2 Megapixels RAM/ROM 256M/128M Scanning System Progressive Electronic Shutter Speed Minimum Illumination IR Distance 1/1s~1/30,000s Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on) Distance up to 30m (98ft) IR On/Off Control Auto/Manual IR LEDs 2 Lens Focal Length 2.7mm~11mm Max. Aperture F1.6 Angle of View H: 112.5° ~ 30° Optical Zoom 4x Focus Control Auto/Manual Close Focus Distance 100mm~ 1000mm DORI Distance *Note: The DORI distance is a "general proximity" of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Detect Observe Recognize Identify 120m(394ft) 48m(157ft) 24m(79ft) 12m(39ft) PTZ Pan/Tilt Range Pan: 0° ~ 360° limited; Tilt: 0° ~ 90° Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s Preset Speed Pan: 100° /s; Tilt: 60° /s Presets 300 PTZ Mode Speed Setup Power up Action Idle Motion Protocol 5 Pattern, 8 Tour(up to 32 preset per tour),Auto Scan Human-oriented focal Length/ speed adaptation Auto restore to previous PTZ and lens status after power failure Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period DH-SD Intelligence Event Trigger Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly Auto Tracking N/A IVS Tripwire, Intrusion,Abandoned/Missing Advanced Intelligent Functions Video Compression Streaming Capability Resolution Frame Rate Bit Rate Control Bit Rate Day/Night Backlight Compensation White Balance Gain Control Noise Reduction Motion Detection Region of Interest Electronic Image Stabilization (EIS) Defog Digital Zoom Flip Privacy Masking Audio Compression Network Ethernet Wifi Protocol Interoperability Streaming Method Max. User Access Edge Storage Web Viewer Management Software Smart Phone Certifications Certifications www.dahuasecurity.com Face Detection H.265/H.264/MJPEG(Sub Stream) 3 Streams 1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240) Main stream: 1080P/720P/D1 (1 ~ 25/30fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 720P/D1/CIF (1 ~ 25/30fps) CBR/VBR H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps Auto(ICR) / Color / B/W BLC / HLC / WDR (120dB) Auto, ATW, Indoor, Outdoor, Manual Auto / Manual Ultra DNR (2D/3D) Support support N/A Support 16x 180° Up to 24 areas G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ MPEG2-Layer2 RJ-45 (10XBase-T/100Base-TX) N/A IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x ONVIF Profile S&G, API Unicast / Multicast 20 users NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB IE, Chrome, Firefox, Safari Smart PSS, DSS, DMSS IOS, Android CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 Lite Series | DH-SD29204UE-GN Interface Video Interface RS485 Audio I/O Alarm I/O Electrical Power Supply Power Consumption Environmental Operating Conditions Ingress Protection Vandal Resistance Construction Casing Dimensions Net Weight Gross Weight N/A N/A Built-in Mic N/A DC 12V/1.5A, PoE(802.3af) 10W,13W (IR on) -30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH N/A N/A Metal 132.7 (mm) x 117.9 (mm) 0.95kg(2.09lb) 1kg(2.20lb) Ordering Information Type Part Number DH-SD29204UE-GN 2MP PTZ Camera DH-SD29204UEN-GN SD29204UE-GN Accessories SD29204UEN-GN PFB302S PFA103 DC12V/2A PFB300C PFA150 PFA151 Description 2MP 4x Starlight IR PTZ Network Camera, WDR, PAL 2MP 4x Starlight IR PTZ Network Camera, WDR, NTSC 2MP 4x Starlight IR PTZ Network Camera, WDR, PAL 2MP 4x Starlight IR PTZ Network Camera, WDR, NTSC Wall Mount Mount Adapter Power Adapter Ceiling Mount Pole Mount Corner Mount mm mm mm Accessories Optional PFB302S Wall Mount PFA103 Mount Adapter DC12V/2A Power Adapter PFA150 Pole Mount PFB300C Ceiling Mount PFA151 Corner Mount Wall Mount PFA103+PFB302S Pole Mount PFA103+PFB302S+PFA150 Ceiling Mount PFA103+PFB300C Dimensions (mm) mm mm Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.comAdobe PDF Library 15.0 Adobe InDesign CC 14.0 (Windows)
