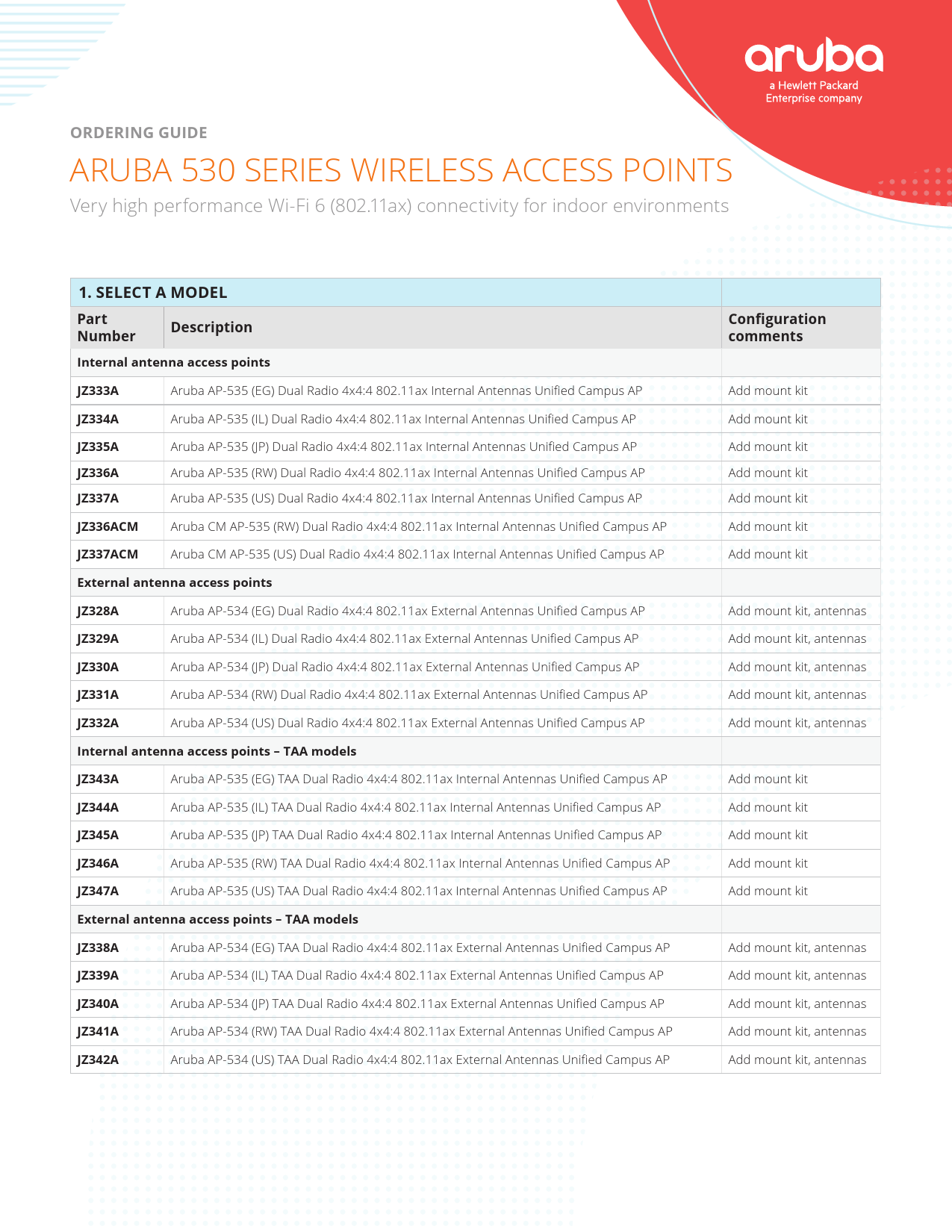

ORDERING GUIDE ARUBA 530 SERIES WIRELESS ACCESS POINTS Very high performance Wi-Fi 6 (802.11ax) connectivity for indoor environments 1. SELECT A MODEL Part Number Description Internal antenna access points JZ333A Aruba AP-535 (EG) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP JZ334A Aruba AP-535 (IL) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP JZ335A Aruba AP-535 (JP) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP JZ336A Aruba AP-535 (RW) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP JZ337A Aruba AP-535 (US) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP JZ336ACM Aruba CM AP-535 (RW) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP JZ337ACM Aruba CM AP-535 (US) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP External antenna access points JZ328A Aruba AP-534 (EG) Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP JZ329A Aruba AP-534 (IL) Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP JZ330A Aruba AP-534 (JP) Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP JZ331A Aruba AP-534 (RW) Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP JZ332A Aruba AP-534 (US) Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP Internal antenna access points � TAA models JZ343A Aruba AP-535 (EG) TAA Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP JZ344A Aruba AP-535 (IL) TAA Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP JZ345A Aruba AP-535 (JP) TAA Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP JZ346A Aruba AP-535 (RW) TAA Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP JZ347A Aruba AP-535 (US) TAA Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP External antenna access points � TAA models JZ338A Aruba AP-534 (EG) TAA Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP JZ339A Aruba AP-534 (IL) TAA Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP JZ340A Aruba AP-534 (JP) TAA Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP JZ341A Aruba AP-534 (RW) TAA Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP JZ342A Aruba AP-534 (US) TAA Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP Configuration comments Add mount kit Add mount kit Add mount kit Add mount kit Add mount kit Add mount kit Add mount kit Add mount kit, antennas Add mount kit, antennas Add mount kit, antennas Add mount kit, antennas Add mount kit, antennas Add mount kit Add mount kit Add mount kit Add mount kit Add mount kit Add mount kit, antennas Add mount kit, antennas Add mount kit, antennas Add mount kit, antennas Add mount kit, antennas ORDERING GUIDE ARUBA 530 SERIES WIRELESS ACCESS POINTS 2. SELECT MOUNT KIT Part Number Description Mounting kits (continued) JZ370A AP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: suspended ceiling rail, flat 9/16 Q9G69A R6T34A Q9G70A AP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: suspended ceiling rail, flat 15/16 AP-MNT-MP10-B1 Campus AP mount bracket kit (10-pack) type B1: suspended ceiling rail, flat 15/16 thick AP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: suspended ceiling rail, profile 9/16 Q9G71A AP-MNT-MP10-D Campus AP mount bracket kit (10-pack) type D: solid surface R1C72A AP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box R3T20A AP-MNT-MP10-X Campus AP mount adapter kit (10-pack) for existing W2/W3 mounts JZ370ACM Aruba CM AP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: flat rail 9/16 Q9G69ACM Aruba CM AP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: flat rail 15/16 Q9G70ACM Aruba CM AP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: profile rail 9/16 Q9G71ACM Aruba CM AP-MNT-MP10-D Campus AP mount bracket kit (10-pack) type D: solid surface R1C72ACM Aruba CM AP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box R3T20ACM Aruba CM AP-MNT-MP10-X Campus AP mount adapter kit (10-pack) for existing W2/W3 mounts R3J15A AP-MNT-A Campus AP mount bracket kit (individual) type A: suspended ceiling rail, flat 9/16 R3J16A AP-MNT-B Campus AP mount bracket kit (individual) type B: suspended ceiling rail, flat 15/16 R3J17A AP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail, profile 9/16 R3J18A AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface R3J19A AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box R3J15ACM Aruba CM AP-MNT-A Campus AP mount bracket kit (individual) type A: flat rail 9/16 R3J16ACM Aruba CM AP-MNT-B Campus AP mount bracket kit (individual) type B: flat rail 15/16 R3J17ACM Aruba CM AP-MNT-C Campus AP mount bracket kit (individual) type C: profile rail 9/16 R3J18ACM Aruba CM AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface R3J19ACM Aruba CM AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box Configuration comments Note: kit contains mounts for 10 access points Note: kit contains mounts for 10 access points Note: kit contains mounts for 10 access points Note: kit contains mounts for 10 access points Note: kit contains mounts for 10 access points Note: kit contains mounts for 10 access points Note: Kit contains mounts for 10 access points Note: Kit contains mounts for 10 access points Note: Kit contains mounts for 10 access points Note: Kit contains mounts for 10 access points Note: Kit contains mounts for 10 access points Note: Kit contains mounts for 10 access points Note: Kit contains mounts for 10 access points Note: Kit contains mounts for 1 access point Note: Kit contains mounts for 1 access point Note: Kit contains mounts for 1 access point Note: Kit contains mounts for 1 access point Note: Kit contains mounts for 1 access point Note: Kit contains mounts for 1 access point Note: Kit contains mounts for 1 access point Note: Kit contains mounts for 1 access point Note: Kit contains mounts for 1 access point Note: Kit contains mounts for 1 access point 2 ORDERING GUIDE ARUBA 530 SERIES WIRELESS ACCESS POINTS 3. SELECT ANTENNAS (AP-534 ONLY) Part Number Qty Needed Description Mounting comments Indoor antennas (AP-514 antenna interface: 4x RP-SMA female, concurrent dual-band) JW009A 4 JW001A 4 JW004A 4 JW011A 4 AP-ANT-1W 2.4-2.5GHz (4dBi) / 4.9-5.875GHz (6dBi), high-gain dual-band omni-directional direct-mount articulating antenna (white). AP-ANT-13B 2.4-2.5GHz (2.3dBi) / 4.9-5.9GHz (4.0dBi), down-tilt, smallest form factor omnidirectional antenna, w/ ceiling mount hardware. AP-ANT-19 dual Band, omni-directional 3dBi/6dBi, indoor/outdoor, 36 inch pigtail cable. Pole mount, I-beam, and ceiling tile mount hardware included. AP-ANT-20W 2.4-2.5GHz (2dBi) / 4.9-5.875GHz (2dBi), compact dual-band omni-directional direct-mount articulating antenna (white). Direct-mount Direct, using pigtails Direct, using pigtails Direct-mount JW017A 1 AP-ANT-40 dual-band, 4/5dBi, 4 element MIMO downtilt omni antenna, ceiling mount. Direct, using pigtails JW018A 1 AP-ANT-45 dual-band, 5dBi, 4 element MIMO 90 x 90 degrees sector antenna, wall mount. Direct, using pigtails JW019A 1 AP-ANT-48 dual-band, 8.5dBi, 4 element MIMO 60 x 60 degrees sector antenna, wall mount. Direct, using pigtails 4. ADD ANTENNA MOUNT KIT (OPTIONAL) Part Number Description Antenna mount kits JW021A AP-ANT-MNT-4 AP-ANT-48 Azimuth and Elevation Adjustable Mount Kit JW022A AP-ANT-MNT-5 AP-ANT-45 Azimuth and Elevation Adjustable Mount Kit Configuration comments Compatible with antenna AP-ANT-48 Compatible with antenna AP-ANT-45 5. ADD POWERING ACCESSORY (OPTIONAL) Part Number Description Configuration comments Power accessories R1C73A AP-POE-BTSR 1-Port Smart Rate 802.3bt 60W midspan injector Add AC power cord R3K01A AP-AC2-48C 48V/50W AC/DC desktop style power adapter with 1.35/3.5mm connector Add AC power cord R3K01ACM Aruba CM AP-AC2-48C 48V/50W AC/DC desktop style power adapter with 1.35/3.5mm connector Add AC power cord R1C73ACM Aruba CM AP-POE-BTSR 1-Port Smart Rate 802.3bt 60W midspan injector Add AC power cord AC power cord JW113A PC-AC-ARG Argentina AC Power Cord JW114A PC-AC-AUS Australia AC Power Cord JW115A PC-AC-BR Brazil AC Power Cord JW116A PC-AC-CHN China AC Power Cord JW117A PC-AC-DEN Denmark AC Power Cord JW118A PC-AC-EC Continental Europe (schuko) AC Power Cord JW119A PC-AC-IN India AC Power Cord 3 ORDERING GUIDE ARUBA 530 SERIES WIRELESS ACCESS POINTS 5. ADD POWERING ACCESSORY (OPTIONAL) Part Number Description Power accessories (continued) JW120A PC-AC-IL Israel AC Power Cord JW121A PC-AC-IT Italy AC Power Cord JW122A PC-AC-JP Japan AC Power Cord JW123A PC-AC-KOR Korea AC Power Cord JW124ACM Aruba CM PC-AC-NA North America AC Power Cord JW124A PC-AC-NA North America AC Power Cord JW125A PC-AC-SWI Switzerland AC Power Cord JW126A PC-AC-TW Taiwan AC Power Cord JW127A PC-AC-UK UK AC Power Cord JW128A PC-AC-ZA South Africa Power Cord Configuration comments 6. ADD COSMETIC SNAP-ON COVER (AP-535 ONLY, OPTIONAL) Part Number Description Cosmetic covers JZ368A AP-535-CVR-20 20-pack for AP-535 White Non-glossy Snap-on Covers JZ368ACM Aruba CM AP-535-CVR-20 20-pk White Non-glossy Snap-on Covers Configuration comments Note: kit contains covers for 20 access points Note: kit contains covers for 20 access points 7. ADD OTHER ACCESSORIES (OPTIONAL) Part Number Description Other accessories JY728A AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable JY728ACM R6Q99A Aruba CM AP-CBL-SERU AP console adapter cable for custom micro-USB console port AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter Module Configuration comments Drivers available on the Aruba Support Center Drivers available on the Aruba Support Center R2X45A Aruba AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP Single USB dongle R2Y09A Aruba AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP 10-pack USB dongle R2Y10A Aruba AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP 50-pack USB dongle Note: All hardware SKUs can be managed by Aruba Central. Central Managed (CM) SKUs are used for simplified ordering within US and Canada only. 4 � Copyright 2020 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein. OG_AP-530Series_SK_072820 a00064821enw Contact Us Share
