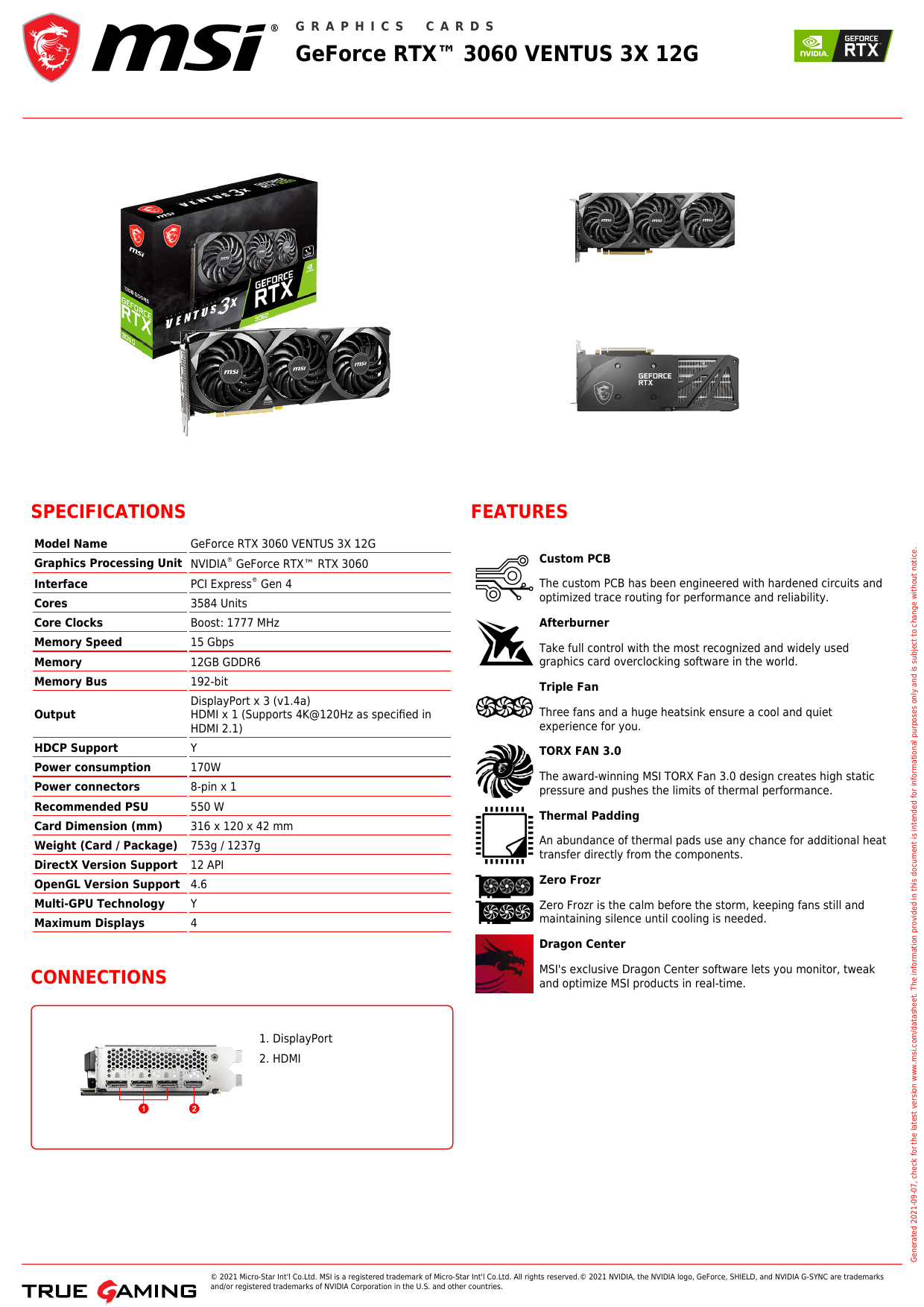

Original Document

If the viewer doesn’t load, open the PDF directly.

Extracted Text

GRAPHICS CARDS
GeForce RTXTM 3060 VENTUS 3X 12G

Generated 2021-09-07, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.

SPECIFICATIONS

Model Name

GeForce RTX 3060 VENTUS 3X 12G

Graphics Processing Unit NVIDIA� GeForce RTXTM RTX 3060

Interface

PCI Express� Gen 4

Cores

3584 Units

Core Clocks

Boost: 1777 MHz

Memory Speed

15 Gbps

Memory

12GB GDDR6

Memory Bus

192-bit

Output

DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

HDCP Support

Y

Power consumption

170W

Power connectors

8-pin x 1

Recommended PSU

550 W

Card Dimension (mm) 316 x 120 x 42 mm

Weight (Card / Package) 753g / 1237g

DirectX Version Support 12 API

OpenGL Version Support 4.6

Multi-GPU Technology Y

Maximum Displays

4

CONNECTIONS

FEATURES
Custom PCB
The custom PCB has been engineered with hardened circuits and optimized trace routing for performance and reliability.
Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world.
Triple Fan
Three fans and a huge heatsink ensure a cool and quiet experience for you.
TORX FAN 3.0
The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Thermal Padding
An abundance of thermal pads use any chance for additional heat transfer directly from the components.
Zero Frozr
Zero Frozr is the calm before the storm, keeping fans still and maintaining silence until cooling is needed.
Dragon Center
MSI's exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.

1. DisplayPort 2. HDMI
