ASUS Z690-P 12700K Twelve Core 3.6GHz Prime Motherboard User Guide

File info: application/pdf · 66 pages · 5.38MB

Manufacturer PDF Manual

ASUS PRIME Z690-P Intel Z690 LGA 1700 ATX | In Stock

ASUS Prime Z690-P Manual

Original Document

If the viewer doesn’t load, open the PDF directly.

Extracted Text

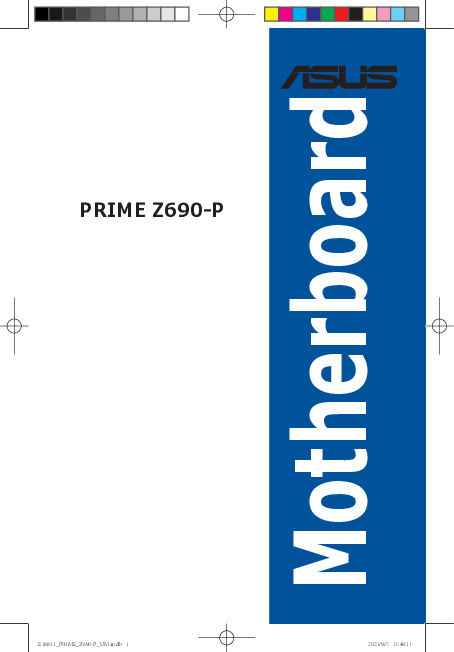

Motherboard

PRIME Z690-P

E18811
First Edition August 2021

Copyright � 2021 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
ii

Contents
Safety information...................................................................................................... iv About this guide.......................................................................................................... v PRIME Z690-P specifications summary ................................................................... vi Package contents........................................................................................................ x Installation tools and components........................................................................... xi

Chapter 1:

Product Introduction

1.1 Before you proceed ................................................................................... 1-1

1.2 Motherboard layout.................................................................................... 1-2

Chapter 2:

Basic Installation

2.1 Building your PC system........................................................................... 2-1

2.1.1 CPU installation........................................................................... 2-1

2.1.2 Cooling system installation.......................................................... 2-3

2.1.3 DIMM installation......................................................................... 2-6

2.1.4 M.2 installation ............................................................................ 2-7

2.1.5 Motherboard installation.............................................................. 2-9

2.1.6 ATX power connection.............................................................. 2-11

2.1.7 SATA device connection........................................................... 2-12

2.1.8 Front I/O connector ................................................................... 2-13

2.1.9 Expansion card installation ....................................................... 2-14

2.2 Motherboard rear and audio connections ............................................. 2-16

2.2.1 Rear I/O connection .................................................................. 2-16

2.2.2 Audio I/O connections............................................................... 2-17

2.3 Starting up for the first time.................................................................... 2-20

2.4 Turning off the computer ........................................................................ 2-20

Chapter 3:

BIOS and RAID Support

3.1 Knowing BIOS ............................................................................................ 3-1

3.2 BIOS Setup program.................................................................................. 3-2

3.3 ASUS EZ Flash 3 ........................................................................................ 3-3

3.4 ASUS CrashFree BIOS 3............................................................................ 3-4

3.5 RAID configurations .................................................................................. 3-5

Appendix Notices .................................................................................................................... A-1 Warranty................................................................................................................... A-8 ASUS contact information.................................................................................... A-10 Service and Support ............................................................................................. A-10

iii

Safety information
Electrical safety
� To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
� When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
� Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
� Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
� Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
� If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
Operation safety
� Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.
� Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
� To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
� Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.
� Place the product on a stable surface.
� If you encounter technical problems with the product, contact a qualified service technician or your retailer.
� Your motherboard should only be used in environments with ambient temperatures between 0�C and 40�C.

About this guide
This user guide contains the information you need when installing and configuring the motherboard.
How this guide is organized
This guide contains the following parts: � Chapter 1: Product Introduction
This chapter describes the features of the motherboard and the new technology it supports. It includes description of the switches, jumpers, and connectors on the motherboard. � Chapter 2: Basic Installation This chapter lists the hardware setup procedures that you have to perform when installing system components. � Chapter 3: BIOS and RAID Support This chapter tells how to boot into the BIOS, upgrade BIOS using the EZ Flash Utility and support on RAID.
Where to find more information
Refer to the following sources for additional information and for product and software updates. 1. ASUS website
The ASUS website (www.asus.com) provides updated information on ASUS hardware and software products. 2. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.
CAUTION: Information to prevent damage to the components and injuries to yourself when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.

PRIME Z690-P specifications summary

CPU Chipset Memory Graphics Expansion Slots
Storage

Intel� Socket LGA1700 for 12th Gen Intel� CoreTM, Pentium� Gold and Celeron� Processors* Supports Intel� Turbo Boost Technology 2.0 and Intel� Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel� Turbo Boost Max Technology 3.0 support depends on the CPU types.
Intel� Z690 Chipset
4 x DIMM, Max. 128GB, DDR5
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture Supports Intel� Extreme Memory Profile (XMP)
OptiMem II * Actual Memory data rate depends on the CPU types and DRAM modules,
for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
1 x DisplayPort ** 1 x HDMI� port*** * Graphics specifications may vary between CPU types. Please refer to www.
intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1.
Intel� 12th Gen Processors*
1 x PCIe 5.0/4.0/3.0 x16 slot Intel� Z690 Chipset**
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in support site. ** Supports Intel� Optane Memory H Series on PCH-attached PCIe slot.
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel� 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel� 12th Gen processors support PCIe 4.0 x4 mode. Intel� Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports * Intel� Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID
0/1/5/10. ** Intel� Rapid Storage Technology supports Intel� Optane Memory H Series on
PCH attached M.2 slots.

(continued on the next page)

PRIME Z690-P specifications summary

Ethernet Wireless & Bluetooth USB
Audio
Back Panel I/O Ports

1 x Realtek 2.5Gb Ethernet V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately. Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C�) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C�) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the
bandwidth. Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C�) 1 x USB 3.2 Gen 2 port (1 x Type-A ) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI� port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port

(continued on the next page)

vii

PRIME Z690-P specifications summary

Internal I/O Connectors Special Features

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C�) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x ThunderboltTM header ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 headers

(continued on the next page)

viii

PRIME Z690-P specifications summary

Software Features
BIOS Manageability Operating System Form Factor

ASUS Exclusive Software Features Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility
TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode 192 (128+64) Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE Windows� 11 64-bit, Windows� 10 64-bit ATX Form Factor 12 inch x 9.2 inch (30.5 cm x 23.4 cm)

Specifications are subject to change without notice. Please refer to the ASUS website for the latest specifications.

Package contents
Check your motherboard package for the following items.

Motherboard Cables
Miscellaneous
Installation Media Documentation

1 x PRIME Z690-P motherboard 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages 1 x Support DVD 1 x User guide

If any of the above items is damaged or missing, contact your retailer.

Installation tools and components

Phillips (cross) screwdriver

PC chassis

Power supply unit

Intel� LGA 1700 CPU

Intel� LGA 1700 compatible CPU Fan

DDR5 DIMM

SATA hard disk drive

SATA optical disc drive (optional)

Graphics card (optional)

M.2 SSD module (optional)

1 Bag of screws

The tools and components in the table above are not included in the motherboard package.

Chapter 1

Chapter 1: Product Introduction
Product Introduction

1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change any motherboard settings.

� Unplug the power cord from the wall socket before touching any component.
� Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.
� Hold components by the edges to avoid touching the ICs on them.
� Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.
� Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

PRIME Z690-P
.

1-1 ::

Chapter 1

DDR5 DIMM_A1 (64bit, 288-pin module) DDR5 DIMM_A2 (64bit, 288-pin module) DDR5 DIMM_B1 (64bit, 288-pin module) DDR5 DIMM_B2 (64bit, 288-pin module)

1.2 Motherboard layout

23.4cm(9.2in)

KBMS_USB1112

ATX_12V_2 ATX_12V_1

HDMI_DP

ASM 1442K

U32G2X2_C1

CPU_FAN CPU_OPT
DIGI+ VRM

U32G2_3 LAN_U32G1_910

16 6

AUDIO

M.2(WIFI)

M.2_1(SOCKET3)

PCIE 4.0 X4

SATA IRST

Ethernet

M.2_1(SOCKET3)

LGA1700

AIO_PUMP

2242

2260

2280

PCIEX16(G5)

22110

ATX_PWR

PCIEX16(G3)_1

3
BATTERY

2280

2260

2242

PCIEX16(G4)

M.2_2(SOCKET3)

PCIE 4.0 X4

SATA IRST

Intel� Z690

64Mb 128Mb BIOS BIOS
TPM

IRST V

M.2_3(SOCKET3)

Audio Codec
19

PCIEX1(G3)

Super I/O

22110

2280

2260

2242

AAFP

PCIEX16(G3)_2

TB_HEADER COM

COM_DEBUG USB_E12 USB_E34

U32G1_56

CHA_FAN2 CHA_FAN3 CLRTC

15 14 4 13 10

SATA6G_1 SATA6G_2

PANEL

SATA6G_3 SATA6G_4

PCIE 4.0 X4

SATA V

RGB_HEADER2 ADD_GEN 2_2 ADD_GEN 2_3

U32_4 U32G1_78
30.5cm(12in)

CHA_FAN1 ADD_GEN 2_1

RGB_HEADER1

12 11 4
5
9
8 6
17 6 12 11

1-2 .

Chapter 1: Product Introduction
::

Chapter 1

Layout contents 1. CPU socket 2. DIMM slots 3. Expansion slots 4. Fan and Pump headers 5. Power connectors 6. M.2 slots (SOCKET 3) 7. SATA 6Gb/s ports 8. USB 3.2 Gen 1 Type-C� Front Panel connector 9. USB 3.2 Gen 1 headers 10. USB 2.0 headers 11. Addressable Gen 2 headers 12. AURA RGB headers 13. Clear CMOS header 14. COM Port header 15. Front Panel Audio header 16. V-M.2 slot (Key E) 17. SPI TPM header (14-1pin) 18. System Panel header 19. ThunderboltTM header

Page 1-4 1-5 1-7 1-8 1-9 1-10 1-11 1-12 1-12 1-13 1-14 1-15 1-16 1-17 1-17 1-18 1-18 1-19 1-20

PRIME Z690-P
.

1-3 ::

1. CPU socket The motherboard comes with a LGA1700 socket designed for 12th Gen Intel� CoreTM, Pentium� Gold and Celeron� Processors.
LGA1700

Chapter 1

� Ensure that you install the correct CPU designed for LGA1700 socket only. DO NOT install a CPU designed for other sockets on the LGA1700 socket.
� The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU.
� Ensure that all power cables are unplugged before installing the CPU.
� Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/ transit-related.
� Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1700 socket.
� The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

1-4 .

Chapter 1: Product Introduction
::

2. DIMM slots The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR5 (Double Data Rate 5) memory modules.
A DDR5 memory module is notched differently from a DDR, DDR2, DDR3 or DDR4 module. DO NOT install a DDR, DDR2, DDR3 or DDR4 memory module to the DDR5 slot.

DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
Chapter 1

Recommended memory configurations

DIMM_A2

DIMM_A2 DIMM_B2

DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2

PRIME Z690-P
.

1-5 ::

Chapter 1

Memory configurations You may install 8 GB, 16 GB, and 32 GB unbuffered and non-ECC DDR5 DIMMs into the DIMM sockets.
You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.
� The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value.
� For system stability, use a more efficient memory cooling system to support a full memory load or overclocking condition.
� Always install the DIMMS with the same CAS Latency. For an optimum compatibility, we recommend that you install memory modules of the same version or data code (D/C) from the same vendor. Check with the vendor to get the correct memory modules.
� Visit the ASUS website for the latest QVL, and memory frequency support depends on the CPU types.

1-6 .

Chapter 1: Product Introduction
::

3. Expansion slots
Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

Chapter 1

PCIEX16(G5)

PCIEX16(G3)_1

PCIEX16(G4)

PCIEX1(G3)

PCIEX16(G3)_2

Please refer to the following tables for the recommended VGA configuration.

Recommended VGA configuration

Slot Description 1. PCIe 5.0/4.0/3.0 x16 2. PCIe 3.0 x16_1 3. PCIe 4.0/3.0 x16 4. PCIe 3.0 x16_2

Single VGA x16 -

Dual VGA x16 x4 -

Triple VGA x16 x4 x4

Connect a chassis fan to the chassis fan connectors when using multiple graphics cards for better thermal environment.

PRIME Z690-P
.

1-7 ::

Chapter 1

4. Fan and Pump headers The Fan and Pump headers allow you to connect fans or pumps to cool the system.

AB C

A CPU_FAN B CPU_OPT

FAN PWM FAN IN
FAN PWR GND

C AIO_PUMP FAN PWM FAN IN

D CHA_FAN1

FAN PWR GND

GND FAN PWR FAN IN FAN PWM

E CHA_FAN2
EF
F CHA_FAN3

� DO NOT forget to connect the fan cables to the fan headers. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan headers!
� Ensure the cable is fully inserted into the header.

Header CPU_FAN CPU_OPT CHA_FAN1 CHA_FAN2 CHA_FAN3 AIO_PUMP

Max. Current 1A 1A 1A 1A 1A 1A

Max. Power 12W 12W 12W 12W 12W 12W

Default Speed Q-Fan Controlled Q-Fan Controlled Q-Fan Controlled Q-Fan Controlled Q-Fan Controlled
Full-Speed

Shared Control -

1-8 .

Chapter 1: Product Introduction
::

Chapter 1

5. Power connectors These Power connectors allow you to connect your motherboard to a power supply. The power supply plugs are designed to fit in only one orientation. Find the proper orientation and push down firmly until the power supply plugs are fully inserted.
A ATX_12V_2 B ATX_12V_1
AB

+12V DC +12V DC +12V DC +12V DC

+DC_IN +DC_IN

PIN 1

GND GND GND GND

GND GND

C ATX_PWR

+3 Volts +12 Volts +12 Volts +5V Standby Power OK
GND +5 Volts
GND +5 Volts
GND +3 Volts +3 Volts
PIN 1

GND +5 Volts +5 Volts +5 Volts -5 Volts GND GND GND PSON# GND -12 Volts +3 Volts

Ensure to connect the 8-pin power plug.
� We recommend that you use a PSU with a higher power output when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.
� If you want to use two or more high-end PCI Express x16 cards, use a PSU with 1000W power or above to ensure the system stability.

PRIME Z690-P
.

1-9 ::

Chapter 1

6. M.2 slots The M.2 slots allow you to install M.2 devices such as M.2 SSD modules.

A M.2_1(SOCKET3)

B C

B M.2_2(SOCKET3) C M.2_3(SOCKET3)

� Intel� 12th Gen processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel� 12th Gen processors support PCIe 4.0 x4 mode.
� Intel� Z690 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
� Intel� Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
� Intel� Rapid Storage Technology supports Intel� Optane Memory H Series on PCH attached M.2 slots.

The M.2 SSD module is purchased separately.

1-10 .

Chapter 1: Product Introduction
::

Chapter 1

GND RSATA_TXP RSATA_TXN GND RSATA_RXN RSATA_RXP GND

7. SATA 6Gb/s ports The SATA 6Gb/s ports allow you to connect SATA devices such as optical disc drives and hard disk drives via a SATA cable.
A
SATA6G_1 SATA6G_2
B
SATA6G_3 SATA6G_4
A B
If you installed SATA storage devices, you can create a RAID 0, 1, 5, and 10 configuration with the Intel� Rapid Storage Technology through the onboard Intel� Z690 chipset.
Before creating a RAID set, refer to the RAID Configuration Guide. You can download the RAID Configuration Guide from the ASUS website.

GND RSATA_RXP RSATA_RXN
GND RSATA_TXN RSATA_TXP
GND

PRIME Z690-P
.

1-11 ::

Chapter 1

8. USB 3.2 Gen 1 Type-C� Front Panel connector The USB 3.2 Gen 1 Type-C� connector allows you to connect a USB 3.2 Gen 1 Type-C� module for an additional USB 3.2 Gen 1 Type-C� port on the front panel. The USB 3.2 Gen 1 Type-C� connector provides data transfer speeds of up to 5 Gb/s.
U32_4

The USB 3.2 Gen 1 Type-C� module is purchased separately.

9. USB 3.2 Gen 1 headers
The USB 3.2 Gen 1 headers allow you to connect USB 3.2 Gen 1 modules for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1 headers provide data transfer speeds of up to 5 Gb/s.

A U32G1_78 _

PIN 1

USB3+5V

IntA_P1_SSRX-

IntA_P2_SSRX-

IntA_P1_SSRX+

IntA_P2_SSRX+

GND

IntA_P1_SSTX-

IntA_P2_SSTX-

IntA_P1_SSTX+

IntA_P2_SSTX+

GND

IntA_P1_D-

IntA_P2_D-

IntA_P1_D+

IntA_P2_D+

GND

B U32G1_56

IntA_P2_D+ IntA_P2_DGND IntA_P2_SSTX+ IntA_P2_SSTXGND IntA_P2_SSRX+ IntA_P2_SSRXUSB3+5V

GND IntA_P1_D+ IntA_P1_D-
GND IntA_P1_SSTX+ IntA_P1_SSTX-
GND IntA_P1_SSRX+ IntA_P1_SSRX-
USB3+5V

PIN 1
B
The USB 3.2 Gen 1 module is purchased separately.

1-12 .

Chapter 1: Product Introduction
::

Chapter 1

10. USB 2.0 headers
The USB 2.0 headers allow you to connect a USB module for additional USB 2.0 ports. The USB 2.0 headers provide data transfer speeds of up to 480 Mb/s.

A USB_E12 B USB_E34

USB+5V USB_P1USB_P1+ GND NC

USB+5V USB_P2USB_P2+
GND

PIN 1

DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!
The USB 2.0 module is purchased separately.

PRIME Z690-P
.

1-13 ::

Chapter 1

11. Addressable Gen 2 headers
The Addressable Gen 2 headers allow you to connect individually addressable RGB WS2812B LED strips or WS2812B based LED strips.

A ADD_GEN 2_1

B ADD_GEN 2_3

C ADD_GEN 2_2

Ground

Data +5V
PIN 1

B C

The Addressable Gen 2 headers support WS2812B addressable RGB LED strips (5V/ Data/Ground), with a maximum power rating of 3A (5V) and the addressable headers on this board can handle a combined maximum of 500 LEDs.
Before you install or remove any component, ensure that the power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.
� Actual lighting and color will vary with LED strip. � If your LED strip does not light up, check if the addressable RGB LED strip is
connected in the correct orientation, and the 5V connector is aligned with the 5V header on the motherboard. � The addressable RGB LED strip will only light up when the system is powered on. � The addressable RGB LED strip is purchased separately.

1-14 .

Chapter 1: Product Introduction
::

Chapter 1

12. AURA RGB headers The AURA RGB headers allow you to connect RGB LED strips.

A RGB_HEADER1

B RGB_HEADER2

B R G +12V
PIN 1

B
The RGB header supports 5050 RGB multi-color LED strips (12V/G/R/B), with a maximum power rating of 3A (12V).
Before you install or remove any component, ensure that the power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.
� Actual lighting and color will vary with LED strip. � If your LED strip does not light up, check if the RGB LED extension cable and the
RGB LED strip is connected in the correct orientation, and the 12V connector is aligned with the 12V header on the motherboard. � The LED strip will only light up when the system is powered on. � The LED strip is purchased separately.

PRIME Z690-P
.

1-15 ::

Chapter 1

+3V_BAT GND

13. Clear CMOS header The Clear CMOS header allows you to clear the Real Time Clock (RTC) RAM in the CMOS, which contains the date, time, system passwords, and system setup parameters.
CLRTC
PIN 1
To erase the RTC RAM: 1. Turn OFF the computer and unplug the power cord. 2. Use a metal object such as a screwdriver to short the two pins. 3. Plug the power cord and turn on the computer. 4. Hold down the <Del> key during the boot process and enter BIOS setup to re-
enter data. DO NOT short-circuit the pins except when clearing the RTC RAM. Short-circuiting or placing a jumper cap will cause system boot failure!
If the steps above do not help, remove the onboard button cell battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the button cell battery.

1-16 .

Chapter 1: Product Introduction
::

14. COM Port header
The COM (Serial) Port header allows you to connect a COM port module. Connect the COM port module cable to this header, then install the module to a slot opening on the system chassis.

Chapter 1

RXD DTR DSR CTS

DCD TXD GND RTS
RI

COM
PIN 1
The COM port module is purchased separately.
15. Front Panel Audio header The front panel audio header is for a chassis-mounted front panel audio I/O module that supports HD Audio. Connect one end of the front panel audio I/O module cable to this header.

AGND NC SENSE1_RETUR SENSE2_RETUR

AAFP

PORT1L PORT1R PORT2R SENSE_SEND PORT2L

We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high-definition audio capability.

PRIME Z690-P

1-17

Chapter 1

16. V-M.2 slot (Key E) The vertical M.2 slot (Key E) allows you to install an M.2 Wi-Fi module.
M.2(WIFI)

The M.2 Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
17. SPI TPM header (14-1pin) This header supports a Trusted Platform Module (TPM) system with a Serial Peripheral Interface (SPI), allowing you to securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

TPM

PIN 1
VCCSPI S_PLTRST# F2_SPI_CS1#_R
+3V_SPI F_SPI_CS0#_R
T_SPI_MISO F_SPI_HOLD#_R

S_SPI_TPM_IRQ# S_SPI_TPM_CS2# F_BIOS_WP#_R GND T_SPI_CLK T_SPI_MOSI

The TPM module is purchased separately.

1-18 .

Chapter 1: Product Introduction
::

Chapter 1

PLED+ PLEDPWRBTN# GND +5V Ground Ground Speaker

HDD_LED+ HDD_LED-
Ground RSTCON#
NC PLED+ PLED-

18. System Panel header The System Panel header supports several chassis-mounted functions.
PLED PWRSW SPEAKER
PANEL
PIN 1
HDD_LED RESET PLED
� System Power LED header (PLED) The 2-pin and/or 3-1 pin headers allow you to connect the System Power LED. The System Power LED lights up when the system is connected to a power source, or when you turn on the system power, and blinks when the system is in sleep mode.
� Storage Device Activity LED header (HDD_LED) The 2-pin header allows you to connect the Storage Device Activity LED. The Storage Device Activity LED lights up or blinks when data is read from or written to the storage device or storage device add-on card.
� System Warning Speaker header (SPEAKER) The 4-pin header allows you to connect the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.
� Power Button/Soft-off Button header (PWRSW) The 3-1 pin header allows you to connect the system power button. Press the power button to power up the system, or put the system into sleep or soft-off mode (depending on the operating system settings).
� Reset button header (RESET) The 2-pin header allows you to connect the chassis-mounted reset button. Press the reset button to reboot the system.

PRIME Z690-P
.

1-19 ::

Chapter 1

I2C_SCL I2C_SDA I2C_IRQ# RTD3_POWER_EN S_SLP_S0#_IDLE PERST_N WAKE#

FORCE_PWR TB_CIO_PLUG_EVENT
SLP_S3# SLP_S5#
GND RTD3_SW

19. ThunderboltTM header The ThunderboltTM header allows you to connect an add-on ThunderboltTM I/O card that supports Intel�'s ThunderboltTM Technology, allowing you to connect ThunderboltTM-enabled devices to form a daisy chain-configuration.
TB_HEADER
PIN 1
� The add-on ThunderboltTM I/O card and ThunderboltTM cables are purchased separately.
� Please visit the official website of your purchased ThunderboltTM card for more details on compatibility.
The ThunderboltTM card can only be used when installed to the PCIEX16(G3)_2 slot. Ensure to install your ThunderboltTM card to the PCIEX16(G3)_2 slot.

1-20 .

Chapter 1: Product Introduction
::

Chapter 2: Basic Installation
Basic Installation

2.1 Building your PC system

2.1.1

The diagrams in this section are for reference only. The motherboard layout may vary with models, but the installation steps are the same for all models.
CPU installation

� Ensure that you install the correct CPU designed for LGA1700 socket only. DO NOT install a CPU designed for LGA1155, LGA1156, LGA1151, and LGA1200 sockets on the LGA1700 socket.
� ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect CPU orientation/placement, or other damages resulting from negligence by the user.

Chapter 2

PRIME Z690-P
.

Take caution when lifting the load lever, ensure to hold onto the load lever when releasing the load lever. Letting go of the load lever immediately after releasing it may cause the load lever to spring back and cause damage to your motherboard.
2-1
::

Chapter 2

2-2 .

Chapter 2: Basic Installation
::

2.1.2 Cooling system installation
� Apply Thermal Interface Material to the CPU cooling system and CPU before you install the cooling system, if necessary.
To install a CPU heatsink and fan assembly

Chapter 2

PRIME Z690-P
.

2-3 ::

LGA1200 LGA1700

� We recommend using a LGA1700 compatible cooling system on an Intel� 600 series motherboard.
� Additional holes for LGA1200 compatible cooling systems are also available on ASUS' Intel� 600 series motherboards, however, we still strongly advise consulting with your cooling system vendor or manufacturer on the compatibility and functionality of the cooling system.
� Push-pin type LGA1200 compatible cooling systems cannot be installed to this motherboard.

Chapter 2

2-4 .

Chapter 2: Basic Installation
::

To install an AIO cooler
� We recommend using a LGA1700 compatible cooling system on an Intel� 600 series motherboard.
� Additional holes for LGA1200 compatible cooling systems are also available on ASUS' Intel� 600 series motherboards, however, we still strongly advise consulting with your cooling system vendor or manufacturer on the compatibility and functionality of the cooling system.
� If you wish to install an AIO cooler, we recommend installing the AIO cooler after installing the motherboard into the chassis.

Chapter 2

PRIME Z690-P
.

AIO_PUMP CPU_FAN CPU_OPT
2-5 ::

2.1.3 DIMM installation

Chapter 2

To remove a DIMM

2-6 .

Chapter 2: Basic Installation
::

2.1.4 M.2 installation
To install an M.2 SSD card 1
21

Chapter 2

OPTIONAL

� Ensure to install the bundled M.2 rubber pad before installing your single sided M.2 storage device.
� DO NOT install the bundled M.2 rubber pads when installing a double-sided M.2 storage device. The rubber pad installed by default is compatible with double sided M.2 storage devices.

PRIME Z690-P
.

2-7 ::

4 5

8 6
78

Chapter 2

� The M.2 heatsink can be installed to the M.2_1 slot or to the M.2_3 slot. � The M.2 SSD module is purchased separately.

2-8 .

Chapter 2: Basic Installation
::

2.1.5 Motherboard installation
1. Install the ASUS I/O Shield to the chassis rear I/O panel. Some sharp edges and points might cause physical injury. We recommend you put on cut or puncture resistant gloves before motherboard and I/O shield installation.
2. Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to the chassis' rear I/O panel.

Chapter 2

PRIME Z690-P
.

2-9 ::

3. Place six (6) screws into the holes indicated by circles to secure the motherboard to the chassis.

Chapter 2

DO NOT over tighten the screws! Doing so can damage the motherboard.

2-10 .

Chapter 2: Basic Installation
::

2.1.6 ATX power connection

Chapter 2

AND

Ensure to connect the 8-pin power plug.

PRIME Z690-P
.

2-11 ::

2.1.7 SATA device connection
OR

Chapter 2

2-12 .

Chapter 2: Basic Installation
::

2.1.8 Front I/O connector
To install front panel connector

To install USB 3.2 Gen 1 Type-C� connector

USB 3.2 Gen 1 Type-C�
This connector will only fit in one orientation. Push the connector until it clicks into place.
To install USB 3.2 Gen 1 connector To install USB 2.0 connector

Chapter 2

USB 3.2 Gen 1
To install front panel audio connector

USB 2.0

AAFP
PRIME Z690-P
.

2-13 ::

2.1.9 Expansion card installation
To install PCIe x16 cards
To install PCIe x1 cards

Chapter 2

2-14 .

Chapter 2: Basic Installation
::

Chapter 2

To install ThunderboltTM series card

6-pin PCIe power connector

USB Type-C� port connects to Thunderbolt devices
MiniDP in port connects to DP out port on the motherboard or a VGA card

USB 2.0 header ThunderboltTM header

The ThunderboltTM card can only be used when installed to the PCIEX16(G3)_2 slot. Ensure to install your ThunderboltTM card to the PCIEX16(G3)_2 slot.
� Step 6 is optional, please connect a 6-pin PCIe power connector when you wish to use the USB Type-C� port ThunderboltTM quick charge feature to charge a 5V or more device.
� The TypeC_1 port can support up to 20V devices, and the TypeC_2 port can support up to 9V devices when the 6-pin PCIe power connector is connected.
� The ThunderboltTM series card is sold separately. � Please visit the official website of your purchased ThunderboltTM card for more details
on compatibility.

PRIME Z690-P
.

2-15 ::

Chapter 2

2.2 Motherboard rear and audio connections 2.2.1 Rear I/O connection

Rear panel connectors 1. PS/2 Keyboard/Mouse combo port 2. DisplayPort 3. USB 3.2 Gen 2 Type-A port 3 4. Ethernet port* 5. USB 2.0 ports 11 and 12 6. HDMI� port 7. USB 3.2 Gen 2x2 Type-C� port 1 8. USB 3.2 Gen 1 Type-A ports 9 and 10 9. Optical S/PDIF OUT port
10. Audio Jacks**

9 10

* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port definitions.
We strongly recommend that you connect your devices to ports with matching data transfer rate. Please connect your USB 3.2 Gen 1 devices to USB 3.2 Gen 1 ports and your USB 3.2 Gen 2 devices to USB 3.2 Gen 2 ports for faster and better performance for your devices.

2-16 .

Chapter 2: Basic Installation
::

Chapter 2

* Ethernet port LED indications

Activity Link LED

Speed LED

Status

Description

Status

Description

OFF GREEN BLINKING

No link Linked Data activity

OFF GREEN
ORANGE

No link
2.5 Gbps connection
1 Gbps / 100 Mbps / 10 Mbps connection

ACT/LINK LED

SPEED LED

Ethernet port

** Audio 2, 4, 5.1 or 7.1-channel configuration

Port
Light Blue Lime Pink Orange

Headset 2-channel Line In Line Out Mic In �

Black

�

4-channel

5.1-channel

7.1-channel

Line In Front Speaker Out Mic In �
Rear Speaker Out

Line In Front Speaker Out Mic In Center/Sub woofer Rear Speaker Out

Side Speaker Out Front Speaker Out Mic In Center/Sub woofer Rear Speaker Out

2.2.2 Audio I/O connections
Audio I/O ports

Connect to Headphone and Mic

PRIME Z690-P
.

2-17 ::

Connect to Stereo Speakers Connect to 2-channel Speakers Connect to 4-channel Speakers

Chapter 2

2-18 .

Chapter 2: Basic Installation
::

Connect to 5.1-channel Speakers Connect to 7.1-channel Speakers

Chapter 2

PRIME Z690-P
.

2-19 ::

Chapter 2

2.3 Starting up for the first time
1. After making all the connections, replace the system case cover.
2. Ensure that all switches are off.
3. Connect the power cord to the power connector at the back of the system chassis.
4. Connect the power cord to a power outlet that is equipped with a surge protector.
5. Turn on the devices in the following order:
a. Monitor
b. External storage devices (starting with the last device on the chain)
c. System power
6. After applying power, the system power LED on the system front panel case lights up. For systems with ATX power supplies, the system LED lights up when you press the ATX power button. If your monitor complies with the "green" standards or if it has a "power standby" feature, the monitor LED may light up or change from orange to green after the system LED turns on.
The system then runs the power-on self tests (POST). While the tests are running, the BIOS beeps (refer to the BIOS beep codes table) or additional messages appear on the screen. If you do not see anything within 30 seconds from the time you turned on the power, the system may have failed a power-on test. Check the jumper settings and connections or call your retailer for assistance.

BIOS Beep
One short beep
One continuous beep followed by two short beeps then a pause (repeated) One continuous beep followed by three short beeps One continuous beep followed by four short beeps

Description VGA detected Quick boot set to disabled No keyboard detected
No memory detected
No VGA detected
Hardware component failure

7. At power on, hold down the <Delete> key to enter the BIOS Setup. Follow the instructions in Chapter 3.

2.4 Turning off the computer
While the system is ON, press the power button for less than four seconds to put the system on sleep mode or soft-off mode, depending on the BIOS setting. Press the power button for more than four seconds to let the system enter the soft-off mode regardless of the BIOS setting.

2-20 .

Chapter 2: Basic Installation
::

Chapter 3: BIOS and RAID Support
BIOS and RAID Support

3.1 Knowing BIOS
The new ASUS UEFI BIOS is a Unified Extensible Interface that complies with UEFI architecture, offering a user-friendly interface that goes beyond the traditional keyboardonly BIOS controls to enable a more flexible and convenient mouse input. You can easily navigate the new UEFI BIOS with the same smoothness as your operating system. The term "BIOS" in this user manual refers to "UEFI BIOS" unless otherwise specified.
BIOS (Basic Input and Output System) stores system hardware settings such as storage device configuration, overclocking settings, advanced power management, and boot device configuration that are needed for system startup in the motherboard CMOS. In normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. DO NOT change the default BIOS settings except in the following circumstances:
� An error message appears on the screen during the system bootup and requests you to run the BIOS Setup.
� You have installed a new system component that requires further BIOS settings or update.
Inappropriate BIOS settings may result to instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.
BIOS settings and options may vary due to different BIOS release versions. Please refer to the latest BIOS version for settings and options.

For more information on BIOS configurations, please refer to https://www.asus.com/support, or download the BIOS manual by scanning the QR code.

Chapter 3

PRIME Z690-P
.

3-1 ::

3.2 BIOS Setup program
Use the BIOS Setup to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief onscreen help to guide you in using the BIOS Setup program.
Entering BIOS at startup To enter BIOS Setup at startup, press <Delete> or <F2> during the Power-On Self Test (POST). If you do not press <Delete> or <F2>, POST continues with its routines.
Entering BIOS Setup after POST To enter BIOS Setup after POST:
� Press <Ctrl>+<Alt>+<Delete> simultaneously.
� Press the reset button on the system chassis.
� Press the power button to turn the system off then back on. Do this option only if you failed to enter BIOS Setup using the first two options.
After doing either of the three options, press <Delete> key to enter BIOS.
� Ensure that a USB mouse is connected to your motherboard if you want to use the mouse to control the BIOS setup program.
� If the system becomes unstable after changing any BIOS setting, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey <F5>.
� If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value.
� The BIOS setup program does not support Bluetooth devices.
BIOS menu screen The BIOS Setup program can be used under two modes: EZ Mode and Advanced Mode. You can change modes from Setup Mode in Boot menu or by pressing the <F7> hotkey.

Chapter 3

3-2 .

Chapter 3: BIOS and RAID Support
::

3.3 ASUS EZ Flash 3
The ASUS EZ Flash 3 feature allows you to update the BIOS without using an OS-based utility.
Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey <F5>.
To update the BIOS:
� This function can support devices such as a USB flash disk with FAT 32/16 format and single partition only.
� DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!
1. Insert the USB flash disk that contains the latest BIOS file to the USB port. 2. Enter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select
ASUS EZ Flash 3 Utility and press <Enter>. 3. Press the Left/Right arrow keys to switch to the Drive field. 4. Press the Up/Down arrow keys to find the USB flash disk that contains the latest
BIOS, and then press <Enter>. 5. Press the Left/Right arrow keys to switch to the Folder field. 6. Press the Up/Down arrow keys to find the BIOS file, and then press <Enter> to
perform the BIOS update process. Reboot the system when the update process is done.

Chapter 3

PRIME Z690-P
.

3-3 ::

3.4 ASUS CrashFree BIOS 3
The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using a USB flash drive that contains the BIOS file.
Recovering the BIOS
1. Download the latest BIOS version for this motherboard from https://www.asus.com/support/.
2. Rename the BIOS file as ASUS.CAP or PZ690P5.CAP and copy the renamed BIOS file to a USB flash drive.
3. Turn on the system.
4. Insert the USB flash drive containing the BIOS file to a USB port.
5. The utility automatically checks the devices for the BIOS file. When found, the utility reads the BIOS file and enters ASUS EZ Flash 3 automatically.
6. The system requires you to enter BIOS Setup to recover the BIOS setting. To ensure system compatibility and stability, we recommend that you press <F5> to load default BIOS values.
DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!

Chapter 3

3-4 .

Chapter 3: BIOS and RAID Support
::

3.5 RAID configurations
The motherboard comes with the Intel� Rapid Storage Technology that supports RAID 0, RAID 1, RAID 5 and RAID 10 configuration.
For more information on configuring your RAID sets, please refer to the RAID Configuration Guide which you can find at https://www.asus.com/support, or by scanning the QR code.
RAID definitions RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks. Two hard disks perform the same work as a single drive but at a sustained data transfer rate, double that of a single disk alone, thus improving data access and storage. Use of two new identical hard disk drives is required for this setup. RAID 1 (Data mirroring) copies and maintains an identical image of data from one drive to a second drive. If one drive fails, the disk array management software directs all applications to the surviving drive as it contains a complete copy of the data in the other drive. This RAID configuration provides data protection and increases fault tolerance to the entire system. Use two new drives or use an existing drive and a new drive for this setup. The new drive must be of the same size or larger than the existing drive. RAID 5 stripes both data and parity information across three or more hard disk drives. Among the advantages of RAID 5 configuration include better HDD performance, fault tolerance, and higher storage capacity. The RAID 5 configuration is best suited for transaction processing, relational database applications, enterprise resource planning, and other business systems. Use a minimum of three identical hard disk drives for this setup. RAID 10 is data striping and data mirroring combined without parity (redundancy data) having to be calculated and written. With the RAID 10 configuration you get all the benefits of both RAID 0 and RAID 1 configurations. Use four new hard disk drives or use an existing drive and three new drives for this setup.

Chapter 3

PRIME Z690-P
.

3-5 ::

Chapter 3

3-6 .

Chapter 3: BIOS and RAID Support
::

Appendix
Appendix
Notices FCC Compliance Information
Responsible Party: Asus Computer International Address: 48720 Kato Rd., Fremont, CA 94538, USA
Phone / Fax No: (510)739-3777 / (510)608-4555
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected. - Consult the dealer or an experienced radio/TV technician for help.
HDMI Compliance Statement
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Appendix

PRIME Z690-P
.

A-1 ::

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)
This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-003(B)/NMB-003(B)
D�claration de conformit� de Innovation, Sciences et D�veloppement �conomique Canada (ISED)
Le pr�sent appareil est conforme aux CNR d'Innovation, Sciences et D�veloppement �conomique Canada applicables aux appareils radio exempts de licence. L'exploitation est autoris�e aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radio�lectrique subi, m�me si le brouillage est susceptible d'en compromettre le fonctionnement. CAN ICES-003(B)/NMB-003(B)
VCCI: Japan Compliance Statement Class B ITE
Japan JATE
LAN
KC: Korea Warning Statement

Appendix

A-2 .

Appendix
::

GoogleTM License Terms
Copyright� 2021 Google Inc. All Rights Reserved. Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0 Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
Declaration of compliance for product environmental regulation
ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements. Please refer to http://csr.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:
EU REACH and Article 33 Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.
EU RoHS This product complies with the EU RoHS Directive. For more details, see http://csr.asus.com/english/article.aspx?id=35
India RoHS This product complies with the "India E-Waste (Management) Rules, 2016" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.
Vietnam RoHS ASUS products sold in Vietnam, on or after September 23, 2011,meet the requirements of the Vietnam Circular 30/2011/TT-BCT. C�c sn phm ASUS b�n ti Vit Nam, v�o ng�y 23 th�ng 9 nm2011 tr v sau, u phi �p ng c�c y�u cu ca Th�ng t 30/2011/TT-BCT ca Vit Nam.
Turkey RoHS AEEE Y�netmeliine Uygundur

Appendix

PRIME Z690-P
.

A-3 ::

ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.
DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Appendix

A-4 .

Appendix
::

English ASUSTeK Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related UKCA Directives. Full text of UKCA declaration of conformity is available at: www.asus.com/support
English ASUSTeK Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related Directives. Full text of EU declaration of conformity is available at: www.asus.com/support
Fran�ais AsusTek Computer Inc. d�clare par la pr�sente que cet appareil est conforme aux crit�res essentiels et autres clauses pertinentes des directives concern�es. La d�claration de conformit� de l'UE peut �tre t�l�charg�e � partir du site Internet suivant : www.asus.com/support
Deutsch ASUSTeK Computer Inc. erkl�rt hiermit, dass dieses Ger�t mit den wesentlichen Anforderungen und anderen relevanten Bestimmungen der zugeh�rigen Richtlinien �bereinstimmt. Der gesamte Text der EUKonformit�tserkl�rung ist verf�gbar unter: www.asus.com/support
Italiano ASUSTeK Computer Inc. con la presente dichiara che questo dispositivo � conforme ai requisiti essenziali e alle altre disposizioni pertinenti con le direttive correlate. Il testo completo della dichiarazione di conformit� UE � disponibile all'indirizzo: www.asus.com/support
ASUS , . , , www.asus.com/support
ASUSTeK Computer Inc. , . : www.asus.com/support
Hrvatski ASUSTeK Computer Inc. ovim izjavljuje da je ovaj ureaj sukladan s bitnim zahtjevima i ostalim odgovarajuim odredbama vezanih direktiva. Cijeli tekst EU izjave o sukladnosti dostupan je na: www.asus.com/support
Cestina Spolecnost ASUSTeK Computer Inc. t�mto prohlasuje, ze toto za�zen� spluje z�kladn� pozadavky a dals� p�slusn� ustanoven� souvisej�c�ch smrnic. Pln� znn� prohl�sen� o shod EU je k dispozici na adrese: www.asus.com/support
Dansk ASUSTeK Computer Inc. erkl�rer hermed, at denne enhed er i overensstemmelse med hovedkravene og andre relevante bestemmelser i de relaterede direktiver. Hele EU-overensstemmelseserkl�ringen kan findes p�: www.asus.com/support
Nederlands ASUSTeK Computer Inc. verklaart hierbij dat dit apparaat voldoet aan de essenti�le vereisten en andere relevante bepalingen van de verwante richtlijnen. De volledige tekst van de EU-verklaring van conformiteit is beschikbaar op: www.asus.com/support
Eesti K�esolevaga kinnitab ASUSTeK Computer Inc, et see seade vastab asjakohaste direktiivide oluliste n�uetele ja teistele asjassepuutuvatele s�tetele. EL vastavusdeklaratsiooni t�ielik tekst on saadaval j�rgmisel aadressil: www.asus.com/support
Suomi ASUSTeK Computer Inc. ilmoittaa t�ten, ett� t�m� laite on asiaankuuluvien direktiivien olennaisten vaatimusten ja muiden t�t� koskevien s��d�sten mukainen. EU-yhdenmukaisuusilmoituksen koko teksti on luettavissa osoitteessa: www.asus.com/support
, AsusTek Computer Inc. . : www.asus.com/support
Magyar Az ASUSTeK Computer Inc. ezennel kijelenti, hogy ez az eszk�z megfelel a kapcsol�d� Ir�nyelvek l�nyeges k�vetelm�nyeinek �s egy�b vonatkoz� rendelkez�seinek. Az EU megfelels�gi nyilatkozat teljes sz�vege innen let�lthet: www.asus.com/support
Latviski ASUSTeK Computer Inc. ar so pazio, ka s ierce atbilst saistto Direktvu btiskajm prasbm un citiem citiem saistosajiem nosacjumiem. Pilns ES atbilstbas paziojuma teksts pieejams seit: www.asus.com/support
Lietuvi ,,ASUSTeK Computer Inc." siuo tvirtina, kad sis renginys atitinka pagrindinius reikalavimus ir kitas svarbias susijusi direktyv nuostatas. Vis ES atitikties deklaracijos tekst galima rasti: www.asus.com/support
Norsk ASUSTeK Computer Inc. erkl�rer herved at denne enheten er i samsvar med hovedsaklige krav og andre relevante forskrifter i relaterte direktiver. Fullstendig tekst for EU-samsvarserkl�ringen finnes p�: www.asus.com/support
Polski Firma ASUSTeK Computer Inc. niniejszym owiadcza, e urzdzenie to jest zgodne z zasadniczymi wymogami i innymi wlaciwymi postanowieniami powizanych dyrektyw. Pelny tekst deklaracji zgodnoci UE jest dostpny pod adresem: www.asus.com/support

Portugu�s A ASUSTeK Computer Inc. declara que este dispositivo est� em conformidade com os requisitos essenciais e outras disposi�es relevantes das Diretivas relacionadas. Texto integral da declara��o da UE dispon�vel em: www.asus.com/support
Rom�n ASUSTeK Computer Inc. declar c acest dispozitiv se conformeaz cerinelor eseniale i altor prevederi relevante ale directivelor conexe. Textul complet al declaraiei de conformitate a Uniunii Europene se gsete la: www.asus.com/support
Srpski ASUSTeK Computer Inc. ovim izjavljuje da je ovaj ureaj u saglasnosti sa osnovnim zahtevima i drugim relevantnim odredbama povezanih Direktiva. Pun tekst EU deklaracije o usaglasenosti je dostupan da adresi: www.asus.com/support
Slovensky Spolocnos ASUSTeK Computer Inc. t�mto vyhlasuje, ze toto zariadenie vyhovuje z�kladn�m poziadavk�m a ostat�m pr�slusn�m ustanoveniam pr�slusn�ch smern�c. Cel� text vyhl�senia o zhode pre st�ty E� je dostupn� na adrese: www.asus.com/support
Slovenscina ASUSTeK Computer Inc. izjavlja, da je ta naprava skladna z bistvenimi zahtevami in drugimi ustreznimi dolocbami povezanih direktiv. Celotno besedilo EU-izjave o skladnosti je na voljo na spletnem mestu: www.asus.com/support
Espa�ol Por la presente, ASUSTeK Computer Inc. declara que este dispositivo cumple los requisitos b�sicos y otras disposiciones pertinentes de las directivas relacionadas. El texto completo de la declaraci�n de la UE de conformidad est� disponible en: www.asus.com/support
Svenska ASUSTeK Computer Inc. f�rklarar h�rmed att denna enhet �verensst�mmer med de grundl�ggande kraven och andra relevanta f�reskrifter i relaterade direktiv. Fulltext av EU-f�rs�kran om �verensst�mmelse finns p�: www.asus.com/support
ASUSTeK Computer Inc. , . : www.asus.com/support
T�rk�e AsusTek Computer Inc., bu aygitin temel gereksinimlerle ve ilikili Y�nergelerin dier ilgili koullariyla uyumlu olduunu beyan eder. AB uygunluk bildiriminin tam metni u adreste bulunabilir: www.asus.com/support
Bosanski ASUSTeK Computer Inc. ovim izjavljuje da je ovaj ureaj usklaen sa bitnim zahtjevima i ostalim odgovarajuim odredbama vezanih direktiva. Cijeli tekst EU izjave o usklaenosti dostupan je na: www.asus.com/support

Appendix

PRIME Z690-P
.

A-5 ::

Warranty

EN: ASUS Guarantee Information

� ASUS offers a voluntary manufacturer's Commercial Guarantee.

� ASUS reserves the right to interpret the provisions of the ASUS Commercial Guarantee.

� This ASUS Commercial Guarantee is provided independently and in addition to the statutory Legal Guarantee and in no way affects or limits the rights under the Legal Guarantee.

For all the guarantee information, please visit https://www.asus.com/support.

Garantie ASUS

� ASUS fournit une garantie commerciale en tant que garantie volontaire du fabricant.

� ASUS se r�serve le droit d'interpr�ter et de clarifier les informations relatives � la garantie commerciale ASUS.

� Cette garantie commerciale ASUS est fournie ind�pendamment et parall�lement � la garantie l�gale, elle n'affecte ou ne limite d'aucune fa�on les droits acquis par la garantie l�gale.
Pour plus d'informations sur la garantie, consultez le site https://www.asus.com/fr/support/.

ASUS Garantieinformationen

� ASUS bietet eine freiwillige Warengarantie des Herstellers an.
� ASUS beh�lt sich das Recht zur Auslegung der Bestimmungen in der ASUS Warengarantie vor.

� Diese ASUS Warengarantie wird unabh�ngig und zus�tzlich zur rechtm��igen gesetzlichen Garantie gew�hrt und beeintr�chtigt oder beschr�nkt in keiner Weise die Rechte aus der gesetzlichen Garantie.

Die vollst�ndigen Garantieinformationen finden Sie unter https://www.asus.com/de/support/.

Informativa sulla Garanzia ASUS

� ASUS offre una Garanzia Commerciale volontaria del produttore.

� ASUS si riserva il diritto di interpretare le disposizioni della Garanzia Commerciale ASUS.
� La presente Garanzia Commerciale ASUS viene fornita in modo indipendente e in aggiunta alla Garanzia Legale prevista per legge e non pregiudica o limita in alcun modo i diritti previsti dalla Garanzia Legale.

Per tutte le informazioni sulla garanzia, visitare https://www.asus.com/it/support.

ASUS

� ASUS .

� ASUS ASUS.

� ASUS , .

https://www.asus.com/ru/support/.

DA: ASUS garantioplysninger

� ASUS tilbyder en valgfri handelsm�ssig garanti.

� ASUS forbeholder sig retten til at fortolke bestemmelserne i ASUS' handelsm�ssige garanti.

� Denne handelsm�ssige garanti fra ASUS tilbydes uafh�ngigt, som en tilf�jelse til den lovbestemte juridiske garanti og den p�virker eller begr�nser p� ingen m�de rettighederne i den juridiske garanti.

Alle garantioplysningerne kan findes p� https://www.asus.com/dk/support/.

BG: ASUS

� ASUS .

� ASUS ASUS.

� ASUS . .

, , https://www.asus.com/support.

CZ: Informace o z�ruce spolecnosti ASUS

� Spolecnost ASUS nab�z� dobrovolnou komercn� z�ruku v�robce.

� Spolecnost ASUS si vyhrazuje pr�vo vykl�dat ustanoven� komercn� z�ruky spolecnosti ASUS.
� Tato komercn� z�ruka spolecnosti ASUS je poskytov�na nez�visle a jako doplnk z�konn� z�ruky a z�dn�m zpsobem neovlivuje ani neomezuje pr�va vypl�vaj�c� ze z�konn� z�ruky.
Vsechny informace o z�ruce najdete na adrese https://www.asus.com/cz/support/.

CR: Informacije o ASUS jamstvu
� ASUS dragovoljno nudi komercijalno proizvoacko jamstvo. � ASUS zadrzava prava na tumacenje odredbi ASUS komercijalnog
jamstva.

� Ovo ASUS komercijalno jamstvo daje se neovisno i kao dodatak zakonskom jamstvu i ni na koji nacin ne ogranicuje prava iz okvira zakonskog jamstva.
Sve informacije o jamstvu potrazite na https://www.asus.com/support.
DU: ASUS-garantie-informatie

� SUS biedt een vrijwillige commerci�le garantie van de fabrikant.
� ASUS behoudt zich het recht voor om de bepalingen van de commerci�le garantie van ASUS uit te leggen.
� Deze commerci�le garantie van ASUS wordt onafhankelijk en als aanvulling op de statutaire Wettelijke garantie geboden en be�nvloedt of beperkt in geen geval de rechten onder de wettelijke garantie.

Voor alle informatie over de garantie, gaat u naar https://www.asus.com/nl/support/.
EE: Teave ASUS-e garantii kohta

� ASUS pakub vabatahtlikku tasulist tootjagarantiid.

� ASUS j�tab endale �iguse t�lgendada ASUS-e tasulise garantii tingimusi.

� See ASUS-e tasuline garantii on s�ltumatu lisagarantii seadusega kehtestatud garantiile ega m�juta mingil m��ral seadusega kehtestatud garantiid ning seadusega kehtestatud garantii piiranguid.

Vaadake garantiiga seotud teavet veebisaidilt https://www.asus.com/ee/.
GK: ASUS

� ASUS .

� ASUS ASUS.

� ASUS .

https://www.asus.com/gr-el/.

HUG: ASUS garanci�lis inform�ci�k

� Az ASUS �nk�ntes gy�rt�i kereskedelmi garanci�t k�n�l.

� Az ASUS fenntartja mag�nak a jogot, hogy �rtelmezze az ASUS kereskedelmi garanci�ra vonatkoz� rendelkez�seket.

� Ezt a kereskedelmi garanci�t az ASUS f�ggetlen�l �s a t�rv�nyes garancia mellett ny�jtja �s semmilyen m�don nem befoly�solja, vagy korl�tozza a jogi garancia ny�jtotta jogokat.

A garanci�ra vonatkoz� teljes k�r inform�ci�k�rt l�togasson el a

https://www.asus.com/hu/support/ oldalra.

LV: ASUS garantijas informcija

� ASUS piedv brvprtgu razotja komercilo garantiju.

� ASUS patur tiesbas interprett ASUS komercils garantijas

noteikumus.

� S ASUS komercil garantija tiek piedvta neatkargi un papildus likum noteiktajai juridiskajai garantijai, un t nekdi neietekm vai neierobezo juridiskaj garantij noteikts tiesbas.

Lai iegtu informciju par garantiju, apmekljiet vietni

https://www.asus.com/lv/.

LT:

Informacija apie ASUS garantij

� ASUS silo savanorisk komercin gamintojo garantij. � ASUS pasilieka teis savo nuozira aiskinti sios komercins ASUS
garantijos nuostatas.
� Si komercin ASUS garantija suteikiama nepriklausoma, be statymins teisins garantijos, ir jokiu bdu nepaveikia ar neapriboja teisins garantijos suteikiam teisi.
Nordami gauti vis informacij apie garantij, apsilankykite https://www.asus.com/lt/.
PL: Informacje o gwarancji firmy ASUS
� Firma ASUS oferuje dobrowoln gwarancj handlow producenta. � Firma ASUS zastrzega sobie prawo do interpretacji warunk�w
gwarancji handlowej firmy ASUS.
� Niniejsza gwarancja handlowa firmy ASUS jest udzielana niezalenie, jako dodatek do wymaganej ustawowo gwarancji prawnej i w aden spos�b nie wplywa na prawa przyslugujce na mocy gwarancji prawnej ani ich nie ogranicza.
Wszelkie informacje na temat gwarancji mona znale na stronie https://www.asus.com/pl/support.

Appendix

A-6 .

Appendix
::

PG: Informa�es de Garantia ASUS � A ASUS oferece uma Garantia Comercial volunt�ria do fabricante.
� A ASUS reserva o direito de interpretar as disposi�es da Garantia Comercial da ASUS.
� Esta Garantia Comercial da ASUS � fornecida de forma independente al�m da Garantia Legal estatut�ria e n�o afeta nem limita de qualquer forma os direitos estabelecidos na Garantia Legal.
Para consultar todas as informa�es sobre a garantia, visite https://www.asus.com/pt/support/.
RO: Informaii despre garania ASUS
� ASUS ofer o garanie comercial voluntar a productorului.
� ASUS �i rezerv dreptul de a interpreta prevederile garaniei comerciale ASUS.
� Aceast garanie comercial ASUS este oferit independent i �n plus fa de garania obligatorie legal i nu afecteaz sau limiteaz �n niciun fel drepturile acordate conform garaniei legale.
Pentru toate informaiile legate de garanie, vizitai https://www.asus.com/ro/support.
SL: Informacije o garanciji ASUS � ASUS ponuja prostovoljno trzno garancijo proizvajalca. � ASUS si pridrzuje pravico do razlage dolocb trzne garancije
druzbe ASUS. � Ta trzna garancija druzbe ASUS je na voljo neodvisno in kot
dodatek zakonsko predpisani pravni garanciji ter na noben nacin ne vpliva na pravice, ki jih zagotavlja pravna garancija, oziroma jih omejuje.
Vse informacije o garanciji najdete na spletnem mestu https://www.asus.com/support.
SK: Inform�cie o z�ruke ASUS � ASUS pon�ka dobrovon� obchodn� z�ruku v�robcu. � ASUS si vyhradzuje pr�vo interpretova ustanovenia obchodnej
z�ruky ASUS. � T�to obchodn� z�ruka ASUS je poskytnut� nez�visle a navyse
k z�konnej z�ruke a v ziadnom pr�pade neovplyvuje ani neobmedzuje tieto pr�va poda tejto z�konnej z�ruky. Vsetky alsie inform�cie o z�ruke n�jdete na https://www.asus.com/sk/support.
ES: Informaci�n de garant�a de ASUS � ASUS ofrece una garant�a comercial voluntaria del fabricante.
� ASUS se reserva el derecho de interpretar las disposiciones de esta garant�a comercial de ASUS.
� Esta garant�a comercial de ASUS se proporciona de forma independiente y adicional a la garant�a estatutaria y de ninguna manera afecta a los derechos bajo la garant�a legal ni los limita.
Para obtener toda la informaci�n sobre la garant�a, visite https://www.asus.com/ES/support/.
TR: ASUS Garanti Bilgileri � ASUS, g�n�ll� olarak �retici Ticari Garantisi sunar. � ASUS, ASUS Ticari Garantisinin h�k�mlerini yorumlama hakkini
sakli tutar. � Bu ASUS Ticari Garantisi, baimsiz olarak ve hukuki Yasal
Garanti'ye ek olarak salanir ve hi�bir ekilde Yasal Garanti kapsamindaki haklari etkilemez veya sinirlandirmaz. T�m garanti bilgileri i�in l�tfen https://www.asus.com/tr/support adresini ziyaret edin. FI: ASUS-takuutiedot
� ASUS tarjoaa vapaaehtoisen valmistajan kaupallisen takuun.
� ASUS pid�tt�� oikeuden tulkita ASUS-kaupallisen takuun ehdot.
� T�m� ASUS-kaupallinen takuu tarjotaan itsen�isesti lakis��teisen oikeudellisen takuun lis�ksi eik� se vaikuta mill��n tavoin laillisen takuun oikeuksiin tai rajoita niit�.
Saadaksesi kaikki takuutiedot, siirry osoitteeseen https://www.asus.com/fi/support.
NW: Informasjon om ASUS-garanti
� ASUS tilbyr som produsent en frivillig kommersiell garanti.
� ASUS forbeholder seg retten til � tolke bestemmelsene i ASUS sin kommersielle garanti.
� ASUS sin kommersielle garanti gis uavhengig og i tillegg til den lovbestemte juridiske garantien, og verken p�virker eller begrenser rettighetene under den juridiske garantien p� noen m�te.
Du finner fullstendig informasjon om garanti p� https://www.asus.com/no/support/.
SB: Informacije o ASUS garanciji � ASUS nudi dobrovoljnu proizvoacku komercijalnu garanciju. � ASUS zadrzava pravo da tumaci odredbe svoje ASUS
komercijalne garancije. � Ova ASUS komercijalna garancija daje se nezavisno, kao dodatak
zakonskoj pravnoj garanciji, i ni ka koji nacin ne utice na i ne ogranicava prava data pravnom garancijom.
Za sve informacije o garanciji, posetite https://www.asus.com/support/.

SW: ASUS garantiinformation
� ASUS erbjuder en frivillig kommersiell tillverkningsgaranti.
� ASUS f�rbeh�ller sig r�tten att tolka best�mmelserna i ASUS kommersiella garanti.
� Denna kommersiella garanti fr�n ASUS tillhandah�lles separat och som till�gg till den lagstadgade garantin, och p�verkar eller begr�nsar p� intet s�tts r�ttigheterna under den lagstadgade garantin.
F�r all garantiinformation, bes�k https://www.asus.com/se/support/. UA: ASUS � ASUS .
� ASUS ASUS
� ' ; .
: https://www.asus.com/ua/support. MX: Garant�a y Soporte Esta Garant�a aplica en el pa�s de compra. Usted acepta que en esta garant�a:
� Los procedimientos de servicio pueden variar en funci�n del pa�s. � Algunos servicios y/o piezas de reemplazo pudieran no estar
disponibles en todos los pa�ses. � Algunos pa�ses pueden tener tarifas y restricciones que se
apliquen en el momento de realizar el servicio, visite el sitio de soporte de ASUS en https://www.asus.com/mx/support/ para ver m�s detalles. � Si tiene alguna queja o necesidad de un centro de reparaci�n local o el periodo de garant�a del producto ASUS, por favor visite el sitio de Soporte de ASUS en https://www.asus.com/mx/support/ para mayores detalles.
Informaci�n de contacto ASUS Esta garant�a est� respaldada por: ASUSTeK Computer Inc. Centro de Atenci�n ASUS +52 (55) 1946-3663 BP: Informa�es de garantia ASUS Esta garantia aplica-se ao per�odo definido pela garantia legal (90 dias) mais o per�odo de garantia comercial oferecido pela ASUS. Por exemplo: 12M significa 12 meses de garantia no total (3 meses de garantia legal mais 9 meses de garantia contratual), 24 meses significa 24 meses de garantia no total (3 meses de garantia legal mais 21 meses de garantia contratual) e 36 meses significa 36 meses de garantia no total (3 meses de garantia legal e 33 de garantia contratual) a contar da data da garantia declarada (Data de In�cio da Garantia).
Para todas as informa�es de garantia, visite https://www.asus.com/br/support/.
ID: Informasi Garansi ASUS
Garansi ini berlaku di negara tempat pembelian.
Periode Garansi tertera pada kemasan/kotak dari Produk dan Masa Garansi dimulai sejak tanggal pembelian Produk ASUS dengan kondisi baru.
Silahkan pindai Kode QR di bagian bawah halaman terakhir untuk Kartu Garansi versi Web dalam format PDF untuk lebih informasi jelas mengenai jaminan garansi Produk ASUS.
� Informasi Dukungan ASUS, silakan kunjungi https://www.asus.com/id/support.
� Informasi Lokasi Layanan, silakan kunjungi https://www.asus.com/id/support/Service-Center/Indonesia.
� Layanan Call Center: 1500128 VI: Th�ng tin m bo ca ASUS � ASUS cung cp Bo h�nh thng mi t nguyn ca nh� sn xut.
� ASUS bo lu quyn gii th�ch c�c iu khon ca Bo h�nh thng mi ca ASUS.
� Bo h�nh thng mi n�y ca ASUS c cung cp c lp v� ngo�i Bo m ph�p l� theo lut nh v� kh�ng c� c�ch n�o nh hng n hoc gii hn c�c quyn theo Bo l�nh ph�p l�. bit tt c c�c th�ng tin bo h�nh, vui l�ng truy cp
https://www.asus.com/vn/support

PRIME Z690-P

A-7

Appendix

ASUS contact information
ASUSTeK COMPUTER INC. Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan
ASUS COMPUTER INTERNATIONAL (America) Address: 48720 Kato Rd., Fremont, CA 94538, USA
ASUS COMPUTER GmbH (Germany and Austria) Address: Harkortstrasse 21-23, 40880 Ratingen, Germany
ASUSTeK (UK) LIMITED Address: 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL,
England, United Kingdom
Service and Support
Visit our multi-language website at https://www.asus.com/support.

Appendix

A-8 .

Appendix
::
