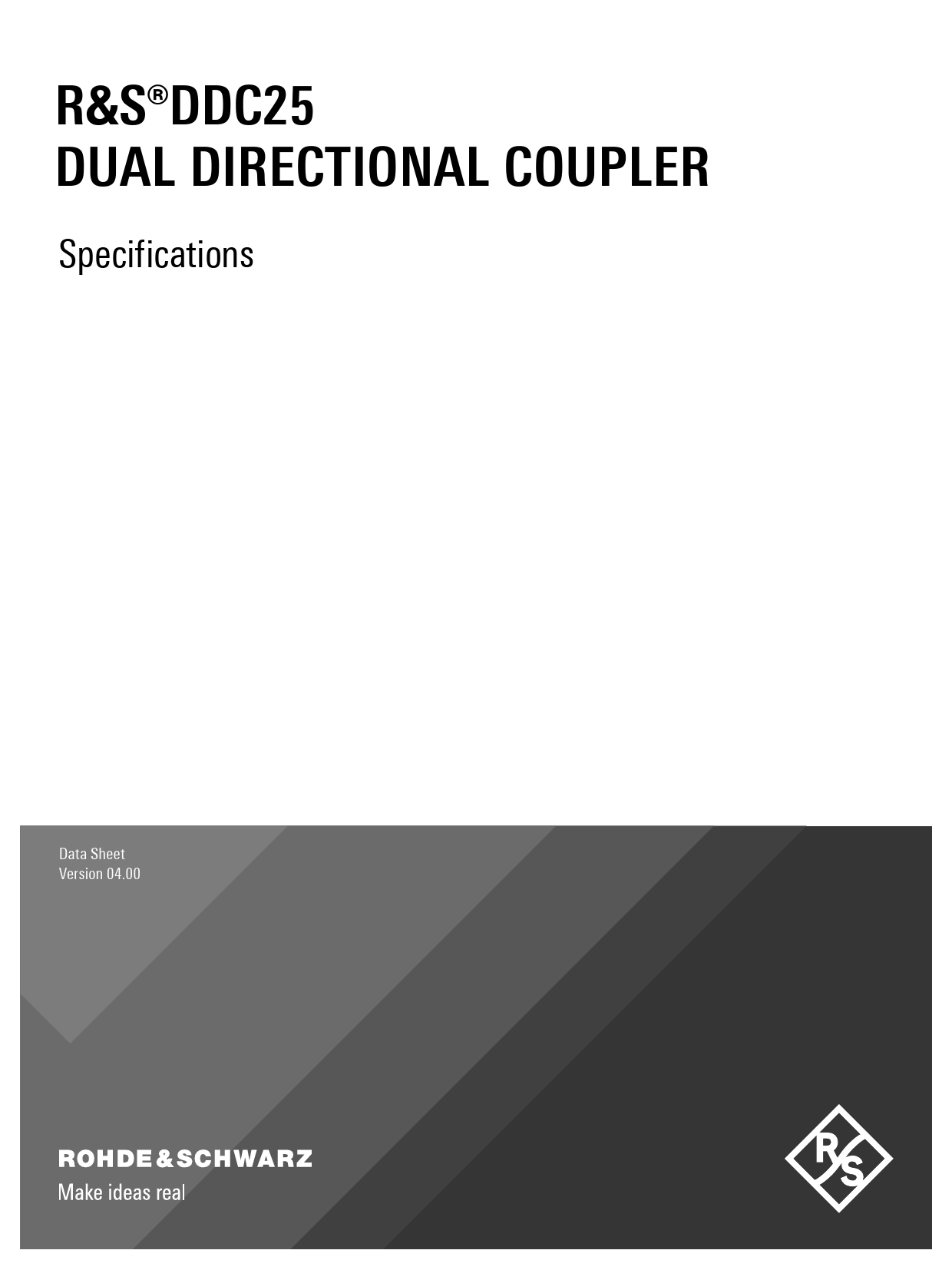

R&S�DDC25 DUAL DIRECTIONAL COUPLER Specifications Data Sheet Version 04.00 Version 04.00, August 2020 CONTENTS Definitions .......................................................................................................................................................................4 DDC25-A Dual directional coupler 9 kHz to 250 MHz...................................................................................................5 Directivity........................................................................................................................................................................................... 5 Coupling ............................................................................................................................................................................................ 5 RF specifications ............................................................................................................................................................................... 5 Mechanical specifications .................................................................................................................................................................. 6 R&S�DDC25-A54 .............................................................................................................................................................................. 6 R&S�DDC25-A63 .............................................................................................................................................................................. 7 R&S�DDC25-A67 .............................................................................................................................................................................. 8 DDC25-AB Dual directional coupler 9 kHz to 400 MHz ................................................................................................9 Directivity........................................................................................................................................................................................... 9 Coupling ............................................................................................................................................................................................ 9 RF specifications ............................................................................................................................................................................... 9 Mechanical specifications .................................................................................................................................................................. 9 R&S�DDC25-AB55.......................................................................................................................................................................... 10 R&S�DDC25-BC Dual directional coupler 80 MHz to 1 GHz ...................................................................................... 11 Directivity......................................................................................................................................................................................... 11 Coupling .......................................................................................................................................................................................... 11 RF specifications ............................................................................................................................................................................. 11 Mechanical specifications ................................................................................................................................................................ 11 R&S�DDC25-BC59.......................................................................................................................................................................... 12 R&S�DDC25-BC60.......................................................................................................................................................................... 13 R&S�DDC25-BC66.......................................................................................................................................................................... 14 R&S�DDC25-D Dual directional coupler 690 MHz to 3.2 GHz .................................................................................... 15 Directivity......................................................................................................................................................................................... 15 Coupling .......................................................................................................................................................................................... 15 RF specifications ............................................................................................................................................................................. 15 Mechanical specifications ................................................................................................................................................................ 16 R&S�DDC25-D56 ............................................................................................................................................................................ 17 R&S�DDC25-D59 ............................................................................................................................................................................ 18 R&S�DDC25-D62 ............................................................................................................................................................................ 19 R&S�DDC25-E Dual directional coupler 2.5 GHz to 6 GHz ........................................................................................ 20 Directivity......................................................................................................................................................................................... 20 Coupling .......................................................................................................................................................................................... 20 RF specifications ............................................................................................................................................................................. 20 Mechanical specifications ................................................................................................................................................................ 20 R&S�DDC25-E55 ............................................................................................................................................................................ 21 R&S�DDC25-E58 ............................................................................................................................................................................ 22 2 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler Version 04.00, August 2020 General data .................................................................................................................................................................. 23 Environmental specifications ........................................................................................................................................................... 23 Calibration ....................................................................................................................................................................................... 23 Ordering information .................................................................................................................................................... 23 R&S�DDC25 Dual directional coupler .............................................................................................................................................. 23 Service ........................................................................................................................................................................... 24 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 3 Version 04.00, August 2020 Definitions General Product data applies under the following conditions: Three hours storage at ambient temperature followed by 30 minutes warm-up operation All specified parameters are valid for an ambient temperature of + 25 �C Specified environmental conditions met Recommended calibration interval adhered to All internal automatic adjustments performed, if applicable Specifications with limits Represent warranted product performance by means of a range of values for the specified parameter. These specifications are marked with limiting symbols such as <, , >, , �, or descriptions such as maximum, limit of, minimum. Compliance is ensured by testing or is derived from the design. Test limits are narrowed by guard bands to take into account measurement uncertainties, drift and aging, if applicable. Specifications without limits Represent warranted product performance for the specified parameter. These specifications are not specially marked and represent values with no or negligible deviations from the given value (e.g. dimensions or resolution of a setting parameter). Compliance is ensured by design. Typical data (typ.) Characterizes product performance by means of representative information for the given parameter. When marked with <, > or as a range, it represents the performance met by approximately 80 % of the instruments at production time. Otherwise, it represents the mean value. Nominal values (nom.) Characterize product performance by means of a representative value for the given parameter (e.g. nominal impedance). In contrast to typical data, a statistical evaluation does not take place and the parameter is not tested during production. Measured values (meas.) Characterize expected product performance by means of measurement results gained from individual samples. Uncertainties Represent limits of measurement uncertainty for a given measurand. Uncertainty is defined with a coverage factor of 2 and has been calculated in line with the rules of the Guide to the Expression of Uncertainty in Measurement (GUM), taking into account environmental conditions, aging, wear and tear. Device settings and GUI parameters are indicated as follows: "parameter: value". Typical data as well as nominal and measured values are not warranted by Rohde & Schwarz. 4 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler Version 04.00, August 2020 R&S�DDC25-A dual directional coupler 9 kHz to 250 MHz Directivity Directivity in dB 50 40 30 20 10 0 25 50 75 100 125 150 175 200 225 250 275 Frequency in MHz Coupling in dB Coupling 0 -50 -55 -60 -65 -70 -75 -80 25 50 Frequency in MHz 75 100 125 150 175 200 225 250 275 A54 A63 A67 RF specifications Main parameters Frequency range Max. CW power at 50 *, CW power at 50 / at VSWR 6:1 Directivity Coupling Flatness Insertion loss VSWR Mismatch tolerance Nominal impedance R&S�DDC25-A54 (N female, N female) R&S�DDC25-A63 (7-16, N female) R&S�DDC25-A67 (1 5/8" EIA, N female) R&S�DDC25-A54 R&S�DDC25-A63 R&S�DDC25-A67 at 50 at CW power : 3 9 kHz to 250 MHz max. 500 W1, 400 W, 250 W max. 4000 W1, 3000 W, 2000 W max. 10000 W1, 6000 W, 4000 W min. 22 dB 57 dB � 2 dB 71 dB � 2 dB 71 dB � 2 dB �1.5 dB max. 0.2 dB max. 1.1:1 unlimited 50 1 Max. CW power for max. 2 minutes and case temperature of R&S�DDC25 < 50�C (additional measures such as forced air might be required) Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 5 Version 04.00, August 2020 Mechanical specifications Dimensions (W � H � D) R&S�DDC25-A54 R&S�DDC25-A63 R&S�DDC25-A67 Weight R&S�DDC25-A54 R&S�DDC25-A63 R&S�DDC25-A67 R&S�DDC25-A54 108 mm � 36.8 mm � 90 mm (4.25 in � 1.45 in � 3.55 in) 216 mm � 120.5 mm � 98 mm (8.5 in � 4.74 in � 3.86 in) 234 mm � 125 mm � 98 mm (9.21 in � 4.92 in � 3.86 in) approx. 1.5 kg (3.3 lb) approx. 1.5 kg (3.3 lb) approx. 1.8 kg (3.9 lb) 6 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler R&S�DDC25-A63 Version 04.00, August 2020 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 7 Version 04.00, August 2020 R&S�DDC25-A67 8 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler Version 04.00, August 2020 R&S�DDC25-AB dual directional coupler 9 kHz to 400 MHz Directivity 50 Directivity in dB 40 30 20 10 0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400 425 Frequency in MHz Coupling 0 -40 Frequency in MHz 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400 425 Coupling in dB -45 -50 -55 -60 RF specifications Main parameters Frequency range CW power at 50 , VSWR 6:1 Directivity Coupling Flatness Insertion loss VSWR Mismatch tolerance Nominal impedance R&S�DDC25-AB55 (N female) R&S�DDC25-AB55 at 50 at CW power : 3 Mechanical specifications Dimensions (W � H � D) R&S�DDC25-AB55 Weight R&S�DDC25-AB55 9 kHz to 400 MHz max. 300 W, 200 W min. 20 dB 51 dB �2 dB �1.5 dB max. 0.4 dB max. 1.1:1 unlimited 50 163 mm � 112 mm � 41 mm (4.25 in � 1.45 in � 3.55 in) approx. 1 kg (3.3 lb) Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 9 Version 04.00, August 2020 R&S�DDC25-AB55 10 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler Version 04.00, August 2020 R&S�DDC25-BC dual directional coupler 80 MHz to 1 GHz Directivity 50 Directivity in dB 40 30 20 10 80 180 280 380 480 580 680 780 880 Frequency in MHz 980 1080 Coupling in dB Coupling 80 -55 -60 -65 -70 -75 -80 -85 Frequency in MHz 180 280 380 480 580 680 780 880 980 1080 BC59 BC60 BC66 RF specifications Main parameters Frequency range CW power at 50 , at VSWR 6:1 Directivity Coupling Flatness Insertion loss VSWR Mismatch tolerance Nominal impedance R&S�DDC25-BC59 (N female, N female) R&S�DDC25-BC60 (7-16, N female) R&S�DDC25-BC66 (1 5/8" EIA, N female) R&S�DDC25-BC59 R&S�DDC25-BC60 R&S�DDC25-BC66 at 50 at CW power : 2 80 MHz to 1 GHz max. 1000 W, 750 W max. 1500 W, 1000 W max. 5500 W, 4000 W min. 25 dB 62 dB � 4 dB 67 dB � 4 dB 76 dB � 4 dB �2 dB max. 0.2 dB max. 1.1:1 unlimited 50 Mechanical specifications Dimensions (W � H � D) R&S�DDC25-BC59 R&S�DDC25-BC60 R&S�DDC25-BC66 Weight R&S�DDC25-BC59 R&S�DDC25-BC60 R&S�DDC25-BC66 75.7 mm � 29.6 mm � 90 mm (2.98 in � 1.16 in � 3.55 in) 75.7 mm � 36.4 mm � 90 mm (2.98 in � 1.43 in � 3.55 in) 185 mm � 88.8 mm � 103.5 mm (7.28 in � 3.50 in � 4.07 in) approx. 1.5 kg (3.3 lb) approx. 1.5 kg (3.3 lb) approx. 1.8 kg (3.9 lb) Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 11 Version 04.00, August 2020 R&S�DDC25-BC59 12 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler R&S�DDC25-BC60 Version 04.00, August 2020 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 13 Version 04.00, August 2020 R&S�DDC25-BC66 14 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler Version 04.00, August 2020 R&S�DDC25-D dual directional coupler 690 MHz to 3.2 GHz Directivity Directivity in dB 50 40 30 20 10 690 890 1090 1290 1490 1690 1890 2090 2290 2490 2690 2890 3090 3290 Frequency in MHz Coupling Coupling in dB 690 -40 -45 -50 -55 -60 -65 -70 Frequency in MHz 890 1090 1290 1490 1690 1890 2090 2290 2490 2690 2890 3090 3290 D56 D59 D62 RF specifications Main parameters Frequency range CW power at 50 , at VSWR 6:1 Directivity Coupling Flatness Insertion loss VSWR Mismatch tolerance Nominal impedance R&S�DDC25-D56 (N female, N female) R&S�DDC25-D59 (7-16, N female) R&S�DDC25-D62 (13/30 with 7/8" EIA adapter, N female) R&S�DDC25-D56 R&S�DDC25-D59 R&S�DDC25-D62 at 50 at CW power : 2 0.69 GHz to 3.2 GHz max. 600 W, 400 W max. 1500 W, 750 W max. 2250 W, 1500 W min. 23 dB 49 dB � 5 dB 55.5 dB � 5 dB 61.5 dB � 5 dB �3 dB max. 0.2 dB max. 1.1:1 unlimited 50 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 15 Version 04.00, August 2020 Mechanical specifications Dimensions (W � H � D) R&S�DDC25-D56 R&S�DDC25-D59 R&S�DDC25-D62 Weight R&S�DDC25-D56 R&S�DDC25-D59 R&S�DDC25-D62 75.7 mm � 29.6 mm � 90 mm (2.98 in � 1.16 in � 3.55 in) 75.5 mm � 36.4 mm � 90 mm (2.97 in � 1.43 in � 3.55 in) 232 mm � 75.7 mm � 57.2 mm (9.13 in � 2.98 in � 2.25 in) approx. 1.5 kg (3.3 lb) approx. 1.5 kg (3.3 lb) approx. 1.8 kg (3.9 lb) 16 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler R&S�DDC25-D56 Version 04.00, August 2020 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 17 Version 04.00, August 2020 R&S�DDC25-D59 18 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler R&S�DDC25-D62 Version 04.00, August 2020 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 19 Version 04.00, August 2020 R&S�DDC25-E dual directional coupler 2.5 GHz to 6 GHz Directivity Directivity in dB 50 40 30 20 10 2500 3000 3500 4000 4500 Frequency in MHz 5000 5500 6000 Coupling Coupling in dB 2500 -35 -40 -45 -50 -55 -60 3000 3500 Frequency in MHz 4000 4500 5000 5500 6000 E55 E58 RF specifications Main parameters Frequency range CW power at 50 , at VSWR 6:1 Directivity Coupling Flatness Insertion loss VSWR Mismatch tolerance Nominal impedance R&S�DDC25-E55 (N female, N female) R&S�DDC25-E58 (7-16, N female) R&S�DDC25-E55 R&S�DDC25-E58 at 50 at CW power : 2 Mechanical specifications Dimensions (W � H � D) R&S�DDC25-E55 R&S�DDC25-E58 Weight R&S�DDC25-E55 R&S�DDC25-E58 2.5 GHz to 6 GHz max. 350 W, 250 W max. 600 W, 450 W min. 20 dB 49 dB � 5 dB 49 dB � 5 dB �3 dB max. 0.3 dB max. 1.2:1 unlimited 50 75.7 mm � 29.6 mm � 90 mm (2.98 in � 1.16 in � 3.55 in) 75.7 mm � 36.0 mm � 90 mm (2.98 in � 1.42 in � 3.55 in) approx. 1.5 kg (3.3 lb) approx. 1.5 kg (3.3 lb) 20 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler R&S�DDC25-E55 Version 04.00, August 2020 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 21 Version 04.00, August 2020 R&S�DDC25-E58 22 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler General data Environmental specifications Temperature loading Damp heat operating temperature range storage temperature range Altitude Mechanical resistance test values of desktop models operating altitude storage altitude vibration, sinusoidal vibration, random shock Calibration interval Calibration Manufacturer calibration ISO 17025 Accredited calibration ISO 17025 (DKD) Calibration interval Version 04.00, August 2020 0 �C to +40 �C �20 �C to +70 �C max. +40 �C at 95 % rel. humidity, without condensation up to 2000 m up to 4600 m in line with EN 60068-2-6: 5 Hz to 55 Hz, displacement 0.15 mm, > 55 Hz to 150 Hz, acceleration 0.5 g in line with EN 60068-2-64: effective acceleration 1.2 g, 10 Hz to 300 Hz, acceleration density 0.003 g2/Hz in line with EN 60068-2-27: 18 saw tooth shocks, each 40 g in 11 ms MIL-STD-810E method no. 516.4, procedure I every 2 years included optional every 2 years Ordering information R&S�DDC25 dual directional coupler Frequency band from 9 kHz to 250 MHz Designation 9 kHz to 250 MHz, 400 W, N connection 9 kHz to 250 MHz, 3000 W, 7-16 connection 9 kHz to 250 MHz, 7500 W, 1 5/8" EIA connection Type R&S�DDC25-A54 R&S�DDC25-A63 R&S�DDC25-A67 Frequency band from 9 kHz to 400 MHz Designation 9 kHz to 400 MHz, 300 W, N connection Type R&S�DDC25-AB55 Frequency band from 80 MHz to 1.0 GHz Designation 80 MHz to 1 GHz, 1000 W, N connection 80 MHz to 1 GHz, 1500 W, 7-16 connection 80 MHz to 1 GHz, 5500 W, 1 5/8" EIA connection Type R&S�DDC25-BC59 R&S�DDC25-BC60 R&S�DDC25-BC66 Frequency band from 690 MHz to 3.2 GHz Designation 0.69 GHz to 3.2 GHz, 600 W, N connection 0.69 GHz to 3.2 GHz, 1500 W, 7-16 connection 0.69 GHz to 3.2 GHz, 2250 W, 7/8" EIA connection Type R&S�DDC25-D56 R&S�DDC25-D59 R&S�DDC25-D62 Frequency band from 2.5 GHz to 6.0 GHz Designation 2.5 GHz to 6 GHz, 450 W, N connection 2.5 GHz to 6 GHz, 900 W, 7-16 connection Type R&S�DDC25-E55 R&S�DDC25-E58 Order No. 5355.4902.10 5355.4902.20 5355.4902.50 Order No. 5355.4983.11 Order No. 5355.4919.10 5355.4919.20 5355.4919.50 Order No. 5355.4925.10 5355.4925.20 5355.4925.30 Order No. 5355.4931.10 5355.4931.20 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 23 Version 04.00, August 2020 Service Designation Manufacturer calibration ISO 17025, recalibration Accredited calibration ISO 17025 (DKD) for R&S�DDC25-A54 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-A63 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-A67 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-AB55 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-BC59 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-BC60 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-BC66 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-D56 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-D59 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-D62 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-E55 Accredited calibration ISO 17025 (DKD) for R&S�DDC25-E58 Type R&S�CAL-MAN R&S�ACADDC25-A R&S�ACADDC25-A R&S�ACADDC25-A R&S�ACADDC25-A R&S�ACADDC25-B R&S�ACADDC25-B R&S�ACADDC25-B R&S�ACADDC25-D R&S�ACADDC25-D R&S�ACADDC25-D R&S�ACADDC25-E R&S�ACADDC25-E Order No. 5930.0015.00 3597.0091.03 3597.0104.03 3597.0110.03 3598.3907.03 3597.0191.03 3597.0185.03 3597.0179.03 3597.0162.03 3597.0156.03 3597.0140.03 3597.0133.03 3597.0127.03 Rohde & Schwarz equipment is designed for reliable operation up to an altitude of 2000 m above sea level, and for transport up to an altitude of 4600 m above sea level. All specified parameters are valid for an ambient temperature of +25 �C, input impedance of 50 and output impedance of 50 . Data without tolerance limits is not binding. RoHS Europe, Directive 2011/65/EU: Equipment category 9, fulfilled without any exceptions. WEEE Europe, Directive 2002/96/EC: No disposing with unsorted municipal waste; no return with collection of waste electrical and electronic equipment from private households. Separate collection necessary. Ask Rohde & Schwarz representatives about recovery. 24 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler Version 04.00, August 2020 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 25 Version 04.00, August 2020 26 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler Version 04.00, August 2020 Rohde & Schwarz R&S�DDC25 Dual Directional Coupler 27 Service that adds value Worldwide Local und personalized Customized and flexible Uncompromising quality Long-term dependability Rohde&Schwarz The Rohde&Schwarz electronics group offers innovative solutions in the following business fields: test and measurement, broadcast and media, secure communications, cybersecurity, monitoring and network testing. Founded more than 80 years ago, the independent company which is headquartered in Munich, Germany, has an extensive sales and service network with locations in more than 70 countries. www.rohde-schwarz.com Sustainable product design Environmental compatibility and eco-footprint Energy efficiency and low emissions Longevity and optimized total cost of ownership Certified Quality Management ISO9001 Certified Environmental Management ISO14001 Rohde&Schwarz training www.training.rohde-schwarz.com Rohde&Schwarz customer support www.rohde-schwarz.com/support 5214980922 5214.9809.22 04.00 PDP 1 en R&S� is a registered trademark of Rohde&Schwarz GmbH&Co. KG Trade names are trademarks of the owners PD 5214.9809.22 | Version 04.00 | August 2020 (st) R&S�DDC25 Dual Directional Coupler Data without tolerance limits is not binding | Subject to change � 2017 - 2020 Rohde&Schwarz GmbH&Co. KG | 81671 Munich, Germany
