UNV IP dome camera - IPC322LB-DSF40K-G, 2MP, 4mm, easy
Extracted Text

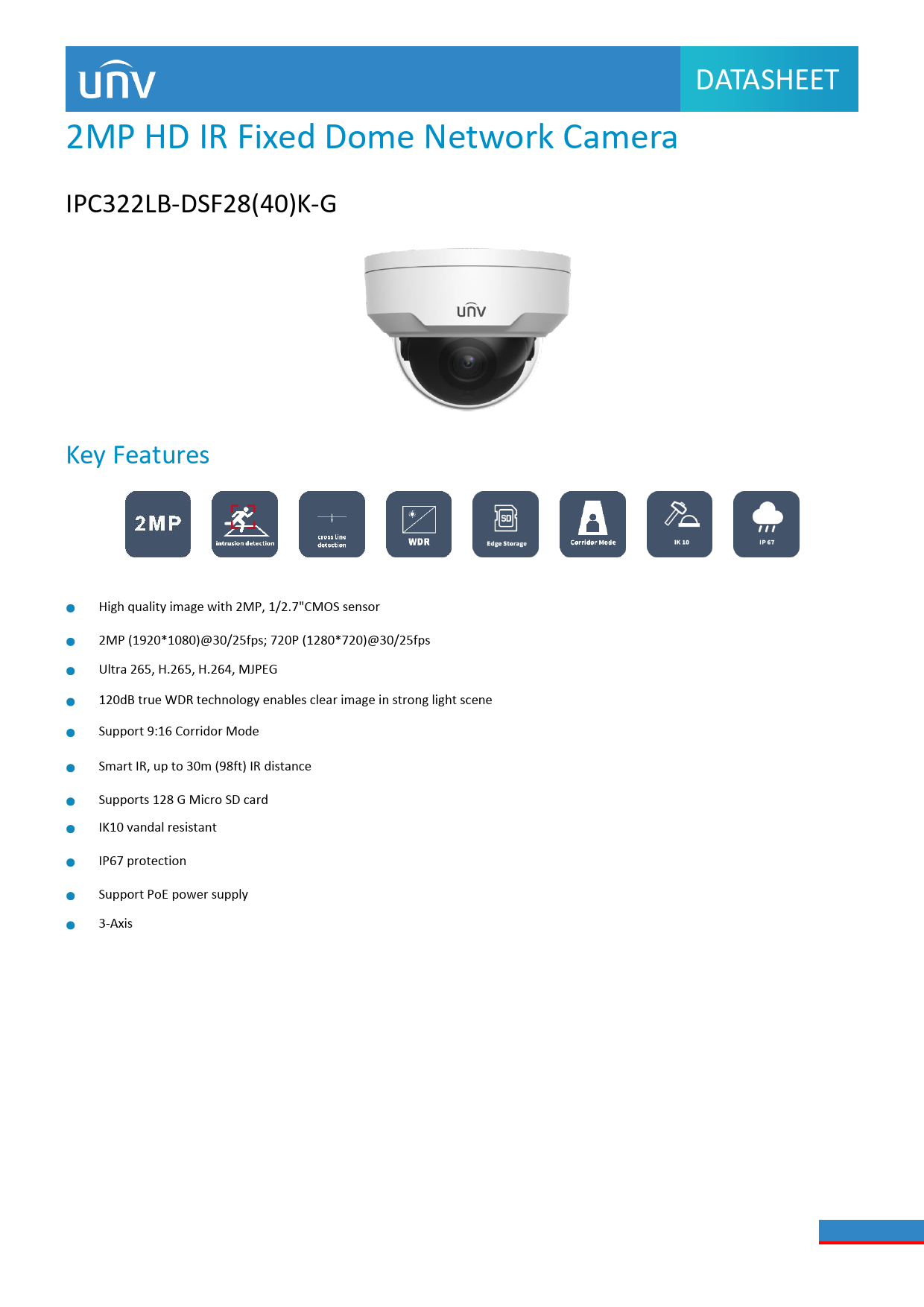

DATASHEET 2MP HD IR Fixed Dome Network Camera IPC322LB-DSF28(40)K-G Key Features High quality image with 2MP, 1/2.7"CMOS sensor 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps Ultra 265, H.265, H.264, MJPEG 120dB true WDR technology enables clear image in strong light scene Support 9:16 Corridor Mode Smart IR, up to 30m (98ft) IR distance Supports 128 G Micro SD card IK10 vandal resistant IP67 protection Support PoE power supply 3-Axis 1 Specifications DATASHEET Camera Sensor Lens DORI Distance Angle of View (H) Angle of View (V) Angle of View (O) Adjustment angle Shutter Minimum Illumination Day/Night Digital noise reduction S/N IR Range Wavelength IR On/Off Control Defog WDR Video Video Compression H.264 code profile Frame Rate Video Bit Rate 9:16 Corridor Mode OSD Privacy Mask ROI Motion Detection Image White Balance Digital noise reduction Smart IR Flip Dewarping HLC IPC322LB-DSF28K-G IPC322LB-DSF40K-G 1/2.7", 2.0 megapixel, progressive scan, CMOS 2.8mm@F2.0 4.0mm@F2.0 Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 42 16.8 8.4 4.2 4.0 60 24 12 6 112.9� 91.2� 59.1� 47.9� 121.2� 95.9� Pan: 3�~ 360� Tilt: 0�~ 68� Rotate: 3�~ 360� Auto/Manual, 1 ~ 1/100000s Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR IR-cut filter with auto switch (ICR) 2D/3D DNR >52dB Up to 30m (98ft) IR range 850nm Auto/Manual Digital Defog 120dB Ultra 265, H.265, H.264, MJPEG Baseline profile, Main profile, High profile Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; 128 Kbps~16 Mbps Supported Up to 4 OSDs Up to 4 areas Up to 8 areas Up to 4 areas Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 2D/3D DNR Supported Normal/Vertical/Horizontal/180�/90�Clockwise/90�Anti-clockwise N/A Supported 2 BLC Smart Behavior Detection General Function Network Protocols Compatible Integration Client Web Browser Storage Edge Storage Network Storage Interface Network Certifications Certifications General Power Dimensions (� x H) Weight Material Working Environment Strorage Environment Surge Protection Ingress Protection Vandal Resistant Reset Button Supported DATASHEET (Cross line, intrusion)based on human body detection, motion detection, tampering alarm Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP ONVIF (Profile S, Profile G, Profile T), API EZStation EZView EZLive Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Micro SD, up to 128GB ANR,NAS(NFS) 10/100M Base-TX Ethernet CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 DC 12V�25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W 108.7 x 81mm (� 4.3" x 3.2") 0.36kg (0.79lb) Metal + plastic -30�C ~ 60�C (-22�F ~ 140�F), Humidity: 95% RH (non-condensing) -30�C ~ 60�C (-22�F ~ 140�F), Humidity: 95% RH (non-condensing) 4KV IP67 IK10 N/A 3 Dimensions DATASHEET Accessories TR-JB03-G-IN TR-JB07/WM03-G-IN TR-WM03-D-IN TR-UM06-E-IN TR-UP06-IN TR-A01-IN TR-SE24-IN TR-SE24-A-IN TR-CM24-IN 4 Junction Mount TR-JB03-G-IN TR-UM06-E-IN TR-CM24-IN+TR-JB03-G-IN Pole Mount TR-JB07/WM03-G-IN DATASHEET TR-JB07/WM03-G-IN+TR-UP06-IN Zhejiang Uniview Technologies Co., Ltd. Building No.10, Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051) Email: overseasbusiness@uniview.com; globalsupport@uniview.com http://www.uniview.com � 2020 Zhejiang Uniview Technologies Co., Ltd. All rights reserved. *Product specifications and availability are subject to change without notice. 5
