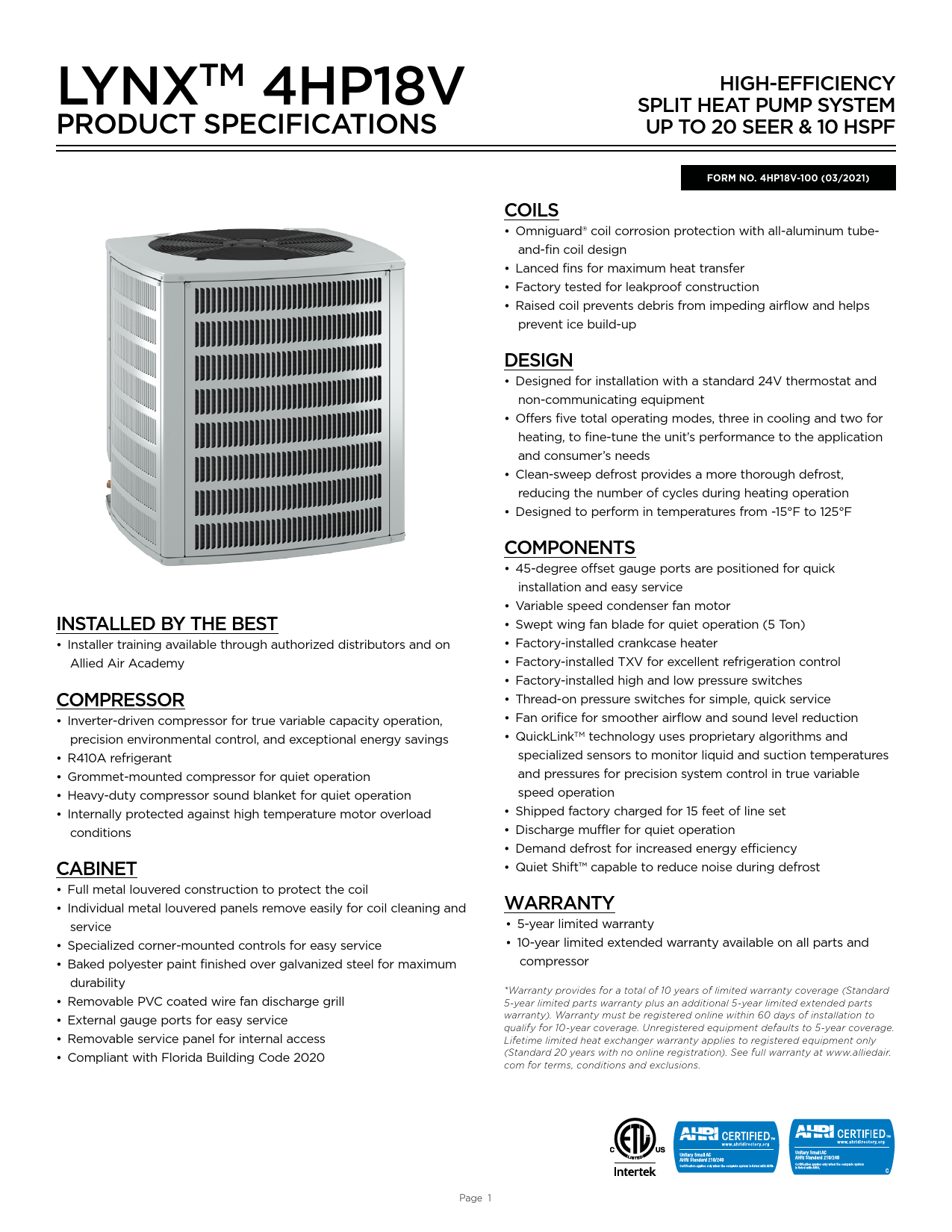

LYNXTM 4HP18V PRODUCT SPECIFICATIONS HIGH-EFFICIENCY SPLIT HEAT PUMP SYSTEM UP TO 20 SEER & 10 HSPF INSTALLED BY THE BEST �Installer training available through authorized distributors and on Allied Air Academy COMPRESSOR �Inverter-driven compressor for true variable capacity operation, precision environmental control, and exceptional energy savings �R410A refrigerant �Grommet-mounted compressor for quiet operation �Heavy-duty compressor sound blanket for quiet operation �Internally protected against high temperature motor overload conditions CABINET �Full metal louvered construction to protect the coil �Individual metal louvered panels remove easily for coil cleaning and service �Specialized corner-mounted controls for easy service �Baked polyester paint finished over galvanized steel for maximum durability �Removable PVC coated wire fan discharge grill �External gauge ports for easy service �Removable service panel for internal access �Compliant with Florida Building Code 2020 FORM NO. 4HP18V-100 (03/2021) COILS �Omniguard� coil corrosion protection with all-aluminum tubeand-fin coil design �Lanced fins for maximum heat transfer �Factory tested for leakproof construction �Raised coil prevents debris from impeding airflow and helps prevent ice build-up DESIGN �Designed for installation with a standard 24V thermostat and non-communicating equipment �Offers five total operating modes, three in cooling and two for heating, to fine-tune the unit's performance to the application and consumer's needs �Clean-sweep defrost provides a more thorough defrost, reducing the number of cycles during heating operation �Designed to perform in temperatures from -15�F to 125�F COMPONENTS �45-degree offset gauge ports are positioned for quick installation and easy service �Variable speed condenser fan motor �Swept wing fan blade for quiet operation (5 Ton) �Factory-installed crankcase heater �Factory-installed TXV for excellent refrigeration control �Factory-installed high and low pressure switches �Thread-on pressure switches for simple, quick service �Fan orifice for smoother airflow and sound level reduction �QuickLinkTM technology uses proprietary algorithms and specialized sensors to monitor liquid and suction temperatures and pressures for precision system control in true variable speed operation �Shipped factory charged for 15 feet of line set �Discharge muffler for quiet operation �Demand defrost for increased energy efficiency �Quiet ShiftTM capable to reduce noise during defrost WARRANTY �5-year limited warranty �10-year limited extended warranty available on all parts and compressor *Warranty provides for a total of 10 years of limited warranty coverage (Standard 5-year limited parts warranty plus an additional 5-year limited extended parts warranty). Warranty must be registered online within 60 days of installation to qualify for 10-year coverage. Unregistered equipment defaults to 5-year coverage. Lifetime limited heat exchanger warranty applies to registered equipment only (Standard 20 years with no online registration). See full warranty at www.alliedair. com for terms, conditions and exclusions. Page 1 VARIABLE CAPACITY HEAT PUMP MODEL NUMBER GUIDE 4 HP 18 V 36 P - 50 A REFRIGERANT 4 = R410A HP HEAT PUMP NOMINAL SEER 18 TIER V = VARIABLE CAPACITY MINOR REVISION CODE MAJOR REVISION CODE 1-PHASE, 60 Hz TONNAGE 36, 60 4HP18V ELECTRICAL AND PHYSICAL DATA Model 4HP18V36P-50 Voltage/Hz/ Phase 208-230/60/1 Voltage Range 197-253 Min. Circuit Amp. 21.9 Max. Over Current Device (amps) 35 Compressor Input Amps Outdoor Fan Motor Full Load (amps) Rated HP Nom. RPM Shipping Weight (lbs.) 15.3 2.8 1/3 VAR. SPD 215 4HP18V60P-50 208-230/60/1 197-253 33.7 50 Note: Weights listed are unit weights with packaging + Factory charged for 15 feet of line set; adjust per installation instructions 24.7 2.8 1/3 VAR. SPD 272 DIMENSIONS (IN.) Model No. Dimensions (inch) A - Width B - Depth C - Height 4HP18V36P-50 29.38 31.25 33.75 4HP18V60P-50 29.38 31.25 43.75 Note: Dimensions listed are unit sizes w/o packaging Page 2 VARIABLE CAPACITY HEAT PUMP SOUND RATINGS Model Sound Power1 4HP18V36P-50 (2 TON MODE) 72 4HP18V36P-50 (3 TON MODE) 74 4HP18V60P-50 (4 TON MODE) 74 4HP18V60P-50 (5 TON MODE) 79 1 Rated in accordance with AHRI standard 270 (2015) 2 Rated in accordance with AHRI standard 275 (2010) 3 Based only on distance factor; other factors may change this value such as: � Unit location (reflective surfaces adjacent to the unit) � Barrier shielding sources � Sound path/elevation � Outside noise sources 4HP18V Estimated Sound Pressure (dBA)2 Approximate Distance3 One Meter (3.3 feet) Two Meters (6.6 feet) Three Meters (9.8 feet) 64 58 54 66 60 56 66 60 56 71 65 61 REFRIGERATION DATA Model Factory Refrig. Charge (oz.) * TXV Refrigerant Line Size Suction Liquid 4HP18V36P-50 138 H4TXV01 3/4 4HP18V60P-50 186 H4TXV03 1-1/8 * Factory charged for 15 feet of line set; adjust per installation instructions Refrigerant charge also varies with indoor unit; refer to refrigerant charge label 3/8 3/8 Outdoor Unit Connection Indoor Unit Connection Suction 3/4 7/8 Liquid 3/8 3/8 Suction 3/4 7/8 Liquid 3/8 3/8 COOLING PERFORMANCE WITH DTC1 Outdoor Model Indoor Model Evap. Coil or Air Handler3 SEER Cooling EER AHRI Rated Capacity2 Sensible Capacity HSPF Heating 47� 17� High CFM Btuh COP Btuh COP Med CFM Low CFM 4HP18V36P-50 BCE5V36M 19.0 12.0 34400 27200 9.6 33400 3.30 21400 2.40 1200 820 820 4HP18V60P-50 BCE5V60M 16.0 10.0 55500 40600 9.0 55500 2.82 37000 2.14 Note: 1 DTC = Designated tested combination 2 Certified in accordance with Unitary Air Conditioner Certification Program, which is based on AHRI Standard 210/240 3 A blower time delay relay is standard on all Allied Air Enterprises furnace and air handler products 1800 1200 1200 NOTE: For the latest AHRI system matches, please visit www.alliedratings.com or www.AHRIdirectory.org Page 3 VARIABLE CAPACITY HEAT PUMP COOLING PERFORMANCE EXTENDED RATINGS 4HP18V36P-50 - BCE5V36M - MAXIMUM CAPACITY Outdoor Air Temperature Entering Outdoor Coil Indoor Wet Bulb Temperature Total Air Volume cfm L/s 85� F (29.4� C) 95� F (35� C) 105� F (40.6� C) 115� F (46.1� C) 125� F (51.7� C) Total Cooling Capacity kBtuh kW Sensible To Total Ratio (S/T) Comp. Motor Watts Indoor Dry Bulb Input 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb Total Cooling Capacity 75�F 23.9�C 80�F 26.7�C 85�F 29.4�C kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb Total Cooling Capacity 75�F 23.9�C 80�F 85�F 26.7�C 29.4�C kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Sensible To Total Ratio (S/T) Comp. Motor Watts Indoor Dry Bulb Input 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C 1050 495 33.2 59�F (15�C) 1215 575 34.8 1385 655 36.2 9.7 2130 .93 1.00 10.2 2130 .98 1.00 10.6 2130 1.00 1.00 1.00 31.8 9.3 2400 .95 1.00 33.2 9.7 2400 1.00 1.00 34.6 10.1 2410 1.00 1.00 1.00 30.2 8.9 2680 1.00 1.00 31.6 9.3 2700 1.00 1.00 32.8 9.6 2710 .98 1.00 1.00 1.00 1.00 28.6 1.00 1.00 29.8 1.00 1.00 31.0 8.4 2990 1.00 1.00 1.00 26.8 7.9 3330 1.00 1.00 1.00 8.7 3010 1.00 1.00 1.00 28.0 8.2 3350 1.00 1.00 1.00 9.1 3030 1.00 1.00 1.00 29.0 8.5 3370 1.00 1.00 1.00 Page 4 1050 495 34.4 10.1 2130 .75 .89 1.00 32.6 9.6 2400 .77 .92 1.00 30.8 9.0 2690 .79 .95 1.00 28.8 8.4 3000 .82 .98 1.00 26.8 7.9 3330 .85 1.00 1.00 63�F (17.2�C) 1215 575 35.6 10.4 2130 .79 .94 1.00 33.8 9.9 2410 .80 .97 1.00 31.8 9.3 2700 .83 1.00 1.00 29.8 8.7 3010 .86 1.00 1.00 28.0 8.2 3350 .90 1.00 1.00 1385 655 36.4 10.7 2130 .82 .98 1.00 34.6 10.1 2410 .84 1.00 1.00 32.8 9.6 2710 .87 1.00 1.00 31.0 9.1 3030 .90 1.00 1.00 29.0 8.5 3370 .94 1.00 1.00 1050 495 36.4 10.7 2130 .59 .73 67�F (19.4�C) 1215 575 37.6 11.0 2130 .62 .76 1385 655 38.5 11.3 2120 .63 .79 .86 34.6 10.1 2410 .61 .90 35.6 10.4 2420 .63 .95 36.4 10.7 2420 .65 .74 .88 32.8 9.6 2710 .61 .77 .91 30.6 9.0 3030 .63 .79 .94 28.4 8.3 3360 .65 .82 .99 .78 .93 33.6 9.8 2720 .64 .80 .96 31.4 9.2 3040 .66 .84 1.00 29.0 8.5 3370 .68 .87 1.00 .82 .98 34.4 10.1 2720 .66 .84 1.00 32.2 9.4 3040 .68 .88 1.00 29.6 8.7 3390 .71 .92 1.00 1050 495 38.5 11.3 2120 .45 .58 .70 36.6 10.7 2420 .46 .59 .72 34.6 10.1 2720 .46 .60 .74 32.4 9.5 3040 .47 .62 .77 30.0 8.8 3400 .47 .64 .80 71�F (21.7�C) 1215 575 39.5 11.6 2130 .46 .60 .74 37.6 11.0 2410 .46 .61 .76 35.6 10.4 2730 .47 .63 .78 33.4 9.8 3060 .48 .64 .81 30.8 9.0 3400 .48 .66 .84 1385 655 40.5 11.9 2130 .47 .62 .77 38.5 11.3 2420 .47 .64 .79 36.2 10.6 2730 .48 .65 .82 34.0 10.0 3050 .49 .67 .85 31.6 9.3 3420 .50 .70 .89 4HP18V VARIABLE CAPACITY HEAT PUMP COOLING PERFORMANCE EXTENDED RATINGS 4HP18V36P-50 - BCE5V36M - INTERMEDIATE CAPACITY Outdoor Air Temperature Entering Outdoor Coil Indoor Wet Bulb Temperature Total Air Volume cfm L/s 85� F (29.4� C) 95� F (35� C) 105� F (40.6� C) 115� F (46.1� C) 125� F (51.7� C) Total Cooling Capacity kBtuh kW Sensible To Total Ratio (S/T) Comp. Motor Watts Indoor Dry Bulb Input 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb Total Cooling Capacity 75�F 23.9�C 80�F 26.7�C 85�F 29.4�C kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb Total Cooling Capacity 75�F 23.9�C 80�F 85�F 26.7�C 29.4�C kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Sensible To Total Ratio (S/T) Comp. Motor Watts Indoor Dry Bulb Input 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C 725 345 20.2 5.9 750 1.00 1.00 1.00 19.2 5.6 900 1.00 1.00 1.00 18.2 5.3 1050 1.00 1.00 1.00 17.1 5.0 1210 1.00 1.00 1.00 16.1 4.7 1380 1.00 1.00 1.00 59�F (15�C) 830 390 21.0 6.2 740 1.00 1.00 1.00 20.0 5.9 890 1.00 1.00 1.00 18.9 5.5 1040 1.00 1.00 1.00 17.8 5.2 1210 1.00 1.00 1.00 16.7 4.9 1390 1.00 1.00 1.00 970 460 21.8 6.4 720 1.00 1.00 1.00 20.8 6.1 880 1.00 1.00 1.00 19.7 5.8 1040 1.00 1.00 1.00 18.5 5.4 1210 1.00 1.00 1.00 17.3 5.1 1380 1.00 1.00 1.00 Page 5 725 345 20.2 5.9 740 .82 .98 1.00 19.2 5.6 890 .84 1.00 1.00 18.2 5.3 1050 .87 1.00 1.00 17.1 5.0 1210 .91 1.00 1.00 16.1 4.7 1380 .94 1.00 1.00 63�F (17.2�C) 830 390 21.0 6.2 730 .86 1.00 1.00 20.0 5.9 880 .88 1.00 1.00 18.9 5.5 1040 .92 1.00 1.00 17.8 5.2 1210 .96 1.00 1.00 16.7 4.9 1380 1.00 1.00 1.00 970 460 22.0 6.4 720 .91 1.00 1.00 20.8 6.1 880 .94 1.00 1.00 19.7 5.8 1040 .98 1.00 1.00 18.5 5.4 1200 1.00 1.00 1.00 17.3 5.1 1380 1.00 1.00 1.00 725 345 21.4 6.3 730 .63 .79 .95 20.2 5.9 880 .65 67�F (19.4�C) 830 390 22.0 6.4 720 .66 .83 1.00 20.8 6.1 880 .67 970 460 22.6 6.6 710 .69 .88 1.00 21.4 6.3 870 .71 .81 .98 19.0 5.6 1040 .66 .86 1.00 19.5 5.7 1040 .69 .92 1.00 20.0 5.9 1030 .73 .84 1.00 17.7 5.2 1210 .68 .88 1.00 16.4 4.8 1380 .70 .92 1.00 .89 1.00 18.1 5.3 1210 .72 .93 1.00 16.8 4.9 1380 .74 .97 1.00 .96 1.00 18.6 5.5 1200 .76 .99 1.00 17.4 5.1 1380 .79 1.00 1.00 725 345 22.6 71�F (21.7�C) 830 390 23.2 970 460 23.8 6.6 710 .47 .62 6.8 700 .47 .65 7.0 690 .49 .68 .77 21.4 6.3 870 .47 .81 22.0 6.4 860 .49 .86 22.4 6.6 850 .49 .63 .79 20.2 5.9 1030 .48 .66 .84 20.6 6.0 1030 .49 .70 .89 21.0 6.2 1030 .51 .65 .82 18.8 5.5 1210 .48 .67 .85 17.5 5.1 1380 .50 .69 .89 .68 .87 19.2 5.6 1200 .50 .71 .90 17.9 5.2 1380 .51 .74 .95 .72 .93 19.7 5.8 1200 .52 .75 .97 18.3 5.4 1380 .53 .78 1.00 4HP18V VARIABLE CAPACITY HEAT PUMP COOLING PERFORMANCE EXTENDED RATINGS 4HP18V36P-50 - BCE5V36M - MINIMUM CAPACITY Outdoor Air Temperature Entering Outdoor Coil Indoor Wet Bulb Temperature Total Air Volume cfm L/s 75� F (23.9� C) 85� F (29.4� C) Total Cooling Capacity kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 23.9�C 80�F 85�F 26.7�C 29.4�C Total Cooling Capacity kBtuh kW 59�F (15�C) 725 345 830 390 970 460 14.0 14.5 15.0 4.1 370 1.00 1.00 4.2 360 1.00 1.00 4.4 350 1.00 1.00 1.00 1.00 1.00 13.3 3.9 13.8 4.0 14.2 4.2 470 460 460 1.00 1.00 1.00 1.00 1.00 12.6 3.7 1.00 1.00 13.0 3.8 1.00 1.00 13.4 3.9 95� F (35� C) 105� F (40.6� C) Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 23.9�C 80�F 85�F 26.7�C 29.4�C Total Cooling Capacity kBtuh kW 580 1.00 1.00 1.00 11.7 3.4 Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C 690 1.00 1.00 1.00 570 1.00 1.00 1.00 12.1 3.5 690 1.00 1.00 1.00 560 1.00 1.00 1.00 12.5 3.7 680 1.00 1.00 1.00 Page 6 725 345 14.0 63�F (17.2�C) 830 390 14.5 970 460 14.9 4.1 370 1.00 1.00 1.00 13.4 3.9 470 1.00 1.00 1.00 12.6 3.7 580 4.2 360 1.00 1.00 .00 13.8 4.0 460 1.00 1.00 1.00 13.0 3.8 570 4.4 350 1.00 1.00 1.00 14.2 4.2 450 1.00 1.00 1.00 13.4 3.9 560 1.00 1.00 1.00 11.7 3.4 690 1.00 1.00 1.00 1.00 1.00 1.00 12.1 3.5 690 1.00 1.00 1.00 1.00 1.00 1.00 12.5 3.7 680 1.00 1.00 1.00 725 345 14.0 67�F (19.4�C) 830 390 14.5 970 460 14.9 4.1 370 .78 1.00 1.00 13.3 3.9 470 .81 4.2 360 .82 1.00 1.00 13.8 4.0 460 .85 4.4 350 .89 1.00 .00 14.2 4.2 450 .91 1.00 1.00 12.6 3.7 1.00 1.00 13.0 3.8 1.00 1.00 13.4 3.9 580 570 560 .85 1.00 1.00 11.7 3.4 690 .89 1.00 1.00 .90 1.00 1.00 12.1 3.5 680 .95 1.00 1.00 .97 1.00 1.00 12.5 3.7 680 1.00 1.00 1.00 725 345 14.8 4.3 350 .53 .78 1.00 14.0 4.1 460 .55 .80 1.00 13.1 3.8 570 .56 .84 1.00 12.0 3.5 690 .58 .88 1.00 71�F (21.7�C) 830 390 15.1 4.4 350 .55 .81 1.00 14.3 4.2 450 .59 .85 1.00 13.3 3.9 570 .57 .89 1.00 12.3 3.6 680 .61 .94 1.00 970 460 15.4 4.5 340 .56 .88 1.00 14.6 4.3 450 .59 .91 1.00 13.5 4.0 560 .61 .96 1.00 12.5 3.7 680 .64 1.00 1.00 4HP18V VARIABLE CAPACITY HEAT PUMP COOLING PERFORMANCE EXTENDED RATINGS 4HP18V60P-50 - BCE5V60M - MAXIMUM CAPACITY Outdoor Air Temperature Entering Outdoor Coil Indoor Wet Bulb Temperature Total Air Volume cfm L/s 85� F (29.4� C) 95� F (35� C) 105� F (40.6� C) 115� F (46.1� C) 125� F (51.7� C) Total Cooling Capacity kBtuh kW Sensible To Total Ratio (S/T) Comp. Motor Watts Indoor Dry Bulb Input 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb Total Cooling Capacity 75�F 23.9�C 80�F 26.7�C 85�F 29.4�C kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb Total Cooling Capacity 75�F 23.9�C 80�F 85�F 26.7�C 29.4�C kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Sensible To Total Ratio (S/T) Comp. Motor Watts Indoor Dry Bulb Input 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C 1605 755 53.5 59�F (15�C) 1840 865 56.0 2030 960 57.5 15.7 3760 .90 1.00 16.4 3780 .94 1.00 16.9 3800 .97 1.00 1.00 1.00 1.00 51.5 15.1 4240 .92 53.5 15.7 4260 .96 55.5 16.3 4280 .99 1.00 1.00 49.0 14.4 4810 .95 1.00 1.00 47.0 13.8 5500 .98 1.00 1.00 44.0 12.9 6340 1.00 1.00 1.00 1.00 1.00 51.5 15.1 4840 .99 1.00 1.00 48.5 14.2 5540 1.00 1.00 1.00 46.0 13.5 6390 1.00 1.00 1.00 1.00 1.00 53.0 15.5 4860 1.00 1.00 1.00 50.0 14.7 5570 1.00 1.00 1.00 47.0 13.8 6420 1.00 1.00 1.00 Page 7 1605 755 56.0 16.4 3780 .73 .87 .99 53.5 15.7 4260 .75 63�F (17.2�C) 1840 865 57.5 16.9 3800 .76 .90 1.00 55.0 16.1 4270 .78 2030 960 59.0 17.3 3800 .78 .94 1.00 56.0 16.4 4280 .80 .89 1.00 50.5 14.8 4830 .77 .93 1.00 52.0 15.2 4850 .80 .96 1.00 53.5 15.7 4860 .82 .91 1.00 47.5 13.9 5520 .78 .94 1.00 44.5 13.0 6350 .82 .98 1.00 .96 1.00 49.0 14.4 5550 .82 .99 1.00 46.0 13.5 6390 .85 1.00 1.00 .99 1.00 50.0 14.7 5570 .85 1.00 1.00 47.0 13.8 6420 .88 1.00 1.00 1605 755 59.0 17.3 3800 .59 .71 67�F (19.4�C) 1840 865 60.5 17.7 3820 .61 .74 2030 960 62.0 18.2 3830 .61 .76 .83 56.5 16.6 4290 .59 .87 58.0 17.0 4300 .61 .90 59.5 17.4 4310 .62 .73 .85 53.5 15.7 4870 .60 .74 .88 50.5 14.8 5570 .61 .76 .90 47.0 13.8 6420 .63 .79 .94 .75 .89 55.0 16.1 4890 .62 .77 .92 52.0 15.2 5600 .63 .80 .95 48.5 14.2 6450 .65 .83 .99 .78 .92 56.0 16.4 4900 .64 .80 .95 53.0 15.5 5610 .65 .82 .99 49.0 14.4 6470 .67 .86 1.00 1605 755 62.5 18.3 3830 .45 .57 71�F (21.7�C) 1840 865 64.5 18.9 3840 .46 .59 2030 960 65.5 19.2 3840 .46 .60 .68 59.5 17.4 4320 .45 .71 61.5 18.0 4330 .46 .73 62.5 18.3 4340 .46 .58 .70 56.5 16.6 4910 .45 .60 .73 58.5 17.1 4930 .46 .61 .75 59.5 17.4 4940 .47 .59 .72 53.5 15.7 5630 .46 .60 .74 50.0 14.7 6500 .47 .62 .76 .61 .75 55.0 16.1 5660 .47 .62 .77 51.0 14.9 6530 .48 .64 .80 .62 .77 56.0 16.4 5670 .48 .64 .80 52.0 15.2 6550 .48 .66 .83 4HP18V VARIABLE CAPACITY HEAT PUMP COOLING PERFORMANCE EXTENDED RATINGS 4HP18V60P-50 - BCE5V60M - INTERMEDIATE CAPACITY Outdoor Air Temperature Entering Outdoor Coil Indoor Wet Bulb Temperature Total Air Volume cfm L/s 85� F (29.4� C) 95� F (35� C) 105� F (40.6� C) 115� F (46.1� C) 125� F (51.7� C) Total Cooling Capacity kBtuh kW Sensible To Total Ratio (S/T) Comp. Motor Watts Indoor Dry Bulb Input 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb Total Cooling Capacity 75�F 23.9�C 80�F 26.7�C 85�F 29.4�C kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb Total Cooling Capacity 75�F 23.9�C 80�F 85�F 26.7�C 29.4�C kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Sensible To Total Ratio (S/T) Comp. Motor Watts Indoor Dry Bulb Input 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C 1110 525 34.6 59�F (15�C) 1210 570 35.6 1380 650 37.0 10.1 1570 .95 1.00 10.4 1570 .98 1.00 10.8 1560 1.00 1.00 1.00 1.00 1.00 33.4 9.8 1840 .98 34.2 10.0 1840 1.00 35.6 10.4 1830 1.00 1.00 1.00 32.0 9.4 2130 1.00 1.00 32.8 9.6 2120 1.00 1.00 34.2 10.0 2120 1.00 1.00 1.00 1.00 1.00 30.8 9.0 2450 1.00 1.00 1.00 29.4 8.6 2850 1.00 1.00 1.00 1.00 1.00 31.6 9.3 2450 1.00 1.00 1.00 30.2 8.9 2840 1.00 1.00 1.00 1.00 1.00 32.8 9.6 2440 1.00 1.00 1.00 31.2 9.1 2830 1.00 1.00 1.00 Page 8 1110 525 35.6 10.4 1570 .77 .92 1.00 34.0 10.0 1840 .79 .94 1.00 32.4 9.5 2130 .81 .97 1.00 31.0 9.1 2460 .83 .99 1.00 29.4 8.6 2840 .85 1.00 1.00 63�F (17.2�C) 1210 570 36.2 10.6 1560 .79 .95 1.00 34.6 10.1 1840 .81 .97 1.00 33.0 9.7 2120 .83 1.00 1.00 31.6 9.3 2450 .85 1.00 1.00 30.2 8.9 2840 .87 1.00 1.00 1380 650 37.2 10.9 1560 .83 .99 1.00 35.6 10.4 1830 .85 1.00 1.00 34.2 10.0 2120 .87 1.00 1.00 32.8 9.6 2450 .89 1.00 1.00 31.4 9.2 2840 .92 1.00 1.00 1110 525 37.4 67�F (19.4�C) 1210 570 38.0 1380 650 39.0 11.0 1550 .60 .75 11.1 1550 .62 .77 11.4 1540 .64 .80 .88 35.8 10.5 1820 .62 .91 36.4 10.7 1820 .63 .96 37.2 10.9 1810 .65 .76 .91 34.2 10.0 2120 .63 .79 .94 34.8 10.2 2110 .64 .82 .99 35.6 10.4 2110 .66 .78 .93 32.6 9.6 2450 .64 .80 .96 31.0 9.1 2840 .65 .82 .99 .81 .97 33.2 9.7 2440 .65 .83 .99 31.6 9.3 2840 .67 .85 1.00 .84 1.00 34.0 10.0 2440 .68 .87 1.00 32.2 9.4 2830 .69 .89 1.00 1110 525 39.5 11.6 1530 .45 .58 71�F (21.7�C) 1210 570 40.0 11.7 1530 .45 .61 1380 650 41.0 12.0 1520 .47 .63 .72 37.6 11.0 1810 .45 .75 38.0 11.1 1800 .47 .78 39.0 11.4 1790 .48 .60 .74 36.0 10.6 2100 .46 .62 .76 36.6 10.7 2100 .47 .64 .80 37.4 11.0 2090 .48 .61 .76 34.4 10.1 2430 .47 .63 .78 32.8 9.6 2830 .47 .64 .80 .63 .78 35.0 10.3 2430 .48 .64 .80 33.4 9.8 2820 .48 .66 .83 .66 .82 35.6 10.4 2420 .48 .67 .84 34.0 10.0 2810 .49 .69 .87 4HP18V VARIABLE CAPACITY HEAT PUMP COOLING PERFORMANCE EXTENDED RATINGS 4HP18V60P-50 - BCE5V60M - MINIMUM CAPACITY Outdoor Air Temperature Entering Outdoor Coil Indoor Wet Bulb Temperature Total Air Volume cfm L/s 75� F (23.9� C) 85� F (29.4� C) Total Cooling Capacity kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 23.9�C 80�F 85�F 26.7�C 29.4�C Total Cooling Capacity kBtuh kW 95� F (35� C) 105� F (40.6� C) Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 23.9�C 80�F 85�F 26.7�C 29.4�C Total Cooling Capacity kBtuh kW Comp. Motor Watts Input Sensible To Total Ratio (S/T) Indoor Dry Bulb 75�F 80�F 85�F 23.9�C 26.7�C 29.4�C 1110 525 59�F (15�C) 1210 570 1380 650 24.6 25.2 26.0 7.2 880 1.00 1.00 1.00 23.4 6.9 1110 1.00 7.4 890 1.00 1.00 1.00 24.0 7.0 1120 1.00 7.6 890 1.00 1.00 1.00 24.6 7.2 1130 1.00 1.00 1.00 22.2 6.5 1340 1.00 1.00 22.8 6.7 1350 1.00 1.00 23.4 6.9 1360 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 21.0 21.6 22.2 6.2 1560 1.00 1.00 1.00 6.3 1570 1.00 1.00 1.00 6.5 1580 1.00 1.00 1.00 Page 9 1110 525 63�F (17.2�C) 1210 570 1380 650 24.6 25.2 26.0 7.2 880 .94 1.00 1.00 23.4 6.9 1110 .97 7.4 890 .98 1.00 1.00 24.0 7.0 1120 1.00 7.6 890 1.00 1.00 1.00 24.8 7.3 1130 1.00 1.00 1.00 22.2 6.5 1340 1.00 1.00 22.8 6.7 1350 1.00 1.00 23.4 6.9 1360 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 21.0 21.6 22.2 6.2 1560 1.00 1.00 1.00 6.3 1570 1.00 1.00 1.00 6.5 1580 1.00 1.00 1.00 1110 525 67�F (19.4�C) 1210 570 1380 650 25.2 25.4 26.0 7.4 890 .70 .92 1.00 23.8 7.0 1110 .73 7.4 890 .73 .96 1.00 24.0 7.0 1120 .75 7.6 890 .77 1.00 1.00 24.8 7.3 1130 .79 .95 1.00 22.4 6.6 1340 .99 1.00 22.8 6.7 1350 1.00 1.00 23.4 6.9 1360 .75 .98 1.00 21.2 6.2 1560 .78 1.00 1.00 .78 1.00 1.00 21.6 6.3 1570 .81 1.00 1.00 .82 1.00 1.00 22.2 6.5 1580 .85 1.00 1.00 1110 525 26.6 7.8 900 .50 .70 71�F (21.7�C) 1210 570 27.0 7.9 900 .51 .72 1380 650 27.4 8.0 910 .52 .76 .89 25.2 7.4 1130 .51 .93 25.4 7.4 1140 .51 .99 25.8 7.6 1140 .53 .72 .92 23.6 6.9 1360 .51 .74 .96 24.0 7.0 1370 .53 .79 1.00 24.4 7.2 1380 .55 .74 .96 22.2 6.5 1590 .52 .77 1.00 .77 1.00 22.4 6.6 1590 .54 .80 1.00 .81 1.00 22.8 6.7 1600 .56 .85 1.00 4HP18V VARIABLE CAPACITY HEAT PUMP HEATING PERFORMANCE EXTENDED RATINGS 4HP18V 4HP18V36P-50 - BCE5V36M - INDOOR COIL AT 65�F DRY BULB Indoor Coil Air Volume 65�F db (28�C db) CFM 726 831 970 L/s 345 390 460 MINIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 60�F (16�C) 55�F (13�C) 50�F (10�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 12.5 3.7 345 11.7 3.4 360 10.9 3.2 375 10.1 3.0 395 12.5 3.7 330 11.7 3.4 345 10.9 3.2 360 10.1 3.0 375 12.7 3.7 315 12.0 3.5 330 11.2 3.3 345 10.4 3.0 360 Indoor Coil Air Volume 65�F db (28�C db) CFM L/s 1050 495 1216 575 1385 655 MAXIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 45�F (7�C) 25�F (-4�C) 5�F (-15�C) -15�F (-28�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 41.8 12.3 2760 33.3 9.8 2435 24.7 7.2 2075 16.5 4.8 1880 8.1 2.4 1415 42.5 12.5 2665 33.9 9.9 2340 25.3 7.4 1980 17.1 5.0 1785 8.7 2.5 1315 43.4 12.7 2590 34.8 10.2 2265 26.2 7.7 1910 18.0 5.3 1715 9.6 2.8 1245 Outdoor �F Temp. �C 65 60 55 50 47 45 40 35 30 25 20 17 15 18 16 13 10 8 7 4 2 -1 -4 -7 -8 -9 10 5 0 -5 -10 -15 -20 -12 -15 -18 -21 -23 -26 -29 Compressor Motor kW Input 2.67 2.60 2.53 2.46 2.42 2.34 2.15 1.96 1.97 1.98 2.00 2.00 1.98 1.91 1.79 1.67 1.55 1.44 1.32 1.20 Total kBtuh 42.5 40.3 38.2 36.1 34.8 33.9 31.6 29.3 27.3 25.3 23.3 22.1 21.3 19.2 17.1 15 12.9 10.8 8.7 6.6 Output kW 12.5 11.8 11.2 10.6 10.2 9.9 9.3 8.6 8.0 7.4 6.8 6.5 6.2 5.6 5.0 4.4 3.8 3.2 2.5 1.9 CFM 62�F Low 47�F Low CFM 47�F 35�F 17�F Cap Watts Low 726 12003.304 355.082 --- --- 1050 34200.948 2510.592 --- --- --- --- Inputs Cap Watts Med 831 12006.137 338.698 9670.622 385.625 1216 34836.619 2414.633 29281.329 1955.715 22139.648 2000.225 Cap Watts High 970 12262.269 324.635 --- --- 1385 35748.252 2343.575 --- --- --- --- Page 10 VARIABLE CAPACITY HEAT PUMP HEATING PERFORMANCE EXTENDED RATINGS 4HP18V 4HP18V36P-50 - BCE5V36M - INDOOR COIL AT 70�F DRY BULB Indoor Coil Air Volume 70�F db (28�C db) CFM 726 831 970 L/s 345 390 460 MINIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 60�F (16�C) 55�F (13�C) 50�F (10�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 12.2 3.6 390 11.5 3.4 400 10.7 3.1 415 9.9 2.9 430 12.2 3.6 370 11.5 3.4 385 10.7 3.1 395 9.9 2.9 410 12.6 3.7 355 11.8 3.5 370 11.0 3.2 385 10.3 3.0 400 Indoor Coil Air Volume 70�F db (28�C db) CFM L/s 1050 495 1216 575 1385 655 MAXIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 45�F (7�C) 25�F (-4�C) 5�F (-15�C) -15�F (-28�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 40.9 12.0 2890 32.6 9.6 2535 24.3 7.1 2150 16.2 4.7 1930 7.9 2.3 1450 41.6 12.2 2805 33.3 9.8 2450 25.0 7.3 2065 16.9 5.0 1850 8.6 2.5 1365 42.5 12.5 2735 34.2 10.0 2380 25.9 7.6 1995 17.8 5.2 1780 9.5 2.8 1295 Outdoor �F Temp. �C 65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10 -15 -20 18 16 13 10 8 7 4 2 -1 -4 -7 -8 -9 -12 -15 -18 -21 -23 -26 -29 Compressor Motor kW Input 2.81 2.73 2.66 2.58 2.53 2.45 2.26 2.06 2.06 2.07 2.08 2.08 2.05 1.97 1.85 1.73 1.61 1.49 1.37 1.25 Total kBtuh 41.6 39.5 37.5 35.4 34.2 33.3 31.1 28.9 26.9 25 Output kW 12.2 11.6 11.0 10.4 10.0 9.8 9.1 8.5 7.9 7.3 23 21.8 21 6.7 6.4 6.2 19 16.9 14.8 12.8 10.7 8.6 6.6 5.6 5.0 4.3 3.8 3.1 2.5 1.9 CFM 62�F Low 47�F Low CFM 47�F 35�F 17�F Cap Watts Low 726 11769.418 396.542 --- --- 1050 33478.862 2614.818 --- --- --- --- Inputs Cap Watts Med 831 11779.34 378.49 9484.096 418.941 1216 34171.371 2532.352 28870.357 2053.099 21834.423 2077.029 Cap Watts High 970 12102.143 365.146 --- --- 1385 35067.672 2461.175 --- --- --- --- Page 11 VARIABLE CAPACITY HEAT PUMP HEATING PERFORMANCE EXTENDED RATINGS 4HP18V 4HP18V36P-50 - BCE5V36M - INDOOR COIL AT 75�F DRY BULB Indoor Coil Air Volume 75�F db (28�C db) CFM 726 831 970 L/s 345 390 460 MINIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 60�F (16�C) 55�F (13�C) 50�F (10�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 12.0 3.5 425 11.3 3.3 440 10.5 3.1 455 9.7 2.8 465 12.1 3.5 410 11.3 3.3 425 10.5 3.1 440 9.7 2.8 450 12.3 3.6 395 11.6 3.4 410 10.8 3.2 425 10.0 2.9 435 Indoor Coil Air Volume 75�F db (28�C db) CFM L/s 1050 495 1216 575 1385 655 MAXIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 45�F (7�C) 25�F (-4�C) 5�F (-15�C) -15�F (-28�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 40.0 11.7 3015 32.0 9.4 2645 23.9 7.0 2245 16.0 4.7 2010 7.9 2.3 1510 40.6 11.9 2925 32.6 9.6 2555 24.6 7.2 2155 16.6 4.9 1920 8.5 2.5 1420 41.5 12.2 2865 33.5 9.8 2495 25.5 7.5 2095 17.6 5.2 1860 9.4 2.8 1360 Outdoor �F Temp. �C 65 60 55 50 47 45 40 35 30 25 20 17 15 18 16 13 10 8 7 4 2 -1 -4 -7 -8 -9 10 5 0 -5 -10 -15 -20 -12 -15 -18 -21 -23 -26 -29 Compressor Motor kW Input 2.93 2.85 2.77 2.69 2.64 2.56 2.36 2.15 2.16 2.16 2.16 2.16 2.13 2.05 1.92 1.8 1.67 1.55 1.42 1.3 Total kBtuh 40.6 38.6 36.6 34.6 33.4 32.6 30.5 28.4 26.5 24.6 22.6 21.5 20.7 18.7 16.6 14.6 12.5 10.5 8.5 6.4 Output kW 11.9 11.3 10.7 10.1 9.8 9.6 8.9 8.3 7.8 7.2 6.6 6.3 6.1 5.5 4.9 4.3 3.7 3.1 2.5 1.9 CFM 62�F Low 47�F Low CFM 47�F 35�F 17�F Cap Watts Low 726 11582.827 433.686 --- --- 1050 32808.519 2727.334 --- --- --- --- Inputs Cap Watts Med 831 11594.856 418.781 9271.417 459.42 1216 33430.815 2637.547 28431.65 2151.921 21454.184 2159.325 Cap Watts High 970 11881.196 404.374 --- --- 1385 34363.558 2577.379 --- --- --- --- Page 12 VARIABLE CAPACITY HEAT PUMP HEATING PERFORMANCE EXTENDED RATINGS 4HP18V 4HP18V60P-50 - BCE5V60M - INDOOR COIL AT 65�F DRY BULB Indoor Coil Air Volume 65�F db (28�C db) CFM 1111 1212 1380 L/s 525 570 650 MINIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 60�F (16�C) 55�F (13�C) 50�F (10�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 23.2 6.8 900 21.7 6.4 905 20.3 5.9 915 18.8 5.5 920 23.2 6.8 875 21.8 6.4 880 20.3 5.9 885 18.9 5.5 890 23.8 7.0 830 22.4 6.6 835 20.9 6.1 840 19.5 5.7 845 Indoor Coil Air Volume 65�F db (28�C db) CFM 1605 1838 2030 L/s 755 865 960 MAXIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 45�F (7�C) 25�F (-4�C) 5�F (-15�C) -15�F (-28�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 68.0 19.9 5075 55.5 16.3 4705 43.1 12.6 4320 29.4 8.6 3860 14.4 4.2 2870 68.9 20.2 4865 56.4 16.5 4495 44.0 12.9 4110 30.3 8.9 3650 15.3 4.5 2660 69.8 20.5 4730 57.3 16.8 4360 45.0 13.2 3975 31.3 9.2 3515 16.3 4.8 2525 Outdoor �F Temp. �C Compressor Motor kW Input Total Output kBtuh kW 65 18 4.87 68.9 20.2 60 16 4.78 65.7 19.3 55 50 13 10 4.69 4.6 62.5 18.3 59.4 17.4 47 8 4.55 57.5 16.9 45 7 4.5 56.4 16.5 40 35 4 2 4.36 4.22 53.6 15.7 50.8 14.9 30 -1 4.17 47.4 13.9 25 20 17 15 -4 -7 -8 -9 4.11 4.06 4.02 3.99 44 40.6 38.5 37.3 12.9 11.9 11.3 10.9 10 5 0 -5 -12 -15 -18 -21 3.9 3.65 3.41 3.16 34.1 10.0 30.3 8.9 26.6 7.8 22.8 6.7 -10 -15 -20 -23 -26 -29 2.91 2.66 2.42 19.1 15.3 11.6 5.6 4.5 3.4 CFM 62�F Low 47�F Low CFM 47�F 35�F 17�F Cap Watts Low 1111 22311.862 905.201 --- --- 1605 56580.116 4760.251 --- --- --- --- Inputs Cap Watts Med 1212 22347.104 876.628 17998.422 892.314 1838 57488.084 4548.615 50803.357 4222.259 38522.453 4021.194 Cap Watts High 1380 22939.802 832.927 --- --- 2030 58459.635 4413.146 --- --- --- --- Page 13 VARIABLE CAPACITY HEAT PUMP HEATING PERFORMANCE EXTENDED RATINGS 4HP18V 4HP18V60P-50 - BCE5V60M - INDOOR COIL AT 70�F DRY BULB Indoor Coil Air Volume 70�F db (28�C db) CFM 1111 1212 1380 L/s 525 570 650 MINIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 60�F (16�C) 55�F (13�C) 50�F (10�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 22.7 6.7 1005 21.3 6.2 1010 19.9 5.8 1010 18.5 5.4 1015 22.8 6.7 970 21.4 6.3 975 19.9 5.8 980 18.5 5.4 980 23.4 6.9 930 21.9 6.4 935 20.5 6.0 935 19.1 5.6 940 Indoor Coil Air Volume 70�F db (28�C db) CFM 1605 1838 2030 L/s 755 865 960 MAXIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 45�F (7�C) 25�F (-4�C) 5�F (-15�C) -15�F (-28�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 67.3 19.7 5410 54.9 16.1 5005 42.6 12.5 4585 29.2 8.6 4100 14.3 4.2 3055 68.2 20.0 5170 55.8 16.4 4765 43.5 12.7 4345 30.1 8.8 3860 15.2 4.5 2815 69.2 20.3 5025 56.8 16.6 4620 44.5 13.0 4200 31.1 9.1 3715 16.2 4.7 2670 Outdoor �F Temp. �C Compressor Motor kW Input Total Output kBtuh kW 65 18 5.17 68.2 20.0 60 55 50 47 16 13 10 8 5.08 4.98 4.89 4.83 65 61.9 58.8 56.9 19.0 18.1 17.2 16.7 45 7 4.77 55.8 16.4 40 35 30 4 2 -1 4.61 4.46 4.4 53 50.2 46.9 15.5 14.7 13.7 25 20 17 15 -4 -7 -8 -9 4.35 4.29 4.26 4.22 43.5 40.2 38.2 37 12.7 11.8 11.2 10.8 10 5 0 -5 -12 -15 -18 -21 4.13 3.86 3.6 3.34 33.8 30.1 26.4 22.7 9.9 8.8 7.7 6.7 -10 -15 -20 -23 -26 -29 3.08 2.82 2.56 18.9 15.2 11.5 5.5 4.5 3.4 CFM 62�F Low 47�F Low CFM 47�F 35�F 17�F Cap Watts Low 1111 21891.274 1008.056 --- --- 1605 56043.57 5069.285 --- --- --- --- Inputs Cap Watts Med 1212 21931.16 973.909 17653.772 982.503 1838 56928.888 4827.972 50182.81 4455.638 38210.078 4256.111 Cap Watts High 1380 22499.569 933.367 --- --- 2030 57922.979 4681.459 --- --- --- --- Page 14 VARIABLE CAPACITY HEAT PUMP HEATING PERFORMANCE EXTENDED RATINGS 4HP18V 4HP18V60P-50 - BCE5V60M - INDOOR COIL AT 75�F DRY BULB Indoor Coil Air Volume 75�F db (28�C db) CFM L/s 1111 525 1212 570 1380 650 MINIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 60�F (16�C) 55�F (13�C) 50�F (10�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 22.3 6.5 1115 20.9 6.1 1115 19.5 5.7 1110 18.1 5.3 1110 22.3 6.5 1085 20.9 6.1 1085 19.5 5.7 1085 18.1 5.3 1080 22.9 6.7 1045 21.5 6.3 1045 20.1 5.9 1045 18.7 5.5 1040 Indoor Coil Air Volume 75�F db (28�C db) CFM 1605 1838 2030 L/s 755 865 960 MAXIMUM CAPACITY Air Temperature Entering Outdoor Coil 65�F (18�C) 45�F (7�C) 25�F (-4�C) 5�F (-15�C) -15�F (-28�C) Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input Total Heating Capacity kBtuh kW Comp. Motor Watts Input 66.6 19.5 5770 54.4 15.9 5325 42.3 12.4 4855 29.1 8.5 4335 14.2 4.2 3235 67.5 19.8 5510 55.3 16.2 5060 43.1 12.6 4595 29.9 8.8 4075 15.1 4.4 2975 68.4 20.0 5355 56.2 16.5 4905 44.1 12.9 4440 30.9 9.1 3915 16.0 4.7 2815 Outdoor �F 65 Temp. �C 18 Compressor Motor 5.51 kW Input Total kBtuh 67.5 Output kW 19.8 60 55 50 47 16 13 10 8 5.41 5.3 5.2 5.13 64.4 61.3 58.2 56.4 18.9 18.0 17.1 16.5 45 40 35 30 7 4 2 -1 5.06 4.89 4.72 4.66 55.3 16.2 52.5 15.4 49.7 14.6 46.4 13.6 25 20 17 15 -4 -7 -8 -9 4.6 4.54 4.5 4.46 43.1 39.9 37.9 36.7 12.6 11.7 11.1 10.8 10 5 0 -5 -12 -15 -18 -21 4.35 4.08 3.8 3.53 33.6 9.8 29.9 8.8 26.2 7.7 22.5 6.6 -10 -15 -20 -23 -26 -29 3.25 2.98 2.7 18.8 15.1 11.4 5.5 4.4 3.3 CFM 62�F Low 47�F Low CFM 47�F 35�F 17�F Cap Watts Low 1111 21456.339 1113.413 --- --- 1605 55534.082 5391.9 --- --- --- --- Inputs Cap Watts Med 1212 21490.625 1083.946 17268.653 1081.765 1838 56382.546 5130.233 49670.237 4720.437 37916.407 4496.12 Cap Watts High 1380 22064.166 1043.944 --- --- 2030 57333.912 4974.471 --- --- --- --- Page 15 VARIABLE CAPACITY HEAT PUMP ACCESSORIES Description TXV Kit Crankcase heater Sound Blanket Short Cycle Protector Liquid Line Solenoid Freezestat Where Used 36 60 All models All models All models All models 3/8 tubing 4HP18V Kit Number H4TXV01 H4TXV03 Factory installed Factory installed Control Board Feature 60M52 93G35 Purpose TXVs provide superior refrigerant flow control, comfort and efficiency Prevents liquid migration to compressor in cold weather Lowers compressor sound level Protects compressor from short cycling. Prevents liquid migration to the compressor especially for high liquid riser applications Protects the compressor at low suction pressure conditions All specifications and illustrations subject to change without notice and without incurring obligations. FORM NO. 4HP18V-100 (03/2021) 1-800-448-5872 �2021 Allied Air Enterprises LLC, a Lennox International Inc. Company Page 16 Printed in the U.S.A.
