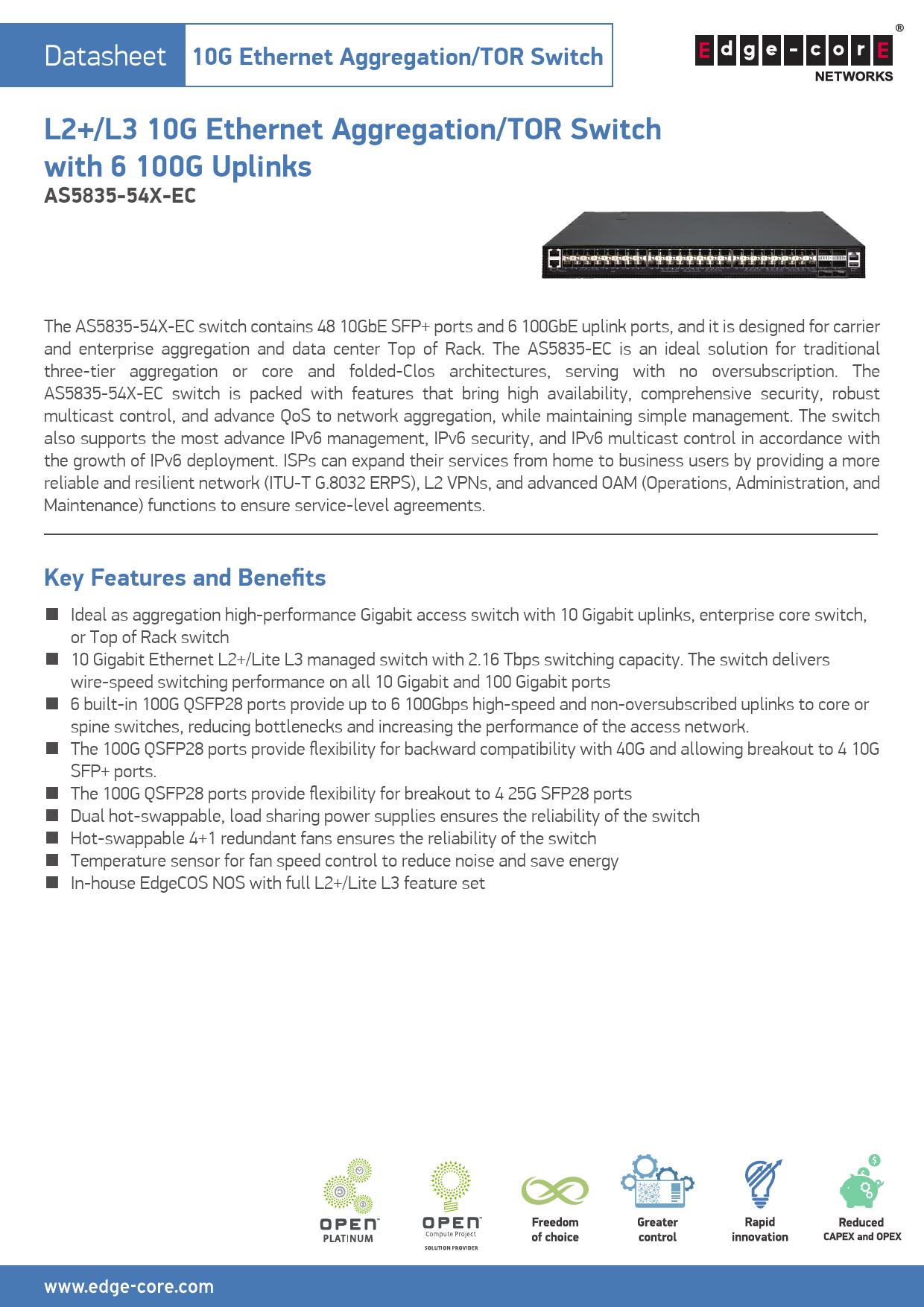

Overview
The Edgecore AS5835-54X-EC switch is a high-performance L2+/L3 10 Gigabit Ethernet Aggregation/TOR (Top of Rack) switch designed for carrier and enterprise aggregation and data center environments. It features 48 x 10GbE SFP+ ports and 6 x 100GbE uplink ports, offering a non-oversubscribed architecture ideal for traditional three-tier aggregation or core and folded-Clos architectures. The AS5835-EC provides high availability, comprehensive security, robust multicast control, and advanced QoS, along with support for advanced IPv6 management features. It is suitable for ISPs looking to expand services by providing reliable and resilient networks, incorporating ITU-T G.8032 ERPS, L2 VPNs, and advanced OAM functions.
Key Features and Benefits
- Ideal as a high-performance Gigabit access switch with 10 Gigabit uplinks, an enterprise core switch, or a Top of Rack switch.
- 10 Gigabit Ethernet L2+/Lite L3 managed switch with 2.16 Tbps switching capacity, delivering wire-speed performance on all 10 Gigabit and 100 Gigabit ports.
- 6 built-in 100G QSFP28 ports provide up to 6 x 100Gbps high-speed, non-oversubscribed uplinks to core or spine switches, reducing bottlenecks and enhancing access network performance.
- 100G QSFP28 ports offer flexibility for backward compatibility with 40G and allow breakout to 4 x 10G SFP+ ports.
- 100G QSFP28 ports also provide flexibility for breakout to 4 x 25G SFP28 ports.
- Dual hot-swappable, load-sharing power supplies ensure switch reliability.
- Hot-swappable 4+1 redundant fans ensure switch reliability.
- Temperature sensor for fan speed control to reduce noise and save energy.
- In-house EdgeCOS NOS with a full L2+/Lite L3 feature set.
Supported Software
The switch supports ONL (Open Network Linux) and is ONIE Certified Gold.
Interfaces
Front Panel Description:
- 1: 2 x Management ports (MGMT)
- 2: 48 x 10G SFP+ ports
- 3: Port LED indicators
- 4: Console port (RJ-45)
- 5: 40/100 Breakout mode LEDs
- 6: 6 x QSFP28 ports
Rear Panel Description:
- 7: USB storage port
- 8: PSU 2 (Power Supply Unit 2)
- 9: PSU 1 (Power Supply Unit 1)
- 10: Grounding point
- 11: Hot-swappable 4+1 redundant fans
Specifications
Port
| Port Type | Quantity |
|---|---|
| 10G SFP+ Ports | 48 |
| 10GBASE-T Ports | 0 |
| 100G QSFP28 Ports | 6 |
| GE Out-of-Band Management Port | Yes |
| RJ-45 Console Port | 1 |
| USB Port | 1 |
Performance
| Parameter | Value |
|---|---|
| Switching Capacity | 2.16 Tbps |
| Forwarding Rate | 1 Bpps |
| CPU Module | Intel Atom/Denverton C3558 2.2GHz 4 core x86 processor |
| Packet Buffer | 32MB |
| Flash Memory | 32MB SPI NOR, M.2 32GB MLC |
| DRAM | 16 GB SO-DIMM DDR4 |
| MAC Address Table Size | 160 K |
| Jumbo Frames | Up to 9416 Bytes |
| Auto-negotiation, Auto-MDI/MDIX (Copper port) | No |
Mechanical
| Parameter | Value |
|---|---|
| Rack Space | 19" |
| Dimension (W x D x H) | 442.2 x 473.3 x 43.95 mm |
| Weight | 8.815 kg |
Power Supply
| Parameter | Value |
|---|---|
| AC power supply module (100-240 VAC, 50/60 Hz) | 2 Redundant Power Modules |
| DC power module (-48--72 VDC) | Yes (Optional) |
| Max System Power Consumption (Watts) | 356 W |
Environmental
| Parameter | Value |
|---|---|
| Operating Temperature | 0 ~ 40°C |
| Storage Temperature | -40 ~ 70°C |
| Operating Humidity (non-condensing) | 5% to 90% |
| Storage Temperature (non-condensing) | 5% to 90% |
Certification
| Certification | Status |
|---|---|
| WEEE | Yes |
| RoHS | Yes |
| FCC Class A | Yes |
| CE | Yes |
| Safety Compliance: CB | Yes |
| Safety Compliance: UL | Yes |
Features
L2 Features
- Dual-speed (1G and 10G) fiber interfaces
- SFP+ ports support: IEEE 802.3ae (10GBASE-SR/LR/ZR/ER), 10G DAC/AOC; IEEE 802.3z (1000BASE-SX/LX/LHX/ZX). Digital Diagnostic Monitoring (DDM) on 10G SFP+ port only.
- 100G QSFP28 fiber interface: 100G DAC, 100GBASE-SR4/LR4, 4 x 25G DAC or Fiber breakout cable.
- Flow Control: IEEE 802.3x for full duplex mode; Back-Pressure for half duplex mode.
- Jumbo frames: 9 KB.
- Broadcast/Multicast/Unknown Unicast Storm Control.
- Spanning Tree Protocol: IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP (64 instances). Includes BPDU Guard, BPDU filtering, Root Guard, Loopback detection.
- Non-Spanning Tree Loopback detection.
- ITU-T G.8032 Ethernet Ring Protection: Sub 50 msec convergence, Revertive operation mode, Multiple-ring network.
- VLANs: Supports 4K VLAN, Port-based VLAN, IEEE 802.1Q VLAN, GVRP, VLAN Trunking, IEEE 802.1v Protocol-based VLAN, IP Subnet-based VLAN, MAC-based VLAN, Traffic Segmentation.
- L2 Virtual Private VLAN, Q-in-Q.
- L2 Protocol tunneling (xSTP, CDP, VTP & PVST+), CDP/PVST+ Filtering.
- Link Aggregation: Static Trunk, IEEE 802.3ad Link Aggregation Control Protocol. Trunk groups: 12 up to 8 10G/ 2 40G ports per group. Load Balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP.
L2 Features-continued
- MLAG.
- IGMP Snooping: IGMP v1/v2/v3 snooping, IGMP Proxy reporting, IGMP Filtering, IGMP Throttling, IGMP Immediate Leave, IGMP Querier.
- MVR (Multicast VLAN Registration): Supports 5 multicast VLANs.
- Port mirroring.
- Remote port mirror (RSPAN).
QoS Features
- Priority Queues: 8 hardware queues per port.
- Traffic classification: IEEE 802.1p CoS, IP Precedence, DSCP. MAC Access control list (Source/Destination MAC, Ether type, Priority ID/ VLAN ID). IP Standard access control list (Source IP). IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number).
- Traffic Scheduling: Strict Priority, Weighted Round Robin, Strict + WRR.
- Single/Two rate Three color marker.
- Ingress policy map.
- Egress policy map.
- Rate Limiting (Ingress and Egress, per port base): 10G: Resolution 64Kbps ~ 10,000Mbps.
- Auto Traffic Control.
OAM
- IEEE 802.3ah Link*.
- IEEE 802.1ag Connectivity Fault Management*: Connectivity check, Loopback, Linktrace.
- ITU-T Y.1731 Performance and Throughput Management*: Frame Delay, Frame Delay variation.
Security
- User Security for Enterprise: IEEE 802.1X port based and MAC based authentication, Dynamic VLAN Assignment, Auto QoS, MAC authentication, Web authentication, Voice VLAN, Guest VLAN.
- User Security for ISP/MSO: DHCP Snooping, DHCP Option 82, IP Source Guard, PPPoE IA.
- L2/L3/L4 Access Control List: MAC Access control list (Source/Destination MAC, Ether type, Priority ID/ VLAN ID), IP standard access control list (Source IP), IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number), IPv6 ACL.
- Network Security: Port security, Dynamic ARP Inspection, Denial of Service Protection, CPU Guard, CPU/Memory threshold and alarm.
- Management Security: Login Security, RADIUS authentication, RADIUS accounting, RADIUS authorization, TACACS+ authentication, TACACS+ accounting, TACACS+ authorization. Management Interface Access Filtering (SNMP, Web, Telnet). SSH (v2.0) for security Telnet, SSL for HTTPS, SNMPv3.
IPv6 Features
- IPv4/IPv6 Dual Protocol stack.
- IPv6 Address Types Stack: Unicast.
- IPv6 Neighbor Discovery: Duplicate address, Address resolution, Unreachable neighbor detection.
- Stateless auto-configuration.
- Manual configuration.
- Remote IPv6 ping.
- IPv6 Telnet support.
- IPv6 DNS Resolver.
- HTTP over IPv6.
- SNMP over IPv6.
- SSH over IPv6.
- IPv6 Syslog support.
- IPv6 SNTP support.
- IPv6 TFTP support.
- RA Guard.
- IPv6 ND Snooping.
- MLD Snooping v1/v2.
- IPv6 source guard.
- DHCPv6 snooping.
- DHCPv6 option 37*.
Management
- Switch Management: CLI via console port or Telnet, Web management, SNMP v1, v2c, v3.
- Firmware & Configuration: Firmware upgrade via TFTP/HTTP/FTP server, Multiple configuration files, Configuration file upload/download via TFTP/HTTP/FTP server.
- RMON (groups 1, 2, 3 and 9).
- DHCP client for IP address assignment.
- DHCP dynamic provision option 66,67.
- SNTP.
- Event/Error Log.
- Syslog.
- SMTP.
- Supports LLDP (802.1ab).
- IP clustering.
- sFlow v4, v5.
Routing
L3 Features IPv4
- Multi-netting.
- CIDR (Classless Inter-Domain Routing).
- Unicast Routing: Static Routes (1 K), RIPv1/v2*, OSPFv2 (includes RFC2328 PDC Encryption, RFC1370 Virtual Link, RFC3101 Route Aggregation, RFC1365 Route Filtering)*, BGP4+*, Equal Cost multipath routing (ECMP)*.
- IP Redundancy: VRRP RFC3768*.
- DHCP Relay*.
L3 Features IPv6
- IPv6 Unicast Routing: Static Routes (1 K), OSPFv3*, Equal Cost multipath routing (ECMP)*.
- DHCPv6 Relay*.
Safety & Compliance
Safety
- UL (CSA 22.2. NO 60950-1 & UL60950-1).
- CB (IEC60950-1).
Electromagnetic Compatibility
- CE Mark.
- FCC Class A.
- CISPR Class A.
- VCCI Class A.
- BSMI.
- CCC.
Environmental Specifications
| Parameter | Value |
|---|---|
| Temperature: Standard Operating | 0°C to 40°C |
| Temperature: Non-Operating | -40°C to 70°C |
Power Supply
| Parameter | Value |
|---|---|
| Power input | AC power supply module (100 to 240 VAC, 50/60 Hz) |
| DC power supply module (-36 to -72 VDC) |
Ordering Information
| Optional Accessories | Product Description |
|---|---|
| GW-T150WV12 | 150 W AC power supply module (100 to 240 VAC, 50/60 Hz) |
| YM-1151E | 150 W DC power supply module (-36 to -72 VDC) |
| ET4201-SX | 1Gbps, Small Form Factor Pluggable (Distance: 550 m; Wavelength: 850 nm) |
| ET4201-LX | 1Gbps, Small Form Factor Pluggable (Distance: 10 km; Wavelength: 1310 nm) |
| ET4201-LHX | 1Gbps, Small Form Factor Pluggable (Distance: 40 km; Wavelength: 1310 nm) |
| ET4201-ZX | 1Gbps, Small Form Factor Pluggable (Distance: 80 km; Wavelength: 1550 nm) |
| ET4201-RJ45 | 1000BASE-T RJ45 transceiver, 100 m |
| ET4202-SX | 1Gbps, Small Form Factor Pluggable (Distance: 500 m; Wavelength: 850 nm, DDM) |
| ET4202-LX | 1Gbps, Small Form Factor Pluggable (Distance: 10 km; Wavelength: 1310 nm, DDM) |
| ET4203-BX20 | 1Gbps, SFP (Distance: 20 km; Wavelength: Tx1310 nm / Rx1490 nm) |
| ET4203-BX20D | 1Gbps, SFP (Distance: 20 km; Wavelength: Tx1490 nm / Rx13100 nm) |
| ET5402-SR | 10Gbps, Small Form Factor Pluggable (Distance: 300 m; Wavelength: 850 nm) |
| ET5402-LR | 10Gbps, Small Form Factor Pluggable (Distance: 10 km; Wavelength: 1310 nm) |
| ET5402-ER | 10Gbps, Small Form Factor Pluggable (Distance: 40 km; Wavelength: 1550 nm) |
| ET5402-RJ45 | 10GBASE-T SFP, RJ45 transceiver, 30 m |
| ET5303-BX10 | 10Gbps, SFP (Distance: 10 km; Wavelength: Tx1270 nm / Rx1330 nm) |
| ET5303-BX10D | 10Gbps, SFP (Distance: 10 km; Wavelength: Tx1330 nm / Rx12700 nm) |
| ET5402-DAC-1M | 10 Gigabit SFP+ DAC 1 m cable |
| ET5402-DAC-3M | 10 Gigabit SFP+ DAC 3 m cable |
| ET5402-DAC-5M | 10 Gigabit SFP+ DAC 5 m cable |
| ET5402-AOC-3M | 10 Gigabit SFP+ AOC 3 m cable |
| ET5402-AOC-5M | 10 Gigabit SFP+ AOC 5 m cable |
| ET5402-AOC-7M | 10 Gigabit SFP+ AOC 7 m cable |
| ET5402-AOC-10M | 10 Gigabit SFP+ AOC 10 m cable |
| ET6401-SR4 | 40G QSFP+ short range transceiver 100 m |
| ET6402-40DAC-1M | 40G to 40G DAC cable, QSFP+ DAC cable, 1m |
| ET6402-40DAC-3M | 40G to 40G DAC cable, QSFP+ DAC cable, 3 m |
| ET6402-10DAC-1M | 40G to 4 10G DAC cable, QSFP+ DAC- 4*SFP+DAC Cable, 1 m |
| ET6402-40AOC-3M | 40G to 40G AOC cable, QSFP+ AOC cable, 3 m |
| ET6402-10AOC-3M | 40G to 4 10G SFP+ AOC cable, QSFP+ AOC breakout cable, 3 m |
| ET7402-100DAC-1M | 100 Gbps to 100 Gbps DAC cable with 1M 30AWG |
| ET7402-SR4 | 100Gbps short reach transceiver, 100GBASE-SR4 |
| ET7402-PSM4 | 100Gbps QSFP28 PSM4 Single Mode 1310 nm 2 km MPO DDM |
| ET7402-LR4 | 100Gbps long reach transceiver, 100GBASE-LR4 DML |
| ET7402-25AOC-3M | 100 Gbps to 4 x 25 Gbps AOC cable with 3 m |
Warranty & Information
Please check www.edge-core.com for the warranty terms in your country.
For More Information
To find out more about Edgecore Networks Corporation products and solutions, visit www.edge-core.com.
