5MPAHD 8MPTVI 4MPCVI 4KH.265IP CVBS. ◇ 4 inch IPS touch screen, 800*480 resolution. ◇ 8MP TVI, 4MP CVI, 5MP AHD camera test.

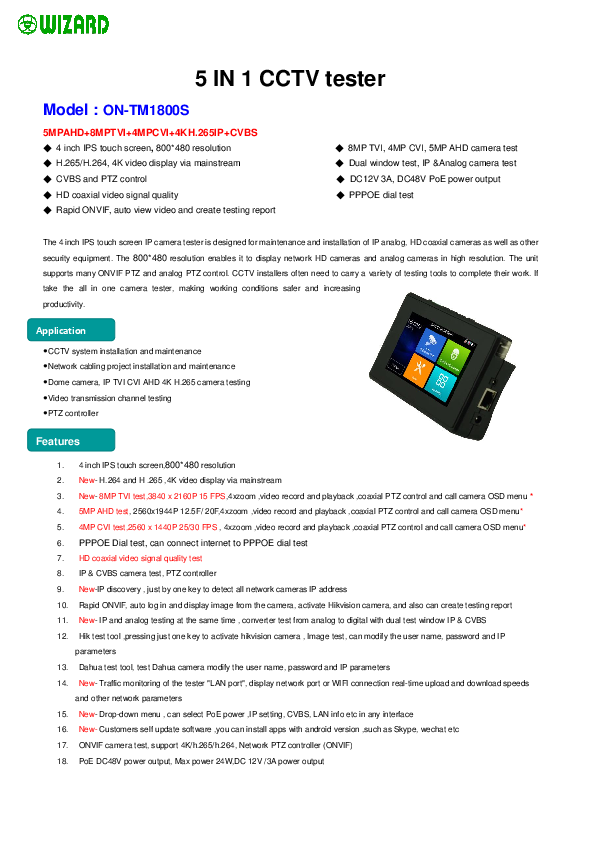

5 IN 1 CCTV tester Model : ON-TM1800S 5MPAHD 8MPTVI 4MPCVI 4KH.265IP CVBS 4 inch IPS touch screen, 800*480 resolution 8MP TVI, 4MP CVI, 5MP AHD camera test H.265/H.264, 4K video display via mainstream Dual window test, IP &Analog camera test
5 IN 1 CCTV tester Model : ON-TM1800S 5MPAHD+8MPTVI+4MPCVI+4KH.265IP+CVBS 4 inch IPS touch screen, 800*480 resolution H.265/H.264, 4K video display via mainstream CVBS and PTZ control HD coaxial video signal quality Rapid ONVIF, auto view video and create testing report 8MP TVI, 4MP CVI, 5MP AHD camera test Dual window test, IP &Analog camera test DC12V 3A, DC48V PoE power output PPPOE dial test The 4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 800*480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity. Application CCTV system installation and maintenance Network cabling project installation and maintenance Dome camera, IP TVI CVI AHD 4K H.265 camera testing Video transmission channel testing PTZ controller Features 1. 4 inch IPS touch screen,800*480 resolution 2. New- H.264 and H .265 ,4K video display via mainstream 3. New- 8MP TVI test,3840 x 2160P 15 FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu * 4. 5MP AHD test, 2560x1944P 12.5F/ 20F,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu* 5. 4MP CVI test,2560 x 1440P 25/30 FPS , 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu* 6. PPPOE Dial test, can connect internet to PPPOE dial test 7. HD coaxial video signal quality test 8. IP & CVBS camera test, PTZ controller 9. New-IP discovery , just by one key to detect all network cameras IP address 10. Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report 11. New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS 12. Hik test tool ,pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters 13. Dahua test tool, test Dahua camera modify the user name, password and IP parameters 14. New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters 15. New- Drop-down menu , can select PoE power ,IP setting, CVBS, LAN info etc in any interface 16. New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc 17. ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF) 18. PoE DC48V power output, Max power 24W,DC 12V /3A power output 19. New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable 20. PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG 21. PING test ,IP address scan, port flashing etc 22. Audio in , support record and save the audio/LED lamp, calculators, music players and other application tools 23. 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging , working time lasts 7 hours 24. New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc 25. New- UTP cable test, Test UTP cable connection status and display on the screen. Read the number on the screen Specifications LCD Video Mode Item series Display CVBS IP camera test 4K/H.265/H.264 5 in 1 tester New 4 inch IPS touch screen , 800*480 resolution 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK Rapid Video Auto view the video, create testing report Hik test tool pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters Dahua test tool Dahua camera test, modify the user name, password and IP parameters IP& CVBS test IP& CVBS test at the same time , converter test from analog to digital with dual test window Power output Network test UTP cable test RJ45 cable TDR test Audio test Data monitor Drop-down menu Coaxial HD test Zoom Image 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu 4MP CVI camera test, 2560 x 1440P 25/30 FPS, UTC control d call OSD menu 5MP AHD test, 2560x1944P 12.5F/20F, UTC control d call OSD menu 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back 12V/3A power Output DC12V/3A power out, supply temporarily power for the camera PoE power output 48V PoE power output, max power 24W Trace route, Link monitor, DHCP server, port flashing, Ping test Test UTP cable connection status and display on the screen. Read the number on the screen (NEW) test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M. (NEW) 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone Captures and analyzes the command data from controlling device, also can send hexadecimal You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface External power supply DC 12V2A Battery Built-in 7.4V Lithium polymer battery , 2400mAh Rechargeable After charging 4~5 hours, normal working time 7 hours Operation setting OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc Auto off 1-30 (mins) Working Temperature -10---+50 Working Humidity 30%-90% Dimension/Weight 126mm x 83mm x 33mm / 0.32kg Note : The above data is for reference only, subject to change without prior notice.PDFCreator 3.3.1.3387
