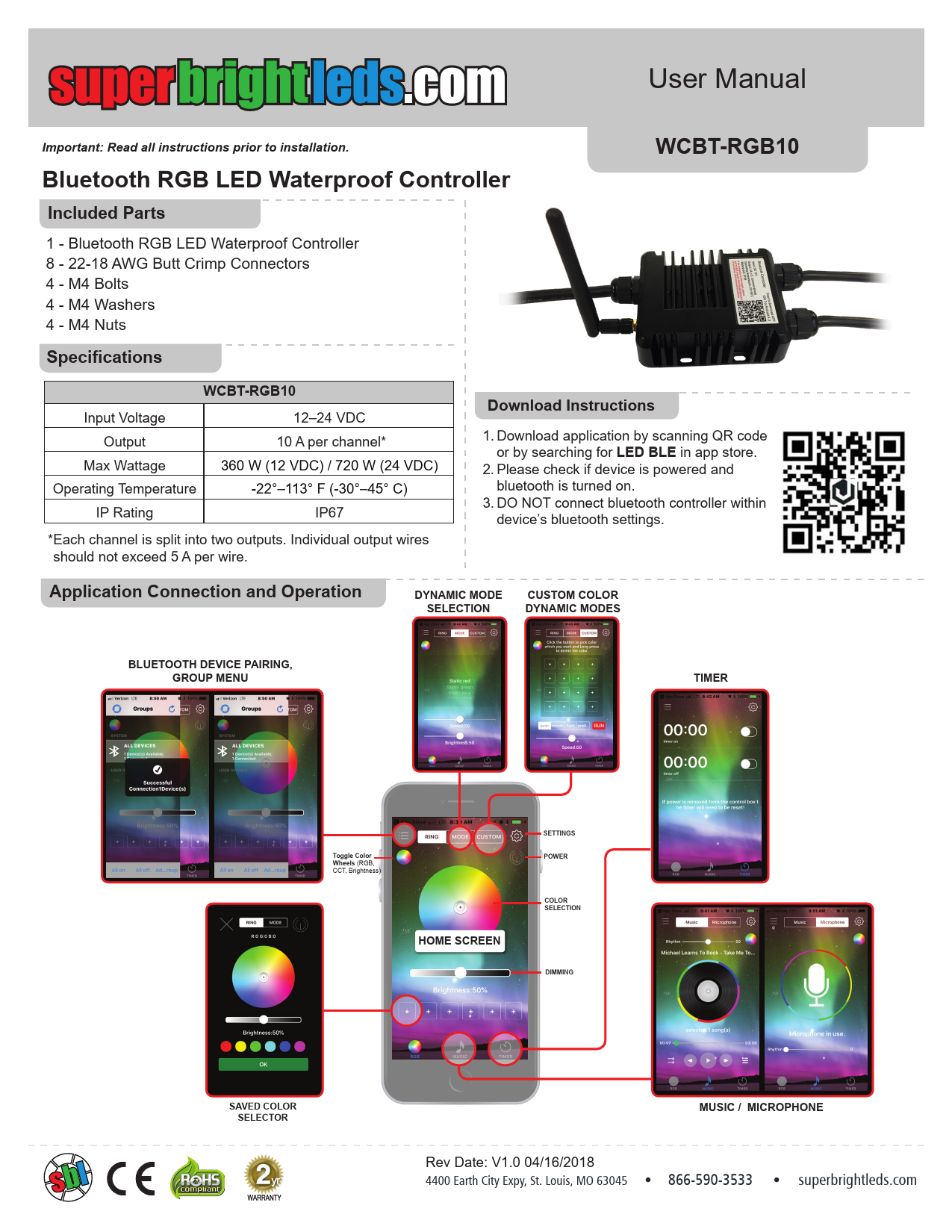

User Manual

Important: Read all instructions prior to installation.
Bluetooth RGB LED Waterproof Controller
Included Parts
1 - Bluetooth RGB LED Waterproof Controller 8 - 22-18 AWG Butt Crimp Connectors 4 - M4 Bolts 4 - M4 Washers 4 - M4 Nuts
Specifications

WCBT-RGB10

Input Voltage

12�24 VDC

Output

10 A per channel*

Max Wattage

360 W (12 VDC) / 720 W (24 VDC)

Operating Temperature

-22��113� F (-30��45� C)

IP Rating

IP67

*Each channel is split into two outputs. Individual output wires should not exceed 5 A per wire.

Download Instructions
1. Download application by scanning QR code or by searching for LED BLE in app store.
2. Please check if device is powered and bluetooth is turned on.
3. DO NOT connect bluetooth controller within device's bluetooth settings.

Application Connection and Operation

DYNAMIC MODE SELECTION

CUSTOM COLOR DYNAMIC MODES

BLUETOOTH DEVICE PAIRING, GROUP MENU

TIMER

Toggle Color Wheels (RGB, CCT, Brightness)
HOME SCREEN

SETTINGS POWER
COLOR SELECTION
DIMMING

SAVED COLOR SELECTOR

MUSIC / MICROPHONE

Rev Date: V1.0 04/16/2018 4400 Earth City Expy, St. Louis, MO 63045

866-590-3533

superbrightleds.com

Important: Read all instructions prior to installation.

Bluetooth RGB LED Waterproof Controller

Safety and Notes

Wiring Diagram

� Do not connect controller directly to AC power. This controller requires 12�24 VDC supply power.
� Do not exceed max load. Overloading the controller will cause overheating and damage to controller and attached components.
� Complete all wiring and installation before connecting any components to supply power.

To Power Supply (Match voltage to LED voltage)
+ -

User Manual
WCBT-RGB10
2 Outputs - Use one or both for your application
RGB strip
B G R V+
B G R V+

Dimensional Diagram
36.44in 925.58mm 3.78in 96.01mm 1.58in 40.13mm
POWER RED/BLACK

18.44in 468.38mm

8X CRIMPS 22-18 AWG 4X M4 SCREW 4X M4 WASHER
4X M4 NUT

RED/BLACK GREEN/LAVENDER

2.86in

3.23in

72.64mm 82.04mm

RED/BLACK GREEN/LAVENDER
