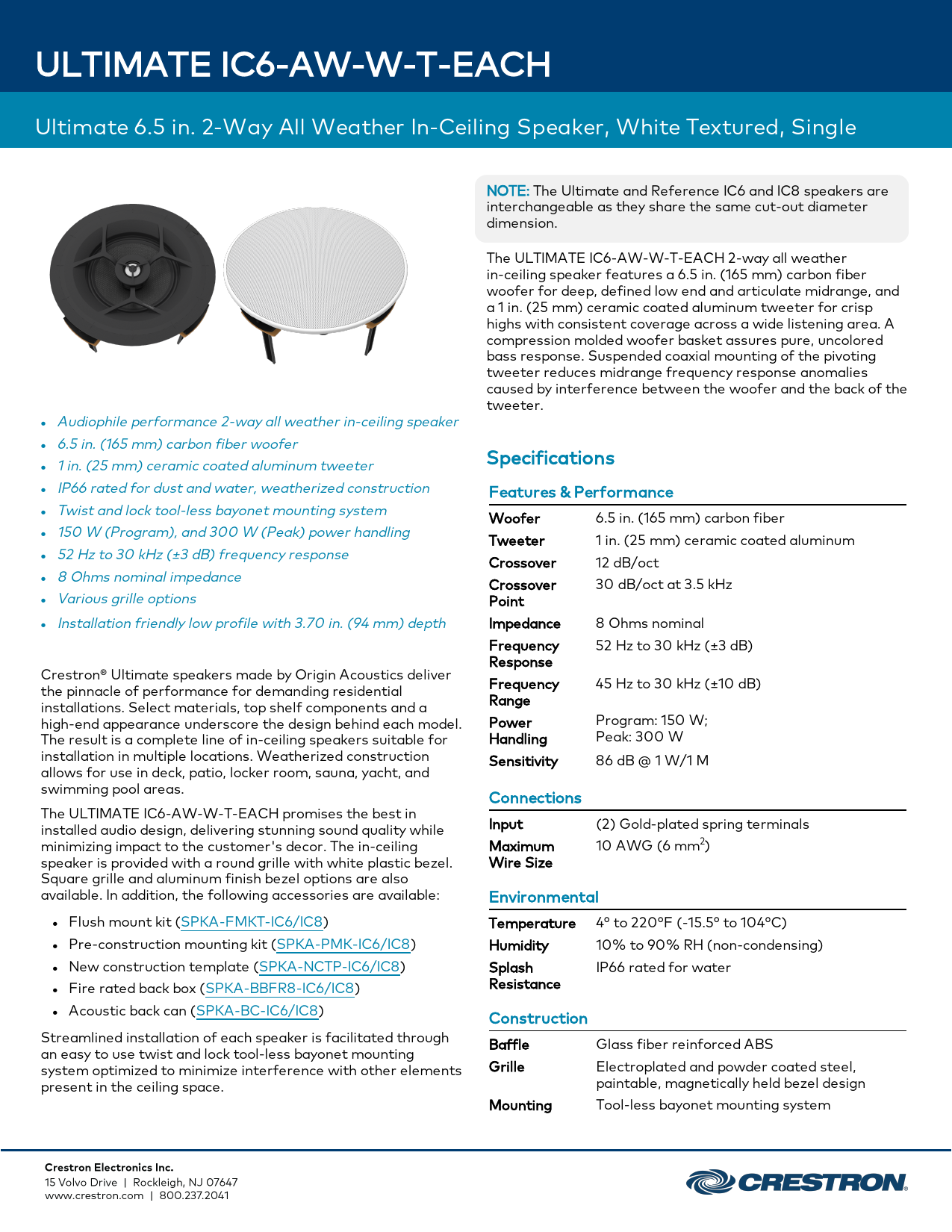

ULTIMATE IC6-AW-W-T-EACH
Ultimate 6.5 in. 2-Way All Weather In-Ceiling Speaker, White Textured, Single
Overview
The Crestron® Ultimate speakers, made by Origin Acoustics, deliver peak performance for demanding residential installations. Utilizing select materials, top-shelf components, and a high-end appearance, this line of in-ceiling speakers is suitable for various locations. The weatherized construction allows for use in outdoor environments such as decks, patios, locker rooms, saunas, yachts, and swimming pool areas.
The ULTIMATE IC6-AW-W-T-EACH is a 2-way all-weather in-ceiling speaker featuring a 6.5-inch (165 mm) carbon fiber woofer for deep, defined low end and articulate midrange, and a 1-inch (25 mm) ceramic coated aluminum tweeter for crisp highs with consistent coverage. A compression-molded woofer basket ensures pure, uncolored bass response. The suspended coaxial mounting of the pivoting tweeter minimizes midrange frequency response anomalies caused by interference between the woofer and the back of the tweeter.
Note: The Ultimate and Reference IC6 and IC8 speakers are interchangeable as they share the same cut-out diameter dimension.
Key Features
- Audiophile performance 2-way all-weather in-ceiling speaker
- 6.5 in. (165 mm) carbon fiber woofer
- 1 in. (25 mm) ceramic coated aluminum tweeter
- IP66 rated for dust and water, weatherized construction
- Twist and lock tool-less bayonet mounting system
- 150 W (Program), and 300 W (Peak) power handling
- 52 Hz to 30 kHz (±3 dB) frequency response
- 8 Ohms nominal impedance
- Various grille options
- Installation friendly low profile with 3.70 in. (94 mm) depth
Specifications
Features & Performance
| Feature | Specification |
|---|---|
| Woofer | 6.5 in. (165 mm) carbon fiber |
| Tweeter | 1 in. (25 mm) ceramic coated aluminum |
| Crossover | 12 dB/oct |
| Crossover Point | 30 dB/oct at 3.5 kHz |
| Impedance | 8 Ohms nominal |
| Frequency Response | 52 Hz to 30 kHz (±3 dB) |
| Frequency Range | 45 Hz to 30 kHz (±10 dB) |
| Power Handling | Program: 150 W; Peak: 300 W |
| Sensitivity | 86 dB @ 1 W/1 M |
Connections
| Feature | Specification |
|---|---|
| Input | (2) Gold-plated spring terminals |
| Maximum Wire Size | 10 AWG (6 mm²) |
Environmental
| Feature | Specification |
|---|---|
| Temperature | 4° to 220°F (-15.5° to 104°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Splash Resistance | IP66 rated for water |
Construction
| Feature | Specification |
|---|---|
| Baffle | Glass fiber reinforced ABS |
| Grille | Electroplated and powder coated steel, paintable, magnetically held bezel design |
| Mounting | Tool-less bayonet mounting system |
Dimensions and Weight
Diagrams illustrate the speaker's physical dimensions. The front view shows a diameter of 9.61 inches (244 mm) without the grille. The side view indicates a depth of 3.70 inches (94 mm) from the ceiling surface. A rear view shows a mounting diameter of 8.66 inches (220 mm). The round grille cut-out diameter is 10.20 inches (259 mm), and the depth from the ceiling surface is 5.31 inches (135 mm).
- Diameter without grille: 9.61 in. (244 mm)
- Depth: 3.70 in. (94 mm)
- Round Grille Cut-out Diameter: 10.20 in. (259 mm)
- Rear Mounting Diameter: 8.66 in. (220 mm)
- Depth from ceiling surface: 5.31 in. (135 mm)
Weight: 4.8 lb (2.17 kg)
Compliance and Model Information
Compliance
- Regulatory Model: M202046006
- Certifications: CE, RoHs, FCC Part 15 Class B digital device
Model
ULTIMATE IC6-AW-W-T-EACH
Available Accessories
For a list of available accessories, visit the ULTIMATE IC6-AW-W-T-EACH product page.
- Flush mount kit (SPKA-FMKT-IC6/IC8)
- Pre-construction mounting kit (SPKA-PMK-IC6/IC8)
- New construction template (SPKA-NCTP-IC6/IC8)
- Fire rated back box (SPKA-BBFR8-IC6/IC8)
- Acoustic back can (SPKA-BC-IC6/IC8)
