2-axis comprehensive controller RCX320 - Industrial Robots | Yamaha Motor Co., Ltd.
PBX/PBX-E
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

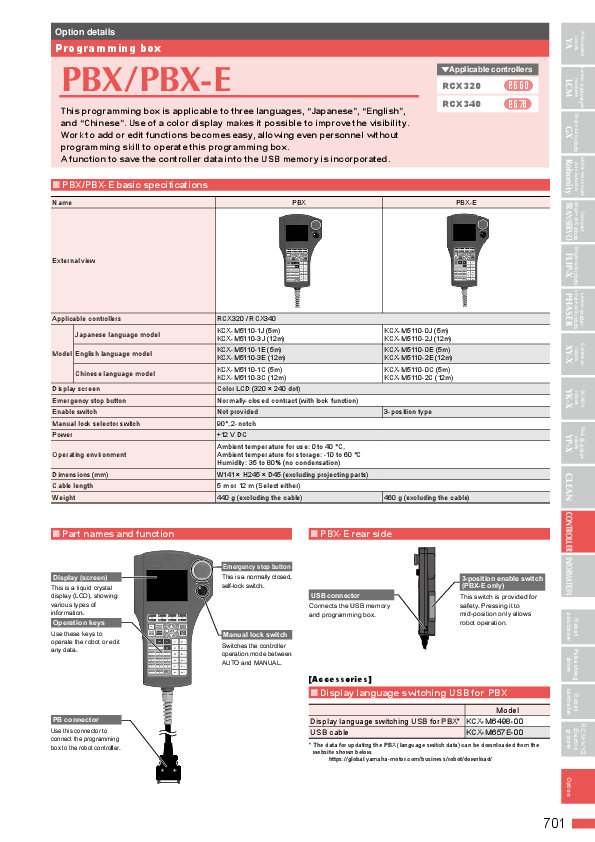

Articulated robots YA Linear conveyor modules LCM Motor-less single Compact Single-axis robots axis actuator single-axis robots Single-axis robots single-axis robots GX Robonity TRANSERVO FLIP-X PHASER Linear motor Cartesian robots XY-X SCARA robots YK-X Option details Programming box PBX/PBX-E This programming box is applicable to three languages, "Japanese", "English", and "Chinese". Use of a color display makes it possible to improve the visibility. Work to add or edit functions becomes easy, allowing even personnel without programming skill to operate this programming box. A function to save the controller data into the USB memory is incorporated. PBX/PBX-E basic specifications Name PBX Applicable controllers RCX320 P.660 RCX340 P.678 PBX-E External view Applicable controllers Japanese language model Model English language model Chinese language model Display screen Emergency stop button Enable switch Manual lock selector switch Power Operating environment Dimensions (mm) Cable length Weight Part names and function Display (screen) This is a liquid crystal display (LCD), showing various types of information. Operation keys Use these keys to operate the robot or edit any data. PB connector Use this connector to connect the programming box to the robot controller. RCX320 / RCX340 KCX-M5110-1J (5m) KCX-M5110-3J (12m) KCX-M5110-1E (5m) KCX-M5110-3E (12m) KCX-M5110-1C (5m) KCX-M5110-3C (12m) Color LCD (320 � 240 dot) Normally-closed contract (with lock function) Not provided 90�, 2-notch +12 V DC Ambient temperature for use: 0 to 40 �C, Ambient temperature for storage: -10 to 60 �C Humidity: 35 to 80% (no condensation) W141 � H245 � D45 (excluding projecting parts) 5 m or 12 m (Select either) 440 g (excluding the cable) KCX-M5110-0J (5m) KCX-M5110-2J (12m) KCX-M5110-0E (5m) KCX-M5110-2E (12m) KCX-M5110-0C (5m) KCX-M5110-2C (12m) 3-position type 460 g (excluding the cable) PBX-E rear side Emergency stop button This is a normally closed, self-lock switch. Manual lock switch Switches the controller operation mode between AUTO and MANUAL. USB connector Connects the USB memory and programming box. 3-position enable switch (PBX-E only) This switch is provided for safety. Pressing it to mid-position only allows robot operation. [Accessories] Display language switching USB for PBX Model Display language switching USB for PBX* KCX-M6498-00 USB cable KCX-M657E-00 * The data for updating the PBX (language switch data) can be downloaded from the website shown below. https://global.yamaha-motor.com/business/robot/download/ Pick & place robots YP-X CLEAN CONTROLLER INFORMATION Robot Pulse string Robot positioner driver controller gripper RCX+iVY2 Electric Option 701
