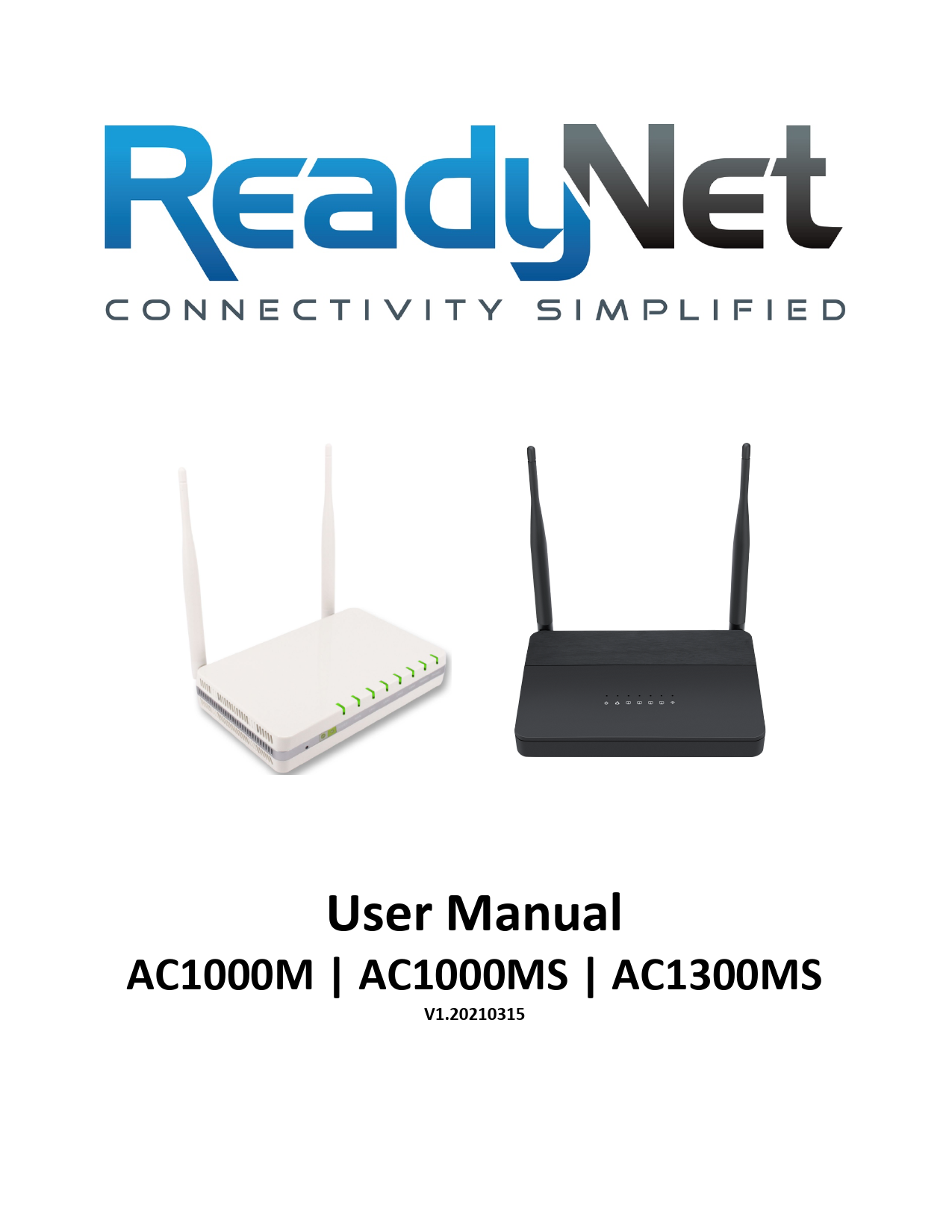

User Manual
AC1000M | AC1000MS | AC1300MS
V1.20210315

Contents User Manual
Contents

AC1000M/AC1000MS/AC1300MS

About This User Guide ...................................................................................................................................0 Contacting ReadyNet ........................................................................................................................1 Purpose .............................................................................................................................................2 Cross references ...............................................................................................................................2 Feedback ........................................................................................................................................... 2

Declaration of Conformity ........................................................................................................................3 Part 15 FCC Rules ..............................................................................................................................3

Warnings and Notes..................................................................................................................................4 Warnings ........................................................................................................................................... 4 Notes.................................................................................................................................................4

Chapter 1 Product Description ......................................................................................................................5

AC1000M/AC1000MS/AC1300MS ............................................................................................................6

LED Indicators and Interfaces ...................................................................................................................7 Hardware Installation .....................................................................................................................10

IVR Voice Prompt ....................................................................................................................................12

Chapter 2 Basic Settings ..............................................................................................................................17

Two-Level Management ........................................................................................................................18 Web Management Interface ..........................................................................................................18

Web Management Interface Details.......................................................................................................20 Status ..............................................................................................................................................20 Setting the Time Zone.....................................................................................................................21 Configuring an Internet Connection ...............................................................................................22 Setting up Wireless Connections ....................................................................................................24 Encryption ....................................................................................................................................... 25 Configuring Session Initiation Protocol...........................................................................................26 SIP Accounts ...................................................................................................................................26 Viewing the Registration Status......................................................................................................28 Making a Call...................................................................................................................................29

Chapter 3

Web Interface ....................................................................................................................31

Login ........................................................................................................................................................ 32

Status ......................................................................................................................................................33

Network and Security..............................................................................................................................34 WAN ................................................................................................................................................ 34

Contents User Manual

AC1000M/AC1000MS/AC1300MS

LAN .................................................................................................................................................39 VPN .................................................................................................................................................40 Port Forward...................................................................................................................................41 DMZ ................................................................................................................................................42 Port Setting .....................................................................................................................................43 Routing ...........................................................................................................................................43 Advance ..........................................................................................................................................44
Wireless 2.4GHz ......................................................................................................................................45 Wireless Security ............................................................................................................................48 WMM .............................................................................................................................................. 51 WDS ................................................................................................................................................51 WPS ................................................................................................................................................. 52 Station Info .....................................................................................................................................53 Advanced ........................................................................................................................................54
Wireless 5GHz .........................................................................................................................................56 Wireless Security ............................................................................................................................58 WMM .............................................................................................................................................. 59 WDS ................................................................................................................................................59 WPS ................................................................................................................................................. 59 Station Info .....................................................................................................................................59 Advanced ........................................................................................................................................59 SIP ...................................................................................................................................................60 SIP Settings .....................................................................................................................................60 Dial Plan ..........................................................................................................................................62 Blacklist ...........................................................................................................................................64 Call Log............................................................................................................................................66
FXS 1........................................................................................................................................................67 Preferences .....................................................................................................................................73
Security ...................................................................................................................................................77 Filtering Setting...............................................................................................................................77 Content Filtering .............................................................................................................................78
Application ..............................................................................................................................................80
Storage ....................................................................................................................................................82 Disk Management...........................................................................................................................82 FTP Setting ......................................................................................................................................83 SMB Setting ....................................................................................................................................84
Administration ........................................................................................................................................85 Management .................................................................................................................................85

Firmware Upgrade ..........................................................................................................................90

Contents User Manual

AC1000M/AC1000MS/AC1300MS

Provision .........................................................................................................................................90 SNMP ..............................................................................................................................................92 TR-069 ............................................................................................................................................. 93 Diagnosis ......................................................................................................................................... 94 Operating Mode .............................................................................................................................96 System Log......................................................................................................................................96 Logout .............................................................................................................................................96 Reboot ............................................................................................................................................97
Chapter 4 IPv6 Address Configuration ........................................................................................................98 Introduction ....................................................................................................................................99 IPv6 Advance ................................................................................................................................100 Configuring IPv6............................................................................................................................100 Viewing WAN port status..............................................................................................................102 IPv6 DHCP configuration for LAN/WLAN clients...........................................................................102 LAN DHCPv6..................................................................................................................................103
Chapter 5 Troubleshooting Guide ............................................................................................................. 104
Configuring PC to get IP Address automatically ...........................................................................105 Cannot connect to the Web..........................................................................................................106 Forgotten Password......................................................................................................................106
Chapter 6 Appendix A � Auto Provisioning Manual..................................................................................107

Table User Manual

AC1000M/AC1000MS/AC1300MS

Table
Table 1 Features at-a-glance.................................................................................................................................6 Table 2 LED Indicators...........................................................................................................................................7 Table 3 Interfaces .................................................................................................................................................9 Table 4 IVR Menu Setting Options.......................................................................................................................12 Table 5 Web management interface ...................................................................................................................20 Table 6 Setting time zone ....................................................................................................................................21 Table 7 Configuring an internet connection .......................................................................................................22 Table 8 Wireless > Basic web page (user view)....................................................................................................24 Table 9 Wireless Security web page ....................................................................................................................25 Table 10 Configuring SIP the Web Management Interface................................................................................27 Table 11 Registration status .................................................................................................................................28 Table 12 Login details ..........................................................................................................................................31 Table 13 Status ....................................................................................................................................................32 Table 14 Internet .................................................................................................................................................33 Table 15 DHCP .....................................................................................................................................................34 Table 16 PPPoE ....................................................................................................................................................35 Table 17 Bridge Mode..........................................................................................................................................36 Table 18 LAN port ................................................................................................................................................38 Table 19 VPN........................................................................................................................................................39 Table 20 Port Forward ..........................................................................................................................................40 Table 21 Virtual Servers........................................................................................................................................40 Table 22 DMZ.......................................................................................................................................................42 Table 23 Port setting ...........................................................................................................................................43 Table 24 Routing...................................................................................................................................................43 Table 25 Advance .................................................................................................................................................44 Table 26 Basic ......................................................................................................................................................45 Table 27 Wireless security ....................................................................................................................................48 Table 28 Wi-Fi Security Setting.............................................................................................................................48 Table 29 WPA-PSK ................................................................................................................................................49 Table 30 WPAPSKWPA2PSK..................................................................................................................................50

Table User Manual

AC1000M/AC1000MS/AC1300MS

Table 31 Wireless Access Policy...........................................................................................................................50 Table 32 WMM ....................................................................................................................................................51 Table 33 WDS.......................................................................................................................................................51 Table 34 WPS .......................................................................................................................................................52 Table 35 Station info............................................................................................................................................53 Table 36 Advanced ...............................................................................................................................................54 Table 37 Basic ......................................................................................................................................................56 Table 38 Wireless security ....................................................................................................................................58 Table 39 SIP Settings.............................................................................................................................................60 Table 40 VoIP QoS ................................................................................................................................................61 Table 41 Dial Plan ................................................................................................................................................62 Table 42 Adding one dial plan ..............................................................................................................................63 Table 43 Dial Plan Syntactic..................................................................................................................................63 Table 44 Blacklist ..................................................................................................................................................64 Table 45 Call log....................................................................................................................................................66 Table 46 Line........................................................................................................................................................67 Table 47 Audio configuration ..............................................................................................................................68 Table 48 Supplementary service...........................................................................................................................69 Table 49 Advanced ...............................................................................................................................................70 Table 50 Preferences ............................................................................................................................................73 Table 51 Regional.................................................................................................................................................73 Table 52 Features and call forward .....................................................................................................................74 Table 53 Miscellaneous ........................................................................................................................................76 Table 54 Filtering Setting .....................................................................................................................................77 Table 55 Content Filtering ....................................................................................................................................78 Table56 advance NAT ..........................................................................................................................................80 Table 57 UPnP......................................................................................................................................................80 Table 58 IGMP .....................................................................................................................................................81 Table 59 Disk Management ..................................................................................................................................82 Table 60 FTP Setting .............................................................................................................................................83 Table 61 SMB Setting............................................................................................................................................84 Table 62 Save Config File .....................................................................................................................................85 Table 63 Administrator settings ...........................................................................................................................86 Table 64 NTP settings ..........................................................................................................................................87

Table User Manual

AC1000M/AC1000MS/AC1300MS

Table 65 Daylight Saving Time .............................................................................................................................88

Table 66 System log Setting..................................................................................................................................88

Table 67 Factory Defaults Setting.........................................................................................................................89

Table 68 Factory Defaults ....................................................................................................................................89

Table 69 Firmware upgrade.................................................................................................................................90

Table 70 Provision ................................................................................................................................................91

Table 71 Firmware Upgrade ................................................................................................................................92

Table 72 SNMP.....................................................................................................................................................92

Table 73 TR069

.................................................................................................................................... 93

Table 75 Operating mode ....................................................................................................................................96

Table 76 System log..............................................................................................................................................96

Table 77 Logout ...................................................................................................................................................96

Table 78 IPv6 Modes............................................................................................................................................99

Table 79 Enabling IPv6.......................................................................................................................................100

Table 80 Configuring Statefull IPv6.....................................................................................................................100

Table 81 Configuring Stateless IPv6....................................................................................................................101

About This User Manual
About This User Guide
Thank you for choosing the AC1000M/AC1000MS/AC1300MS wireless router with VoIP. The AC1000M/AC1000MS/AC1300MS includes extended functions which support, USB memory card, this design not only provides users with a conventional VoIP and routing capabilities. Users can also take AC1000M/AC1000MS/AC1300MS as an FTP server, to share LAN files, pictures and other resources. The AC1000M/AC1000MS/AC1300MS VoIP wireless router is ideally suited for small and medium enterprises (SMB) to build wireless workspaces. The AC1000M/AC1000MS/AC1300MS supports IEEE802.11ac gigabit wireless LAN standard, the highest wireless speed is up to 867Mbps and it supports both 2.4GHz and 5GHz bands. For VoIP end users, the 5G band can reduce interference and improve transmission quality. This enables users to enjoy greater bandwidth and enhanced data throughput. The AC1000MS/AC1300MS is the ideal choice for VoIP communication and integrates Internet sharing for daily application. It is an advanced VoIP wireless router, that provides high quality voice communications and wired Internet sharing capabilities but also offers Access Point (AP) function for daily wireless communication.
This guide contains the following chapters: l Chapter 1 Product description l Chapter 2 Configuring Basic Settings l Chapter 3 Web Interface l Chapter 4 IPv6 address configuration on WAN interface l Chapter 5 Troubleshooting Guide
0

About This User Manual
Contacting ReadyNet
Main Phone Line: +1 (801) 566-0100 Sales Department: +1 (801) 984-5133, +1 (801) 984-5130 Customer Service: +1 (801) 566-0100, Option 1 Service Provider Support: +1 (855) 671-7932 Sales: sales@readynetsolutions.com Customer Support: customerservice@readynetsolutions.com Service Provider Technical Support: engineering@readynetsolutions.com ReadyNet Address 6952 S. High Tech Drive, Suite B Midvale, UT 84047
1

About This User Manual
Purpose
This document is intended to instruct and assist personnel in the operation, installation and maintenance of the ReadyNet equipment and ancillary devices. It is recommended that all personnel engaged in such activities be properly trained. ReadyNet disclaims all liability whatsoever, implied or expressed, for any risk of damage, loss or reduction in system performance arising directly or indirectly out of the failure of the customer, or anyone acting on the customer's behalf, to abide by the instructions, system parameters, or recommendations made in this document.
Cross references
References to external publications are shown in italics. Other cross references, emphasized in blue text in electronic versions, are active links to the references. This document is divided into numbered chapters that are divided into sections. Sections are not numbered, but are individually named at the top of each page, and are listed in the table of contents.
Feedback
We appreciate feedback from the users of our documents. This includes feedback on the structure, content, accuracy, or completeness of our documents. Send feedback to customerservice@readynetsolutions.com
2

About This User Manual
Declaration of Conformity
Part 15 FCC Rules
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: � This device may not cause harmful interference, and � This device must accept any interference received, including interference that may cause
undesired operation.
Class B Digital Device or Peripheral
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generate, use and radiate radio frequency energy. If not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference does not occur in a particular installation.
Note Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferences by one or more of the following measures: � Reorient or relocate the receiving antenna. � Increase the separation between the equipment and receiver. � Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected. � Consult the dealer or an experienced radio/TV technician for help.
3

About This User Manual
Warnings and Notes
The following describes how warnings and notes are used in this document and in all documents of the ReadyNet document set.
Warnings
Warnings precede instructions that contain potentially hazardous situations. Warnings are used to alert the reader to possible hazards that could cause loss of life or physical injury. A warning has the following format:
Warning Warning text and consequence for not following the instructions in the warning.
Notes
A note means that there is a possibility of an undesirable situation or provides additional information to help the reader understand a topic or concept. A note has the following format:
Notes Notes text and consequence for not following the instructions in the Notes. GNU GPL Information ReadyNet firmware contains third-party software under the GNU General Public License (GPL). Please refer to the GPL for the exact terms and conditions of the license. See links below for important regulatory information. GNU General Public License (GPL): https://www.readynetsolutions.com/gnu-general-public-license GPL Support: https://www.readynetsolutions.com/gpl-support
4

Chapter 1 Product description
Chapter 1 Product description
This chapter covers:
� AC1000M/AC1000MS/AC1300MS � LED Indicators and Interfaces � Hardware Installation � Voice Prompt
5

Chapter 1 Product description

AC1000M/AC1000MS/AC1300MS

Table 1 Features at-a-glance

Port/Model

AC1000M/MS


AC1300MS

WAN LAN FXS USB Ethernet interface Fax Wi-Fi
Voice Code Management VLAN

2 (AC1000MS)

YES

5* RJ45 10/100M

5* RJ45 10/100/1000M

T.30, T.38 Fax

2.4G 2T2R (300Mbps) 5G 2T2R (867Mbps)

2.4G 2T2R(300Mbps) 5G 2T2R (867Mbps)

G.711 (A-law, U-law), G.729A/B, G.723, G.722 (Wide band)

Voice menu, Web Management, Provision: TFTP/HTTP/HTTPS, TR069, SNMP

Supported

Chapter 1 Product description
LED Indicators and Interfaces
Table 2 LED Indicators

LED Power WAN
LAN1-4 2.4G 5G FXS(1-2)

Status
on Green off on Green
Blinking Green off
on Green
Blinking Green off
on Green Blinking Green off on Green Blinking Green off on Green Blinking Green off

Explanation
System is powered on
System is powered off Network is connected (physical connection established), no data transmission There is data being transmitted System is powered off or the network port is not connected to the network device. Network is connected (physical connection established), no data transmission There is data being transmitted System is powered off or the network port is not connected to the network device. Wireless access point is ready.
2.4g is connected, and there is data transmitted
2.4g Wi-Fi off or system is powered off Wireless access point is ready. 5g is connected, and there is data transmitted 5g Wi-Fi off or system is powered off Registered successfully, but no data transfer
There is data being transmitted or FXS port is registering Power is off or registered failed

Chapter 1 Product description AC1000M/MS

LED FXS(1-2)
LAN1/2/3/4
WAN POWER 2.4G 5G RST

Status on Green

Explanation Registered successfully, but no data transfer

Blinking Green

There is data being transmitted or FXS port is registering

off

Power is off or registered failed

on Green Blinking Green

Network is connected (physical connection established), no data transmission There is data being transmitted

off on Green Blinking Green off
On (Green)

System is powered off or the network port is not connected to the network device. Network is connected (physical connection established), no data transmission There is data being transmitted
System is powered off or the network port is not connected to the network device.
The router is powered on and running normally.

Off
on Green Blinking Green off on Green Blinking Green

The router is powered off.
Wireless access point is ready. 2.4g is connected, and there is data transmitted 2.4g Wi-Fi off or system is powered off Wireless access point is ready. 5g is connected, and there is data transmitted

off

5g Wi-Fi off or system is powered off

Restore the factory settings button, press and hold the device after 5s to restore the factory settings

Chapter 1 Product description
Table 3 Interfaces AC1300MS

Interface Phone1 POWER RESET WPS
WAN LAN 1/2/3/4 AC1000MS

Description ATA Analog phone connectoRr ear Connector for a power adapPtaerne
l Restore the factory settings button, press and hold the device after 5s to restore tWhei-Ffai scetocruyristeytsteintgtisngs, when mobile phones, laptops and other wireless devices to find the wireless router Wi-Fi signal, when connected, click the WPS button on the router to complete the wireless router and wireless device encryption authentication and connection. Connector for accessing the Internet Connectors for local networked devices

POWER Phone1/2 USB LAN 1/2/3/4 WAN

Connector for a power adapter ATA Analog phone connector Connect USB Connectors for local networked devices Connector for accessing the Internet

Chapter 1 Product description
Hardware Installation
Before configuring your router, please see the procedure below for instructions on connecting the device in your network. Procedure 1 Configuring the Router
1. Connect analog phone to ATA Port with an RJ11 cable. 2. Connect the WAN port to the Interne your network's modem/switch/router/ADSL 3. equipment using an Ethernet cable. 4. Connect one end of the power cord to the power port of the device. Connect the other end to the
wall outlet. 5. Check the Power, WAN, and LAN LED to confirm network connectivity.
Warning Please do not attempt to use unsupported power adapters and do not remove power during configuring or updating the device. Using other power adapters may damage the AC1000M/AC1000MS/AC1300MS and will void the manufacturer warranty.
10

Chapter 1 Product description Warning Changes or modifications not expressly approved by the party responsible for compliance can void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency cause harmful interference to radio communications. However, there is no energy and, if not installed and used in accordance with the instructions, may guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: � Reorient or relocate the receiving antenna. � Increase the separation between the equipment and receiver. � Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. � Consult the dealer or an experienced radio/TV technician for help.
11

Chapter 1 Product description

IVR Voice Prompt
The devices may be configured by navigating the unit's voice menu. By using your phone and dialing a sequence of commands, the device can be configured for operation. Each device configuration section may be accessed by entering a certain operation code, as shown below.

Table 4 IVR Menu Setting Options

Operation code

Menu Navigation

1. Pick up phone and press "****" to start IVR

2. Choose "1", and The router reports the current WAN port connection type

3. Prompt "Please enter password", user needs to input password and press "#" key, if user wants to configuration WAN port connection type.

1 Network port configuration
(1) WAN Port Connection
Type

The password in IVR is same as web management interface login, the user may use phone keypad to enter password directly For example: WEB login password is "admin", so the password in IVR is "admin". The user may "23646" to access and then configure the WAN connection port. The unit reports "Operation Successful" if the password is correct. 4. Prompt "Please enter password", user needs to input password and press "#" key if user wants to configuration WAN port connection type.
5. Choose the new WAN port connection type (1) DHCP or (2) Static

The unit reports "Operation Successful" if the changes are successful. The router returns to the prompt "please enter your option ..." 6. To quit, enter "*"

Chapter 1 Product description

(2) WAN Port IP
Address
(3) WAN Port Subnet Mask
(4) Gateway

1. Pick up phone and press "****" to start IVR 2. Choose "2", and The router reports current WAN Port IP Address 3. Input the new WAN port IP address and press "#" key: 4. Use "*" to replace ".", for exampleuser can input 192*168*20*168 to set the
new IP address 192.168.20.168 5. Press # key to indicate that you have finished 6. Report "operation successful" if user operation is ok. 7. To quit, enter "**". 1. Pick up phone and press "****" to start IVR 2. Choose "3", and router reports current WAN port subnet mask 3. Input a new WAN port subnet mask and press # key: 4. Use "*" to replace ".", user can input 255*255*255*0 to set the new WAN
port subnet mask 255.255.255.0 5. Press "#" key to indicate that you have finished 6. Report "operation successful" if user operation is ok. 7. To quit, enter "**". 1. Pick up phone and press "****" to start IVR 2. Choose "4", and the router reports current gateway 3. Input the new gateway and press "#" key: 4. Use "*" to replace ".", user can input 192*168*20*1 to set the new gateway
192.168.20.1. 5. Press "#" key to indicate that you have finished. 6. Report "operation successful" if user operation is ok. 7. To quit, press "**".

Chapter 1 Product description

(5) DNS
2 Phone port configuration
3 Factory Reset
4 Reboot
5 WAN Port
Login

1. Pick up phone and press "****" to start IVR 2. Choose "5", and the router reports current DNS 3. Input the new DNS and press # key: 4. Use "*" to replace ".", user can input 192*168*20*1 to set the new gateway
192.168.20.1. 5. Press "#" key to indicate that you have finished. 16. RPeicpkourtp"pohpoenreataionnd spurcecsess"s*fu*l*"*i"f utosesrtaorpteIVraRtion is ok. 27. ISfeyloecutw"2a"n,ttthoeqnutiht,epdreevsisce"*w*"il.l continue to broadcast prompts the user to select
current phone number; 2. registration server address; 3. registration port; 4. call forwarding configuration5. DNS configuration ; 3. Continue pressing "1" and the unit will continue to broadcast the phone number of the current phone port. The device will then broadcast "1. Phone number ..." again. 1. Pick up phone and press "****" to start IVR 2. Choose "3", and the router reports "Factory Reset" 3. Prompt "Please enter password", the method of inputting password is the same as operation 1. 4. If you want to quit, press "*". 5. Prompt "operation successful" if password is right and then the router will be in factory default configuration. 61.. PPircekssup"7p"hroenbeoaontdtoprmesask"e*c*h*a*n"gteossteafrftecIVtiRve. 2. Choose "4", and the router reports "Reboot" 3. Prompt "Please enter password", the method of inputting password is same as operation 1. 4. the router reboots if password is right and operation
1. Pick up phone and press "****" to start IVR 2. Choose "5", and the router reports "WAN Port Login" 3. Prompt "Please enter password", the method of inputting password is same as
operation 1. 4. If user wants to quit, press "*".
14

Chapter 1 Product description

6 WEB Access
Port
7 Firmware Version

1. Pick up phone and press "****" to start IVR 2. Choose "6", and the router reports " WEB Access Port" 3. Prompt "Please enter password", the method of inputting password is same as
operation 1. 4. Report "operation successful" if user operation is ok. 5. Report the current WEB Access Port 61. PSiectk tuhpepnheonweWanEdBpraecscse"s*s**p*o"rtoasntadrtpIrVeRss "#" key. 2. Choose "7" and the router reports the current Firmware version

Chapter 1 Product description
Note 1.While using Voice menu, press * (star) to return to the main menu. 2.If any changes are made in the IP assignment mode, the router must be rebooted in
order for the settings to take effect. 3.While entering an IP address or subnet mask, use "*" (star) to enter "." (Dot) and use "#"
(hash) key to finish entering IP address or subnet mask: 4.For example, to enter the IP address 192.168.20.159 by keypad, press these keys:
192*168*20*159, use the #(hash) key to indicate that you have finished entering the IP address. 5.Use the # (hash) key to indicate that you have finish entering the IP address or subnet mask 6.While assigning an IP address in Static IP mode, setting the IP address, subnet mask and default gateway is required to complete the configuration. If in DHCP mode, please make sure that a DHCP server is available in your existing broadband connection to which WAN port of AC1000M/AC1000MS/AC1300MS is connected. 7.The default LAN port IP address of the AC1000M/AC1000MS/AC1300MS is 192.168.11.1 and this address should not be assigned to the WAN port IP address of the AC1000M/AC1000MS/AC1300MS in the same network segment of LAN port. 8.The password can be entered using phone keypad, the mapping table between number and letters as follows: To input: D, E, F, d, e, f -- press `3' To input: G, H, I, g, h, i -- press `4' To input: J, K, L, j, k, l -- press `5' To input: M, N, O, m, n, o -- press `6' To input: P, Q, R, S, p, q, r, s -- press `7' To input: T, U, V, t, u, v -- press `8' To input: W, X, Y, Z, w, x, y, z -- press `9' To input all other characters in the administrator password-----press `0',
16

Chapter 2 Basic Settings
This chapter covers: � Two-Level Management � Web Management Interface � Configuring � Making a Call
17

Chapter 2 Basic Settings
Two-Level Management
This section explains how to setup a password for an administrator or user and how to adjust basic and advanced settings. AC1000M/AC1000MS/AC1300MS supports two-level management: (1) administrator mode operation: please type "admin/admin" on Username/Password and click Login button to begin configuration. (2) user mode operation, please type "user/user" on Username/Password and click Login button to begin configuration.
Web Management Interface
The devices feature a web browser-based interface that may be used to configure and manage the device. See below for information
Login in from the LAN port
1. Ensure your PC is connected to the router's LAN port correctly. Note You may either set up your PC to get an IP dynamically from the router or set up the IP address of the PC to be the same subnet as the default IP address of router is 192.168.11.1. For detailed information, see Chapter 5: Troubleshooting Guide.
2. Open a web browser on your PC and type "http://192.168.11.1". 3. The following window appears and prompts for username, password.
4. For administrator mode operation, please type admin/admin on Username/Password and click Login to begin configuration. 5. For user mode operation, please type user/user on Username/Password and click Login to begin configuration.
18

Chapter 2 Basic Settings
Note If you are unable to access the web configuration, please see Chapter 5 Troubleshooting Guide for more information. 6.The web management interface automatically logs out the user after 5 minutes of inactivity. Login in from the WAN port 1. Ensure your PC is connected to the router's WAN port correctly. 2. Obtain the IP addresses of WAN port using Voice prompt or by logging into the device web management interface via a LAN port and navigating to Network > WAN. 3. Open a web browser on your PC and type http://<IP address of WAN port>. The following login page will be opened to enter username and password.
4. For administrator mode operation, type admin/admin on Username/Password and click Login to begin configuration. 5. For user mode operation, type user/user on Username/Password and click Login to begin configuration.
Note If you fail to access to the web configuration, see Chapter 5 Troubleshooting Guide for more information. 6. The web management interface automatically logs out the user after 5 minutes of inactivity.
19

Chapter 2 Basic Settings
Web Management Interface Details
Status
Table 5 Web management interface

Serial number Position 1
Position 2 Position 3 Position 4 Position 5 Position 6

Name

Description

Click this navigation bar to bring up the corresponding Main navigation bar
child navigation bar

navigation bar

Click the sub navigation bar to enter the configuration page

Product Information Device Information Configuration Title

Product Information Login/Logout Help

Show product information
main information shows the firmware version, DSP version, current time and management mode. help to display help information, users can get some help here Use this button, config will be saved and take effect immediately After changing the parameters, you need to click this button to save. After you click Save, there is a need to restart the device.

Click to cancel the change

Click to restart

Refresh current page

Chapter 2 Basic Settings
Setting the Time Zone
Table 6 Setting time zone

Field Name
NTP Enable
Option 42 Current Time
Sync with host
Time Zone Primary NTP Server Secondary NTP Server NTP Synchronization(1 1440min)

Description
Enable NTP (Network Time Protocol) to automatically retrieve time and date settings for the device Whether to enable Option 42 When NTP Enable is set to "Disable", manually configure the time and date via the Current Time parameter

Press

button to synchronize the host PC

date, time and time zone.

Select the desired time zone

Primary and secondary NTP server address for clock synchronization. A valid NTP server must be reachable for full NTP fTuhnecstyionncahlritoyn. ization period with NTP (1-1440 minutes), default is 60

Chapter 2 Basic Settings
Configuring an Internet Connection
From the Network > WAN page, WAN connections may be inserted or deleted. For more information on Internet Connection setting, see Table 10 below.
Table 7 Configuring an internet connection
22

Chapter 2 Basic Settings

Field Name
Connect Name
Service IP Protocol Version WAN IP Mode NAT Enable VLAN ID DNS Mode

Description
Use keywords to indicate WAN port service model (the parameters are defined in Network--> multi-WAN page) Chose the service mode for the created connection IPv4 and IPv6 are supported Choose Internet connection mode, DHCP, PPPoE, or Bridge Enable or disable NAT Multiple WAN connections may be created with the same VLAN ID Select DNS mode, options are Auto and Manual:
When DNS mode is Auto, the device under LAN port will automatically obtains the preferred DNS and alternate DNS.
When DNS mode is Manual, the user should manually configure the preferred DNS and alternate DNS

Primary DNS Secondary DNS DHCP DHCP Renew DHCP Vendor (Option60)

Enter the preferred DNS address Enter the secondary DNS address (Displayed when WAN IP Mode is set to DHCP) Refresh the DHCP IP Specify the DHCP Vendor field Display the vendor and product name

Chapter 2 Basic Settings
Setting up Wireless Connections
To set up the wireless connection, please perform the following steps. 1.Enable Wireless and Setting SSID 2.Open Wireless > Basic webpage as shown below: Table 8 Wireless > Basic web page (user view)

Field Name
Radio On/Off Network Mode SSID Multiple SSID 1-4
broadcast(SSID)
AP Isolation

Description
Select "Radio Off" to disable wireless operation Select "Radio On" to enable wireless operation Please note: "Save" required for this parameter change
Choose one network mode from the drop down list. The logical name of the wireless connection (text, numbers or various special characters) Multiple SSID 1 - 4, configure up to 4 unique SSIDs Enabled: The device SSID is broadcast at regular intervals Disabled: The device SSID is not broadcast at regular intervals, disallowing wi-fi clients from automatically connecting to the AC1000M/AC1000MS/AC1300MS Enabled: Devices connected to the router are isolated from one another on virtual networks Disabled: Devices connected to the router are visible on the network to each other
24

Chapter 2 Basic Settings

Enabled: Devices connected to the router via one of the Multiple SSIDs are isolated

MBSSID AP Isolation from one another on virtual networks

Disabled: Devices connected to the router via one of the Multiple SSIDs are visible on

BSSID

tBhaesinceStewrvoircketSoeetaIdchenottihfier � AP MAC Address Listing

Frequency (Channel) Select the channel of operation for the device from the drop-down list

Mixed Mode: Packet preamble (only) is transmitted in a format compatible with

Operating Mode

legacy 802.11a/g (for 802.11a/g receivers). Green Field: High throughput packet preambles do not contain legacy formatting

(2800:2t.h1e1ndeovniclyenoeptewraotreks) with a 20 MHz channel size 20/40: the device operates with Channel Bandwidth
a 40 MHz channel size

Encryption
Open Wireless/Wireless Security webpage to configure custom security parameters. Table 9 Wireless Security web page

Chapter 2 Basic Settings

Field Name
SSID Choice
Security Mode
WPA Algorithms Pass Phrase Key Renewal Interval Access Policy Policy
Add a Station MAC

Description
Choose the SSID from the drop-drown list for which security will be configured Select an appropriate encryption mode to improve the security and privacy of your wireless data packets. Each encryption mode will launch an additional web page and ask you to offer additional configuration. For high security, the device can be configured for Security Mode as WPA2-PSK and WPA Algorithms as AES. This parameter is used to select the encryption of wireless home gateway algorithms; options are TKIP, AES and TKIPAES. Configure the WPA-PSK security password. Set the key scheduled update cycle, default is 3600s.
Disable: Access policy rules are not enforced Allow: Only allow the clients in the station MAC list to access Rejected: Block the clients in the station MAC list from registering Enter the MAC address of the clients which you want to allow or reject

Configuring Session Initiation Protocol
SIP Accounts
AC1000M/AC1000MS/AC1300MS have 1 Line to make SIP (Session Initiation Protocol) calls. Before registering, the device user should have a SIP account configured by the system administrator or provider. See the section below for more information.

Chapter 2 Basic Settings
Configuring SIP the Web Management Interface
Table 10 Configuring SIP the Web Management Interface

Procedure 1. Open the Line1/SIP Account webpage, as illustrated above. 2. Fill the SIP Server address and SIP Server port number (from administrator or provider) into Proxy Server Name and into Proxy Port parameters. 3. Fill account details received from your administrator into Display Name, Phone Number and Account details. 4. Type the password received from your administrator into the Password parameter.

5. Press

button in the bottom of the webpage to save changes.

Chapter 2 Basic Settings
Viewing the Registration Status
Table 11 Registration status
Procedure
To view the SIP account status of device, open the Status webpage and view the value of registration status.
Making a Call
Calling phone or extension numbers
To make a phone or extension number call: � Both ATA and the other VoIP device (i.e., another ATA or other SIP products) must have public IP
addresses, or � Both ATA and the other VoIP device (i.e., another ATA or other SIP products) are on the same LAN using
private or public IP addresses, or � Both ATA and the other VoIP device (i.e., another ATA or other SIP products) can be connected through a
router using a public or private IP addresses. To make a call, first pick up the analog phone or turn on the speakerphone on the analog phone, input the IP address directly, end with #.
28

Chapter 2 Basic Settings
Direct IP calls
Direct IP calling allows two phones, that is, an ATA with an analog phone and another VoIP Device, to talk to each other without a SIP proxy. VoIP calls can be made between two phones if: � Both ATA and the other VoIP device (i.e., another ATA or other SIP products) have public IP addresses, or � Both ATA and the other VoIP device (i.e., another ATA or other SIP products) are on the same LAN using
private or public IP addresses, or � Both ATA and the other VoIP device (i.e., another ATA or other SIP products) can be connected through a
router using public or private IP addresses. To make a direct IP call, first pick up the analog phone or turn on the speakerphone on the analog phone, Input the IP address directly, with the end "#".
Call Hold
While in conversation, pressing the "*77" to put the remote end on hold, then you will hear the dial tone and the remote party will hear hold tone at the same time. Pressing the "*77" again to release the previously hold state and resume the bi-directional media.
Blind Transfer
Assume that call party A and party B are in conversation. Party A wants to Blind Transfer B to C: Party A dials "*78" to get a dial tone, then dials party C's number, and then press immediately key # (or wait for 4 seconds) to dial out. A can hang up.
Attended Transfer
Assume that call party A and B are in a conversation. A wants to Attend Transfer B to C: Party A dials "*77" to hold the party B, when hear the dial tone, A dials C's number, then party A and party C are in conversation. Party A dials "*78" to transfer to C, then B and C now in conversation. If the transfer is not completed successfully, then A and B are in conversation again.
Conference
Assume that call party A and B are in a conversation. A wants to add C to the conference: Party A dials "*77" to hold the party B, when hear the dial tone, A dial C's number, then party A and party C are in conversation. Party A dials "*88" to add C, then A and B, for conference.
29

Chapter 3 Web Interface
Chapter 3 Web Interface
This chapter guides users to execute advanced (full) configuration through admin mode operation. This chapter covers: � Login � Status � Network and Security � Wireless � SIP � FXS1 � Security � Application � Administration � Management � System Log � Logout � Reboot
30

Chapter 3 Web Interface
Login
Table 12 Login details
Procedure 1. Connect the LAN port of the router to your PC an Ethernet cable 2. Open a web browser on your PC and type http://192.168.11.1. 3. Enter Username admin and Password admin. 4. Click Login
31

Chapter 3 Web Interface
Status
This webpage shows the status information about the Product, Network, SIP Account Status, FXS Port Status, Network Status, Wireless Info and System Status Table 13 Status
32

Chapter 3 Web Interface
Network and Security
You can configure the WAN port, LAN port, DDNS, Multi WAN, DMZ, MAC Clone, Port Forward and other parameters in this section of the web management interface.
WAN
This page allows you to set WAN configuration with different modes. Use the Connection Type drop down list to choose one WAN mode and then the corresponding page will be displayed.
Static IP
This configuration may be utilized when a user receives a fixed public IP address or a public subnet, namely multiple public IP addresses from the Internet providers. In most cases, a Cable service provider will offer a fixed public IP, while a DSL service provider will offer a public subnet. If you have a public subnet, you can assign an IP address to the WAN interface.
Table 14 Internet

Field Name
IP Address Subnet Mask Default Gateway
DNS Mode
Primary DNS Address Secondary DNS Address

Descripti The IP address of Internet port on
The subnet mask of Internet port The default gateway of Internet port Select DNS mode, options are Auto and Manual:
1. When DNS mode is Auto, the device under LAN port will automatically obtain the preferred DNS and alternate DNS.
2. When DNS mode is Manual, the user manually configures the preferred DNS and alternate DNS information
The primary DNS of Internet port The secondary DNS of Internet port

Chapter 3 Web Interface
DHCP
The Router has a built-in DHCP server that assigns private IP address to each local client. The DHCP feature allows to the router to obtain an IP address automatically from a DHCP server. In this case, it is not necessary to assign an IP address to the client manually. Table 15 DHCP

Field Name
DNS Mode
Primary DNS Address Secondary DNS Address DHCP Renew DHCP Vendor (Option60)

Description
Select DNS mode, options are Auto and Manual:
When DNS mode is Auto, the device under LAN port will automatically obtain the preferred DNS and alternate DNS.
When DNS mode is Manual, the user should manually configure the pPreimfearrryedDNDSNSofaInndtearlntertnpaotert.DNS Secondary DNS of Internet port. Refresh the DHCP IP address Specify the DHCP Vendor field. Display the vendor and product name.
34

Chapter 3 Web Interface
PPPoE
PPPoE stands for Point-to-Point Protocol over Ethernet. It relies on two widely accepted standards: PPP and Ethernet. It connects users through an Ethernet to the Internet with a common broadband medium, such as a single DSL line, wireless device or cable modem. All the users over the Ethernet can share a common connection. PPPoE is used for most of DSL modem users. All local users can share one PPPoE connection for accessing the Internet. Your service provider will provide you information about user name, password, and authentication mode. Table 16 PPPoE

Field Name
PPPoE Account

Description
Enter a valid user name provided by the ISP

Chapter 3 Web Interface

PPPoE Password

Enter a valid password provided by the ISP. The password can contain special characters and allowed special characters are $, +, *, #, @ and ! For example, the password can be entered as #net123@IT!$+*.

Confirm Password Service Name
Operation Mode

Enter your PPPoE password again Enter a service name for PPPoE authentication. If it is left empty, the service name is auto detected. Select the mode of operation, options are Keep Alive, On Demand and Manual: When the mode is Keep Alive, the user sets the 'keep alive redial period' values range from 0 to 3600s, the default setting is 5 minutes; When the mode is On Demand, the user sets the 'on demand idle time' value in the range of 0-60 minutes, the default setting is 5 minutes;

Keep Alive Redial PePrPioEd Account

When the mode is Manual, there are no additional settings to configure Set the interval to send Keep Alive messaging Assign a valid user name provided by the ISP

Bridge Mode
Bridge Mode under Multi WAN is different with traditional bridge setting. Bridge mode employs no IP addressing and the device operates as a bridge between the WAN port and the LAN port. Route Connection has to be built to give IP address to local service on device.
Table 17 Bridge Mode

Chapter 3 Web Interface

Field Name
Bridge Type IP Bridge PPPoE Bridge Hardware IP Bridge DHCP Service Type Pass Through DHCP Snooping
Local Service
VLAN Mode Disable Enable Trunk
VLAN ID 802.1p

Description
Allow all Ethernet packets to pass. PC can connect to upper network directly. Only Allow PPPoE packets pass. PC needs PPPoE dial-up software. Packets pass through hardware switch with wired speed. Does not support wireless port binding
DHCP packets can be forwarded between WAN and LAN, DHCP server in gateway will not allocate IP to clients of LAN port. When gateway forwards DHCP packets form LAN to WAN it will add option82 to DHCP packet, and it will remove option82 when forwarding DHCP packet from the WAN interface to the LAN interface. Local DHCP service will not allocate IP to clients of LAN port. Gateway will not forward DHCP packets between LAN and WAN, it also blocks DHCP packets from the WAN port. Clients connected to the LAN port can get IP from DHCP server run in gateway.
The WAN interface is untagged. LAN is untagged. The WAN interface is tagged. LAN is untagged. Only valid in bridge mode. All ports, including WAN and LAN, belong to this VLAN Id and all ports are tagged with this VLAN id. Tagged packets can pass through WAN and LAN. Set the VLAN ID. Set the priority of VLAN, Options are 0~7.

Note Multiple WAN connections may be created with the same VLAN ID

Chapter 3 Web Interface
LAN
LAN Port
NAT translates the packets from public IP address to local IP address to forward packets to the proper destination.
Table 18 LAN port

Field Name
IP Address
Local Subnet Mask Local DHCP Server

Description
Enter the IP address of the router on the local area network. All the IP addresses of the computers which are in the router's LAN must be in the same network segment with this address, and the default gateway of the computers must be this IP address. (The default is 192.168.11.1). Enter the subnet mask to determine the size of the network (default is 255.255.255.0/24). Enable/Disable Local DHCP Server.

DHCP Start Address

Enter a valid IP address as a starting IP address of the DHCP server, and if the router's LAN IP address is 192.168.11.1, starting IP address can be 192.168.11.2 or greater, but should be less than the ending IP address.

DHCP End Address Enter a valid IP address as an end IP address of the DHCP server.

Chapter 3 Web Interface

DNS Mode
Primary DNS Secondary DNS Client Lease Time DNS Proxy

Select DNS mode, options are Auto and Manual:
When DNS mode is Auto, the device under LAN port will automatically obtains the preferred DNS and alternate DNS.
When DNS mode is Manual, the user should manually configure the preferred DNS and alternate DNS. Enter the preferred DNS address. Enter the secondary DNS address. This option defines how long the address will be assigned to the computer within the network. In that period, the server does not assign the IP address to the other computer. Enable or disable; If enabled, the device will forward the DNS request of LANside network to the WAN side network.

VPN
The router supports VPN connections with PPTP-based VPN servers. Table 19 VPN

Field Name VPN Enable
Initial Service IP User Name Password

Description Enable/Disable VPN. If the VPN is enabled, user can select PPTP and L2TP mode VPN. Enter VPN server IP address. Enter authentication username. Enter authentication password.

Chapter 3 Web Interface
Port Forward
Table 20 Port Forward

Field Name
Comment IP Address Port Range Protocol Apply/Cancel

Description
Sets the name of a port mapping rule or comment The IP address of devices under the LAN port. Set the port range for the devices under the LAN port. (1-65535) You can select TCP, UDP, TCP & UDP three cases After finish configurations, click apply, the number will be generated under NO. List; click Cancel to if you do not want to make the changes.

Table 21 Virtual Servers

Field Name
Comment IP Address

Description
To set up a virtual server notes Virtual server IP address
40

Chapter 3 Web Interface

Public Port Private Port Protocol Apply/Cancel

Public port of virtual server Private port of virtual servers ports You can select from TCP, UDP, and TCP&UDP. After finish configurations, click apply, the number will be generated under NO. List; click Cancel to if you do not want to make the changes.

Chapter 3 Web Interface
DMZ
Table 22 DMZ

Field Name
DMZ Enable DMZ Host IP Address

Description
Enable/Disable DMZ. Enter the private IP address of the DMZ host.

Chapter 3 Web Interface
Port Setting
Table 23 Port setting

Field Name WAN Port speed Nego
LAN1~LAN3 Port Speed Nego

Description Auto-negotiation, options are Auto, 100M full, 100M half-duplex, 10M half and full. Auto-negotiation, options are Auto, 100M full, 100M half, 10M half and 10M full.

Routing
Table 24 Routing

Chapter 3 Web Interface

Field Name Destination Host/Net Gateway Interface Comment

Description Destination address Both Host and Net selection Gateway IP address LAN/WAN/Custom three options, and add the corresponding address Comment

Advance
Table 25 Advance

Field Name Most Nat connections Mss Mode Mss Value AntiDos-p IP conflict detection IP conflict Detecting Interval

Description The largest value which the AC1000M/AC1000MS/AC1300MS can provide Choose Mss Mode from Manual and Auto Set the value of TCP You can choose to enable or prohibit Select enable if enabled, phone IP conflict will have tips or prohibit Detect IP address conflicts of the time interval

Chapter 3 Web Interface
Wireless 2.4GHz
Basic
Table 26 Basic

Field Name Radio on/off

Description Select "Radio Off" to disable wireless. Select "Radio On" to enable wireless.

Wireless connection mode According to the wireless client type, select one of these modes. Default is AP

Network Mode

Choose one network mode from the drop down list. Default is 11b/g/n mixed mode

Chapter 3 Web Interface

SSID
Multiple SSID1~SSID3 Hidden Broadcast(SSID) AP Isolation MBSSID AP Isolation
BSSID
Frequency (Channel) HT Physical Mode Operating Mode Channel Bandwidth Guard Interval
Reverse Direction Grant (RDG)
STBC

It is the basic identity of wireless LAN. SSID can be any alphanumeric or a combination of special characters. It will appear in the wireless network access list. The device supports 4 SSIDs. After the item is checked, the SSID is no longer displayed in the search for the Wi-Fi wireless network connection list After initial State opening, the device broadcasts the SSID of the router to wireless network If AP isolation is enabled, the clients of the AP cannot access each other AP isolation among the devices which are not belong to this AP and along to, when the option is enabled, the devices which do not belong to this AP cannot access the devices which are within the AP. A group of wireless stations and a WLAN access point (AP) consists of a basic access device (BSS), each computer in the BSS must be configured with the same BSSID, that is, the wireless AP logo You can select Auto Select and channel 1/2/3/4/5/6/7/8/9/10/11. Mixed Mode: In this mode, the previous wireless card can recognize and connect to the Pre-N AP, but the throughput will be affected
Green Field: high throughput can be achieved, but it will affect backward compatibility, and security of the system Select channel bandwidth, default is 20 MHz and 20/40 MHz. The default is automatic, in order to achieve good BER performance, you must set the appropriate guard interval Enabled: Devices on the WLAN are able to transmit to each other without requiring an additional contention-based request to transfer (i.e. devices are able to transmit to another device on the network during TXOP)
Disabled: Devices on the WLAN must make a request for transmit when communicating with another device on the network Space-time Block Code

Chapter 3 Web Interface
Aggregation MSDU (AMSDU)
Auto Block Ack Decline BA Request HT Disallow TKIP HT LDPC

Enabled: Multiple copies of signals are transmitted to increase the chance of successful delivery DEnisaabblleedd::ASlTloBwCsisthneotdeemvicpelotyoeadgfgorresgiagtneaml turaltnipsmleisEstihoenrnet frames into a single 802.11n, thereby improving the ratio of frame data to frame overhead
Disabled: No frame aggregation is employed at the router Enabled: Multiple frames are acknowledged together using a single Block Acknowledgement frame.
Disabled: Auto block acknowledgement is not used by the device � use this configuration when low throughput/connectivity issues are experienced by mEnoabbilleedd:eDviiscaelslow block acknowledgement requests from devices Disabled: Allow block acknowledgement requests from devices Enabled: Disallow the use of Temporal Key Integrity Protocol for connected devices
Disabled: Allow the use of Temporal Key Integrity Protocol for connected devices Enabled: Enable Low-Density Parity Check mechanism for increasing chance of successful delivery in challenging wireless environments
Disabled: Disable Low-Density Parity Check mechanism

Chapter 3 Web Interface
Wireless Security
Table 27 Wireless security

Field Name SSID Choice

Description Choose one SSID from SSID, Multiple SSID1, Multiple SSID2 and Multiple SSID3.

Security Mode

Select an appropriate encryption mode to improve the security and privacy of your wireless data packets. Each encryption mode will bring out different web page and ask you to offer additional configuration.

User can configure the corresponding parameters. Here are some common encryption methods:

OPENWEPA handshake way of WEP encryption, encryption via the WEP key:

Table 28 Wi-Fi Security Setting

Chapter 3 Web Interface

Field Name

Description

Security Mode

This is used to select one of the 4 WEP keys, key settings on the clients should be the

same with this when connecting.

WEP Keys

Set the WEP key. A-64 key need 10 Hex characters or 5 ASCII characters; choose A-128

key need 26 Hex characters or 13 ASCII characters.

WEP represents Wired Equivalent Privacy, which is a basic encryption method.

WPA-PSK, the router will use WPA way which is based on the shared key-based .
Table 29 WPA-PSK

Field Name WPA Algorithms
Pass Phrase Key Renewal Interval

Description
This item is used to select the encryption of wireless home gateway algorithms, options are TKIP, AES and TKIPAES. Setting up WPA-PSK security password. Set the key scheduled update cycle, default is 3600s.

Chapter 3 Web Interface
WPAPSKWPA2PSK manner is consistent with WPA2PSK settings:
Table 30 WPAPSKWPA2PSK

Field Name WPA Algorithms
Pass Phrase Key Renewal Interval

Description
The home gateway is used to select the wireless security encryption algorithm options are TKIP, AES, TKIP / AES. 11N mode does not support TKIP algorithms.
Set WPA-PSK/WPA2-PSK security code Set the key scheduled update cycle, default is 3600s

WPA-PSK/WPA2-PSK WPA/WPA2 security type is actually a simplified version, which is based on the WPA shared key mode, higher security setting is also relatively simple, suitable for ordinary home users and small businesses.

Wireless Access Policy:
Table 31 Wireless Access Policy
50

Chapter 3 Web Interface

Field Name Access policy
Policy

Description Wireless access control is used to allow or prohibit the specified client to access to your wireless network based on the MAC address. Disable : Prohibition: wireless access control policy. Allow: only allow the clients in the list to access.

Add a station MAC

Rejected: block the clients in the list to access. Enter the MAC address of the clients which you want to allow or prohibit

Example: Prohibit the device whose wireless network card MAC address is 00:1F: D0: 62: BA:FF's to access the wireless network, and allow other computers to access the network. Implementation: As shown, the Policy is Reject, add 00:1F: D0: 62: BA: FF to the MAC, click Save and reboot the device settings to take effect.

WMM
WMM (Wi-Fi Multi-Media) is the QoS certificate of Wi-Fi Alliance (WFA). This provides you to configure the parameters of wireless multimedia; WMM allows wireless communication to define a priority according to the home gateway type. To make WMM effective, the wireless clients must also support WMM. Table 32 WMM

WDS
Table 33 WDS

Chapter 3 Web Interface
Description WDS stands for Wireless Distribution System, enabling WDS access points to be interconnected to expand a wireless network.
WPS
WPS (Wi-Fi Protected Setup) provides easy procedure to make network connection between wireless station and wireless access point with the encryption of WPA and WPA2. It is the simplest way to build connection between wireless network clients and wireless access point. Users do not need to select any encryption mode and type any long encryption passphrase to setup a wireless client every time. The only requirement is for the user to press the WPS button on the wireless client, and WPS will connect for client and router automatically. Table 34 WPS

Field Name WPS Config WPS WPS Summary

Description Enable/Disable WPS function

Chapter 3 Web Interface

WPS Current Status Display the current status of WPS WPS Configured Display the configure the status information of WPS

WPS SSID

Display WPS SSID

WPS Progress

WPS Mode

PINEnter the PIN code of the wireless device which accesses to this LAN in the following option, and press apply. Then router begins to send signals, turn on the PIN accessing method on the clients, and then it can access the wireless AP automatically.

PBCThere are two ways to start PBC mode, user can press the PBC button directly on the device, or select PBC mode on the software and apply. Users can activate WPS connection in WPS mode through these two methods, only when the clients choose PBC access, the clients can connect the AP automatically.

WPS Status

WPS shows status in three ways: WSC: Idle WSC: Start WSC process (begin to send messages) WSC: Success; this means clients have accessed the AP successfully

Station Info
Table 35 Station info

Description This page displays information about the current registered clients' connections including operating MAC address and operating statistics.
53

Chapter 3 Web Interface
Advanced
Table 36 Advanced

Field Name BG Protection Mode Beacon Interval
Data Beacon Rate(DTIM)
Fragment Threshold

Description Select G protection mode, options are on, off and automatic. The interval of sending a wireless beacon frame, within this range, it will send a beacon frame for the information of the surrounding radio network. Specify the interval of transmitting the indication message, it is a kind of cut down operation, and it is used for informing the next client which is going to receive broadcast multi-cast. Specify the fragment threshold for the packet, when the length of the packet exceeds this value, the packet is divided.

RTS Threshold

Specify the packet RTS threshold, when the packet exceeds this value, the router will send RTS to the destination site consultation

TX Power

Define the transmission power of the current AP, the greater it is, the stronger the signal is.

Short Preamble Short Slot

Choose enable or disable Enable/Disable short slot. By default it is enabled, it is helpful in improving the transmission rate of wireless communication.

Tx Burst

One of the features of MAC layer, it is used to improve the fairness for transmitting TCP.

Chapter 3 Web Interface

Pkt_Aggregate Support Channel

It is a mechanism that is used to enhance the LAN, in order to ensure that the home gateway packets are sent to the destination correctly. Choose appropriate channel

Wi-Fi Multimedia (WMM)

WMM Capable

Enable/Disable WMM.

APSD Capable

Enable/Disable APSD. Once it is enabled, it may affect wireless performance, but can play a role in energy-saving power

WMM Parameters
Multicast-toUnicast Converter

Press

, the webpage will jump to the configuration page

of Wi-Fi multimedia. Enable/Disable Multicast-to-Unicast. By default, it is Disabled.

Chapter 3 Web Interface
Wireless 5GHz
Basic
Table 37 Basic

Field Name Radio on/off
Wireless connection mode Network Mode

Description Select "Radio off" to disable wireless. Select "Radio on" to enable wireless.
According to the wireless client type, select one of these modes. Default is AP
Choose one network mode from the drop down list. Default is 11b/g/n mixed mode

Chapter 3 Web Interface

Multiple SSID
Multiple SSID1~SSID3 Broadcast(SSID) AP Isolation MBSSID AP Isolation
BSSID
Frequency (Channel) Operating Mode

It is the basic identity of wireless LAN. SSID can be any alphanumeric or a combination of special characters. It will appear in the wireless network access list. The device supports 4 SSIDs. After initial State opening, the device broadcasts the SSID of the router to wireless network If AP isolation is enabled, the clients of the AP cannot access each other AP isolation among the devices which are not belong to this AP and along to, when the option is enabled, the devices which do not belong to this AP cannot access the devices which are within the AP. A group of wireless stations and a WLAN access point (AP) consists of a basic access device (BSS), each computer in the BSS must be configured with the same BSSID, that is, the wireless AP logo You can select Auto Select and channel 1/2/3/4/5/6/7/8/9/10/11. Mixed Mode: In this mode, the previous wireless card can recognize and connect to the Pre-N AP, but the throughput will be affected

Green Field: high throughput can be achieved, but it will affect backward

compatibility, and security of the system

Channel Bandwidth

Select channel bandwidth, default is 20 MHz and 20/40 MHz.

Guard Interval

The default is automatic, in order to achieve good BER performance, you must

set the appropriate guard interval

Enabled: Devices on the WLAN are able to transmit to each other without

Reverse Direction Grant requiring an additional contention-based request to transfer (i.e. devices are

(RDG)

able to transmit to another device on the network during TXOP)

Disabled: Devices on the WLAN must make a request for transmit when

communicating with another device on the network

STBC

Space-time Block Code

Enabled: Multiple copies of signals are transmitted to increase the chance of successful delivery

Disabled: STBC is not employed for signal transmission

Aggregation MSDU (AMSDU)

Enabled: Allows the device to aggregate multiple Ethernet frames into a single 802.11n, thereby improving the ratio of frame data to frame overhead Disabled: No frame aggregation is employed at the router

Chapter 3 Web Interface Auto Block Ack Decline BA Request HT Disallow TKIP
HT LDPC

Enabled: Multiple frames are acknowledged together using a single Block Acknowledgement frame. Disabled: Auto block acknowledgement is not used by the device � use this configuration when low throughput/connectivity issues are experienced by mobile devices
Enabled: Disallow block acknowledgement requests from devices Disabled: Allow block acknowledgement requests from devices Enabled: Disallow the use of Temporal Key Integrity Protocol for connected devices Disabled: Allow the use of Temporal Key Integrity Protocol for connected devices Enabled: Enable Low-Density Parity Check mechanism for increasing chance of successful delivery in challenging wireless environments Disabled: Disable Low-Density Parity Check mechanism

Wireless Security
Table 38 Wireless security

Field Name SSID Choice

Description Choose one SSID from SSID, Multiple SSID1, Multiple SSID2 and Multiple SSID3.

Chapter 3 Web Interface

Security Mode

Select a different encryption mode, the web interface will be different, user can configure the corresponding parameters under the mode you select. Please refer to 4.4.2 section.

WMM
Please refer to 4.4.3 section.
WDS
Please refer to 4.4.4 section.
WPS
Please refer to 4.4.5 section.
Station Info
Please refer to 4.4.6 section.
Advanced
Please refer to 4.4.7 section.

Chapter 3 Web Interface
SIP
SIP Settings
Table 39 SIP Settings

Parameters name SIP Parameters SIP T1 SIP User Agent Name Max Forward Max Auth Reg Retry Intvl Reg Retry Long Intvl Mark All AVT Packets RFC 2543 Call Hold SRTP

Description
The default value is 500 Enter the SIP User Agent header field Modify the maximum hop value, the default is 70 Change the number of authentication failures, the default value is 2 Registration failed again registration interval, default is 30 Registration failed Register again for the long interval Default 1200 The default enable is on The default enable is on The default is disabled
60

Chapter 3 Web Interface

SRTP Prefer Encryption Service Type DNS Refresh Timer Transport Response Status Code Handling Retry Reg RSC NAT Traversal NAT Traversal STUN Server Address NAT Refresh Interval(sec) STUN Server Port

Support for AES_CM and ARIA_CM Default general Modify the DNS refresh time, the default value of 0 The transmission type defaults to UDP
Fall in Retry Reg RSC
Whether to enable NAT mode, or select STUN to penetrate STUN server IP address Refresh interval STUN port, the default is 3478

VoIP QoS
Table 40 VoIP QoS

Parameters name

Description

SIP QoS(0-63) RTP QoS(0-63)

Defaults to 46,you can set a range of values is 0~63 Defaults to 46,you can set a range of values is 0~63

Configuration can be based on the scene environment to modify the parameters

Chapter 3 Web Interface
Dial Plan
Table 41 Dial Plan

Field Name Dial Plan Line Digit Map
Action
Move Up Move Down

Description Enable/Disable dial plan. Set the line. Enter the sequence used to match input number The syntactic, please refer to the following Dial Plan Syntactic. Choose the dial plan mode from Deny and Dial Out. Deny means router will reject the matched number, while Dial Out means router will dial out the matched number. Move the dial plan up the list. Move the dial plan down the list.

Chapter 3 Web Interface
Adding one Dial Plan
Table 42 Adding one dial plan

Description Step 1. Enable Dial Plan. Step 2. Click Add button, and the configuration table. Step 3. Fill in the value of parameters. Step 4. Press OK button to end configuration.

Dial Plan Syntactic

Table 43 Dial Plan Syntactic

No.

String

0123456789* #

[sequence] 3
4 x.

5 <dialed:substituted>

Description Allowed characters Lowercase letter "x" stands for one legal character To match one character form sequence. For example: [0-9]: match one digit form 0 to 9 [23-5*]: match one character from 2 or 3 or 4 or 5 or *
Match to x, xx, xxx, xxxx and so on. For example: "01" can be match to "0","01","011"..."011111..." and so on
Replace dialed with substituted. For example <8:1650>123456input is "85551212", output is "16505551212"

Chapter 3 Web Interface

x,y

Make outside dial tone after dialing "x", stop until dialing character "y" For example
"9,1xxxxxxxxxx":the device reports dial tone after inputting "9", stops tone until inputting "1" "9,8,010x": make outside dial tone after inputting "9", stop tone until inputting "0"
Set the delayed time. For example: "<9:111>T2": The device will dial out the matched number "111" after 2 seconds.

Blacklist
In this page, user can upload or download blacklist file, and can add or delete or edit blacklist one by one. Table 44 Blacklist

Chapter 3 Web Interface Description Click Choose File to select the blacklist file and Upload CSV to upload it to device; Click Download CSV to save the blacklist file to your local computer. Select one contact and click edit to change the information, click delete to delete the contact, click Move to phonebook to move the contact to phonebook. Click Add to add one blacklist, enter the name and phone number, click OK to confirm and click cancel to cancel.
65

Chapter 3 Web Interface
Call Log
To view the call log information such as redial list , answered call and missed call Table 45 Call log
Redial Calls
Answered Calls
Missed Calls
66

Chapter 3 Web Interface
FXS 1
SIP Account
Basic
Set the basic information provided by your VOIP Service Provider, such as Phone Number, Account, password, SIP Proxy and others. Table 46 Line

Field Name Line Enable
Peer To Peer

Description Enable/Disable the line. Enable/Disable PEER to PEER.
If enabled, SIP-1 will not send register request to SIP server; but in Status/ SIP Account Status webpage, Status is Registered; lines 1 can dial out, but the external line number cannot dialed line1.
67

Chapter 3 Web Interface

Proxy Server

The IP address or the domain of SIP Server

Outbound Server

The IP address or the domain of Outbound Server

Backup Outbound Server The IP address or the domain of Backup Outbound Server

Proxy port Outbound Port Backup Outbound Port

SIP Service port, default is 5060 Outbound Proxy's Service port, default is 5060 Backup Outbound Proxy's Service port, default is 5060

Display Name Phone Number

The number will be displayed on LCD Enter telephone number provided by SIP Proxy

Account Password

Enter SIP account provided by SIP Proxy Enter SIP password provided by SIP Proxy

Audio Configuration
Table 47 Audio configuration

Field Name Audio Codec Type1 Audio Codec Type2 Audio Codec Type3 Audio Codec Type4 Audio Codec Type5 G.723 Coding Speed Packet Cycle

Description Choose the audio codec type from G.711U, G.711A, G.722, G.729, G.723 Choose the audio codec type from G.711U, G.711A, G.722, G.729, G.723 Choose the audio codec type from G.711U, G.711A, G.722, G.729, G.723 Choose the audio codec type from G.711U, G.711A, G.722, G.729, G.723 Choose the audio codec type from G.711U, G.711A, G.722, G.729, G.723 Choose the speed of G.723 from 5.3kbps and 6.3kbps The RTP packet cycle time, default is 20ms
68

Chapter 3 Web Interface

Silence Supp

Enable/Disable silence support

Echo Cancel

Enable/Disable echo cancel. By default, it is enabled

Auto Gain Control

Enable/Disable auto gain

T.38 Enable

Enable/Disable T.38

T.38 Redundancy

Enable/Disable T.38 Redundancy

T.38 CNG Detect Enable Enable/Disable T.38 CNG Detect

gpmd attribute Enable Enable/Disable gpmd attribute

Supplementary Service Subscription
Table 48 Supplementary service

Field Name

Description

Call Waiting Hot Line

Enable/Disable Call Waiting Fill in the hotline number, pickup handset or press hands-free or headset button, the device will dial out the hotline number automatically

MWI Enable MWI Subscribe Enable

Enable/Disable MWI (message waiting indicate). If the user needs to user voice mail, please enable this feature Enable/Disable MWI Subscribe

Chapter 3 Web Interface

Voice Mailbox Numbers VMWI Serv DND
Speed Dial

Fill in the voice mailbox phone number, Asterisk platform, for example, its default voice mail is *97 Enable/Disable VMWI service Enable/Disable DND (do not disturb)
If enable, any phone call cannot arrive at the device; default is disable Enter the speed dial phone numbers. Dial *74 to active speed dial function
Then press the speed dial numbers, for example, press 2, phone dials 075526099365 directly

Advanced
Table 49 Advanced

Chapter 3 Web Interface
Parameter name Domain Name Type Carry Port Information Signal Port DTMF Type RFC2833 Payload(>=96) Register Refresh Interval(sec)
Caller ID Header
Remove Last Reg Session Refresh Time(sec) Refresher
SIP 100REL Enable
SIP OPTIONS Enable Initial Reg With Authorization Reply 182 On Call Waiting NAT Keep-alive Interval(10-60s) Anonymous Call Anonymous Call Block Proxy DNS Type Use OB Proxy In Dialog Complete Register
Reg Subscribe Enable
Reg Subscribe Interval(sec) Dial Prefix User Type

Description Whether to enable domain name recognition in SIP URIs
Whether to carry the SIP URI port information
The local port number of the SIP protocol Select the second way of dialing, optional items are In-band, RFC2833 and SIP Info. The user can use the default settings The time interval between two normal registration messages. The user can use the default settings. When enabled, an unregistered message will be sent before the registration is disabled, and no unregistered messages will be sent before registration; should be set according to the different server requirements Whether to remove the last registration message The interval between two sessions, the user can use the default settings Select Refresh from UAC and UAS If this option is enabled, the IP phone will send SIP-OPTION to the server instead of sending Hello messages on a regular basis. The interval for sending is the parameter set for the "NAT Hold Interval" parameter. Whether to open the SIP OPTION function
Whether to carry the certification information when registering
Whether or not to send 182 when the call is waiting
The time interval for sending empty packets
Whether anonymous calls are enabled
Whether to enable anonymous call blocking Set the DNS server type, the optional items are Type A, DNS SRV, and Auto Whether the OB agent is used in the conversation
Whether to enable full registration When enabled, the subscription message is sent after the registration message; the subscription message is not sent when disabled
Dial before prefix
Whether the end user is IP or Phone
71

Chapter 3 Web Interface

Hold Method Request-URI User Check
Only Recv Request From Server
Server Address SIP Received Detection VPN SIP Encrypt Type RTP Encrypt Type Country Code Remove Country Code Tel URL Use Random SIP Port Min Random SIP Port Max Random SIP Port Prefer Primary SIP Server Hold SDP Attribute Inactive Remove All Bindings VAD&CNG RTP Port Min RTP Port Max

Call hold is REINVITE or INFO Whether to allow the user to check If enabled, will only accept requests from the server, do not accept other requests SIP server address Whether to allow SIP receive detection Whether to enable VPN Whether to allow SIP message encryption Whether to allow RTP message encryption Country code Whether to allow the removal of national codes Whether to open the Tel URL Whether to use the minimum random port SIP minimum random port SIP maximum random port Whether to enable the preferred primary server Whether to enable the call to keep the inactive attribute
RTP minimum port RTP's maximum port

Chapter 3 Web Interface
Preferences
Preferences
Table 50 Preferences

Field Name Handset Input Gain Handset Volume DTMF Volume (0~-45)

Description Adjust the handset input gain from 0 to 7. Adjust the output gain from 0 to 7. Default is -19, you can set a range of values is 0~ -45

Regional
Table 51 Regional

Field Name

Description

Tone Type

Choose tone type form China, US, Hong Kong and so on.

Dial Tone

Busy Tone

Off Hook Warning Tone Off Hook warning tone

Chapter 3 Web Interface

Ring Back Tone Call Waiting Tone Min Jitter Delay
Max Jitter Delay
Ringing Time Ring Waveform
Ring Voltage Ring Frequency VMWI Ring Splash Len(sec) Flash Time Max(sec) Flash Time Min(sec)

Ring back tone Call waiting tone The Min value of home gateway's jitter delay, home gateway is an adaptive jitter mechanism. The Max value of home gateway's jitter delay, home gateway is an adaptive jitter mechanism. How long CnPilot Home R190/R200x will ring when there is an incoming call. Select regional ring waveform, options are Sinusoid and Trapezoid, the default Sinusoid. Set ringing voltage, the default value is 70 Set ring frequency, the default value is 25 Set the VMWI ring splash length, default is 0.5s.
Set the Max value of the device's flash time, the default value is 0.9 Set the Min value of the device's flash time, the default value is 0.1

Features and Call Forward
Table 52 Features and call forward

Chapter 3 Web Interface

Field Name Features Call Forward
Feature Code

Description

All Forward

Enable/Disable forward all calls

Busy Forward

Enable/Disable busy forward.

No Answer Forward Enable/Disable no answer forward.

All Forward

Set the target phone number for all forward.

The device will forward all calls to the phone number immediately

Busy Forward

when there is an incoming call. The phone number which the calls will be forwarded to when line

is busy.

No Answer Forward The phone number which the call will be forwarded to when

there's no answer.

No Answer Timeout The seconds to delay forwarding calls, if there is no answer at your

phone.

Hold key code

Call hold signatures, default is *77.

Conference key

Signature of the tripartite session, default is *88.

cToradnesfer key code Call forwarding signatures, default is *98.

IVR key code

Signatures of the voice menu, default is ****.

R key enable

Enable/Disable R key way call features.

R key cancel code Set the R key cancel code, option are ranged from R1 to R9,

default value is R1.

R key hold code Set the R key hold code, options are ranged from R1 to R9, default value is R2.
R key transfer code Set the R key transfer code, options are ranged from R1 to R9, default value is R4.

R key conference code

Set the R key conference code, options are ranged from R1 to R9, default value is R3.

R Key Reject 2nd Call Code

Set the R key Reject 2nd Call code, options are ranged from R1 to R9, default value is R0.

Speed Dial Code Speed dial code, default is *74.

Chapter 3 Web Interface
Miscellaneous
Table 53 Miscellaneous

Field Name

Description

Codec Loop Current Set off-hook loop current, default is 26

Impedance Matching Set impedance matching, default is US PBX, Korea, Taiwan(600).

CID service

Enable/Disable displaying caller ID; If enable, caller ID is displayed when there is an

incoming call or it won't be displayed. Default is enable.

CWCID Service

Enable/Disable CWCID. If enable, the device will display the waiting call's caller ID,

or it won't display. Default is disable.

Dial Time Out

How long device will sound dial out tone when device dials a number.

Call Immediately Key Choose call immediately key form * or #.

ICMP Ping

Enable/Disable ICMP Ping. If enable this option, home gateway will ping the SIP Server every interval time, otherwise, It will send "hello" empty packet to the SIP Server.

Escaped char enable Open special character translation function; if enable, when you press the # key, it

will be translated to 23%, when disable, it is just #

Chapter 3 Web Interface
Security
Filtering Setting
Table 54 Filtering Setting

Field Name
Filtering Default Policy Mac address Dest IP address Source IP address Protocol Dest. Port Range Src Port Range

Description If or not enable filter function Choose to give up or accept Add the Mac address filtering Dest IP address Source IP address Select a protocol name, support for TCP, UDP and TCP&UDP Destination port ranges Source port range
77

Chapter 3 Web Interface

Action Comment Delete

You can choose to receive or give up; this should be consistent with the default policy. Add callout
Delete selected item

Content Filtering
Table 55 Content Filtering

Field Name

Description

Filtering

Enable/Disable content Filtering

Default Policy

The default policy is to accept or to prohibit filtering rules

Current Webs URL Filters List the URL filtering rules that already existed (blacklist)

Delete/Cancel

You can choose to delete or cancel the existing filter rules

Chapter 3 Web Interface

Add a URL Filter

Add URL filtering rules

Add/Cancel

Click adds to add one rule or click cancel

Current Website Host Filters Delete/Cancel Add a Host Filter Add/Cancel

List the keywords that already exist (blacklist)
You can choose to delete or cancel the existing filter rules the existing keywords Add keywords Click the Add or cancel

Chapter 3 Web Interface
Application
Advance NAT
Table56 advance NAT

Enable/Disable these function(FTP/SIP/H323/PPTP/L2TP/IPSec).
UPnP
UPnP (Universal Plug and Play) supports zero-configuration networking, and can automatically discover a variety of networked devices. When UPnP is enabled, the connected device is allowed to access the network, obtain an IP address, and convey performance information. If the network has a DHCP and DNS server, the connected device can automatically obtain DHCP and DNS services. UPnP devices can be automatically added to the network without affecting previously-connected devices.
Table 57 UPnP

Field Name UPnP enable

Description Enable/Disable UPnP function.
80

Chapter 3 Web Interface
IGMP
Multicast has the ability to send the same data to multiple devices. IP hosts use IGMP (Internet Group Management Protocol) report multicast group memberships to the neighboring routers to transmit data, at the same time, the multicast router use IGMP to discover which hosts belong to the same multicast group. Table 58 IGMP

Field Name IGMP Proxy Enable IGMP Snooping Enable

Description Enable/Disable IGMP Proxy function. Enable/Disable IGMP Snooping function.

Chapter 3 Web Interface
Storage(Only for AC1000M/MS)
Disk Management
Table 59 Disk Management

Field Name Add Delete Remove Disk Format Re-allocate

Description
Adding files to the USB storage device Remove the USB storage device file Transfer files within a USB storage device Format the USB storage device Resetting the USB storage device

Chapter 3 Web Interface
FTP Setting
Table 60 FTP Setting

Field Name FTP Server FTP Server Name Anonymous Login FTP Port Max. Sessions Create Directory Rename File/Directory Remove File/Directory Read File Write File Download Capability Upload Capability

Description If or not enable FTP server Set the FTP server name If or not support anonymous login Set FTP server port number Maximum number of connections If or not enable create directory If or not enable rename file/directory If or not enable transfer of files/directories If or not enable read files If or not enable write files If or not enable download capability function. If or not enable upload capability function

Chapter 3 Web Interface
SMB Setting
Table 61 SMB Setting

Field Name
SAMBA Server Workgroup NetBIOS Name Add Edit Del

Description
If or not enable SAMBA server Fill in the working group Network basic input/output system name Add a shared file Edit a shared file Delete a shared file

Chapter 3 Web Interface
Administration
The user can manage the device in these webpages; you can configure the Time/Date, password, web access, system log and associated configuration TR069.
Management
Save config file
Table 62 Save Config File

Field Name Config file upload and download

Description Upload: click on browse, select file in the local, press the upload button to begin uploading files Download: click to download, and then select contains the path to download the configuration file

Chapter 3 Web Interface
Administrator settings
Table 63 Administrator settings

Field Name User type New User Name New Password Confirm Password Language
Remote Web Login Web Port Web Idle timeout
Allowed Remote IP(IP1,IP2,...) Telnet Port

Description Choose the user type from admin user and normal user and basic user You can modify the user name, set up a new user name Input the new password Input the new password again Select the language for the web, the device support Chinese, English, and Spanish and so on Enable/Disable remote Web login Set the port value which is used to login from Internet port and PC port, default is 80 Set the Web Idle timeout time. The webpage can be logged out after Web Idle Timeout without any operation Set the IP from which a user can login the device remotely
Set the port value which is used to telnet to the device
86

Chapter 3 Web Interface
NTP settings
Table 64 NTP settings

Field Name NTP Enable Option 42
Current Time NTP Settings Primary NTP Server Secondary NTP Server NTP synchronization

Description Enable/Disable NTP Enable/Disable DHCP option 42. This option specifies a list of the NTP servers available to the client by IP address Display current time Setting the Time Zone Primary NTP server's IP address or domain name Options for NTP server's IP address or domain name NTP synchronization cycle, cycle time can be 1 to 1440 minutes in any one, the default setting is 60 minutes

Chapter 3 Web Interface
Daylight Saving Time
Table 65 Daylight Saving Time
Procedure Step 1. Enable Daylight Savings Time. Step 2. Set value of offset for Daylight Savings Time Step 3: Set starting Month/Week/Day/Hour in Start Month/Start Day of Week Last in Month/Start Day of Week/Start Hour of Day, analogously set stopping Month/Week/Day/Hour in Stop Month/Stop Day of Week Last in Month/Stop Day of Week/Stop Hour of Day. Step 4.Press Saving button to save and press Reboot button to active changes.
System Log Setting
Table 66 System log Setting
88

Chapter 3 Web Interface

Field Name

Description

Syslog Enable

Enable/Disable syslog function

Syslog Level

Select the system log, there is INFO and Debug two grades, the Debug INFO can

provide more information

Remote Syslog Enable Enable/Disable remote syslog function

Remote Syslog server Add a remote server IP address

Syslog Enable

Enable/Disable syslog function

Factory Defaults Setting
Table 67 Factory Defaults Setting

Description When enabled, the device may not be reset to factory defaults until this parameter is reset to Disable
Factory Defaults
Table 68 Factory Defaults
Description Click Factory Default to restore the residential gateway to factory settings

Chapter 3 Web Interface
Firmware Upgrade
Table 69 Firmware upgrade

Description 1. Choose upgrade file type from Image File and Dial Rule 2. Press "Browse.." button to browser file

3. Press

to start upgrading

Provision
Provisioning allows the router to auto-upgrade and auto-configure devices which support TFTP, HTTP and HTTPs . � Before testing or using TFTP, user should have tftp server and upgrading file and configuring file. � Before testing or using HTTP, user should have http server and upgrading file and configuring file. � Before testing or using HTTPS, user should have https server and upgrading file and configuring file
and CA Certificate file (should same as https server's) and Client Certificate file and Private key file User can upload a CA Certificate file and Client Certificate file and Private Key file in the Security page.

Chapter 3 Web Interface Table 70 Provision

Field Name Provision Enable Resync on Reset Resync Random DReslayyn(csePce)riodic(sec) Resync Error Retry DFoerlcaeyd(reRce)sync DReslayyn(cseAcf)ter URepsgyrnacdeFrom SIP Option 66 Config File Name Profile Rule

Description Enable provision or not. Enable resync after restart or not
Set the maximum delay for the request of synchronization file. The default is 40 If the last resync was failure, The router will retry resync after the "Resync Error RSetrtyheDeplearyio"dticmteim, deeffoarurltesisyn3c6,0d0esfault is 3600s If it's time to resync, but the device is busy now, in this case, the router will wait fEonrabalepefirrimodwtaimreeu, pthgeradloenagfetestr irses"yFnocrcoerdnoRte.sTyhnec dDeefalauylt",isdEenfaubltedis 14400s, wEnhaebnlet/hDeisatbimleereosvyenrc, tfhroemroSuItPer will forced to resync It is used for In-house provision mode only. When use TFTP with option 66 to rIteiasliuzesepdrofovrisIino-nhionug,seusperromvisuisotninmpoudterigohntlyc.oWnfhigeunruatsieonTFfTilPe wnaitmheoipnttiohne 66 to wrUeReaLblipzoeafgper.oWvfiilsehioepnriondvgisis,aiuobsnlefrOilmeputisotnin6p6u, thrigshptacroamnfeigtuerahtaiosnnfoilefnfeacmt e in the wNoetbeptahgaet. tWhehesnpedciisfaiebdlefiOlepptiaotnh6is6r,ethlaitsivpeartaomtheeteTrFhTaPssneorveefrfe'scvtirtual root directory

Chapter 3 Web Interface Table 71 Firmware Upgrade

Field Name Upgrade Enable Upgrade Error Retry Delay(sec)
Upgrade Rule

Description Enable firmware upgrade via provision or not If the last upgrade fails, the router will try upgrading again after "Upgrade Error Retry Delay" period, default is 3600s URL of upgrade file

SNMP
Table 72 SNMP

Field Name SNMP Service Trap Server Address Read Community Name
Write Community Name
Trap Community Trap period interval(sec)

Description Enable or Disable the SNMP service Enter the trap server address for sending SNMP traps String value that is used as a password to request information via SNMP from the device String value that is used as a password to write configuration values to the device SNMP String value used as a password for retrieving traps from the device The interval for which traps are sent from the device
92

Chapter 3 Web Interface
TR-069
TR-069 provides the possibility of auto configuration of internet access devices and reduces the cost of management. TR-069 (short for Technical Report 069) is a DSL Forum technical specification entitled CPE WAN Management Protocol (CWMP). It defines an application layer protocol for remote management of end-user devices. Using TR-069, the terminals establish connection with the Auto Configuration Servers (ACS) and get configured automatically.
Device Configuration using TR-069
The TR-069 configuration page is available under Administration menu.
Table 73 TR069

Field Name ACS parameters TR069 Enable CWMP ACS URL User Name Password

Description
Enable or Disable TR069 Enable or Disable CWMP ACS URL address ACS username ACS password

Chapter 3 Web Interface

Periodic Inform Enable Enable the function of periodic inform or not. By default it is Enabled

Periodic Inform Interval Periodic notification interval with the unit in seconds. The default value is

3600s

Connect Request parameters

User Name

The username used to connect the TR069 server to the DUT.

Password

The password used to connect the TR069 server to the DUT.

Diagnosis
In this page, user can do packet trace, ping test and traceroute test to diagnose the device's connection status. Table 74 Diagnosis

Chapter 3 Web Interface
Description
1. Packet Trace Users can use the packet trace feature to intercept packets which traverse the device. Click the Start button to start home gateway tracking and keep refreshing the page until the message trace shows to stop, click the Save button to save captured packets. 2. Ping Test Enter the destination IP or host name, and then click Apply, device will perform ping test.
3. Traceroute Test Enter the destination IP or host name, and then click Apply, device will perform traceroute test.
95

Chapter 3 Web Interface
Operating Mode
Table 75 Operating mode
Description Choose the Operation Mode as Basic Mode or Advanced Mode
System Log
Table 76 System log
Description If you enable the system log in Status/syslog webpage, you can view the system log in this webpage.
Logout
Table 77 Logout
Description Press the logout button to logout, and then the login window will appear.
96

Chapter 3 Web Interface
Reboot

Press the

button to reboot the device.

Chapter 4 IPv6 address configuration
The router devices support IPv6 addressing. This chapter covers: � Introduction � IPv6 Advance � Configuring IPv6 � Viewing WAN port status � IPv6 DHCP configuration for LAN/WLAN clients � LAN DHCPv6
98

Chapter 4 IPv6 address configuration
Introduction

DHCPv6 protocol is used to automatically provision/configure IPv6 capable end points in a local network. In addition to acquiring an IPv6 IP address for the WAN interface and its associated LAN/WLAN clients, the devices are also capable of prefix delegation.

The Routers devices support the following types of modes of IPv6 addresses:

� Stateless DHCPv6

� Statefull DHCPv6

Table 78 IPv6 Modes

Mode Stateless

Description In Stateless DHCPv6 mode, the Routers devices listen for ICMPv6 Router

Advertisements messages which are periodically sent out by the routers on the

local link or requested by the node using a Router Advertisements solicitation

message. The device derives a unique IPv6 address using prefix receives from the

router and its own MAC address.

Statefull

In Statefull DHCPv6 mode, the client works exactly as IPv4 DHCP, in which hosts receive both their IPv6 addresses and additional parameters from the DHCP server.

Chapter 4 IPv6 address configuration
IPv6 Advance
To enable IPv6 functionality: Navigate to Network > IPv6 Advanced page. Select Enable from the IPv6 Enable drop-down list. Click Save. Table 79 Enabling IPv6
Configuring IPv6
Configuring Statefull IPv6
1. Navigate to Network > IPv6WAN page. The following window is displayed: Table 80 Configuring Statefull IPv6

Field Name Connection Type

Description Select connection type
100

Chapter 4 IPv6 address configuration

DHCPv6 Address Settings Set it to statefull mode.

Prefix Delegation

Select Enable.

Configuring Stateless IPv6

Table 81 Configuring Stateless IPv6

Field Name Connection Type DHCPv6 Address Settings Prefix Delegation

Description Select connection type Set it to stateless mode. Select Enable.

101

Chapter 4 IPv6 address configuration
Viewing WAN port status
To view the status of WAN port: Navigate to Status page.
IPv6 DHCP configuration for LAN/WLAN clients
Wired and wireless clients connected to the Routers can obtain their IPv6 addresses based on how the LAN s ide DHCPv6 parameters are configured. The Routers can be either configured as a DHCPv6 server in which the LAN/WLAN clients get IPv6 addresses from the configured pool. If DHCP server is disabled on the Routers, the clients will get IPv6 addresses from the external DHCPv6 server configured in the network.
102

Chapter 4 IPv6 address configuration
LAN DHCPv6
When IPv6 is enabled, the LAN/WLAN clients of Routers can be configured to receive IPv6 addresses from locally configured IPv6 pool or from an external DHCPv6 server. To enable LAN DHCPv6 service:
103

Chapter 5 Troubleshooting Guide
This chapter covers: � Configuring PC to get IP Address automatically � Cannot connect to the Web GUI � Forgotten Password
104

Chapter 5 Troubleshooting Guide
Configuring PC to get IP Address automatically
Follow the below process to set your PC to get an IP address automatically: Step 1 : Click the "Start" button Step 2 : Select "control panel", then double click "network connections" in the "control panel" Step 3 : Right click the "network connection" that your PC uses, select "attribute" and you can see the interface as shown in Figure 3. Step 4.: Select "Internet Protocol (TCP/IP)", click "attribute" button, then click the "Get IP address automatically".
105

Chapter 5 Troubleshooting Guide
Cannot connect to the Web
Solution: � Check if the Ethernet cable is properly connected � Check if the URL is correct. The format of URL is: http:// the IP address � Check on any other browser apart from Internet explorer such as Chrome. � Contact your administrator, supplier or ITSP for more information or assistance.
Forgotten Password
If you have forgotten the management password, you cannot access the configuration web GUI. Solution: To factory default: press and hold reset button for 10 seconds.
106

Appendix A Auto-Provisioning
Manual
AC1000 | AC1000MS | AC1300MS
108

Table of Contents
Introduction ...................................................................................................... 109 Configure Provisioning Parameters .............................................................. 110 Enable Provisioning ........................................................................................110 Syntax of Profile Rule and Upgrade Rule......................................................111 Macro Expansion ............................................................................................. 113 Provisioning ..................................................................................................... 114 Provision with HTTP........................................................................................114 Provision with DHCP and TFTP......................................................................115 Provisioning Examples ...................................................................................116 Provisioning WAN Parameters.......................................................................116 Provisioning LAN Parameters ........................................................................117 Provisioning SIP Parameters .........................................................................117 Appendix B.......................................................................................................117 WAN Network Parameters ..............................................................................117 LAN Network Parameters ...............................................................................119 SIP Parameters ................................................................................................120 Administration Parameters.............................................................................121 Provisioning Parameters ................................................................................122 Default Provisioning Template File................................................................123
108

Auto-Provisioning of ReadyNet Router ATAs
Introduction
This document is targeted to developers and system integrators who intend to include support for the ReadyNet ATAs in their VoIP provisioning systems. It provides details for autoprovisioning ReadyNet!"#$%&"' with one or more ATA ports. Auto-provisioning is supported via TFTP, HTTP and HTTPS as well as DHCP Option 66, allowing for true zero-touch remote provisioning.
Configure Provisioning Parameters
This section first describes how to enable provisioning via the web interface and then describes the various parameters that can be set to control provisioning. Enable Provisioning To enable provisioning, log into the ReadyNet router and navigate to Administration -> Provision. The image below shows the default values for the QX202. With the default settings, provisioning is enabled but the parameter `Profile Rule', which is the
provisioning URL, is blank. Similarly, firmware upgrade is enabled but `Upgrade Rule' has no value. The table below describes the various provisioning parameters and provides their default values.
109

Parameter Name

Description

Provision Enable

Enable or disable the Provision functions.

Default Value
Yes

Resync on Reset

Triggers a resync after every reboot except for reboot caused by parameter updates and firmware upgrades.

Resync Random Delay Resync Periodic

The maximum value for a random time interval that the device waits before making its initial contact with the provisioning server. This delay is effective only on the initial configuration attempt following device power-on or reset. The delay is a pseudo-random number between zero and this value. This parameter is in units of 1 second; the default value of 40 represents 40 seconds. This feature is disabled when this parameter is set to zero. It can be used to prevent an overload of the provisioning server when a large number of devices power on simultaneously.
The number of seconds between periodic resyncs with the provisioning server. Set this parameter to zero to disable periodic resyncing.

Resync Error Retry Delay If the last resync failed, the device will retry resync after the "Resync Error Retry Delay" seconds.

Yes 40 seconds
3600 seconds 3600 seconds

Forced Resync Delay Resync After Upgrade

Maximum delay in seconds the device waits before performing a resync. The device will not resync while any of its phone lines are active. Because a resync can take several seconds, wait until the device has been idle for an extended period before resyncing. This allows a user to make calls in succession without interruption. The device has a timer that begins counting down when all of its lines become idle. This parameter is the initial value of the counter. Resync events are delayed until this counter decrements to zero.
Triggers a resync after every firmware upgrade attempt.

14400 seconds Yes

Option 66 Config File Name
Profile Rule

If enabled, the device will also request DHCP Option 66 with

Yes

its DHCP request. When enabled, the parameter `Profile

Rule' is ignored.

This parameter is appended to the DHCP Option 66 value Changes for different

returned by the DHCP server to create the TFTP provisioning models.

URL. e.g. if the DHCP Option 66 return value is 123.45.67.89 For the QX202, it will

and the `Config File Name' parameter is a.conf , then the be QX202.conf.

device will request a provisioning file from the TFTP server For

engineering

located at123.45.67.89 for a file named, a.conf. This samples, .cnf

parameter is ignored when the parameter `Option 66' is set to

`No'.

This parameter is a URI that evaluates to the provisioning

Empty

resync command. The protocol can be TFTP and HTTP. The

file name component of this parameter can make use of

macros allowing the device to make requests for unique

provisioning files. This parameter is ignored if the parameter

`Option 66' is enabled.

111

The table below describes the various firmware upgrade parameters and provides their default values.

Parameter

Description

Default Value

Enable Upgrading

Enables firmware upgrade operations independently of resync actions

Enable

Upgrade Delay

Error

Retry The upgrade retry interval (in seconds) applied in case of upgrade failure. The device has a firmware upgrade error timer that activates after a failed firmware upgrade attempt. The timer is initialized with the value in this parameter. The next firmware upgrade attempt occurs when this timer counts down to zero.

3600 seconds

Upgrade Rule

This parameter sets the URL for the new firmware file. It follows the same syntax as the `Profile Rule' parameter. e.g. http://192.168.100.1/QX202_v3.1.bin

Empty

Syntax of Profile Rule and Upgrade Rule The two parameters `Profile Rule'!and `Upgrade Rule'!must follow the following syntax.
[scheme://][server IP or domain[:port]]/file_path
The scheme can be one of the following; http https tftp
The `file_path'!component follows macro expansion rules as described in the section `Macro Expansion'!below.
Examples: tftp://prov.mydomain.com/cpe/$MAU.conf http://dev.easyvoip.com:8080/prov/$PN/$MA.conf

111

Macro Expansion
Macro expansion can be used with the parameters `Profile Rule'!and `Upgrade Rule'. The table below list the macros variables and to what they expand.

Macro Name
$
MA MAU MAC
PN SN IP SWVER HWVER

Expansion
The form $$ expands to a single $ character. The form $$MAU expands to $00019F16B1B2. The form $MAU expands to 00019F16B1B2.
MAC address with lower case hex digits, e.g. 00019F16b1b2.
MAC address with upper case hex digits, e.g. 00019F16B1B2.
MAC address with lower case hex digits, and colons to separate hex digit pairs, e.g. 00:01:9F:16:B1:B2.
Product Name, e.g. QX202
Serial Number, e.g. QX2123456
WAN IP address , e.g. 123.45.67.89
Software version, e.g. v3.0.1
Hardware version, e.g. v1.0.1

Macro variables are invoked by prefixing the macro name with the `$'!character (e.g. $MAC). Macro substitution works even within a quoted sting, without requiring additional escapes. If the macro is immediately followed by an alphanumeric character, enclose the variable name in parentheses (e.g.`$(MAC)config.conf').

Please note the following additional points with regards to macro expansion;

1) During macro expansion, expressions of the form $NAME and $(NAME) are replaced by the contents

of the named variables. For example, a router with a MAC address of 00:01:9F:16:B1:B2, the macro

$(MAU)config.cfg expands to 00019F16B1B2config.cfg.

2) If the macro name is not recognized, it will remain unexpanded. For example, if you try to use

STRANGE as a macro name it will remain unexpanded. Thus the expression $STRANGE$MAC.cfg

expands to $STRANGE00:01:9F:16:B1:B2.cfg.

3) Macro expansion is not applied recursively. This means that the macro expression $$MAU expands

to $MAU and not 00019F16B1B2.

4) Macro expressions can have optional qualifiers that allow you specify a substring of the macro

variable. The syntax for macro substring expansion is $(NAME:p) and

$(NAME:p:q) where p

and q are non-negative integers. The resulting expansion results in the macro variable substring

starting at the character offset p, and of length q (or till end-of-string if q is not specified). So, for our

example device with a MAC address of 00019F16B1B2, the expression $(MAU:4) expands to the

string 9F13B1B2, and the expression $(MAU:8:2) expands to the string B1.

112

Provisioning
Provision with HTTP Begin by resetting a ReadyNet router to factory defaults. 1) Install an HTTP server on the WAN side of the router. 2) In the DocumentRoot of the HTTP server, create a directory named `prov' for provisioning files. So if the path to the DocumentRoot is /var/www/html, the path to the directory for the provisioning files will be /var/www/html/prov . In the prov directory, create a file named a.cfg with the following contents and save it.
DBID_SUPER_WEB_PASSWORD=newpass1 3) From a PC connected to a LAN port of the device, you should be able to view the file
contents of a.cfg by browsing to; http://HTTP_SERVER/prov/a.cfg.
113

4) Log into the ReadyNet router, navigate to Administration -> Provision and set the `Option 66' field to Disable and in the Profile Rule field enter: http://HTTP_SERVER/prov/a.cfg .
5) Click save and then do a reboot. 6) When the device boots and its WAN interface is up, it will retrieve the file located at Profile Rule. The
ATA will reboot to apply the new parameters. 7) When you now login to the web interface with the user `admin' you will need to enter the password:
newpass1.
Provision with DHCP and TFTP In the example above, we had to manually configure the Profile Rule of the router by logging into the web interface of the device as the admin user and entering a valid location for the provisioning URI. Using DHCP Option 66 together with a TFTP server, the Profile Rule parameter can be automatically set. The ReadyNet router with its default, out-of-the-box configuration is set for 1) DHCP on the WAN interface and 2) Option 66 enabled. A correctly configured DHCP server will provide the IP address of a TFTP server when the router includes a request for Option 66 together with its DHCP request. e.g. if the DHCP server sends back `172.16.8.25'!as the Option 66 response and DBID_PRV_CONFIGFILE is `QX202.cfg', the device will make a TFTP request to the server at IP address 172.16.8.25, for a file named `QX202.cfg'.
8) Configure DHCP server to include Option 66 response. 9) Configure TFTP server. Create the initial provisioning file named `.cfg' with the following contents.
114

DBID_RESYNC_PERIODIC=60 DBID_PRV_OPTION66_ENABLED=0 DBID_PROFILE_RULE=http://172.16.8.25/prov/$MAU.conf
Note: We change DBID_RESYNC_PERIODIC to 60 seconds only during testing and development.
10) In the prov directory of the HTTP server create a file named 00019F16XXXX.conf, replacing XX:XX in the file name to match the WAN MAC address of the router.
DBID_SUPER_WEB_PASSWORD=newpass2
So if the WAN MAC address is 00:01:9F:16:00:01, the file would be named, `00019F160001.conf'.
11) Reset the router to factory defaults. On boot-up, we should expect the following events to occur; a. The ReadyNet router includes Option 66 in its DHCP request on the WAN port. b. The DHCP server includes the Option 66 response with the other DHCP parameters. c. The router makes a TFTP connection to the IP address that it received as the Option 66 value and requests a file named .cfg. d. On receiving the file named `.cfg', the device will set the Option 66 parameter to `Disable' and set the Profile Rule to ` http://172.16.8.25/prov/$MAU.conf' and do a reboot. e. This time when the devices boots up, it will not include Option 66 with its DHCP request. Once the WAN interface is up, the router will expand the macro $MAU to its WAN MAC address in uppercase. So if the WAN MAC address of the router is 00:01:9F:16:00:01, then the device will request a provisioning file from the URI; . http://172.16.8.25/prov/00019F160001.conf f. The request URI uniquely identifies the device allowing the provisioning server to customize the provisioning file returned. In this example we set the password for the user admin to `newpass2'. g. The device will reboot again.
12) When you now log in to the web interface with the user `admin', you will need to enter the password `newpass2`.
Provisioning Examples
This section provides example provisioning files for the ReadyNet router. Refer to the Appendix for a listing of the provisioning parameters and their descriptions. Note 1: The provisioning file only contains the parameters that need changing. Note 2: The ATA calculates a checksum of the provisioning file. It compares this checksum with the checksum of each new provisioning file it receives. If the checksums are different, the ATA will apply the changes in the new provisioning file and reboot.
Provisioning WAN Parameters In this example provisioning file, the WAN connection mode is changed from DHCP to STATIC. Further we change, mdns_mode from 0 (Auto) to 1 (`Manual') and define a primary and secondary DNS server that the router itself will use.
mwanConnectionMode=STATIC mwan_ipaddr=172.16.8.60 mwan_netmask=255.255.255.0 mwan_gateway=172.16.8.1 mdns_mode=1
115

mwan_primary_dns=8.8.8.8
Provisioning LAN Parameters This remote provisioning example file changes the network parameters on the LAN side of the router. In addition, this file changes the username and passwords of the two administrative access levels of the web interface of the router. lan_ipaddr=192.168.88.1 lan_netmask=255.255.255.0 dhcpGateway=192.168.88.1 dhcpStart=192.168.88.200 dhcpEnd=192.168.88.220 dhcpLease=3600 NormalUser=Alice DBID_NORMAL_WEB_PASSWORD=Alice123Pass AdminUser=Jack DBID_SUPER_WEB_PASSWORD=Jack123pass Provisioning SIP Parameters This example provisioning file configures the SIP port of the router. You will need to change the actual parameters in the file to match your SIP server. DBID_DNSSRV_DOMAIN=12.34.56.78 DBID_SIP_SERVER_HOST_NAME=12.34.56.79 DBID_SIP_DIS_NAME=Customer Name DBID_SIP_PHONE_NUM=1234 DBID_SIP_ACCOUNT=1234 DBID_SIP_PASSWORD=SIPpass
116

Appendix B
WAN Network Parameters

Parameter
mwanConnectionMode
mdns_mode

Valid Values
DHCP STATIC PPPOE

Description
This parameter defines the WAN connection method. It can be one of the following; Static, DHCP or PPPOE.

With the default setting of 0, the device will use the DNS

server provided by the DHCP server. Setting this parameter

to 1 allows you to define mwan_primary_dns and

mwan_secondary_dns manually.

mwan_primary_dns

IP Address

When mdns_mode is set to 1 or mwanConnectionMode is set to Static, this parameter can be defined to set the primary DNS server used by the router.

mwan_secondary_dns

IP Address

When mdns_mode is set to 1 or mwanConnectionMode is set to Static, this parameter can be defined to set the secondary DNS server used by the router.

mwan_ipaddr mwan_netmask mwan_gateway mwan_pppoe_user mwan_pppoe_pass mwan_pppoe_opmode
mwan_pppoe_optime

IP Address
Netmask
IP Address
Empty
Empty
KeepAlive On Demand
Manual

This parameter sets the WAN IP address and must be set when mwanConnectionMode is set to Static.
This parameter sets the WAN Netmask and must be set when mwanConnectionMode is set to Static.
This parameter sets the WAN Netmask and must be set when mwanConnectionMode is set to Static.
This parameter is the PPPoE username and must be defined when mwanConnectionMode is set to PPPoE.
This parameter is the PPPoE password and must be defined when mwanConnectionMode is set to PPPoE.
This parameter is the PPPoE Operation mode and defaults to KeepAlive.

This parameter defines the PPPoE Keep Alive Redial

period in seconds when PPPoE is the

wanConnectionMode. Range is between 0 - 3600.

117

LAN Network Parameters

Parameter
natEnabled lan_ipaddr
lan_netmask dhcpEnabled dhcpStart dhcpGateway dhcpEnd dhcpDnsMode dhcpPriDns
dhcpSecDns
dhcpLease lan_vid

Valid Values NAT Bridge

Description
When in natEnabled is set to NAT, the router operates as a router and when set to Bridge, all network interfaces are bridged.

IP Address

This parameter sets the IP address of the LAN interface when natEnabled is set to NAT. This IP address is also the gateway address for the devices connected to the LAN side of the router.

Subnet Mask This parameter sets the subnet mask of the LAN subnet when natEnabled is set to NAT.

Enable Disable

Use this parameter to enable or disable running a DHCP server on the router.

IP Address If dhcpEnabled is set to Enable, this parameter sets the starting IP address of the DHCP pool.

IP Address dhcpGateway defines the gateway address for DHCP requests from the LAN network.

IP Address If dhcpEnabled is set to Enable, this parameter sets the ending IP address of the DHCP pool.

Auto Manual

When this parameter is set to Auto, DHCP clients are assigned the

When dhcpDnsMode is set to Manual, this parameter defines the IP address of DNS server that will be provided as the primary DNS server with DHCP requests.
When dhcpDnsMode is set to Manual, this parameter defines the IP address of DNS server that will be provided as the secondary DNS server with DHCP requests.

86400

This parameter defines the DHCP lease time.

This parameter defines the VLAN ID of the LAN port.

VLAN IDs are defined under Network -> VLAN in the

web interface.

118

SIP Parameters

These parameters configure the SIP settings and correspond to the settings seen on the `SIP Account'!menu of the web interface.

Parameter

Description

DBID_DNSSRV_DOMAIN

This parameter defines the `Proxy Server' for the SIP account.

DBID_SIP_OUTBOUND_PORT

This parameter defines the `Proxy Port'. The default port is 5060.

DBID_SIP_SERVER_HOST_NAME

This parameter defines the `Outbound Server' for the SIP account.

DBID_SIP_SERVER_PORT

This parameter defines the `Outbound Port'. Default value is 5060.

DBID_ALTER_SIP_SERVER_HOSTNAME This parameter defines the `Backup Outbound Server' for the SIP account.

DBID_ALTER_SIP_SERVER_PORT

This parameter defines the `Backup Outbound Port'. The default port is 5060.

DBID_SIP_DIS_NAME

This parameter defines the `Display name' for the SIP account.

DBID_SIP_PHONE_NUM

This parameter defines the `Phone Number' for the SIP account.

DBID_SIP_ACCOUNT

This parameter defines the `Account' attribute associated with the SIP account.

DBID_SIP_PASSWORD

This parameter defines the `Password' assigned to the particular SIP account.

DBID_SIP_TOS

This parameter sets the DHCP mark for Layer 3 QoS for SIP packets. Range is 0 through 63.

DBID_RTP_TOS

This parameter sets the DHCP mark for Layer 3 QoS for RTP packets. Range is 0 through 63.

DBID_DATA_TOS

This parameter sets the DHCP mark for Layer 3 QoS for Data packets. Range is 0 through 63.

sip_vid

This parameter defines the VLAN ID over which SIP packets will be sent. VLAN IDs are defined under Network -> VLAN in the web interface. The default is 2.

rtp_vid

This parameter defines the VLAN ID over which RTP packets will be sent. VLAN IDs are defined under Network -> VLAN in the web interface. The default is 2.

119

Administration Parameters Parameter
BasicUser
BasicPass

Description
useradmin This parameter defines a web login username of type `Basic'.
admin This parameter defines the password for BasicUser.

NormalUser DBID_NORMAL_WEB_PASSWORD AdminUser DBID_SUPER_WEB_PASSWORD

user

This parameter defines a web login username of type `Normal'.

user

This parameter defines the password for NormalUser.

admin This parameter defines a web login username of type `Admin'.

admin This parameter defines the password for AdminUser.

DBID_LAN_LOGIN_ONLY DBID_WEB_PORT

The default for this parameter is 0 which allows

access to the web interface of the device from the

WAN interface. To only allow access to the web

interface set this parameter to 1.

This parameter set the port that web server on the

device listens to requests on both the LAN side and

WAN (if DBI_LAN_LOGIN_ONLY =0) side.

DBID_WEB_IDLE_TIMEOUT

Whilst logged into the web interface of the device

this parameter sets the value in minutes of inactivity

that results in getting logged out.

120

Provisioning Parameters Parameter
DBID_PROVISION_ENABLED DBID_RESYNC_ON_RESET DBID_RANDOM_DELAY
DBID_RESYNC_PERIODIC DBID_RESYNC_RETRY_DELAY DBID_RESYNC_DELAY
DBID_RESYNC_AFTER_UPGRADE DBID_PRV_OPTION66_ENABLED DBID_PRV_CONFIGFILE

Default

Description

The default value for this parameter is 1 which enables

provisioning for the device.

The default value for this parameter is 1 which triggers

a resync after every reboot except for reboot caused by

parameter updates and firmware upgrade.

40 This parameter defines the maximum number of seconds the device waits before making its initial contact with the provisioning server. This delay is effective only on the initial configuration attempt following device power-on or reset. The delay is a pseudo-random number between zero and this value. The default value is 40 and setting this parameter to 0, disables this feature.

3600

This parameter is used to define the number of seconds between periodic resyncs with the provisioning server. Set this parameter to zero to disable periodic resyncing.

3600

This parameter defines the number of seconds the device will wait to retry a resync after the last attempt to resync failed.

14400

This is the starting value of a counter in seconds that is decremented when all its line become idle. Resync events are delayed until this counter decrements to zero.

When set to 1, the device will trigger a resync after

every firmware upgrade attempt. Set this parameter to

disable.

When this parameter is set to 1 (default), the device will

include DHCP Option 66 with its DHCP request. When

enabled, the parameter DBID_PROFILE_RULE is

ignored.

.cfg This is the name of the provisioning file retrieved from

the TFTP server when DHCP Option 66 is enabled.

DBID_PROFILE_RULE DBID_UPGRADE_ENABLED DBID_UPGRADE_RETRY_DELAY DBID_UPGRADE_RULE

1 0
3600

This parameter sets the URI that the device will reterive its provisioning file from. This parameter is ignored when DBID_PRV_OPTION66_ENABLED is set to 0.
The default value for this parameter is 1, which enables firmware upgrades. Set to 0 to disable this function.
On a firmware upgarde failure this parameter is set to the value defined in seconds and a countdown begins. Once the timer reaches zero, the next attempt at firmware upgrade will occur.
This parameter sets the URI from which the new firmware file is requested from.

121

Default Provisioning Template File
mwanConnectionMode=DHCP dhcpDnsMode=Auto mwan_primary_dns= mwan_secondary_dns= mwan_ipaddr= mwan_netmask= wan_gateway= wan_pppoe_user= wan_pppoe_pass= wan_pppoe_opmode=KeepAlive wan_pppoeoptime=5 wan_vid=2 natEnabled=1 lan_ipaddr=192.168.11.1 lan_netmask=255.255.255.0 dhcpEnabled=1 dhcpStart=192.168.11.2 dhcpEnd=192.168.11.24 dhcpGateway=192.168.11.1 dhcpDnsMode=Auto dhcpPriDns=192.168.11.1 dhcpSecDns=8.8.8.8 dhcpLease=86400 lan_vid=1 DBID_DNSSRV_DOMAIN= DBID_SIP_OUTBOUND_PORT=5060 DBID_SIP_SERVER_HOST_NAME= DBID_SIP_SERVER_PORT=5060 DBID_ALTER_SIP_SERVER_HOSTNAME= DBID_ALTER_SIP_SERVER_PORT=5060 DBID_SIP_DIS_NAME= DBID_SIP_PHONE_NUM= DBID_SIP_ACCOUNT= DBID_SIP_PASSWORD= DBID_SIP_TOS=0 DBID_RTP_TOS=0 DBID_DATA_TOS=0 sip_vid=2 rtp_vid=2 DBID_PROVISION_ENABLED=1 DBID_RESYNC_ON_RESET=1 DBID_RANDOM_DELAY=40
122

DBID_RESYNC_PERIODIC=3600 DBID_RESYNC_RETRY_DELAY=3600 DBID_RESYNC_DELAY=14400 DBID_RESYNC_AFTER_UPGRADE=1 DBID_PRV_OPTION66_ENABLED=1 DBID_PRV_CONFIGFILE=QX202.cfg DBID_PROFILE_RULE= DBID_UPGRADE_ENABLED=0 DBID_UPGRADE_RETRY_DELAY=3600 DBID_UPGRADE_RULE=
123
