Datasheet for SEGWAY models including: F-series, F20A, F30, F30A, F40, F40A, Ninebot KickScooter
EN The manufacturer reserves the right to make changes to the product, release rmware updates, and update this manual at any time. Visit www.segway.com or check the Segway-Ninebot app to...
accelerate normally and may not be charged. Do not use it until the temperature is lowered to normal range. Bluetooth: The icon indicates that the scooter has been successfully connected to the mobile device. Battery Level: The

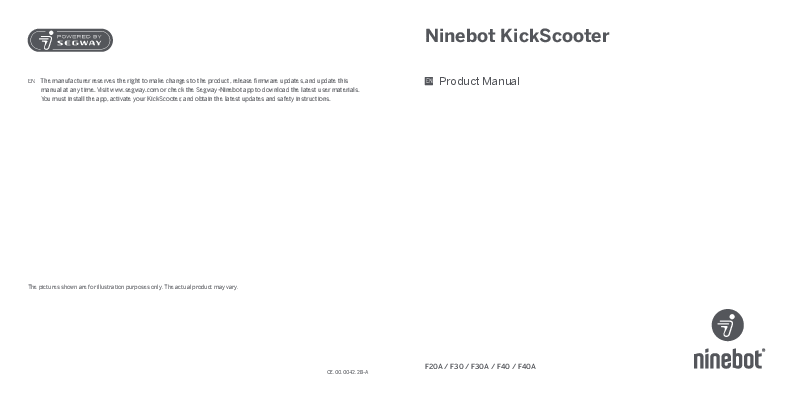

EN The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the Segway-Ninebot app to download the latest user materials. You must install the app, activate your KickScooter, and obtain the latest updates and safety instructions. Ninebot KickScooter EN Product Manual The pictures shown are for illustration purposes only. The actual product may vary. CE.00.0042.28-A F20A / F30 / F30A / F40 / F40A EN 1 Diagram Handlebar Bell Brake Lever Headlight Quick Release Lever Folding Mechanism Safety Hook Reflector* * For F20A, F30A, and F40A. Front Fork Front Fender Hub Motor 01 Electronic Throttle Dashboard & Power Button Snap Hook Stem Footboard Buckle Rear Fender Rear Light Disc Brake Reflector* * For F20A, F30A, and F40A. Battery Compartment Kickstand Charging Port Dashboard & Power Button Speedometer Bluetooth Headlight Temperature Indicator Speed Mode Error Display Battery Level Power Button Power Button: Press the button to turn the KickScooter on and press, and hold the button for 3 seconds to turn the scooter off. When the KickScooter is on, press the button to turn on/off the headlight and the rear light, and press twice to switch between the speed modes. Speedometer: Display the current speed of the scooter, as well as to display error codes. Speed Mode: Three modes available. Mode Model ECO (Energy saving mode) D (Standard mode) S (Sport mode) F20A 15 km/h (9.3 mph) 25 km/h (15.5 mph) 25 km/h (15.5 mph) F30 15 km/h (9.3 mph) 25 km/h (15.5 mph) 25 km/h (15.5 mph) F30A 15 km/h (9.3 mph) 25 km/h (15.5 mph) 25 km/h (15.5 mph) F40 15 km/h (9.3 mph) 30 km/h (18.6 mph) 30 km/h (18.6 mph) F40A 15 km/h (9.3 mph) 25 km/h (15.5 mph) 25 km/h (15.5 mph) Error: The wrench icon indicates that the scooter has detected an error. Temperature Indicator: The thermometer icon always on indicates that the battery temperature has reached 122°F (50°C) or is below 32°F (0°C). * At this point, the vehicle cannot accelerate normally and may not be charged. Do not use it until the temperature is lowered to normal range. Bluetooth: The icon indicates that the scooter has been successfully connected to the mobile device. Battery Level: The total battery level equals to 5 bars. * The battery power is very low when the first battery bar is red. Please charge your KickScooter immediately. 02 2 Specifications Item Parameter Product Name Model Length × Width × Height Folded: Length × Width × Height Net Weight Payload Ninebot KickScooter F20A F30A F30 Approx. 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 inch) Approx. 1143 × 480 × 495 mm (45 × 18.9 × 19.5 inch) Approx. XX kg (XX lbs) Approx. XX kg (XX lbs) 30100 kg (66220 lbs) Rider Recommended Age 1460 years Required Height 120200 cm (3'11"6'6") Max. Speed Approx. 25 km/h (15.5 mph) Typical Range[1] Max. Slope Approx. 20 km (12.4 miles) Approx. 10% Approx. 15% Machine Traversable Terrain Operating Temperature Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) -1040°C (14104°F) Storage Temperature -1050°C (14122°F) IP Rating IPX5 Duration of Charging Approx. 3.5 h Approx. 5 h Nominal Voltage Max. Charging Voltage 36 V 42 V Battery Charging Temperature Nominal Capacity Nominal Energy Battery Management System 040°C (32104°F) 5100 mAh 7650 mAh 183 Wh 275 Wh Over-heating, short circuit, over-current, over-discharge and over-charge protection Motors Nominal Power 0.25 kW, 250 W 0.3 kW, 300 W Output Power 0.07 kW, 70 W Charger Input Voltage Max. Output Voltage Rated Output 100240 V~ 42 V 41 V , 1.7 A Features Tire Brake Light Riding Modes Tire Pressure Tires LED Rear Light Energy saving mode, Standard mode and Sport mode 45 psi Hollow tires. Material: NR + SBR + SILICA. Size: 8 * 2.0. Without nozzle [1] Typical Range: tested while riding under full power, 75 kg (165 lbs) load, 25°C (77°F), 60% of max. speed on average on pavement. * Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc. 03 Item Parameter Product Name Model Length × Width × Height Folded: Length × Width × Height Net Weight Payload Ninebot KickScooter F40 F40A Approx. 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 inch) Approx. 1143 × 480 × 495 mm (45 × 18.9 × 19.5 inch) Approx. XX kg (XX lbs) Approx. XX kg (XX lbs) 30120 kg (66265 lbs) Rider Recommended Age 1460 years Required Height 120200 cm (3'11"6'6") Max. Speed Approx. 30 km/h (18.6 mph) Approx. 25 km/h (15.5 mph) Typical Range[1] Approx. 30 km (18.6 miles) Max. Slope Approx. 20% Machine Traversable Terrain Operating Temperature Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) -1040°C (14104°F) Storage Temperature -1050°C (14122°F) IP Rating IPX5 Duration of Charging Approx. 6.5 h Nominal Voltage Max. Charging Voltage 36 V 42 V Battery Charging Temperature Nominal Capacity 040°C (32104°F) 10.2 Ah Nominal Energy Battery Management System 367 Wh Over-heating, short circuit, over-current, over-discharge and over-charge protection Motors Nominal Power 0.35 kW, 350 W Output Power 0.07 kW, 70 W Charger Input Voltage Max. Output Voltage Rated Output 100240 V~ 42 V 41 V , 1.7 A Features Tire Brake Light Riding Modes Tire Pressure Tires LED Rear Light Energy saving mode, Standard mode and Sport mode 45 psi Hollow tires. Material: NR + SBR + SILICA. Size: 8 * 2.0. Without nozzle [1] Typical Range: tested while riding under full power, 75 kg (165 lbs) load, 25°C (77°F), 60% of max. speed on average on pavement. * Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc. 04 3 Certifications This product is certified to ANSI/CAN/UL-2272 by CSA. The battery complies with UN/DOT 38.3. European Union Compliance Statement 05 06
